Crankcase, Engine Covers, Lubrication System

Triumph Adventurer · 12 diagrams

12 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Adventurer, covering the Adventurer. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

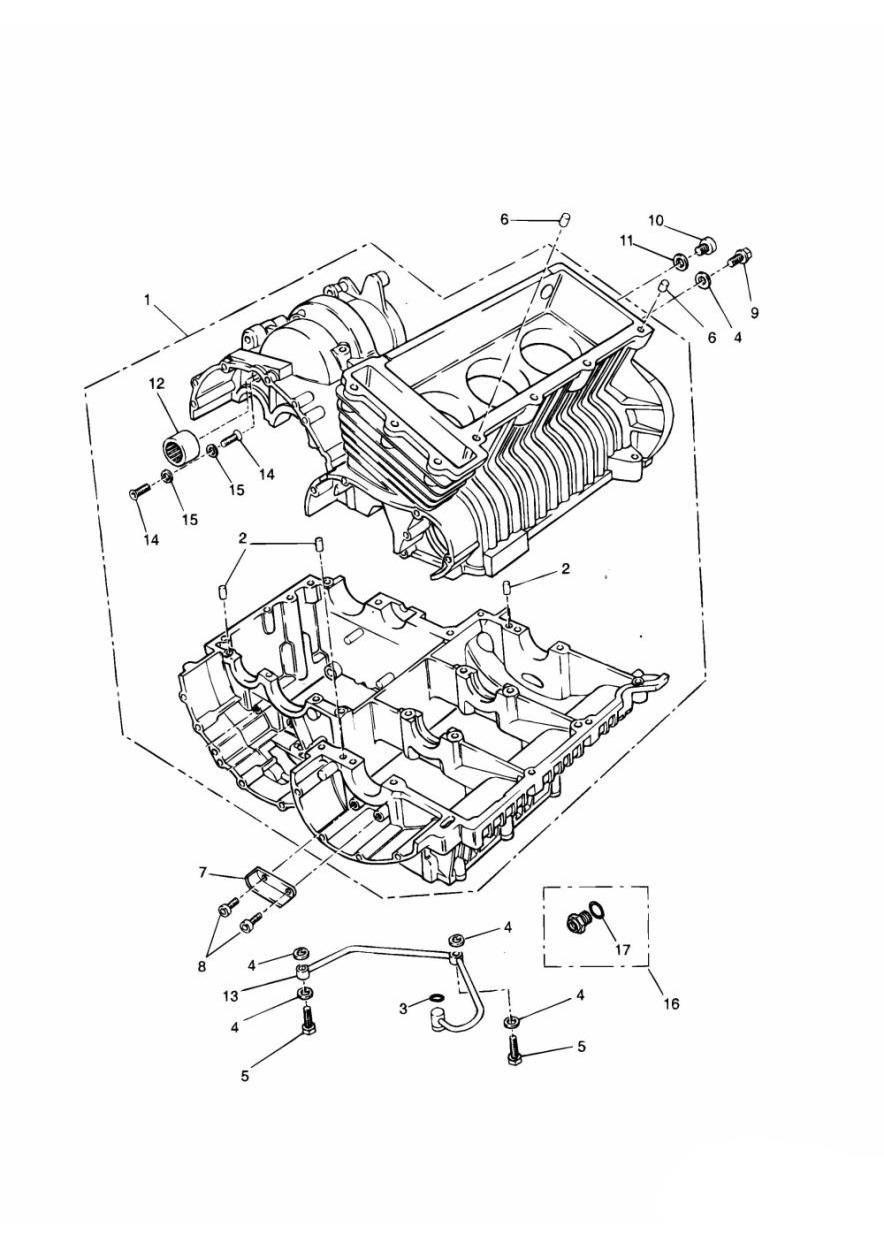

Crankcase exploded diagram
Crankcase
18 parts

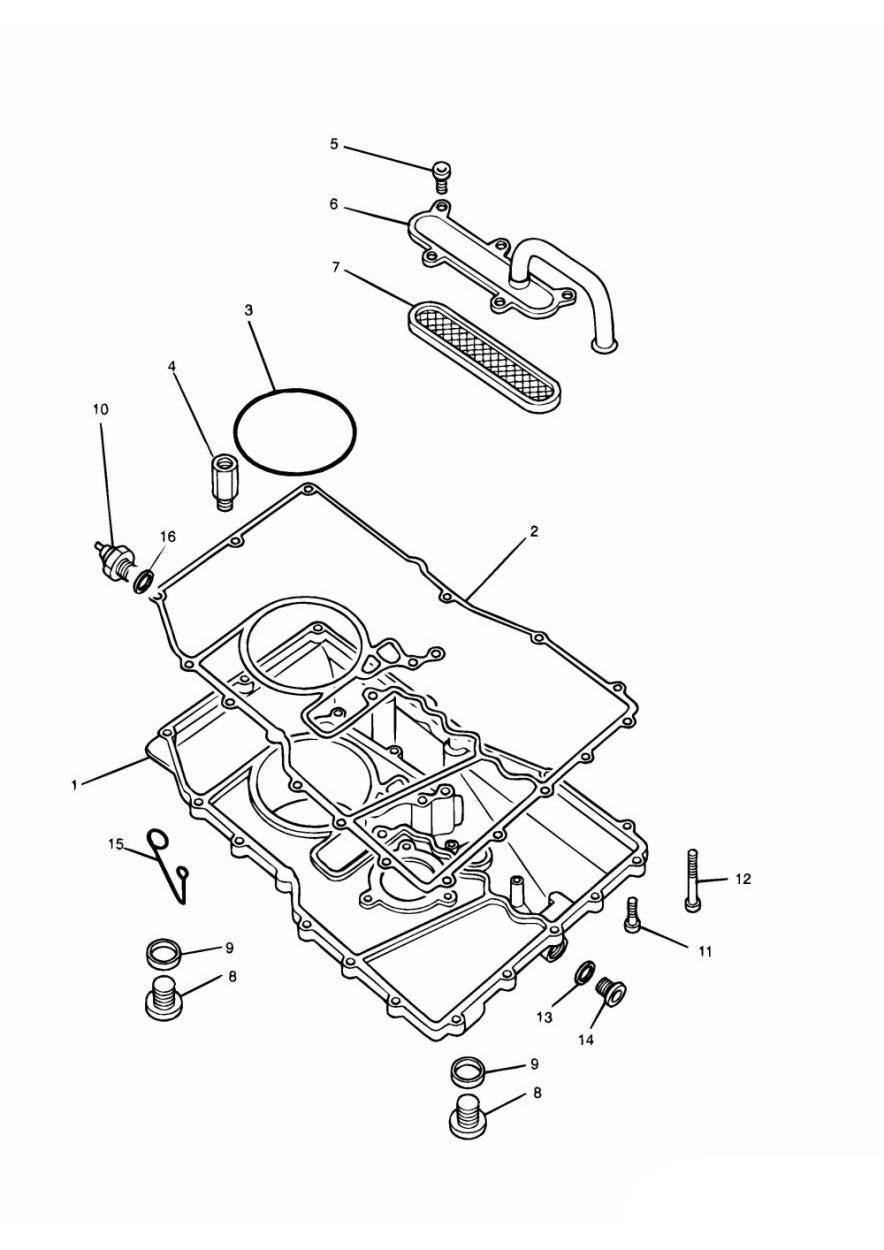

 Sump exploded diagram
Sump
20 parts

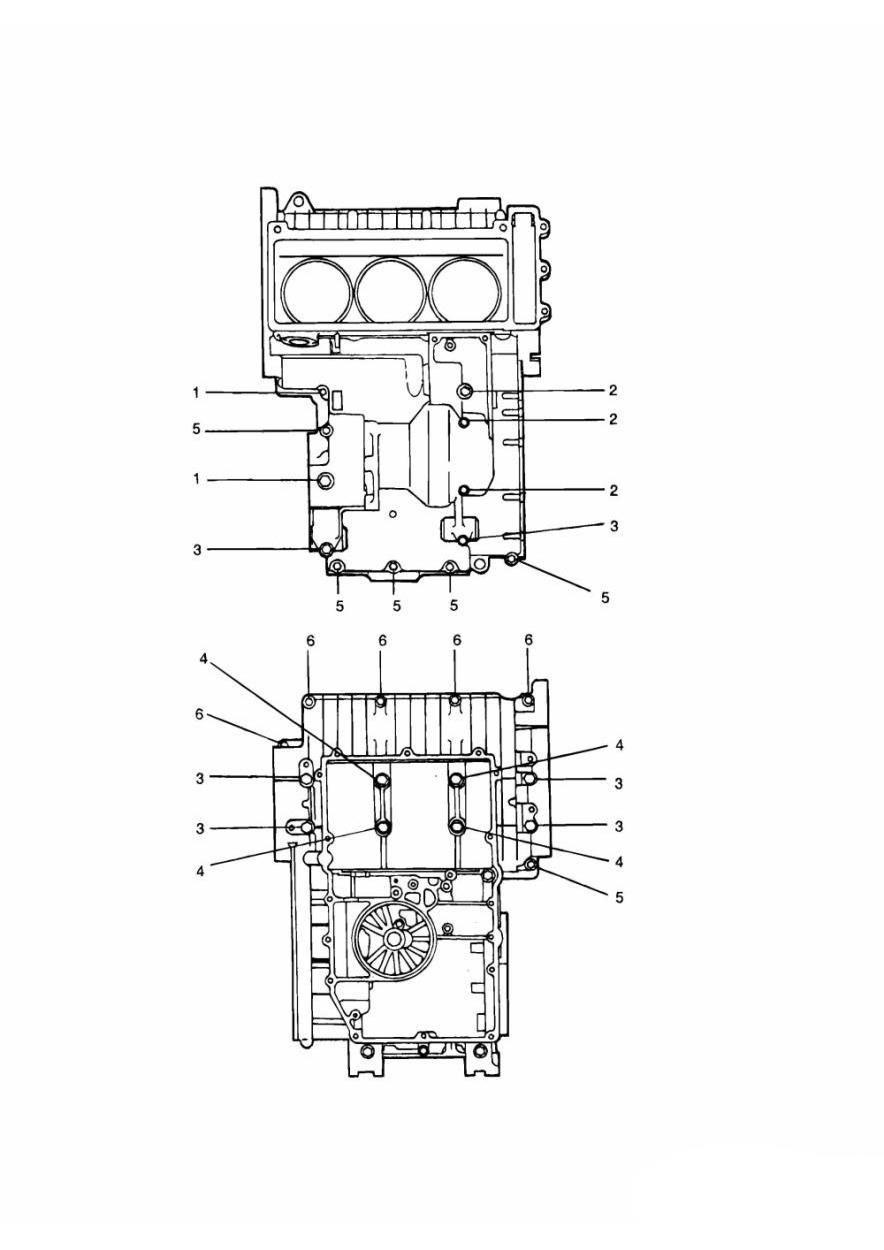

 Crankcase Fixings exploded diagram
Crankcase Fixings
6 parts

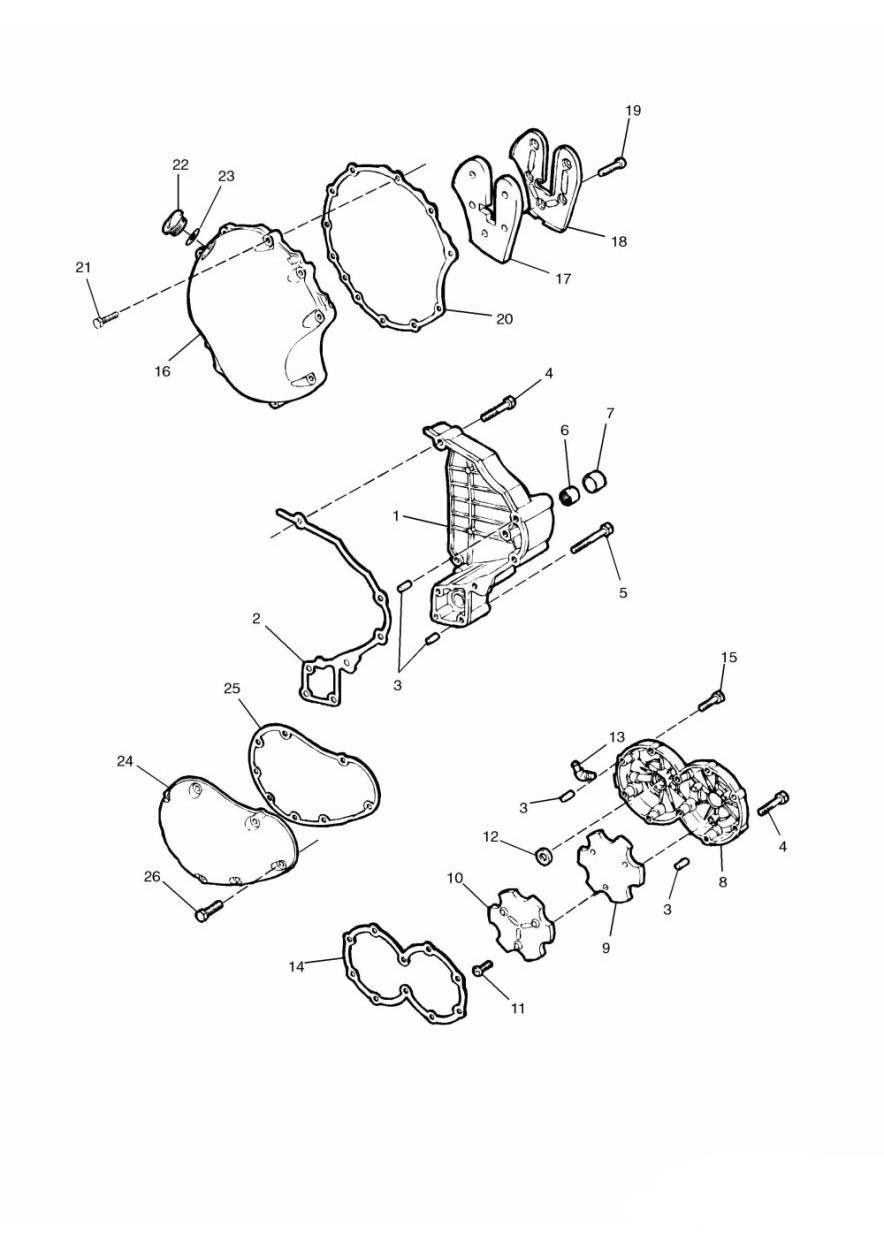

 Engine Covers exploded diagram
Engine Covers
26 parts

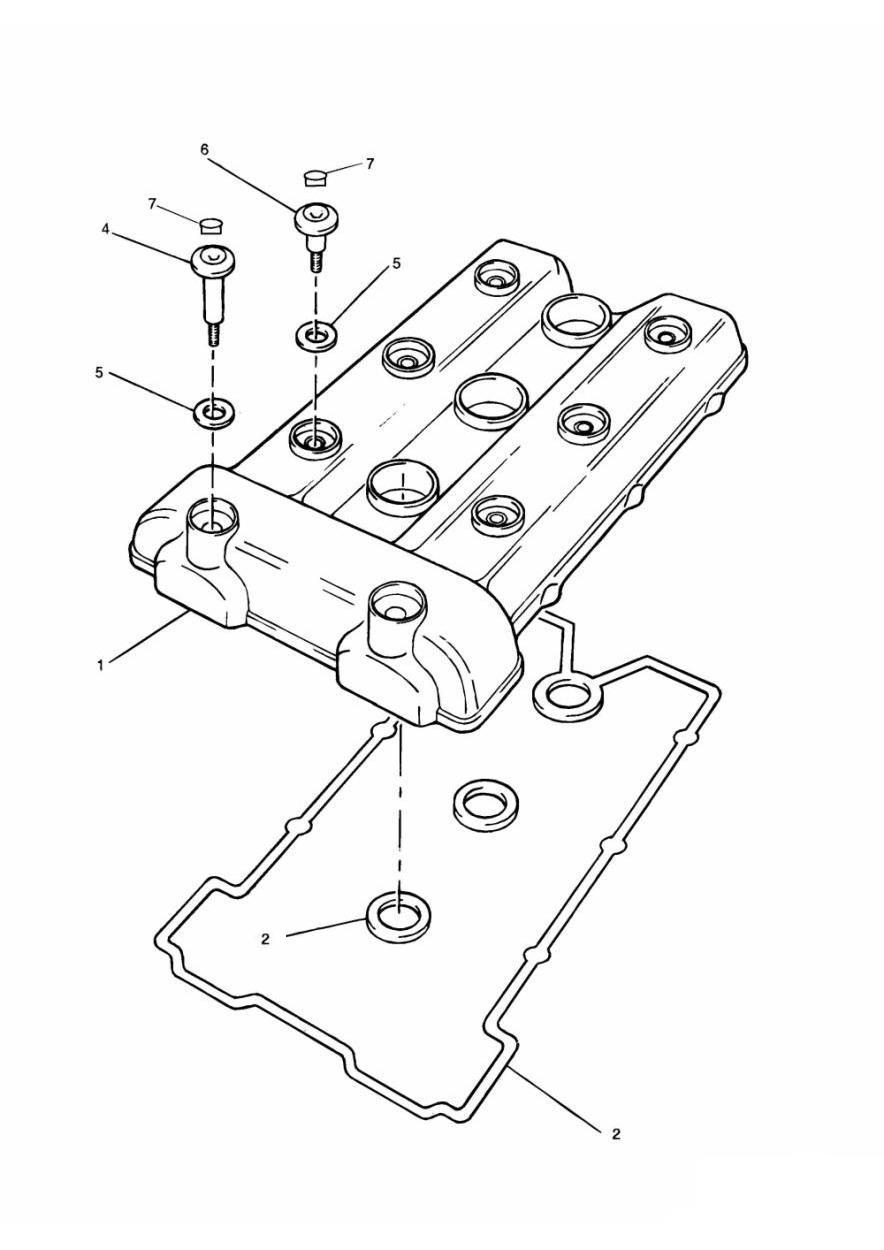

 Cam Cover exploded diagram
Cam Cover
7 parts
 Crankcase Fixings exploded diagram
Crankcase Fixings
6 parts

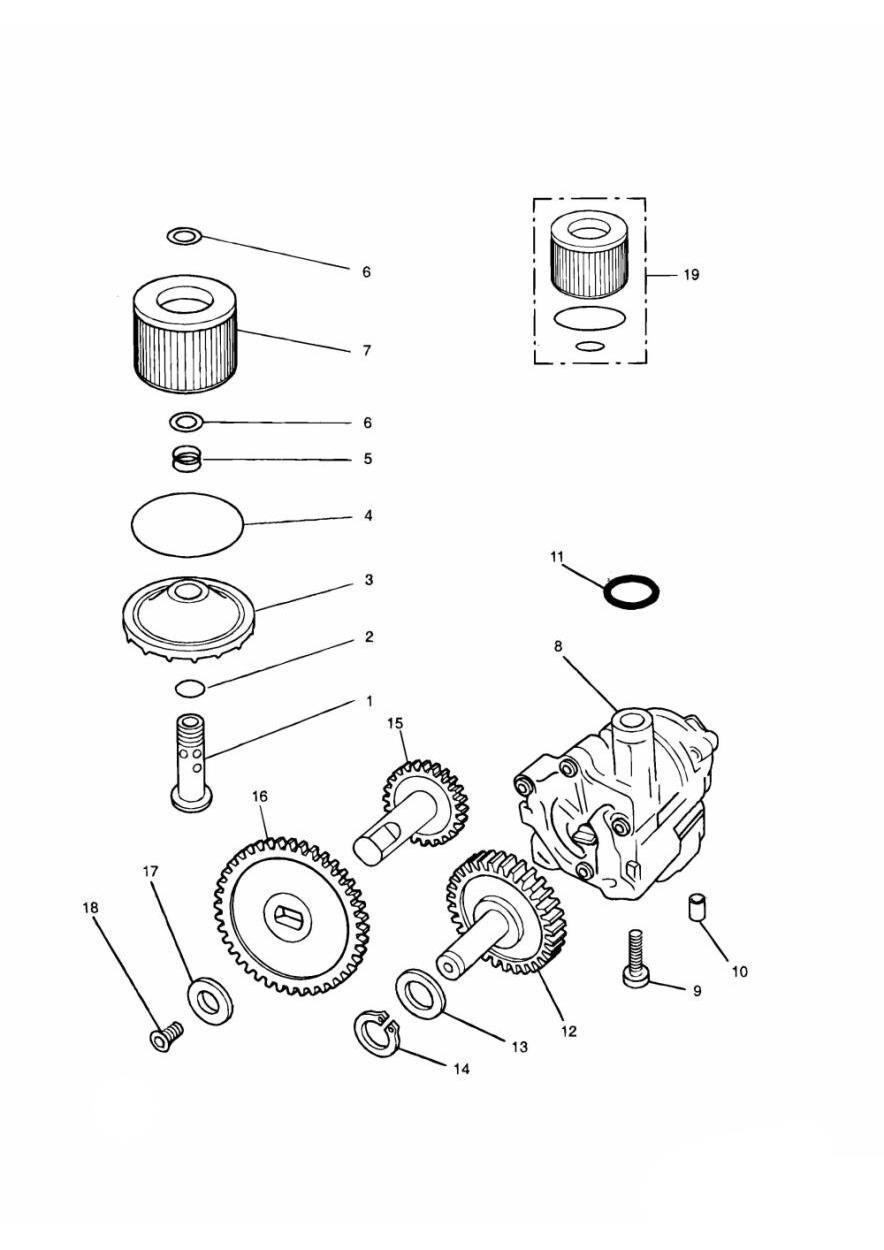

 Oil Pump, Oil Pump Drive & Oil Filter exploded diagram
Oil Pump, Oil Pump Drive & Oil Filter
28 parts

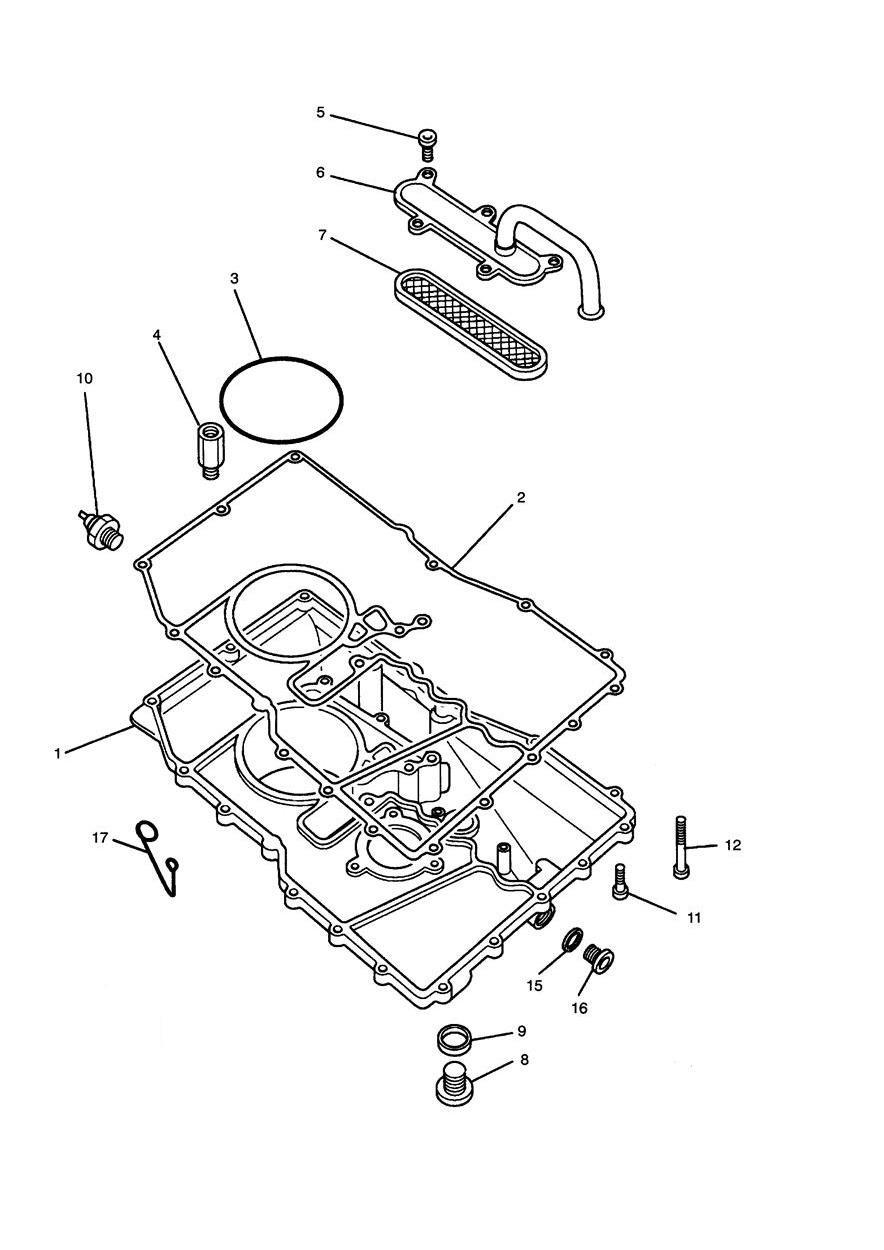

 Sump exploded diagram
Sump
17 parts

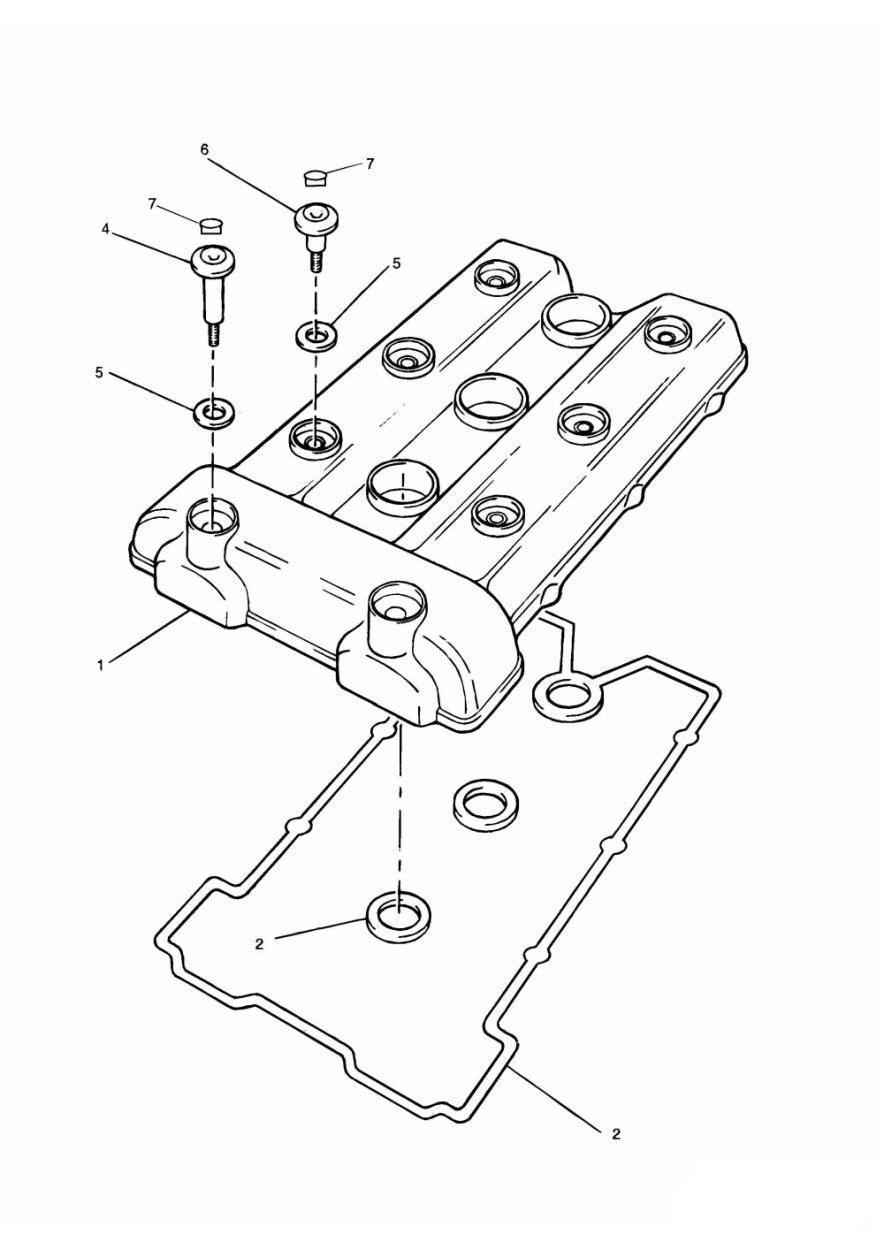

 Cam Cover exploded diagram
Cam Cover
7 parts
 Crankcase exploded diagram
Crankcase
17 parts
 Engine Covers exploded diagram
Engine Covers
26 parts
 Oil Pump, Oil Pump Drive & Oil Filter exploded diagram
Oil Pump, Oil Pump Drive & Oil Filter
21 parts
