Fuel & Exhaust Systems
Triumph Adventurer · 15 diagrams
15 exploded diagrams for the fuel & exhaust systems of the Triumph Adventurer, covering the Adventurer. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

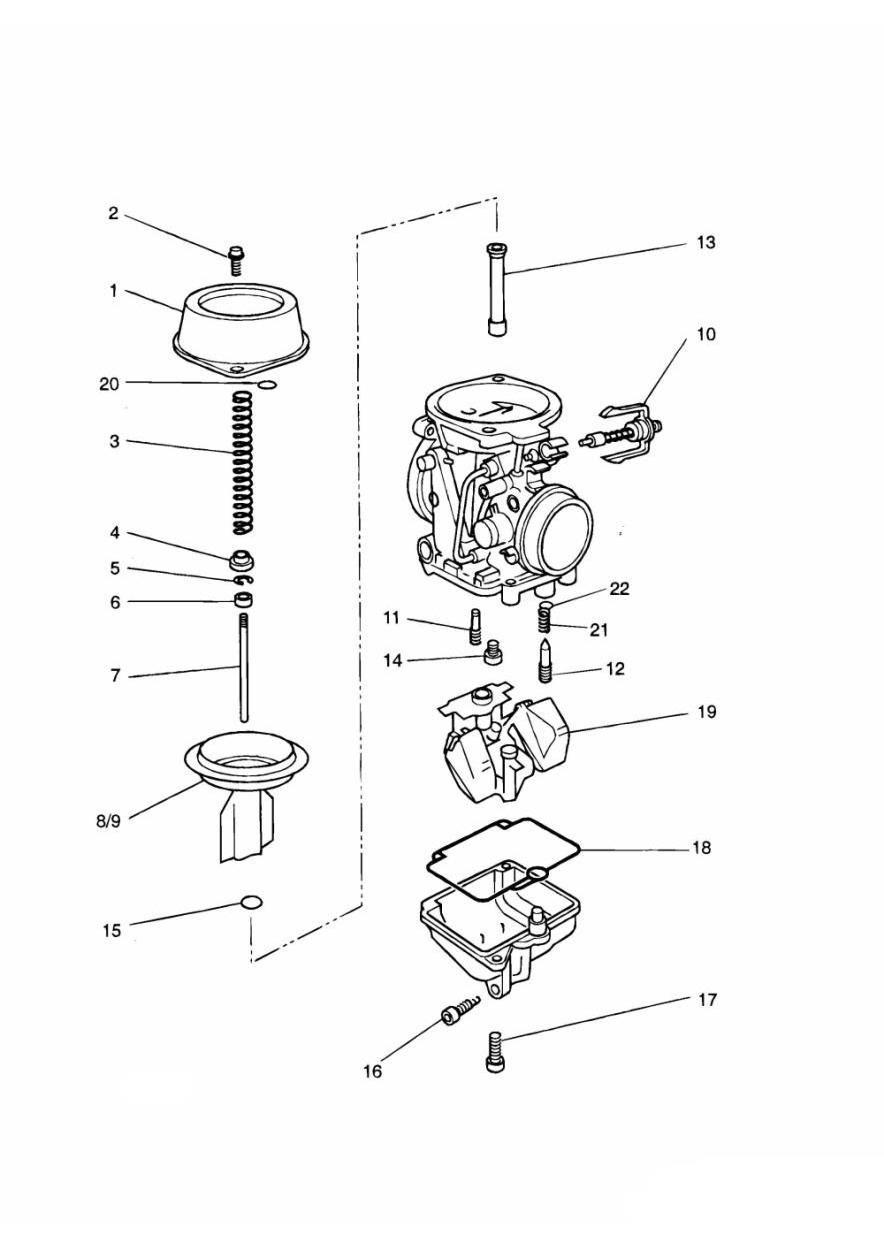

Carburettor Parts Carburettor assembly T1240194
22 parts

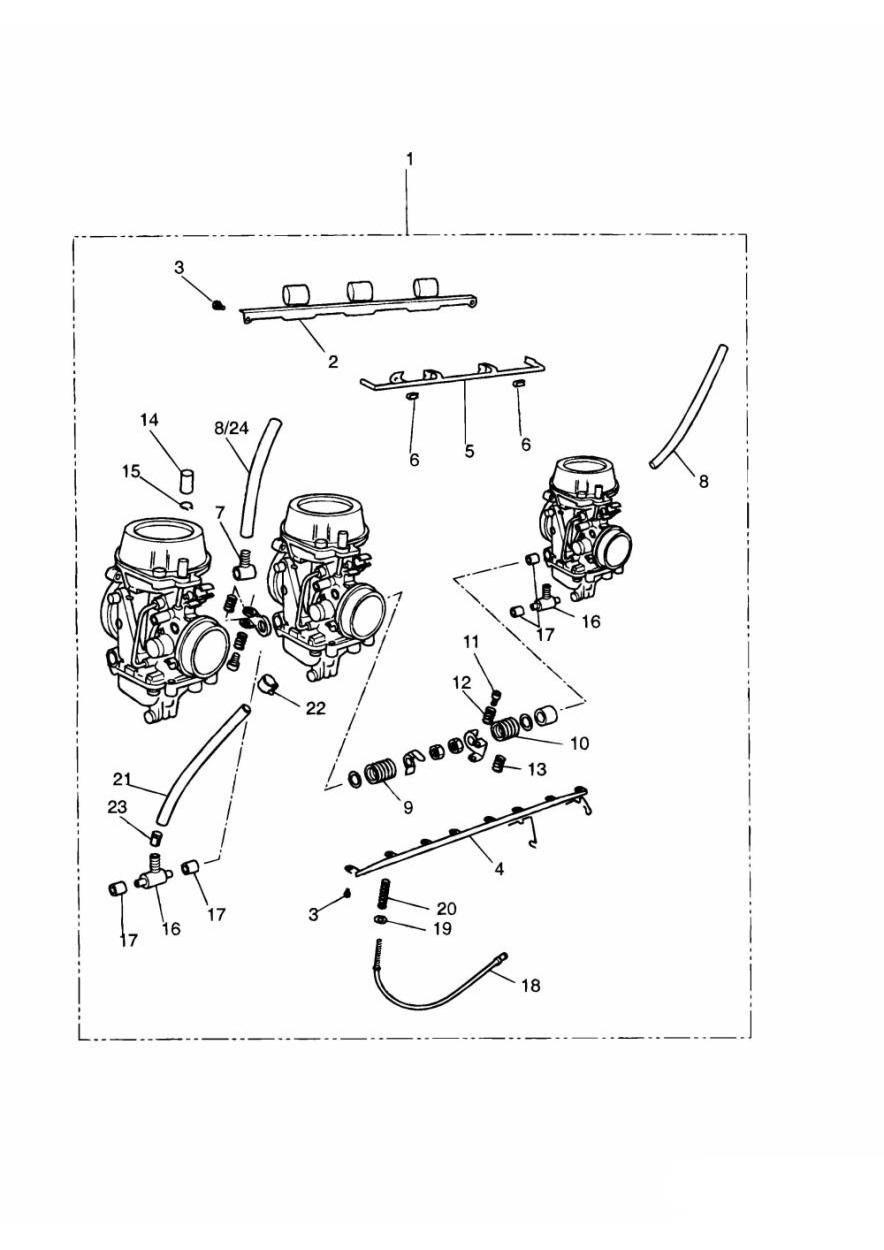

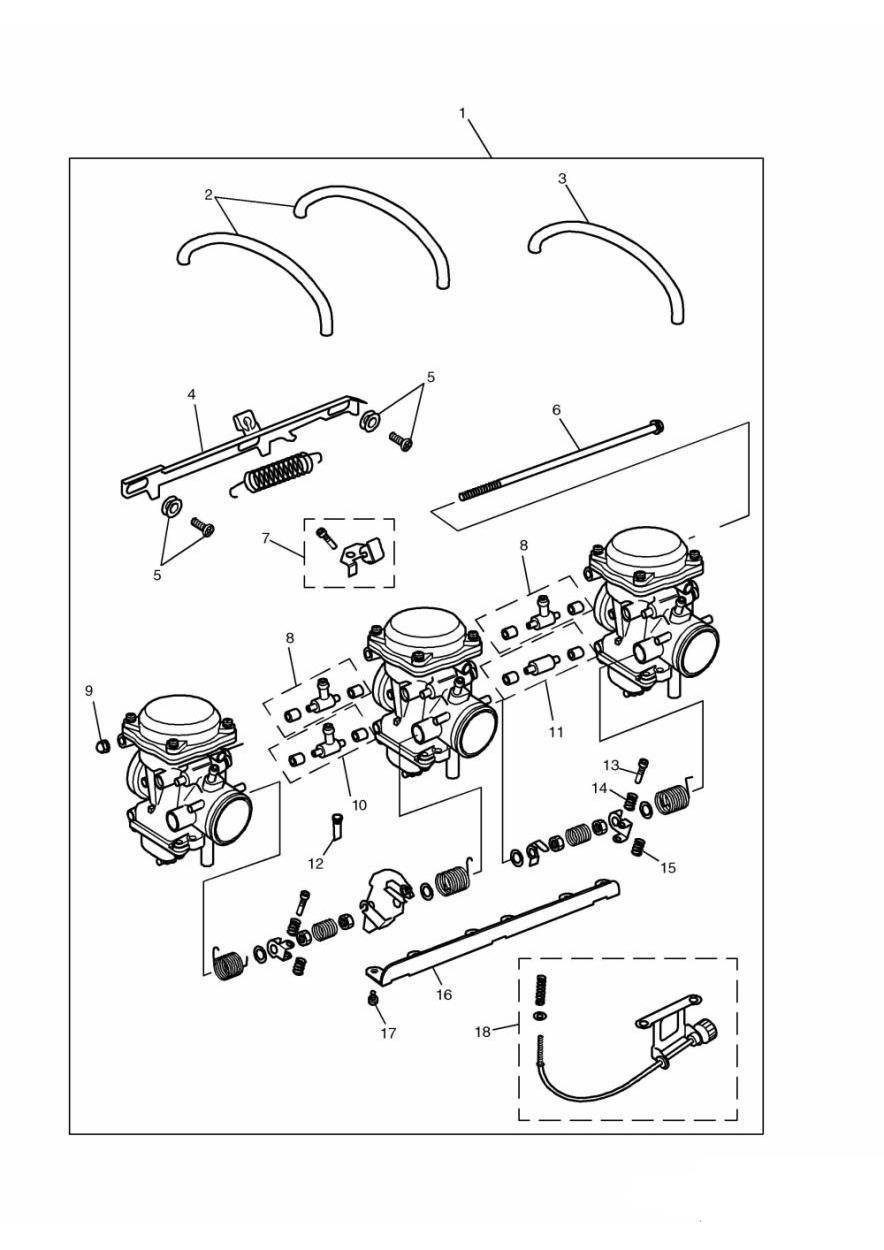

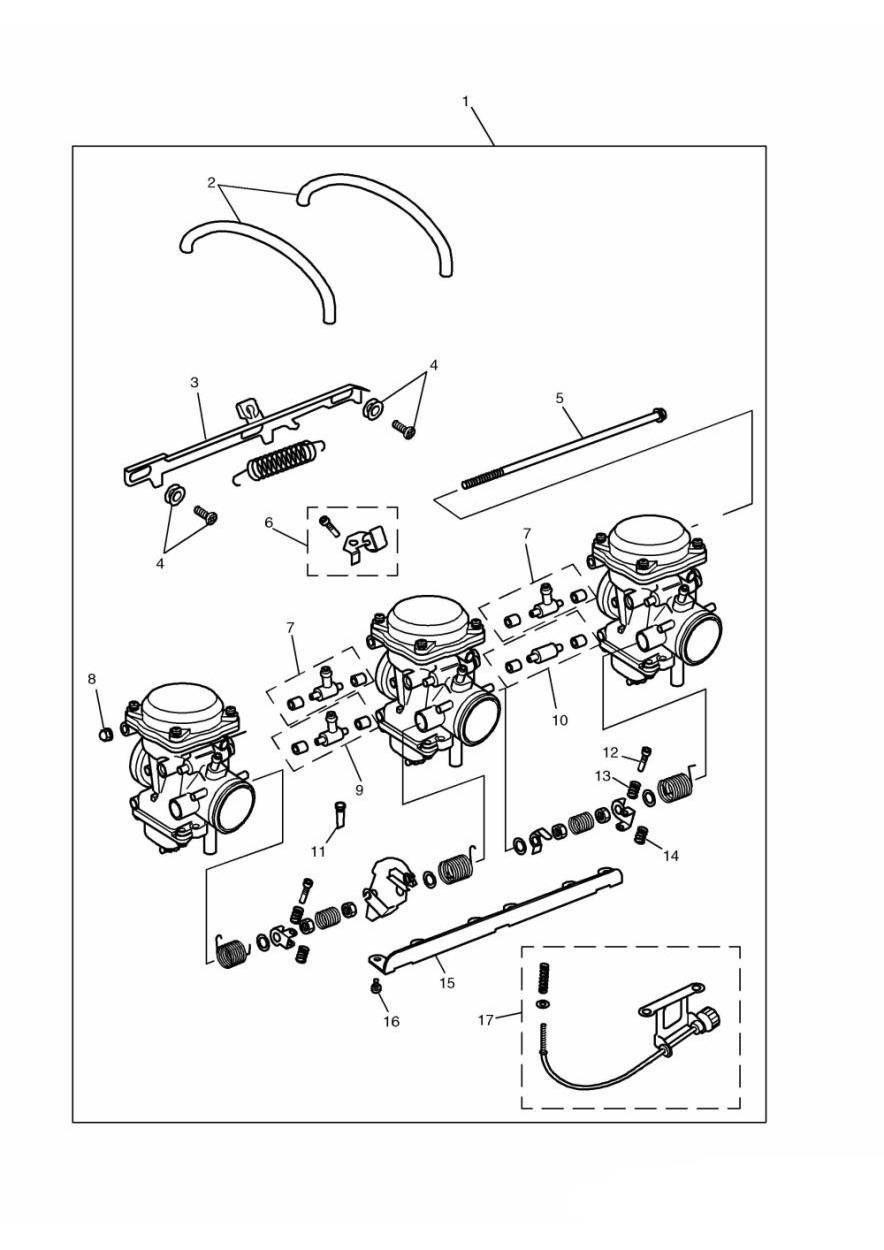

Carburettors
17 parts

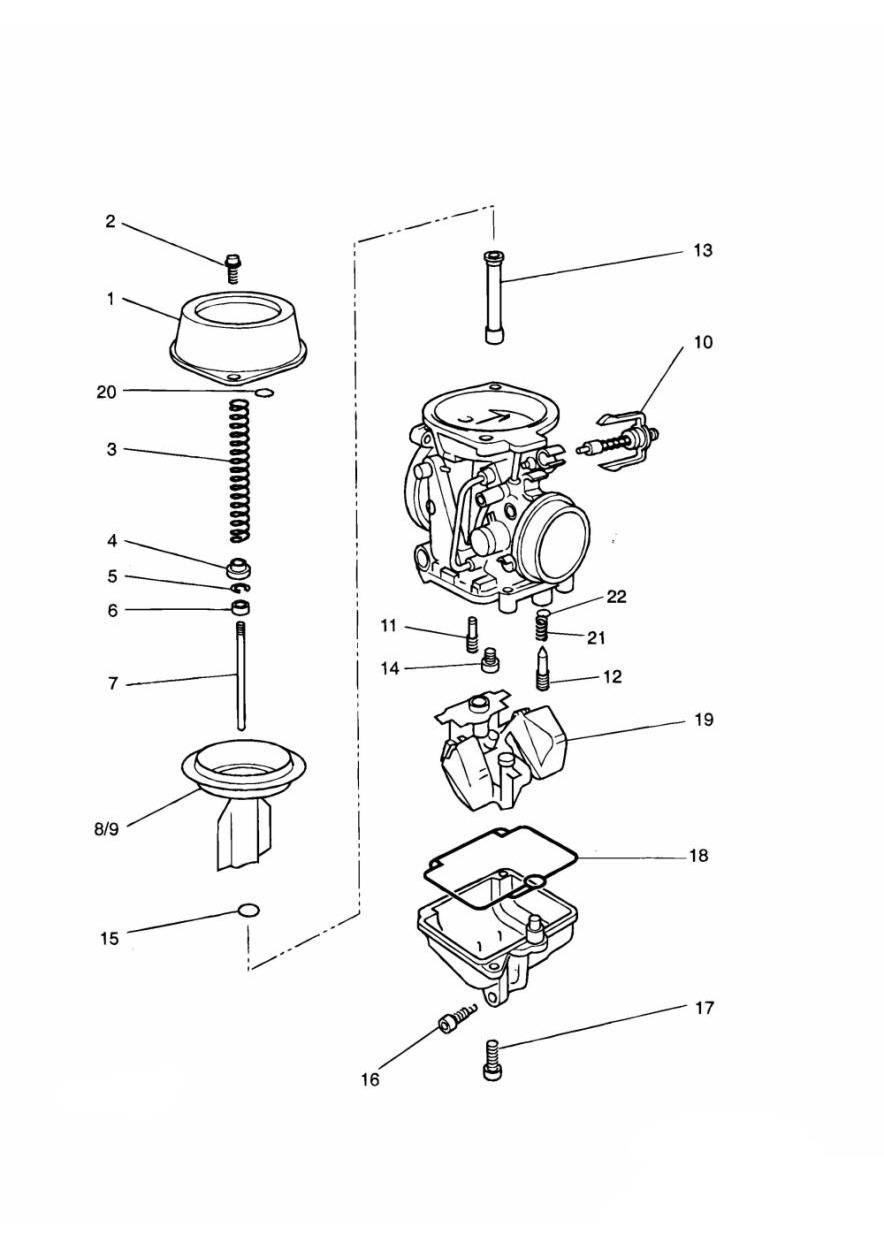

Carburettor Parts Carburettor assemblies T1240932 & T1240640
22 parts

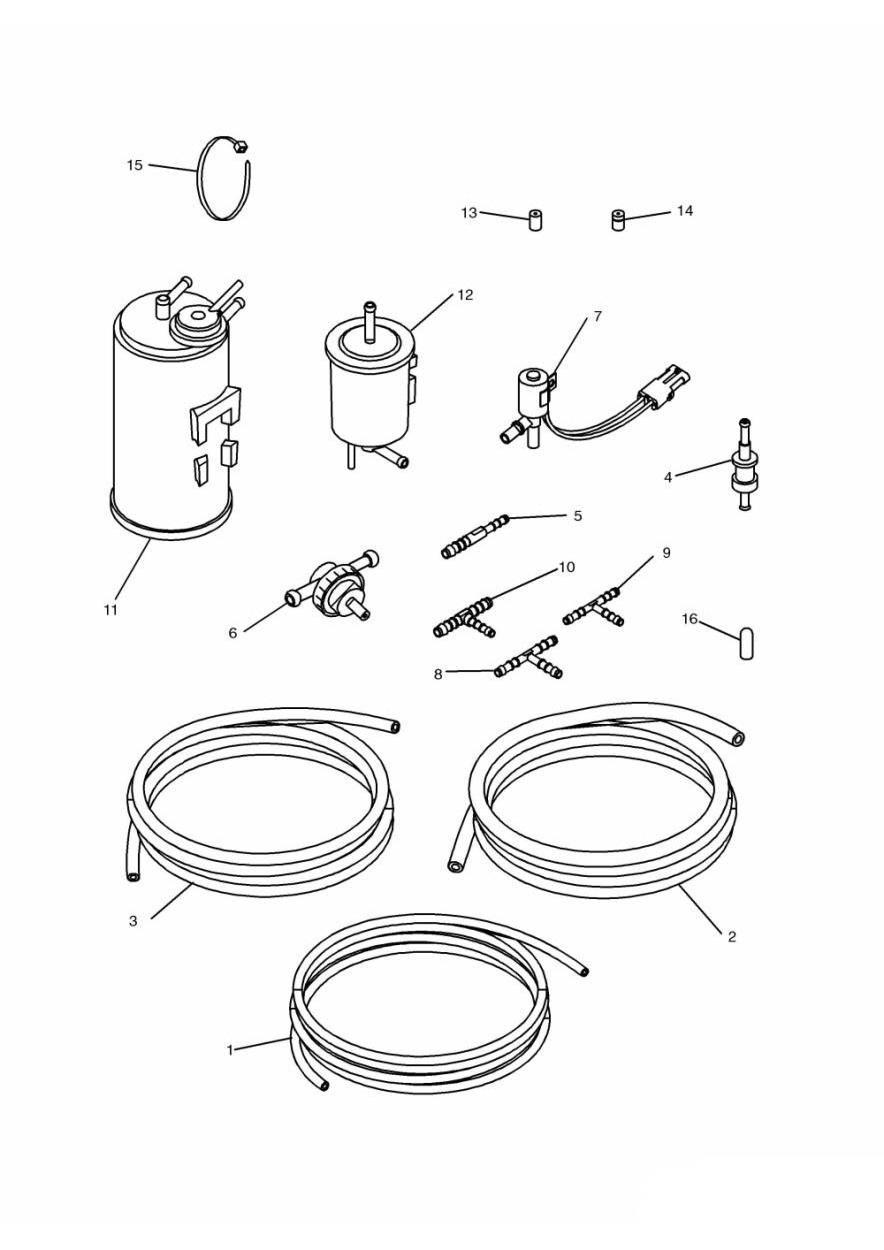

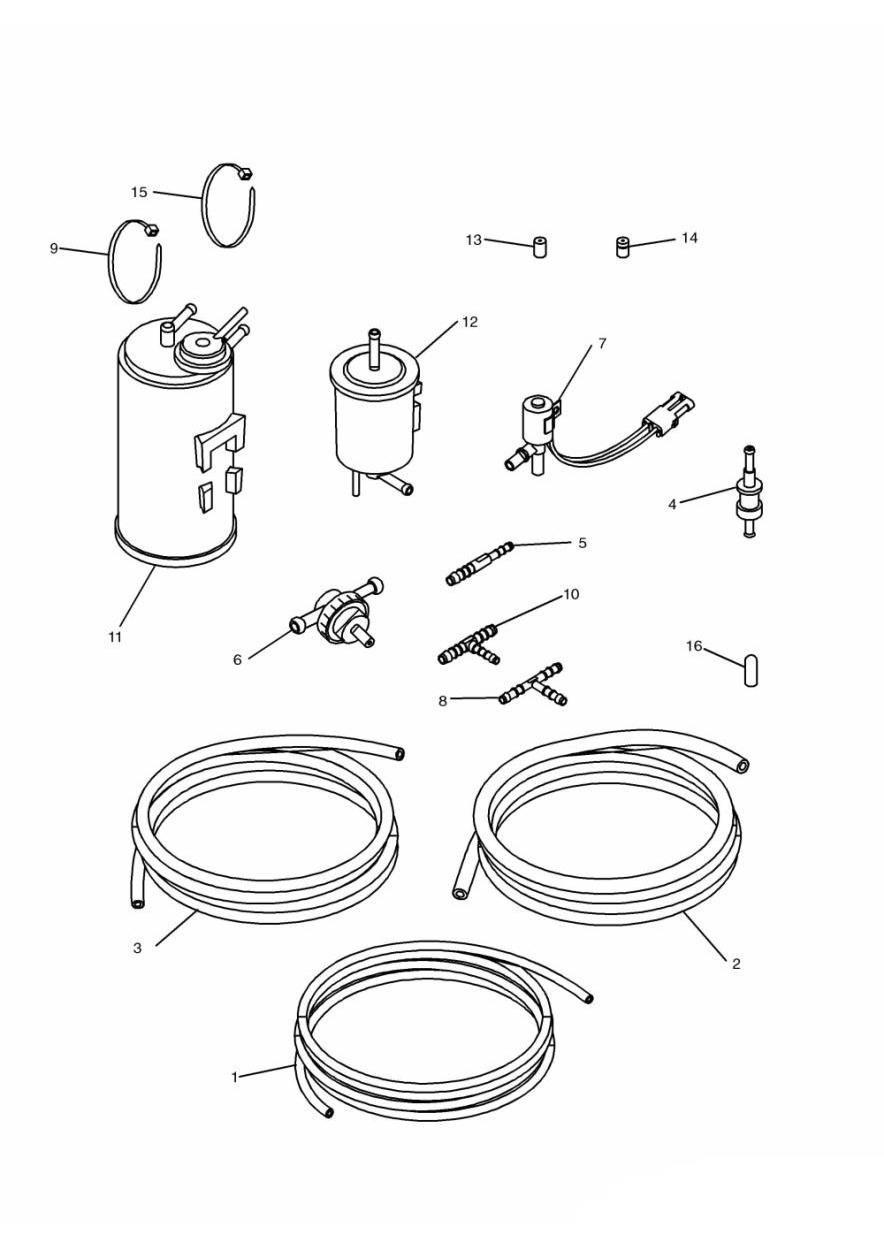

Evaporative Loss Equipment US California models only
16 parts

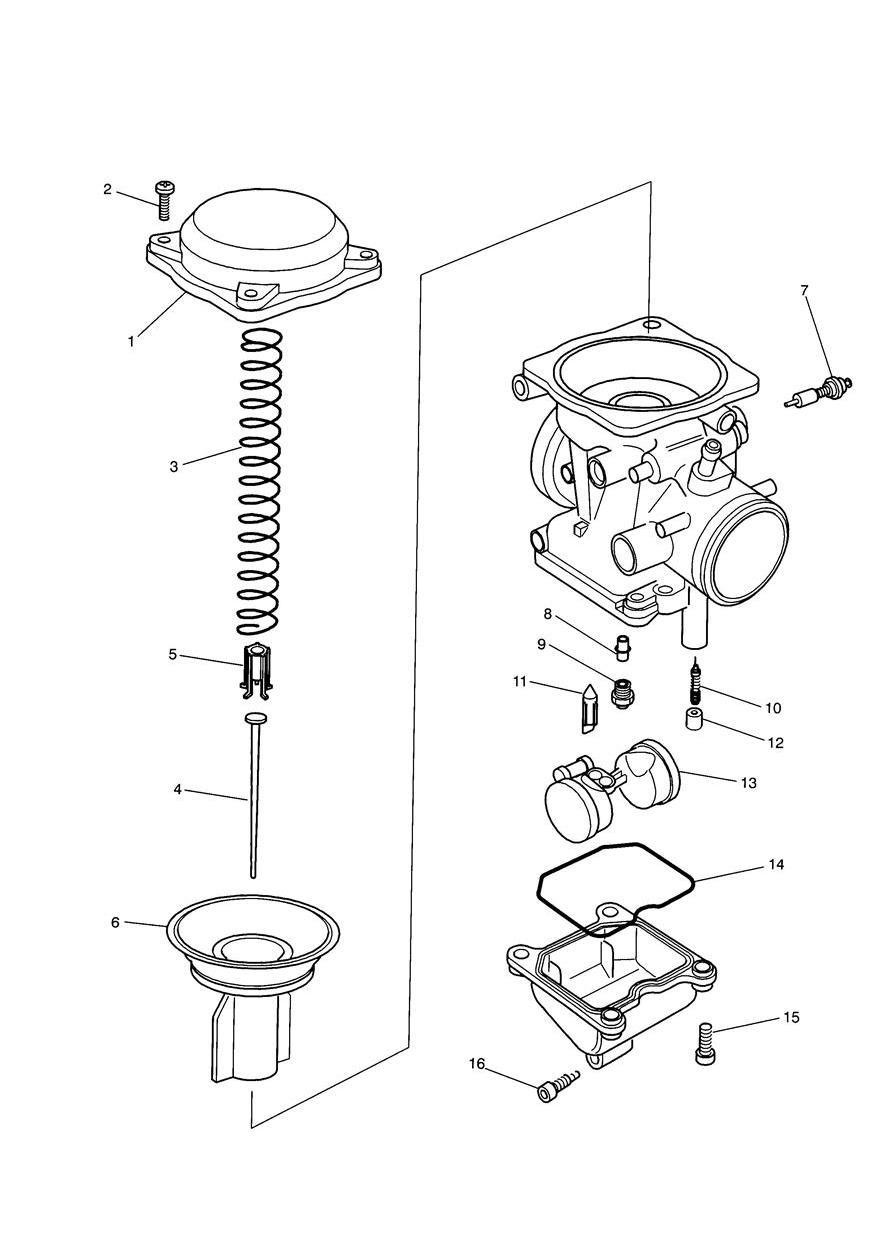

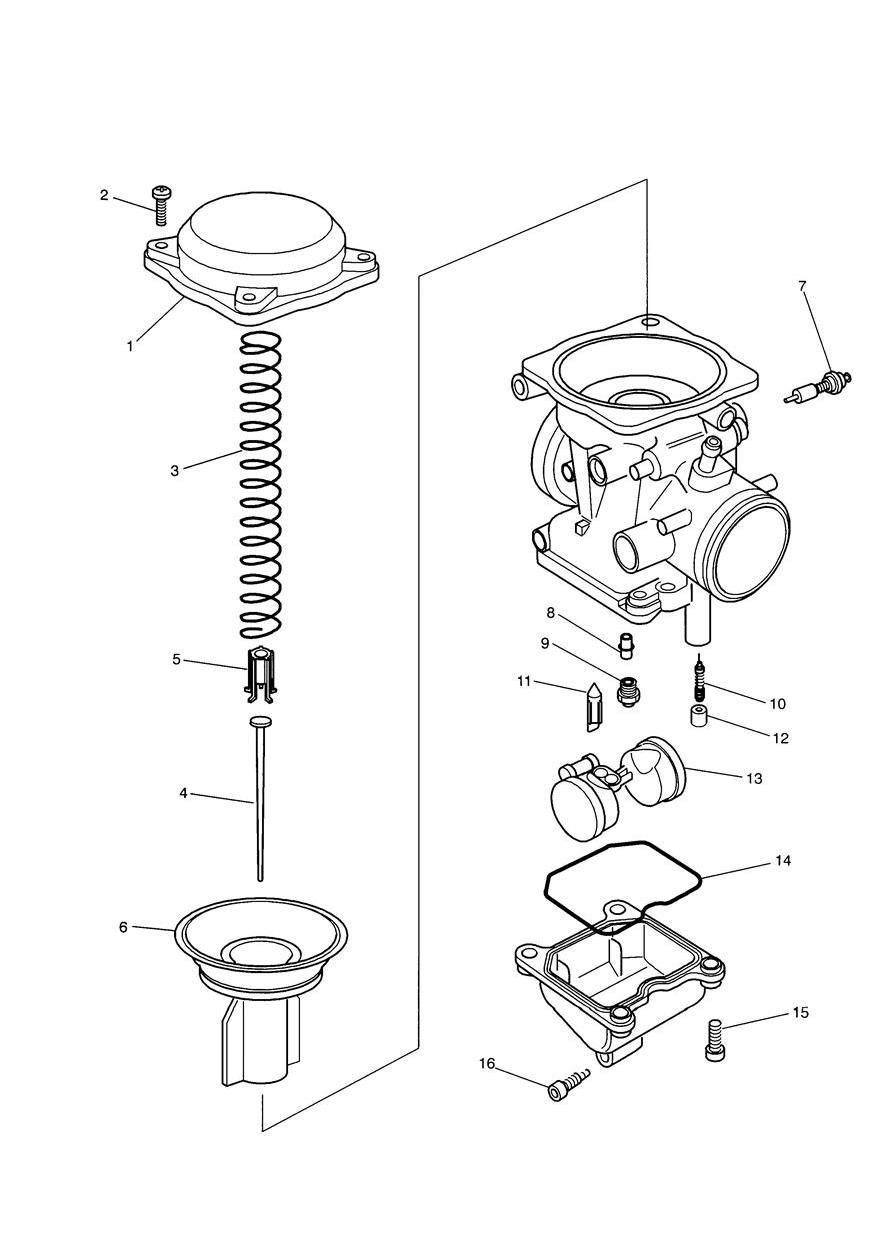

Carburettor Parts Carburettor assembly T1240670
17 parts

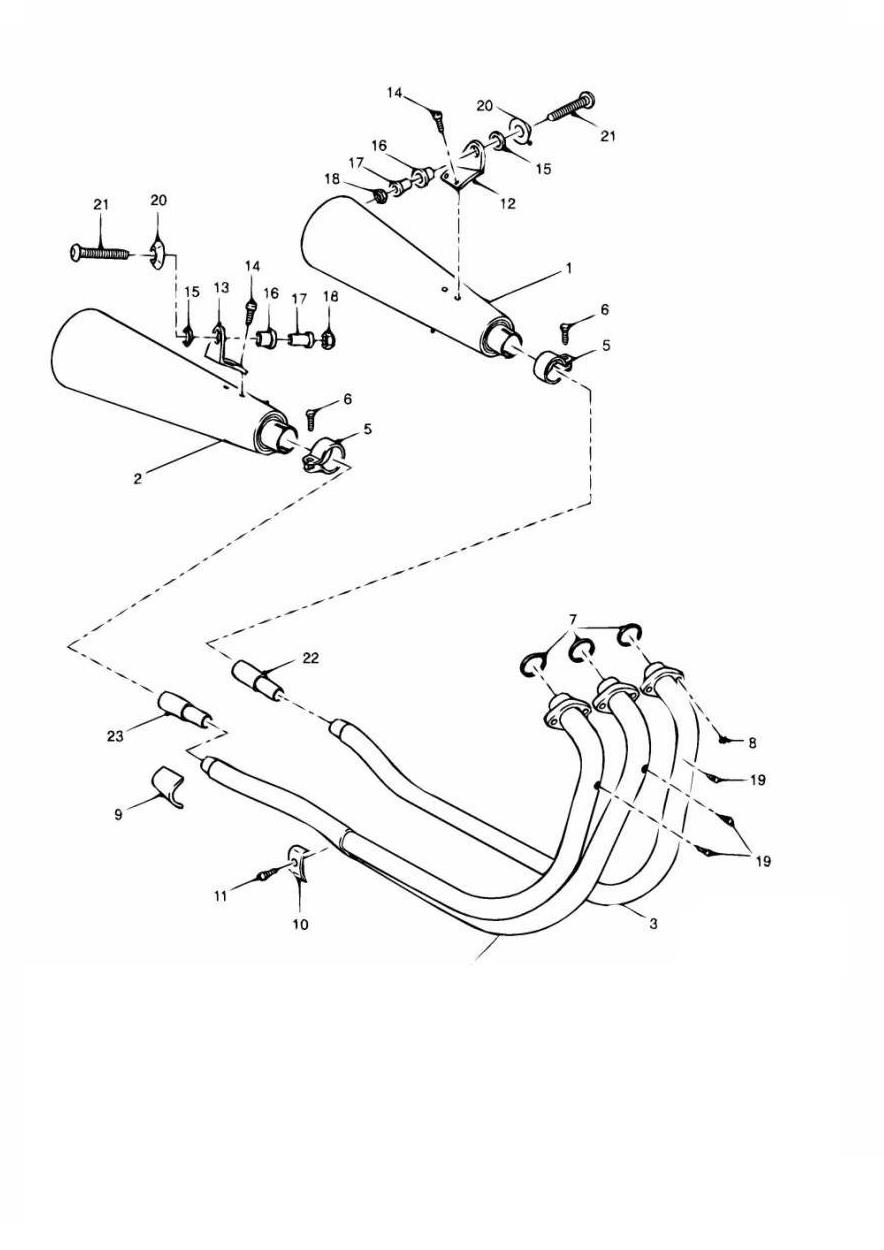

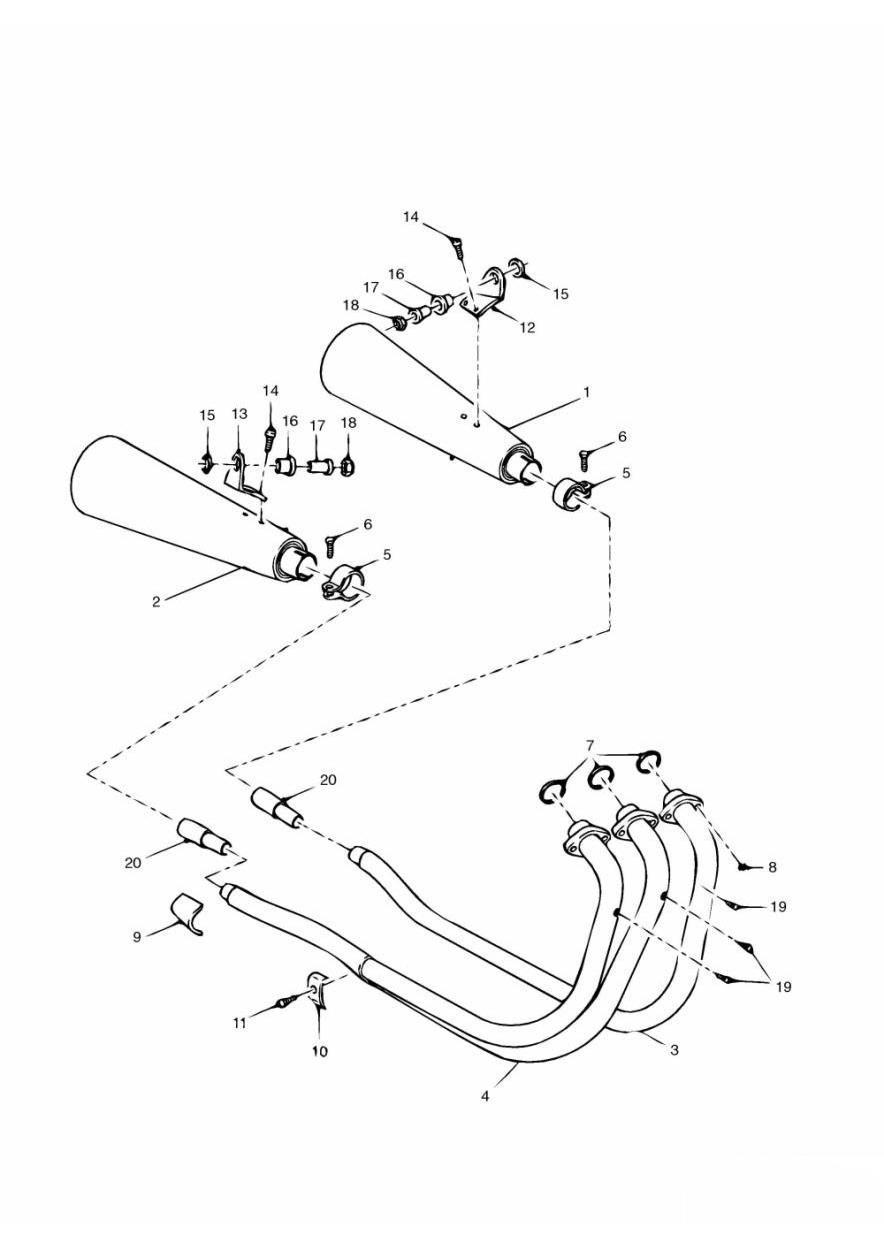

Exhaust System
20 parts

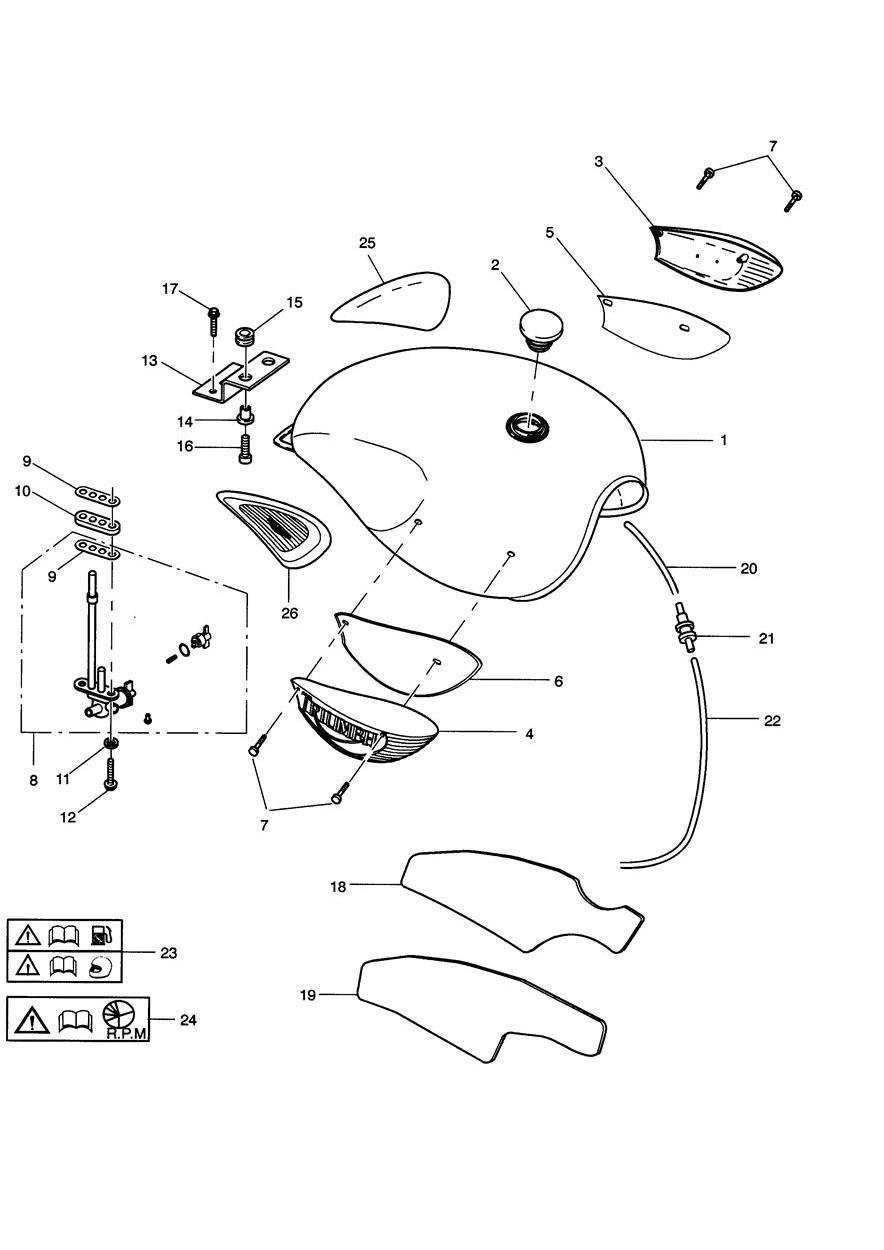

Fuel Tank and Fittings
31 parts

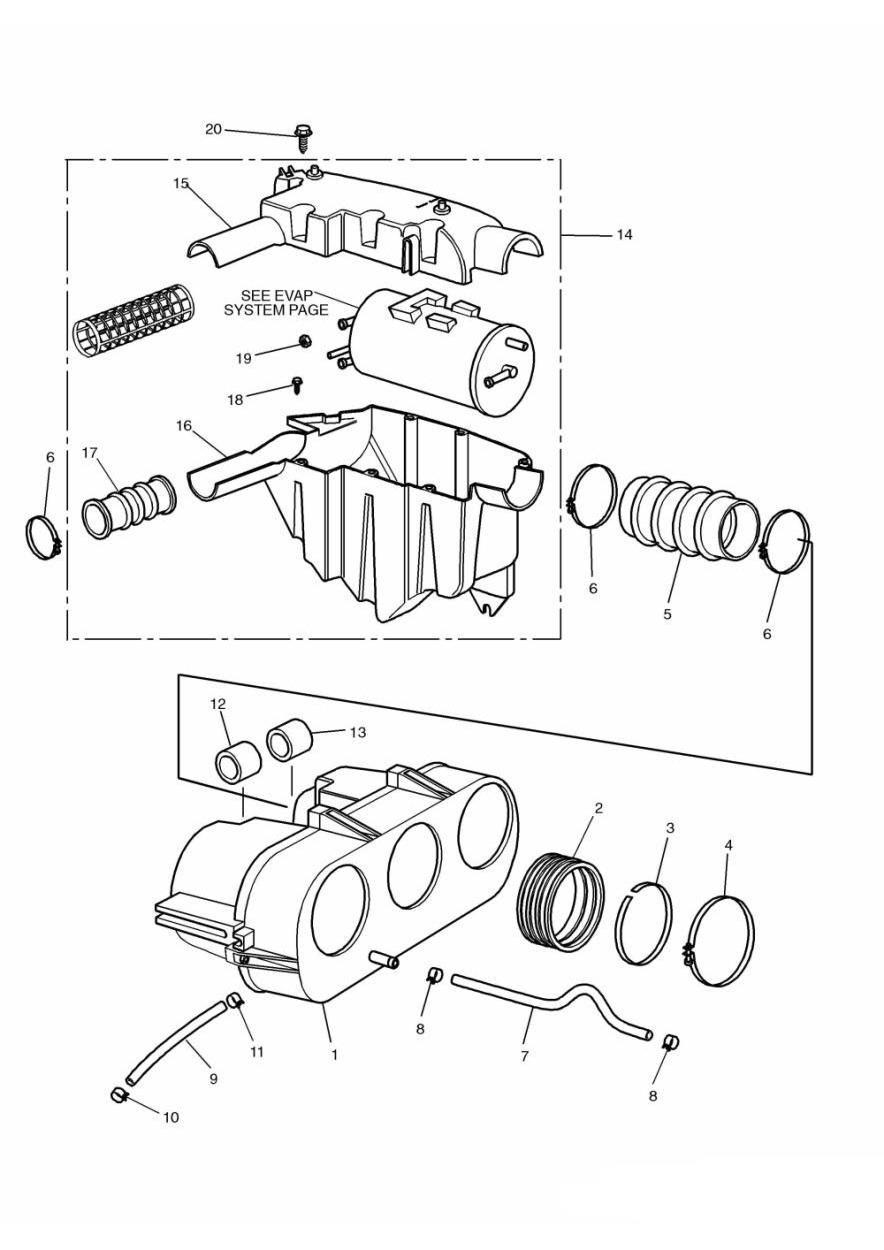

Airbox
25 parts
Carburettor Parts Carburettor assembly T1240670
16 parts
Airbox
22 parts
Evaporative Loss Equipment US California models only
17 parts
Exhaust System
25 parts

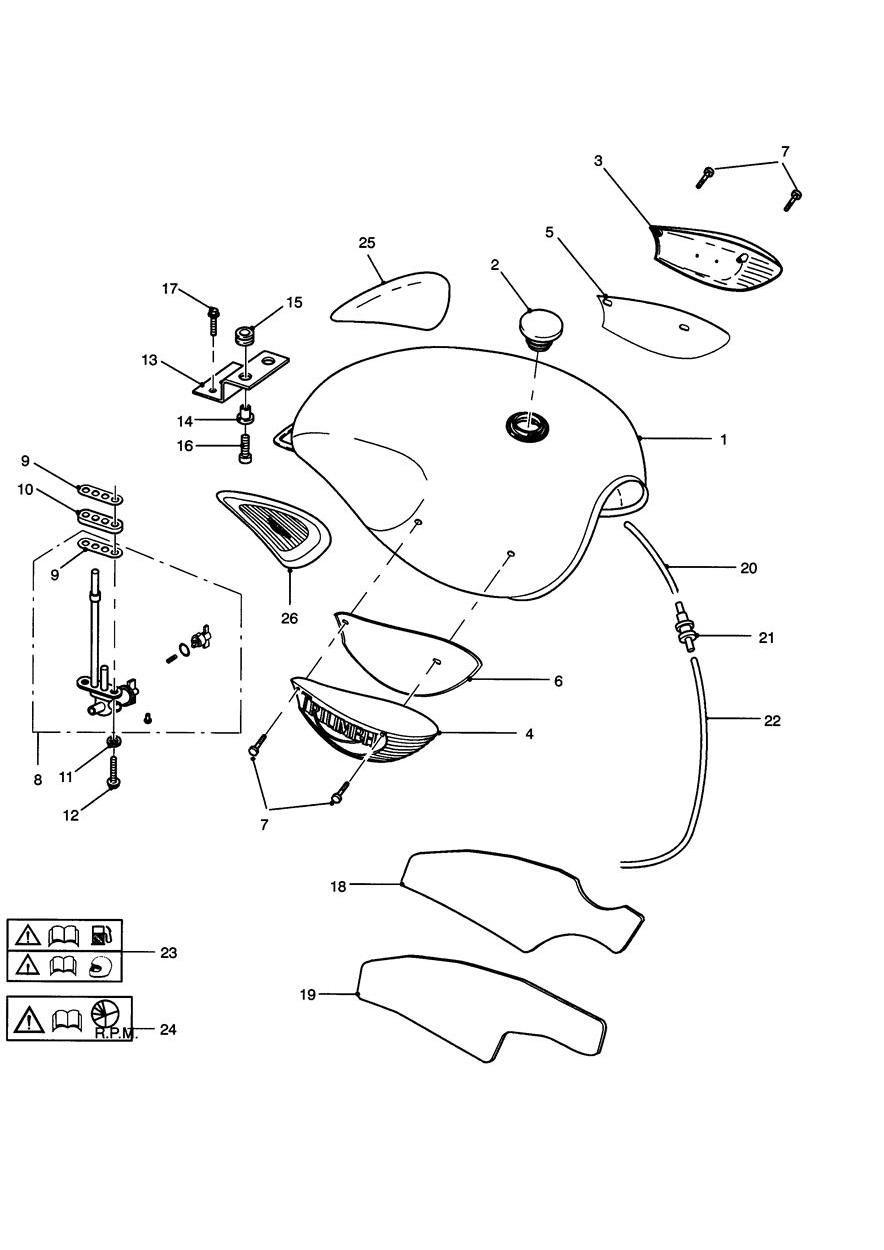

Fuel Tank and Fittings
27 parts
