Clutch & Transmission incl. Gearchange Mechanism

Triumph Air Cooled Scramblers · 8 diagrams

8 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Air Cooled Scramblers, covering the Air-Cooled Scrambler. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

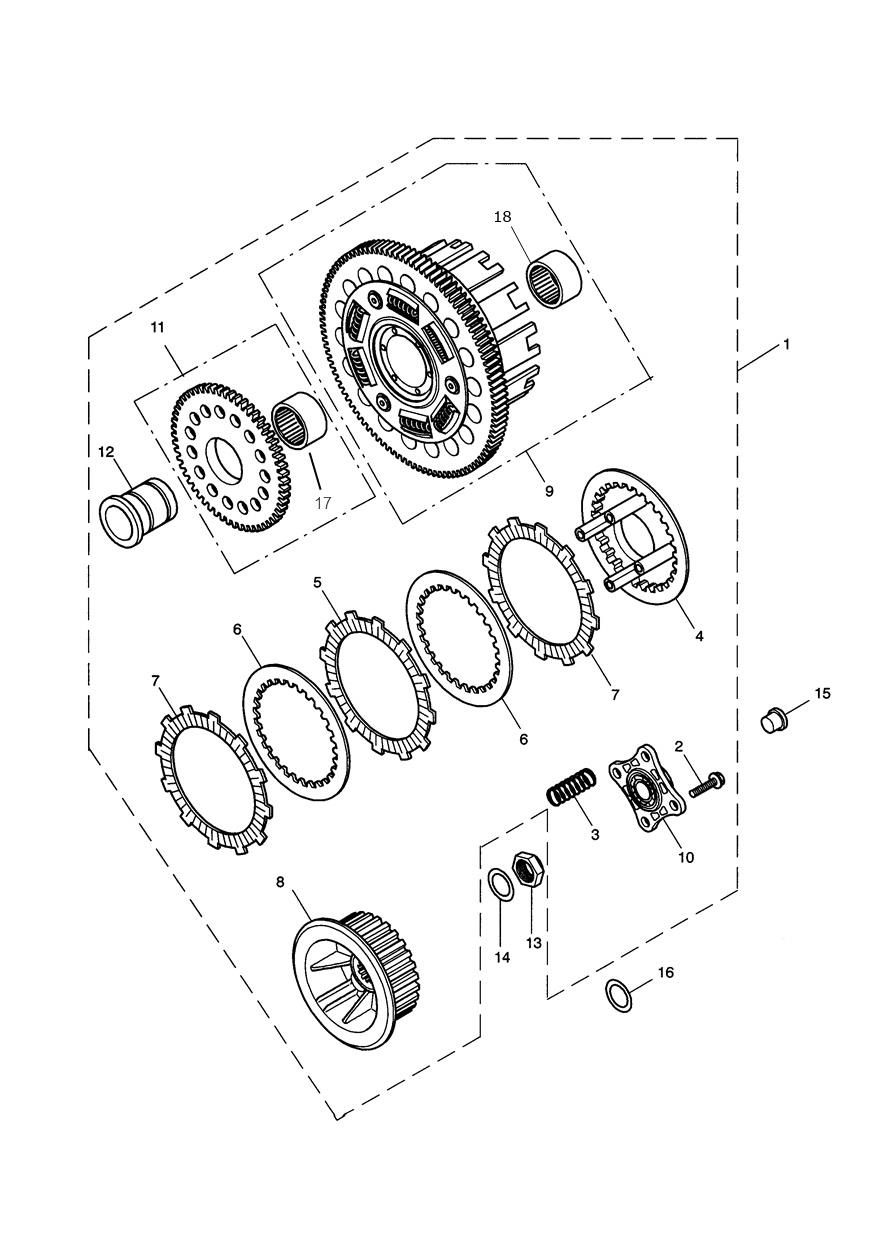

Clutch exploded diagram
Clutch
16 parts

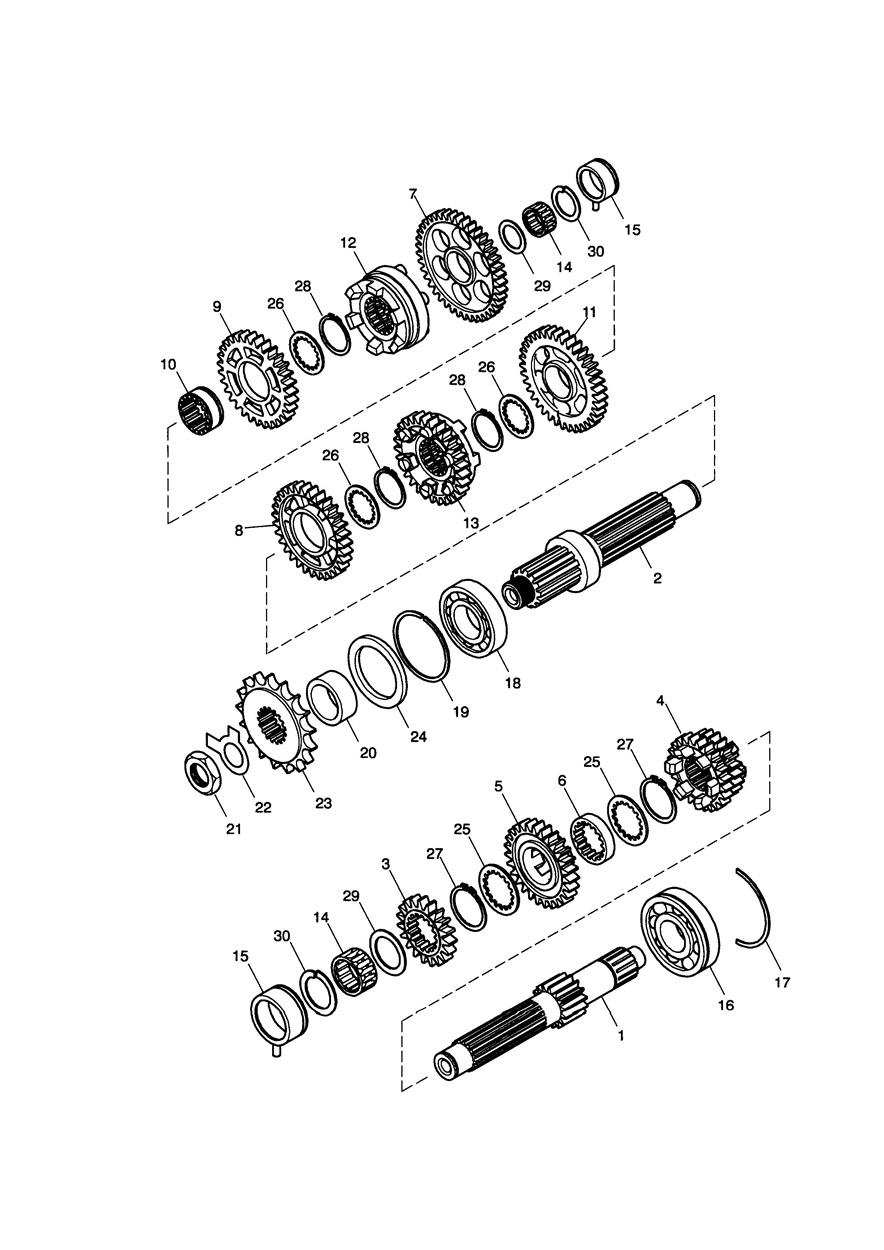

 Transmission exploded diagram
Transmission
30 parts

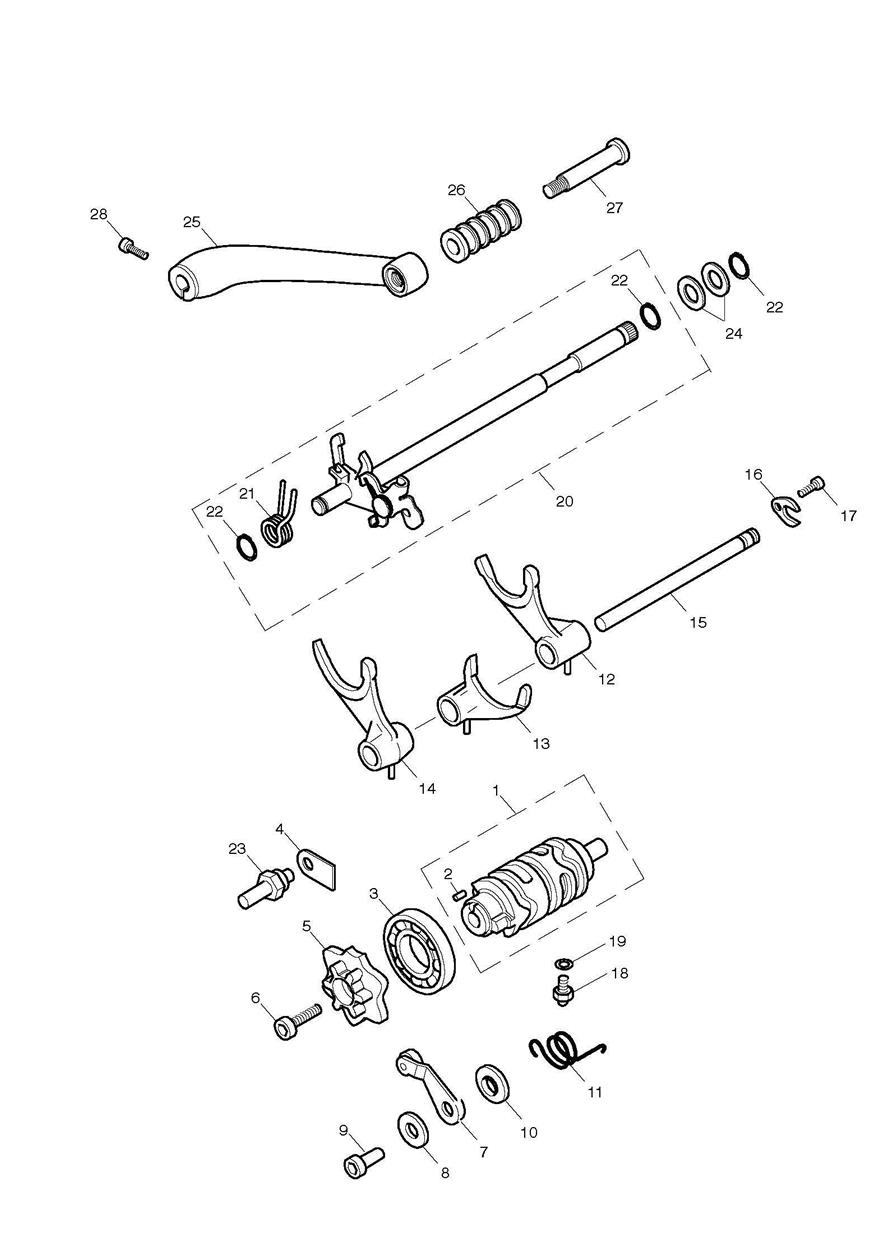

 Gear Selectors & Pedal exploded diagram
Gear Selectors & Pedal
29 parts

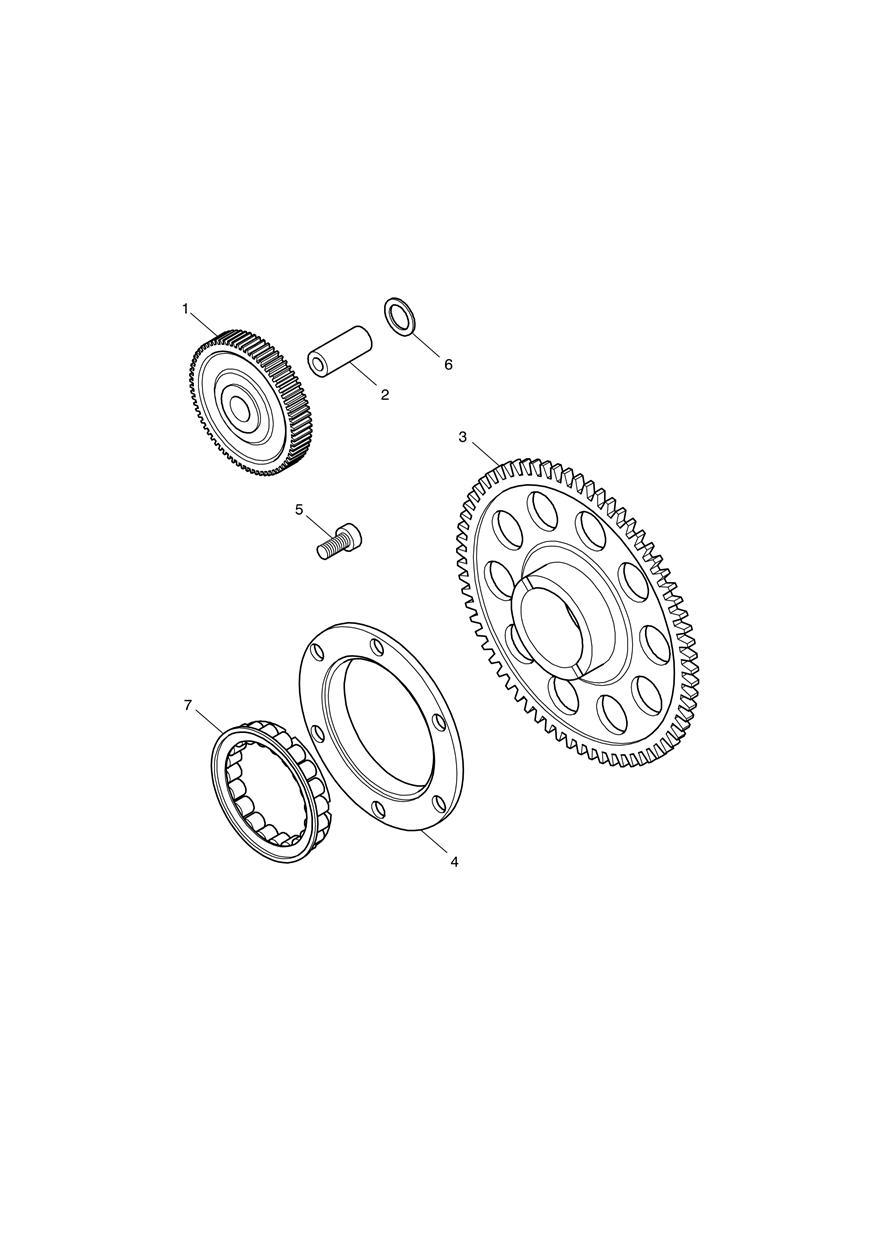

 Starter Drive exploded diagram
Starter Drive
7 parts
 Clutch exploded diagram
Clutch
23 parts

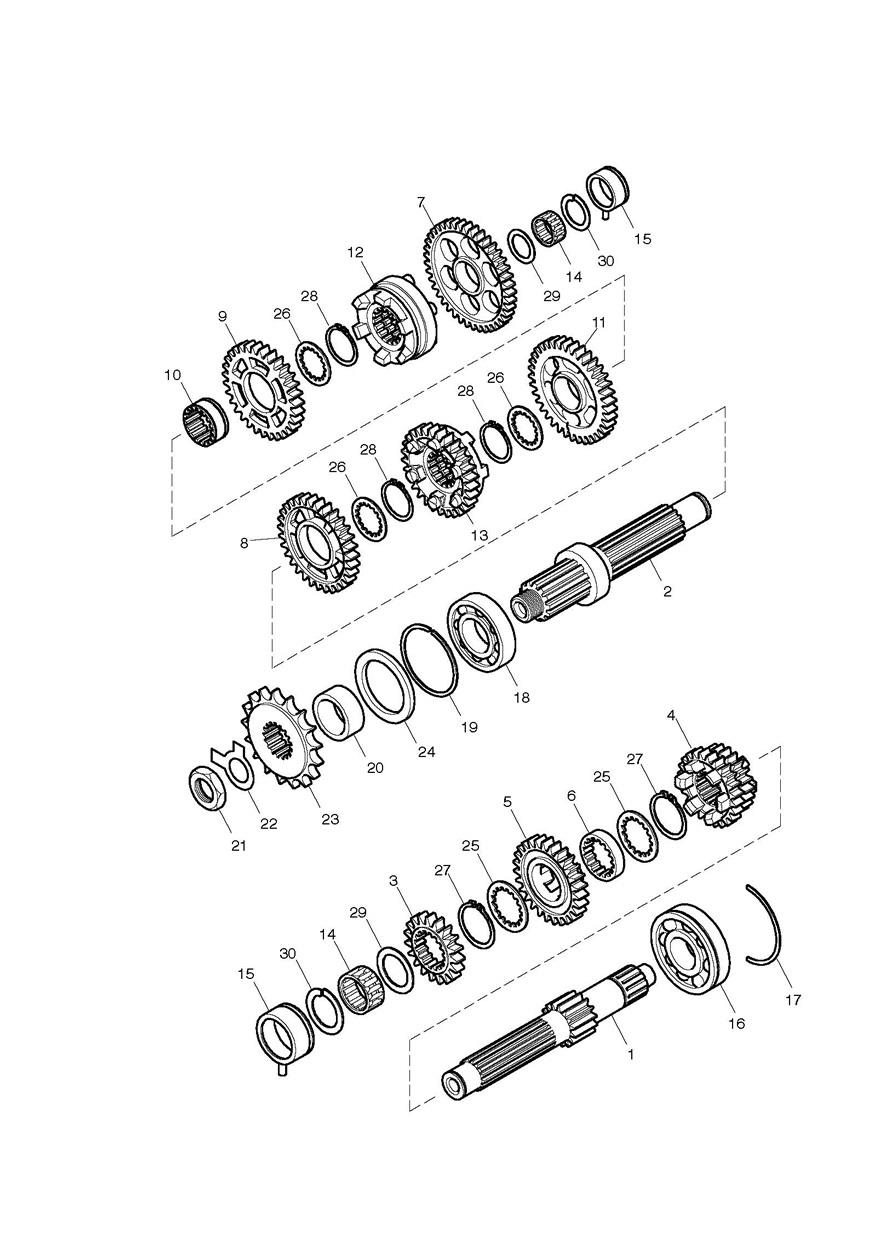

 Transmission exploded diagram
Transmission
31 parts

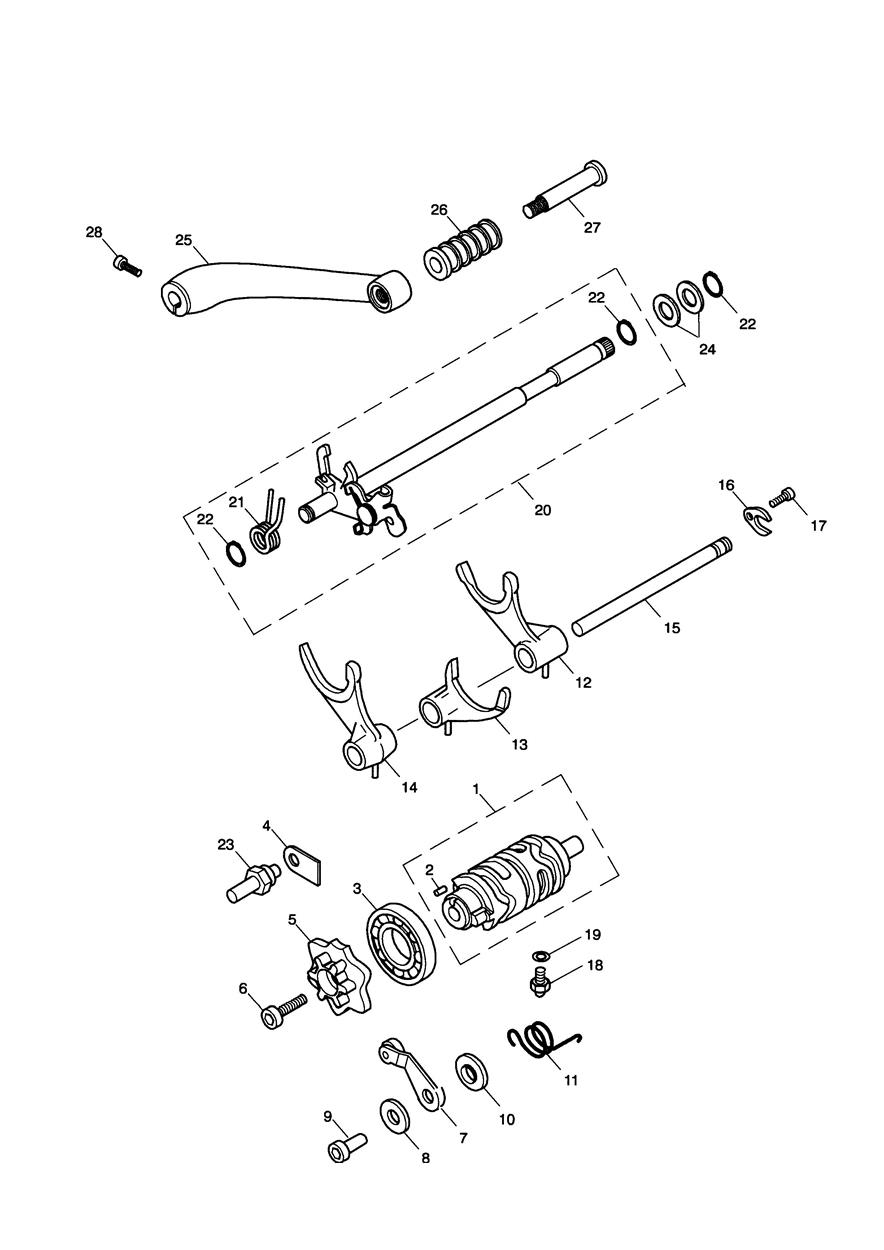

 Gear Selectors & Pedal exploded diagram
Gear Selectors & Pedal
31 parts
 Starter Drive exploded diagram
Starter Drive
7 parts

← All areas of the Air Cooled Scramblers
