Front Suspension & Steering incl. Clutch Controls
Triumph Air Cooled Scramblers · 6 diagrams
6 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Air Cooled Scramblers, covering the Air-Cooled Scrambler. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

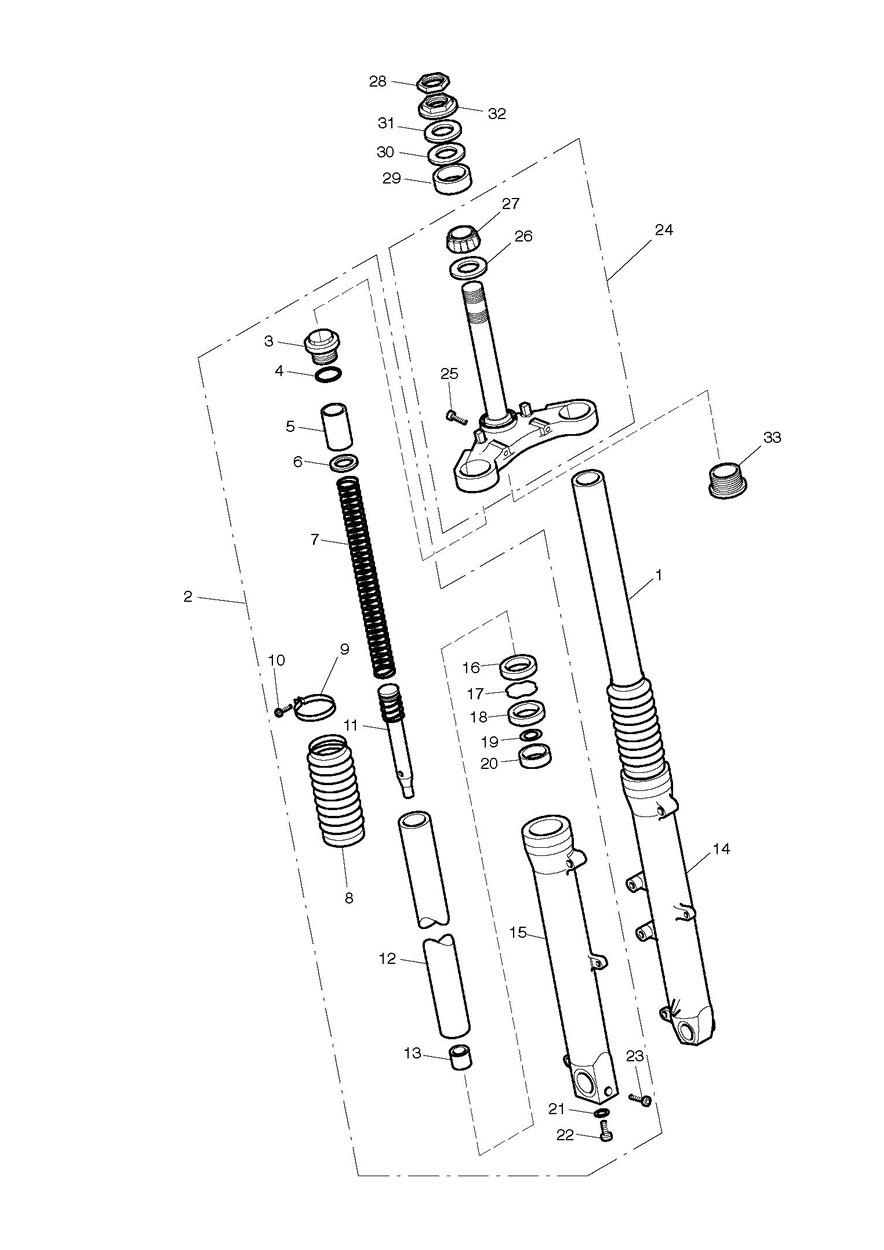

Front Forks & Lower Yoke
34 parts

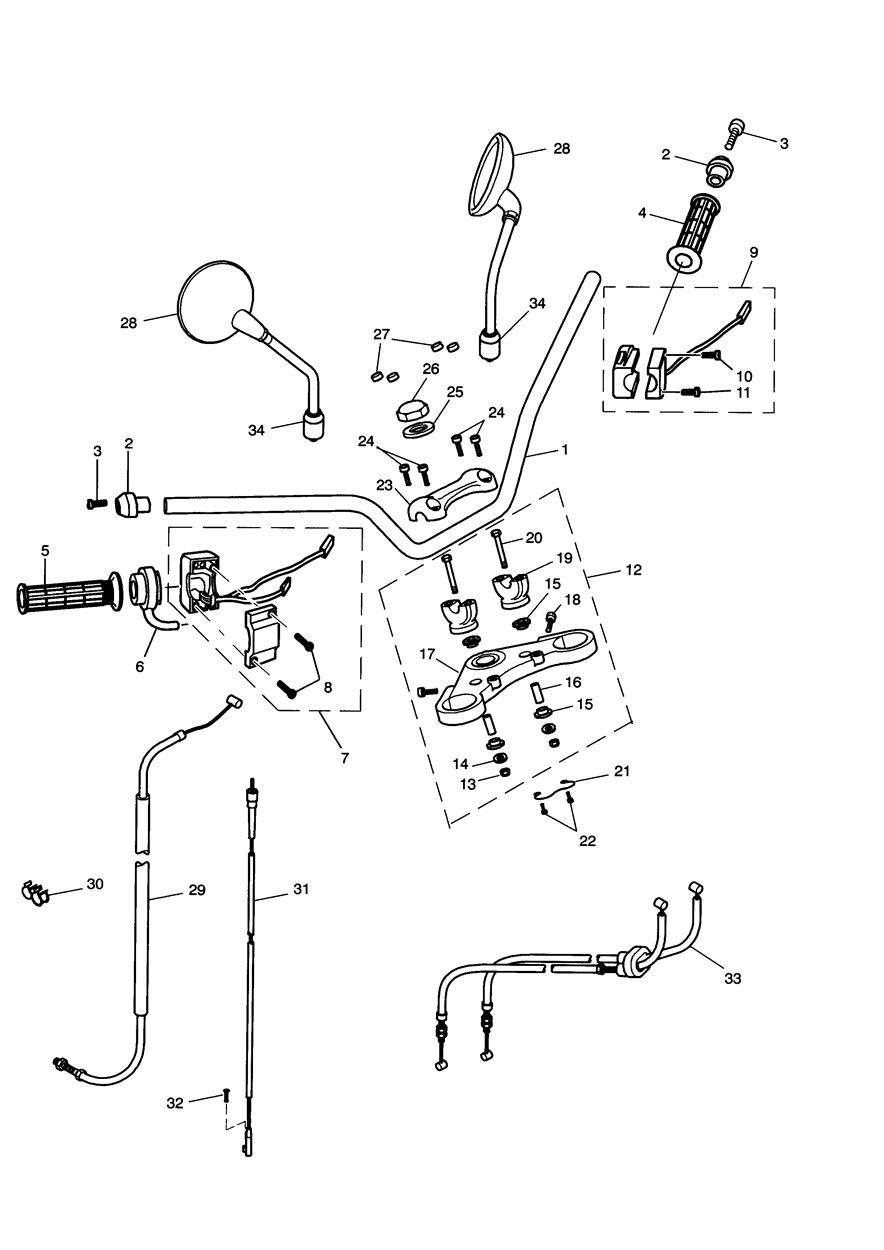

Handlebars, Top Yoke, Cables & Mirrors
36 parts

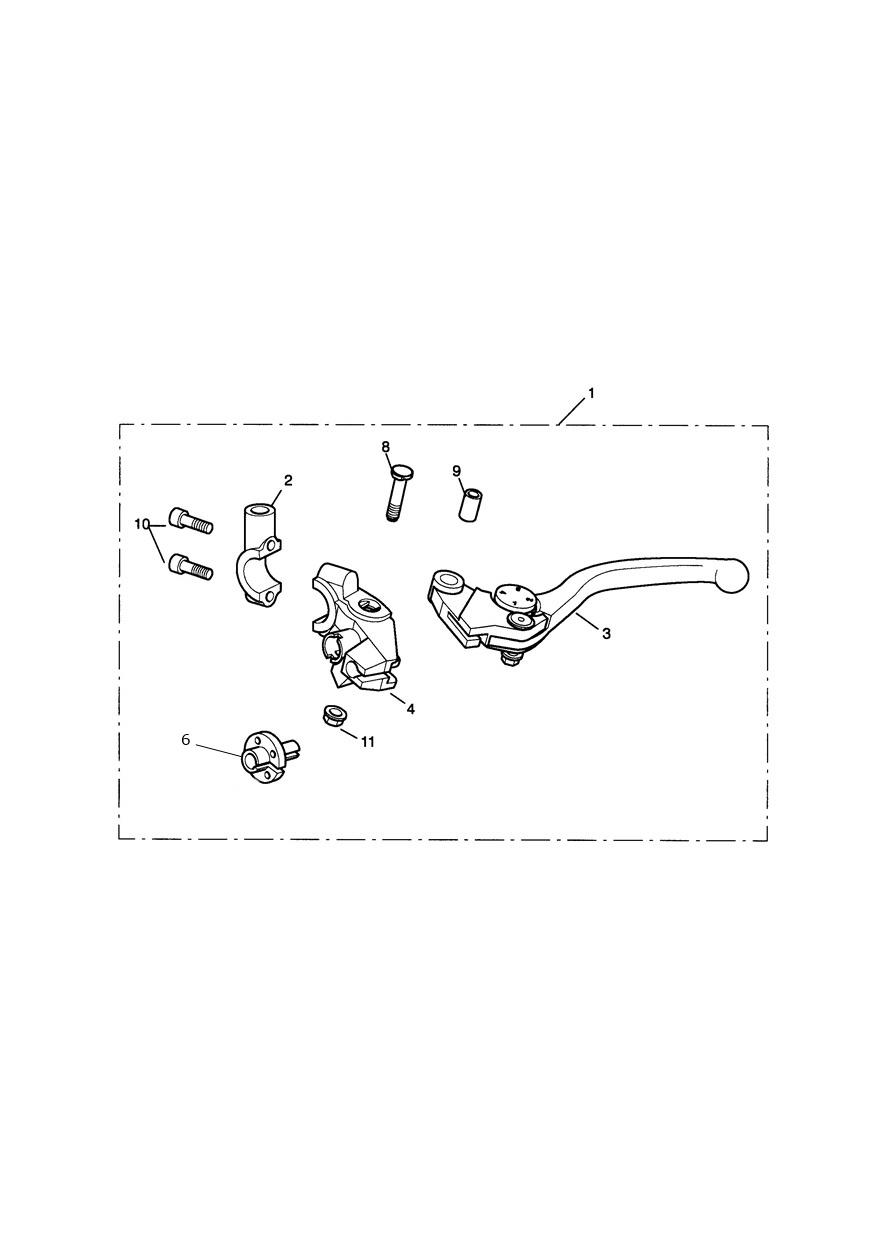

Clutch Controls & Switches
9 parts

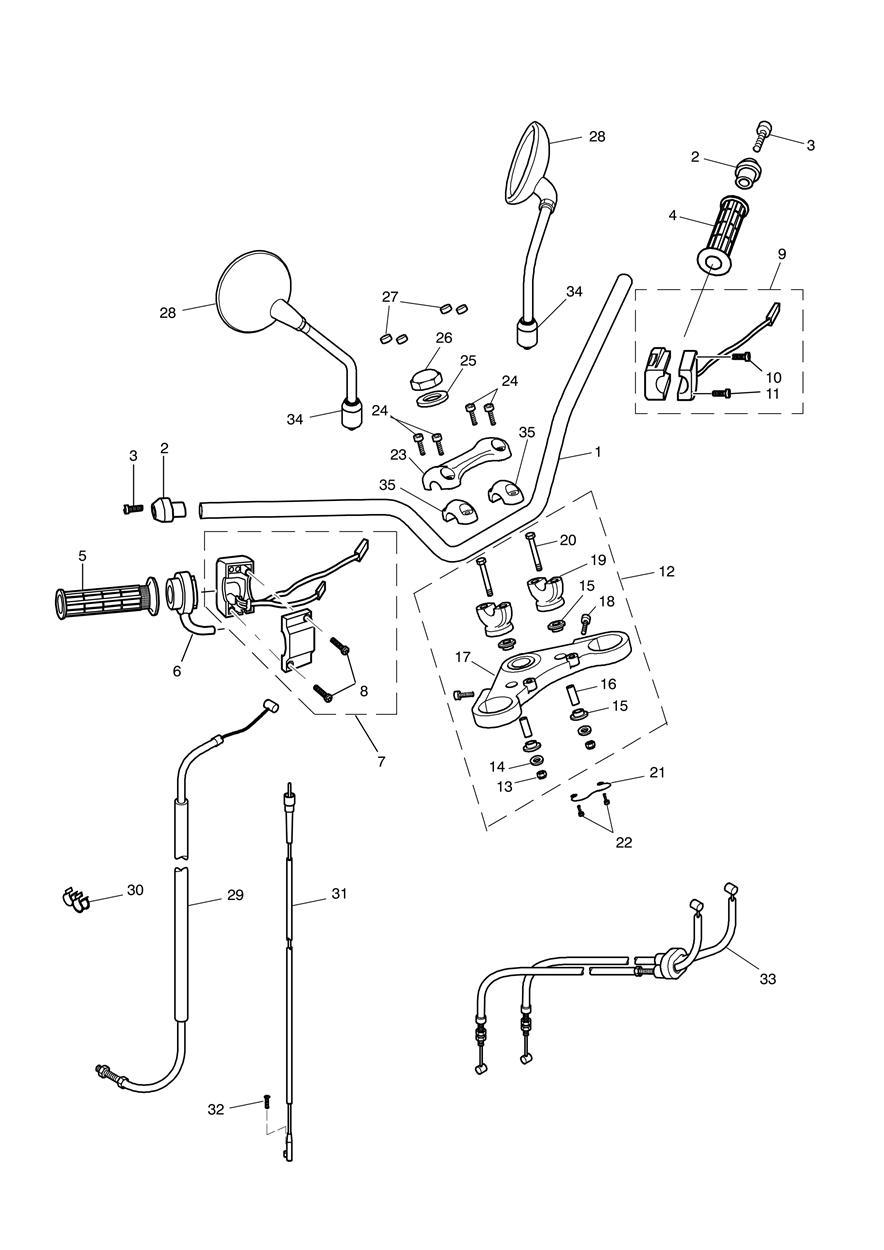

Handlebars, Top Yoke, Cables & Mirrors
41 parts

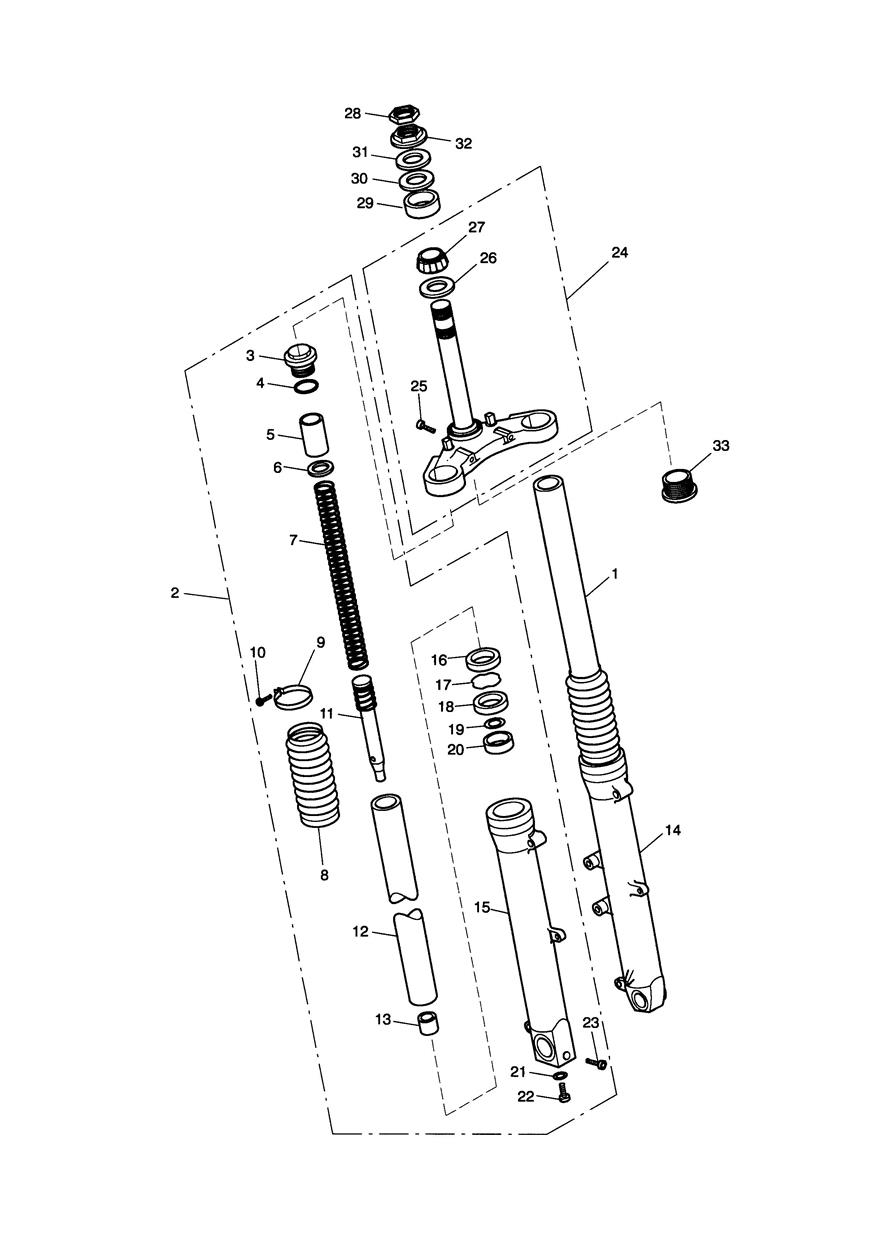

Front Forks & Lower Yoke
36 parts

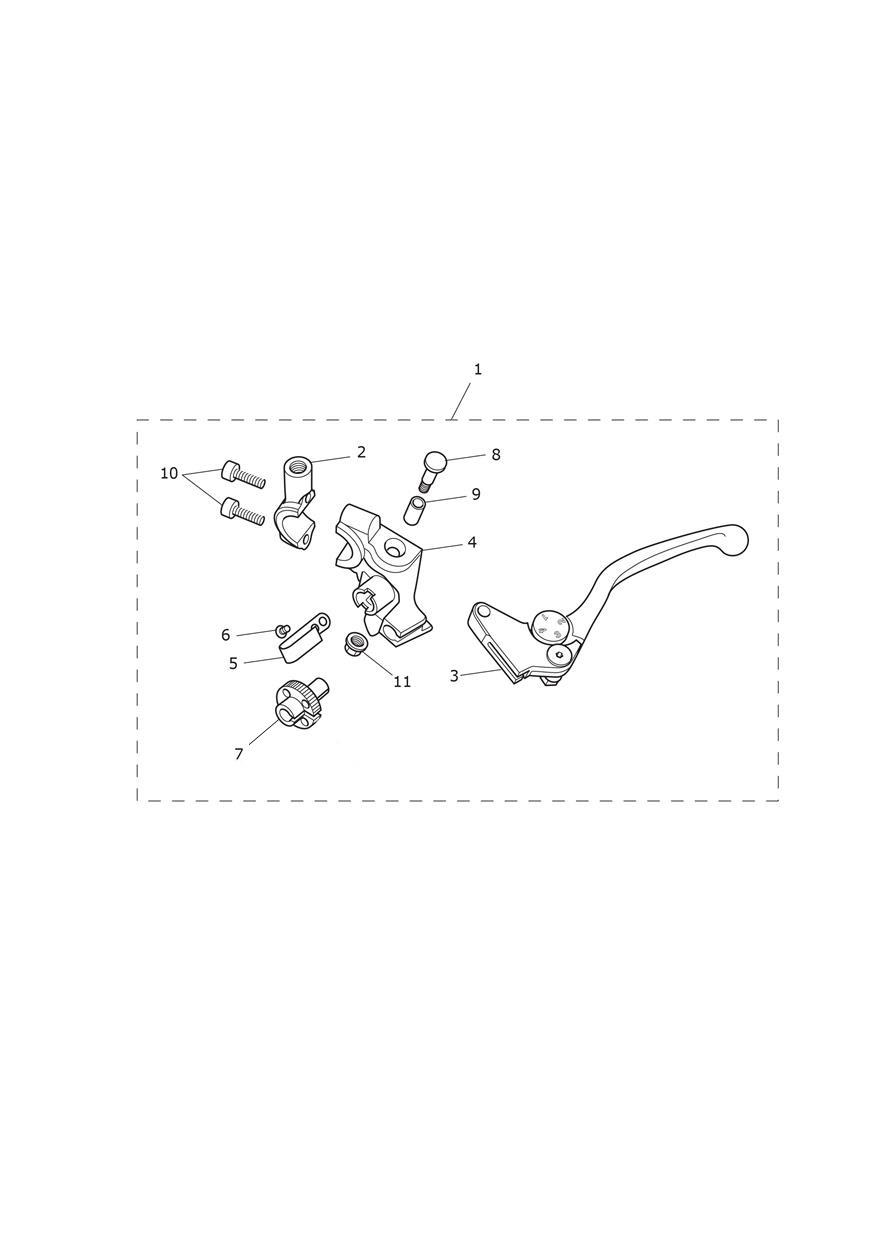

Clutch Controls & Switches
13 parts
81 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Air Cooled Scramblers and is priced and orderable online. Open a part to see what it fits and to buy it.
Front Forks & Lower Yoke
T2045158 Kit, Fork Assy, LH
$1021.03
AvailableT2045159 Kit, Fork Assy, RH
$1021.03
AvailableT2047114 Cap, Fork
$66.90
AvailableT2047113 O Ring, Fork Seal
$2.53
AvailableT2040343 Tube, Spacer
$10.84
AvailableT2047111 Guide, Spring
$3.71
AvailableT2047110 Spring
$93.29
AvailableT2040349 Gaiter, Front Fork
$34.58
AvailableT2045162 Kit, Clip, Fork Gaiter
$6.68
AvailableT2040399 Screw, Fork Gaiter Clip, M4
$3.32
AvailableT2047105 Piston, Damper
$121.46
AvailableT2040347 Fork Tube, Inner
$271.12
AvailableT2047104 Oil Lock, Fork
$9.43
AvailableT2040397 Fork Tube, LH, Outer
$545.70
AvailableT2040398 Fork Tube, RH, Outer
$545.70
AvailableT2047109 Dust Seal, Fork
$16.95
AvailableT2040248 Snap Ring
$6.24
AvailableT2047115 Seal, Oil
Low stock at Triumph
$19.04
Limited availabilityT2047107 Ring, Back Up
$4.04
AvailableT2047106 Guide, Bushing
$12.51
AvailableT2045045 Washer, Sealing B
$1.99
AvailableT2045046 Capscrew, Oil Lock
$9.85
AvailableT3050130 Capscrew, M8 x 40
Backordered at Triumph · we’ll confirm the ship date after you order
$7.05
On backorderT2049003 Yoke assembly
$473.26
AvailableT3050083 Capscrew, M10x22, S/S
Backordered at Triumph · we’ll confirm the ship date after you order
$8.79
On backorderT3600063 Seal, Dust, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT3800052 Bearing, Sac, 55 x 30 x 17
Backordered at Triumph · we’ll confirm the ship date after you order
$31.43
On backorderT2140210 Adjuster Nut, Upper
$3.14
AvailableT3600062 Seal, Dust Dia 47
Low stock at Triumph
$16.37
Limited availabilityT2047036 Dust cover
$1.99
AvailableT2041265 Adjuster Nut, Lower
Low stock at Triumph
$12.45
Limited availabilityT3450060 Cap
Low stock at Triumph
$1.99
Limited availabilityHandlebars, Top Yoke, Cables & Mirrors
T2040394 Handlebar Assy
Backordered at Triumph · expected Oct 30
$183.07
On backorderT2043403 Weight, Bar End
$30.19
AvailableT3330643 Screw, M5 x 30, CSK Skt, Patch
$1.99
AvailableT2040740 Handlebar Grip, LH
$16.81
AvailableT2040254 Handlebar Grip, RH
$16.81
AvailableT2040252 Throttle Actuator, Twin Cable
$59.83
AvailableT2040096 Switch Assy, Rh
$170.73
AvailableT3331800 Screw, M5 X 22
$1.99
AvailableT2040328 Switch Assy, Lights On, LH
$200.66
AvailableT3331790 Screw, Pan/Hd, Ph, M5 x 30, Blk
$1.99
AvailableT2043082 Nut, M10, 14 A/F
$7.49
AvailableT3555030 Washer, 10.5 x 30 x 2.5
$6.16
AvailableT2047041 Rubber Bush, H/Bar Clamp
$5.98
AvailableT2049488 Sleeve, Dia 13 x 43
$4.50
In stock in BreaT2047044 Capscrew, M10 x 30, S/S
$7.49
AvailableT2042559 Risers, Top Yoke
$45.75
AvailableT2047040 Bolt
$7.64
AvailableT2043492 Cable Guide, Wire
$14.86
AvailableT3331625 Screw, Btn Hd, M8 x 12, Slv
$1.99
AvailableT2042558 Clamp, Handlebar
$59.83
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT2040061 Washer Upper Yoke
$6.61
AvailableT2040060 Nut
$22.99
AvailableT3450200 Plug, Caphead, Chrome
$3.88
AvailableT2040485 Clutch Cable
$44.01
AvailableT2040811 Twin Clip, Brake Hose
$2.43
AvailableT2040481 Cable, Speedometer
$46.55
AvailableT3331017 Screw. Phil CSK. M5 x 20, Slv
$3.94
AvailableT2040569 Cable, Throttle, Twin
Low stock at Triumph
$46.55
Limited availabilityT2300595 Knockback Cover, Mirror
Low stock at Triumph
$7.28
Limited availabilityClutch Controls & Switches
T2046583 Lever Assy, Clutch, Adj
Backordered at Triumph · expected Nov 13
$106.65
On backorderT2025450 Clamp, Clutch Lever Bracket
$29.57
AvailableT2046021 Adjustable Clutch Lever
$81.41
AvailableT2046527 Clutch Lever Bracket
$36.08
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046526 Collar, Clutch Lever
$3.05
In stock in BreaT2046522 Bolt, Handlebar Clamp
$1.99
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityHandlebars, Top Yoke, Cables & Mirrors
T2044497 Handlebar Assy, Black
$183.07
AvailableT2042565 Yoke Assy Upper
$248.22
AvailableT2047005 Upper Yoke
$239.39
AvailableT2300833 Mirror Assy, Black
$124.99
AvailableT2040534 Top Cap Riser
$46.64
Available
