Crankcase, Engine Covers, Lubrication System
Triumph America · 14 diagrams
14 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph America, covering the America. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Crankcase & Fittings
38 parts

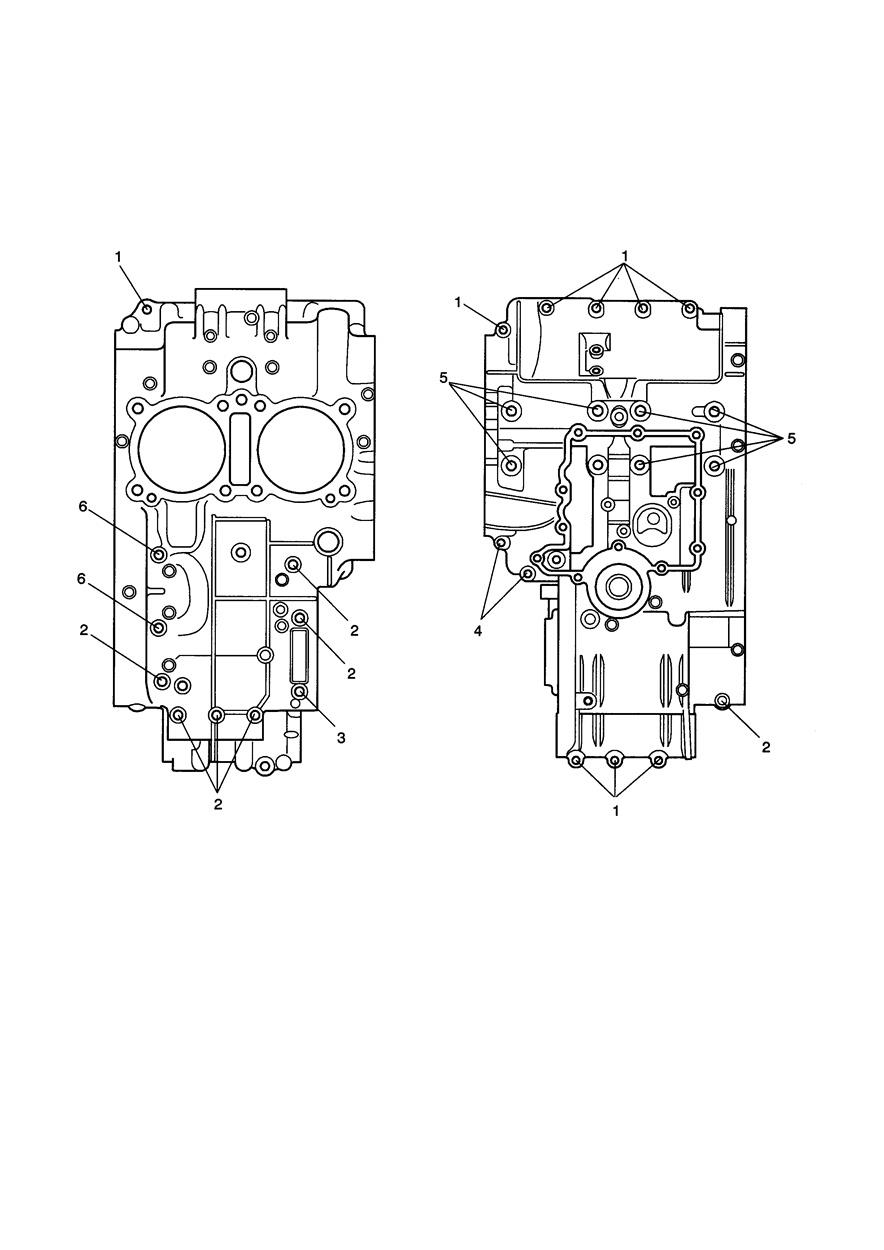

Crankcase Bolts
7 parts

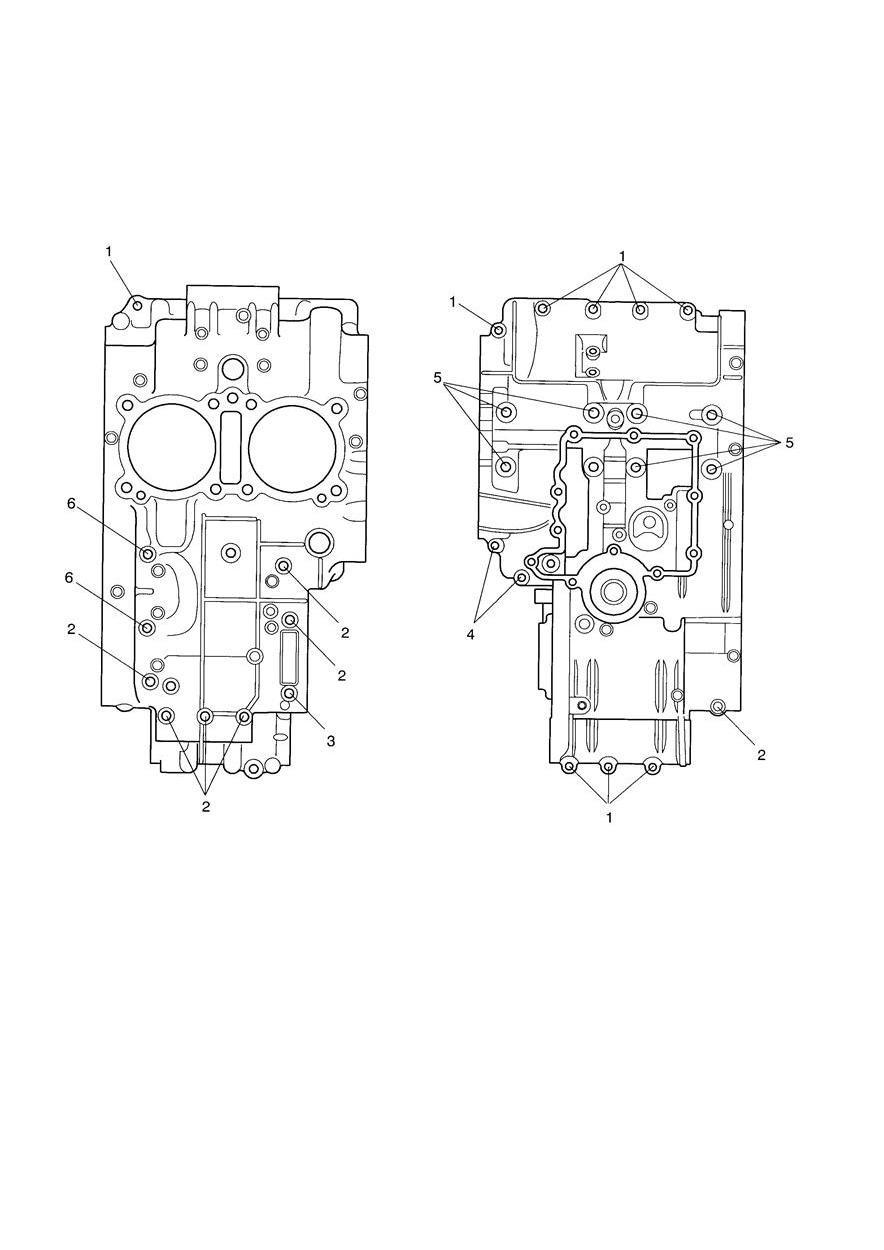

Crankcase Fixings
9 parts

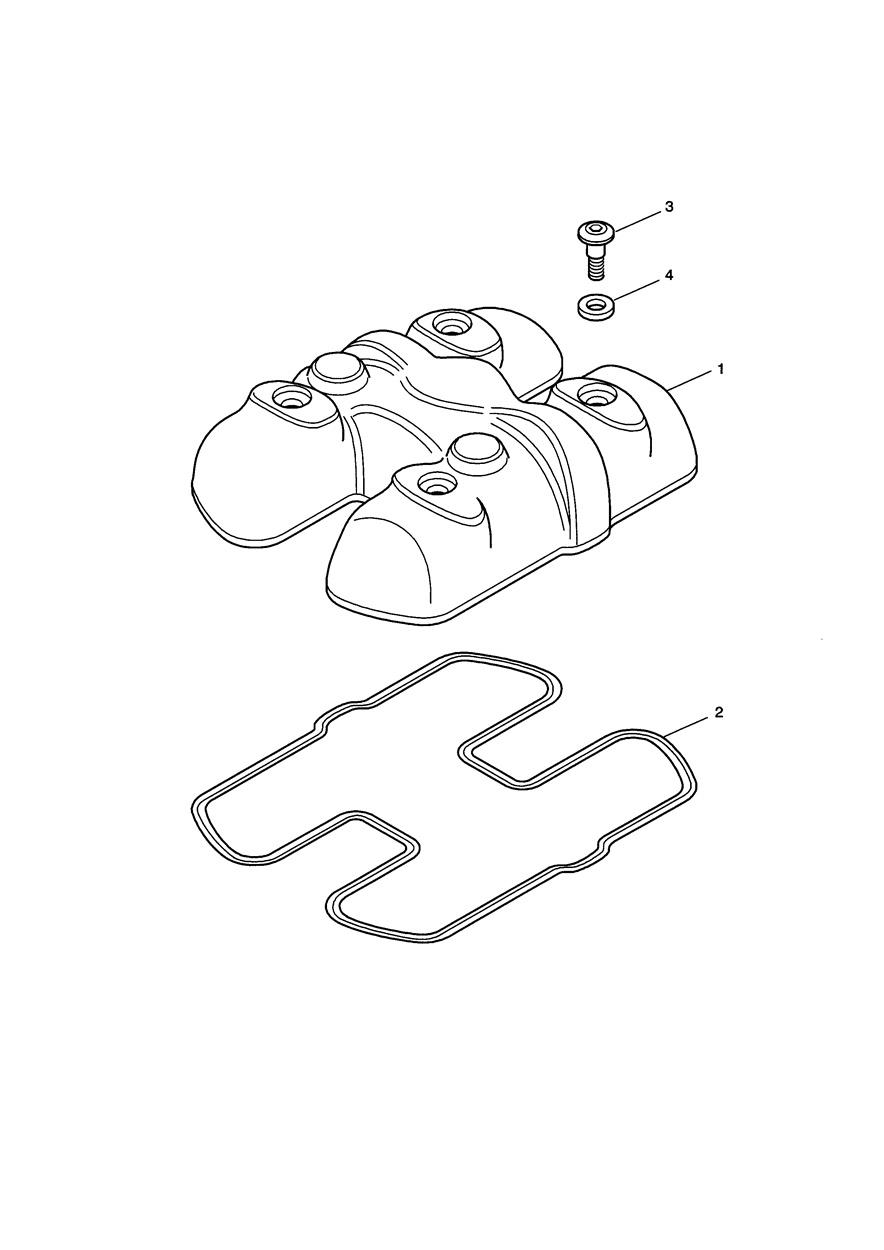

Cam Cover
5 parts

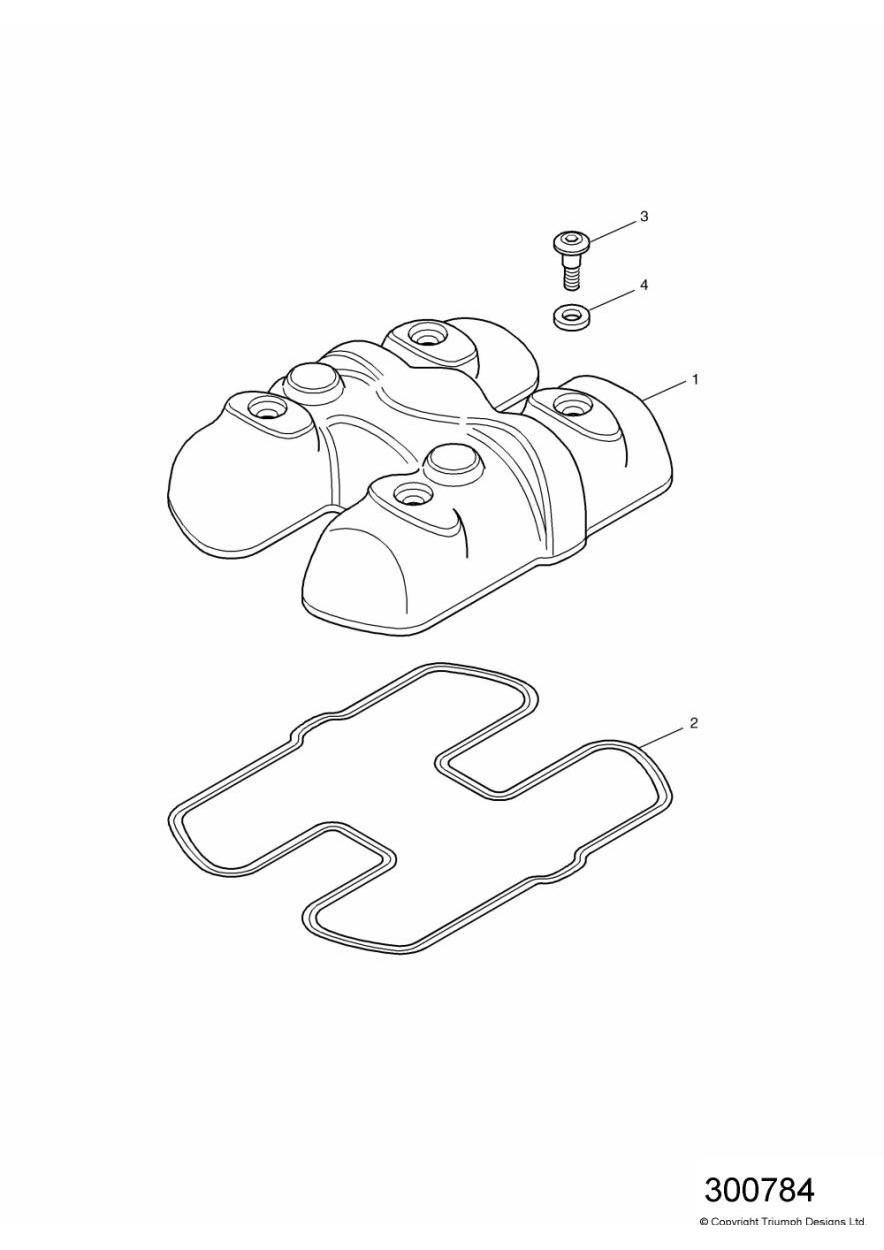

Cam Cover
9 parts

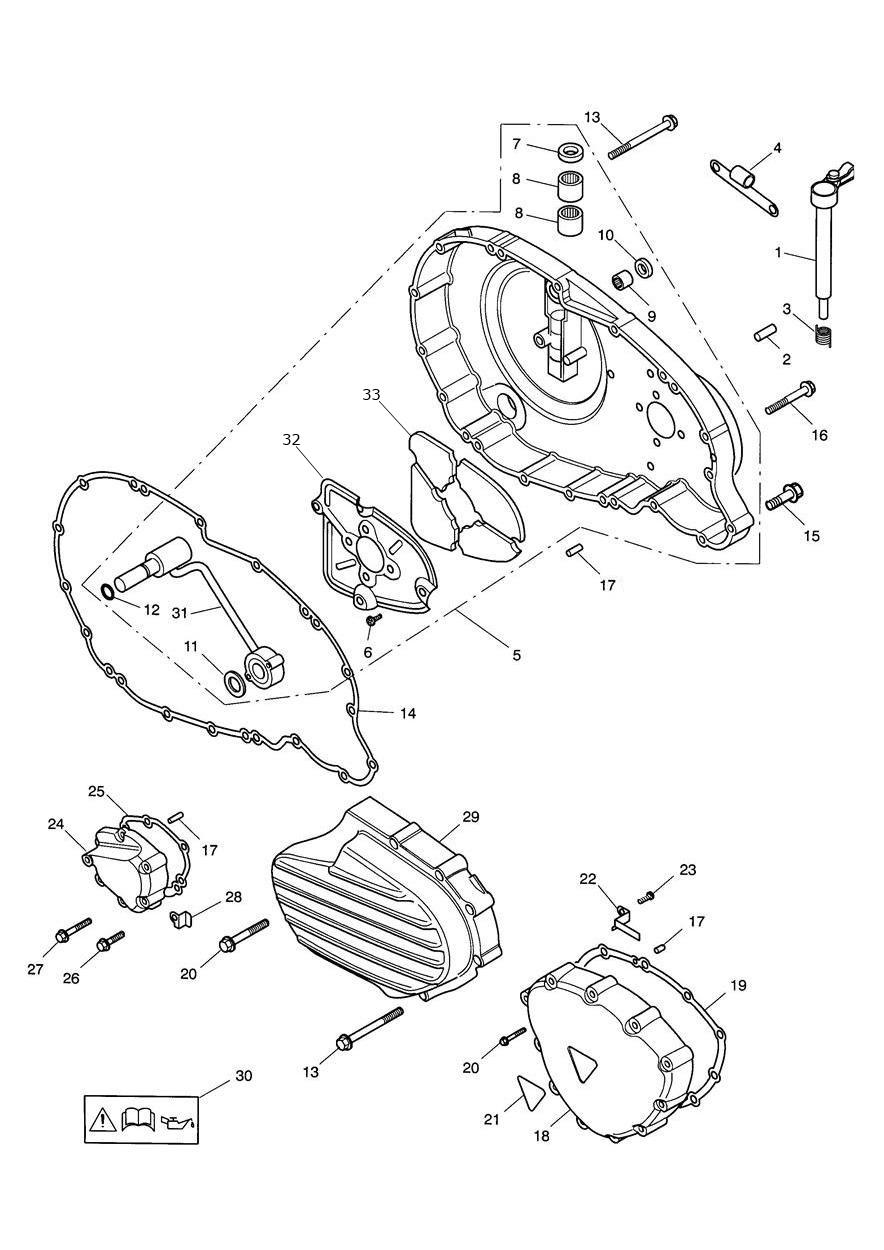

Engine Covers
44 parts

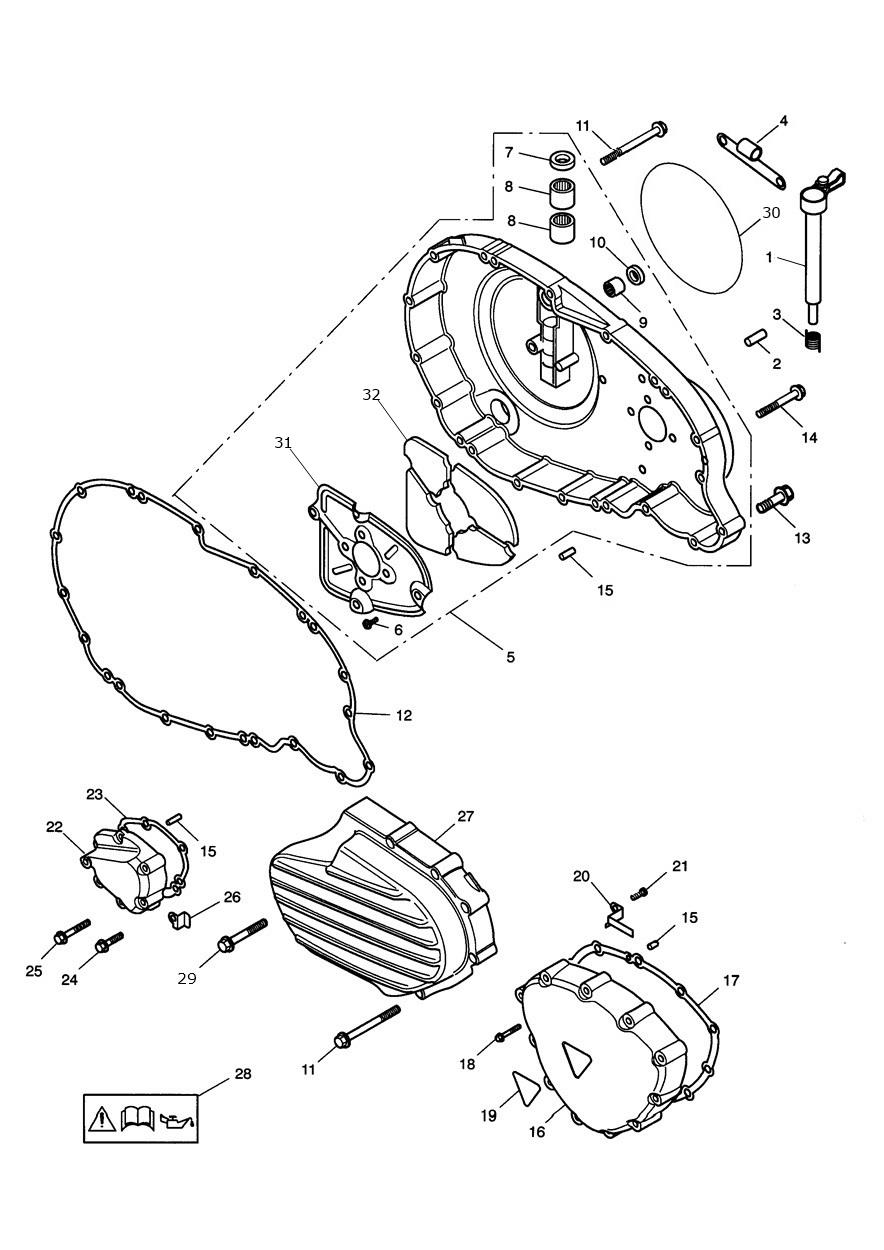

Engine Covers
46 parts
Sump
6 parts

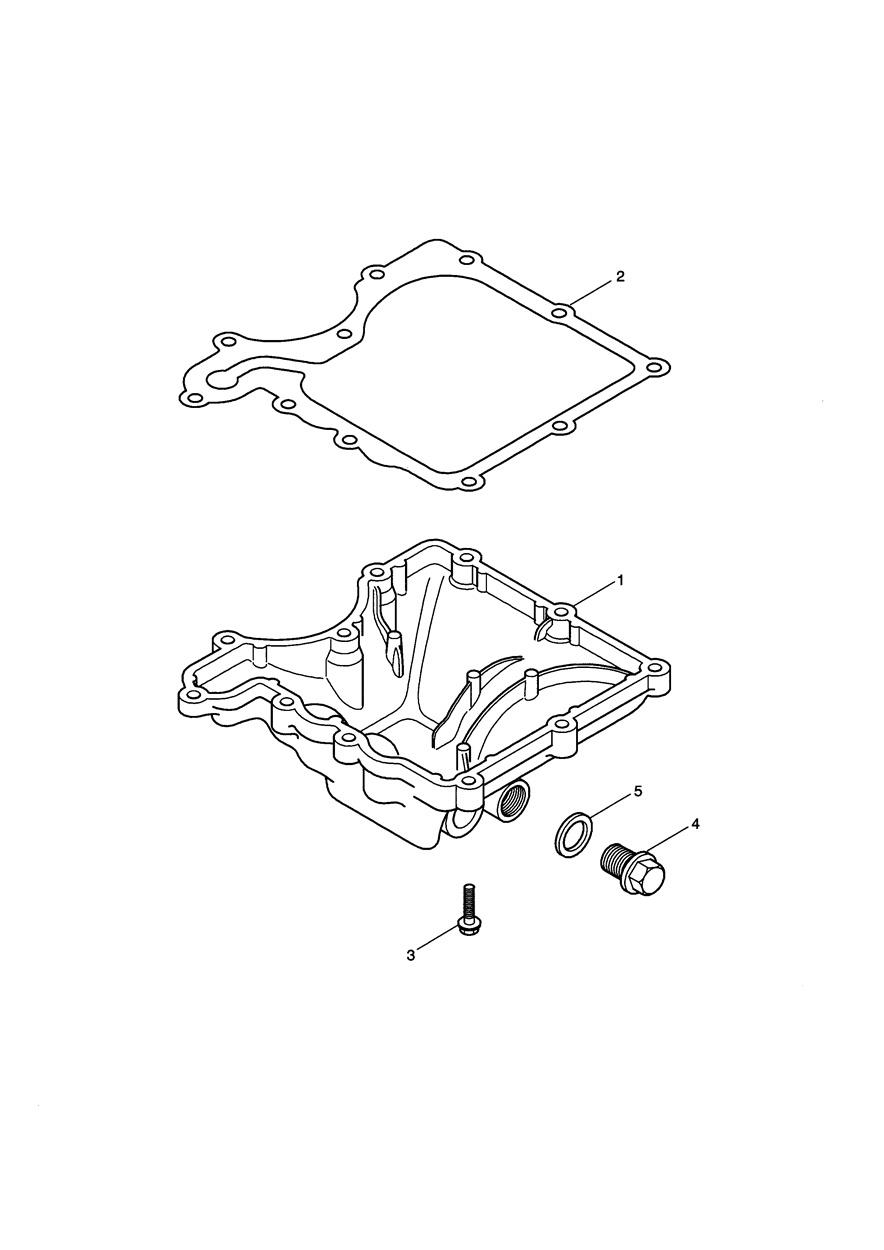

Sump & Fittings
6 parts

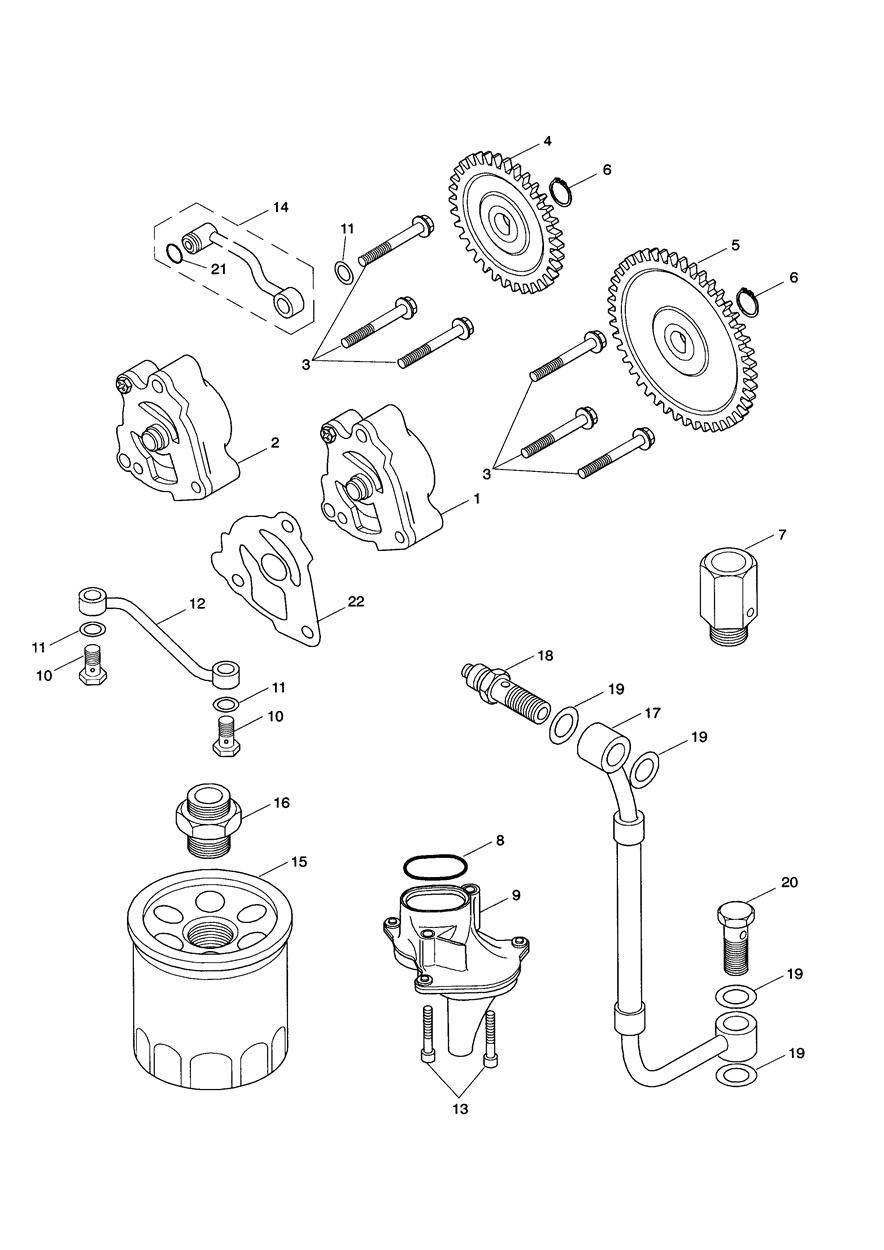

Lubrication System
26 parts
Lubrication System
25 parts
Oil Cooler
19 parts
Crankcase & Fittings

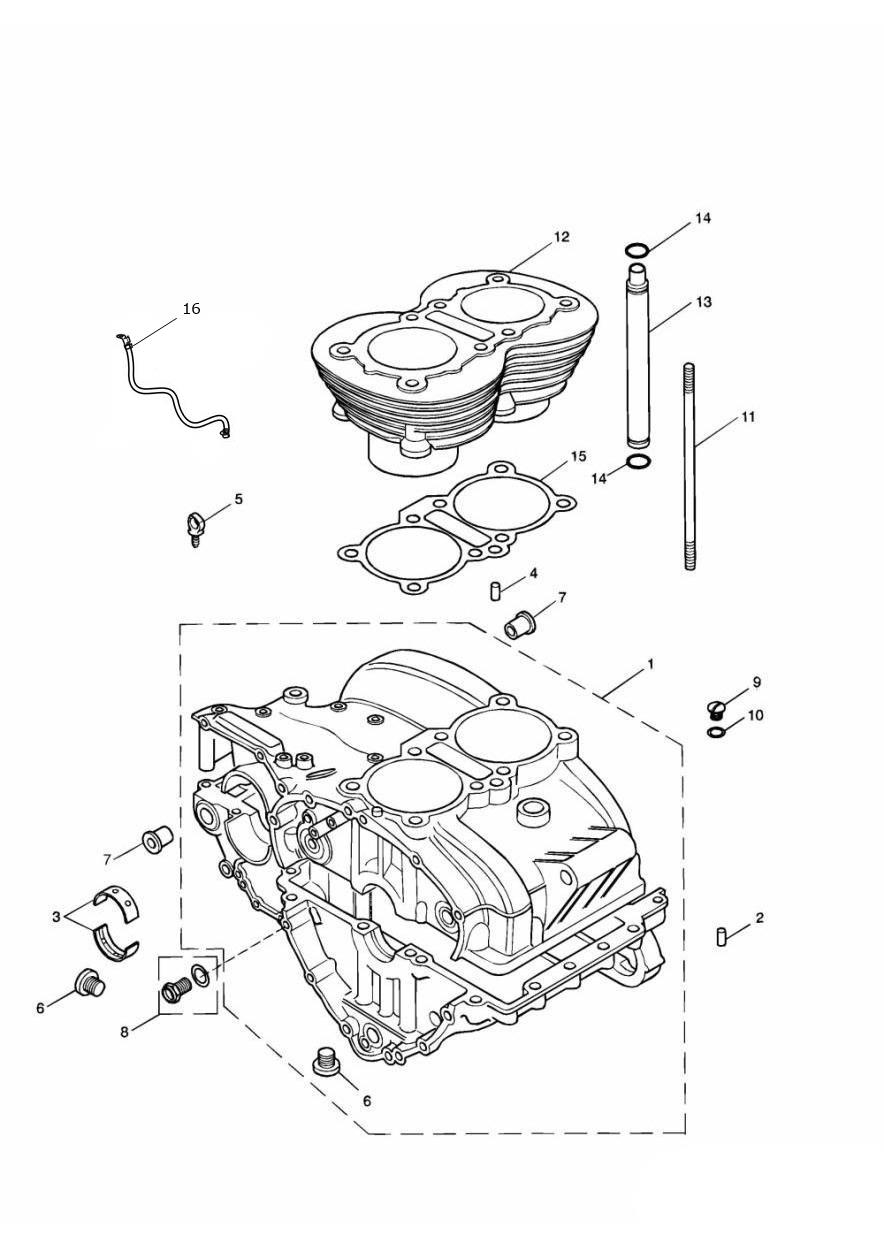

Crankcase & Fittings (Plus Eng No's 229407 to 230164)
21 parts
Engine no. 221608 and lower

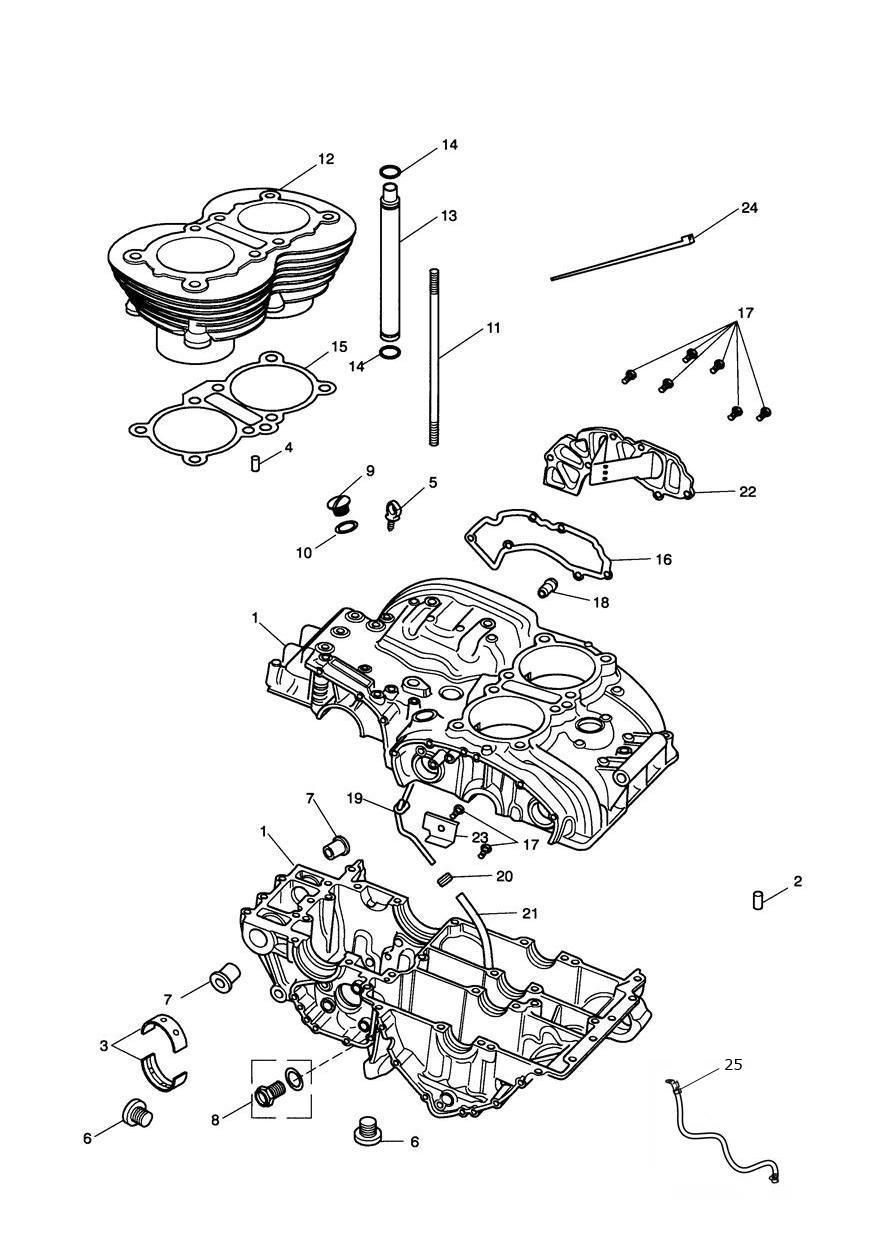

Crankcase & Fittings (Except Eng No's 229407 to 230164)
30 parts
Engine no. 221609 and higher
133 parts you can order online
Every part below appears in Triumph’s Crankcase, Engine Covers, Lubrication System diagrams for the America and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Speedmaster book. 7 parts are specific to the America.

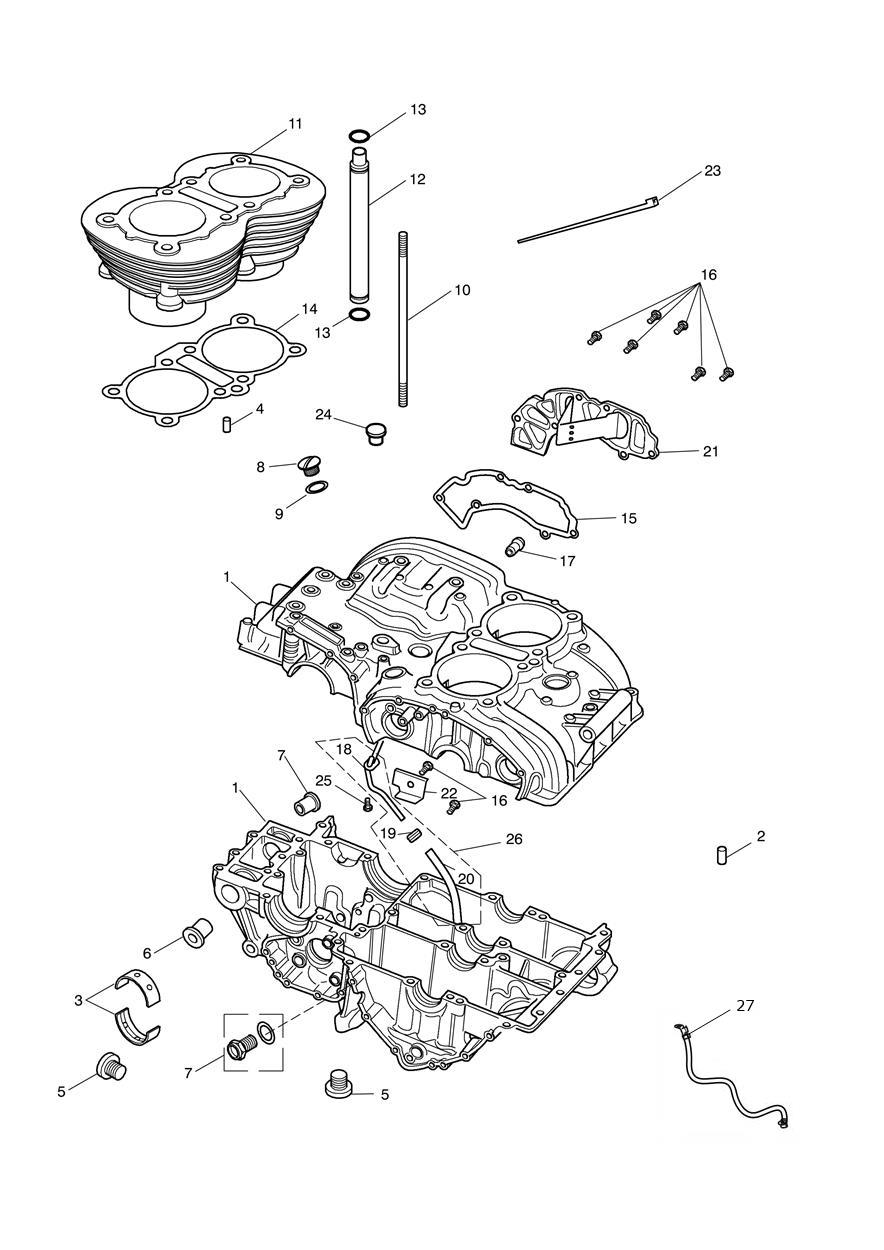

Crankcase & Fittings
T3000102 Dowel, Hollow, 10 x 14
Backordered at Triumph · expected Nov 20
$1.99
On backorderT1160750 Main Bearing Shell, Grooved
$11.76
AvailableT1160751 Main Bearing Shell, Grooved
$11.76
AvailableT1160752 Main Bearing Shell, Grooved
$11.76
AvailableT1160753 Main Bearing Shell, Grooved
$11.76
AvailableT3000101 Dowel, Hollow, 8 x 14
$3.61
AvailableT3450005 Plug, NPSI 3/8 Dryseal
$6.16
AvailableT3450000 Plug, PTF-SAE Short, 3/8-18, Enc
Backordered at Triumph · we’ll confirm the ship date after you order
$6.16
On backorderT2056859 Bush, S/Arm Pivot, 230M07
$13.26
AvailableT1160665 Sightglass, Oil, Dia 20
$20.96
AvailableT1261488 Oil Filler Plug, Chromed
$28.07
AvailableT3600028 O Ring, Filler Cap
$1.99
AvailableT1162010 Stud, Cylinder Head
$4.85
AvailableT1169022 Barrels, 2 Cyl, Dia 90.0
$206.88
AvailableT1169033 Barrels, 2 Cyl, Dia 90.0
$214.18
AvailableT1161100 Tube, Air
$25.63
AvailableT3600915 O Ring, ID 18 x 3
$2.73
AvailableT1160127 Gasket, Base, 2 Cyl, Dia 90
$34.02
AvailableT1161037 Gasket, Breather Plate
$2.64
AvailableT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT1160274 Spout
$10.63
AvailableT1161036 Pipe, Breather Drain
$11.08
AvailableT1160137 Pipe, Breather Drain
$11.26
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02
In stock in BreaT3700030 Clip pipe
$1.99
AvailableT1161038 Hose, Breather Drain Extension
$3.32
AvailableT1160136 Hose, Breather Drain Extension
$3.42
AvailableT1161024 Plate, Upper, Breather
Backordered at Triumph · expected Nov 6
$41.72
On backorderT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT3450015 Plug, M10
$1.99
AvailableT3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw
$1.99
AvailableT1160209 Breather Drain Assy
$47.51
AvailableT2500574 Extension Lead, Alternator
$5.84
AvailableCrankcase & Fittings (Plus Eng No's 229407 to 230164) Engine no. 221608 and lower
T3700909 Clip, Cable, M10 Fir Tree
$3.42
AvailableT1162050 Kit, Barrels/Silver Head
Backordered at Triumph · expected Oct 23
$600.78
On backorderCrankcase Bolts
T3202319 Bolt, HHF, M8 x 35, Slv
$2.43
AvailableT3202323 Bolt, HHF, M8 x 80, Slv
$1.99
AvailableT3202325 Bolt, HHF, M8 x 43, Slv
Low stock at Triumph
$1.99
Limited availabilityT3330950 Bolt, Torx, PH, M10 x 118.5
$6.96
AvailableT3330980 Bolt, Torx, M10 x 120.5, Plated
$7.05
AvailableCrankcase Fixings
Cam Cover
T1260900 Seal, Cam Cover
$25.52
In stock in BreaT3330241 Bolt, Lge Skt Hd, Shld, M6 x 24.0
$10.84
AvailableT1260309 Seal, Cam Cover, Screw, Twin Lip
$5.39
In stock in BreaCam Cover
T1260912 Spares Kit, Cam Cover, Black
$154.92
AvailableT1261934 Cam Cover, Crinkle Black, Linished
$154.92
AvailableT1263333 Seal, Cam Cover
$27.60
AvailableT3332052 Bolt, Shld, Tx, M6 x 24.95, Slv
$6.68
AvailableT3332051 Bolt, Shld, TX, M6 x 24.95, Slv
Low stock at Triumph
$6.68
Limited availabilityT1260337 Seal, Cam Cover Screw
$5.74
In stock in BreaEngine Covers
T1171701 Bullet, Clutch Lifter
$34.34
AvailableT1170925 Spring return
$2.36
AvailableT1170930 Clutch Cable Holder / Guide
$9.92
AvailableT1171410 Clutch Cable Holder / Guide
$10.01
AvailableT1261500 Clutch cover assembly
$475.29
AvailableT1261237 Clutch Cover Assy
Backordered at Triumph · expected Oct 30
$475.29
On backorderT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT3600095 Dust Seal
$2.09
AvailableT3800110 Roller Bearing, HK 1210
$6.16
Available3800041-T0301 Bearing, Gearbox Lever
Low stock at Triumph
$12.60
Limited availabilityT3600008 Oil Seal
$11.14
AvailableT3600240 Seal, oil, 14.5 28.4 6.5
Low stock at Triumph
$45.75
Limited availabilityT3600143 O Ring, ID 9.1 x 1.6, Viton
Low stock at Triumph
$1.99
Limited availabilityT3205076 Bolt, HHF, Lghtd, M6 x 1.0 x 75, Slv
$4.12
AvailableT1260967 Gasket, Clutch Cover
$10.44
In stock in BreaT3203040 Bolt, RHHF Domed, M6 x 40
Low stock at Triumph
$1.99
Limited availabilityT3000005 Dowel, Dia 6 x 16.5
$1.99
AvailableT1261932 Cover, RH, Pol, Chr
$193.62
AvailableT1260968 Gasket, RH Cover
$7.47
In stock in BreaT3203050 Bolt, Domed, S/S, M6 x 50
$6.24
AvailableT3950100 Triumph Badge, Triangular
Low stock at Triumph
$12.34
Limited availabilityT1261178 Plate, Wire Retainer
$5.69
AvailableT3051062 Screw, M6 x 12, Enc, Raw
$1.99
In stock in BreaT1260962 Cover, G/Change Mech, Silver
$123.22
AvailableT1260992 Cover, Gearchange Mech, Black
$126.74
AvailableT1260969 Gasket, Gearchange Mech Cover
$7.83
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT1260965 Bracket, Neut ID Lead, Ret
$7.71
AvailableT1263006 Sprocket Cover, Chrome
$123.22
AvailableT3900302 Label, Oil & Filter
$5.27
AvailableT1260950 Breather Pipe T
Low stock at Triumph
$96.81
Limited availabilityEngine Covers
T1171415 Clutch Cable Holder/Guide
$10.01
AvailableT3800001 Bearing, Needle, 20 x 14 x 12
$7.96
AvailableT3600088 Seal, Oil, 14 x 22 x 4.5
$5.92
In stock in BreaT3205070 Bolt, HHF, Lghtd, M6 x 30, Slv
$2.20
AvailableT3205072 Bolt, HHF, Lghtd, M6 x 40, Slv
$1.99
AvailableT3205073 Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv
Low stock at Triumph
$6.24
Limited availabilityT3950103 Triumph Badge, Triangular
$12.66
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT1261595 Plate, Finisher
$58.06

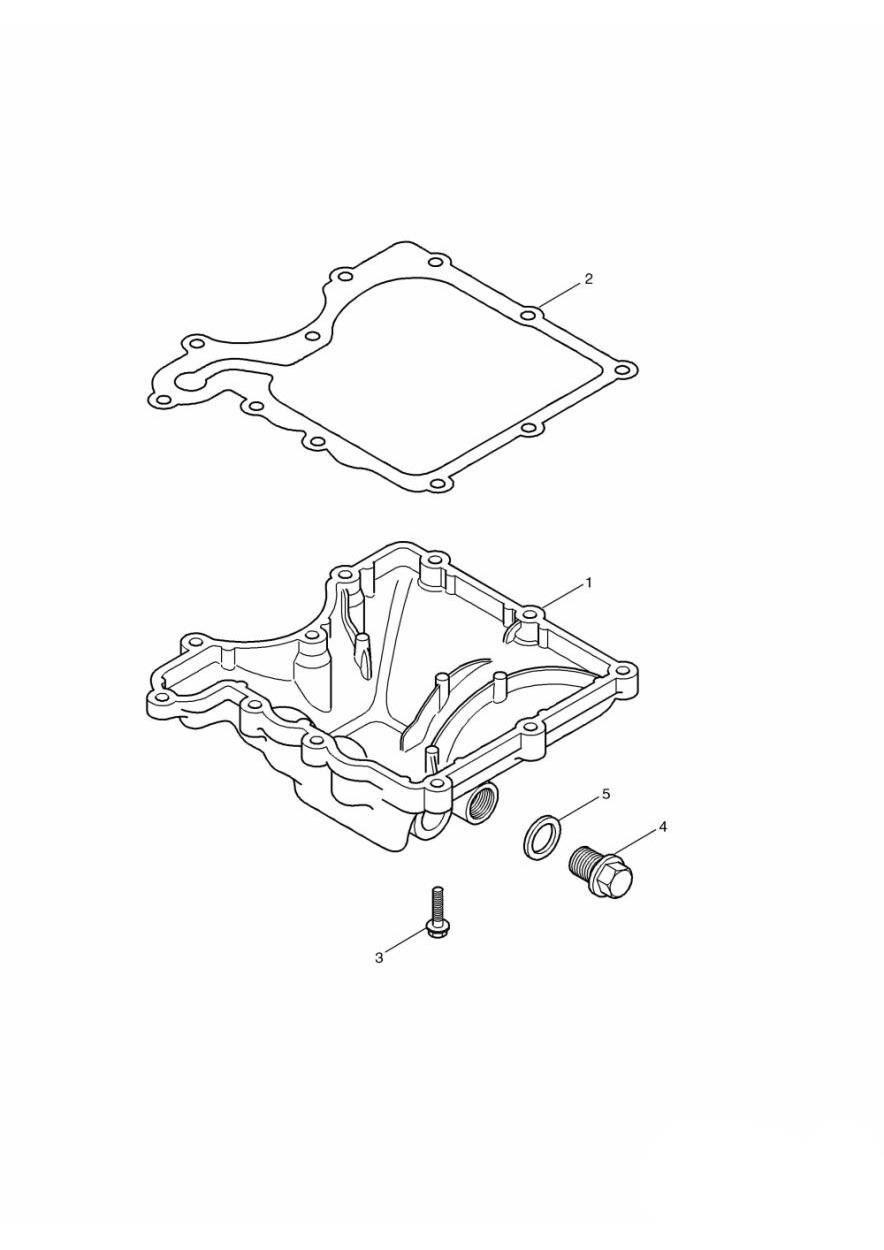

AvailableSump
T1230199 Sump
$440.08
AvailableT1230194 Sump, Black
Low stock at Triumph
$440.08
Limited availabilityT1230107 Gasket, Sump
Low stock at Triumph
$11.26
Limited availabilityT3200190 Bolt, RHHF, M6 x 25, Slv
$2.43
AvailableT3458989 Sump Plug, M14 x 1.5, Blk
$5.08
AvailableT3551092 Sealing Washer Multipack (25)
$25.51

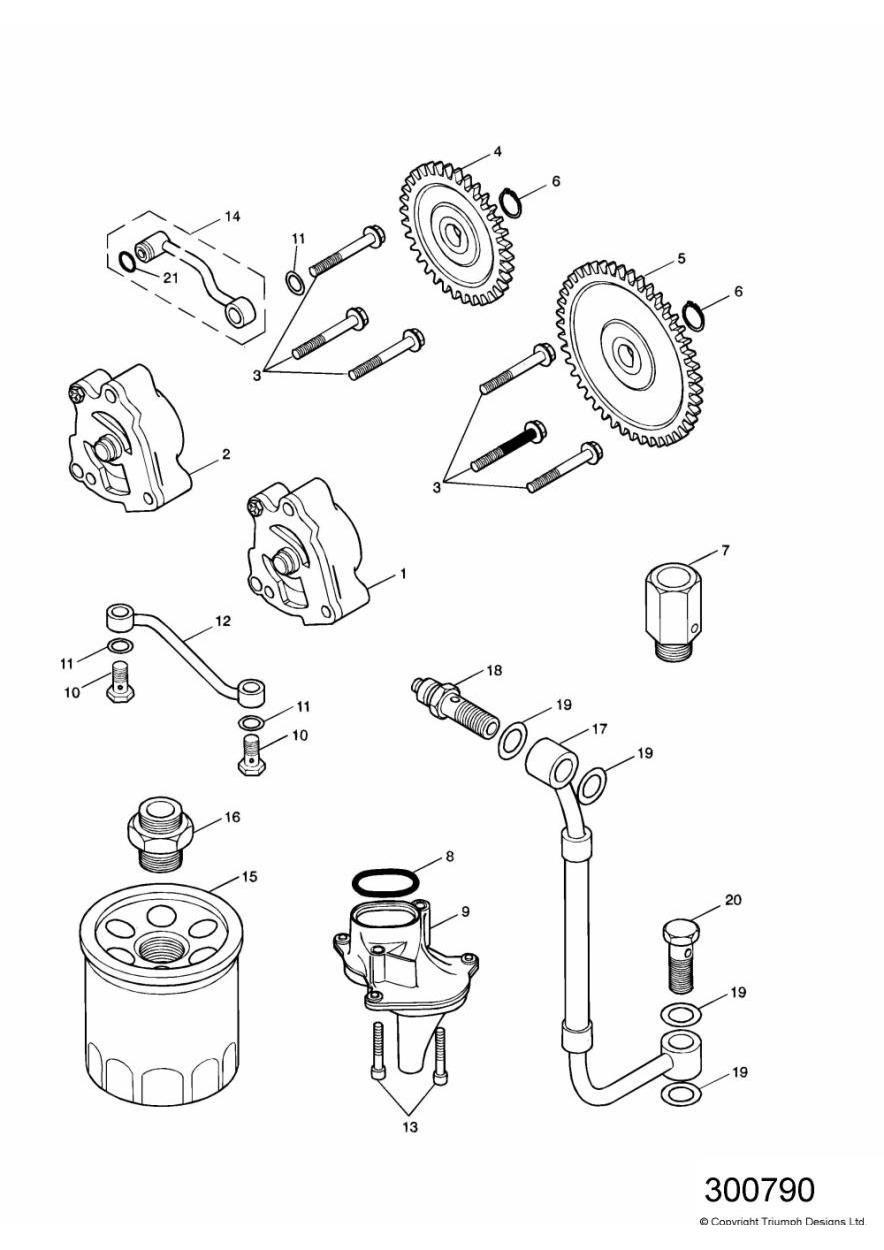

In stock in BreaLubrication System
T1210606 Oil Pump, Axial Mount
Backordered at Triumph · expected Nov 6
$271.12
On backorderT1210607 Oil Pump, Axial Mount, Spotfaced
Backordered at Triumph · expected Nov 6
$279.90
On backorderT3201029 Bolt, RHHF, M6 x 40, Raw
$1.99
AvailableT1210521 Gear, Oil Pump, 34t
$42.93
AvailableT1210573 Gear, Oil Pump, 45T
$43.83
AvailableT3500212 Circlip, Ext 11 x 1
$1.99
AvailableT1211065 Pressure Relief Valve
$34.40
AvailableT3600092 O ring
$4.91
AvailableT3600093 O ring
$4.91
AvailableT1210918 Strainer / Pick Up Assy
$45.75
AvailableT1210242 Bolt, Banjo, M6 x 20
$10.22
AvailableT3550542 Washer, Cu, OD12.5 x Id6.4
$1.99
In stock in BreaT3050302 Capscrew, Skt/Hd, M6 x 35
$1.99
AvailableT1210634 Pipe, Oilfeed, Output Shaft
$37.39
AvailableT1218001 Oil Filter, OES
$16.63
AvailableT1210440 Oil Filter Multipack (24)
$379.33
AvailableT1210443 Oil Filter Multipack (80)
$1197.37
AvailableT1210438 Oil Filter Adaptor
Low stock at Triumph
$11.38
Limited availabilityT1210624 Pipe, Oil, Cyl Head Feed
$37.39
AvailableT1210504 Switch & Banjo Bolt, Oil Press.
$18.49
AvailableT3550546 Washer, Cu, OD 16 x ID 10.2/
$1.99
AvailableT1210240 Banjo Bolt, M10 x28
$12.20

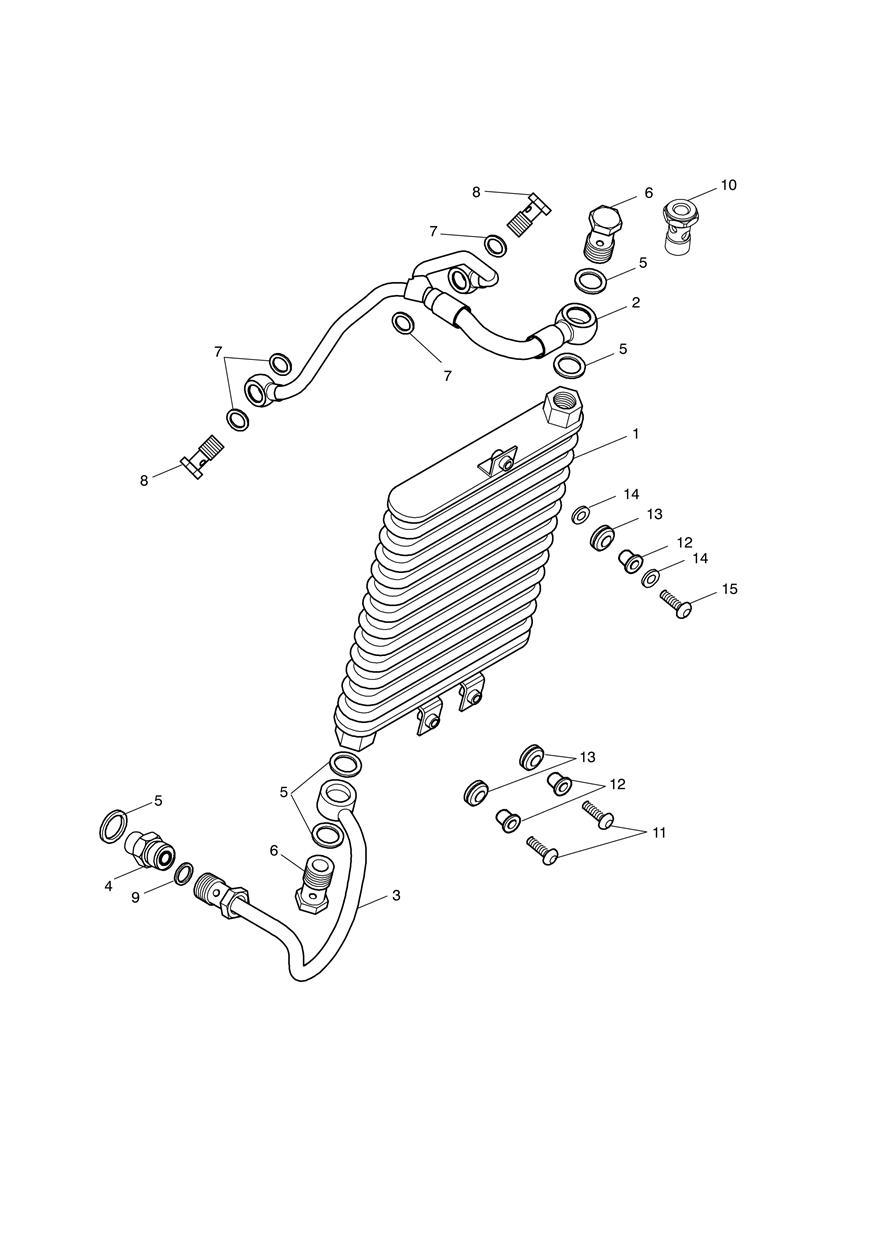

AvailableOil Cooler
T2101675 Kit, Oil Feed Return
Backordered at Triumph · we’ll confirm the ship date after you order
$242.94
On backorderT2101660 Pipe, Oil Feed
Low stock at Triumph
$140.84
Limited availabilityT2101626 Oil Return Pipe
$103.83
AvailableT2101600 Adaptor, Male
$11.69
AvailableT3550905 Washer, M18 x 21.9 OD, Copper
$2.29
AvailableT2100227 Banjo Bolt, M18 x 31
$12.34
AvailableT3550547 Washer, Cu, OD19 x ID14.2
$4.00
AvailableT1210241 Banjo Bolt, M14 x 28
$12.20
AvailableT2101380 O Ring
$3.81
AvailableT2101900 Banjo Bolt, M18 Ext, M12 Int
$16.45
AvailableT3203025 Bolt, RHHF, Domed, M6 x 25, S/S
$1.99
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3021100 Grommet, Dia 13 x 1.8
$2.64
AvailableT3551283 Washer, M10, 10.5x18x1.6, Slv
$1.99
Available
