Front Suspension/Steering/Clutch Master Cylinder
Triumph America · 4 diagrams
4 exploded diagrams for the front suspension/steering/clutch master cylinder of the Triumph America, covering the America. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

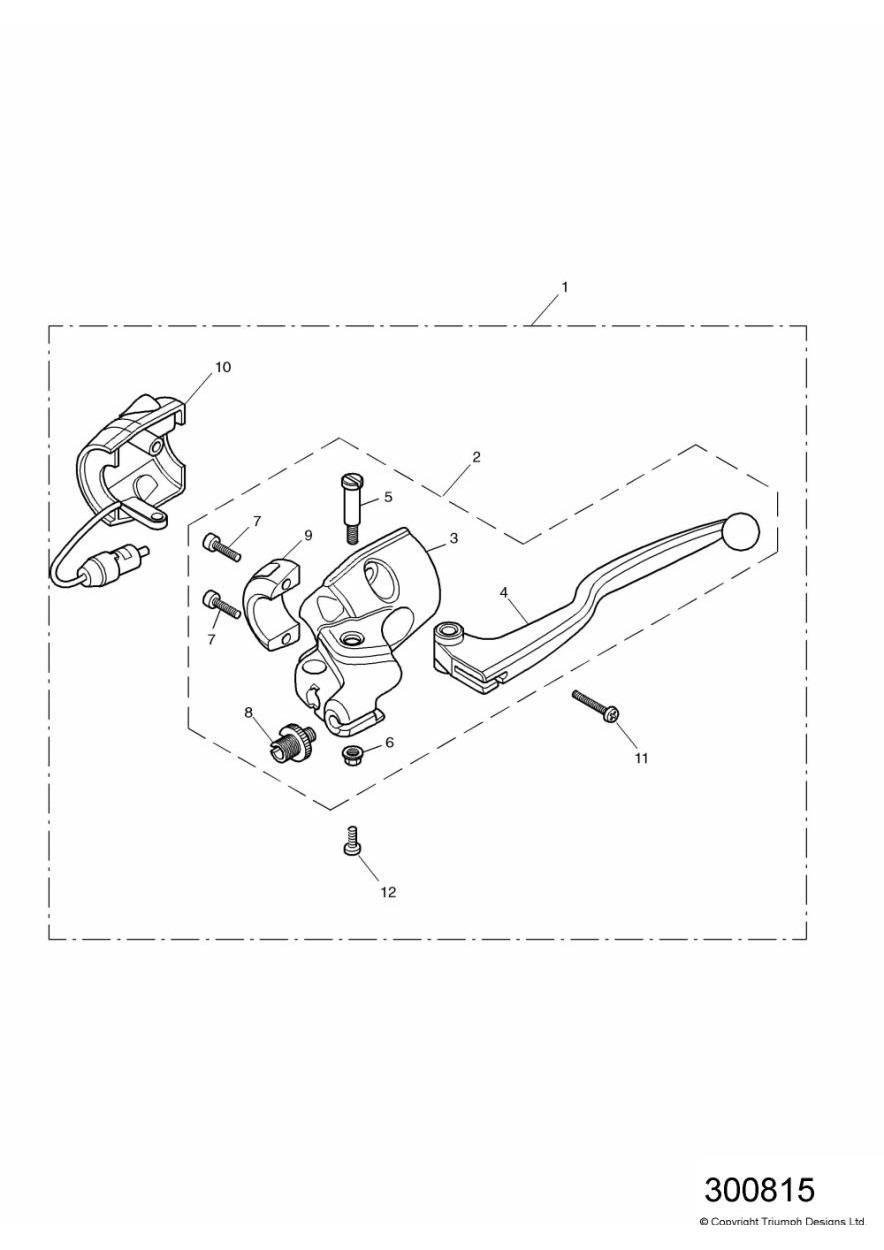

Clutch Control & Switches
12 parts
VIN 281465-F2 or 279278-F4 and lower

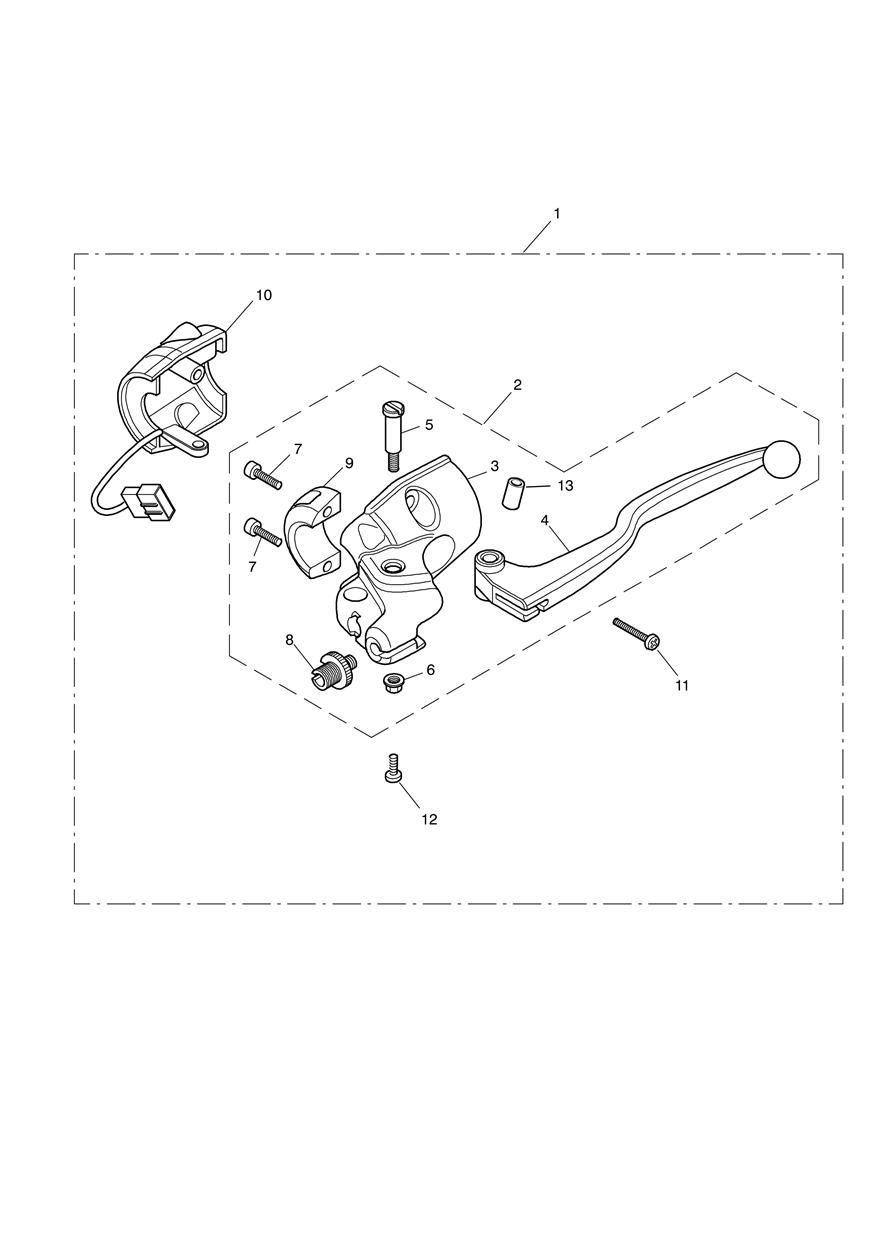

Clutch Controls & Switches
13 parts
VIN 281466-F2 or 279279-F4 and higher

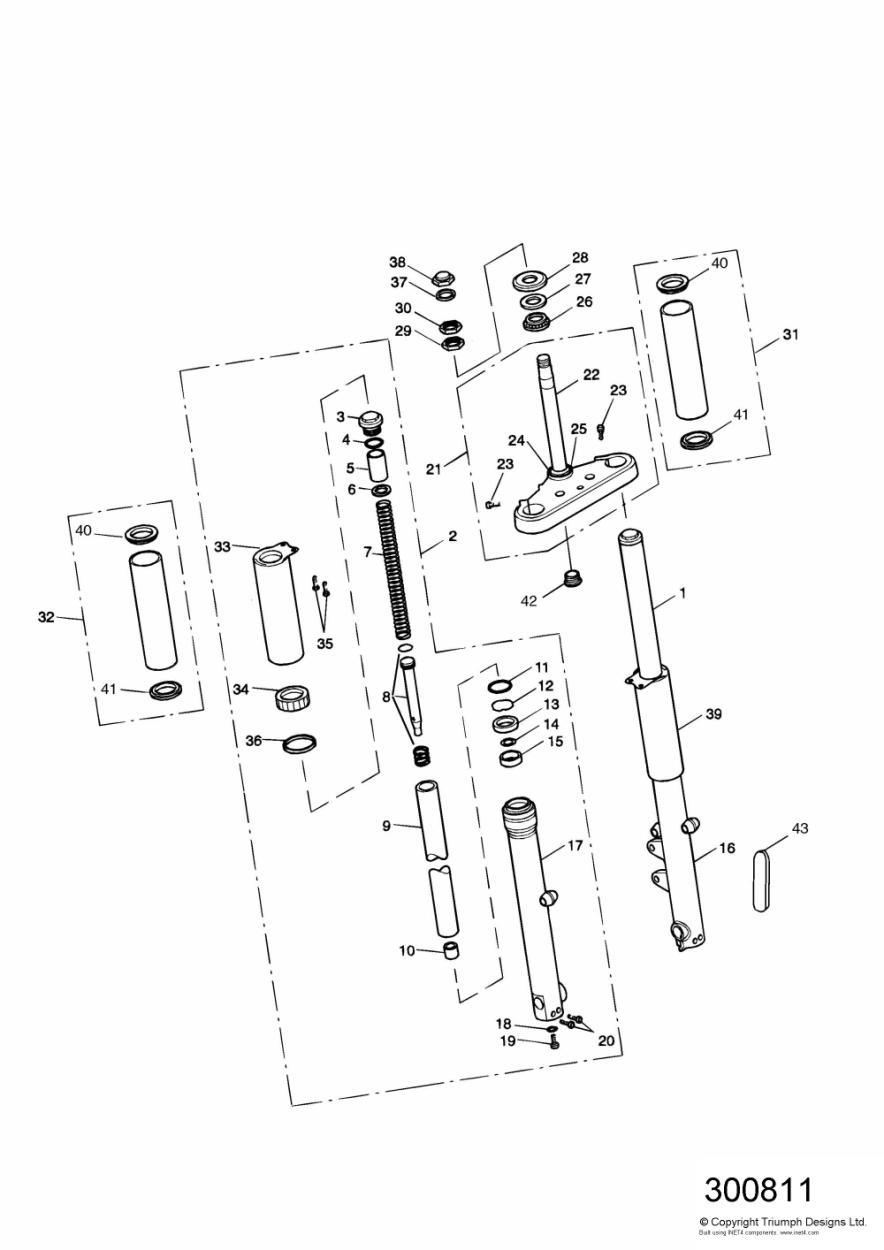

Front Forks & Lower Yokes
53 parts

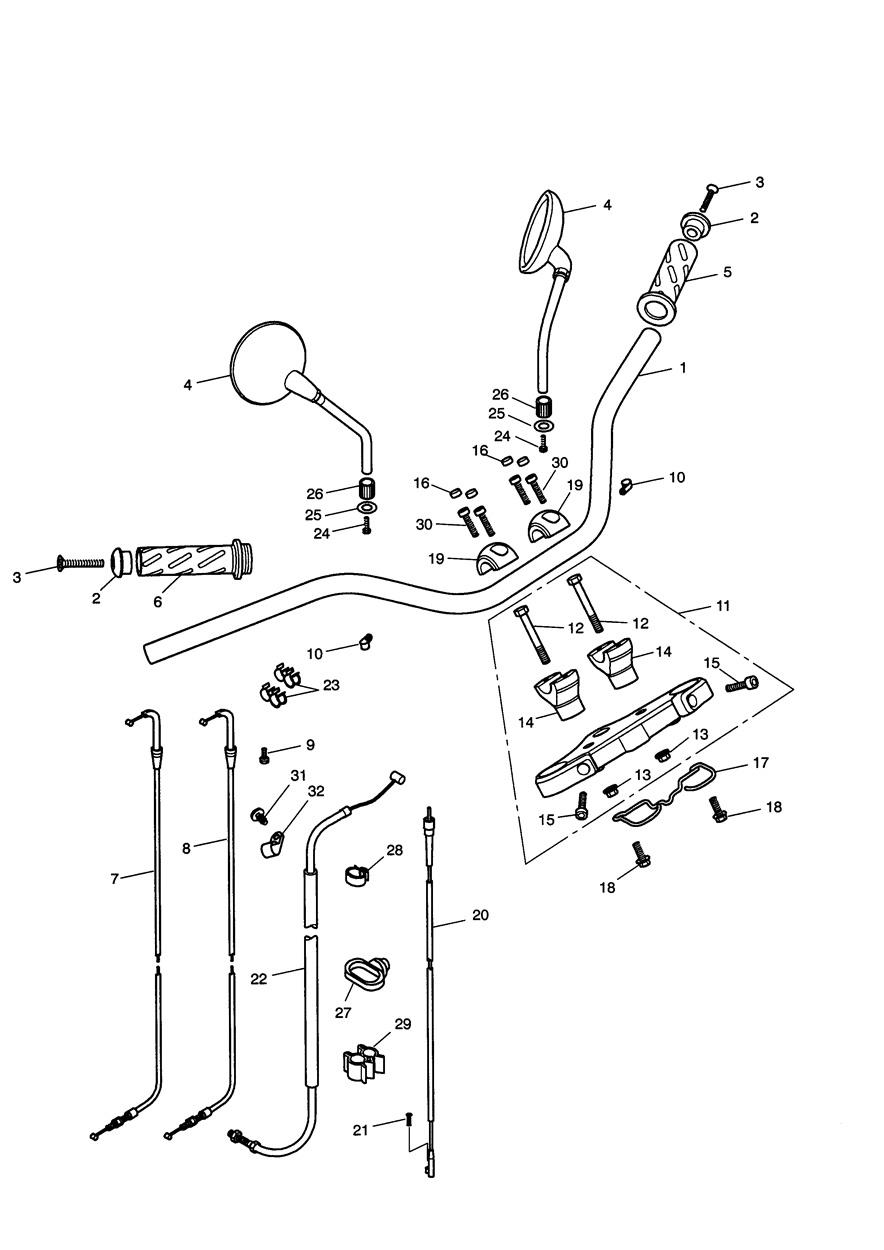

Handlebars, Top Yoke, Cables & Mirrors
32 parts
76 parts you can order online
Every part below appears in Triumph’s Front Suspension/Steering/Clutch Master Cylinder diagrams for the America and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Speedmaster book. 6 parts are specific to the America.
Clutch Control & Switches VIN 281465-F2 or 279278-F4 and lower
T2046000 Clutch Lever Assy
$64.35
AvailableT2046010 Housing, Clutch Lever
$38.81
AvailableT2046001 Lever, Clutch
$60.64
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046004 Screw, M6 x 20
$3.49
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2026004 Clamp, Handlebar
Low stock at Triumph
$16.19
Limited availabilityT2046005 Switch Set, LH
$153.14
AvailableT3330382 Screw, Phil Pan HD, M5 x 12, Slv
$1.99
AvailableClutch Controls & Switches VIN 281466-F2 or 279279-F4 and higher
T2046023 Switch Cube Assy, LH
$244.67
AvailableT2046002 Clutch Lever Assy, Adj
Low stock at Triumph
$86.37
Limited availabilityT2046022 Housing, Clutch Lever
$40.66
AvailableT2046021 Adjustable Clutch Lever
$81.41
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046008 Screw, Phil Pan HD, M5 x 20, AD
Low stock at Triumph
$1.99
Limited availabilityT2046009 Screw, Phil Pan HD, M5 x 12
Low stock at Triumph
$1.99
Limited availabilityT2046526 Collar, Clutch Lever
$3.05
In stock in BreaFront Forks & Lower Yokes
T2047114 Cap, Fork
$66.90
AvailableT2047113 O Ring, Fork Seal
$2.53
AvailableT2047111 Guide, Spring
$3.71
AvailableT2047060 Tube, Fork
$272.86
AvailableT2047104 Oil Lock, Fork
$9.43
AvailableT2047109 Dust Seal, Fork
$16.95
AvailableT2040248 Snap Ring
$6.24
AvailableT2047115 Seal, Oil
Low stock at Triumph
$19.04
Limited availabilityT2047107 Ring, Back Up
$4.04
AvailableT2047106 Guide, Bushing
$12.51
AvailableT2045045 Washer, Sealing B
$1.99
AvailableT2045046 Capscrew, Oil Lock
$9.85
AvailableT3050130 Capscrew, M8 x 40
Backordered at Triumph · we’ll confirm the ship date after you order
$7.05
On backorderT2047095 Yoke Kit
$528.14
AvailableT2047072 Yoke Assy, Lower
$475.29
AvailableT2047044 Capscrew, M10 x 30, S/S
$7.49
AvailableT3600063 Seal, Dust, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT3800052 Bearing, Sac, 55 x 30 x 17
Backordered at Triumph · we’ll confirm the ship date after you order
$31.43
On backorderT3600062 Seal, Dust Dia 47
Low stock at Triumph
$16.37
Limited availabilityT2047036 Dust cover
$1.99
AvailableT2041265 Adjuster Nut, Lower
Low stock at Triumph
$12.45
Limited availabilityT2140210 Adjuster Nut, Upper
$3.14
AvailableT3050089 Capscrew, M6 x 30
$2.64
AvailableT2040061 Washer Upper Yoke
$6.61
AvailableT2040060 Nut
$22.99
AvailableT2047031 Grommet, Upper Fork Shroud Top
$8.62
AvailableT2049402 Bushing Rubber, Top
$8.62
AvailableT2046402 Bushing Rubber, Btm
Backordered at Triumph · we’ll confirm the ship date after you order
$8.62
On backorderT3450060 Cap
Low stock at Triumph
$1.99
Limited availabilityT2700332 Reflector, Amber, Oval
$5.92
AvailableHandlebars, Top Yoke, Cables & Mirrors
T2040392 Handlebar Assy, 25.4mm
Low stock at Triumph
$183.07
Limited availabilityT2043448 Bar End Weight
$30.19
AvailableT3330643 Screw, M5 x 30, CSK Skt, Patch
$1.99
AvailableT2066682 Spares Kit, Mirror Assy
$120.01
AvailableT2043451 Grip, LH
$16.81
AvailableT2043452 Grip, RH
$16.81
AvailableT2047045 Cable throttle
Low stock at Triumph
$44.01
Limited availabilityT2046007 Clip, Cable, Dia 15.9
Low stock at Triumph
$3.81
Limited availabilityT2047015 Yoke Assy, Upper
Backordered at Triumph · expected Nov 6
$292.22
On backorderT3202092 Bolt, M10 x 70
$7.14
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT2047008 Clamp, Handlebar, Lower
$68.63
AvailableT3050175 Kit, 4 x Screw M8 x 1.25 x 30 Slv
$7.83
AvailableT3450200 Plug, Caphead, Chrome
$3.88
AvailableT2047026 Cable Guide, Wire
$11.62
AvailableT3205254 Bolt, HHF, Lghtd, M8 x 20, Slv
$1.99
AvailableT2047009 Clamp, Handlebar, Upper
Low stock at Triumph
$37.47
Limited availabilityT2047047 Cable speedometer
$37.32
AvailableT3331017 Screw. Phil CSK. M5 x 20, Slv
$3.94
AvailableT2047048 Clutch cable
Backordered at Triumph · expected Nov 6
$46.55
On backorderT2040811 Twin Clip, Brake Hose
$2.43
AvailableT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT3550203 Washer, Valve Spring, M10
Low stock at Triumph
$2.01
Limited availabilityT3550204 Tolerance Ring, 12x 12
$4.39
AvailableT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT2040884 Clip, Twin, Speedo, Brake
$4.39
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT3701098 Firtree, Dia 5 x 18
$4.85
In stock in BreaT3700096 P Clip, Dia 15.9, Plastic, Blk
Backordered at Triumph · expected Nov 6
$4.56
On backorder
