Electrical System
Triumph Bonneville Bobber TFC · 16 diagrams
16 exploded diagrams for the electrical system of the Triumph Bonneville Bobber TFC, covering the Bobber TFC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

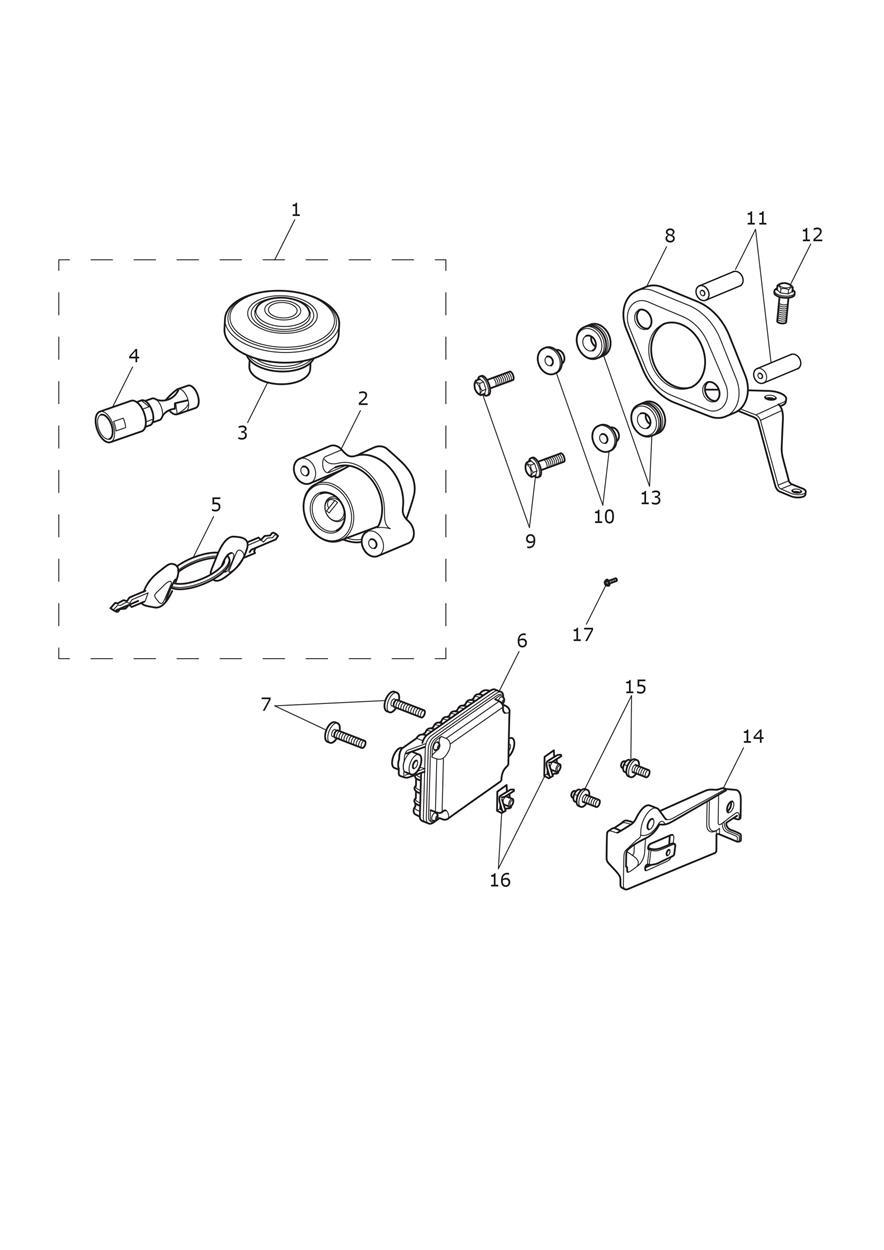

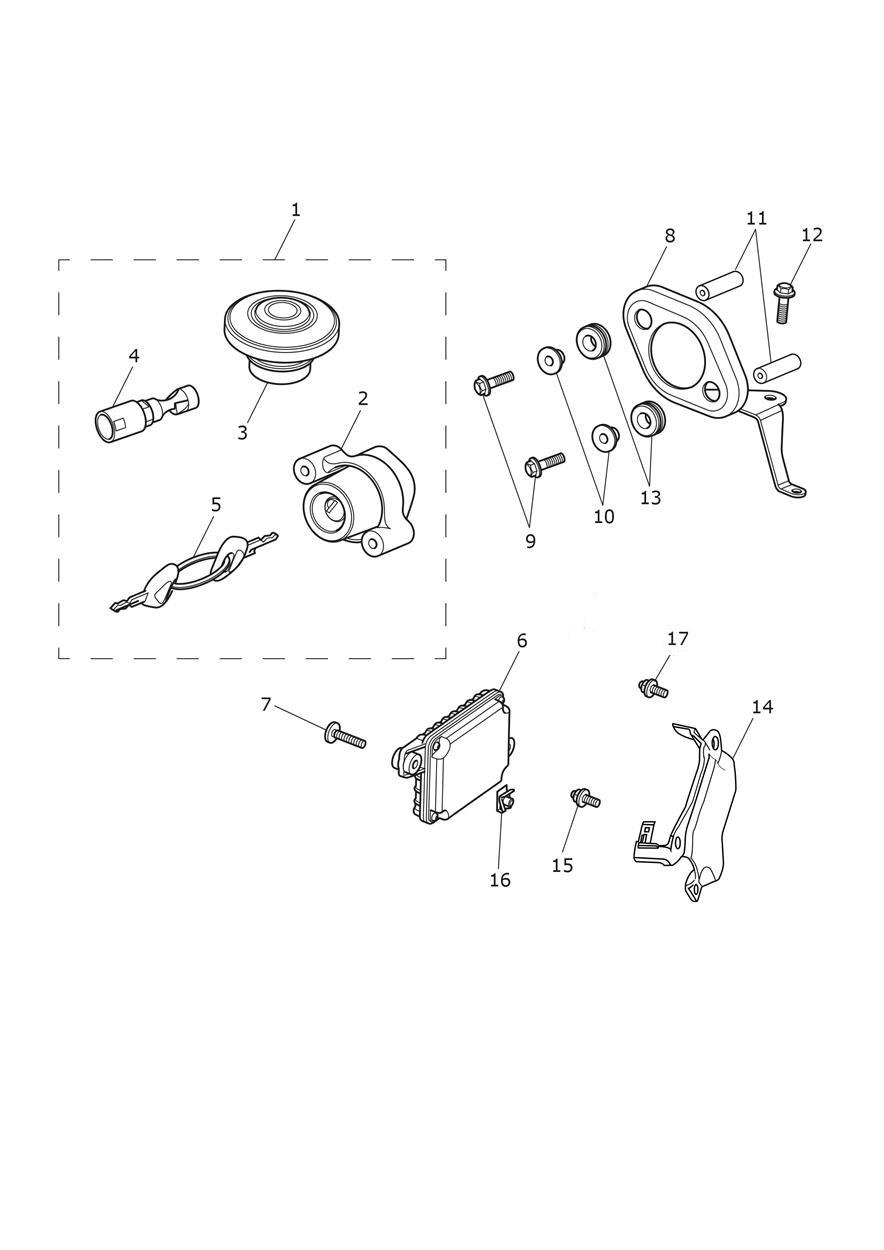

Ignition Switch & Lockset
18 parts
VIN CC7193 and higher

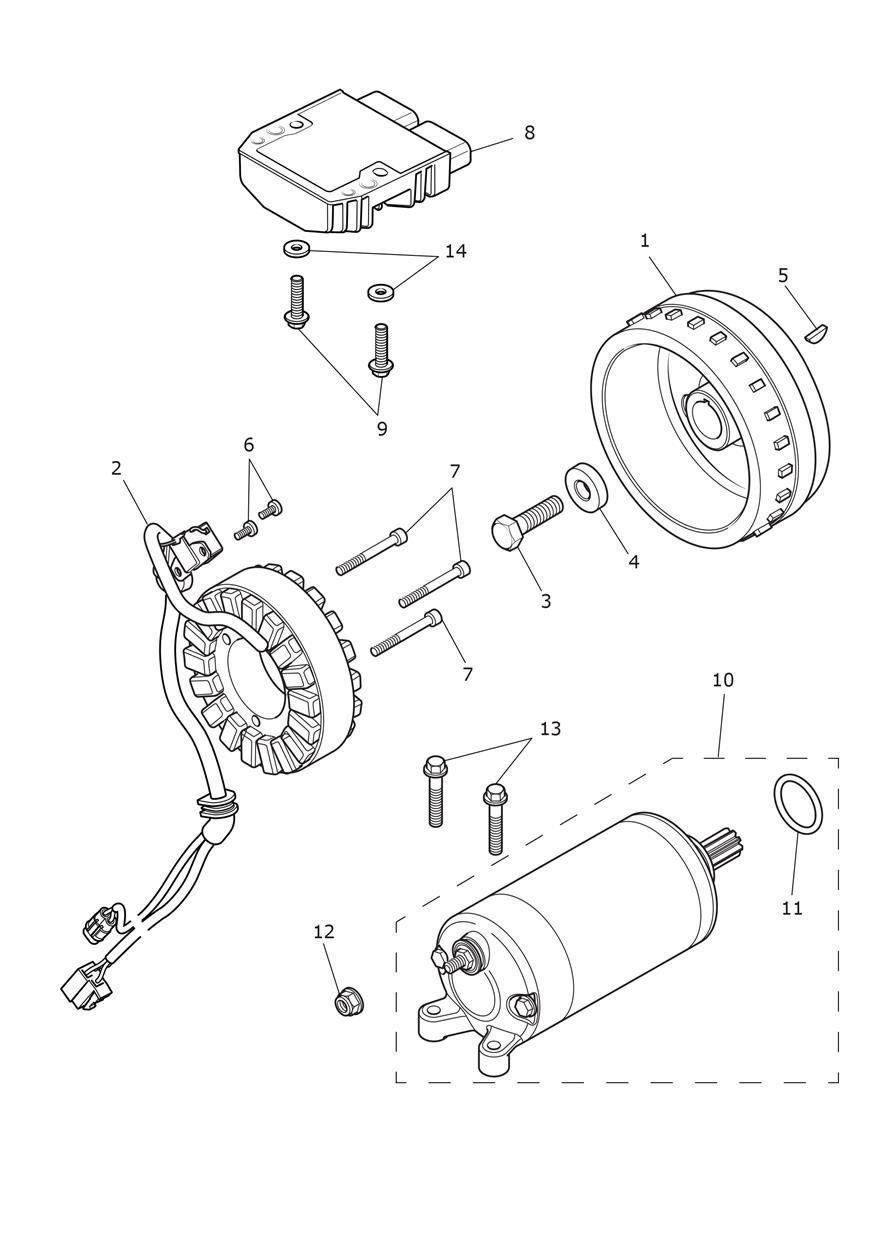

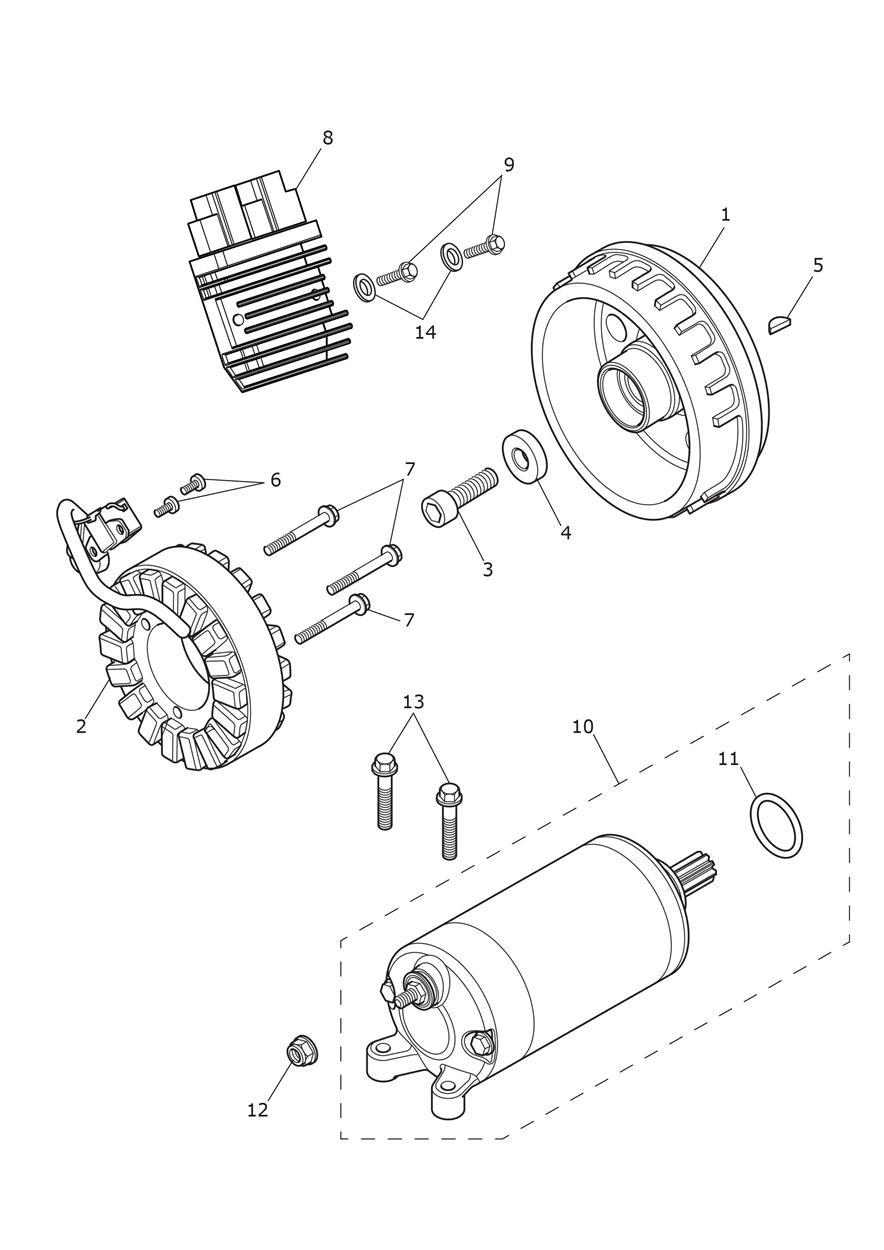

Alternator & Starter Motor
14 parts
VIN CC7193 and higher

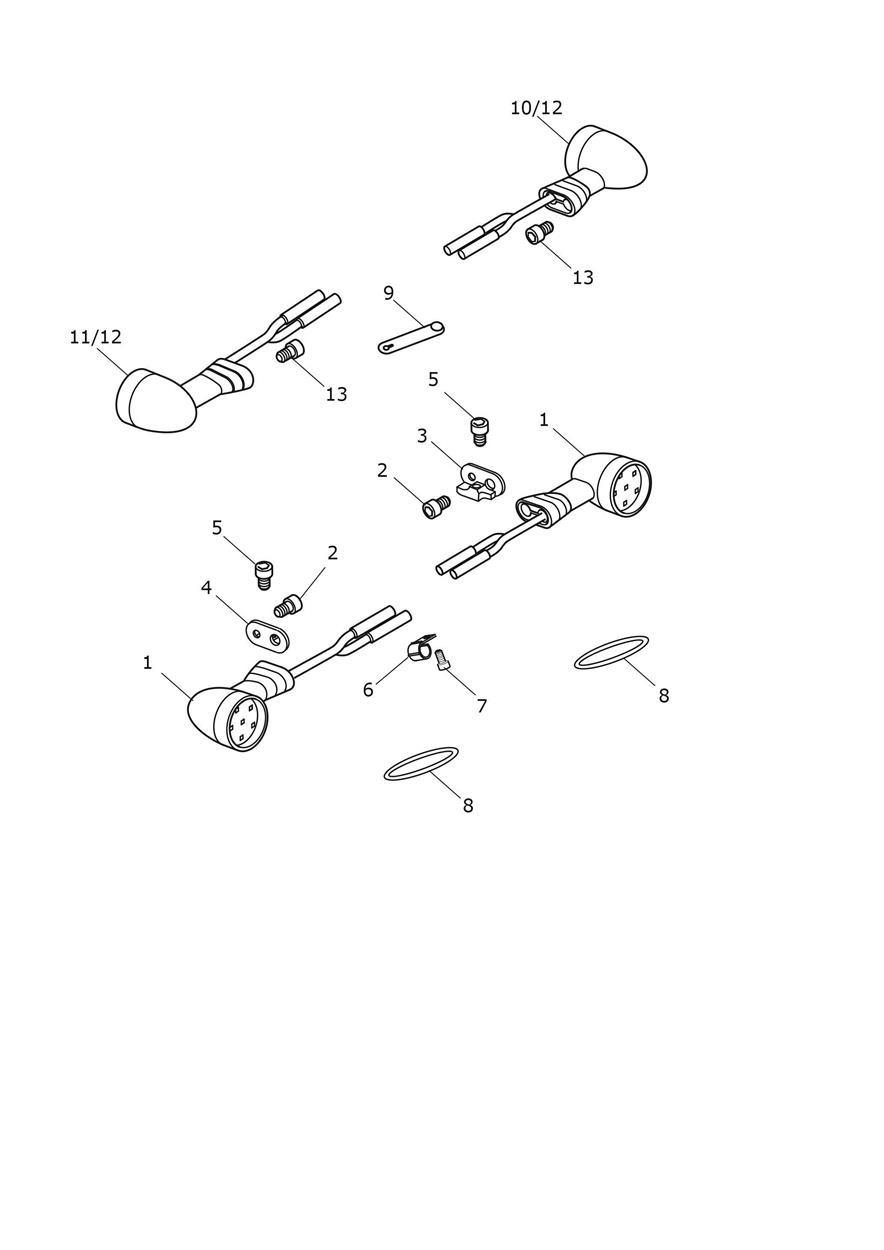

Indicators
13 parts
VIN CC7193 and higher

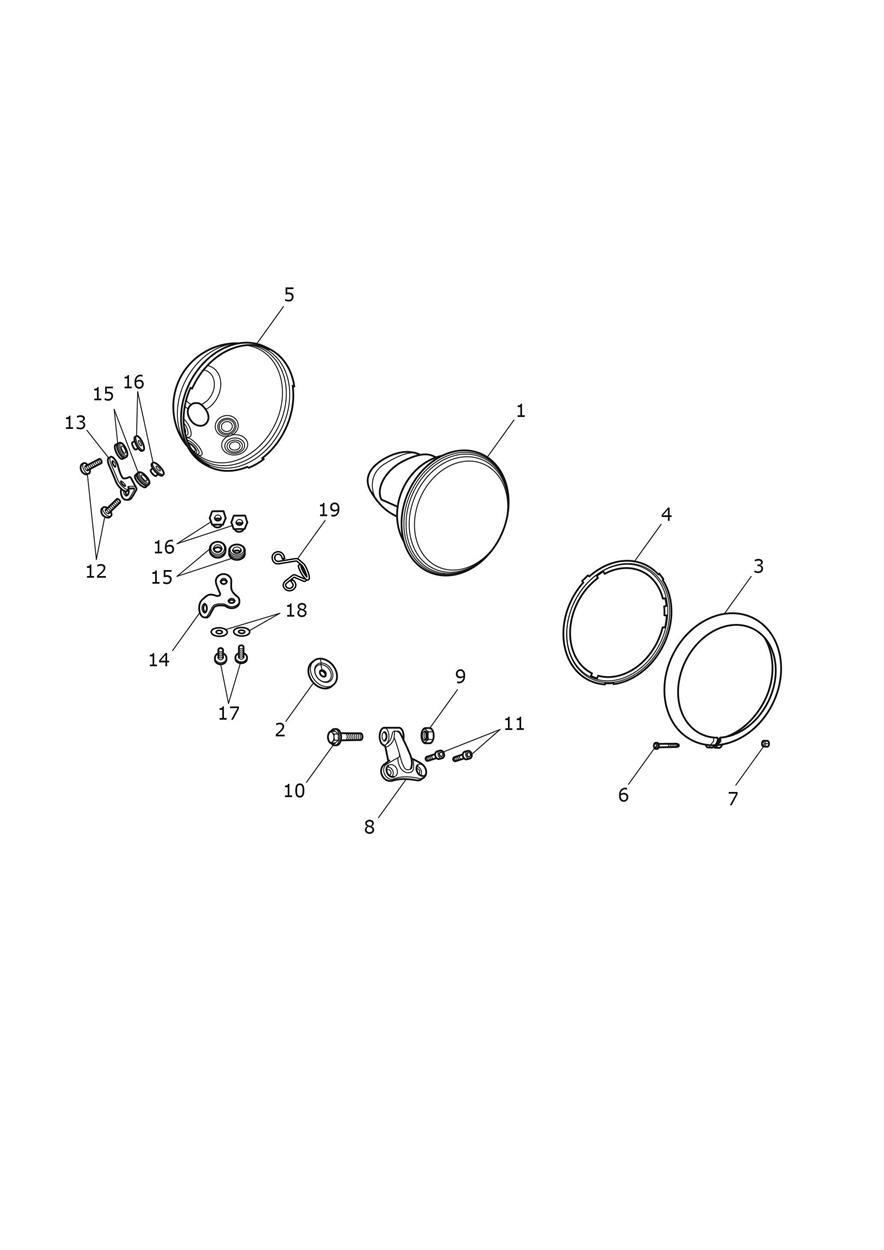

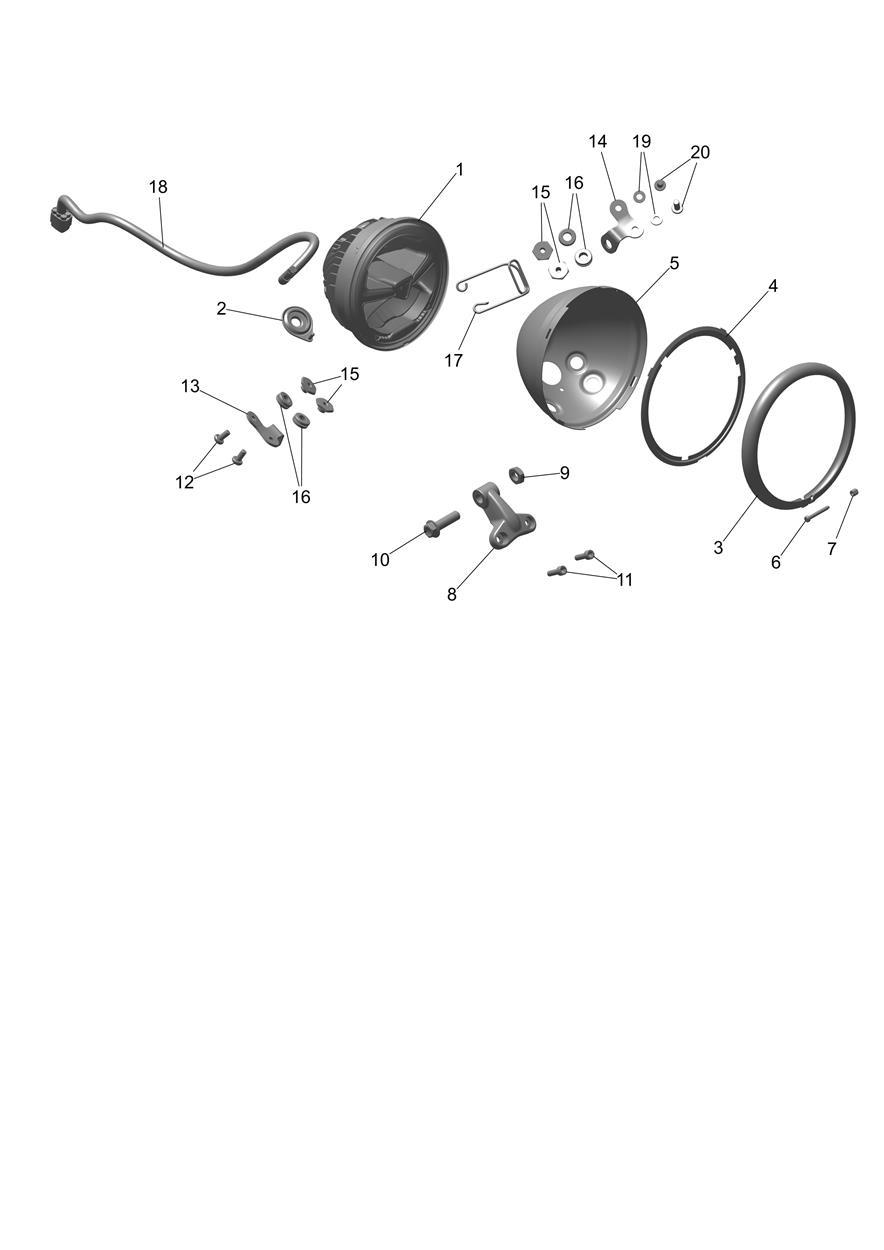

Headlights
20 parts
VIN CC7193 and higher

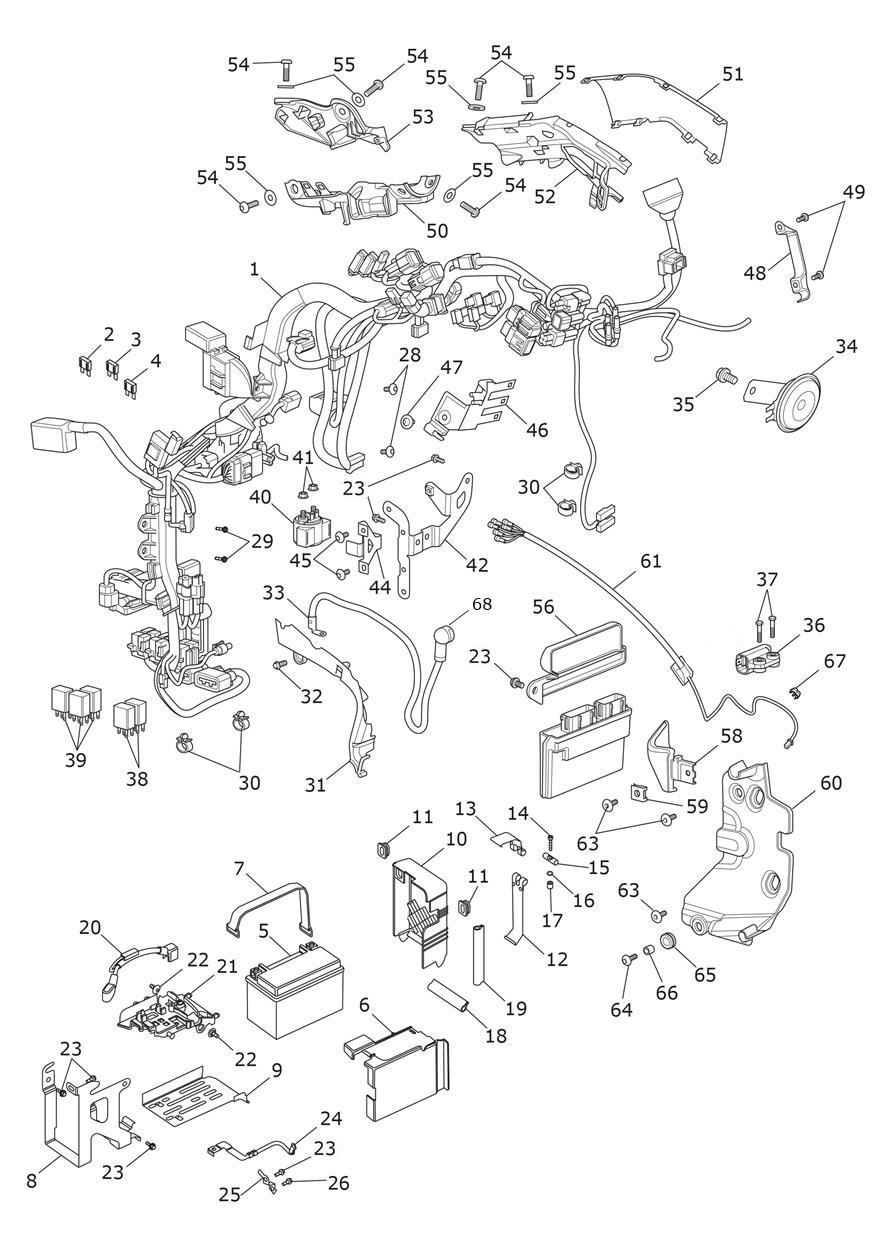

Electrical Equipment
63 parts
VIN CC7193 and higher

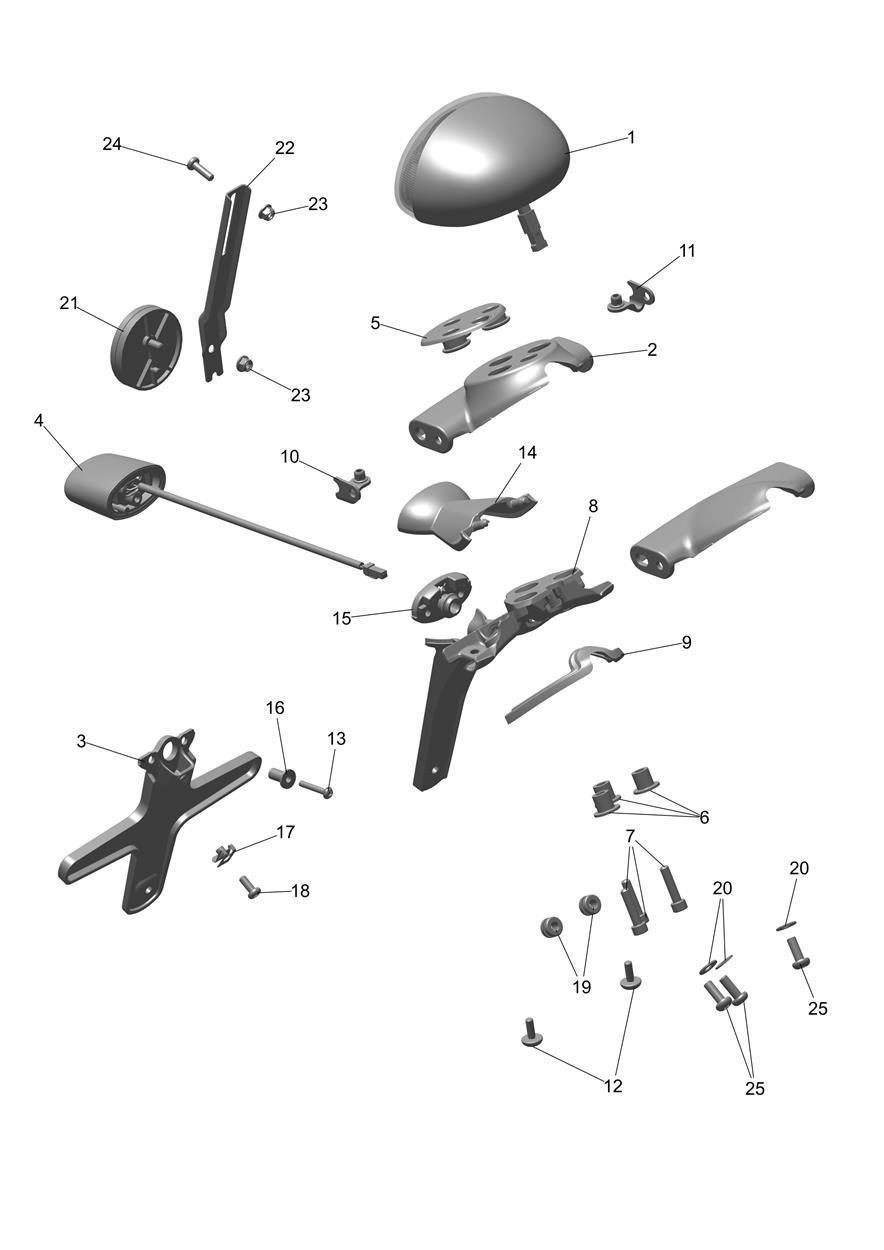

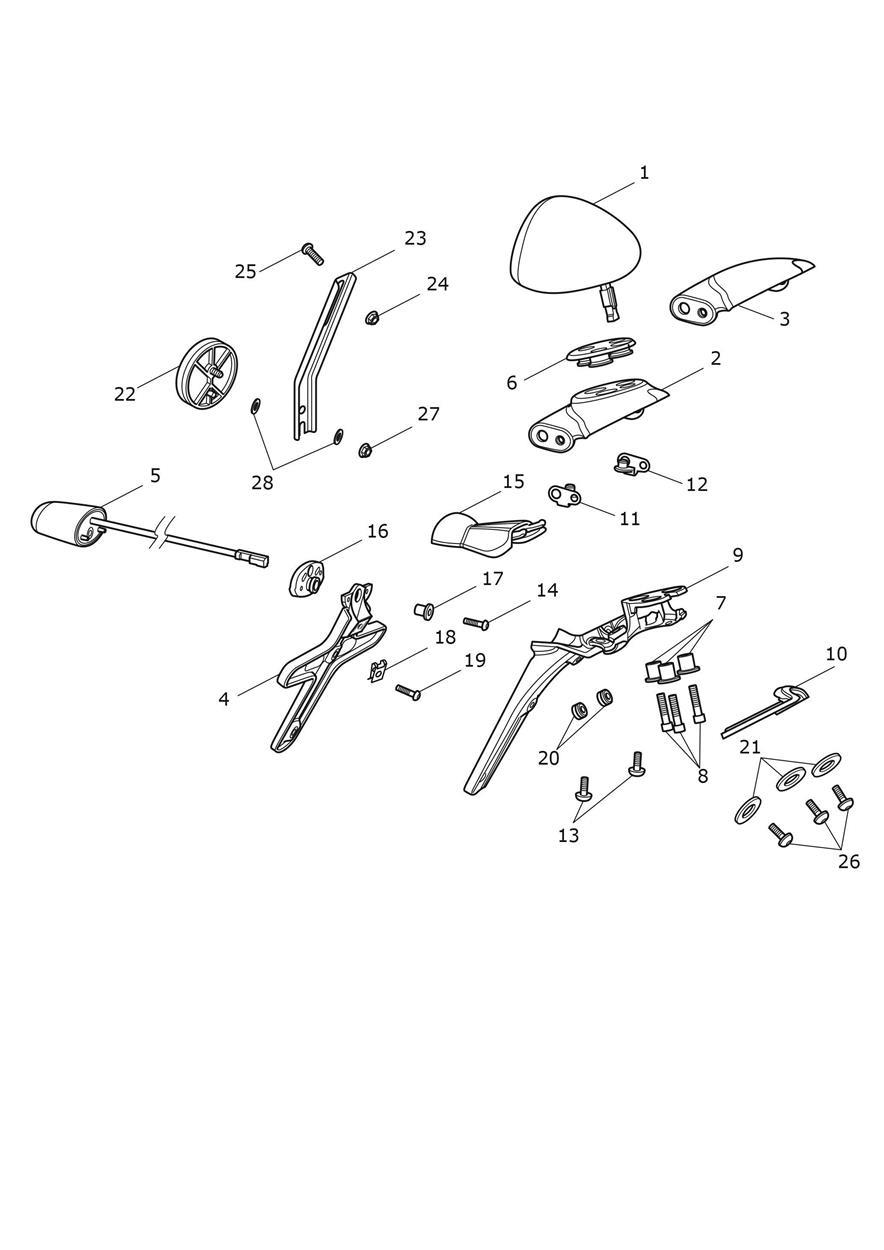

Rear Light
25 parts
VIN CC7193 and higher

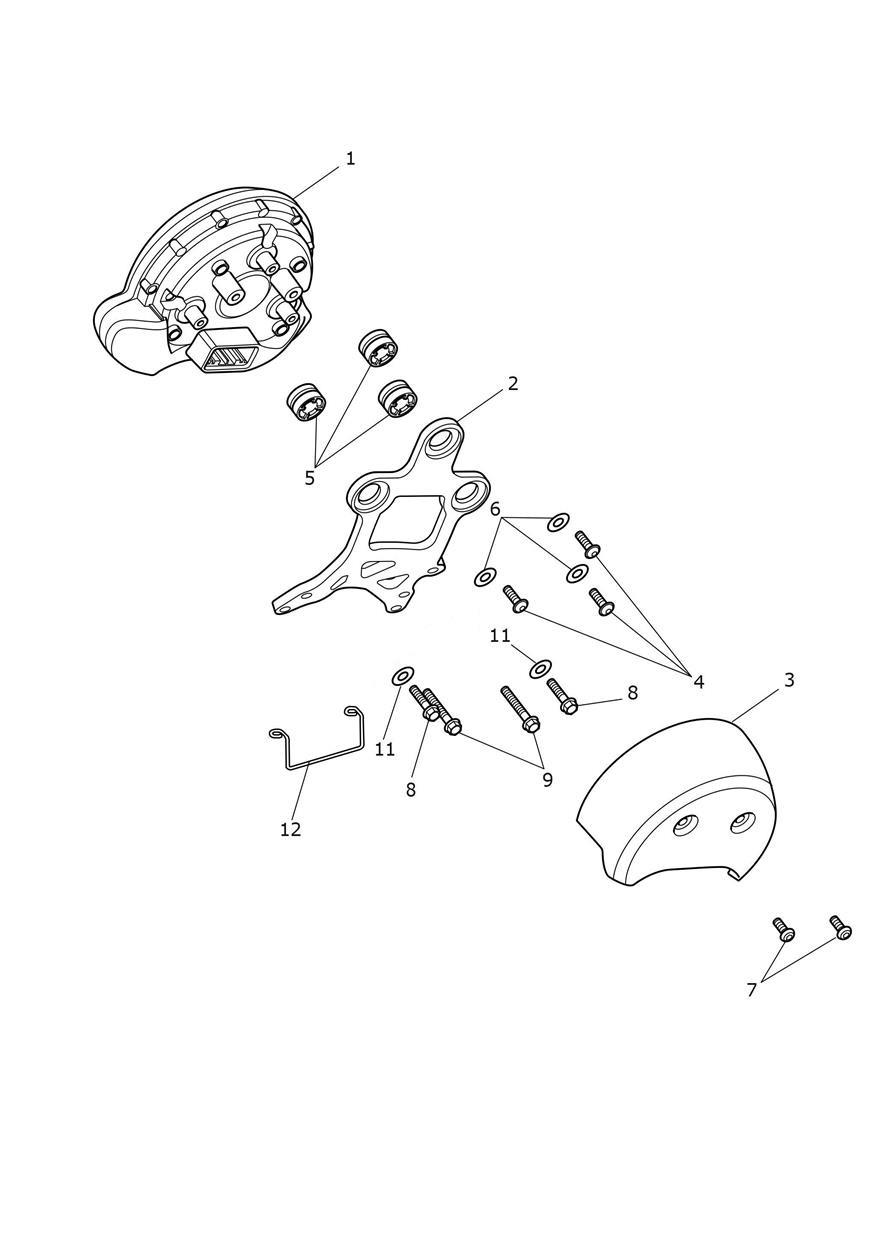

Instruments
11 parts
VIN CC7193 and higher

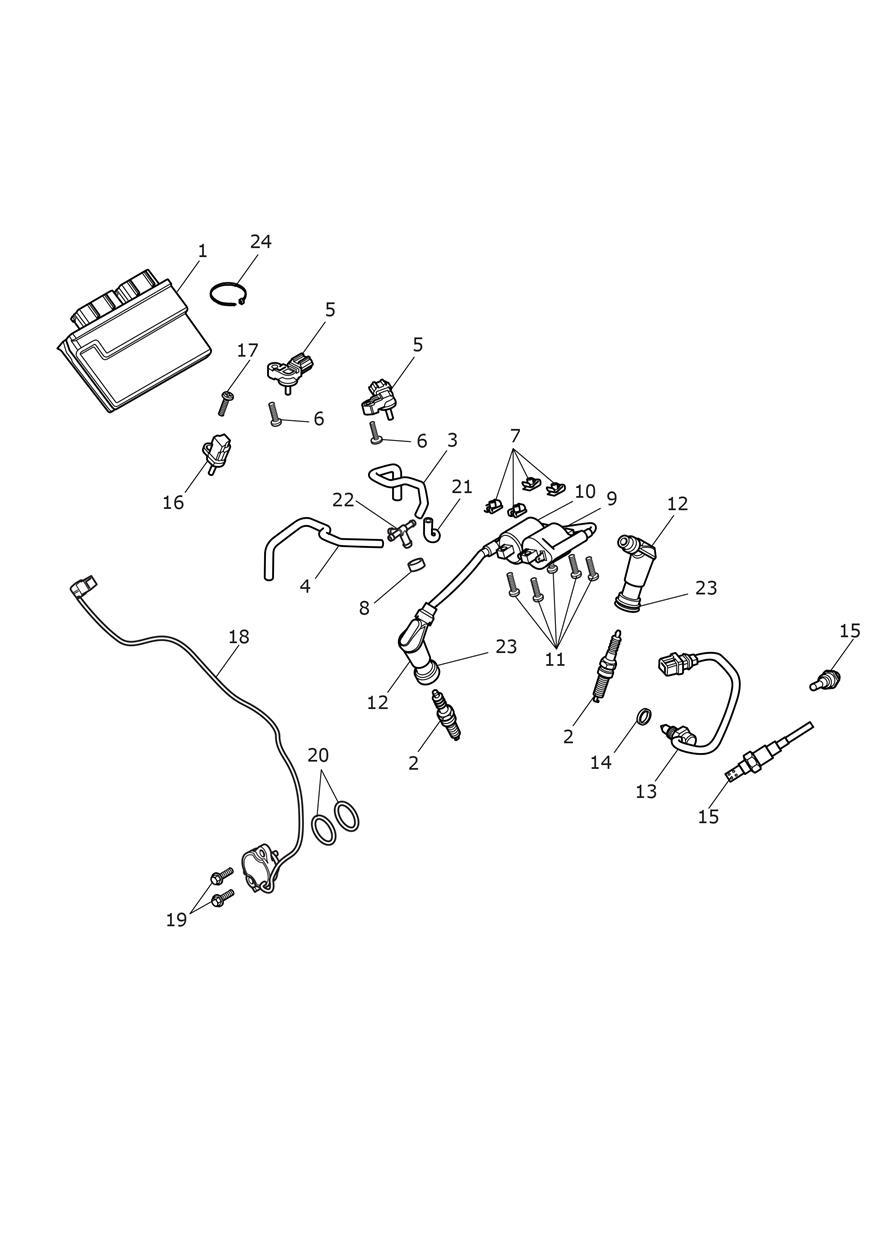

Engine Management System
24 parts
VIN CC7193 and higher
Ignition Switch & Lockset
18 parts
VIN AB9229 and lower

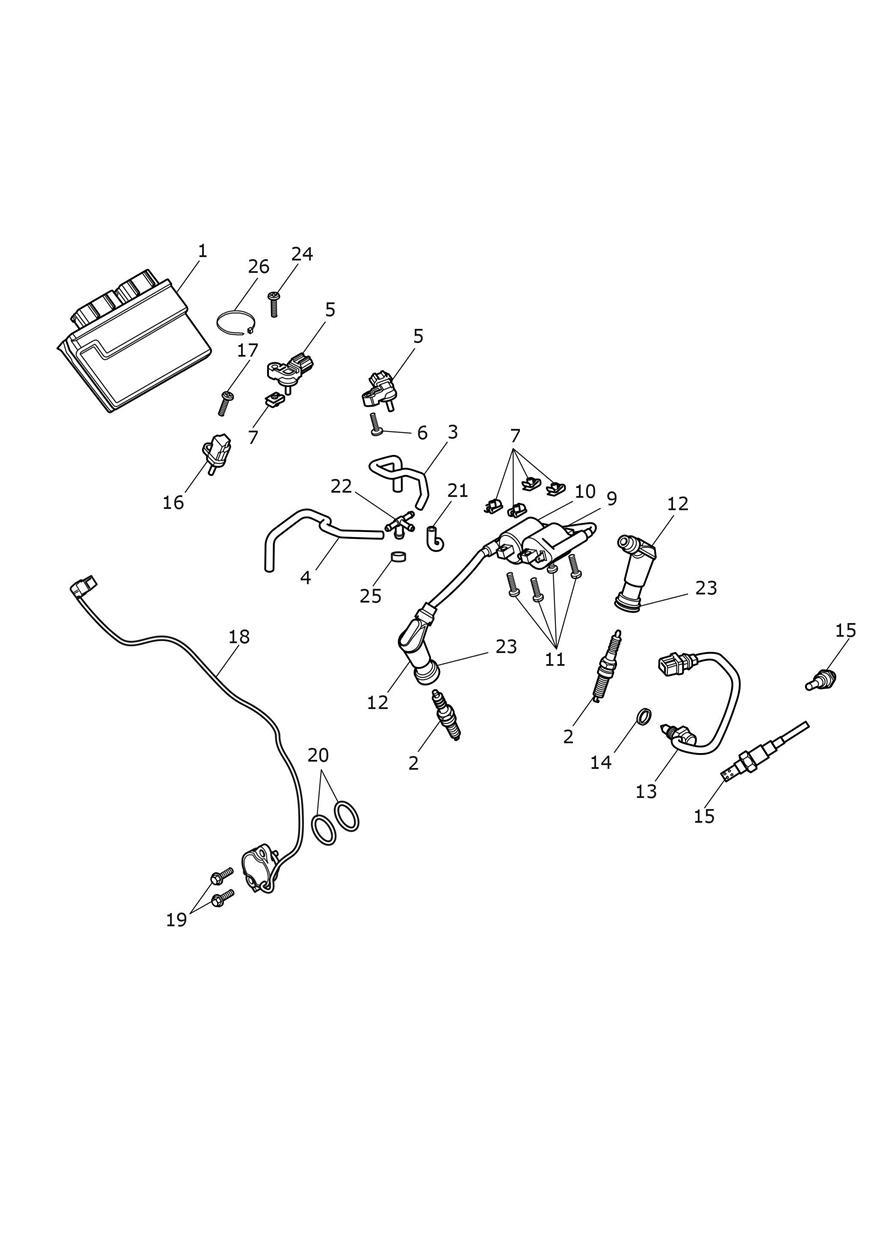

Engine Management System
25 parts
VIN AB9229 and lower

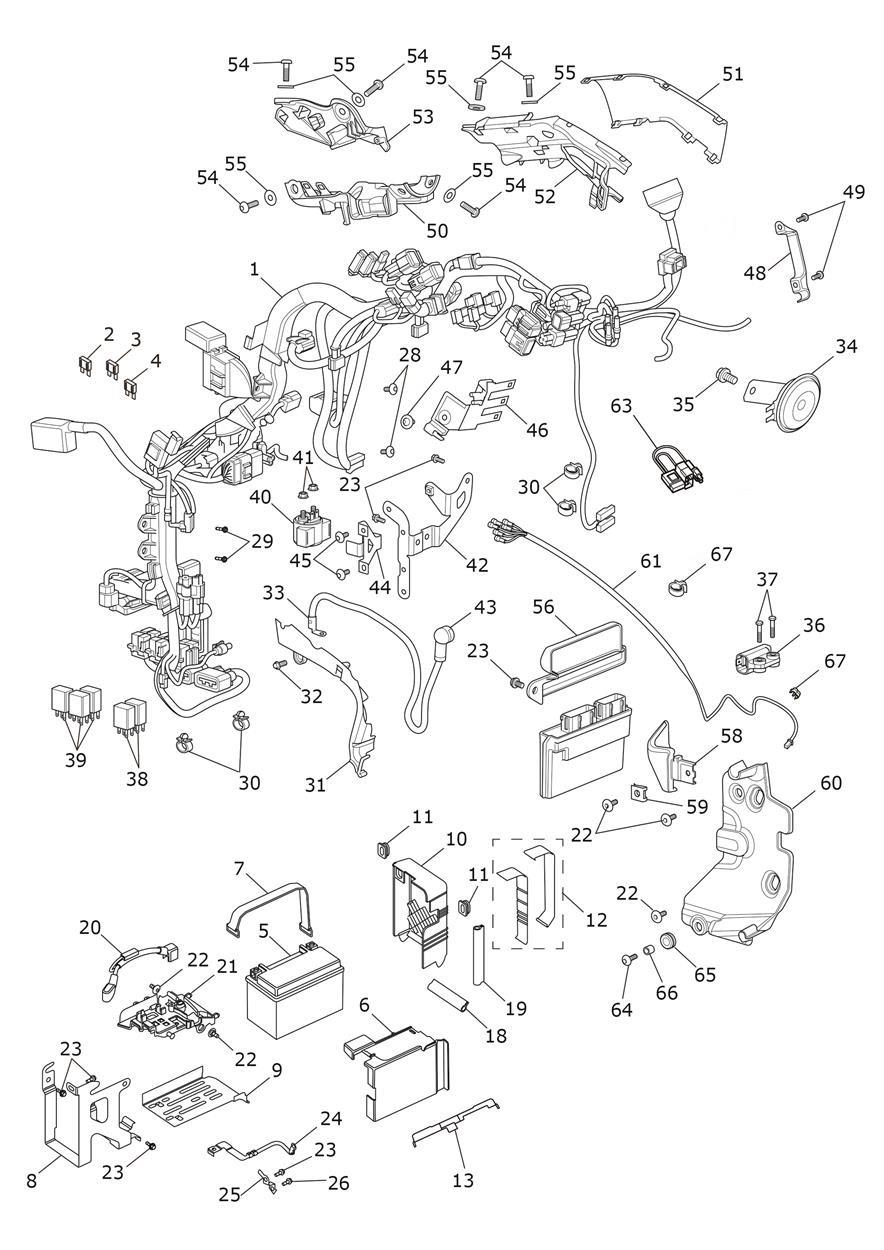

Electrical Equipment
65 parts
VIN AB9229 and lower
Alternator & Starter Motor
14 parts
VIN AB9229 and lower
Rear Light
28 parts
VIN AB9229 and lower
Indicators
13 parts
VIN AB9229 and lower
Instruments
12 parts
VIN AB9229 and lower
Headlights
19 parts
VIN AB9229 and lower
178 parts you can order online
Every part below appears in Triumph’s Electrical System diagrams for the Bonneville Bobber TFC and is priced and orderable online. Open a part to see what it fits and to buy it.
Ignition Switch & Lockset VIN CC7193 and higher
T2501718 Ignition Switch
$264.04
AvailableT2400718 Fuel Filler Cap, Locking
$112.68
AvailableT2075325 Steering Lock
$104.26
AvailableT2504666 Key, Blank, Immobiliser
Backordered at Triumph · expected Oct 23
$40.41
On backorderT2504061 Immobiliser ECU, with RF 434
$1452.32
AvailableT3330429 Screw, Skt Hd, M5 x 25, SS
$2.04
AvailableT2502240 Bracket, Lockset
$16.55
AvailableT3202338 Bolt, RHHF, M6 x 28, Slv, Enc
$1.99
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT2501707 Sleeve, Threaded, M6
$9.67
AvailableT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91
AvailableT3021100 Grommet, Dia 13 x 1.8
$2.64
AvailableT3203222 Bolt, HHF, M6 x 12, Slv
$1.99
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT3200148 Bolt, RHHF, M6 x 30, Slv
$4.12
AvailableAlternator & Starter Motor VIN CC7193 and higher
T1300128 Stator, Alternator
$617.00
AvailableT3208888 Bolt, Radial Feed, M12 x 40
$13.39
AvailableT3550846 Washer, M12 x 30 x 8
$10.22
AvailableT3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc
$1.99
AvailableT3051082 Screw, Cap/Hd, M6 x 50, Enc
$2.01
AvailableT1300679 Regulator Rectifier
$412.16
AvailableT3200190 Bolt, RHHF, M6 x 25, Slv
$2.43
AvailableT1313222 Starter Motor, 1KW
$1153.04
AvailableT3600115 O Ring
$3.14
AvailableT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT3205070 Bolt, HHF, Lghtd, M6 x 30, Slv
$2.20
AvailableT3552004 Washer, M6 x 14 x 2
$1.99
In stock in BreaIndicators VIN CC7193 and higher
T2709462 LED Indicator, Short, D64, 450 Lead
$185.75
AvailableT3050348 Screw, Cap/Hd, M6 x 12, Enc, Slv
$4.76
AvailableT2709209 Indicator Mount, RH
$32.63
AvailableT2709254 Indicator Mount, LH
$32.63
AvailableT3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc
$1.99
AvailableT3700149 Clip, Plastic, Black
$4.39
AvailableT3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc
$2.81
AvailableT2100713 O Ring, Water Elbow
$3.24
AvailableT3700259 Rubber Band, 43mm
$3.61
AvailableT9830111 Multifunction Lamp, Type 2
$200.66
AvailableHeadlights VIN CC7193 and higher
T2707950 Headlamp, 133 Dia, LED
$812.49
AvailableT2701244 Rim, Headlight, Black
Low stock at Triumph
$36.96
Limited availabilityT2700559 Ring support
$7.49
AvailableT3330585 Screw, M4 x 30
Low stock at Triumph
$1.99
Limited availabilityT3350069 Nut, M4
$1.99
AvailableT2707765 Mount, Headlight, Forging, Clear
$61.60
AvailableT3350134 Locknut, M10 x 1.25
$2.35
AvailableT3205796 Bolt, HHF, Lghtd, M10 x 35, Slv
Backordered at Triumph · we’ll confirm the ship date after you order
$10.49
On backorderT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT2707753 Bracket, Mount, Headlight, RH
$87.14
AvailableT2707752 Bracket, Mount, Headlight, LH
$87.14
AvailableT3020085 Grommet, Dia 18 x 9
$1.99
AvailableT3350340 Flanged Nut, M6, 14mm A/F
$2.43
AvailableT2706699 Wire Guide
Backordered at Triumph · expected Nov 6
$10.70
On backorderT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaElectrical Equipment VIN CC7193 and higher
T2504240 Main Harness
$916.05
AvailableT2501310 Fuse, Mini, 10A
$4.39
AvailableT2501315 Fuse, Mini, 15A
$4.39
In stock in BreaT2501325 Fuse, Mini, 25A
$4.39
AvailableT2500183 Battery
$116.06
In stock in BreaT2506715 Kit, Battery, YTX9-BS
$127.99
In stock in Brea · last onesT2502801 Guide, Battery Strap
$9.77
AvailableT2501833 Strap, Battery, Extended
$9.15
AvailableT2502809 Battery Box, Pressing
$38.55
AvailableT2502802 Tray, Battery
$41.36
AvailableT2502820 Battery Cover
$60.76
AvailableT3020054 Grommet, Sidepanel
Low stock at Triumph
$2.20
Limited availabilityT2504790 Kit, Spares, Battery Strap
Backordered at Triumph · expected Nov 6
$28.18
On backorderT2502804 Seal, Battery Cover, Lower
$6.87
AvailableT2502805 Seal, Battery Cover, Side
Low stock at Triumph
$6.87
Limited availabilityT2502813 Lead, Battery Positive
$10.71
In stock in BreaT2502832 Lid, Battery Box
$42.50
AvailableT3330858 Bolt, But/Hd, M6 x 15, Shld, Slv
$2.36
AvailableT2502866 Lead, Earth
$9.52
AvailableT2502823 Bracket, Earth
$17.36
AvailableT3050338 Screw, Cap/Hd, M6 x 12, Slv
$4.76
AvailableT2505049 Blanking Plug, O2 Sensor
$6.16
AvailableT3331061 Bolt, But/Hd, M5 x 11, Shld, Slv
$4.65
AvailableT3332656 Screw, Button, M5 x 12, Enc
$1.99
In stock in BreaT3700182 Clip, Omega, 18mm x 14mm
$3.81
In stock in BreaT2501772 Moulding, Starter Cable Guide
$14.77
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT2502814 Lead, Starter
$68.63
AvailableT2507002 Horn Assy, 440 Hz
$49.29
In stock in BreaT3201228 Bolt, HHF, M8 x 14, Slv
$2.53
AvailableT2502455 Fall Detection Switch
$78.32
AvailableT3330390 Screw, H/Hd, M4 x 25, Slv, Enc
$2.53
AvailableT2507728 Relay, Changeover
$17.13
AvailableT2507727 Relay, Normally Open
Low stock at Triumph
$18.63
Limited availabilityT1310008 Starter Solenoid Assy
$67.75
AvailableT2501557 Cover, Starter Lead
$5.02
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT3701121 Rivet, Plastic, Screw Type
Low stock at Triumph
$1.99
Limited availabilityT2502848 Harness Guide, Headstock, Moulding
$6.96
AvailableT3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv
$5.25
AvailableT2503720 Moulding, Coils Bracket
Backordered at Triumph · expected Nov 6
$10.57
On backorderT2502925 Harness Conduit, Spine, Upper
$6.50
AvailableT3331234 Screw, Torx, P/H, M6 x 20, Slv
$4.91
In stock in BreaT3555025 Washer, 6.4 x 18 x 1.6
$1.99
AvailableT2503070 Strap, ECU, Moulding
$8.86
AvailableT2502850 Intake Shield, RHS, Moulding
$11.46
AvailableT3351021 Nut, Captive, M6, Slv
$1.99
AvailableT2502868 Packaging Cover, RHS, Moulding
Backordered at Triumph · expected Nov 6
$39.36
On backorderT3330952 Screw, Butn/Hd, M5 x 20, Slv
$2.29
AvailableT3020050 Grommet
$4.76
AvailableT3010297 Compression Limiter, Id 6.5
$3.98
AvailableT3701103 Clip, Twin, 3.9-7
Low stock at Triumph
$2.84
Limited availabilityRear Light VIN CC7193 and higher
T2701255 Rear Light Assembly
Low stock at Triumph
$180.25
Limited availabilityT2702355 Hanger, Upper, Reg Plate
$18.63
AvailableT2708036 Light, LED, Registration Plate
$39.10
AvailableT2702071 Rubber Pad, Rear Light
$7.41
AvailableT3010713 Sleeve, Flgd, 6.4 x 11.5 x 11.5
$3.81
AvailableT3050333 Screw, Cap/Hd, M6 x 25, Slv
$7.05
AvailableT2702353 Trim, Light Plinth, Rubber
$6.42
AvailableT2709188 Bracket, Indicator Support, RH
$13.50
AvailableT2709189 Bracket, Indicator Support, LH
$13.50
AvailableT3330955 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableT3331444 Screw, S/tap, Pan, Torx, M4 x 25
$1.99
AvailableT2709190 Rubber, Number Plate Light
$6.16
AvailableT3010715 Sleeve, Flanged, 4.5 x 7.5 x 13.5
$3.98
AvailableT3020131 Grommet, 9 x 2 x 6
$1.99
AvailableT3552002 Washer, M6 x 14 x 1
$1.99
AvailableT2700464 Reflector, Red, Circular
$6.61
AvailableT2702032 Rear Reflector Bracket, Short
$24.88
AvailableT3350010 Locknut, Flgd, M5
$2.09
AvailableT3330842 Screw, Pan/Hd, TX, M5 x 16, Slv
$2.03
AvailableInstruments VIN CC7193 and higher
T2507028 Instruments, Mph, US
$1233.30
AvailableT2503067 Bracket, Instruments
$101.83
In stock in Brea · last onesT2502307 Cover, Instrument, Rear
$13.73
In stock in BreaT3331414 Screw, S/Tap, Tx, 5 x 16
$1.99
In stock in BreaT3020122 Grommet, Instruments
$6.42
In stock in BreaT3551178 Washer, M5 x 15 x 1.6
$1.99
In stock in BreaT3050339 Screw, Cap/Hd, M6x 20, Slv, Enc
$1.99
In stock in BreaT3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc
$2.17
In stock in BreaEngine Management System VIN CC7193 and higher
T1293250 ECU Base
$1074.30
AvailableT1290745 Spark Plug, M10 x 26.5, Hex 14
$9.83
In stock in BreaT1290301 Hose, Single Map Sensor, LH
$26.93
AvailableT1290302 Hose, Single Map Sensor, RH
$26.76
AvailableT1290975 Air Pressure Sensor
$133.79
AvailableT3331260 Screw, Thread Forming, 5 x 20
$9.58
AvailableT1245095 Cap, Evap
$6.33
AvailableT1290321 Ignition Coil Assy, Long
Backordered at Triumph · we’ll confirm the ship date after you order
$193.62
On backorderT1290308 Ignition Coil Assy, Short
$184.79
AvailableT3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv
$2.43
AvailableT1290990 Cap, Spark Plug
$16.19
AvailableT1294225 Sensor, Water Temperature
$49.44
AvailableT3550571 Washer, Cu, OD 16 x ID 12.5
$4.70
AvailableT2204258 Oxygen Sensor, PT, M12, 250mm
$208.52
AvailableT1290088 Sensor, Air Temperature
Low stock at Triumph
$59.95
Limited availabilityT1295678 Gear Position Sensor
$110.89
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT3600267 O Ring, ID 26.65 x Dia 2.62
$1.99
In stock in BreaT1242929 Connector, 4 Way
$10.10
AvailableT1290882 Seal, Spark Plug Cap
$6.16
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableIgnition Switch & Lockset VIN AB9229 and lower
Engine Management System VIN AB9229 and lower
T1292113 ECM Base
$686.55
AvailableT2207250 Oxygen Sensor, Exhaust, M12, 250mm
$221.82
AvailableT1290303 Hose, Single Map Sensor, Short
$26.76
AvailableT3332464 Screw, S/Tap, Tx, 5 x 25
Low stock at Triumph
$2.01
Limited availabilityElectrical Equipment VIN AB9229 and lower
T2502808 Lid, Battery Box
Backordered at Triumph · expected Oct 30
$9.15
On backorderT2502821 Strap, Battery Cover, Upper
$9.15
AvailableT2502833 Barrel, Battery Strap, Upper
$1.99
AvailableT3600221 O Ring, ID5.5 x 1.25
$5.45
AvailableT2502819 Spacer, Battery Strap, Ext
Low stock at Triumph
$12.95
Limited availabilityT3205156 Bolt, HHF, Lghtd, M8 x 16, Slv
$1.99
AvailableT1290354 Moulding, Coils Bracket
$10.57
AvailableT2502828 Strap, ECU, Moulding
$9.23
AvailableT2502830 Packaging Cover, RHS, Moulding
$39.36
AvailableAlternator & Starter Motor VIN AB9229 and lower
T1308005 Rotor, Alternator, Rare Earth
$620.69
AvailableT1308007 Stator, Alernator, Rare Earth
Low stock at Triumph
$454.08
Limited availabilityT3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc
$1.99
In stock in BreaT3050302 Capscrew, Skt/Hd, M6 x 35
$1.99
AvailableRear Light VIN AB9229 and lower
T2707468 Moulding, Rear Light Mount
$10.66
AvailableT2709039 Hanger, Lower, Reg Plate, Trim
$22.94
AvailableInstruments VIN AB9229 and lower
T2503167 Instruments, Mph, US
$1238.47
AvailableT3550228 Washer, Hardened, 6.4 x 12.5 x 2
$1.99
In stock in Brea
