Frame, Footrests, Engine Mountings & Stands
Triumph Bonneville Bobber · 16 diagrams
16 exploded diagrams for the frame, footrests, engine mountings & stands of the Triumph Bonneville Bobber, covering the Bobber, Bobber Black. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

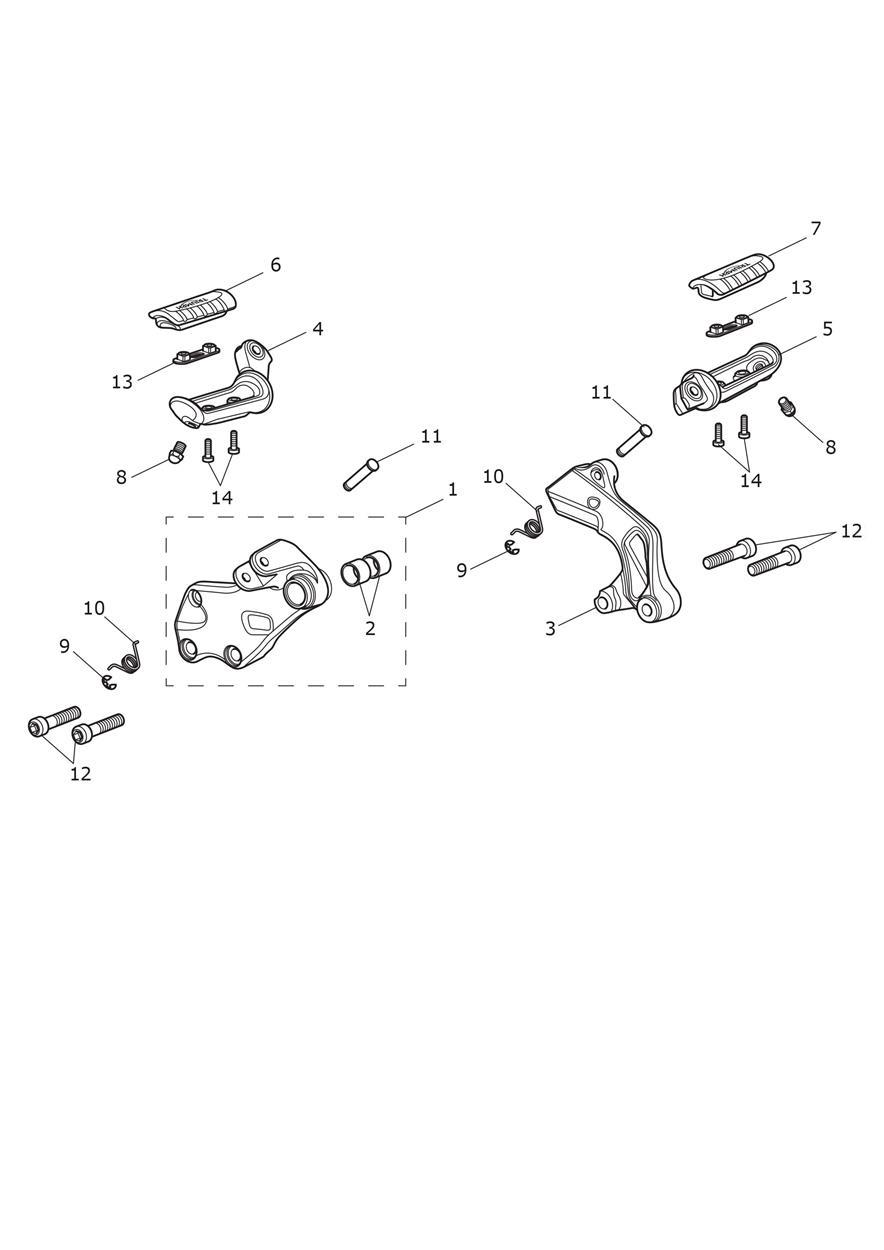

Foot Controls
14 parts
VIN AC1196 to CM2396

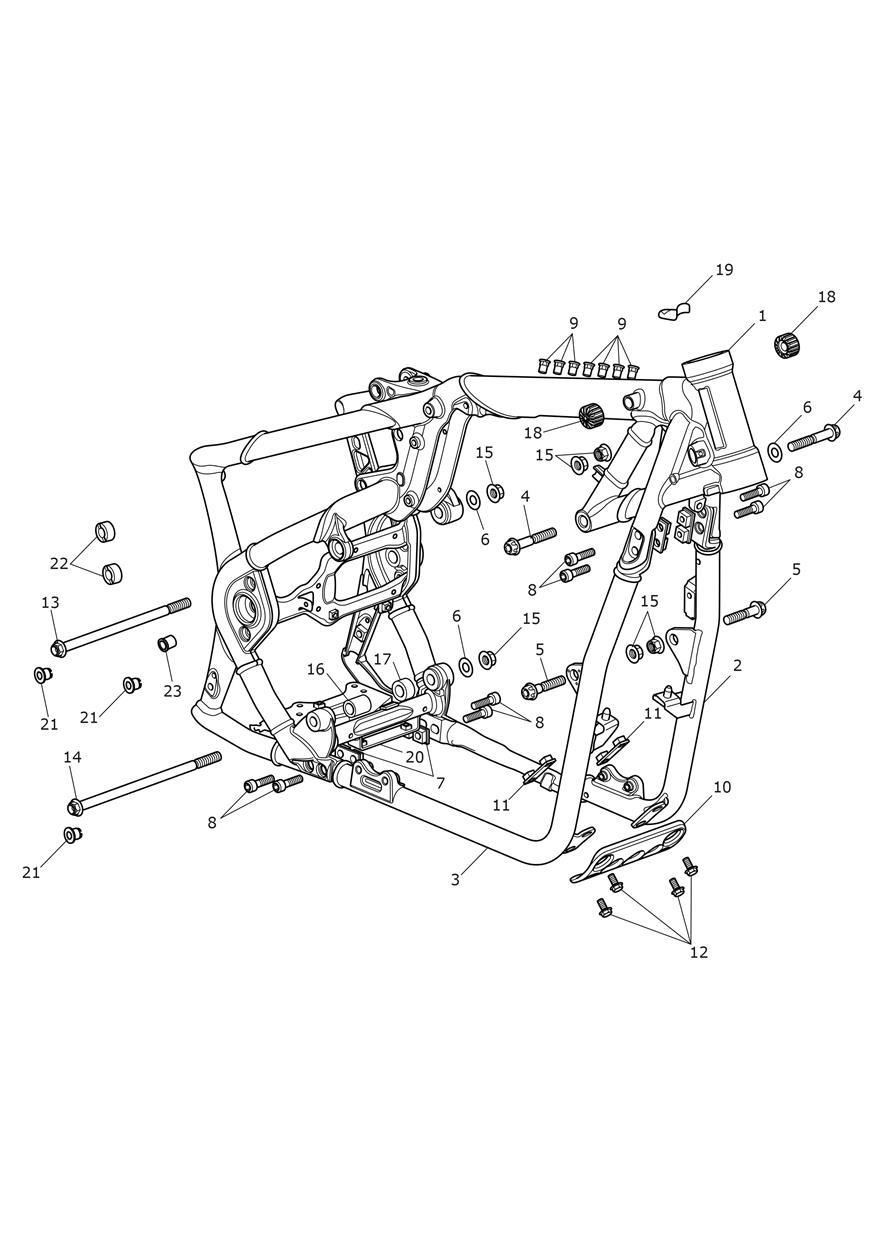

Main Frame Assembly
29 parts
VIN AC1195 and lower

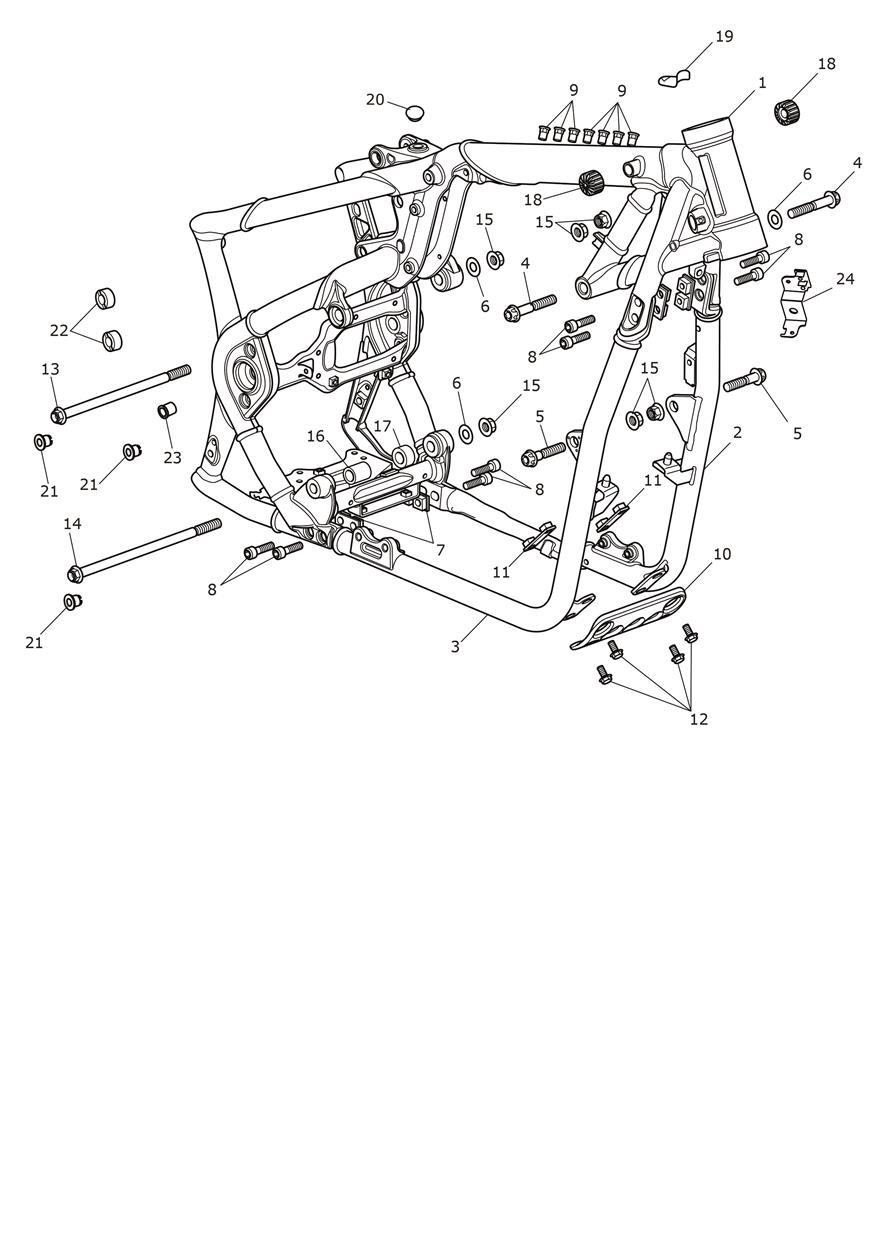

Main Frame Assembly
28 parts

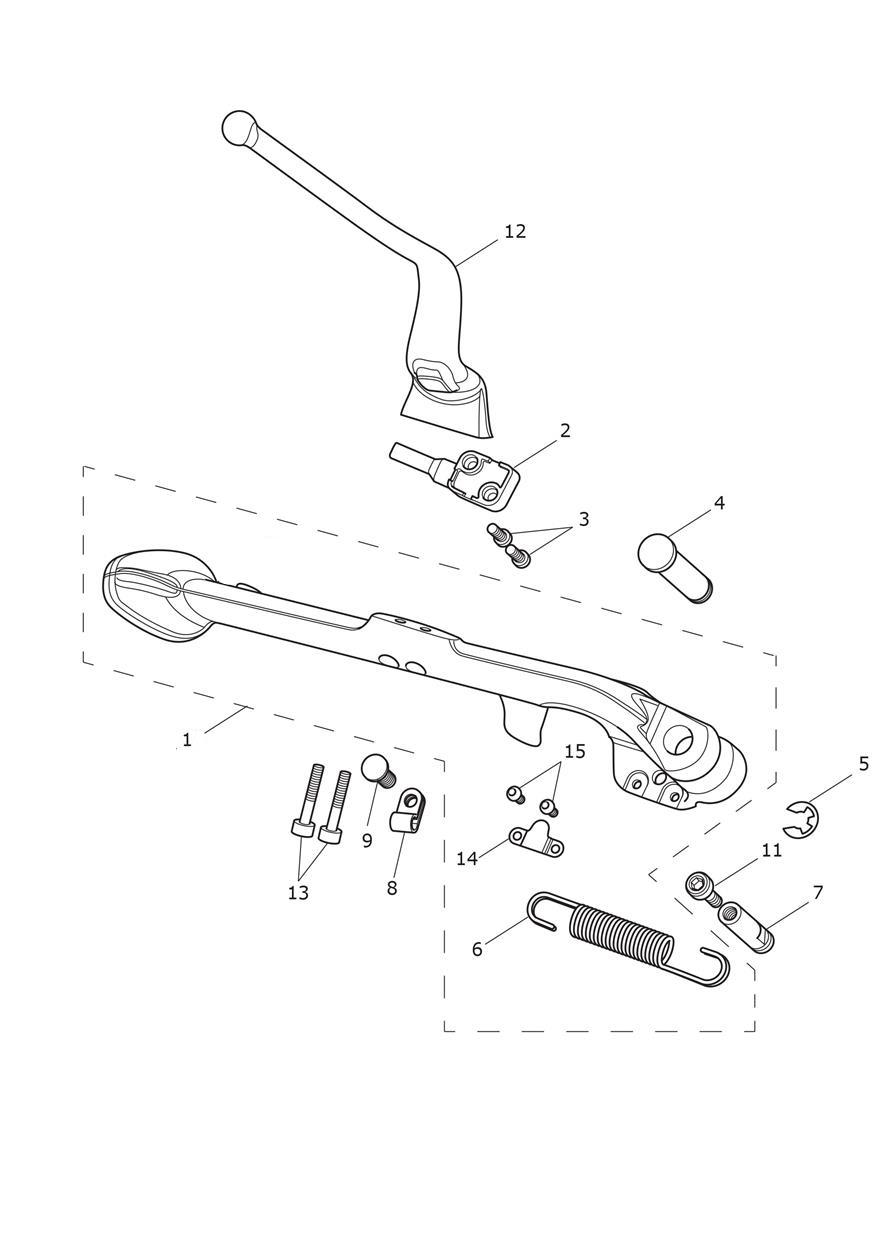

Stands
14 parts
VIN CM2397 and higher
Main Frame Assembly
30 parts
VIN CM2397 and higher

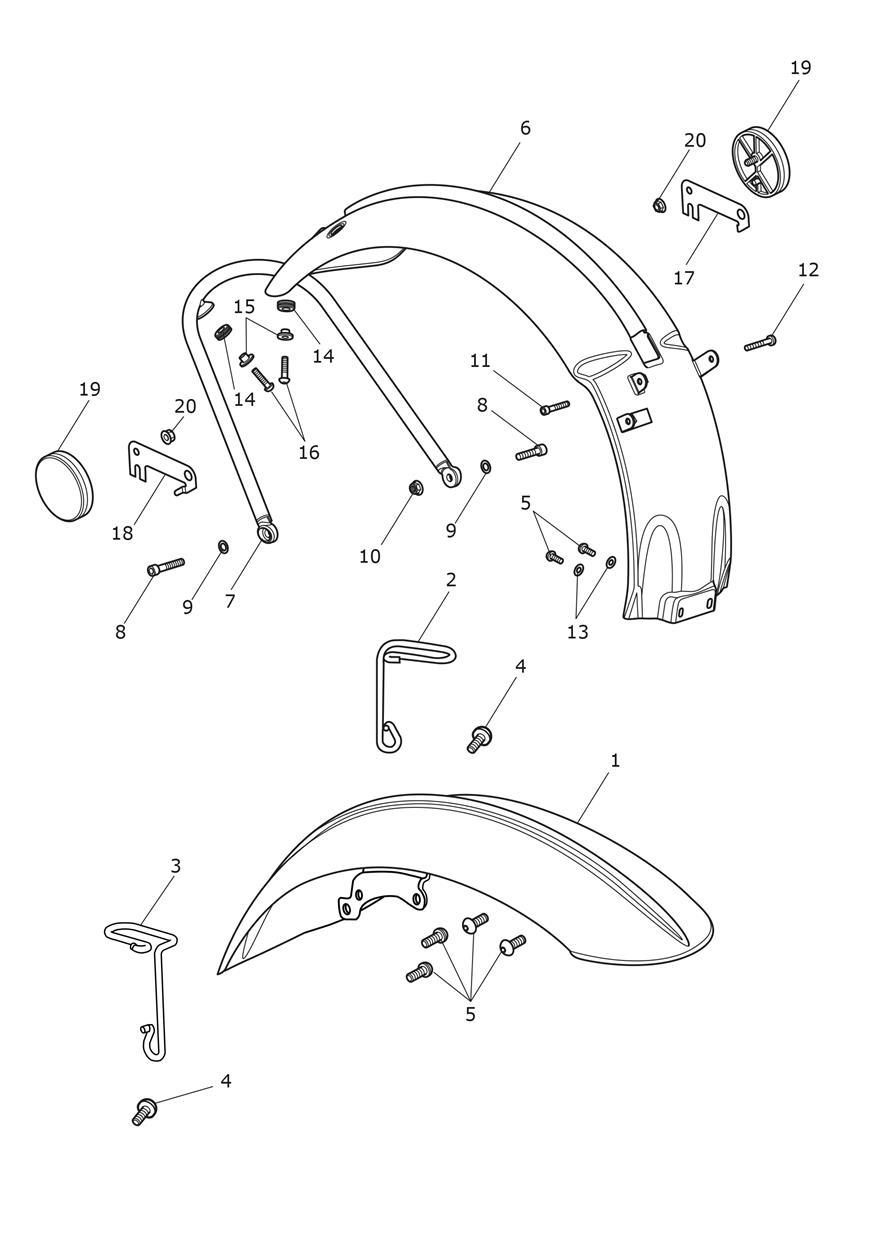

Mudguards
23 parts

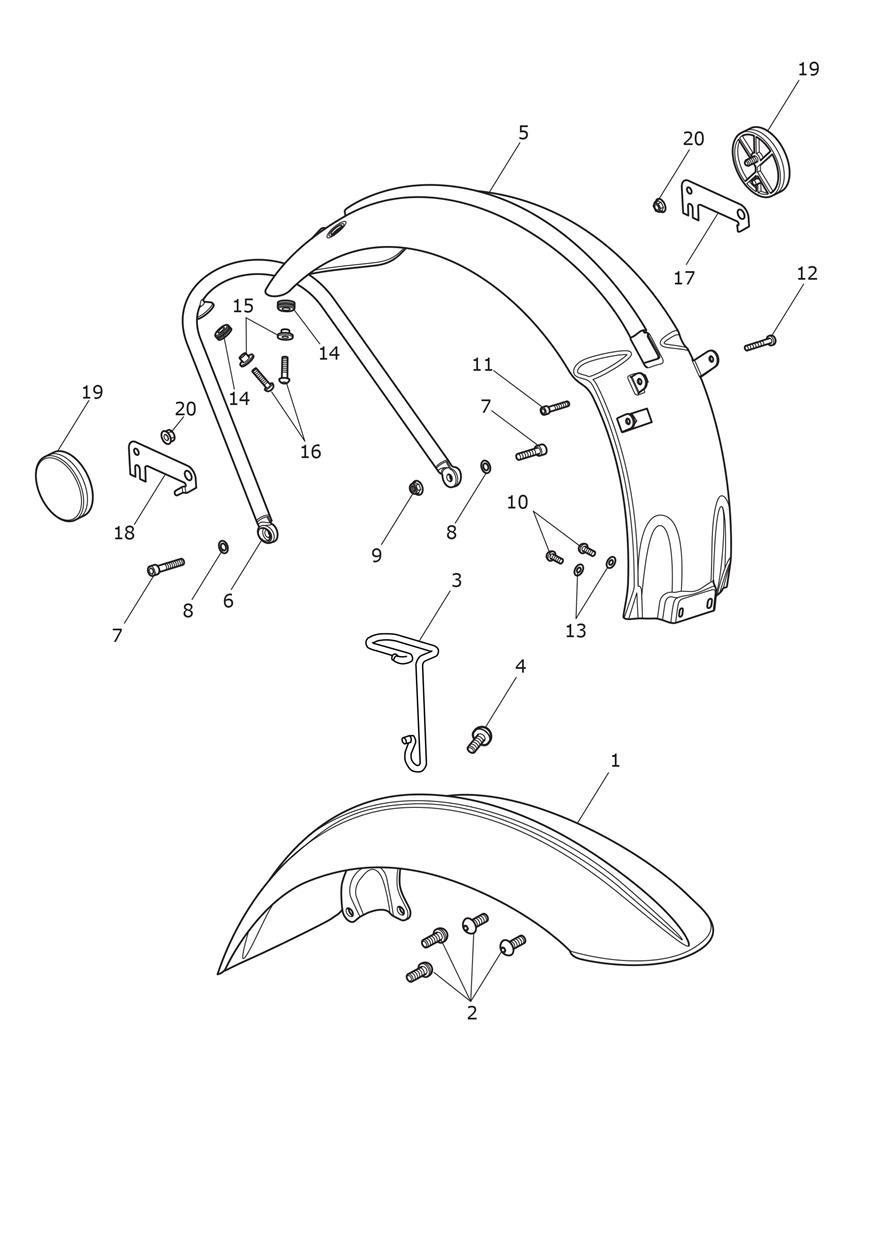

Mudguards
20 parts
VIN AC1195 and lower
Stands
16 parts
VIN AC1196 to CM2396
Foot Controls
14 parts
VIN AC1195 and lower
Foot Controls
14 parts
Foot Controls
14 parts
VIN CM2397 and higher
Main Frame Assembly
30 parts
VIN AC1196 to CM2396
Mudguards
24 parts
VIN AC1196 to CM2396
Mudguards
24 parts
VIN CM2397 and higher
Stands
18 parts
VIN AC1195 and lower
Stands
14 parts
78 parts you can order online
Every part below appears in Triumph’s Frame, Footrests, Engine Mountings & Stands diagrams for the Bonneville Bobber and is priced and orderable online. Open a part to see what it fits and to buy it.
Foot Controls VIN AC1196 to CM2396
T2088747 Control Plate, Rider, RH
Low stock at Triumph
$46.64
Limited availabilityT3750014 Bush
$78.32
AvailableT2087677 Control Plate, Rider, LH
$46.64
AvailableT2085167 Footrest, RH, Black
$94.78
AvailableT2085169 Footrest, Rider, LH, Black
$63.19
AvailableT2081971 Rubber, Footrest, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$13.79
On backorderT2081972 Rubber, Footrest, LH
$13.79
AvailableT2080780 Bank Angle Peg
$12.58
AvailableT3500207 Circlip, Ext 8 X 0.89
$2.64
AvailableT2089638 Return Spring, Footrest
$6.42
AvailableT2080547 Pivot pin
$6.07
AvailableT3332127 Cap Head Screw, M10 x 50
$10.84
AvailableT2086988 Nutplate, Footpeg
$5.35
AvailableT3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc
$1.99
AvailableMain Frame Assembly VIN AC1195 and lower
T2073464 Cradle Assembly, LH, ED & Powder
$271.12
AvailableT2073472 Cradle Assembly, RH, ED & Powder
$260.52
AvailableT3151024 Bolt, HHF, M12 x 75, 10,9, Slv
Low stock at Triumph
$5.92
Limited availabilityT3151141 Bolt, TX, M12 x 55, Slv
$9.15
AvailableT2075055 Bracket, M10
$14.00
AvailableT3203206 Screw, Cap/Hd, M10 x 35, Slv
$6.18
AvailableT2076401 Cradle Stiffener
$47.51
AvailableT2071709 Bracket, M8
$19.97
AvailableT3205156 Bolt, HHF, Lghtd, M8 x 16, Slv
$1.99
AvailableT3334662 Screw, Torx, M12 x 265
$14.45
AvailableT3350234 Locknut, Flgd, M12 x 1.25
$5.62
AvailableT2072119 Spacer, 13 x 24 x 29
$6.87
AvailableT2400854 Tank Mount Bush
$2.53
AvailableT2072929 Pad, Protection, Fuel Tank
Low stock at Triumph
$23.93
Limited availabilityT2071980 Adjuster, Frame, M12
Backordered at Triumph · expected Oct 23
$9.06
On backorderT2076548 Adjuster, Threaded
Backordered at Triumph · expected Nov 6
$15.20
On backorderStands VIN CM2397 and higher
T2088804 Sidestand Spares Assembly, Black
$124.99
AvailableT2081178 Sidestand Switch
$63.35
AvailableT3330245 Bolt, C/Hd, Tx, M4 x 12, Slv, Enc
$10.91
AvailableT2084042 Pivot Pin, Sidestand
$8.22
AvailableT3502095 Circlip
$1.99
In stock in BreaT2081389 Spring, Sidestand
$10.84
AvailableT2084321 Pin, Sidestand Spring
$10.39
AvailableT3701094 P Clip, Dia 4.4, Black
Low stock at Triumph
$3.00
Limited availabilityT3701098 Firtree, Dia 5 x 18
$4.85
In stock in BreaT3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc
$2.17
In stock in BreaT2088803 Footfinder, Sidestand, Black
$68.63
AvailableT3051111 Screw, Cap/Hd, M5 x 25, Black
$2.29
AvailableT2088765 Retainer, Magnet
$6.42
AvailableT3337780 Screw, But/Hd, M3 x 6, Slv, Enc
$6.07
AvailableMain Frame Assembly VIN CM2397 and higher
T2074797 Cradle Assembly, LH, ED & Powder
$260.52
AvailableT3151021 Bolt, HHF, M12 x 55, 10.9, Slv
Low stock at Triumph
$5.69
Limited availabilityT2071708 Bung
$3.04
AvailableMudguards
T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT2307211 Wire Guide, Brake Line, LHS
$7.64
AvailableT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT2307212 Wire Guide, Brake Line, RHS
$6.24
AvailableT2309986 Stay, Mudguard, Gloss Black
$114.40
AvailableT3335016 Screw, But/Hd, M8 x 35
$6.50
AvailableT3551282 Washer, M8, 8.4 x 15 x 1.6, Slv
$3.14
In stock in BreaT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaT3050303 Capscrew, Skt HD, M6 x 35, Pltd
$1.99
AvailableT3331299 Screw, Pan/HD, Tx, M6 x 40, Slv
$3.42
AvailableT3552002 Washer, M6 x 14 x 1
$1.99
AvailableT3021000 Grommet, 9.5 x 13 x 2.6
$2.64
AvailableT3010108 Flanged Sleeve, M6
Backordered at Triumph · we’ll confirm the ship date after you order
$2.79
On backorderT3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc
$1.99
In stock in BreaT2701206 Reflector Bracket, Lhr
$23.57
AvailableT2701207 Reflector Bracket, Rhr
$23.57
AvailableT2700464 Reflector, Red, Circular
$6.61
AvailableT3350010 Locknut, Flgd, M5
$2.09
AvailableStands VIN AC1196 to CM2396
T2084022 Pivot Pin Spares Kit
$13.71
AvailableT3500350 Circlip, E Type, Int Dia 9
Low stock at Triumph
$3.29
Limited availabilityFoot Controls VIN AC1195 and lower
T2087444 Footrest, RH, Satin
Low stock at Triumph
$109.14
Limited availabilityT2082227 Footrest, LH, Satin
$109.14
AvailableT2085164 Peg, Bank Angle, 9.2mm
$13.03
AvailableMudguards VIN AC1196 to CM2396
Stands VIN AC1195 and lower
T2085060 Kit, Sidestand Spares Assembly
$198.92
AvailableT2089679 Sidestand Spares Assembly
$124.99
AvailableT2084020 Pin, Pivot, Sidestand
$6.50
AvailableT3500210 Circlip, Ext, 8 x 1
$1.99
In stock in BreaT2081573 Spring, Sidestand
$10.84
AvailableT2089666 Footfinder, Sidestand
$68.63
AvailableT3051223 Screw, Cap/Hd M5 x 25, Slv, Enc
$2.29
Available
