PROTECTION
Triumph Bonneville Bobber · 29 diagrams
29 exploded diagrams for the protection of the Triumph Bonneville Bobber, covering the Bobber, Bobber Black. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

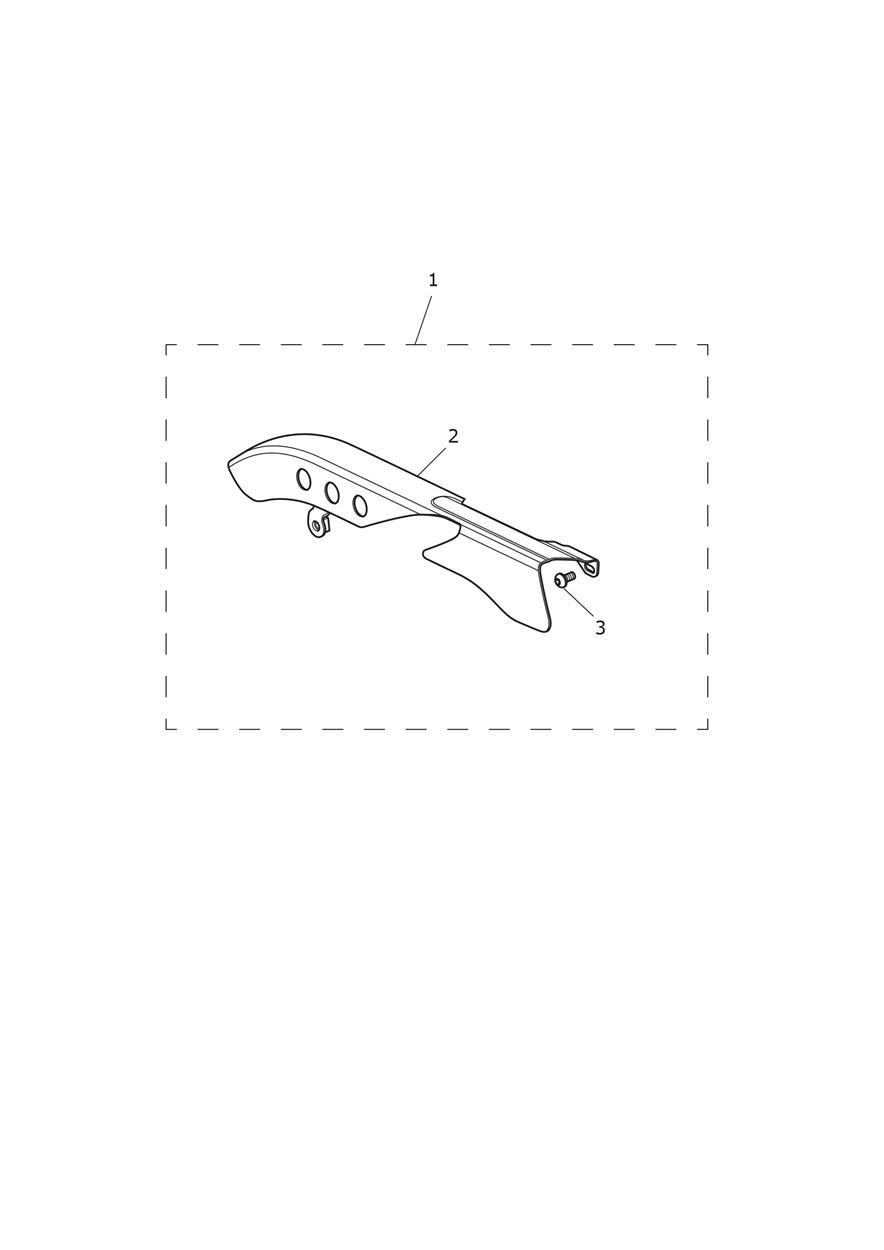

Chain Guard, Chrome, Kit
3 parts
VIN AC1196 to CM2396

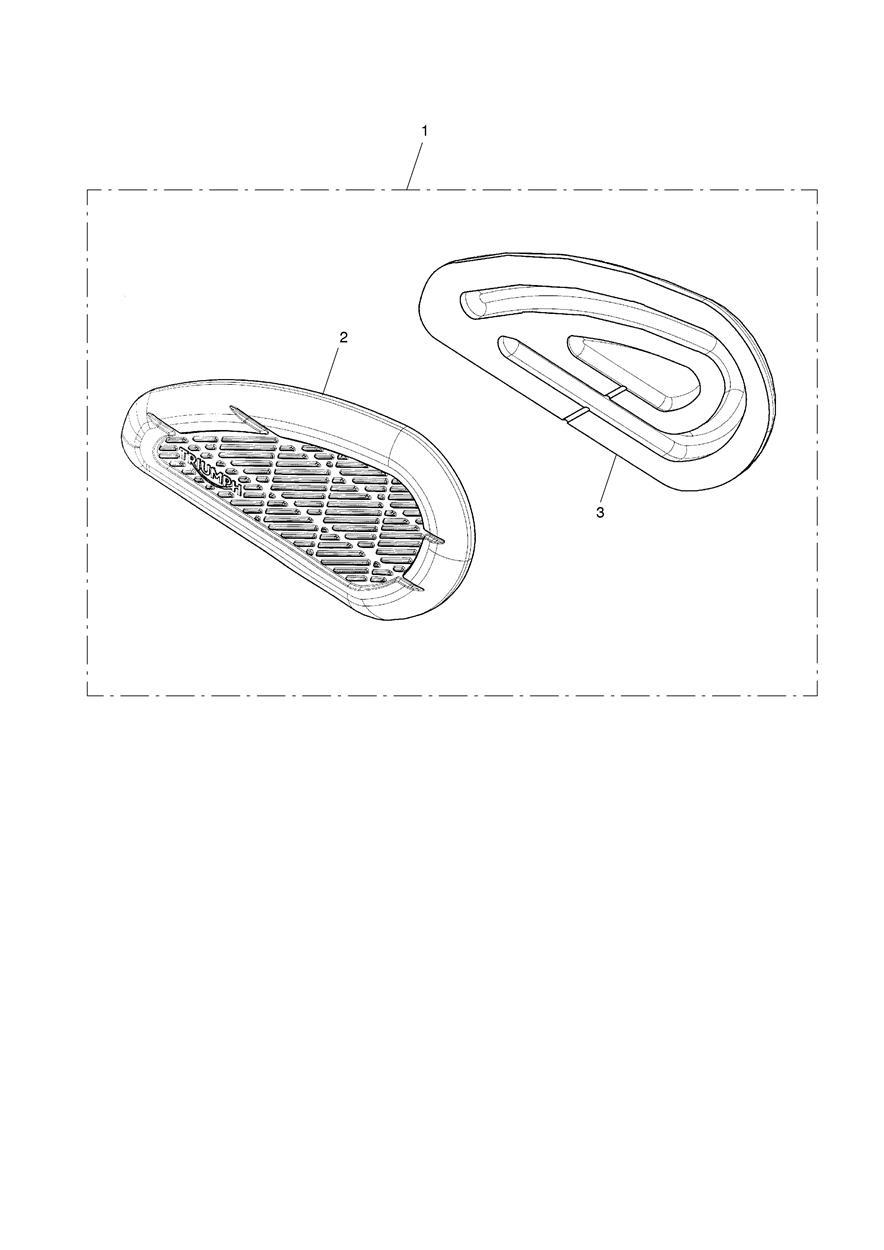

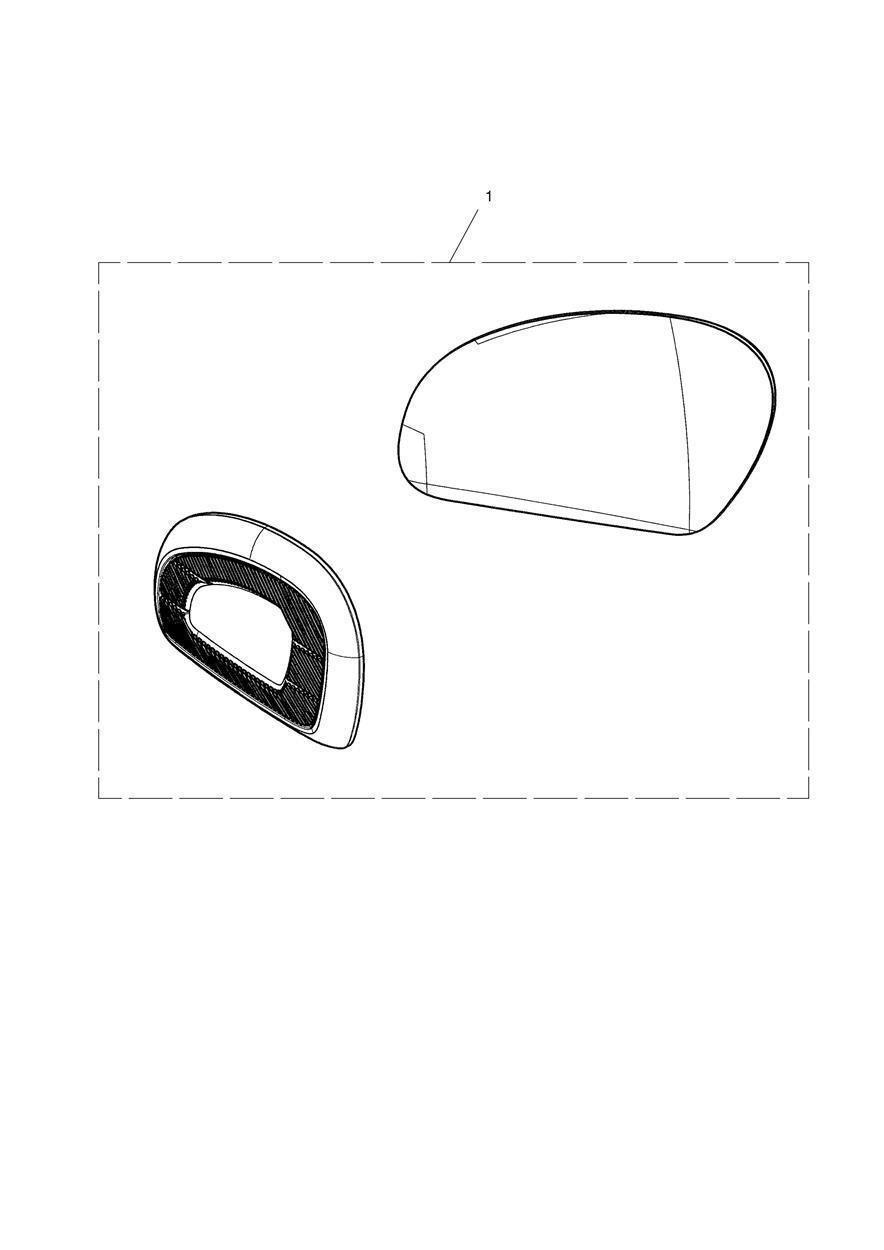

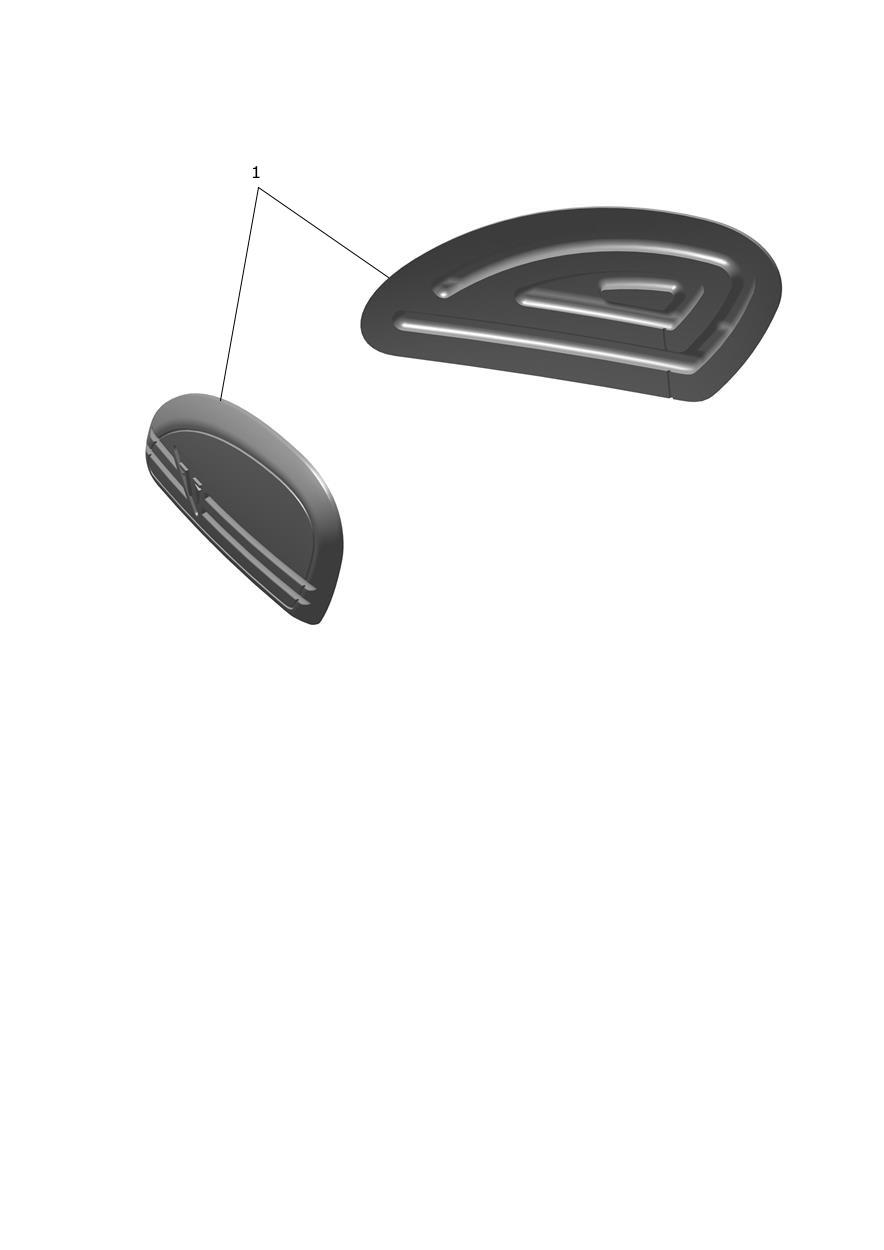

Knee Pad Kit
1 part
VIN CM2397 and higher

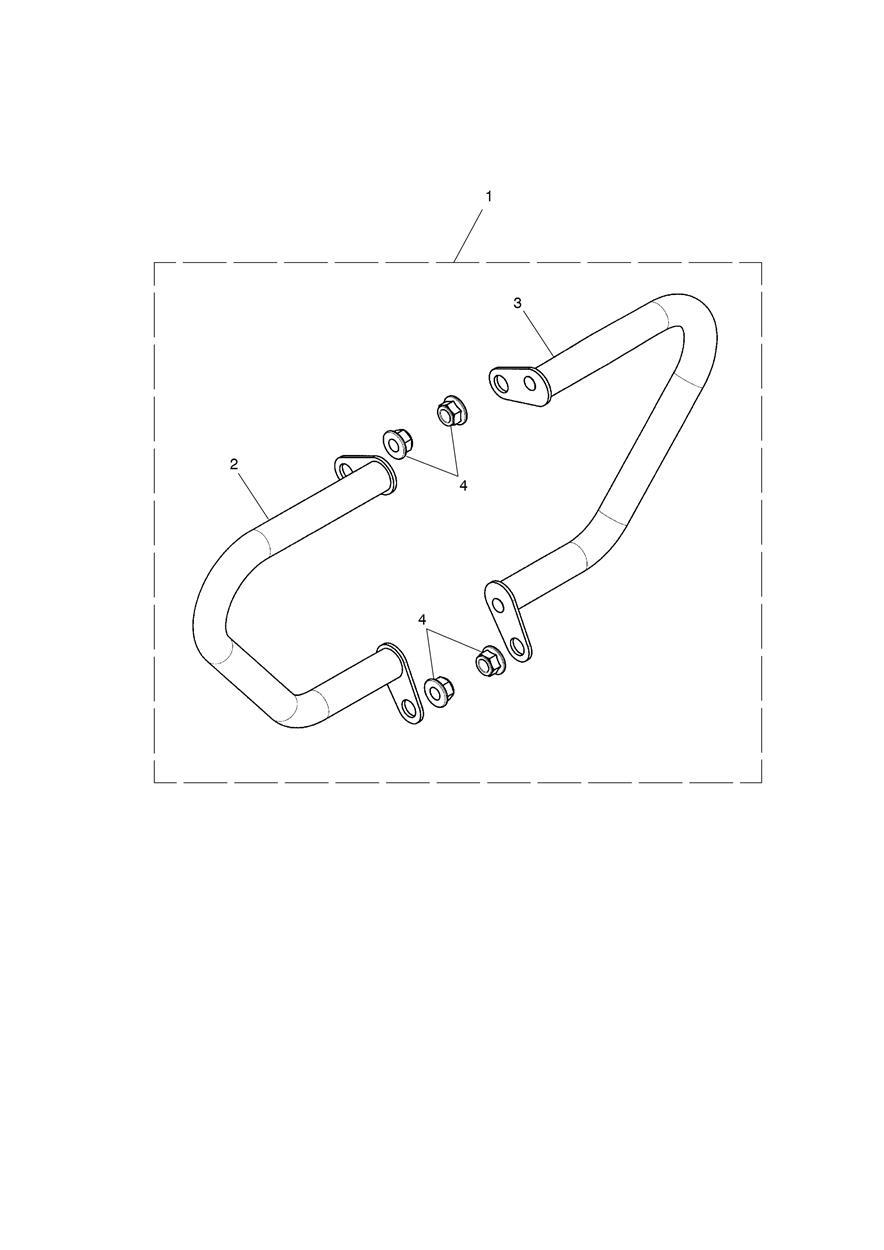

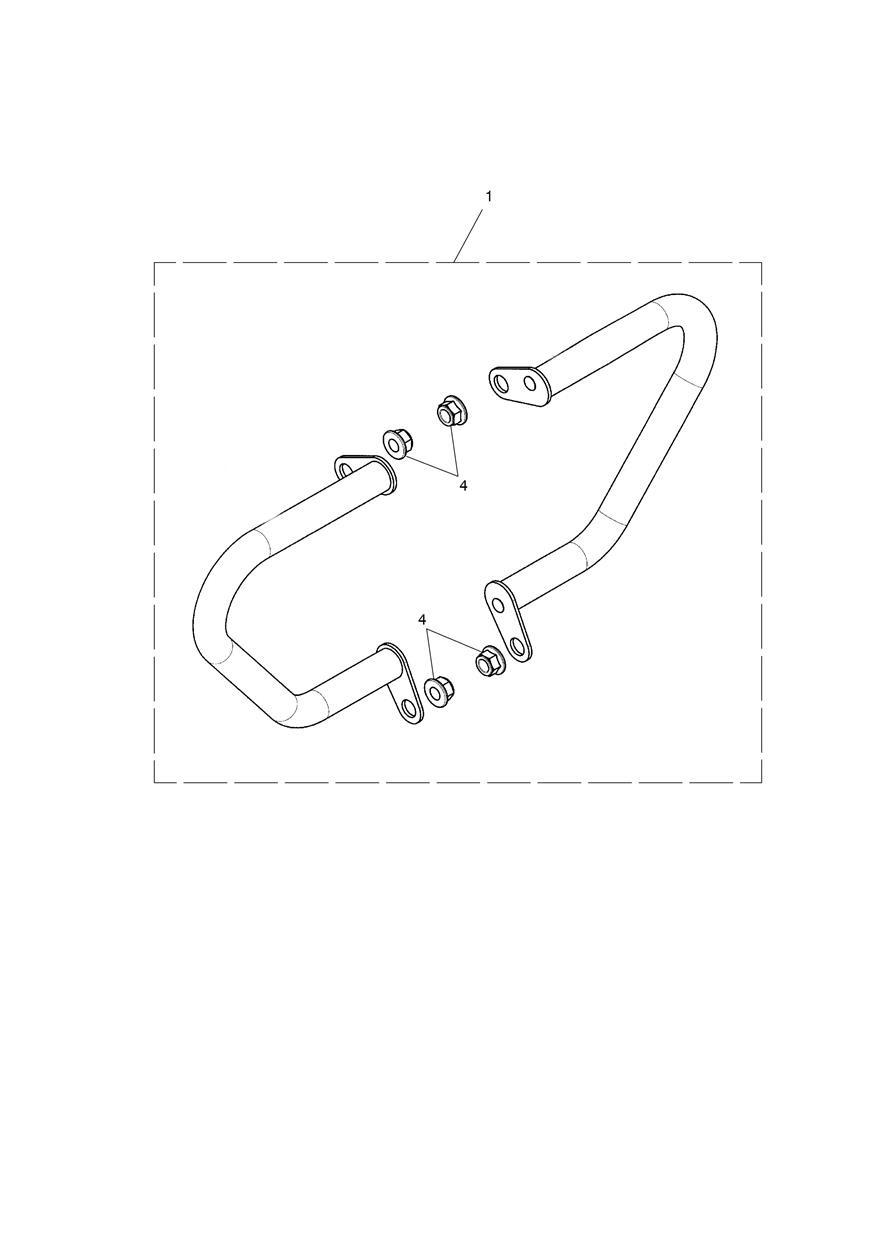

Dresser Bar Kit, Chrome
2 parts
VIN CM2397 and higher

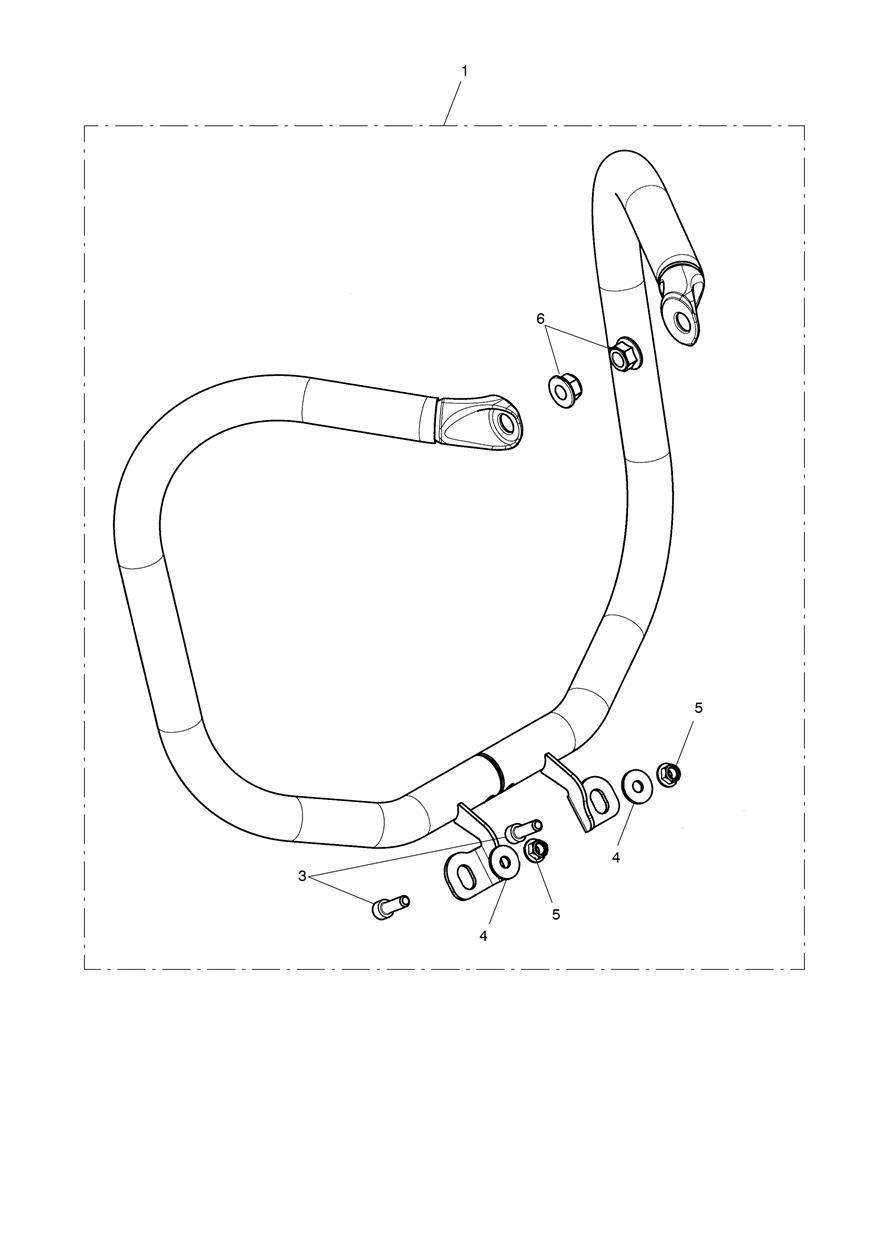

Dresser Bar, Black, Kit
4 parts
VIN AC1196 to CM2396
Dresser Bar, Chrome, Kit
4 parts
VIN CM2397 and higher

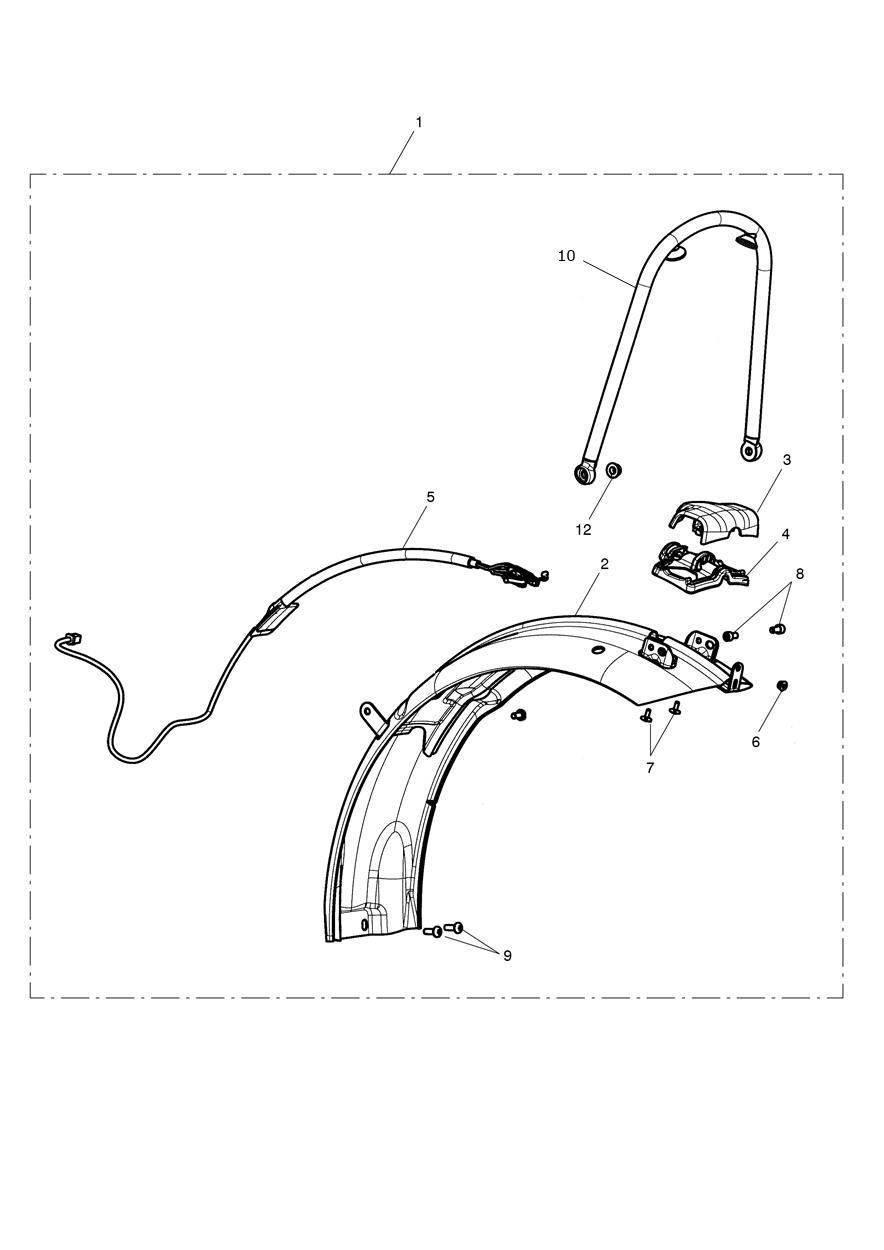

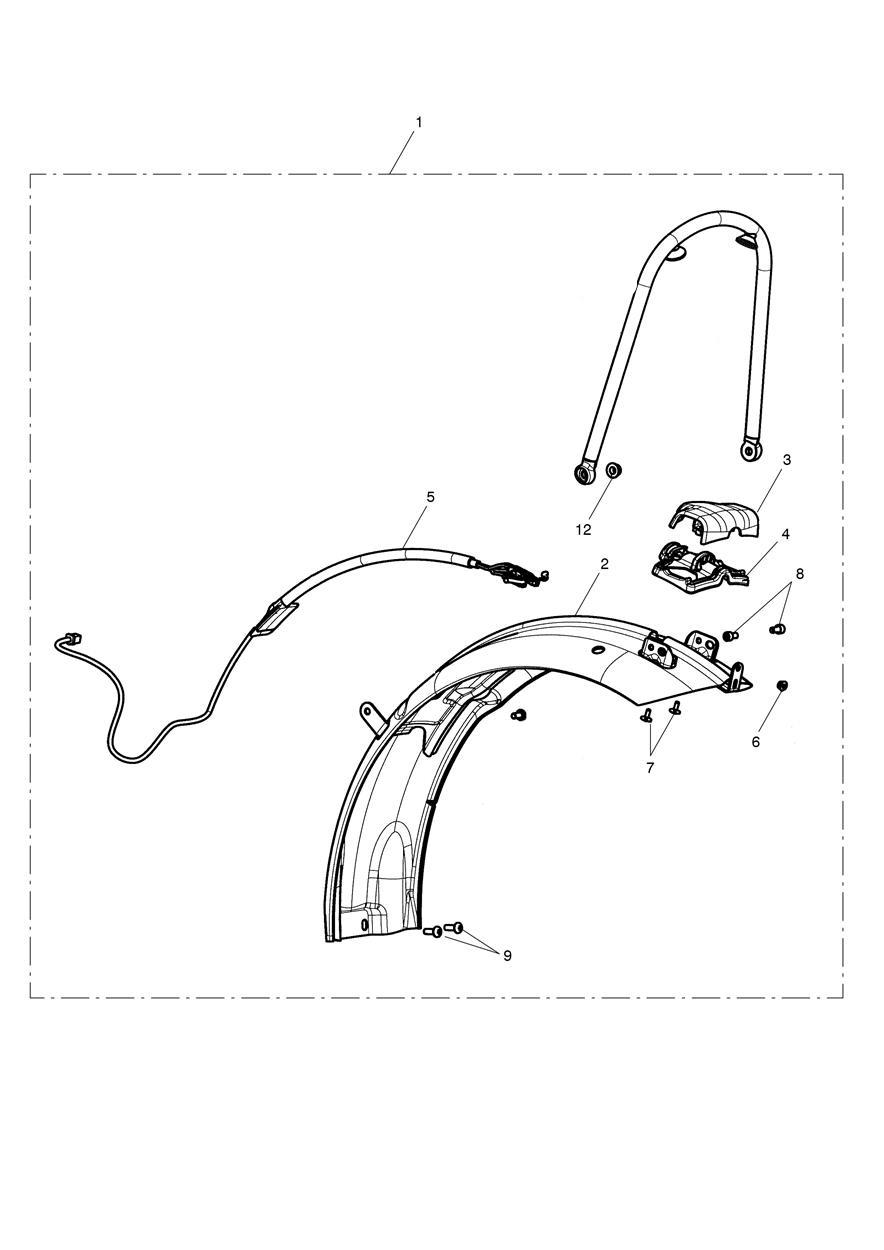

Rear Mudguard, Short, Kit - US Only
11 parts
VIN AC1196 to CM2396
Dresser Bar Kit, Black
4 parts
VIN AC1196 to CM2396
Dresser Bar Kit, Black
4 parts
VIN CM2397 and higher
Dresser Bar, Chrome, Kit
4 parts
VIN AC1196 to CM2396

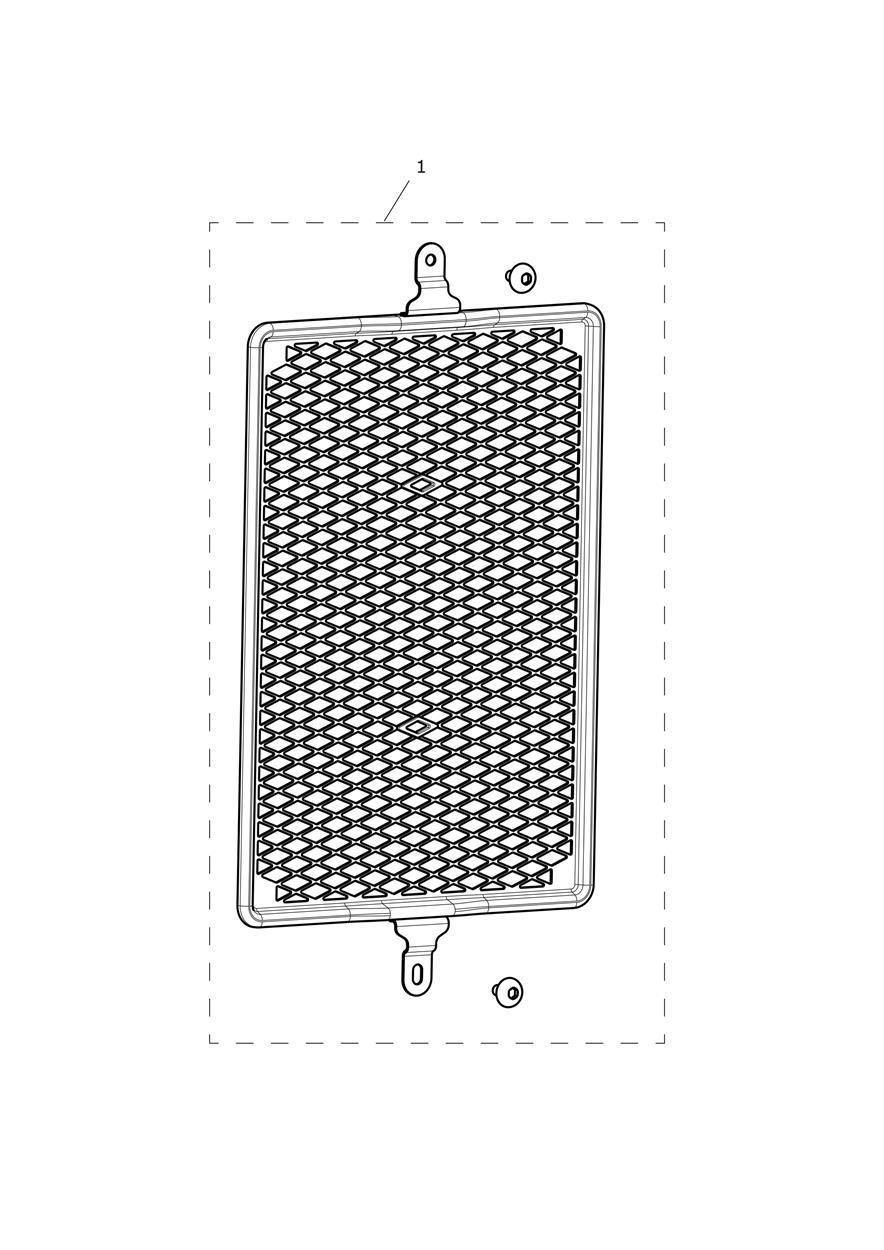

Radiator Guard Kit, Large
1 part
VIN CM2397 and higher
Radiator Guard Kit, Large
1 part
VIN AC1196 to CM2396

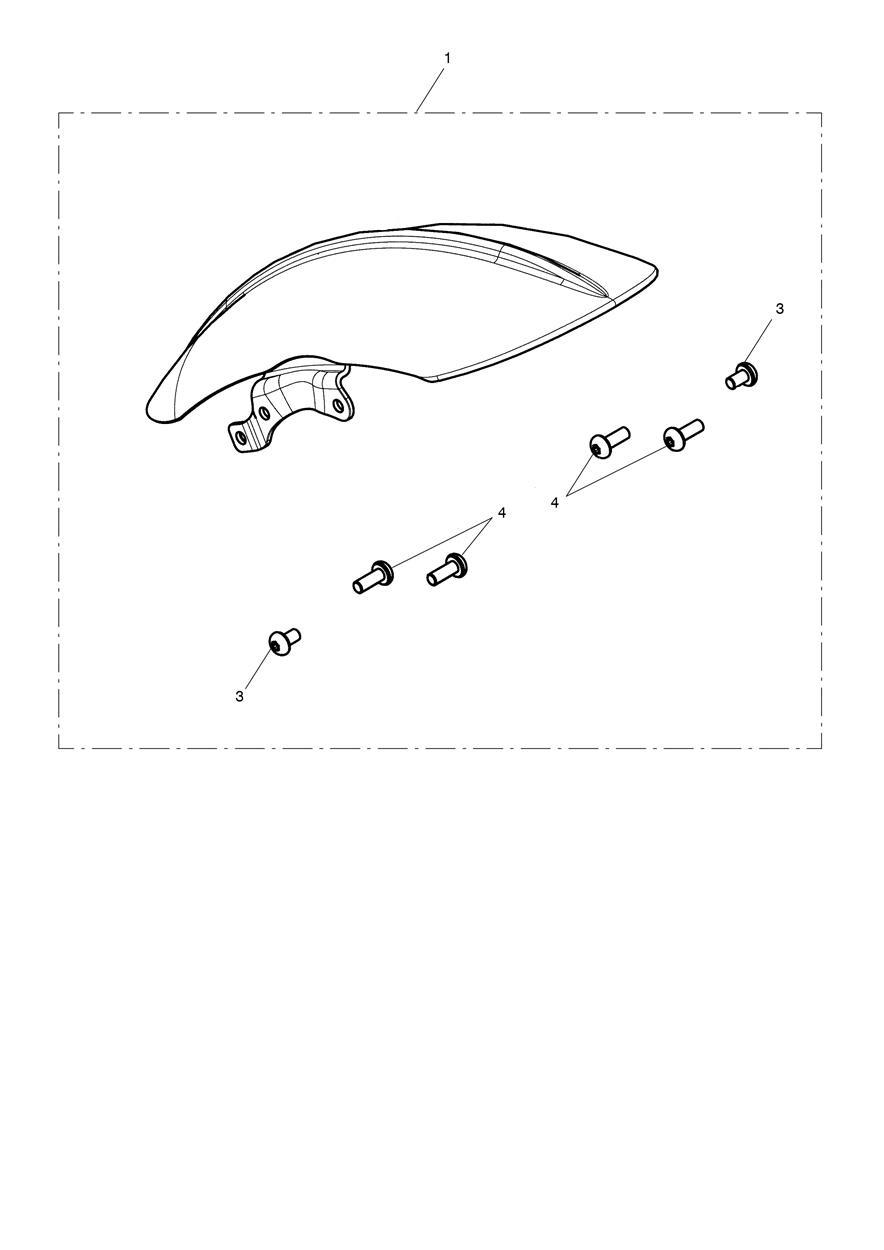

Short, Front Mudguard Kit
5 parts
VIN CM2397 and higher
Dresser Bar Kit, Chrome
4 parts
VIN AC1196 to CM2396
Knee Pad Kit
1 part
VIN AC1196 to CM2396
Short, Front Mudguard Kit
5 parts
VIN AC1196 to CM2396

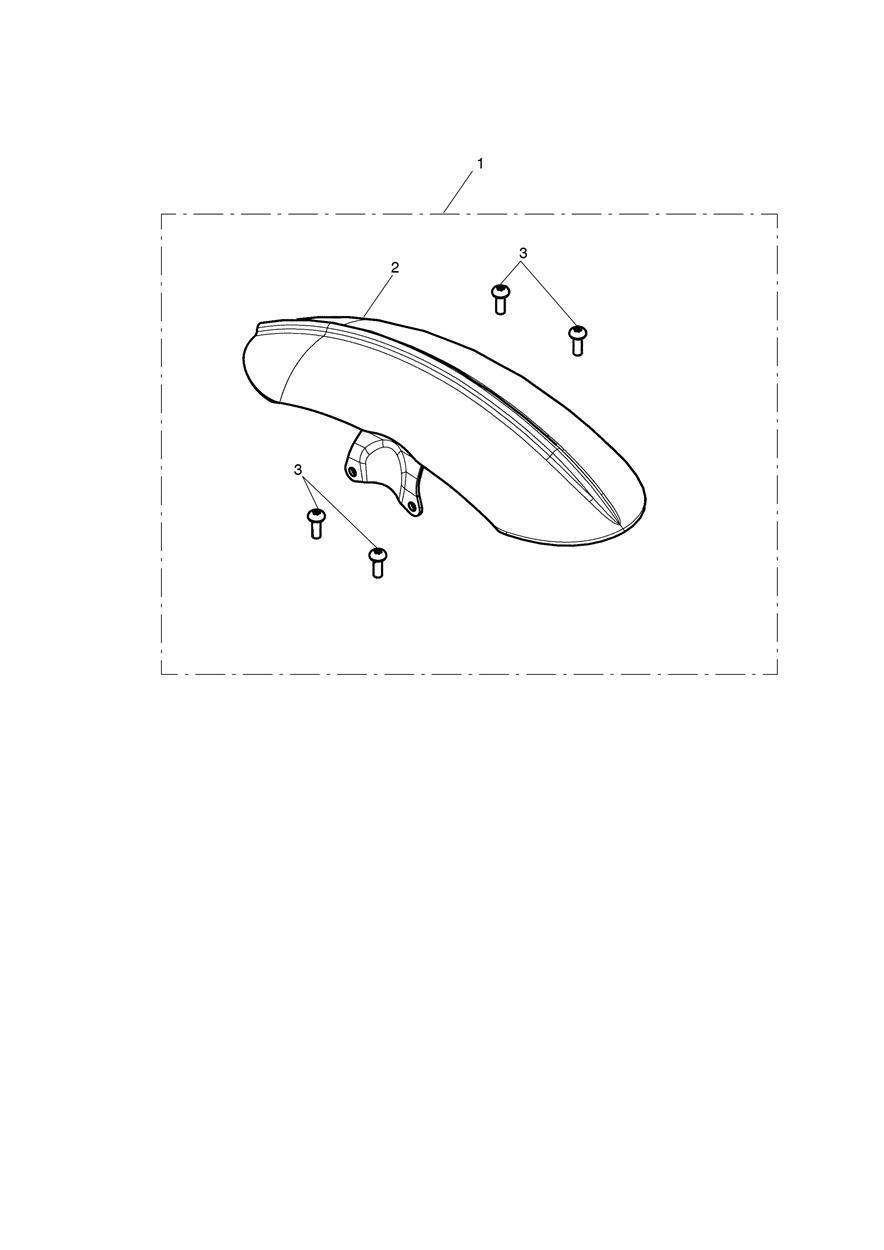

Short Front Mudguard Kit
3 parts
VIN AC1195 and lower
Short, Front Mudguard Kit, Black
5 parts
Chain Guard, Chrome, Kit
3 parts
Dresser Bar, Black, Kit
4 parts
VIN AC1195 and lower
Dresser Bar Kit, Black
4 parts
Rear Mudguard, Short, Kit - US Only
14 parts
VIN AC1195 and lower
Dresser Bar Kit, Black
4 parts
VIN AC1195 and lower
Rear Mudguard, Short, Kit - US Only
10 parts
Knee Pad Kit
3 parts
VIN AC1195 and lower
Rear Mudguard, Short, Kit - US Only
11 parts
Dresser Bar Kit, Chrome
4 parts
VIN AC1195 and lower
Knee Pad Kit
3 parts
Dresser Bar, Black, Kit
4 parts
Dresser Bar Kit, Chrome
4 parts
28 parts you can order online
Every part below appears in Triumph’s PROTECTION diagrams for the Bonneville Bobber and is priced and orderable online. Open a part to see what it fits and to buy it.
Chain Guard, Chrome, Kit VIN AC1196 to CM2396
Knee Pad Kit VIN CM2397 and higher
Dresser Bar Kit, Chrome VIN CM2397 and higher
Dresser Bar, Black, Kit VIN AC1196 to CM2396
Dresser Bar, Chrome, Kit VIN CM2397 and higher
Rear Mudguard, Short, Kit - US Only VIN AC1196 to CM2396
T9701401-PG Cover, Rear Light
$319.30
AvailableT9701400 Trim, Rear Cover, Rubber
$16.48
AvailableT9830098 Harness, Multifcn Lamp, Type 2
$49.44
AvailableT3350010 Locknut, Flgd, M5
$2.09
AvailableT3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT
$1.99
In stock in BreaT3050348 Screw, Cap/Hd, M6 x 12, Enc, Slv
$4.76
AvailableT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaDresser Bar Kit, Black VIN AC1196 to CM2396
A9788022 Dresser Bar - Black
$310.00
In stock in BreaT2070687 Dresser Bar, RHS, Coated
$159.65
AvailableT2070688 Dresser Bar, LHS, Coated
Backordered at Triumph · we’ll confirm the ship date after you order
$159.65
On backorderRadiator Guard Kit, Large VIN CM2397 and higher
Short, Front Mudguard Kit VIN CM2397 and higher
A9708438-PG Front Mudguard Kit, Short
$210.00
AvailableA9708438-QD Front Mudguard Kit, Short
$210.00
AvailableA9708438-PM Front Mudguard Kit, Short
$320.00
AvailableT3330380 Screw, Pan/Hd, TX, M6 x 10, Enc
$1.99
Available
