ELECTRICAL
Triumph Bonneville Speedmaster · 28 diagrams
28 exploded diagrams for the electrical of the Triumph Bonneville Speedmaster, covering the Speedmaster 1200. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Heated Grip Kit
7 parts
VIN CM2412 and higher
Multifunction Lamp Install Kit
9 parts
VIN AC1201 to CM2411

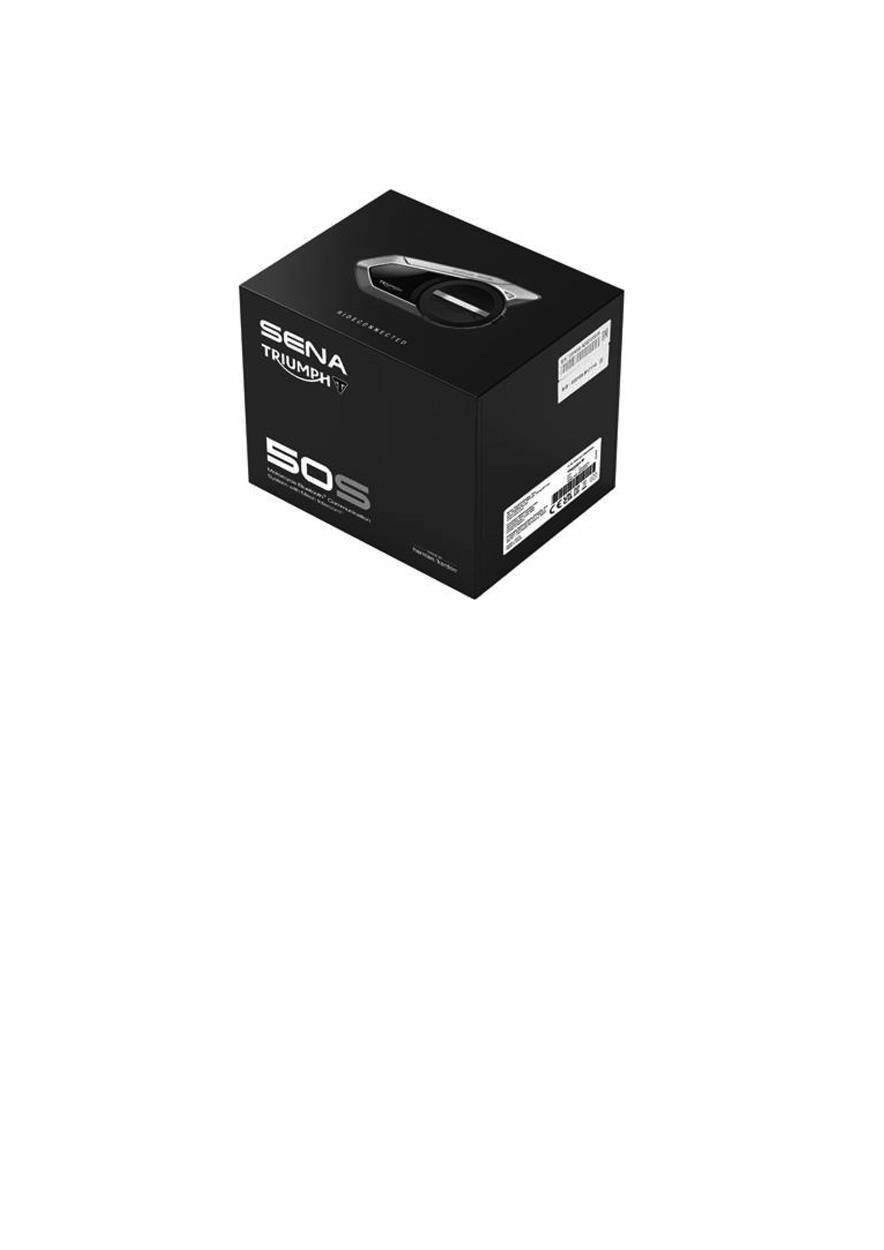

Headset, Sena, 50S, Kit
1 part
VIN CM2412 and higher
LED, Indicator Kit, D64, Short, 120 Lead
5 parts
VIN AC1201 to CM2411

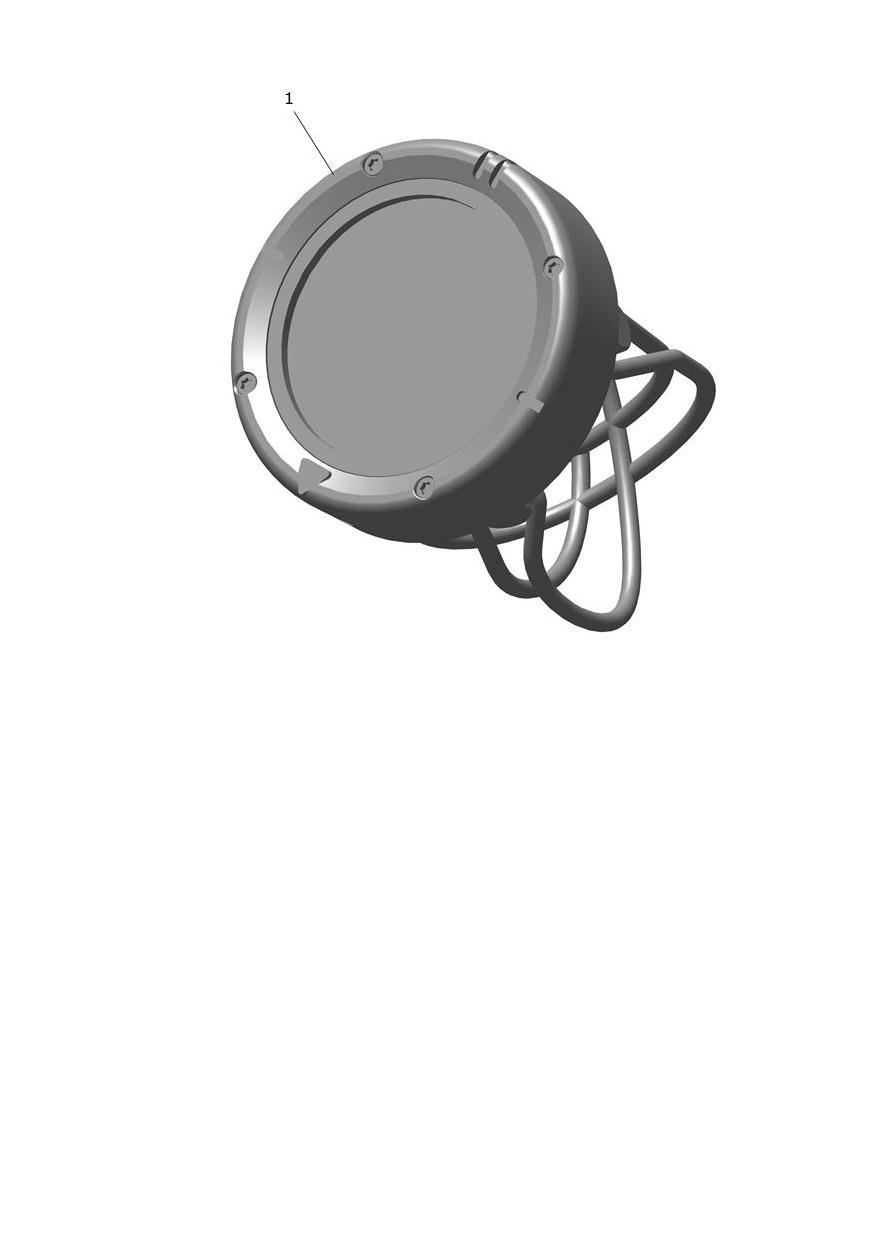

Beeline Moto II
1 part
VIN CM2412 and higher

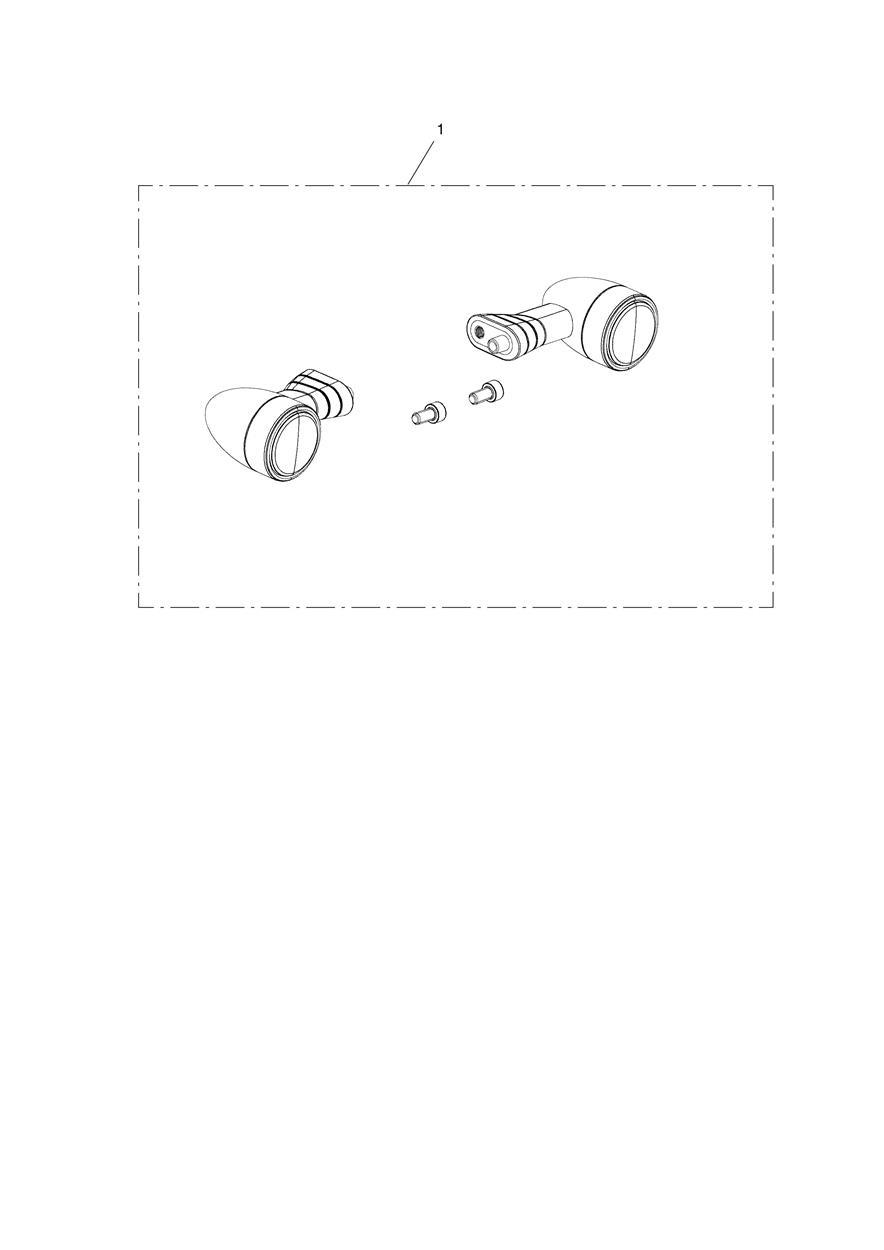

Multifunction Lamp Kit, Short, D40
1 part
VIN AC1201 to CM2411

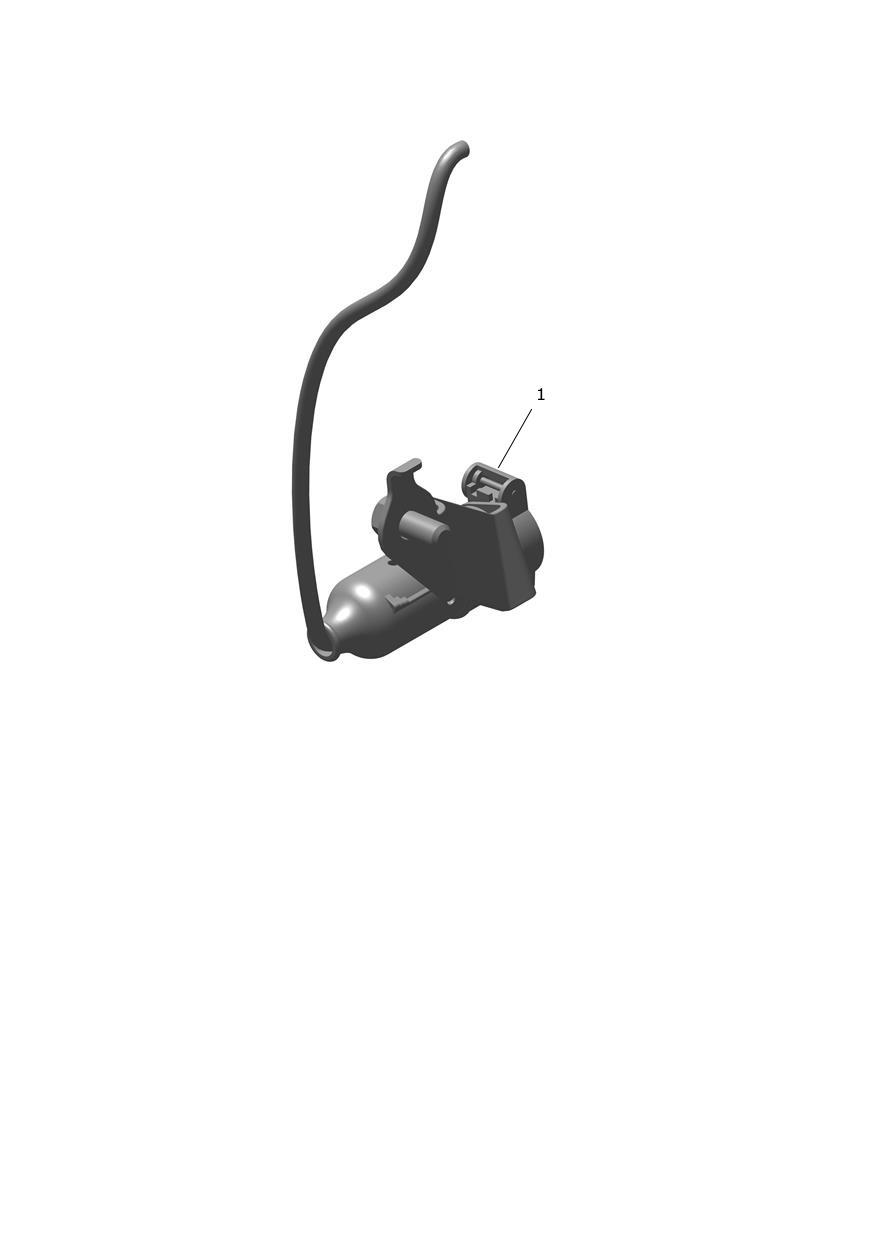

Aux Power Socket Kit
1 part
VIN CM2412 and higher
Auxiliary Power Socket Kit
6 parts
VIN AC1201 to CM2411

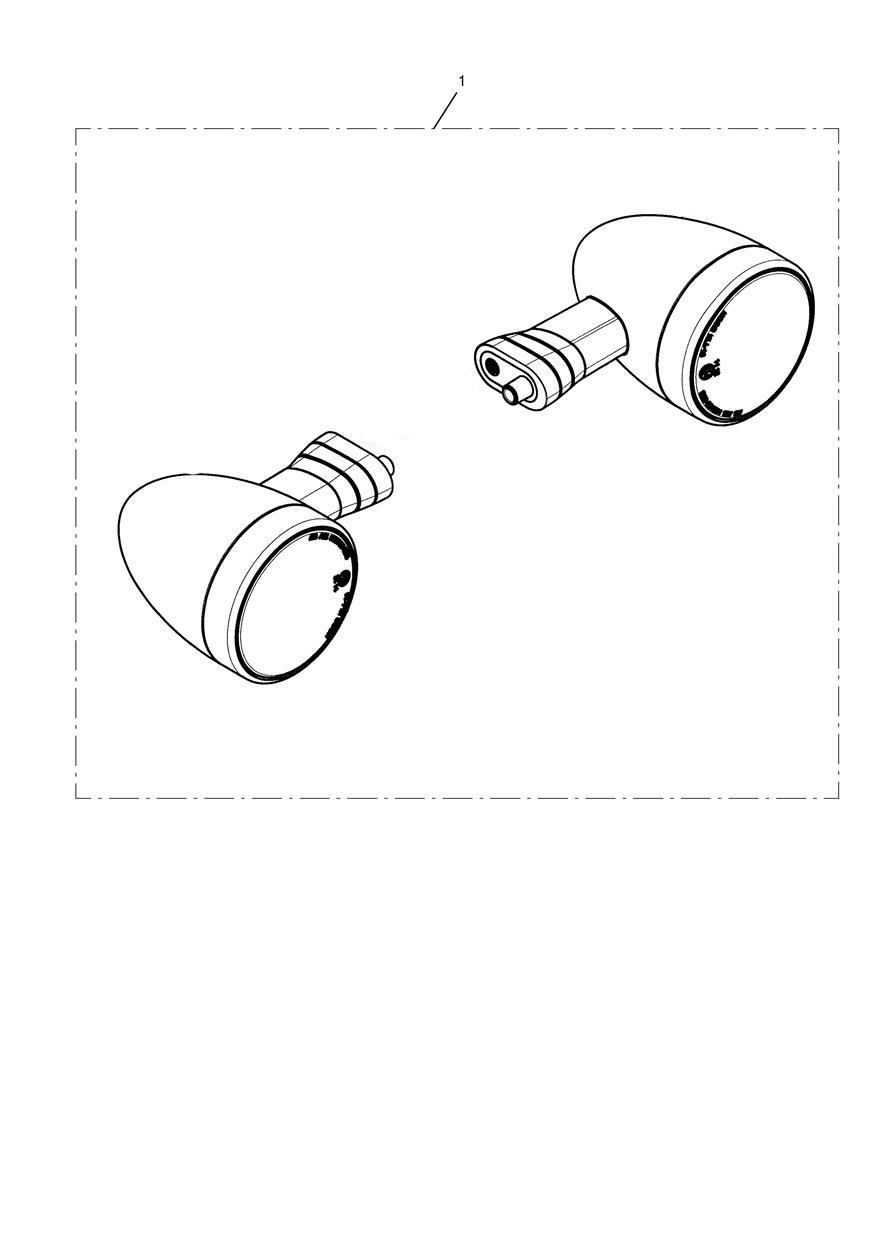

LED Ind Kit, D40, Short, 450 Lead
1 part
VIN AC1201 to CM2411

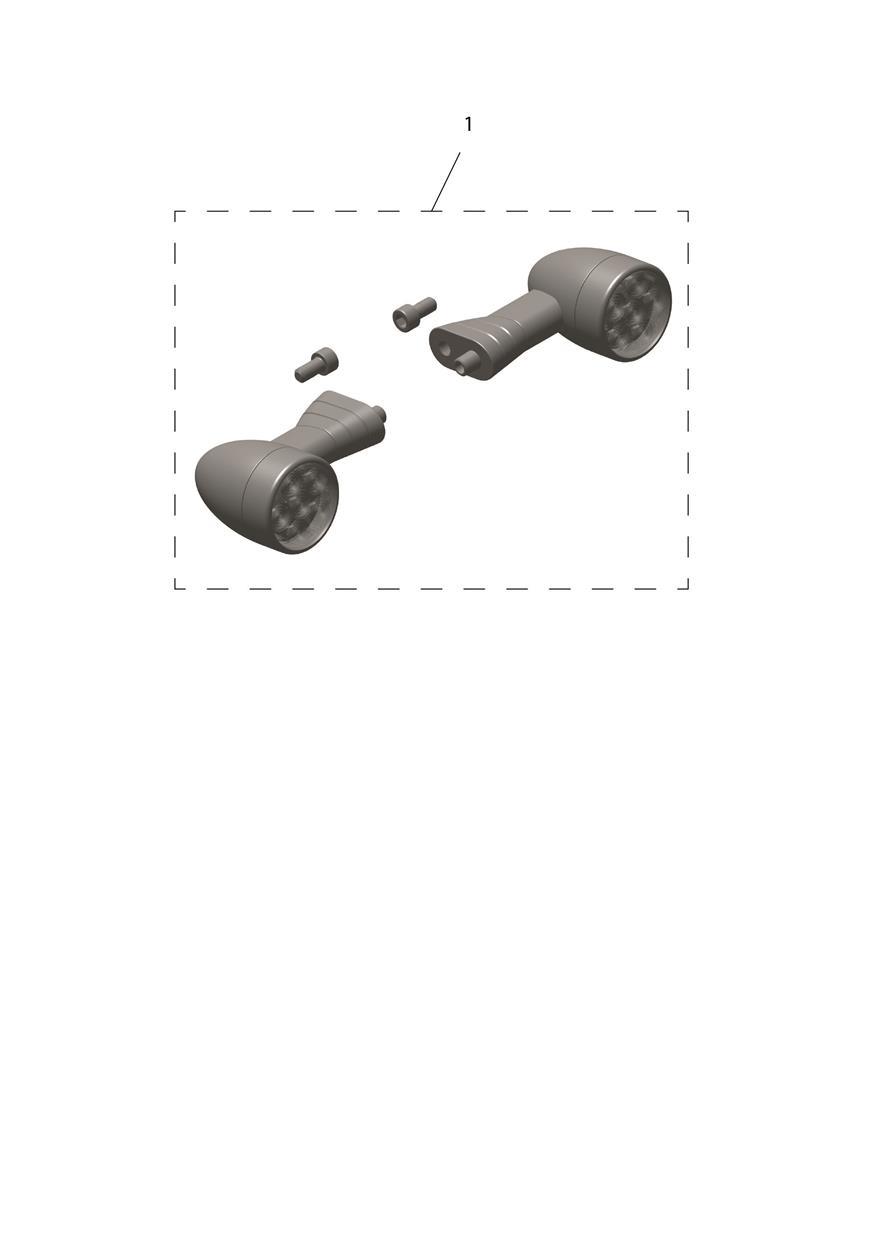

LED Indicator Kit, D40, Short, 450mm
1 part
VIN CM2412 and higher
Headset, Sena, 50S, Kit
1 part
VIN AC1201 to CM2411

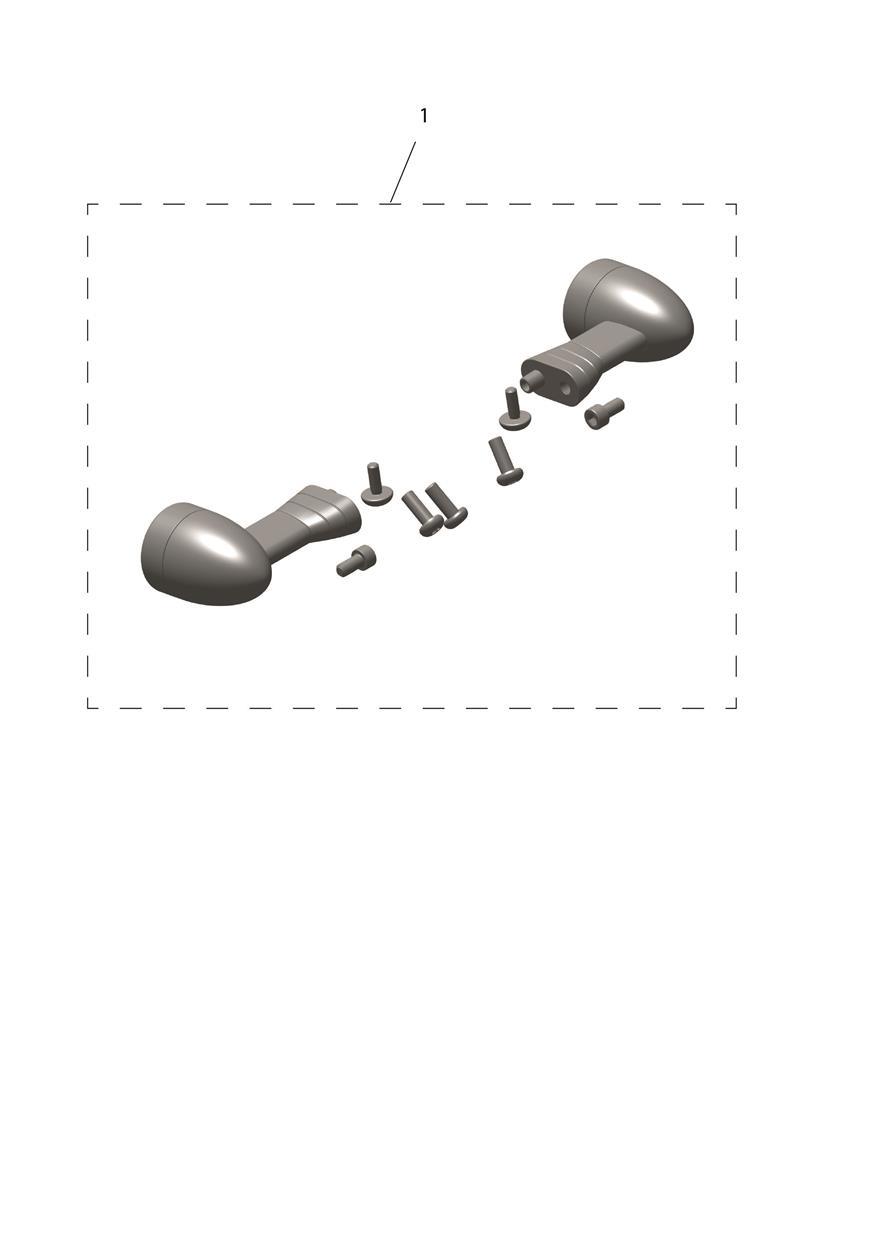

LED Indicator Kit, D40 Short, 150mm
1 part
VIN CM2412 and higher

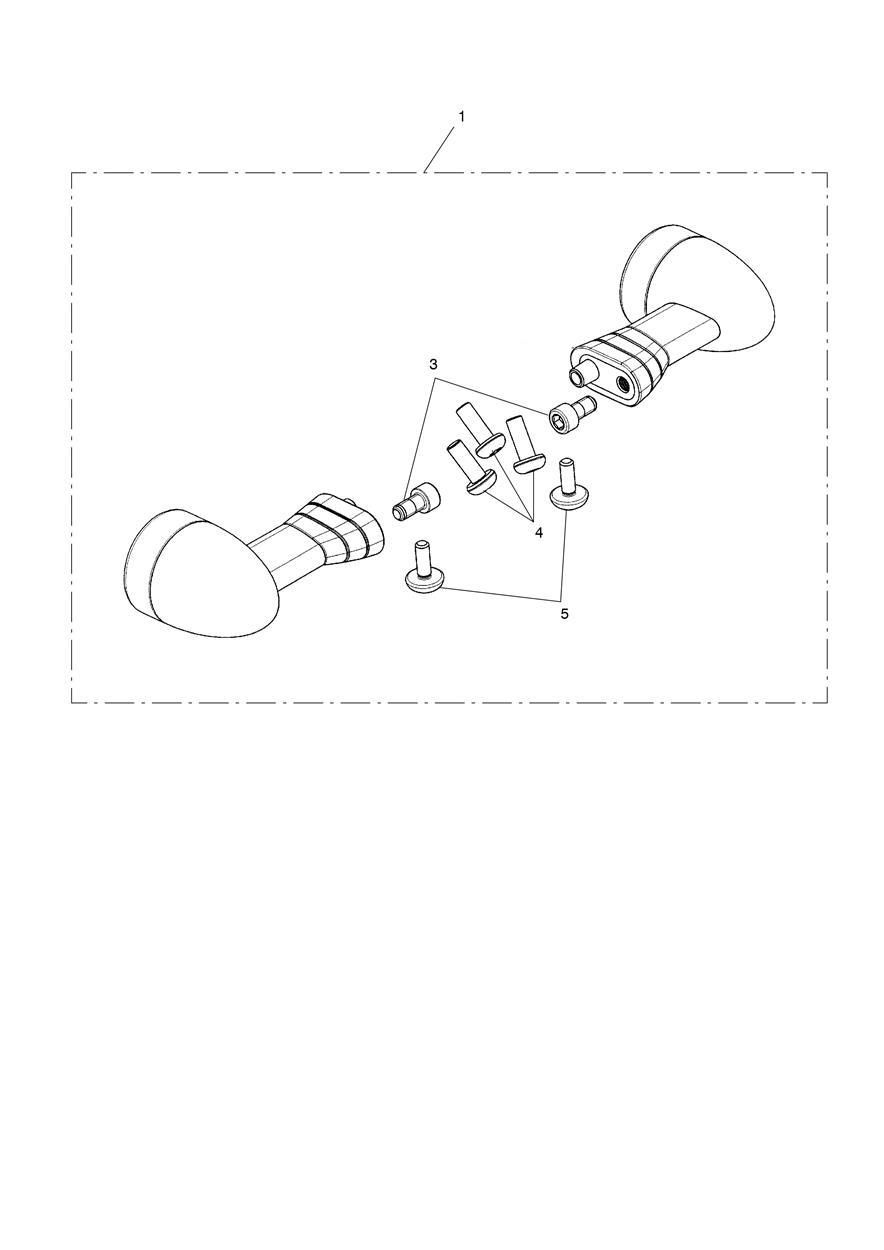

LED, Indicator Kit, D40, Short, 120 Lead
4 parts
VIN AC1201 to CM2411

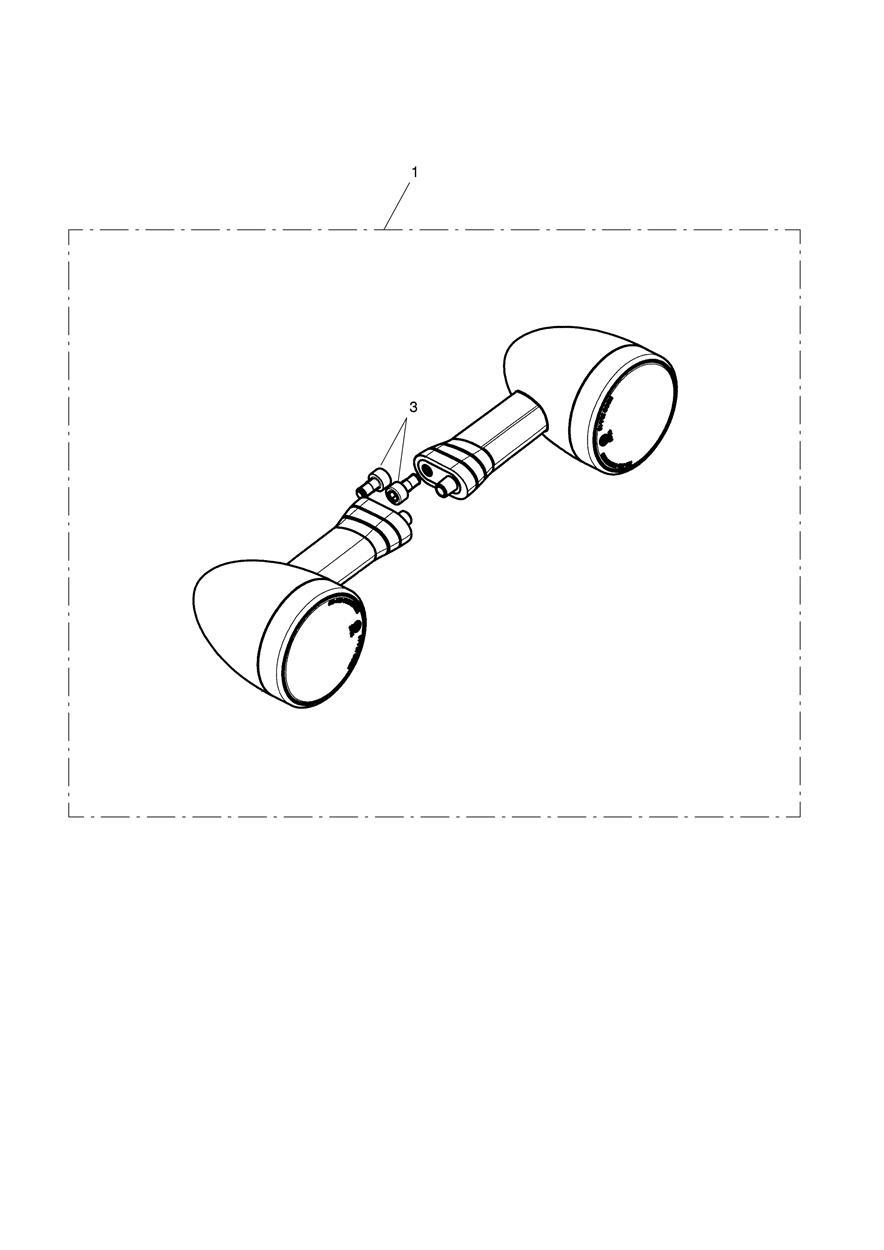

LED Indicator Kit, D64 Med, 450 Lead
3 parts
VIN AC1201 to CM2411

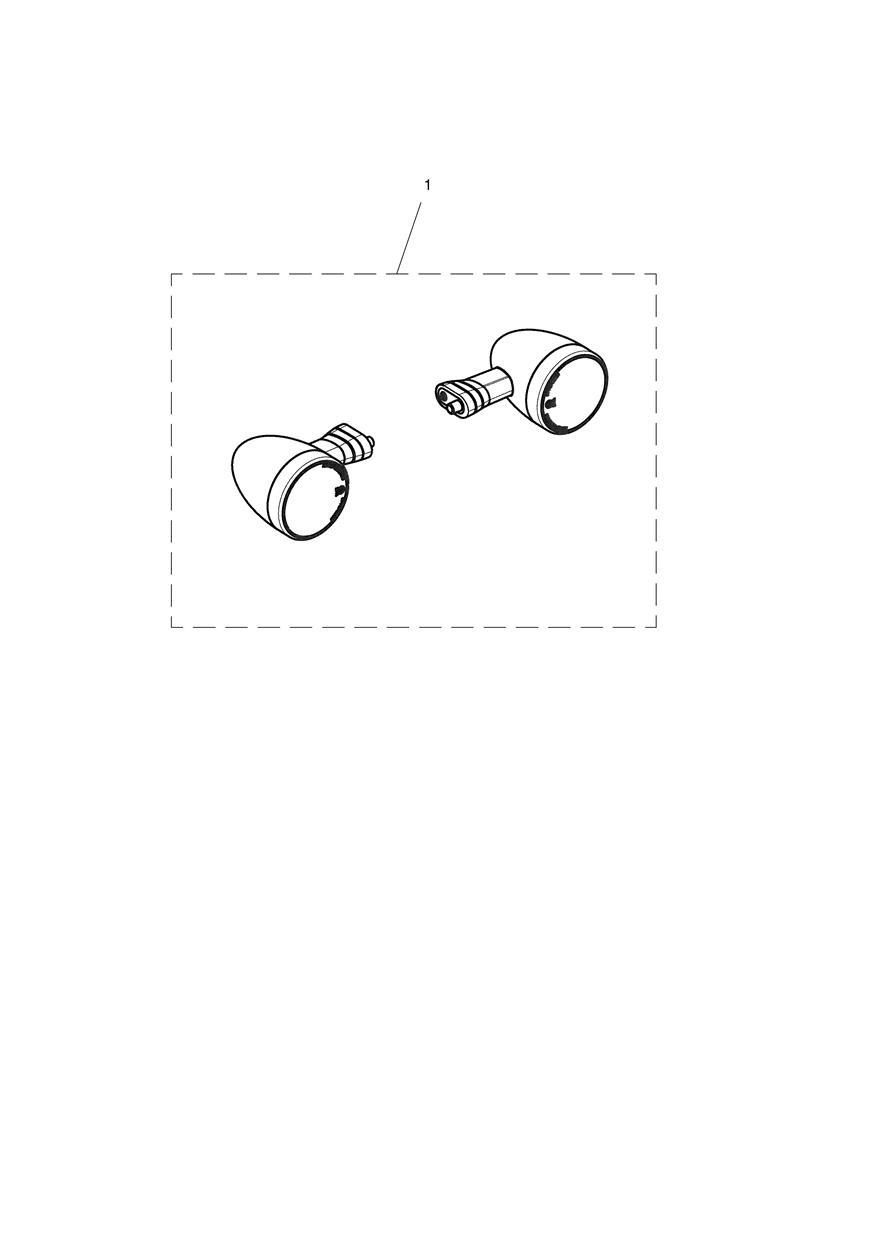

Multifunction Lamp Kit, Type 2
1 part
VIN AC1201 to CM2411
Heated Grip Kit
7 parts
VIN AC1201 to CM2411
Beeline Moto II
1 part
VIN AC1201 to CM2411
LED, Indicator Kit, D64, Short, 120 Lead
5 parts
VIN AC1200 and lower
Auxiliary Power Socket Kit
6 parts
VIN AC1200 and lower
Multifunction Lamp Install Kit
9 parts
VIN AC1200 and lower
LED, Indicator Kit, D40, Short, 120 Lead
4 parts
VIN AC1200 and lower
LED, Indicator Kit, D40, Short, 120 Lead
4 parts
VIN AC1200 and lower
LED Indicator Kit, D64 Med, 450 Lead
3 parts
VIN AC1200 and lower
Multifunction Lamp Kit, Short, D40
1 part
VIN AC1200 and lower
LED Ind Kit, D40, Short, 450 Lead
1 part
VIN AC1200 and lower
Heated Grip Kit
7 parts
VIN AC1200 and lower
Headset, Sena, 50S, Kit
1 part
VIN AC1200 and lower
Multifunction Lamp Kit, Type 2
1 part
VIN AC1200 and lower
27 parts you can order online
Every part below appears in Triumph’s ELECTRICAL diagrams for the Bonneville Speedmaster and is priced and orderable online. Open a part to see what it fits and to buy it.

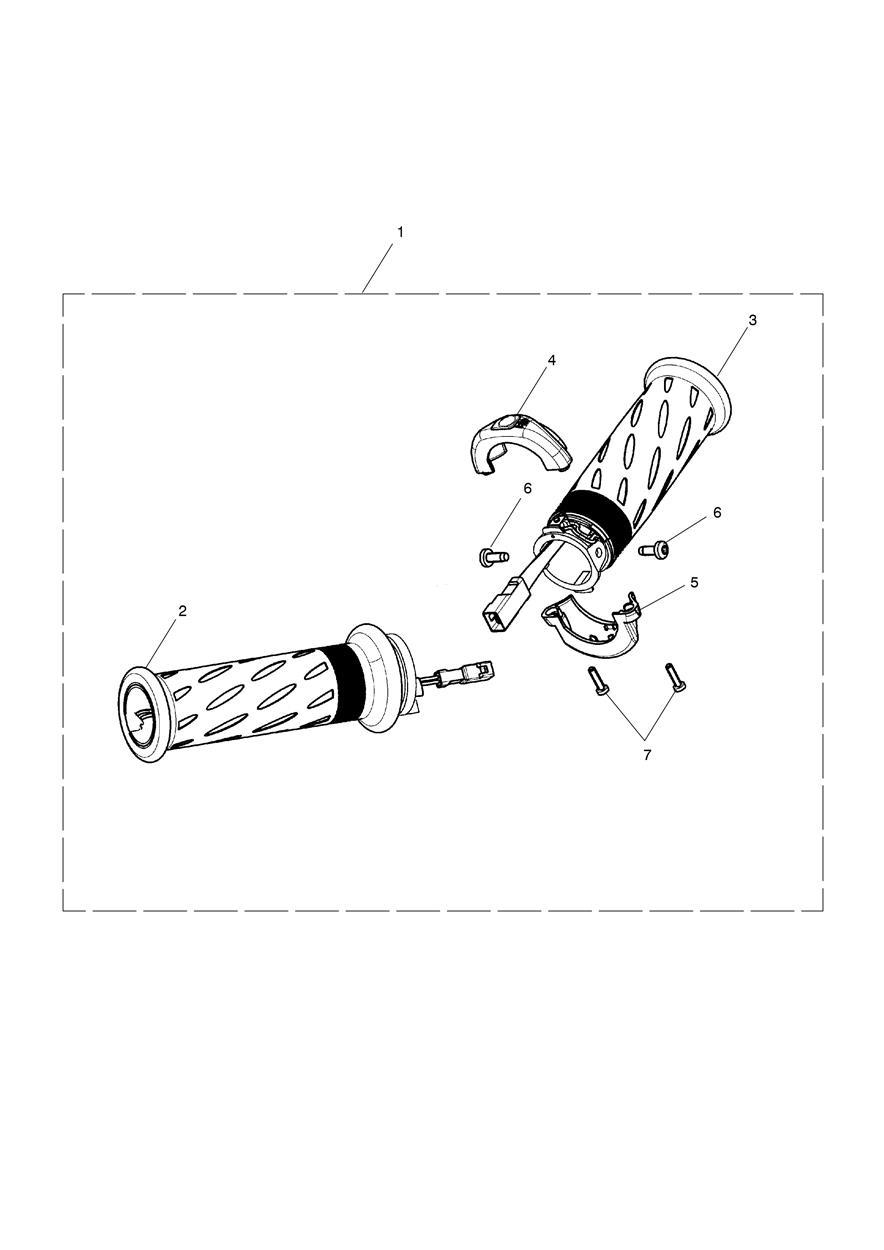

Heated Grip Kit VIN CM2412 and higher
A9638105 Heated Grip Kit
$330.00
In stock in BreaT2041169 Heated Grip, RH
$170.73
In stock in BreaT2043877 Heated Grip, LH
$154.75
AvailableT2041468 Button Housing, H/Grip, Upper
$6.16
AvailableT2041469 Button Housing, H/Grip, Lower
$6.16
AvailableT3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD
$6.61
AvailableT3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk
$4.65

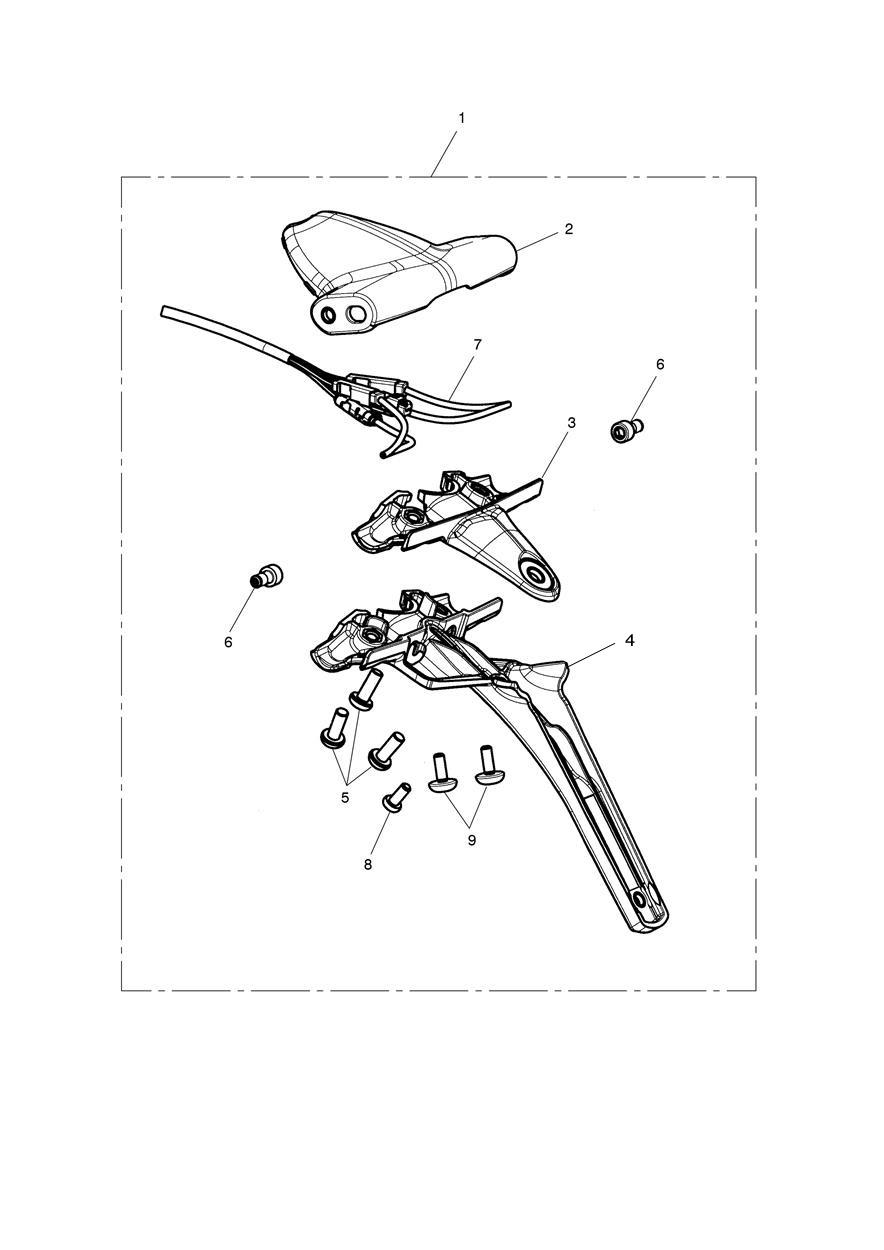

AvailableMultifunction Lamp Install Kit VIN AC1201 to CM2411
T9700527 Rear Finisher
$33.99
AvailableT9750827 Hanger, Lower, Reg Plate, Trim
$36.32
AvailableT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT3050348 Screw, Cap/Hd, M6 x 12, Enc, Slv
$4.76
AvailableT9830110 Harness, Multifunction Lamp, Type 3
$51.92
AvailableT3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv
$5.25
AvailableT3330955 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableHeadset, Sena, 50S, Kit VIN CM2412 and higher
LED, Indicator Kit, D64, Short, 120 Lead VIN AC1201 to CM2411
Beeline Moto II VIN CM2412 and higher
Aux Power Socket Kit VIN CM2412 and higher

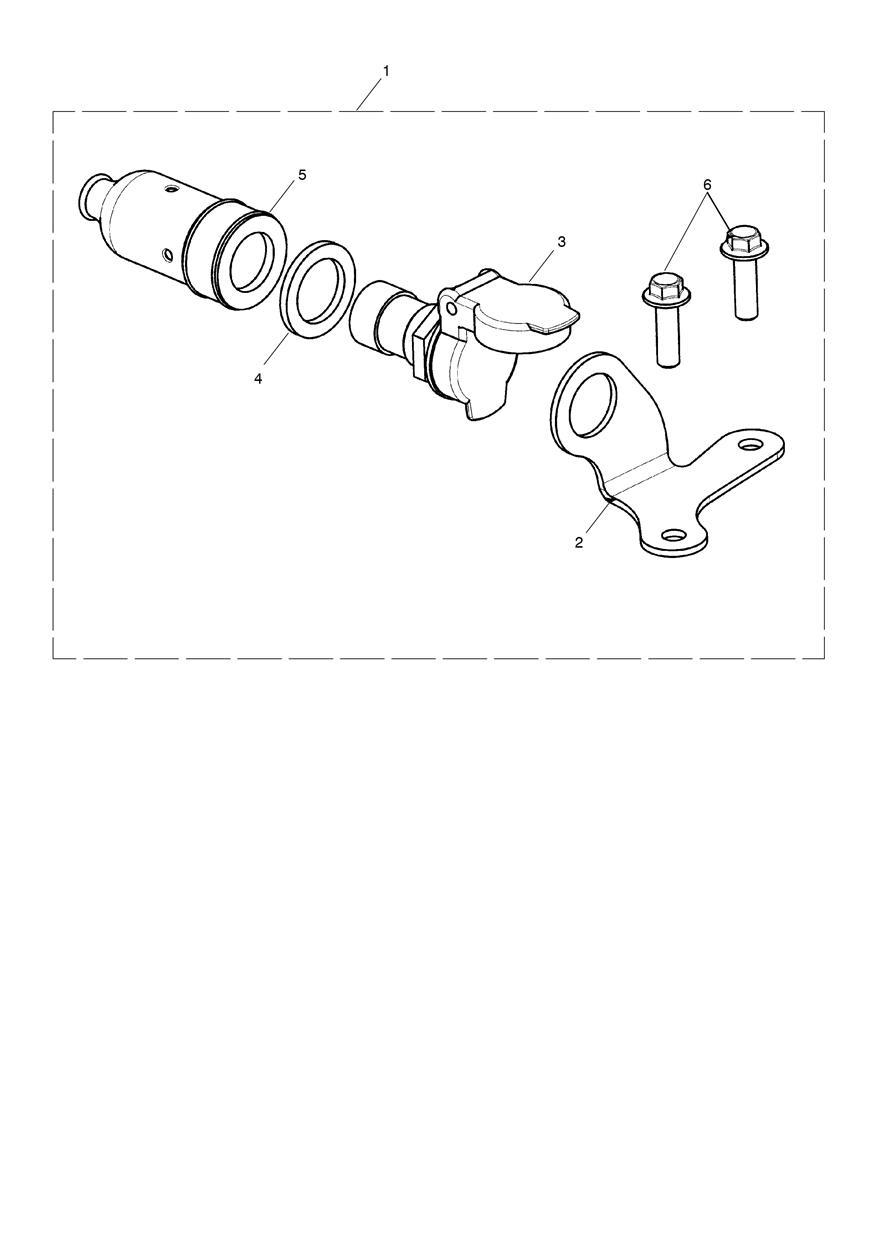

Auxiliary Power Socket Kit VIN AC1201 to CM2411
A9820031 Auxiliary Power Socket
$46.50
AvailableT9820036 Bracket, Auxiliary Power Socket
$13.39
AvailableT2505075 Socket, Auxillary Power
$55.43
AvailableT3550211 Washer, Plastic, M18
$3.08
AvailableT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91
Available
