Front Suspension & Steering incl. Clutch Controls
Triumph Bonneville Speedmaster · 9 diagrams
9 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Bonneville Speedmaster, covering the Speedmaster 1200. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Front Forks & Lower Yoke
33 parts
VIN AC1200 and lower

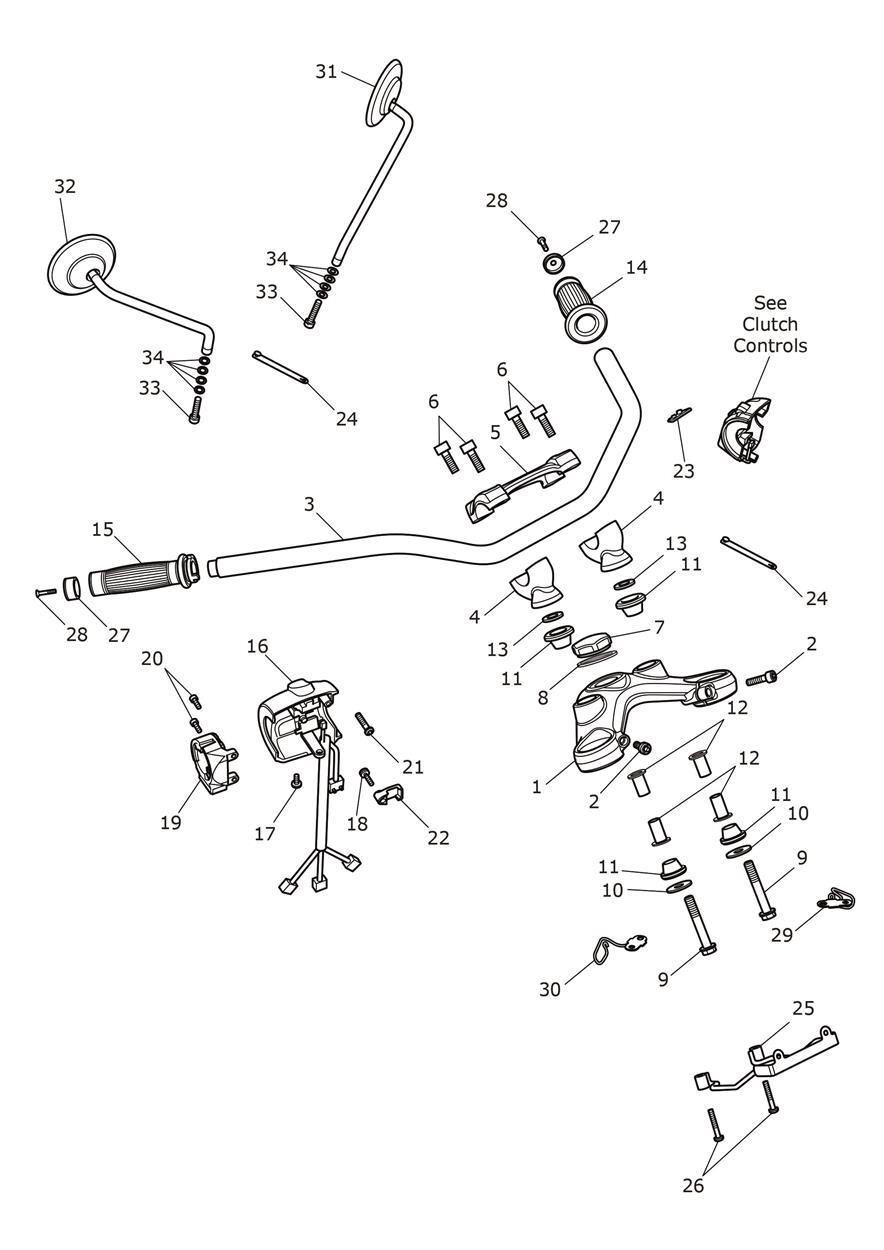

Handlebars, Top Yoke & Mirrors
34 parts
VIN AC1201 to CM2411
Handlebars, Top Yoke & Mirrors
34 parts
VIN CM2412 and higher

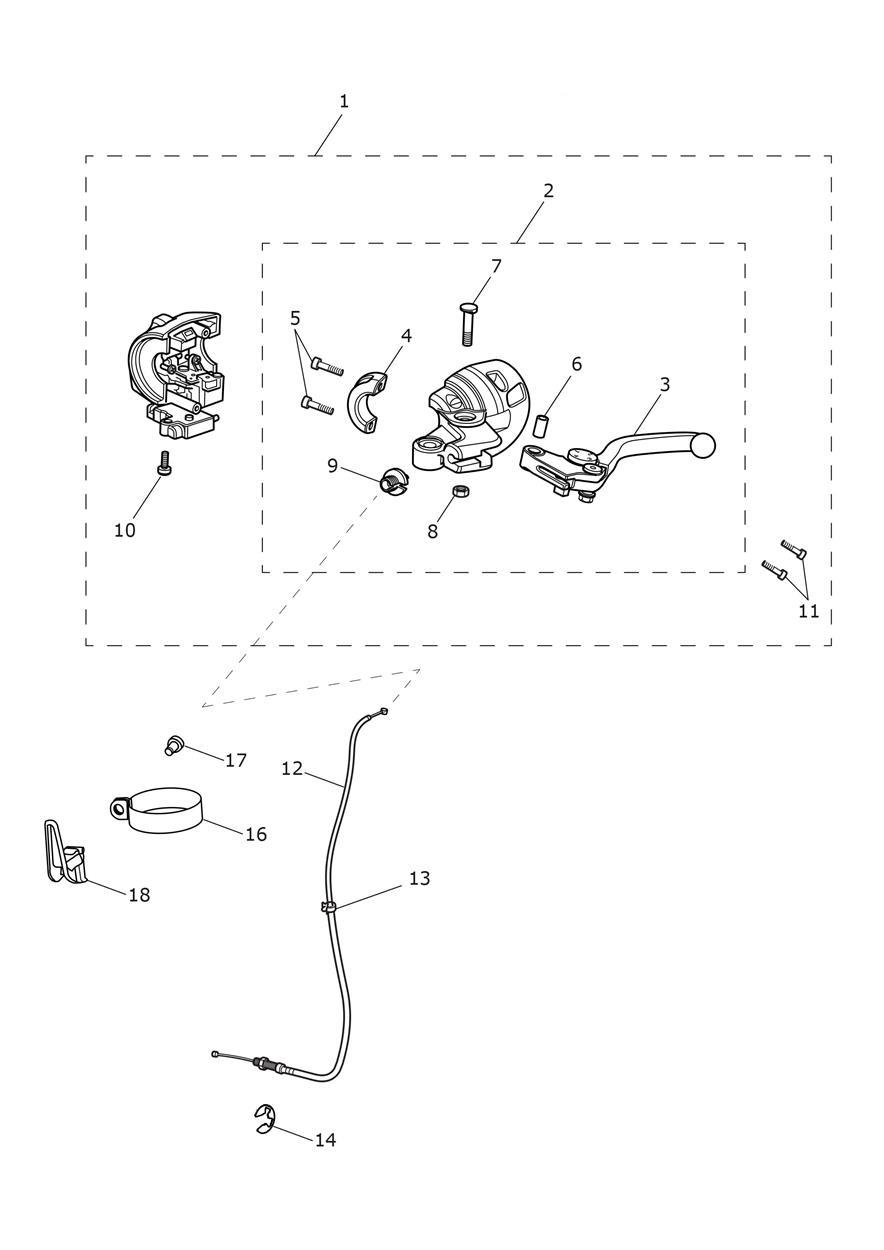

Clutch Controls
18 parts
VIN AC1201 to CM2411

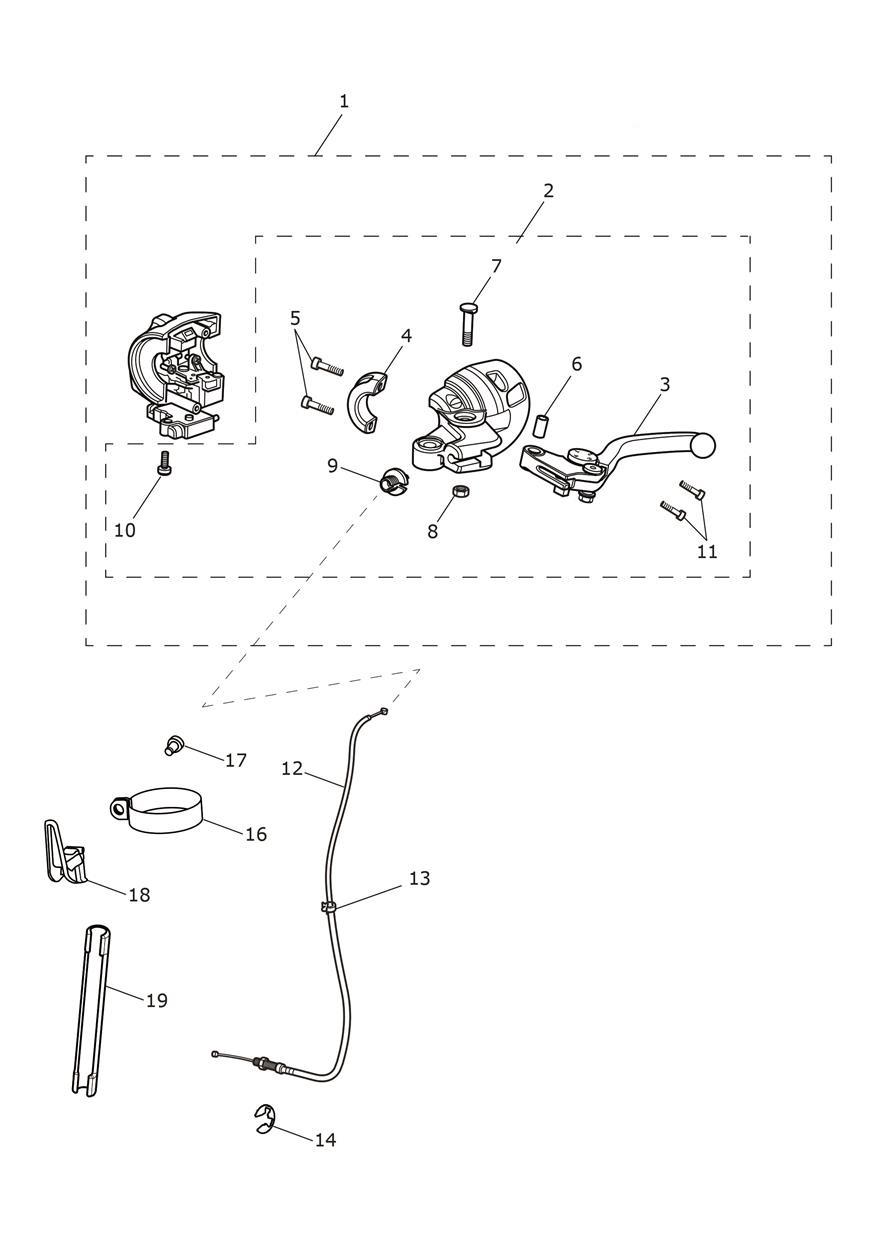

Clutch Controls
18 parts
VIN CM2412 and higher
Handlebars, Top Yoke & Mirrors
34 parts
VIN AC1200 and lower
Clutch Controls
17 parts
VIN AC1200 and lower

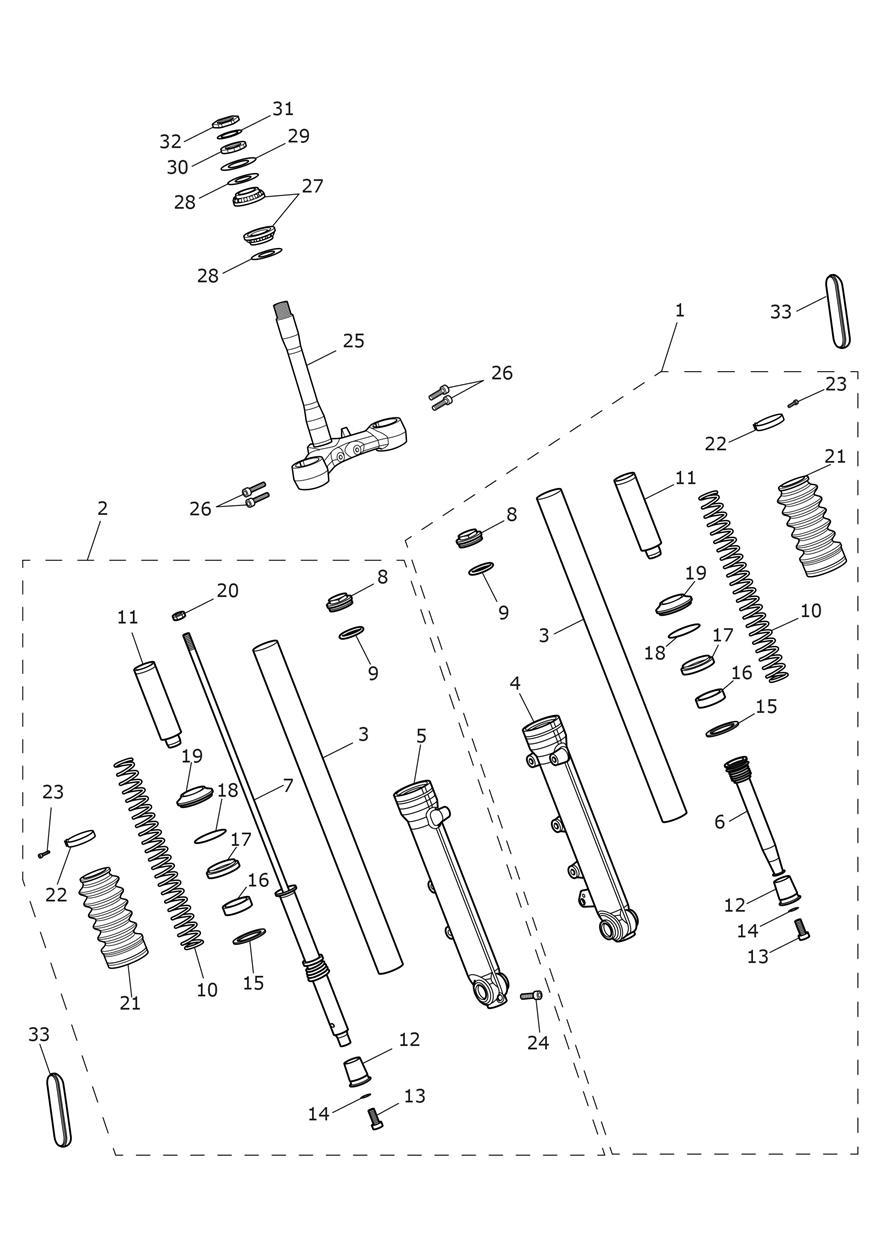

Front Forks & Lower Yoke
42 parts
VIN AC1201 to CM2411

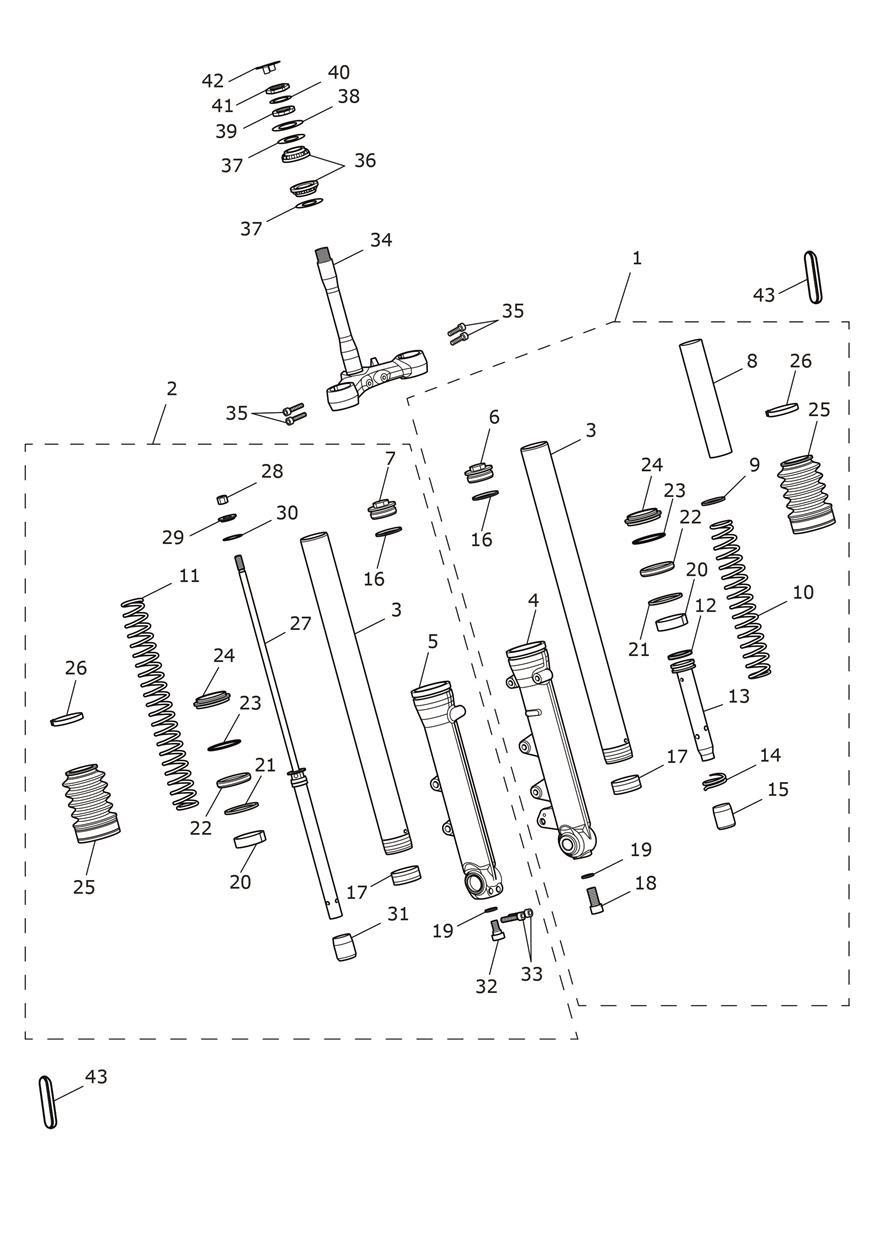

Front Forks & Lower Yoke
43 parts
VIN CM2412 and higher
113 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Bonneville Speedmaster and is priced and orderable online. Open a part to see what it fits and to buy it.
Front Forks & Lower Yoke VIN AC1200 and lower
T2041856 Stanchion Assy, LH
$1065.03
AvailableT2045062 Stanchion Assy, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$1065.03
On backorderT2045119 Fork Tube, Inner
$554.50
AvailableT2049909 Casting, Fork, LH
$545.70
AvailableT2043702 Casting, Fork, RH
$545.70
AvailableT2041674 Cap
Backordered at Triumph · we’ll confirm the ship date after you order
$71.30
On backorderT2047113 O Ring, Fork Seal
$2.53
AvailableT2041724 Main Fork Spring
Backordered at Triumph · expected Nov 6
$95.04
On backorderT2041673 Spacer
$10.84
AvailableT2041670 Piece Comp, Oil Lock
$9.85
AvailableT2045046 Capscrew, Oil Lock
$9.85
AvailableT2045045 Washer, Sealing B
$1.99
AvailableT2047107 Ring, Back Up
$4.04
AvailableT2047106 Guide, Bushing
$12.51
AvailableT2044161 Oil Seal
$22.26
In stock in BreaT2040248 Snap Ring
$6.24
AvailableT2047109 Dust Seal, Fork
$16.95
AvailableT2040072 Nut, Cap Assy
Backordered at Triumph · expected Nov 6
$16.26
On backorderT2041308 Gaiter, Fork
$36.28
AvailableT2045157 Clip, Gaiter, Front Forks
$3.32
AvailableT2040399 Screw, Fork Gaiter Clip, M4
$3.32
AvailableT3050133 Capscrew
$4.21
AvailableT2046851 Lower Yoke Assembly
$422.46
AvailableT3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv
$4.39
AvailableT3800091 Bearing, Sac
$31.43
In stock in BreaT3600234 Dust Seal, Dia 55
$7.72
AvailableT2042138 Cover, Headstock Bearing
$10.10
AvailableT2040301 Adjuster Nut, M30, Lower
Low stock at Triumph
$26.39
Limited availabilityT2044183 Washer, Headstock
$7.68
AvailableT2040304 Locknut, M30
$19.08
AvailableT2700332 Reflector, Amber, Oval
$5.92
AvailableHandlebars, Top Yoke & Mirrors VIN AC1201 to CM2411
T2043319 Upper Yoke
Backordered at Triumph · we’ll confirm the ship date after you order
$343.27
On backorderT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT2042528 Handlebar, 25.4, Chrome
$211.23
AvailableT2045744 Handlebar Clamp, Lower, Graphite
$44.90
AvailableT2041769 Handlebar Clamp, Upper, Graphite
$61.60
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT2042135 Nut, Upper, M25, Domed
$3.49
AvailableT3551067 Washer, 25 x 35 x 1.1
$4.56
AvailableT3205765 Bolt, HHF, M10 x 65, Slv
$3.81
AvailableT3555030 Washer, 10.5 x 30 x 2.5
$6.16
AvailableT2047590 Bush, Rubber, H/Bar Clamp, Firm
$7.64
AvailableT3550632 Washer, 10.5 x 21 x 2
$2.73
AvailableT2041376 Gummy Grip, D25.4, LH, Black
$36.08
AvailableT2041375 Gummy Grip, D25.4, RH, Black
$36.08
AvailableT2041937 Switchcube, RH, Modes
$154.92
AvailableT3330284 Screw, Pan/Hd, TX, M4 x 12, Black
$3.98
AvailableT3331750 Screw, Tx, M4 x 17.5, Slv
$3.98
AvailableT2041938 Sensor, AP, Cruise
$198.92
AvailableT3330245 Bolt, C/Hd, Tx, M4 x 12, Slv, Enc
$10.91
AvailableT3330283 Screw, Pan/Hd, Tx, M4 x 20, Blk
Low stock at Triumph
$4.39
Limited availabilityT2048022 Plastic Cover, 25.4 OD
$8.35
AvailableT3700252 Rubber Band, 88mm
$8.88
AvailableT2046663 Finisher, Bar End
$30.19
In stock in BreaT3330923 Screw, Csk, M6 x 20, Slv, Enc
$2.20
In stock in BreaT2042326 Wire Guide, Yoke, LHS
$6.50
AvailableT2042327 Wire Guide, Yoke, RHS
$6.50
AvailableT2064777 Mirror Assy, LH
Low stock at Triumph
$122.53
Limited availabilityT2066777 Mirror Assy, RH
$122.53
AvailableT3550278 Washer, Low FR, 8.5 x 14
$5.19
AvailableHandlebars, Top Yoke & Mirrors VIN CM2412 and higher
T2046263 Handlebar, 25.4, Chromed
$199.56
AvailableT2045743 Handlebar Clamp, Lower, Black
Low stock at Triumph
$42.24
Limited availabilityT2041768 Handlebar Clamp, Upper, Black
Backordered at Triumph · we’ll confirm the ship date after you order
$56.36
On backorderClutch Controls VIN AC1201 to CM2411
T2041936 Controls Assy, LH, Cruise, No DRL
$329.18
AvailableT2043129 Clutch Lever Assy, Adjustable
$98.23
AvailableT2043126 Clutch Lever, Adjustable
$91.41
AvailableT2043123 Clamp, Handlebar
$16.19
AvailableT2046004 Screw, M6 x 20
$3.49
AvailableT2046526 Collar, Clutch Lever
$3.05
In stock in BreaT2046524 Pivot Bolt
$2.43
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046520 Adjuster Screw
$7.90
AvailableT2042236 Cable, Clutch
Low stock at Triumph
$50.69
Limited availabilityT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT3500207 Circlip, Ext 8 X 0.89
$2.64
AvailableT3700342 Clamp, 47mm ID x 12mm Wide
$5.19
AvailableT3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc
$2.81
AvailableT3700340 Cable Guide, M5 Thread
Low stock at Triumph
$3.98
Limited availabilityT2042440 Clutch Cable, Rubbing Strip, Moulding
$6.33
AvailableHandlebars, Top Yoke & Mirrors VIN AC1200 and lower
Clutch Controls VIN AC1200 and lower
Front Forks & Lower Yoke VIN AC1201 to CM2411
T2045780 Stanchion Assy, LH
$985.79
AvailableT2045790 Stanchion Assy, RH
$985.79
AvailableT2042272 Fork Tube, Inner
$580.92
AvailableT2042278 Casting, Fork, LH
$545.70
AvailableT2042271 Casting, Fork, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$607.34
On backorderT2042255 Fork Cap, LH
$75.69
AvailableT2042273 Fork Cap, RH
$75.69
AvailableT2045737 Spring Collar
$14.77
AvailableT2045664 Washer, Spring
$3.71
AvailableT2042254 Spring
$93.29
AvailableT2042240 Spring, B
$139.06
AvailableT2045655 Oil Lock Piece
$14.56
AvailableT2045666 O Ring, End Cap
Low stock at Triumph
$2.53
Limited availabilityT2041184 Bush, Slider
$13.50
AvailableT2045657 Bolt, M10
$15.84
AvailableT2045656 Washer, Copper
$1.99
AvailableT2041173 Bush, Guide
$13.26
AvailableT2045660 Seal, Front Fork
$21.92
AvailableT2041541 Dust Seal
$19.13
AvailableT2042267 Gaiter, Fork
$38.89
AvailableT2042268 Clip, Fork Gaiter
$14.71
AvailableT2042243 Locknut
Backordered at Triumph · expected Oct 30
$19.08
On backorderT2042252 Spring Seat B
$8.27
AvailableT2042253 Spring, Joint
$4.12
AvailableT2045019 Oil Lock Piece
$9.23
AvailableT2042265 Capscrew, Hex Skt Hd
$5.45
AvailableT3050073 Capscrew
$5.45
AvailableT2042523 Lower Yoke Assembly
$439.50
Available
