Frame/Footrests/Eng Mtgs/Stands/Luggage/Tool Kit

Triumph Bonneville · 5 diagrams

5 exploded diagrams for the frame/footrests/eng mtgs/stands/luggage/tool kit of the Triumph Bonneville, covering the Bonneville T100, Bonneville T120, Bonneville T120 Black. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

Mudguards

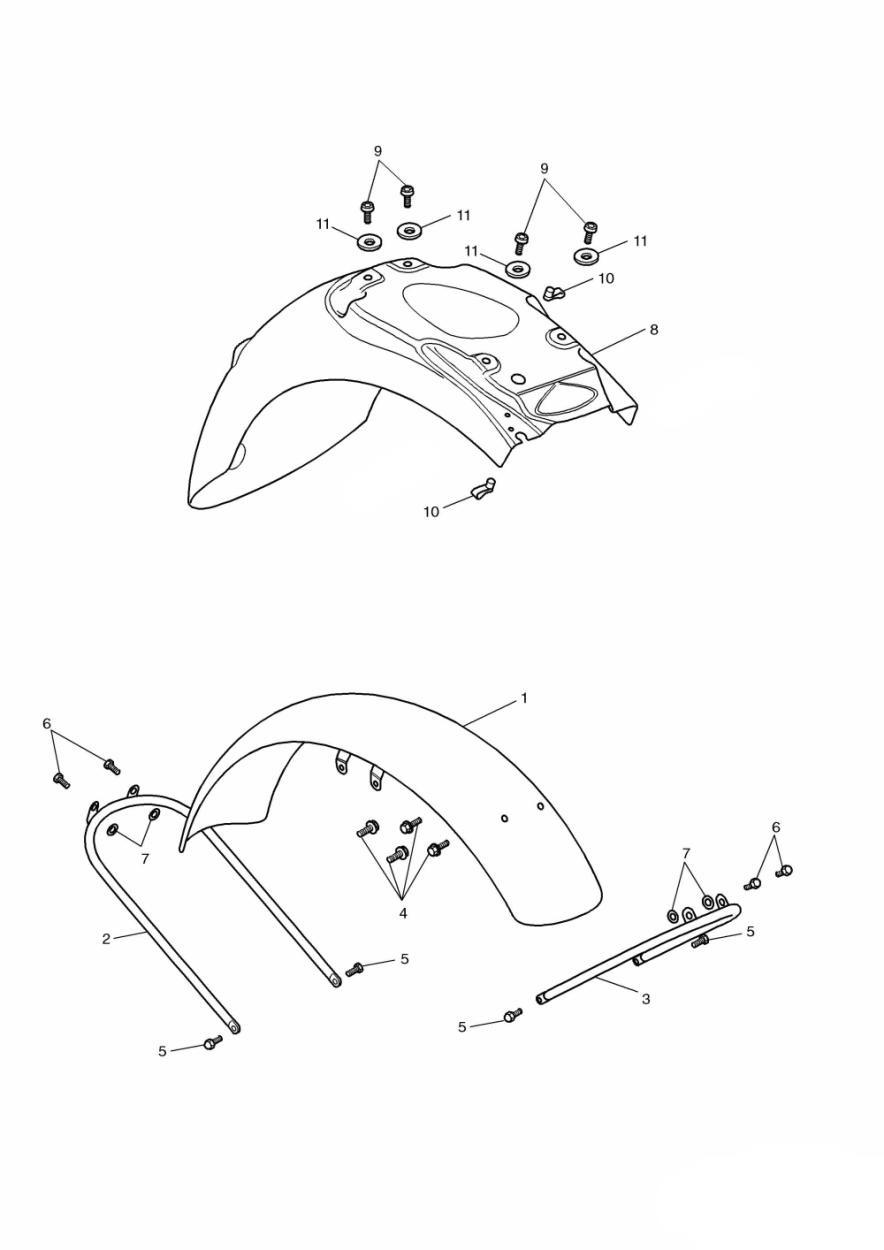

Mudguards- Black; Silver; All Other Col. & All Colours exploded diagram
Mudguards- Black; Silver; All Other Col. & All Colours
30 parts

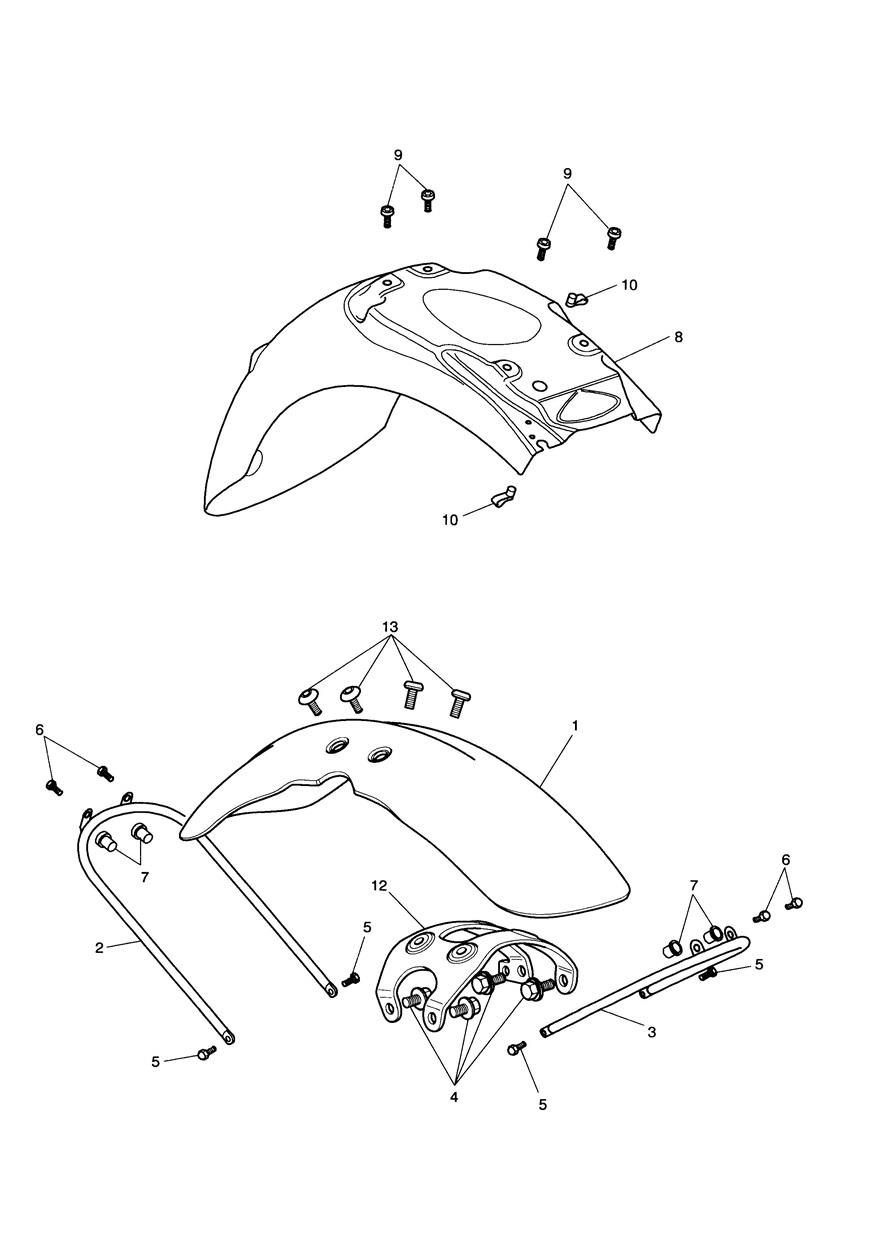

 Mudguards- Black; Silver; All Other Col. & All Col. exploded diagram
Mudguards- Black; Silver; All Other Col. & All Col.
24 parts

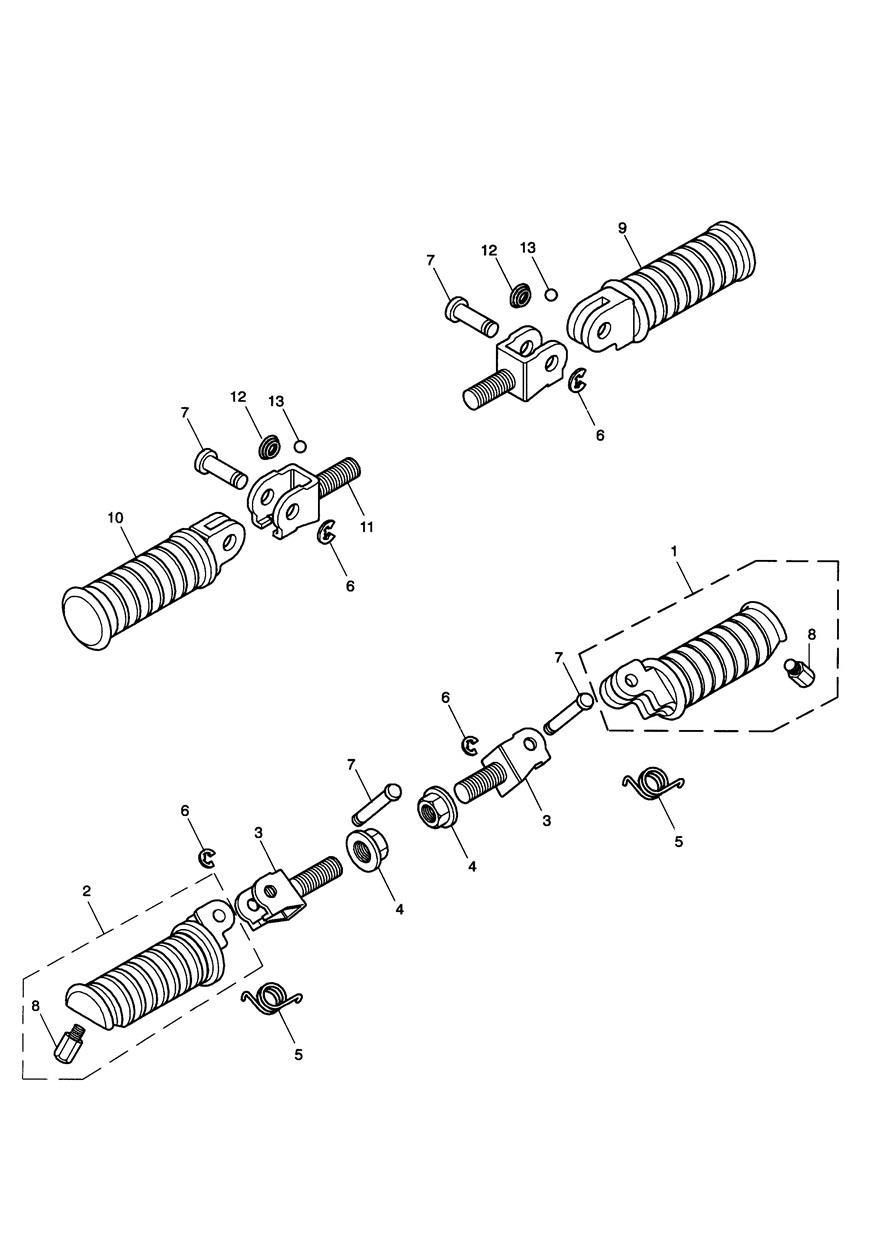

Footrests & Mountings exploded diagram
Footrests & Mountings
15 parts

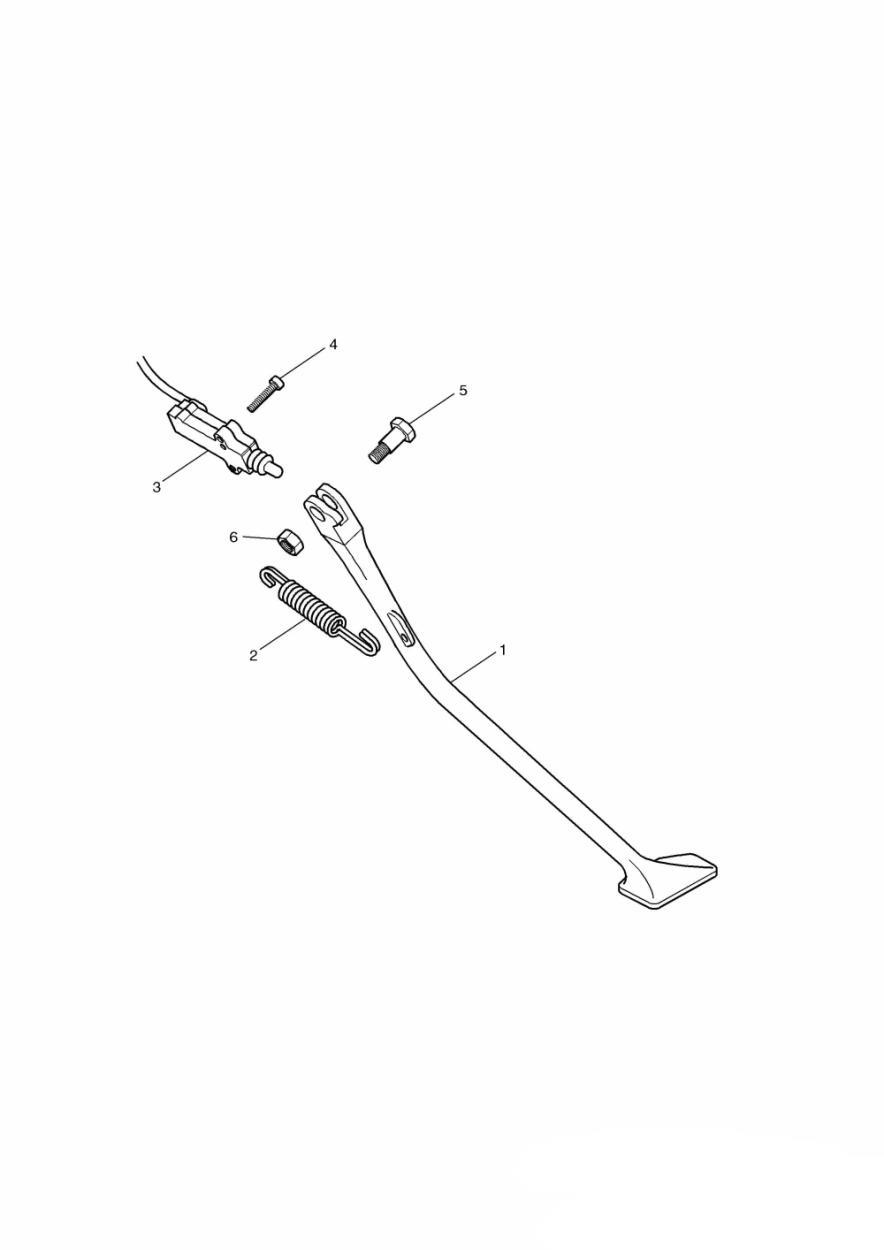

 Side Stand exploded diagram
Side Stand
6 parts

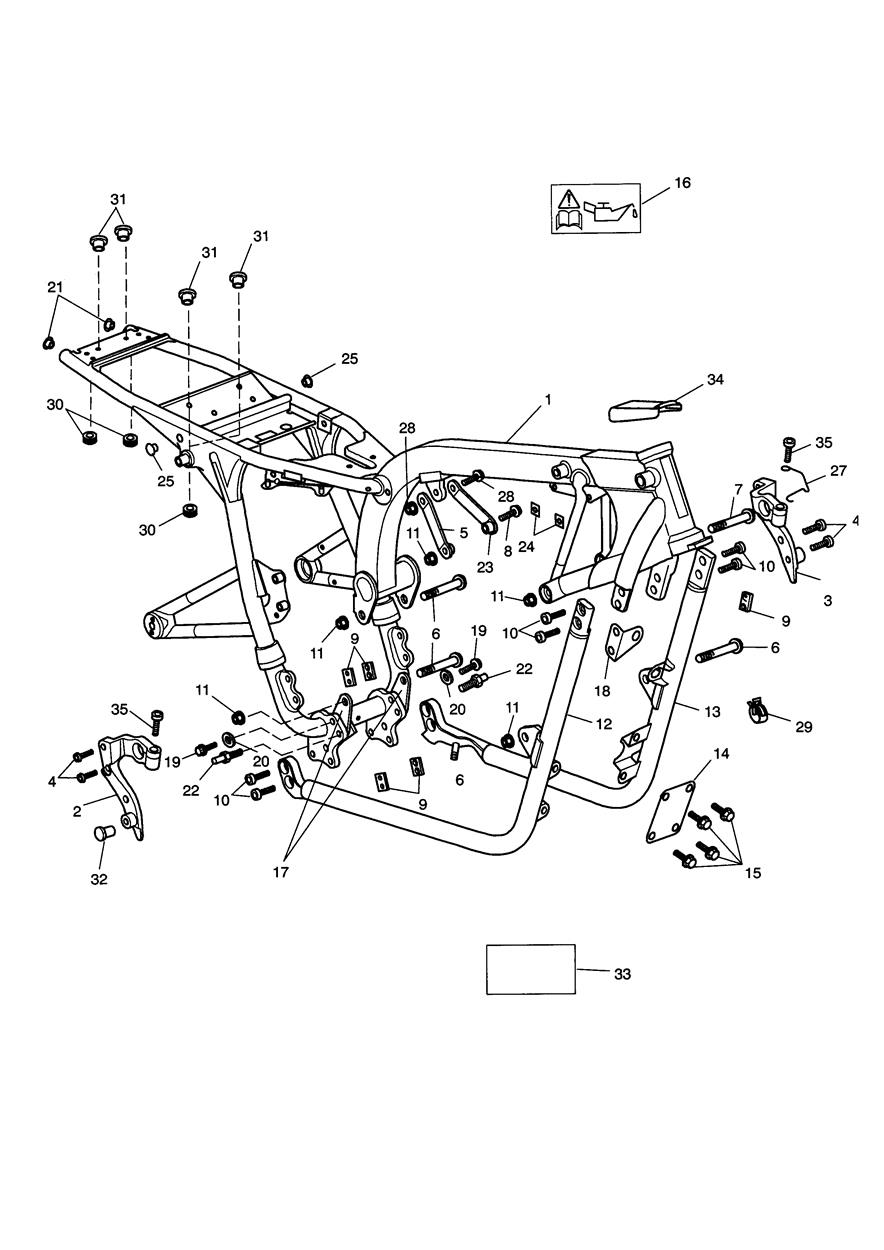

 Main Frame & Fittings exploded diagram
Main Frame & Fittings
40 parts
