Bodywork
Triumph Daytona 660 · 8 diagrams
8 exploded diagrams for the bodywork of the Triumph Daytona 660, covering the Daytona 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

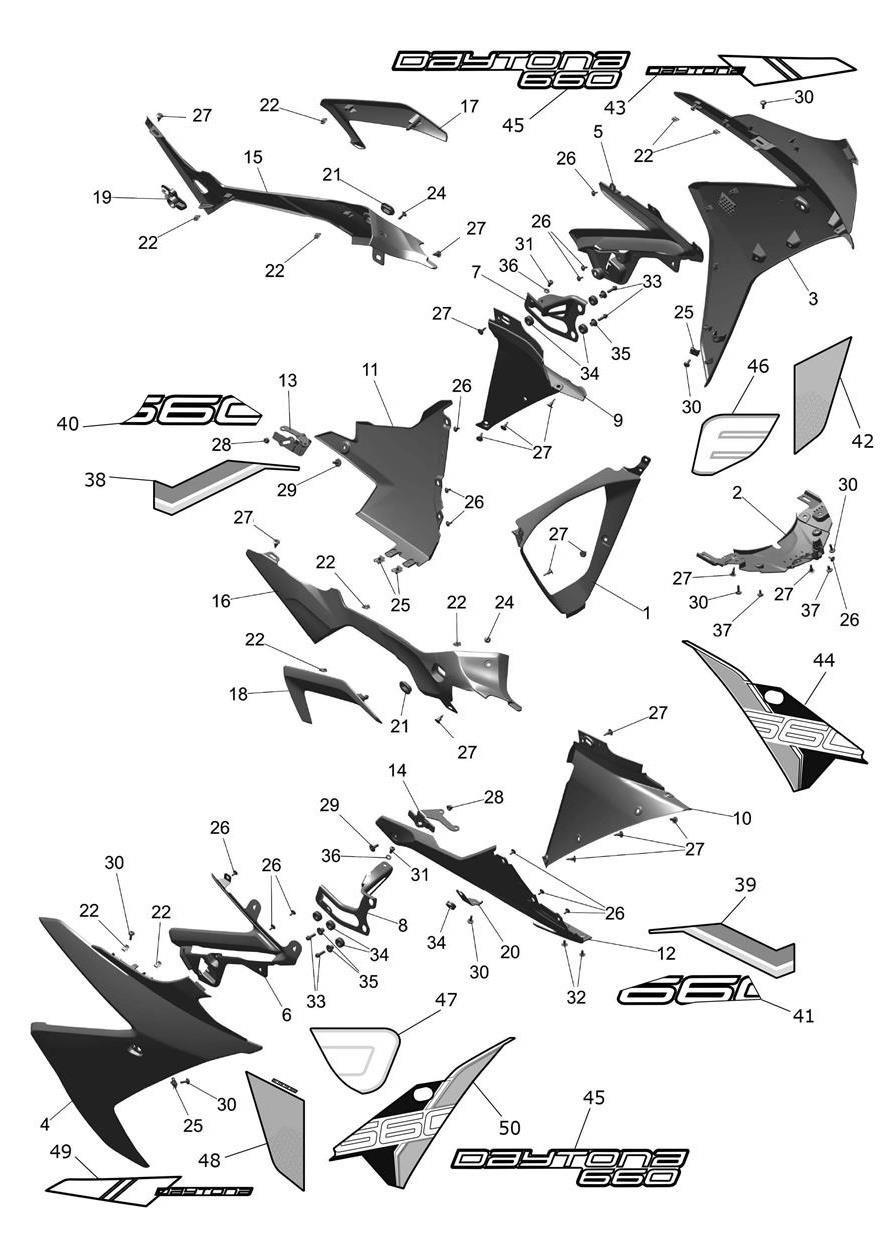

Side Fairings
59 parts
VIN CM3407 and higher

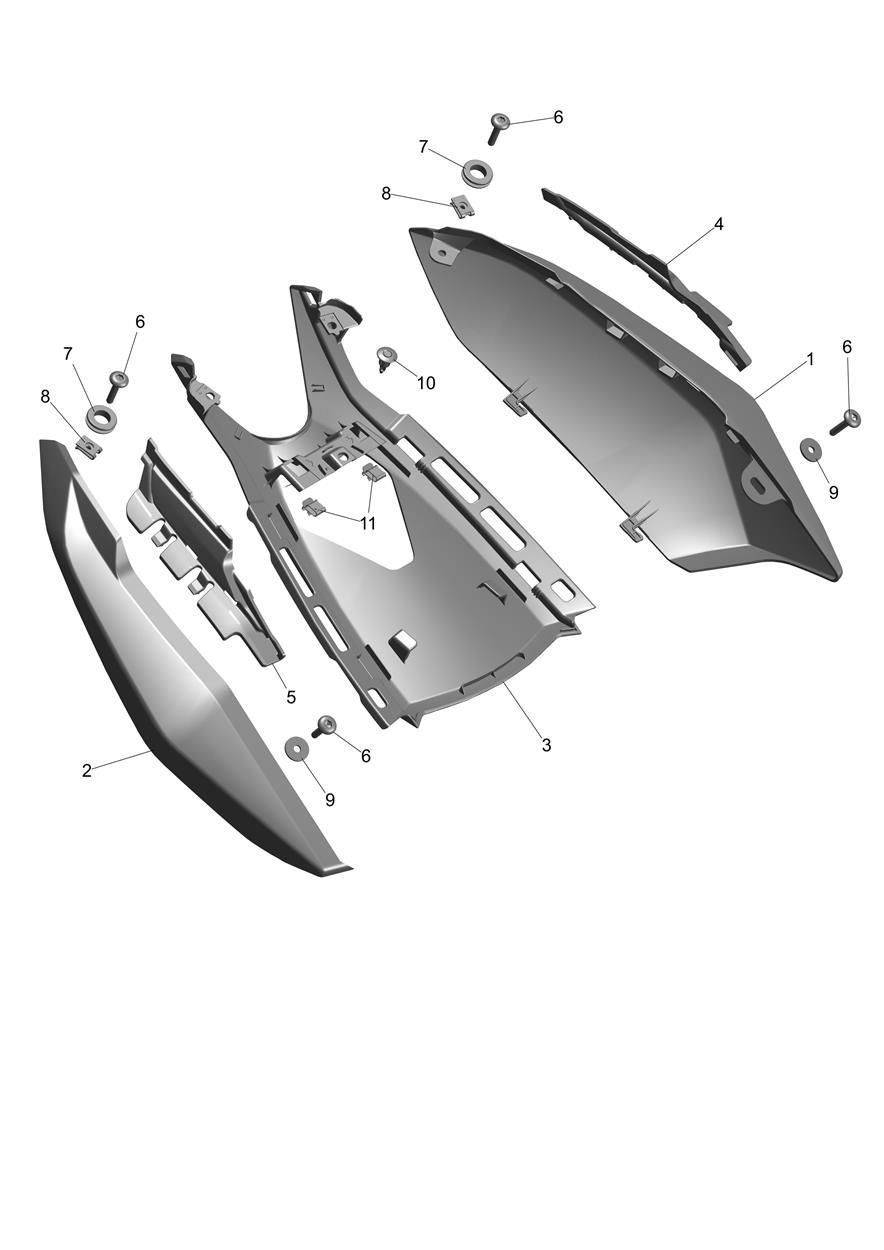

Rear Bodywork
13 parts
VIN CM3407 and higher

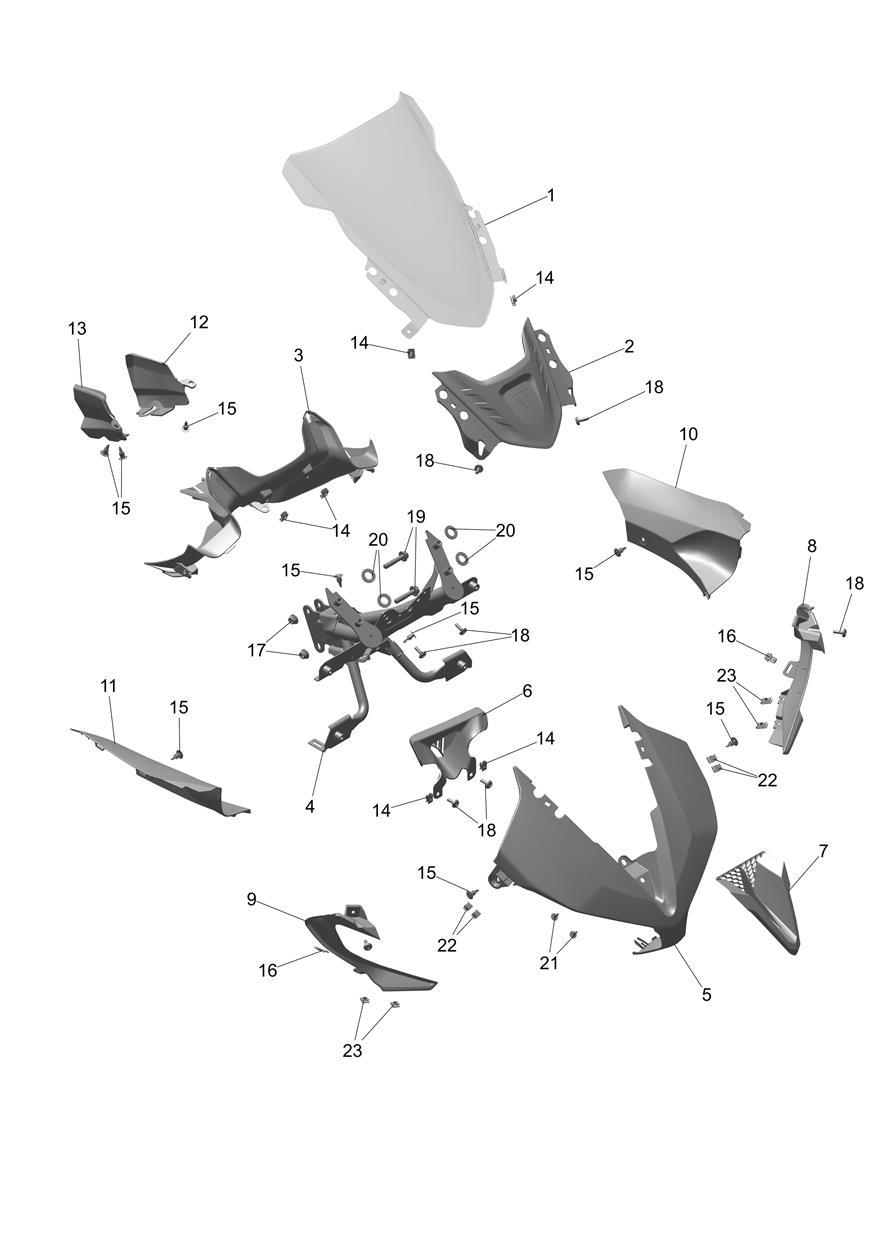

Cockpit
25 parts
VIN CM3407 and higher

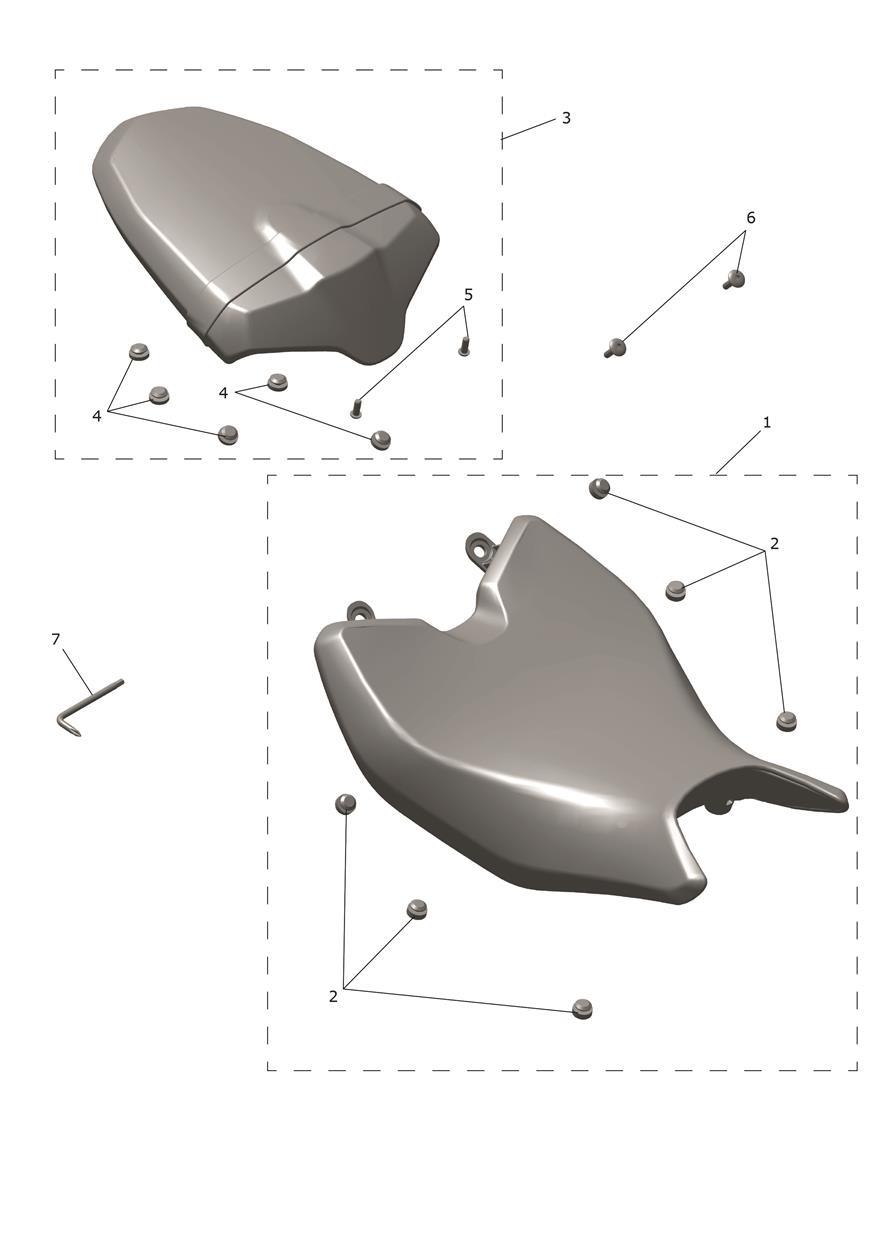

Seat
6 parts
VIN CM3407 and higher
Rear Bodywork
13 parts
VIN CM3406 and lower

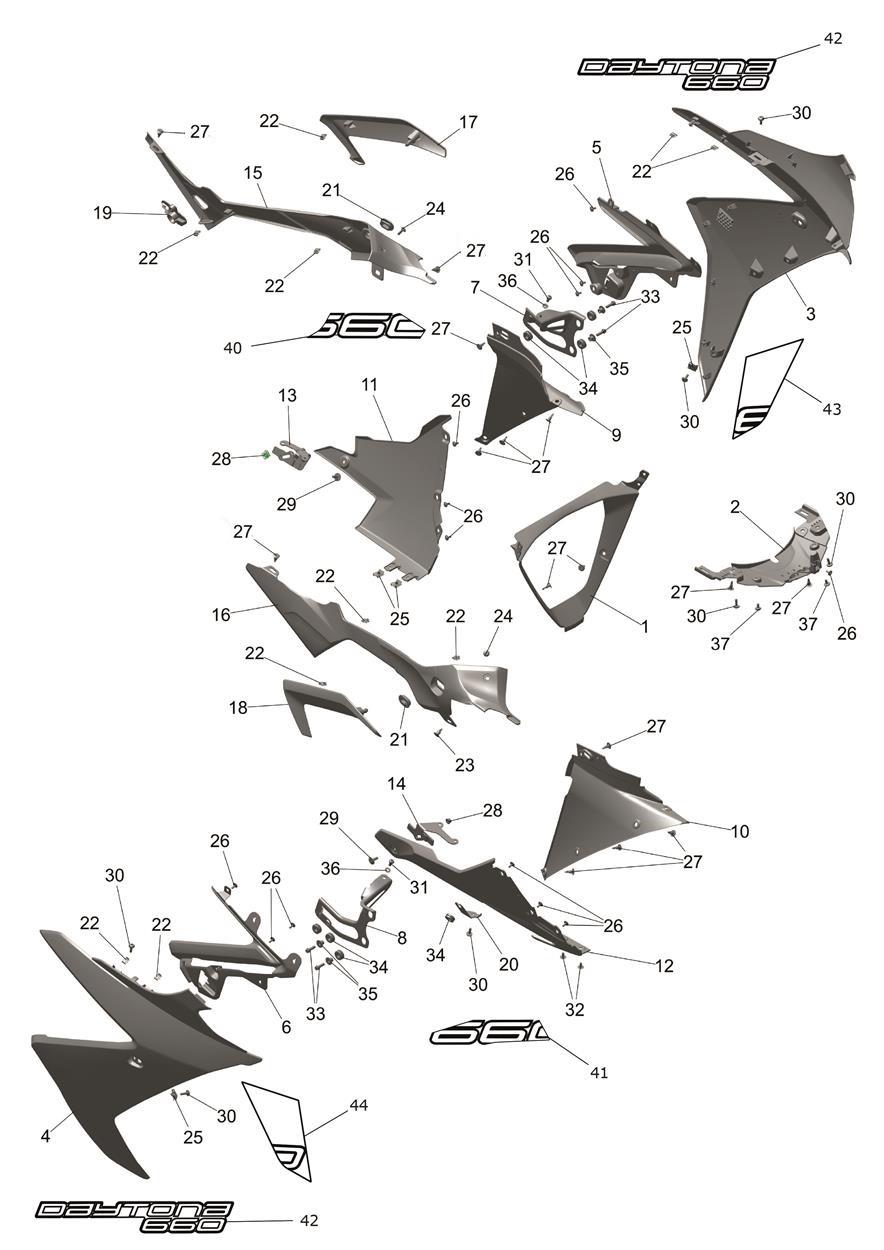

Side Fairings
59 parts
VIN CM3406 and lower
Seat
6 parts
VIN CM3406 and lower
Cockpit
25 parts
VIN CM3406 and lower
110 parts you can order online
Every part below appears in Triumph’s Bodywork diagrams for the Daytona 660 and is priced and orderable online. Open a part to see what it fits and to buy it.
Side Fairings VIN CM3407 and higher
T2314265 Infill, Fairing, Mldg, Lower
$45.13
AvailableT2310866 Infill, Fairing, Mldg, Centre
$45.13
AvailableT2310867-FJ Fairing Outer, LH, Cosmic Yellow
Low stock at Triumph
$259.43
Limited availabilityT2310867-PM Fairing, Outer, LH, Sapphire Black
$259.43
AvailableT2310868-MH Fairing, Outer, RH, Aluminium Silver
Backordered at Triumph · expected Nov 6
$259.43
On backorderT2310868-FJ Fairing, Outer, RH, Cosmic Yellow
Backordered at Triumph · we’ll confirm the ship date after you order
$259.43
On backorderT2310868-PM Fairing, Outer, RH, Sapphire Black
Backordered at Triumph · expected Nov 6
$259.43
On backorderT2310859-PM Fairing Inner, LH, Sapphire Black
$61.68
AvailableT2310860-PM Fairing Inner, RH, Sapphire Black
$61.68
AvailableT2311161 Bracket, Fairing Infill, LH, Upper
$45.13
AvailableT2311160 Bracket, Fairing Infill, RH, Upper
$45.13
AvailableT2314263 Infill, Fairing, Mldg, LH
$45.13
AvailableT2314264 Infill, Fairing, Mldg, RH
$45.13
AvailableT2313679-PM Fairing, Lower, LH, Sapphire Black
$259.43
AvailableT2310865-PM Fairing, Lower, LH, Sapphire Black
$308.27
AvailableT2313678-PM Fairing, Lower, RH, Sapphire Black
$259.43
AvailableT2310864-PM Fairing, Lower, RH, Sapphire Black
$308.27
AvailableT2311163 Bracket, Fairing Infill, LH, Lower
$45.13
AvailableT2311162 Bracket, Fairing, Infill, RH, Lower
$45.13
AvailableT2314280 Tank Infill, Mldg, LH
$45.13
AvailableT2314281 Tank Infill, Mldg, RH
$45.13
AvailableT2310917-FJ Deflector, LH, Cosmic Yellow
Backordered at Triumph · we’ll confirm the ship date after you order
$113.07
On backorderT2310917-PM Deflector, LH, Sapphire Black
Backordered at Triumph · we’ll confirm the ship date after you order
$113.07
On backorderT2310916-FJ Deflector, RH, Cosmic Yellow
Backordered at Triumph · we’ll confirm the ship date after you order
$113.07
On backorderT2314283 Lockset, Infill, Mldg
$13.20
AvailableT2317705 Bracket, Fairing, Lower, RH
$4.41
AvailableT3020059 Grommet, Bodywork
$2.36
AvailableT3700282 S Panel Clip, 2mm
$1.99
AvailableT3331066 Bolt, But/Hd, M5 x 17, Shld, Blk
Low stock at Triumph
$7.83
Limited availabilityT3350123 Nut, Captive, M5, Non-Secured
$2.29
AvailableT3701150 Plastic Rivet, Push Release
$1.99
In stock in BreaT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT3331010 Bolt, But/Hd, Skt, M6 x 16, S/S
$3.98
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT3331061 Bolt, But/Hd, M5 x 11, Shld, Slv
$4.65
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT3021100 Grommet, Dia 13 x 1.8
$2.64
AvailableT3010111 Flanged Sleeve, M6, Black
$4.21
AvailableT3550957 Washer. M6 x 13
$1.99
In stock in BreaT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99
In stock in BreaT2313716 Decal, Bellypan, LH, Grey/Red
Backordered at Triumph · expected Oct 30
$23.27
On backorderT2312387 Decal, Bellypan, LH, Clr
Backordered at Triumph · we’ll confirm the ship date after you order
$52.85
On backorderT2312458 Decal, Bellypan, RH, Clr
$52.85
AvailableT2313902 Decal 1, Outer Fairing, White/Red
Backordered at Triumph · we’ll confirm the ship date after you order
$16.63
On backorderT2313952 Decal 2, Outer Fairing, LH, White
$26.60
AvailableT2314518 Decal 4, Outer Fairing, RH, Black/Red
$46.57
AvailableRear Bodywork VIN CM3407 and higher
T2310944-PM Bodywork, Lhr, Sapphire Black
$61.68
AvailableT2310934-PM Bodywork, Rhr, Sapphire Black
$61.68
AvailableT2310840 Undertray Moulding
$27.08
AvailableT2310942 Infill, Undertray, Mldg, LH
$36.11
AvailableT2310932 Infill, Undertray, Mldg, RH
$18.06
AvailableT3330429 Screw, Skt Hd, M5 x 25, SS
$2.04
AvailableT3350161 Nut, Captive, M5
$4.21
AvailableT3550286 Washer, 5.3 x 18 x 1.6
Low stock at Triumph
$1.99
Limited availabilityCockpit VIN CM3407 and higher
T2314268 Screen, Mldg, Coated
$150.95
AvailableT2310955 Screen Support Mldg
$26.42
AvailableT2311338 Infill Cockpit, Centre, Mldg
$26.42
AvailableT2319266 Front Subframe
Low stock at Triumph
$273.05
Limited availabilityT2311660-FJ Cockpit, Cosmic Yellow
Backordered at Triumph · we’ll confirm the ship date after you order
$192.90
On backorderT2311660-PM Cockpit, Sapphire Black
Backordered at Triumph · we’ll confirm the ship date after you order
$192.90
On backorderT2311475 Duct, Air Intake
$36.11
AvailableT2311488 Finisher, Cockpit Mldg
$45.13
AvailableT2316271 Surround, Headlight LH, Mldg
$45.13
AvailableT2316270 Surround, Headlight RH, Mldg
$45.13
AvailableT2311337 Infill, Cockpit LH, Mldg
$36.11
AvailableT2311336 Infill, Cockpit RH, Mldg
$36.11
AvailableT2312277 Cockpit, Headstock LH, Mldg
$26.42
AvailableT2312278 Cockpit, Headstock RH, Mldg
$26.42
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT2313085 Clip, Bodywork
$2.26
AvailableT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaT3200601 Bolt, HHF, M8 x 40, Slv
$2.81
AvailableT2311301 Rubber, Mount, Mirror
$1.99
AvailableSeat VIN CM3407 and higher
T2312388 Seat Assembly, Rider
Low stock at Triumph
$379.17
Limited availabilityT2317399 Rubber Foot, 6mm
$4.82
AvailableT2312389 Seat Assembly, Pillion
Low stock at Triumph
$379.17
Limited availabilityT2307369 Rubber Foot, 4mm Deep
$3.42
AvailableT3330848 Bolt, But/Hd, M6 x 21, Shld, Slv
$5.45
AvailableT2305634 Allen Key, 5mm
Backordered at Triumph · we’ll confirm the ship date after you order
$5.02
On backorderRear Bodywork VIN CM3406 and lower
T2310944-QB Bodywork, Lhr, Satin Jet Black
$61.68
AvailableT2310934-QB Bodywork, Rhr, Satin Jet Black
$61.68
AvailableSide Fairings VIN CM3406 and lower
T2310867-CU Fairing, Outer, LH, Carnival Red
Backordered at Triumph · expected Dec 11
$369.92
On backorderT2310867-LO Fairing, Outer, LH, Satin Granite
$369.92
AvailableT2310867-NM Fairing, Outer, LH, Snowdonia White
$369.92
AvailableT2310868-CU Fairing, Outer, RH, Carnival Red
$220.20
AvailableT2310868-LO Fairing, Outer, RH, Satin Granite
Backordered at Triumph · we’ll confirm the ship date after you order
$220.20
On backorderT2310868-NM Fairing, Outer, RH, Snowdonia White
$220.20
AvailableT2310859-QB Fairing Inner, LH, Satin Jet Black
$61.68
AvailableT2310860-QB Fairing Inner, RH, Satin Jet Black
Backordered at Triumph · we’ll confirm the ship date after you order
$61.68
On backorderT2310865-QB Fairing, Lower, LH, Satin Jet Black
$308.27
AvailableT2310864-QB Fairing, Lower, RH, Satin Jet Black
$308.27
AvailableT2310917-CU Deflector, LH, Carnival Red
$52.85
AvailableT2310917-LO Deflector, LH, Satin Graphite
$52.85
AvailableT2310917-NM Deflector, LH, Snowdonia White
$52.85
AvailableT2310916-CU Deflector, RH, Carnival Red
$52.85
AvailableT2310916-LO Deflector, RH, Satin Graphite
$52.85
AvailableT2310916-NM Deflector, RH, Snowdonia White
$52.85
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT2312397 Decal, Bellypan, LH, Clr
$52.85
AvailableT2312459 Decal, Bellypan, RH, Clr
$52.85
AvailableT2312453 Decal 1, Outer Fairing
$17.61
AvailableT2312452 Decal 1, Outer Fairing
Low stock at Triumph
$17.61
Limited availabilityT2312451 Decal 1, Outer Fairing
$17.61
AvailableT2312456 Decal 2, Outer Fairing
$44.04
AvailableT2312457 Decal 2, Outer Fairing
$44.04
AvailableT2312454 Decal 1, Outer Fairing
$35.22
AvailableT2312455 Decal 2, Outer Fairing
$35.22
Available
