Braking System
Triumph Daytona 660 · 10 diagrams
10 exploded diagrams for the braking system of the Triumph Daytona 660, covering the Daytona 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

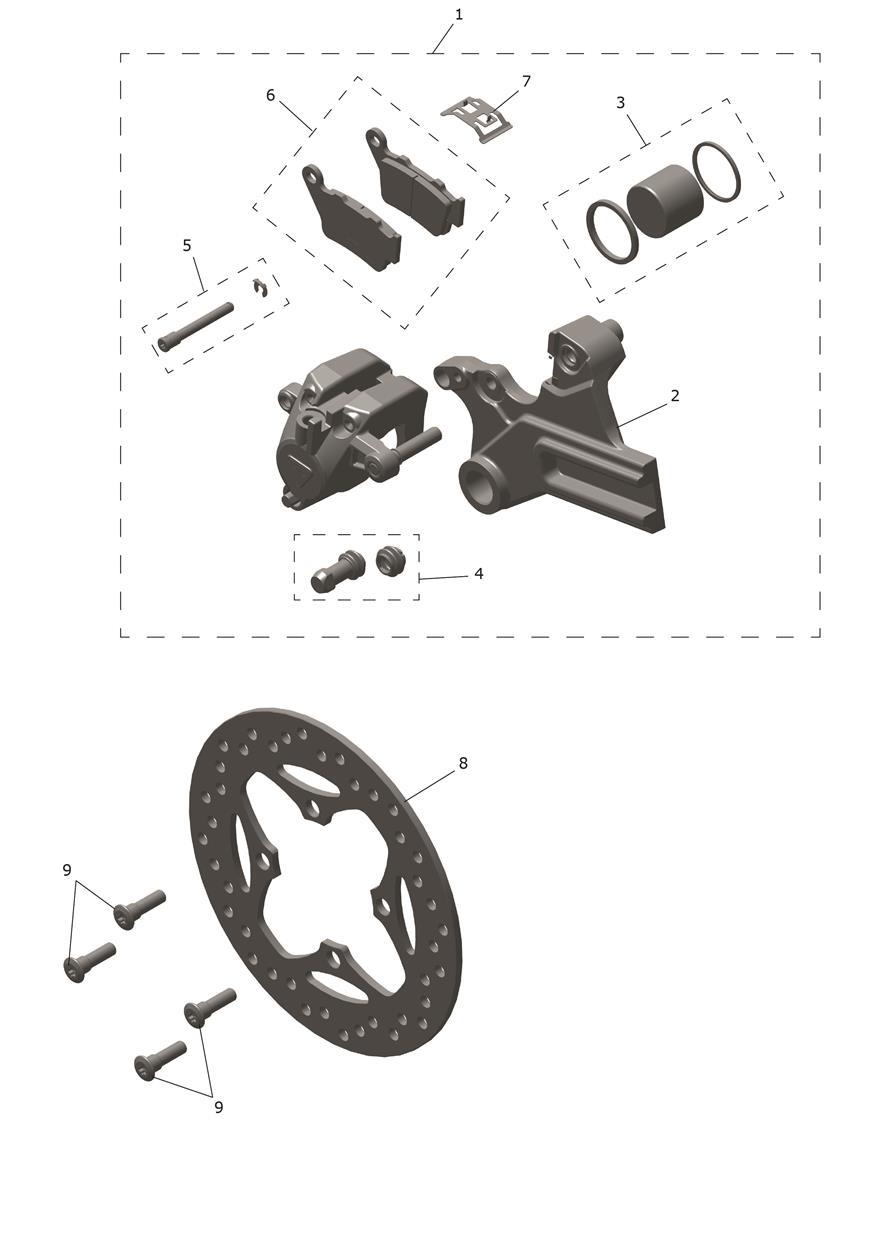

Rear Caliper & Disc
9 parts
VIN CM3406 and lower

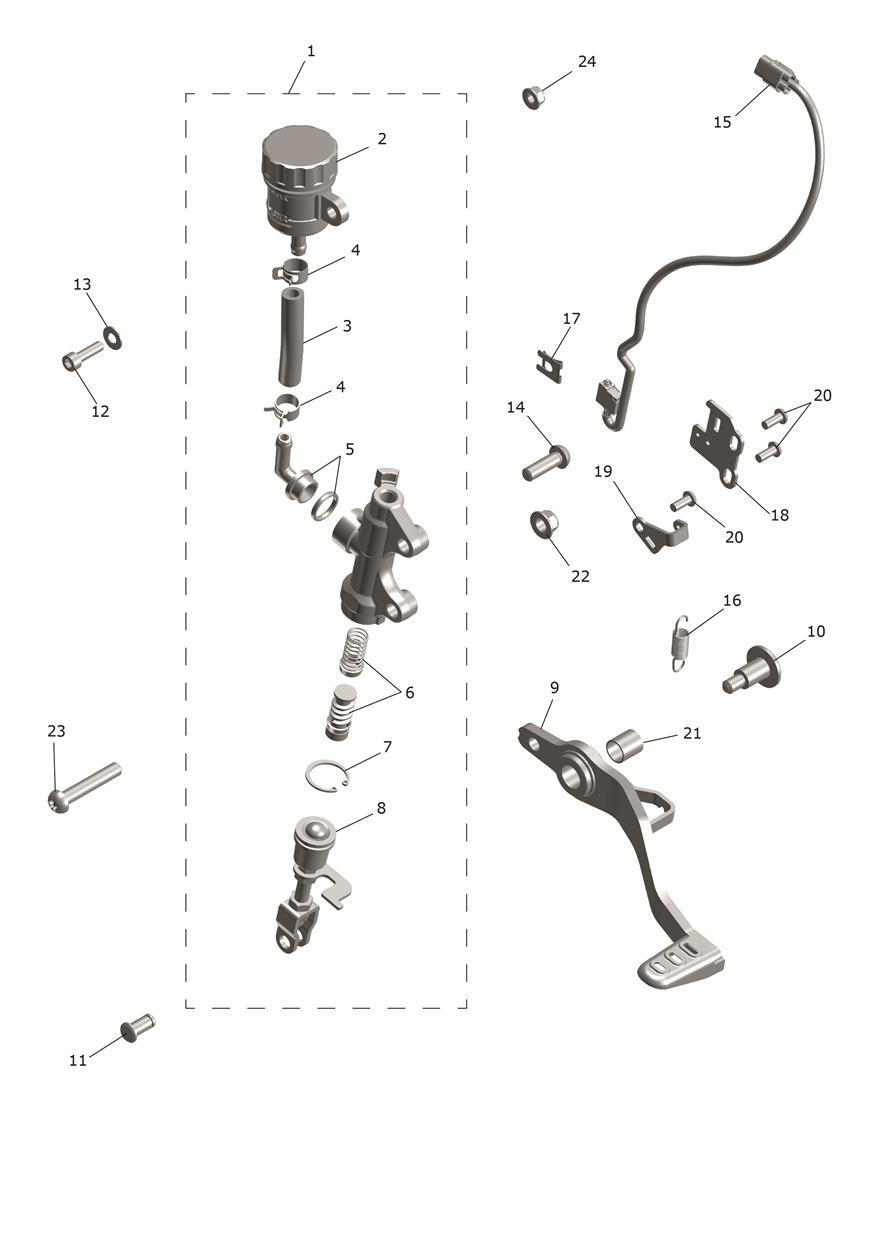

Rear Brake Master Cylinder
24 parts
VIN CM3406 and lower

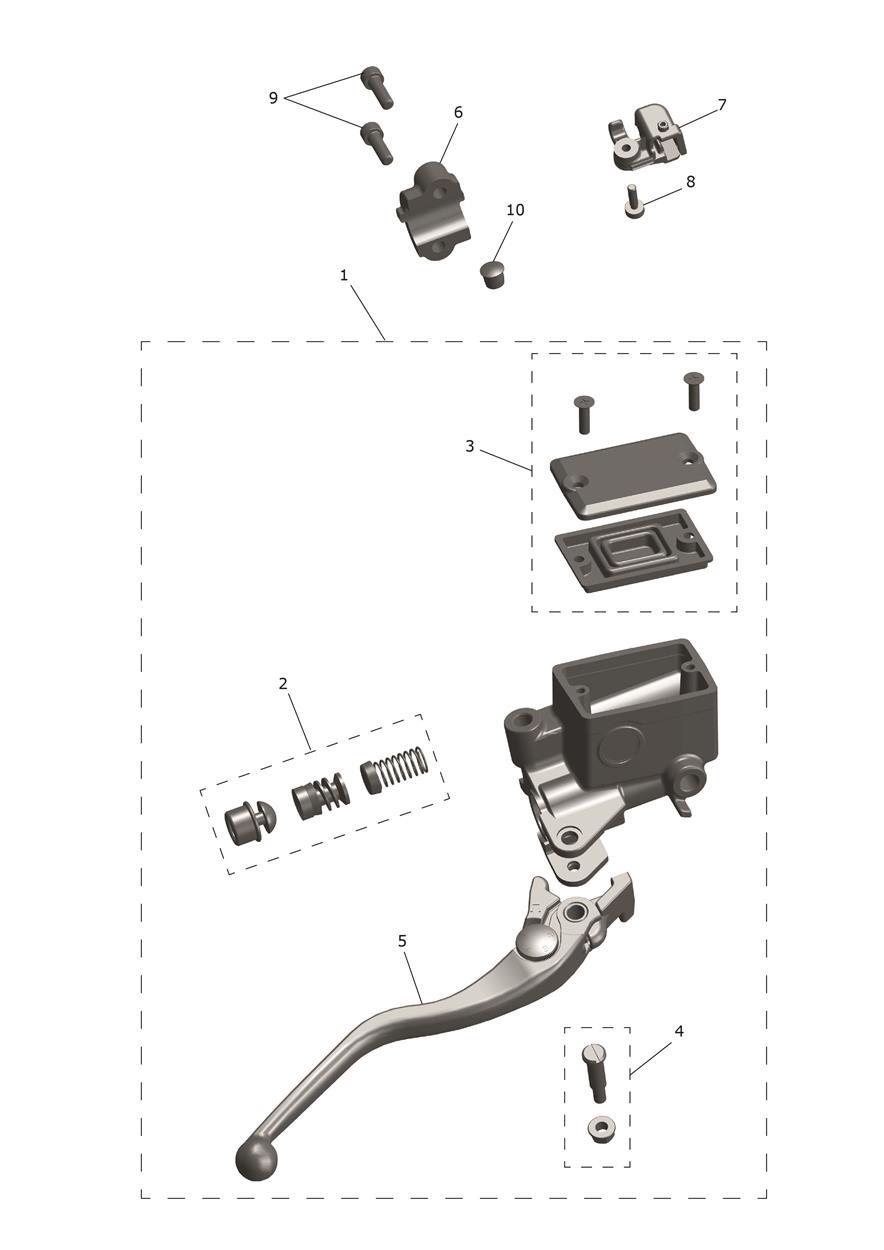

Front Brake Master Cylinder & Hoses
10 parts
VIN CM3406 and lower

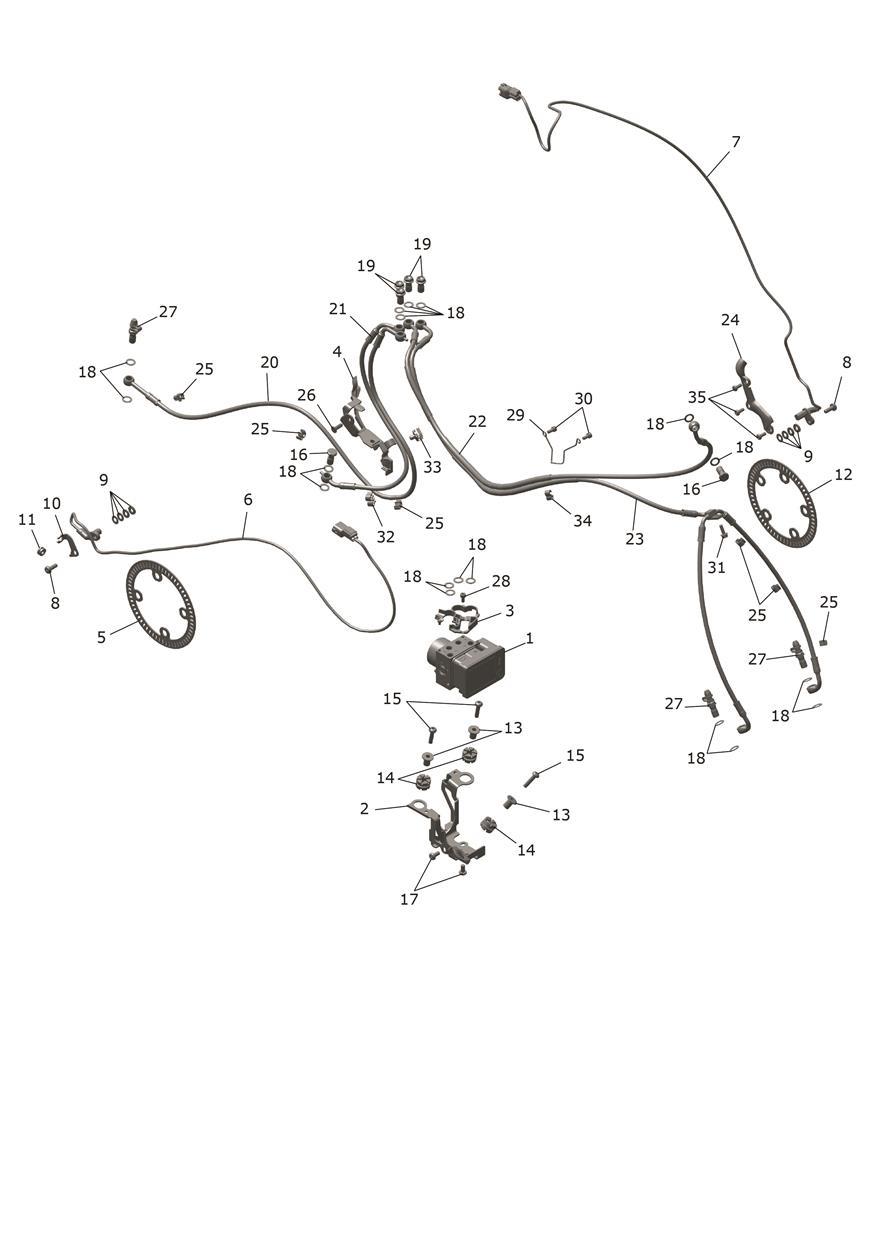

ABS System
38 parts
VIN CM3406 and lower

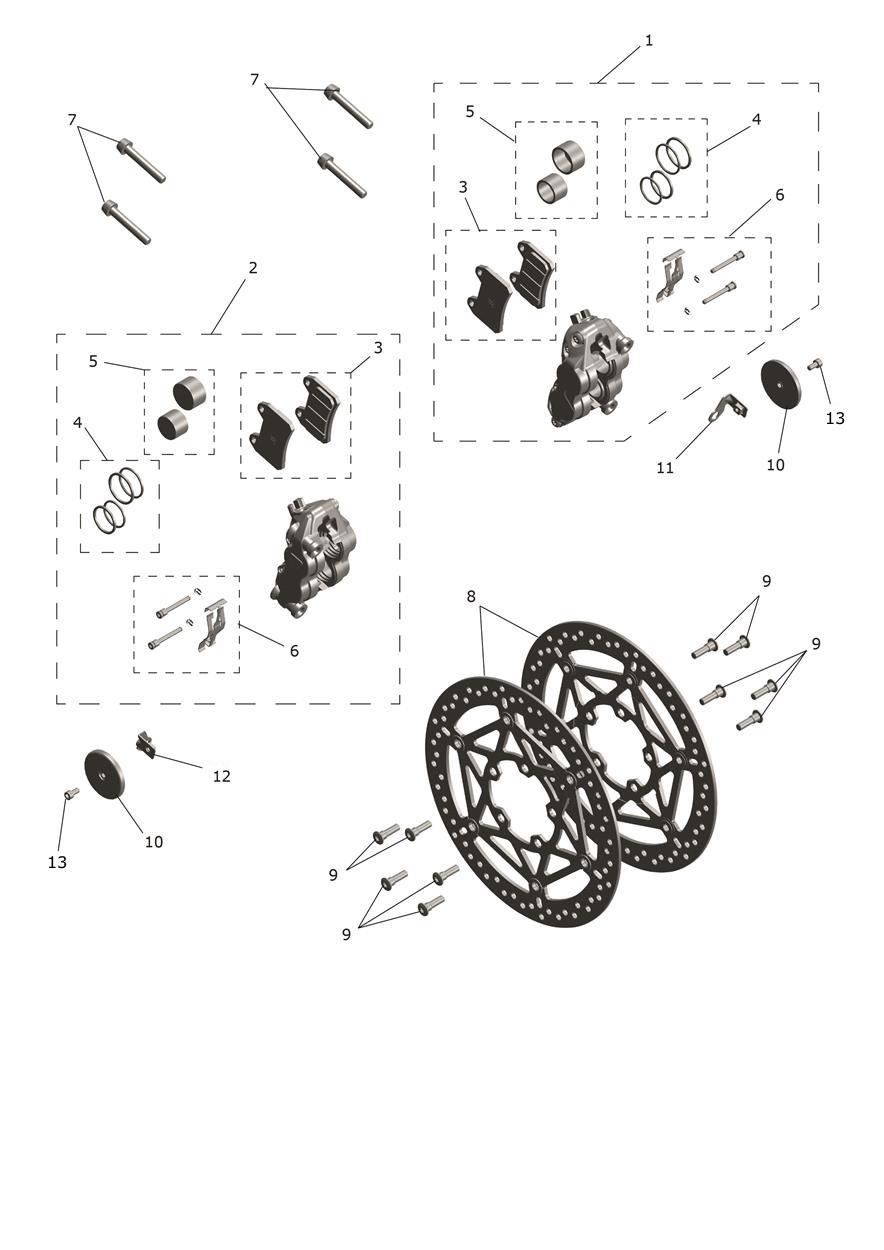

Front Brake Caliper & Discs
13 parts
VIN CM3406 and lower
Front Brake Caliper & Discs
13 parts
VIN CM3407 and higher

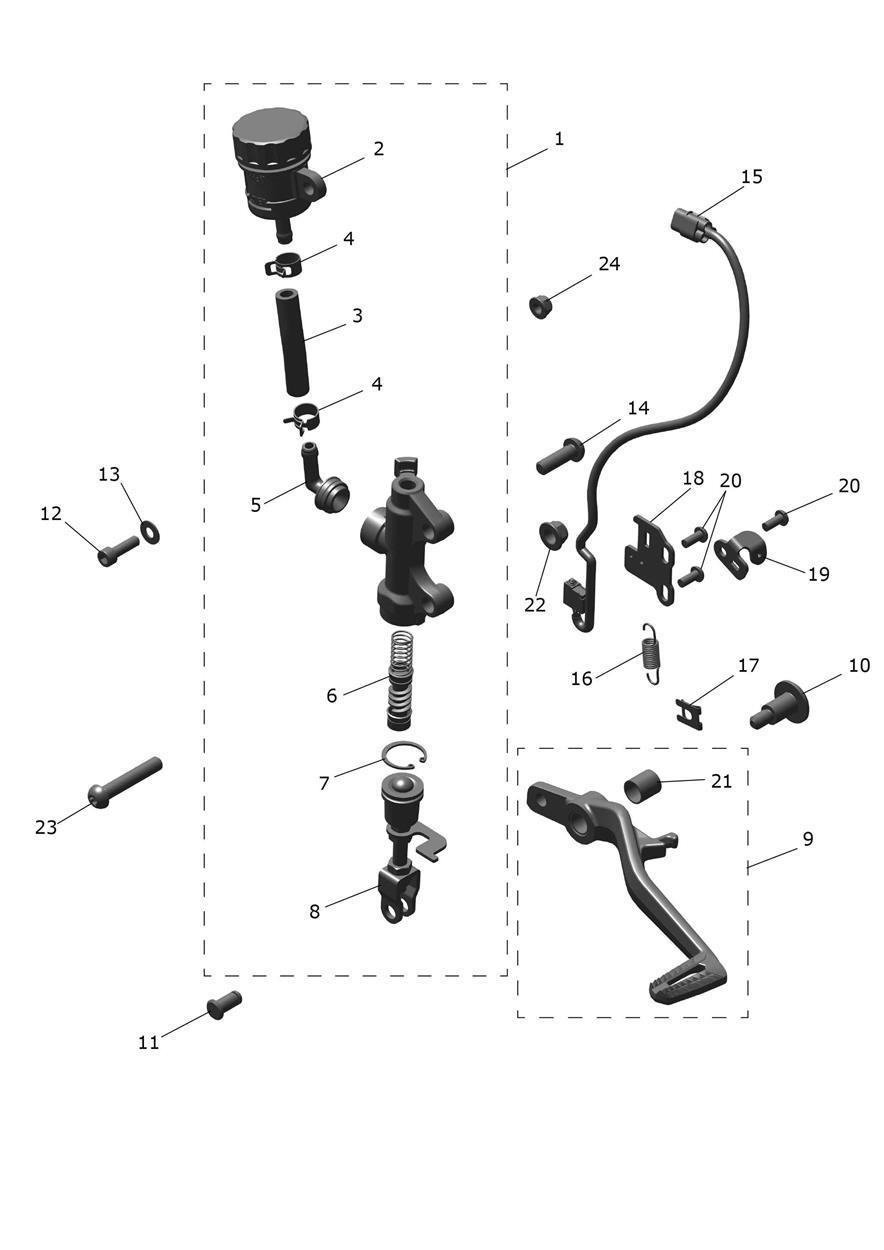

Rear Brake Master Cylinder
24 parts
VIN CM3407 and higher
Front Brake Master Cylinder & Hoses
10 parts
VIN CM3407 and higher
ABS System
38 parts
VIN CM3407 and higher
Rear Caliper & Disc
9 parts
VIN CM3407 and higher
76 parts you can order online
Every part below appears in Triumph’s Braking System diagrams for the Daytona 660 and is priced and orderable online. Open a part to see what it fits and to buy it.
Rear Caliper & Disc VIN CM3406 and lower
T2022645 Rear Brake Caliper
$454.21
AvailableT2022684 Piston & Seal Kit
$17.07
AvailableT2022683 Boot Set
Low stock at Triumph
$11.66
Limited availabilityT2022681 Pin & Retainer Kit
$12.72
AvailableT2022680 Pad Set, TT2802GG
$88.01
In stock in BreaT2022682 Pad Spring & Retainer
$8.56
AvailableT2022253 Disc, Rear
$217.25
AvailableT2024801 Bolt, Disc, M8 x 30, Slv, Enc
$1.99
In stock in BreaRear Brake Master Cylinder VIN CM3406 and lower
T2024070 Rear M/Cyl Reservoir
Low stock at Triumph
$40.29
Limited availabilityT2022695 Hose, Reservoir
Backordered at Triumph · we’ll confirm the ship date after you order
$32.89
On backorderT2023188 Reservoir Hose Clip
$3.24
AvailableT2023189 Connection Set
Backordered at Triumph · expected Oct 30
$24.79
On backorderT2022110 Piston Set, Rear Master Cylinder
$63.35
AvailableT2020472 Circlip, M'cyl, Rear
$2.53
AvailableT2027420 Push Rod, Rear M/Cyl Assy
Low stock at Triumph
$44.90
Limited availabilityT2028445 Brake Pedal Assembly
$124.47
AvailableT3331520 Bolt, Shld, M8 x 1.25, Slv, Enc
$9.85
In stock in BreaT3000301 Pin, Clevis, 8 x 13.7
$3.98
AvailableT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT3552002 Washer, M6 x 14 x 1
$1.99
AvailableT3335012 Screw, But/Hd, Skt, M8 x 25
Low stock at Triumph
$7.71
Limited availabilityT2022155 Switch, Brake, SPDT
$41.17
AvailableT2020923 Spring, Brake Lever Switch
$2.20
AvailableT3000302 Clip, 8mm, Clevis Pin
$5.62
AvailableT2026606 Bracket, Return Spring
$5.83
AvailableT3750020 Bush, PAP, 1215 P14
Low stock at Triumph
$6.76
Limited availabilityT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableFront Brake Master Cylinder & Hoses VIN CM3406 and lower
T2025940 Brake, Master Cylinder Assy, 5/8
Low stock at Triumph
$272.86
Limited availabilityT2021301 Piston Set, M/Cyl, 15.875
Low stock at Triumph
$47.51
Limited availabilityT2025803 Kit, Cap, Reservoir
$54.55
AvailableT2020158 Lever, Bolt, Front M/Cyl
$12.56
AvailableT2021428 Front Brake Lever
$63.99
AvailableT2025752 Clamp, Master Cylinder, Brake
Backordered at Triumph · expected Oct 23
$24.59
On backorderT3331750 Screw, Tx, M4 x 17.5, Slv
$3.98
AvailableABS System VIN CM3406 and lower
T2024097 ABS Modulator, Wet
Backordered at Triumph · we’ll confirm the ship date after you order
$1771.72
On backorderT2029935 Wheel Speed Sensor
$191.55
AvailableT2022799 Sensor, Wheel Speed, CHT, 270
$170.73
AvailableT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableT3552001 Washer, M6 x 14 x 0.5
$1.99
AvailableT3552003 Washer, M6 x 14 x 1.5
$1.99
AvailableT3552004 Washer, M6 x 14 x 2
$1.99
In stock in BreaT3020019 Grommet, Split, Rubber
$1.99
AvailableT2022022 Pulser Ring, ABS
Backordered at Triumph · expected Nov 13
$200.66
On backorderT3010701 Flanged Sleeve, 6.4 x 10 x 14.5
$4.91
AvailableT3020612 Grommet, Castellated
Backordered at Triumph · we’ll confirm the ship date after you order
$3.71
On backorderT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3250125 Bolt, Banjo, M10 x 21
$6.50
AvailableT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT3550229 Washer, 15.2 x 10 x 1, Plated
$1.99
In stock in BreaT3250032 Banjo Bolt, M10 x 19
$5.17
AvailableT3701103 Clip, Twin, 3.9-7
Low stock at Triumph
$2.84
Limited availabilityT3701098 Firtree, Dia 5 x 18
$4.85
In stock in BreaT2020383 Bolt, Banjo, M10
$9.99
AvailableT3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc
$2.81
AvailableT3050341 Screw, Cap/Hd, M5 x 10, Slv
Low stock at Triumph
$3.51
Limited availabilityT3330892 Bolt, RHHF, M5 x 15, S5041
$1.99
AvailableT2040811 Twin Clip, Brake Hose
$2.43
AvailableT3700197 Clip, Hose, 6.5d, Twin
$7.41
AvailableT3700061 Clip, Cable Double
$4.91
AvailableT3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv
$5.25
AvailableFront Brake Caliper & Discs VIN CM3406 and lower
T2027950 Caliper Assy, LH
$739.35
AvailableT2027960 Caliper Assy, RH
$739.35
AvailableT2027735 Brake Pad Set, x 2 Pads
$63.94
In stock in BreaT2027745 Seal Kit, 2 Piston Caliper
$52.62
AvailableT2027730 Piston Set
Backordered at Triumph · we’ll confirm the ship date after you order
$106.88
On backorderT2027740 Pads & Rods Kit
$30.43
AvailableT3332222 Bolt, Skt, M10 x 60, Slv
Low stock at Triumph
$8.21
Limited availabilityT2022443 Brake Disc, Front, 310
$231.66
AvailableT2702860 Amber Reflector
$5.98
AvailableT2701367 Bracket, Reflector, LHS
$10.52
AvailableT2701368 Bracket, Reflector, RHS
$10.52
AvailableT3050338 Screw, Cap/Hd, M6 x 12, Slv
$4.76
AvailableRear Brake Master Cylinder VIN CM3407 and higher
T2027712 Brake Pedal Assy
$126.39
AvailableT2026610 Bracket, Return Spring
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
