Cooling System
Triumph Daytona 660 · 2 diagrams
2 exploded diagrams for the cooling system of the Triumph Daytona 660, covering the Daytona 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
46 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Daytona 660 and is priced and orderable online. Open a part to see what it fits and to buy it.

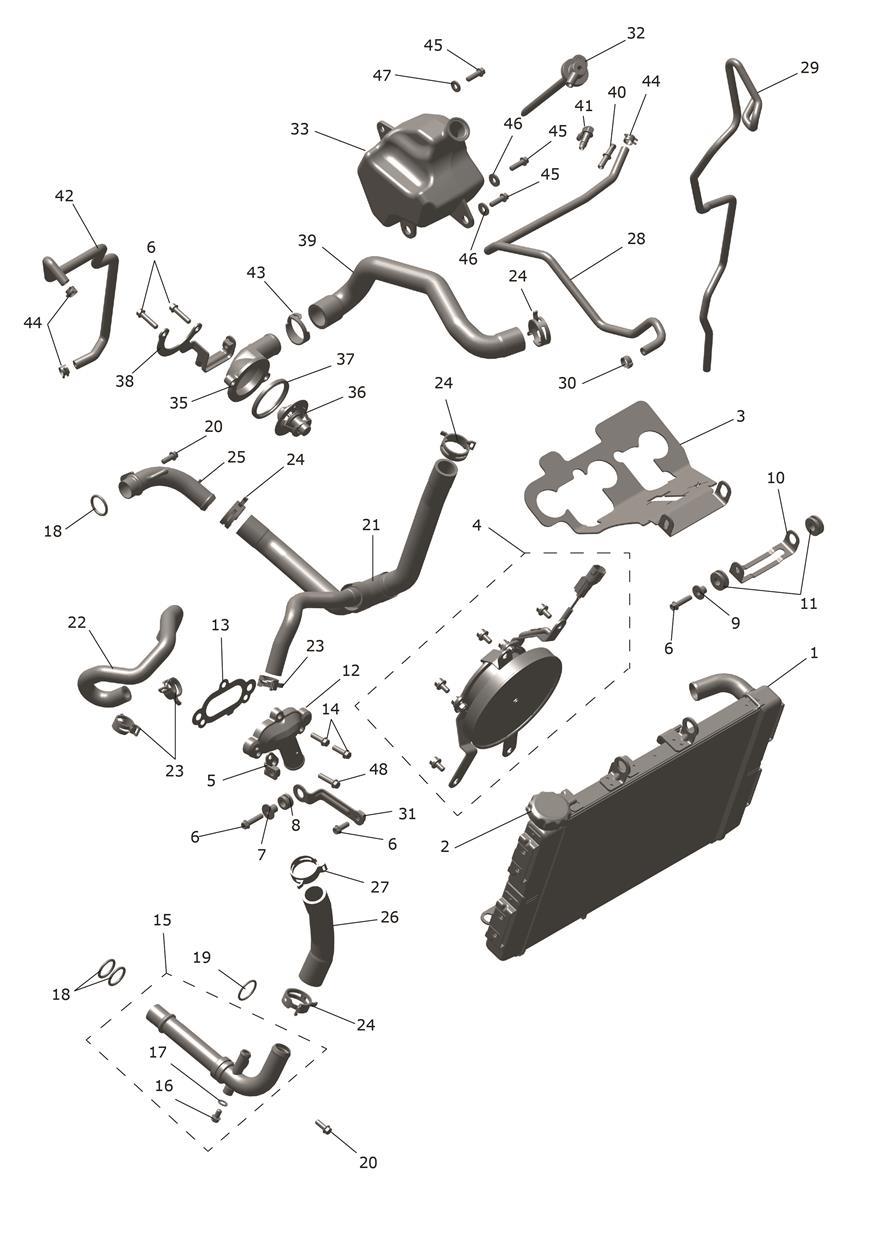

Cooling System VIN CM3406 and lower
T2106212 Radiator Assy
$698.87
AvailableT2106111 Cap Assy, Radiator
Backordered at Triumph · expected Oct 30
$20.56
On backorderT2107511 Air Deflector
$28.80
AvailableT2106202 Fan Assembly
$402.87
AvailableT2100168 Bracket, Radiator, Lower, Rear
$7.90
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3010144 Flanged Sleeve, M6 x 9.5 x 10.5
Low stock at Triumph
$3.49
Limited availabilityT3020033 Grommet; 12 x 2 x 9.6
$4.12
AvailableT3010159 Flanged Sleeve, 6.4 x 9 x 8.5
Backordered at Triumph · expected Oct 23
$5.35
On backorderT2107512 Air Deflector Retainer Bracket
Low stock at Triumph
$9.70
Limited availabilityT3020188 Grommet, 16.5 x 3 x 9.5
$1.99
AvailableT2100224 Cover, Water Inlet
Backordered at Triumph · expected Nov 6
$29.06
On backorderT2100205 Gasket, Water Inlet
$3.00
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT2107013 Pipe, Water Pump Outlet
Low stock at Triumph
$39.42
Limited availabilityT3200444 Bolt, M6 x 10
$11.26
AvailableT3551111 Copper Washer, M6 x 12
$2.29
AvailableT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT3600190 O Ring, 24 x 2.5
$1.99
AvailableT3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc
$3.71
AvailableT2101689 Hose, T-Piece
$49.66
AvailableT2107508 Hose, Water Inlet, Heat Ex
$9.58
AvailableT3706211 Clamp, Constant Tension, Dia 19
$12.95
AvailableT3706214 Clamp, Constant Tension, Dia 29
$12.95
In stock in BreaT2107012 Pipe, Water Pump Inlet
Low stock at Triumph
$39.42
Limited availabilityT2105201 Hose, Water Pump, Outlet
$30.89
AvailableT3706215 Clamp, Constant Tension, Dia 30
$12.95
AvailableT2107888 Hose, Rad to Expansion Tank
$8.53
AvailableT2107567 Hose, Expansion Tank Overflow
$7.90
AvailableT3700077 Clip, 10.5 Rer Oetiker
$3.71
AvailableT2109099 Radiator Bracket
$4.41
AvailableT2109006 Cap, Expansion Tank, Overflow
$13.20
AvailableT2107575 Expansion Tank
Backordered at Triumph · we’ll confirm the ship date after you order
$42.64
On backorderT2100206 Cover, Water Outlet
Low stock at Triumph
$46.64
Limited availabilityT2100675 Thermostat
$63.35
AvailableT2100201 Seal, Thermostat
$6.61
In stock in BreaT2107513 Bracket, Expansion Tank, Upper
$7.63
AvailableT2103011 Spigot, Straight
$8.32
AvailableT2107518 Spigot, Right Angle
$5.78
AvailableT2100408 Hose, Bypass, Water
$12.34
AvailableT3706515 Clamp, Spring Band, 32mm
$4.21
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02
In stock in BreaT3205094 Bolt, HHF, Lghtd, M6 x 20, Enc
$5.27
AvailableT3555025 Washer, 6.4 x 18 x 1.6
$1.99
AvailableT3552004 Washer, M6 x 14 x 2
$1.99
In stock in BreaT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availability
