Crankcase, Engine Covers, Lubrication System

Triumph Daytona 660 · 12 diagrams

12 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Daytona 660, covering the Daytona 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

83 parts you can order online ↓

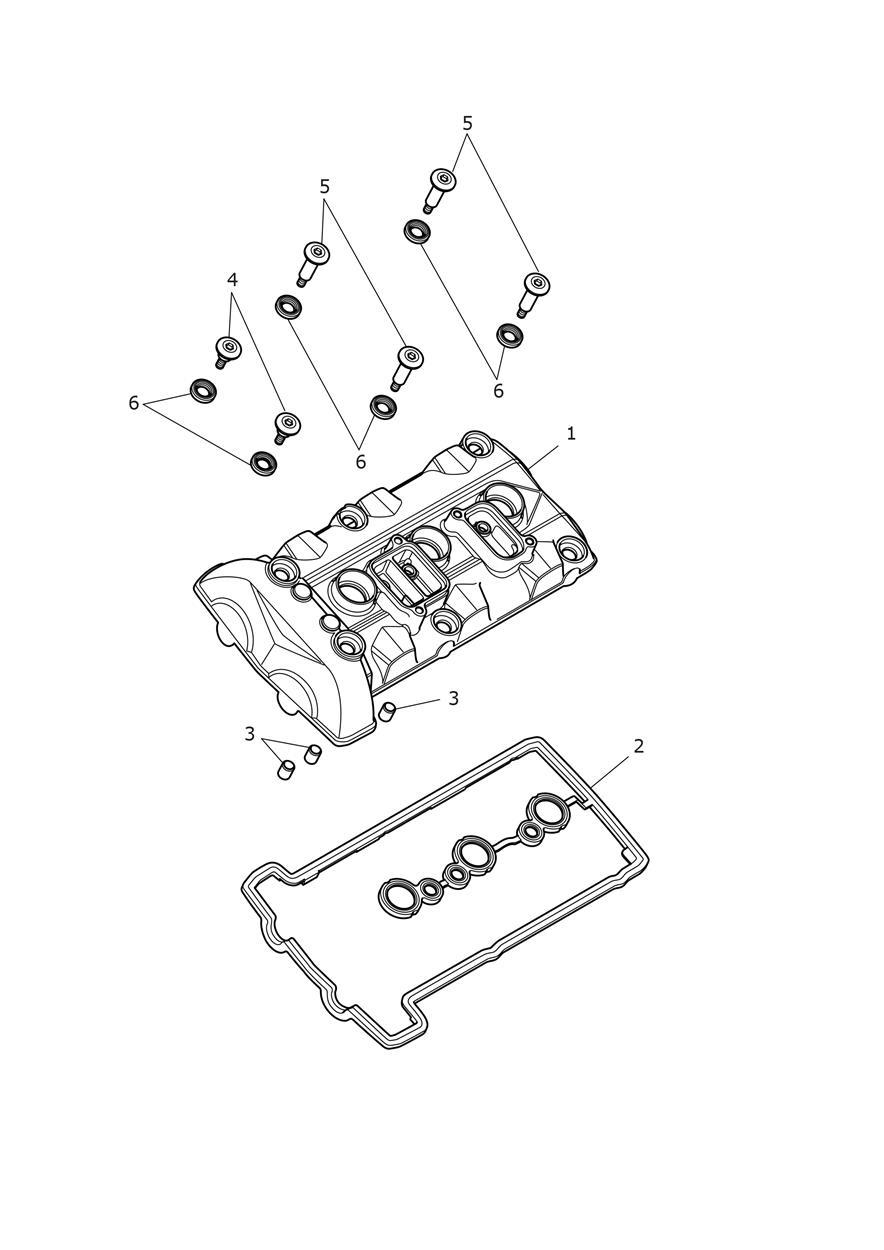

Cam Cover exploded diagram

VIN CM3406 and lower

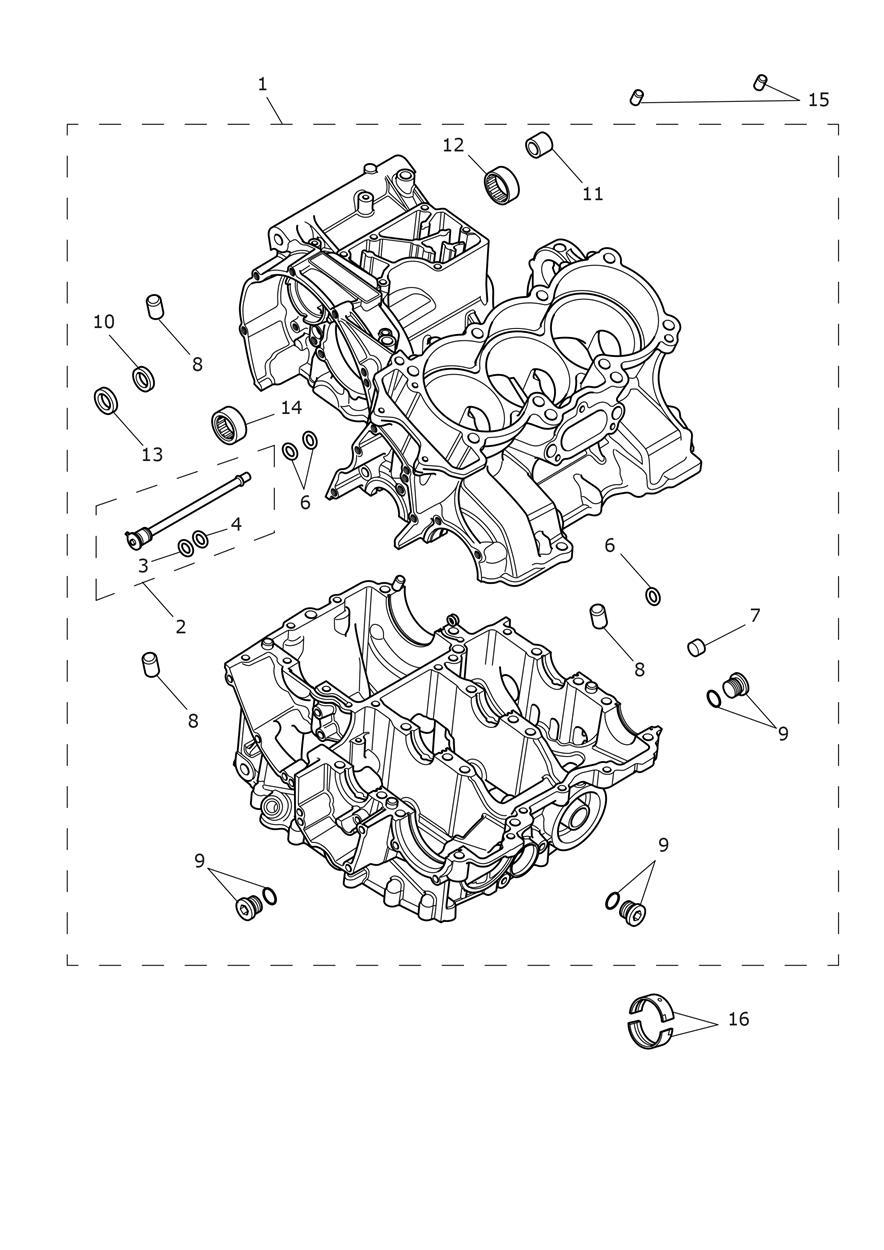

Crankcase & Fittings exploded diagram

Crankcase & Fittings

VIN CM3406 and lower

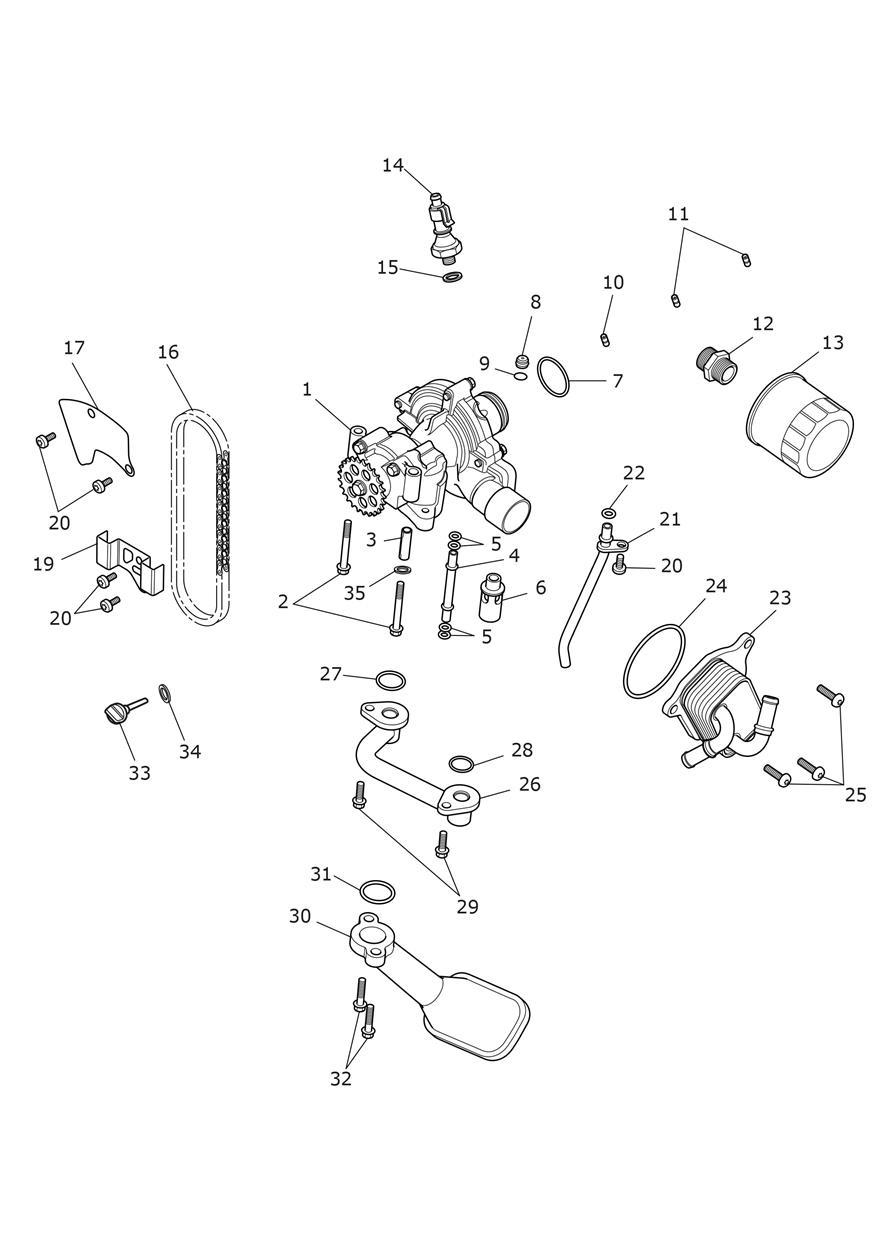

Lubrication System exploded diagram

Lubrication System

VIN CM3406 and lower

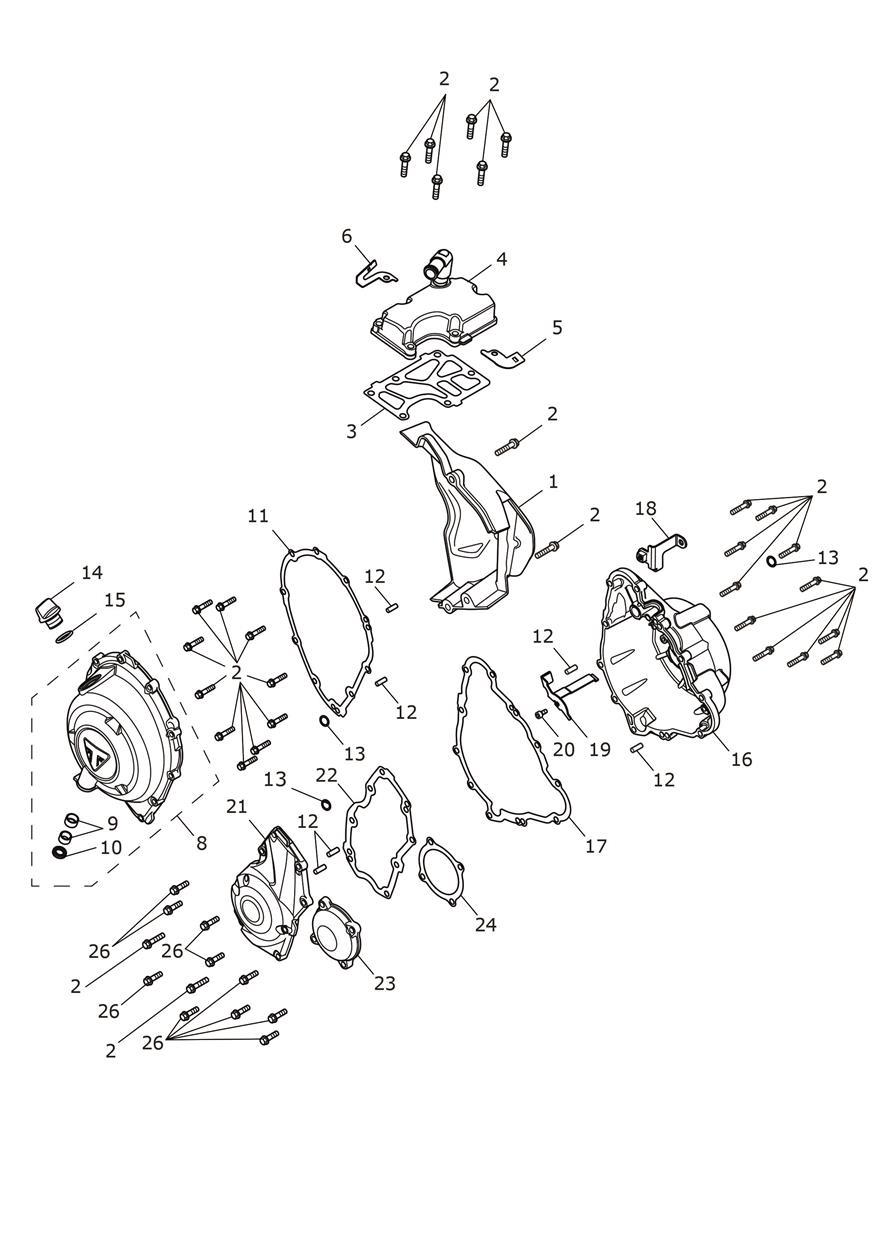

Engine Covers exploded diagram

VIN CM3406 and lower

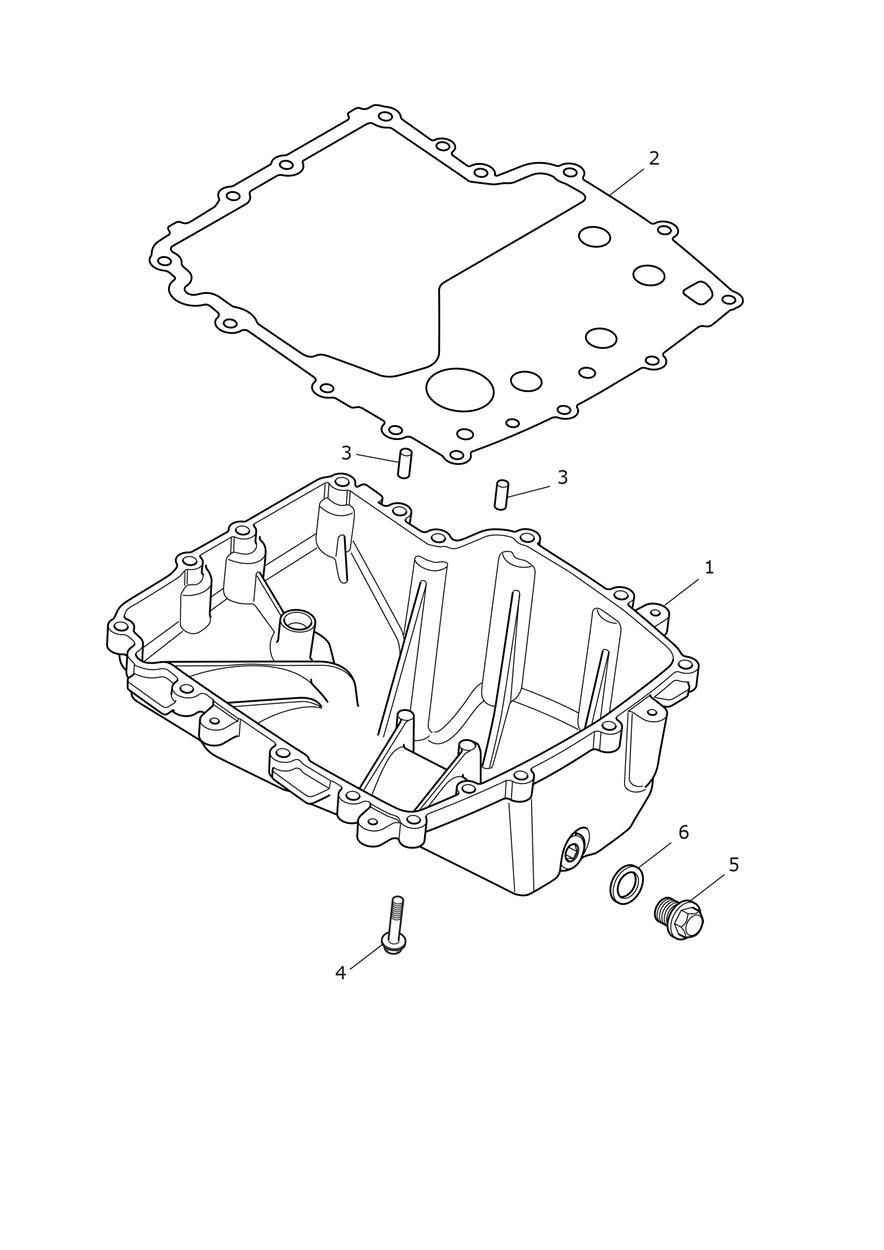

Sump exploded diagram

VIN CM3406 and lower

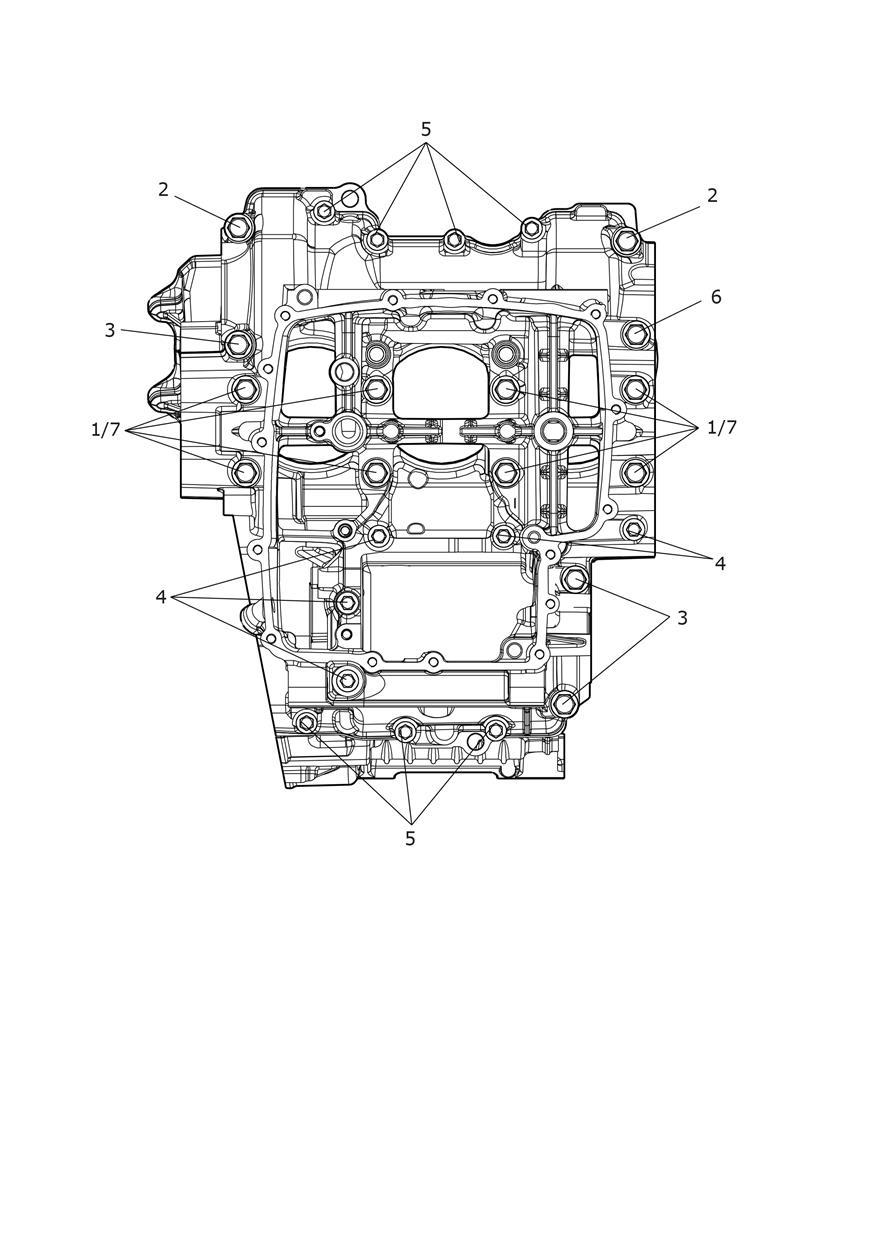

Crankcase Bolts exploded diagram

Crankcase Bolts

VIN CM3406 and lower

Cam Cover exploded diagram

VIN CM3407 and higher

Lubrication System exploded diagram

Lubrication System

VIN CM3407 and higher

Engine Covers exploded diagram

VIN CM3407 and higher

Crankcase & Fittings exploded diagram

Crankcase & Fittings

VIN CM3407 and higher

Sump exploded diagram

VIN CM3407 and higher

Crankcase Bolts exploded diagram

Crankcase Bolts

VIN CM3407 and higher

83 parts you can order online

Every part below appears in Triumph’s Crankcase, Engine Covers, Lubrication System diagrams for the Daytona 660 and is priced and orderable online. Open a part to see what it fits and to buy it.

Triumph lists the same parts for this area in the Tiger Sport 660cc and Trident 660cc books.

Cam Cover VIN CM3406 and lower

T1260848 Cam Cover, Machined, Sai, Crinkle Blk

T1261765 Seal, Cam Cover

In stock in Brea

T3000102 Dowel, Hollow, 10 x 14

Backordered at Triumph · expected Nov 20

T3330241 Bolt, Lge Skt Hd, Shld, M6 x 24.0

T3332066 Bolt, Lge Skt HD, Shld, M6x42.5

Low stock at Triumph

Limited availability

T1260309 Seal, Cam Cover, Screw, Twin Lip

In stock in Brea

Crankcase & Fittings VIN CM3406 and lower

T1210177 Pipe, Oil Feed, Gearbox

Backordered at Triumph · expected Nov 6

T3600143 O Ring, ID 9.1 x 1.6, Viton

Low stock at Triumph

Limited availability

T3600252 O Ring, 10.1 Dia x 1.6

T3600109 O Ring, ID 5.6 x 2.3

In stock in Brea

T3450091 Plug, Dia 14, Alum

T3455016 Sealing Plug, Int Hex, M16 x 1.5

Backordered at Triumph · we’ll confirm the ship date after you order

T3600088 Seal, Oil, 14 x 22 x 4.5

In stock in Brea

T3800064 Bearing Needle 12 x 18 x 16

T3800069 Bearing, Needle Roller

Low stock at Triumph

Limited availability

T3800108 Bearing, Ball, 15 x 24 x 5

T3802512 Bearing, Needle

Backordered at Triumph · we’ll confirm the ship date after you order

T3000101 Dowel, Hollow, 8 x 14

T1160322 Main Bearing Shell

Low stock at Triumph

Limited availability

T1160323 Main Bearing Shell

Lubrication System VIN CM3406 and lower

T1211395 Pump Assembly, Oil & Water

Backordered at Triumph · we’ll confirm the ship date after you order

T3200123 Bolt, RHHF, M6 x 50, Encaps

Low stock at Triumph

Limited availability

T1210249 Pump Drain Tube

T1216505 Pressure Relief Valve

T3600127 O Ring, 31.6x2.4

T1210000 Restrictor, Oil, Gearbox

T3600126 O Ring, ID 7.1 x 1.6

T1211012 Sleeve, Oil Jet, Piston, 1.2mm

T1211000 Sleeve, Oil Jet, Piston

T1210438 Oil Filter Adaptor

Low stock at Triumph

Limited availability

T1218001 Oil Filter, OES

T1210440 Oil Filter Multipack (24)

T1210091 Oil Pressure Switch, M10

Low stock at Triumph

Limited availability

T3550546 Washer, Cu, OD 16 x ID 10.2/

T1210121 Chain, 6.35 Pitch, 74 Link

T1210126 Baffle Plate, C/Case Breather

T1210023 Retainer Plate, Aux Drive Chain

T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc

In stock in Brea

T1210248 Pipe, Oil, Breather Drain

T3600153 O Ring, 7.6 x 2.4

Low stock at Triumph

Limited availability

T3600262 O Ring, ID 64.77 x 2.62

Low stock at Triumph

Limited availability

T3331234 Screw, Torx, P/H, M6 x 20, Slv

In stock in Brea

T1210252 Oil Feed Pipe

T3600132 O Ring 20 x 2.62

T3600191 O Ring, 16 x 2

T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc

T1210247 Oil Pick-Up

Low stock at Triumph

Limited availability

T3600106 O-Ring, 24 x 2.5

Low stock at Triumph

Limited availability

T3200134 Bolt, RHHF, M6x25, Encaps

T1211110 Dipstick, Oil Level

In stock in Brea

T1210138 O Ring, Oil Dipstick

T3550962 Washer, M6 x 13 x 1

Engine Covers VIN CM3406 and lower

T1261318 Sprocket Cover

T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv

T1260217 Breather Cover Gasket

Low stock at Triumph

Limited availability

T1266016 Clutch Cover Assembly, Grey

T3800110 Roller Bearing, HK 1210

T3600095 Dust Seal

T1260258 Clutch Cover Gasket

In stock in Brea

T3000005 Dowel, Dia 6 x 16.5

T3550146 Washer, 6.4 x 12 x 1, Copper

T1260249 Oil Filler Cap

In stock in Brea

T3600163 O Ring, ID 19 x 3

T1268019 Alternator Cover

T1267900 Gasket, Alternator Cover

In stock in Brea

T2101476 Bracket, Expansion Tank, Lower

T1267015 Bracket, Wire Retainer

Backordered at Triumph · we’ll confirm the ship date after you order

T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc

T1267006 Crank Cover

T1260264 Crank Cover Gasket

In stock in Brea

T1260267 Balancer Cover Gasket

In stock in Brea

T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv

In stock in Brea · last ones

Sump VIN CM3406 and lower

T1235454 Sump, Machined

T1230660 Gasket, Baffle, Sump

T3202303 Bolt, RHHF, M6 x 28, Slv

T3458989 Sump Plug, M14 x 1.5, Blk

T3551092 Sealing Washer Multipack (25)

In stock in Brea

Crankcase Bolts VIN CM3406 and lower

T3202309 Bolt, HHF, M8 x 105, Slv

T3202325 Bolt, HHF, M8 x 43, Slv

Low stock at Triumph

Limited availability

T3202315 Bolt, HHF, M8 x 65, Slv

T3200195 Bolt, RHHF, M6 x 68, Slv

T3202323 Bolt, HHF, M8 x 80, Slv

T3550184 Washer, Hardened, 8.2 x 18.7 x 2
