Fuel Tank, Eng. Management & Exhaust Systems.

Triumph Daytona 660 · 14 diagrams

14 exploded diagrams for the fuel tank, eng. management & exhaust systems. of the Triumph Daytona 660, covering the Daytona 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

FUEL TANK, PUMP, FITTINGS & BODYWORK

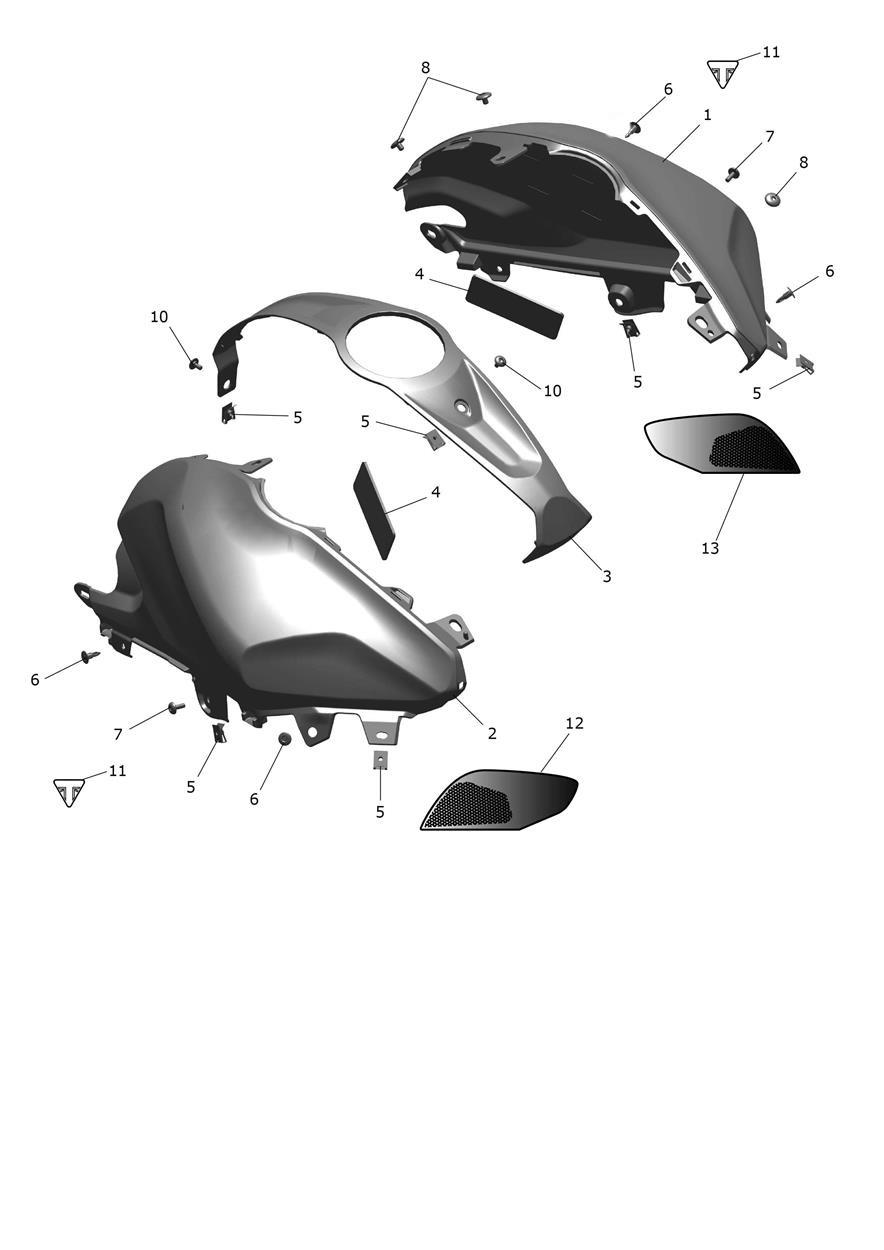

Fuel Tank Bodywork exploded diagram
Fuel Tank Bodywork
18 parts

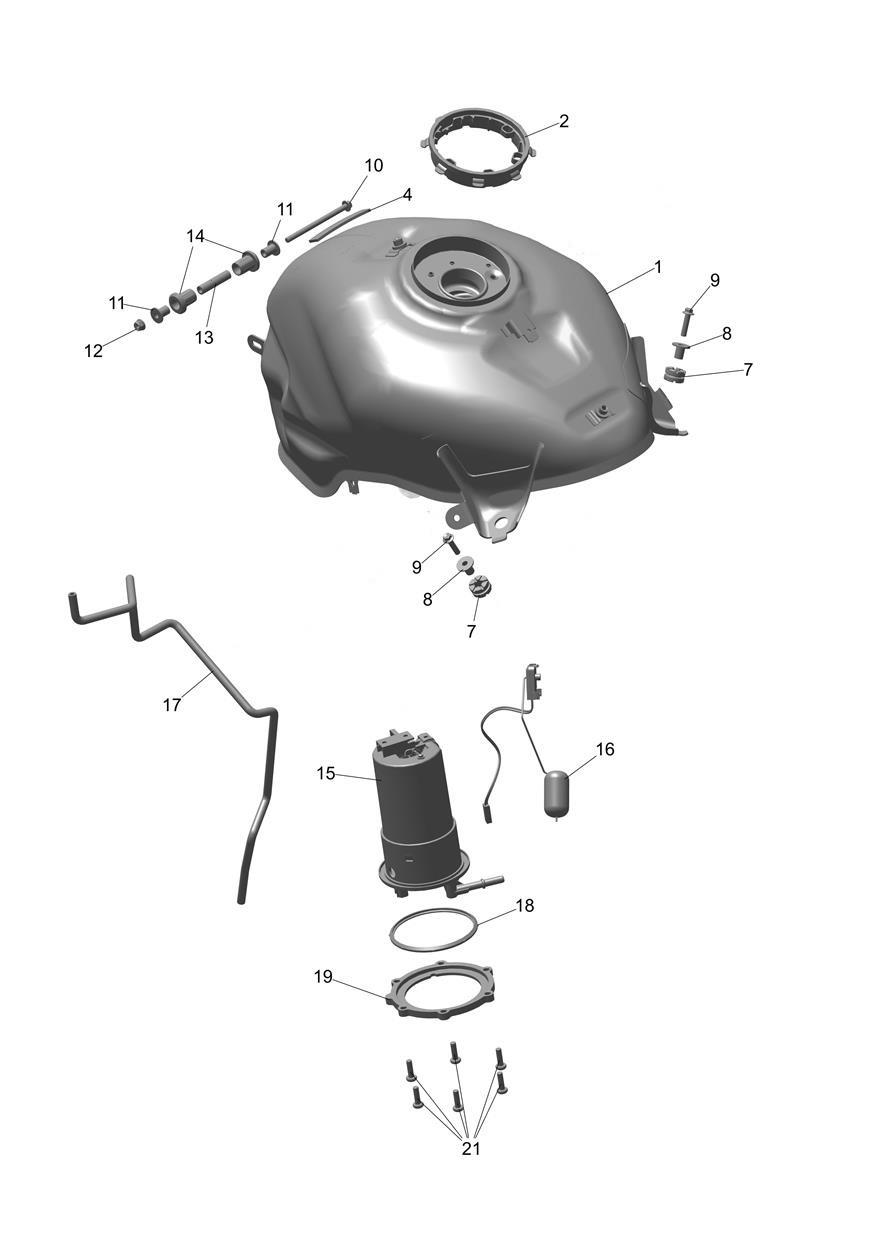

 Fuel Tank, Fuel Pump & Fittings exploded diagram
Fuel Tank, Fuel Pump & Fittings
16 parts
 Fuel Tank, Fuel Pump & Fittings exploded diagram
Fuel Tank, Fuel Pump & Fittings
16 parts

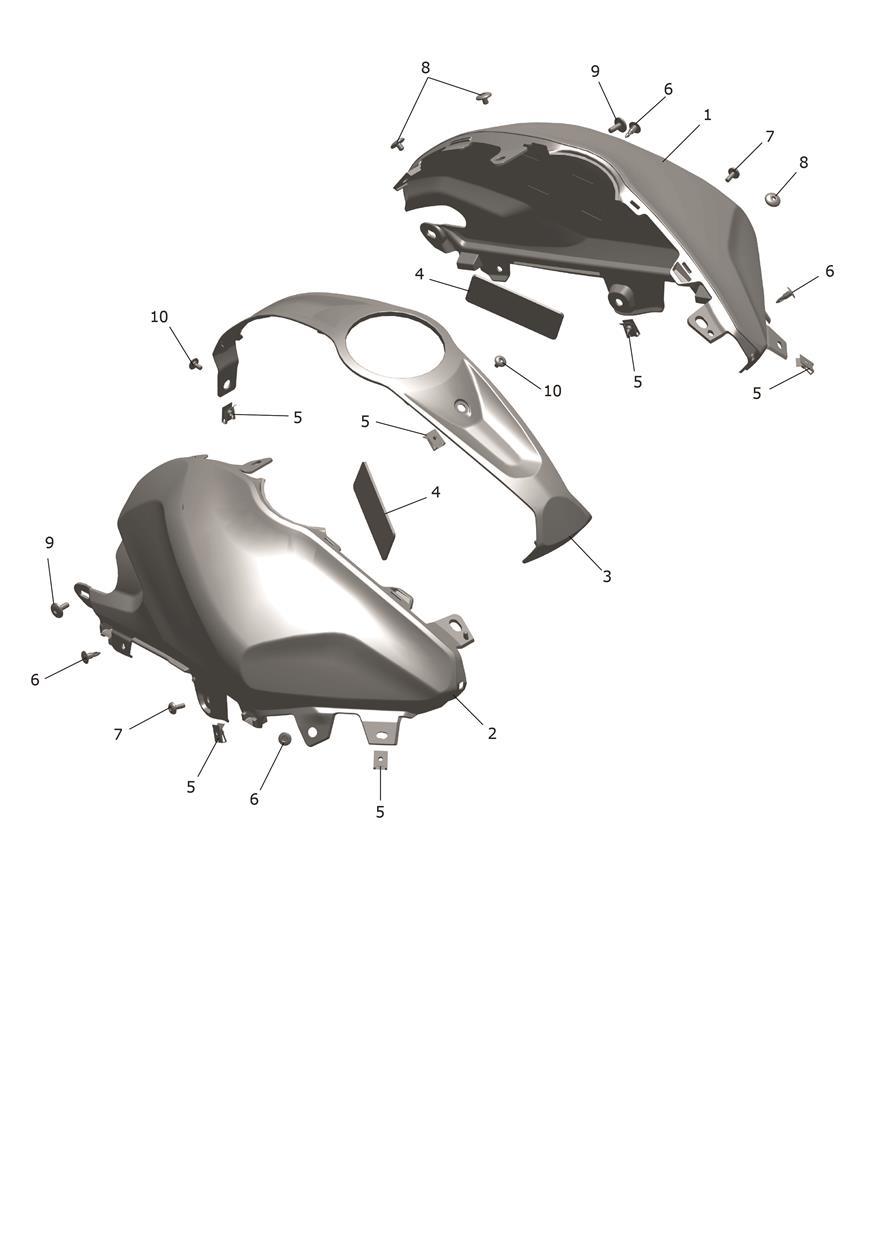

 Fuel Tank Bodywork exploded diagram
Fuel Tank Bodywork
16 parts

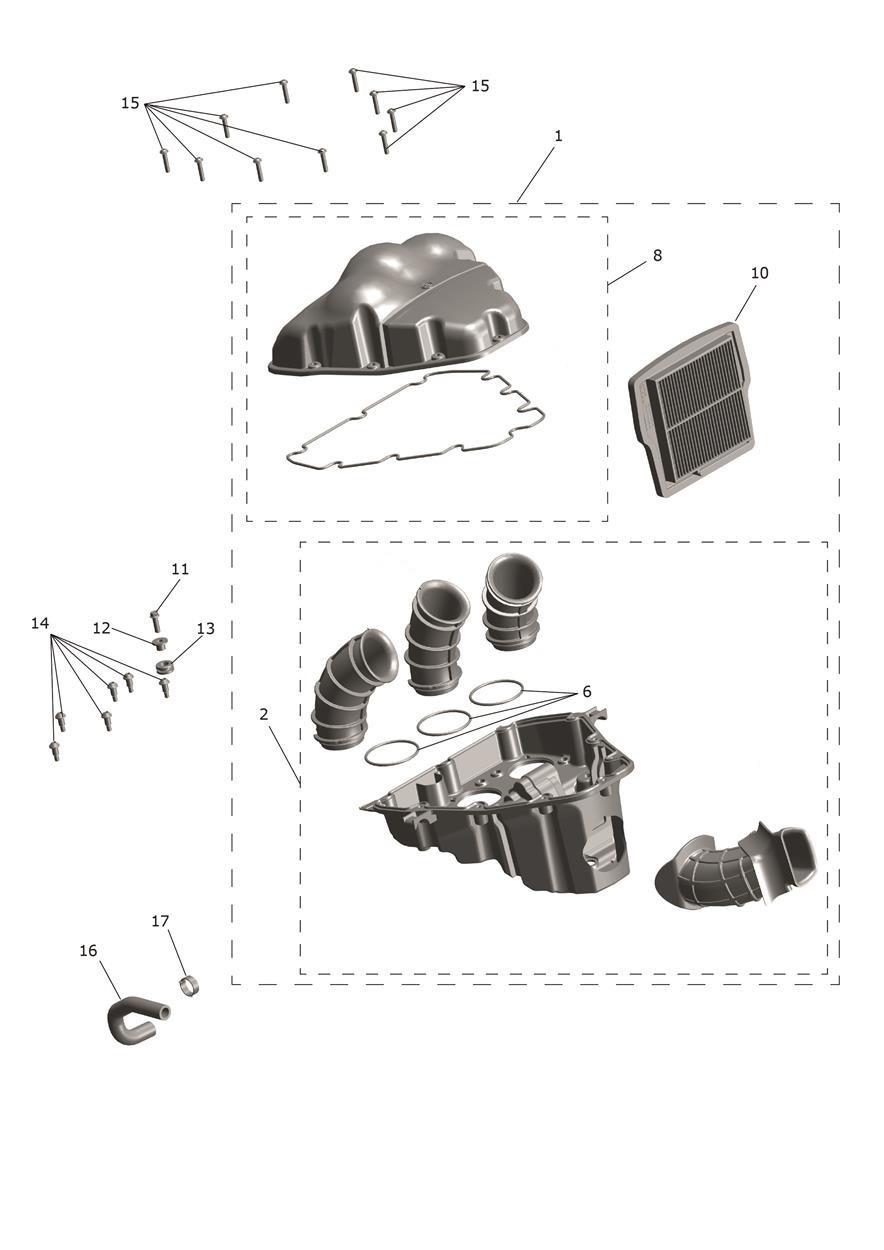

Airbox Assembly exploded diagram
Airbox Assembly
12 parts

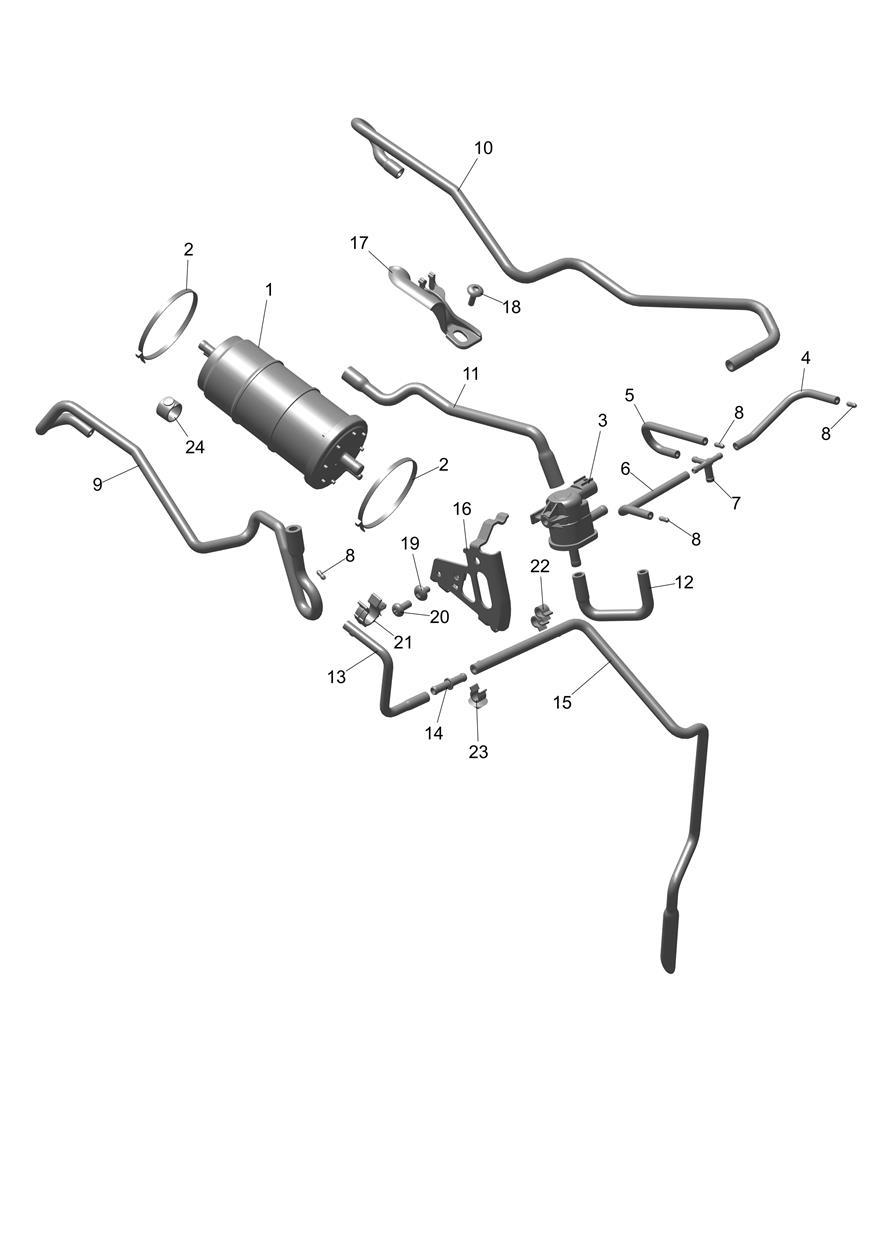

 Evap System exploded diagram
Evap System
24 parts

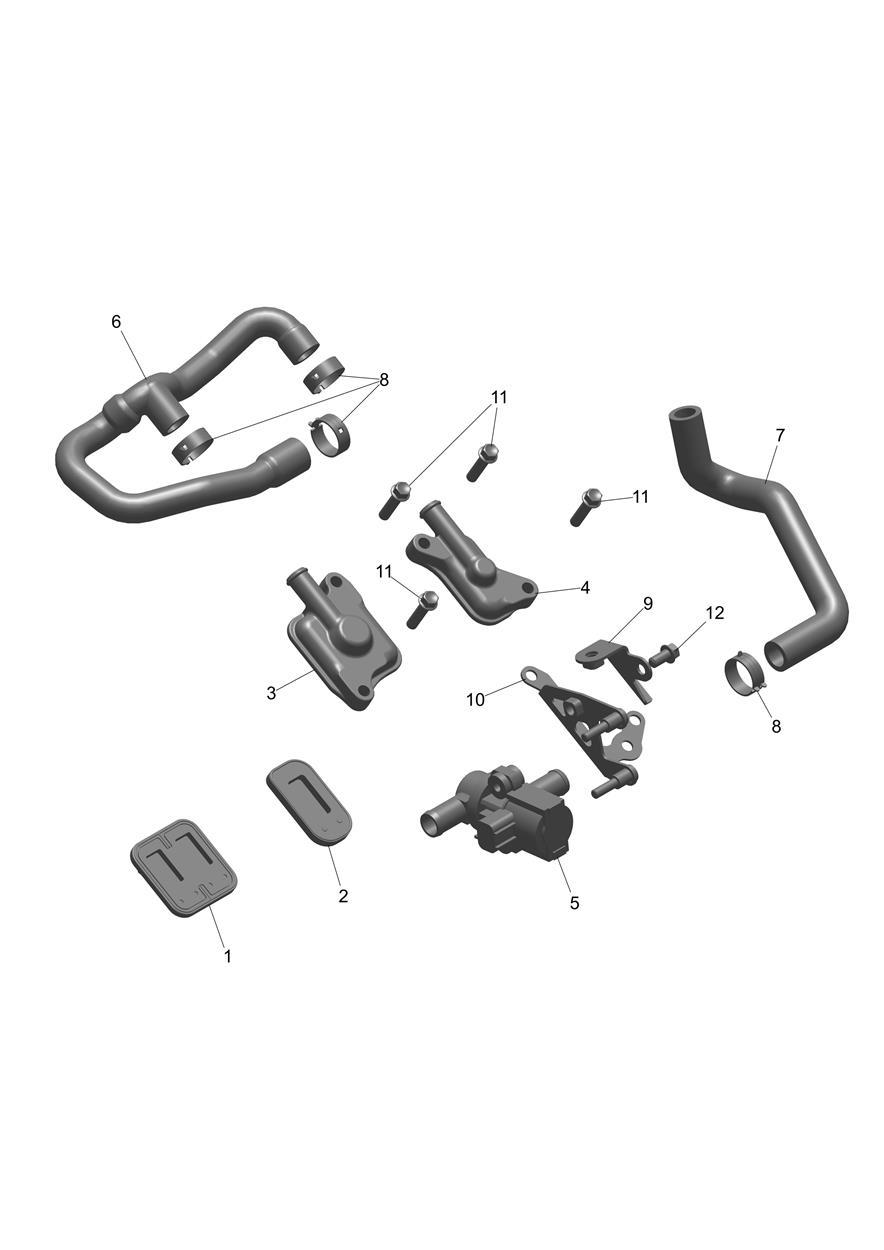

 Emissions Control System exploded diagram
Emissions Control System
12 parts

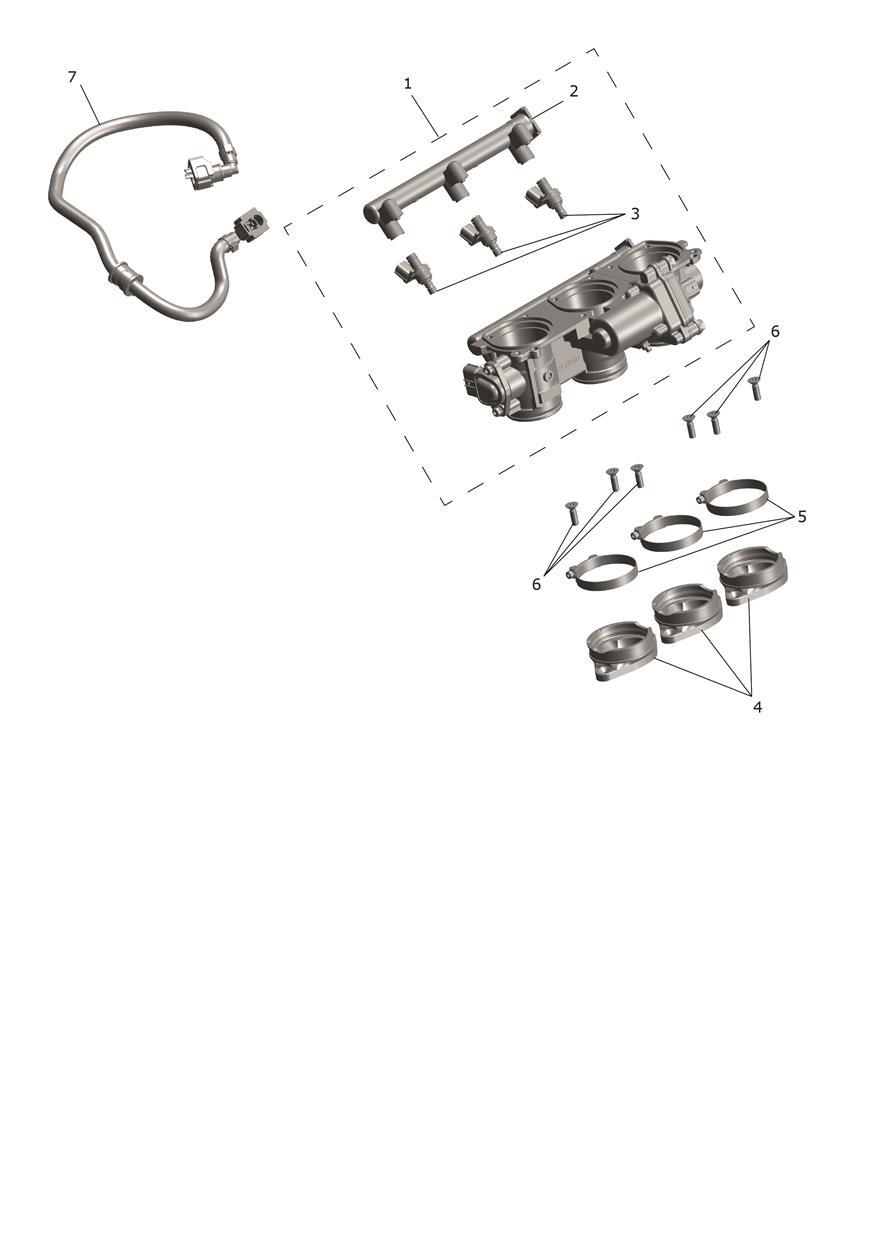

 Throttle Bodies exploded diagram
Throttle Bodies
7 parts

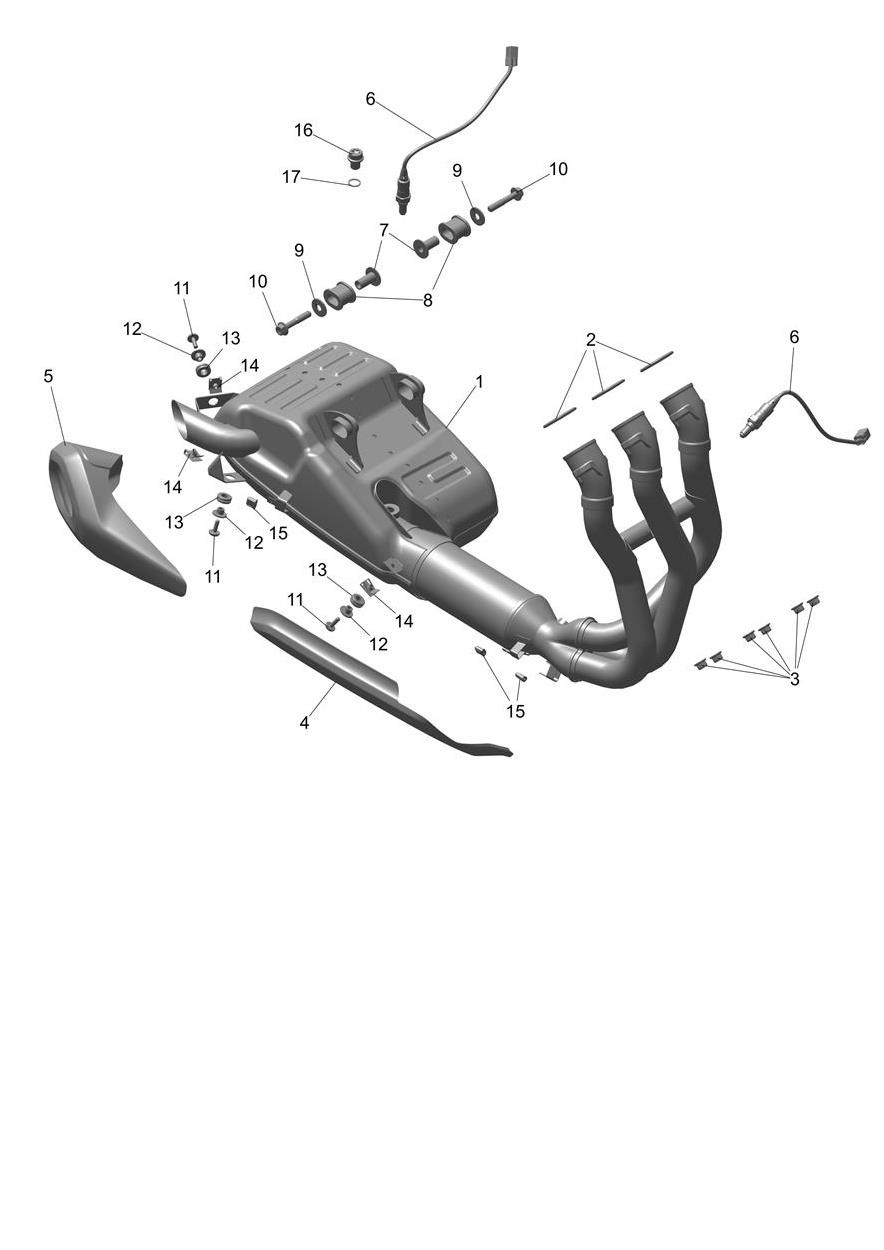

 Exhaust System exploded diagram
Exhaust System
17 parts
 Airbox Assembly exploded diagram
Airbox Assembly
12 parts
 Throttle Bodies exploded diagram
Throttle Bodies
7 parts
 Exhaust System exploded diagram
Exhaust System
17 parts
 Evap System exploded diagram
Evap System
24 parts
 Emissions Control System exploded diagram
Emissions Control System
12 parts

← All areas of the Daytona 660
