Crankcase, Engine Covers, Lubrication System

Triumph Daytona 675 · 18 diagrams

18 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Daytona 675, covering the Daytona 675. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

128 parts you can order online ↓

Cam Cover exploded diagram

VIN 381275 to 564947

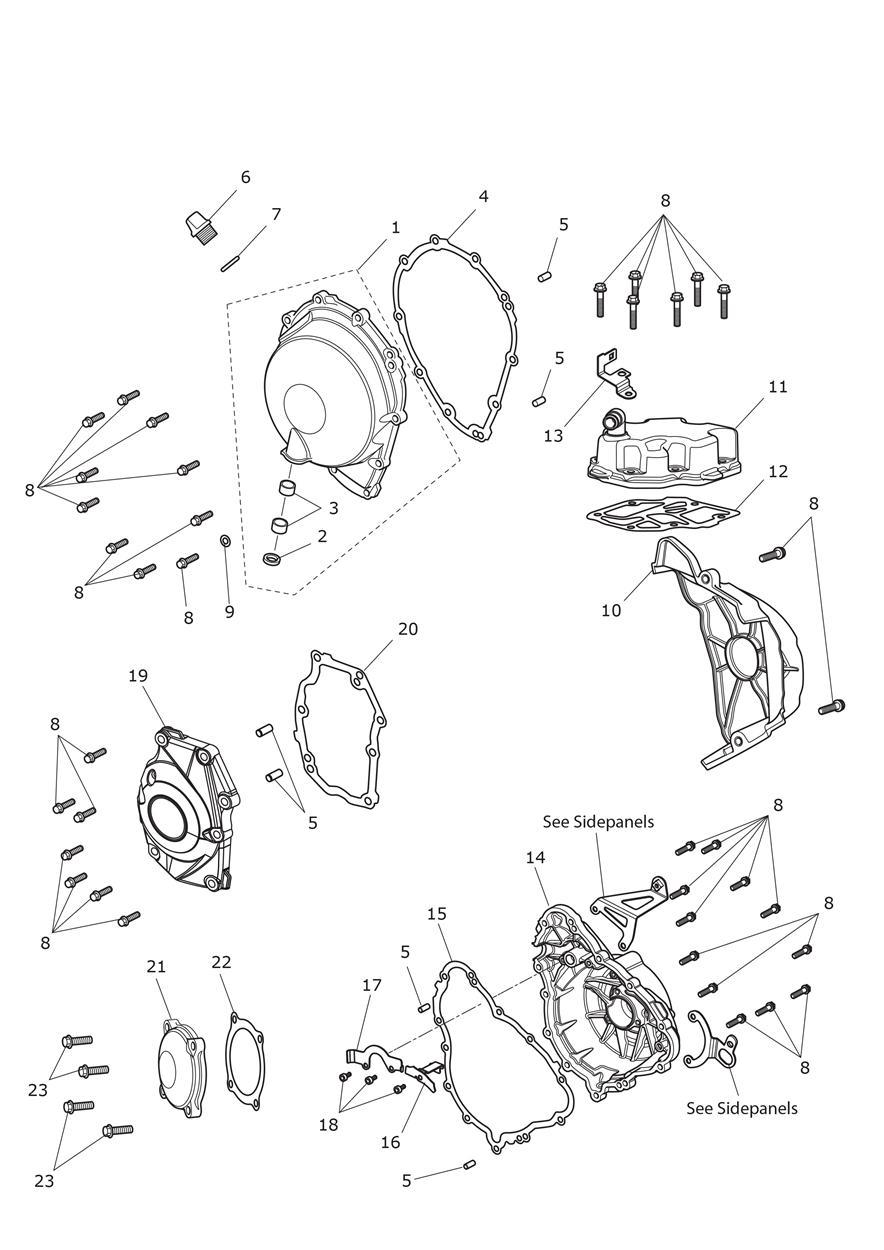

Engine Covers exploded diagram

VIN 564948 and higher

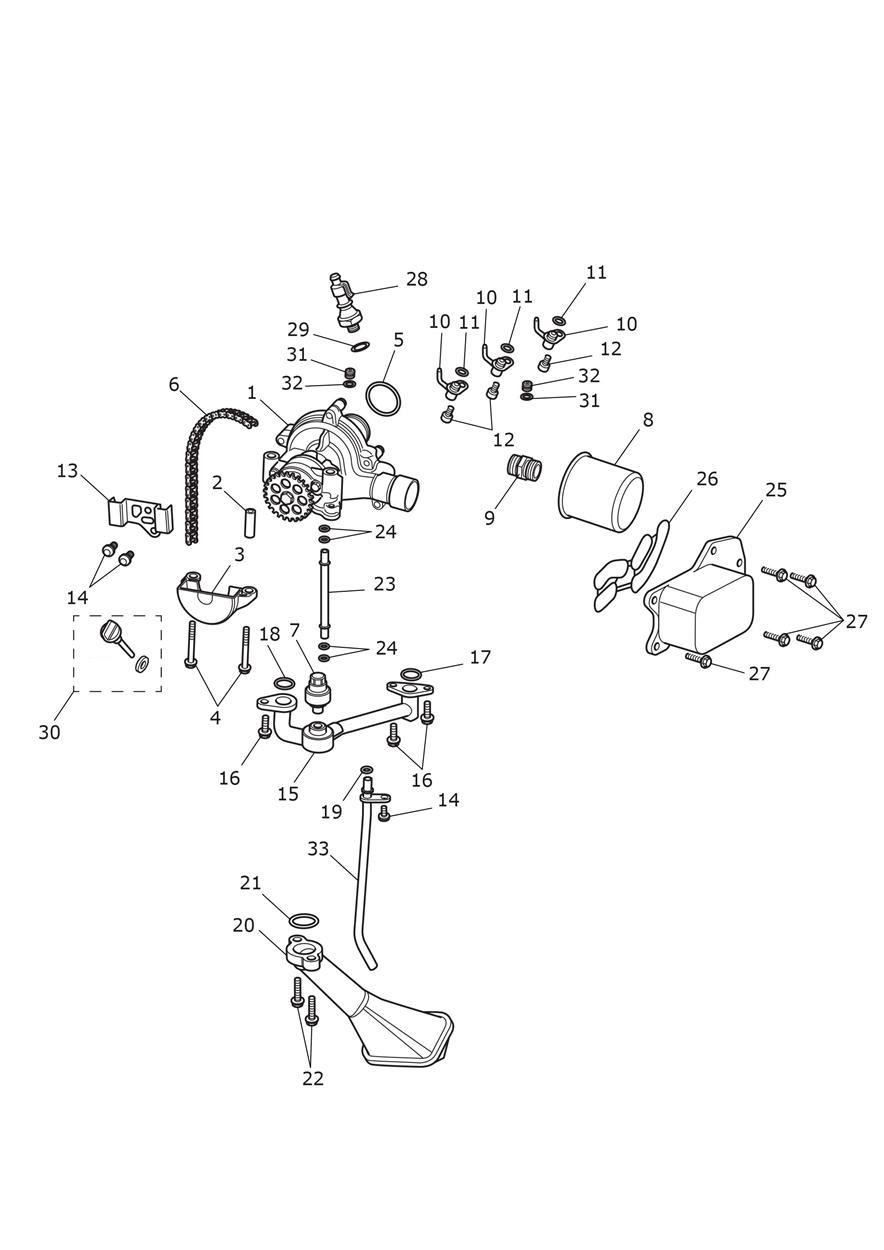

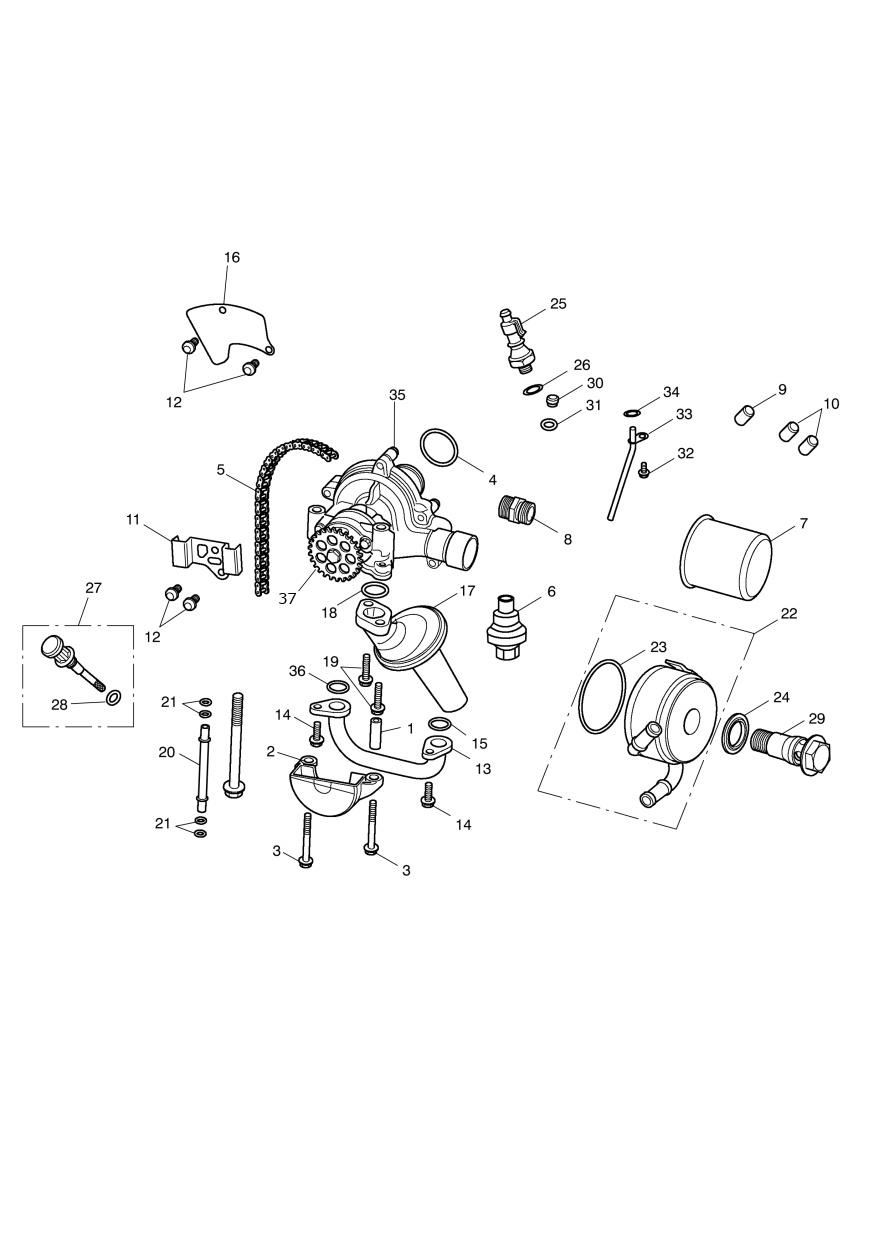

Oil Pump Drive exploded diagram

VIN 564948 and higher

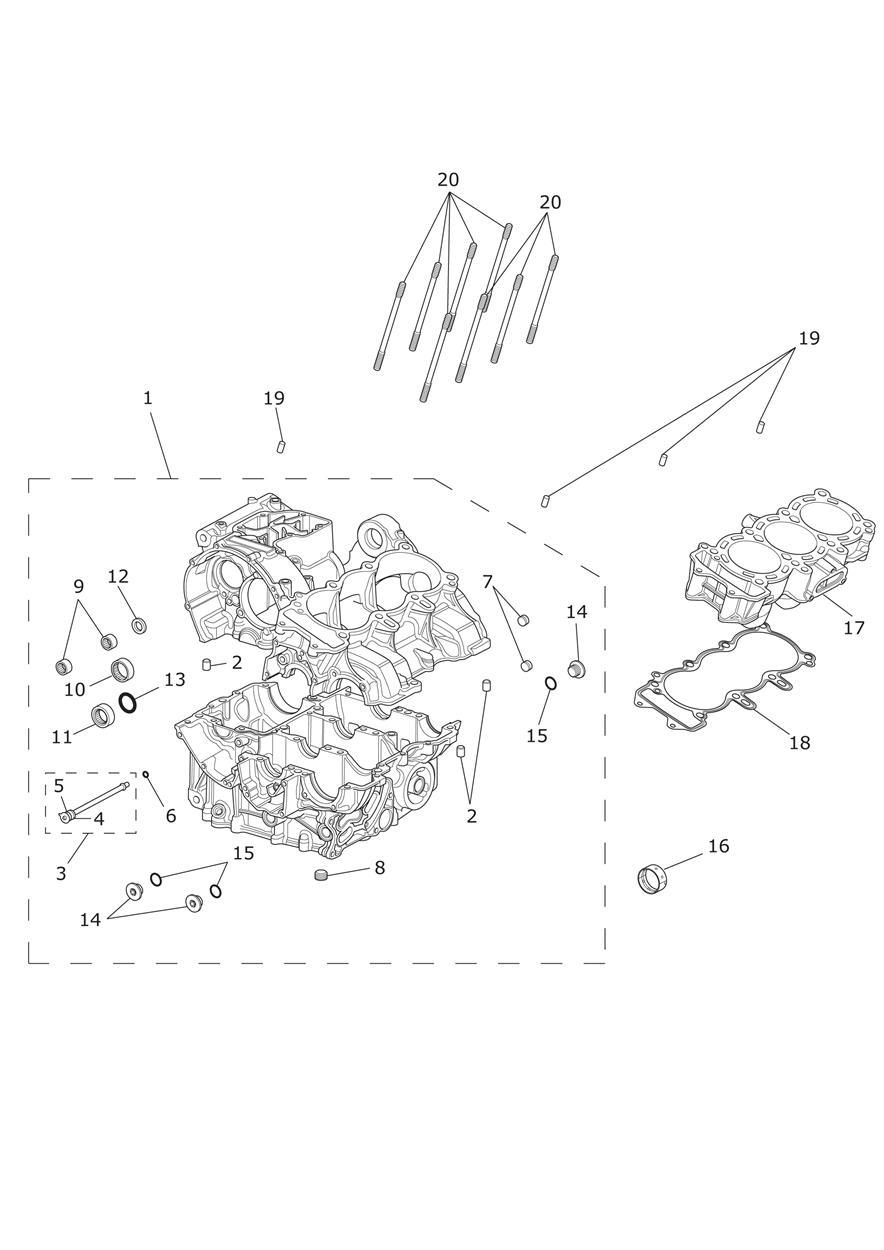

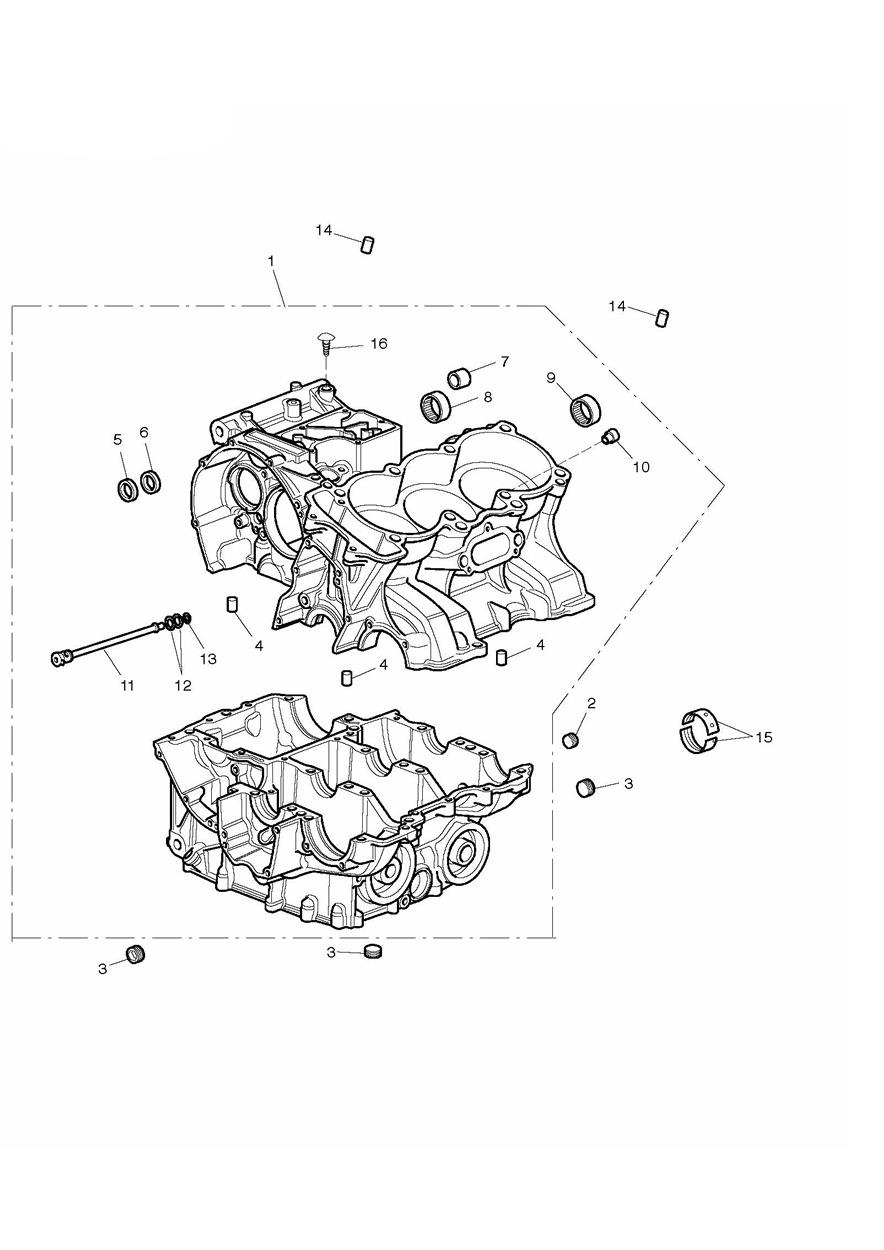

Crankcase & Fittings exploded diagram

Crankcase & Fittings

VIN 564948 and higher

Crankcase & Fittings exploded diagram

Crankcase & Fittings

VIN 564948 and higher

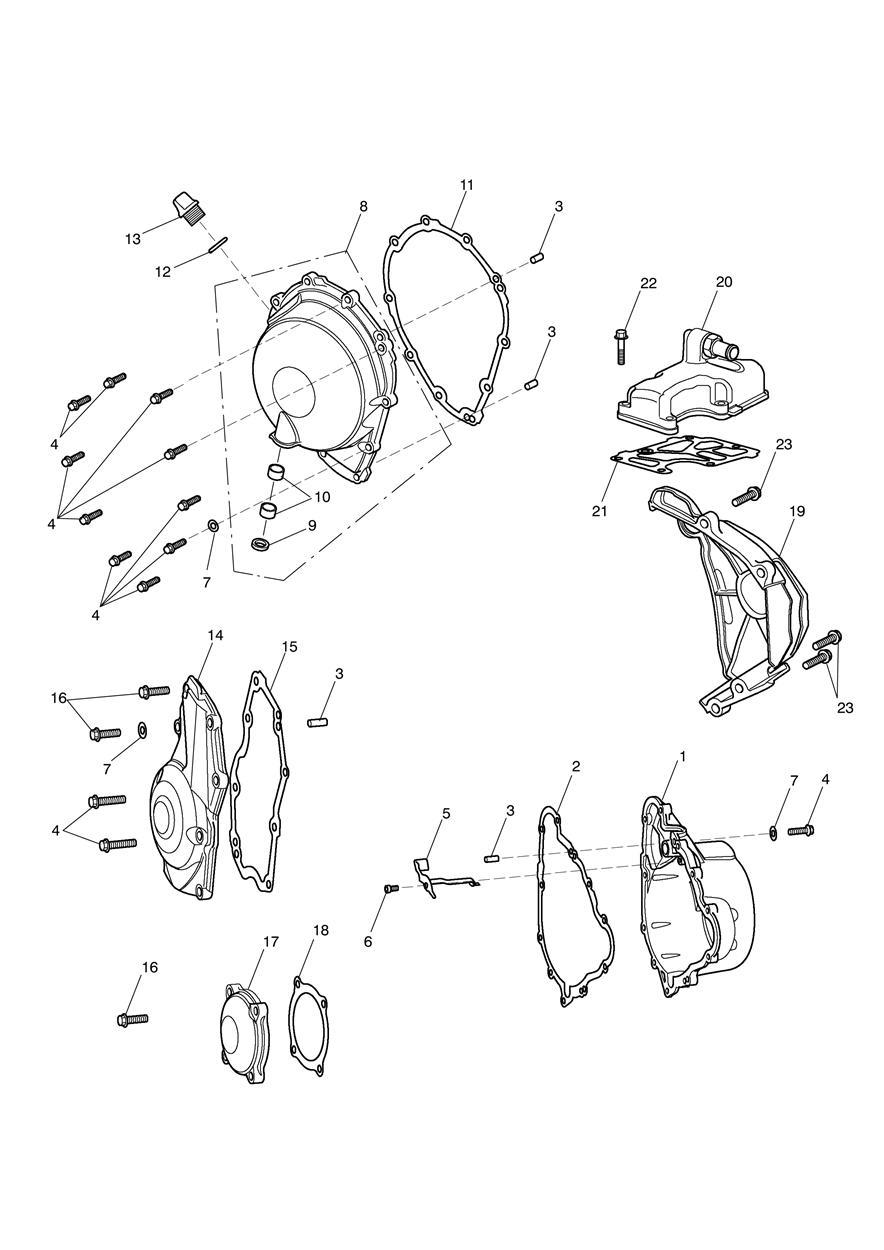

Engine Covers exploded diagram

VIN 381275 to 564947

Crankcase & Fittings exploded diagram

Crankcase & Fittings

VIN 381275 to 564947

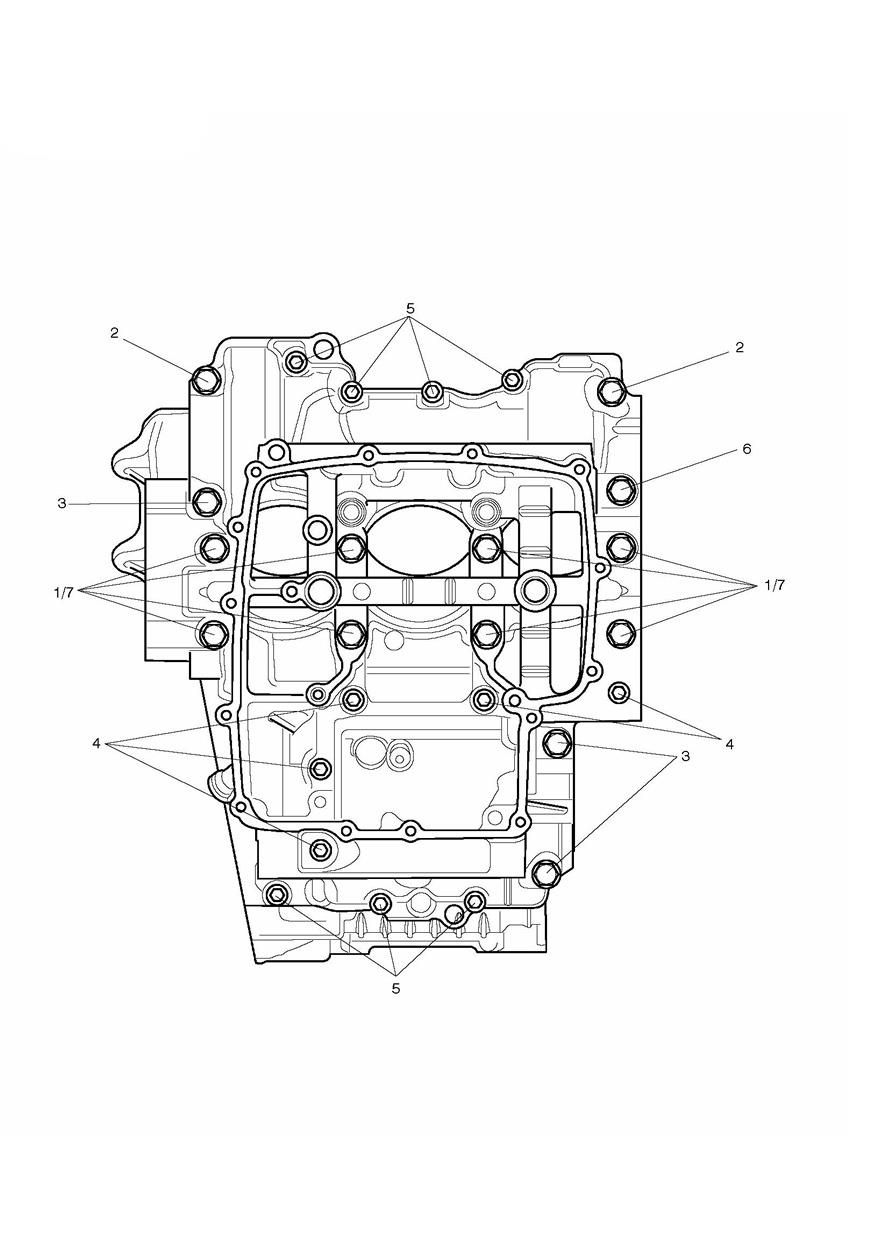

Crankcase Bolts exploded diagram

Crankcase Bolts

VIN 564948 and higher

Oil Pump Drive exploded diagram

VIN 564948 and higher

Oil Pump Drive exploded diagram

VIN 381275 to 564947

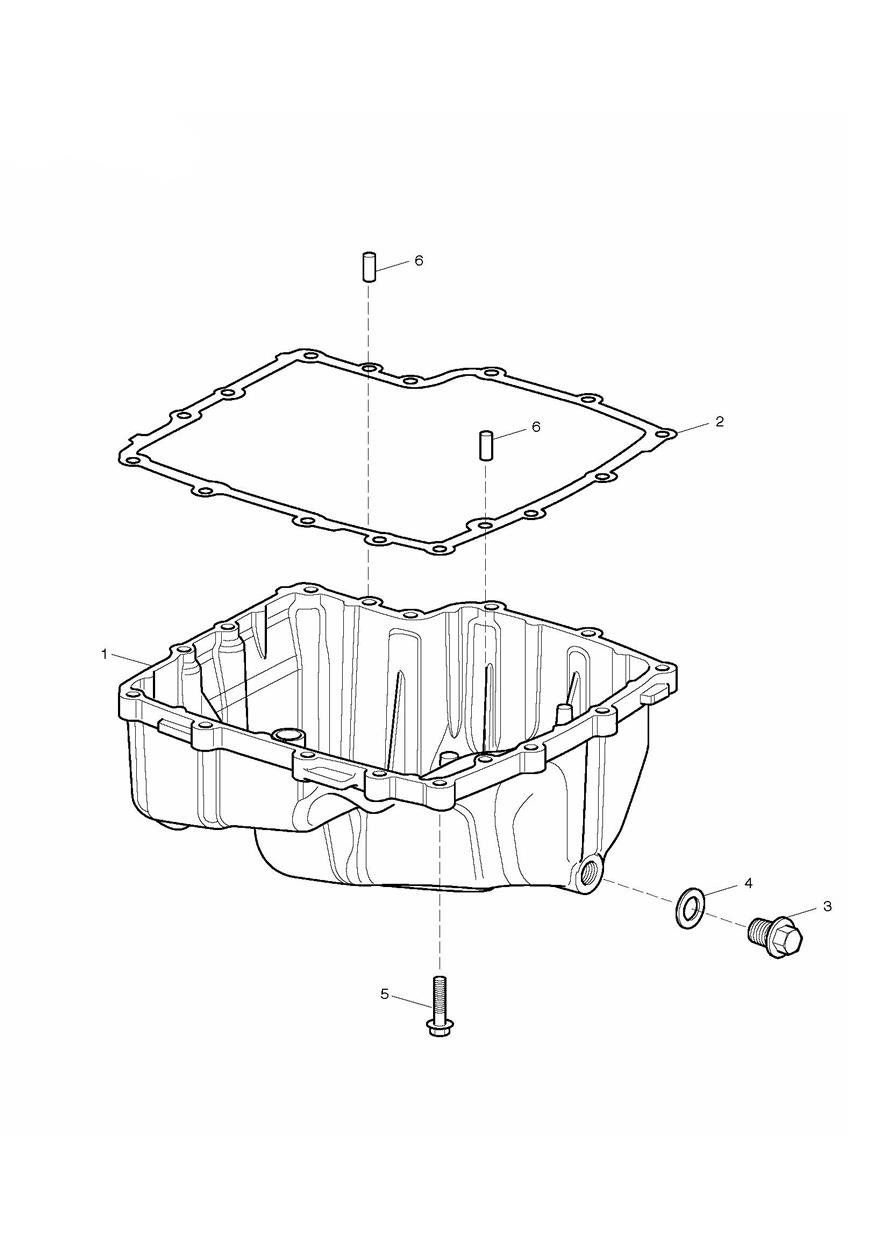

Sump & Fittings exploded diagram

Sump & Fittings

VIN 564948 and higher

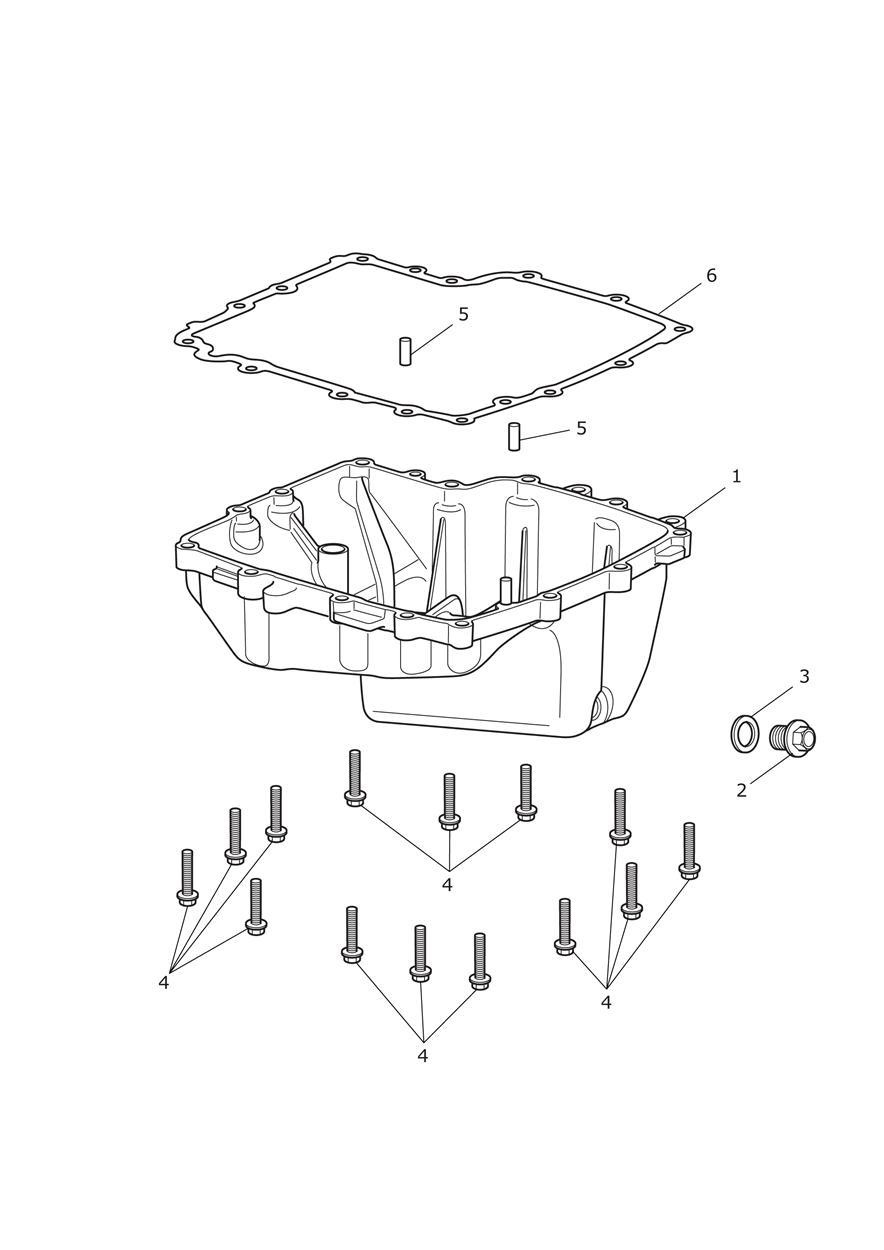

Sump & Fittings exploded diagram

Sump & Fittings

VIN 564948 and higher

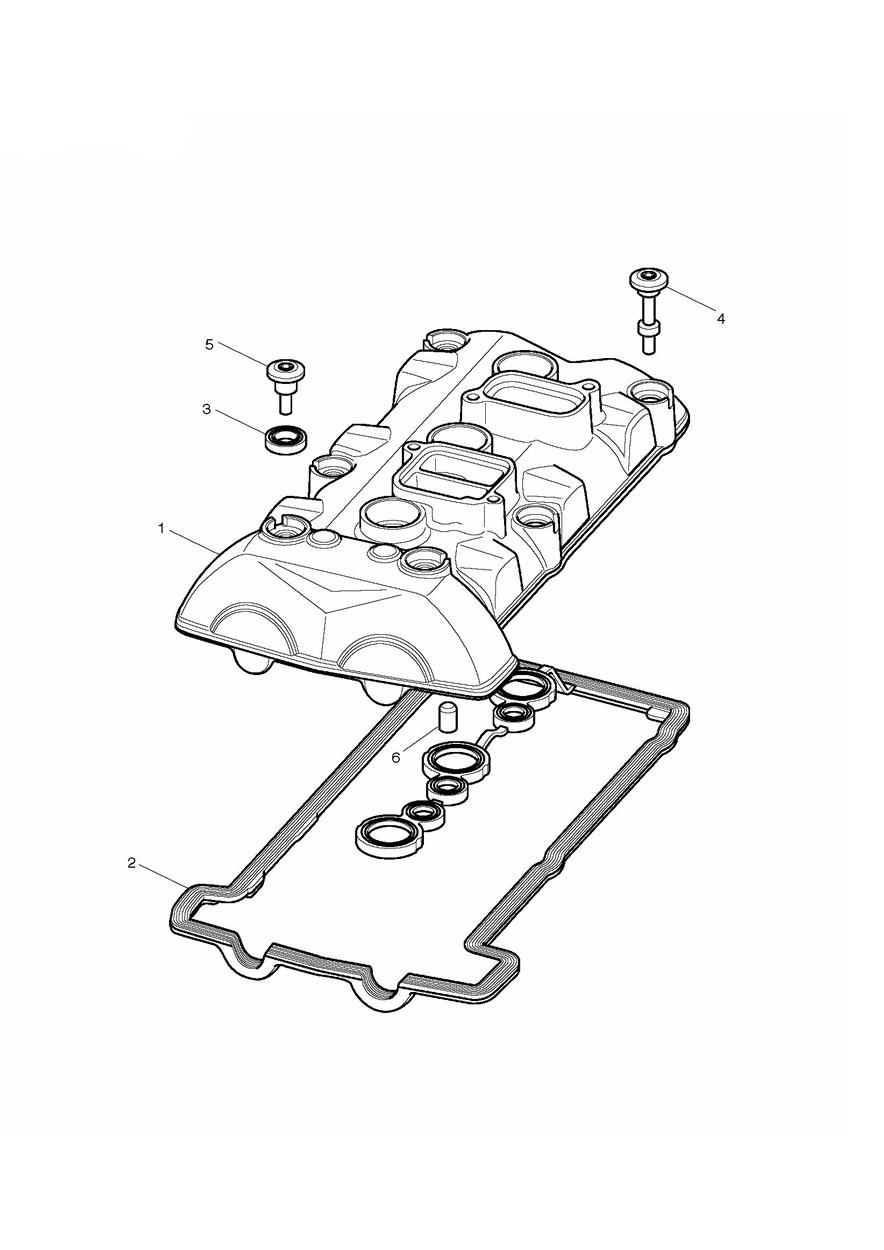

Cam Cover exploded diagram

VIN 564948 and higher

Crankcase Bolts exploded diagram

Crankcase Bolts

VIN 564948 and higher

Sump & Fittings exploded diagram

Sump & Fittings

VIN 381275 to 564947

Cam Cover exploded diagram

VIN 564948 and higher

Crankcase Bolts exploded diagram

Crankcase Bolts

VIN 381275 to 564947

Engine Covers exploded diagram

VIN 564948 and higher

128 parts you can order online

Every part below appears in Triumph’s Crankcase, Engine Covers, Lubrication System diagrams for the Daytona 675 and is priced and orderable online. Open a part to see what it fits and to buy it.

Cam Cover VIN 381275 to 564947

T1260248 Cam Cover, M/C, Mg, Blk

T1261765 Seal, Cam Cover

In stock in Brea

T1260309 Seal, Cam Cover, Screw, Twin Lip

In stock in Brea

T3332066 Bolt, Lge Skt HD, Shld, M6x42.5

Low stock at Triumph

Limited availability

T3330241 Bolt, Lge Skt Hd, Shld, M6 x 24.0

T3000102 Dowel, Hollow, 10 x 14

Backordered at Triumph · expected Nov 20

Engine Covers VIN 564948 and higher

T1260456 Clutch Cover Assy, Black

T3600095 Dust Seal

T3800110 Roller Bearing, HK 1210

T1260258 Clutch Cover Gasket

In stock in Brea

T3000005 Dowel, Dia 6 x 16.5

T1260249 Oil Filler Cap

In stock in Brea

T3600124 O Ring, ID 21.5 x 3

In stock in Brea

T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv

T3550146 Washer, 6.4 x 12 x 1, Copper

T1260429 Sprocket Cover

T1260824 Breather Cover

Backordered at Triumph · we’ll confirm the ship date after you order

T1260825 Breather Cover Gasket

Backordered at Triumph · we’ll confirm the ship date after you order

T1260393 Alternator Cover

T1260838 Gasket, Alternator Cover

In stock in Brea

T1260365 Bracket, Cable Guide, ACG Stator

Low stock at Triumph

Limited availability

T1260366 Bracket, Cable Guide, VR Sensor

Low stock at Triumph

Limited availability

T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc

T1260436 Crank Cover

T1260437 Crank Cover Gasket

In stock in Brea

T1260267 Balancer Cover Gasket

In stock in Brea

T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv

In stock in Brea · last ones

Oil Pump Drive VIN 564948 and higher

T1211283 Pump Assembly, Oil & Water

T1210123 Aux Drive Chain Guard

T3200122 Bolt, RHHF, M6 x 50, Encaps

T3600127 O Ring, 31.6x2.4

T1210251 Chain, 6.35 Pitch, 76 link

Backordered at Triumph · we’ll confirm the ship date after you order

T1218001 Oil Filter, OES

T1210440 Oil Filter Multipack (24)

T1210443 Oil Filter Multipack (80)

T1210438 Oil Filter Adaptor

Low stock at Triumph

Limited availability

T1210214 Spray Jet, Oil, Piston

T3600176 O Ring, 6.1 x 1.6

T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw

T1210023 Retainer Plate, Aux Drive Chain

T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc

In stock in Brea

T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc

T3600191 O Ring, 16 x 2

T3600132 O Ring 20 x 2.62

T3600153 O Ring, 7.6 x 2.4

Low stock at Triumph

Limited availability

T1210282 Oil, Pick-Up

Backordered at Triumph · we’ll confirm the ship date after you order

T3600106 O-Ring, 24 x 2.5

Low stock at Triumph

Limited availability

T3200134 Bolt, RHHF, M6x25, Encaps

T1210249 Pump Drain Tube

T3600109 O Ring, ID 5.6 x 2.3

In stock in Brea

T1210623 Heat Exchanger, Oil/Water, alu

T1210625 Sealing Ring, Heat Exchanger

T3202304 Bolt, RHHF, M6 x 20, Slv

T1210091 Oil Pressure Switch, M10

Low stock at Triumph

Limited availability

T3550546 Washer, Cu, OD 16 x ID 10.2/

T1210304 Dipstick, Oil Level

T1210000 Restrictor, Oil, Gearbox

T3600126 O Ring, ID 7.1 x 1.6

T1210283 Oil Pipe, Breather Drain

Crankcase & Fittings VIN 564948 and higher

T1160522 Crankcase Assy Spares Kit

T1210177 Pipe, Oil Feed, Gearbox

Backordered at Triumph · expected Nov 6

T3600143 O Ring, ID 9.1 x 1.6, Viton

Low stock at Triumph

Limited availability

T3600252 O Ring, 10.1 Dia x 1.6

T3450091 Plug, Dia 14, Alum

T3450005 Plug, NPSI 3/8 Dryseal

T3450000 Plug, PTF-SAE Short, 3/8-18, Enc

Backordered at Triumph · we’ll confirm the ship date after you order

T3800001 Bearing, Needle, 20 x 14 x 12

T3802512 Bearing, Needle

Backordered at Triumph · we’ll confirm the ship date after you order

T3800069 Bearing, Needle Roller

Low stock at Triumph

Limited availability

T3600088 Seal, Oil, 14 x 22 x 4.5

In stock in Brea

T1180101 Washer, Restrictor, Gearbox

T3450119 Plug, Face Seal, M16 x 1.5

T1163101 Main Bearing Shell

T1163102 Main Bearing Shell

T1163103 Main Bearing Shell

T1163104 Main Bearing Shell

T1160977 Barrel, Dia 76.0

T1160978 Crankcase Gasket, Base

Low stock at Triumph

Limited availability

T3000101 Dowel, Hollow, 8 x 14

T1160982 Stud, Cylinder Head, M9

Engine Covers VIN 381275 to 564947

T1260460 Alternator Cover, Black

Low stock at Triumph

Limited availability

T1260262 Gasket, Alternator Cover

T1260285 Wire Retainer Plate

T1260452 Kit, Clutch Cvr

T1261053 Oil Filler Cap

T1260273 Crank Cover, Black

Low stock at Triumph

Limited availability

T1260264 Crank Cover Gasket

In stock in Brea

T1260259 Sprocket Cover

T1260216 Breather Cover

T1260217 Breather Cover Gasket

Low stock at Triumph

Limited availability

Crankcase & Fittings VIN 381275 to 564947

T1162152 Kit, Crankcase Assembly, Black

Backordered at Triumph · expected Nov 6

T3800108 Bearing, Ball, 15 x 24 x 5

T3800064 Bearing Needle 12 x 18 x 16

T1160321 Main Bearing Shell

T1160322 Main Bearing Shell

Low stock at Triumph

Limited availability

T1160323 Main Bearing Shell

Crankcase Bolts VIN 564948 and higher

T3202430 Bolt, HHF, M8 x 105, Slv

T3202325 Bolt, HHF, M8 x 43, Slv

Low stock at Triumph

Limited availability

T3202315 Bolt, HHF, M8 x 65, Slv

T3200195 Bolt, RHHF, M6 x 68, Slv

T3202303 Bolt, RHHF, M6 x 28, Slv

T3202323 Bolt, HHF, M8 x 80, Slv

T3550184 Washer, Hardened, 8.2 x 18.7 x 2

Oil Pump Drive VIN 381275 to 564947

T1210121 Chain, 6.35 Pitch, 74 Link

T1210212 Kit, Oil PrV & Sump Gasket

T1210207 Pressure Relief Valve, Shrouded

T1211012 Sleeve, Oil Jet, Piston, 1.2mm

T1211000 Sleeve, Oil Jet, Piston

T1210124 Oil Feed Pipe

T1210209 Oil Feed Pipe

T1210126 Baffle Plate, C/Case Breather

T1210128 Pump Drain Tube

T3600250 O Ring, 59.5 x 3.0

T1210157 Seal, Heat Exchanger

T1210138 O Ring, Oil Dipstick

T1210158 Heat Exchanger Bolt

T1210540 Pipe, Oil, Breather Drain

T1210234 Oil Pump Spares Kit

T1210170 Pump Assembly, Oil & Water

Backordered at Triumph · we’ll confirm the ship date after you order

T1210253 Pump Sprocket, 26T, Silent

Backordered at Triumph · expected Nov 6

Sump & Fittings VIN 564948 and higher

T3458989 Sump Plug, M14 x 1.5, Blk

T3551092 Sealing Washer Multipack (25)

In stock in Brea

T1230114 Gasket, Sump

In stock in Brea

Cam Cover VIN 564948 and higher

T1260698 Cam Cover, M/C, Sai, Blk

Sump & Fittings VIN 381275 to 564947

Backordered at Triumph · we’ll confirm the ship date after you order

T1230111 Gasket, Baffle, Sump

Crankcase Bolts VIN 381275 to 564947

T3202309 Bolt, HHF, M8 x 105, Slv
