Frame, Footrests, Engine Mountings & Stands
Triumph Daytona Moto2 765 · 6 diagrams
6 exploded diagrams for the frame, footrests, engine mountings & stands of the Triumph Daytona Moto2 765, covering the Daytona Moto2 765. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Rear Mudguard & No Plate Brkt
23 parts
Main Frame & Fittings
14 parts
Rear Sub-Frame & Fittings
7 parts
Sidestand
9 parts
Footrests & Mountings
12 parts
Front Mudguard
8 parts
63 parts you can order online
Every part below appears in Triumph’s Frame, Footrests, Engine Mountings & Stands diagrams for the Daytona Moto2 765 and is priced and orderable online. Open a part to see what it fits and to buy it.

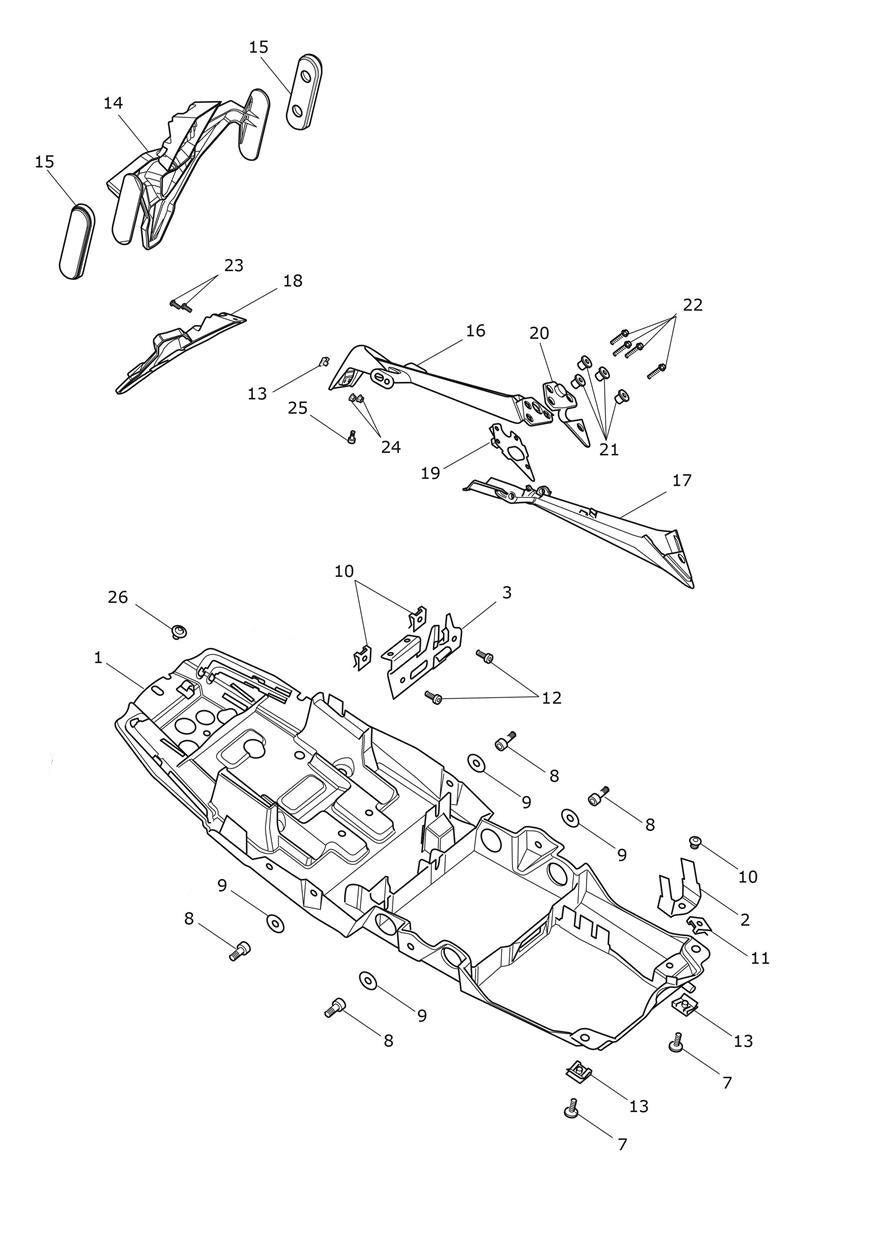

Rear Mudguard & No Plate Brkt
T2308008 Battery Tray, Moulding
$54.55
AvailableT2307621 Bracket, Starter Solenoid
Backordered at Triumph · expected Oct 23
$4.85
On backorderT2307624 Bracket, Fusebox
$7.49
AvailableT3330955 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableT3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc
$2.17
In stock in BreaT3555026 Washer, 6.4 x 18 x 1.6
$1.99
In stock in BreaT3350123 Nut, Captive, M5, Non-Secured
$2.29
AvailableT3351002 Nut, Captive, U-Type, M5, Slv
$2.20
AvailableT3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv
$5.25
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT2703122 Moulding, No Plate & Reflectors
$55.43
AvailableT2700443 Reflector, Oval, Red
$5.69
In stock in BreaT2308677 Number Plate Hanger, Lower
$42.10
AvailableT2302225 Fixing Plate, No Plate Hanger
$43.14
AvailableT2302226 Spacer, Rubber, No Plate Hanger
$8.86
AvailableT3010713 Sleeve, Flgd, 6.4 x 11.5 x 11.5
$3.81
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3350010 Locknut, Flgd, M5
$2.09
AvailableT3330696 Screw, But/Hd, M5 X 16, Slv
$5.27
AvailableT3701121 Rivet, Plastic, Screw Type
Low stock at Triumph
$1.99

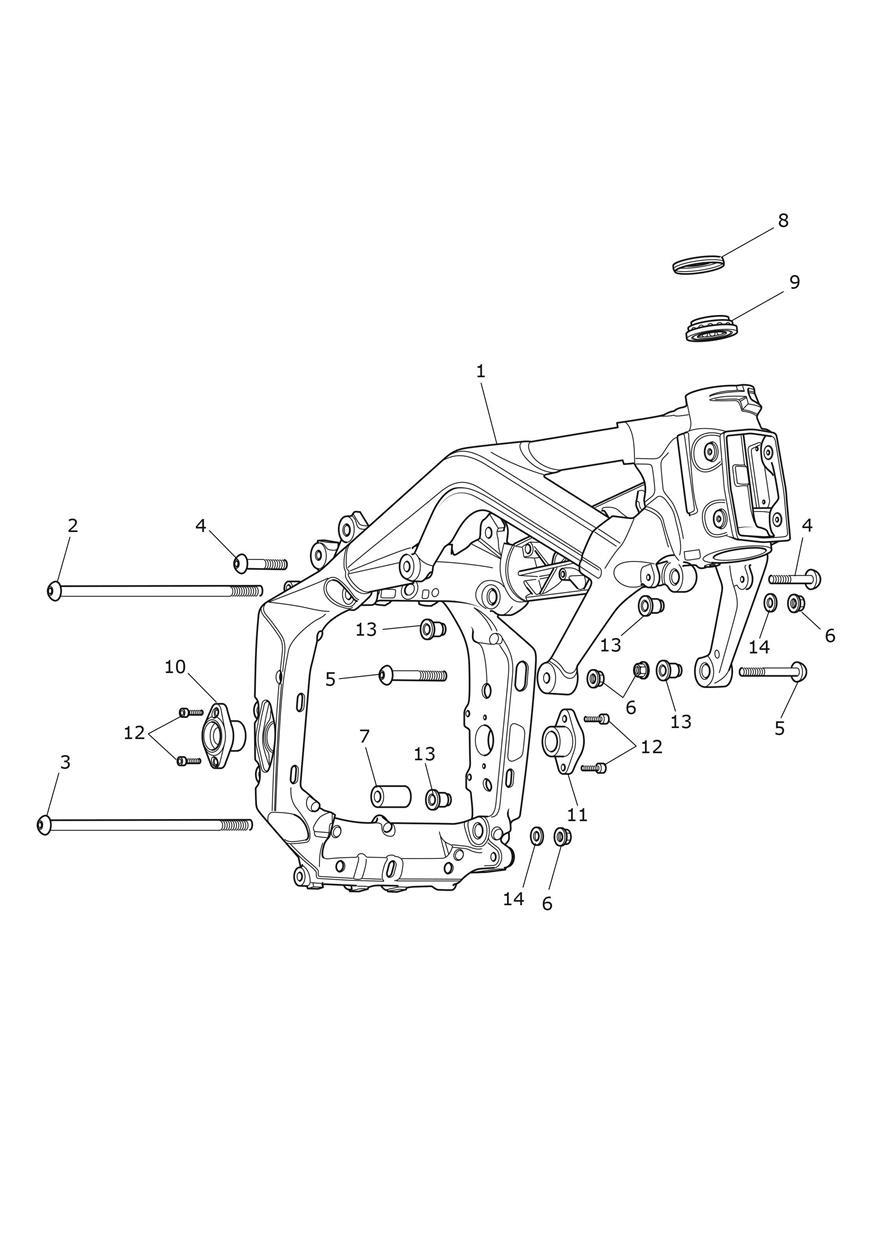

Limited availabilityMain Frame & Fittings
T3332692 Bolt, TX, M10, 238LG
$5.45
AvailableT3332694 Bolt, TX, M10 x 266LG
$5.35
AvailableT3332695 Bolt, TX, M10 x 48LG
Low stock at Triumph
$14.00
Limited availabilityT3332620 Bolt, TX, M10 x 75 LG
$4.91
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT2074773 Spacer, Engine Mount
$6.07
AvailableT3600234 Dust Seal, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT3800091 Bearing, Sac
$31.43
In stock in BreaT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT3555029 Washer, 10.5 x 23 x 2
$2.53

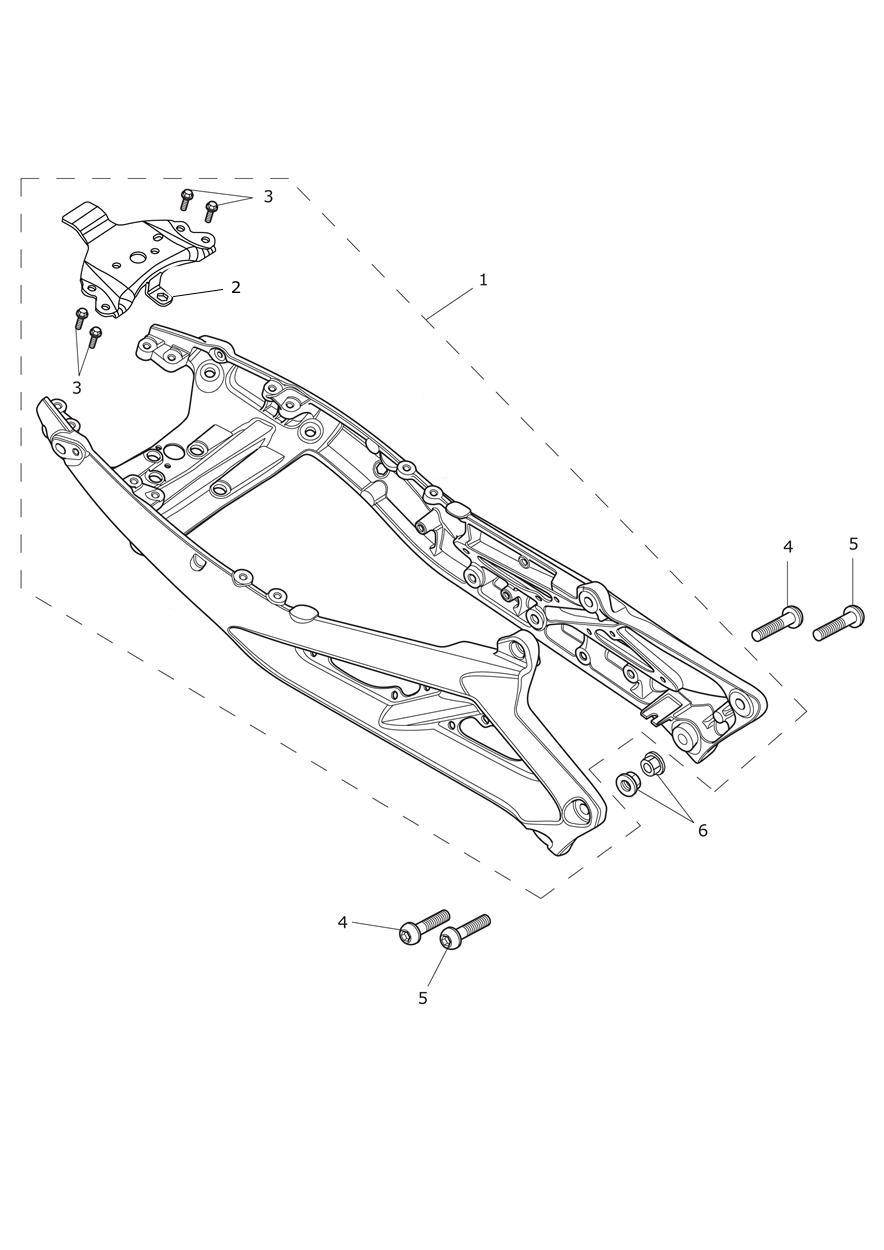

AvailableRear Sub-Frame & Fittings
T2071834 Rear Subframe, Matt Black
Backordered at Triumph · expected Nov 6
$742.08
On backorderT2072802 Rear Subframe Assy, Matt Aluminium Silver
$737.87
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT3332670 Bolt, TX, M10 x 30
$4.56
AvailableT3332675 Bolt, TX, M10 x 40
$14.00

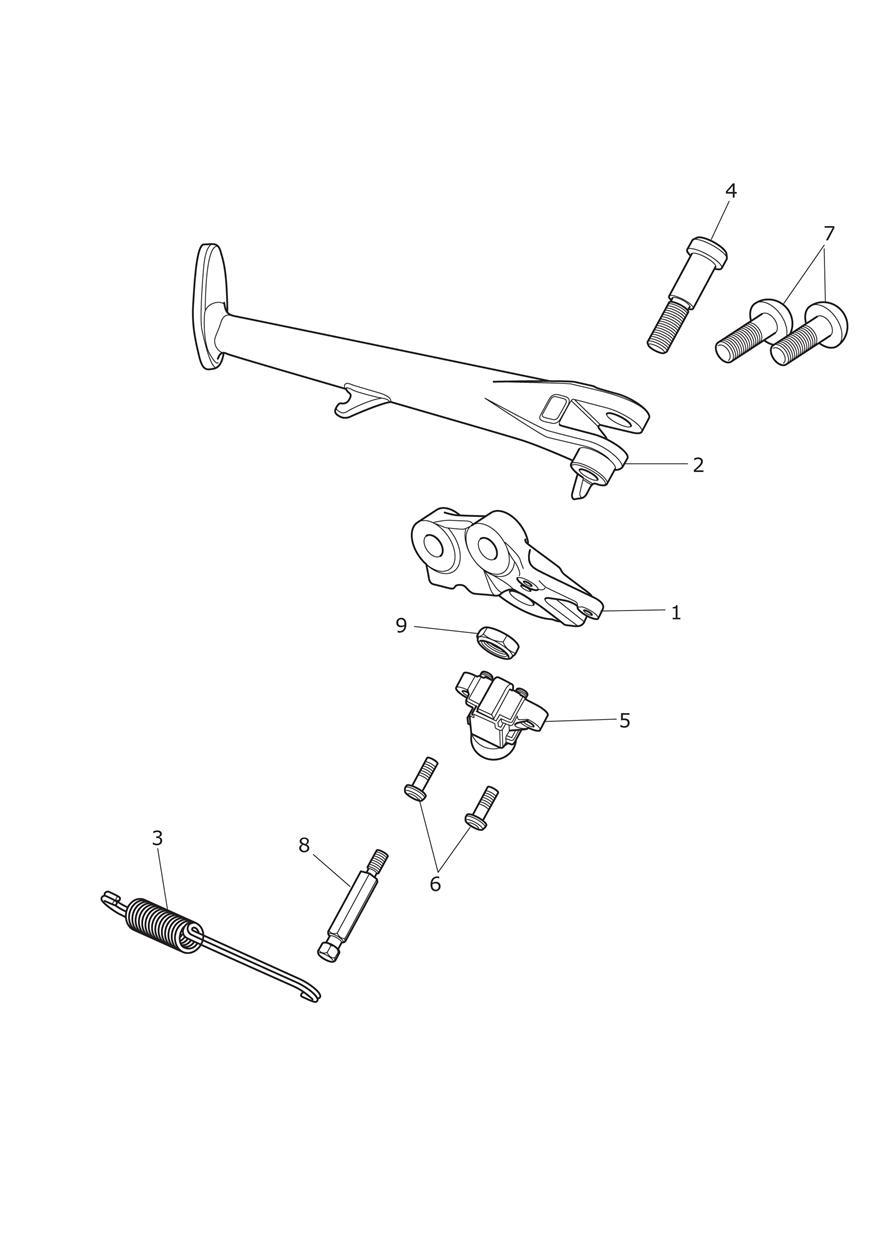

AvailableSidestand
T2082117 Sidestand Bracket
Low stock at Triumph
$73.03
Limited availabilityT2082009 Sidestand Leg
Backordered at Triumph · we’ll confirm the ship date after you order
$103.83
On backorderT2085019 Sidestand Spring
$10.84
AvailableT3330867 Bolt, Shouldered, M10 x 1.25 x 53.1
$10.63
AvailableT2080746 Sidestand Switch
$56.36
AvailableT3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc
$1.99
AvailableT3332559 Bolt, Skt Hd, M10 x L30
$4.03
AvailableT3350134 Locknut, M10 x 1.25
$2.35
AvailableT2082049 Peg, Spring Retainer
Backordered at Triumph · we’ll confirm the ship date after you order
$10.71

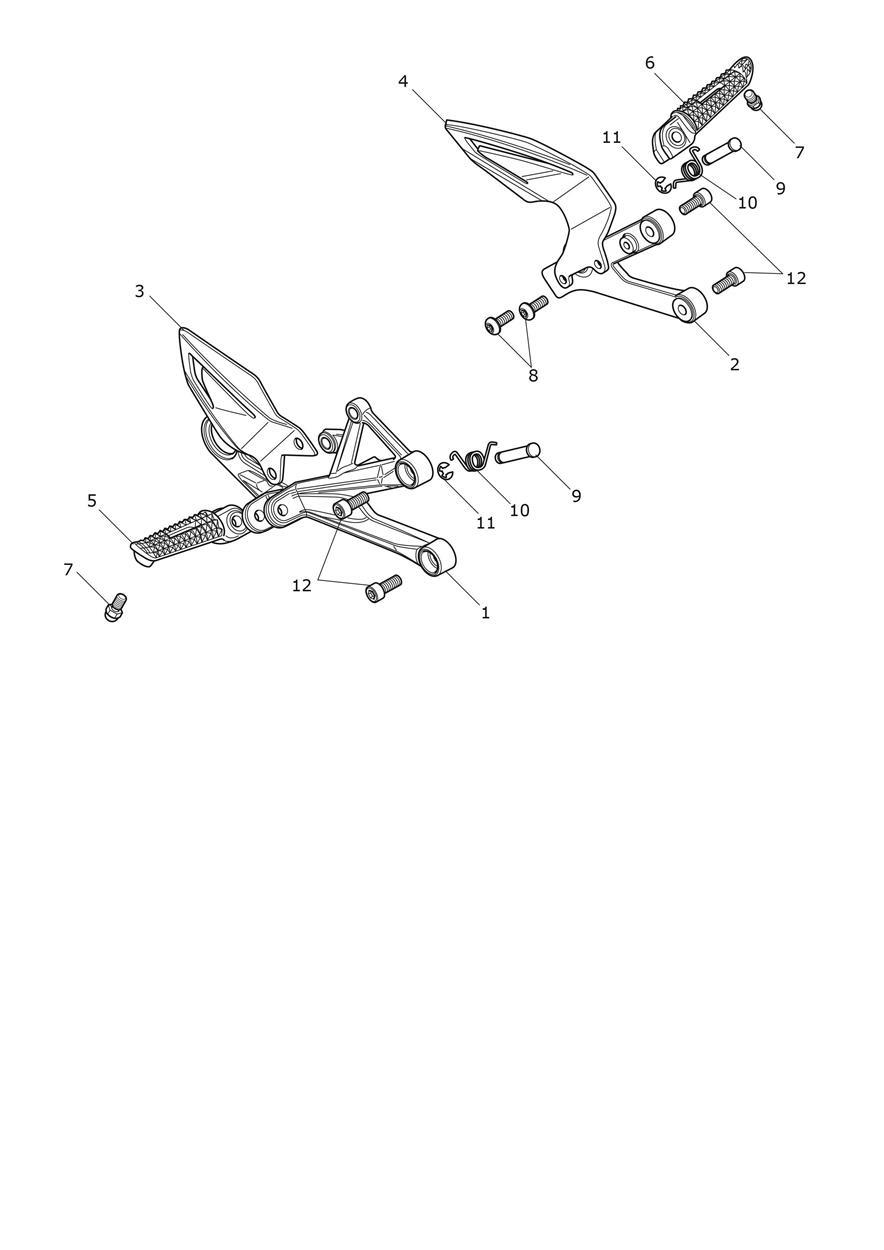

On backorderFootrests & Mountings
T2083382 Control Plate, RH
$85.45
AvailableT2083381 Control Plate, LH
$85.45
AvailableT2081936 Heelguard, RH
$45.75
AvailableT2081935 Heelguard, LH
$46.64
AvailableT2082103 Footrest, Front, RH
$70.13
AvailableT2082102 Footrest, Front, LH
$70.13
AvailableT2085164 Peg, Bank Angle, 9.2mm
$13.03
AvailableT3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc
$3.71
AvailableT2080546 Pin, Pivot, Footrest
$6.07
AvailableT2080819 Return Spring, Footrest
$5.83
In stock in BreaT3500207 Circlip, Ext 8 X 0.89
$2.64
AvailableT3050321 Screw, Cap/Hd, M8 x 20, Slv
$6.87

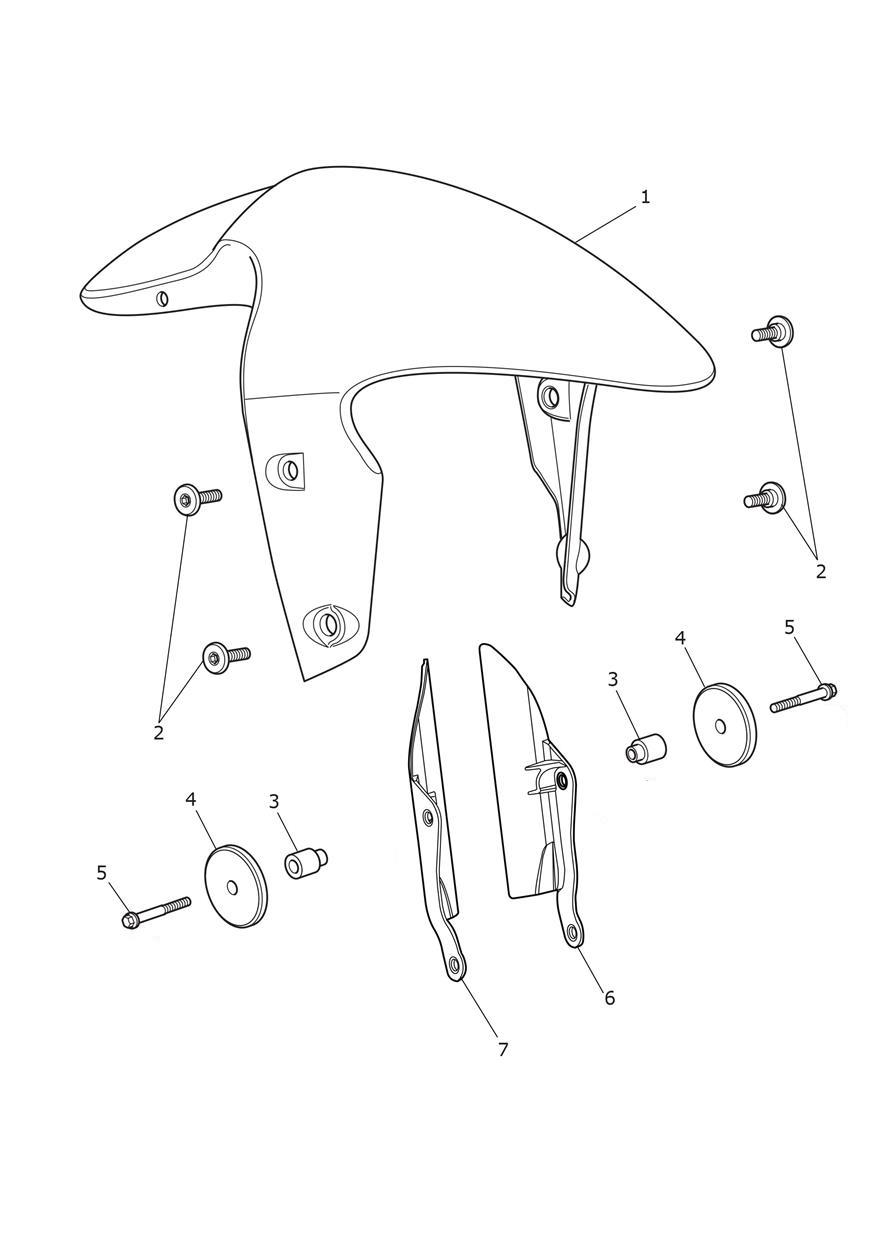

AvailableFront Mudguard
T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv
$5.45
AvailableT2703229 Spacer, Reflector, Front, Black, USA
$4.91
AvailableT2702860 Amber Reflector
$5.98
AvailableT2700283 Amber reflector
$5.98
AvailableT3331299 Screw, Pan/HD, Tx, M6 x 40, Slv
$3.42
AvailableT2307557 Moulding, Fork Protector, LH
$39.42
AvailableT2307558 Moulding, Fork Protector, RH
$39.42
Available
