Crankcase, Engine Covers, Lubrication System
Triumph Daytona · 41 diagrams
41 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Daytona, covering the Daytona 955i / T595. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
CAM COVERS

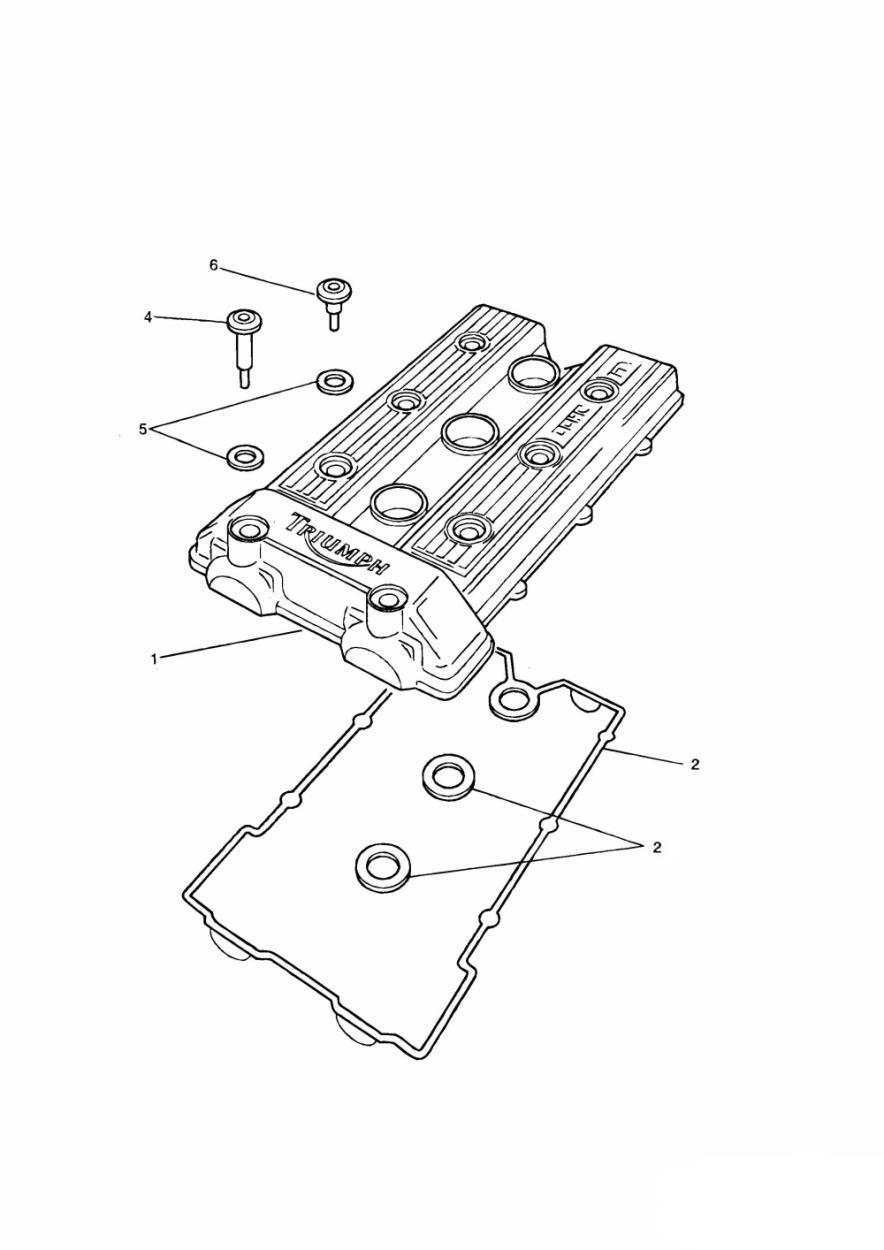

Cam Cover 3 Cylinder Engines
6 parts

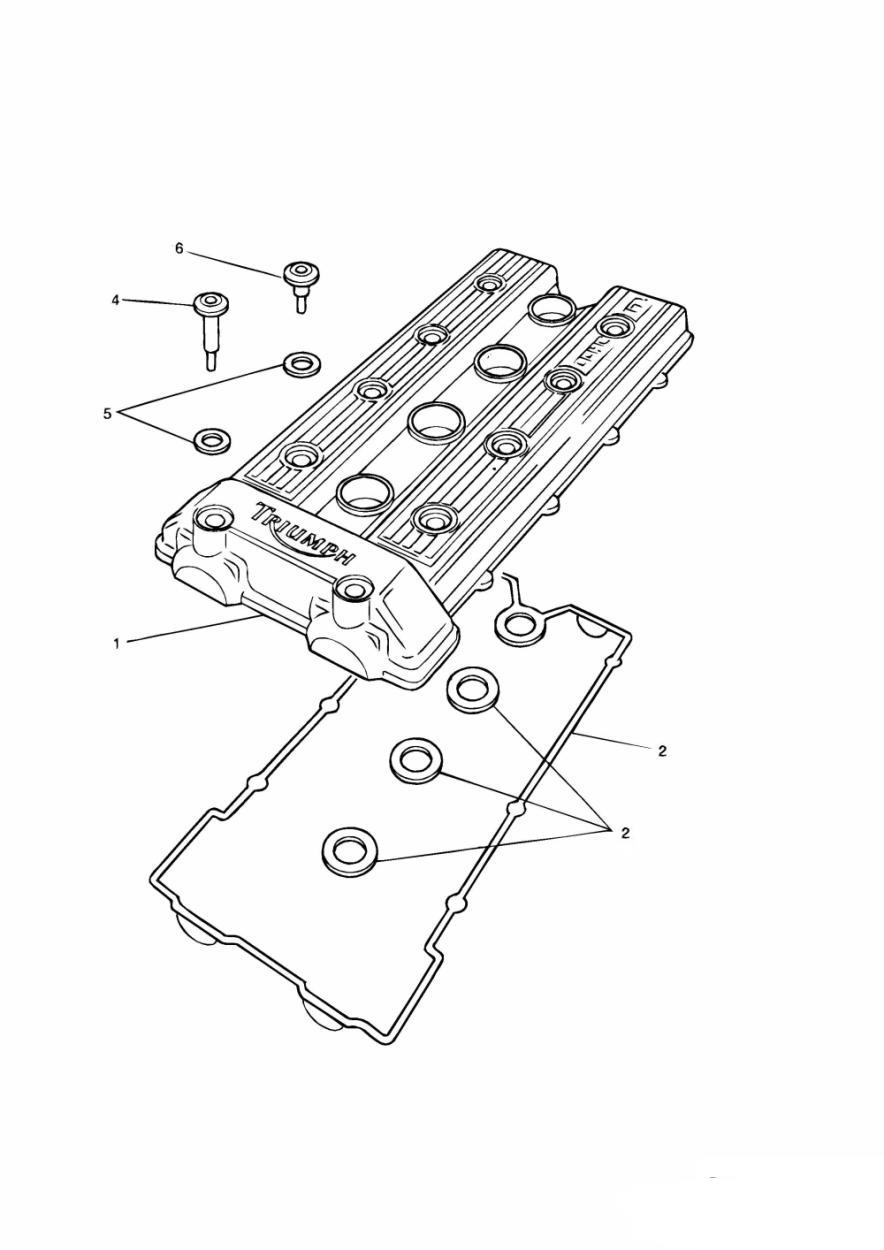

Cam Cover 4 Cylinder Engines
6 parts
Cam Cover 3 Cylinder Engines
6 parts
Cam Cover 4 Cylinder Engines
6 parts

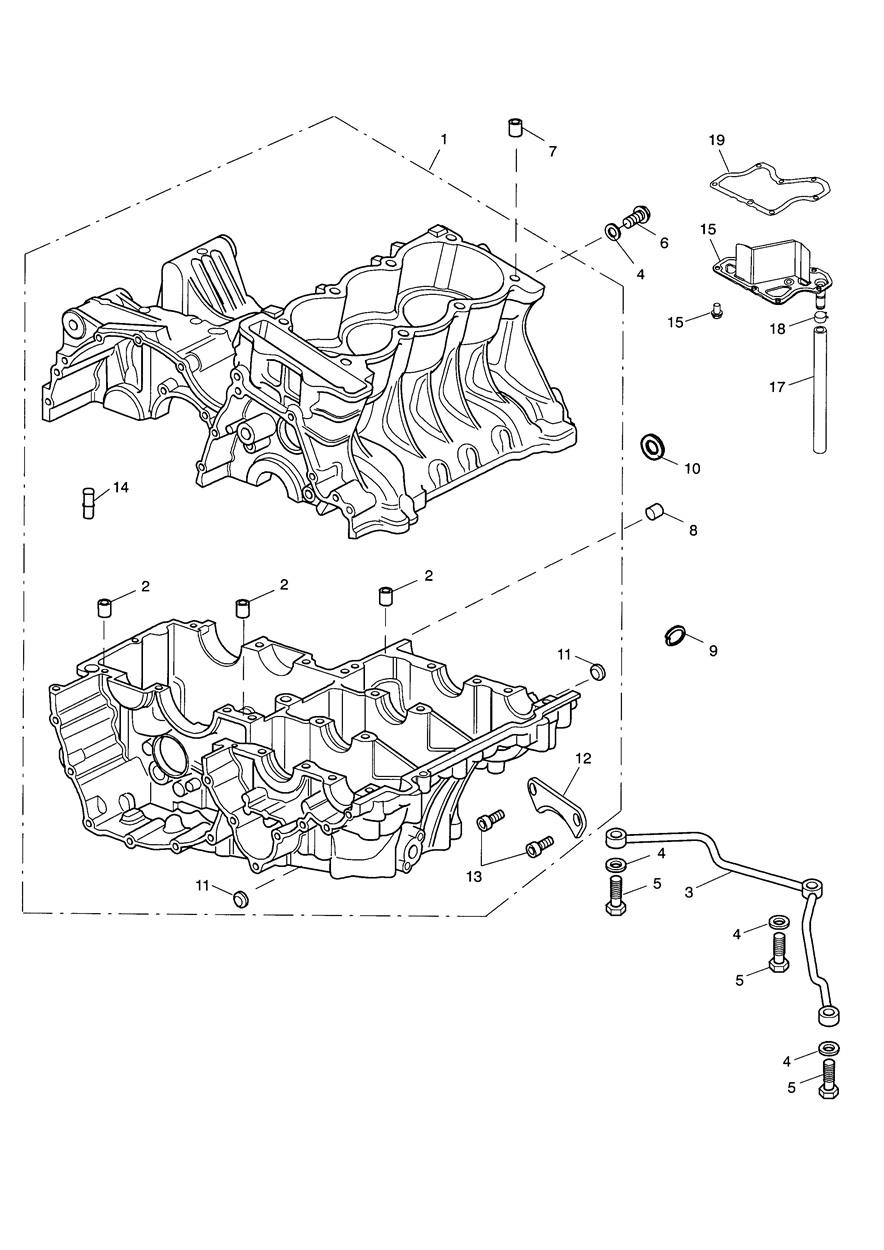

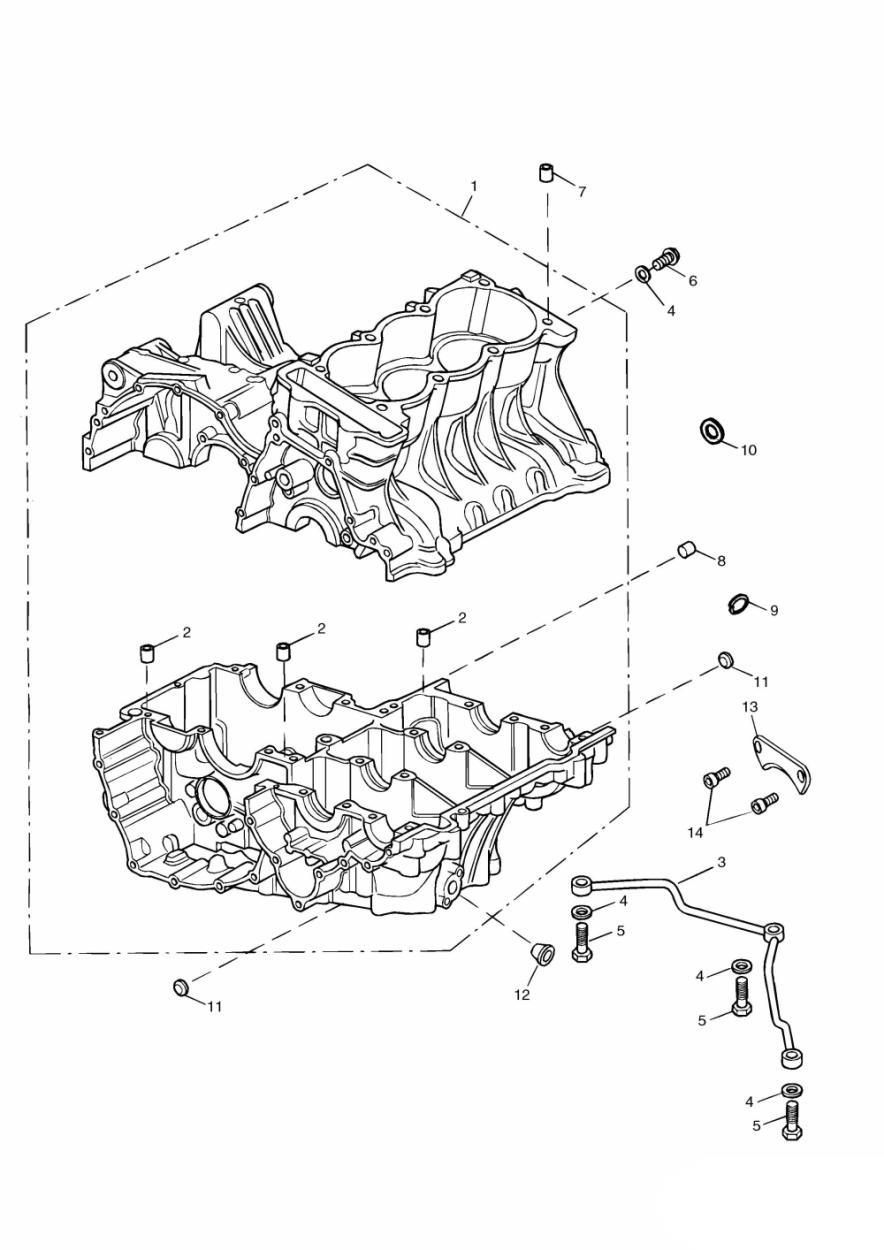

Crankcase & Fittings

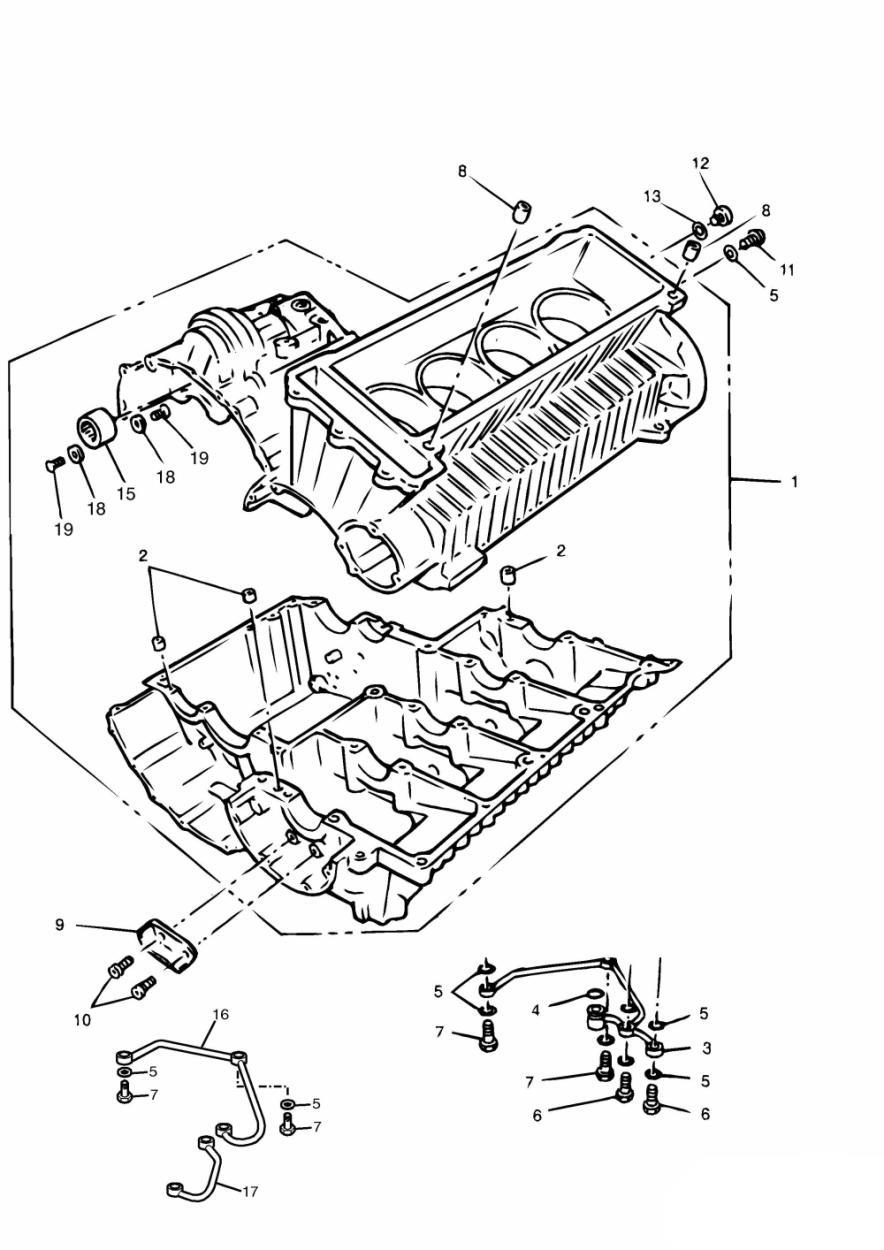

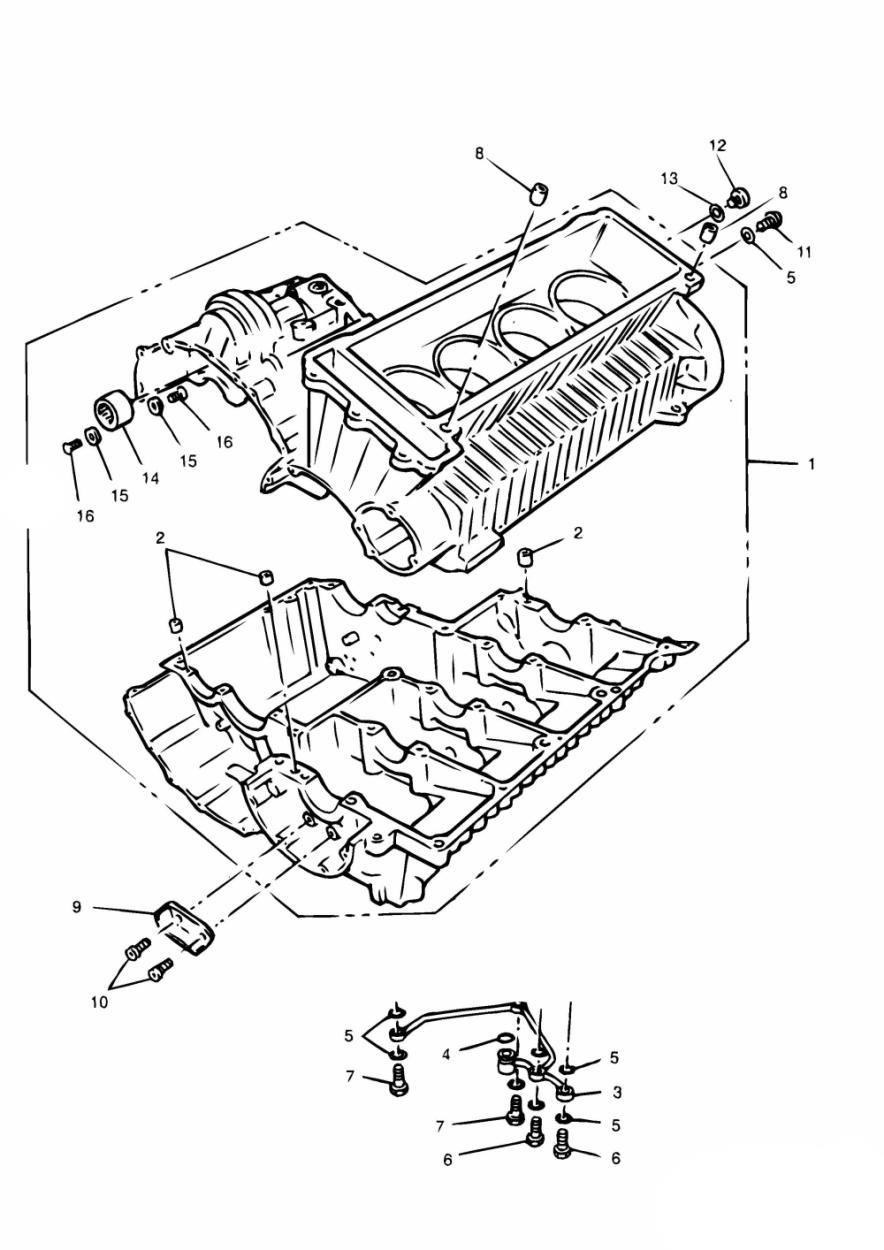

Crankcase 4 Cylinder
19 parts

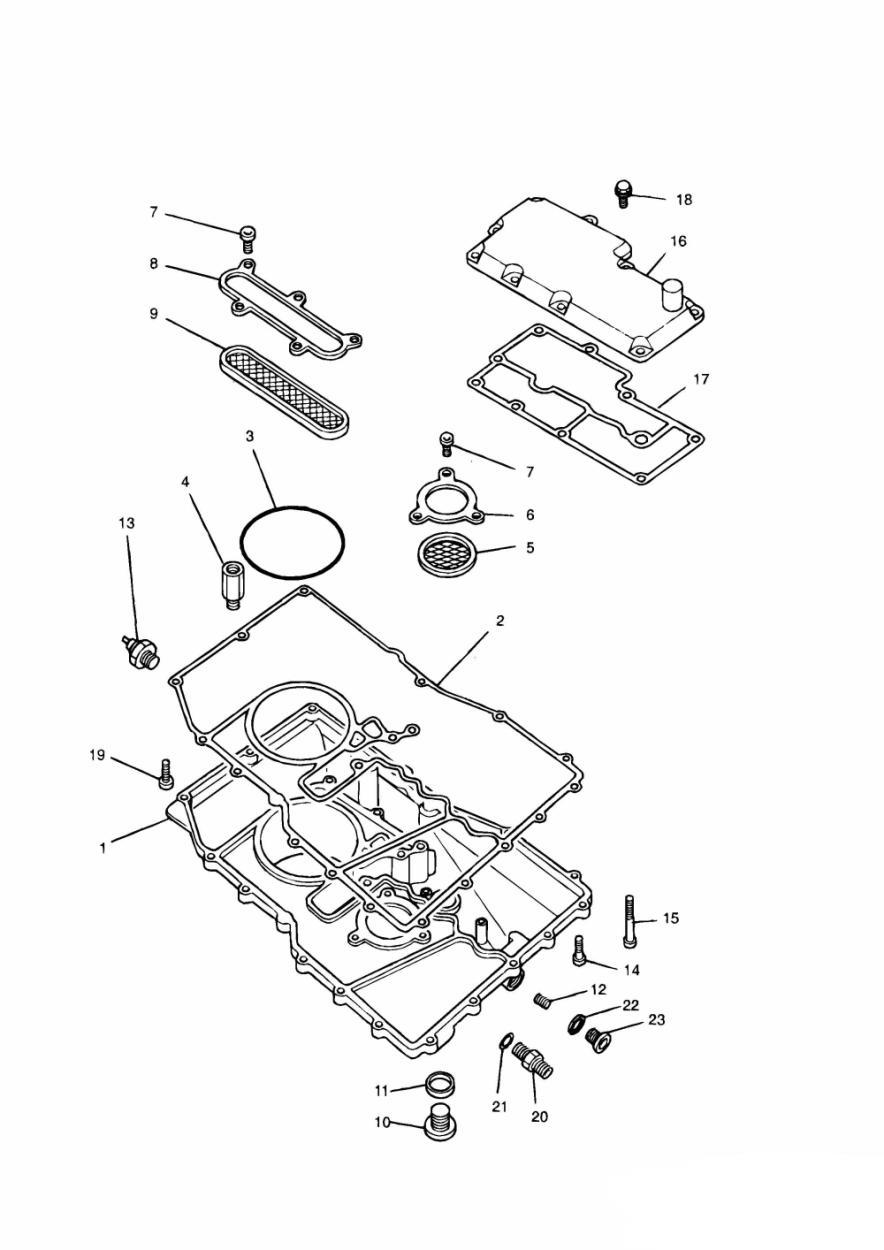

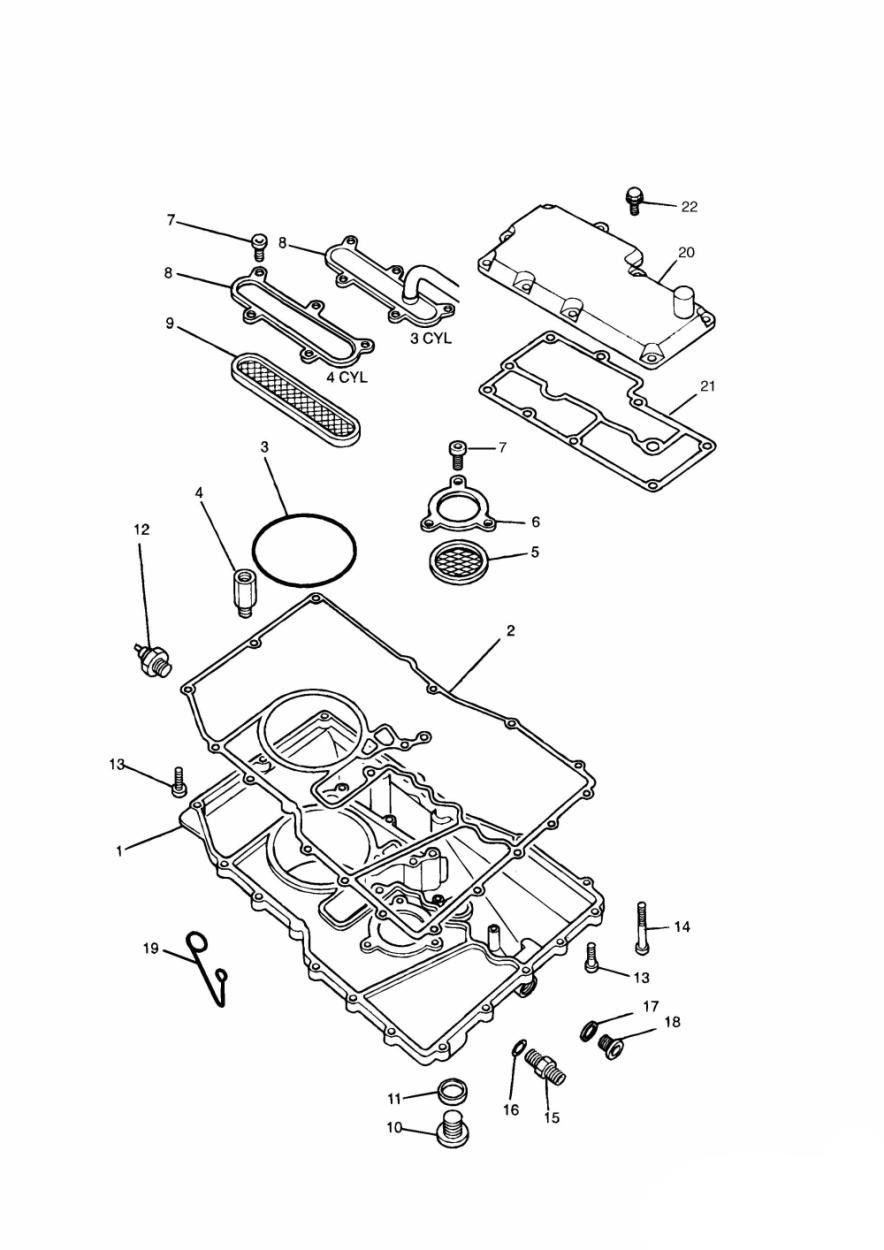

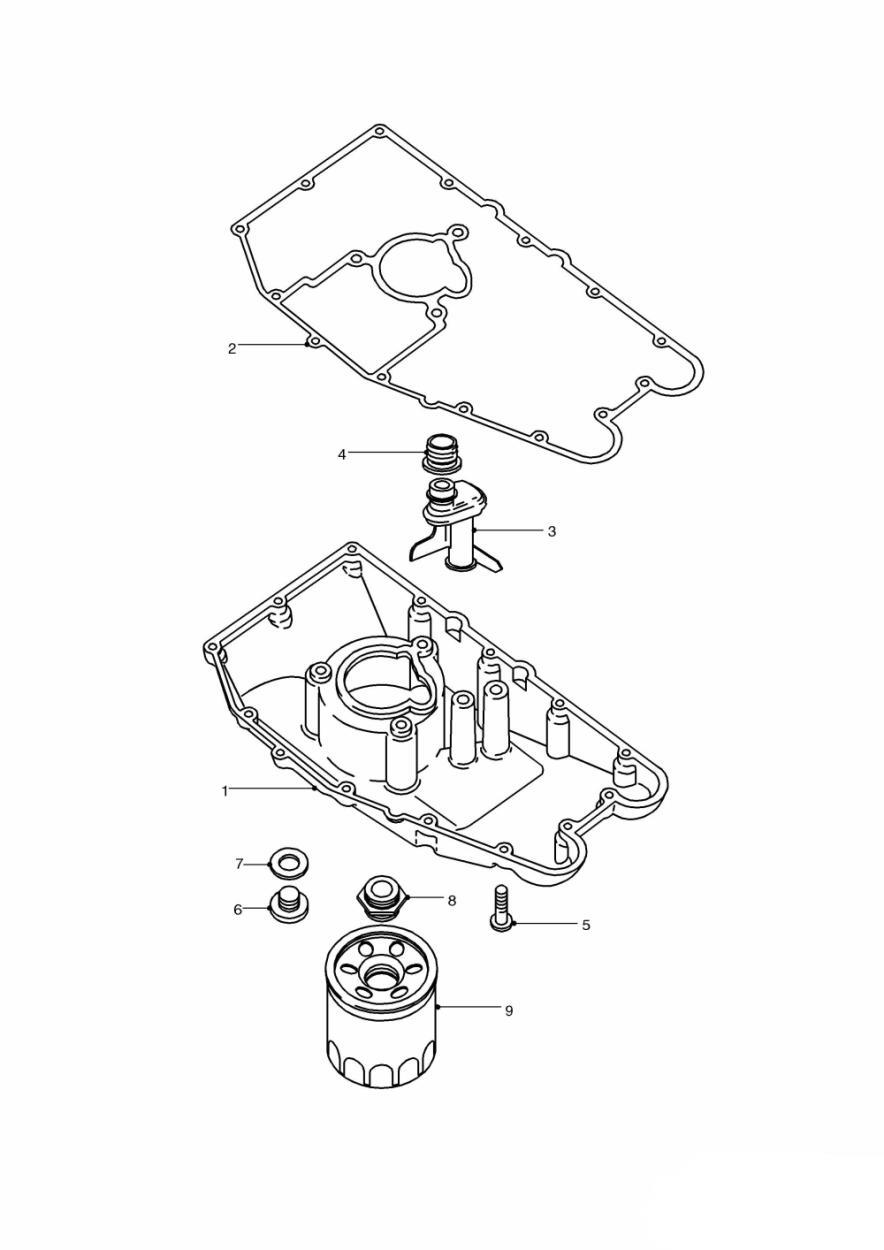

Sump
13 parts

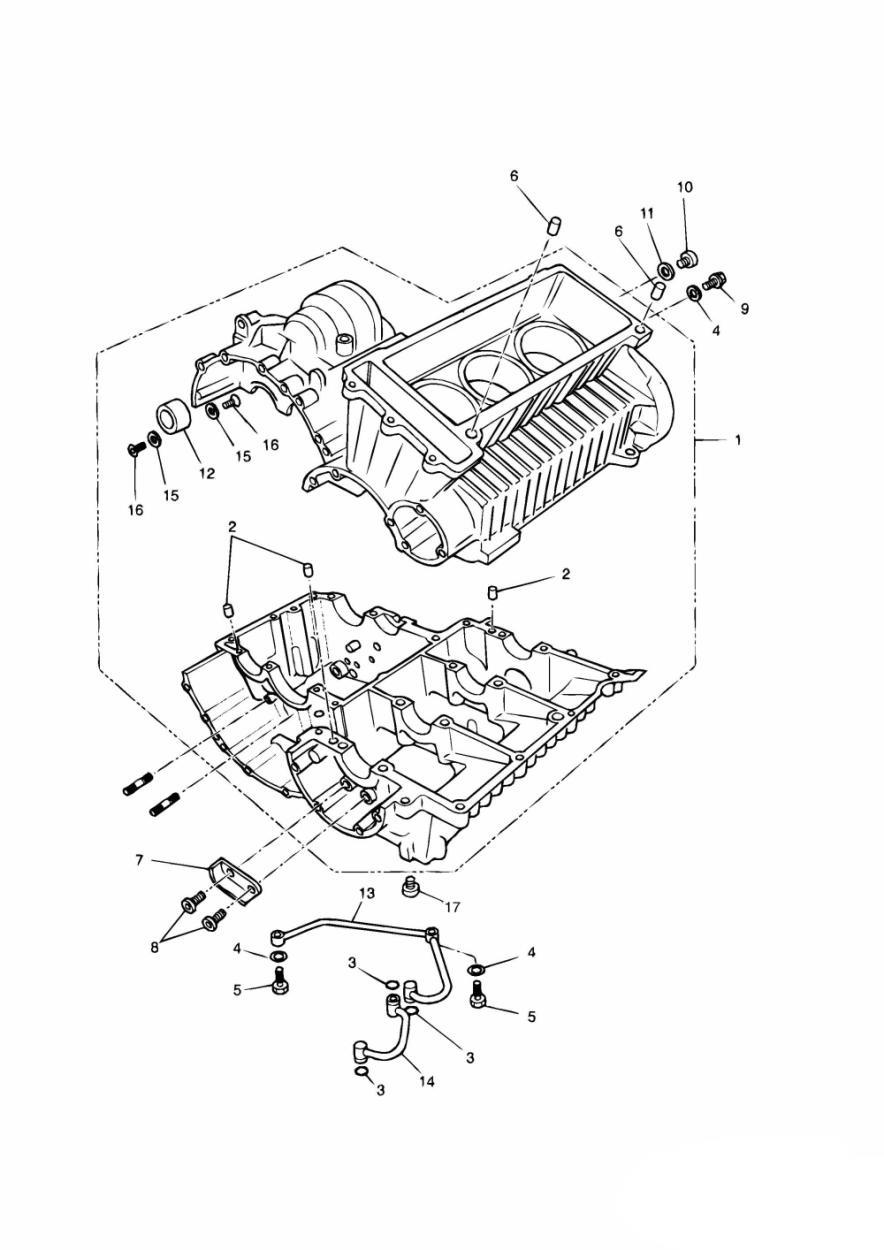

Crankcase 3 Cylinder
19 parts

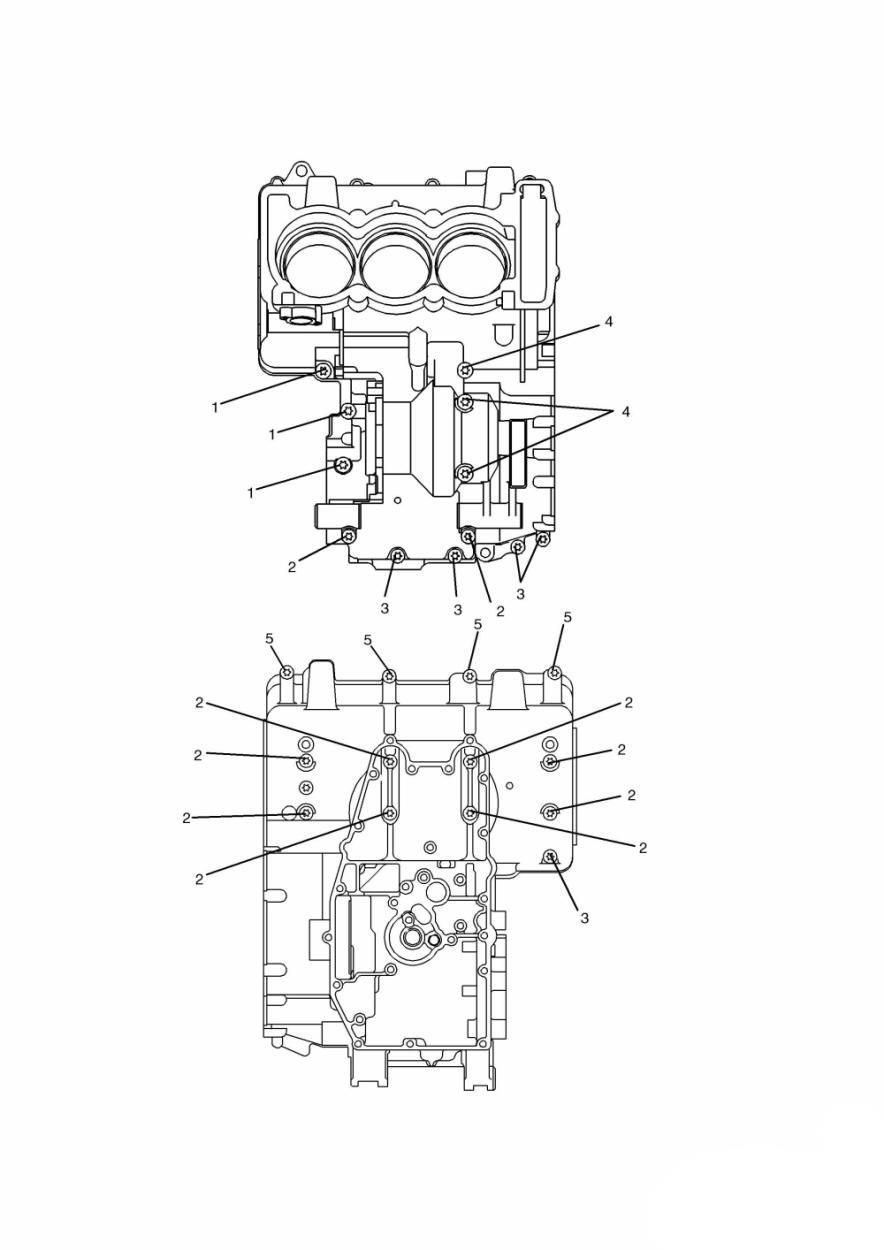

Crankcase Bolts
10 parts

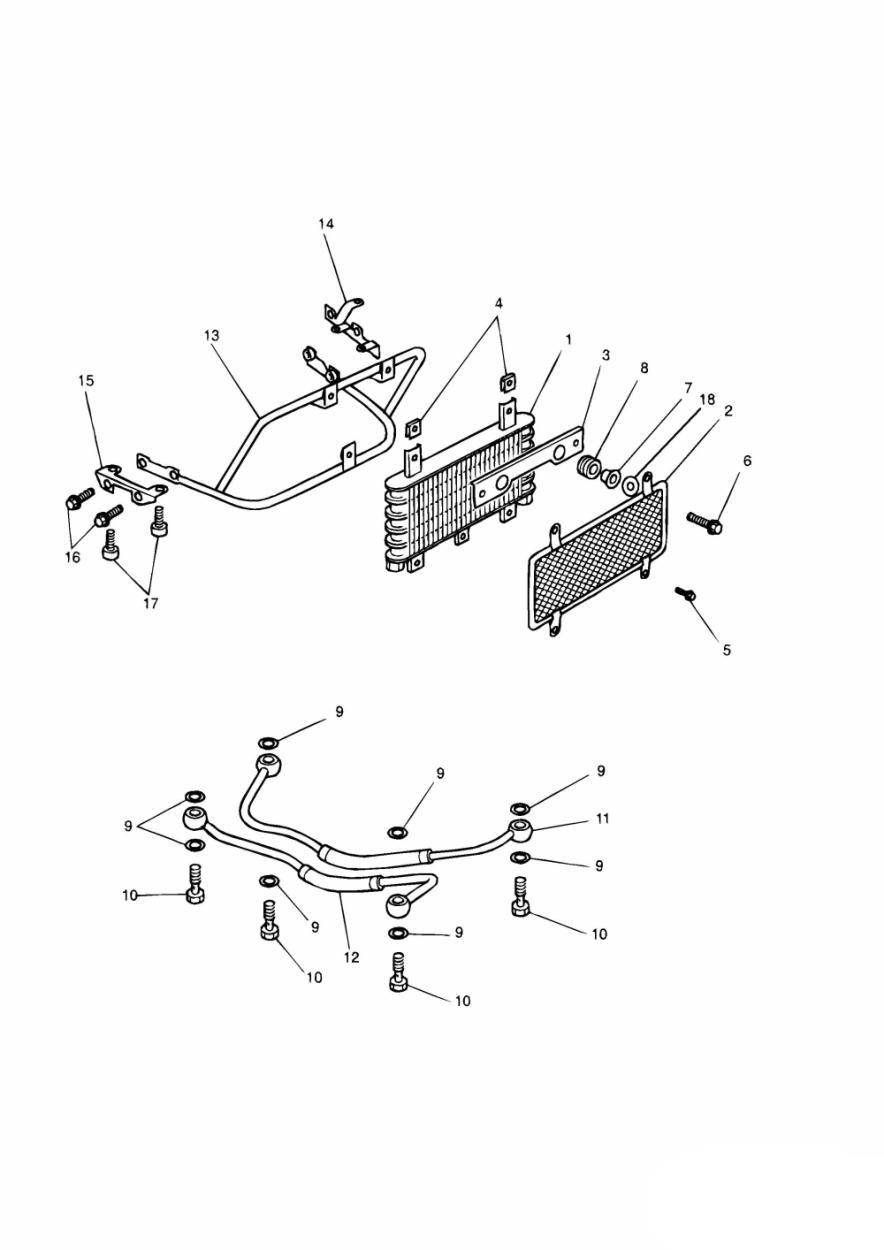

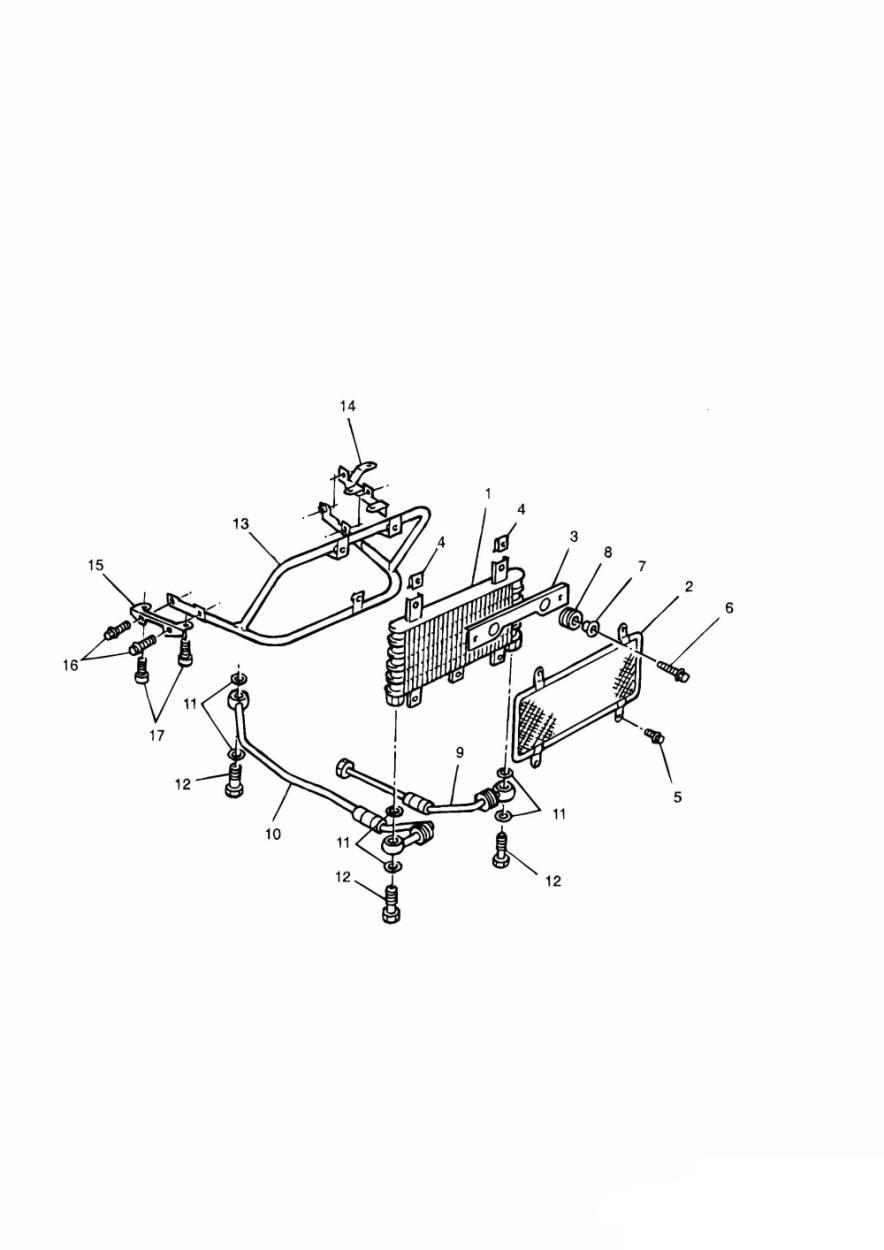

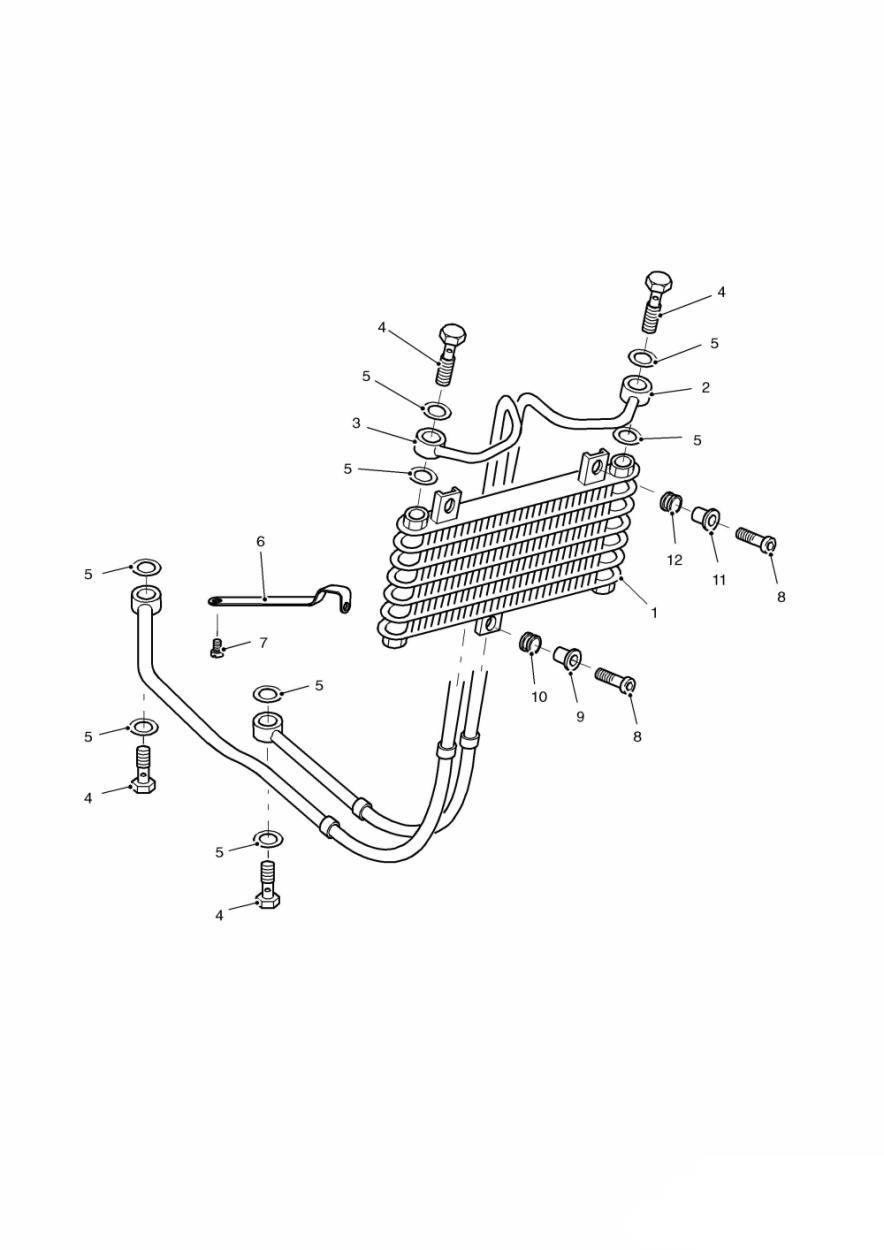

Oil Cooler
10 parts

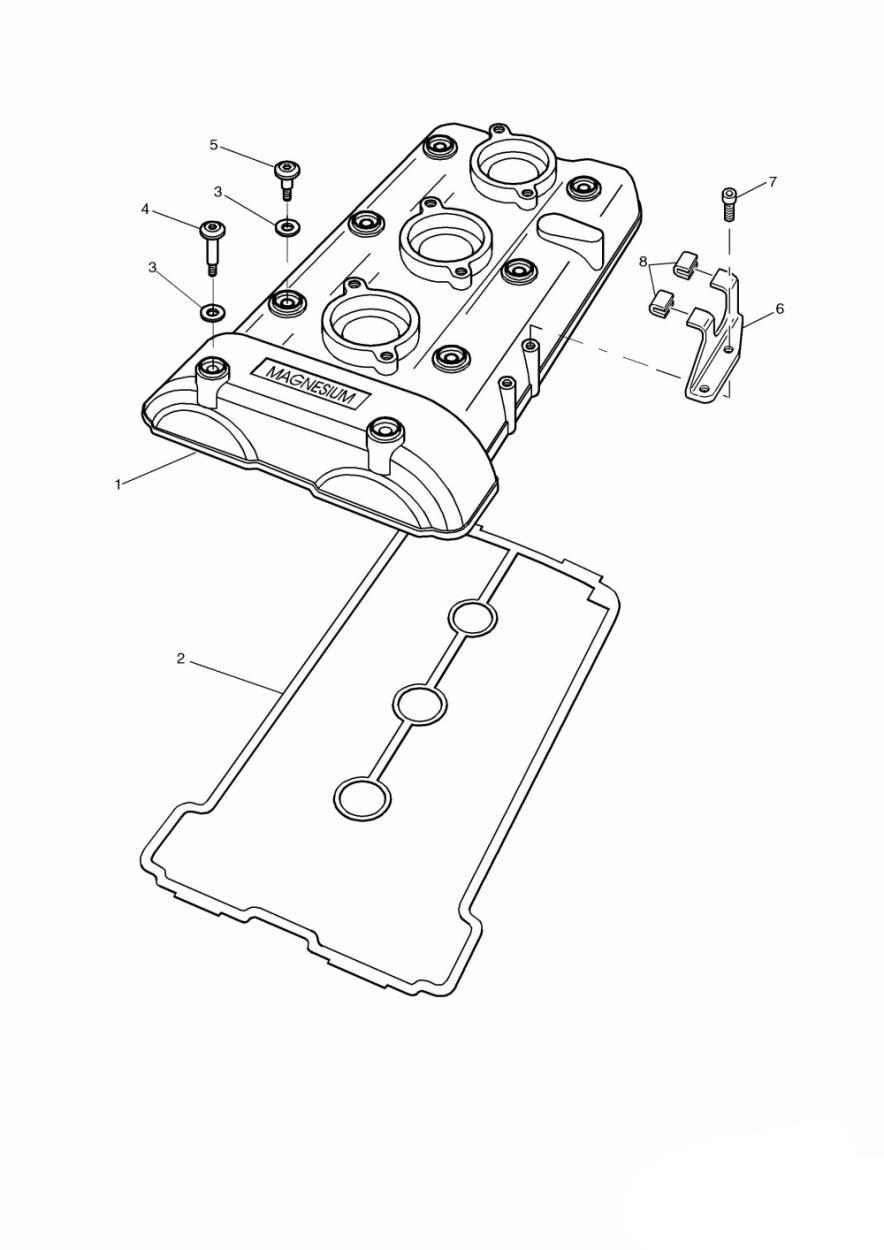

Cam Cover
10 parts

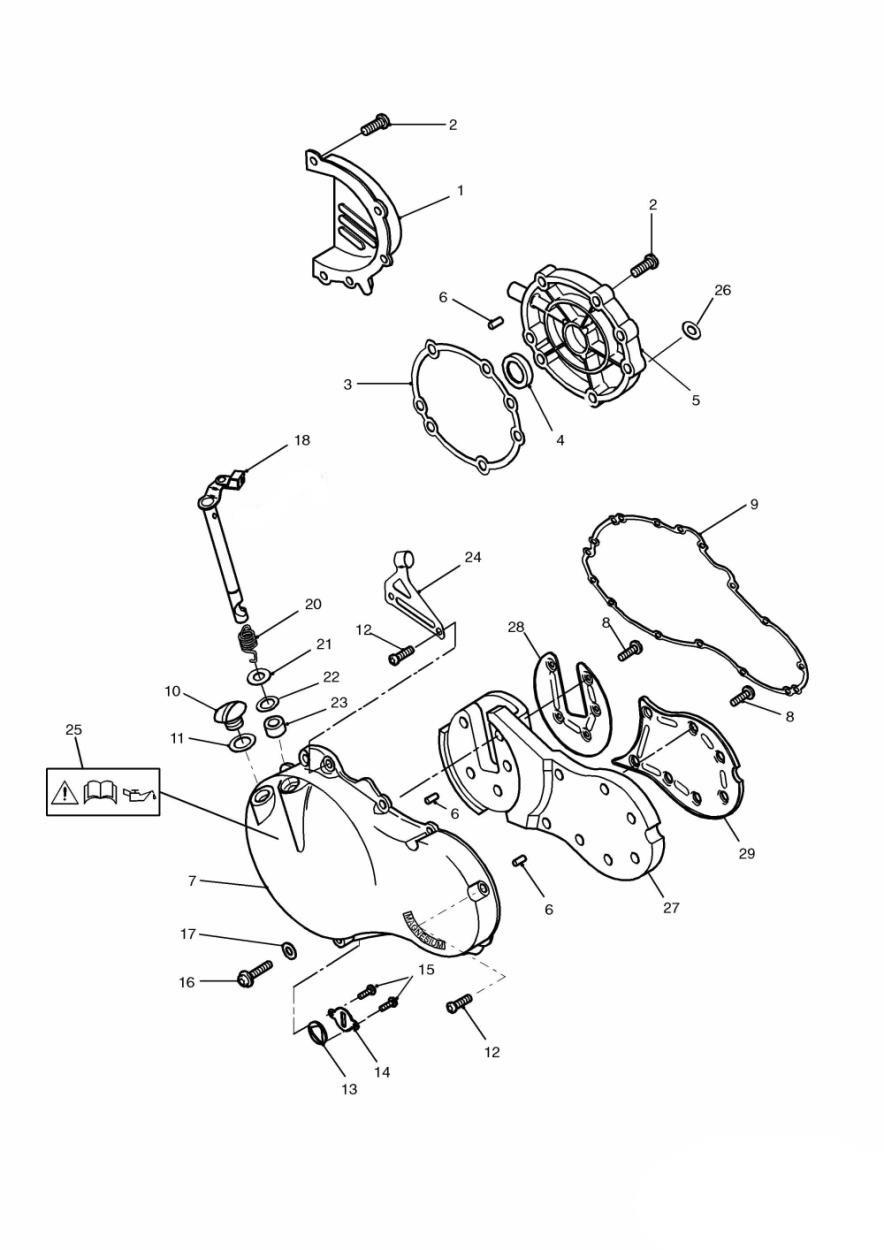

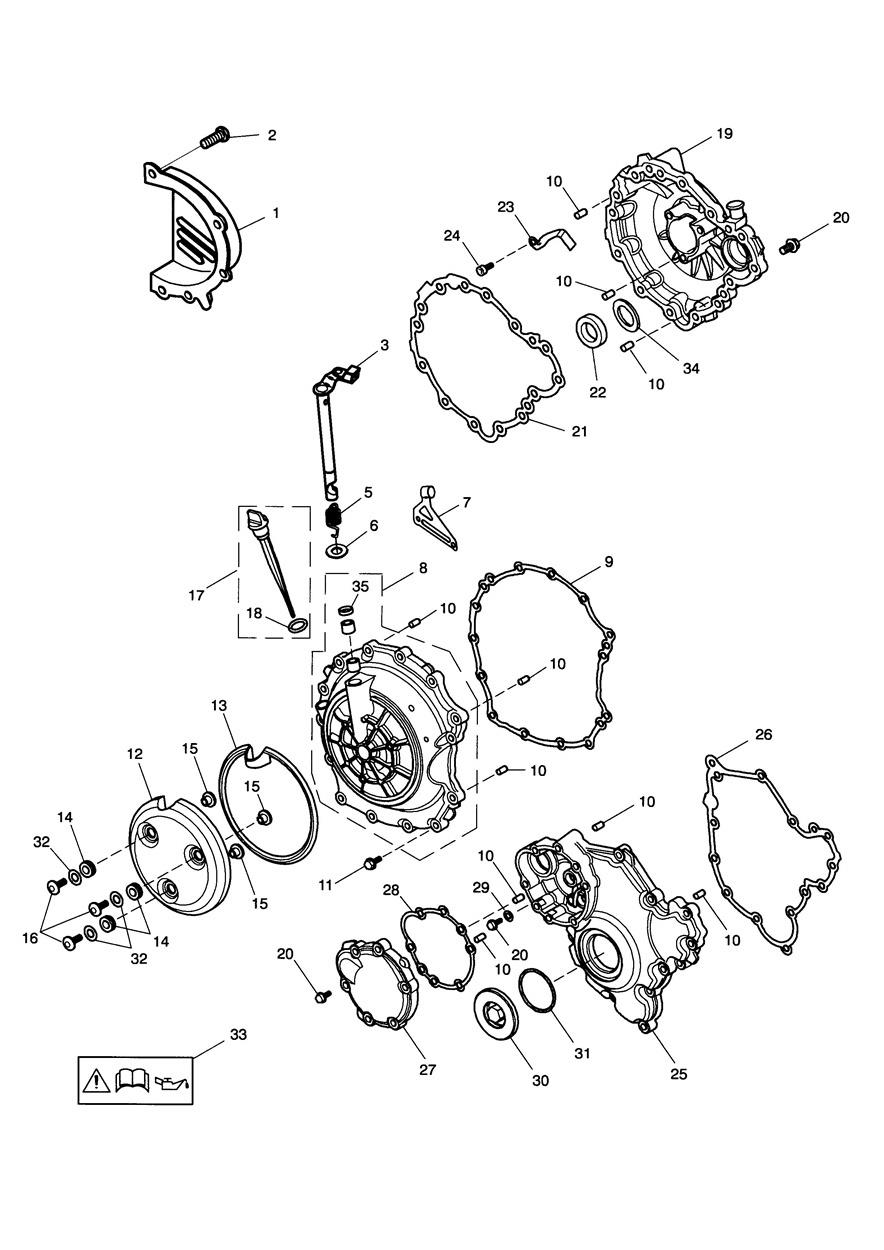

Engine Covers
42 parts

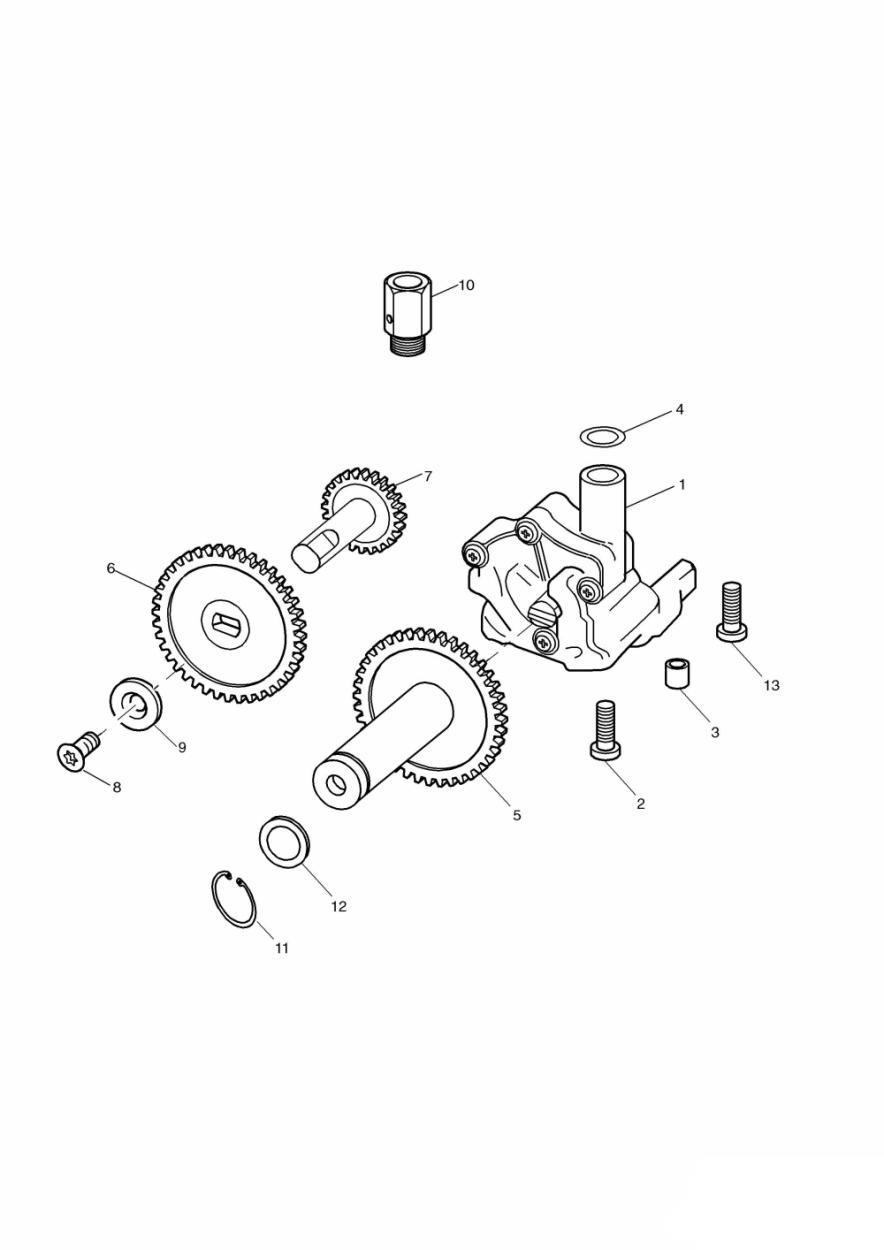

Oil Pump/Drive
25 parts

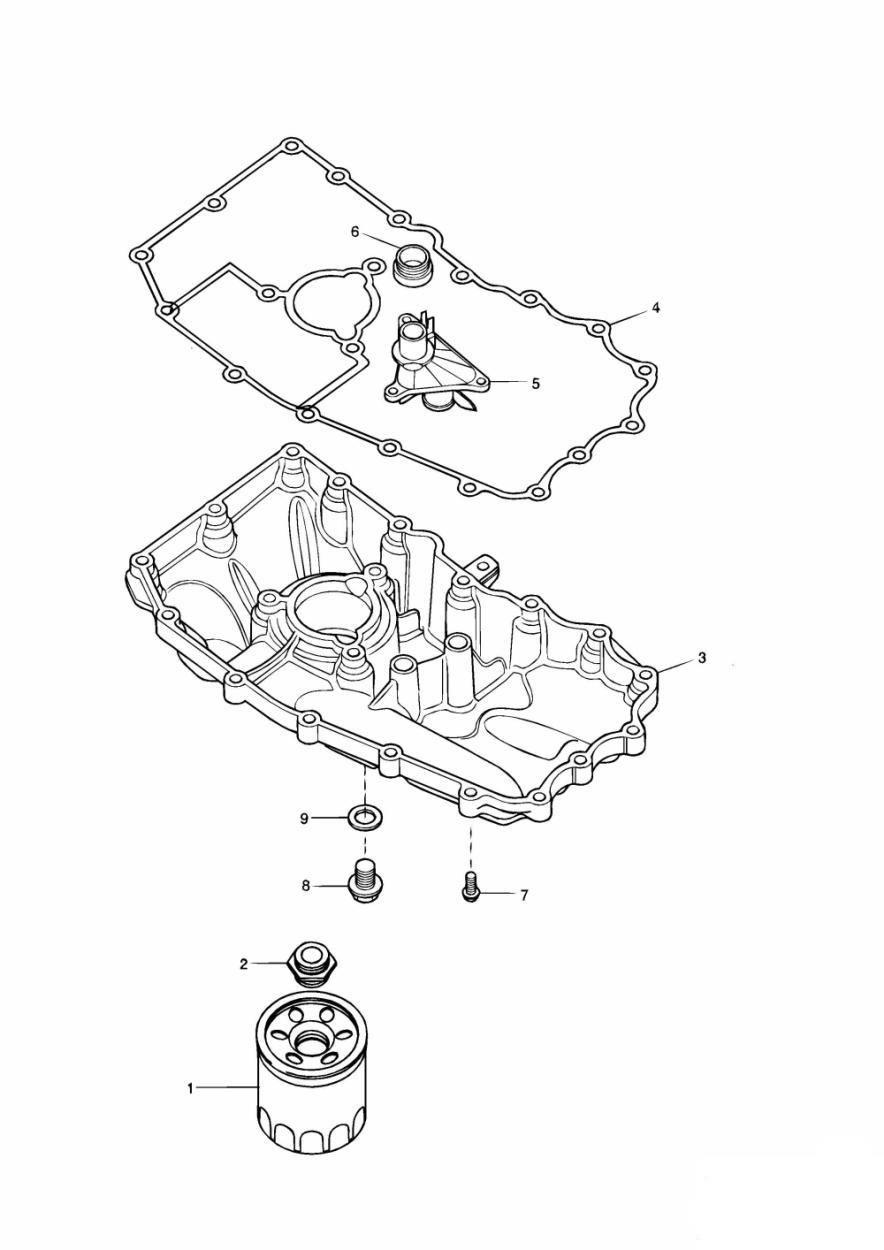

Sump & Fittings
11 parts

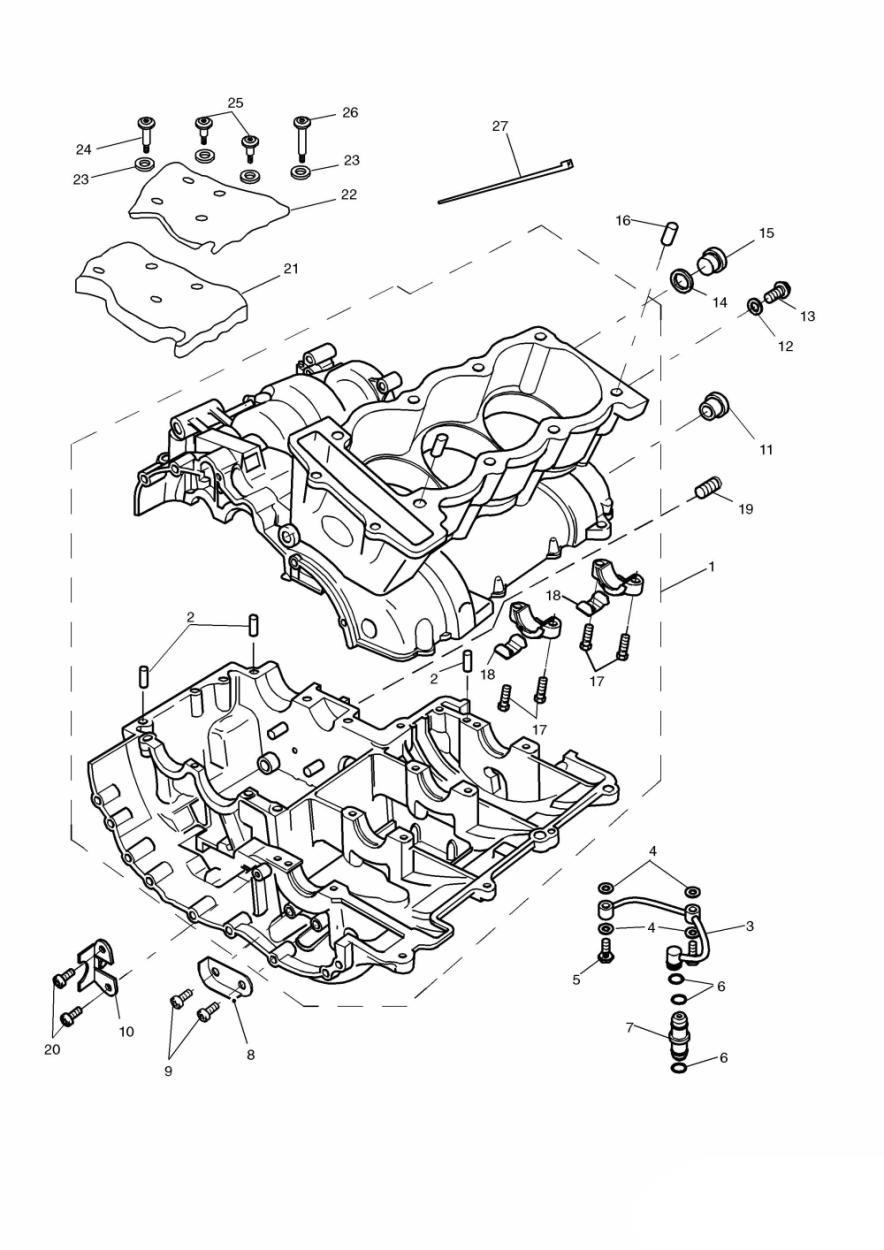

Crankcase
32 parts

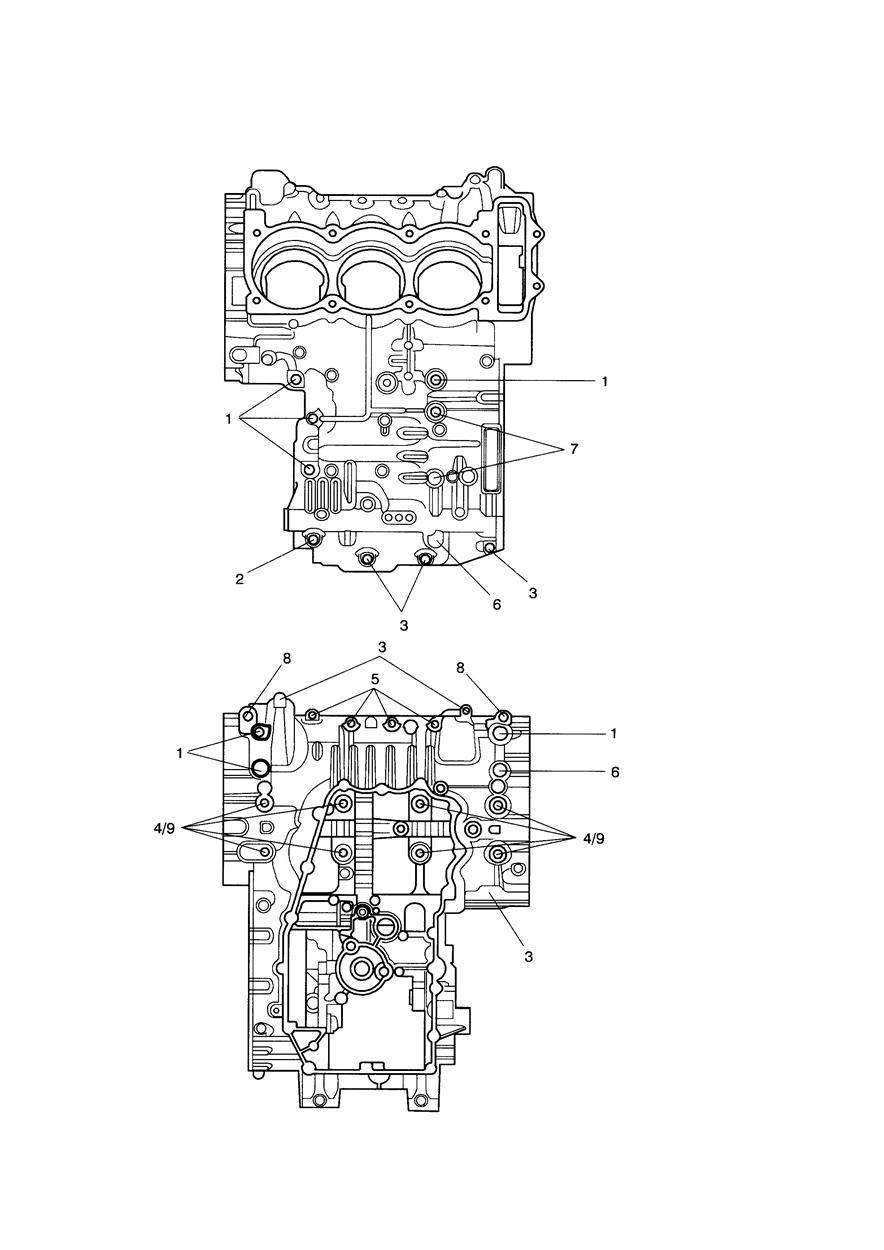

Crankcase Fixings
9 parts

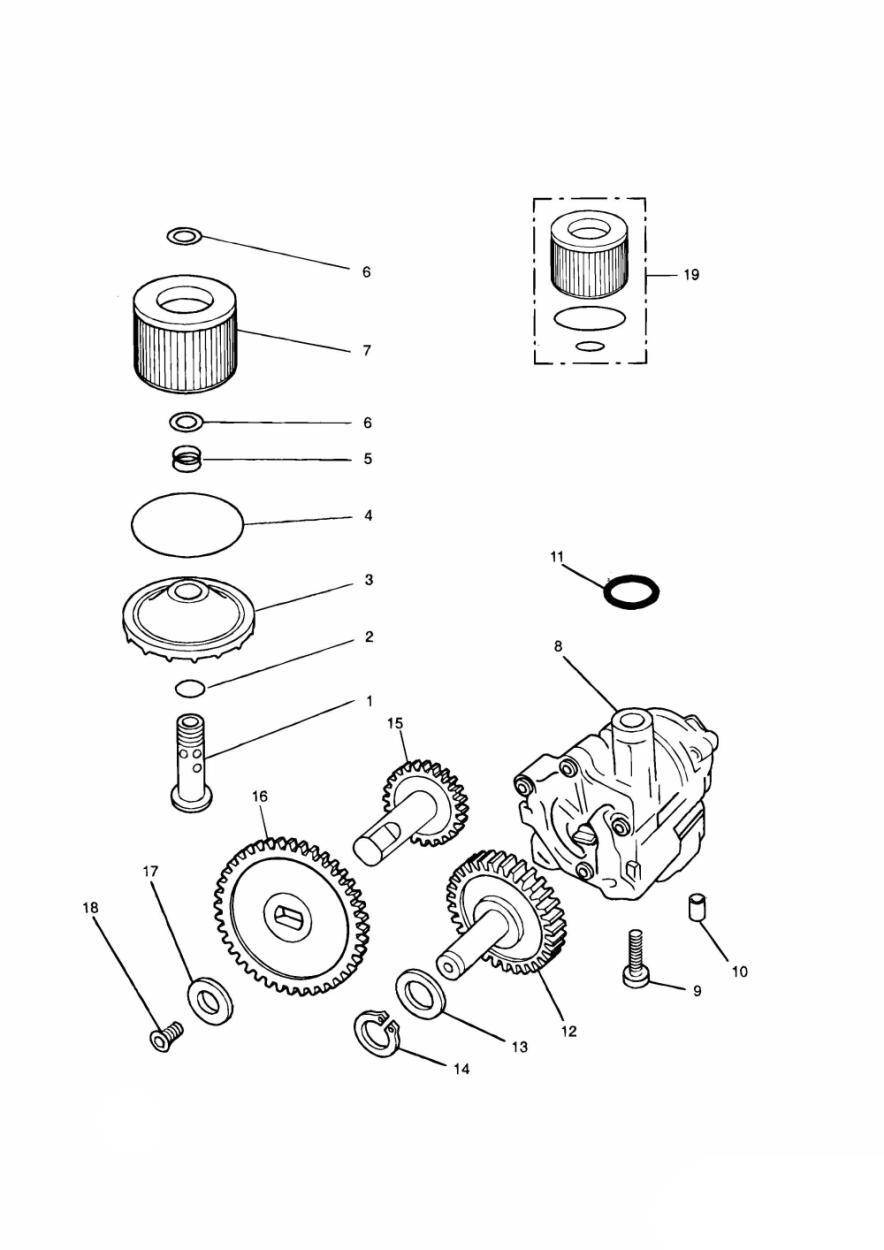

Lubrication System
23 parts

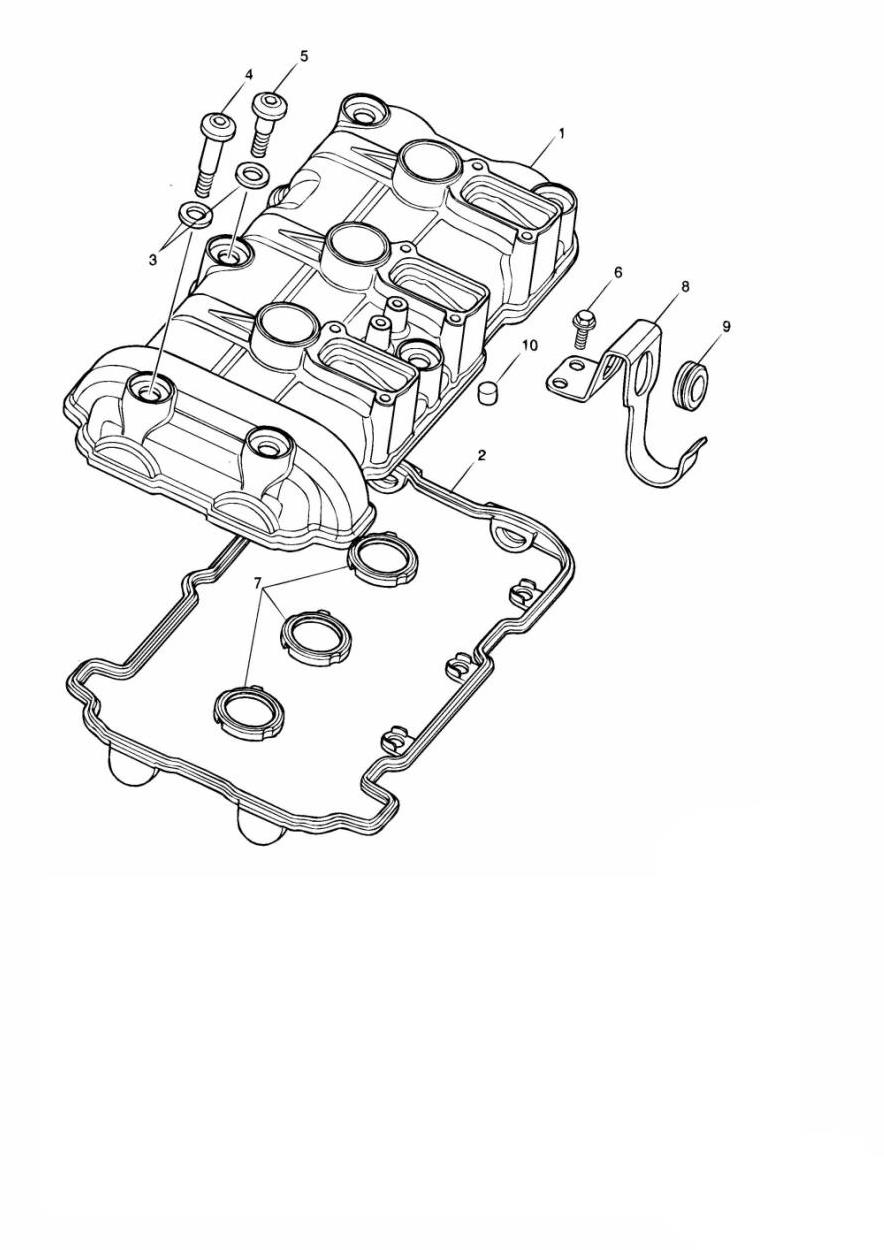

Cam Cover
12 parts
Crankcase
21 parts
Engine Covers
29 parts
Sump
36 parts
Lubrication System
32 parts

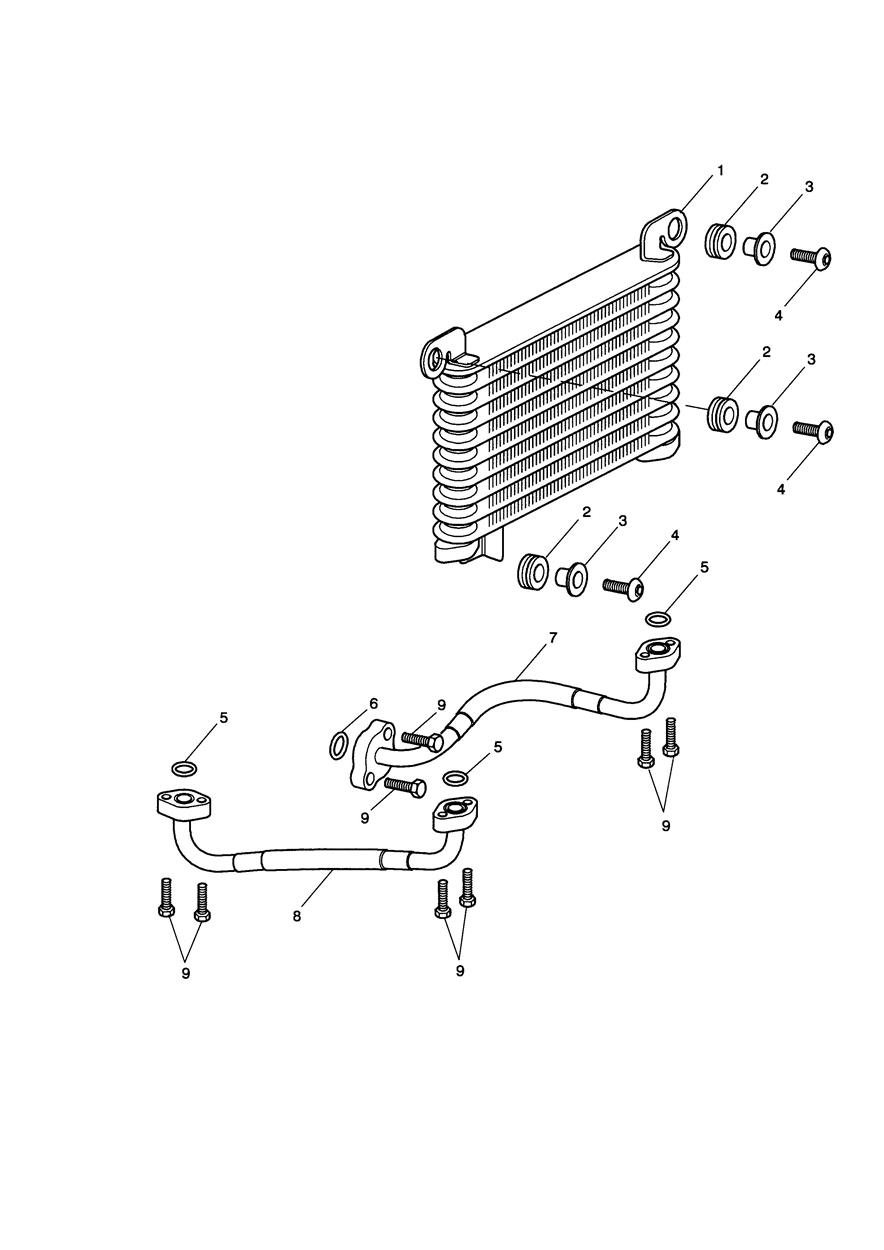

Oil Cooler
12 parts

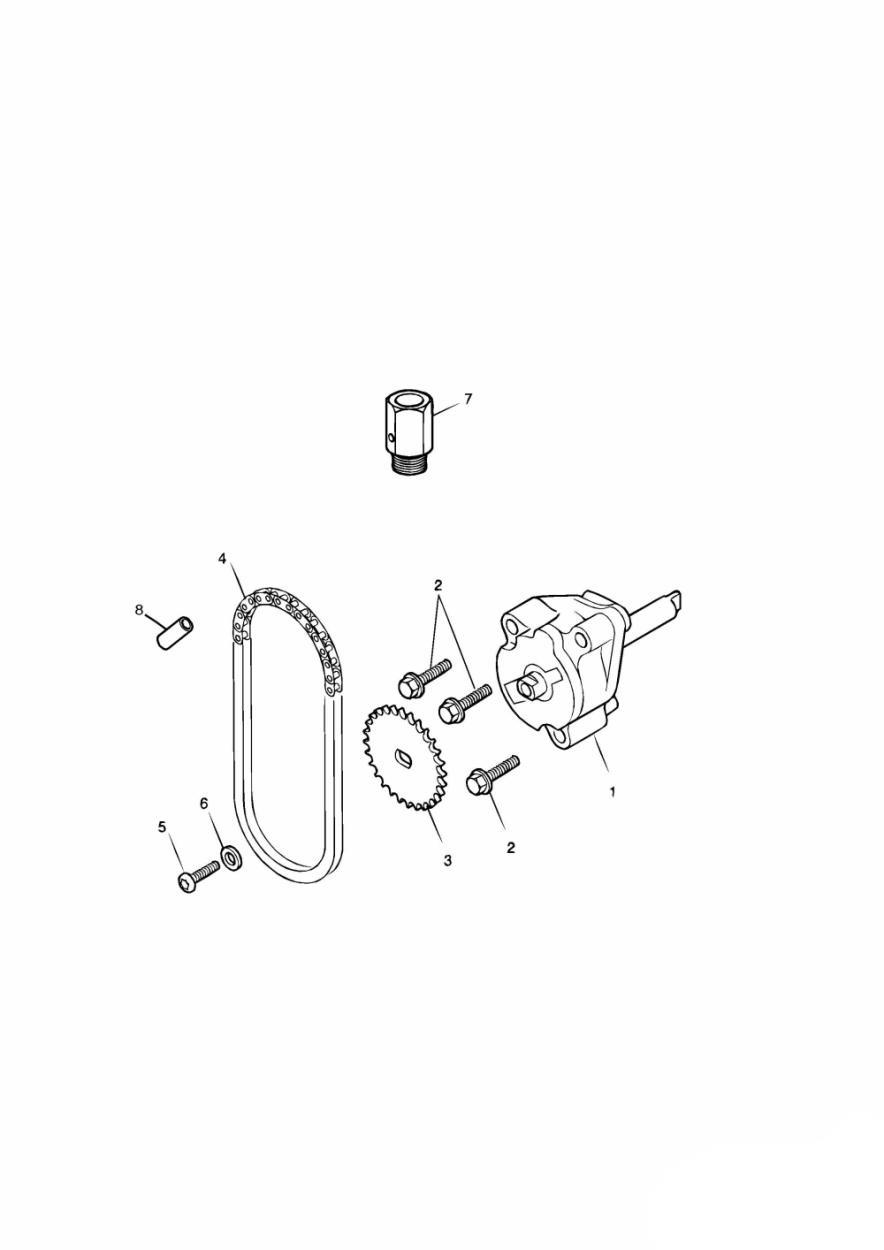

Oil Pump & Drive
9 parts
Sump
32 parts
Crankcase Fixings

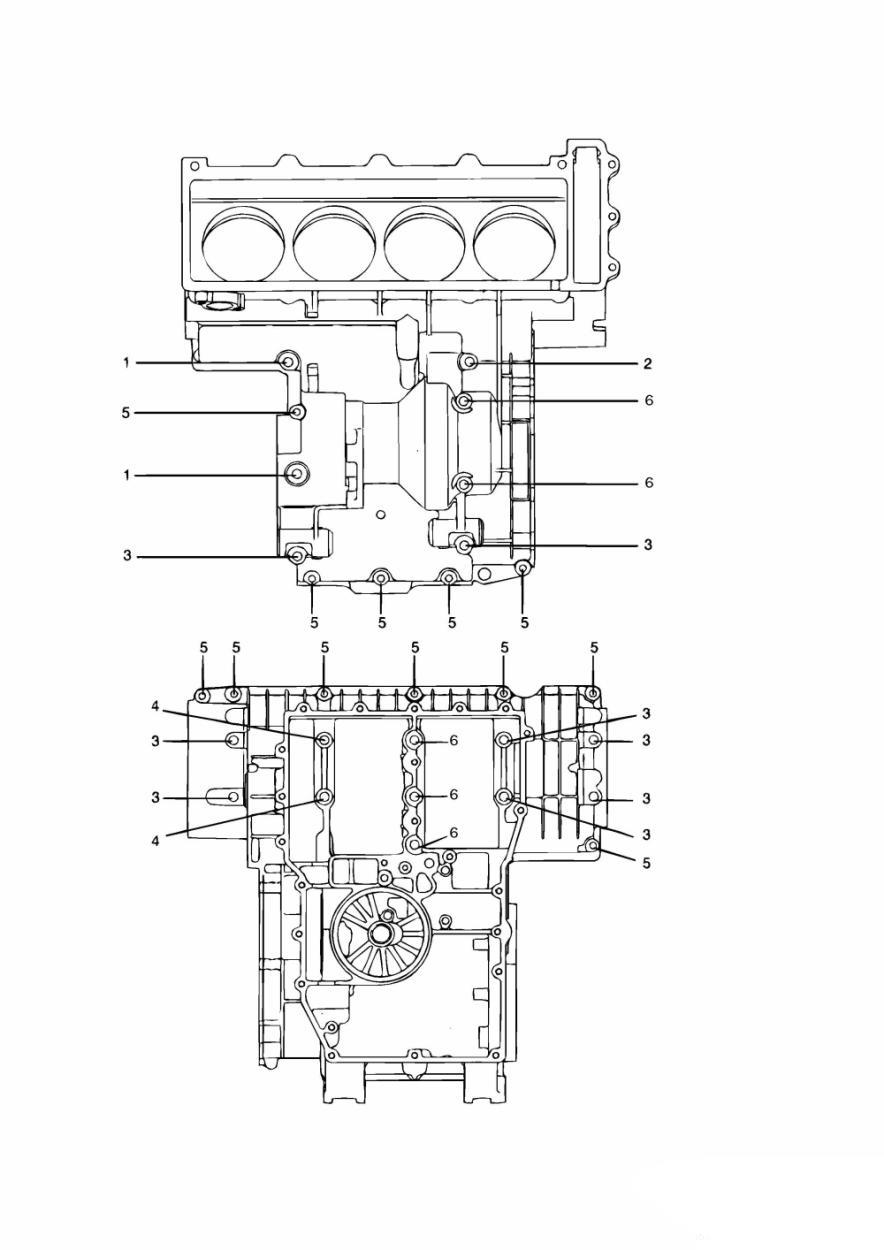

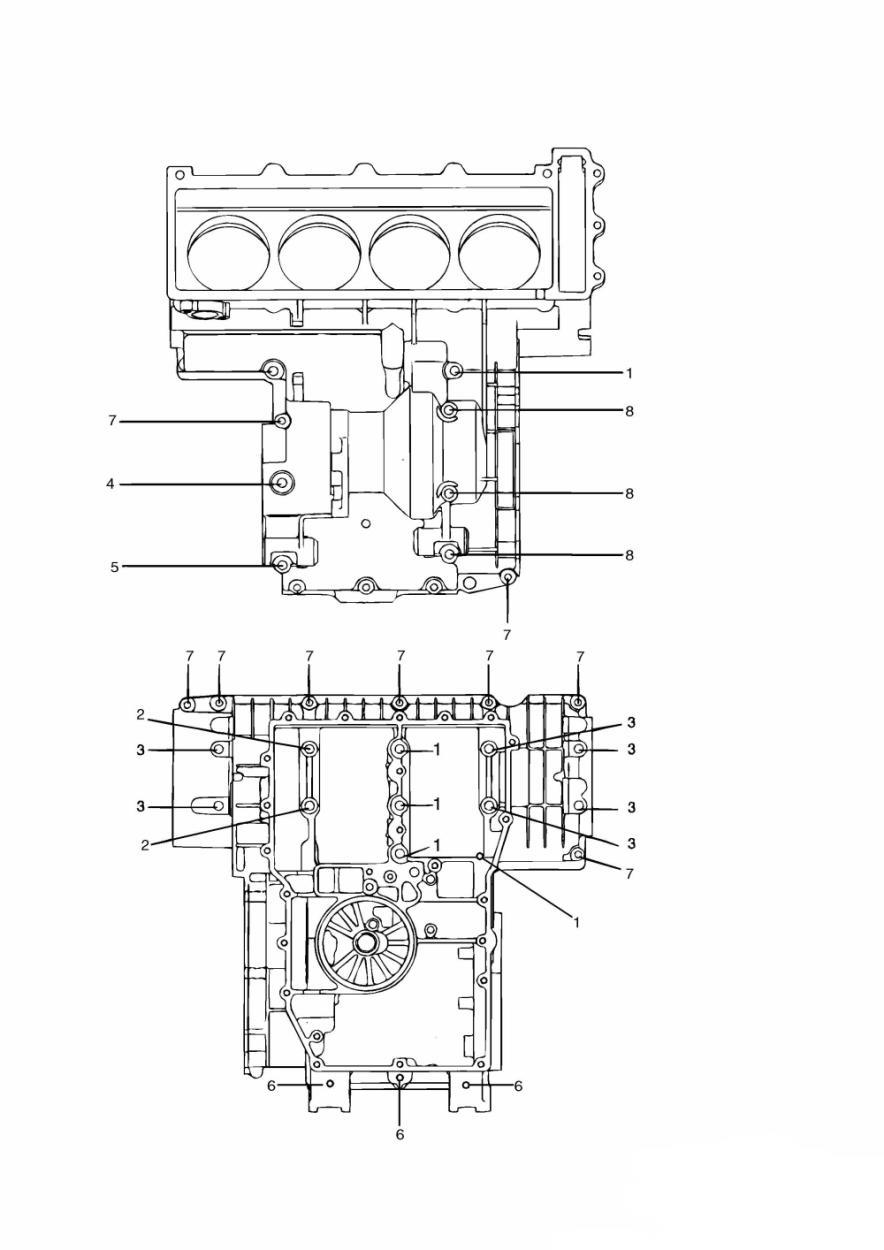

Crankcase Fixings 4 Cylinder
8 parts
Crankcase Fixings 4 Cylinder
8 parts
Crankcase Fixings Super III 3 Cylinder
7 parts

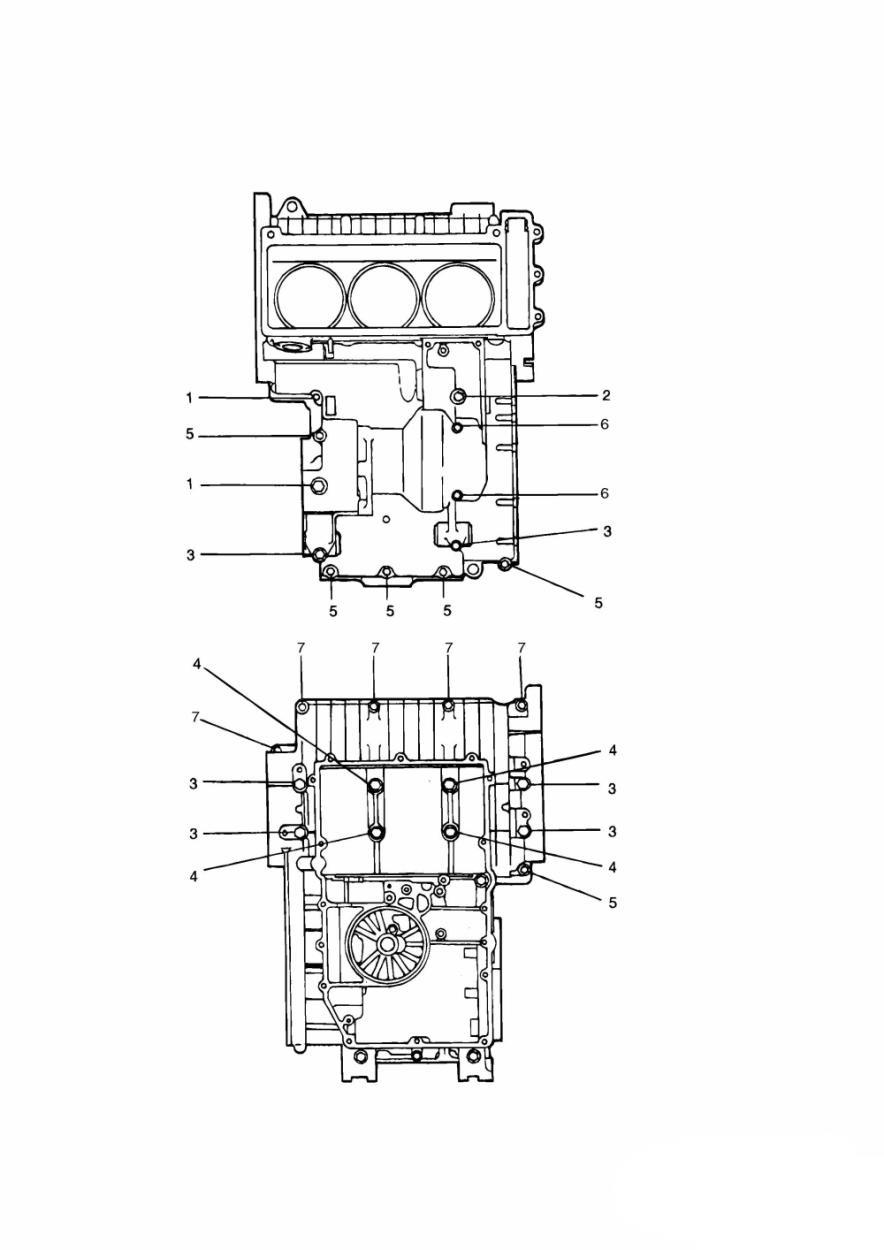

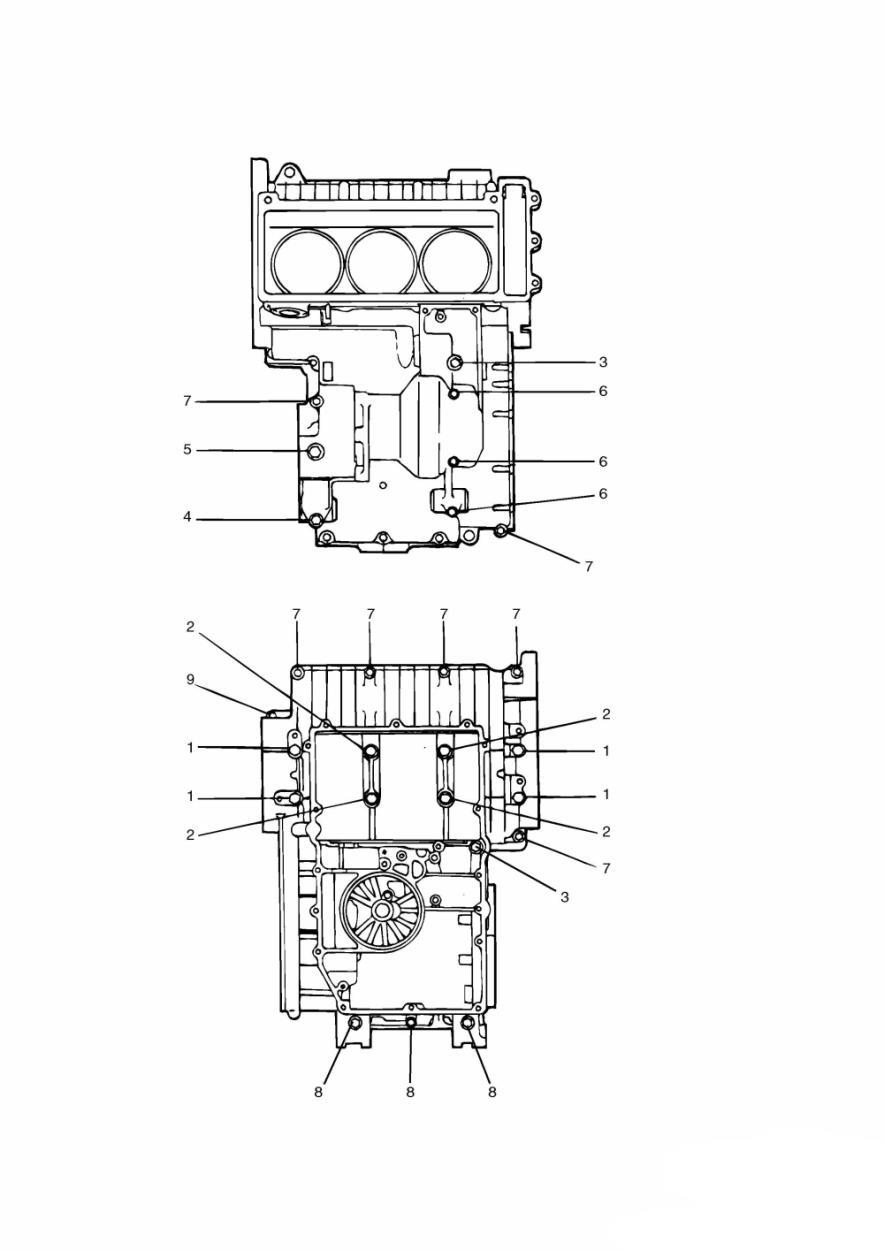

Crankcase Fixings 3 Cylinder
9 parts
Crankcase Fixings 4 Cylinder
7 parts
Crankcase Fixings 3 Cylinder
8 parts

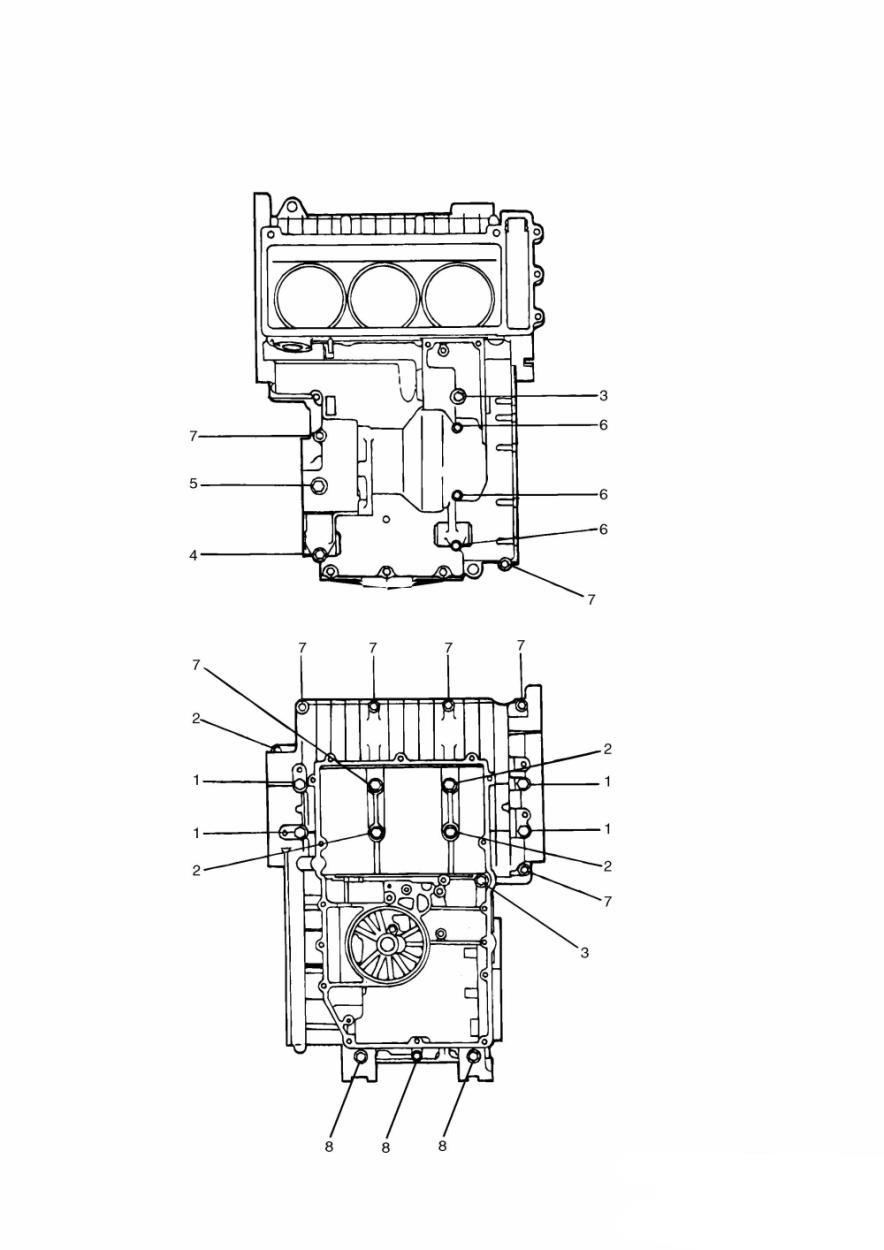

Crankcase Fixings Daytona 900 3 Cylinder
8 parts
Engine Covers

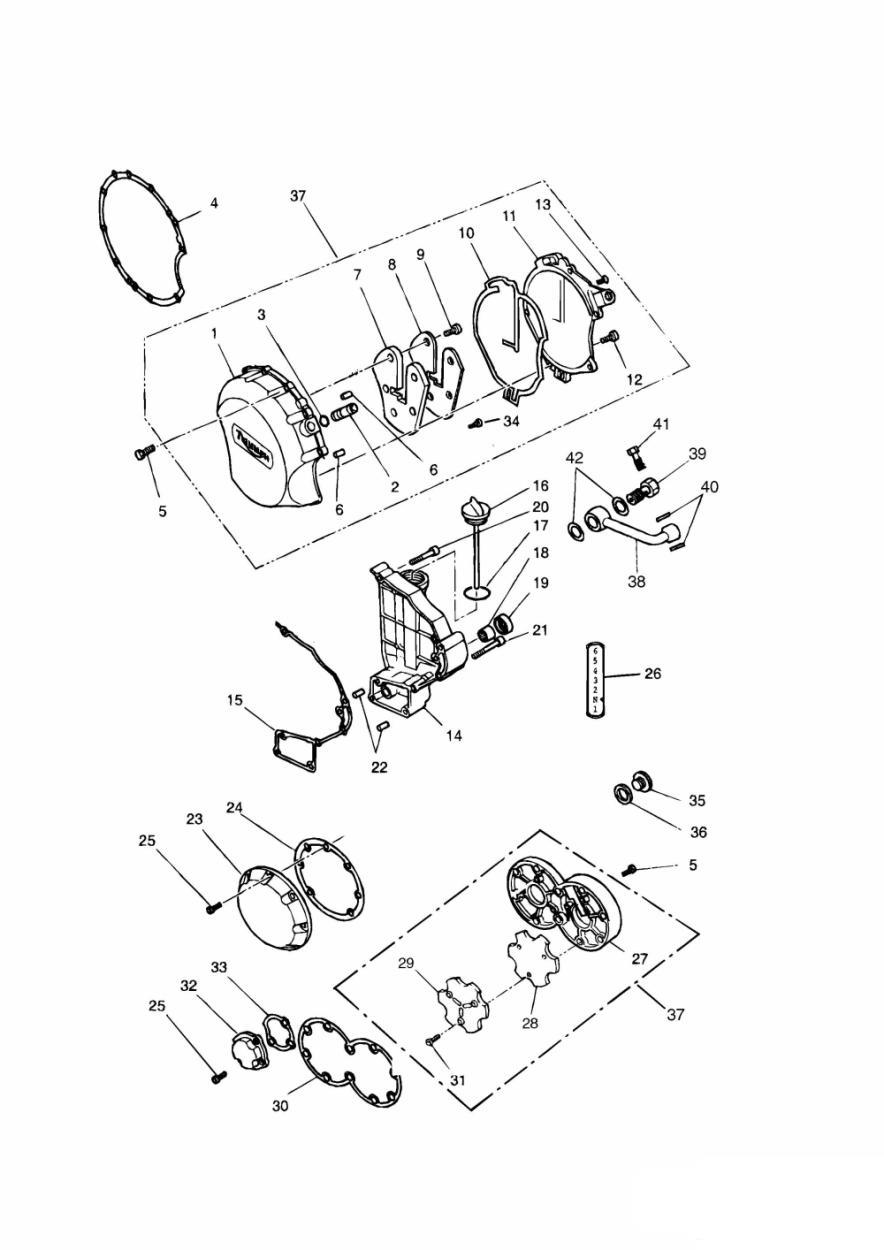

Engine Covers 3 Cylinder Silver
48 parts

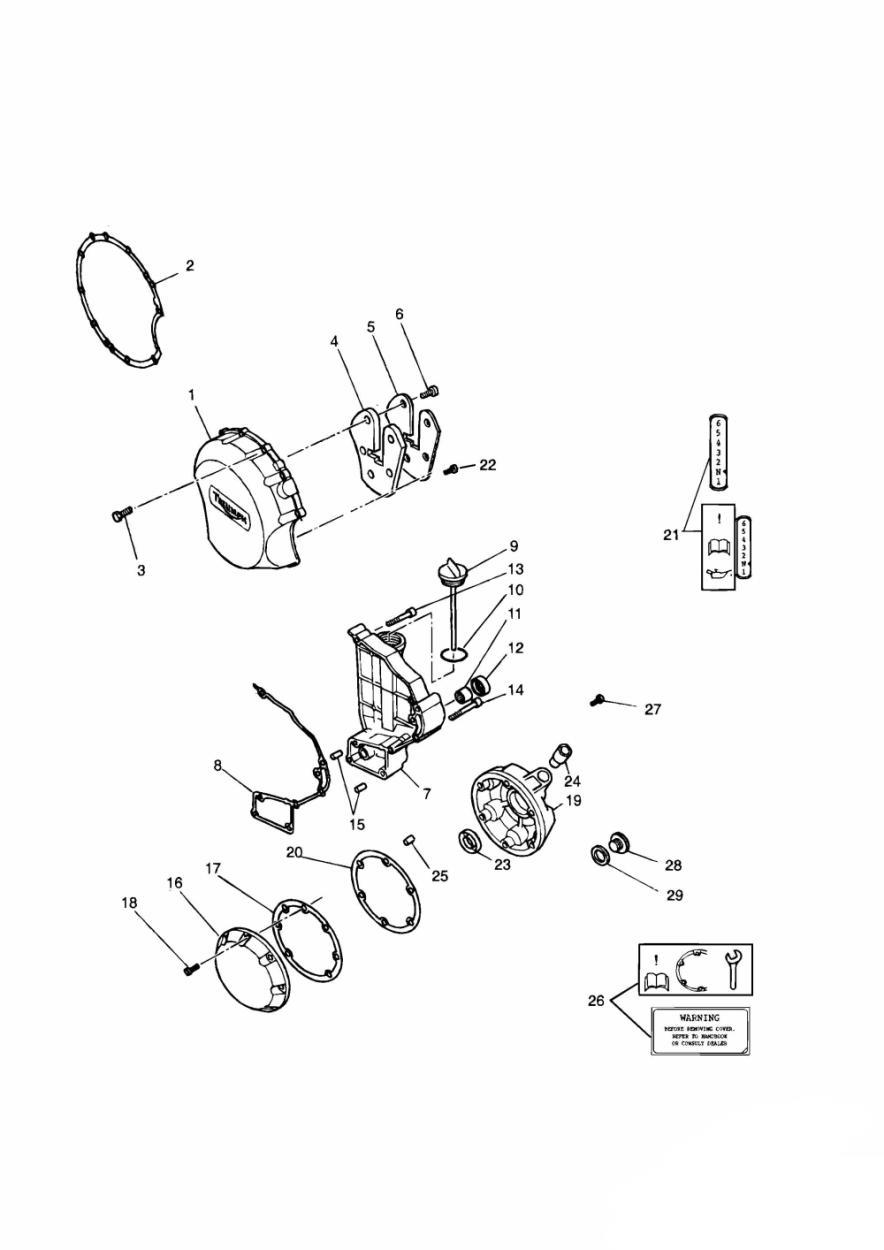

Engine Covers 4 Cylinder
32 parts

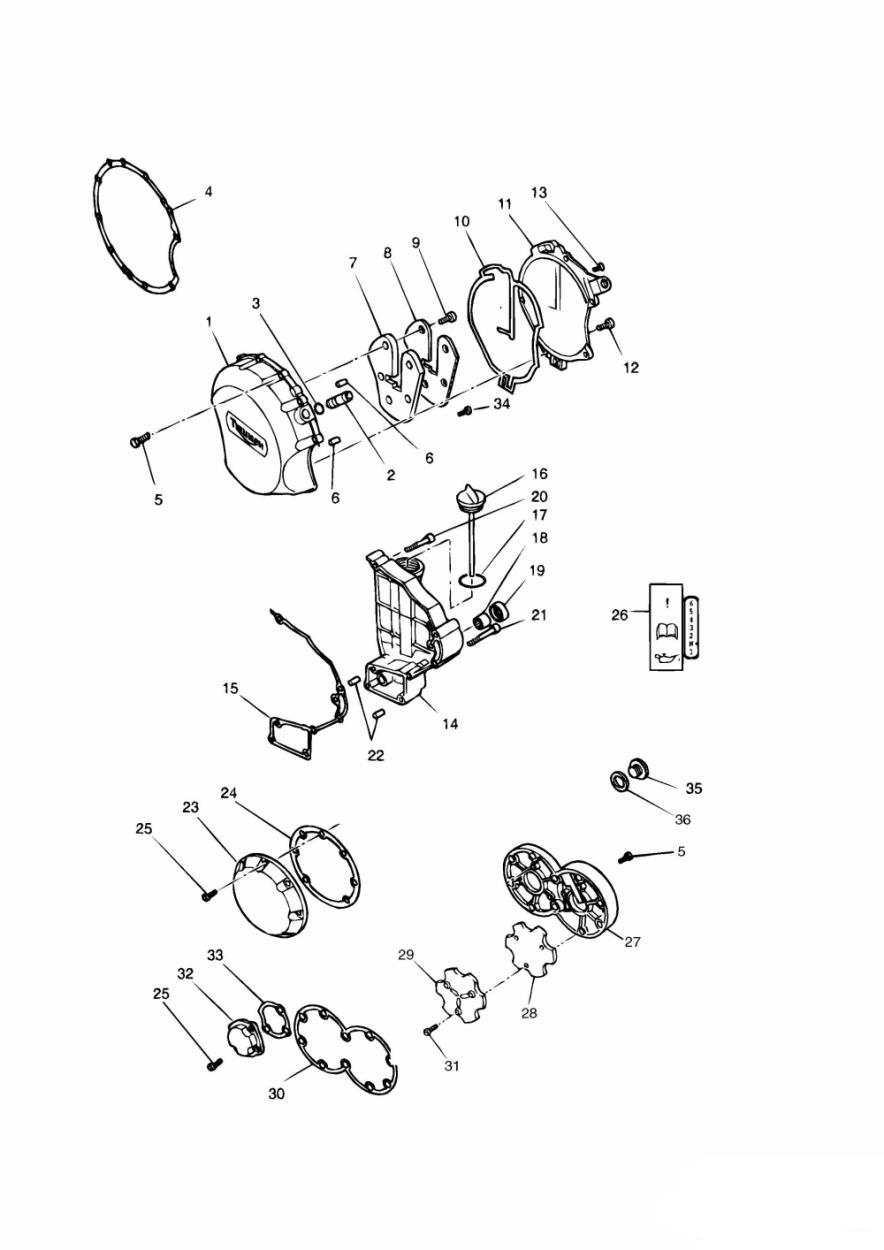

Engine Covers 3 Cylinder
40 parts

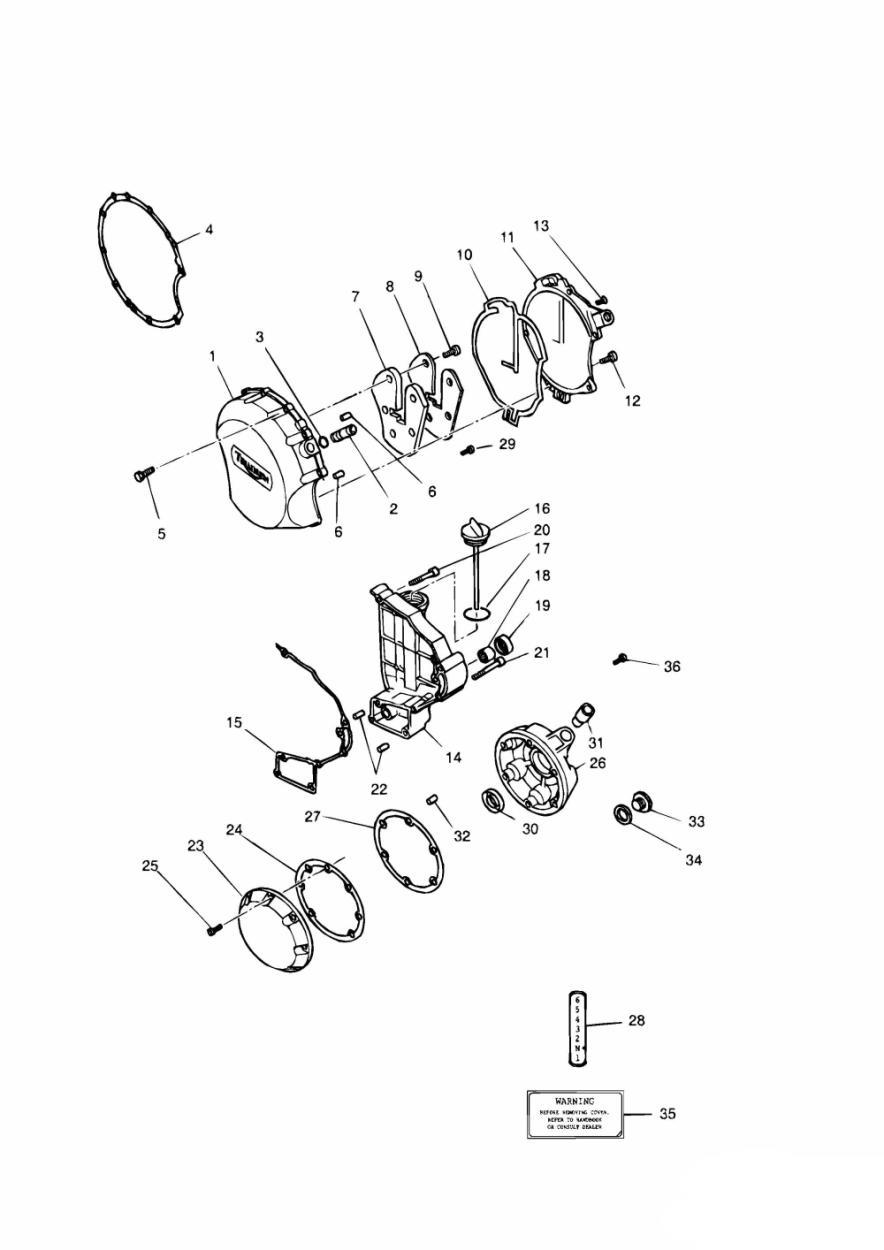

Engine Covers 4 Cylinder Silver
42 parts
