Fuel & Exhaust Systems
Triumph Daytona · 54 diagrams

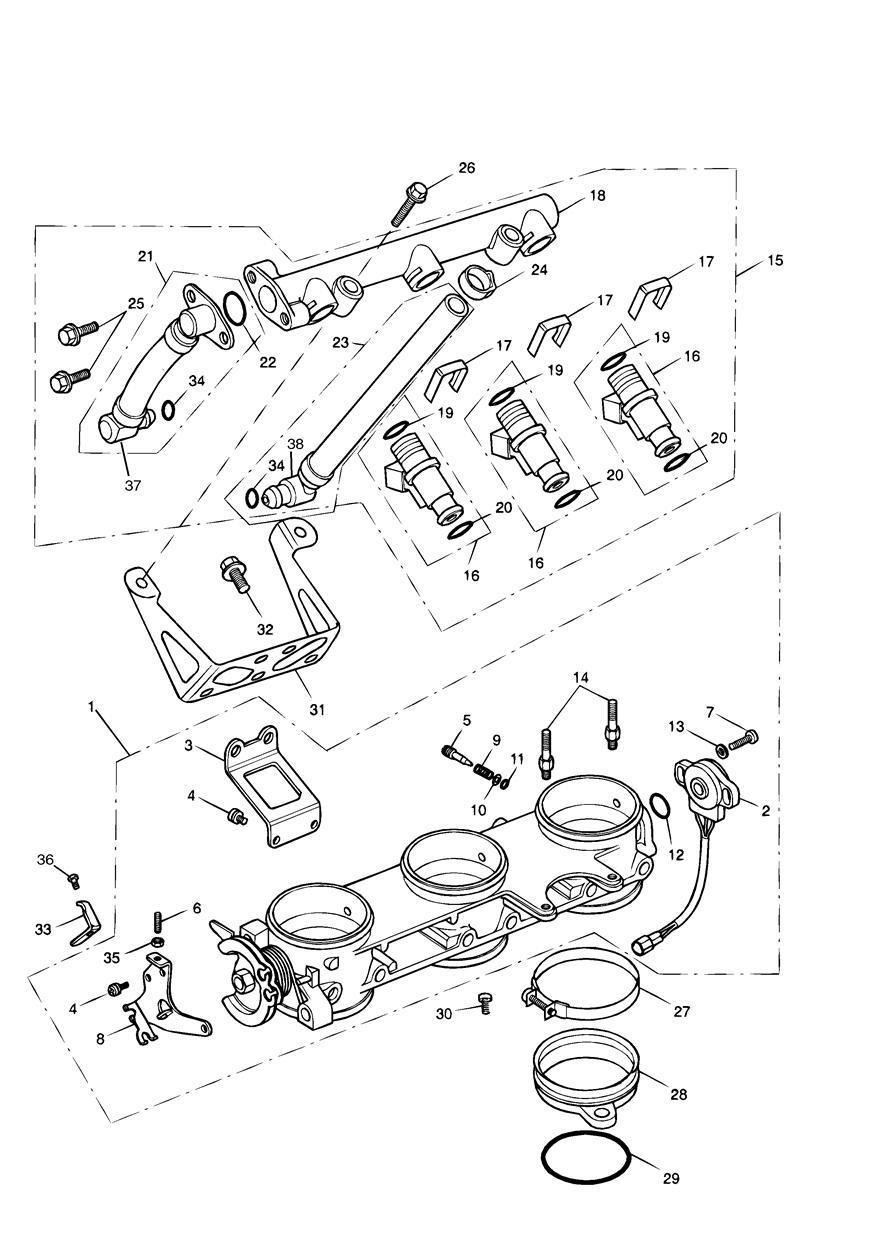

54 exploded diagrams for the fuel & exhaust systems of the Triumph Daytona, covering the Daytona 955i / T595. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Carburettor Parts

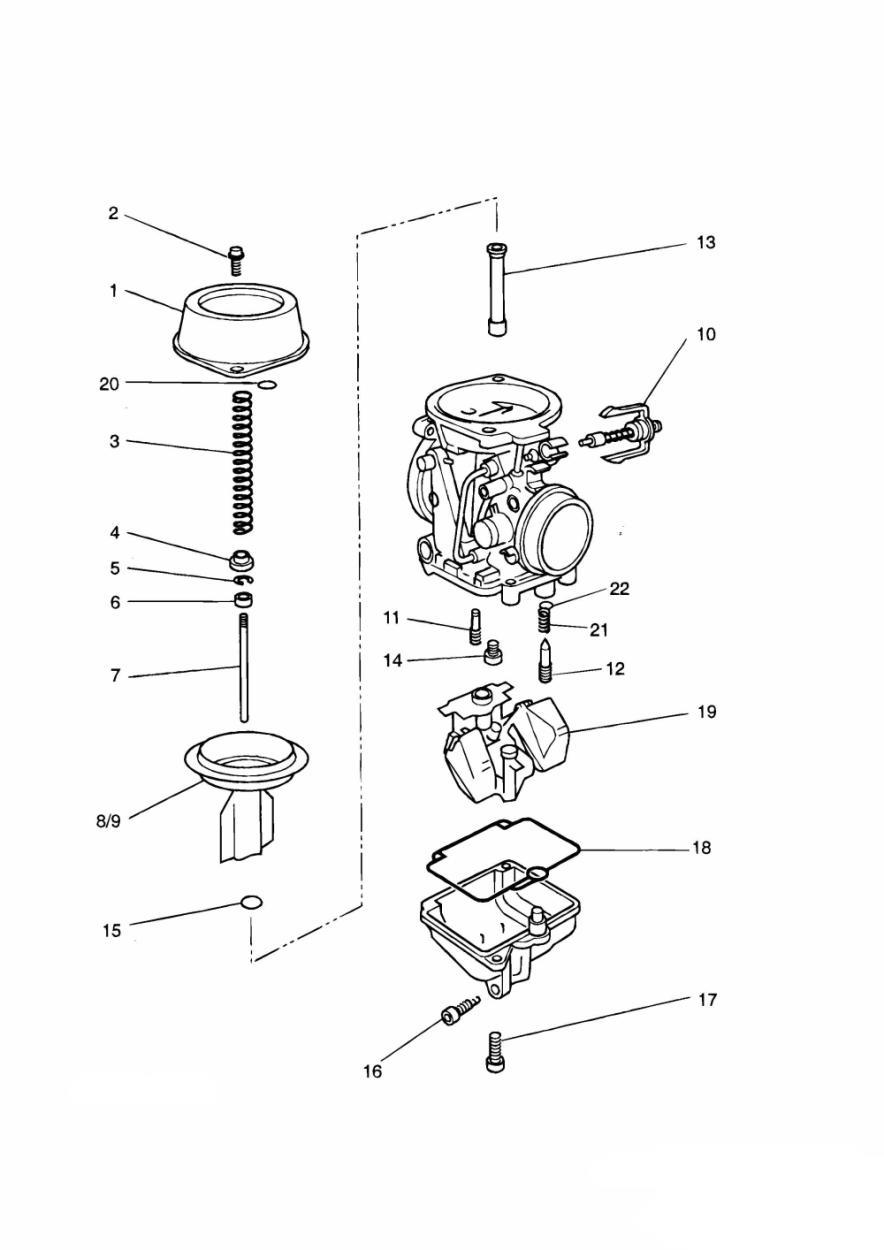

Carburettor Parts 4 Cyl (Carb assy T1240540)
24 parts
Carburettor Parts 4 Cyl (Carb assy 1240196-T0301)
24 parts
Carburettor Parts 3 Cyl (Carb assy T1240635)
23 parts
Carburettor Parts 3 Cyl (Carb assy T1240900, T1240620 & 1240199-T0301)
23 parts
Carburettor Parts 4 Cyl (Carb assy 1240137-T0301)
23 parts
Carburettor Parts 3 Cyl (Carb assy 1240120-T0301)
23 parts
Carburettor Parts 4 Cyl (Carb assy 1240500-T0301 & T1240615)
23 parts
Carburettor Parts 3 Cyl (Carb assy 1240198-T0301)
23 parts
Carburettor Parts 4 Cyl (Carb assy 1240520-T0301)
22 parts
Carburettor Parts 3 Cyl (Carb assy T1240370)
23 parts
Carburettor Parts Carburettor assembly 1240140-T0301
24 parts
Carburettor Parts Carburettor assembly 1240125-T0301
23 parts
Carburettor Parts Carburettor assembly 1240199-T0301
23 parts

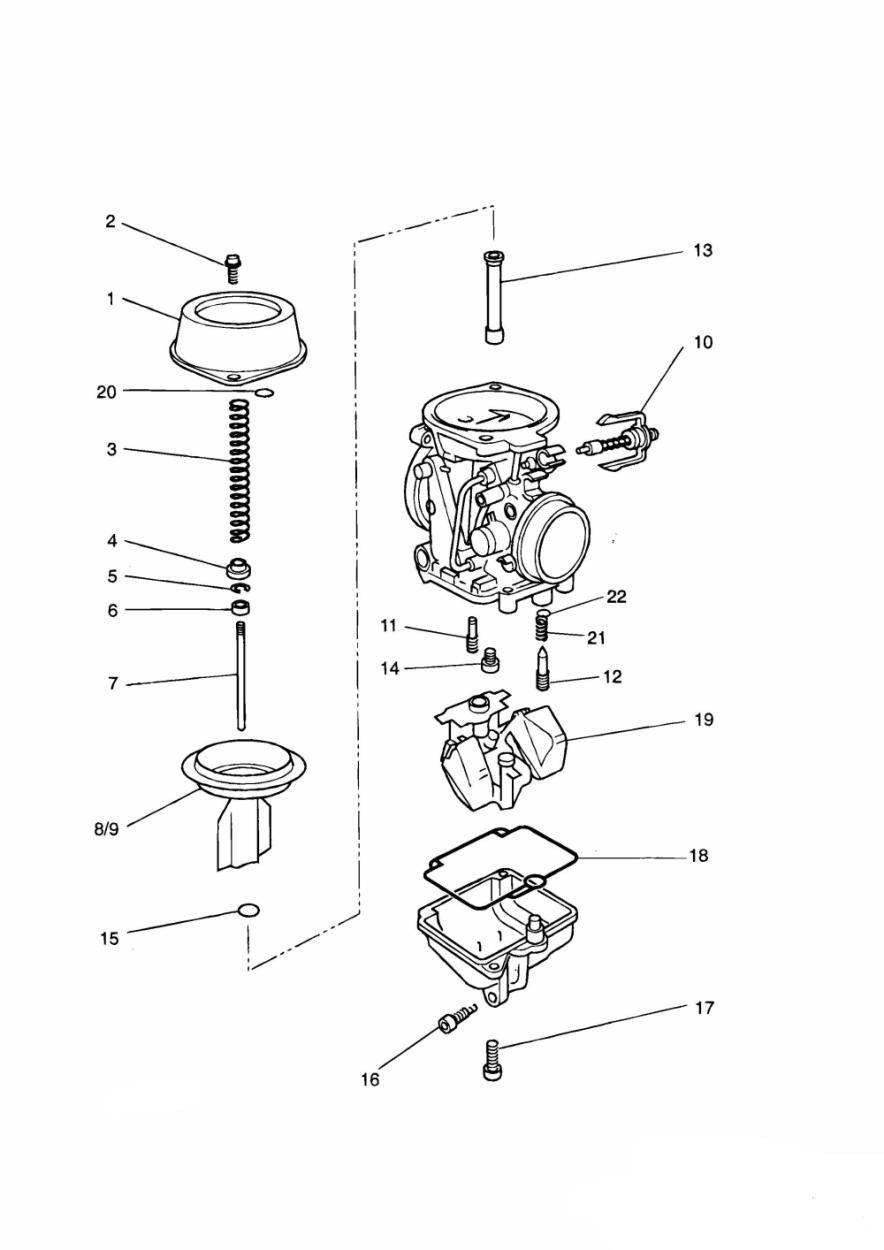

Carburettor Parts Carburettor assembly 1240146-T0301
22 parts

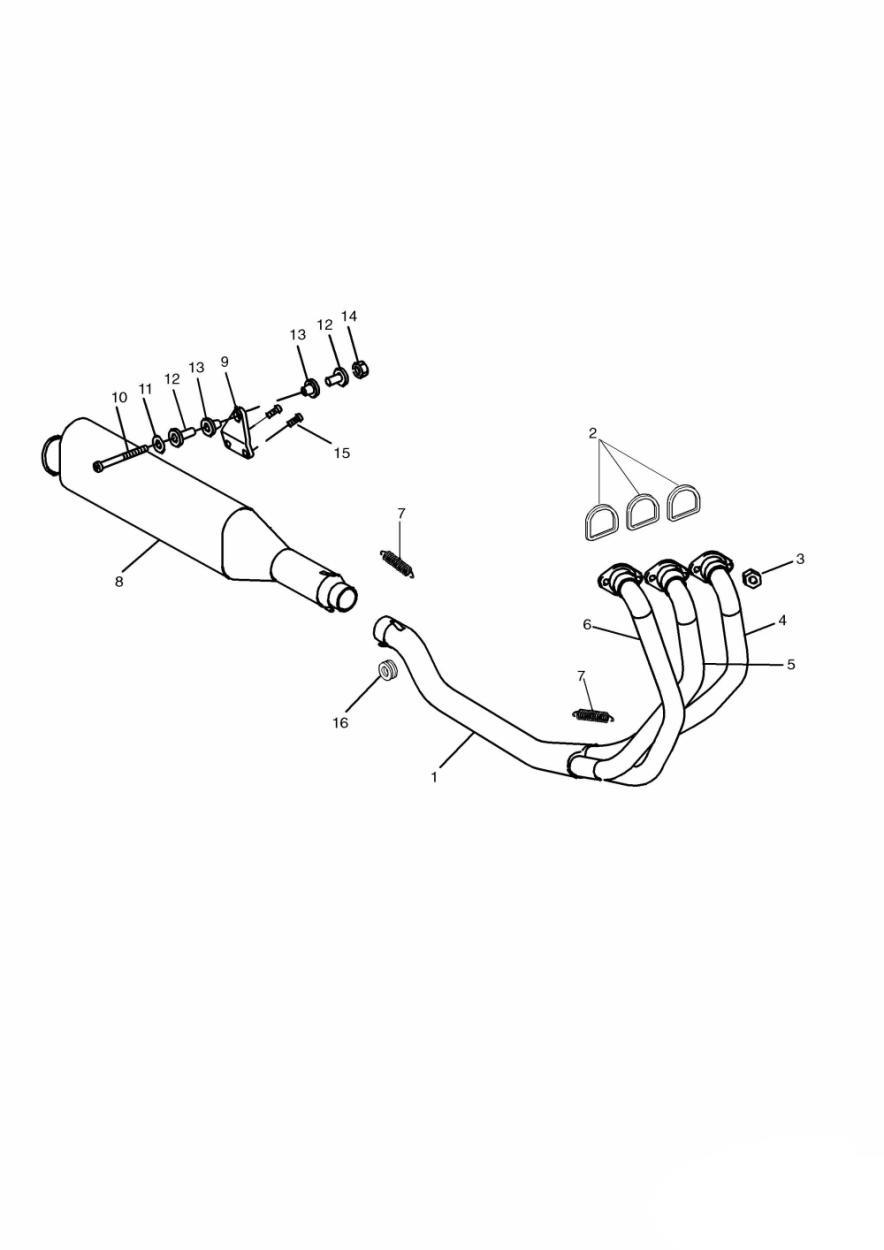

Exhaust System
17 parts

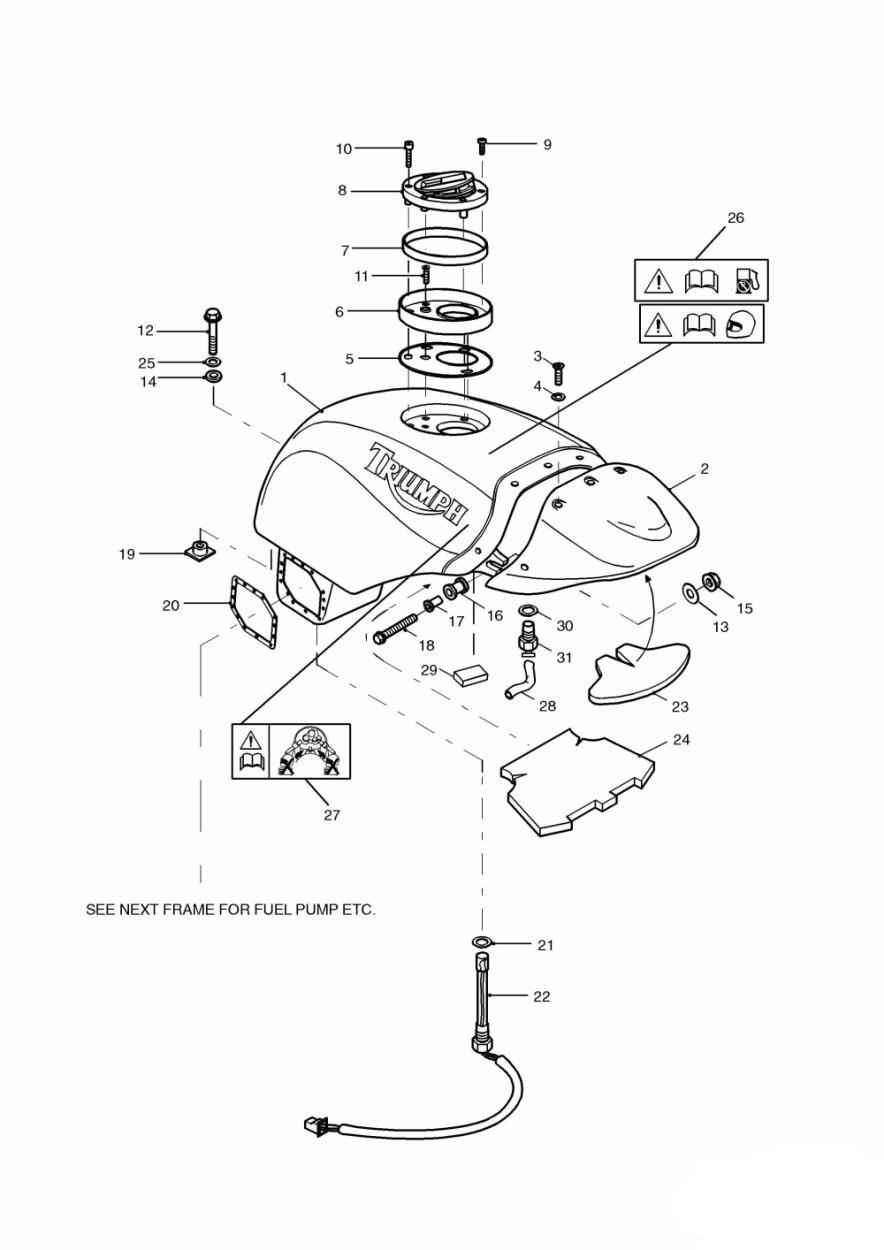

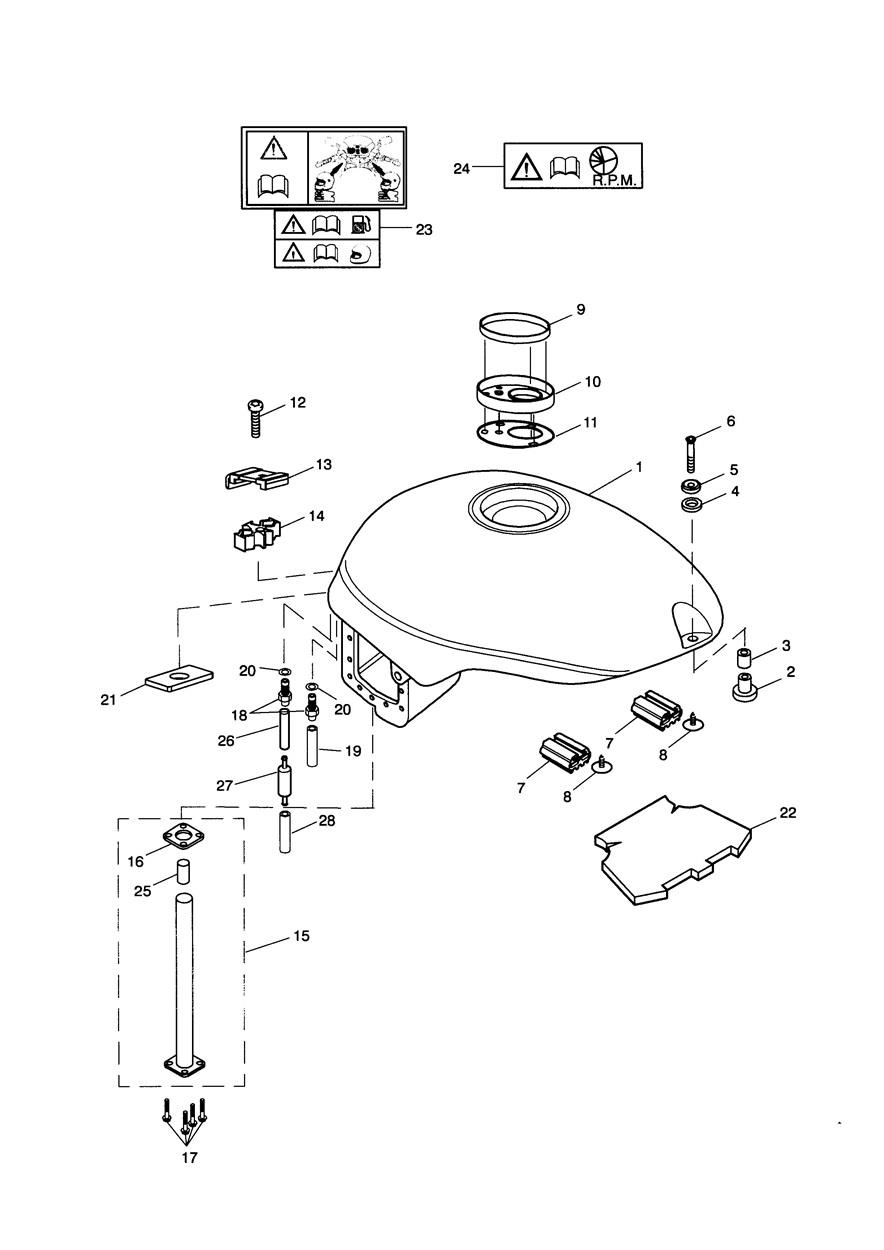

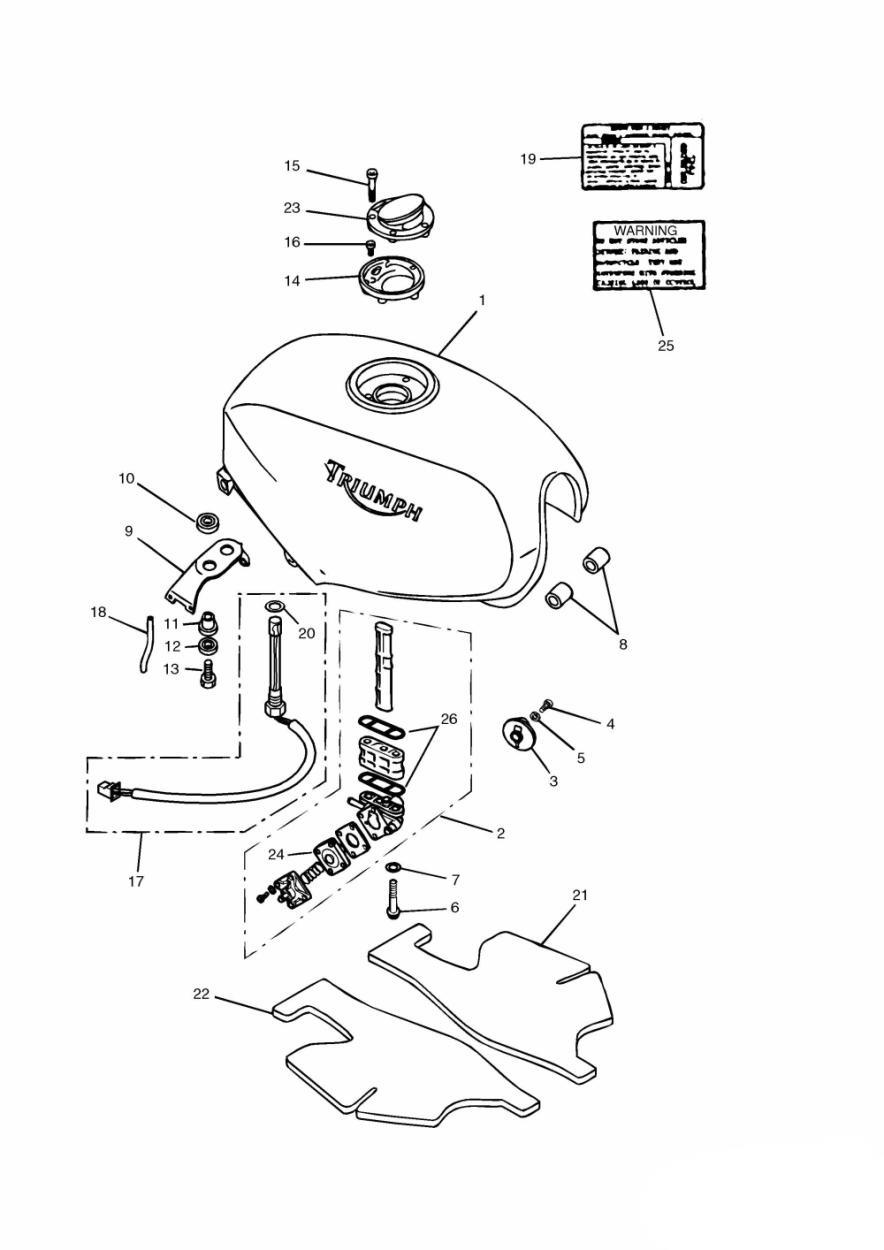

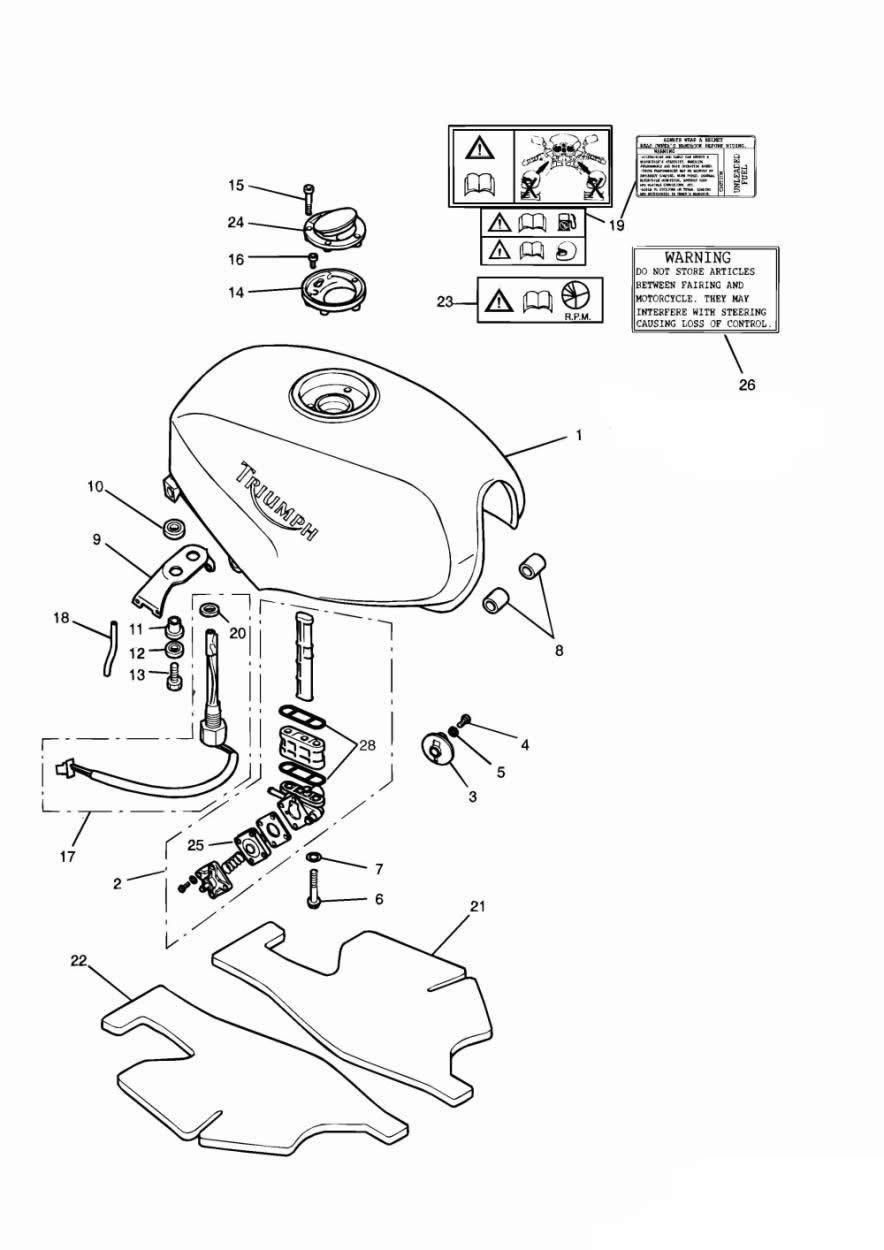

Fuel Tank and Fittings
30 parts

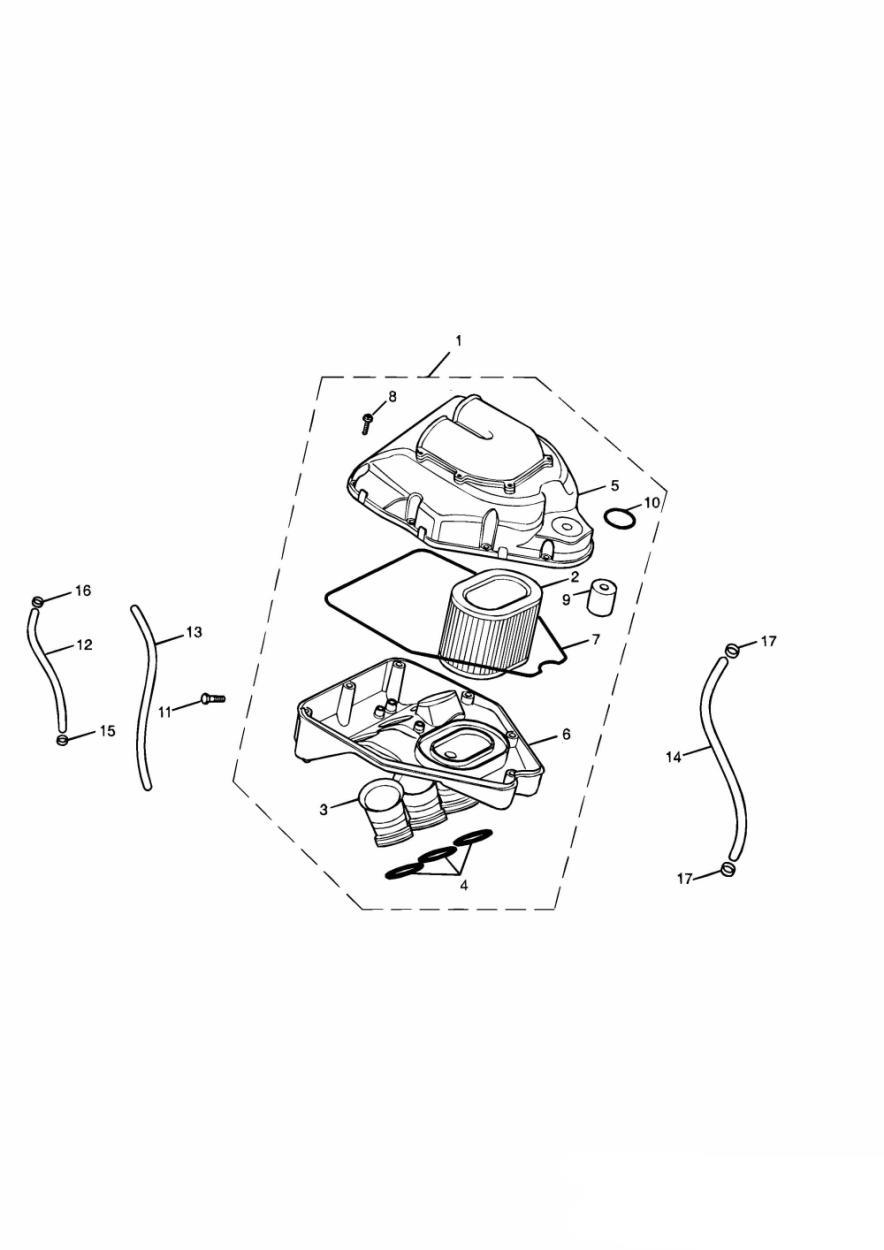

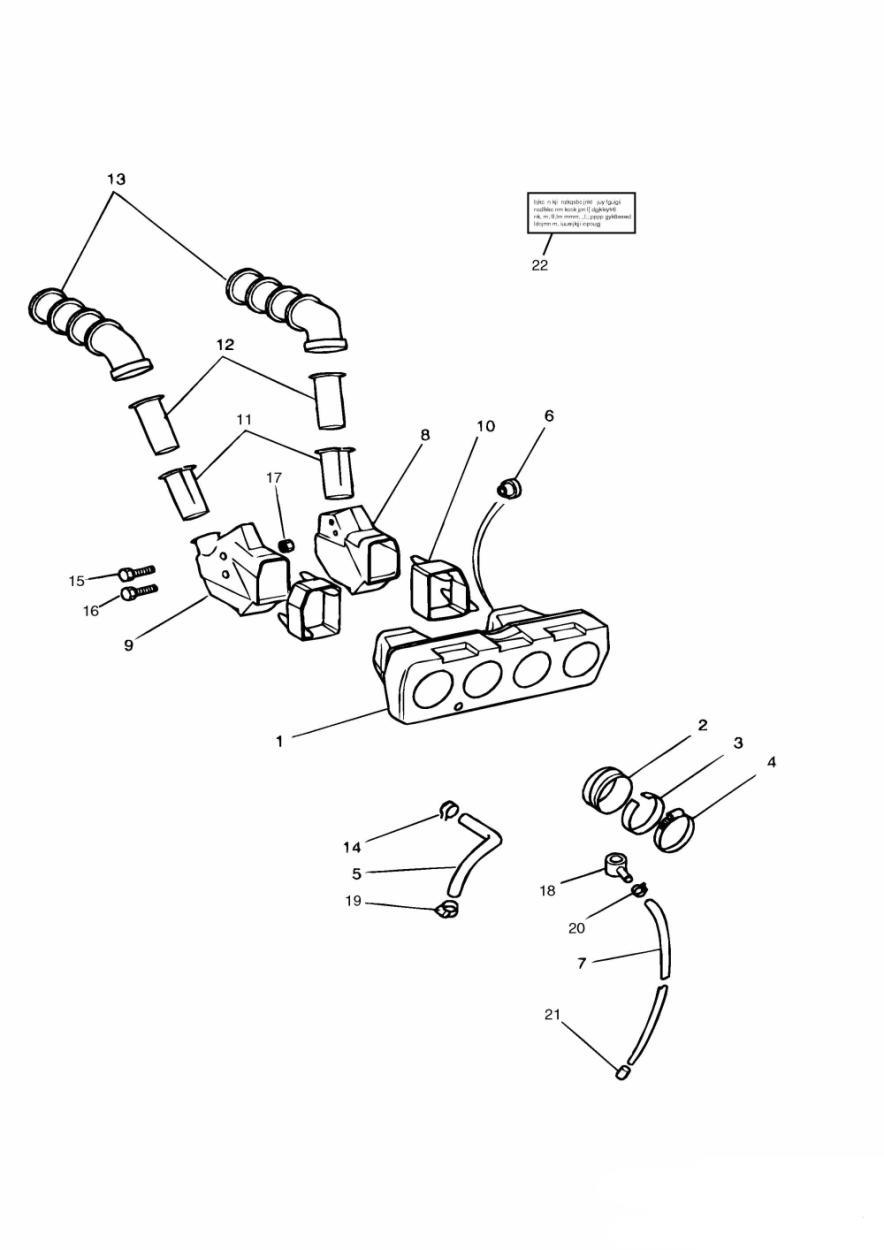

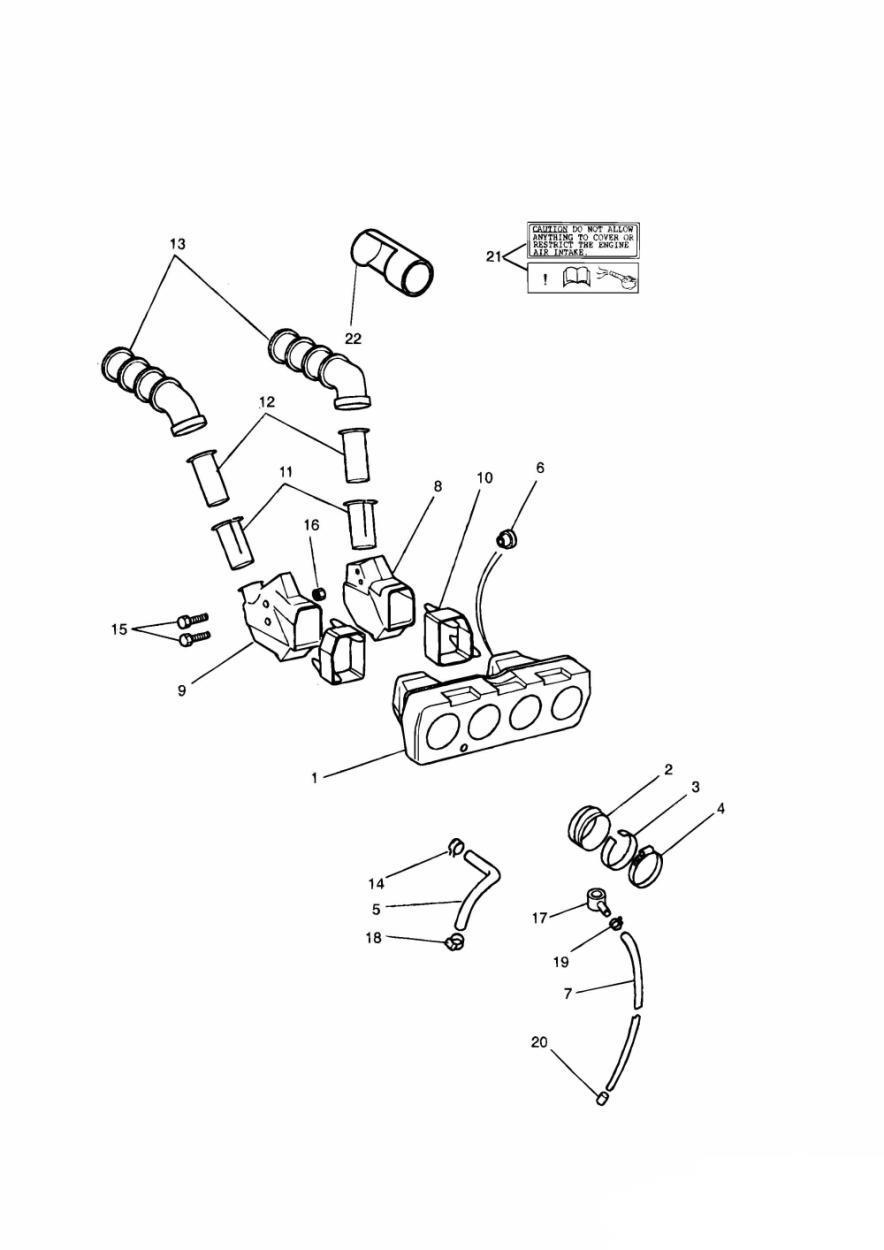

Airbox
29 parts

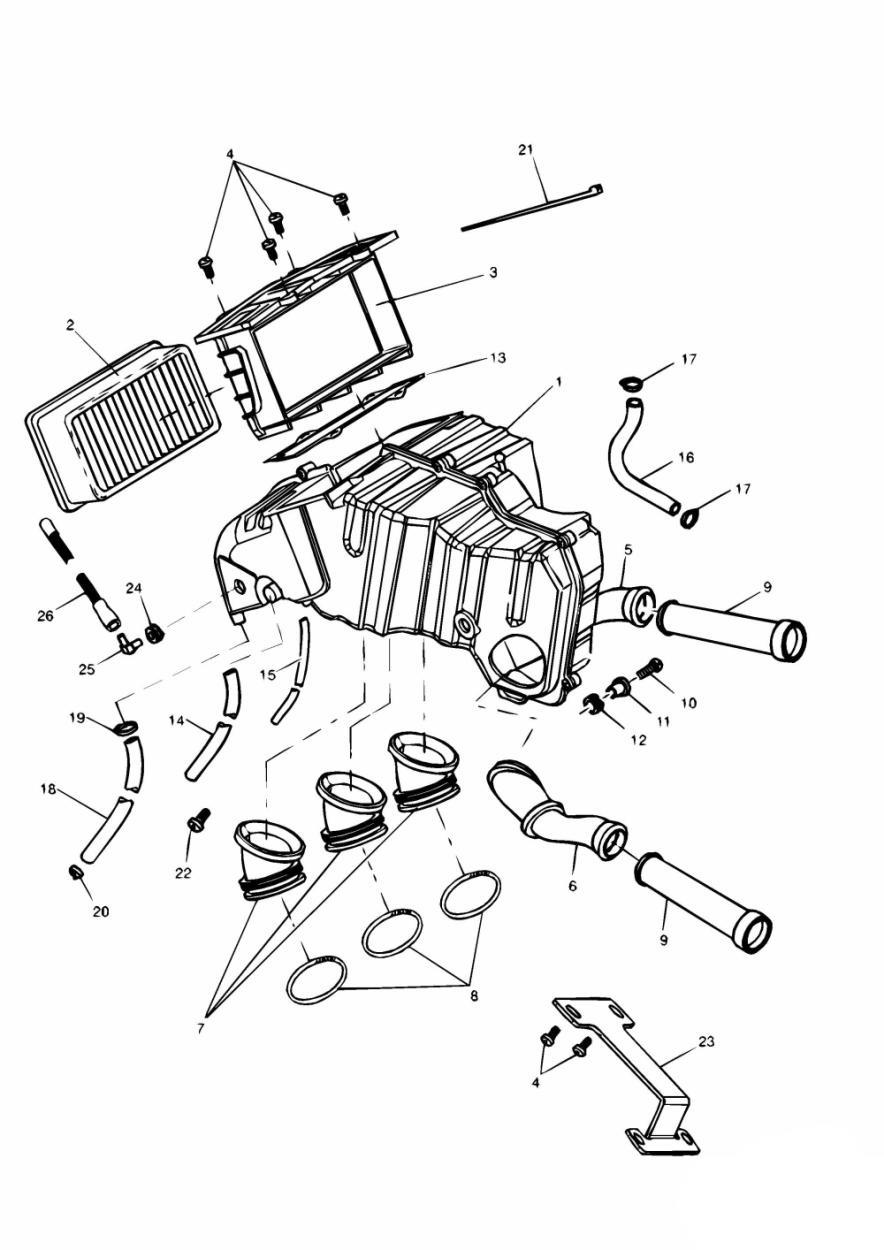

Airbox
28 parts
Airbox
28 parts
Carburettor Parts Carburettor assembly 1240127-T0301
23 parts

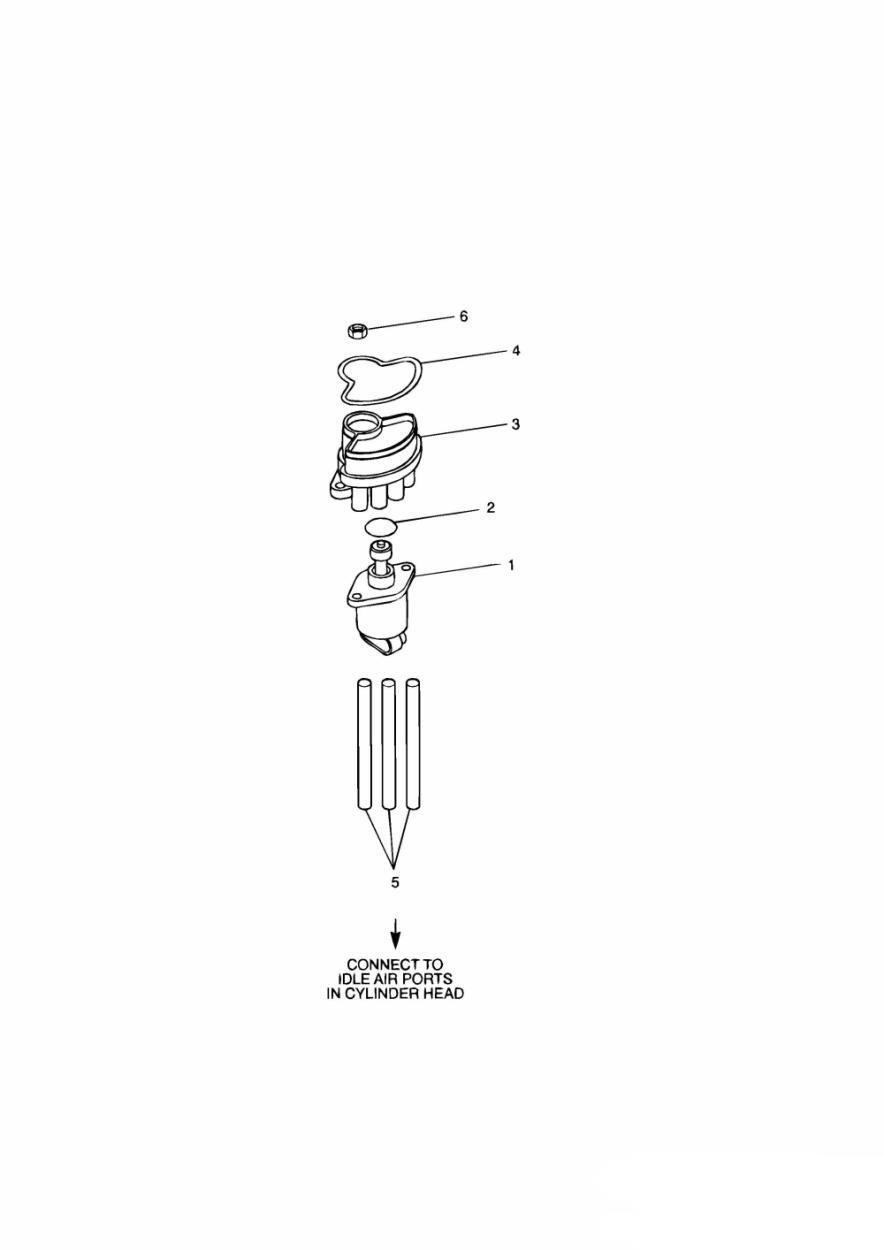

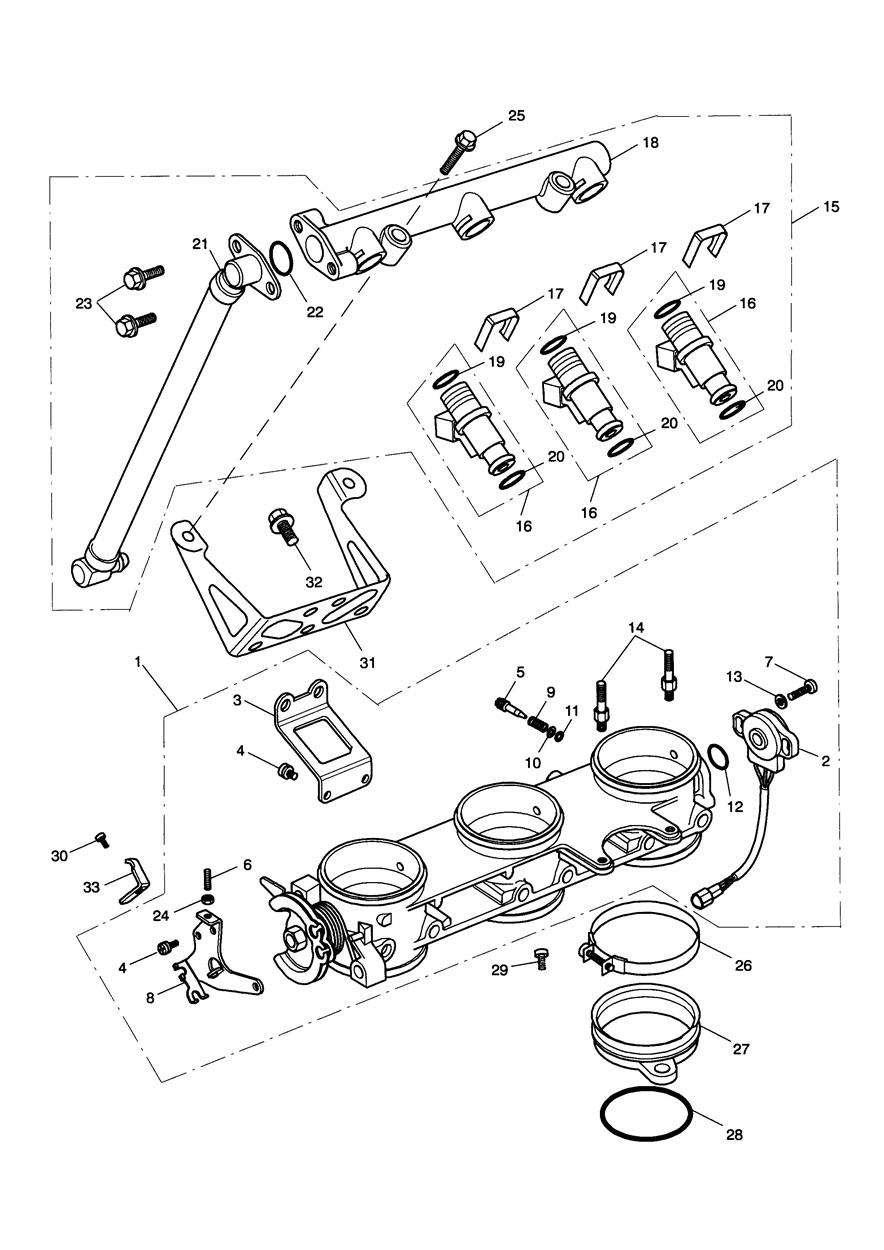

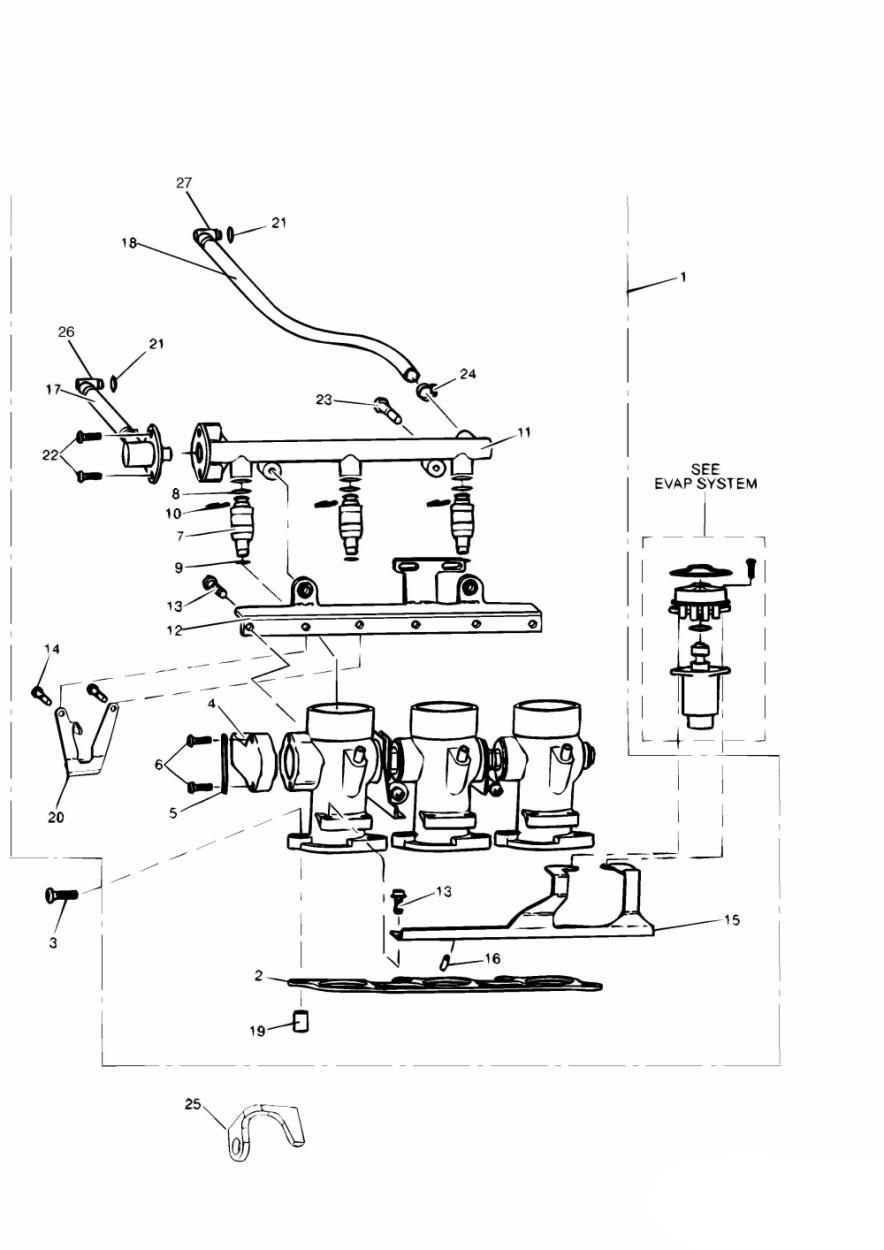

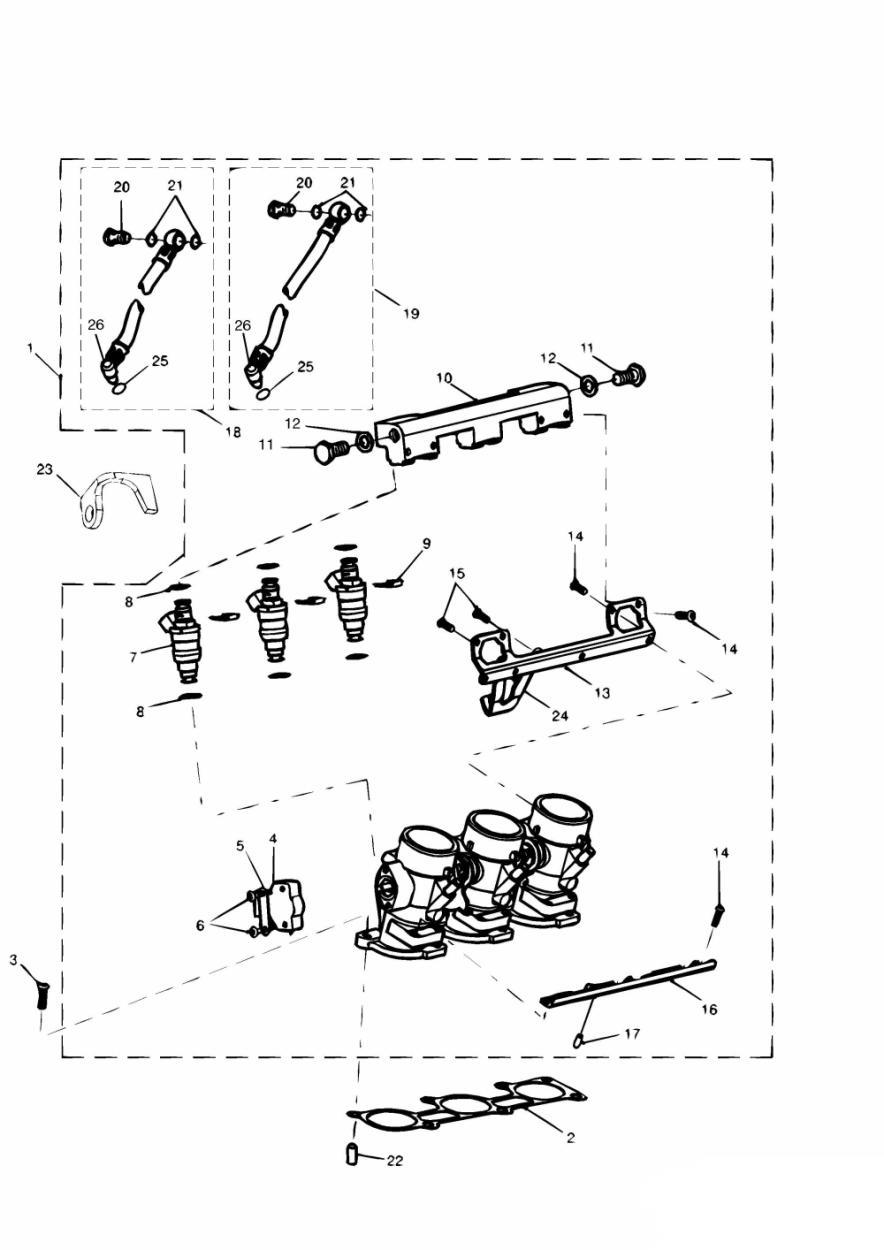

Idle Speed Control
6 parts
Airbox
18 parts
Carburettor Parts Carburettor assembly 1240130-T0301
24 parts
Fuel Tank and Fittings
50 parts
Fuel Tank and Fittings
40 parts
Carburettor Parts Carburettor assembly 1240197-T0301
24 parts
Fuel Tank and Fittings
43 parts

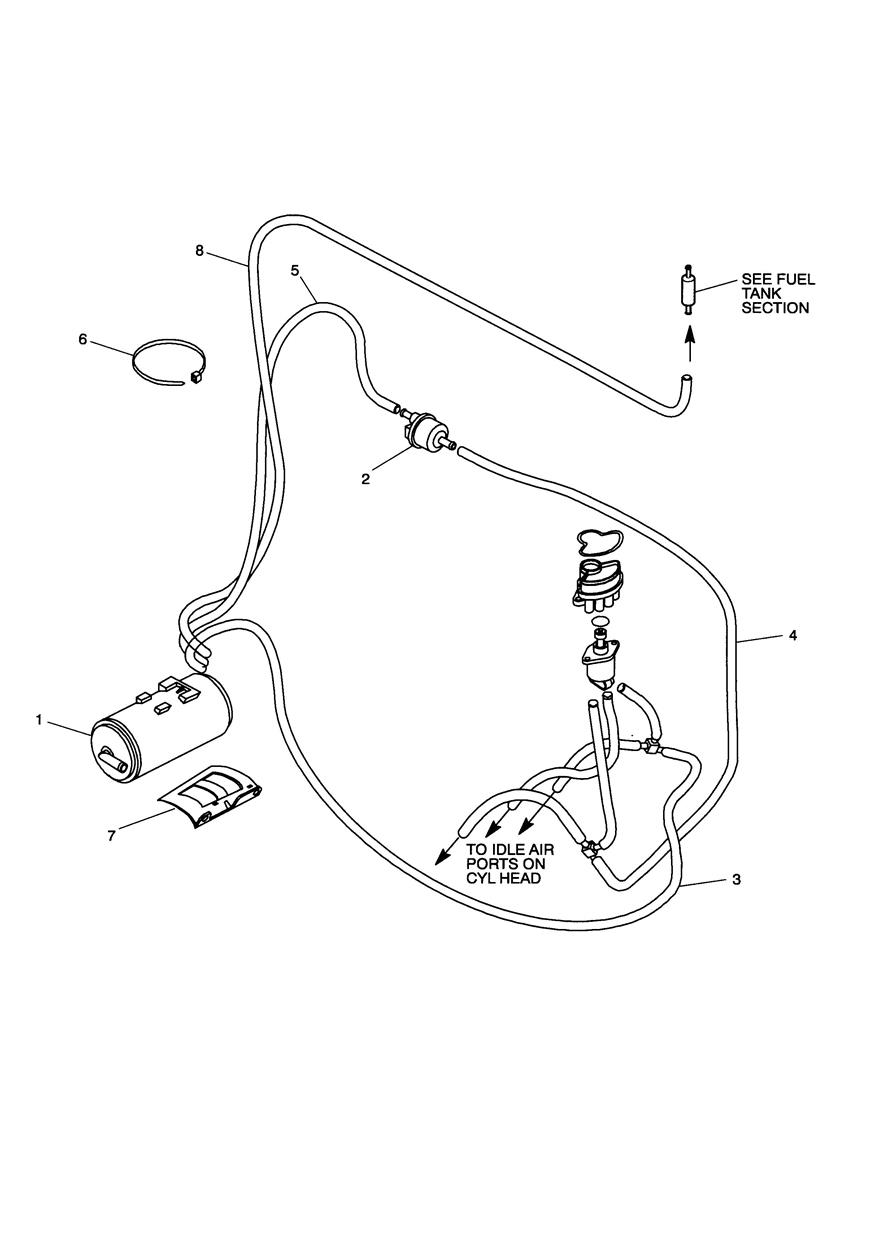

Evaporative Loss Equipment California only
9 parts
Carburettors
Carburettors 4 Cylinder
29 parts

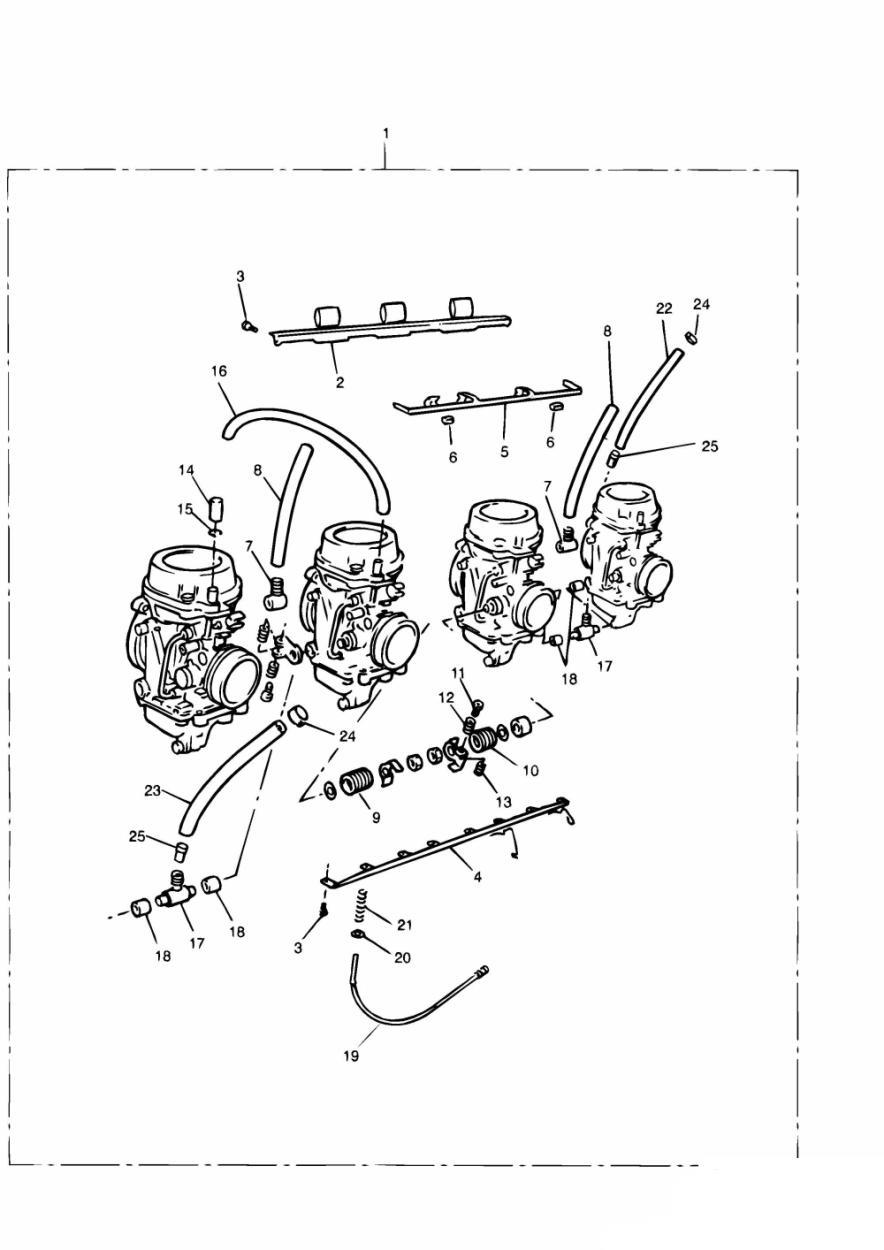

Carburettors 4 Cylinder Engines
27 parts

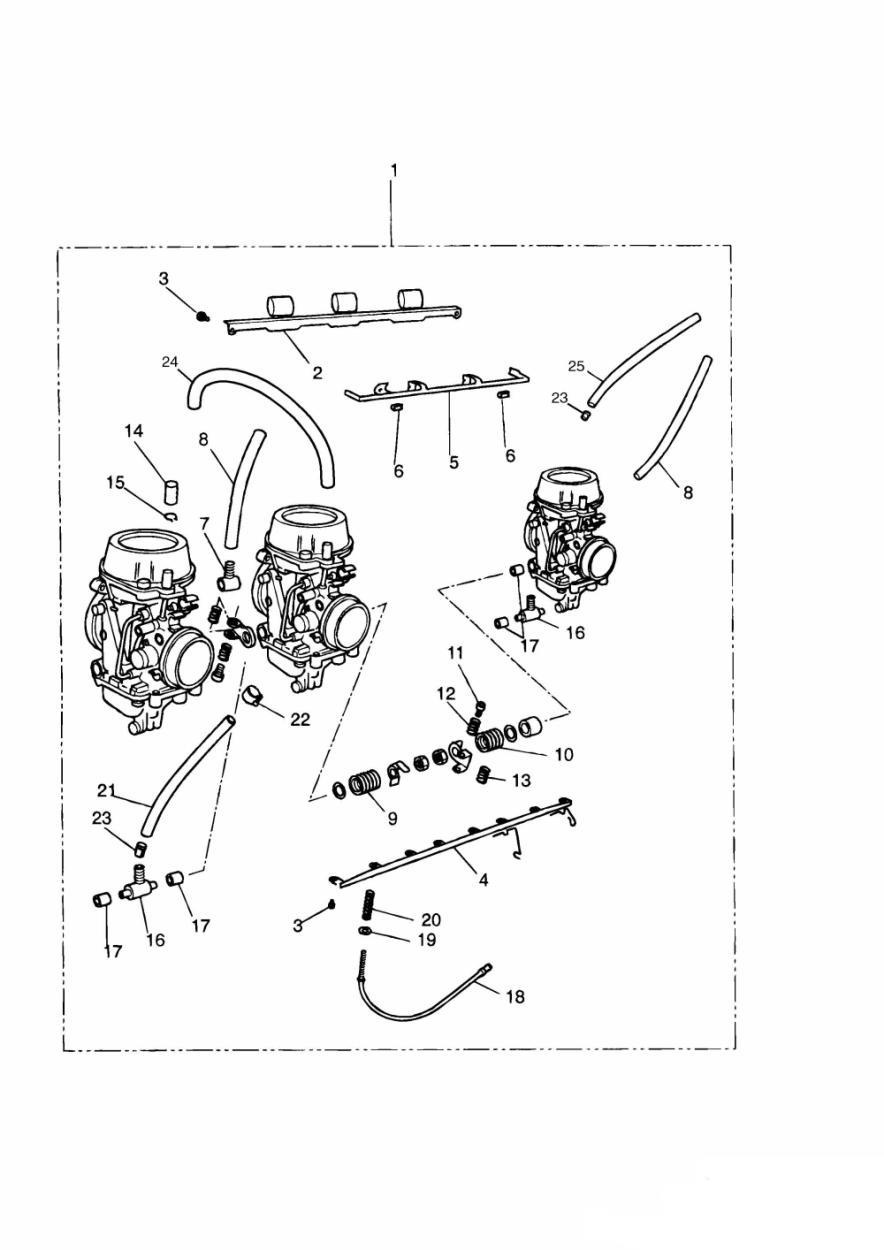

Carburettors 3 Cylinder
31 parts
Carburettors 3 Cylinder Engines
27 parts
Emissions Control

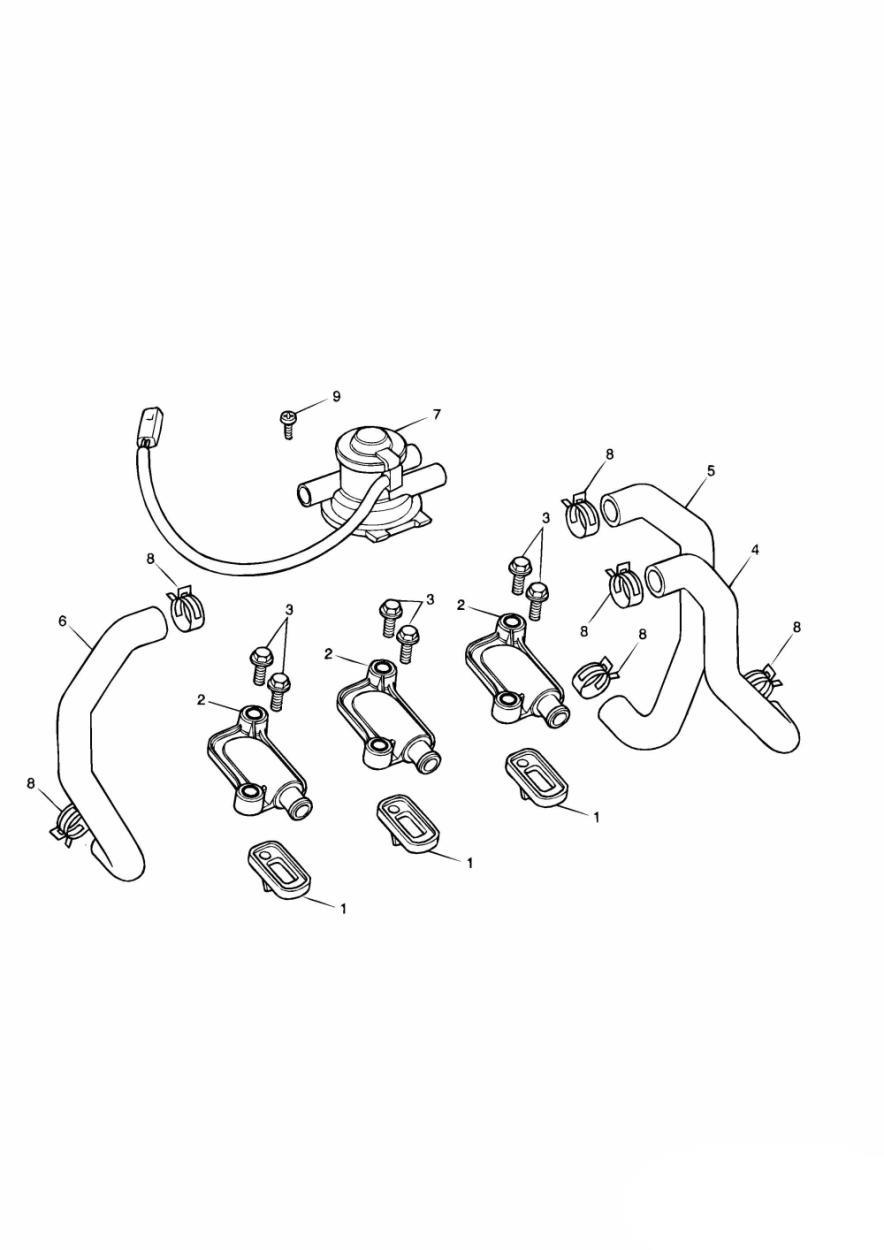

Emiss. Ctrl USCal & DE All VINS; CY,ES,FR,GR,IT,NL,PT,SE & UK JP & CA HK
9 parts
Emissions Control CY, ES, FR, GR, IT, NL, PT, SE, & UK JP & CA
9 parts

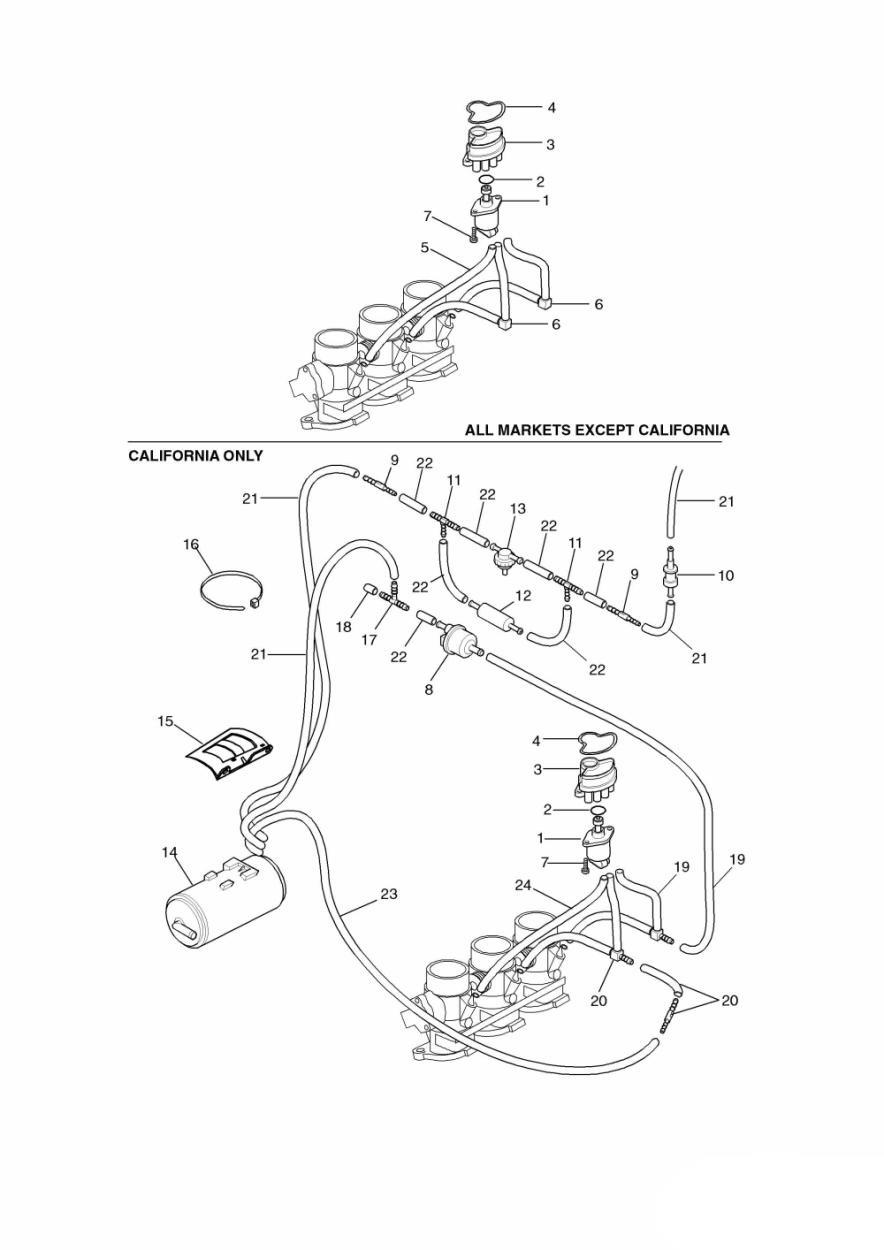

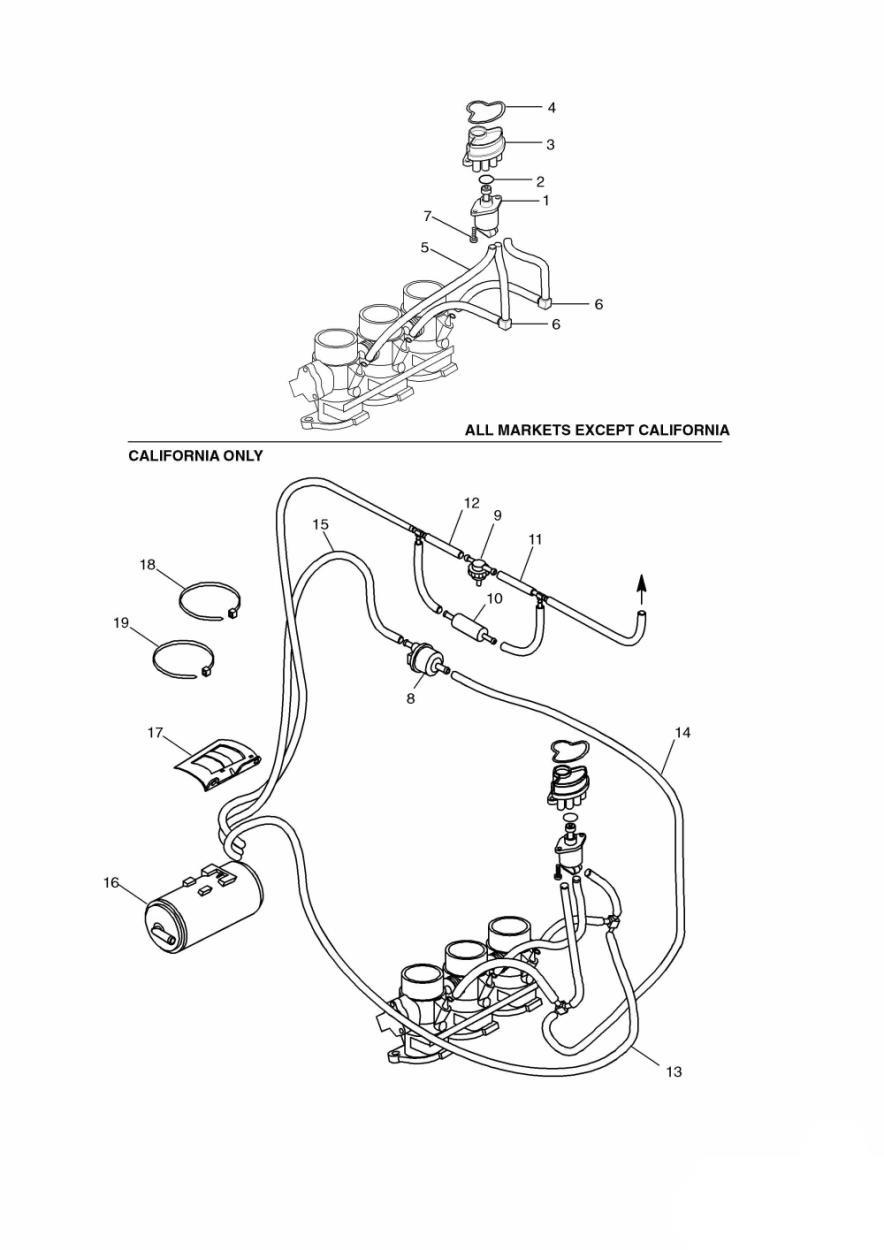

Evaporative Loss Equipment

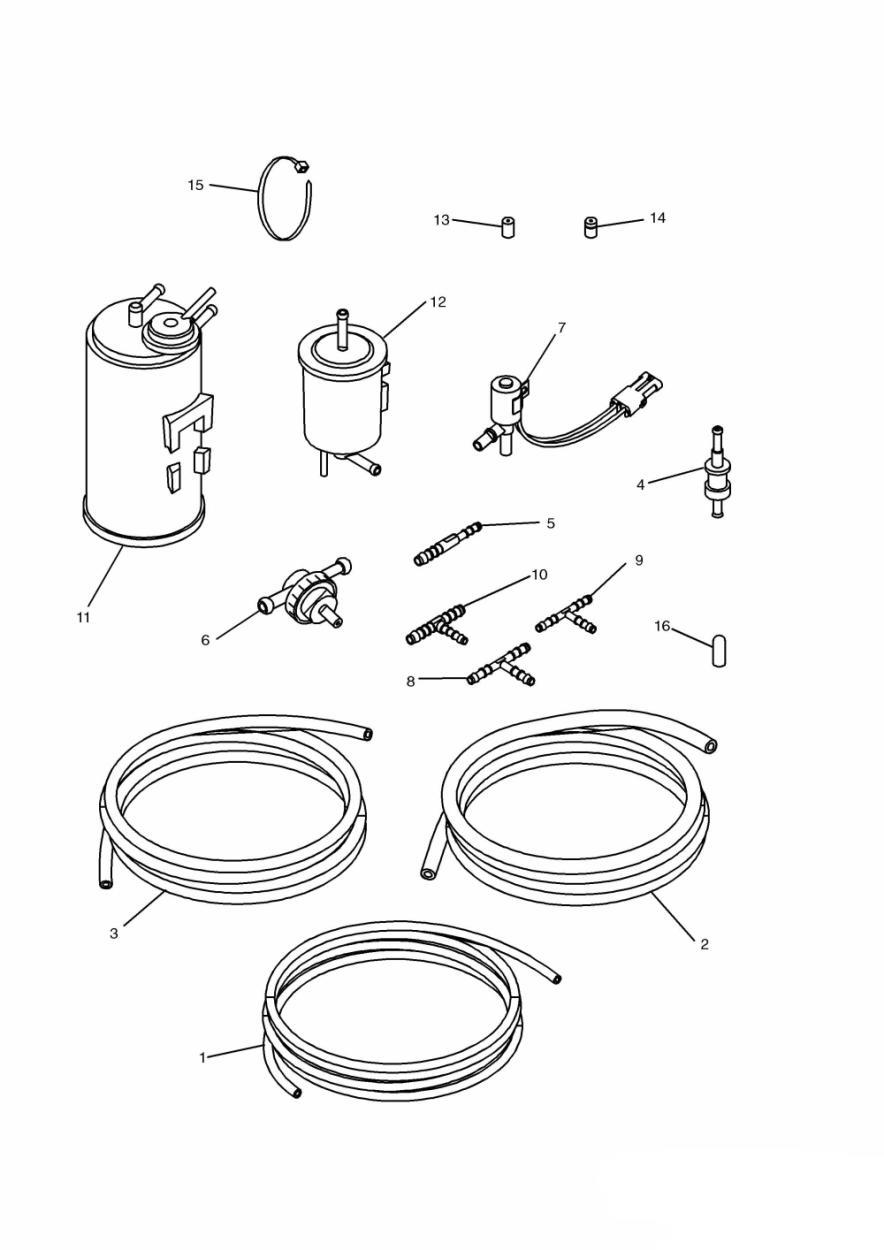

Evaporative Loss Equipment 4 Cyl (US California Models Only)
17 parts
Evaporative Loss Equipment
19 parts
Evaporative Loss Equipment
22 parts

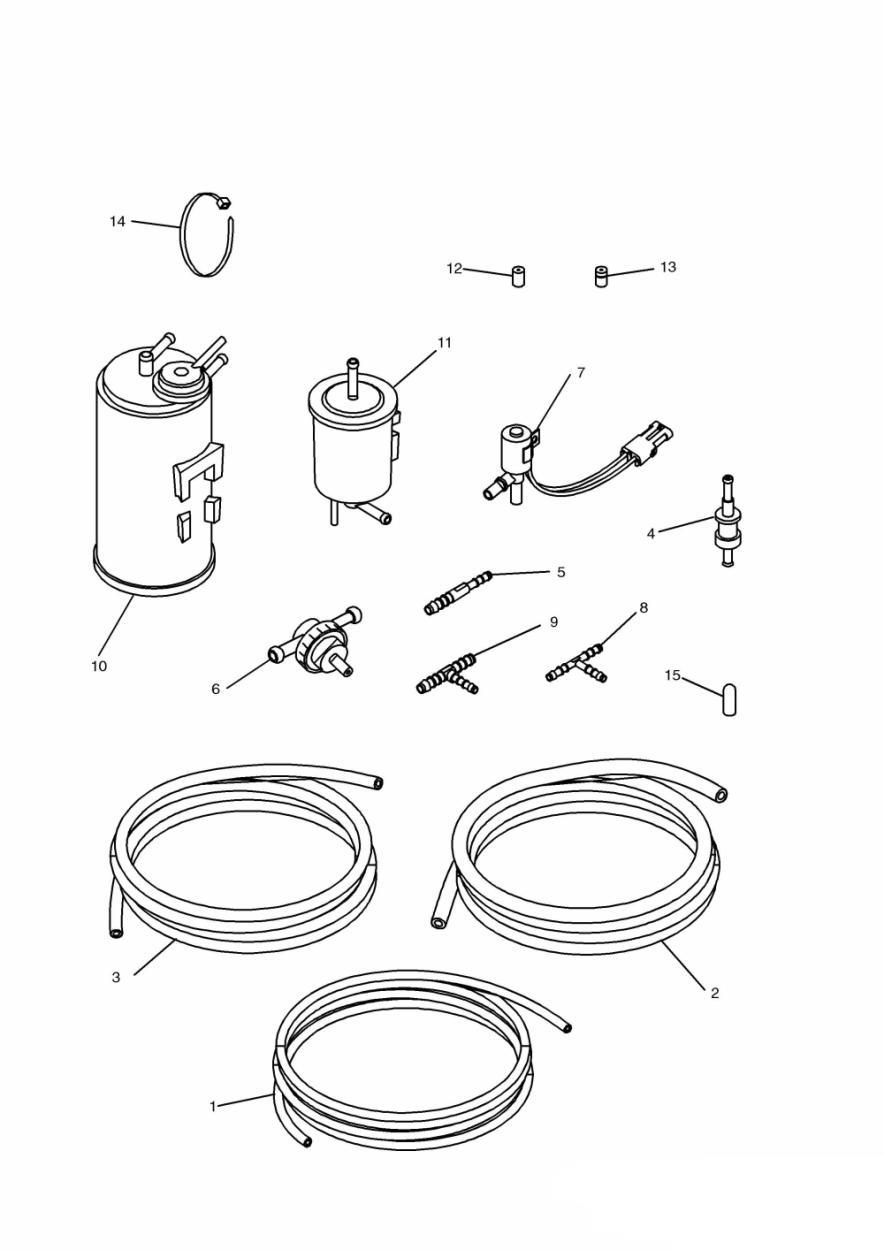

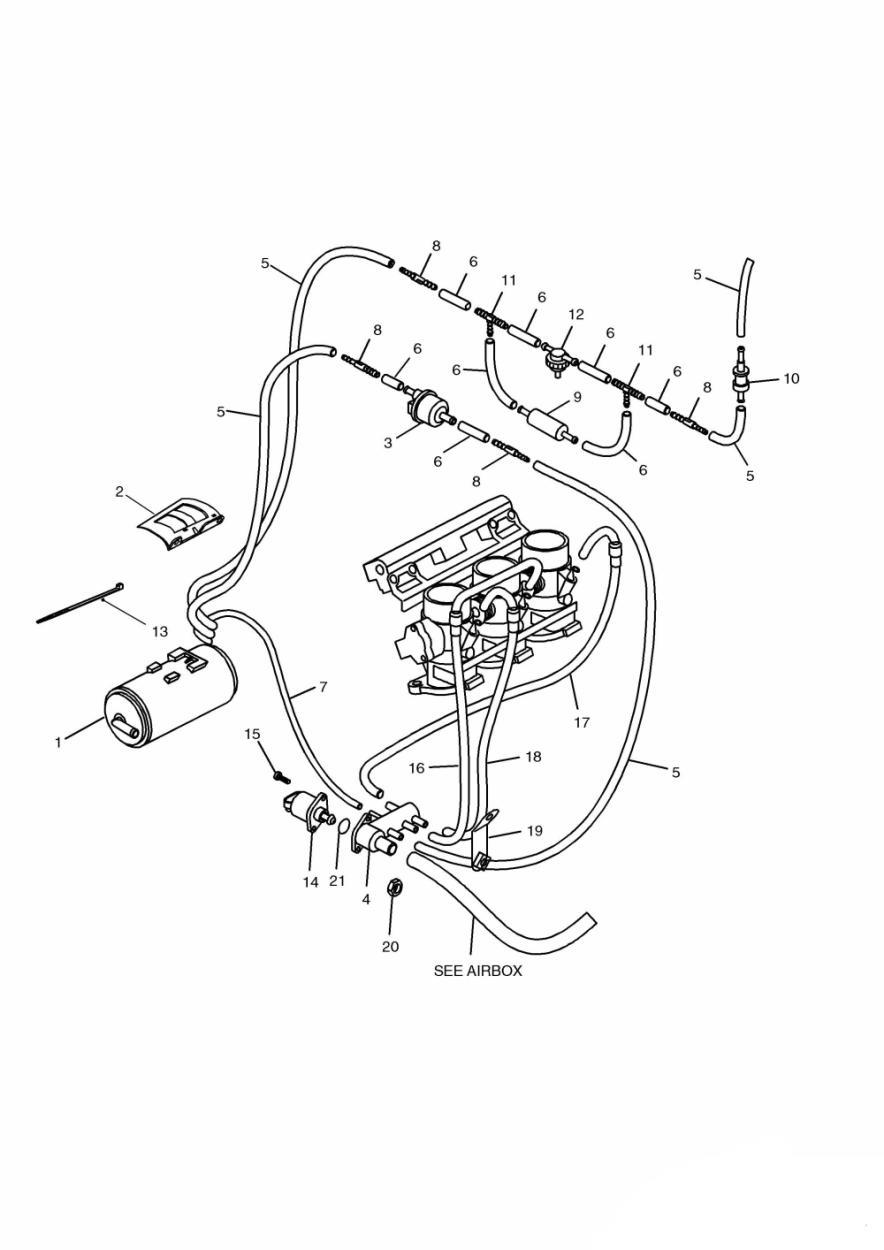

Evaporative Loss Equipment 3 Cyl (US California Models Only)
16 parts
Evaporative Loss Equipment
29 parts

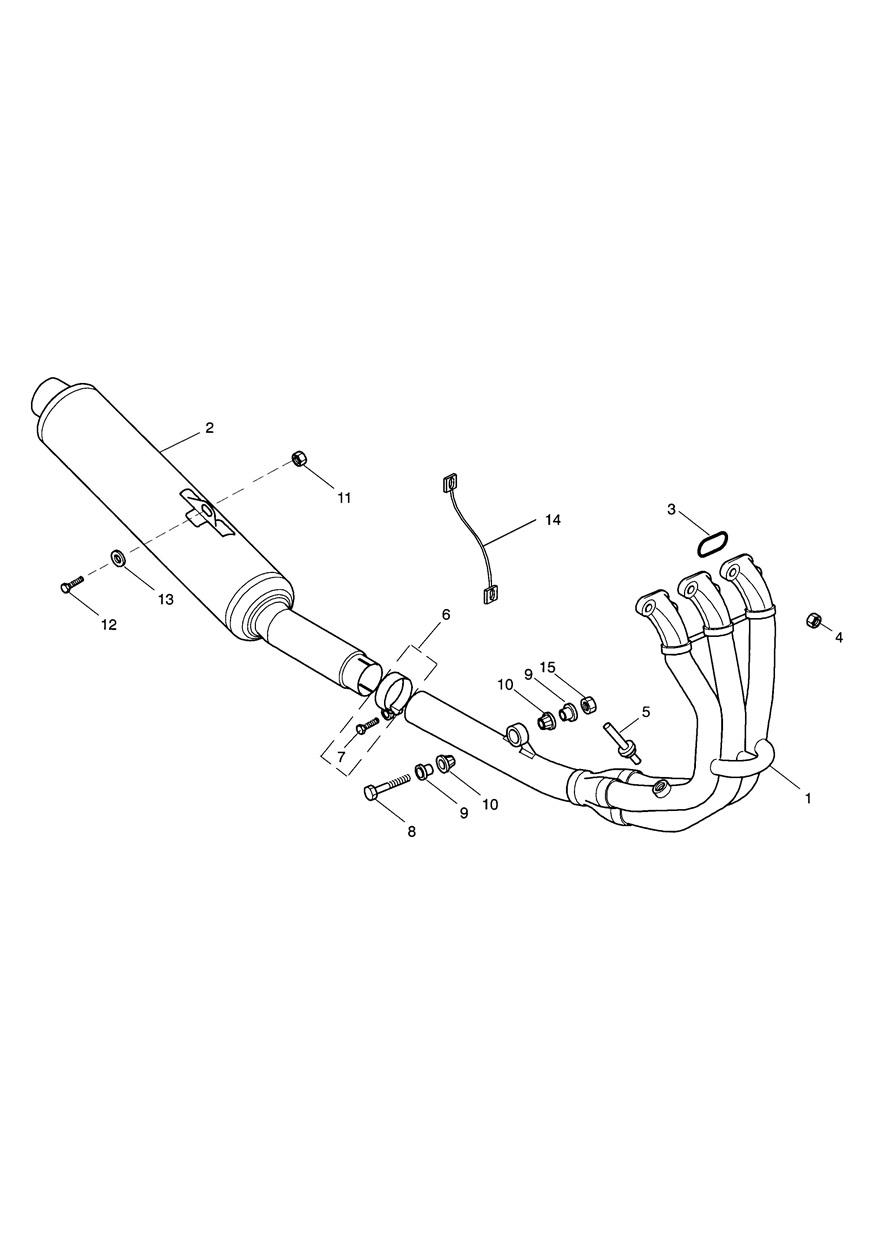

Exhaust System
Exhaust System
21 parts

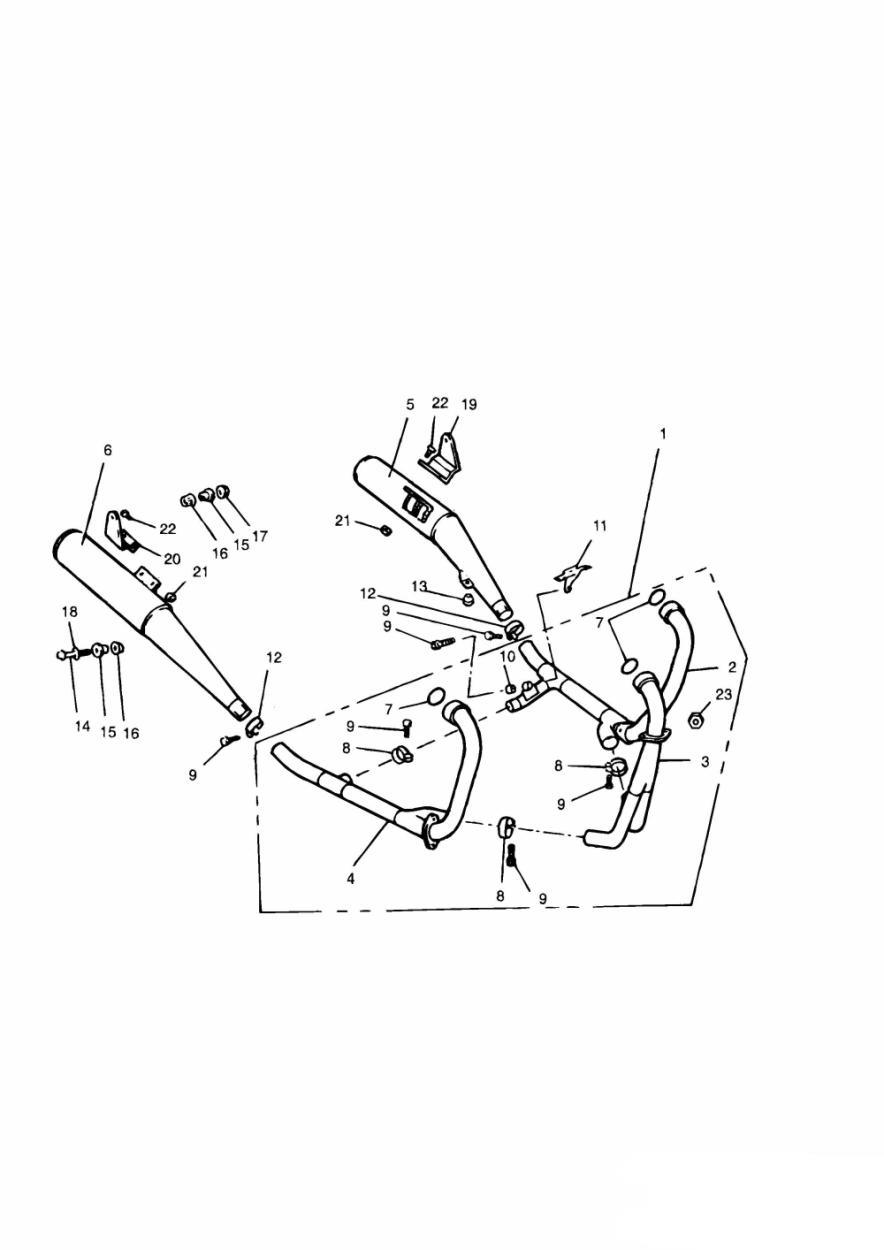

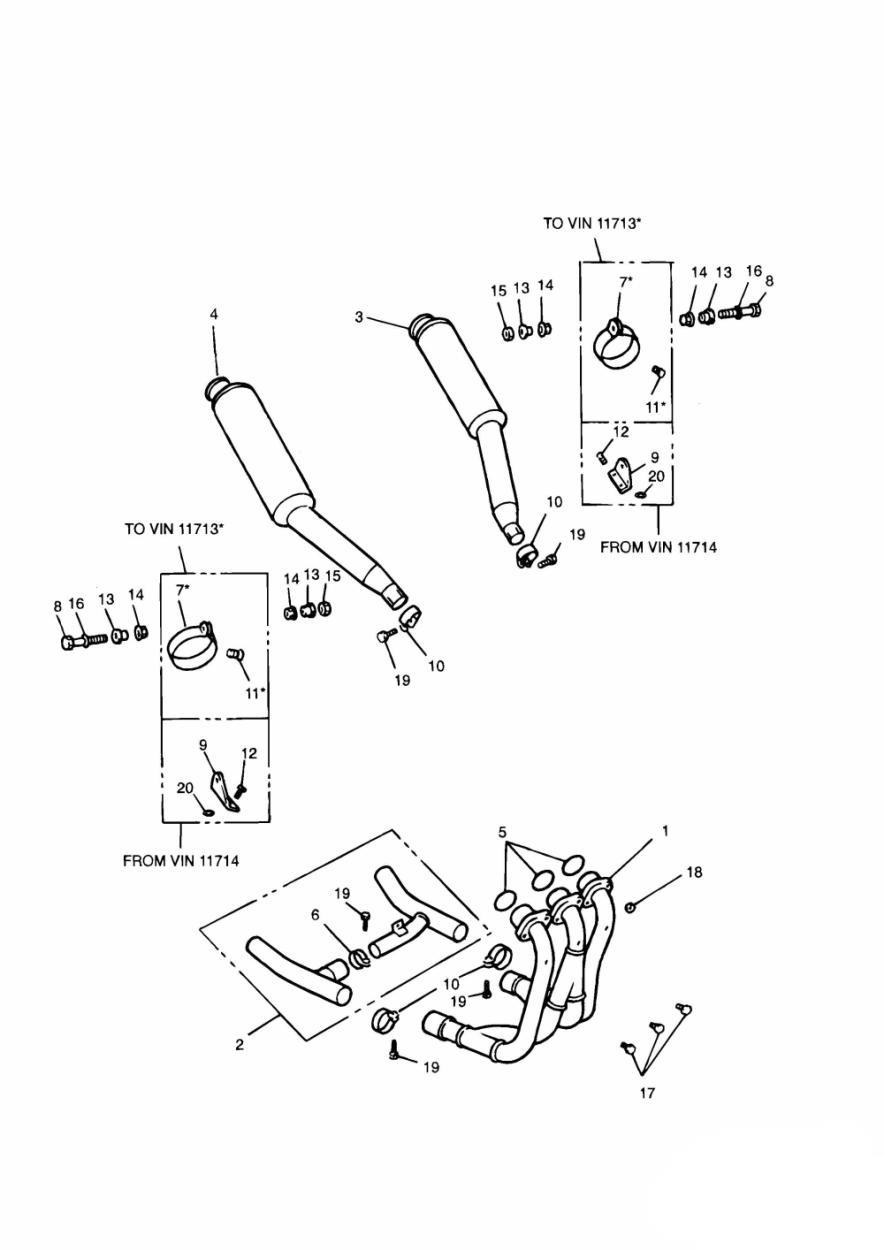

Exhaust System 3 Cylinder Engines
29 parts

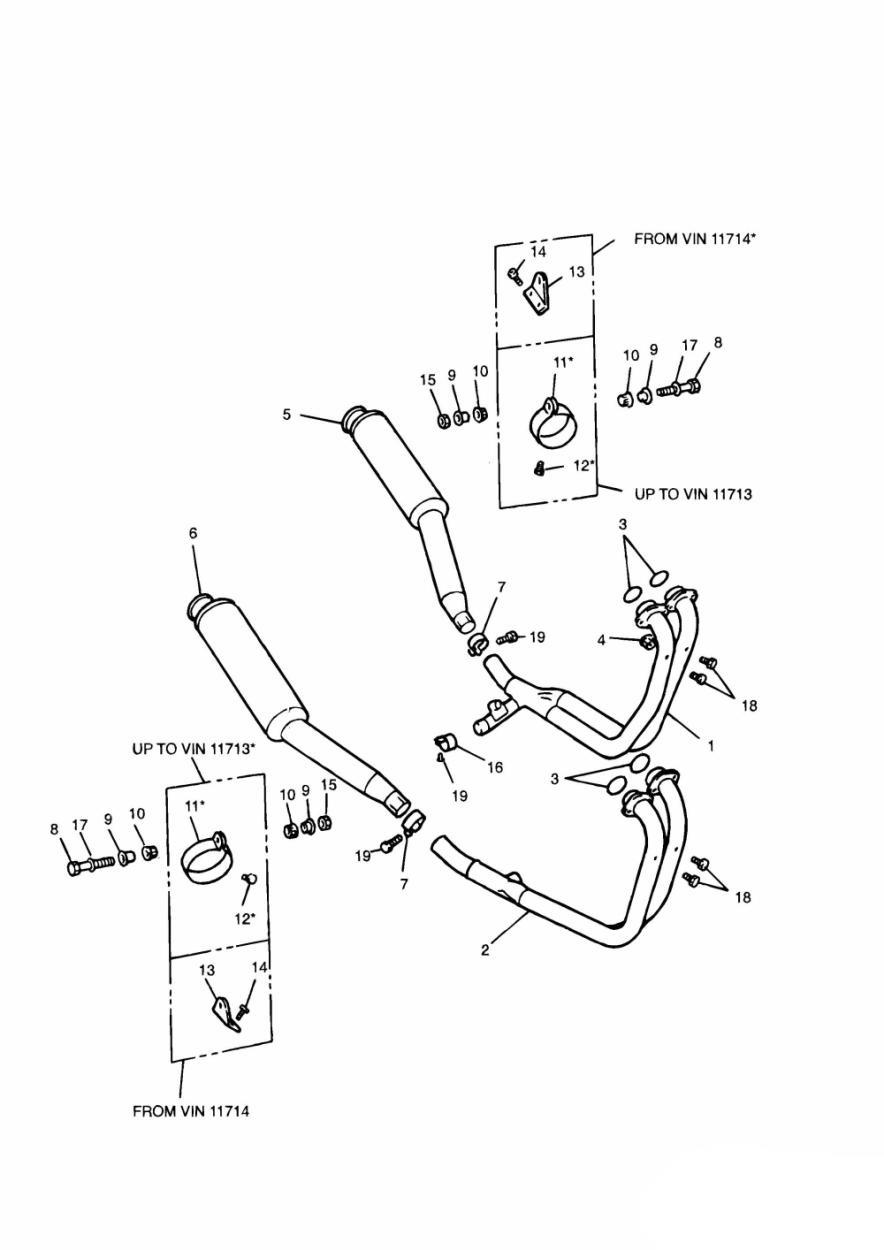

Exhaust System 4 Cylinder
27 parts

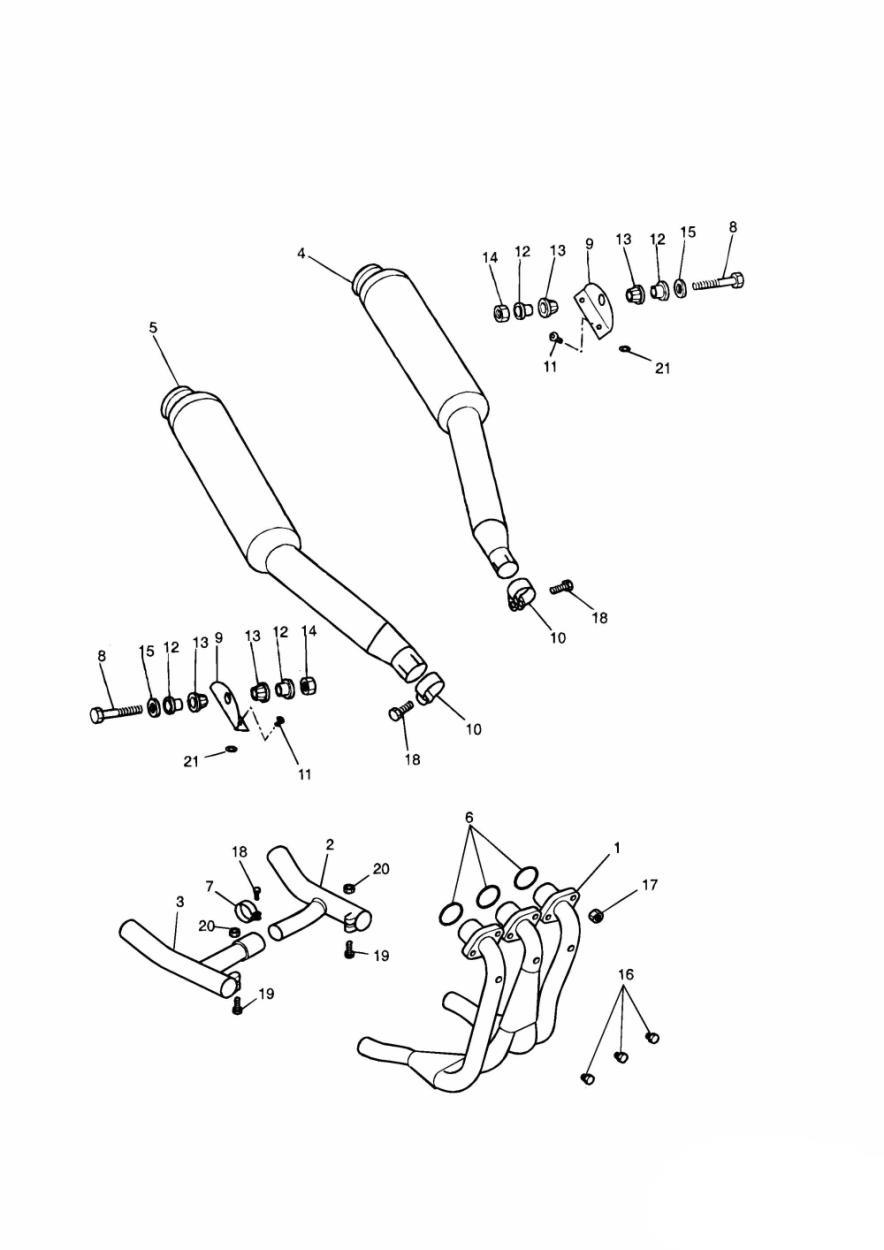

Exhaust System 3 Cylinder
30 parts

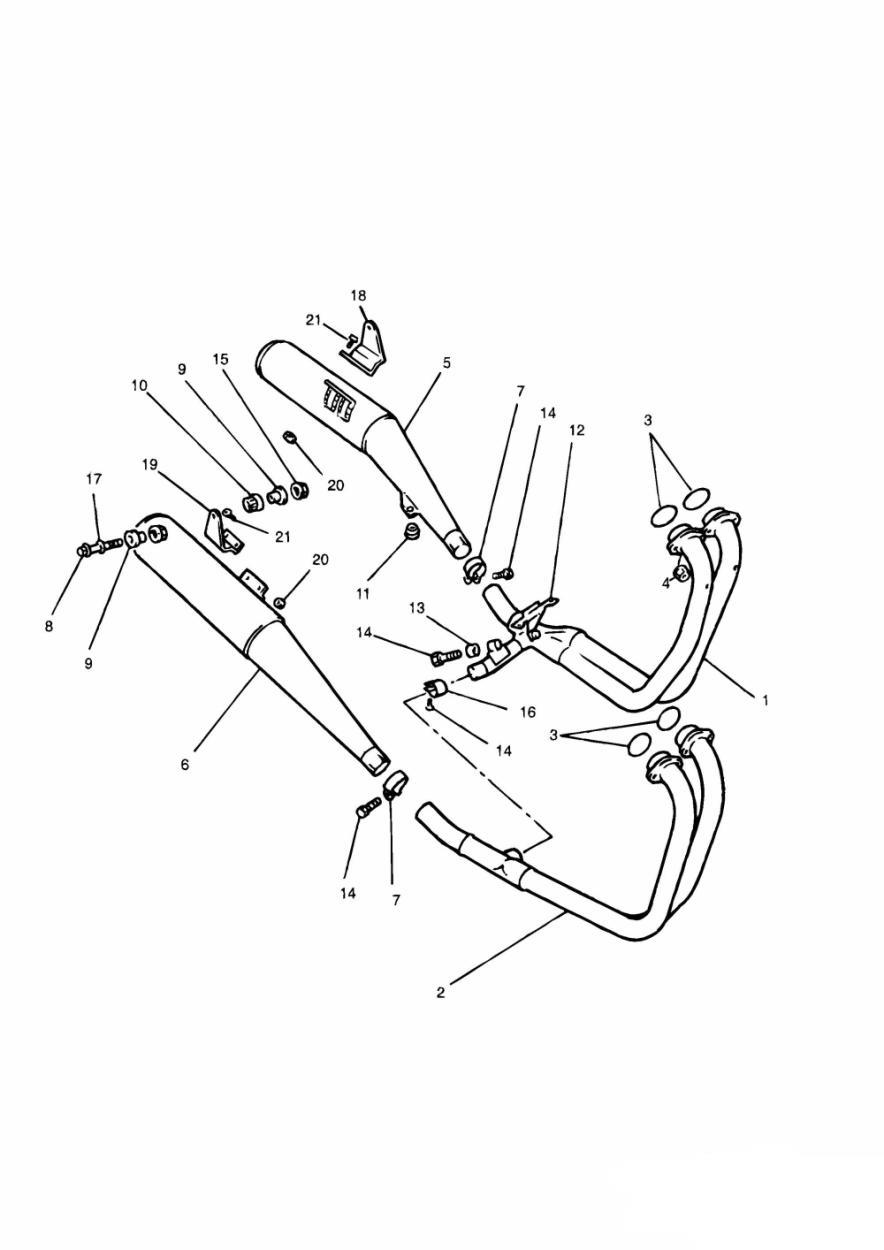

Exhaust System 4 Cylinder Engines
25 parts

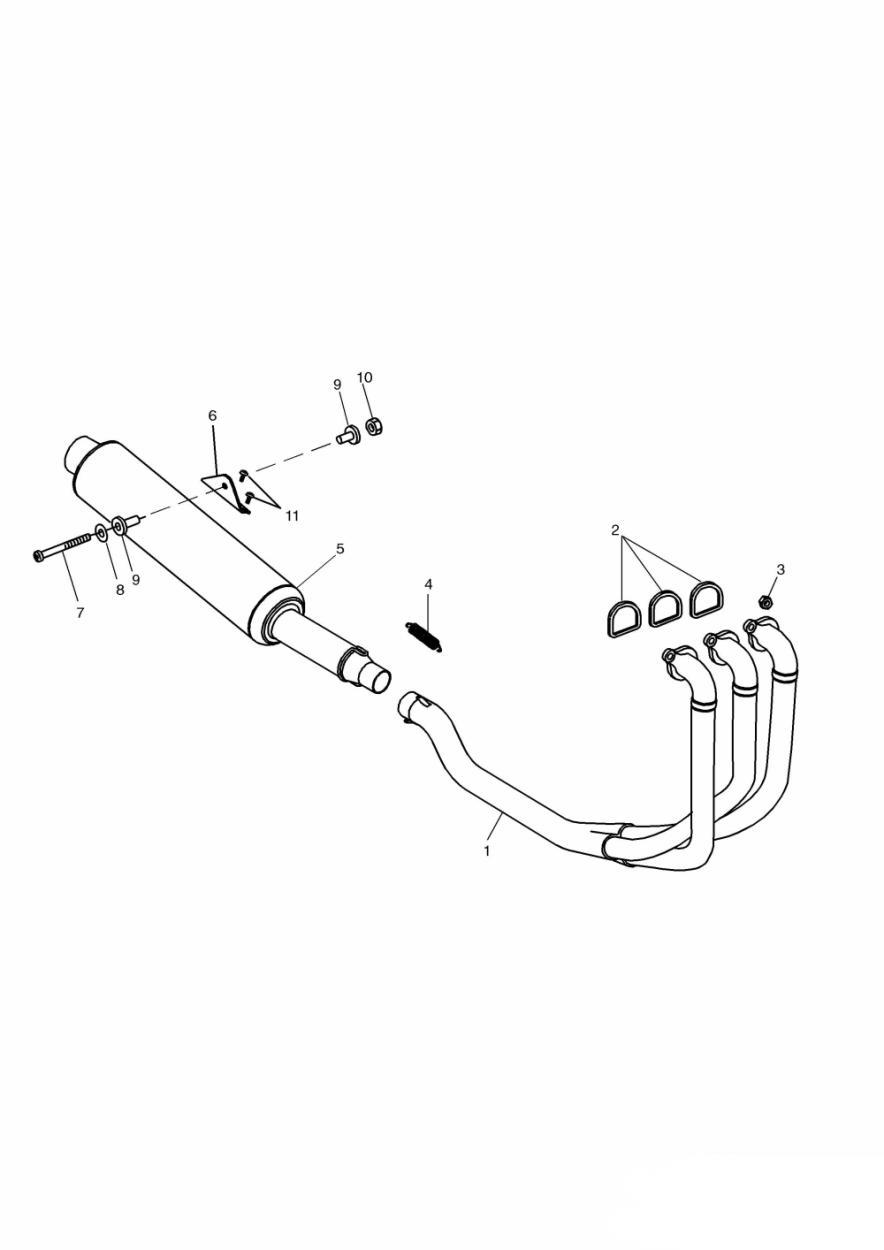

Exhaust System
13 parts
Exhaust System 3 Cylinder
24 parts

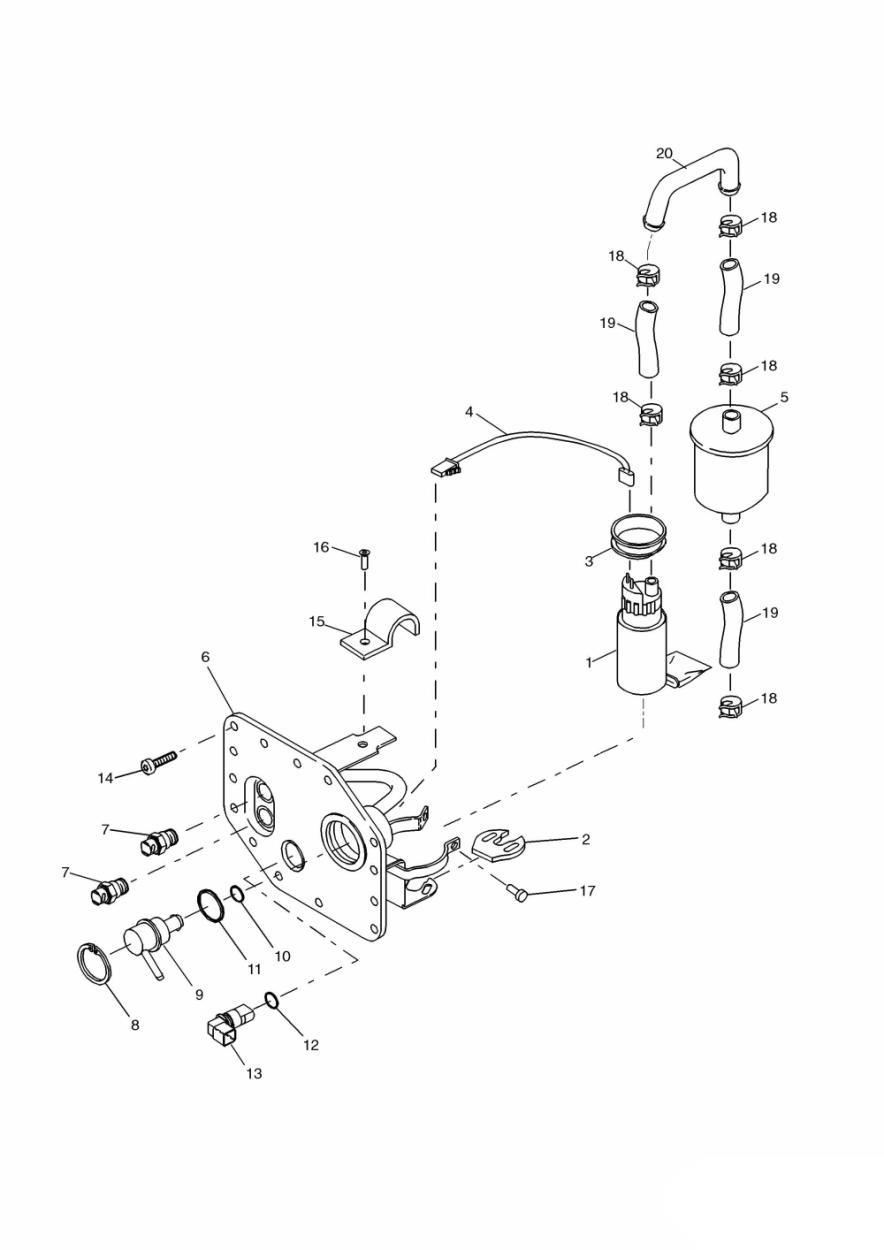

Fuel Pump & Filter

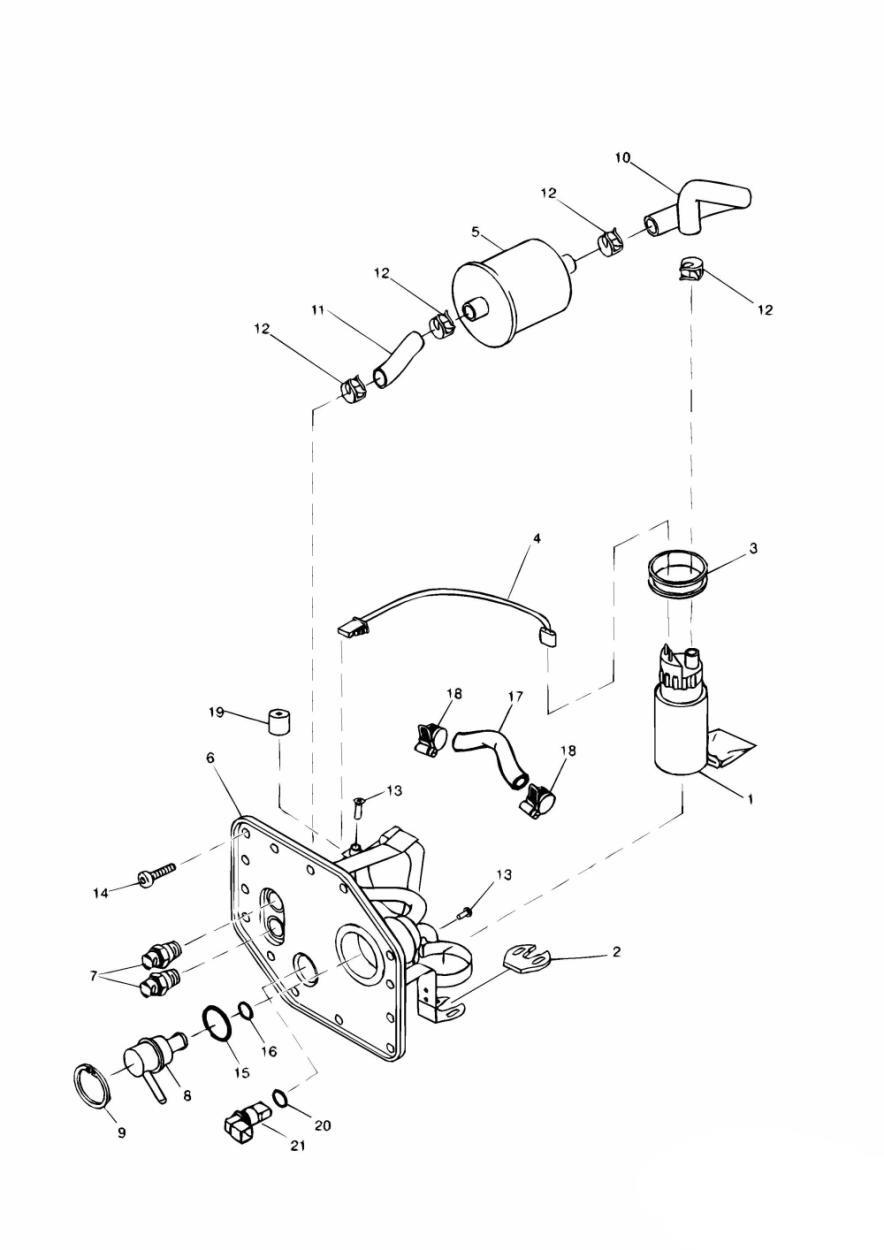

Fuel Pump and Filter
23 parts
Fuel Pump and Filters
18 parts
Fuel Pump and Filter
20 parts

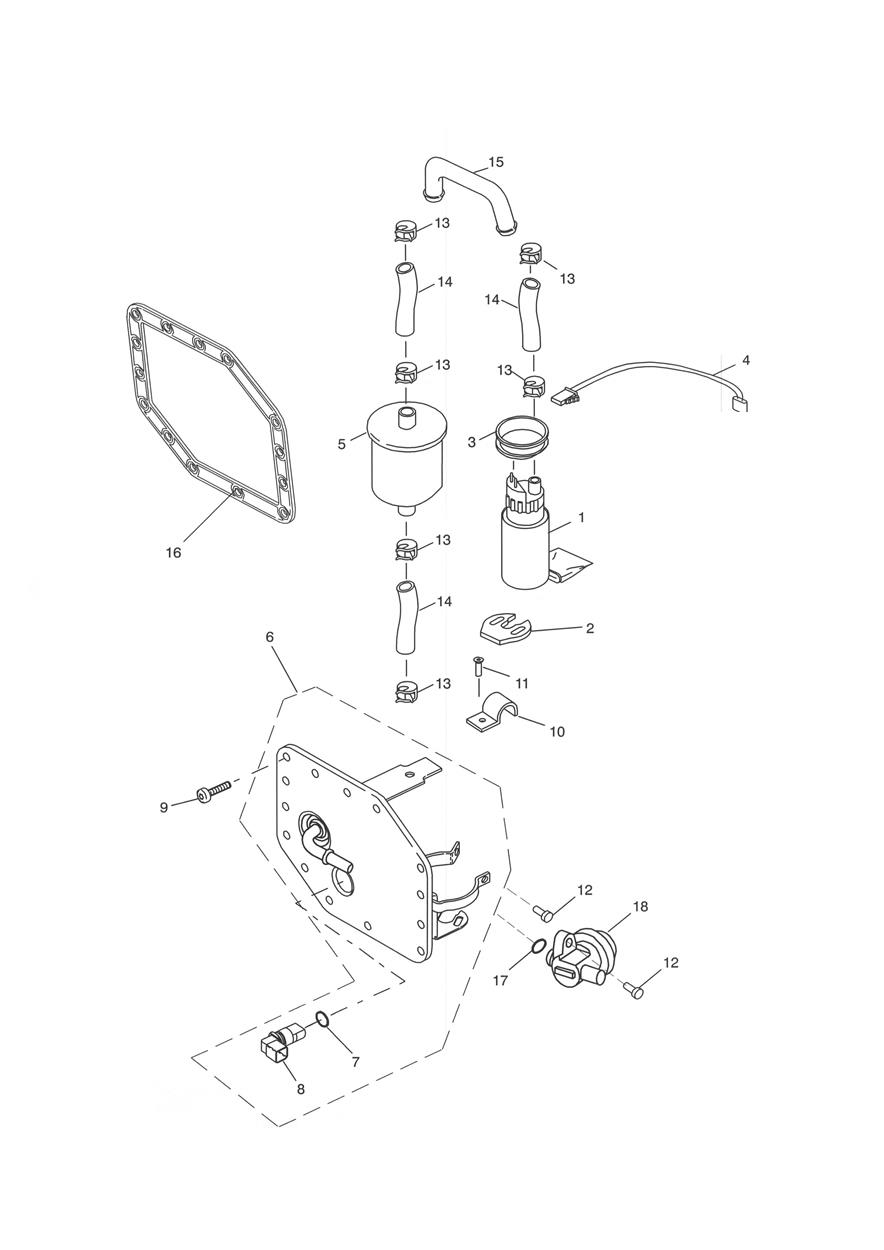

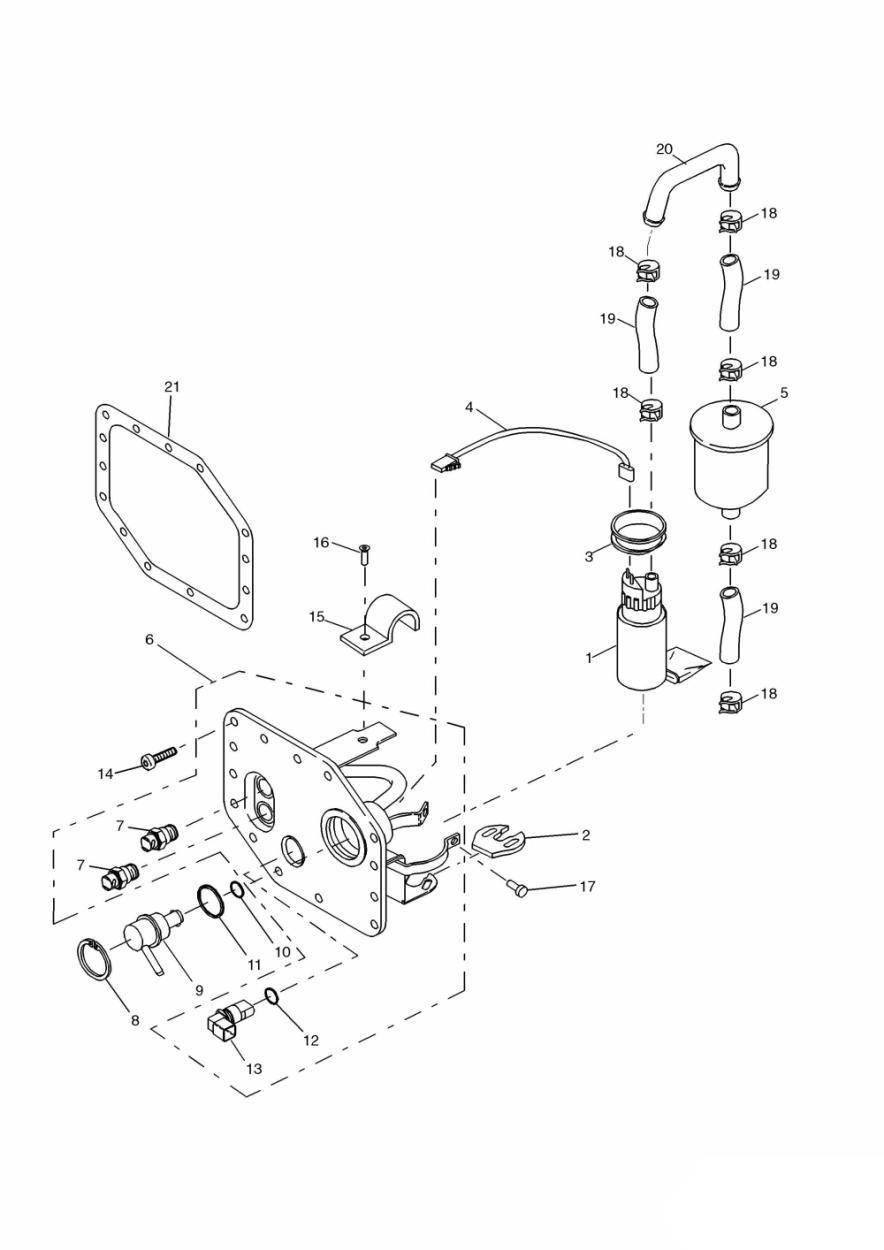

Fuel Pump and Filters
22 parts
