Rear Swinging Arm & Rear Suspension
Triumph Daytona · 21 diagrams
21 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Daytona, covering the Daytona 955i / T595. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Rear Suspension Unit
8 parts
Swinging Arm
36 parts

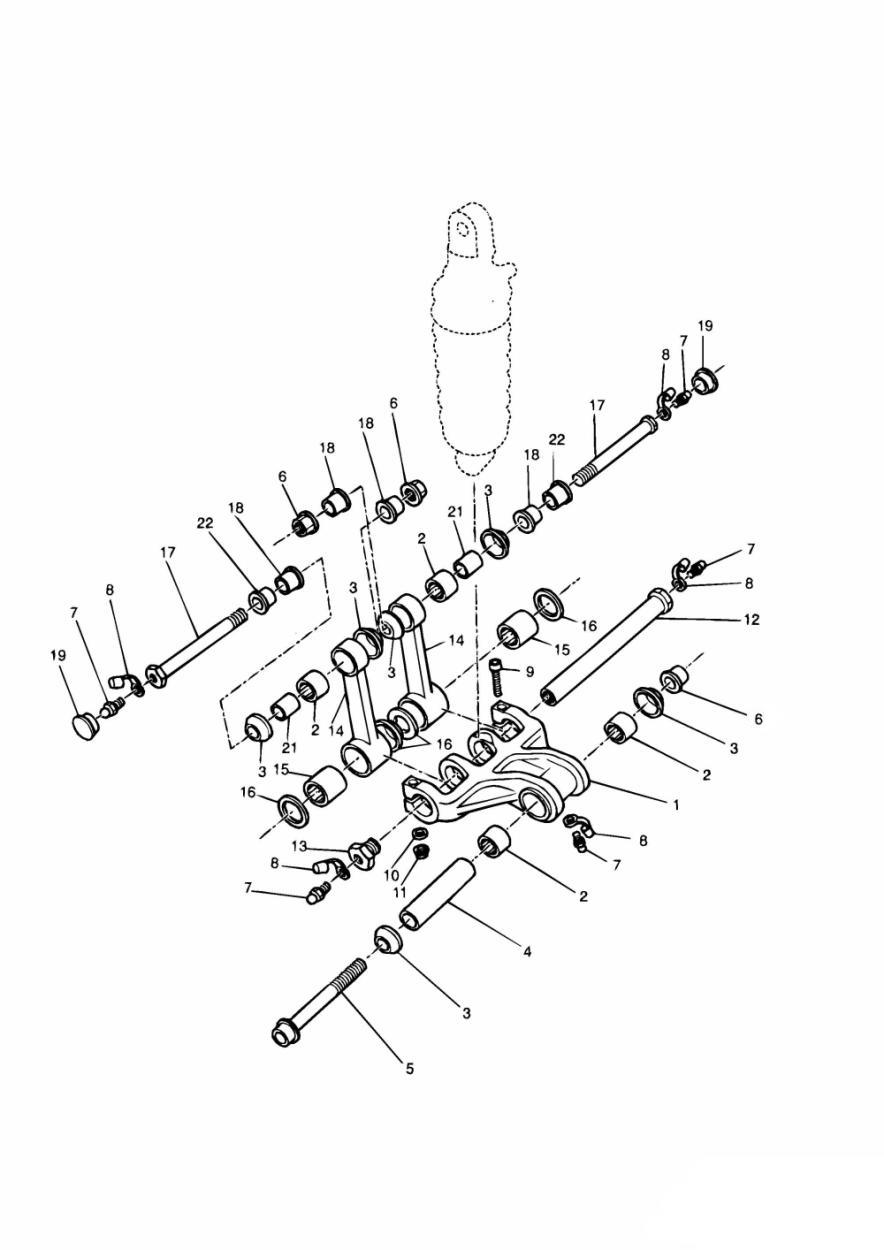

Rear Suspension Linkage
13 parts
Rear Suspension Linkage
21 parts

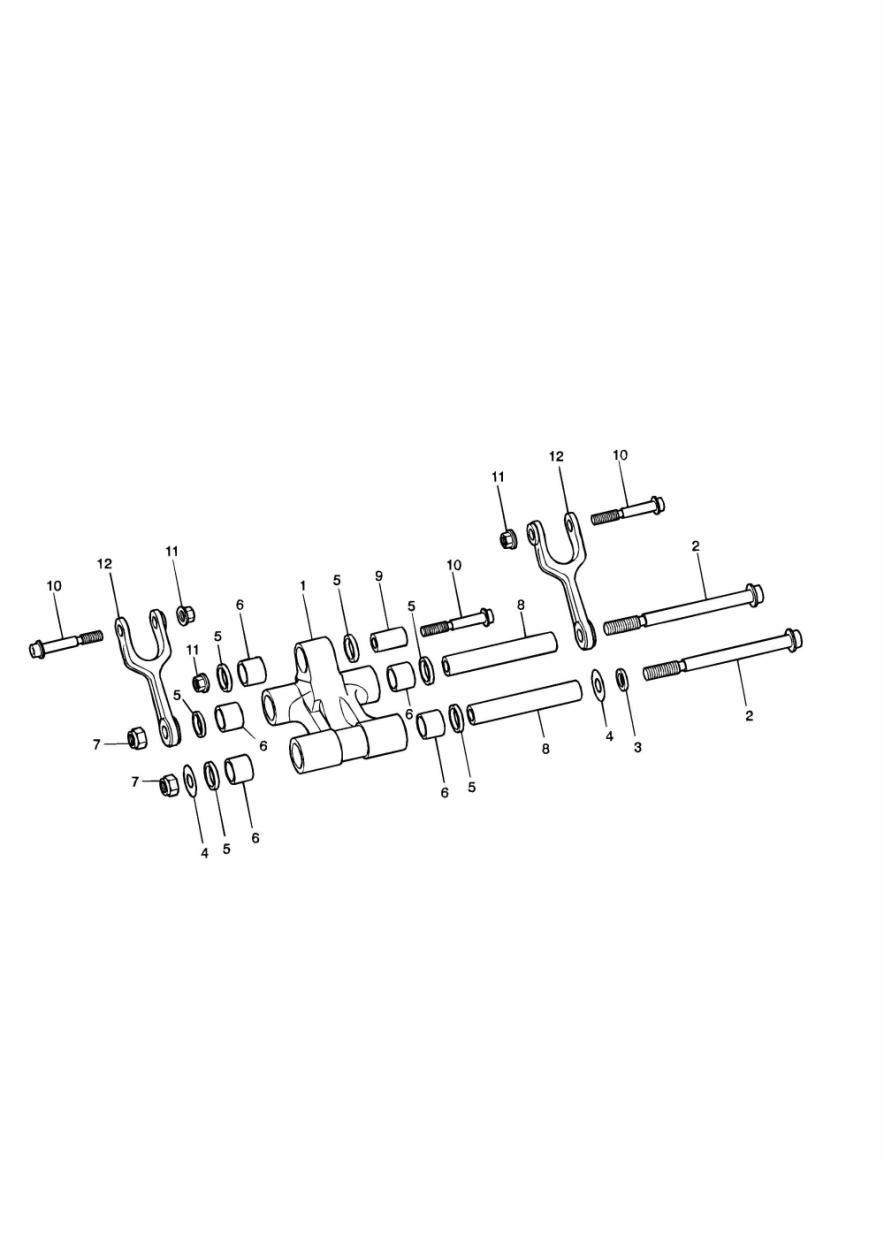

Rear Suspension Linkage Double sided swingarm
12 parts
VIN 132513 and higher

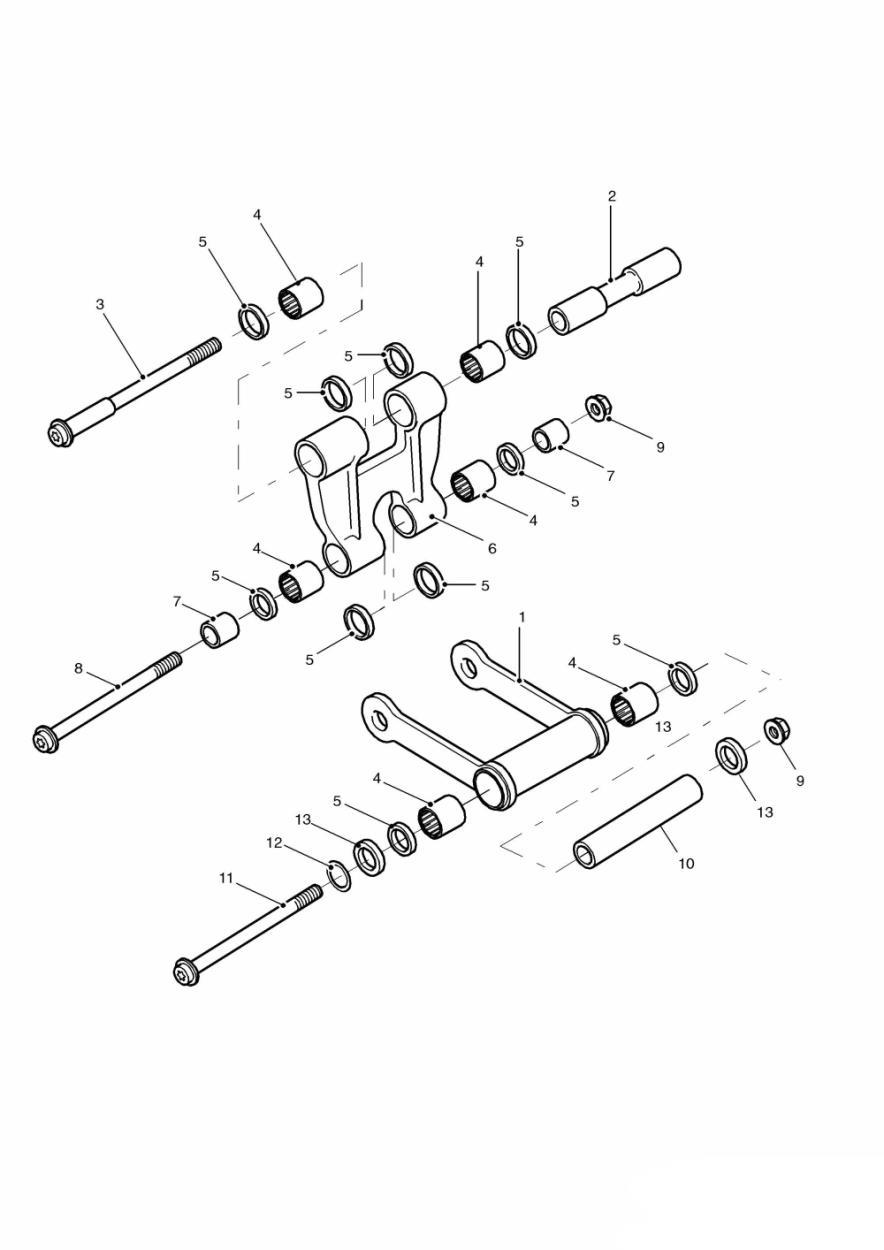

Rear Suspension Linkage Single sided swingarm
13 parts
VIN 132513 and higher
Rear Suspension Unit
13 parts

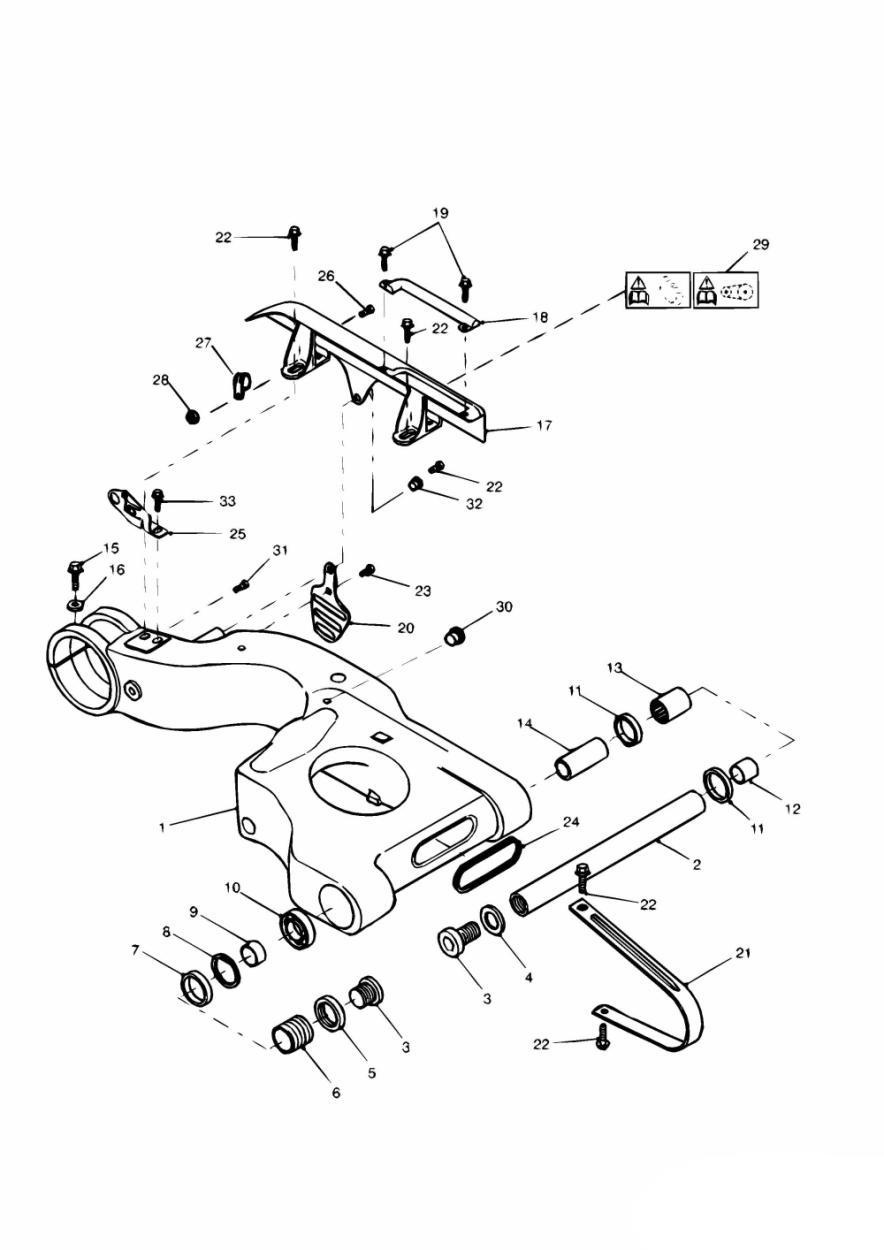

Swinging Arm
29 parts
Rear Suspension Linkage
23 parts
Swinging Arm
23 parts

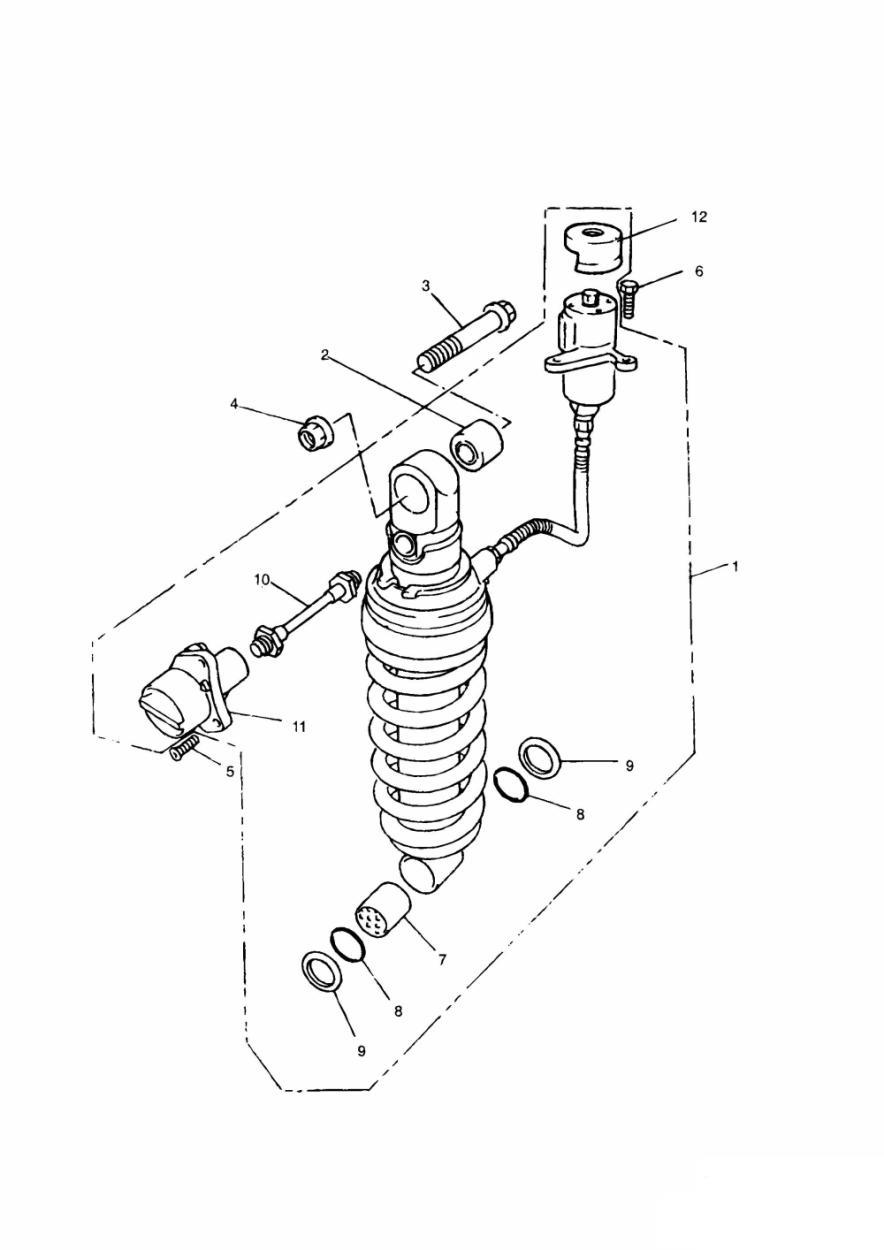

Rear Suspension Unit
Rear Suspension Unit
13 parts
VIN 9082 and lower
Rear Suspension Unit Double sided swingarm
5 parts
VIN 132513 and higher

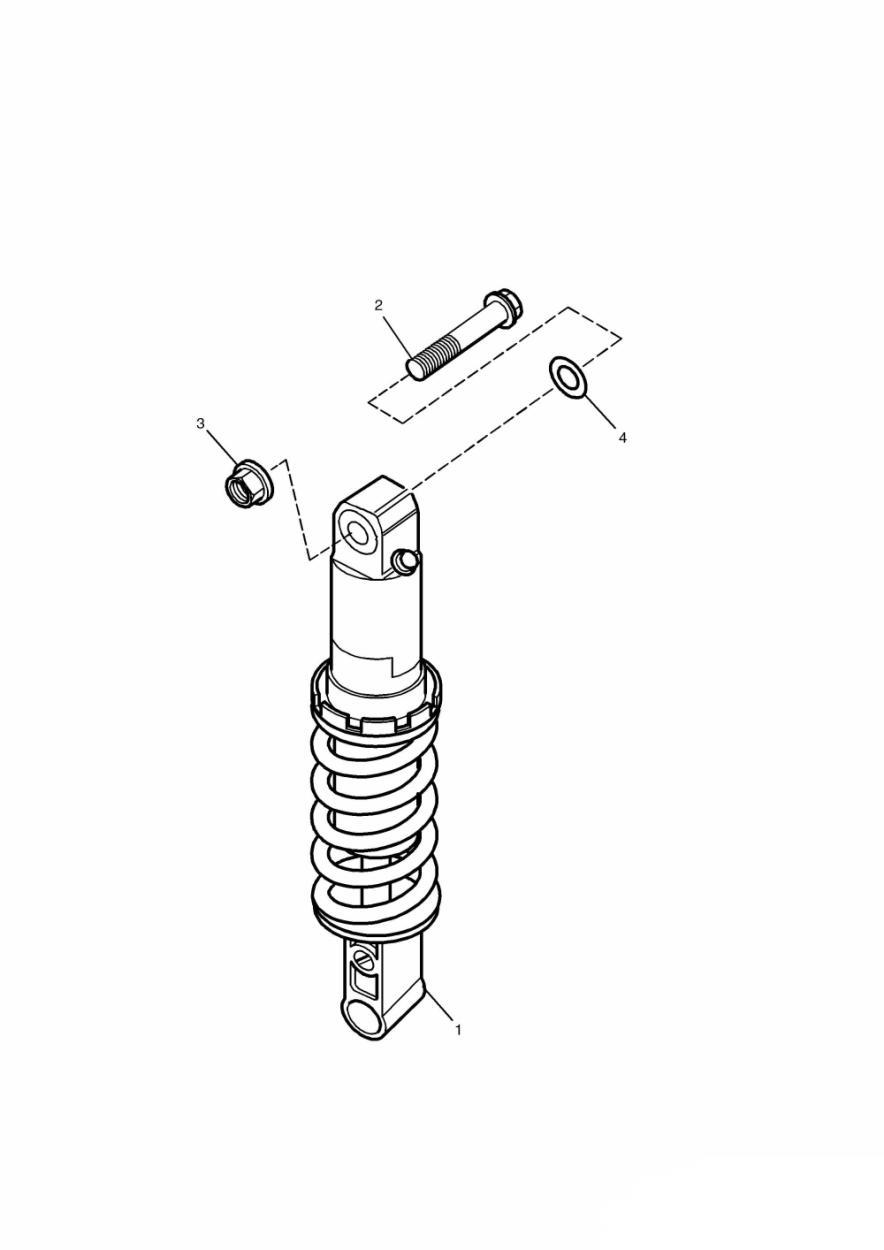

Rear Suspension Unit
4 parts
VIN 34810 and higher

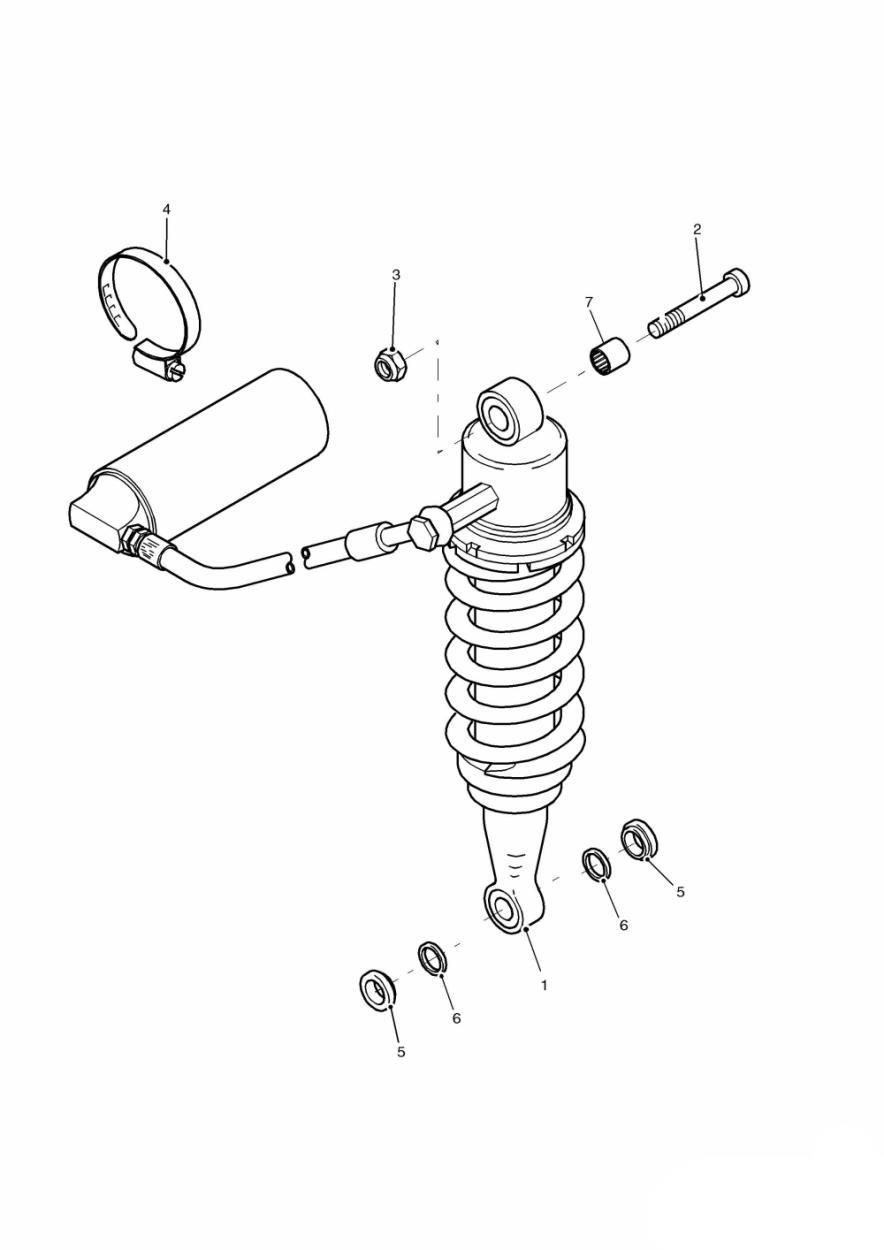

Rear Suspension Unit Single sided swingarm
7 parts
VIN 132513 and higher
Rear Suspension Unit
14 parts
More than one model
Rear Suspension Unit
14 parts
More than one model
Rear Suspension Unit
4 parts
More than one model
Rear Suspension Unit
4 parts
More than one model
Rear Suspension Unit
14 parts
More than one model
Swinging Arm
Swinging Arm Single sided swingarm
42 parts
VIN 132513 and higher

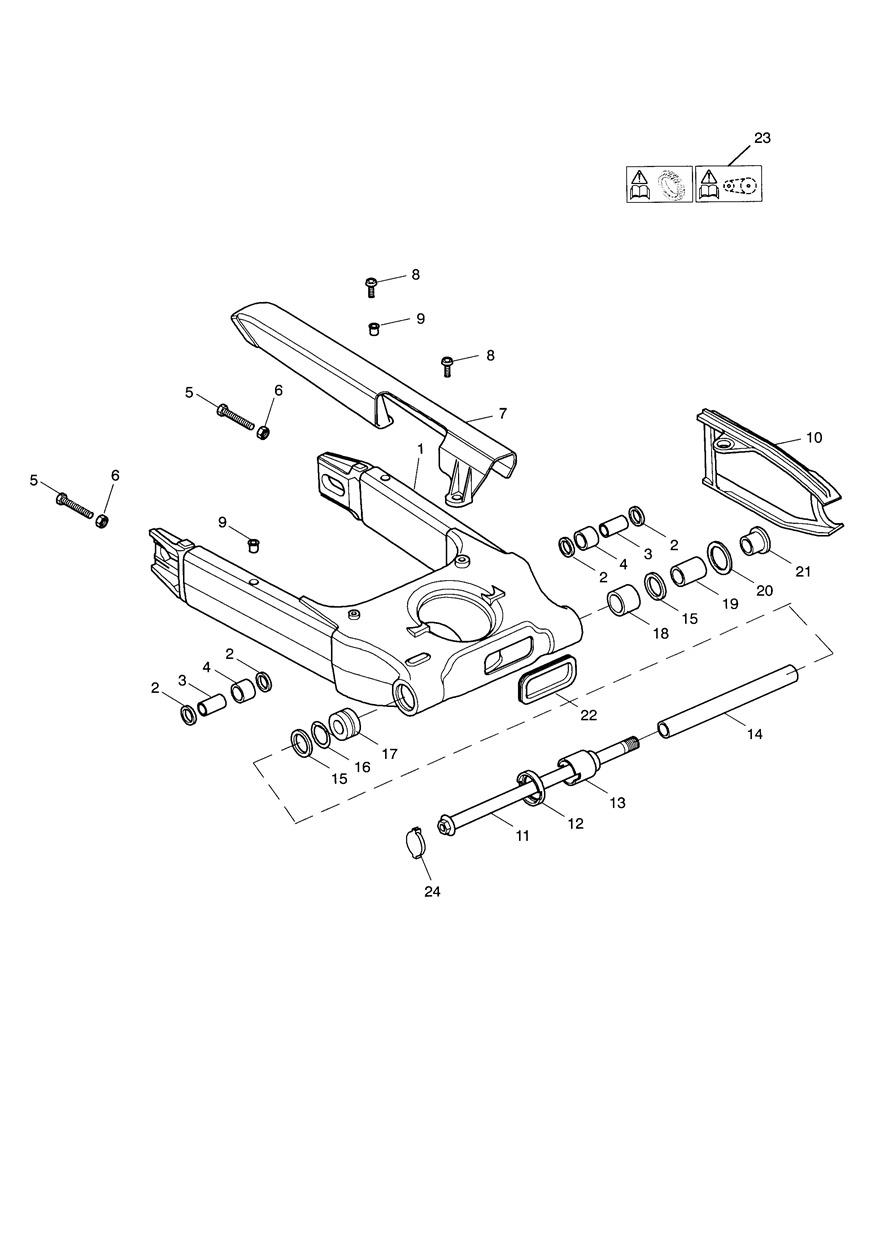

Swinging Arm Double sided swingarm
24 parts
VIN 132513 and higher
67 parts you can order online
Every part below appears in Triumph’s Rear Swinging Arm & Rear Suspension diagrams for the Daytona and is priced and orderable online. Open a part to see what it fits and to buy it.

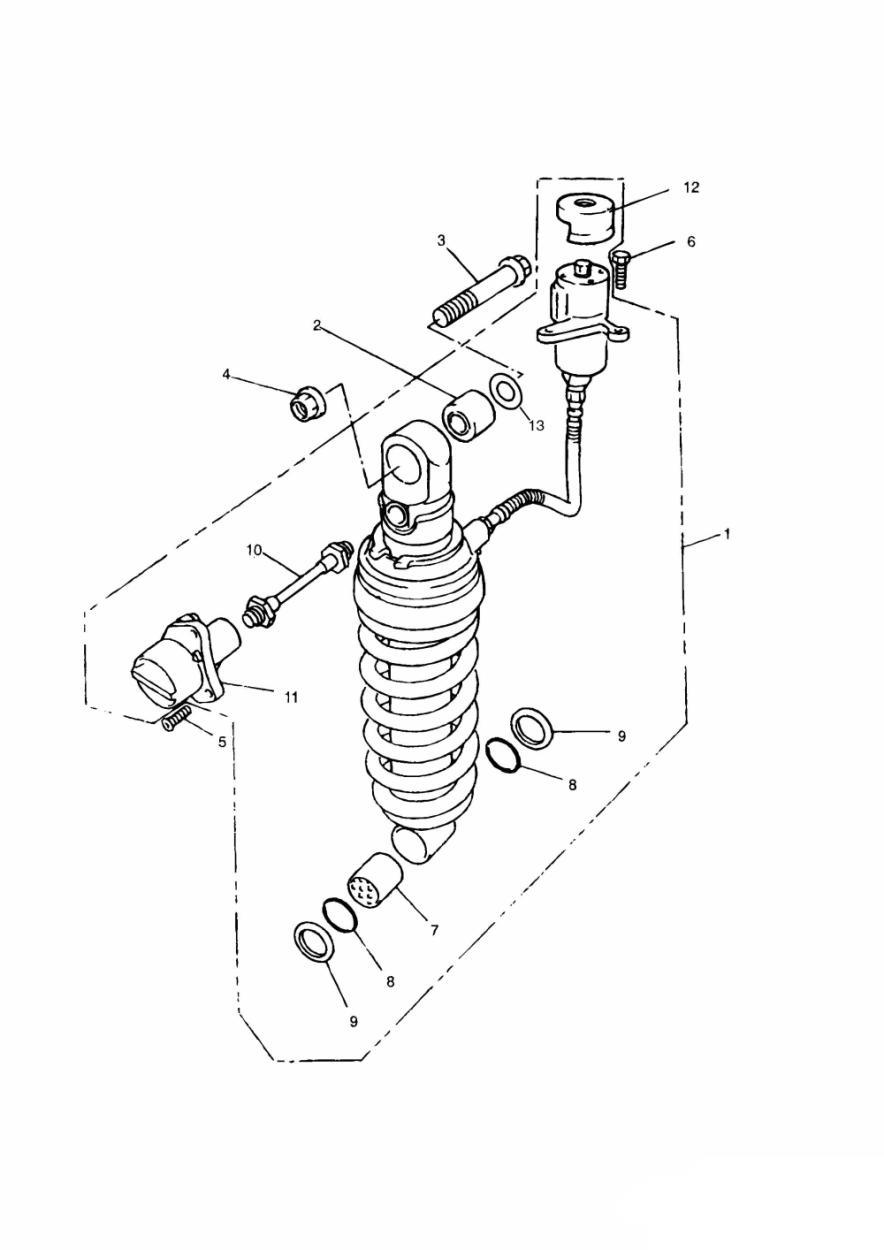

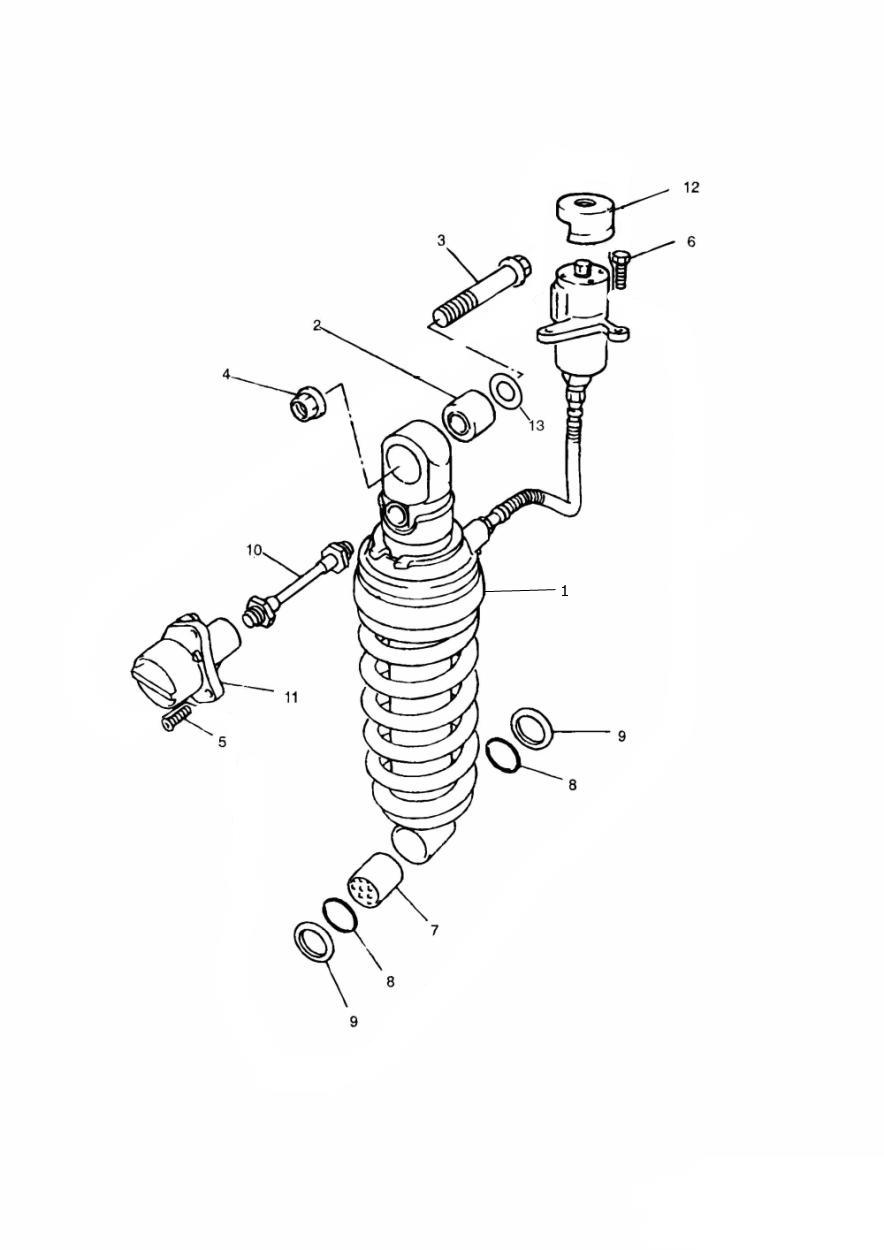

Rear Suspension Unit
T2052102 Kit Sleeve and Bolt
$19.82
AvailableT3330331 Bolt, Skt HD, M10 x 88
$8.10
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT2102115 Clip, 40-60, Bright
$4.39
AvailableT2051002 Collar
$3.08
AvailableT2051003 O Ring, Collar
$2.09
AvailableT2052100 Sleeve, Linkage Bolt, 23.7Lg
$12.20

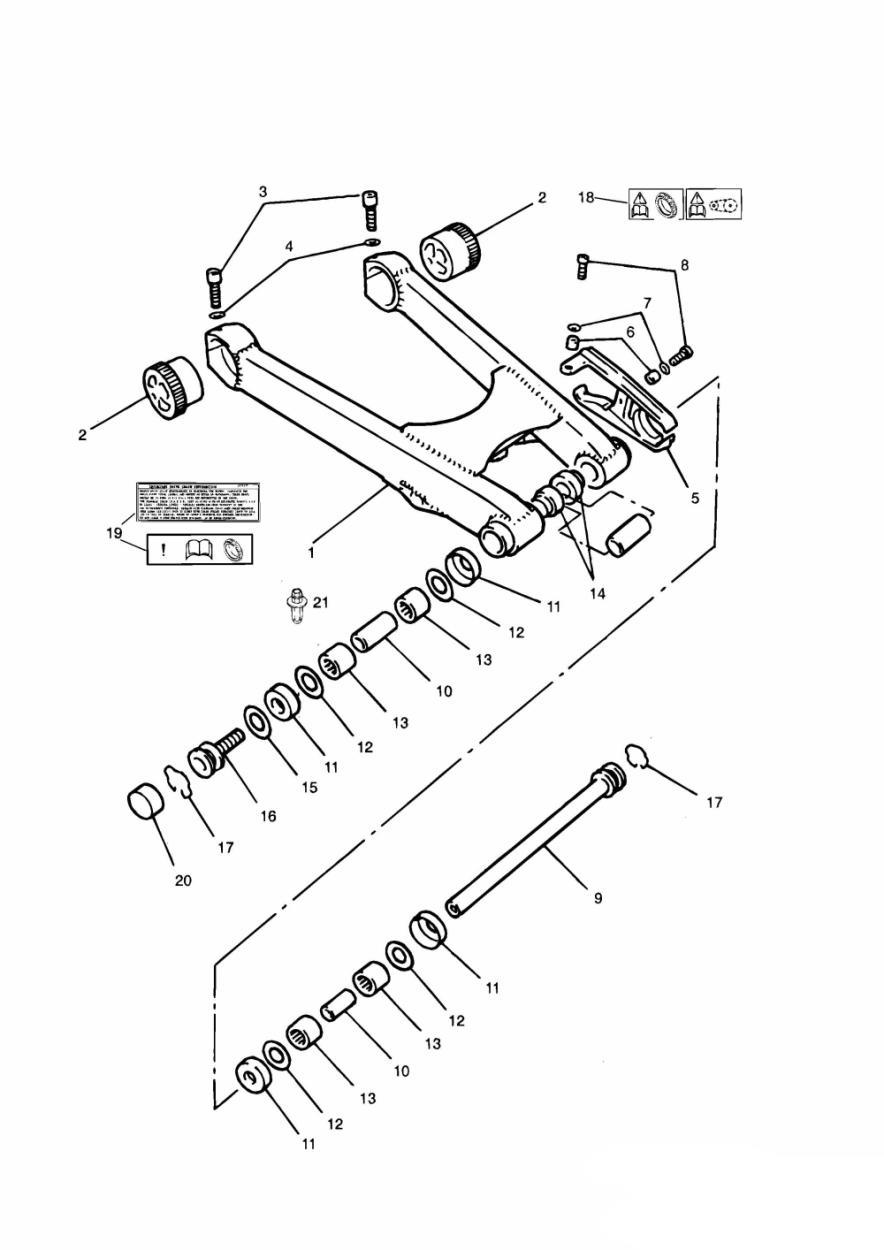

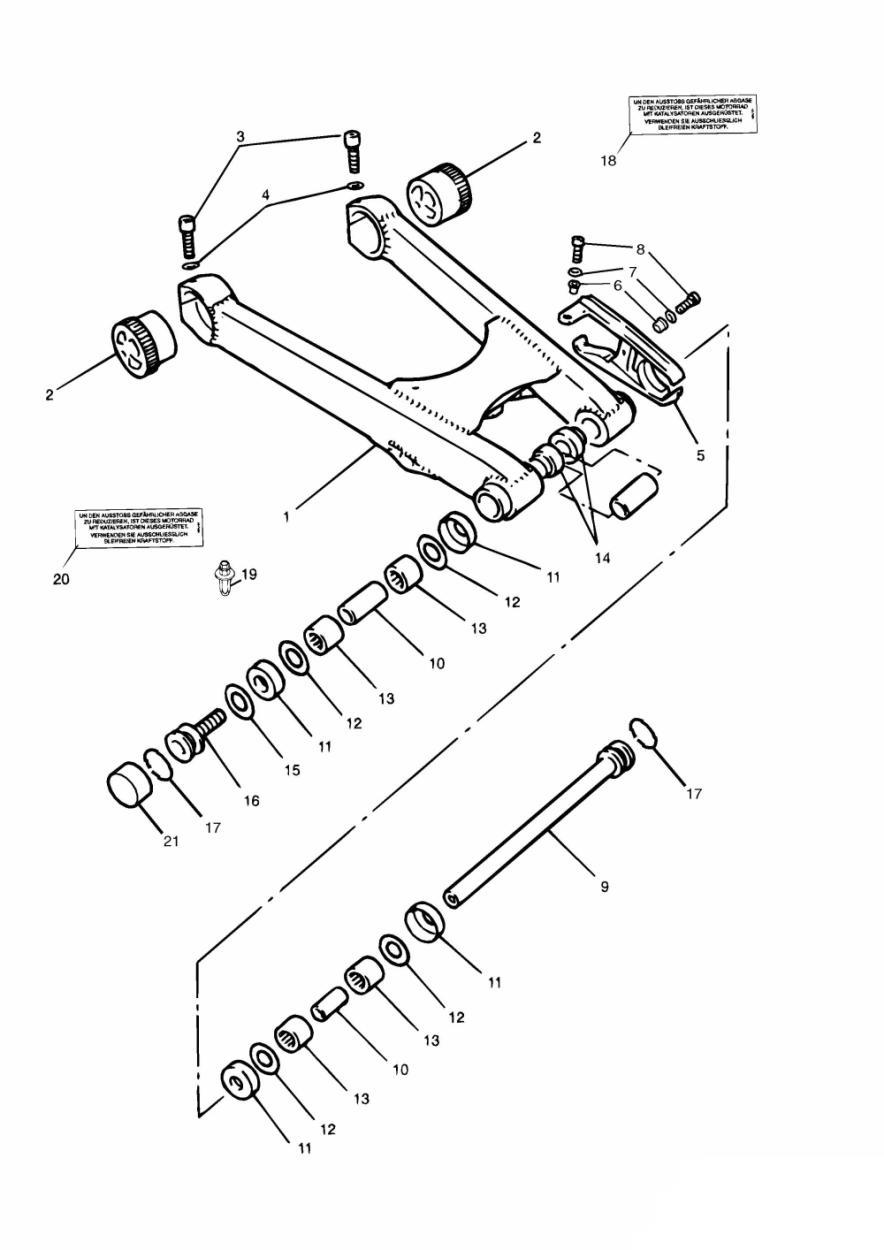

AvailableSwinging Arm
T2001078 Bolt, Front Spindle, Slv
$18.03
AvailableT3600041 Seal, Oil
$7.90
AvailableT3500203 Circlip, Int, 52 x 2
Low stock at Triumph
$14.86
Limited availabilityT3800029 Bearing Ball, 25 52 15
$15.10
AvailableT3600029 Seal, Oil
$5.54
AvailableT3800028 Bearing, Needle Roller
$13.50
AvailableT3331730 Bolt, HHF, M14 x 1.5 x 40, Slv
$23.57
AvailableT3550339 Washer, M14
$3.00
AvailableT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT2057362 Chainguard, Lower
$21.74
AvailableT2057365 Chain Rubbing Strip
Low stock at Triumph
$34.66
Limited availabilityT3331517 Screw, P/HD Tx, Shld, M6 x 16, S
$1.99
AvailableT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableT3350012 Locknut, Flgd, M6, Black, Zinc
$1.99
AvailableT3900092 Label, Chain & Tyres
$5.27
AvailableT3450009 Plug, M6
$3.00
AvailableT3010062 Flanged Sleeve, M6 x 7.8 x 2.85
$6.61

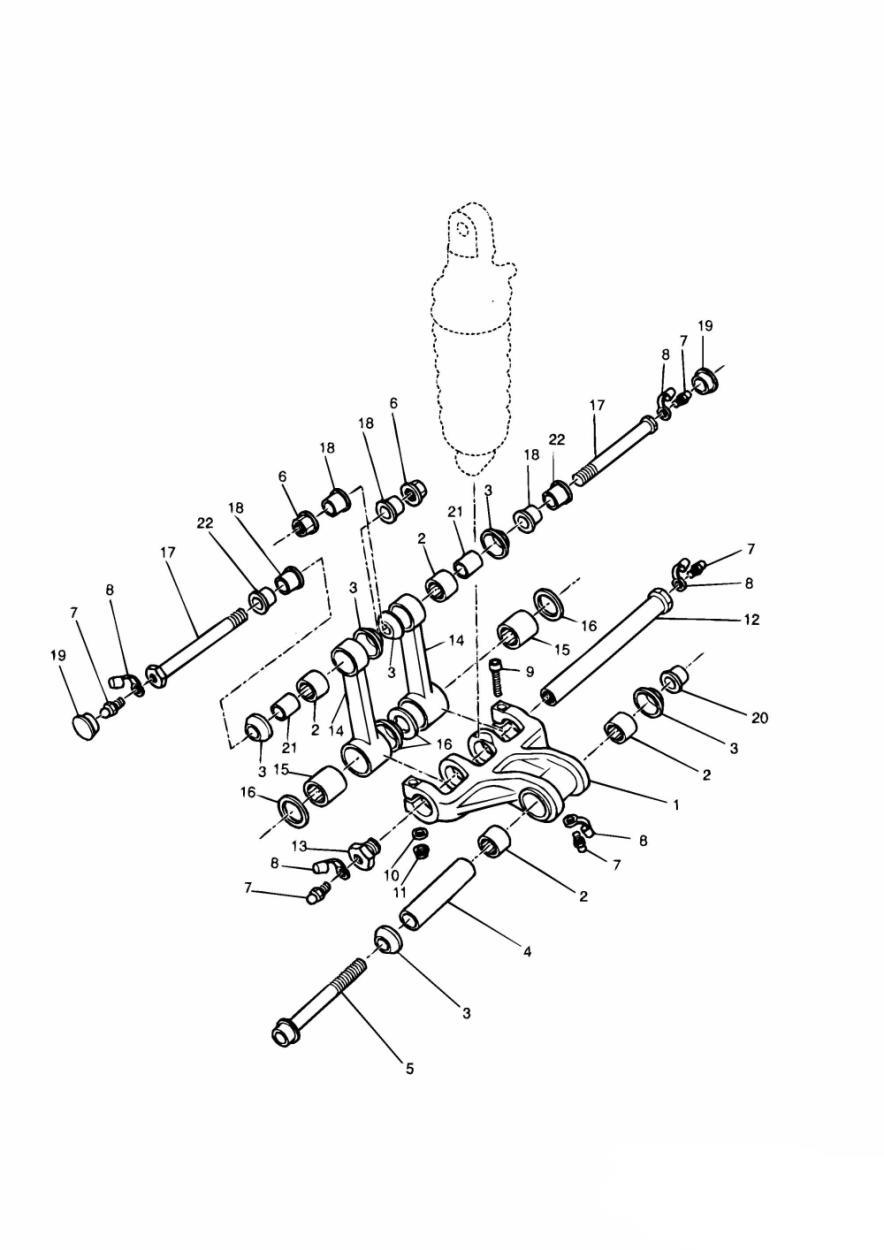

AvailableRear Suspension Linkage
T2057320 Sleeve
$87.14
AvailableT3332121 Bolt, Tx, M10 x 1.25 x 156
$29.29
AvailableT3800060 Bearing, Needle Roller, 202620
$34.40
AvailableT3600040 Seal
$6.42
AvailableT2057354 Sleeve, Linkage, Dia 20.0 x 30.5
Backordered at Triumph · we’ll confirm the ship date after you order
$9.92
On backorderT3050406 Bolt, Tx, M12 x 110, Slv
Backordered at Triumph · we’ll confirm the ship date after you order
$13.18
On backorderT3350234 Locknut, Flgd, M12 x 1.25
$5.62
AvailableT2057348 Sleeve, Dia 20.0 x 118.0
$37.24
AvailableT3550614 Washer, 12 x 23 x 2
$1.99
AvailableT3550615 Washer, Thrust, 12 x 32 x 1
$4.64
AvailableRear Suspension Linkage
3800025-T0301 Needle bearing
$16.81
Available2058001-T0301 Seal
$11.46
AvailableT3334680 Bolt, HHF, M12 x 119, Slv
$7.71
AvailableT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT2057935 Spindle, Linkage
$87.14
Available3800024-T0301 Needle bearing
$34.40
Available2059445-T0301 Sleeve
$6.76
AvailableRear Suspension Linkage Double sided swingarm VIN 132513 and higher
Rear Suspension Unit VIN 9082 and lower

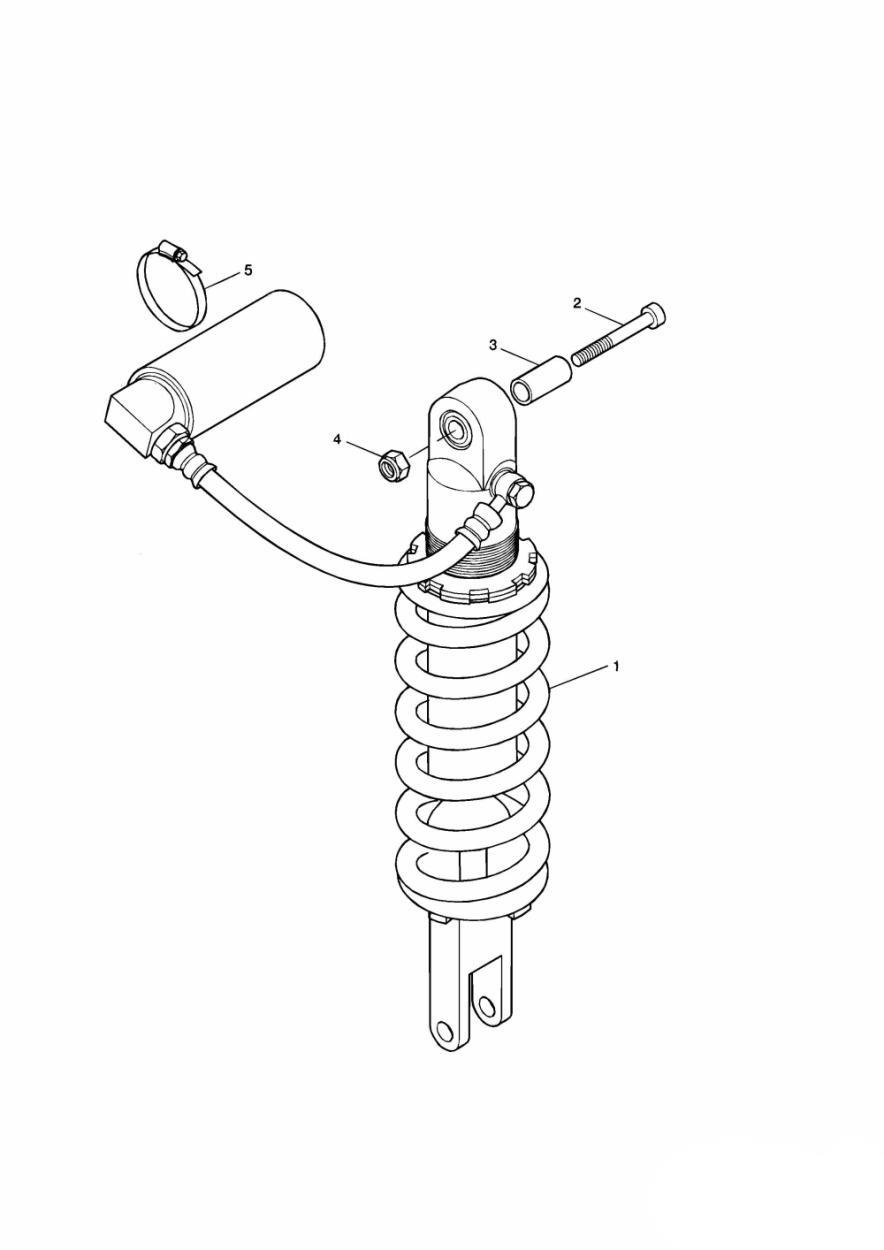

Rear Suspension Unit Double sided swingarm VIN 132513 and higher

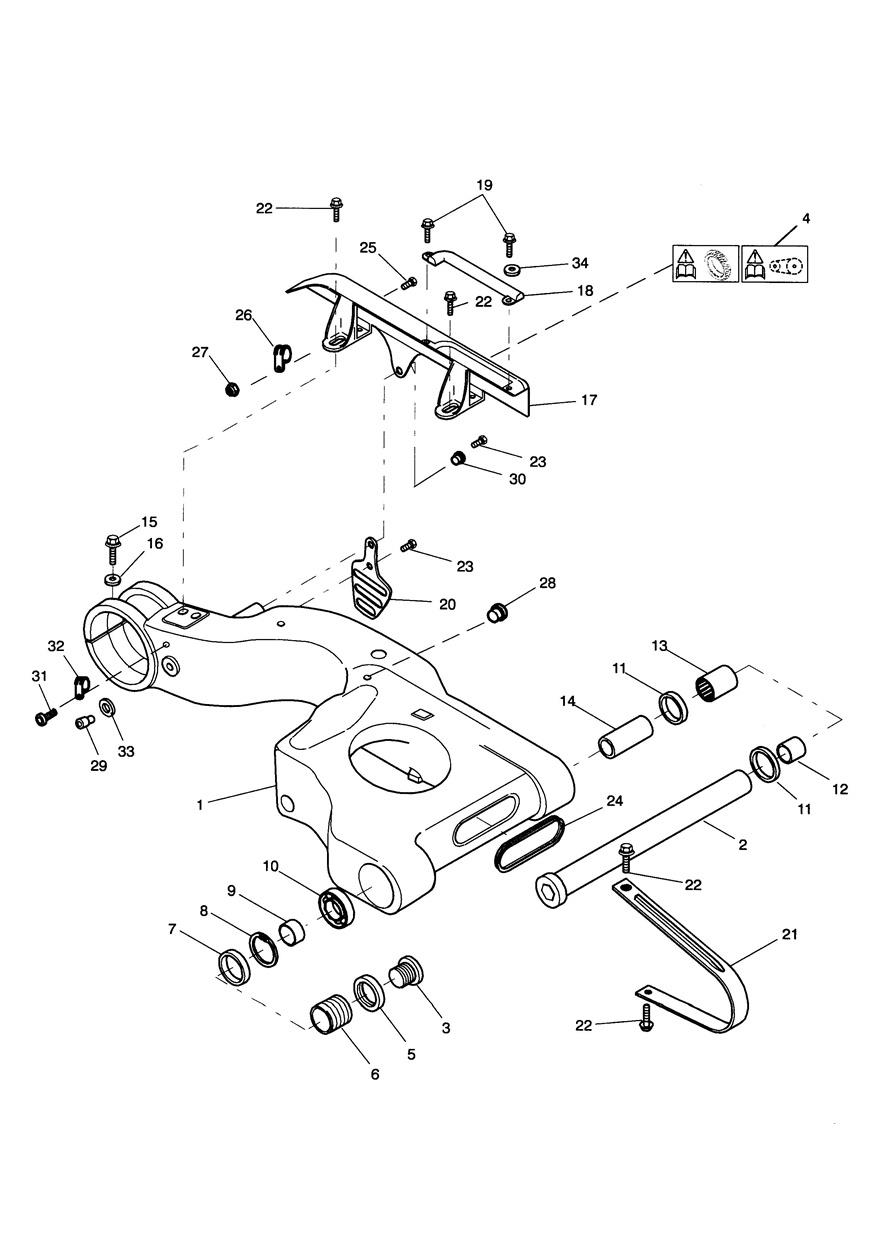

Swinging Arm Single sided swingarm VIN 132513 and higher
T2057366 Chainguard
$27.80
AvailableT2057358 Chain Rubbing Strip
Low stock at Triumph
$35.56
Limited availabilityT3051164 Bolt, Caliper Carrier, Silv, Enc
$15.20
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilitySwinging Arm
T3551283 Washer, M10, 10.5x18x1.6, Slv
$1.99
AvailableT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3800014 Roller bearing
Backordered at Triumph · expected Nov 20
$13.26
On backorderT3555032 Washer, 17 x 30 x 3
Low stock at Triumph
$2.93
Limited availability3500010-T0301 Retaining ring
$2.09
AvailableSwinging Arm Double sided swingarm VIN 132513 and higher
T3600066 Oil Seal, 24 17 5
Low stock at Triumph
$7.90
Limited availabilityT3203204 Screw, H/Hd, M8 x 55, Slv
$2.17
AvailableT3350303 Nut, M8, Silver
$1.99
AvailableT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT3350210 Threaded Insert, M6, Open Ended
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderT2054050 Spindle
$69.55
AvailableT3600044 Oil Seal, 35 25 4
Low stock at Triumph
$9.67
Limited availabilityT3500204 Circlip, Int, 35 x 1.5
$1.99
AvailableT3800506 Bearing, Ball, 17 x 35 x 10
$17.86
AvailableT2053188 Sleeve, Ground, 25 x 17 x 37
Low stock at Triumph
$8.82
Limited availabilityT3550127 Washer
$1.99
Available
