Service Tools, Literature & Touch-Up Paint
Triumph Daytona · 16 diagrams
16 exploded diagrams for the service tools, literature & touch-up paint of the Triumph Daytona, covering the Daytona 955i / T595. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

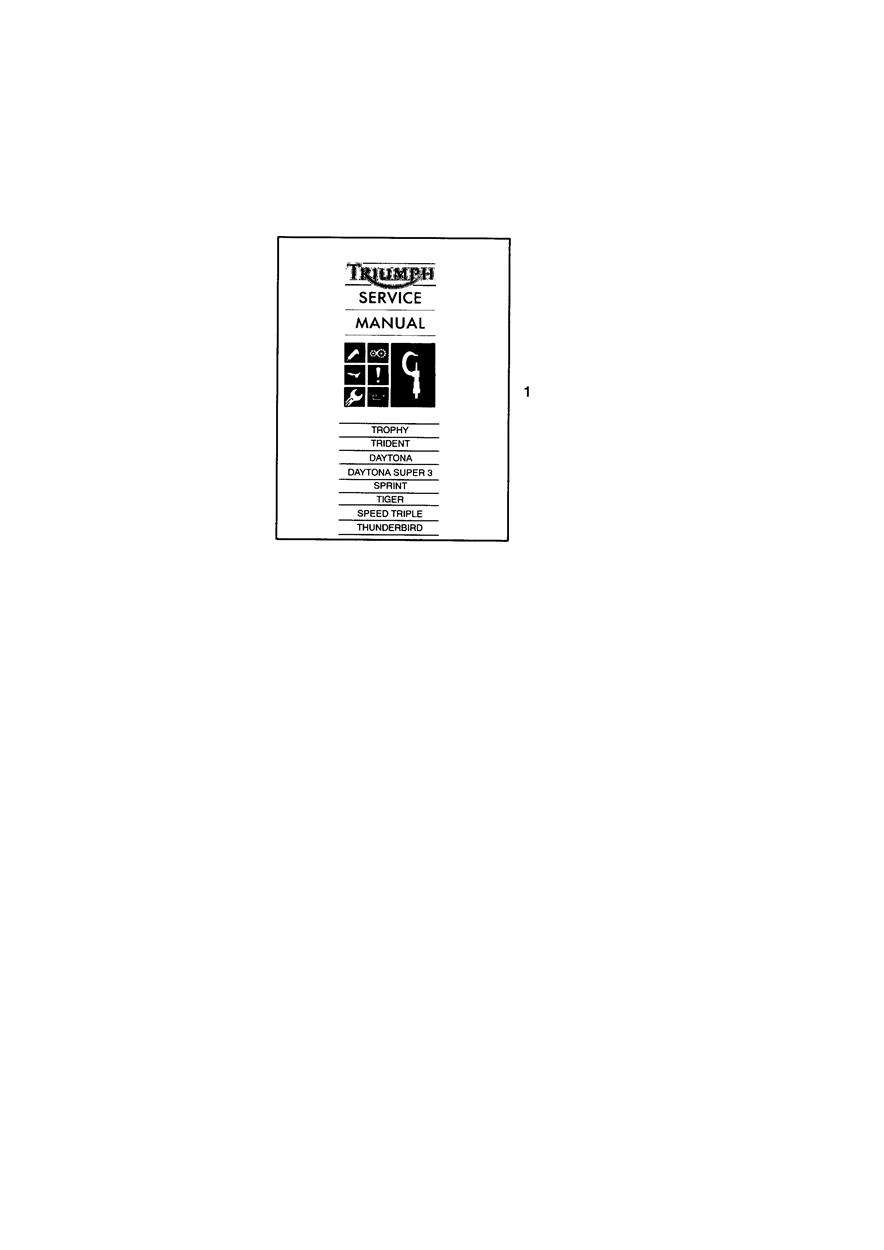

Service Literature
3 parts

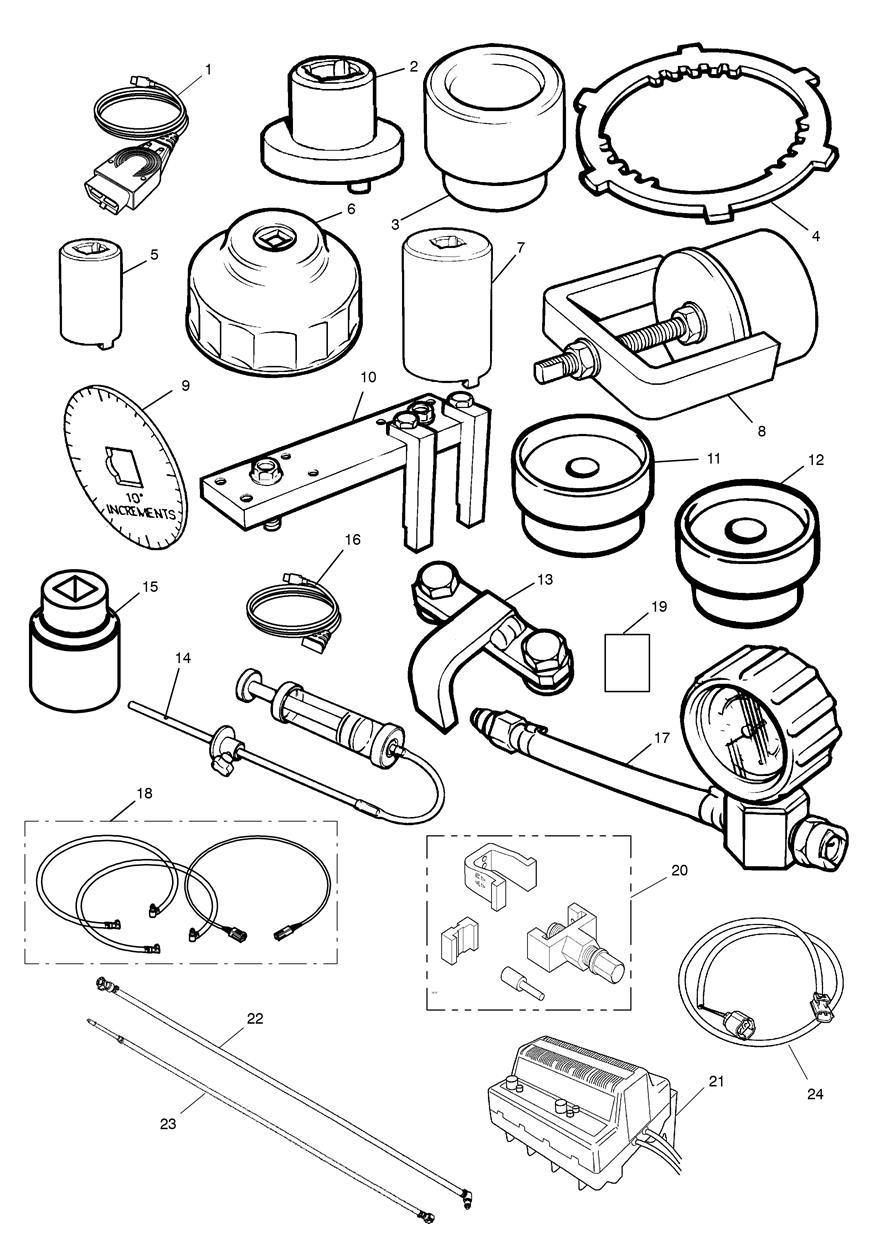

Service Tools
27 parts

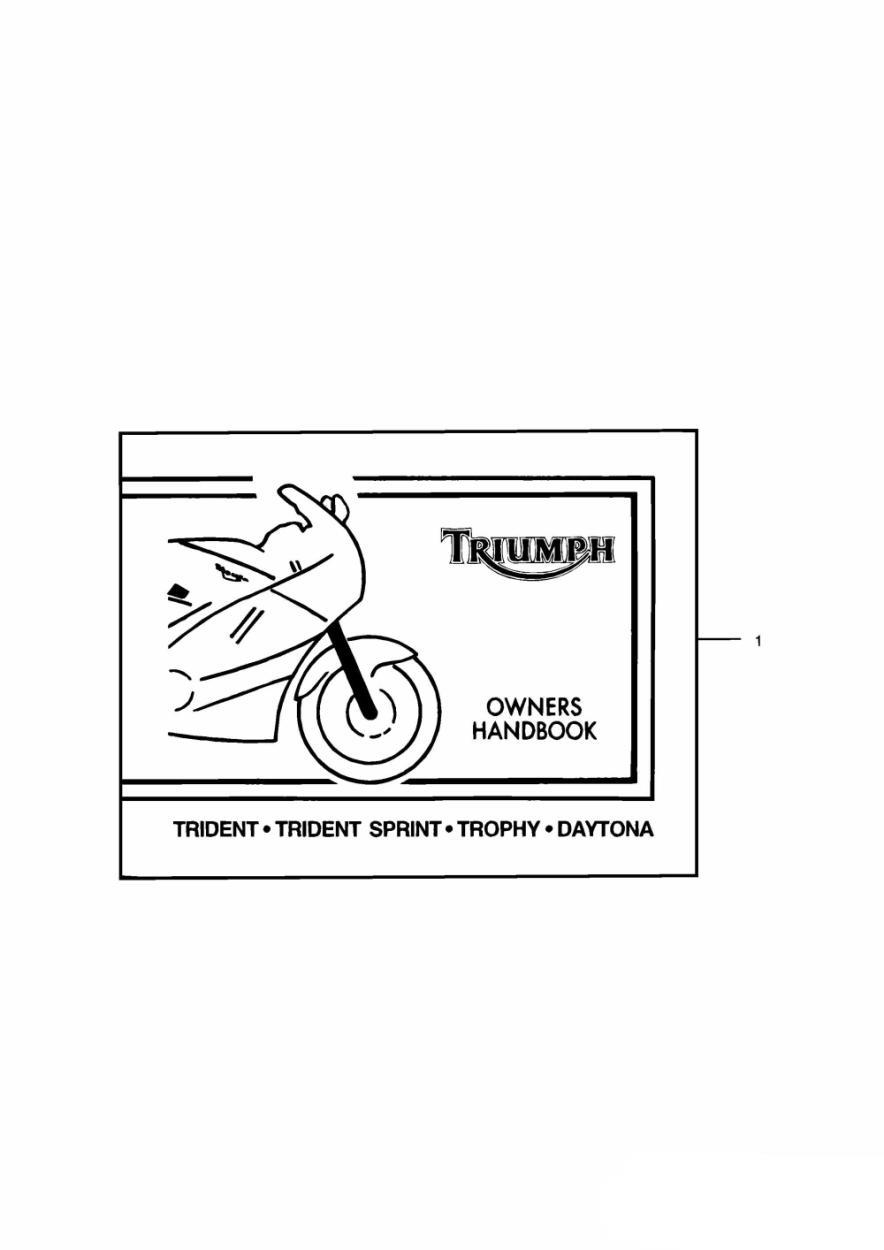

Owners Handbook
2 parts

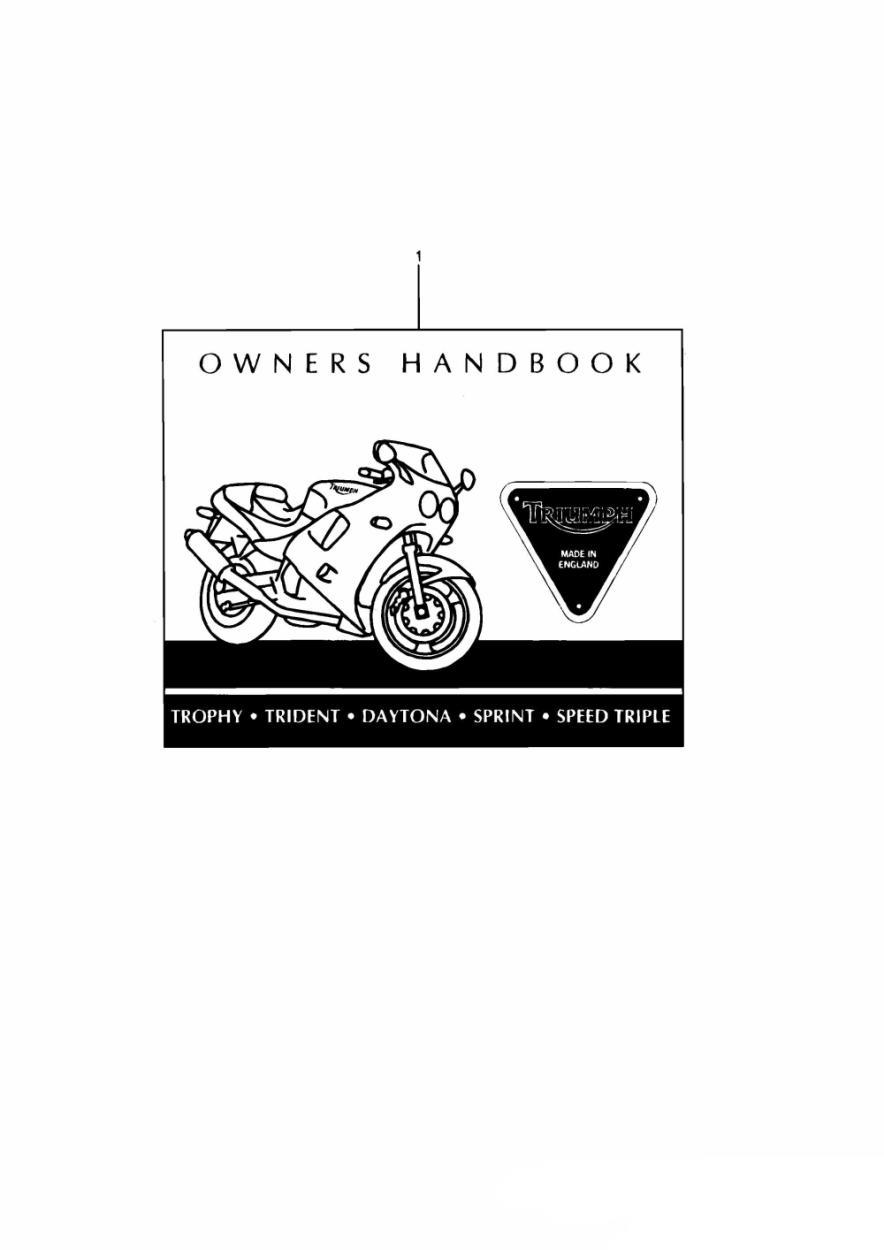

Owners Handbook
1 part

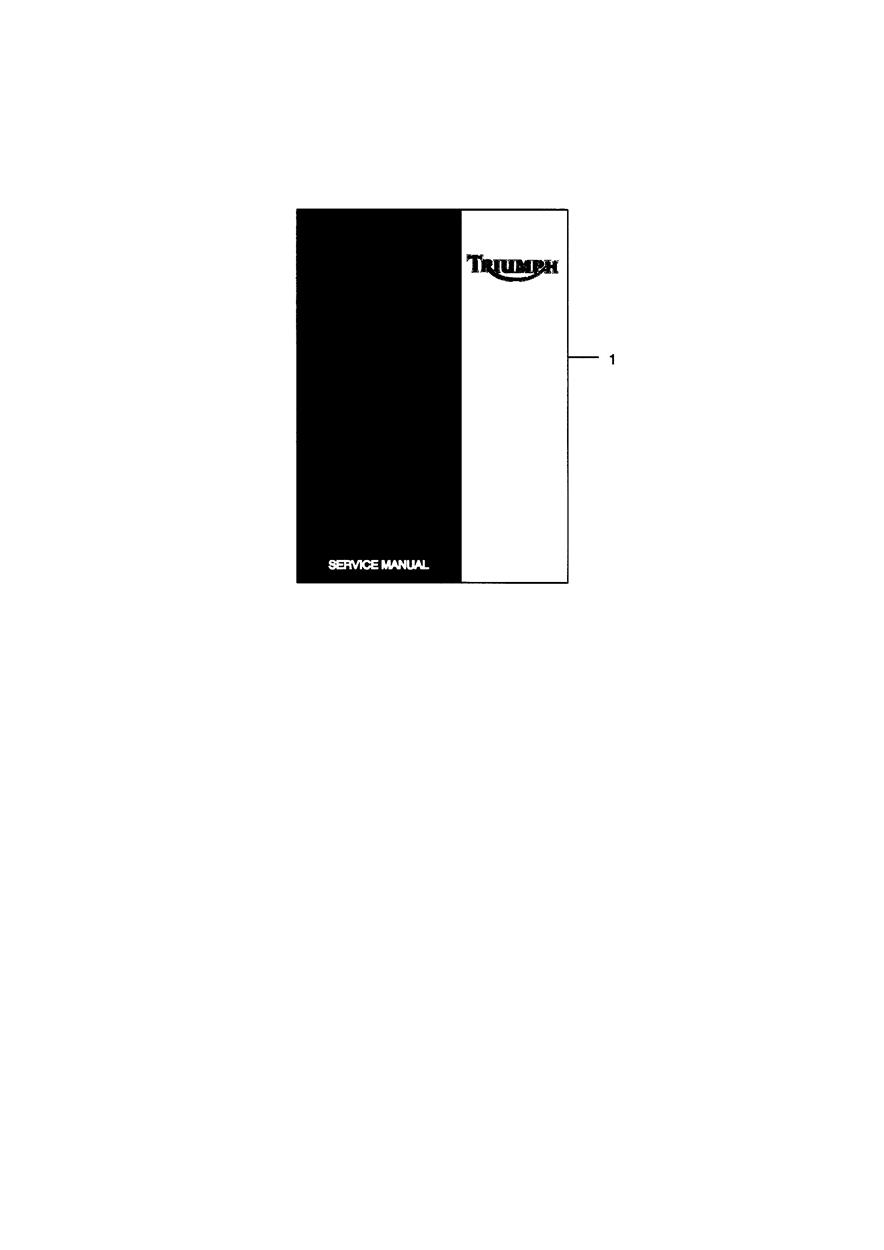

Service Literature
4 parts

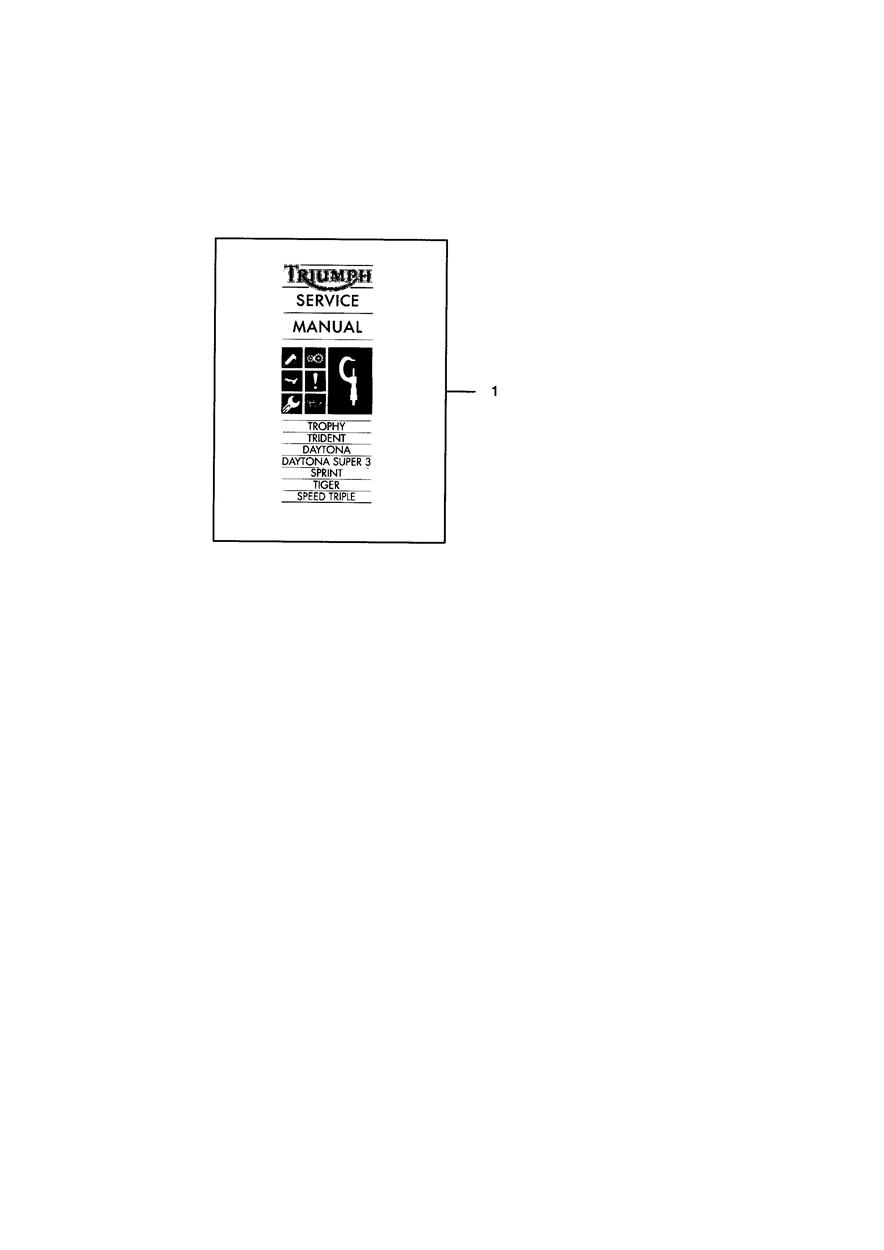

Service Literature
4 parts

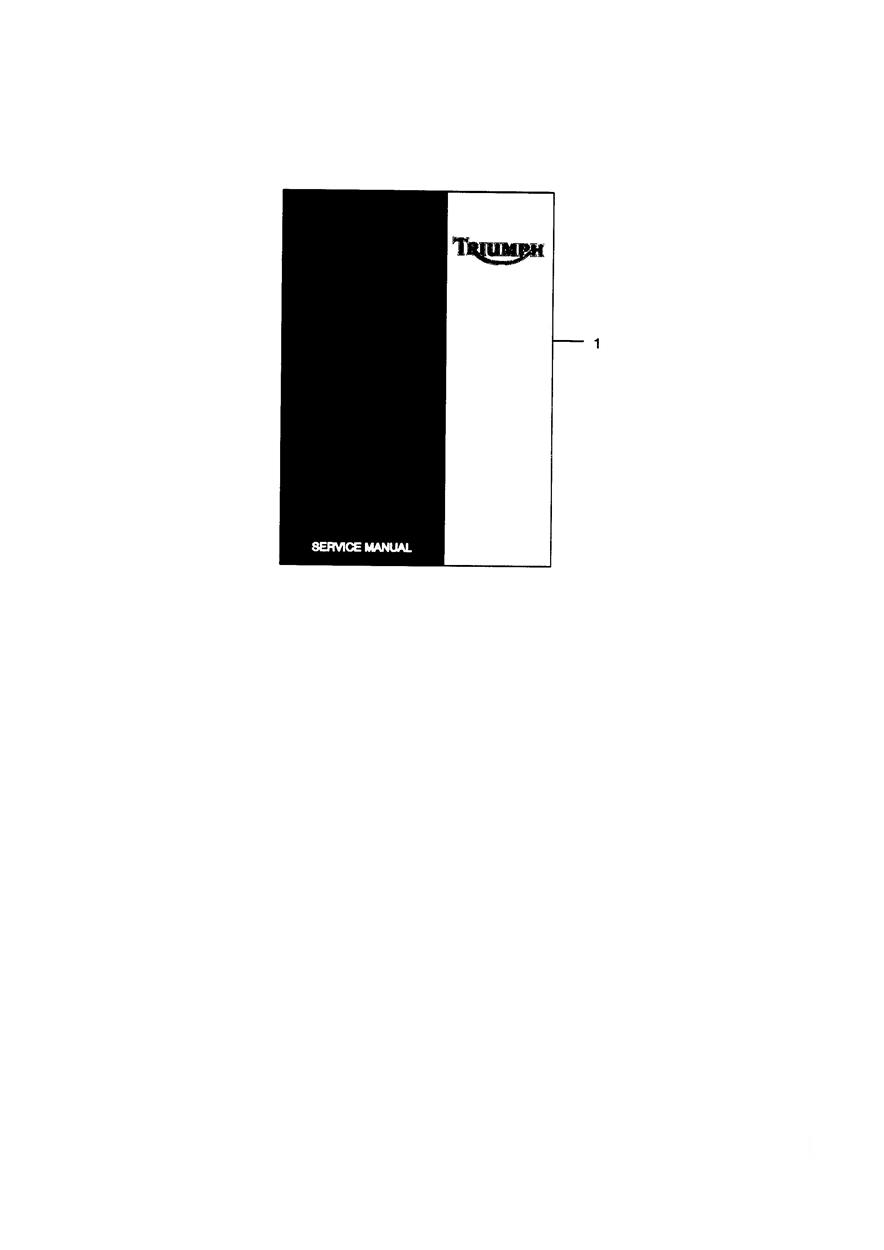

Service Literature
4 parts
VIN 132513 and higher

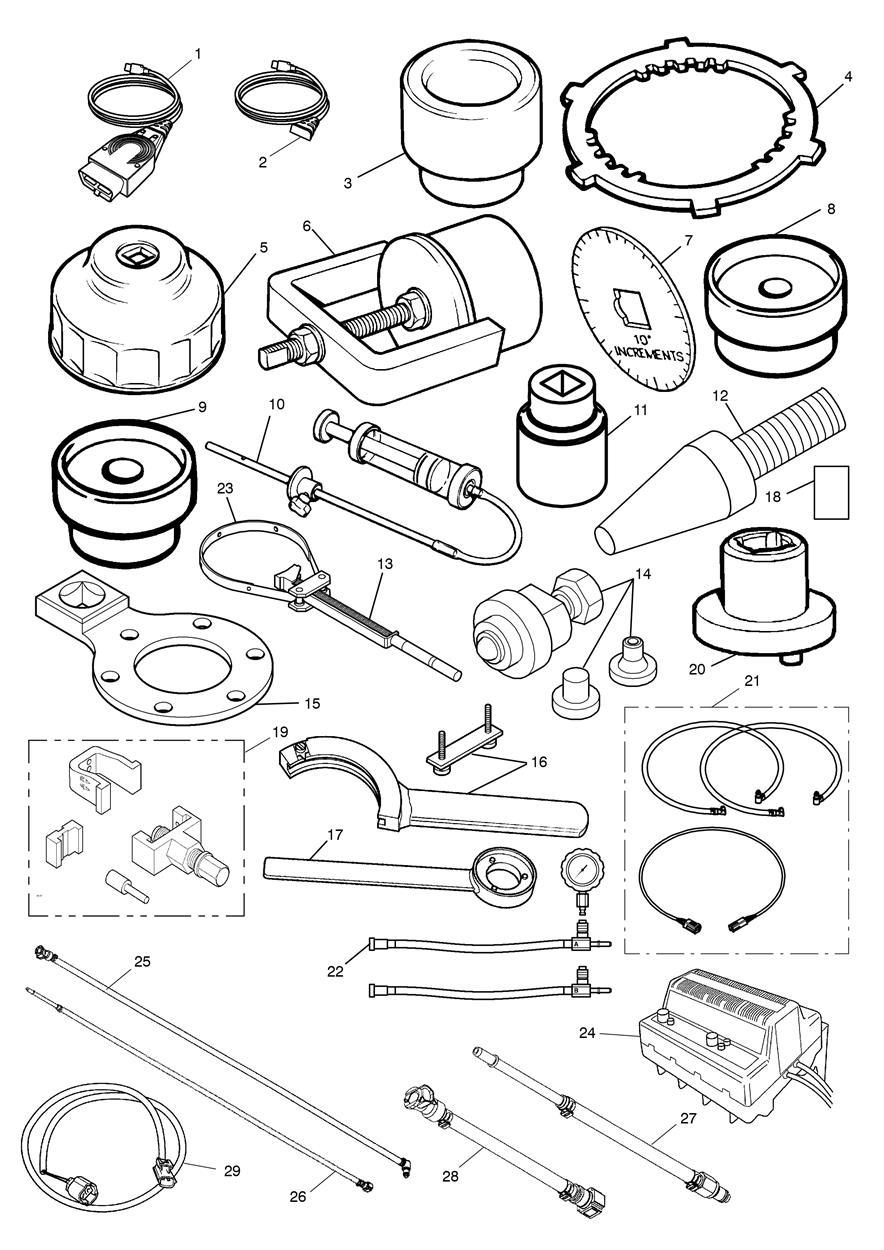

Service Tools
28 parts

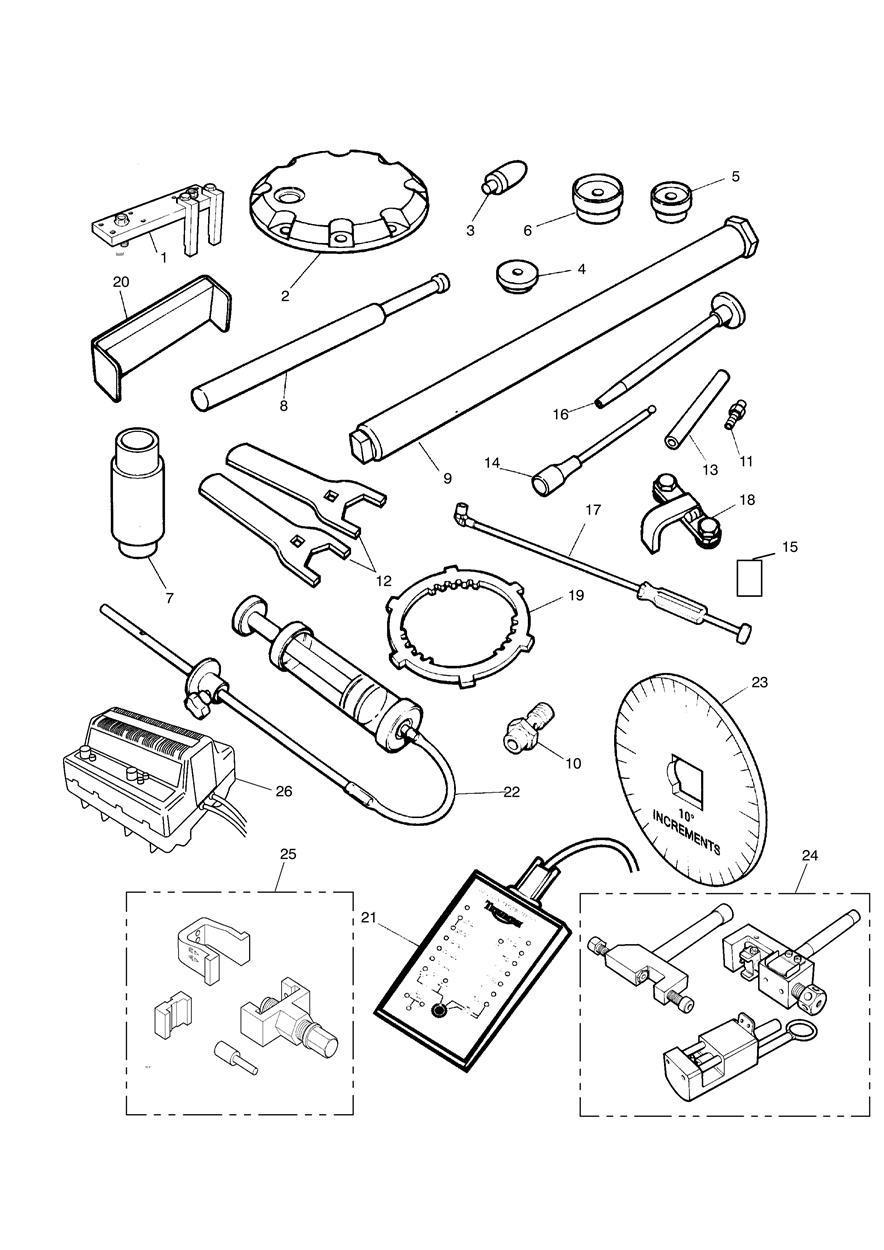

Service Tools
27 parts

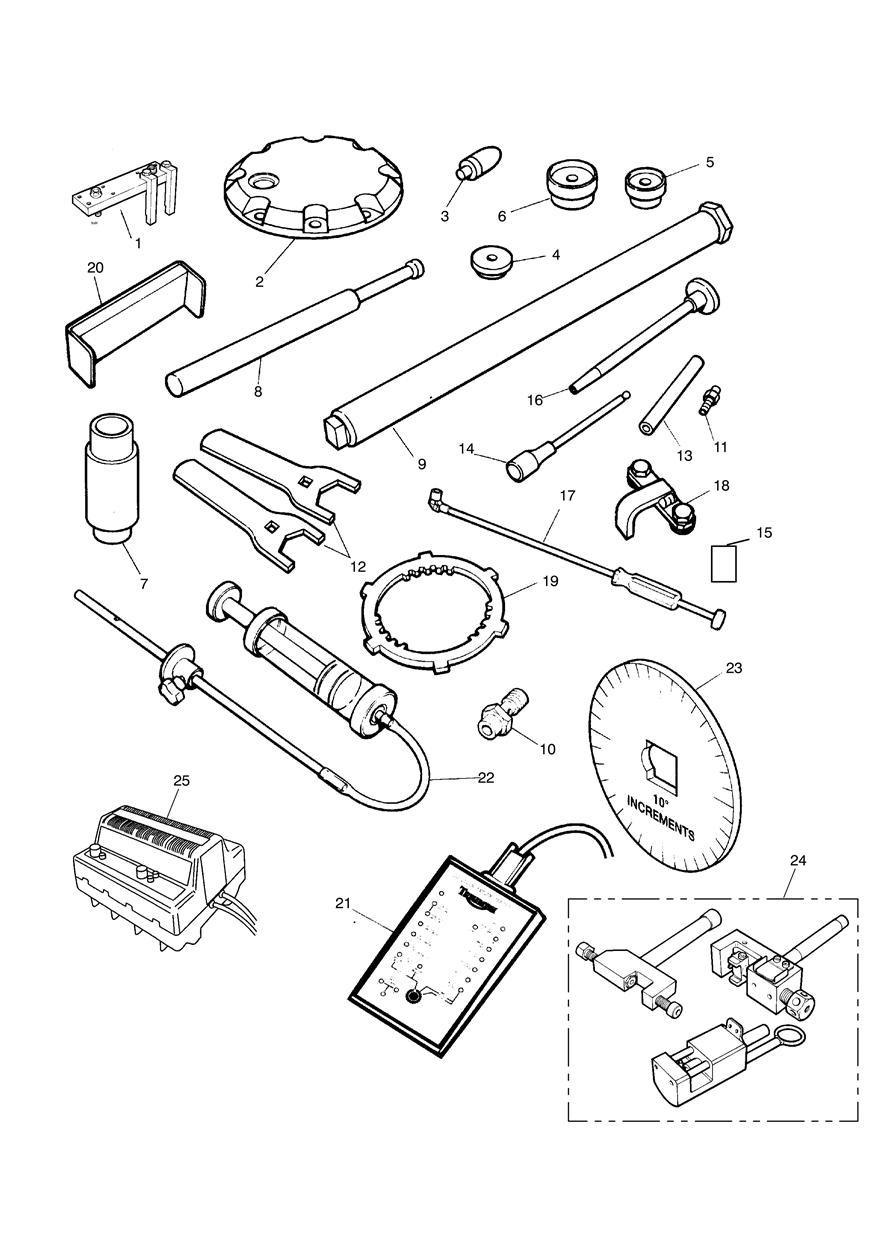

Service Tools
32 parts
VIN 132513 and higher
Owners Handbook
Owners Handbook
2 parts
VIN 29156 and higher

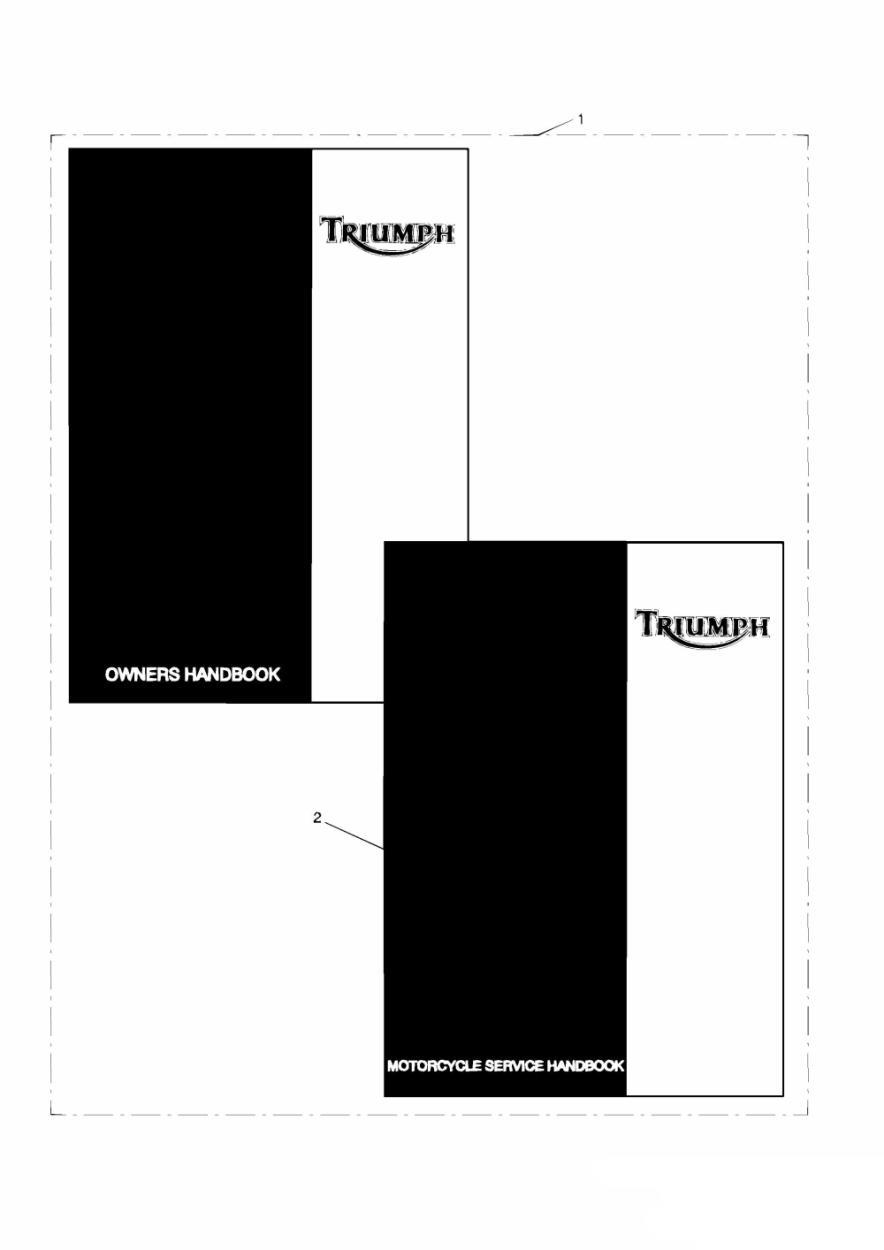

Owners Handbook
2 parts
VIN 227652 and higher
Owners Handbook
1 part
VIN 9082 and lower
Owners Handbook
1 part
VIN 227651 and lower
Owners Handbook
1 part
More than one model
Owners Handbook
3 parts
More than one model
47 parts you can order online
Every part below appears in Triumph’s Service Tools, Literature & Touch-Up Paint diagrams for the Daytona and is priced and orderable online. Open a part to see what it fits and to buy it.
Service Literature
Service Tools
T3880057 Diagnostic Kit, PC Based
$1058.43
AvailableT3880300 Wrench
Low stock at Triumph
$35.87
Limited availabilityT3880305 Clutch, Anti-Rotation Tool
$34.77
AvailableT3880313 Oil Filter Wrench
$3.45
AvailableT3880315 Extractor
$41.20
AvailableT3880105 Angular Torque Gauge
$3.02
AvailableT3880012 Removal tool
$117.44
Available3880075-T0301 Wheel Bearing Fitment
$14.63
Available3880070-T0301 Bearing Installer
Backordered at Triumph · we’ll confirm the ship date after you order
$11.06
On backorder3880040-T0301 Locking device
$30.89
AvailableT3880160 Evacuator
$108.15
AvailableT3880046 Socket, 46Mm 1/2" Sq Drive
Low stock at Triumph
$11.27
Limited availabilityT3880059 Cable, Interface to PC
$160.14
AvailableT3880048 Fuel pressure gauge
$38.00
AvailableT3880127 Kit, Fuel Hose Extension, Efi
Backordered at Triumph · we’ll confirm the ship date after you order
$216.52
On backorder3880150-T0301 Plastigauge
Low stock at Triumph
$30.99
Limited availabilityT3880810 Kit, Drive Chain, DID
$82.50
AvailableT3880072 Battery Charger, 115V
$770.32
AvailableT3880164 Extension Hose, Fuel, Efi
$71.30
AvailableT3880018 Extension Hose, Fuel Supply
$44.90
AvailableT3880129 Extension Cable, Fuel Pump
$30.99
AvailableT3880115 Power Cord, USA/Canada
$28.42
AvailableOwners Handbook
Owners Handbook VIN 29156 and higher
Service Literature
3850300-T0301 Service manual
$154.92
Available3850310-T0301 Service manual
Backordered at Triumph · expected Nov 6
$154.92
On backorder3850030-T0301 Service/warranty book
$24.71
AvailableService Tools
3880050-T0301 Timing cover
$50.18
AvailableT3880060 Swinging Arm, Bearing Alignment
$18.57
Available3880065-T0301 Bearing adaptor
$10.59
Available3880080-T0301 Fork Seal/Bearing Drift
$21.97
Available3880085-T0301 Fork Piston Holder
$9.47
Available3880090-T0301 Fork kit
$26.80
Available3880120-T0301 Adaptor
$19.82
AvailableT3880140 Spanner, Thin, 38mm
Low stock at Triumph
$10.95
Limited availability3880025-T0301 Locking plate
$19.82
AvailableService Tools
Service Tools VIN 132513 and higher
T3880375 Alternator Rotor Holder
Backordered at Triumph · we’ll confirm the ship date after you order
$27.26
On backorderT3880203 Puller, Alternator Rotor
$5.73
AvailableT3880371 Restraint, Oil Pump Gear
$25.78
AvailableT3880016 C Spanner, Balance Gear
$38.22
AvailableT3880017 Holder, Sprag Clutch
$30.39
AvailableT3880001 Fuel Press, Gauge, Returnless
Backordered at Triumph · we’ll confirm the ship date after you order
$89.81
On backorderT3880376 Strap, Alternator Holder
$66.90
AvailableT3880097 Fuel Hose Adaptor, Male/Male
$27.62
AvailableT3880098 Fuel Hose Adaptor, Female/Female
$27.62
Available
