Clutch & Transmission incl. Gearchange Mechanism

Triumph Legend TT · 6 diagrams

6 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Legend TT, covering the Legend TT. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

Transmission

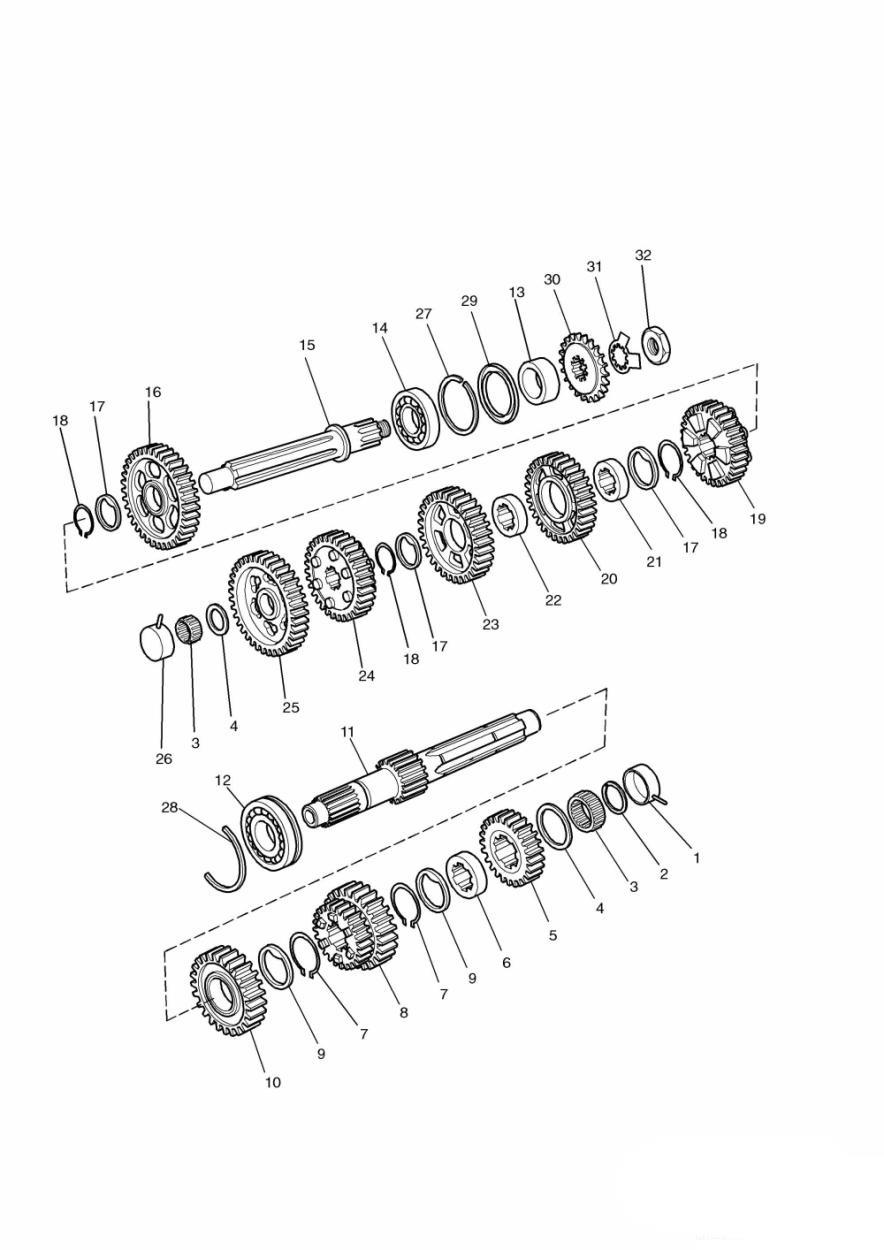

Transmission exploded diagram
Transmission
32 parts

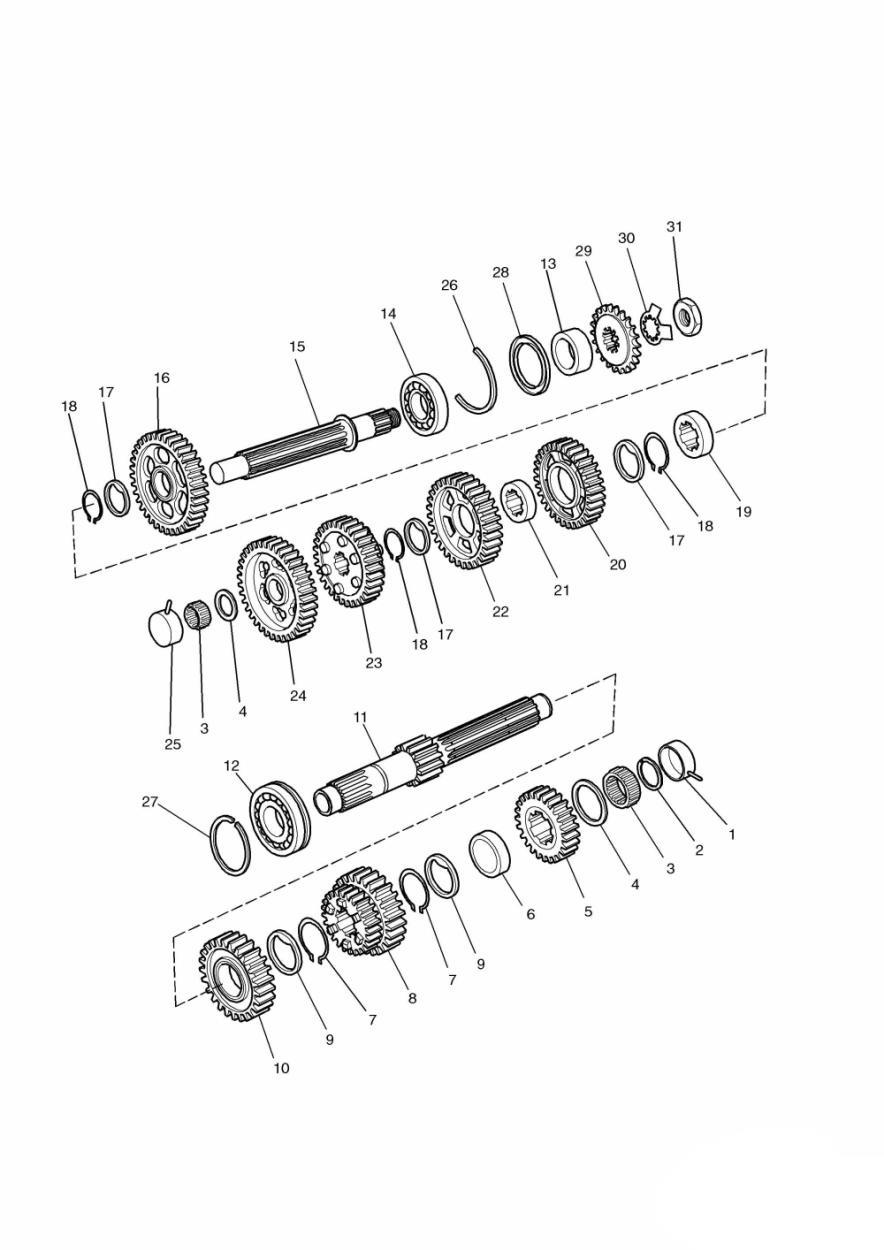

 Transmission exploded diagram
Transmission
31 parts

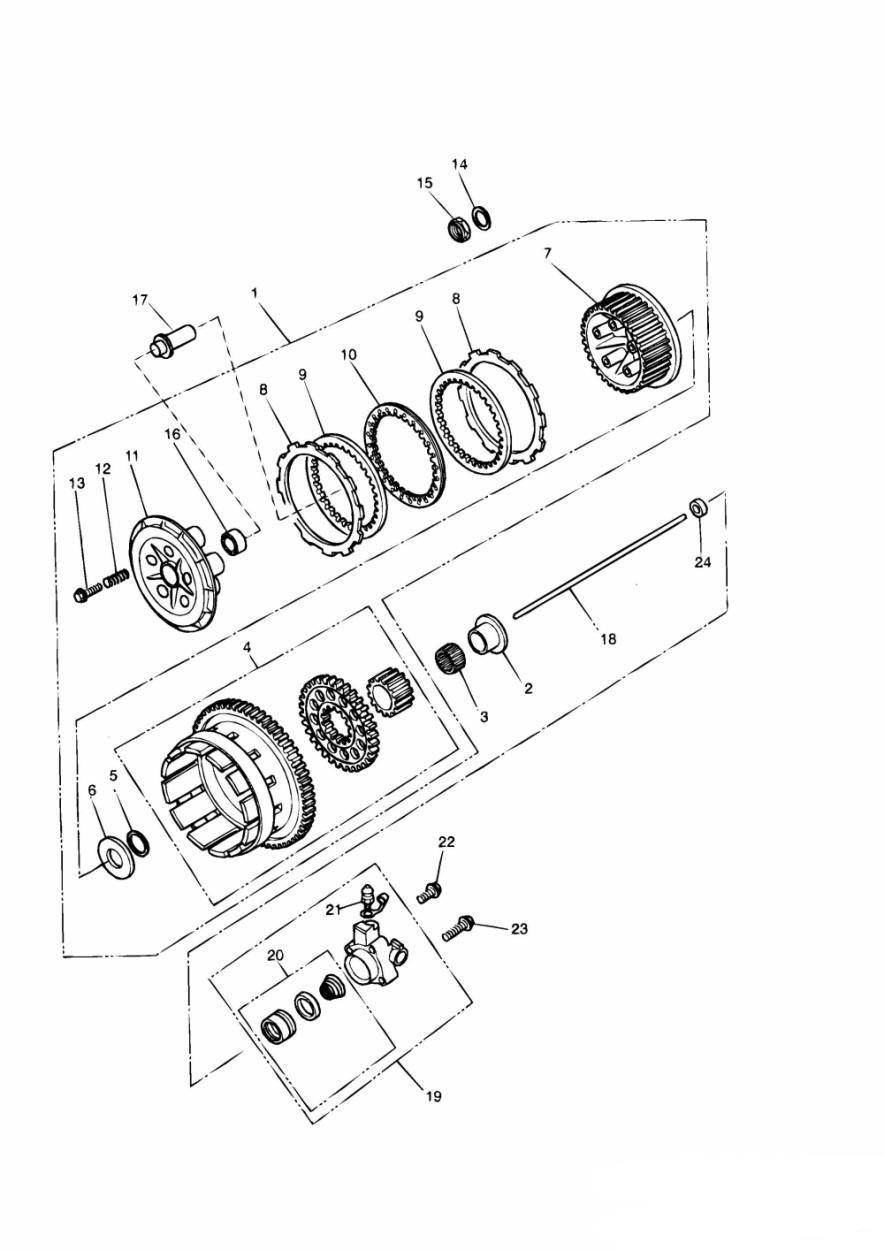

Clutch exploded diagram
Clutch
29 parts

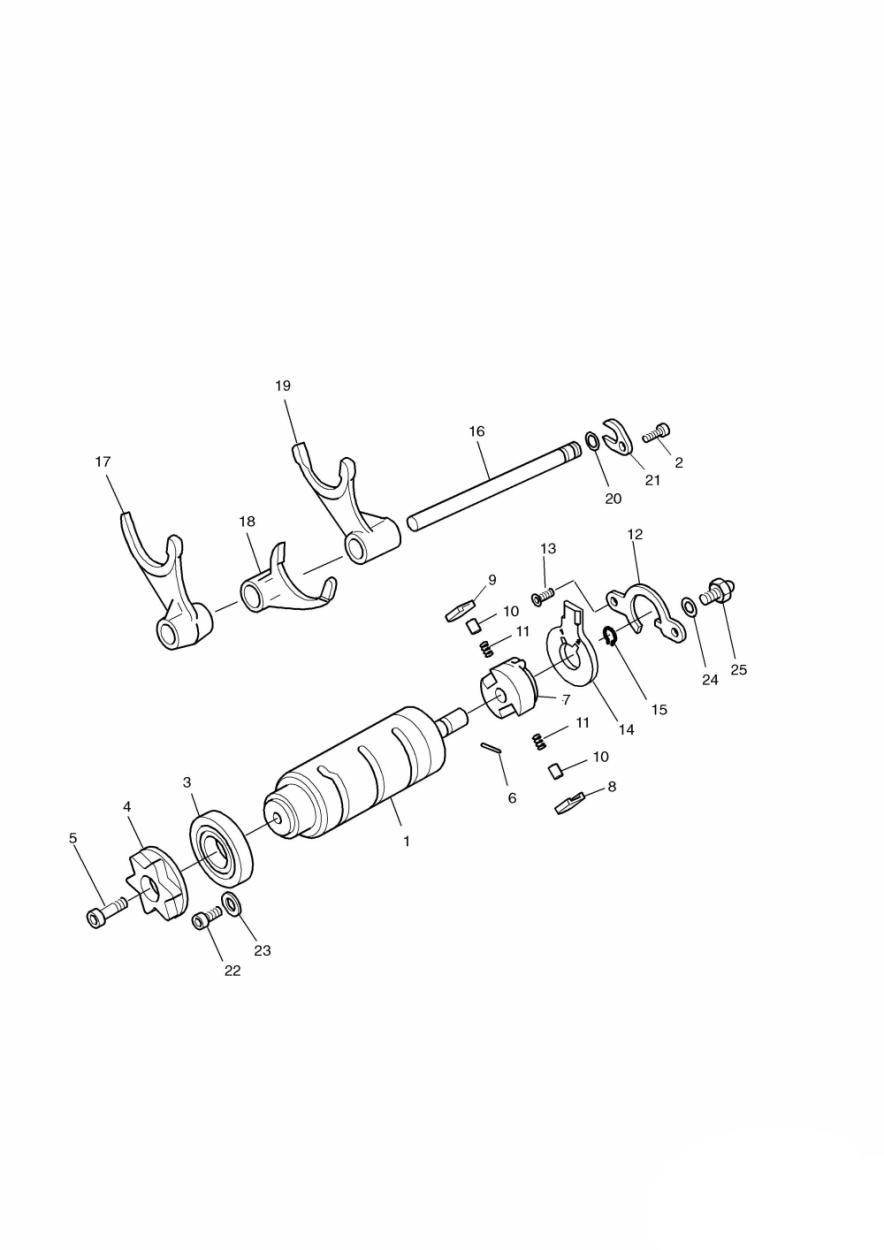

 Gear Selector Drum exploded diagram
Gear Selector Drum
25 parts

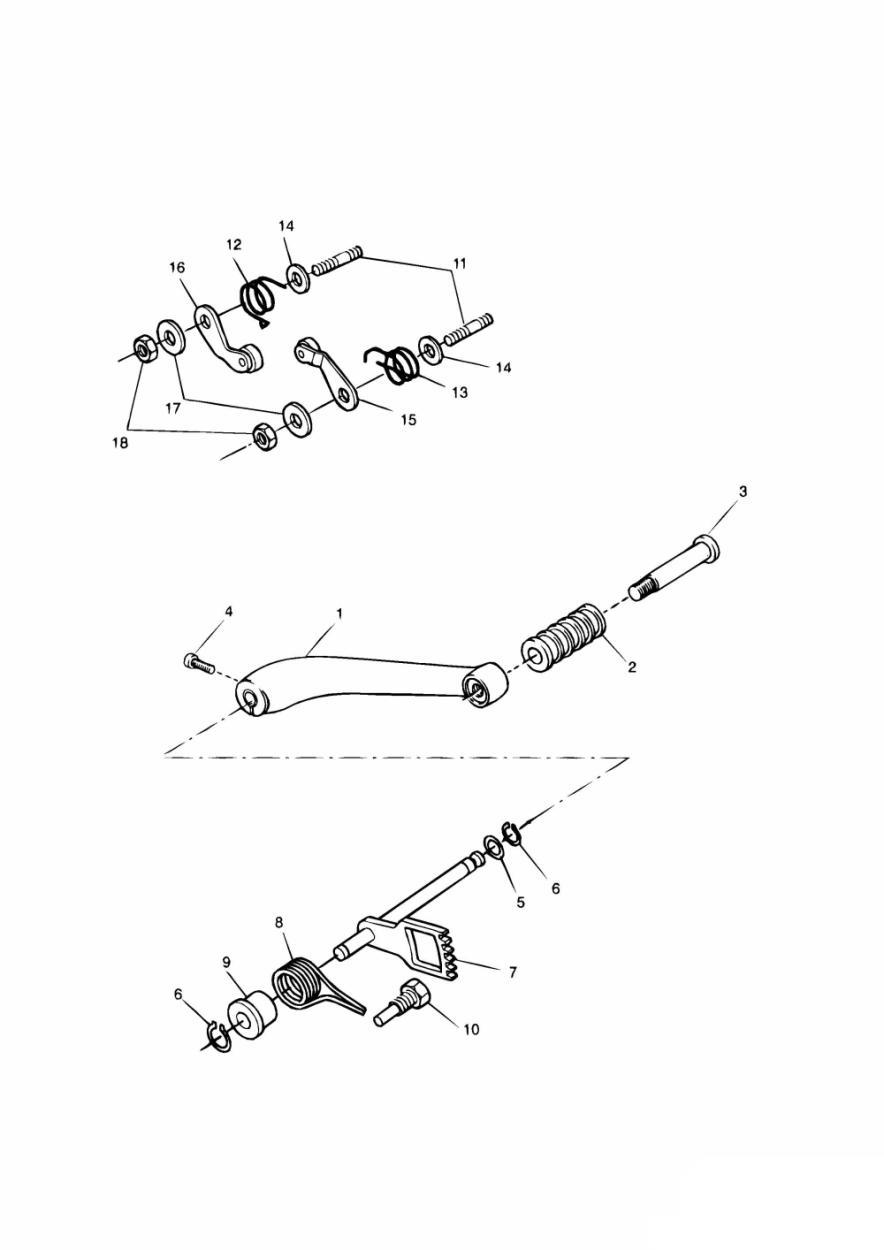

 Gear Change Pedal exploded diagram
Gear Change Pedal
20 parts

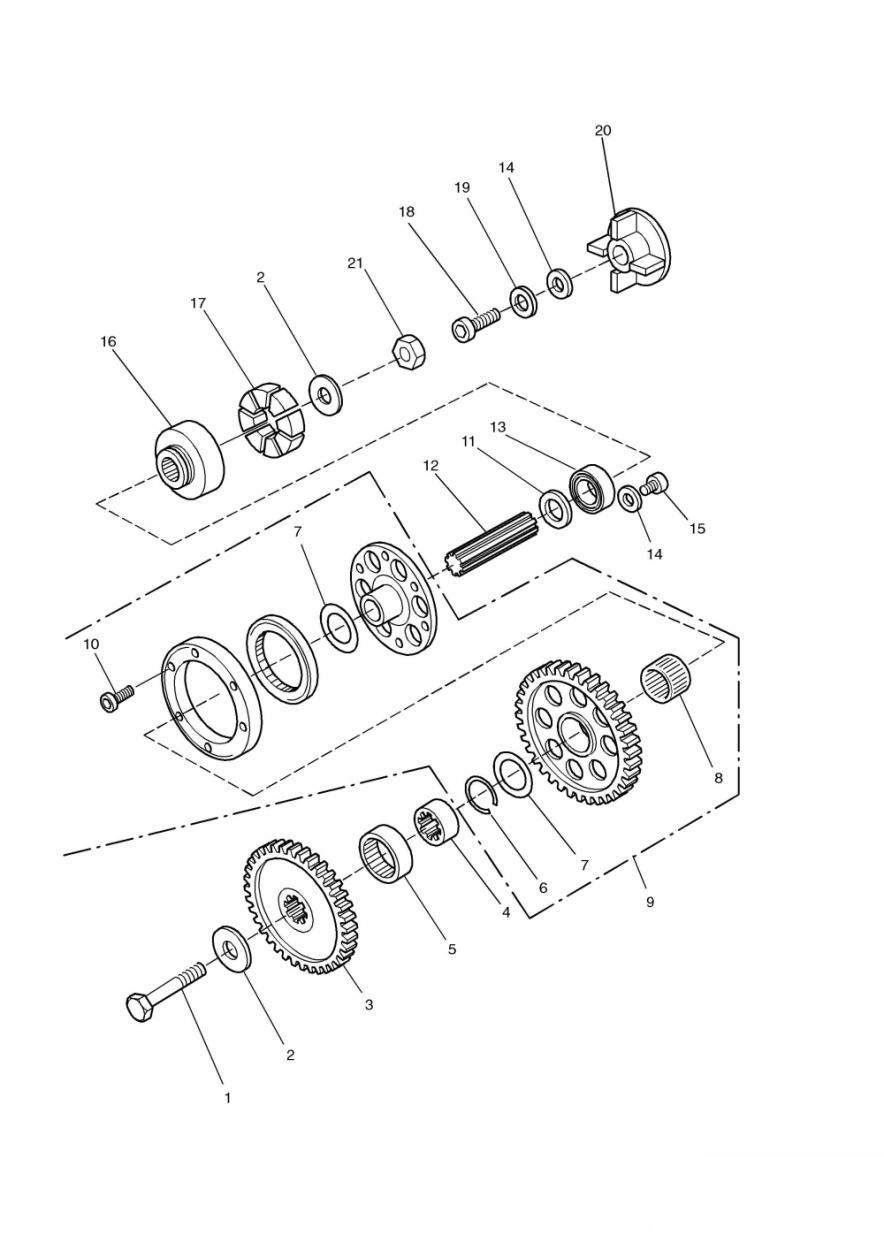

 Alternator/Starter Drive Gears exploded diagram
Alternator/Starter Drive Gears
24 parts
