Front Suspension/Steering/Clutch Master Cylinder
Triumph Legend TT · 5 diagrams
5 exploded diagrams for the front suspension/steering/clutch master cylinder of the Triumph Legend TT, covering the Legend TT. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

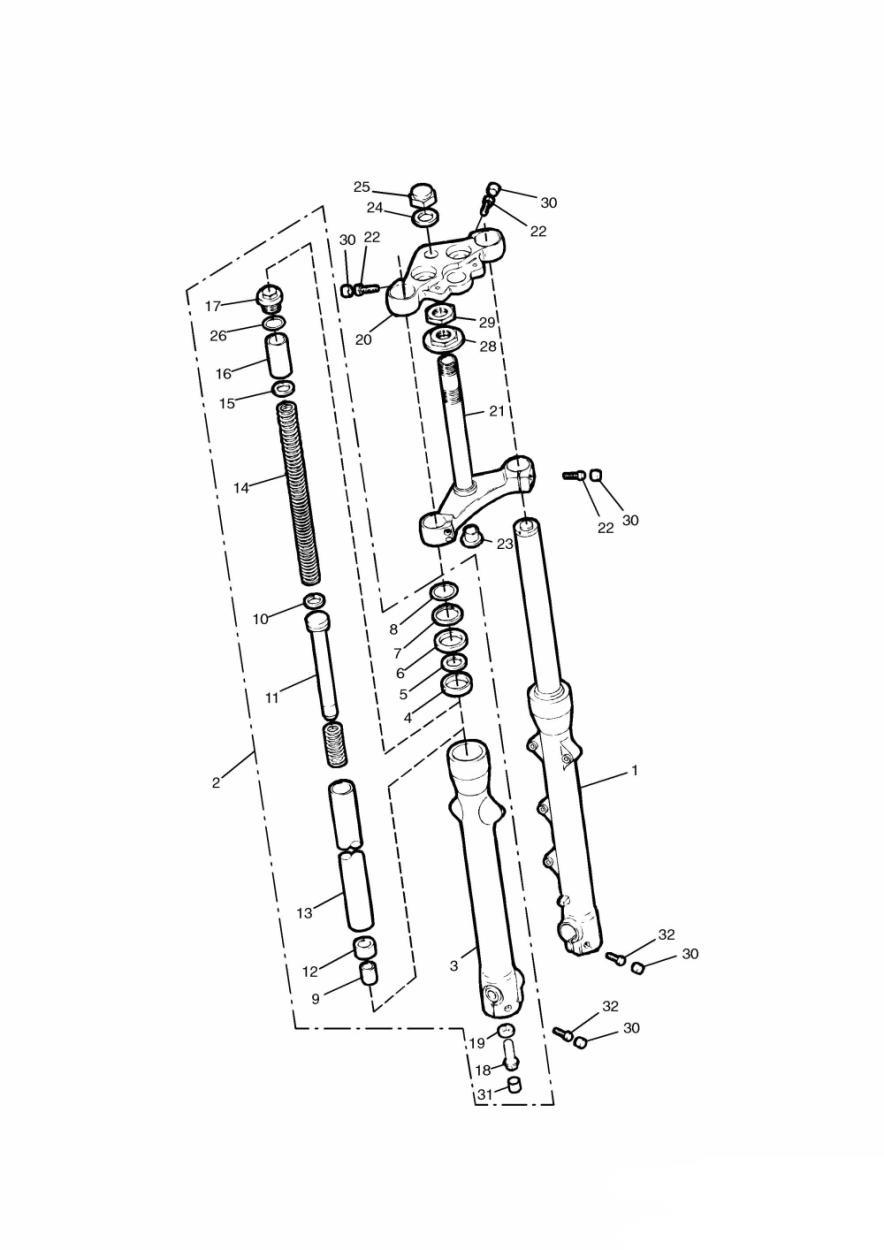

Front Forks & Yokes
Front Forks and Yokes
31 parts
VIN 92893 and lower

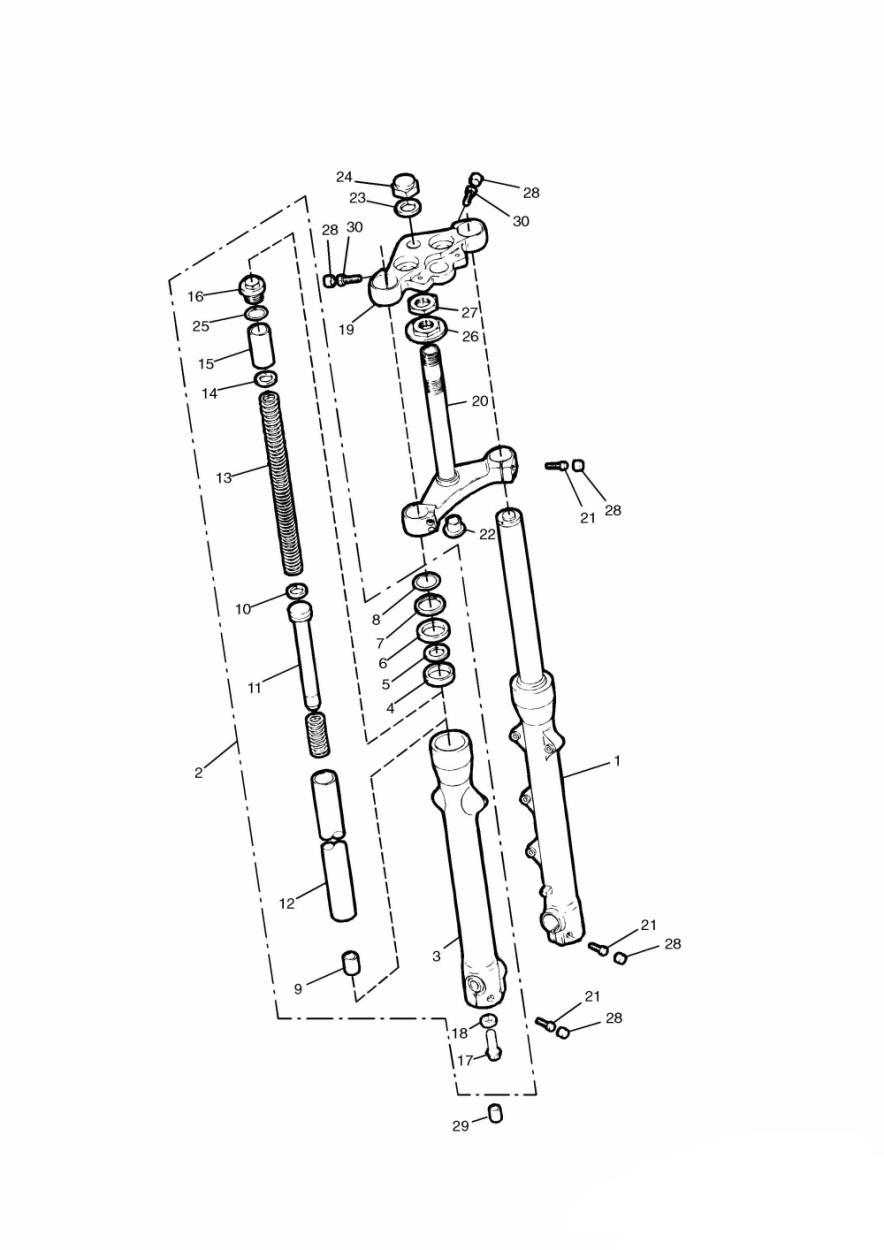

Front Forks and Yokes
33 parts
VIN 92894 and higher
68 parts you can order online
Every part below appears in Triumph’s Front Suspension/Steering/Clutch Master Cylinder diagrams for the Legend TT and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Adventurer book. 1 part is specific to the Legend TT.
Front Forks and Yokes VIN 92893 and lower
T2045862 Guide, Bush
$11.62
AvailableT2046246 Seal, Spacer
$5.54
AvailableT2042894 Oil seal
$19.78
AvailableT2046248 Stop Ring
Low stock at Triumph
$6.33
Limited availabilityT2042906 Oil lock
$9.52
AvailableT2042888 Fork Leg Piston Ring
$9.43
AvailableT2042920 Tube assembly
$475.29
AvailableT2042902 Guide spring
$11.76
AvailableT2042904 Cap
$75.69
AvailableT2042908 Capscrew
$10.10
AvailableT2042907 Sealing washer
$1.99
AvailableT3050073 Capscrew
Low stock at Triumph
$5.45
Limited availabilityT3450250 Moss Plug
$1.99
AvailableT2040060 Nut
$22.99
AvailableT2042905 O Ring, Fork Seal
Low stock at Triumph
$3.14
Limited availabilityT2040259 Cover, Headstock Assy
$22.53
AvailableT2140210 Adjuster Nut, Upper
$3.14
AvailableT3450200 Plug, Caphead, Chrome
$3.88
AvailableT3450062 Plug, Plastic, Black
Low stock at Triumph
$1.99
Limited availabilityT3050175 Kit, 4 x Screw M8 x 1.25 x 30 Slv
$7.83
AvailableFront Forks and Yokes VIN 92894 and higher
T2045030 Tube outer
Backordered at Triumph · expected Nov 6
$554.50
On backorder2040076-T0301 Sliding bush
$13.64
Available2040078-T0301 Oil seal
$19.44
Available2040079-T0301 Ring snap
$6.33
In stock in Brea2040080-T0301 Dust seal
$18.60
Available2040160-T0301 Oil lock
$8.35
Available2040171-T0301 Bearing
$6.61
Available2040172-T0301 Bearing
$9.15
AvailableT2045041 Tube assembly
$302.81
AvailableT2045043 Guide spring
$10.49
AvailableT2040169 Cap, Fork
$75.69
AvailableT2045046 Capscrew, Oil Lock
$9.85
AvailableT2045045 Washer, Sealing B
$1.99
AvailableT2045047 Capscrew
$8.71
AvailableT3450060 Cap
Low stock at Triumph
$1.99
Limited availabilityT2040061 Washer Upper Yoke
$6.61
AvailableT2040081 O Ring, Fork Seal
Low stock at Triumph
$3.32
Limited availability2040173-T0301 Seal kit
$32.81
AvailableT3051032 Screw, Cap/HD, M8 x 40, Slv
Backordered at Triumph · expected Nov 6
$1.99

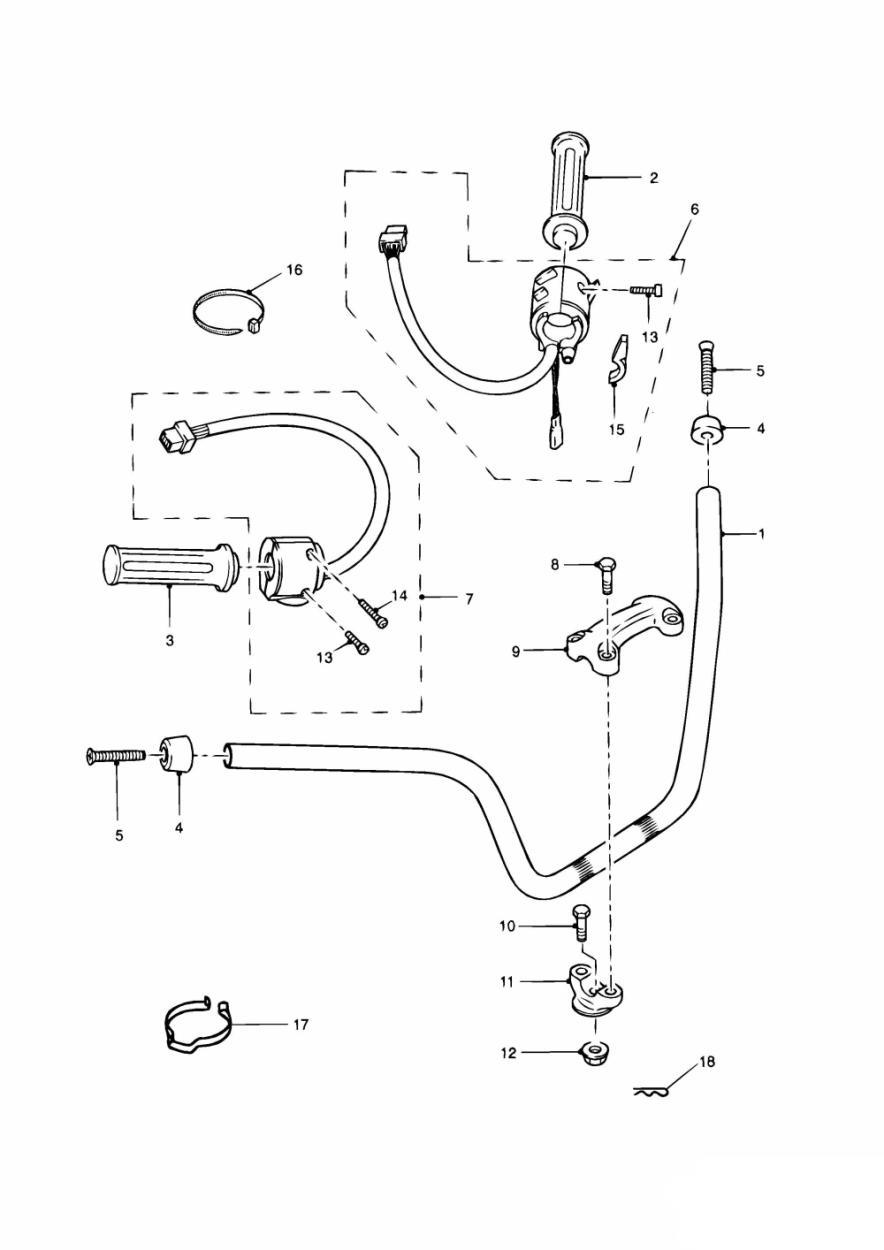

On backorderHandlebars and Switches
T2043478 Handlebars
$183.07
AvailableT2043473 Handlebars
$170.73
AvailableT2040143 Handgrip, LH
Low stock at Triumph
$16.81
Limited availabilityT2040227 Bar end weights
$34.40
AvailableT3330643 Screw, M5 x 30, CSK Skt, Patch
$1.99
AvailableT2040129 Switch assembly
$156.66
AvailableT2040128 Switch assembly
$179.56
AvailableT2040131 Switch assembly
$176.03
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
Available2043080-T0301 Bolt
$2.93
AvailableT2045050 Tube holder
Backordered at Triumph · we’ll confirm the ship date after you order
$43.59
On backorderT2042886 Nut
$3.08
AvailableT2043082 Nut, M10, 14 A/F
$7.49
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT3700025 Cable clip
$1.99

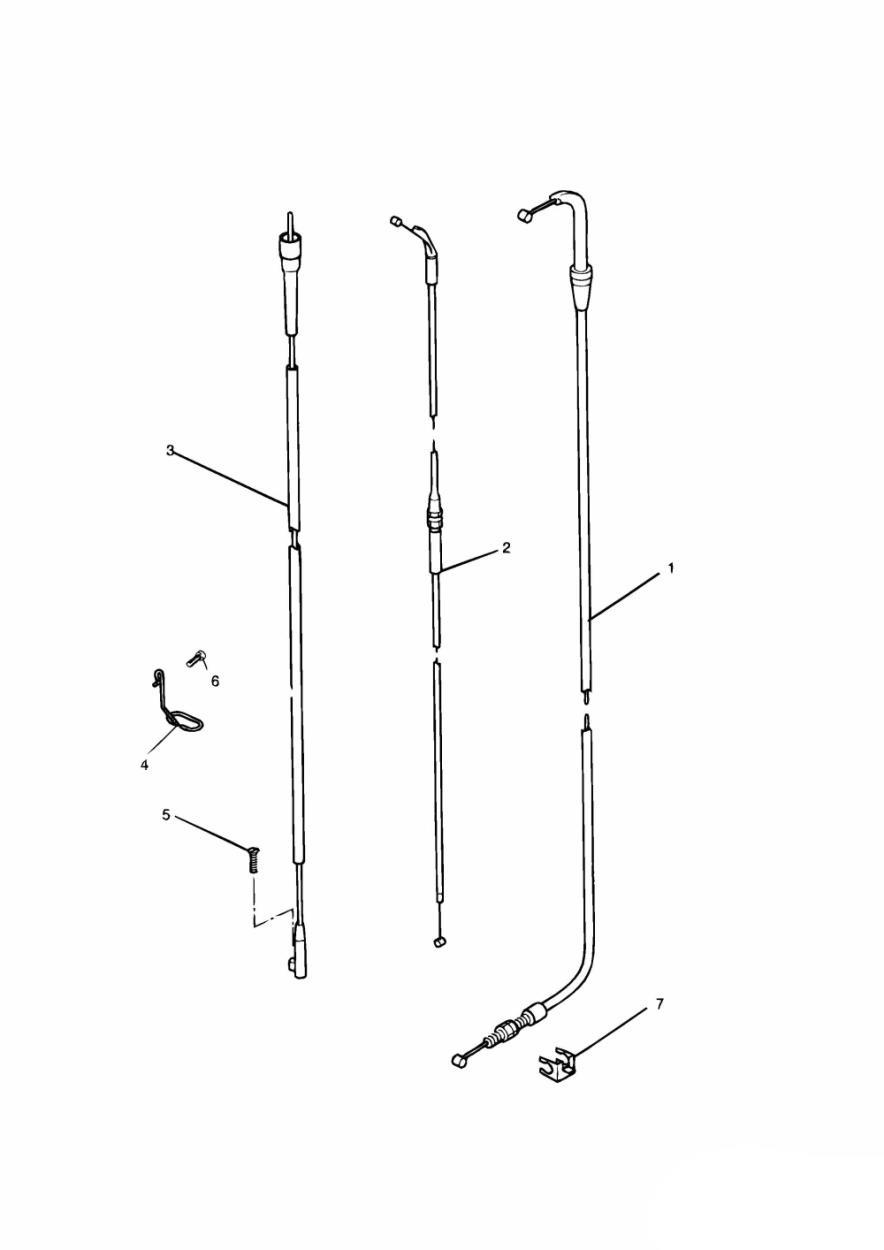

AvailableControl Cables
T2043512 Cable throttle
$50.69
AvailableT3331017 Screw. Phil CSK. M5 x 20, Slv
$3.94
AvailableT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT1240945 Clip
$4.56

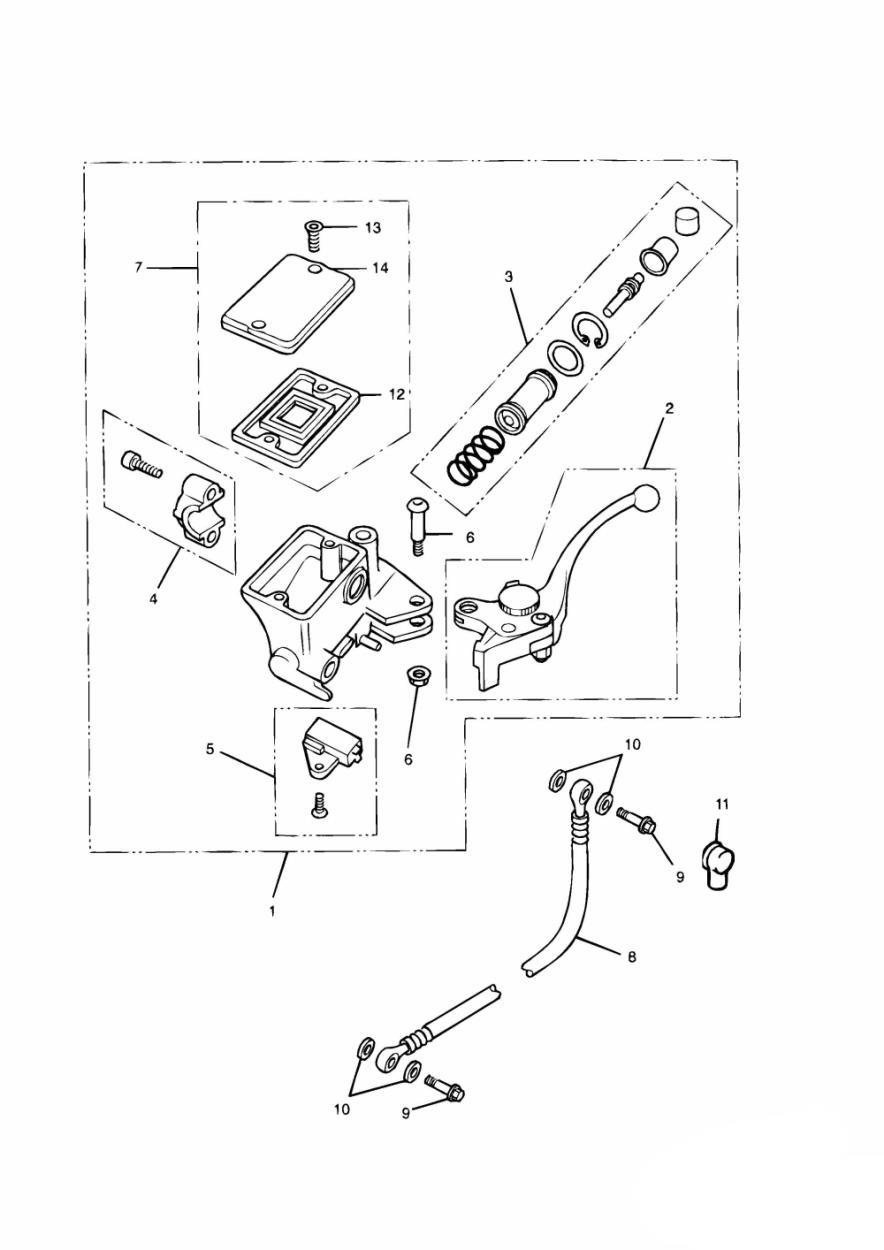

AvailableClutch Master Cylinder
2040040-T0301 Piston set
$70.41
Available2040038-T0301 Switch
$25.93
AvailableT2020158 Lever, Bolt, Front M/Cyl
$12.56
AvailableT2020152 Top Set, Front M/Cyl
$54.55
AvailableT2043543 Hose clutch
$168.96
AvailableT3250125 Bolt, Banjo, M10 x 21
$6.50
AvailableT3550229 Washer, 15.2 x 10 x 1, Plated
$1.99
In stock in BreaT2020074 Boot cover
$1.99
AvailableT2020164 Diaphragm, Reservoir
$10.57
AvailableT2020166 Screw, Reservoir
$1.99
Available
