Rear Swinging Arm & Rear Suspension
Triumph Legend TT · 4 diagrams
4 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Legend TT, covering the Legend TT. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

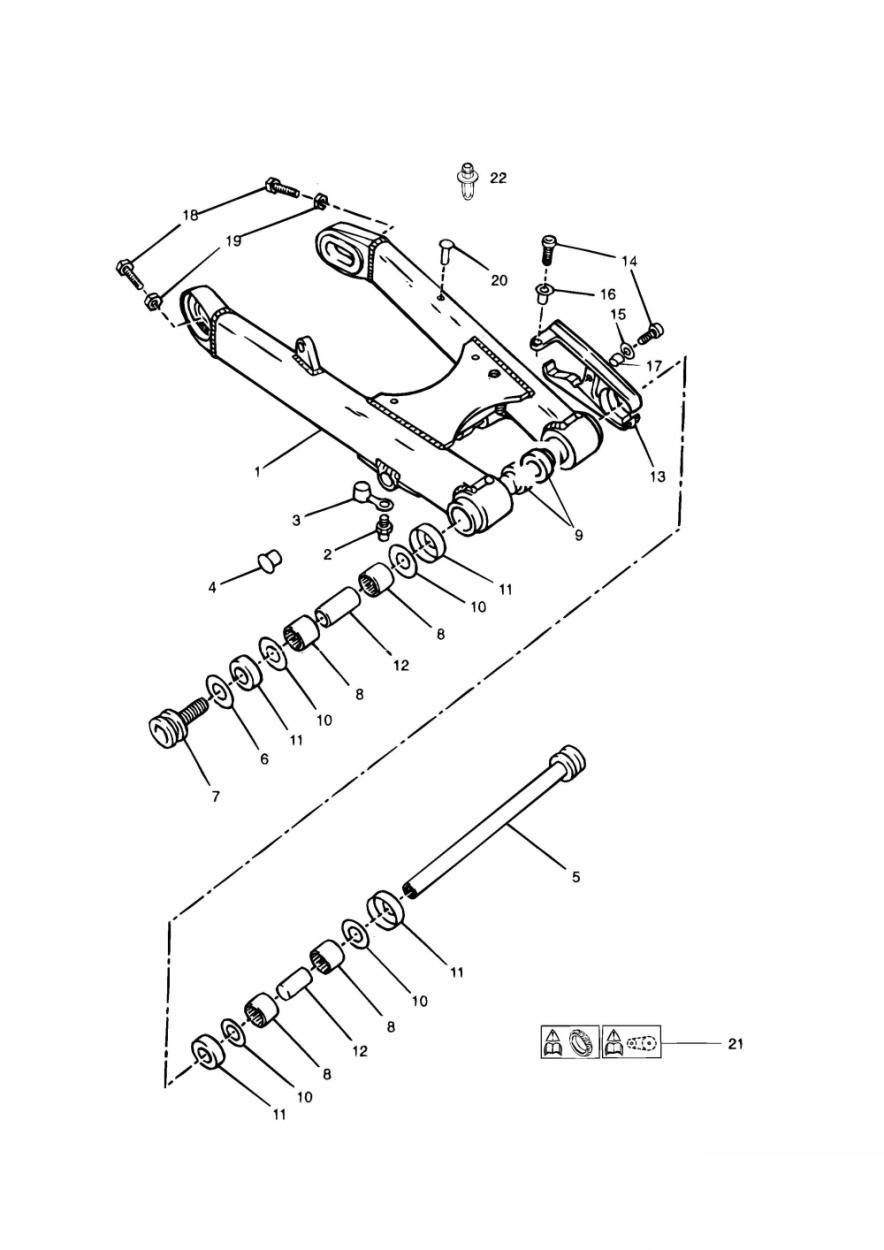

Swinging Arm
Swinging Arm
23 parts
VIN 101853 and lower

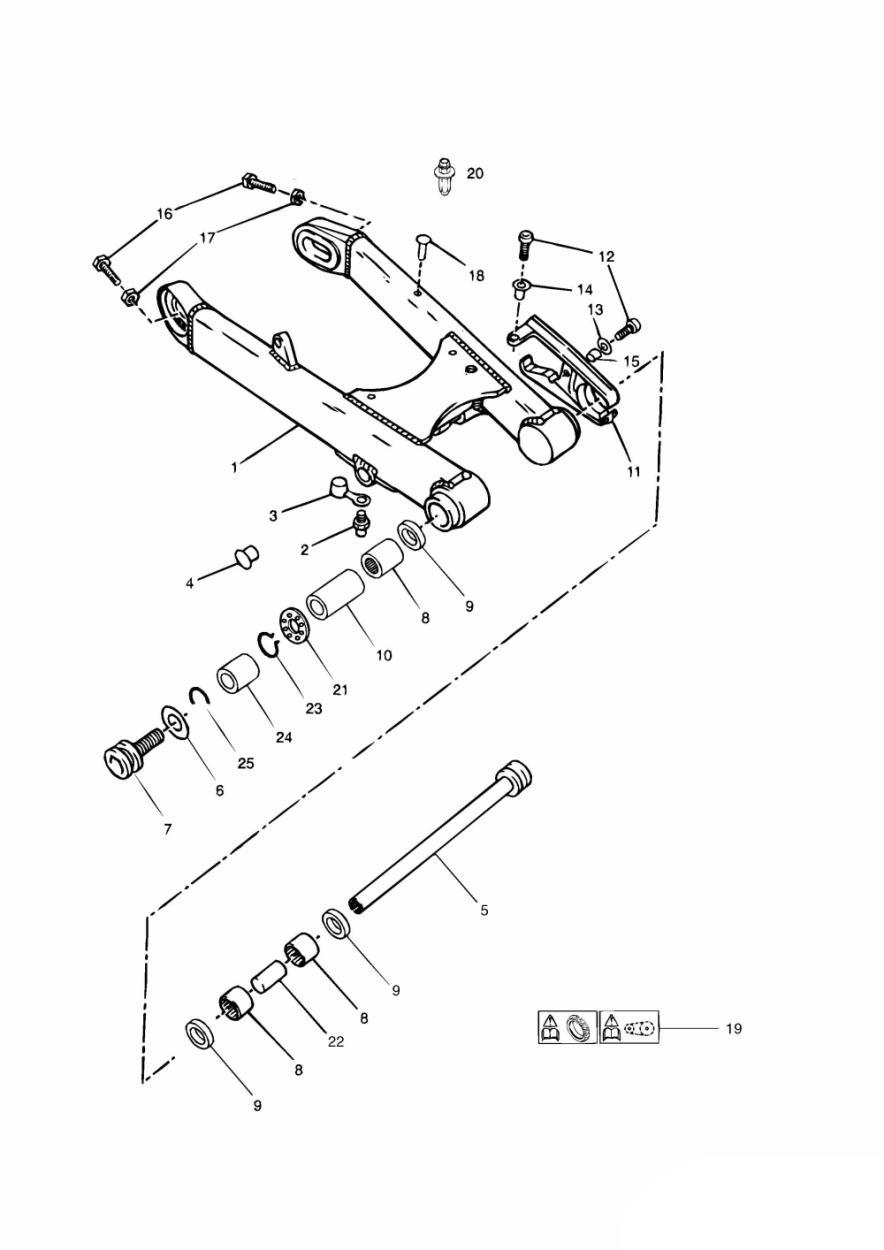

Swinging Arm (Except 102063 to 102074 inclusive)
26 parts
VIN 101854 and higher
25 parts you can order online
Every part below appears in Triumph’s Rear Swinging Arm & Rear Suspension diagrams for the Legend TT and is priced and orderable online. Open a part to see what it fits and to buy it.
Triumph lists the same parts for this area in the Adventurer and Thunderbird & Thunderbird Sport books.
Swinging Arm VIN 101853 and lower
T3555032 Washer, 17 x 30 x 3
Low stock at Triumph
$2.93
Limited availabilityT3800014 Roller bearing
Backordered at Triumph · expected Nov 20
$13.26
On backorderT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT3010144 Flanged Sleeve, M6 x 9.5 x 10.5
Low stock at Triumph
$3.49
Limited availabilityT3203204 Screw, H/Hd, M8 x 55, Slv
$2.17
AvailableT3350303 Nut, M8, Silver
$1.99
AvailableT3450009 Plug, M6
$3.00
AvailableT3900092 Label, Chain & Tyres
$5.27

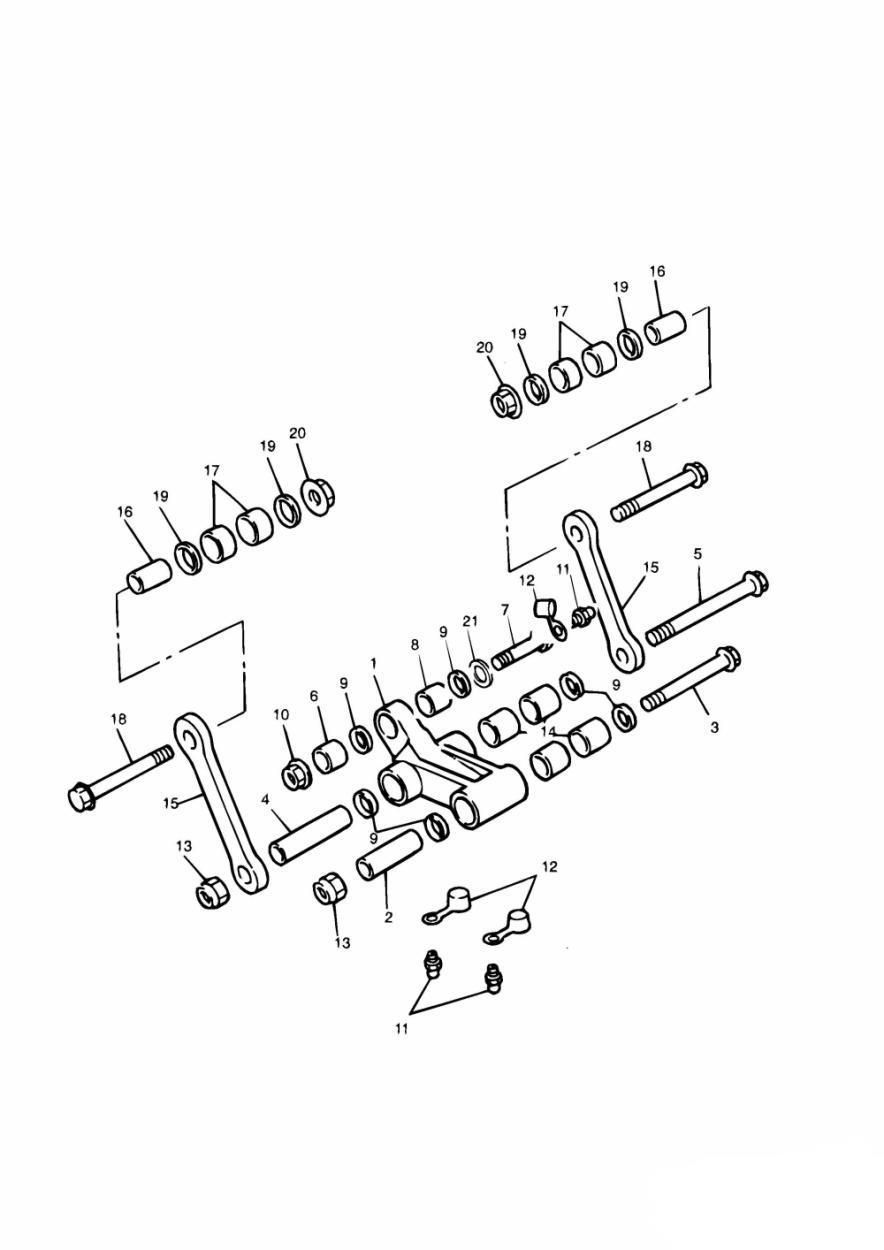

AvailableRear Suspension Linkage
2059445-T0301 Sleeve
$6.76
AvailableT2059321 Bolt
$8.10
AvailableT3800060 Bearing, Needle Roller, 202620
$34.40
AvailableT3600040 Seal
$6.42
AvailableT3350234 Locknut, Flgd, M12 x 1.25
$5.62
Available3800025-T0301 Needle bearing
$16.81
Available2059330-T0301 Sleeve
$35.65
AvailableT3800050 Bearing Needle Roller 182416
$30.57
Available3600080-T0301 Seal
$6.42
AvailableT3550614 Washer, 12 x 23 x 2
$1.99
AvailableSwinging Arm (Except 102063 to 102074 inclusive) VIN 101854 and higher
T3600170 Seal, SD 25 32 04
Backordered at Triumph · expected Nov 6
$12.51
On backorderT3800045 Ball bearing
$13.11
AvailableT2056991 Sleeve
$22.44
AvailableT3500029 Circlip
$3.08
AvailableT3600171 Seal
$10.49
Available
