Wheels, Tyres & Final Drive
Triumph Legend TT · 3 diagrams
3 exploded diagrams for the wheels, tyres & final drive of the Triumph Legend TT, covering the Legend TT. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
29 parts you can order online
Every part below appears in Triumph’s Wheels, Tyres & Final Drive diagrams for the Legend TT and is priced and orderable online. Open a part to see what it fits and to buy it.

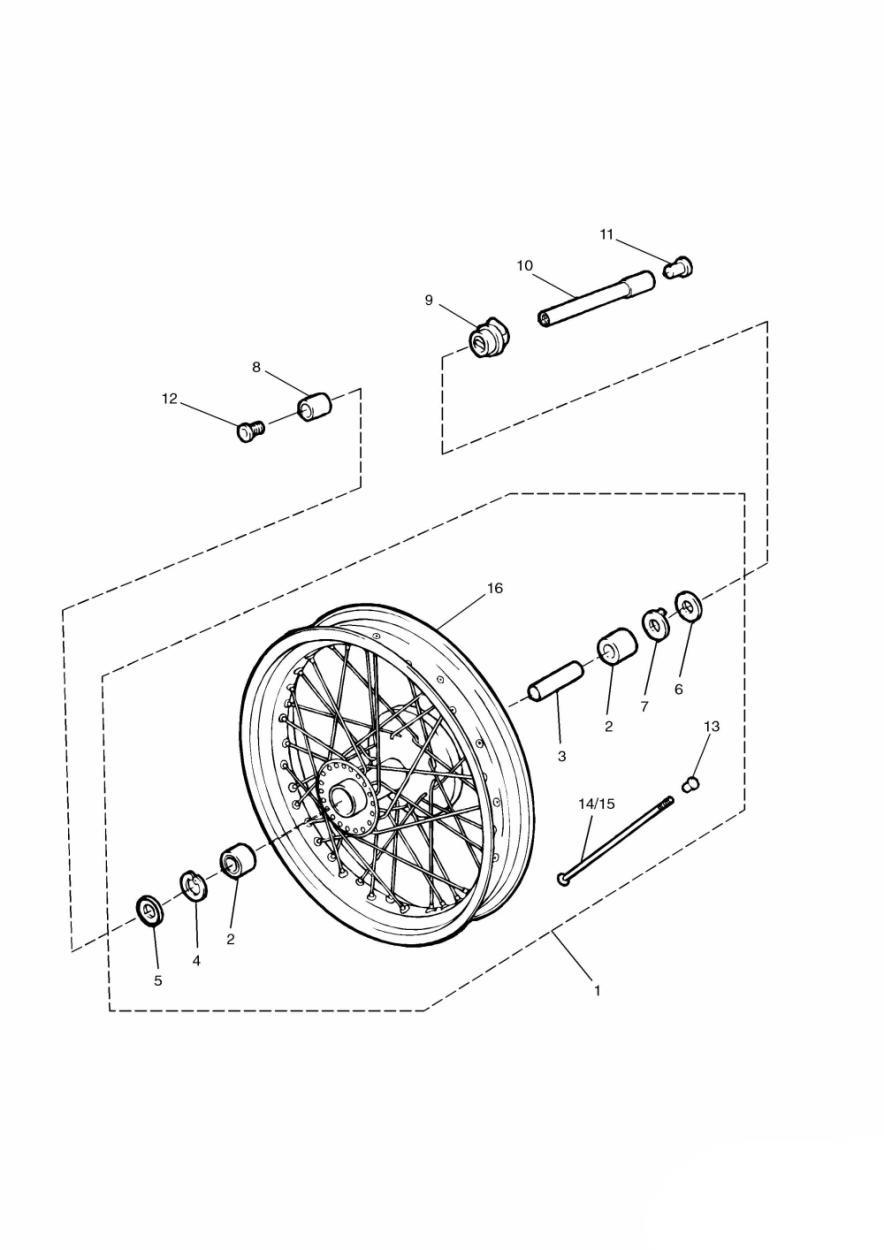

Front Wheel
3800015-T0301 Ball bearing
$40.57
AvailableT3500402 Circlip, Int Dia 47
$1.99
AvailableT3600705 Oil Seal, 35 47 6
$8.43
AvailableT3600706 Seal, Oil, DC 55 73 6
$8.43
AvailableT3450043 Bung
$4.39
AvailableT2001078 Bolt, Front Spindle, Slv
$18.03
AvailableT2004390 Nipple, Spoke
$5.92
AvailableT2000091 Wheel rim
Backordered at Triumph · we’ll confirm the ship date after you order
$616.14

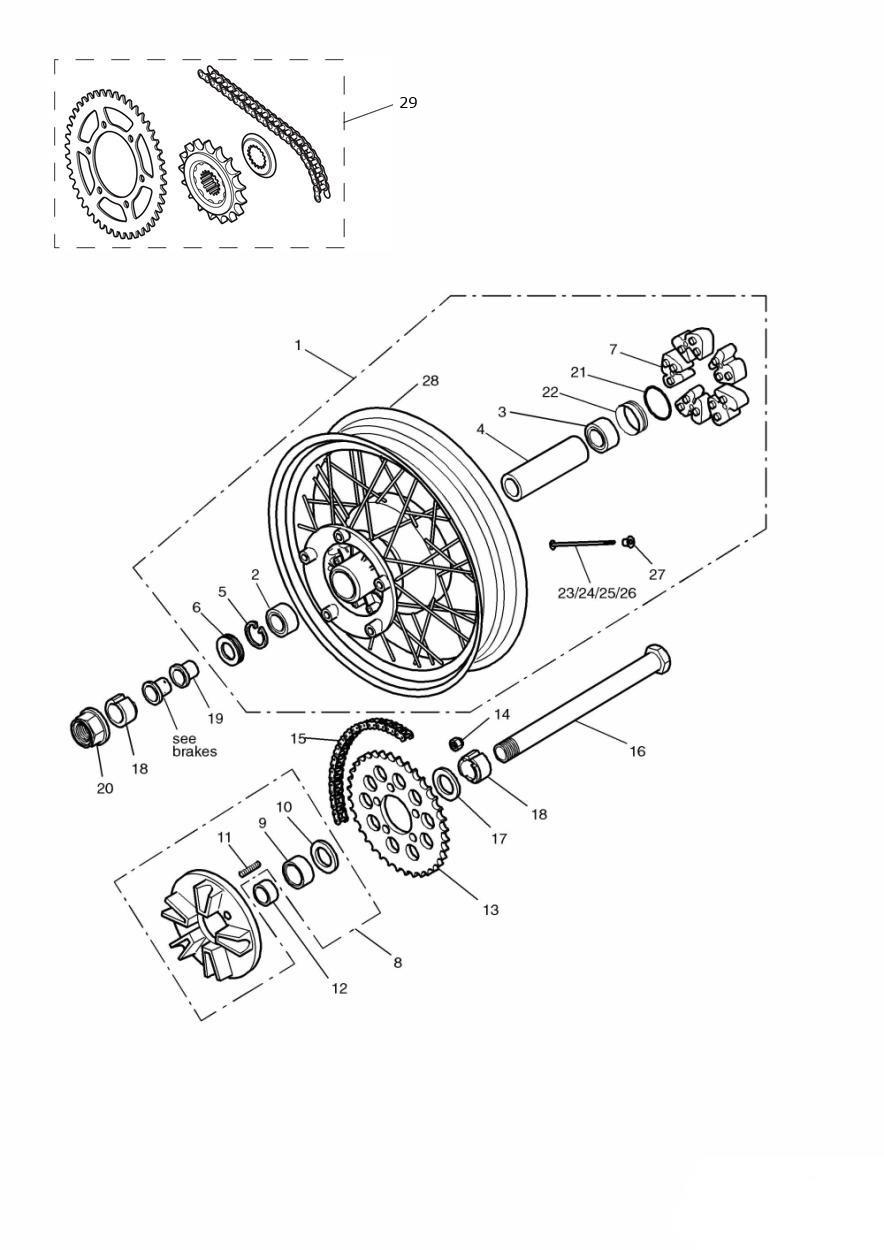

On backorderRear Wheel/Final Drive
3800016-T0301 Ball bearing
$41.78
Available3800017-T0301 Ball bearing
$41.78
Available3500013-T0301 Circlip, Rear Wheel
$2.78
Available3600021-T0301 Seal
$5.19
AvailableT2012211 Cush rubber
$105.63
AvailableT2012129 Sprocket Carrier Assy
$378.49
Available3800018-T0301 Ball bearing
$41.78
Available3600022-T0301 Seal
$4.76
AvailableT2012108 Stud, Sprocket Carrier
$1.99
AvailableT2012092 Spacer, Internal
$21.04
AvailableT2010043 Sprocket
$49.85
AvailableT3350234 Locknut, Flgd, M12 x 1.25
$5.62
AvailableT2012053 Spacer, RH, R/Wheel
$21.37
AvailableT3350152 Locknut, Flgd, M18
$14.56
Available3600023-T0301 O ring
$1.99
Available2012040-T0301 Carrier, O Ring, Rear
Low stock at Triumph
$1.99
Limited availabilityT2014096 Spoke
$5.45
AvailableT2014097 Spoke
$5.45
AvailableT2014098 Spoke
$5.45
AvailableT2014099 Spoke
$5.45
AvailableT2017400 Chain & Sprocket Kit, 114/43/17
$254.23
Available
