Braking System

Triumph Rocket 3 TFC · 5 diagrams

5 exploded diagrams for the braking system of the Triumph Rocket 3 TFC, covering the Rocket 3 TFC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

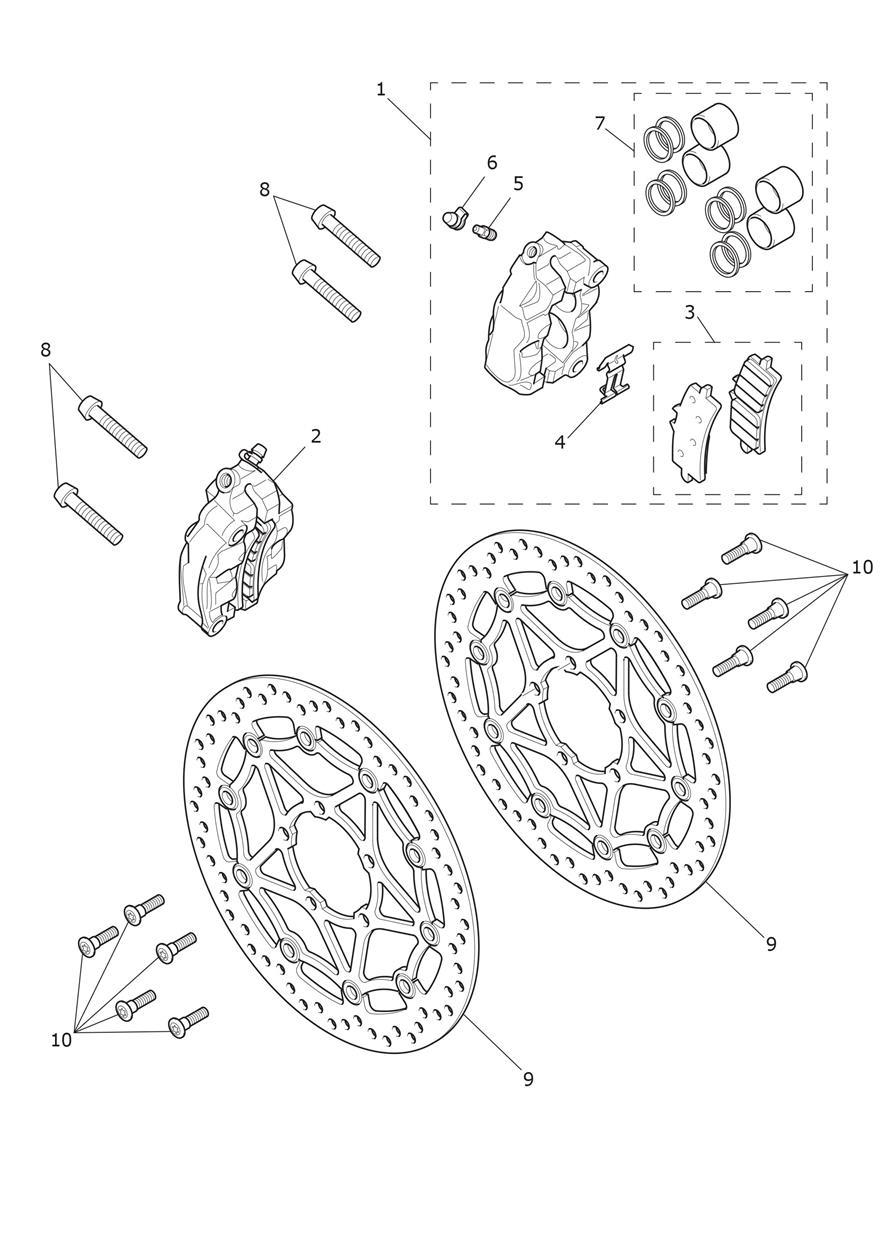

Front Caliper & Discs exploded diagram
Front Caliper & Discs
10 parts

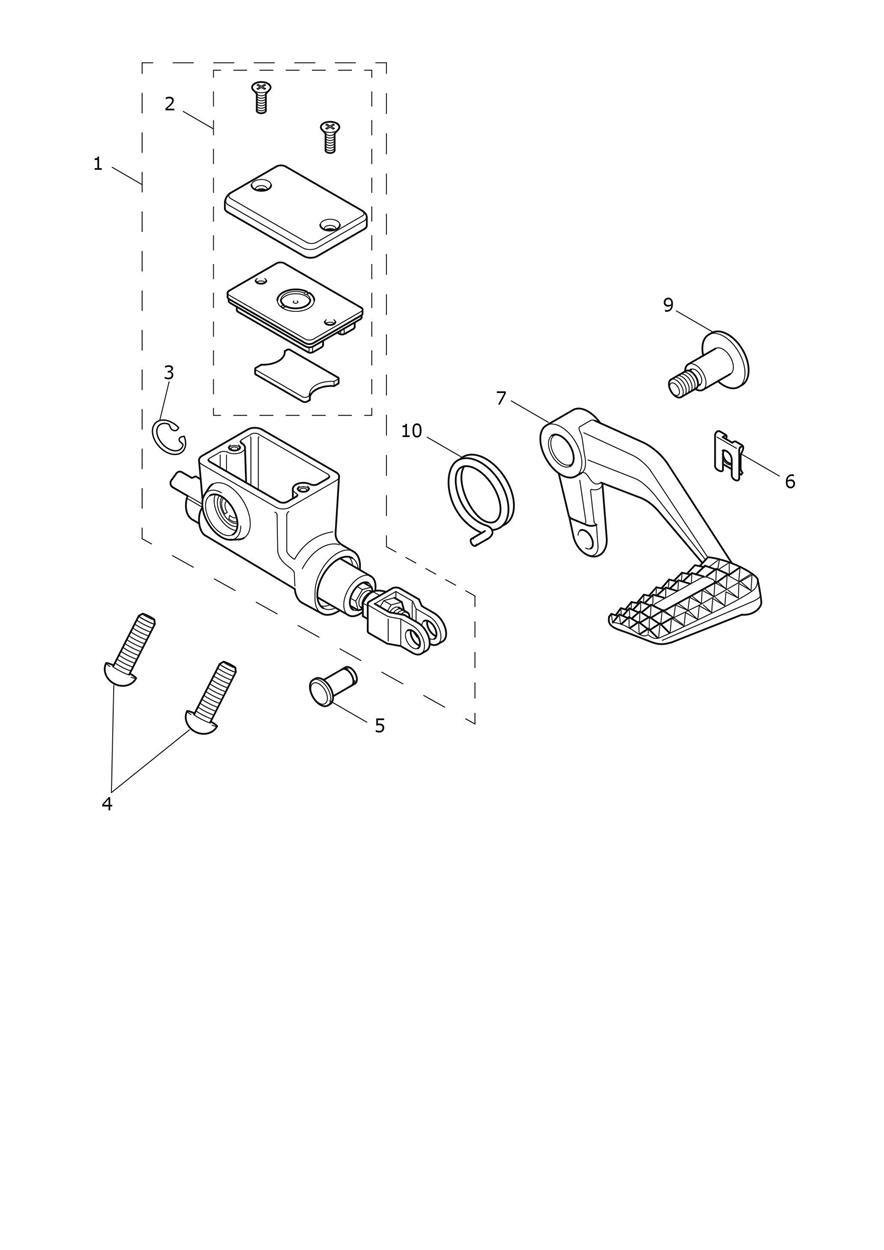

 Rear Brake M/Cyl exploded diagram
Rear Brake M/Cyl
9 parts

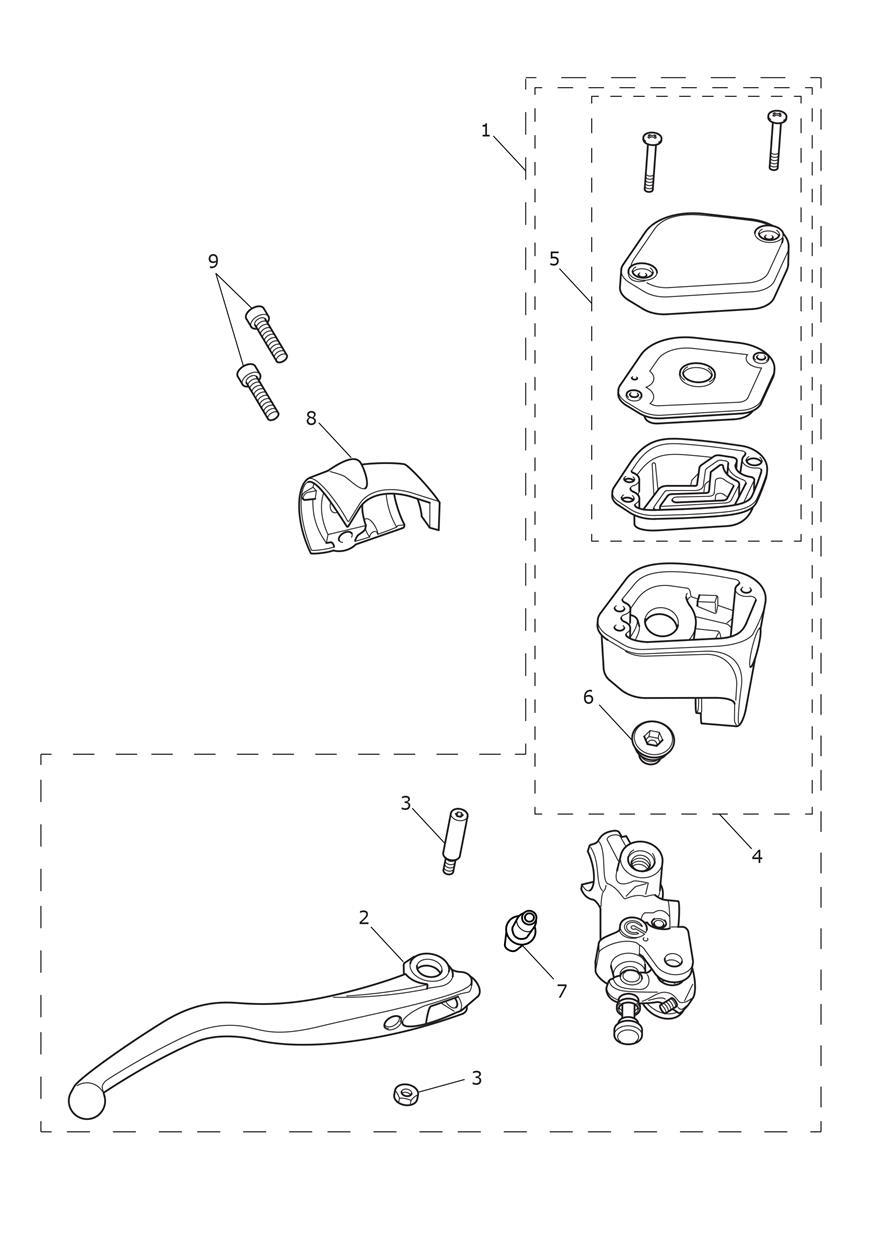

 Front Brake M/Cyl Assy exploded diagram
Front Brake M/Cyl Assy
9 parts

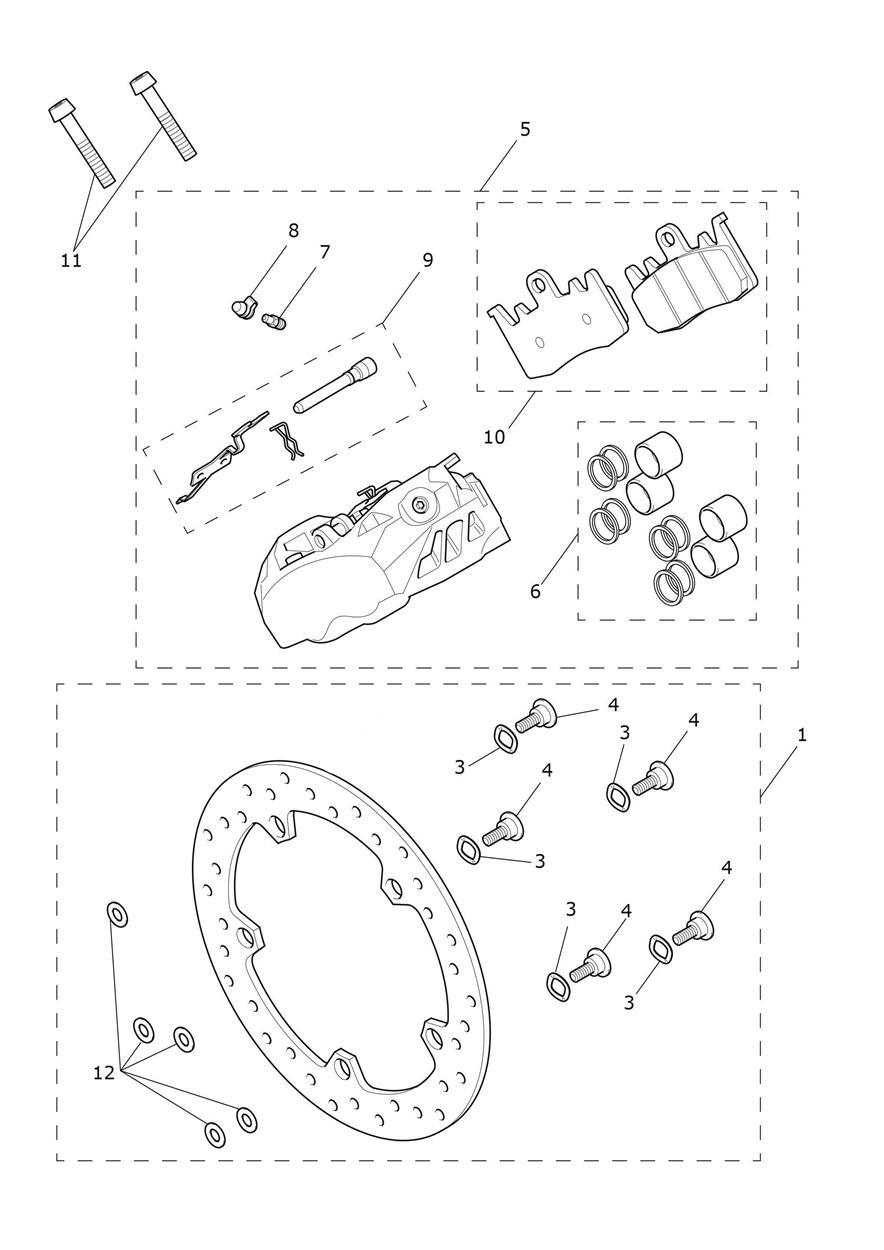

 Rear Caliper & Disc exploded diagram
Rear Caliper & Disc
11 parts

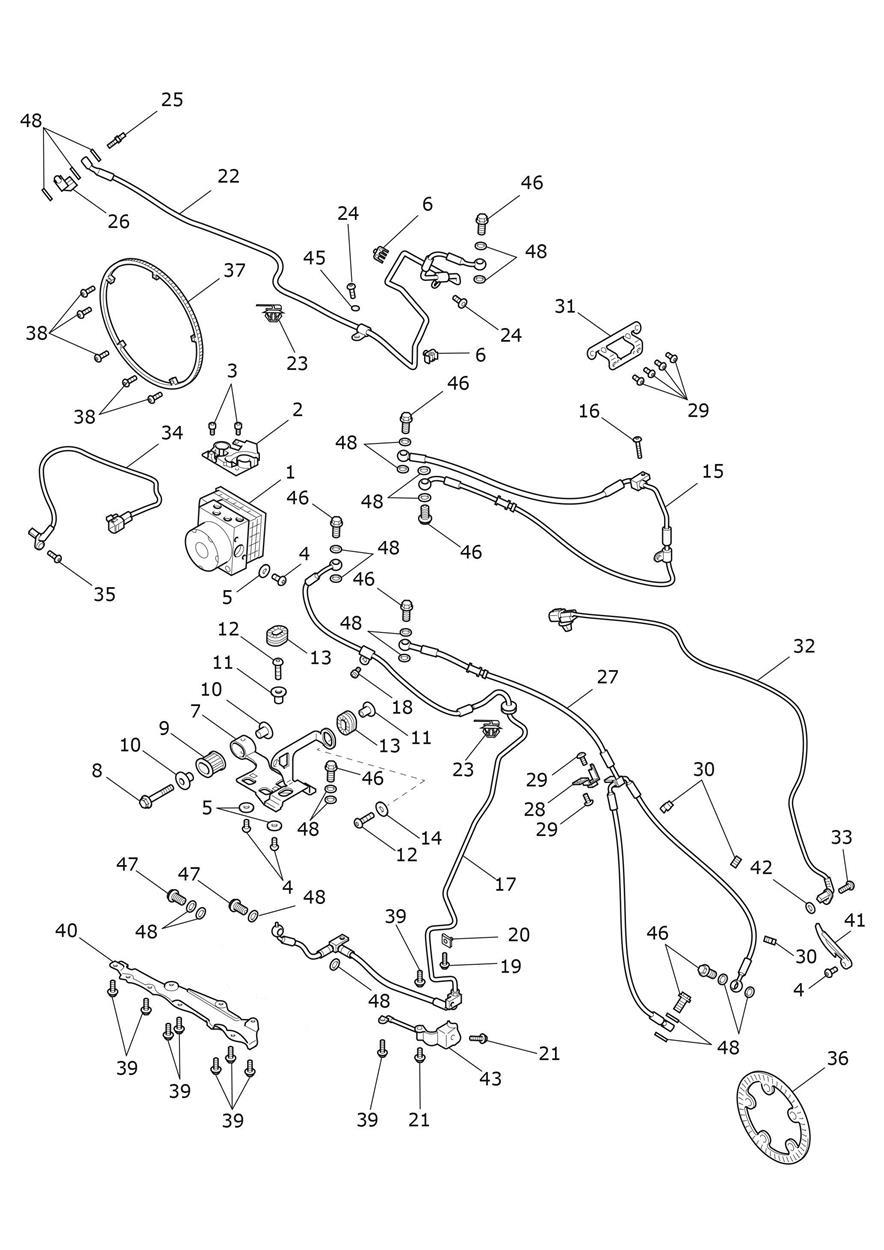

 ABS System exploded diagram
ABS System
51 parts

← All areas of the Rocket 3 TFC
