Cooling System
Triumph Rocket 3 TFC · 2 diagrams
2 exploded diagrams for the cooling system of the Triumph Rocket 3 TFC, covering the Rocket 3 TFC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
65 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Rocket 3 TFC and is priced and orderable online. Open a part to see what it fits and to buy it.

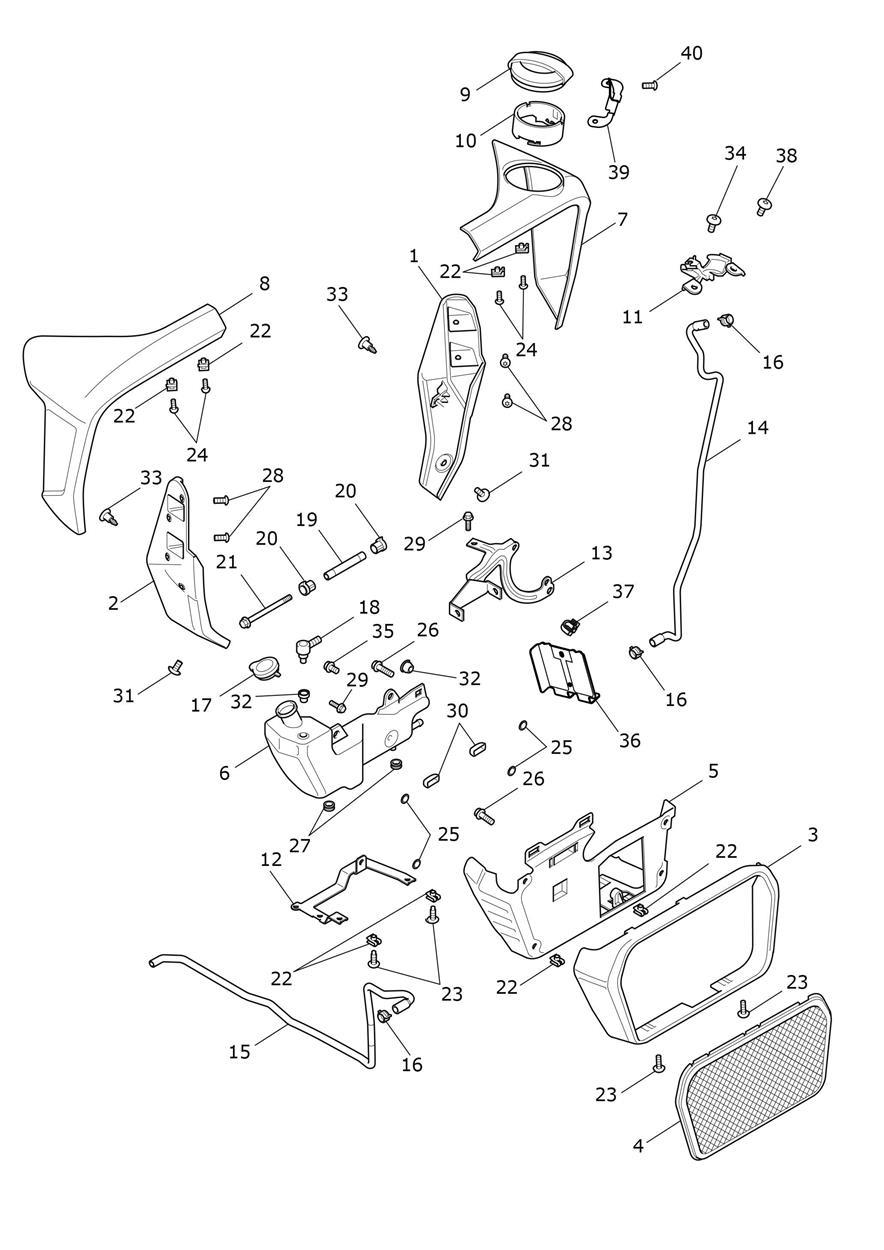

Radiator Cowls & Expansion Tank
T2100674-PI Radiator Surround, LH, Pntd
Backordered at Triumph · we’ll confirm the ship date after you order
$537.47
On backorderT2100799-PI Radiator Surround, RH, Pntd
Backordered at Triumph · expected Oct 23
$537.47
On backorderT2100818-PI Radiator Surround, Lower, Pntd
$537.47
AvailableT2100923 Bracket, Rad Cowl, Lower, Mldg
$71.61
AvailableT2100824 Expansion Tank, Mldg
$100.09
AvailableT2101193-PJ Upper Rad Cowl, LH, Pntd
$336.75
AvailableT2101194-PJ Upper Rad Cowl, RH, Pntd
$336.75
AvailableT2101174 Kit, Filler Cap Cover
$93.40
AvailableT2101158 Cover, Rad Filler, HPDC
$58.34
AvailableT2101229 Cover, Rad Filler, Mldg
$20.69
AvailableT2101099 Bracket, Cover, Filler, Rad, Mldg
$9.06
AvailableT2100837 Retaining Bracket Cover
$5.67
AvailableT2101102 Bracket, Clutch Cover
$62.99
AvailableT2100867 Hose, Expansion Tank, Coolant
$22.62
AvailableT2100936 Hose, Coolant, Overflow
$22.62
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02
In stock in BreaT2101015 Cap, Expansion Tank
Low stock at Triumph
$1.99
Limited availabilityT2100433 Elbow, Overflow, Quickfit
Low stock at Triumph
$6.33
Limited availabilityT2100857 Spacer, Rad Cowl, M6 x 61.5
$4.84
AvailableT2100991 Grommet, Pivot, Cowl
$4.65
AvailableT3205076 Bolt, HHF, Lghtd, M6 x 1.0 x 75, Slv
$4.12
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT3330945 Screw, But/Hd, M5 x 16, Blk
Low stock at Triumph
$7.83
Limited availabilityT3550182 Washer, Retaining, Dia 11.5
Low stock at Triumph
$1.99
Limited availabilityT3330231 Screw, Lge Skt Hd, M6 X 1 X 25
Low stock at Triumph
$12.51
Limited availabilityT3020003 Grommet
$1.99
In stock in BreaT3331414 Screw, S/Tap, Tx, 5 x 16
$1.99
In stock in BreaT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT3020330 Grommet, Rectangular
$2.73
AvailableT3331726 Screw, But/Hd, M6 x 12, Slv
$3.98
AvailableT3450141 Grommet, TPE, Quickfit
Low stock at Triumph
$2.01
Limited availabilityT3701150 Plastic Rivet, Push Release
$1.99
In stock in BreaT3330312 Screw, But/Hd, M6 x 20, Slv
Backordered at Triumph · we’ll confirm the ship date after you order
$3.32
On backorderT3203222 Bolt, HHF, M6 x 12, Slv
$1.99
AvailableT2502578 Heat Sink, Reg Rec
$49.41
AvailableT2504511 S-Clip
$9.52
AvailableT3331010 Bolt, But/Hd, Skt, M6 x 16, S/S
$3.98
AvailableT2101148 Bracket, Filler Cap
$9.29
AvailableT3200096 Bolt, CSK, M3 x 20, BZP
$1.99

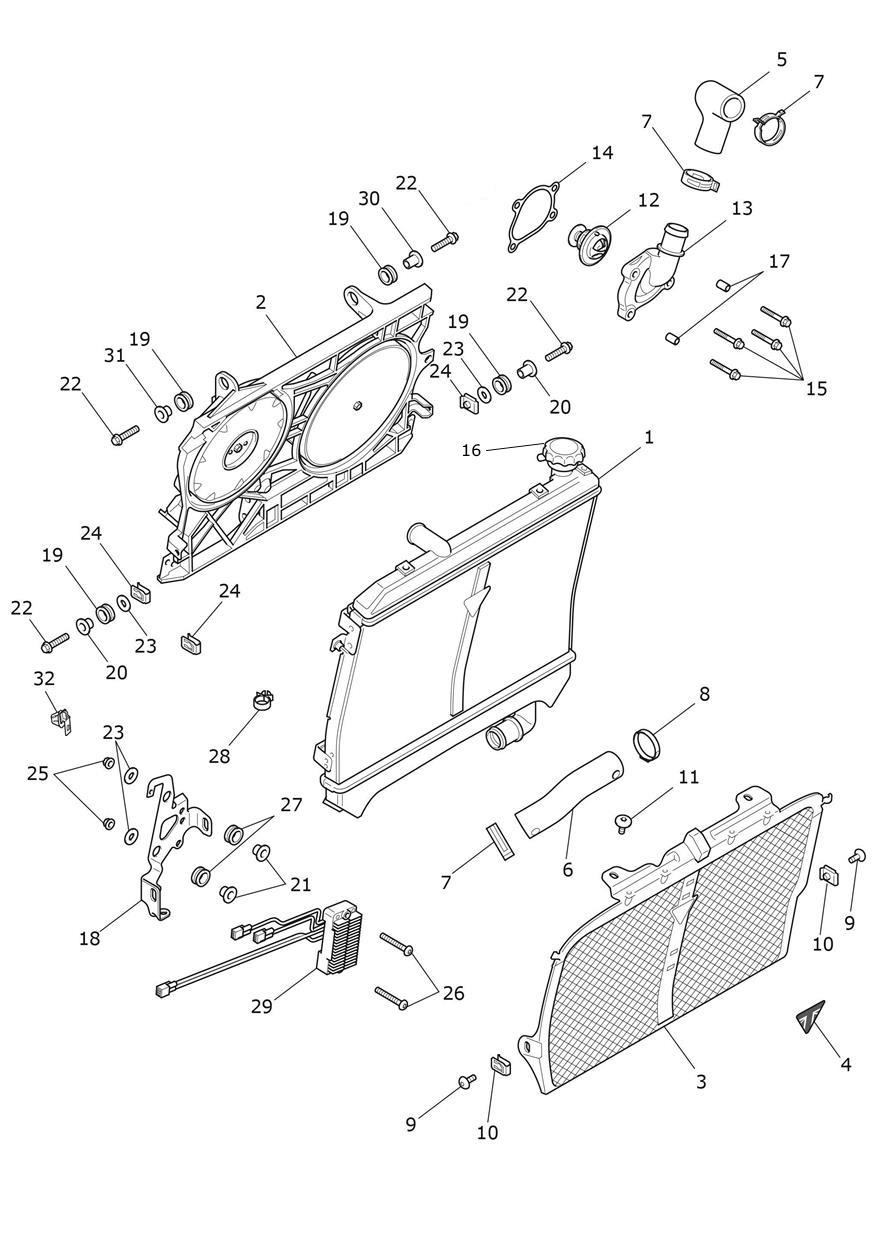

AvailableRadiator, Fan & Thermostat
T2100679 Radiator
$897.44
AvailableT2101732 Mounting Frame, Radiator
$431.44
AvailableT3951060 Badge, Flat, Type 1
$12.34
AvailableT2101484 Hose, Coolant, Radiator Outlet
$19.42
AvailableT3706219 Clamp, Constant Tension, Dia 34
Low stock at Triumph
$12.69
Limited availabilityT2100989 Clip, Hose, Oetiker, 34mm
$12.69
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT2100676 Thermostat
Low stock at Triumph
$63.35
Limited availabilityT2102297 Gasket, Thermostat
Low stock at Triumph
$16.03
Limited availabilityT3205600 Bolt, HHF, Lghtd, M6 x 35, 10.9
Low stock at Triumph
$1.99
Limited availabilityT2101623 Cap Assy
$17.71
In stock in BreaT3000101 Dowel, Hollow, 8 x 14
$3.61
AvailableT2101860 Bracket, Radiator Lower
$14.67
AvailableT3020230 Grommet, 15 x 5 x 10
$3.25
AvailableT3010701 Flanged Sleeve, 6.4 x 10 x 14.5
$4.91
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3205070 Bolt, HHF, Lghtd, M6 x 30, Slv
$2.20
AvailableT3555026 Washer, 6.4 x 18 x 1.6
$1.99
In stock in BreaT3350111 Nut, Captive, M6
Low stock at Triumph
$4.56
Limited availabilityT3350010 Locknut, Flgd, M5
$2.09
AvailableT3330716 Screw, Pan/Hd, TX, M5 x 45
Backordered at Triumph · we’ll confirm the ship date after you order
$2.40
On backorderT3020033 Grommet; 12 x 2 x 9.6
$4.12
AvailableT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT2507700 Fan, PWM Controller
$243.33
AvailableT3010720 Flanged Sleeve, 6.4 x 10 x 12.5
$5.34
AvailableT3700373 Clip, Coupler
$1.99
Available
