Electrical System
Triumph Rocket 3 TFC · 9 diagrams
9 exploded diagrams for the electrical system of the Triumph Rocket 3 TFC, covering the Rocket 3 TFC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

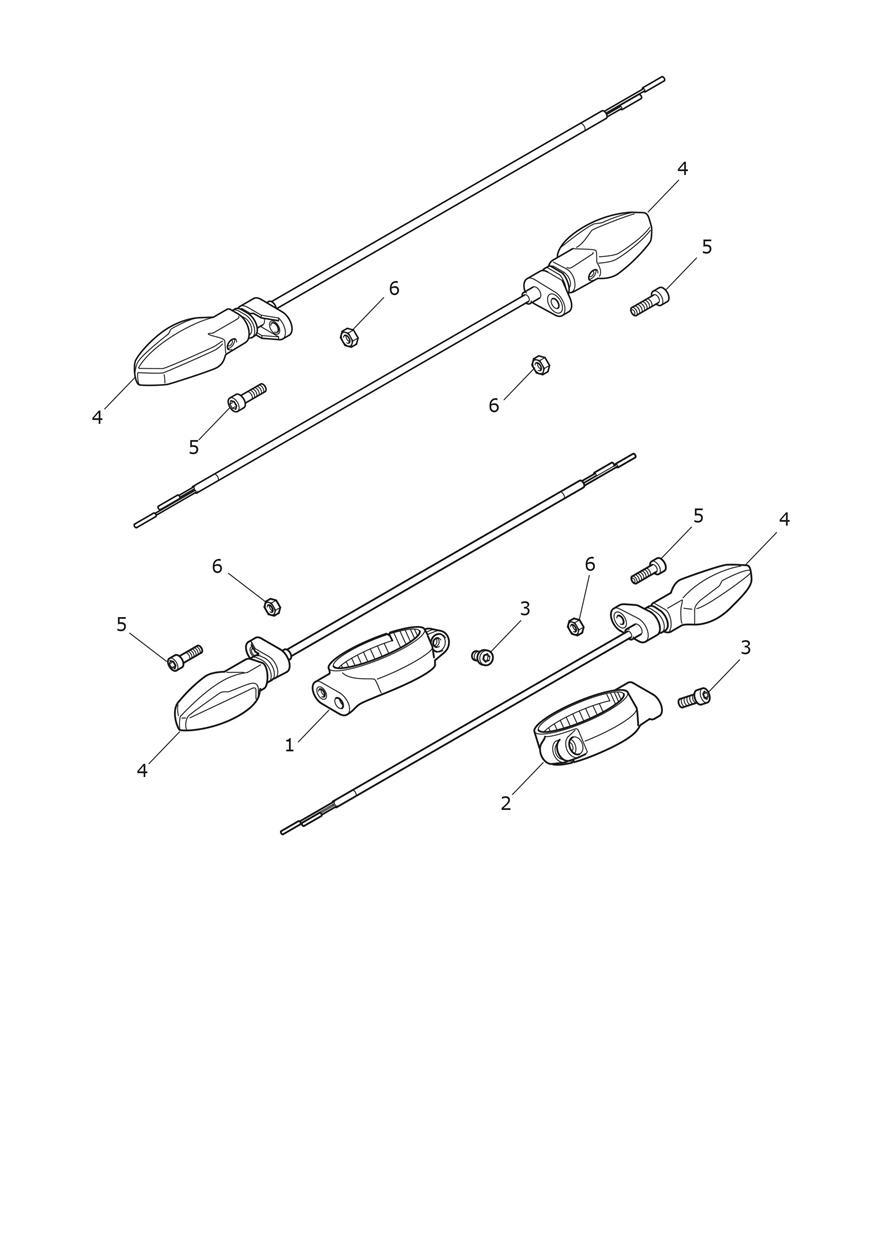

INDICATORS
Engine Management System
18 parts
Instruments
23 parts
Headlights
12 parts
Rear Light
12 parts
Lockset
23 parts
Alternator & Starter Motor
16 parts
Electrical System
64 parts
138 parts you can order online
Every part below appears in Triumph’s Electrical System diagrams for the Rocket 3 TFC and is priced and orderable online. Open a part to see what it fits and to buy it.

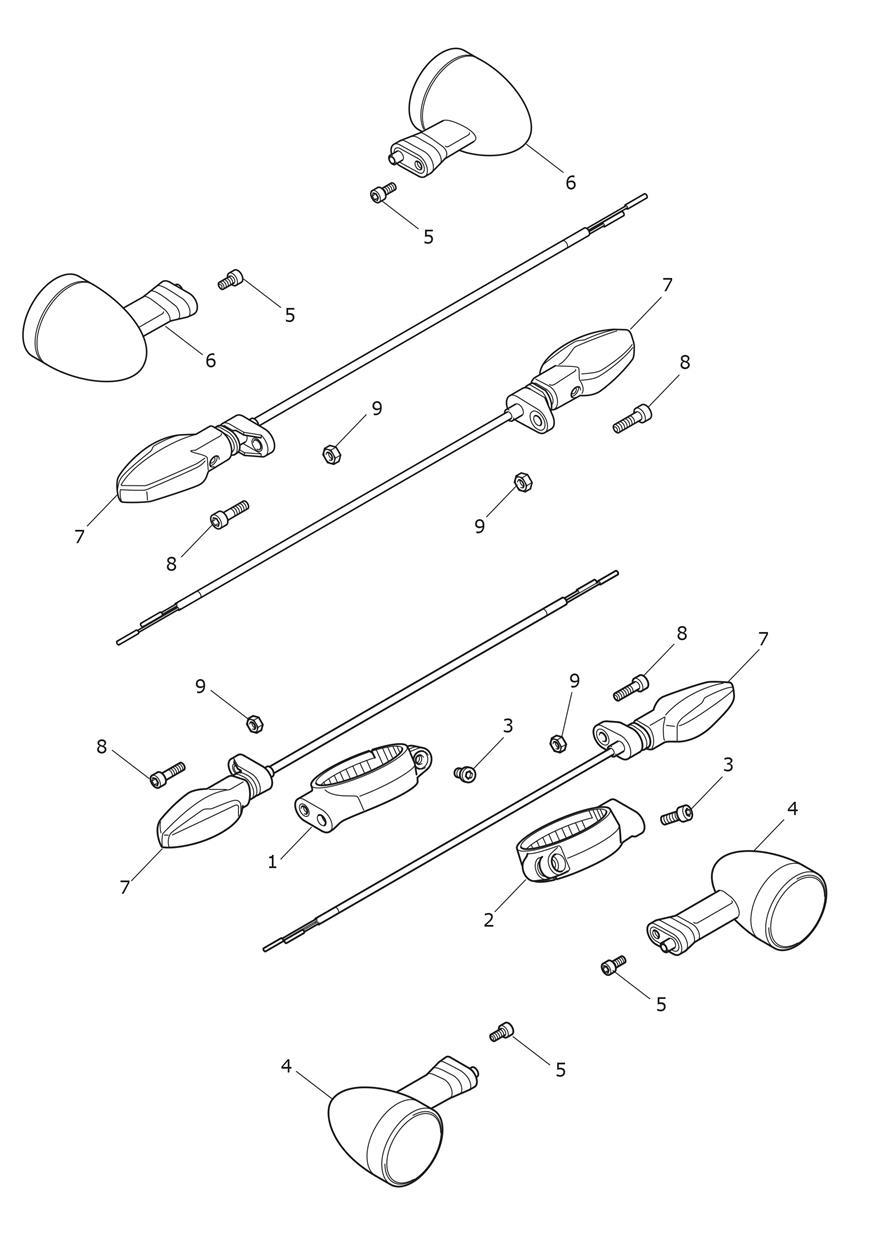

Indicators - US & CA Only
T2701054 Front Indicator Bracket, RH
Low stock at Triumph
$49.20
Limited availabilityT2701053 Front Indicator Bracket, LH
$49.20
AvailableT3050159 Capscrew, Skt HD, M6 x 20, SS
$4.76
AvailableT2701455 Spares Kit, Indicator, US, Front
$131.71
AvailableT3050348 Screw, Cap/Hd, M6 x 12, Enc, Slv
$4.76
AvailableT2701457 Spares Kit, Indicator, US, Rear
$121.95
AvailableT2704035 Indicator, LED, US, Amber
$59.49
In stock in BreaT3050339 Screw, Cap/Hd, M6x 20, Slv, Enc
$1.99
In stock in BreaT3350300 Nut, M6 x 1.0, Slv
$1.99

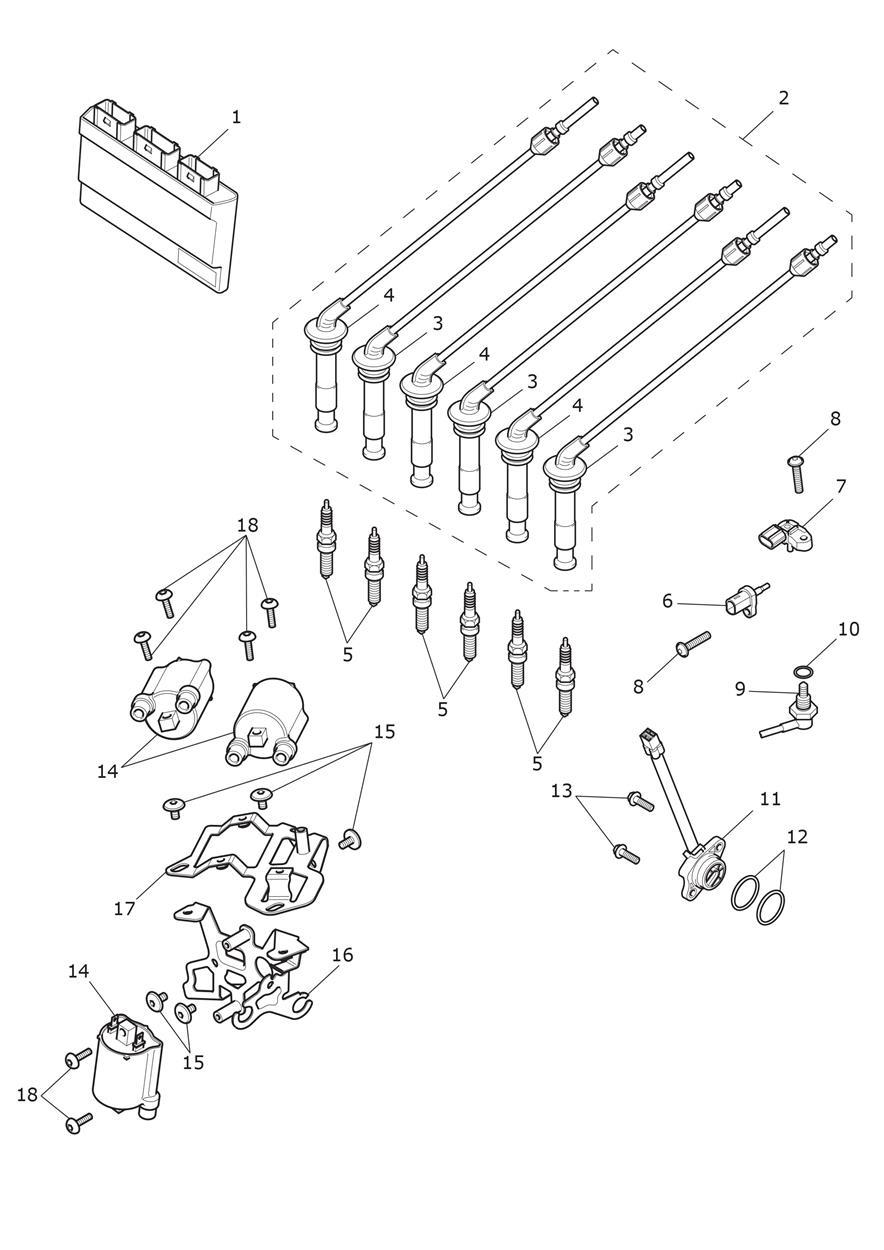

In stock in BreaEngine Management System
T1292560 ECM Base, KTKS
$1070.03
AvailableT1292465 HT Lead Assembly
Low stock at Triumph
$238.15
Limited availabilityT1292459 Cap, Spark Plug, Long
$48.28
AvailableT1292460 Cap, Spark Plug, Short
Low stock at Triumph
$48.28
Limited availabilityT1290745 Spark Plug, M10 x 26.5, Hex 14
$9.83
In stock in BreaT1290088 Sensor, Air Temperature
Low stock at Triumph
$59.95
Limited availabilityT1290975 Air Pressure Sensor
$133.79
AvailableT3332464 Screw, S/Tap, Tx, 5 x 25
Low stock at Triumph
$2.01
Limited availabilityT1294225 Sensor, Water Temperature
$49.44
AvailableT3550571 Washer, Cu, OD 16 x ID 12.5
$4.70
AvailableT1295678 Gear Position Sensor
$110.89
AvailableT3600267 O Ring, ID 26.65 x Dia 2.62
$1.99
In stock in BreaT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT1290101 Coil, Twin Output
Backordered at Triumph · expected Oct 23
$186.59
On backorderT3330726 Screw, Btn/Hd, M6 x 12, Slv
$4.09
AvailableT3338989 Screw, But/Hd, M5 x 20, S/S
Low stock at Triumph
$6.26

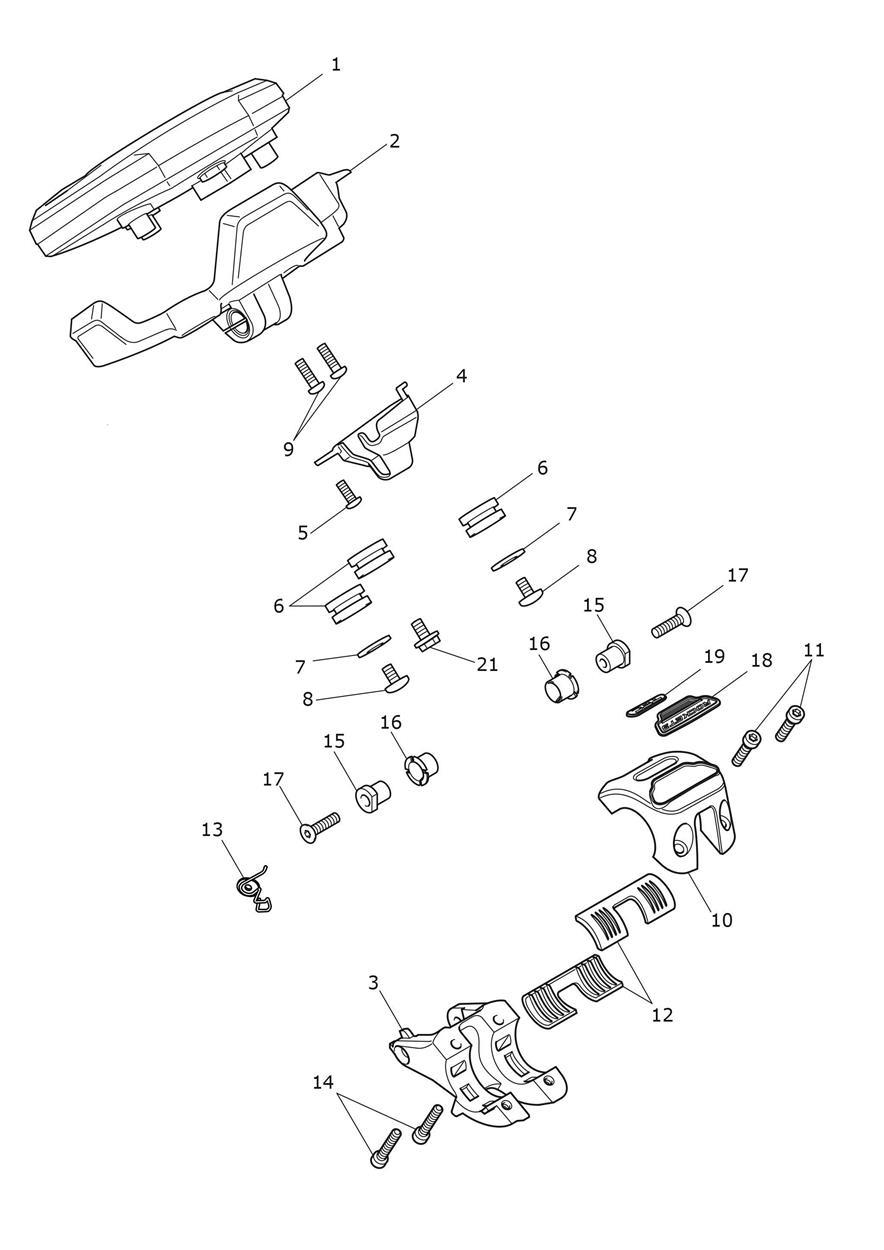

Limited availabilityInstruments
T2502741 Instrument Pack, TFT, Mph UK
Backordered at Triumph · we’ll confirm the ship date after you order
$1863.93
On backorderT2502742 Instrument Pack, TFT, Mph US
$1863.93
AvailableT2502743 Instrument Pack, TFT, KMH EU
$1863.93
AvailableT2501797 Instrument Mount
$108.73
AvailableT2502559 Riser, Instruments, Long
$82.86
AvailableT2502683 Boot, Instruments
$3.04
AvailableT3330894 Bolt, RHHF, M5 x 10
$6.16
AvailableT3020056 Grommet, Instruments
$3.24
AvailableT3555011 Washer, 6.5 x 20 x 2
$1.99
AvailableT3330289 Screw, But/Hd, TX, M5 x 16, Slv
$1.99
AvailableT3330842 Screw, Pan/Hd, TX, M5 x 16, Slv
$2.03
AvailableT2502473 Clamp, Instruments
Backordered at Triumph · expected Nov 6
$53.49
On backorderT3050333 Screw, Cap/Hd, M6 x 25, Slv
$7.05
AvailableT2503665 Friction Ring, POM, Instruments
$33.56
AvailableT3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw
$1.99
AvailableT2501873 Pin, Flanged, 12mm
$3.88
AvailableT2501874 Bearing, Polymer, Flgd, 12mm ID
$1.99
AvailableT3331196 Screw, Skt, C'sk, M6 x 25, Slv
$3.81

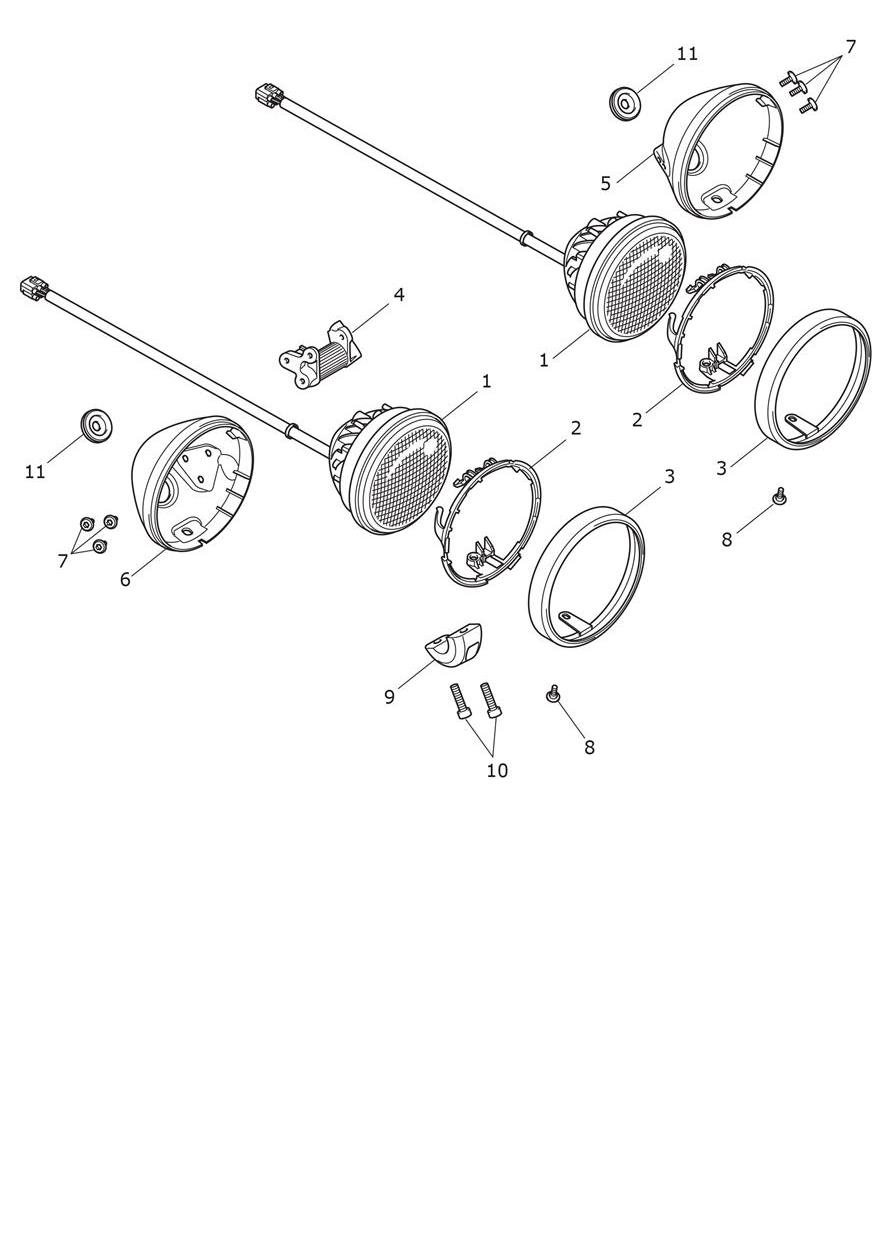

AvailableHeadlights
T2701274 Headlamp, 133 Dia, LED, TFC
$828.43
AvailableT2701304 Tension Ring, Headlight
Low stock at Triumph
$13.79
Limited availabilityT2701079 Headlight Bezel, Black
$64.74
AvailableT2700986 Bracket, Headlamp
Backordered at Triumph · we’ll confirm the ship date after you order
$53.84
On backorderT2701108-PI Headlight Bowl, LH, Carbon Black
$491.02
AvailableT2701109-PI Headlight Bowl, RH, Carbon Black
Backordered at Triumph · we’ll confirm the ship date after you order
$491.02
On backorderT3330960 Screw, But/Hd, M5 x 12, Slv Enc
$3.26
AvailableT3331078 Bolt, But/Hd, M5 x 14, Shld, Slv
$8.01
AvailableT2707074 Clamp, Headlight
$43.14
AvailableT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39

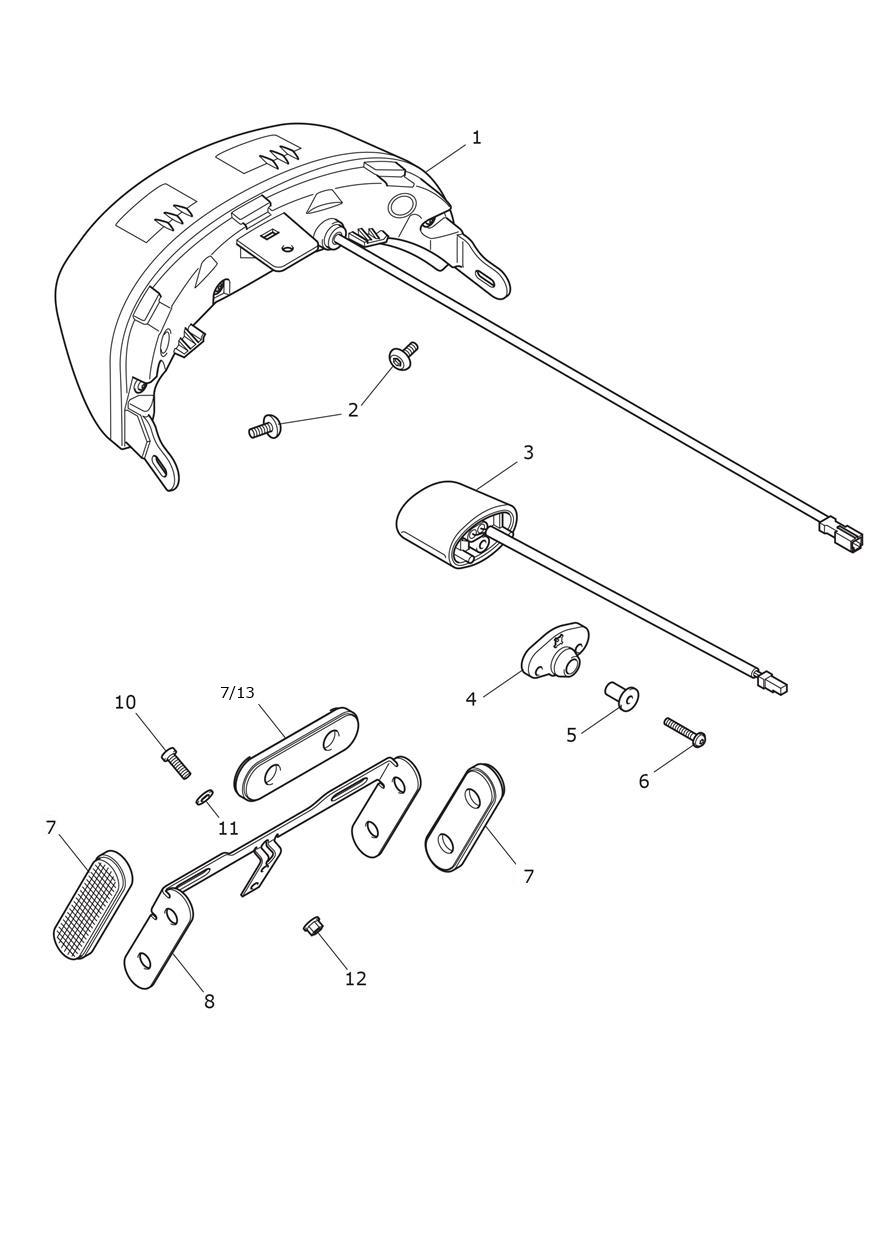

AvailableRear Light
T2702771 Rear Light, LED
$210.54
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT2708036 Light, LED, Registration Plate
$39.10
AvailableT2702046 Rubber, Number Plate Light
$5.97
AvailableT3010715 Sleeve, Flanged, 4.5 x 7.5 x 13.5
$3.98
AvailableT3331444 Screw, S/tap, Pan, Torx, M4 x 25
$1.99
AvailableT2700443 Reflector, Oval, Red
$5.69
In stock in BreaT2702045 Reflector Bracket
$11.03
AvailableT3550249 Washer, 11 x 5.1 x 0.8
Low stock at Triumph
$2.09
Limited availabilityT3350010 Locknut, Flgd, M5
$2.09

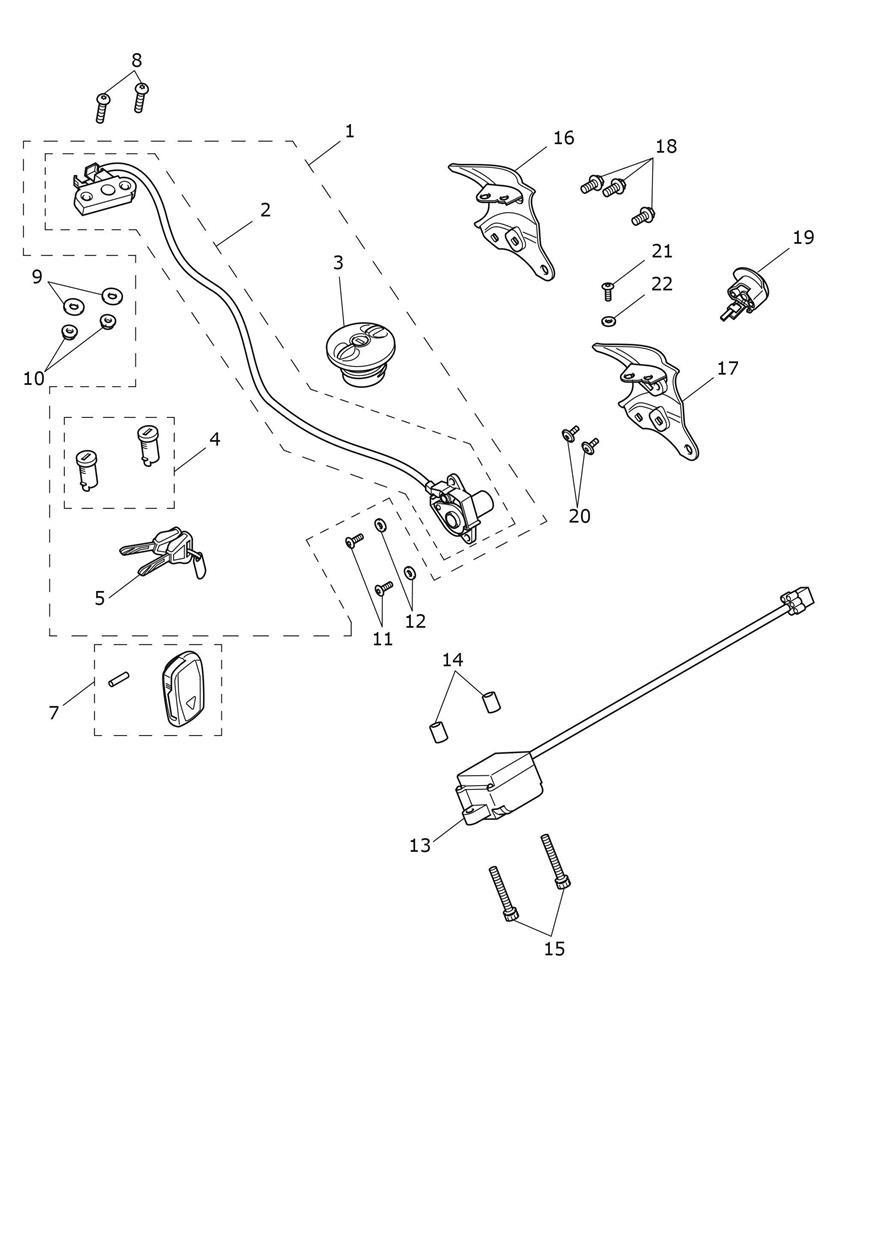

AvailableLockset
T2503324 Seat Lock, Spares
Backordered at Triumph · we’ll confirm the ship date after you order
$129.41
On backorderT2503326 Filler Cap, Spares
Backordered at Triumph · we’ll confirm the ship date after you order
$217.86
On backorderT2503322 Luggage Barrels, Spares, TFC
$116.49
AvailableT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3555026 Washer, 6.4 x 18 x 1.6
$1.99
In stock in BreaT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT3300062 Pop Rivet
$2.09
AvailableT3550289 Washer, 11 x 5.1 x 1.6
$2.09
AvailableT2502202 Steering Lock, Electronic
$234.10
AvailableT3011105 Spacer, 12 x 6.5 x 16
$8.96
AvailableT3330317 Bolt, Shear, M6 x 1.0 x 40, Enc
$4.74
AvailableT2501985 Bracket, Switch, Rotary, Mldg
$8.35
AvailableT3203222 Bolt, HHF, M6 x 12, Slv
$1.99
AvailableT2502214 Switch, Rotational
$82.73
AvailableT3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT
$1.99
In stock in BreaT3330659 Screw, Pan/Hd, TX, M5 x 25, Enc
$3.45
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14

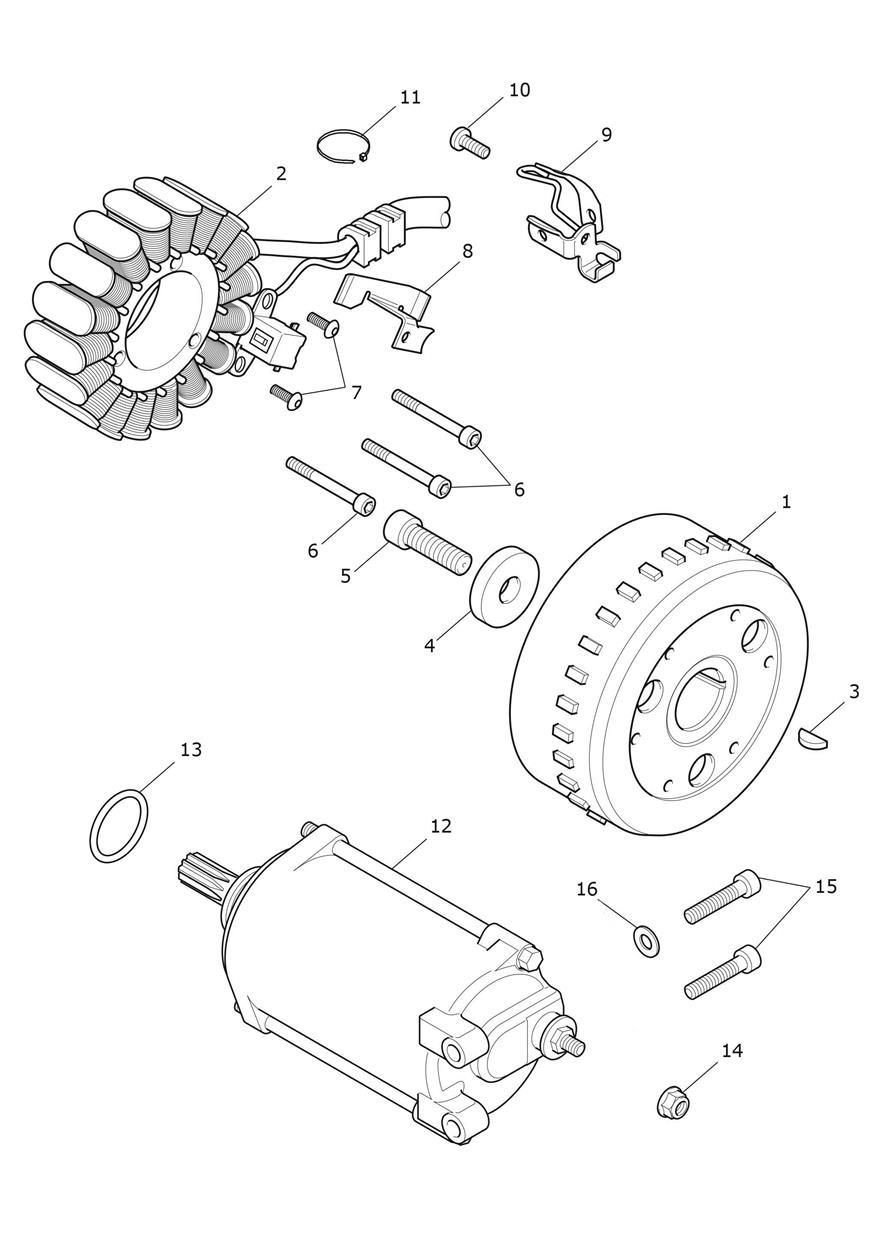

Limited availabilityAlternator & Starter Motor
T1302451 Rotor, Alternator
$966.49
AvailableT1302452 Stator, Alternator
$629.93
AvailableT3551077 Washer, M12
$10.63
AvailableT3208888 Bolt, Radial Feed, M12 x 40
$13.39
AvailableT3051082 Screw, Cap/Hd, M6 x 50, Enc
$2.01
AvailableT3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc
$1.99
AvailableT1300157 Bracket, ACG Cable
$8.73
AvailableT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT1311250 Starter Motor
$759.38
AvailableT3600115 O Ring
$3.14
AvailableT3051061 Screw, Cap/Hd, M6 x 30, Slv
$4.76
AvailableT3550957 Washer. M6 x 13
$1.99

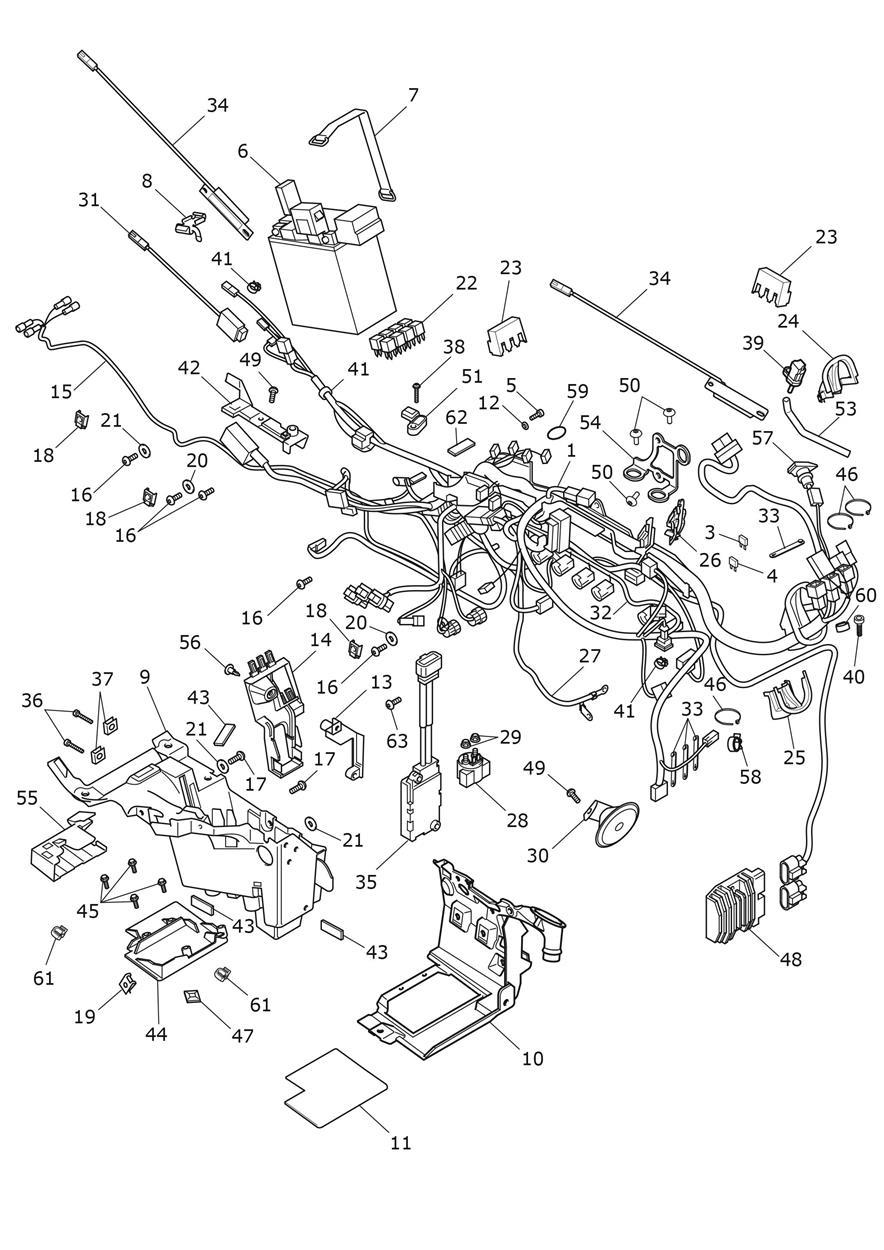

In stock in BreaElectrical System
T2504448 Main Harness
$740.28
AvailableT2503307 Fuse, Mini, 7.5A
$4.30
AvailableT2501320 Fuse, Mini, 20A
$4.39
AvailableT3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc
$1.99
AvailableT2501769 Battery, YTX20CH-BS
$224.26
In stock in BreaT2501750 Battery Strap
$8.71
AvailableT2501980 Brace, Battery
$10.88
AvailableT2506230 Battery Box Inner Assembly
$61.68
AvailableT2507666 Heat Reflecting Foil
$12.42
AvailableT2509052 Relay Bracket
$6.45
AvailableT2509143 Starter Solenoid Bracket
Backordered at Triumph · we’ll confirm the ship date after you order
$20.85
On backorderT2501897 Subharness, Number Plate Bracket
Backordered at Triumph · we’ll confirm the ship date after you order
$71.55
On backorderT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc
$1.99
In stock in BreaT3350111 Nut, Captive, M6
Low stock at Triumph
$4.56
Limited availabilityT3350123 Nut, Captive, M5, Non-Secured
$2.29
AvailableT3552001 Washer, M6 x 14 x 0.5
$1.99
AvailableT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT2507729 Relay, Ultra Micro, ISO 280
$6.97
AvailableT2506088 Relay Cover
$6.88
AvailableT2501983 Conduit, Harness, Headstock, Upper
$6.37
AvailableT2503976 Conduit, Harness, Headstock, Lower
$6.12
AvailableT2501987 Conduit, Harness, Frame, Mldg
Backordered at Triumph · expected Nov 6
$66.41
On backorderT1310008 Starter Solenoid Assy
$67.75
AvailableT2501422 Charger, USB, 5V, 170mm
Low stock at Triumph
$37.58
Limited availabilityT2501982 Subharness, Engine
$88.00
AvailableT3700259 Rubber Band, 43mm
$3.61
AvailableT2502182 Antenna, LF
$22.53
AvailableT3050343 Screw, Cap/Hd, M5 x 30, Slv
$4.12
AvailableT3050342 Screw, Cap/Hd, M5 x 16, Slv
Low stock at Triumph
$2.64
Limited availabilityT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT3660171 Pad, Rubber, 30 x 10 x 5, thick
$7.49
AvailableT2503569 Panel, Alarm
Backordered at Triumph · expected Nov 6
$27.60
On backorderT3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041
$3.00
AvailableT3700370 Cable Tie Holder, 21 x 21, White
$1.99
AvailableT1300679 Regulator Rectifier
$412.16
AvailableT2501828 Foam Pad, ECU
$9.67
AvailableT2502623 Carriage, Alarm, Mldg
$11.03
AvailableT3701150 Plastic Rivet, Push Release
$1.99
In stock in BreaT2502909 Power Socket, DIN
$54.36
AvailableT3700182 Clip, Omega, 18mm x 14mm
$3.81
In stock in BreaT3700077 Clip, 10.5 Rer Oetiker
$3.71
AvailableT2504511 S-Clip
$9.52
AvailableT3660077 Trim, Cut Length, 70mm
$4.49
AvailableT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in Brea
