Fuel & Exhaust Systems
Triumph Rocket 3 TFC · 7 diagrams
7 exploded diagrams for the fuel & exhaust systems of the Triumph Rocket 3 TFC, covering the Rocket 3 TFC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Evaporative System
7 parts
Secondary Air Injection
12 parts
Throttles, Injectors & Fuel Rail
26 parts
Airbox
26 parts
Exhaust System
35 parts
Fuel Tank
32 parts
Fuel Pump
42 parts
155 parts you can order online
Every part below appears in Triumph’s Fuel & Exhaust Systems diagrams for the Rocket 3 TFC and is priced and orderable online. Open a part to see what it fits and to buy it.

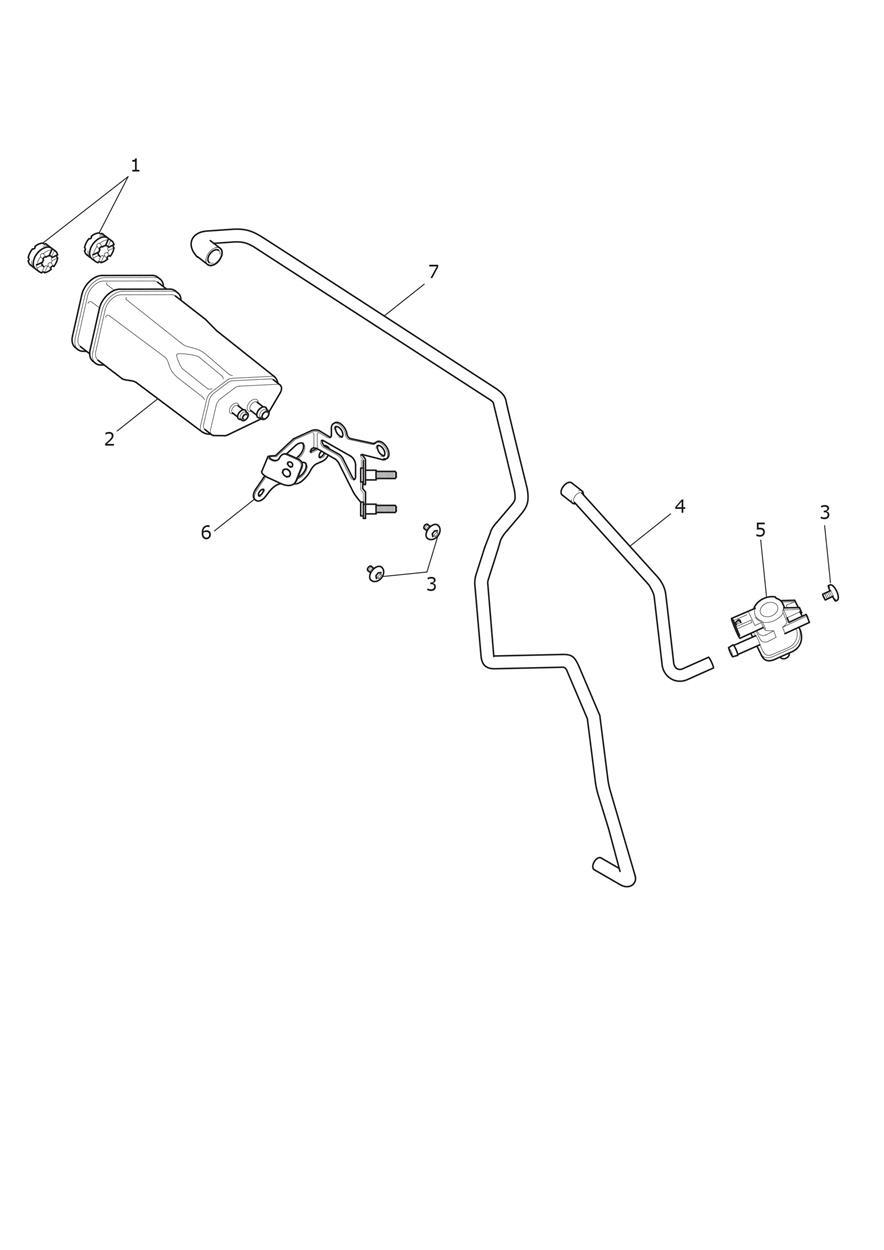

Evaporative System
T3020601 Grommet, Castellated
Backordered at Triumph · we’ll confirm the ship date after you order
$3.71
On backorderT2403010 Carbon Cannister
$103.83
AvailableT3332568 Screw, But/HD, M5 x 8, Slv
$3.61
AvailableT1240283 Hose, Formed, Evap to Valve
$21.74
AvailableT1248990 Purge Valve
$61.60
AvailableT1240346 Hose, Formed, Vent, Evap
$21.74

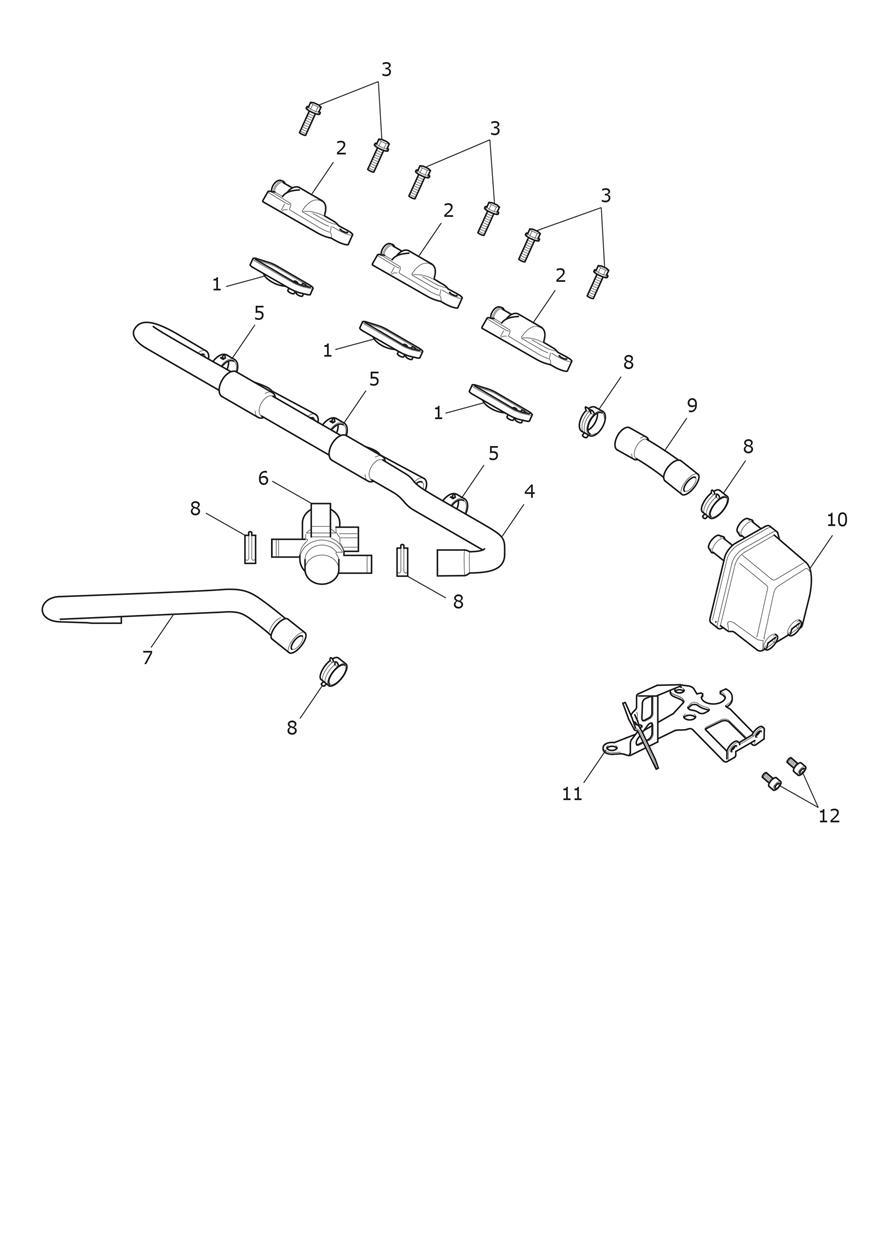

AvailableSecondary Air Injection
T1250075 Reed Valve
$49.20
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT1250901 Hose, Sai, Formed
$23.63
AvailableT3700051 Hose Clip, Dia 18.1-20 x 8mm
$2.09
AvailableT1250522 Solenoid, Sai
$91.53
AvailableT1250925 Hose, Formed, Silencer
$13.03
AvailableT3700050 Hose Clip, Dia 19.5-22 x 8mm
$3.49
AvailableT1251324 Hose, Formed, Filterbox
$9.98
AvailableT1252458 Silencer, Sai
$29.78
AvailableT3050341 Screw, Cap/Hd, M5 x 10, Slv
Low stock at Triumph
$3.51

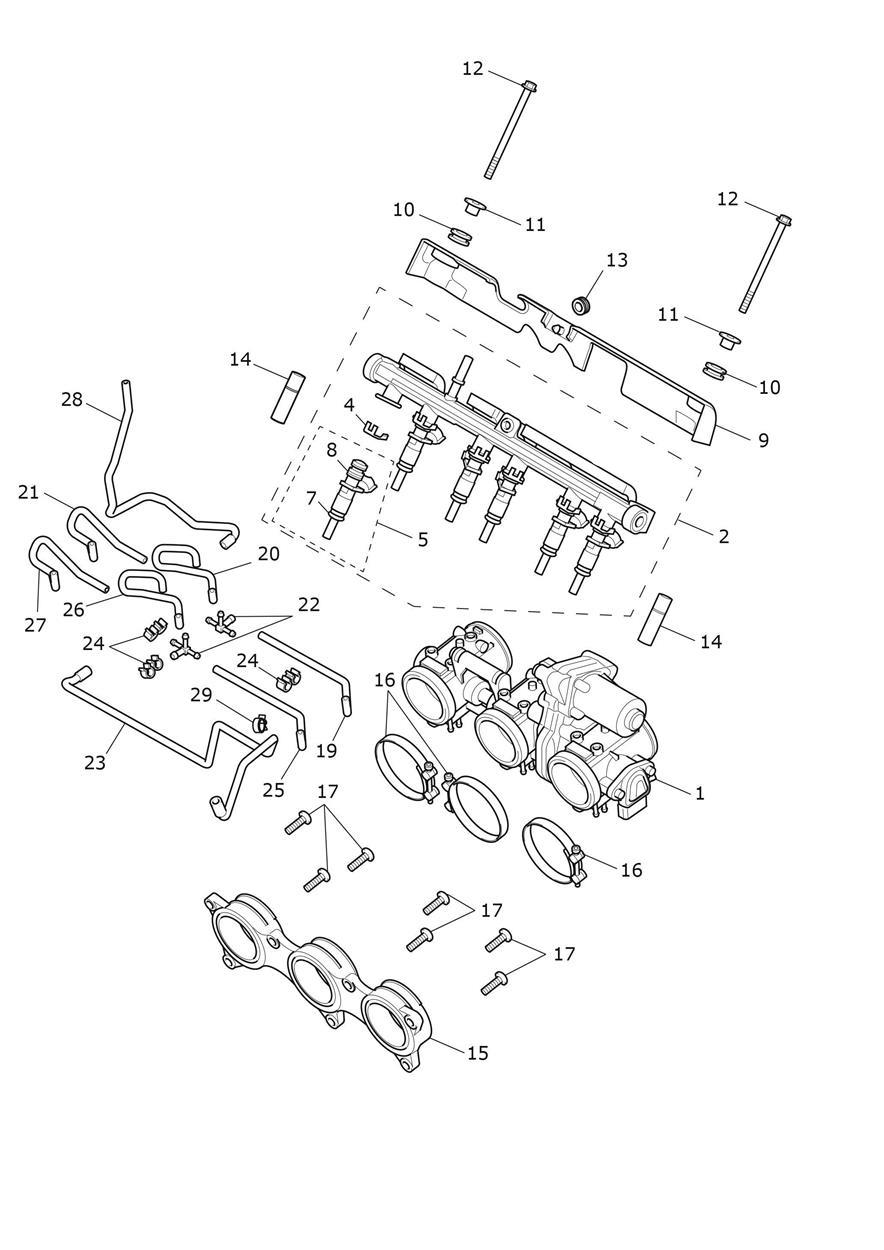

Limited availabilityThrottles, Injectors & Fuel Rail
T1240584 Throttle Body
$3072.05
AvailableT1242111 Fuel Rail Assembly
$1277.14
AvailableT1240661 Injector Assy
$204.21
AvailableT1240641 O Ring, Injector, Lower
Backordered at Triumph · expected Oct 23
$5.65
On backorderT1240651 O Ring, Injector, Upper
Backordered at Triumph · expected Oct 23
$13.96
On backorderT1242121 Cover, Fuel Rail
Backordered at Triumph · expected Oct 23
$20.46
On backorderT3020153 Grommet, 13 x 3 x 10
$1.99
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3202330 Bolt, RHHF, M6 x 90, Slv
Backordered at Triumph · expected Oct 23
$10.22
On backorderT3020131 Grommet, 9 x 2 x 6
$1.99
AvailableT1240351 Aluminium Spacer, Fuel Rail
$3.63
AvailableT1240539 Transition Piece
$38.48
AvailableT3331234 Screw, Torx, P/H, M6 x 20, Slv
$4.91
In stock in BreaT1249100 Hose, Map, Cyl 1
Backordered at Triumph · we’ll confirm the ship date after you order
$9.21
On backorderT1242929 Connector, 4 Way
$10.10
AvailableT1249104 Hose, Evap Sensor
$12.83
AvailableT2040811 Twin Clip, Brake Hose
$2.43
AvailableT1249103 Hose, Map Sensor
$12.83
AvailableT3700182 Clip, Omega, 18mm x 14mm
$3.81

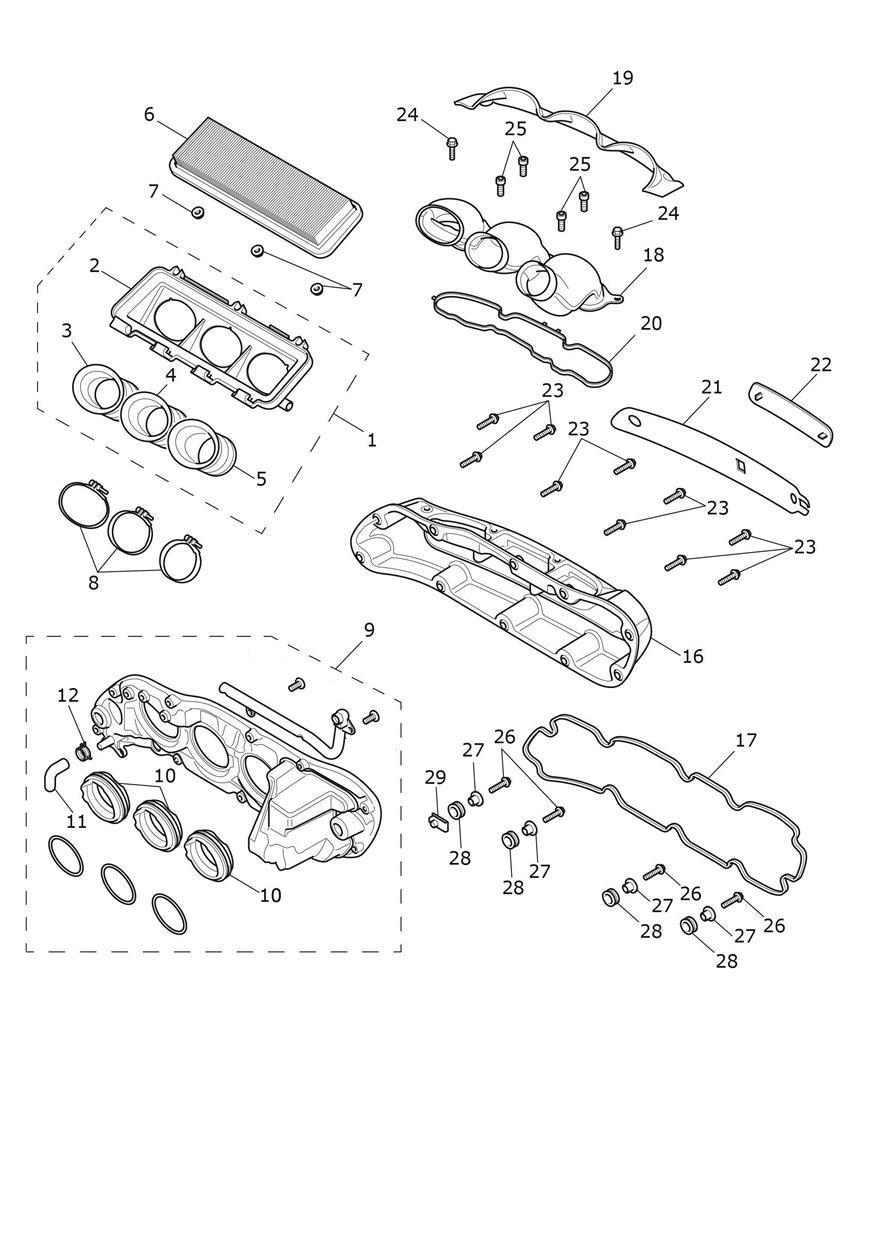

In stock in BreaAirbox
T2201812 Filter Box Assembly
$38.66
AvailableT2201813 Air Filter
$42.26
In stock in BreaT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT2202213 Sealing Clip, Oval, Small
Backordered at Triumph · we’ll confirm the ship date after you order
$6.07
On backorderT2209690 Rear Plenum Assy Kit
$227.81
AvailableT2201815 Inlet Trumpet, Plenum
Backordered at Triumph · we’ll confirm the ship date after you order
$67.72
On backorderT2204929 Drain, Stub Pipe
$7.64
AvailableT3700081 Clip hose
$1.99
AvailableT2202499 Plenum Cover
$163.97
AvailableT2202504 Seal, Plenum Box
$20.53
AvailableT2202341 Intake, Runner Assy
$219.16
AvailableT2202755 Finisher, Plenum Cover
$136.32
AvailableT2202451 Gasket, Runners
$11.73
AvailableT2209824 Infill Panel, Plenum, Carbon
$440.16
AvailableT2209833 Badge, Plenum, TFC
$93.96
AvailableT3200190 Bolt, RHHF, M6 x 25, Slv
$2.43
AvailableT3205085 Bolt, HHF, Lghtd, M6 x 20, Enc
$5.27
AvailableT3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc
$2.17
In stock in BreaT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3350141 Nut, Captive, M6
$4.65

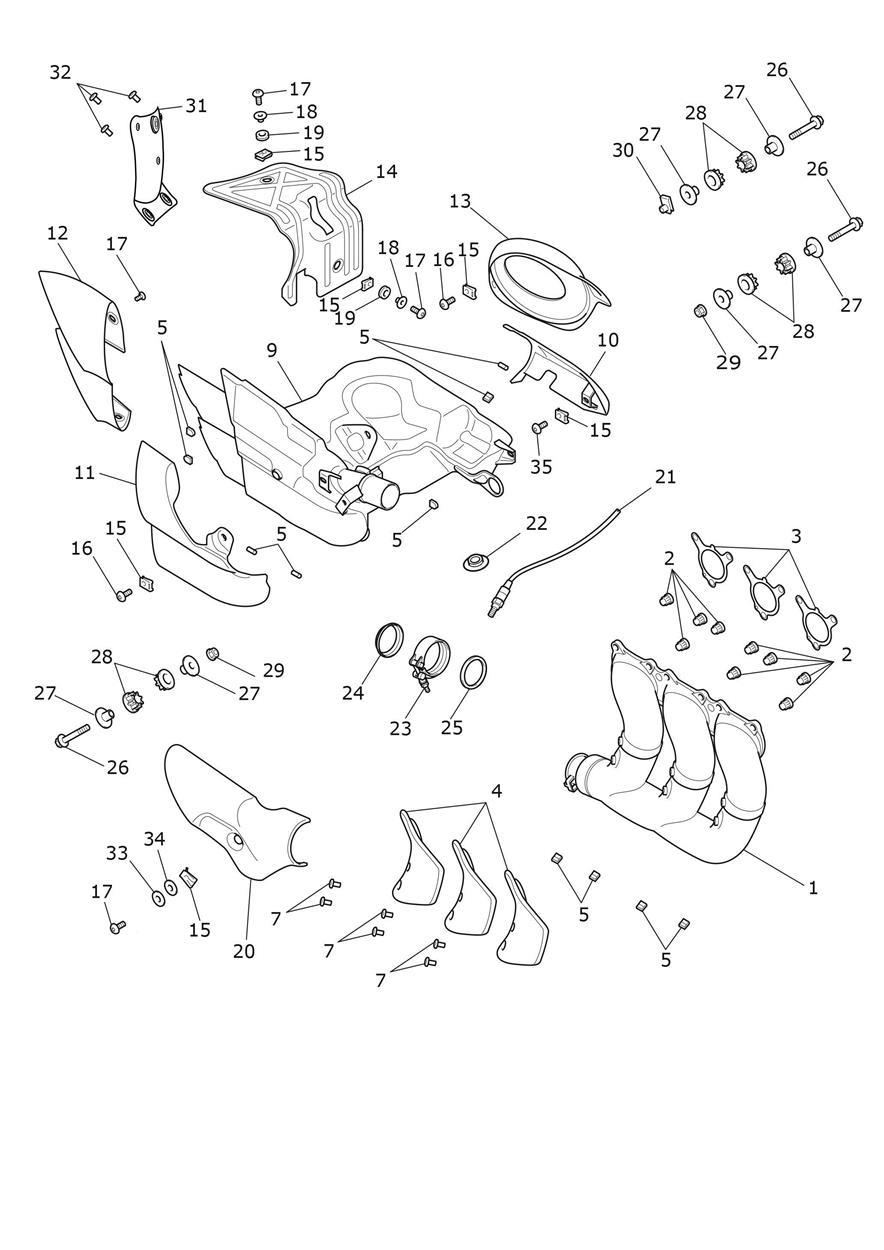

AvailableExhaust System
T2202172 Header Assembly
$1219.49
AvailableT3350186 Nut, Flgd, 12 Pnt, M8
$11.58
AvailableT2203164 Gasket, Exhaust Port
$12.05
AvailableT2207830 Heat Shield, Exhaust, HL
$224.34
AvailableT2204745 Grommet, Secondary Cvr Brkt
$2.43
In stock in BreaT3330344 Bolt, Pan/Hd, M5 x 8, SS, Enc
Low stock at Triumph
$7.23
Limited availabilityT9680060 Catalyst Box, Semi-Covered, US
$3083.53
AvailableT9680018 Cover, Catbox, LH, Assy, HL
$281.68
AvailableT2202649 Heatshield, Catbox, RHS, Assy
$69.90
AvailableT2203349 Endcap, RHS, HL, Spares Assy
$556.45
AvailableT2203353 Endcap, LHS, HL, Spares Assy
Backordered at Triumph · we’ll confirm the ship date after you order
$322.64
On backorderT2202597 Heatshield, Catbox, Centre, Assy
$96.66
AvailableT3350123 Nut, Captive, M5, Non-Secured
$2.29
AvailableT2207727 Bolt, M5 x 10, Pan
Backordered at Triumph · we’ll confirm the ship date after you order
$5.92
On backorderT3334511 Screw, Lge Skt Hd, M5 x 16, S/S
Low stock at Triumph
$5.77
Limited availabilityT3020085 Grommet, Dia 18 x 9
$1.99
AvailableT2207898 Sensor, Oxygen, Exh, M12, 500mm
$232.39
AvailableT3020168 Stop, Sidestand
$10.91
AvailableT2202454 Clamp, Exhaust, Dia 44.5
Low stock at Triumph
$25.20
Limited availabilityT2202044 Sleeve, Exhaust, Flanged
$2.29
In stock in BreaT2202043 Gasket, Exhaust
$12.86
In stock in BreaT3202307 Bolt, HHF, M8 x 50, Slv
$6.16
AvailableT3010705 Flanged Sleeve, 8.4 x 12.4 x 13.8
$9.67
AvailableT2200622 Bush, Rubber, M8
$2.09
AvailableT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaT3350092 Nut, Captive, M8
$1.99
AvailableT2206363 Heatshield, Rear, Assy
$224.34
AvailableT3330289 Screw, But/Hd, TX, M5 x 16, Slv
$1.99
AvailableT3550277 Washer, M8
$1.99
AvailableT3555026 Washer, 6.4 x 18 x 1.6
$1.99
In stock in BreaT2206616 Bolt, M5 x 10, Pan
$5.92
AvailableT2207845 Badge, Arrow, Black
Backordered at Triumph · expected Oct 30
$16.16
On backorderT3300020 Rivet
$1.99

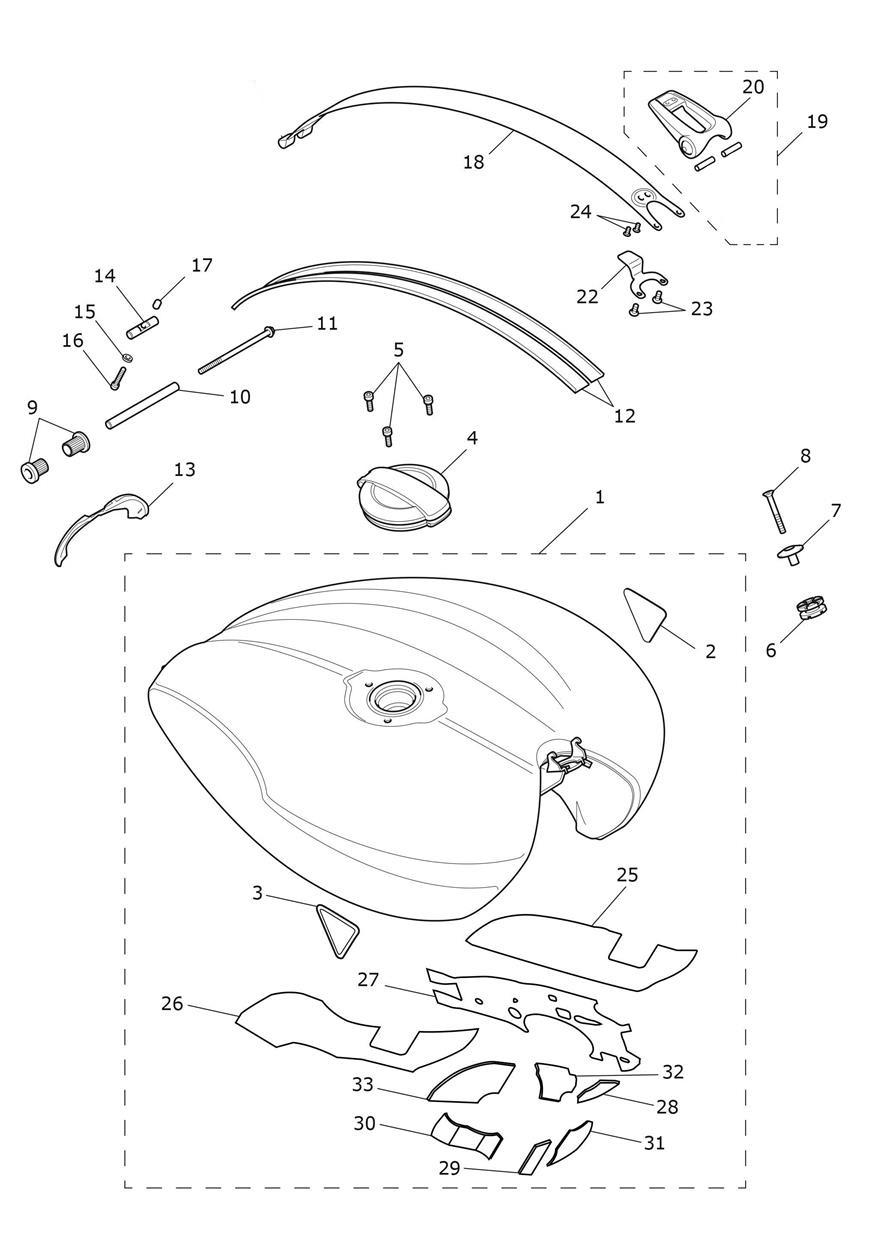

AvailableFuel Tank
T2401934-PI Fuel Tank Spares Assy
$3881.73
AvailableT2402249 Badge, Fuel Tank, LH
$146.68
AvailableT2402251 Badge, Fuel Tank, RH
$146.68
AvailableT2401982 Fuel Filler Cap, Monza
$128.47
In stock in BreaT3050342 Screw, Cap/Hd, M5 x 16, Slv
Low stock at Triumph
$2.64
Limited availabilityT3020611 Grommet, Castellated
Backordered at Triumph · we’ll confirm the ship date after you order
$3.69
On backorderT3330934 Screw, Csk, M6 x 50, Slv
$1.99
In stock in BreaT2403597 Rubber Bush
$3.24
AvailableT3330711 Sleeve, OD10, ID7, L85
$9.50
AvailableT3205089 Bolt, HHF, Lghtd, M6 x 100
Low stock at Triumph
$4.12
Limited availabilityT2402188 Gasket, Tank Strap, Adhesive
$26.38
In stock in BreaT2402186 Shield, Tank Strap, Rubber
Low stock at Triumph
$26.18
Limited availabilityT3550289 Washer, 11 x 5.1 x 1.6
$2.09
AvailableT3050343 Screw, Cap/Hd, M5 x 30, Slv
$4.12
AvailableT3450159 Rubber Cap, 4.8 x 6,5
Low stock at Triumph
$3.61
Limited availabilityT2401917 Bracket Assy, Tank Strap
$41.19
AvailableT2402141 Hook, Tank Strap
Backordered at Triumph · expected Nov 6
$5.17
On backorderT3330916 Screw, But/Hd, M5 x 10, SS
Backordered at Triumph · we’ll confirm the ship date after you order
$6.12
On backorderT3330917 Screw, But/Hd, M4 x 8, SS
Backordered at Triumph · we’ll confirm the ship date after you order
$6.12
On backorderT2402327 Foil, Heat Reflecting, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$33.09
On backorderT2401970 Foam, Tank, 1
$11.40
AvailableT2401971 Foam, Tank, 2
$11.40
AvailableT2401972 Foam, Tank, 3
$3.25
AvailableT2401973 Foam, Tank, 4
$2.85
AvailableT2401974 Foam, Tank, 5
$2.85
AvailableT2401975 Foam, Tank, 6
$4.91

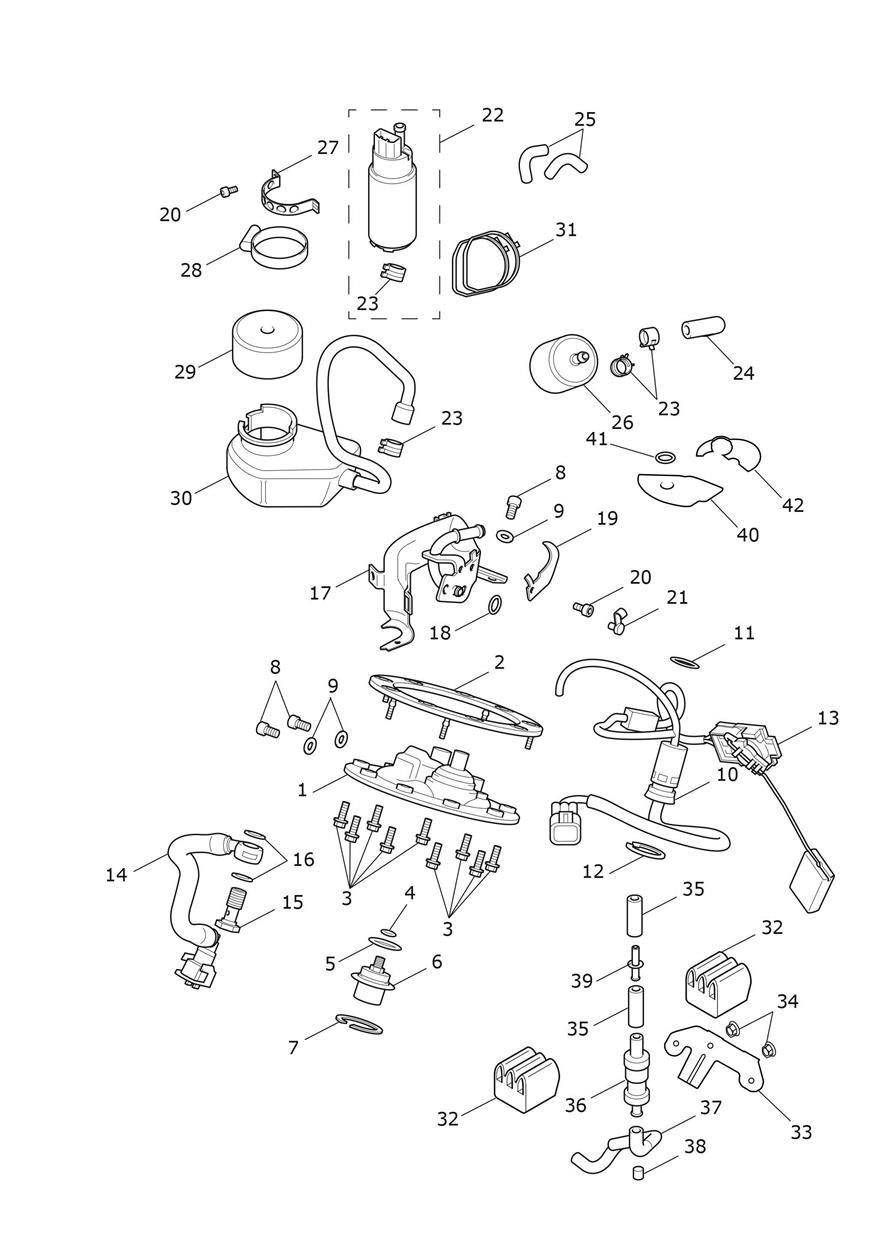

AvailableFuel Pump
T2402902 Fuel Pump Plate
$180.55
AvailableT2401214 Seal, Fuel Pump Plate
$40.41
In stock in BreaT3330892 Bolt, RHHF, M5 x 15, S5041
$1.99
AvailableT3601469 O Ring, ID 7.6 x 2.6
$3.14
AvailableT3601488 O Ring, ID 21.9 x 2.6
$3.14
AvailableT1241488 Fuel Pressure Regulator, Ext
$78.32
AvailableT3500111 Circlip, Int, 36 x 1.5
Low stock at Triumph
$14.86
Limited availabilityT3051062 Screw, M6 x 12, Enc, Raw
$1.99
In stock in BreaT3550962 Washer, M6 x 13 x 1
$1.99
AvailableT2402240 Subharness, Fuel Tank
$79.35
AvailableT3600056 O ring
Low stock at Triumph
$8.35
Limited availabilityT3500078 Circlip, Int Dia 81.4 x 1.2
$1.99
AvailableT2401865 Fuel Level Sensor
$216.52
AvailableT1240349 Hose Assembly, Fuel Feed
Backordered at Triumph · expected Nov 13
$113.90
On backorderT1210258 Bolt, Banjo, M12
$11.53
AvailableT3550573 Banjo Washer, M12
$2.67
In stock in BreaT2402129 Fuel Pump Bracket
$17.01
AvailableT3600213 O Ring, ID 9.8 x 1.9
$2.20
AvailableT2408892 Retention Hose Bracket
$15.24
AvailableT3050308 Screw, Cap/Hd, M4 x 8
Low stock at Triumph
$4.76
Limited availabilityT3700091 Clip Cable
$1.99
AvailableT2402066 Fuel Pump, Spares Kit
$264.04
AvailableT3700089 Hose Clip, Dia 12.5
$3.71
AvailableT3620397 Formed Fuel Hose, E25
$5.69
AvailableT3620395 Fuel Hose, 45mm
$9.15
AvailableT2407046 Fuel Filter, Internal
$78.32
In stock in BreaT1245555 Strap, Retaining, Fuel Pump
$13.50
AvailableT2102116 Clip, Hose, 11-12.5
$6.07
AvailableT2400224 Filter, Fuel Pump Baffle
$16.08
AvailableT2402069 Baffle, Fuel Pump
$78.87
AvailableT3700016 Cable Tie, 370 Long
$1.99
In stock in BreaT2409999 Rubber, Tank Mount
Low stock at Triumph
$17.07
Limited availabilityT2401859 Bracket, Mount, Fuel Tank, RH
$35.56
AvailableT2402134 Hose, Tank to Roll Over
$9.58
AvailableT2405042 Roll Over Valve
$37.39
AvailableT2402136 Hose, Formed, Roll Over Drain
$16.20
AvailableT1210385 Check Valve
$37.71
AvailableT2401851 Restrictor, Hose, Breather
$10.49
AvailableT2402061 Pre-Filter, Fuel Pump
$43.92
AvailableT2402062 Retaining Ring, Pre-Filter
$2.01
AvailableT2402329 Foil, Heat Reflecting, Pump
$20.24
Available
