Braking System
Triumph Rocket 3 · 40 diagrams
40 exploded diagrams for the braking system of the Triumph Rocket 3, covering the Rocket 3 Storm GT, Rocket 3 Storm R, Rocket 3 GT, Rocket 3 R. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

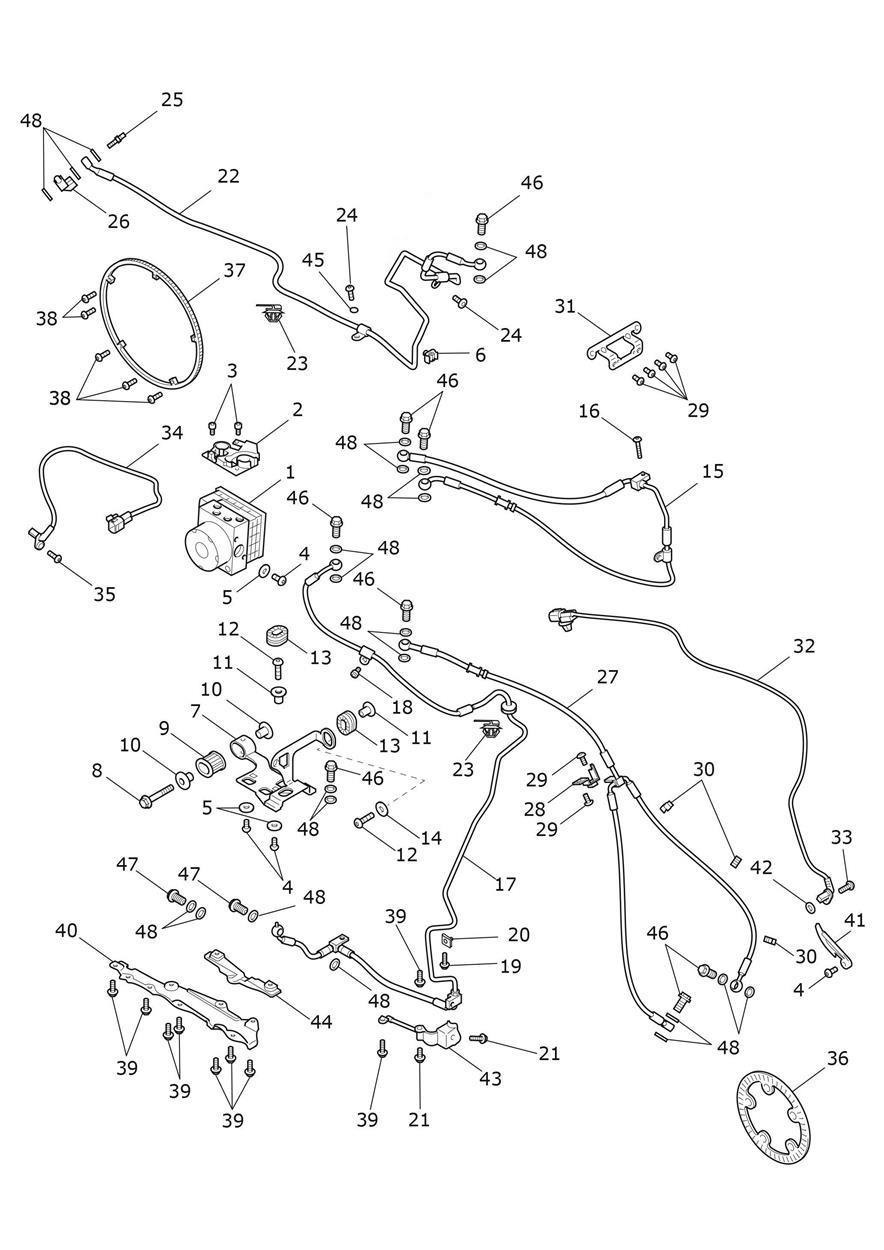

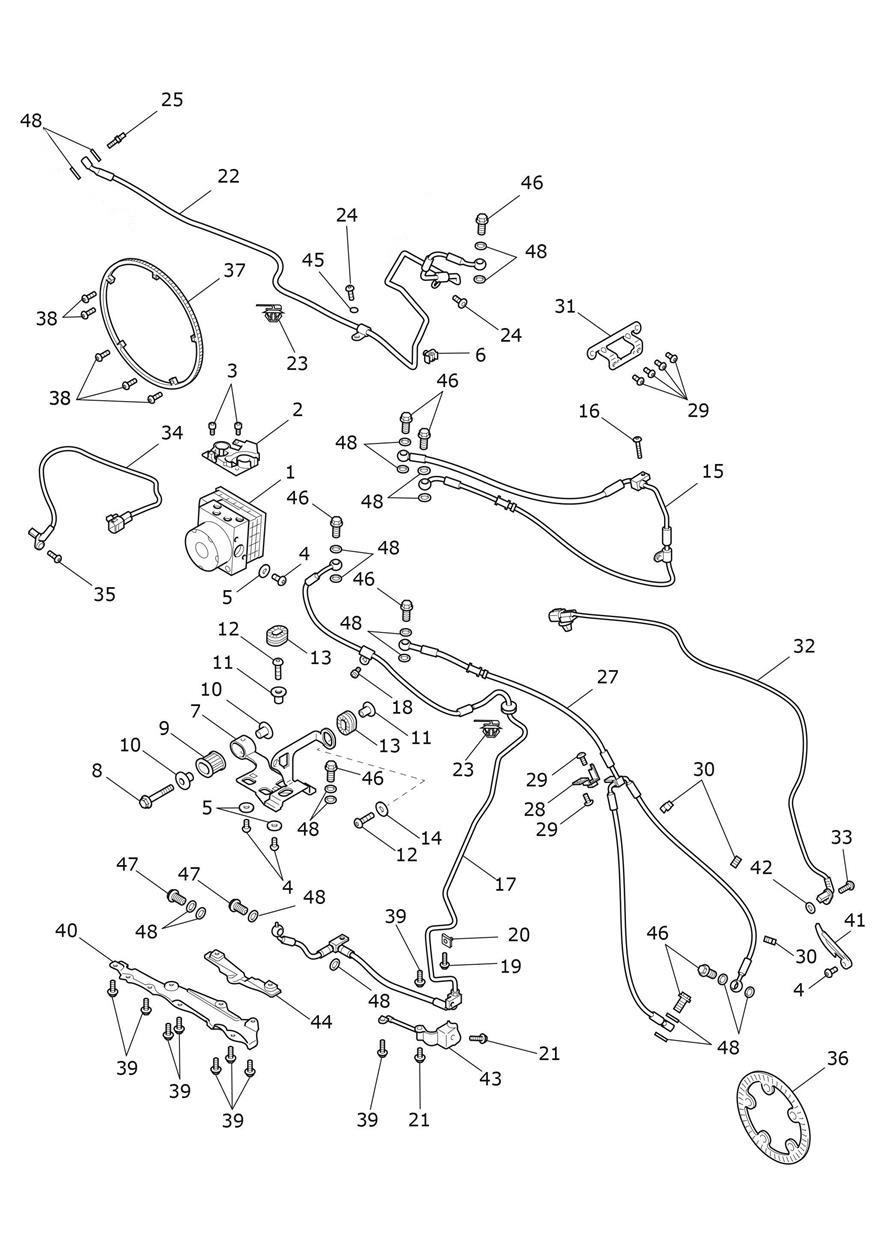

ABS System
50 parts

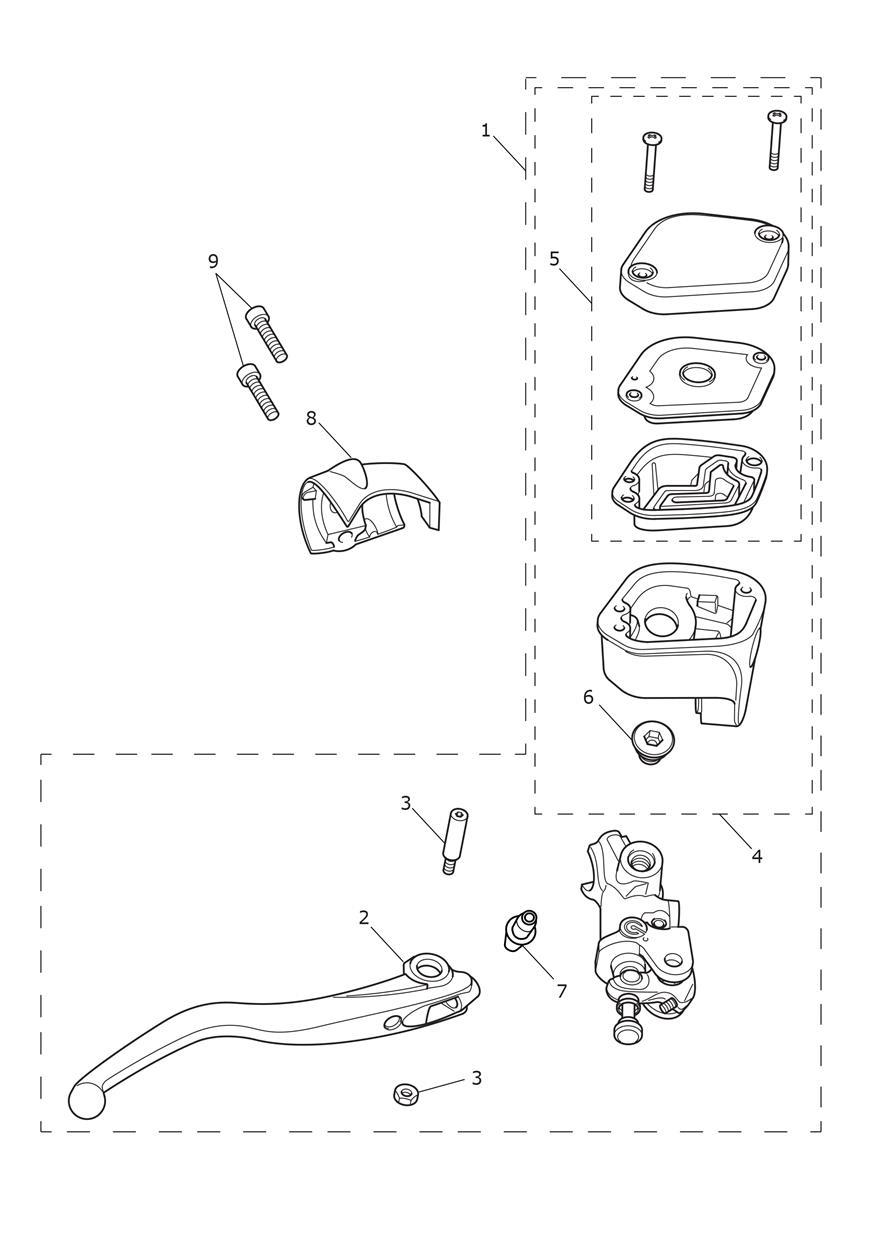

Front Brake M/Cyl Assy
9 parts

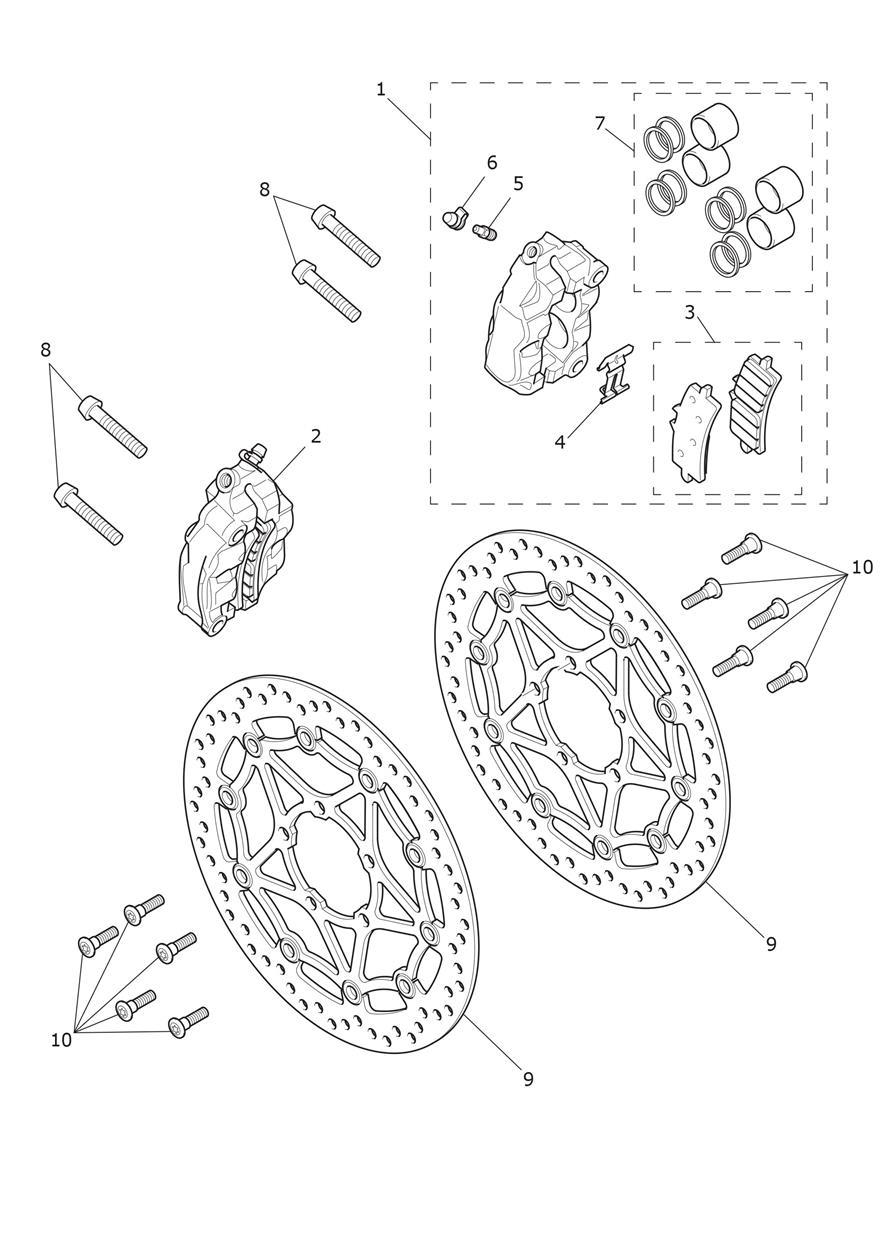

Front Caliper & Discs
10 parts

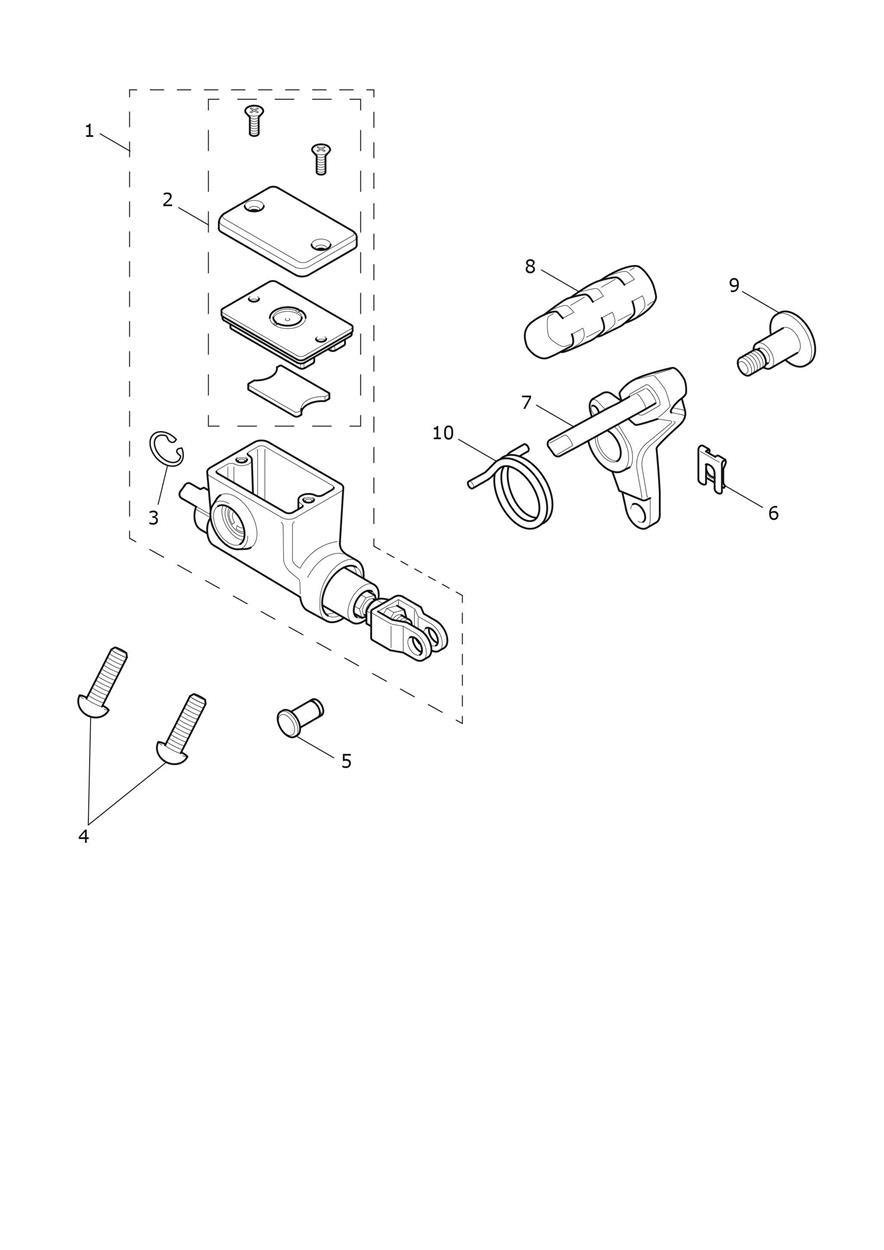

Rear Brake M/Cyl
10 parts
Front Brake M/Cyl Assy
9 parts

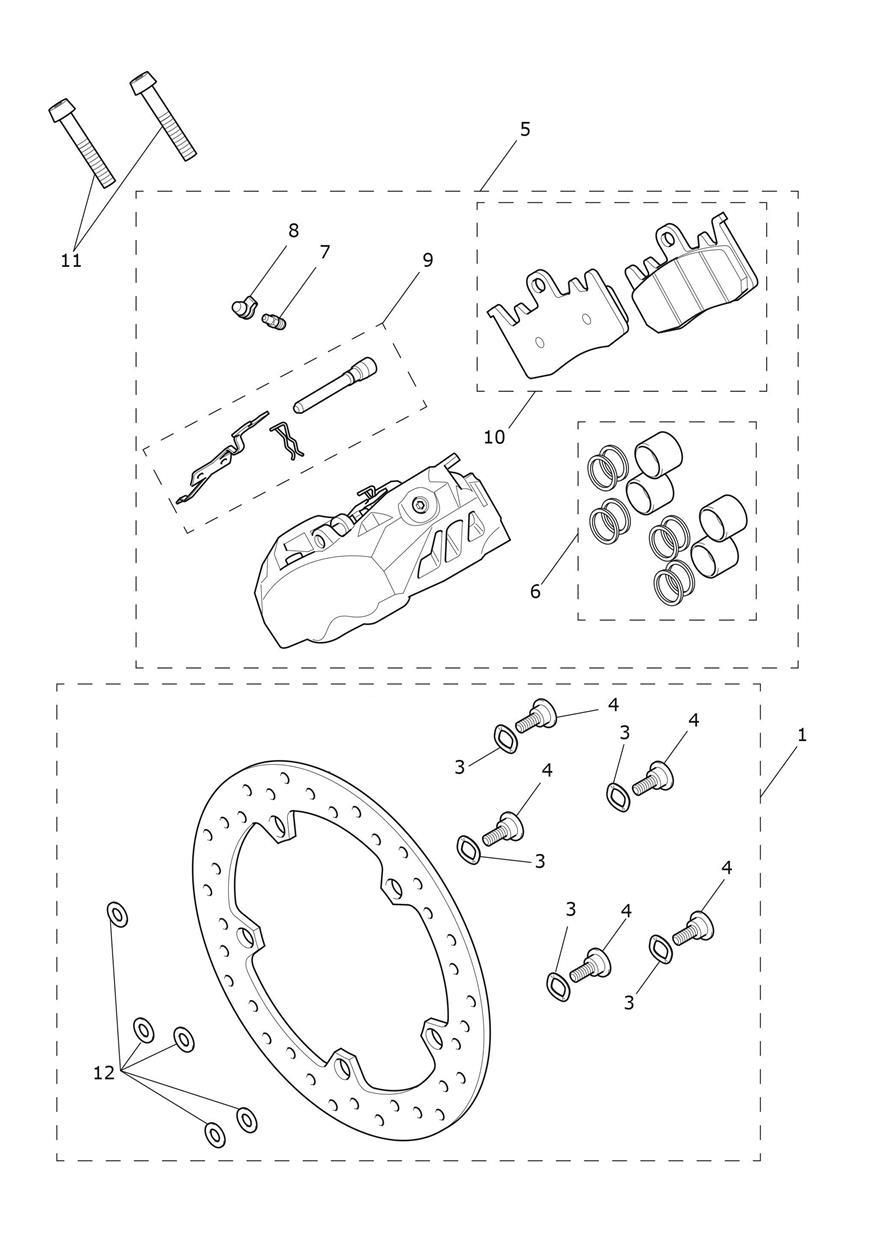

Rear Caliper & Disc
11 parts

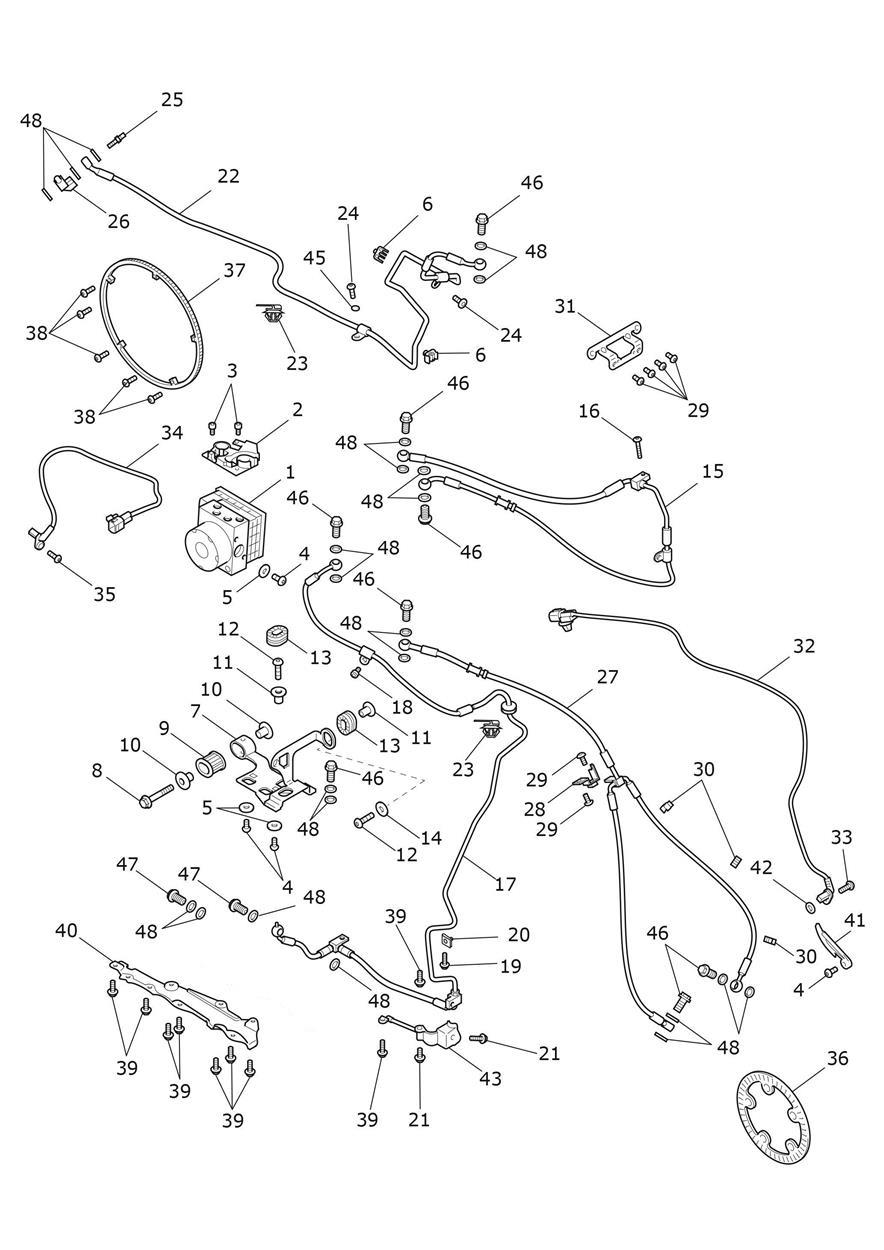

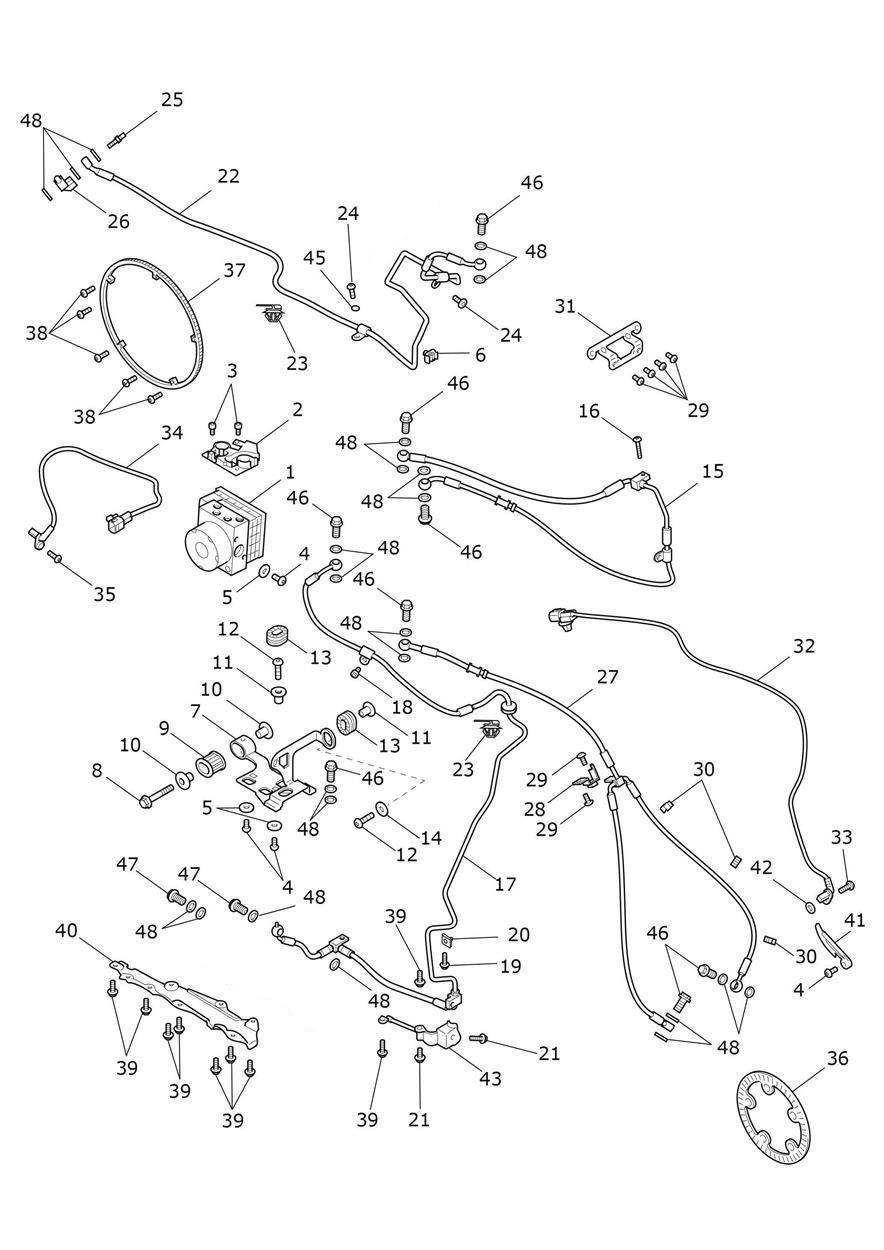

ABS System
49 parts
Front Caliper & Discs
10 parts

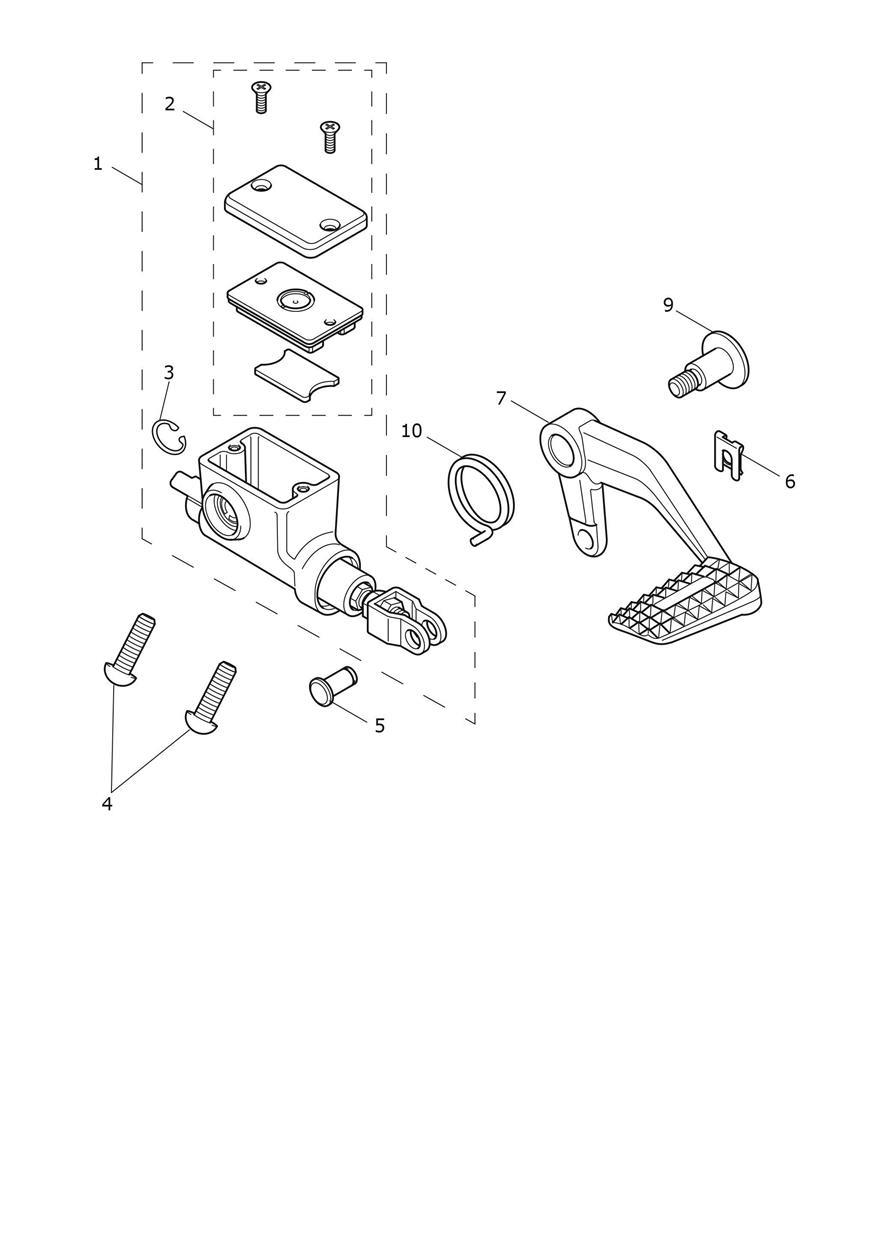

Rear Brake M/Cyl
9 parts
Rear Caliper & Disc
11 parts

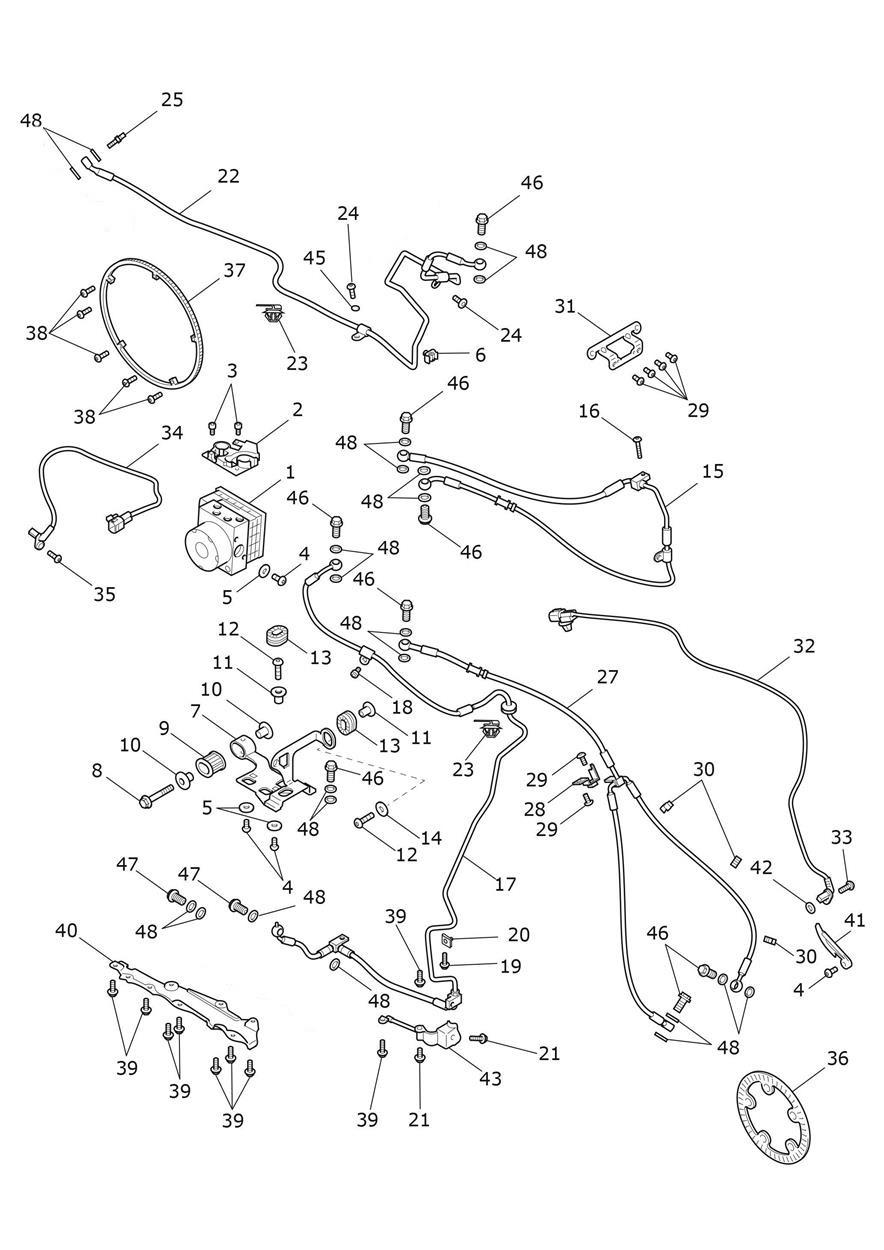

ABS System
52 parts
Front Brake M/Cyl Assy
9 parts
Front Brake M/Cyl Assy
13 parts
Front Caliper & Discs
10 parts
Front Caliper & Discs
10 parts
Rear Brake M/Cyl
10 parts
Front Brake M/Cyl Assy
13 parts
Front Brake M/Cyl Assy
9 parts
Front Caliper & Discs
10 parts
Rear Brake M/Cyl
9 parts
Rear Brake M/Cyl
10 parts
Rear Caliper & Disc
11 parts
ABS System
52 parts
Front Brake M/Cyl Assy
9 parts
Front Caliper & Discs
10 parts
Rear Brake M/Cyl
9 parts
Rear Brake M/Cyl
9 parts
Rear Caliper & Disc
11 parts
ABS System
51 parts
ABS System
51 parts
ABS System
50 parts
Front Brake M/Cyl Assy
9 parts
Front Caliper & Discs
10 parts
Rear Caliper & Disc
11 parts
ABS System
51 parts
Front Caliper & Discs
10 parts
Rear Brake M/Cyl
10 parts
Rear Caliper & Disc
11 parts
Rear Caliper & Disc
11 parts
Rear Caliper & Disc
11 parts
