Frame, Footrests, Mudguards & Stands
Triumph Rocket 3 · 54 diagrams
54 exploded diagrams for the frame, footrests, mudguards & stands of the Triumph Rocket 3, covering the Rocket 3 Storm GT, Rocket 3 Storm R, Rocket 3 GT, Rocket 3 R. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

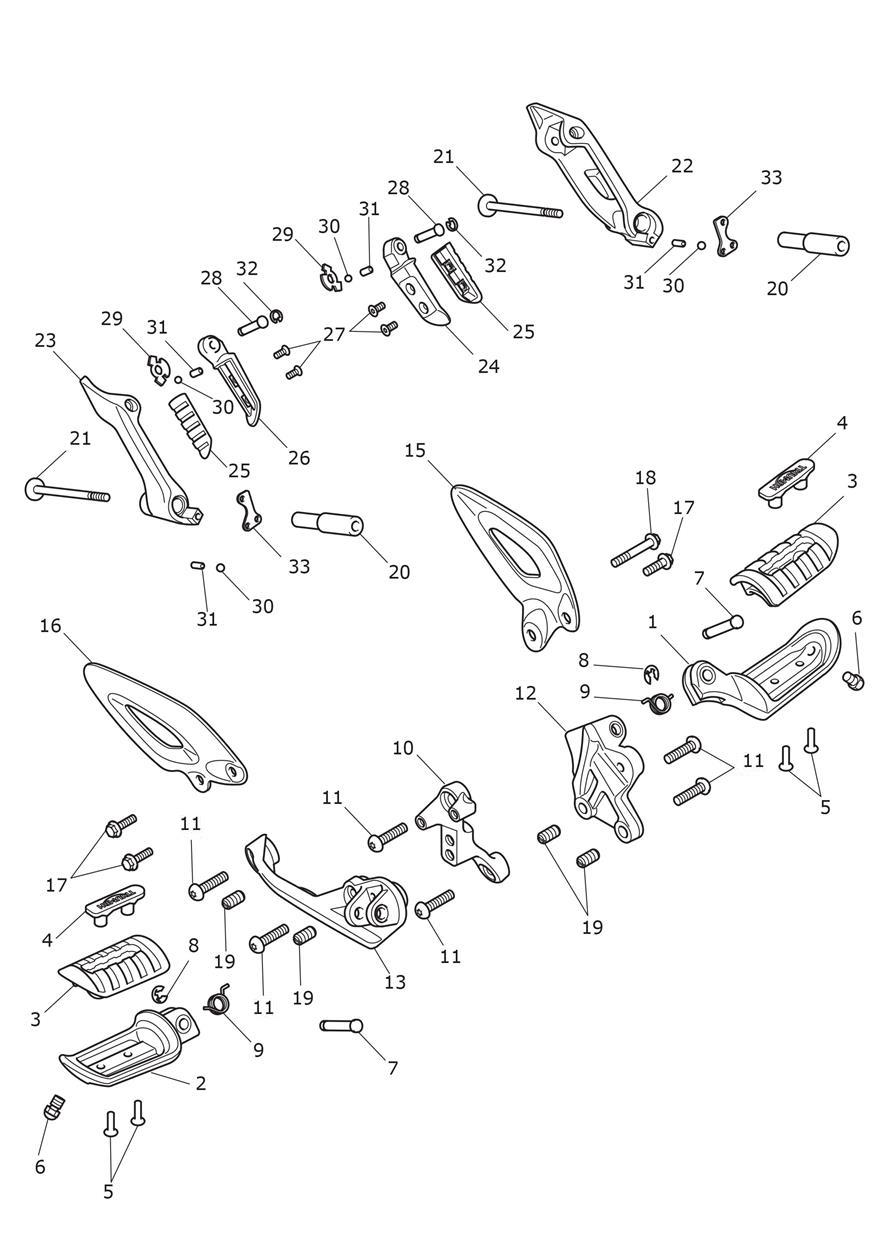

Foot Controls
35 parts

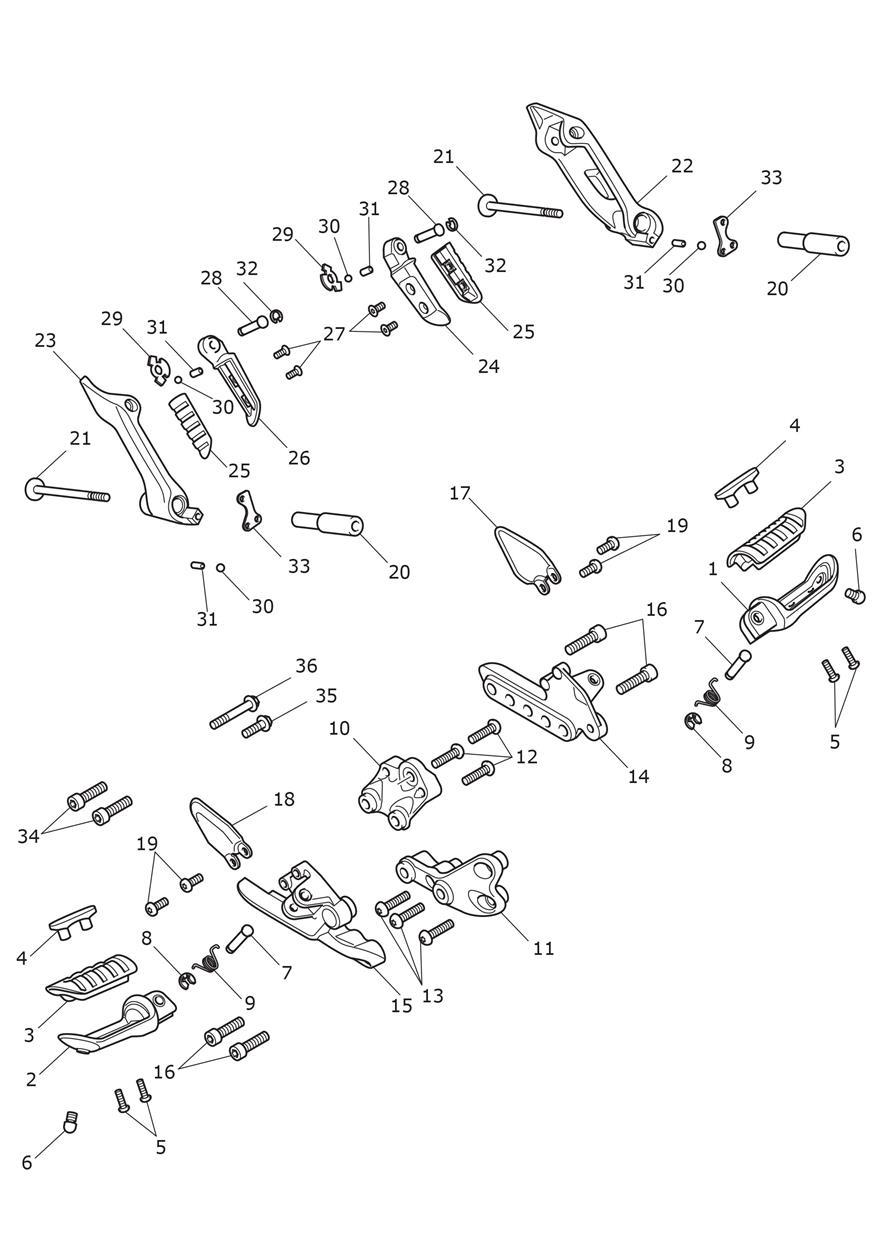

Foot Controls
35 parts
Foot Controls
36 parts

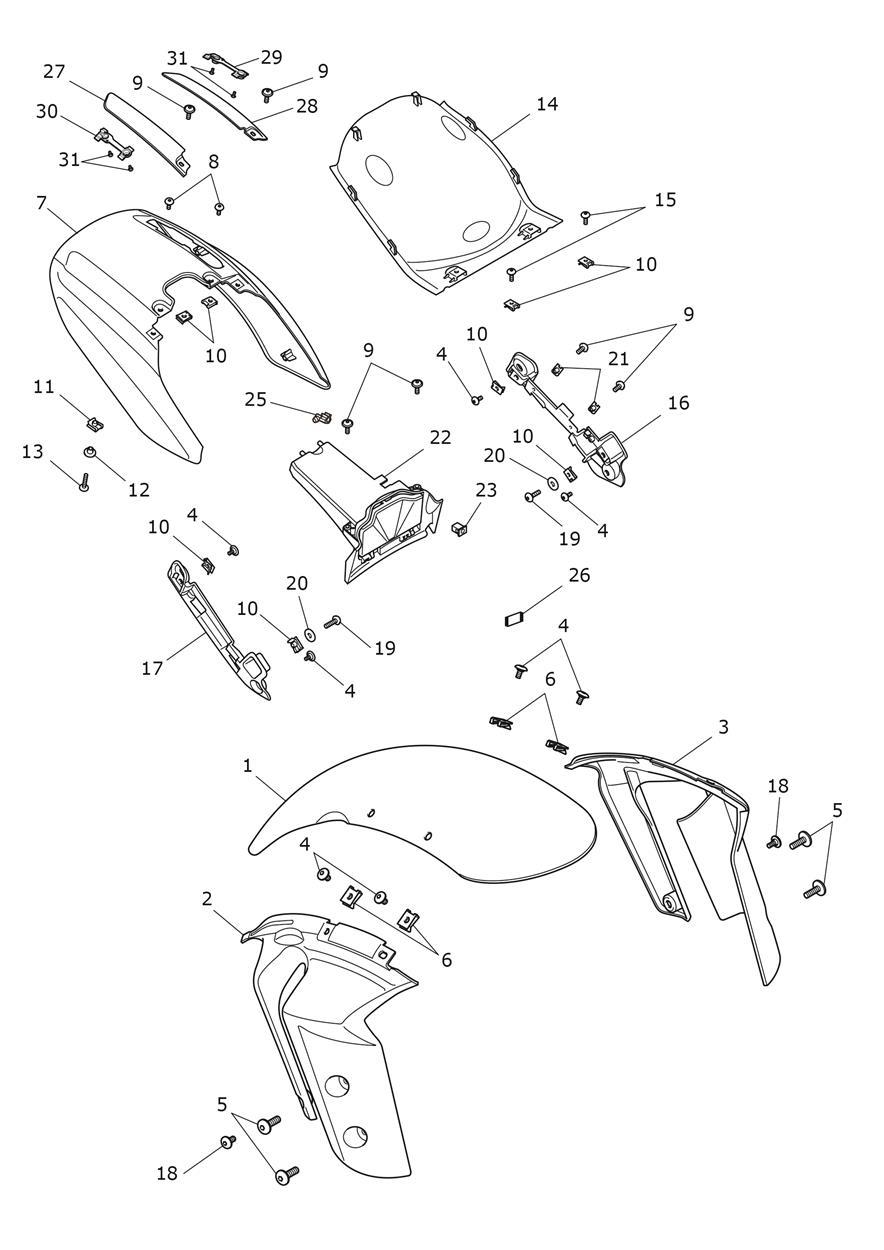

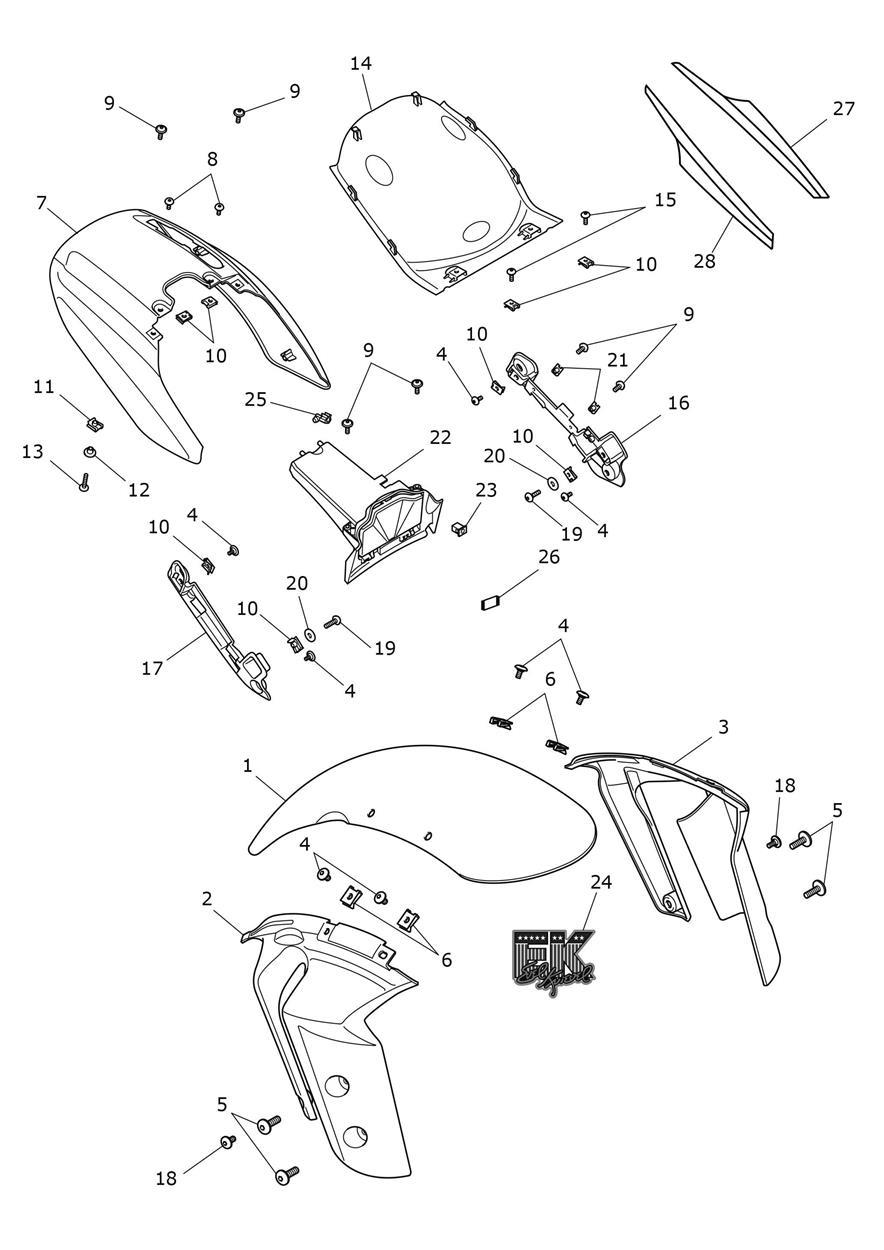

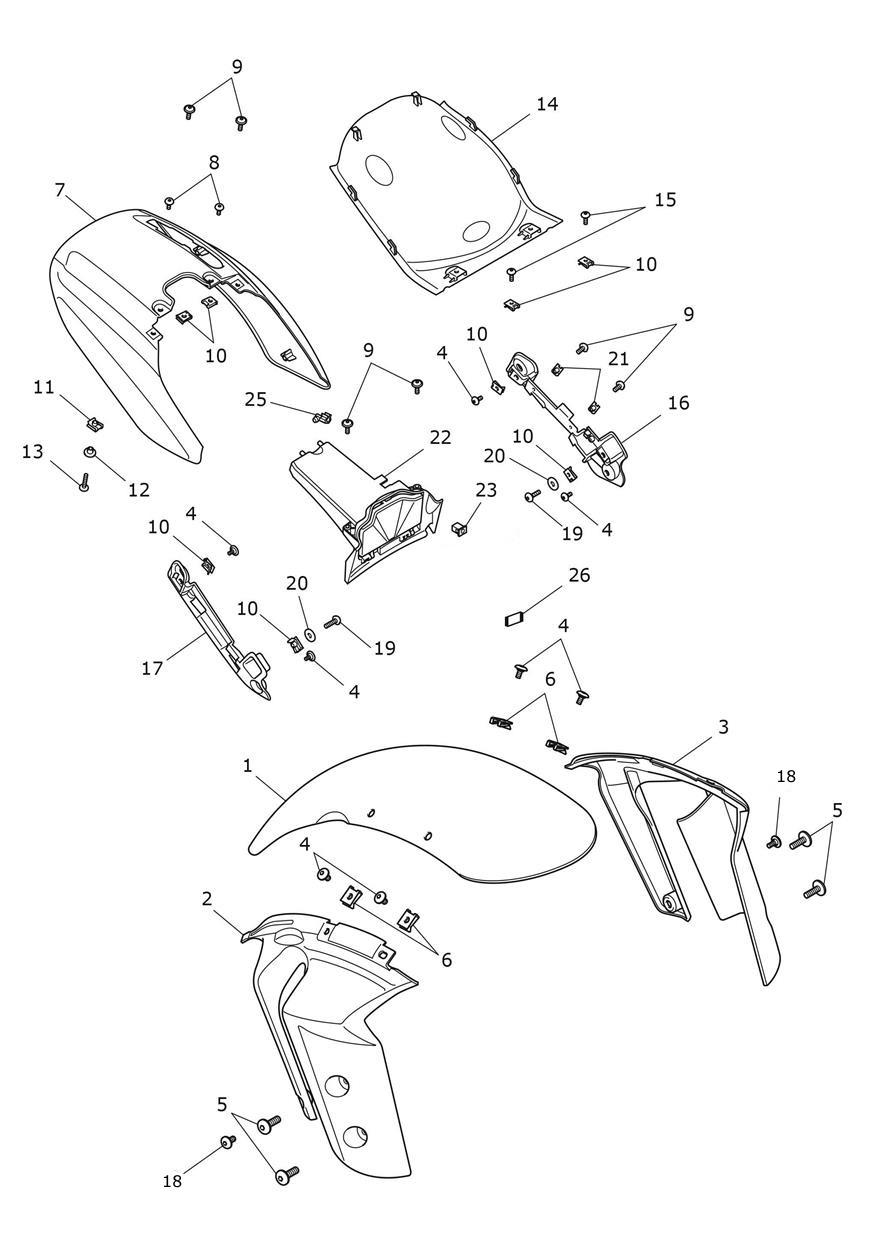

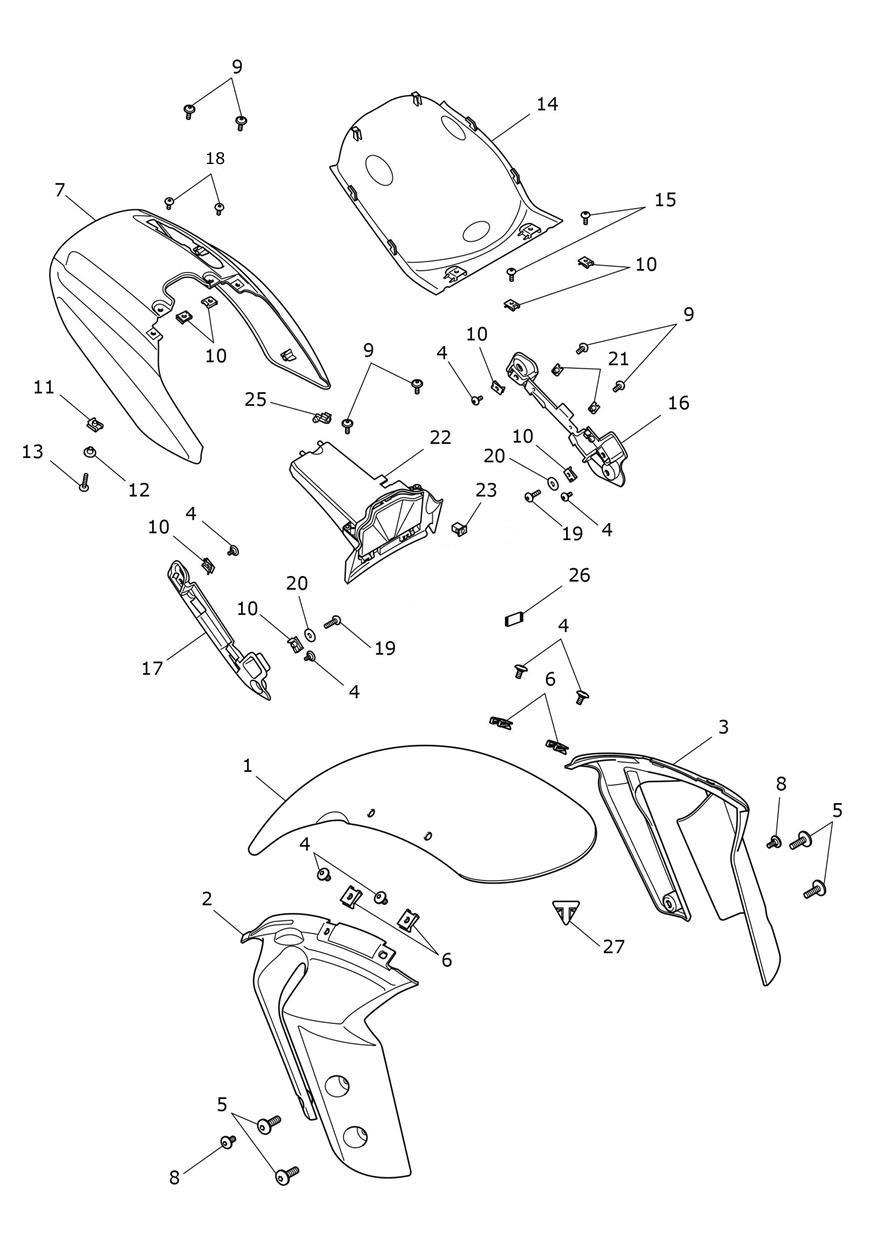

Mudguards
25 parts

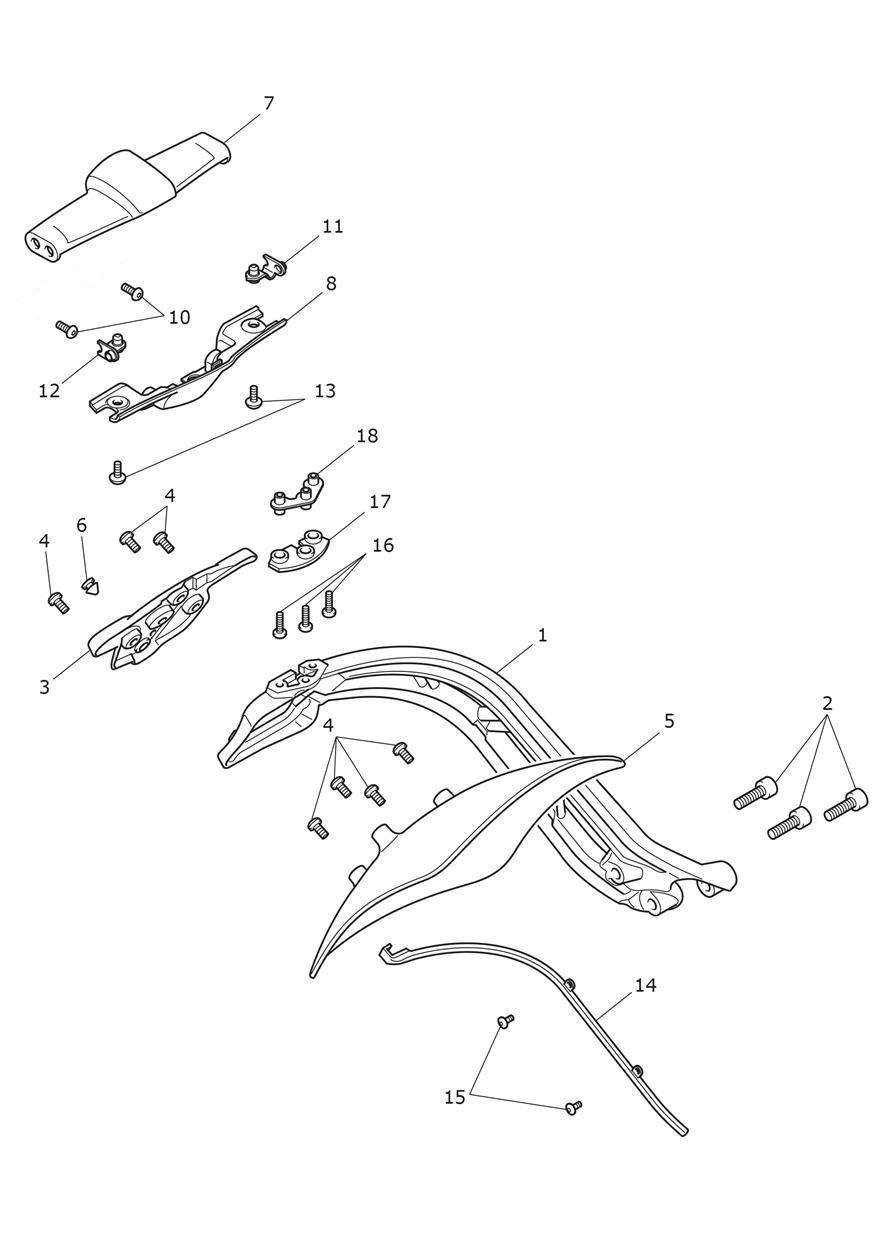

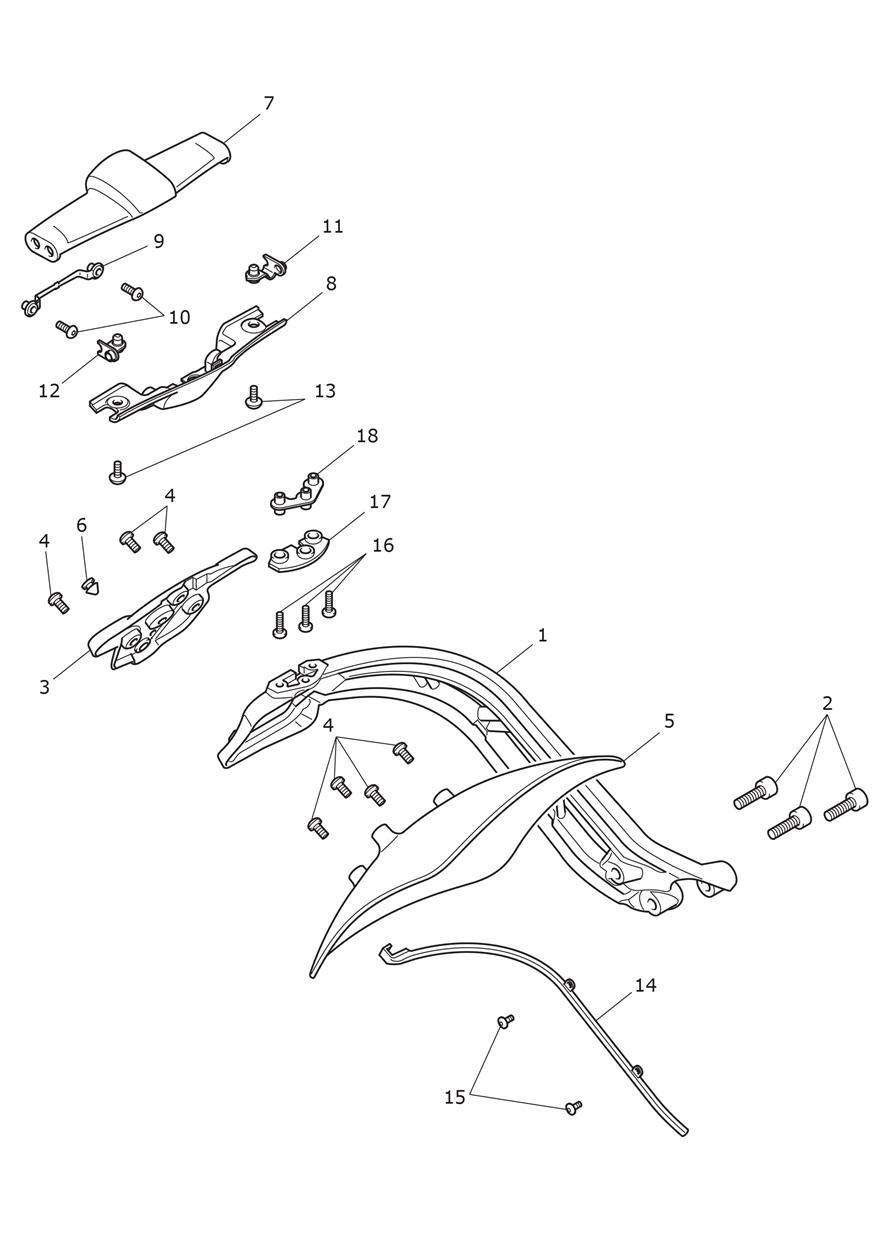

Number Plate Hanger
17 parts

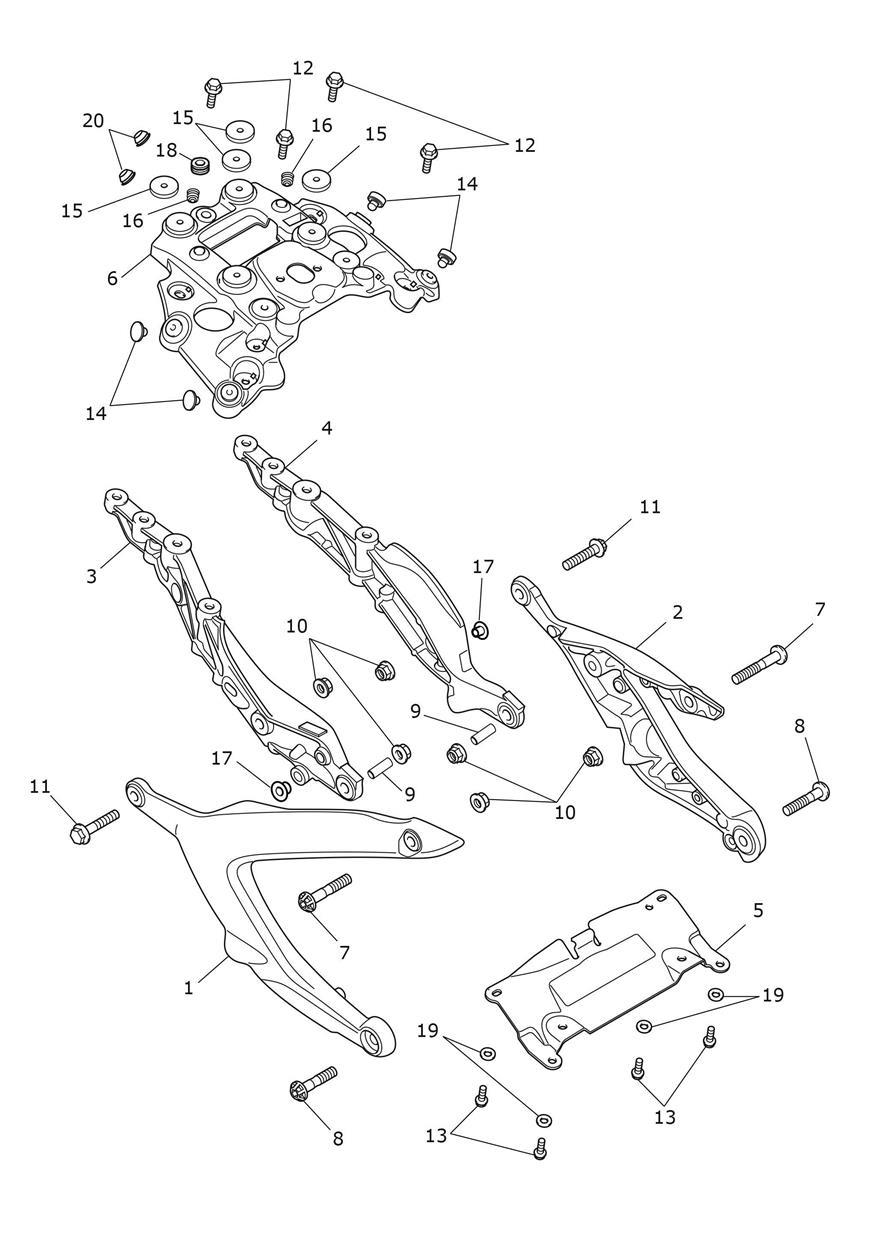

Rear Subrame
20 parts
Rear Subrame
20 parts
Foot Controls
36 parts

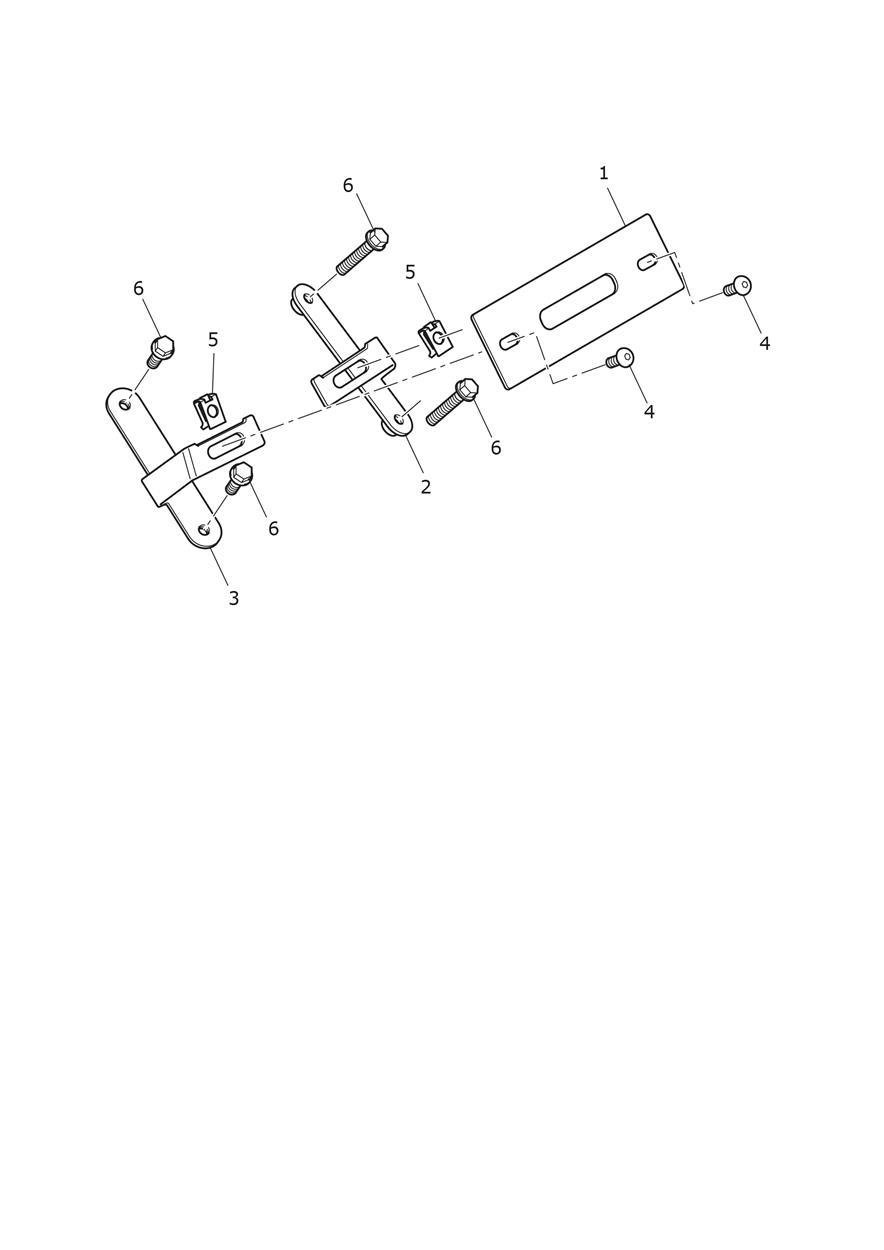

Front Number Plate - IN & ID Only
6 parts

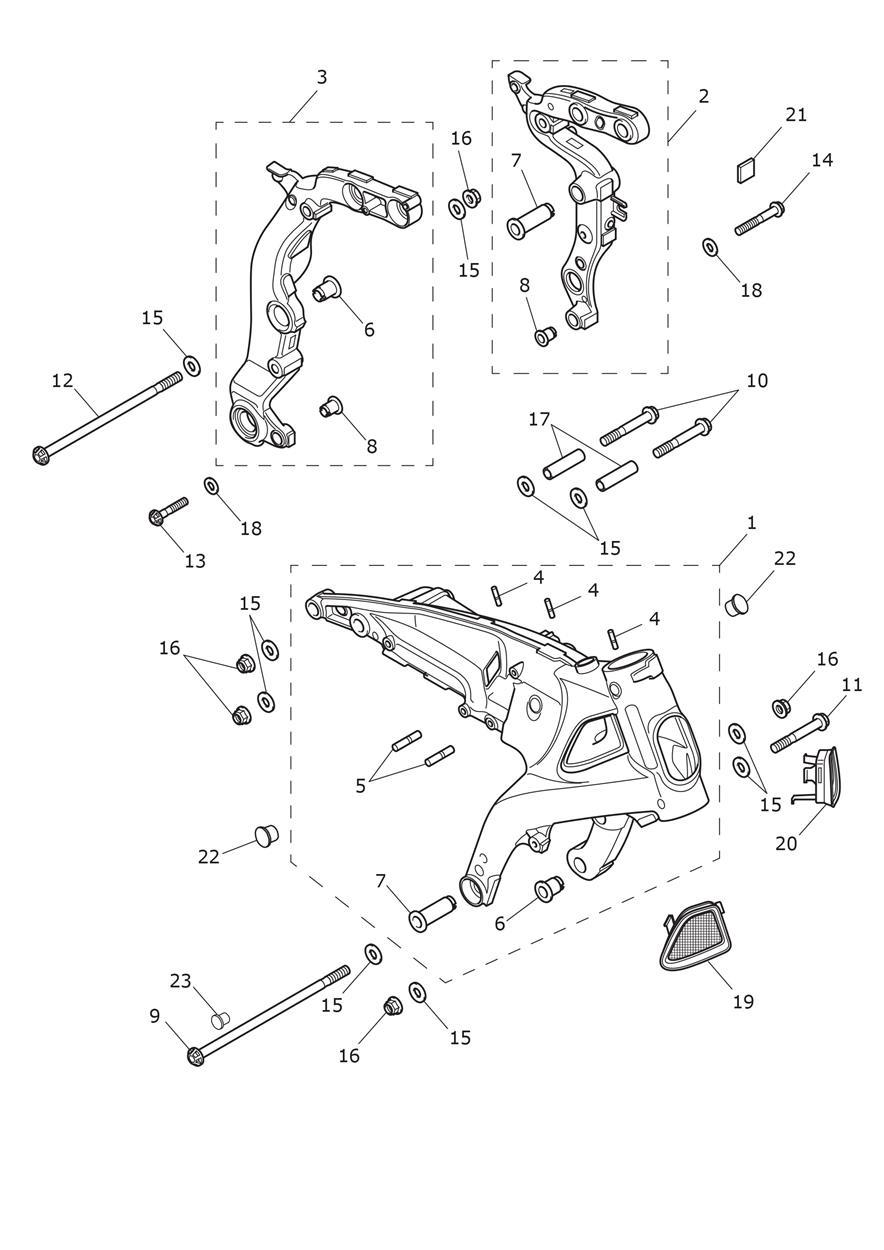

Main Frame Assembly
26 parts
Main Frame Assembly
26 parts
Mudguards
44 parts
Number Plate Hanger
17 parts
Rear Subrame
20 parts
Foot Controls
36 parts
Front Number Plate - IN & ID Only
6 parts
Front Number Plate - IN & ID Only
6 parts
Main Frame Assembly
26 parts
Rear Subrame
20 parts
Rear Subrame
20 parts

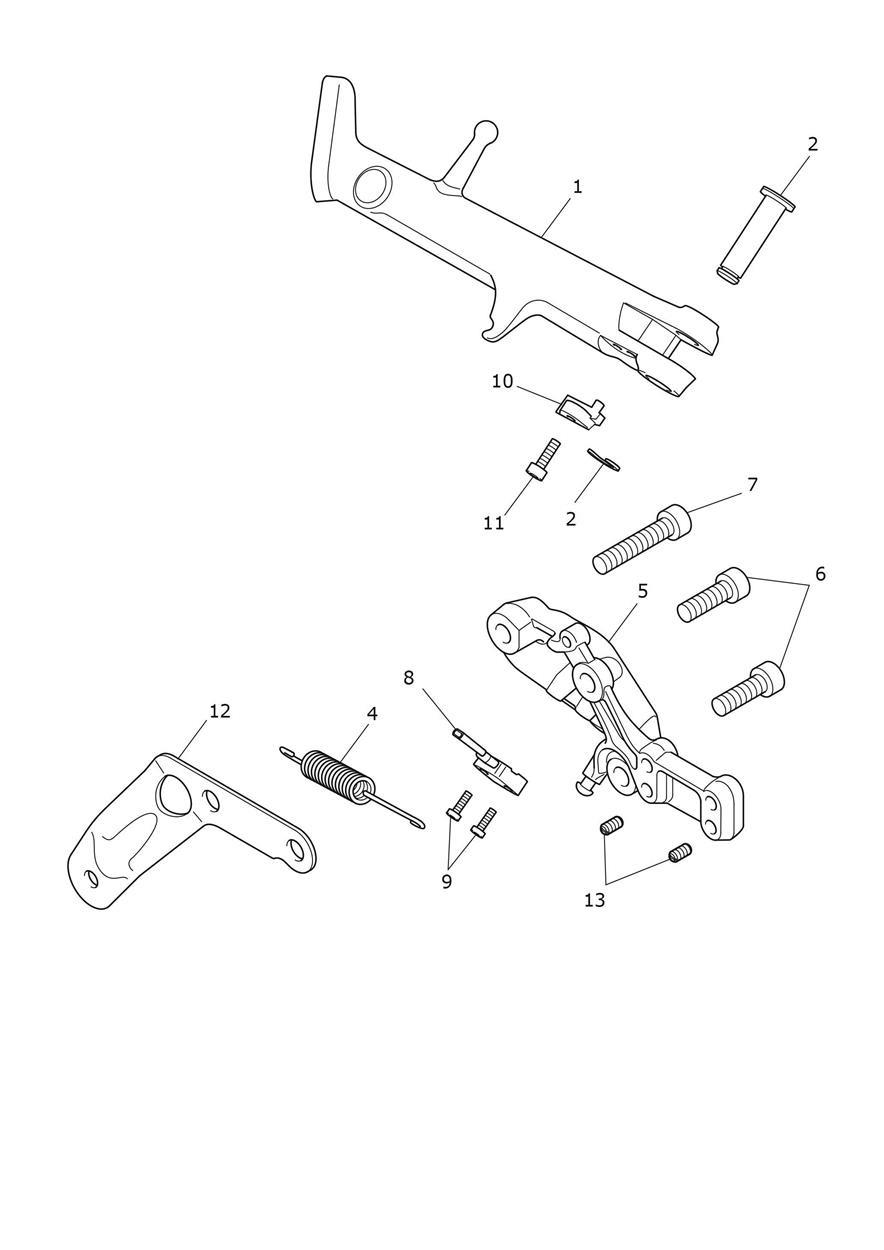

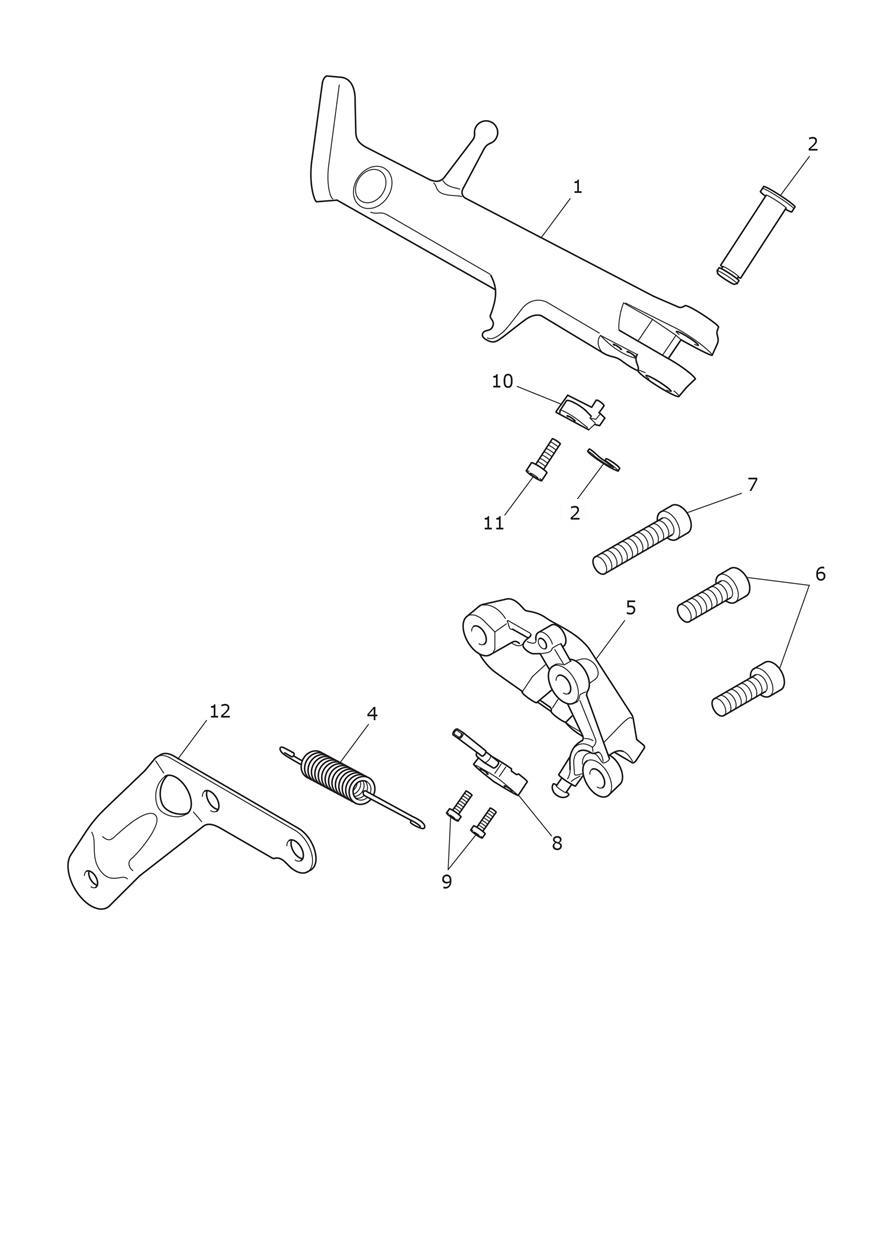

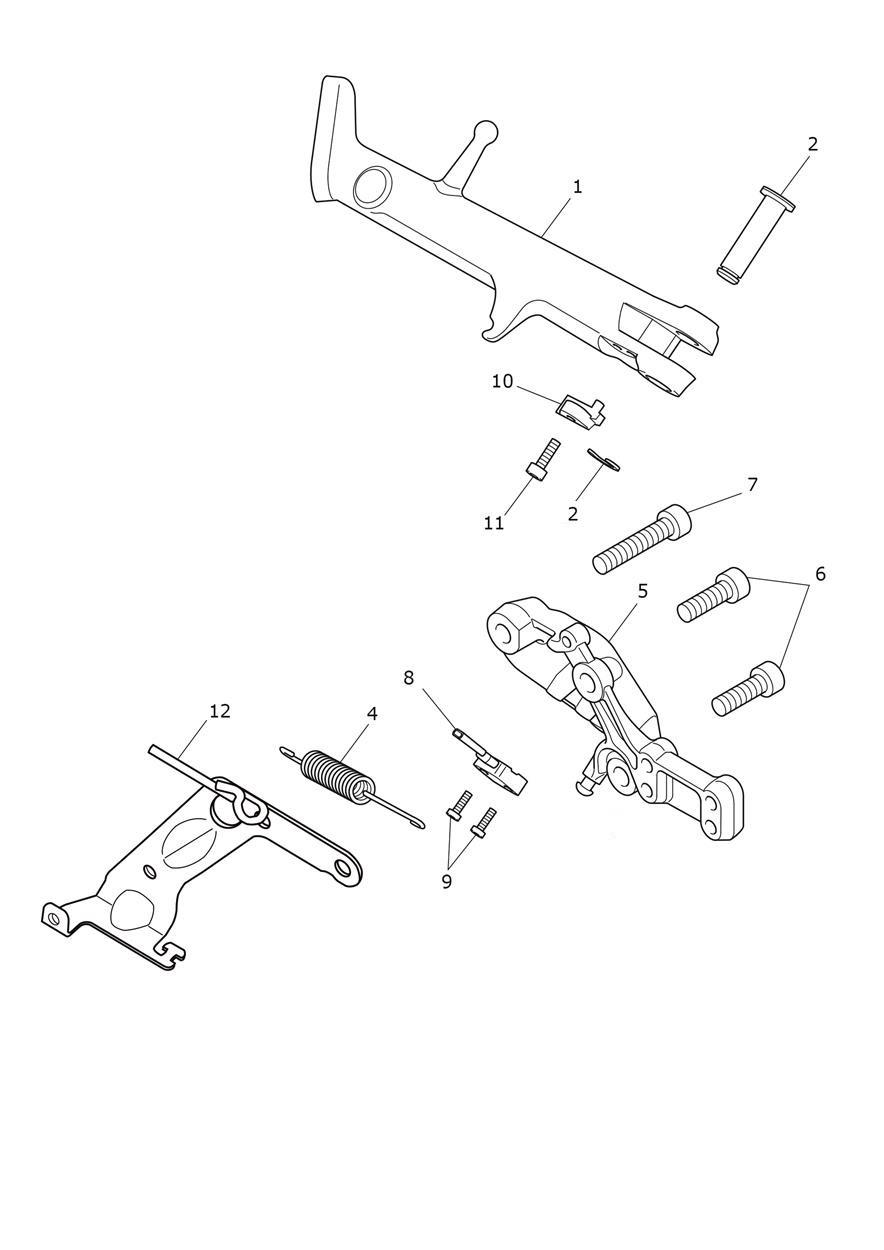

Sidestand
11 parts
Front Number Plate - IN & ID Only
6 parts
Main Frame Assembly
31 parts
Number Plate Hanger
18 parts
Number Plate Hanger
18 parts
Number Plate Hanger
17 parts
Rear Subrame
20 parts

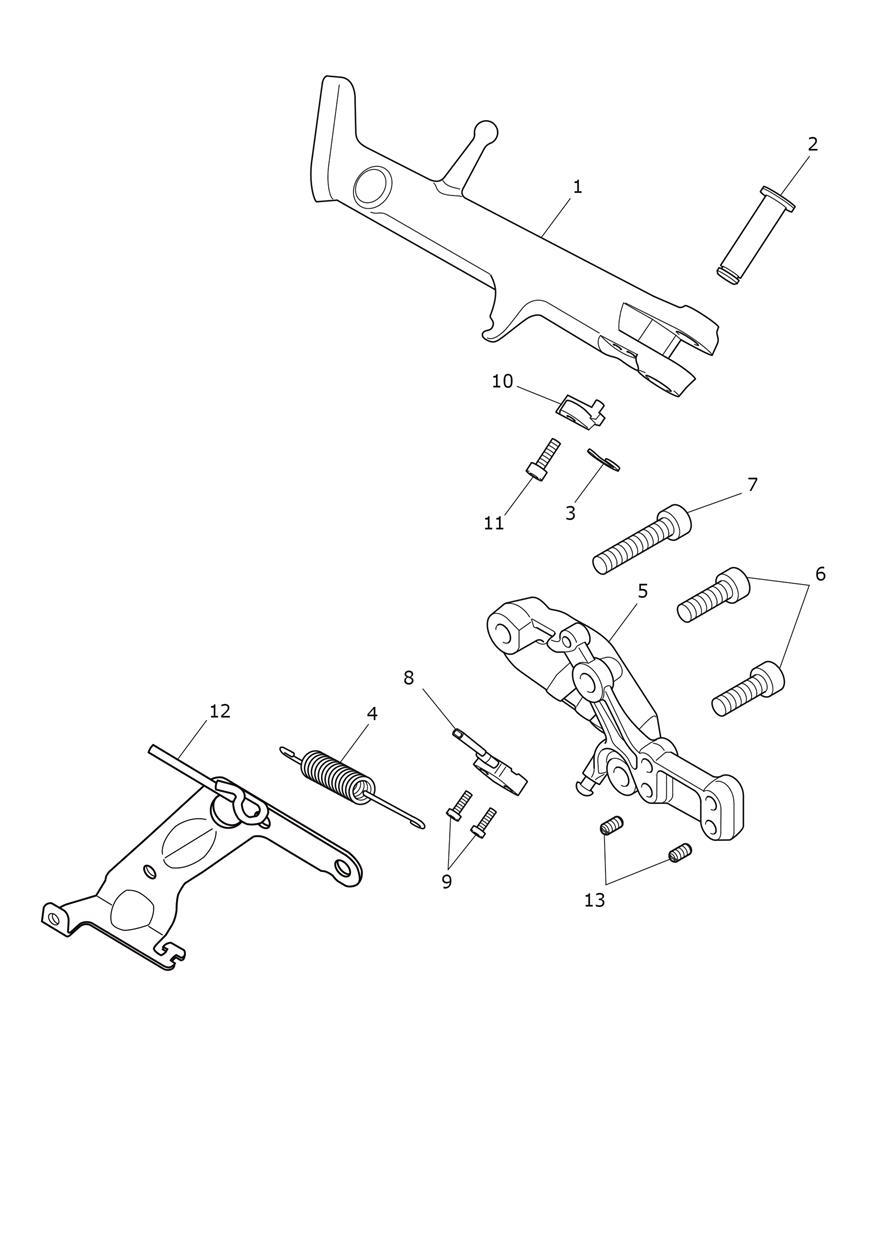

Sidestand
12 parts
Foot Controls
36 parts
Front Number Plate - IN & ID Only
6 parts
Main Frame Assembly
26 parts
Mudguards
37 parts
Number Plate Hanger
17 parts
Sidestand
12 parts
Sidestand
14 parts
Foot Controls
35 parts
Main Frame Assembly
26 parts
Main Frame Assembly
26 parts
Mudguards
28 parts
Sidestand
11 parts
Sidestand
11 parts
Sidestand
12 parts
Mudguards
30 parts
Mudguards
29 parts
Mudguards
34 parts
Number Plate Hanger
17 parts
Rear Subrame
20 parts
Sidestand
15 parts
Front Number Plate - IN & ID Only
6 parts
Mudguards
28 parts
Rear Subrame
20 parts
Foot Controls
35 parts
Number Plate Hanger
17 parts
Main Frame Assembly
31 parts
148 parts you can order online
Every part below appears in Triumph’s Frame, Footrests, Mudguards & Stands diagrams for the Rocket 3 and is priced and orderable online. Open a part to see what it fits and to buy it.
Foot Controls
T2082434 Footrest, LH
$125.97
AvailableT2082335 Footrest, RH
Low stock at Triumph
$125.97
Limited availabilityT2082336 Rubber, Footrest
$14.75
AvailableT2082506 Insert, Footrest
$107.02
AvailableT3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc
$1.99
AvailableT2085164 Peg, Bank Angle, 9.2mm
$13.03
AvailableT2080546 Pin, Pivot, Footrest
$6.07
AvailableT3500207 Circlip, Ext 8 X 0.89
$2.64
AvailableT2089638 Return Spring, Footrest
$6.42
AvailableT2082321 Mount, Control Plate, RH
$91.48
AvailableT3335015 Screw, But/Hd, TX, M8 x 30
$7.71
AvailableT2082326 Control Plate, RH
$203.97
AvailableT2082826 Heel Guard, LH
$84.55
AvailableT2082827 Heel Guard, RH
$84.55
AvailableT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91
AvailableT3202342 Bolt, RHHF, M6 x 42, Slv
$6.16
AvailableT3454321 Plug, M8 x 16, Black
Low stock at Triumph
$1.99
Limited availabilityT2082412 Footrest Hanger, LH
$181.22
AvailableT2082413 Footrest Hanger, RH
$181.22
AvailableT2082339 Footrest, Rear, LH
$63.83
AvailableT2082341 Rear Footrest Rubber
Backordered at Triumph · expected Oct 30
$63.83
On backorderT2082340 Footrest, Rear, RH
$63.83
AvailableT3331313 Screw, Csk, M5 x 12, Enc
$1.99
AvailableT2080954 Pivot Pin, Rear Footrest
$8.10
AvailableT2082545 Plate, Detent
Backordered at Triumph · expected Nov 6
$5.78
On backorderT2081675 Detent Ball
$1.99
AvailableT2081674 Spring, Detent
$5.92
AvailableT3501312 Circlip, Int, 12 x 1
$6.73
AvailableT2082949 Plate, Detent
$5.78
AvailableT3050321 Screw, Cap/Hd, M8 x 20, Slv
$6.87
AvailableFoot Controls
T2082667 Footrest, RH, Black
$125.97
AvailableT2082685 Heel Guard, LH, Black
$84.55
AvailableT2082687 Heel Guard, RH, Black
$84.55
AvailableT2082731 Footrest Hanger, LH, Black
$181.22
AvailableT2082732 Footrest Hanger, RH, Black
$181.22
AvailableT2082734 Footrest Rear, LH, Black
$63.83
AvailableT2082733 Footrest Rear, RH, Black
$63.83
AvailableFoot Controls
T2082749 Footrest, LH, Black
$125.97
AvailableT2080780 Bank Angle Peg
$12.58
AvailableT2082324 Mount, Control Plate, RH
$99.33
AvailableT3335016 Screw, But/Hd, M8 x 35
$6.50
AvailableT2082327 Control Plate, LH, F
$151.54
AvailableT3203206 Screw, Cap/Hd, M10 x 35, Slv
$6.18
AvailableT2082750 Heel Guard, LH, Black
$52.62
AvailableT2082751 Heel Guard, RH, Black
$52.62
AvailableT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableMudguards
T2309708-PZ Bracket, Mudguard, Front, RH, Matt Sapphire Black
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2309709-PZ Bracket, Mudguard, Front, LH, Matt Sapphire Black
Low stock at Triumph
$193.24
Limited availabilityT3331061 Bolt, But/Hd, M5 x 11, Shld, Slv
$4.65
AvailableT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT3350123 Nut, Captive, M5, Non-Secured
$2.29
AvailableT3330726 Screw, Btn/Hd, M6 x 12, Slv
$4.09
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT3351052 Nut, Captive, 4-5.5mm
$4.04
AvailableT3010704 Sleeve, Flanged, 5.3 x 9 x 6.5
$2.01
AvailableT3330429 Screw, Skt Hd, M5 x 25, SS
$2.04
AvailableT2307901 Undertray Moulding
$86.33
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableT3331075 Bolt, But/Hd, M5 x 14, Slv
$4.65
AvailableT3330952 Screw, Butn/Hd, M5 x 20, Slv
$2.29
AvailableT3550286 Washer, 5.3 x 18 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT2307912 Storage Box Assy
$69.02
AvailableT2309804 Push Latch
$29.14
In stock in BreaT3700162 Clip, Cable/Pipe
$1.99
AvailableNumber Plate Hanger
T2307917 Arm, Number Plate Hanger
$113.30
AvailableT3050176 Screw, Cap/Hd. M8 x 30, Slv
$5.97
AvailableT2310398 Mounting Plate, Mldg
$6.73
AvailableT3330303 Screw, Pan/Hd, Tx, M6 x 12, Blk
$1.99
AvailableT2307927 Spray Guard, Moulding
$57.84
AvailableT3020073 Grommet, Rubber, Cone
$4.04
AvailableT2310454 Mount, Indicators, Upper, Mldg
Backordered at Triumph · we’ll confirm the ship date after you order
$81.12
On backorderT2310457 Mount, Indicators, Lower, Mldg
$81.12
AvailableT3332656 Screw, Button, M5 x 12, Enc
$1.99
In stock in BreaT2309272 Indicator Support Bracket, LH
$13.91
AvailableT2309271 Indicator Support Bracket, RH
$13.91
AvailableT3330955 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableT2311701 Wire Cover, Numberplate
$13.91
AvailableT3330343 Screw, But Hd, M4 x 8, Enc
$6.12
AvailableT2310234 Rubber Pad, Indicator Mount
$1.99
AvailableT2310254 Bracket, Indicator Mount
$49.20
AvailableRear Subrame
T2071187 Rear Subframe, RHS
$730.29
AvailableT2071193 Rear Subframe, LHS
$730.29
AvailableT2071174 Rear Bridge, Subframe
$730.29
AvailableT3202697 Bolt, TX, M10 x 60
$4.91
AvailableT3332695 Bolt, TX, M10 x 48LG
Low stock at Triumph
$14.00
Limited availabilityT3330273 Stud, M10 x 41, Enc
$4.07
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT3205825 Bolt, HHF, Lghtd, M10 x 45, Slv
$6.33
AvailableT3205782 Bolt, HHF, Lghtd, M8 x 25, Slv
$2.50
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT2307369 Rubber Foot, 4mm Deep
$3.42
AvailableT3020164 Stop, Sidestand, Push-In
$6.07
AvailableT2081697 Up Stop, Sidestand
$9.15
AvailableT3020031 Grommet; 11.8 x 2.5 x 10
$2.93
AvailableT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT3450141 Grommet, TPE, Quickfit
Low stock at Triumph
$2.01
Limited availabilityRear Subrame
T2072382 Rear Subframe, RHS, Black
$730.29
AvailableT2072381 Rear Subframe, LHS, Black
$730.29
AvailableFoot Controls
T2082334 Footrest, LH
$125.97
AvailableT2082415 Heel Guard, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$52.62
On backorderT2082416 Heel Guard, RH
Low stock at Triumph
$52.62
Limited availabilityFront Number Plate - IN & ID Only
Main Frame Assembly
T2075724 Outrigger Assy, Frame, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$476.11
On backorderT3100088 Stud, M6, Tapered, Enc
Backordered at Triumph · we’ll confirm the ship date after you order
$10.62
On backorderT3100004 Stud, M8 x 38, Shld, Enc
$10.62
AvailableT3332626 Screw, TX, M12 x 280, Slv
$39.02
AvailableT3150317 Bolt, HHF, M12 x 85, Silver
$5.69
AvailableT3332642 Screw, TX, M12 x 85, Slv
$19.32
AvailableT3332631 Screw, TX, M12 x 255, Slv
$33.81
AvailableT3332650 Bolt, TX, M10 x 52.5
$13.58
AvailableT3350750 Washer, 12.1 x 28 x 2
$1.99
AvailableT3350234 Locknut, Flgd, M12 x 1.25
$5.62
AvailableT2071178 Dowel, 12.1 x 16 x 61
Backordered at Triumph · we’ll confirm the ship date after you order
$12.45
On backorderT3555029 Washer, 10.5 x 23 x 2
$2.53
AvailableT2073038 Mesh, Intake, RH
$61.68
AvailableT2073039 Mesh, Intake, LH
Backordered at Triumph · expected Oct 30
$61.68
On backorderT3660221 Rubber Pad, 25 x 25 x 5mm
$5.92
AvailableT3451400 Plug, Dia 17.5mm
$1.99
AvailableT3450042 Bung, Hole, Dia 11, Black
Low stock at Triumph
$2.09
Limited availabilityMudguards
T2309708-MS Bracket, Mudguard, Front, RH, Painted
$193.24
AvailableT2309708-PM Bracket, Mudguard, Front, RH, Sapphire Black
$119.44
AvailableT2309709-MS Bracket, Mudguard, Front, LH, Painted
$193.24
AvailableT2309709-PM Bracket, Mudguard, Front, LH, Sapphire Black
Low stock at Triumph
$119.44
Limited availabilityT2311051 Decal, Front Mudguard, Centre
$29.58
AvailableT2313130 Finisher Bracket, LH
$9.42
AvailableT2313131 Finisher Bracket, RH
$9.42
AvailableSidestand
T2082654 Sidestand Assy
$229.63
AvailableT2084022 Pivot Pin Spares Kit
$13.71
AvailableT2080808 Spring, Sidestand
$9.85
AvailableT2082354 Bracket, Sidestand
$204.88
AvailableT3050430 Screw, Cap/Hd, M10 x 30, Slv
$4.30
AvailableT3332127 Cap Head Screw, M10 x 50
$10.84
AvailableT2081178 Sidestand Switch
$63.35
AvailableT3330245 Bolt, C/Hd, Tx, M4 x 12, Slv, Enc
$10.91
AvailableT2082707 Magnet, Sidestand, Overmoulded
$22.00
AvailableT3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc
$1.99
AvailableT2082670 Bracket, Catbox, LH
$14.42
AvailableSidestand
Sidestand
T2084042 Pivot Pin, Sidestand
$8.22
AvailableT3502095 Circlip
$1.99
In stock in BreaT2083191 Bracket, Catbox, LH, Assy
Backordered at Triumph · expected Nov 6
$17.02
On backorderMudguards
T2314919 Decal, Front Mudguard, Centre, Evel Knievel Ed
Backordered at Triumph · we’ll confirm the ship date after you order
$39.91
On backorderT2314996 Decal, Rear Bwork, LH, Pure White
Backordered at Triumph · we’ll confirm the ship date after you order
$19.95
On backorderT2314997 Decal, Rear Bwork, RH, Pure White
Backordered at Triumph · we’ll confirm the ship date after you order
$16.74
On backorder
