Braking System
Triumph Rocket III · 11 diagrams
11 exploded diagrams for the braking system of the Triumph Rocket III, covering the Rocket III. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Rear Brake Master Cylinder, Reservoir & Pedal

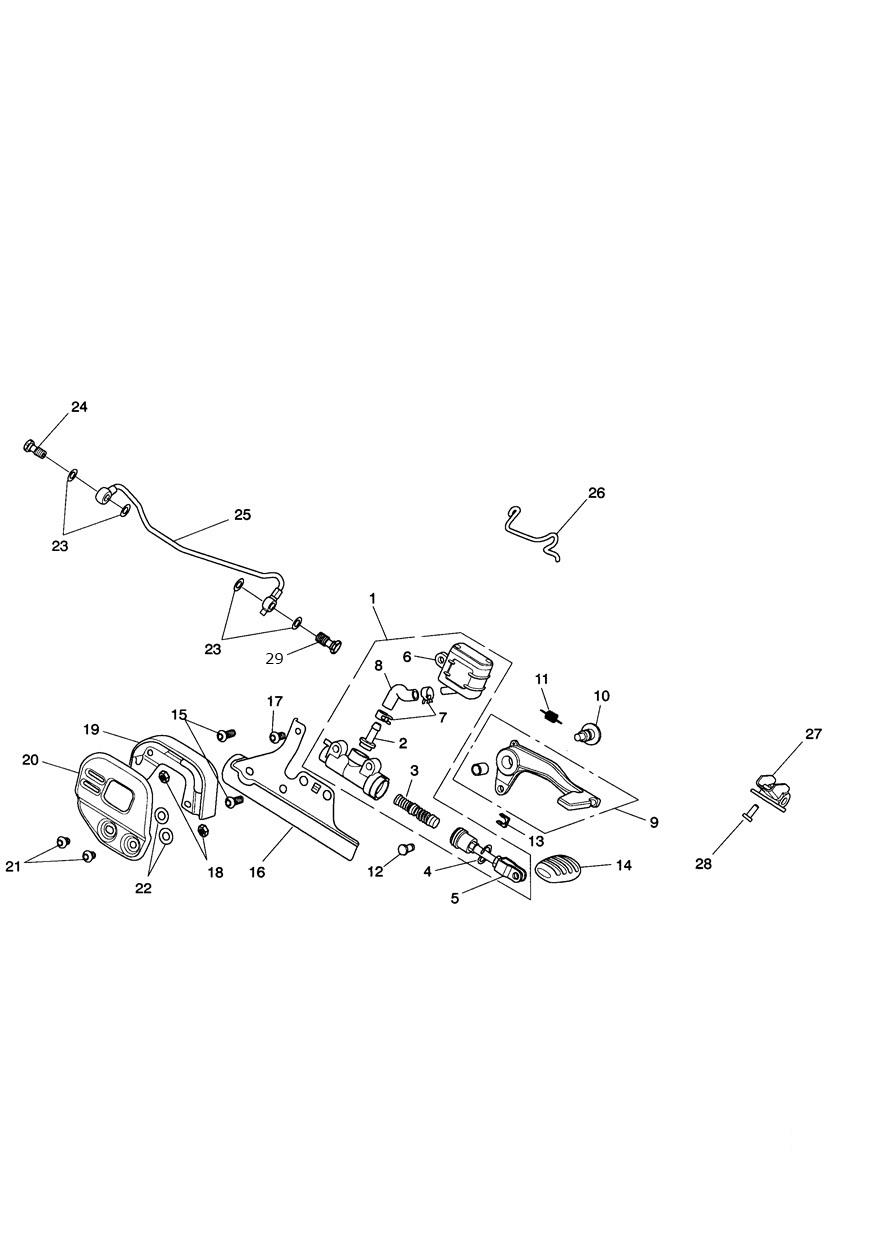

Rear Brake Master Cylinder, Reservoir & Pedal - Roadster
32 parts

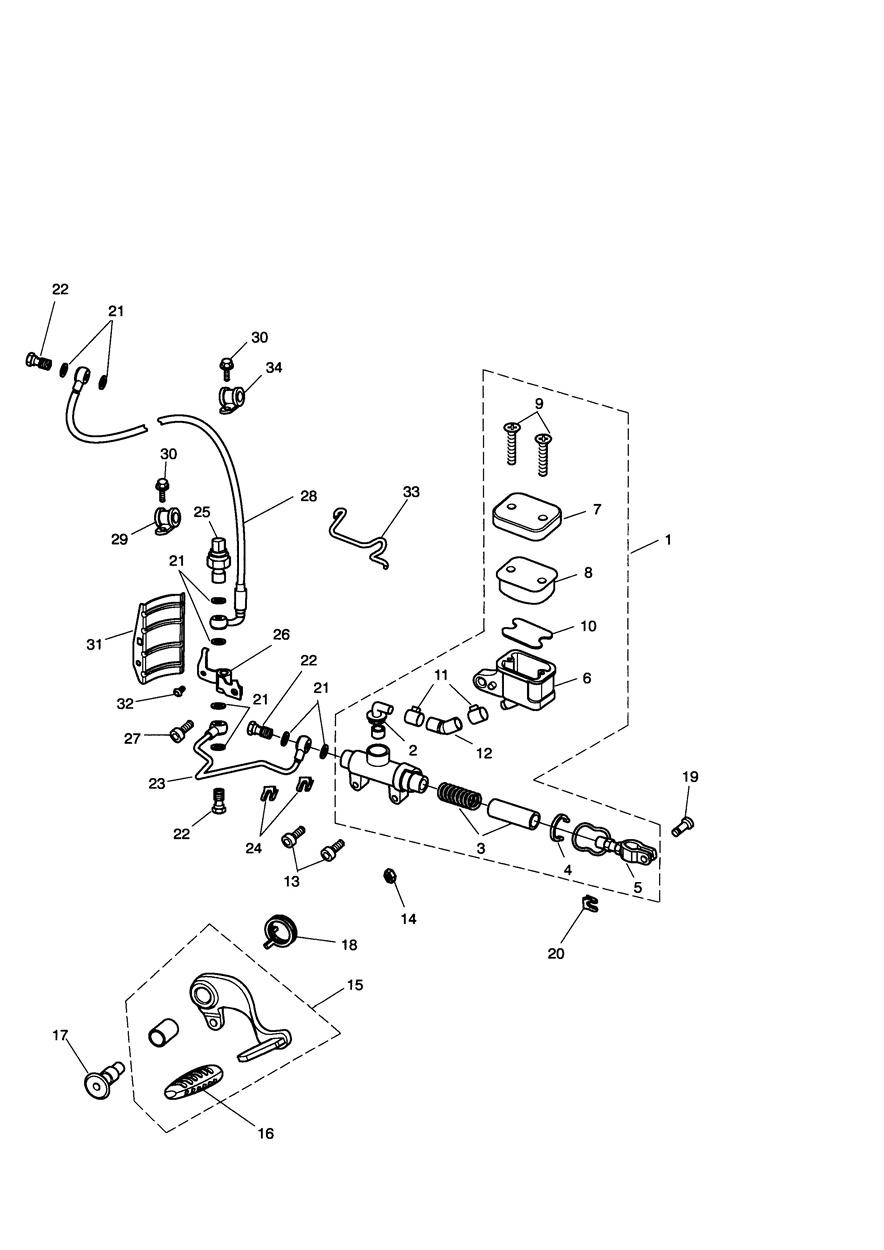

Rear Brake Master Cylinder, Reservoir & Pedal - Rocket III & Classic
39 parts

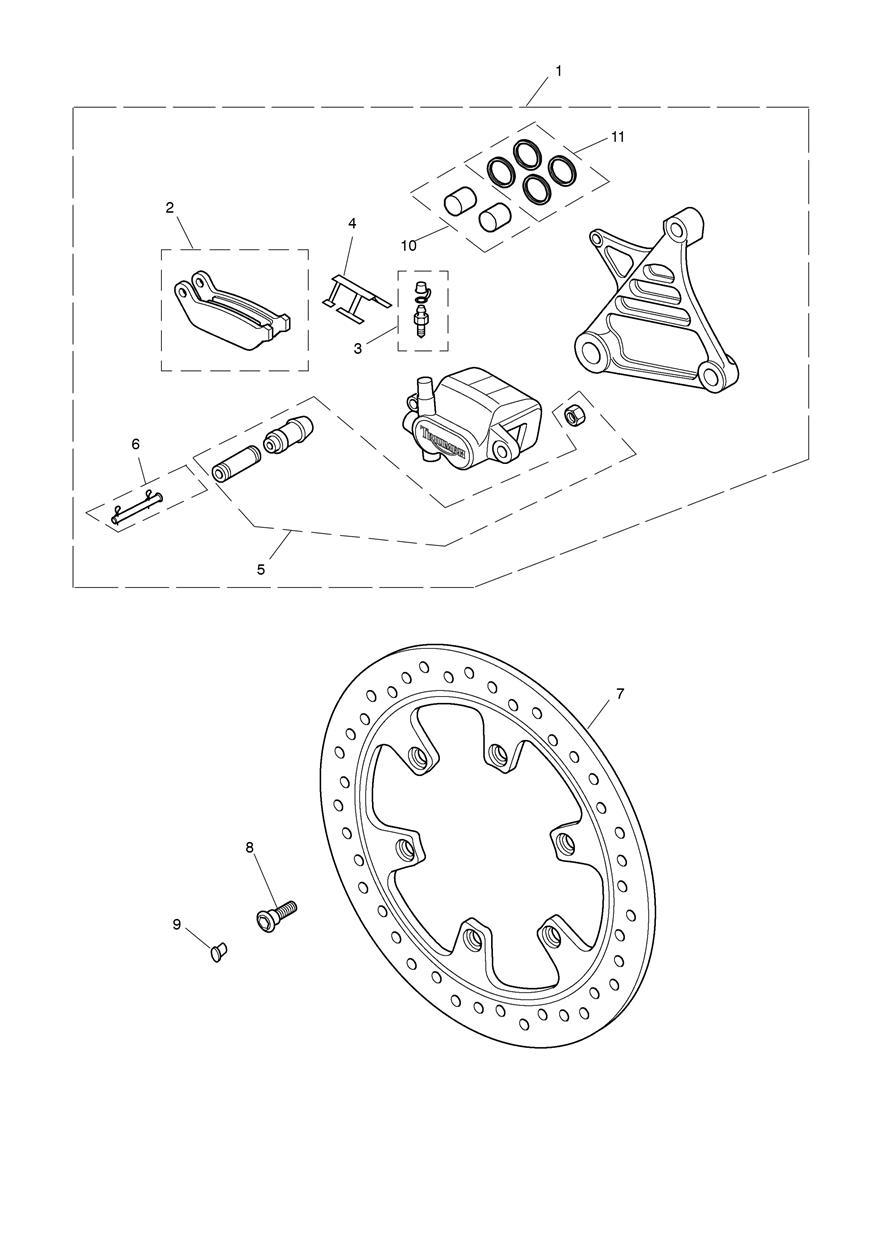

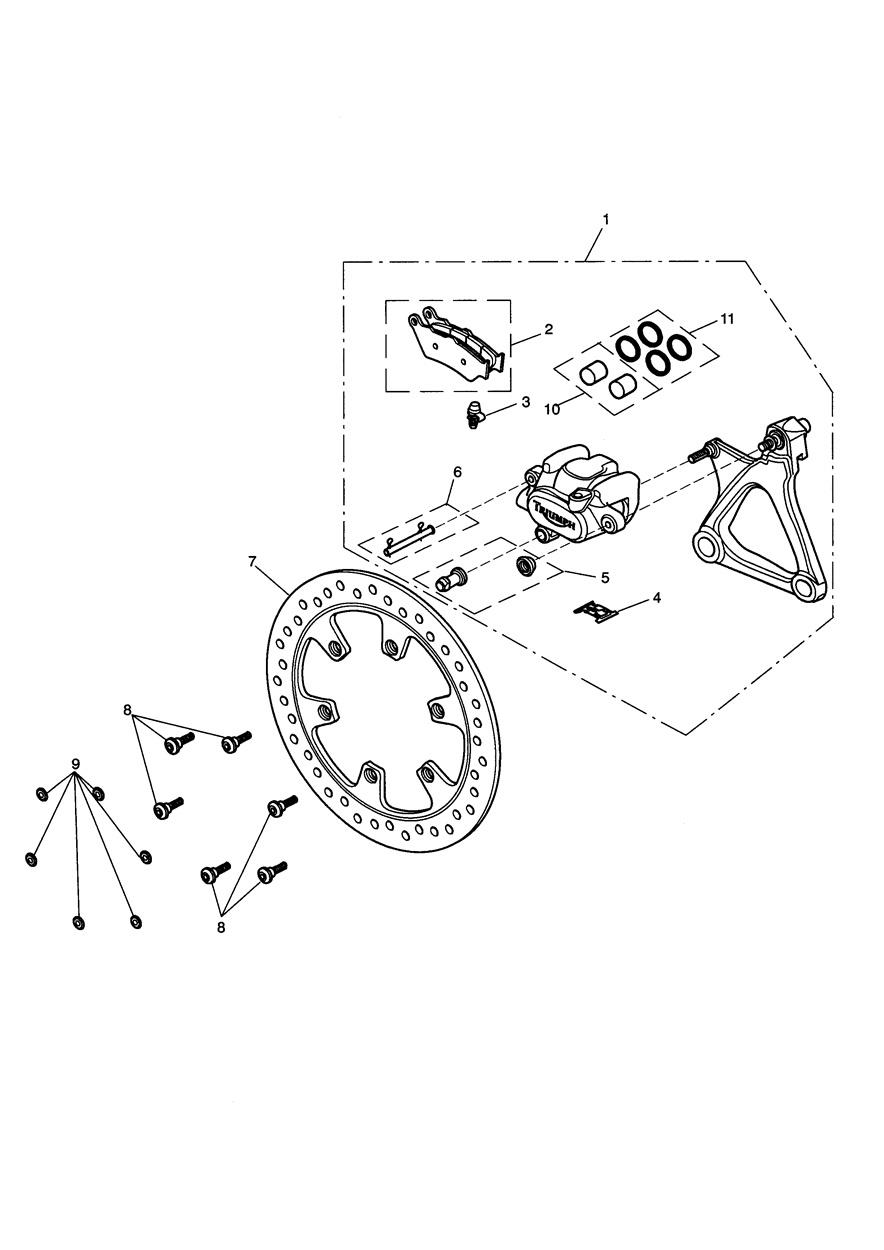

Rear Brake Caliper & Disc
12 parts

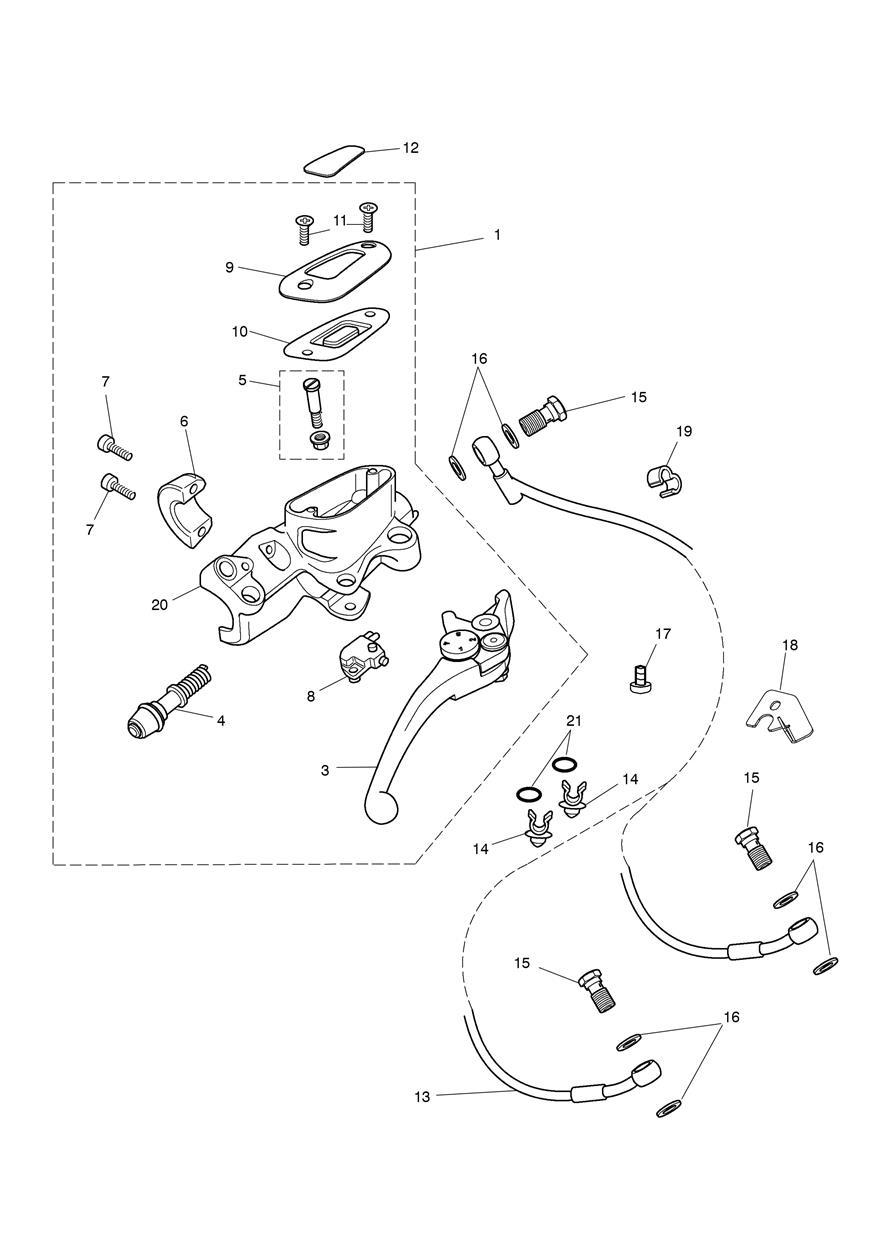

Front Brake Master Cylinder & Hoses
24 parts

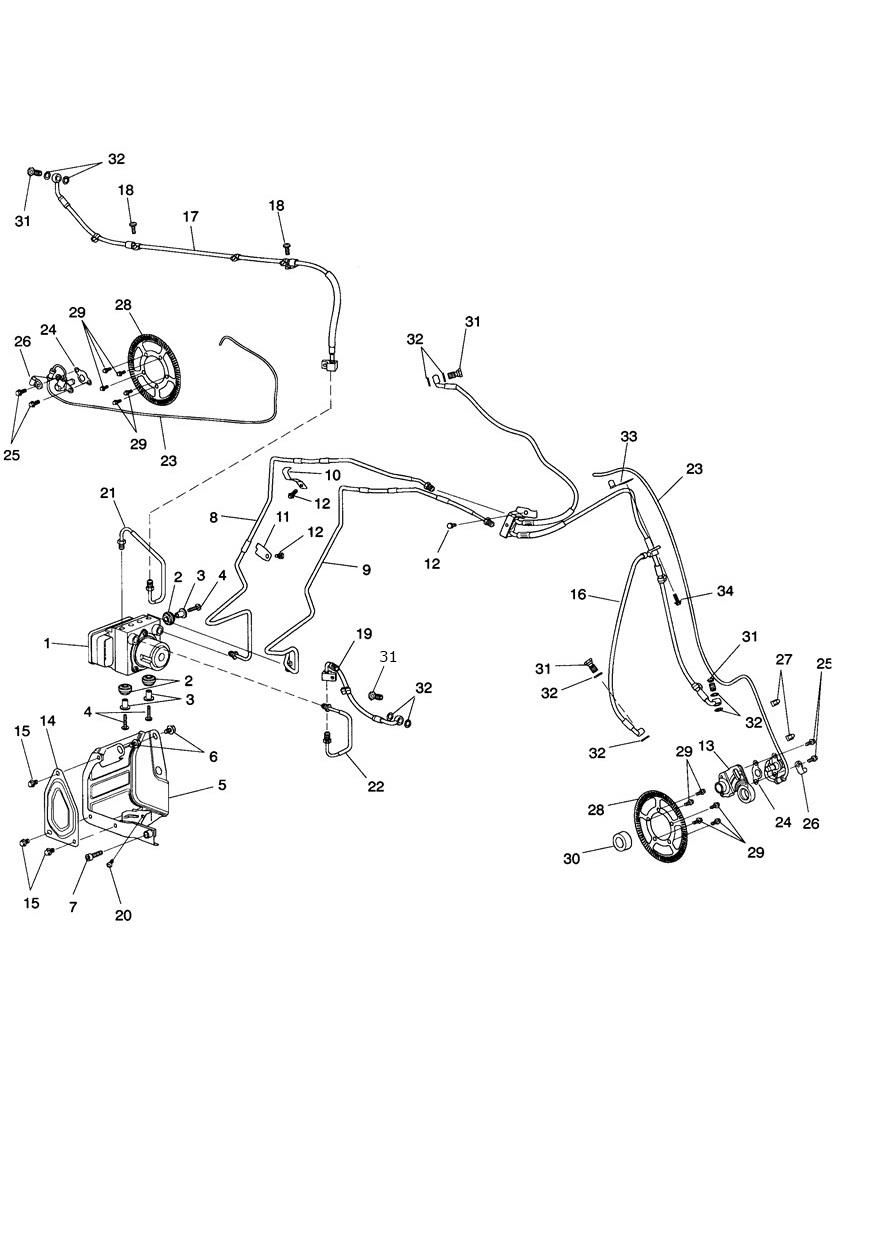

ABS Components - Roadster Versions Only
37 parts

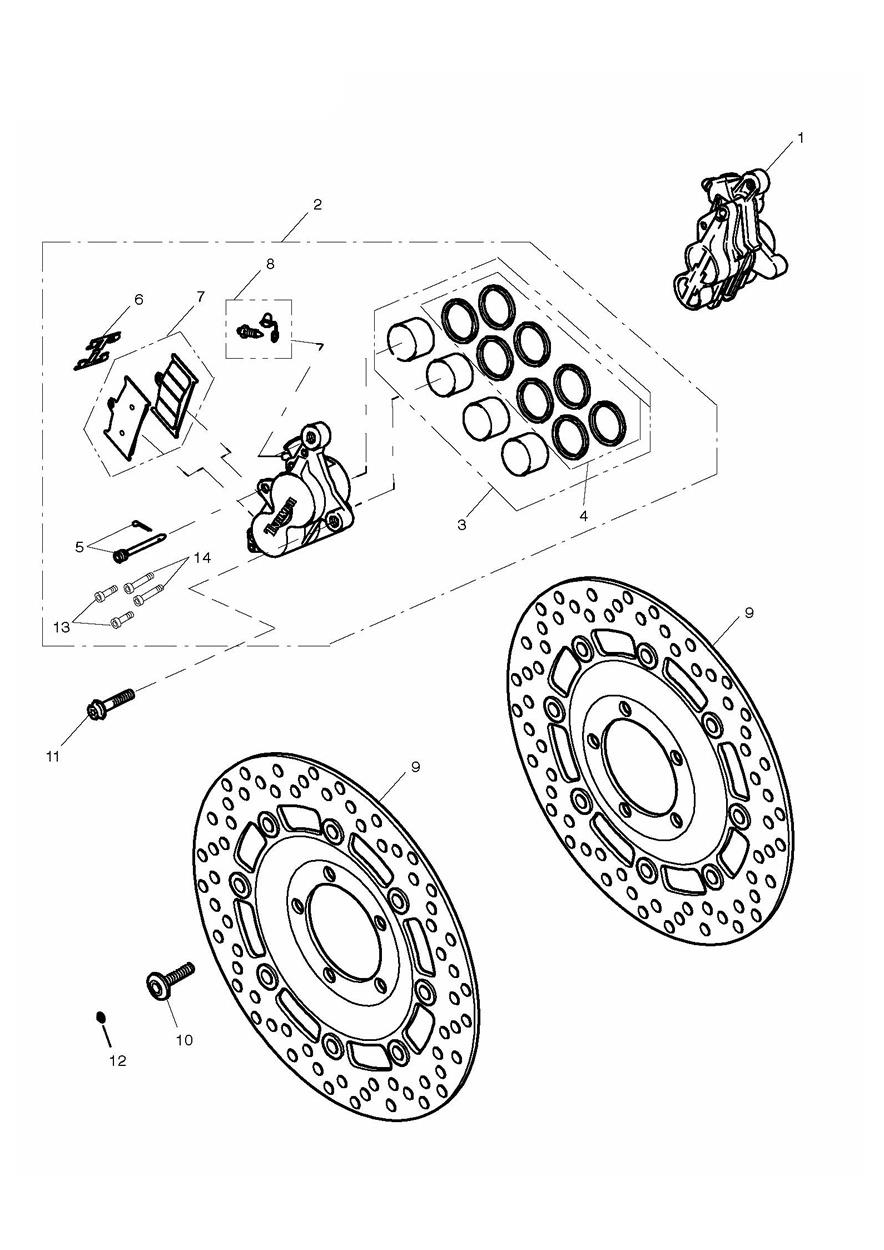

Front Brake Caliper & Discs
20 parts

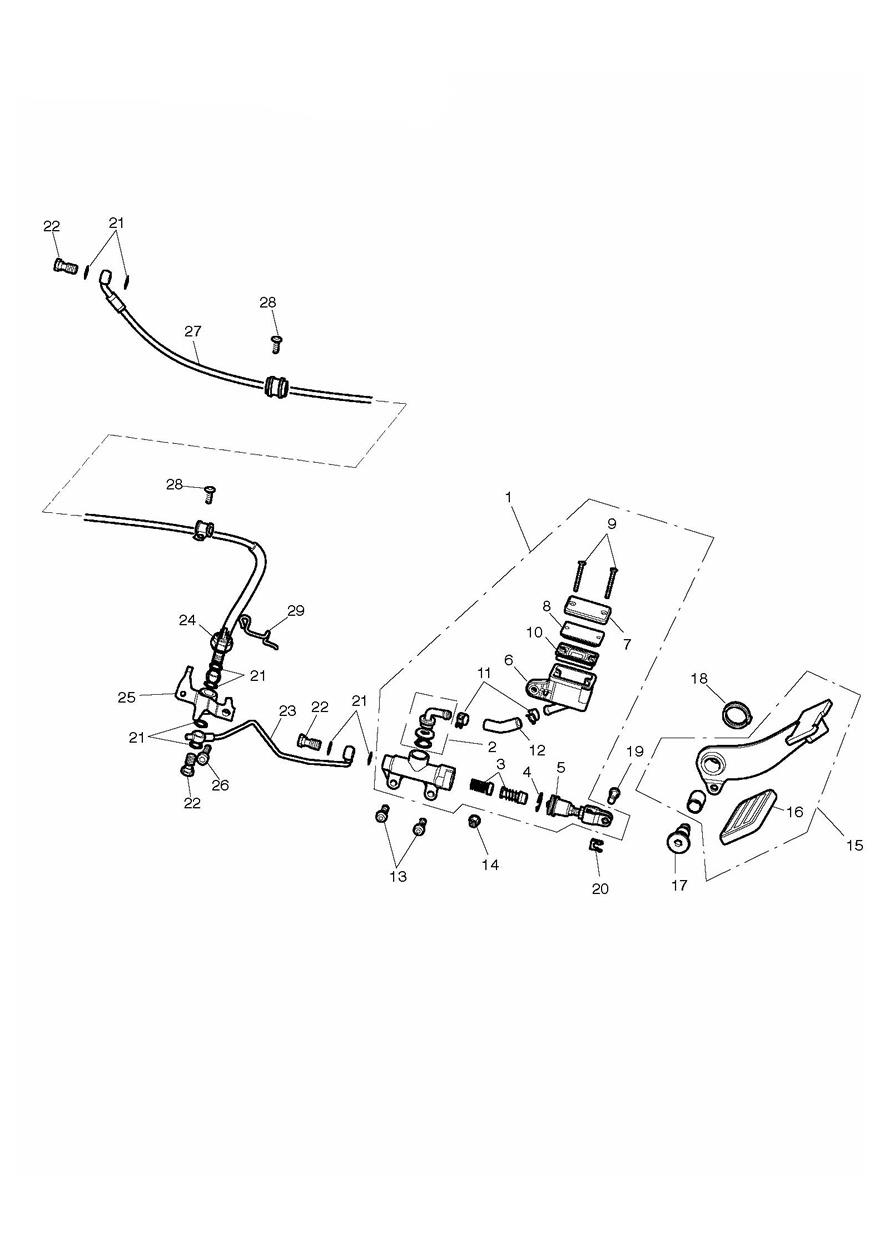

Rear Brake Master Cylinder, Reservoir & Pedal
32 parts

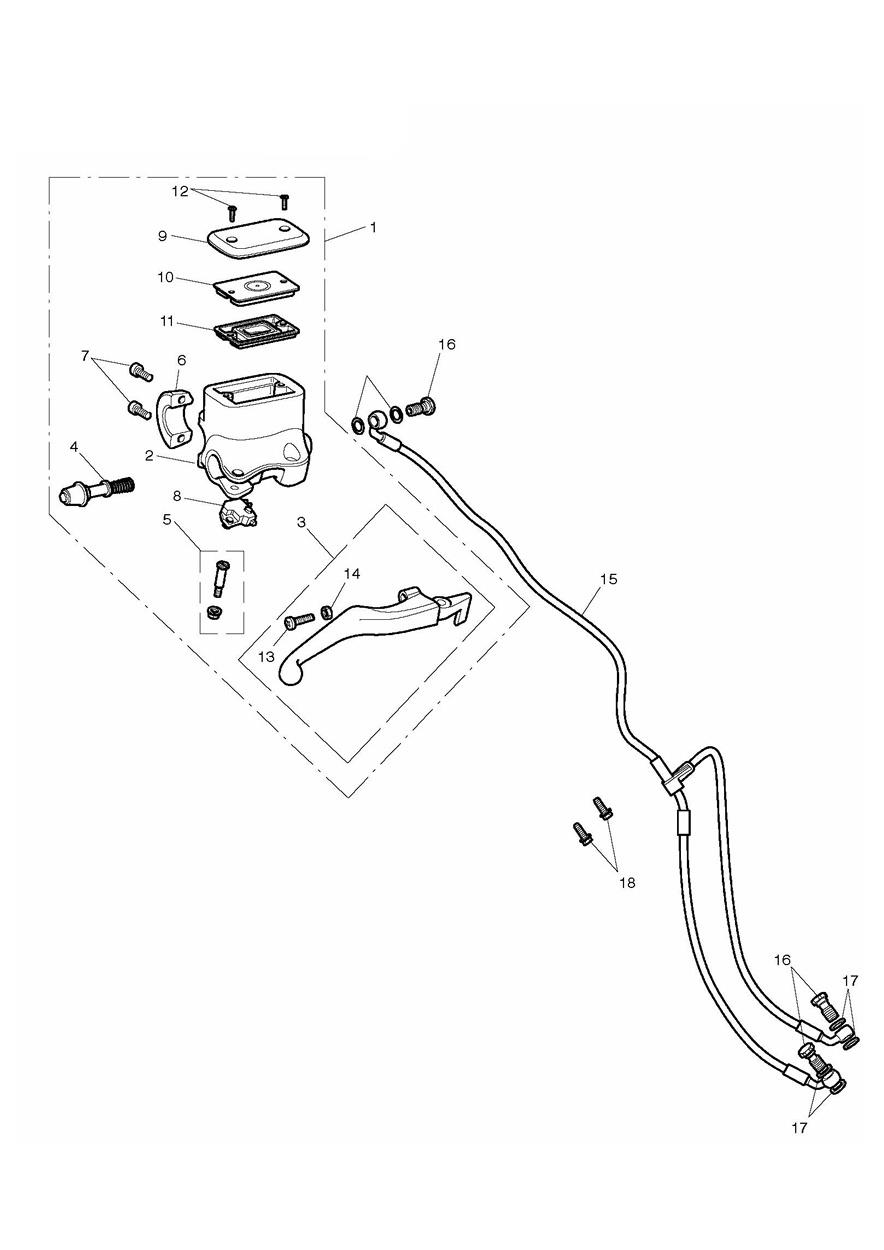

Front Brake Master Cylinder & Hoses
18 parts
Rear Brake Caliper & Disc
12 parts

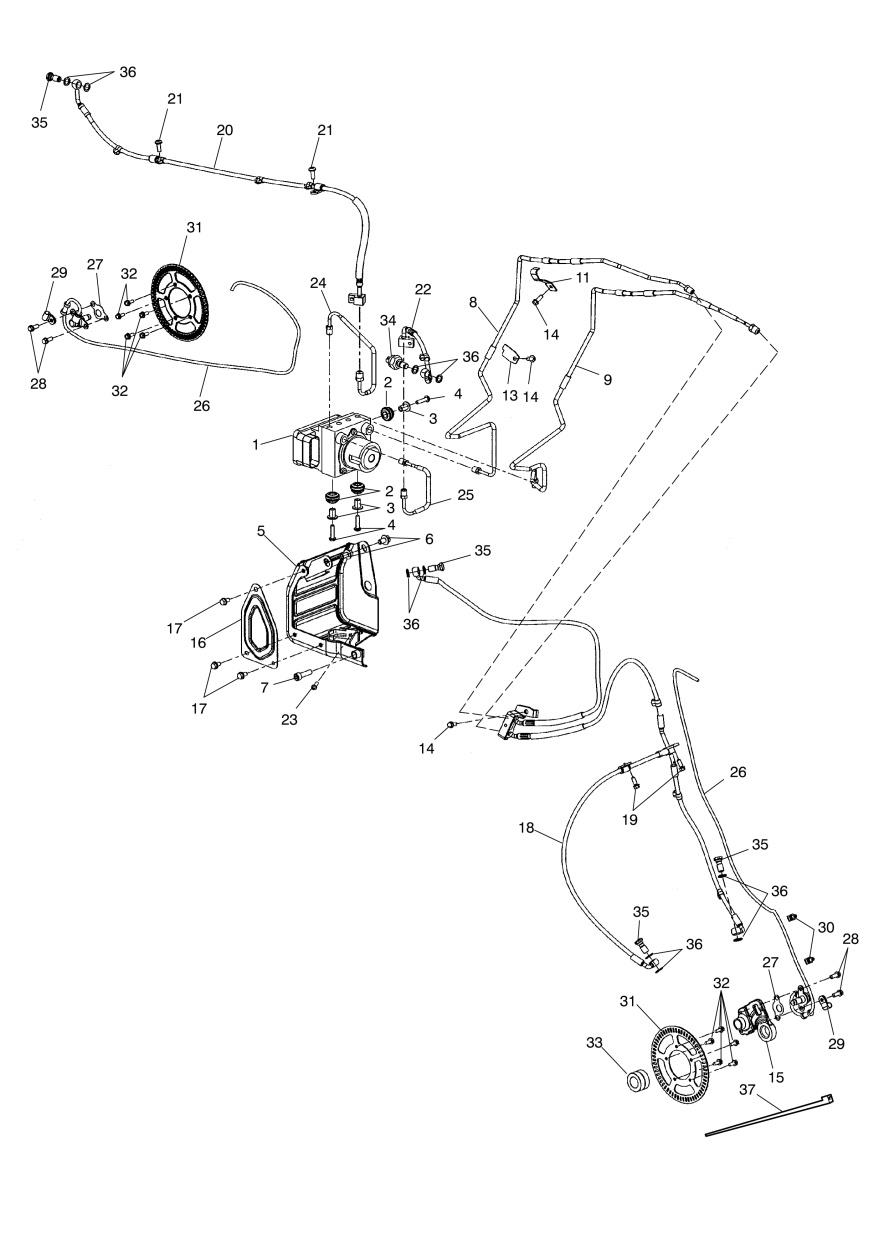

ABS Components - ABS Version Only
36 parts

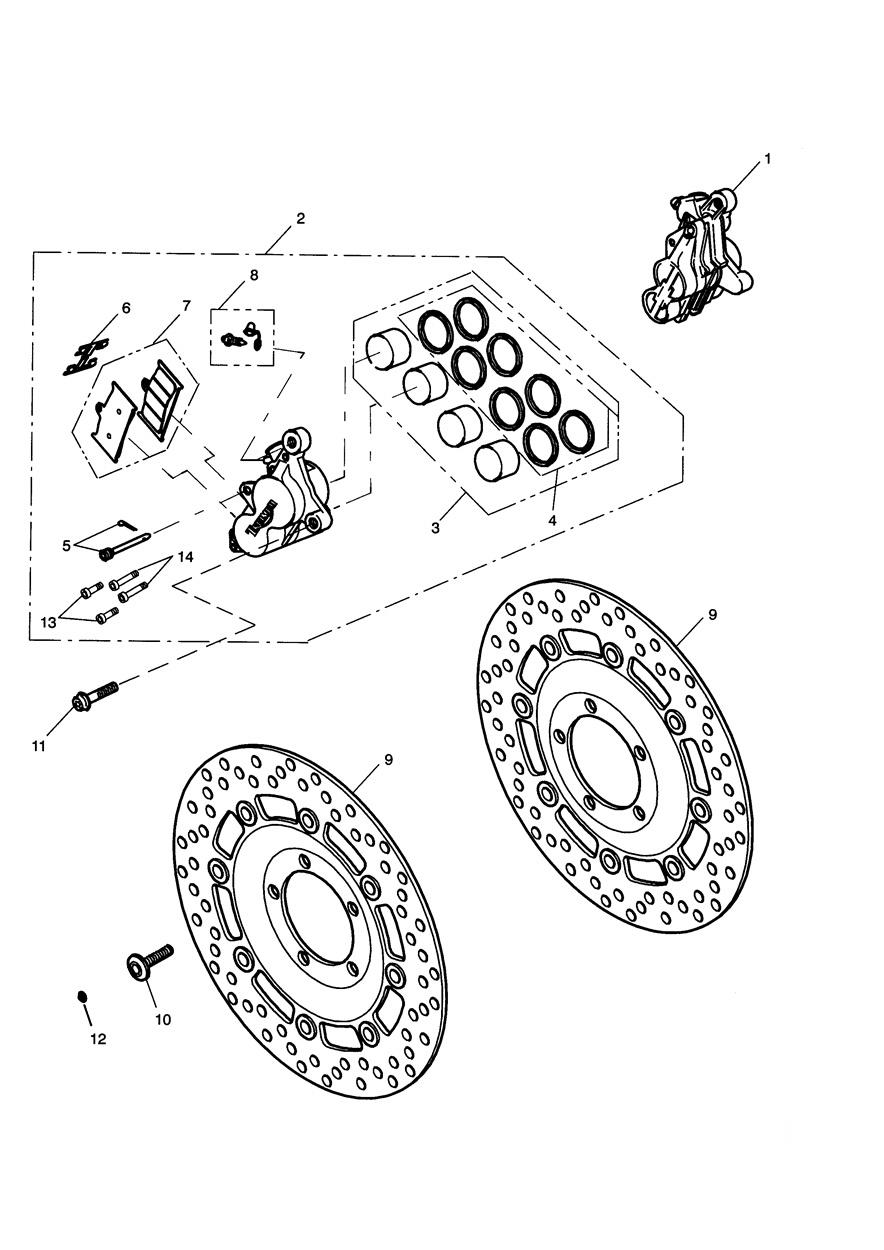

Front Brake Caliper & Discs
18 parts
