Front Suspension & Steering incl. Clutch Controls
Triumph Rocket III · 4 diagrams
4 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Rocket III, covering the Rocket III. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

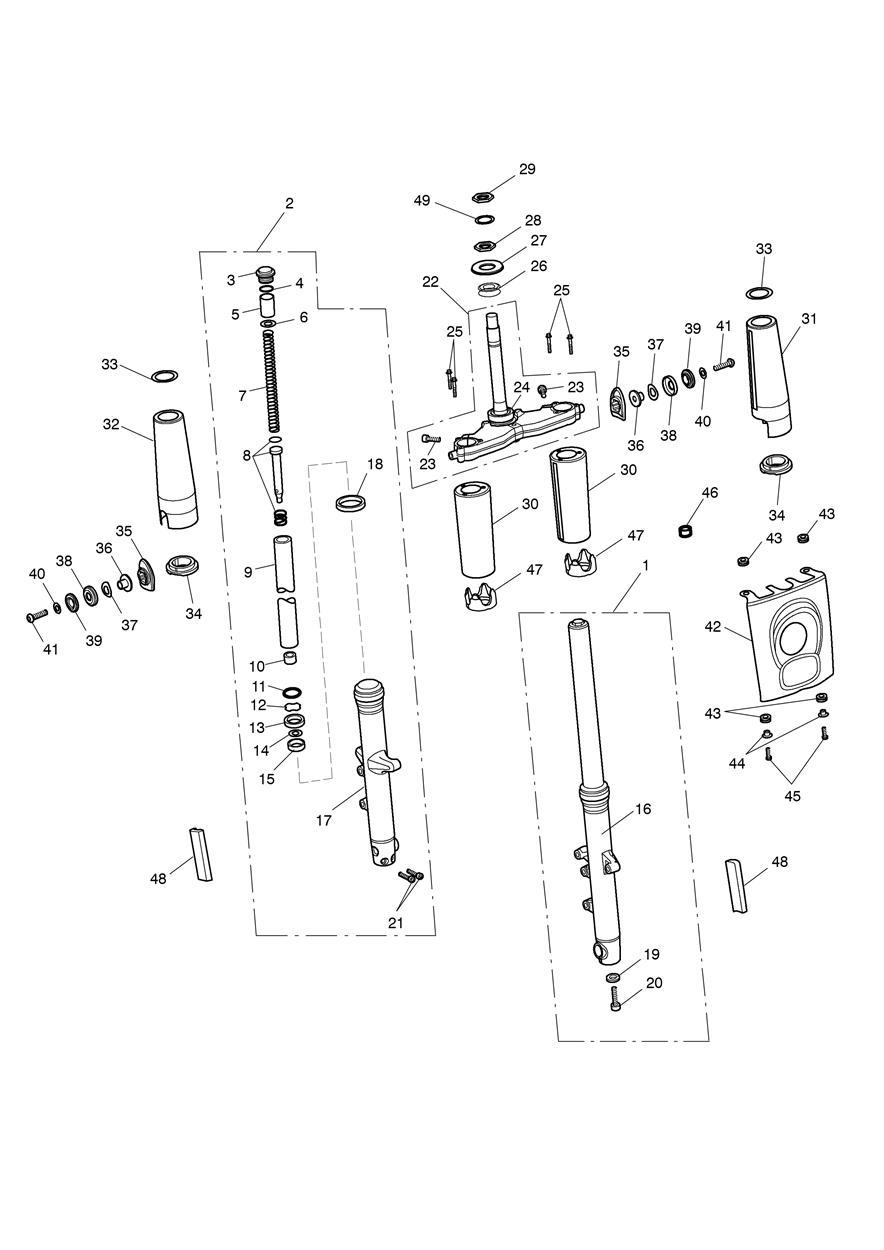

Front Forks & Yokes
54 parts

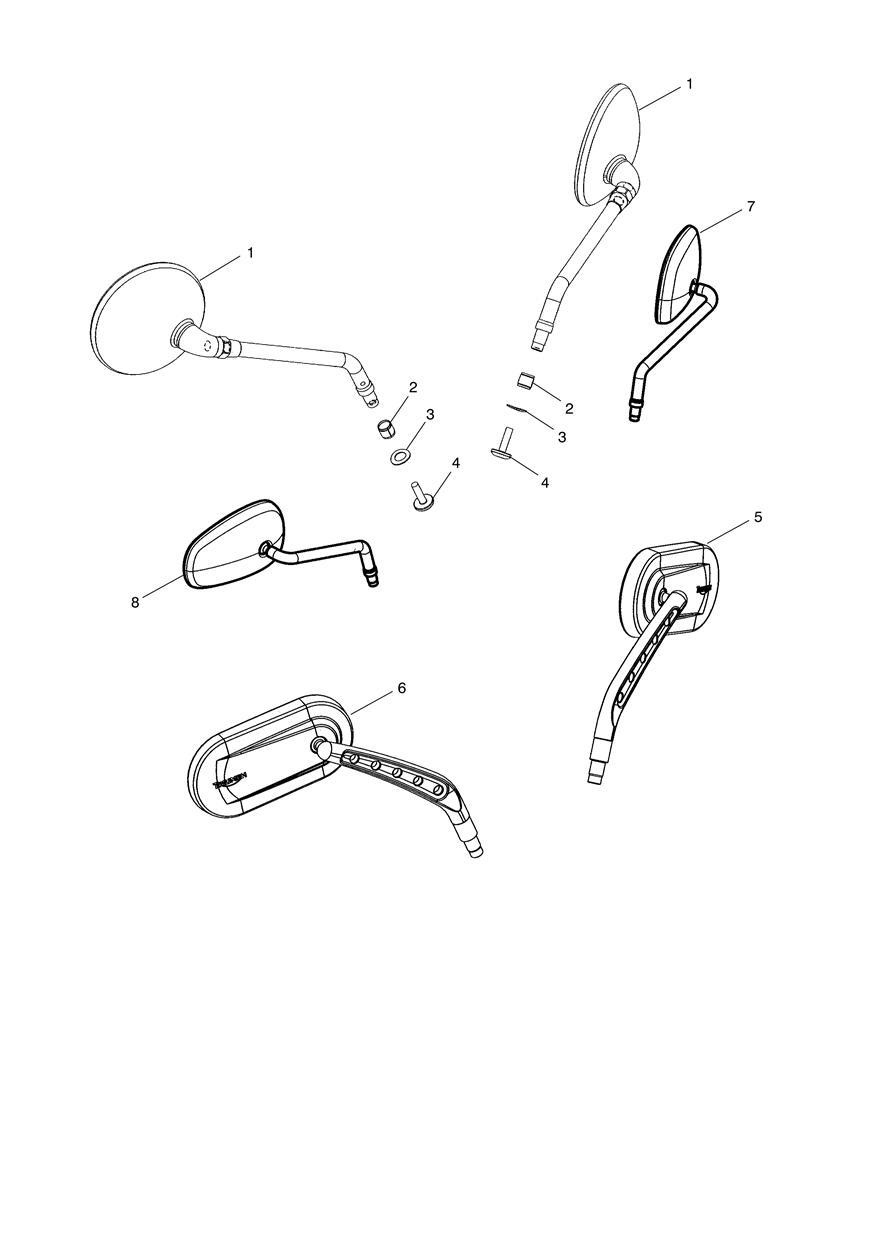

Mirrors
14 parts

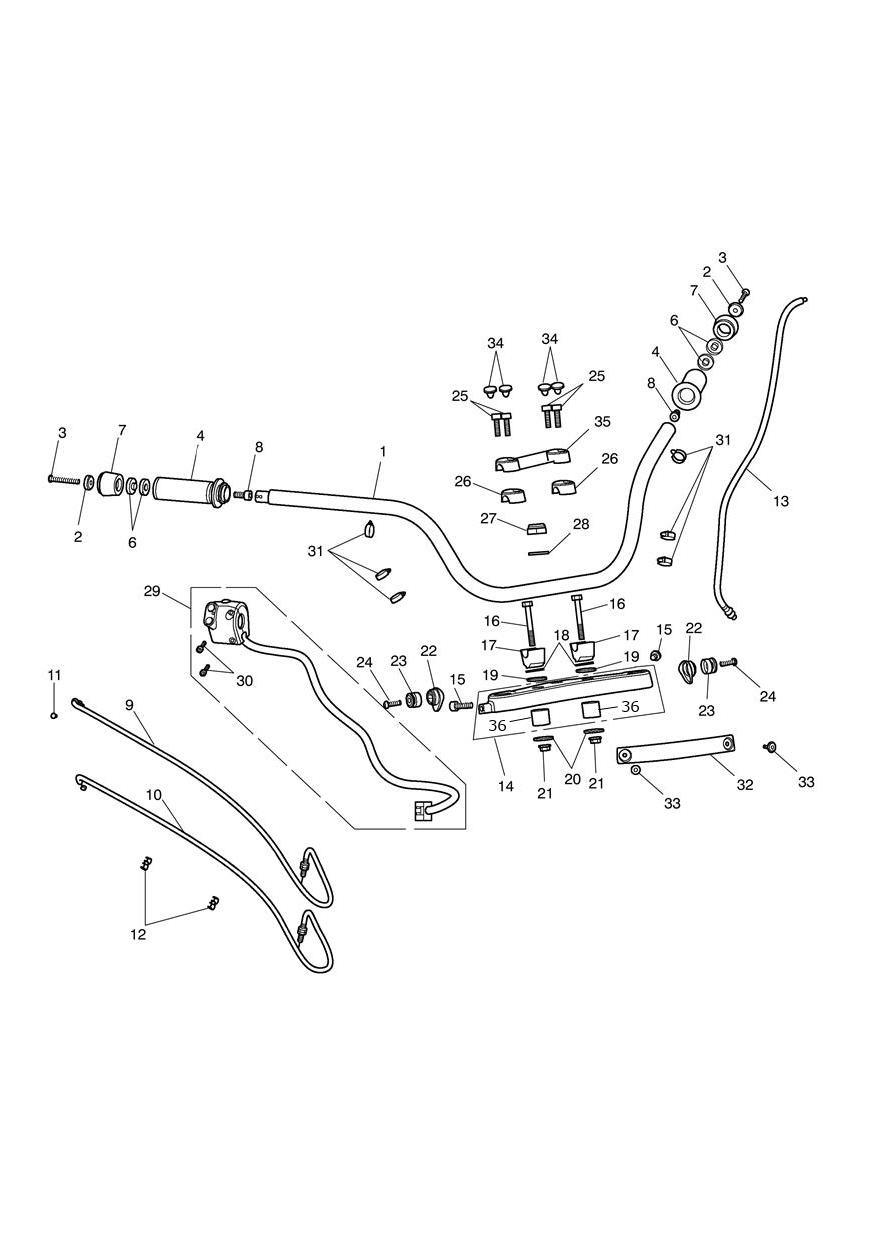

Handlebars & Switches
39 parts

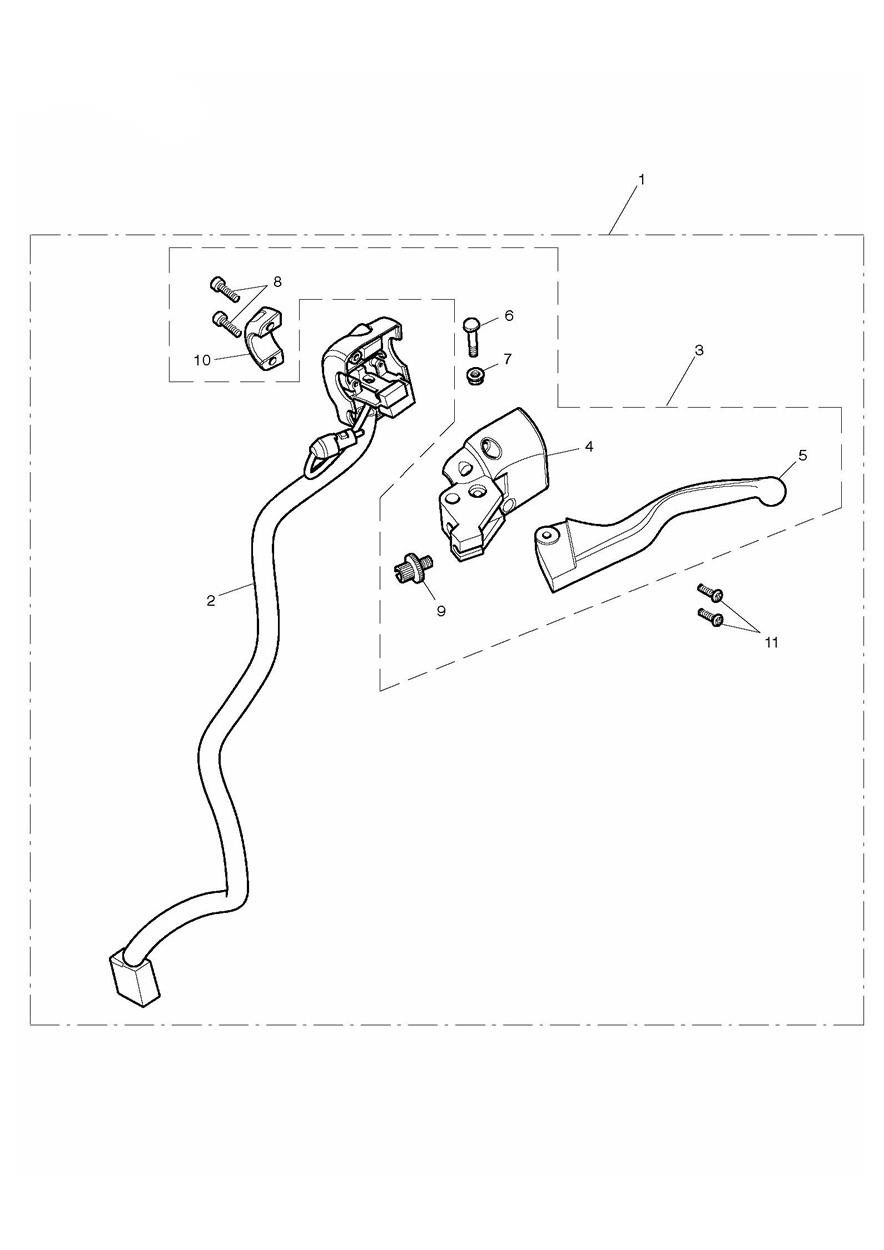

Clutch Controls
11 parts
92 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Rocket III and is priced and orderable online. Open a part to see what it fits and to buy it.
Front Forks & Yokes
T2045441 Fork Leg Assembly, LH
$1593.11
AvailableT2045405 Fork Leg Assembly, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$1566.74
On backorderT2040169 Cap, Fork
$75.69
AvailableT2040081 O Ring, Fork Seal
Low stock at Triumph
$3.32
Limited availabilityT2045412 Collar, Spring
$14.77
AvailableT2045043 Guide spring
$10.49
AvailableT2045414 Spring
$121.46
AvailableT2047104 Oil Lock, Fork
$9.43
AvailableT2040323 Dust Seal
$18.54
Available2040079-T0301 Ring snap
$6.33
In stock in BreaT2045556 Oil seal
$19.78
AvailableT2045559 Sliding bush
$13.50
AvailableT2045401 Tube, Outer, LH
Backordered at Triumph · expected Oct 30
$519.31
On backorderT2045442 Tube Outer, LH
$519.31
AvailableT2045404 Clip, Abrasion
$4.56
AvailableT2045045 Washer, Sealing B
$1.99
AvailableT2045046 Capscrew, Oil Lock
$9.85
AvailableT3050133 Capscrew
$4.21
AvailableT2045399 Lower Yoke Assy
$686.55
AvailableT2047044 Capscrew, M10 x 30, S/S
$7.49
AvailableT3800031 Bearing, 30x55x17, Taper Roll
$30.14
AvailableT3203050 Bolt, Domed, S/S, M6 x 50
$6.24
AvailableT3800032 Bearing, 24x47x15, Taper Roll
Low stock at Triumph
$56.52
Limited availabilityT2046552 Cover, Headstock Bearing
Backordered at Triumph · expected Oct 23
$9.43
On backorderT2041265 Adjuster Nut, Lower
Low stock at Triumph
$12.45
Limited availabilityT2140210 Adjuster Nut, Upper
$3.14
AvailableT2045431 Grommet, Fork Shroud, Bottom
$11.26
AvailableT2045430 Cover, Screen, Lower
$7.57
AvailableT3010037 Flanged Sleeve, M8 x 12.8 x 11.4
$15.84
AvailableT3550223 Washer, Curve Spring, M12
$1.99
AvailableT2045439 Cap, Stainless
$14.64
AvailableT2045445 Bush, Stainless
$14.64
AvailableT3550277 Washer, M8
$1.99
AvailableT3021100 Grommet, Dia 13 x 1.8
$2.64
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3450060 Cap
Low stock at Triumph
$1.99
Limited availabilityT3020602 Grommet, Castellated
$3.71
AvailableT2700332 Reflector, Amber, Oval
$5.92
AvailableT3551820 Locating Washer, 25.5x38x2, Slv
$1.99
AvailableMirrors
T2066682 Spares Kit, Mirror Assy
$120.01
AvailableT3550550 Tolerance Ring, 12 x 8
$4.39
AvailableT3550203 Washer, Valve Spring, M10
Low stock at Triumph
$2.01
Limited availabilityT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT3330848 Bolt, But/Hd, M6 x 21, Shld, Slv
$5.45
AvailableT2066602-P Mirror Assy, Packed
$124.99
AvailableT2066081 Kit, Mirror Assy, LH
$124.99
AvailableT2066041 Mirror Assy, LH
$124.99
AvailableT2066080 Kit, Mirror Assy, RH
$124.99
AvailableT2066040 Mirror Assy, RH
$120.01
AvailableHandlebars & Switches
T2046700 Handlebar Assy, 25.4mm
$183.07
AvailableT2040969 Finisher, Handlebar
$16.38
AvailableT3330933 Screw, CSK, M6 x 60, Slv
$1.99
AvailableT2043718 Kit, Handlebar Grips
Low stock at Triumph
$43.30
Limited availabilityT2043716 Grip, LH
$47.37
AvailableT2043717 Grip, RH
$47.37
AvailableT2041026 Handlebar Bush
$5.62
AvailableT2041021 Weight, Handlebar
$29.57
AvailableT2040968 Sleeve
$5.19
AvailableT2043585 Cable, Throttle, Return
Backordered at Triumph · we’ll confirm the ship date after you order
$44.01
On backorderT3330382 Screw, Phil Pan HD, M5 x 12, Slv
$1.99
AvailableT2040811 Twin Clip, Brake Hose
$2.43
AvailableT2043586 Clutch Cable
Low stock at Triumph
$84.88
Limited availabilityT2046718 Yoke Assy, Upper
$431.28
AvailableT2049029 Yoke Assy, Upper
Backordered at Triumph · expected Nov 6
$431.28
On backorderT3050128 Bolt, Skt HD, M10 x 70, Yel
$12.20
AvailableT2046714 Riser, H/Bar, Polished
$62.47
AvailableT3550390 Washer, M10 x 30
Backordered at Triumph · we’ll confirm the ship date after you order
$5.13
On backorderT3550391 Washer, Rubber, Riser
Low stock at Triumph
$2.36
Limited availabilityT3550552 Washer, M10 x 34 x 3.5
$5.45
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT2045429 Cover, Screen, Upper
$9.23
AvailableT2045438 Bush, Stainless
$14.64
AvailableT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT2046710 Clamp, Riser Cap
$54.55
AvailableT2040060 Nut
$22.99
AvailableT2040061 Washer Upper Yoke
$6.61
AvailableT2046701 Switch Set, RH
$204.21
AvailableT3700350 Clip, Cable, 15mm, T-Stud
$5.27
AvailableT3450200 Plug, Caphead, Chrome
$3.88
AvailableT2046720 Bush, Handlebar Yoke
$5.45
AvailableClutch Controls
T2046758 Clutch Lever Assy
$397.93
AvailableT2046759 Switch Set, LH
$184.79
AvailableT2043040 Assembly, Clutch Lever
Backordered at Triumph · we’ll confirm the ship date after you order
$103.29
On backorderT2040819 Clutch Lever Housing
$45.75
AvailableT2046444 Clutch Lever, Thick
$56.78
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046004 Screw, M6 x 20
$3.49
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2026004 Clamp, Handlebar
Low stock at Triumph
$16.19
Limited availabilityT2046008 Screw, Phil Pan HD, M5 x 20, AD
Low stock at Triumph
$1.99
Limited availability
