Clutch & Transmission incl. Gearchange Mechanism

Triumph Scrambler 1200 Bond Edition · 4 diagrams

4 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Scrambler 1200 Bond Edition, covering the Scrambler 1200 Bond Edition. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

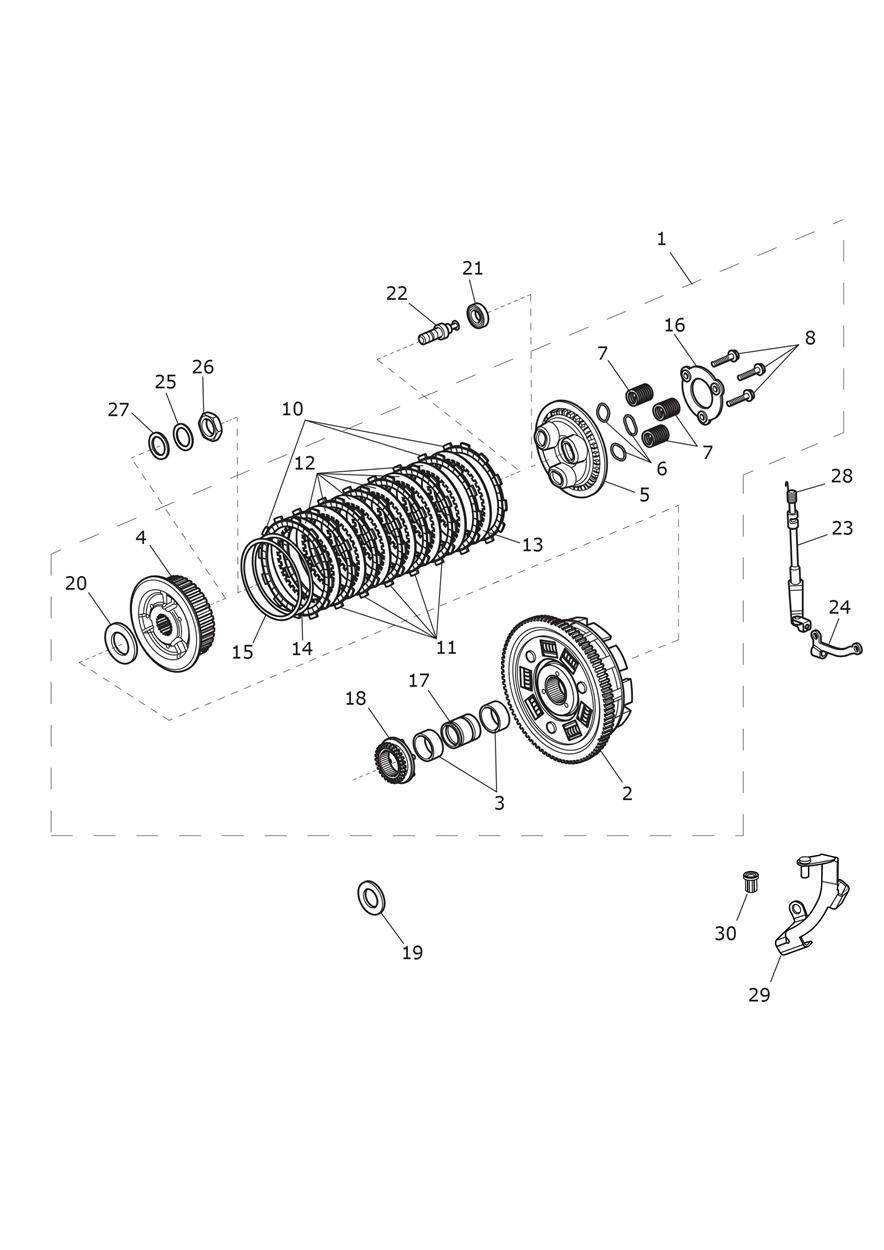

Clutch exploded diagram
Clutch
30 parts

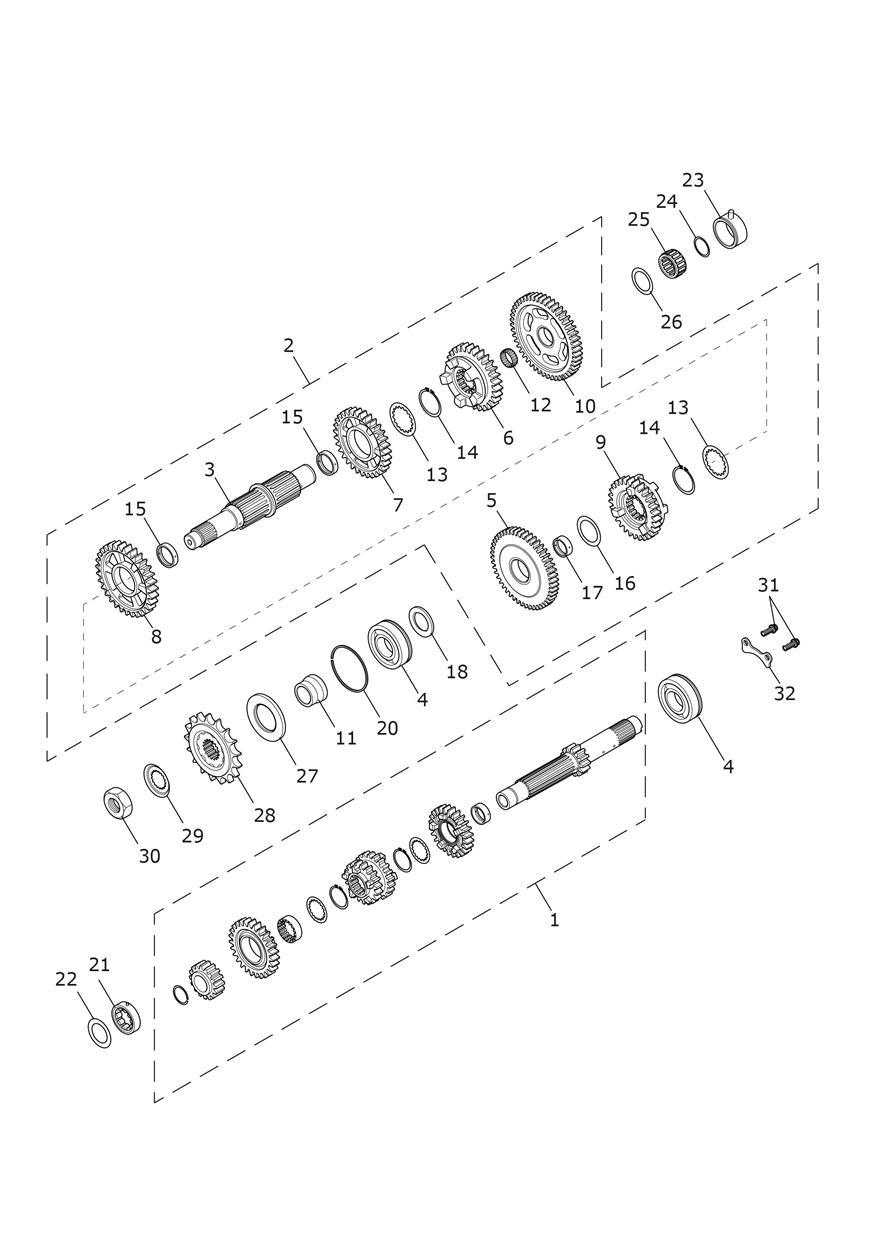

 Transmission exploded diagram
Transmission
31 parts

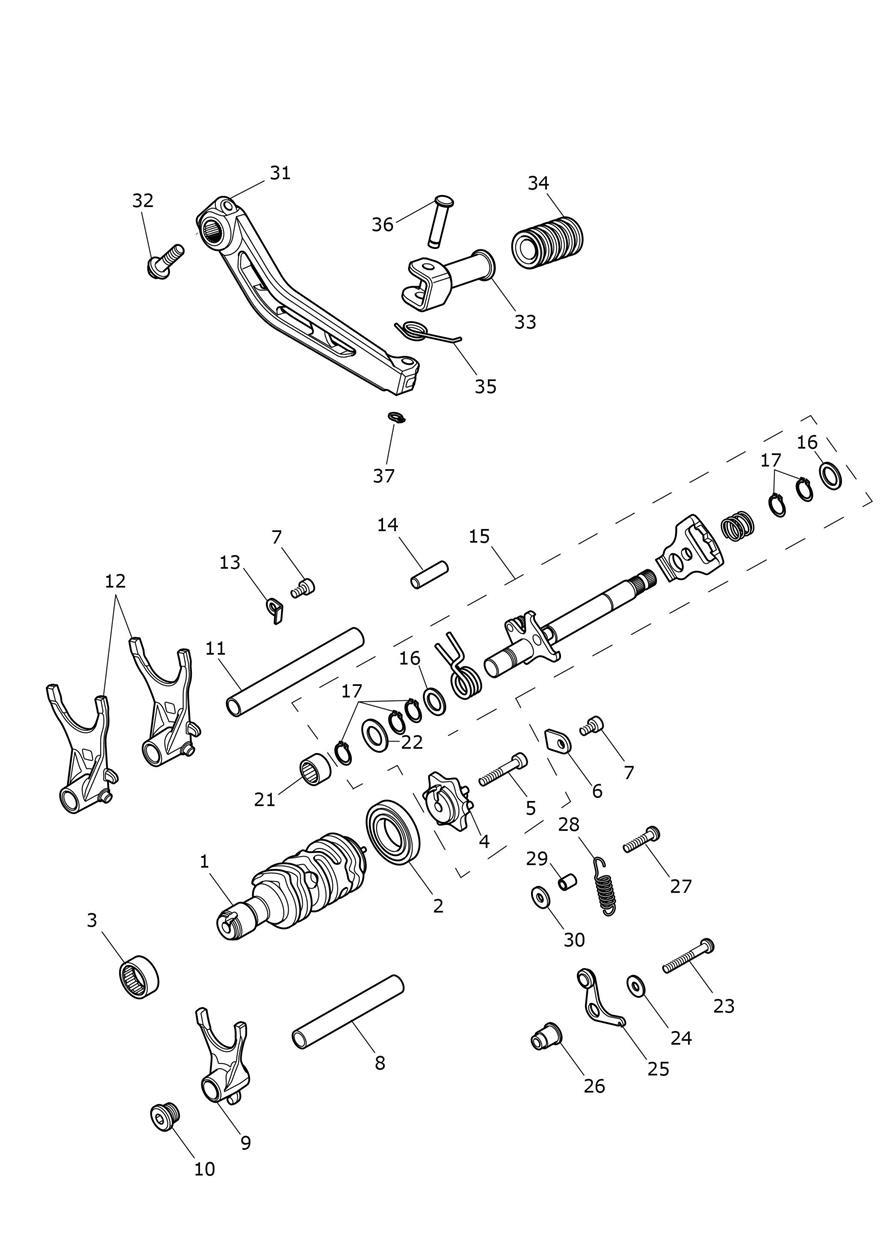

 Gear Selectors & Pedal exploded diagram
Gear Selectors & Pedal
34 parts

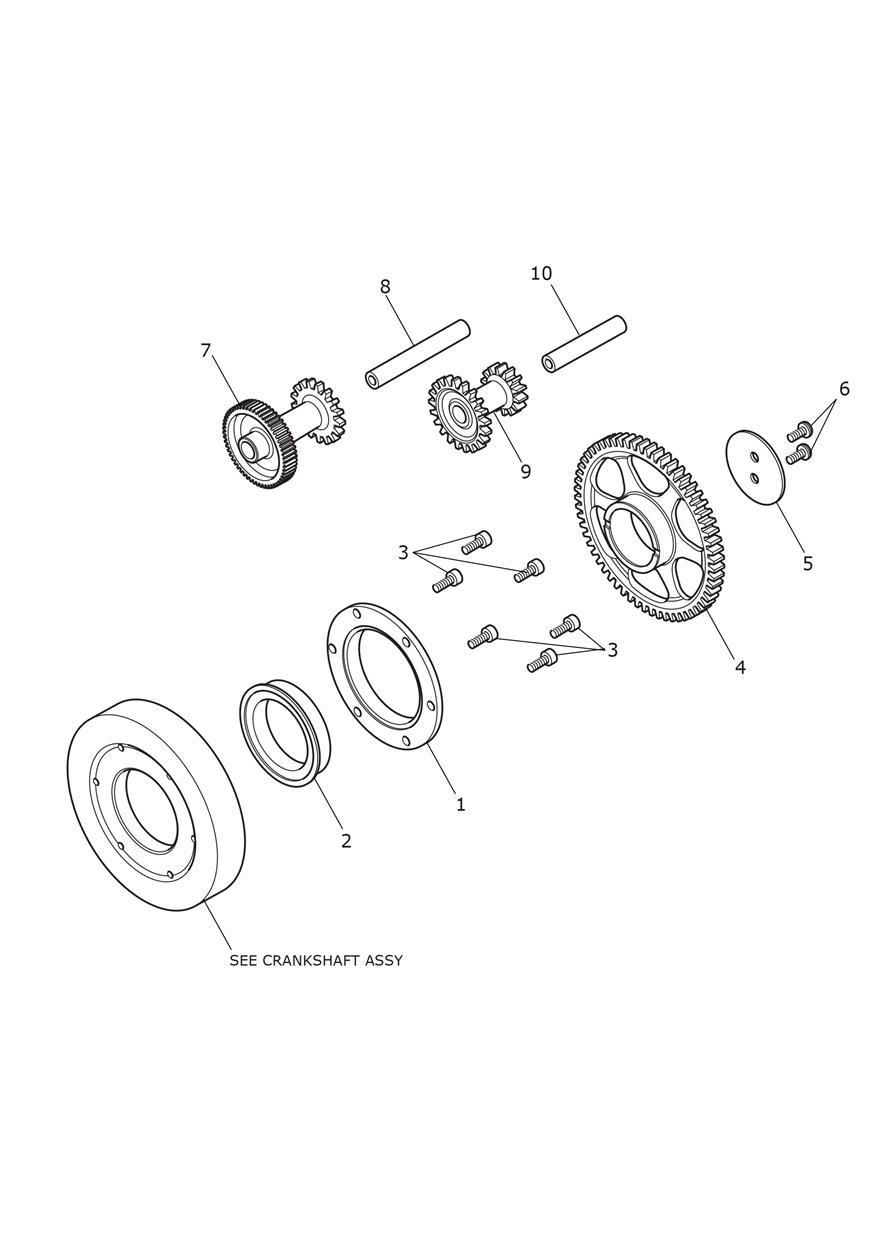

 Starter Drive Gears exploded diagram
Starter Drive Gears
10 parts

← All areas of the Scrambler 1200 Bond Edition
