Front Suspension & Steering incl. Clutch Controls
Triumph Scrambler 1200 Bond Edition · 3 diagrams
3 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Scrambler 1200 Bond Edition, covering the Scrambler 1200 Bond Edition. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
79 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Scrambler 1200 Bond Edition and is priced and orderable online. Open a part to see what it fits and to buy it.

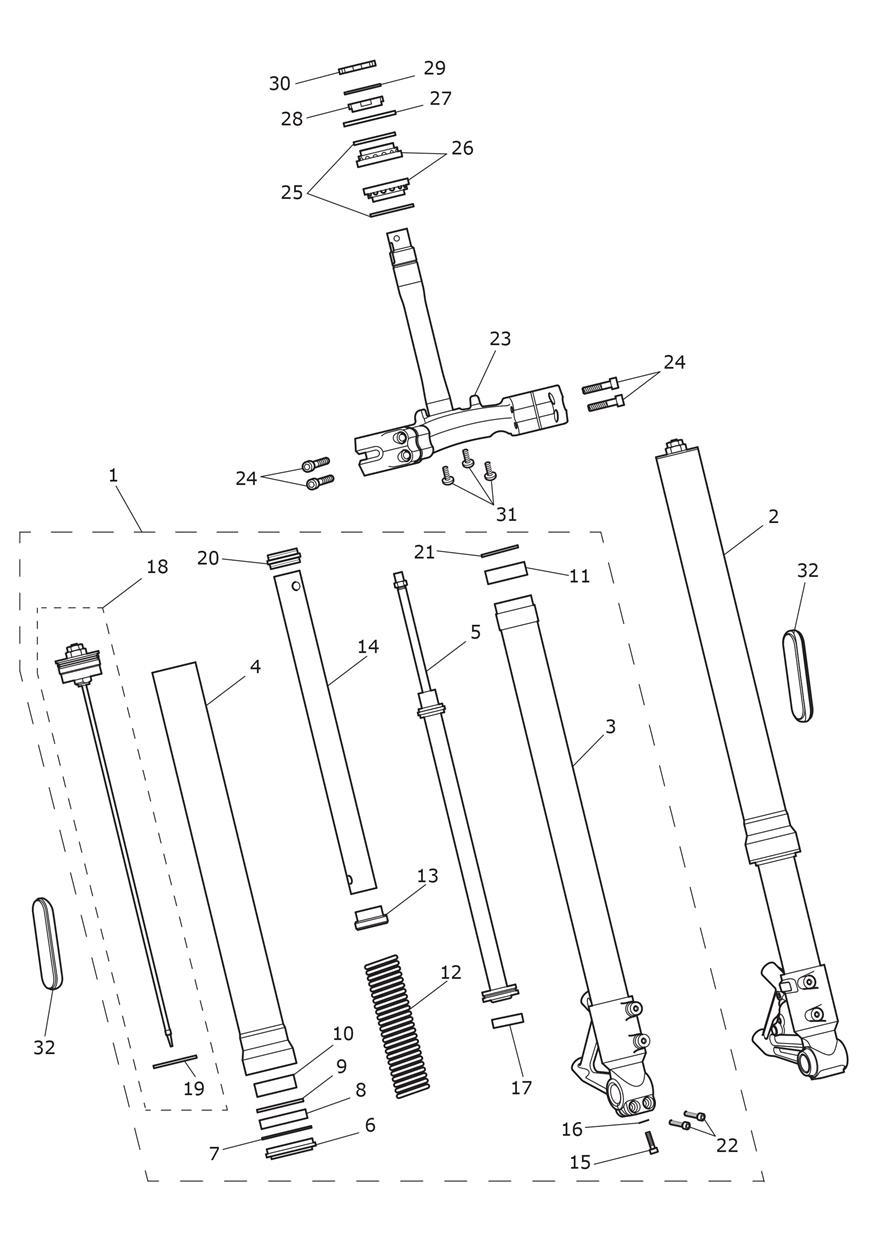

Front Forks & Lower Yoke
T2043348 Slider Assy, RH
$828.61
AvailableT2043340 Slider Assy, LH
$828.61
AvailableT2043349 Damper Assy, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$479.32
On backorderT2043342 Damper Assy, LH
$479.32
AvailableT2041541 Dust Seal
$19.13
AvailableT2041690 Oil Seal Stopper Ring
$21.62
AvailableT2045660 Seal, Front Fork
$21.92
AvailableT2045659 Seal Spacer
Low stock at Triumph
$8.10
Limited availabilityT2041173 Bush, Guide
$13.26
AvailableT2041184 Bush, Slider
$13.50
AvailableT2043343 Spring
$75.73
AvailableT2042907 Sealing washer
$1.99
AvailableT2048174 Centering Plate
$13.11
AvailableT2043350 Fork Cap Assy, RH
$116.00
AvailableT2043346 Fork Cap Assy, LH
$116.00
AvailableT2046138 O Ring
Low stock at Triumph
$3.32
Limited availabilityT2046178 Slider
$12.20
AvailableT2043347 Seat Rubber
$3.42
AvailableT2046146 Hex Socket Bolt
$5.02
AvailableT2041681 Lower Yoke Assembly
$642.32
AvailableT3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv
$4.39
AvailableT3600234 Dust Seal, Dia 55
$7.72
AvailableT3800091 Bearing, Sac
$31.43
In stock in BreaT2042138 Cover, Headstock Bearing
$10.10
AvailableT2040301 Adjuster Nut, M30, Lower
Low stock at Triumph
$26.39
Limited availabilityT2044183 Washer, Headstock
$7.68
AvailableT2040304 Locknut, M30
$19.08
AvailableT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99
In stock in BreaT2700454 Amber reflector
$5.69

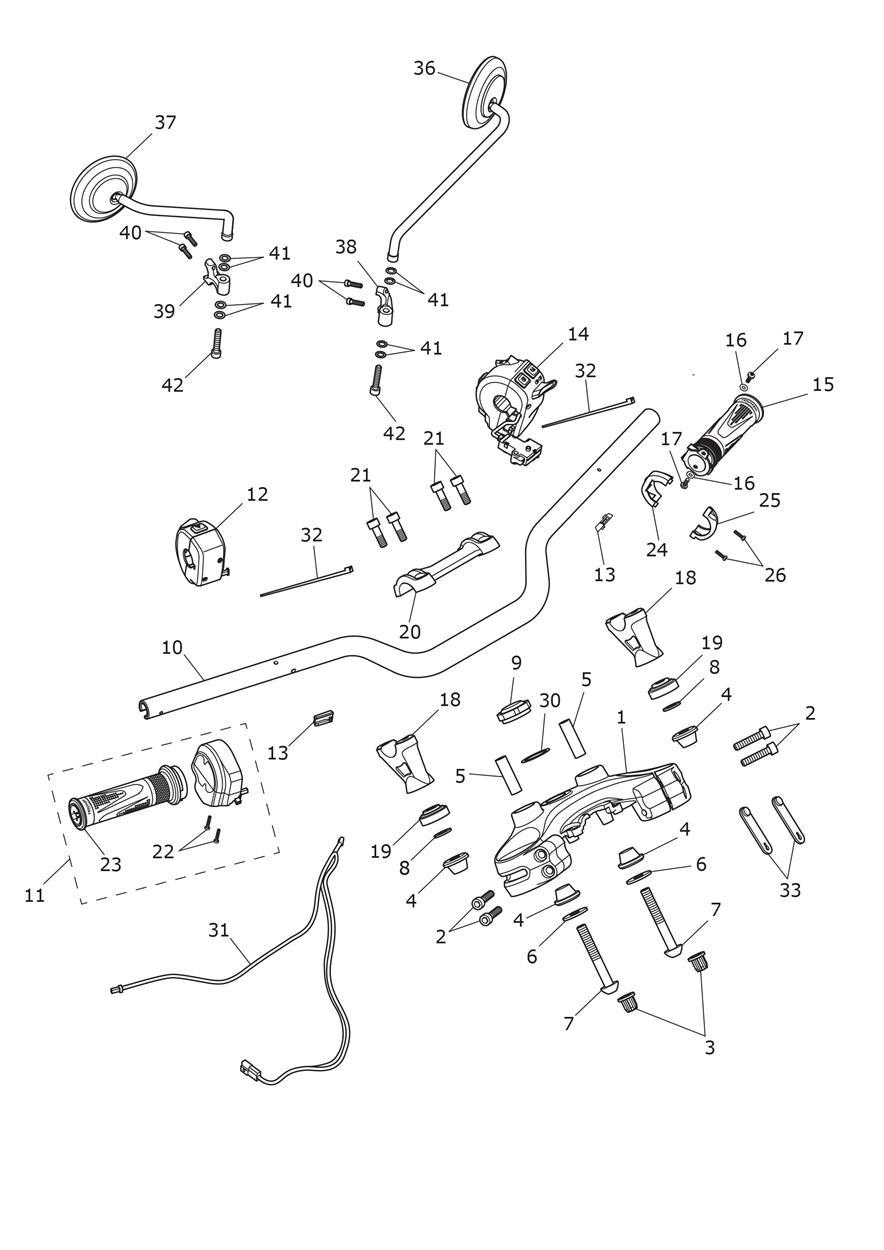

AvailableHandlebars, Top Yoke & Mirrors
T2041761 Upper Yoke
$631.16
AvailableT2703780 Grommet, Headlight Bracket
$3.24
AvailableT2042136 Rubber Bush, Handlebar Clamp
Low stock at Triumph
$7.64
Limited availabilityT3555030 Washer, 10.5 x 30 x 2.5
$6.16
AvailableT3332552 Bolt, Skt/Hd, M10, 75, LG
$4.91
AvailableT3550632 Washer, 10.5 x 21 x 2
$2.73
AvailableT2049880 Nut, Upper Yoke, M25
$22.62
AvailableT2042445 Handlebar, Aluminium, Natural
$191.55
AvailableT2045224 Sensor, AP, Cruise, Heated
$207.55
AvailableT2041764 Switchcube, RH, Variant 6
$227.07
AvailableT2049701 Switchcube Mounting Block
$4.91
AvailableT2049754 Switchcube, LH, Variant 22
$187.59
AvailableT2046369 Heated Grip, LH
$163.63
AvailableT3550500 Washer, 4.3 x 9.0 x 0.8
$1.99
AvailableT3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD
$6.61
AvailableT2042947 Clamp, Handlebar Lower
$46.22
AvailableT2042653 Spacer, Handlebar Clamp
$9.98
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT3050314 Bolt, M5 x 20
Backordered at Triumph · we’ll confirm the ship date after you order
$6.50
On backorderT2042078 Heated Grip, RH
Low stock at Triumph
$163.59
Limited availabilityT2043692 Heated Grip, Housing, Switch
$6.83
AvailableT2043694 Heated Grip, Housing, Rear
Backordered at Triumph · we’ll confirm the ship date after you order
$6.76
On backorderT3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk
$4.65
AvailableT3550525 Washer, 25.5 x 35 x 0.5
$12.34
AvailableT2042516 Subharness, Heated Grips
Backordered at Triumph · we’ll confirm the ship date after you order
$34.93
On backorderT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT3700259 Rubber Band, 43mm
$3.61
AvailableT2060087 Mirror Assy, LH
$122.53
AvailableT2060088 Mirror Assy, RH
$122.53
In stock in BreaT2060642 Bracket, Mirror, LH
$85.77
AvailableT2060643 Bracket, Mirror, RH
$85.77
AvailableT3050301 Screw, Cap/Hd. M5 x 20, Blk
$2.03
In stock in BreaT3550278 Washer, Low FR, 8.5 x 14
$5.19
AvailableT3051033 Screw, Cap/Hd, M8 x 40, Enc
$7.96

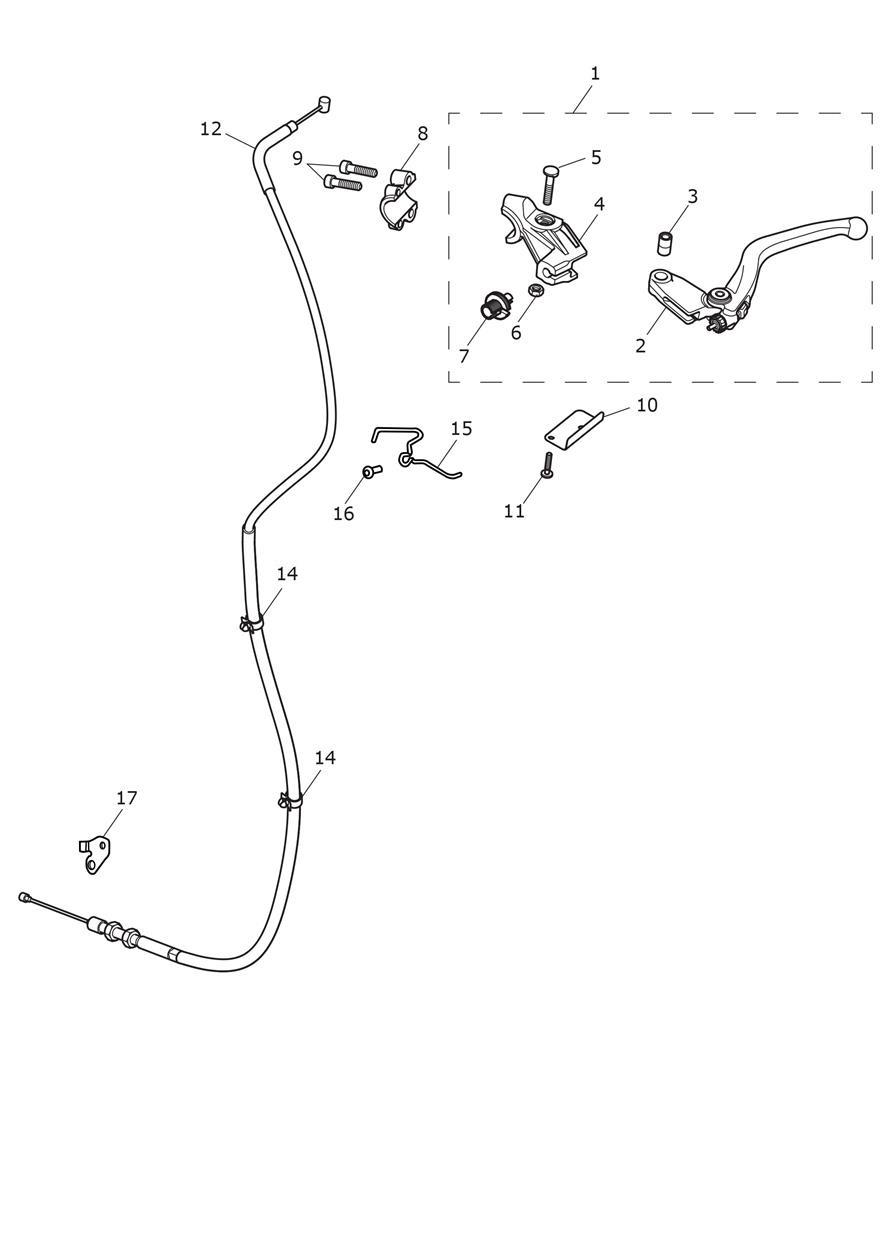

AvailableClutch Controls
T2043059 Clutch Lever Assy, Adj
$61.48
AvailableT2048335 Clutch Lever, MCS, Adjustable
$83.07
In stock in BreaT2043014 Collar, Clutch Lever
$3.05
AvailableT2046082 Clutch Lever Bracket
Low stock at Triumph
$36.08
Limited availabilityT2046524 Pivot Bolt
$2.43
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046520 Adjuster Screw
$7.90
AvailableT2021627 Clamp, Handlebar Controls, LH
Low stock at Triumph
$44.48
Limited availabilityT3050241 Screw, Cap/Hd, M6 x 25, Blk
$1.99
AvailableT2042663 Cover, Switch, Clutch
$10.27
AvailableT3332335 Screw, Tx, M4 x 0.7 x 19.5, Black
$3.98
AvailableT2041826 Clutch Cable
$68.49
AvailableT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT2043053 Guide, Clutch Cable
$13.39
AvailableT3330960 Screw, But/Hd, M5 x 12, Slv Enc
$3.26
AvailableT2043071 Bracket, Clutch Cable Clip
Backordered at Triumph · expected Nov 6
$11.41
On backorder
