Rear Suspension

Triumph Scrambler 1200 Bond Edition · 2 diagrams

2 exploded diagrams for the rear suspension of the Triumph Scrambler 1200 Bond Edition, covering the Scrambler 1200 Bond Edition. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

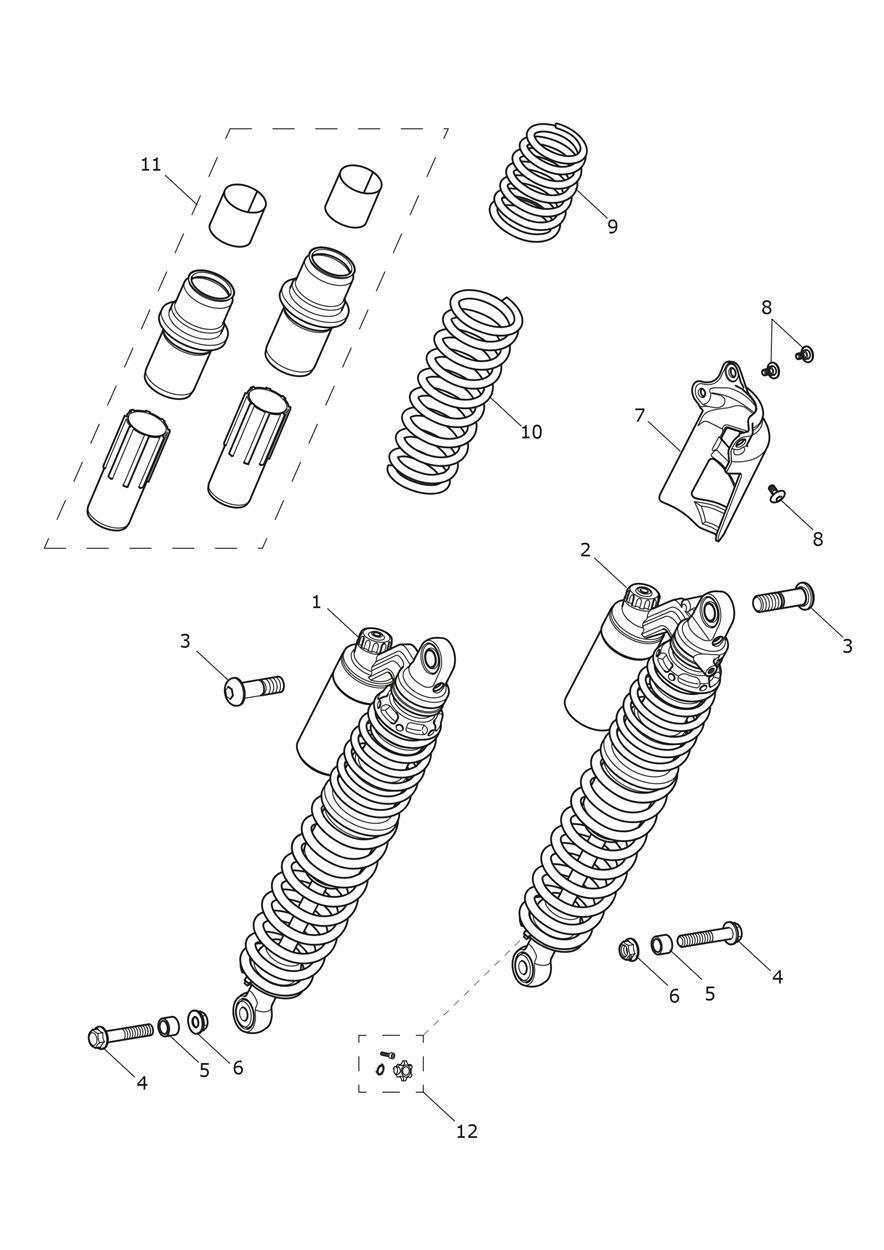

Rear Suspension Unit exploded diagram
Rear Suspension Unit
12 parts

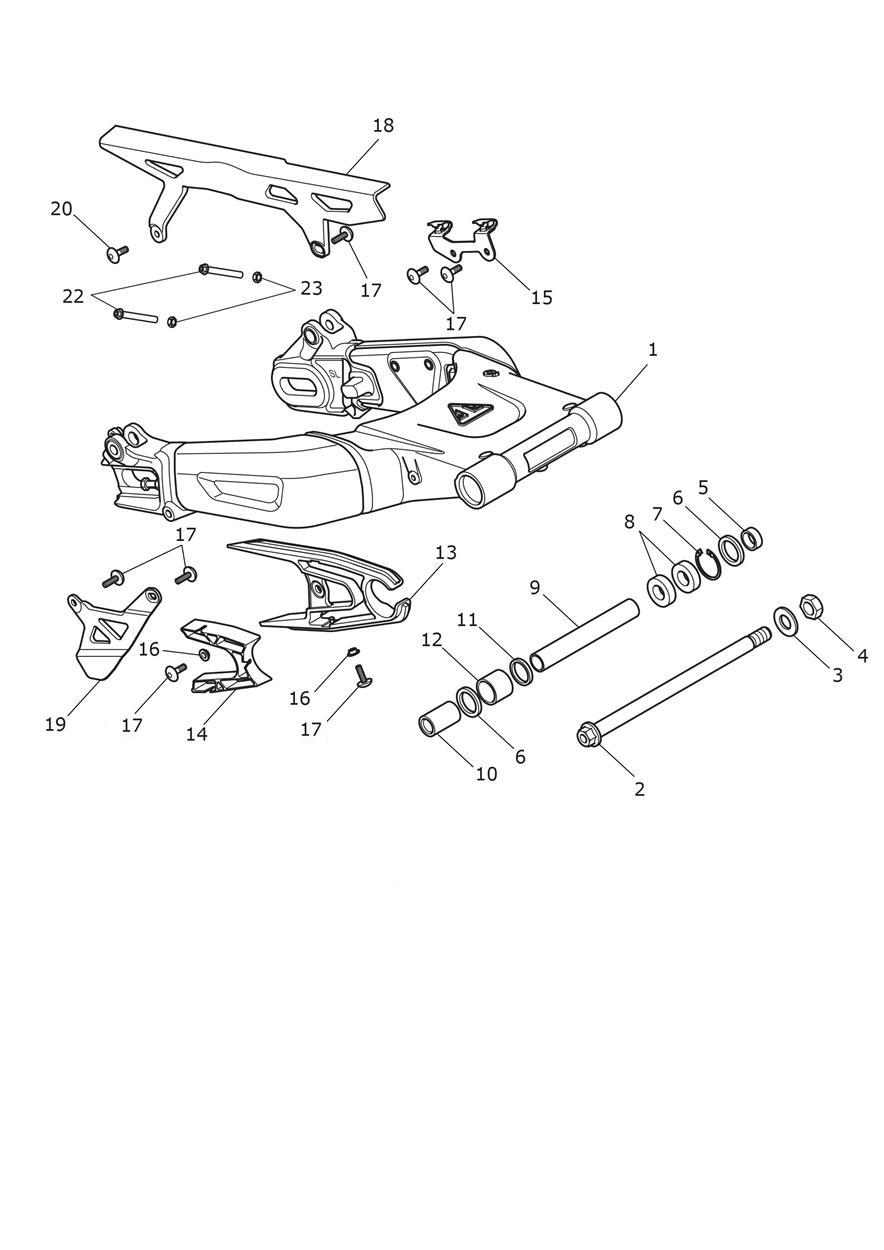

 Swingarm Assembly exploded diagram
Swingarm Assembly
22 parts
