Bodywork & Bodywork Fixings
Triumph Scrambler 1200 · 27 diagrams
27 exploded diagrams for the bodywork & bodywork fixings of the Triumph Scrambler 1200, covering the Scrambler 1200 X, Scrambler 1200 XC, Scrambler 1200 XE. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Handguards
9 parts
VIN AC8498 and lower
Rear Bodywork & Seat
10 parts
VIN AE9098 and higher
Side Panels
26 parts
VIN AC8499 to BN8564
Sumpguard
12 parts
VIN AE9097 and lower
Sumpguard
12 parts
VIN CL1737 and higher
Handguards
9 parts
VIN CL1737 and higher
Rear Bodywork & Seat
10 parts
VIN AC8498 and lower
Rear Bodywork & Seat
10 parts
VIN AE9097 and lower
Side Panels
23 parts
VIN AE9098 and higher
Sumpguard
12 parts
VIN AC8499 to BN8564
Sumpguard
10 parts
Sumpguard
12 parts
VIN BP0885 to CL1736
Handguards
9 parts
VIN AC8499 to BN8564
Rear Bodywork & Seat
10 parts
VIN BP0885 to CL1736
Rear Bodywork & Seat
10 parts
Side Panels
24 parts
VIN AC8498 and lower
Side Panels
24 parts
VIN AE9097 and lower
Side Panels
27 parts
VIN CL1737 and higher
Sumpguard
12 parts
VIN AE9098 and higher
Handguards
9 parts
VIN BP0885 to CL1736
Rear Bodywork & Seat
11 parts
VIN AC8499 to BN8564
Rear Bodywork & Seat
10 parts
VIN CL1737 and higher
Sumpguard
12 parts
VIN AC8498 and lower
SIDEPANELS
SIDE PANELS
88 parts you can order online
Every part below appears in Triumph’s Bodywork & Bodywork Fixings diagrams for the Scrambler 1200 and is priced and orderable online. Open a part to see what it fits and to buy it.

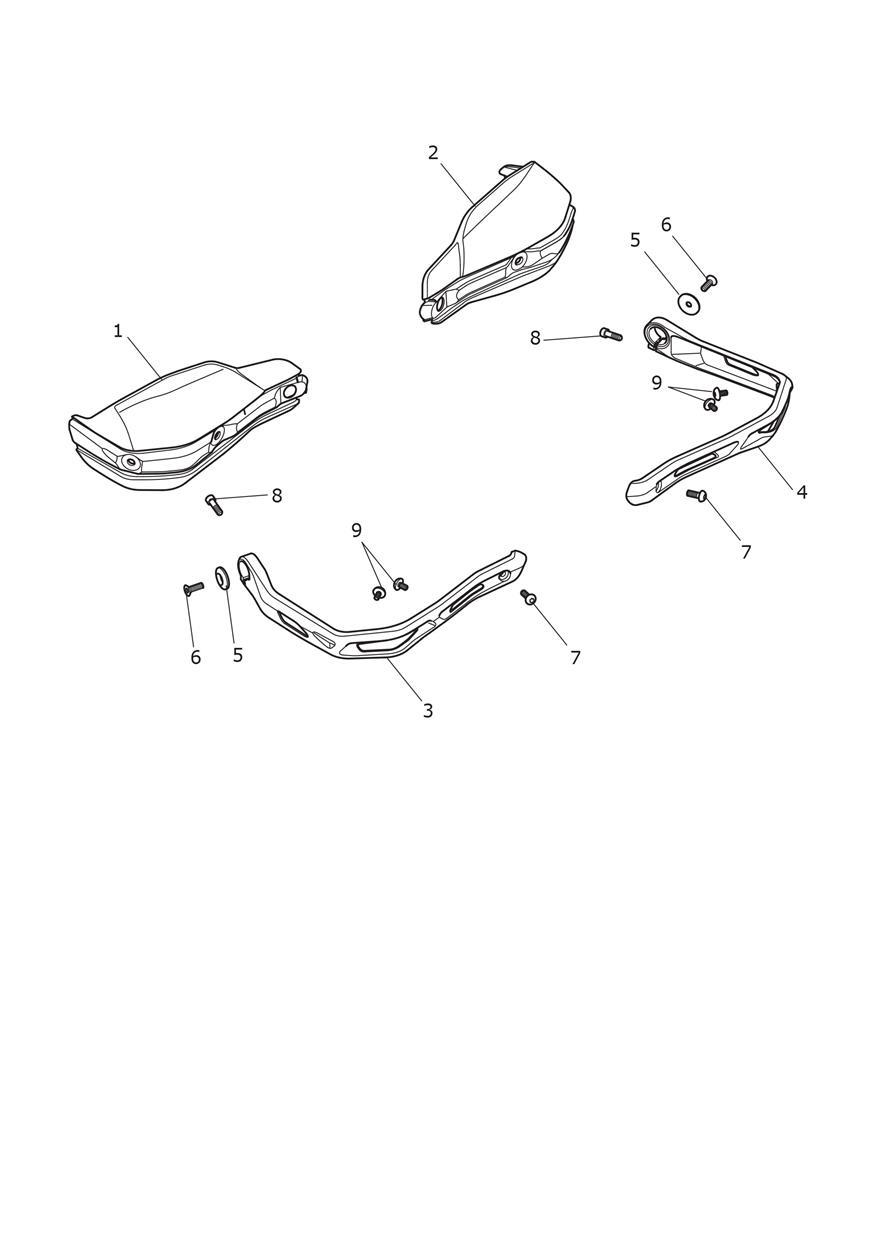

Handguards VIN AC8498 and lower
T2308438 Handguard Moulding, RH
$42.24
In stock in BreaT2308439 Handguard, Moulding, LH
$42.24
AvailableT2310641 Bracket, Handguard, RH
$105.63
In stock in BreaT2308499 Bracket, Handguard, LH
$105.63
AvailableT2042303 Finisher, Bar End
$30.19
In stock in BreaT3330923 Screw, Csk, M6 x 20, Slv, Enc
$2.20
In stock in BreaT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT3050339 Screw, Cap/Hd, M6x 20, Slv, Enc
$1.99
In stock in BreaT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99

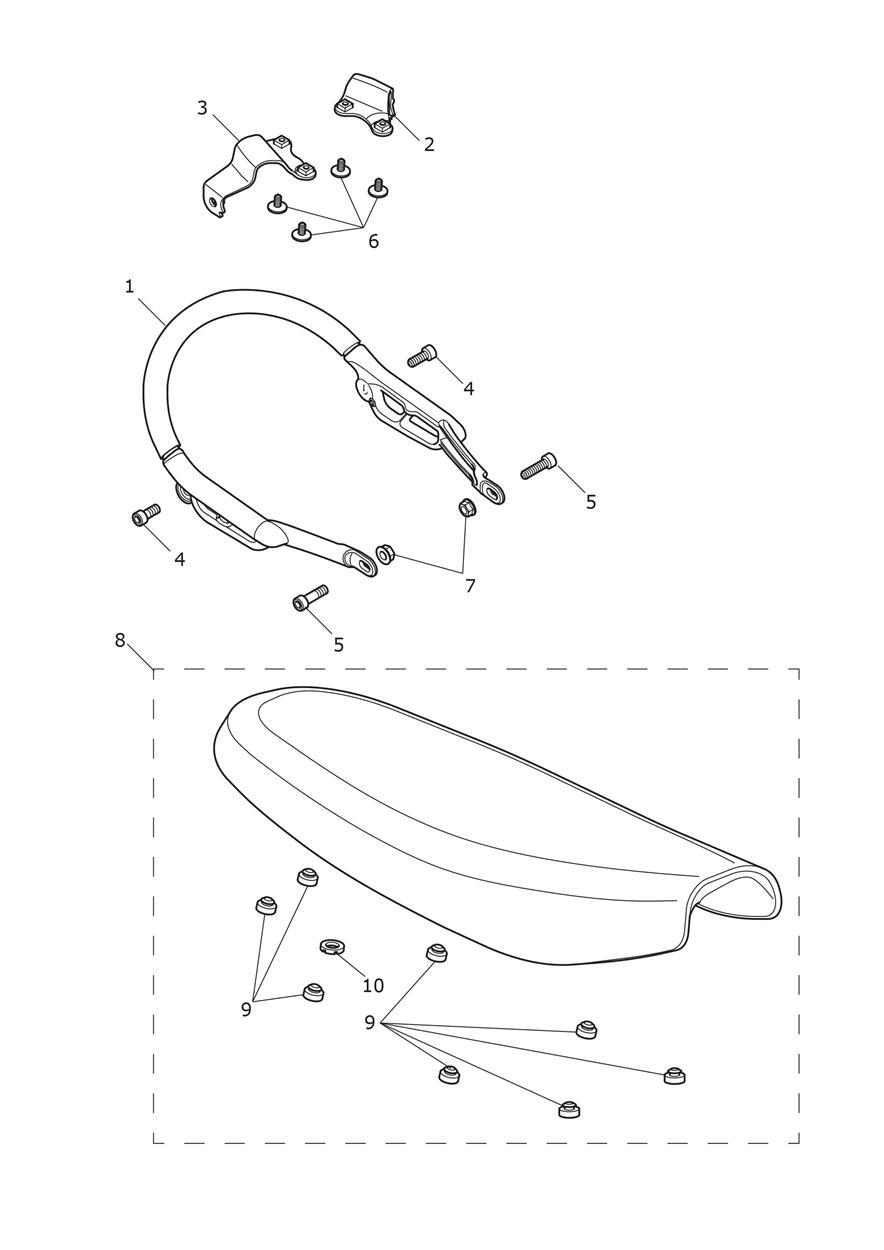

In stock in BreaRear Bodywork & Seat VIN AE9098 and higher
T2309276 Grab Rail, Anodised
Backordered at Triumph · we’ll confirm the ship date after you order
$194.10
On backorderT2310769 Grabrail Bracket, RH
$52.53
AvailableT3050321 Screw, Cap/Hd, M8 x 20, Slv
$6.87
AvailableT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT3331726 Screw, But/Hd, M6 x 12, Slv
$3.98
AvailableT3350301 Nut, Flanged, M8, Silver
Low stock at Triumph
$1.99
Limited availabilityT2310580 Seat Assembly, Twin
$422.46
AvailableT2307368 Rubber Foot, Seat
$3.42
In stock in BreaT2307366 Spacer, Seat
Backordered at Triumph · we’ll confirm the ship date after you order
$2.20

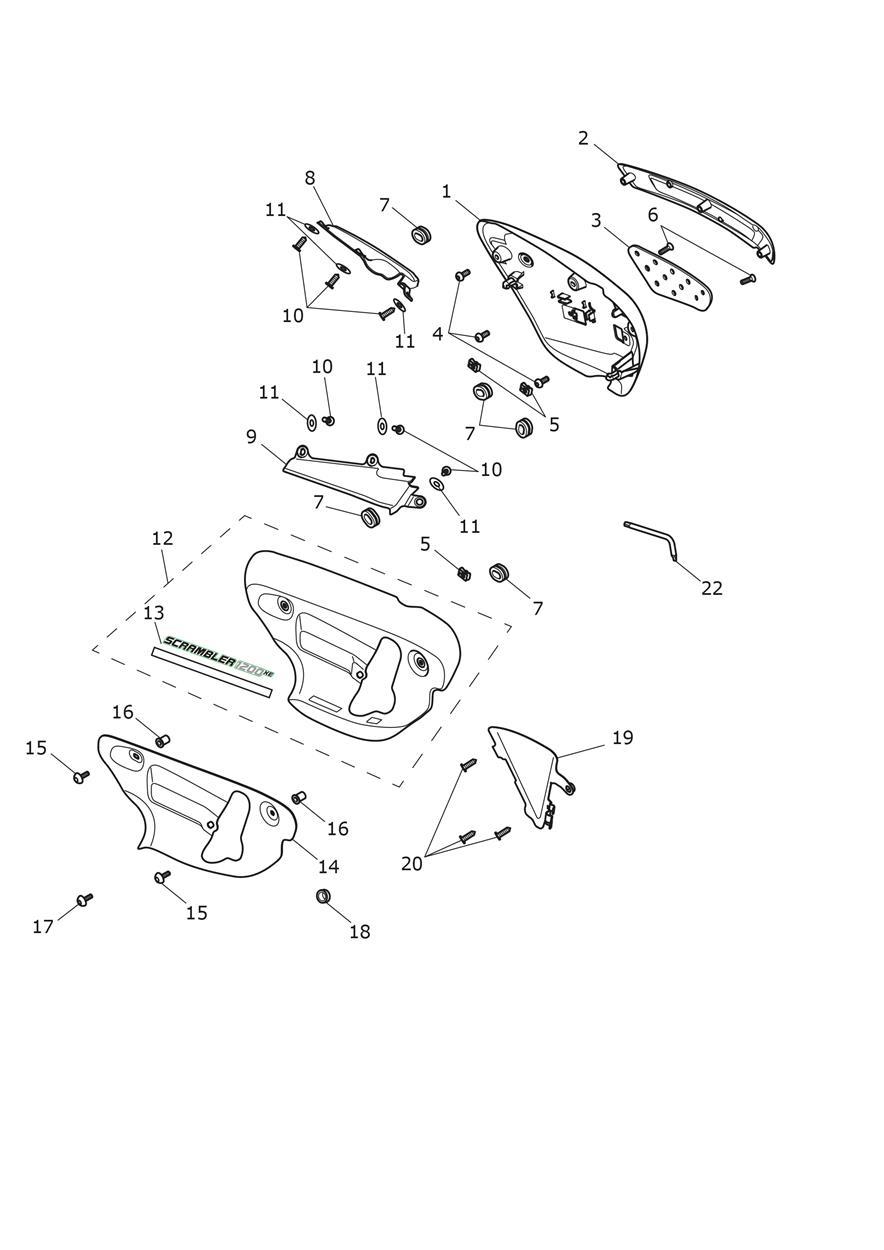

On backorderSide Panels
T2318057-PR Sidepanel, LH, Phantom Black
$378.74
AvailableT2318053-PR Sidepanel, LH, Phantom Black
$378.74
AvailableT2318053-PM Sidepanel, LH, Sapphire Black
Backordered at Triumph · we’ll confirm the ship date after you order
$378.74
On backorderT2318625 Decal, LH, Side Panel, Carnival Red
$26.42
AvailableT2318627 Decal, LH, Sidepanel, Aluminium Silver
$26.42
AvailableT2318629 Decal, LH, Sidepanel, Graphite
Backordered at Triumph · expected Nov 6
$13.30
On backorderT2311411 Infill, Sidepanel
Low stock at Triumph
$18.06
Limited availabilityT3550253 Washer, Dia 5 mm, Retaining
$1.99
In stock in BreaT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT3020087 Grommet, 13.5 x 25 x 2
Low stock at Triumph
$1.99
Limited availabilityT2307974 Infill, Upper, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$26.74
On backorderT2307926 Infill, Upper, RH
$45.75
AvailableT3300011 Rivet, Plastic, 4.9-5.2mm
$1.99
AvailableT3550249 Washer, 11 x 5.1 x 0.8
Low stock at Triumph
$2.09
Limited availabilityT2311069-PM Sidepanel, RH, Sapphire Black
$378.74
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT3350050 Wellnut, M5
$6.16
AvailableT3331076 Bolt, But/Hd, M5 x 16, Shld, Enc
$6.42
AvailableT3450108 Stand Off Rubber
$2.36
AvailableT2307907 Infill, Lower, LH
$22.29
AvailableT3701098 Firtree, Dia 5 x 18
$4.85
In stock in BreaT2308286 Tool, 5mm Hex / 4mm Flat
$5.02

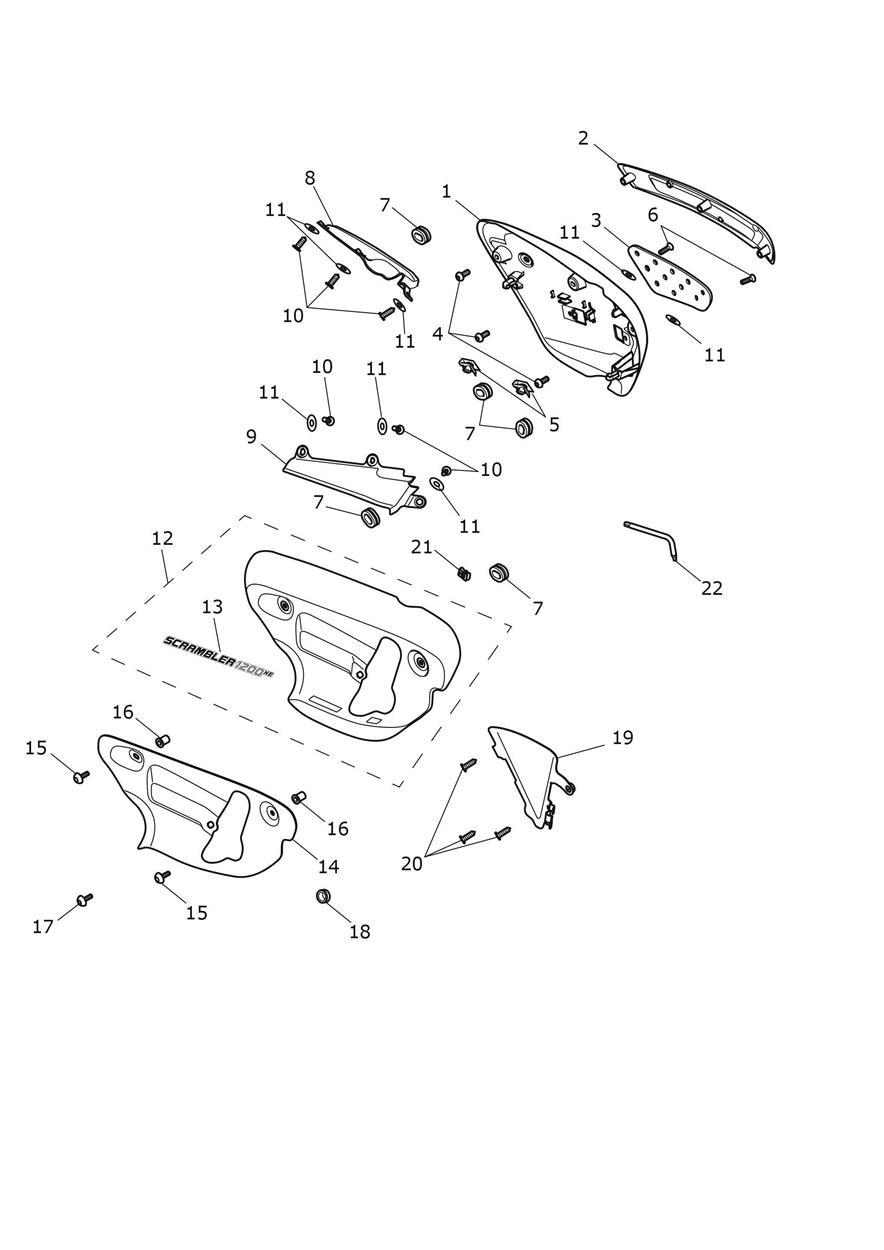

AvailableSide Panels VIN AC8499 to BN8564
T2311131-PG Sidepanel, LH, Painted
Backordered at Triumph · expected Dec 4
$379.04
On backorderT2317709-PM Sidepanel, LH, Sapphire Black
$306.00
AvailableT2309875 Embellisher, Sidepanel, XE
Low stock at Triumph
$66.88
Limited availabilityT2314820 Embellisher, Sidepanel, 1200
$79.28
AvailableT2305891 Embellisher, Sidepanel, Lower
$53.47
AvailableT3330955 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableT3330722 Screw, Csk, M5 x 16, S/S
Low stock at Triumph
$5.15
Limited availabilityT2310930-PG Sidepanel, RH, Painted
Backordered at Triumph · we’ll confirm the ship date after you order
$299.25
On backorderT2310930-PM Sidepanel, RH, Sapphire Black
$299.25
AvailableT2311068-PG Sidepanel, RH, Painted
$379.04
AvailableT2308284 Decal, Sidepanel, RH, White/Yellow
Low stock at Triumph
$29.81
Limited availabilityT2311075 Decal, Sidepanel, RH
$29.81
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableSide Panels VIN BP0885 to CL1736
T2310930-PR Sidepanel, RH, Phantom Black
Backordered at Triumph · expected Nov 6
$378.74

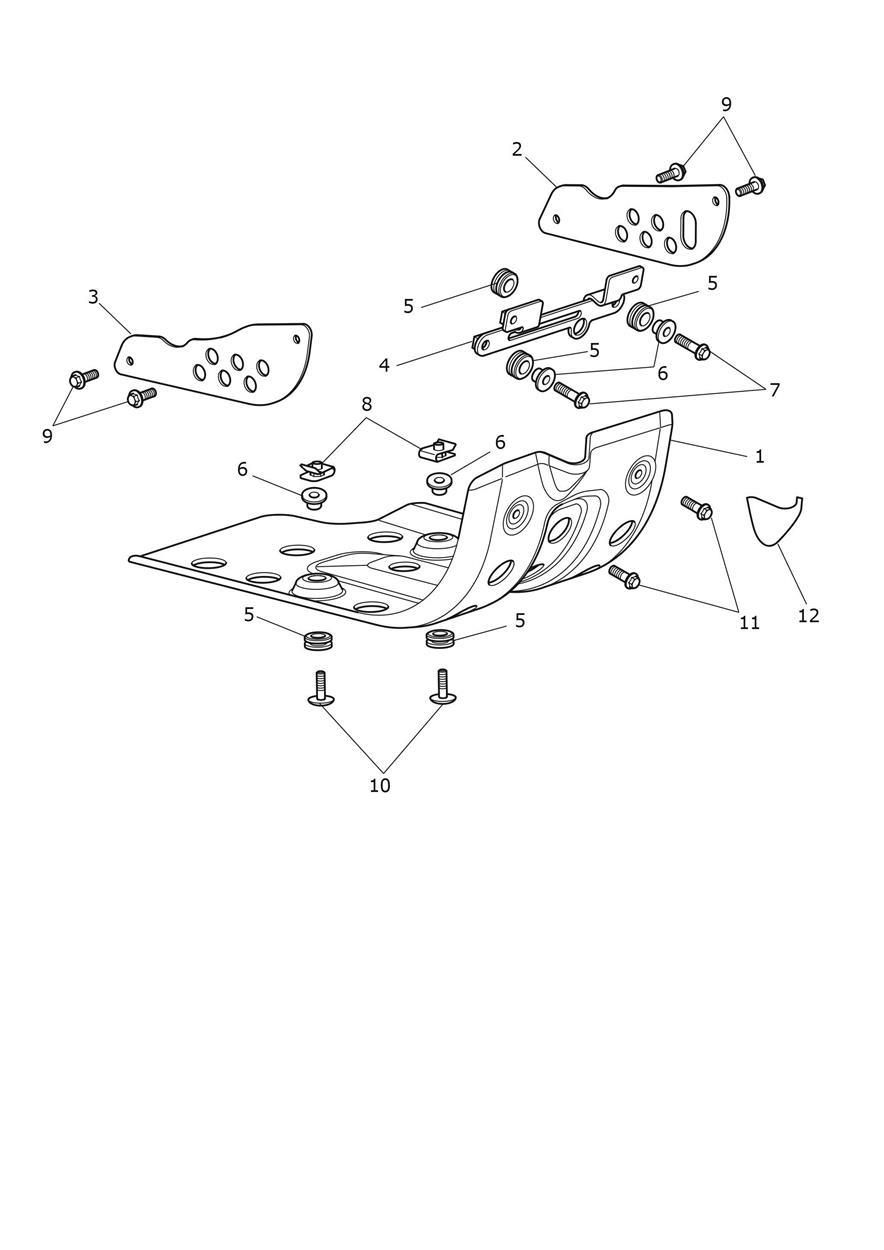

On backorderSumpguard VIN AE9097 and lower
T2307144 Bash Plate
$217.57
AvailableT2307343 Infill, Bash Plate, LH
$70.41
AvailableT2307344 Infill, Bash Plate, RH
$70.41
AvailableT2307885 Bracket, Bash Plate
$18.00
AvailableT3020153 Grommet, 13 x 3 x 10
$1.99
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3200190 Bolt, RHHF, M6 x 25, Slv
$2.43
AvailableT3350111 Nut, Captive, M6
Low stock at Triumph
$4.56
Limited availabilityT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91
AvailableT3330738 Screw, But/Hd, M6 x 25, Enc
$1.99
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT2310397 Hose Guard, Bash Plate
$17.65
AvailableRear Bodywork & Seat VIN AC8498 and lower

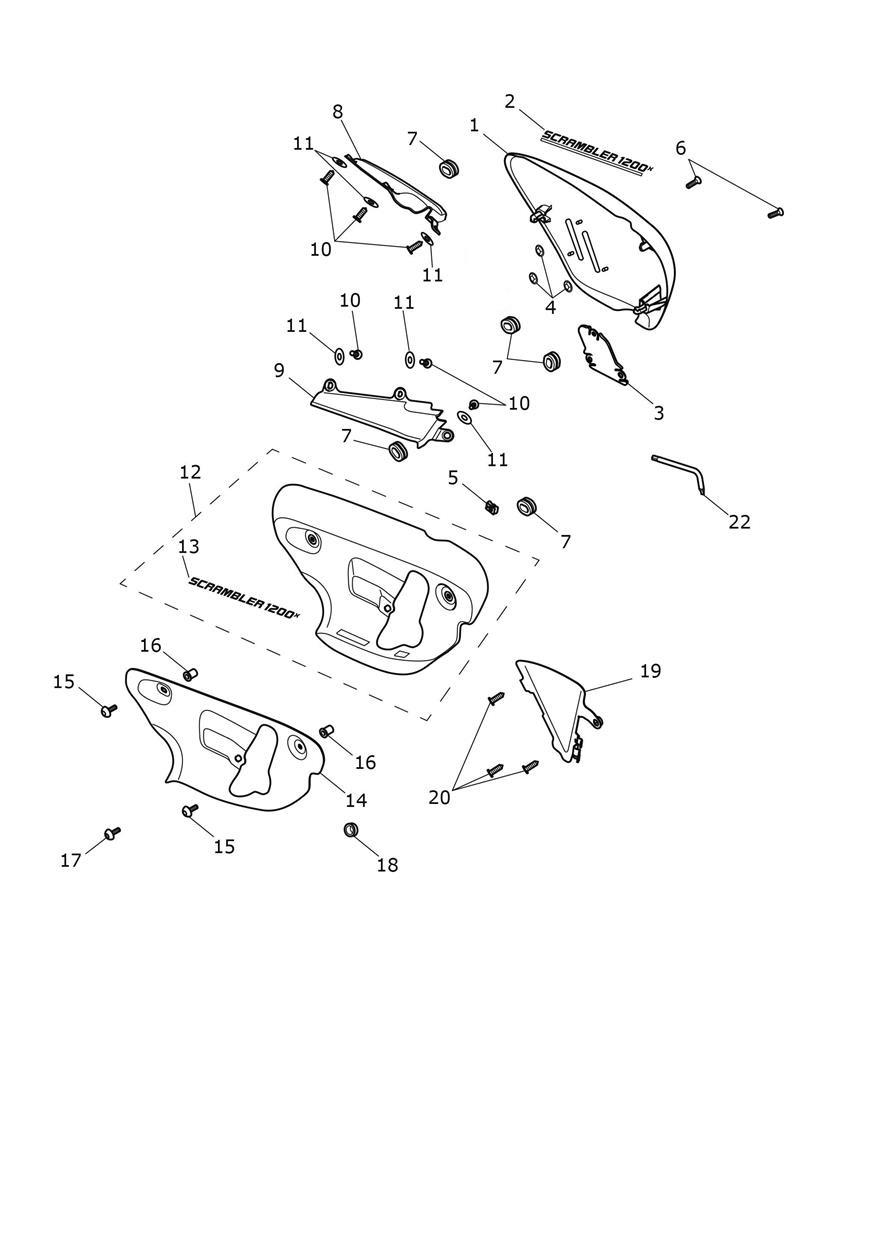

Side Panels VIN AE9098 and higher
T2309290 Embellisher, Sidepanel, XC
Backordered at Triumph · we’ll confirm the ship date after you order
$66.88
On backorderT2310920-PG Sidepanel, RH, Painted
$299.25
AvailableT2310920-PM Sidepanel, RH, Painted
$299.25
AvailableT2308283 Decal, Sidepanel, RH
$29.81

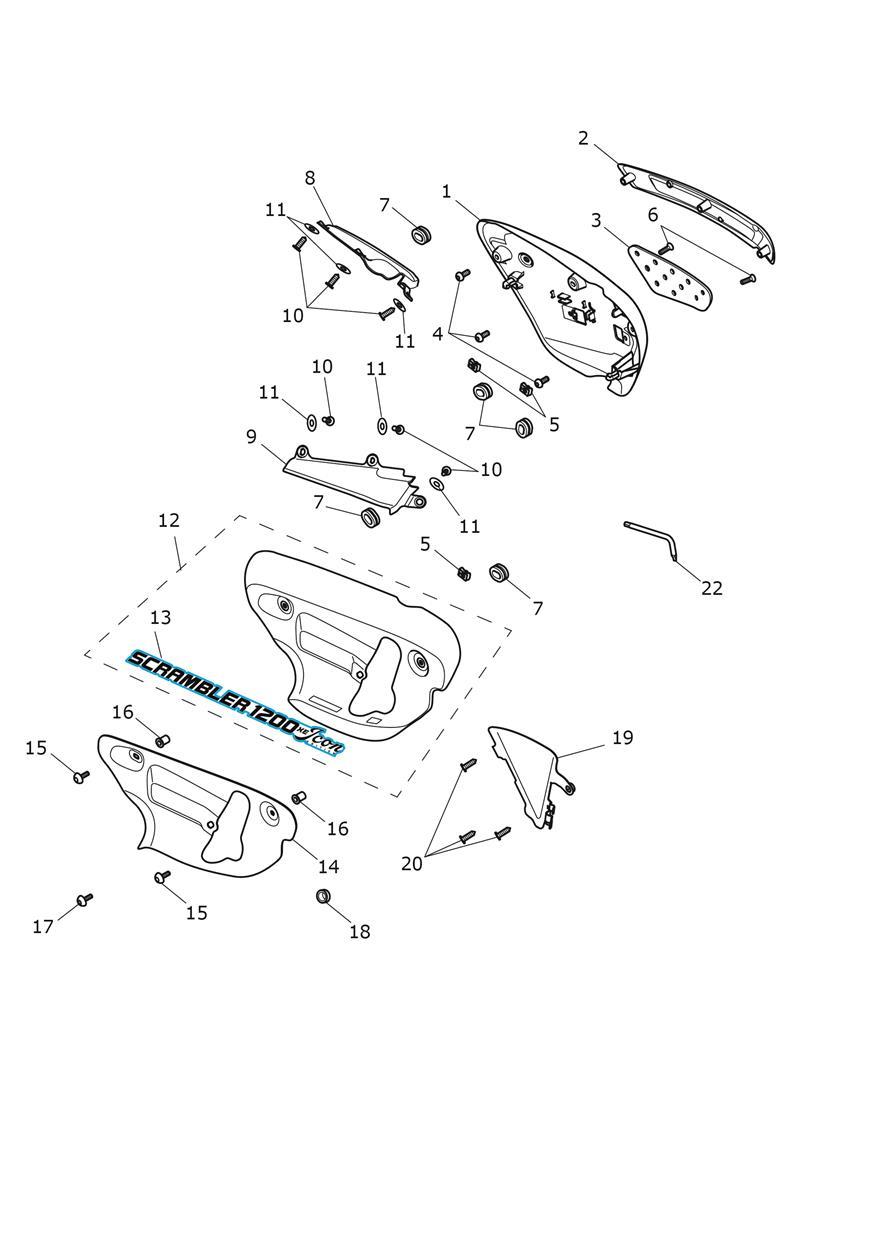

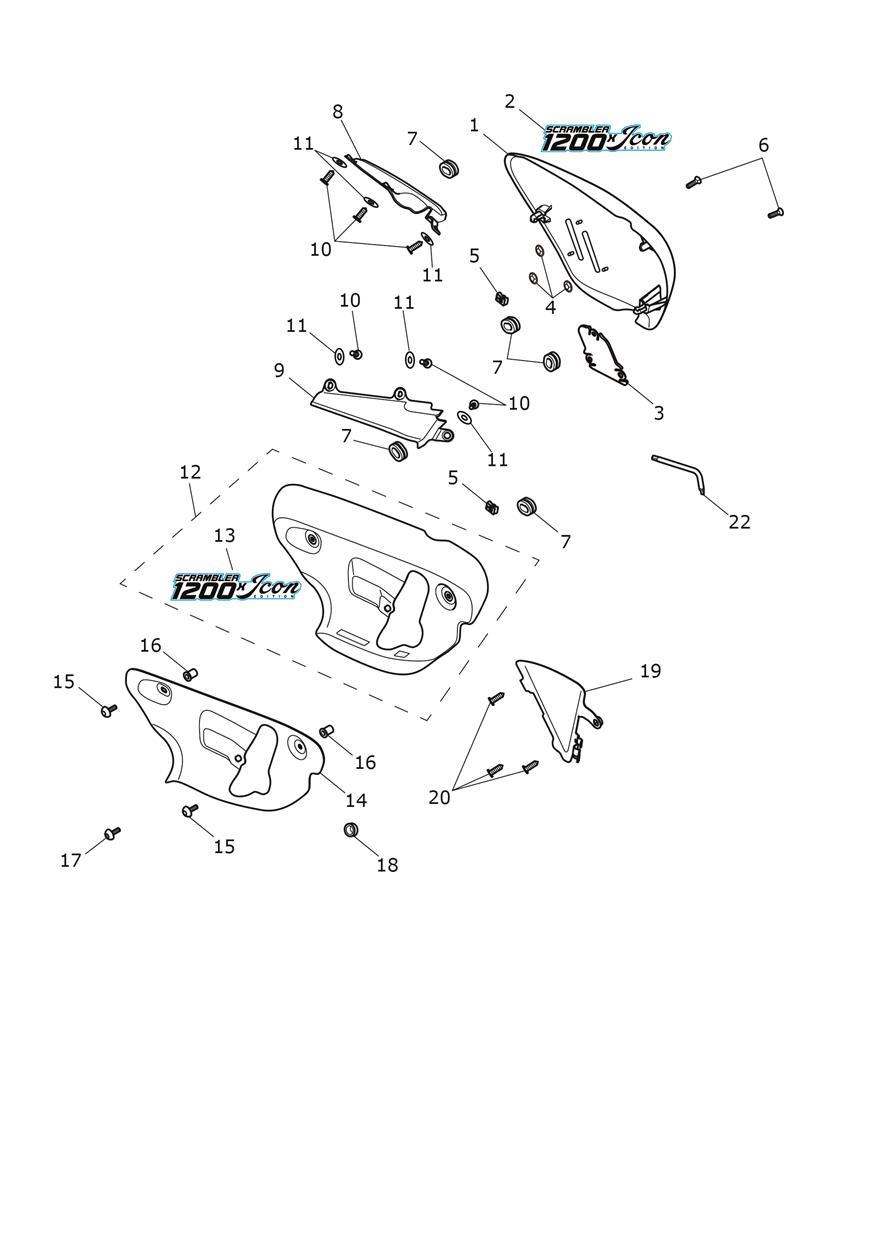

AvailableSide Panels - Icon Edition
T2318102-PM Sidepanel, LH, Sapphire Black
$378.22
AvailableT2313519 Decal, Sidepanel, LH, Icon, Empire Gold
$32.89

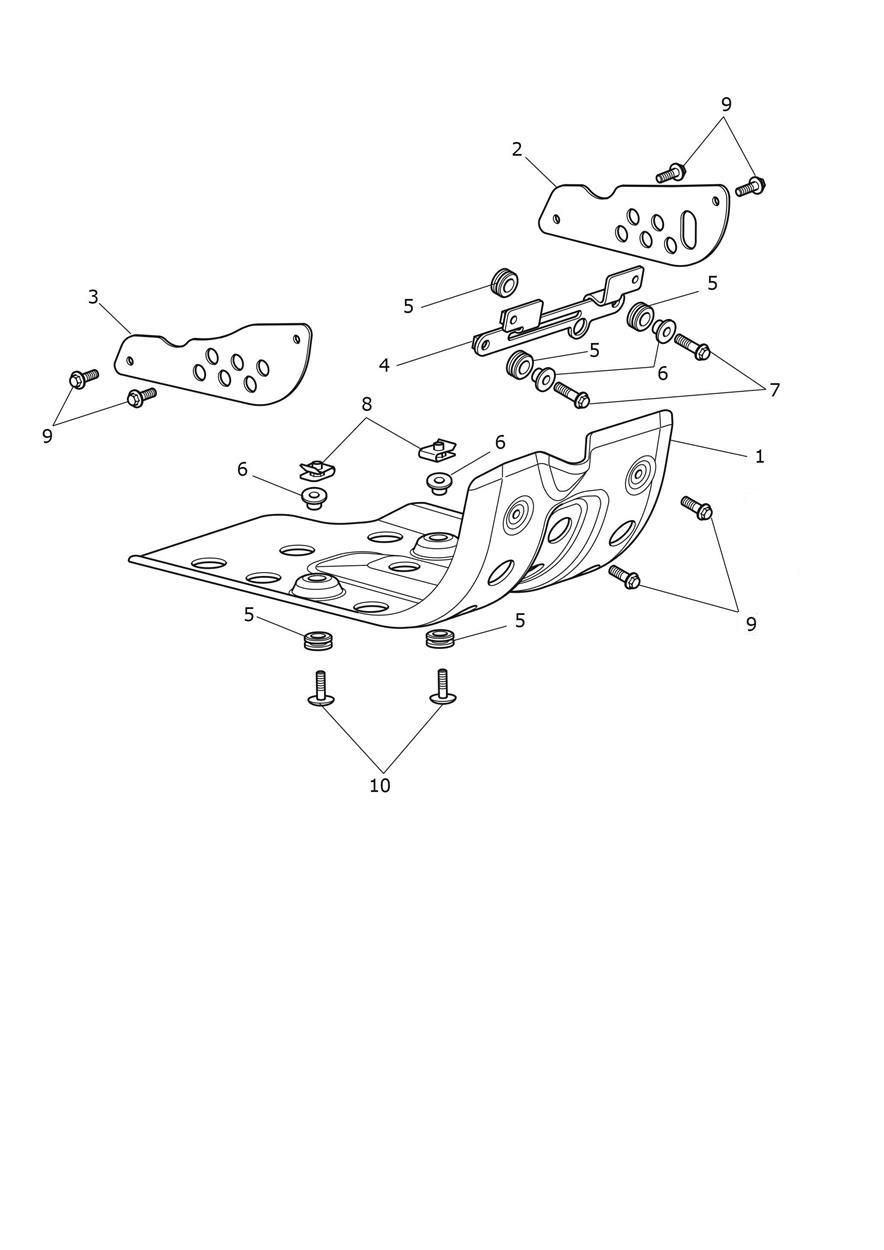

AvailableSumpguard
T2308376 Bash Plate
$198.60
AvailableT2305534 Infill, Bash Plate, LH
$63.19
AvailableT2305533 Infill, Bash Plate, RH
$63.19
AvailableT3330848 Bolt, But/Hd, M6 x 21, Shld, Slv
$5.45
AvailableRear Bodywork & Seat VIN BP0885 to CL1736
Rear Bodywork & Seat
Side Panels VIN AC8498 and lower
T2318011 Sidepanel Assembly, LH, Spares Kit
$170.85
AvailableT3350555 Dome Nut, M5 x 0.8
$3.00
AvailableT3330679 Screw, Csk, M5 x 14, S/S
$4.65
AvailableT3551178 Washer, M5 x 15 x 1.6
$1.99
In stock in BreaT2308285-PG Sidepanel, RH, Painted
$379.04
AvailableT2305774 Heatshield, Sidepanel, RH
$253.09
Available
