Front Suspension & Steering incl. Clutch Controls
Triumph Scrambler 1200 · 21 diagrams
21 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Scrambler 1200, covering the Scrambler 1200 X, Scrambler 1200 XC, Scrambler 1200 XE. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

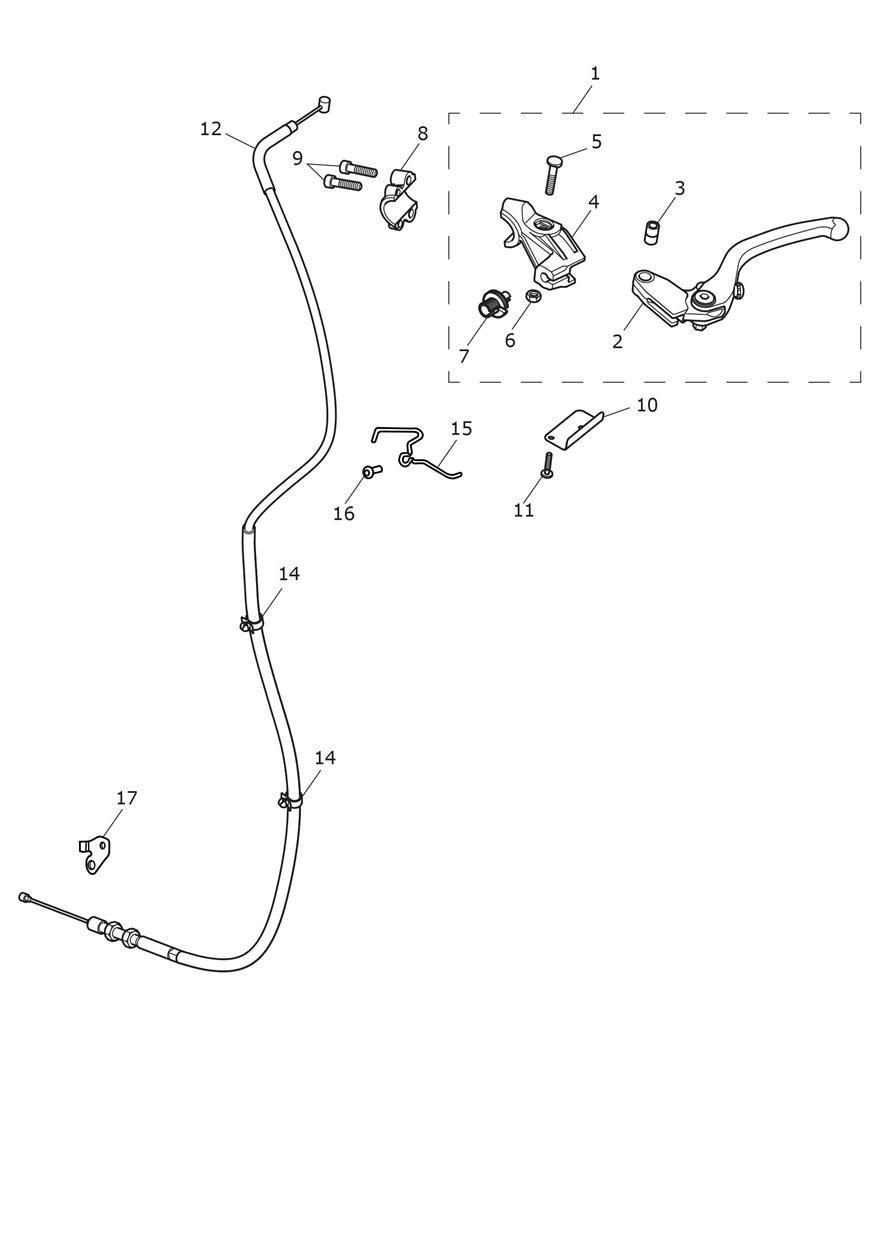

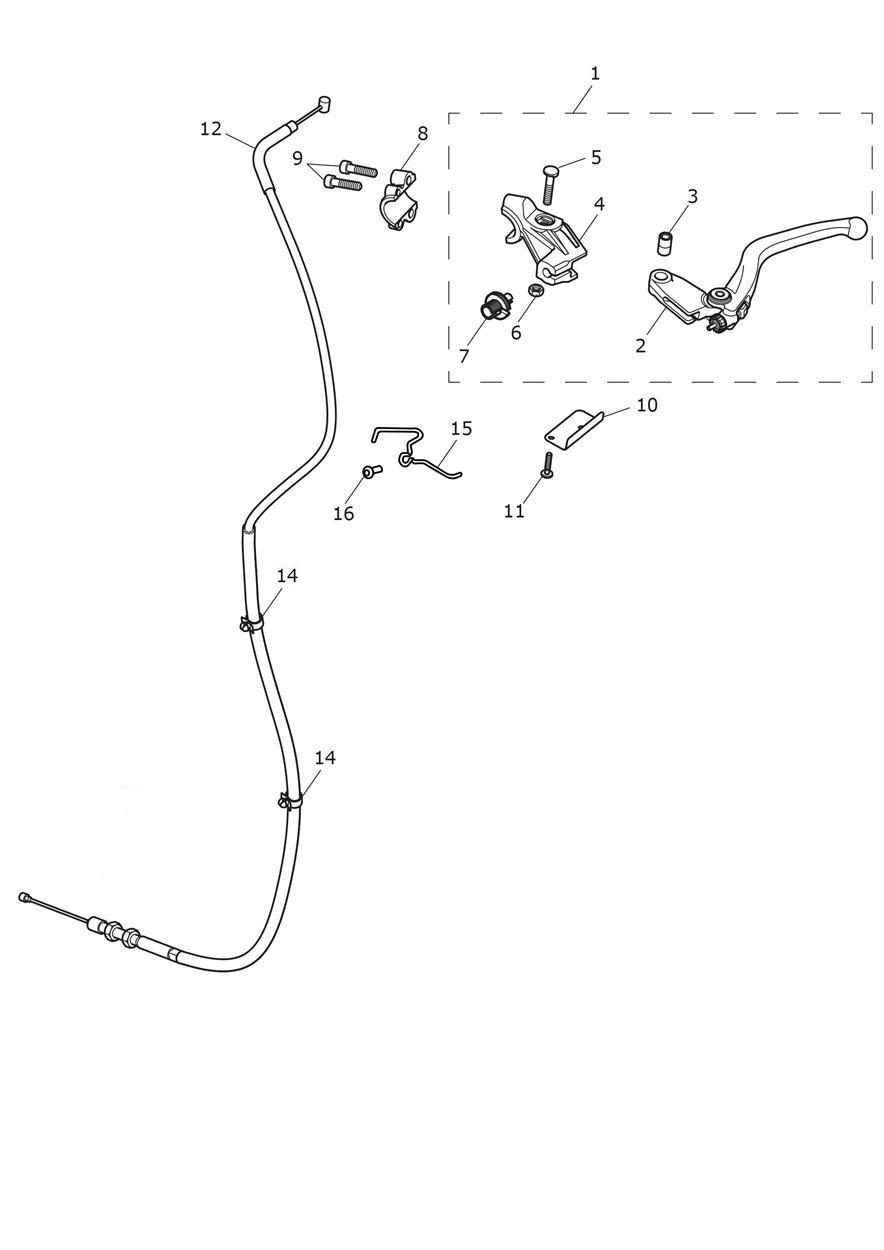

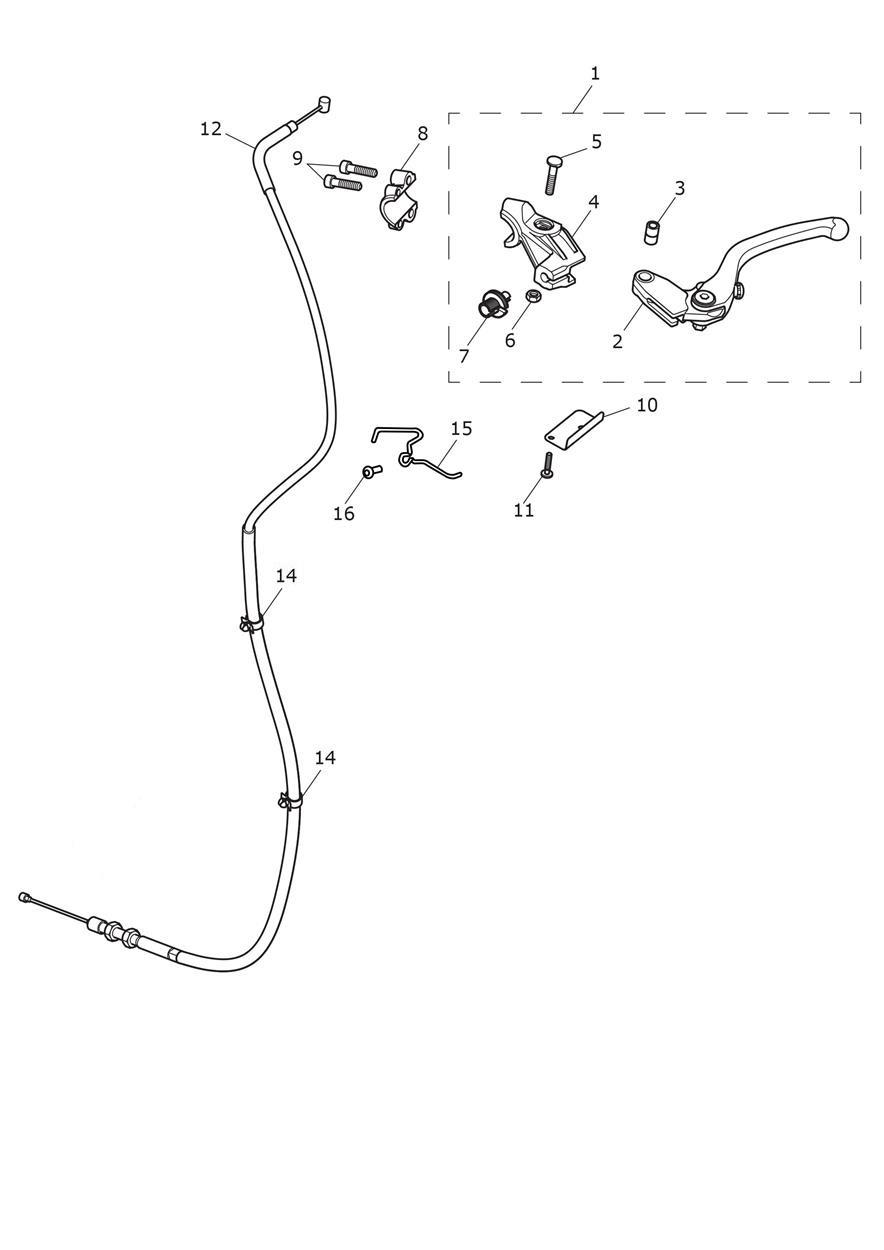

Clutch Controls
14 parts

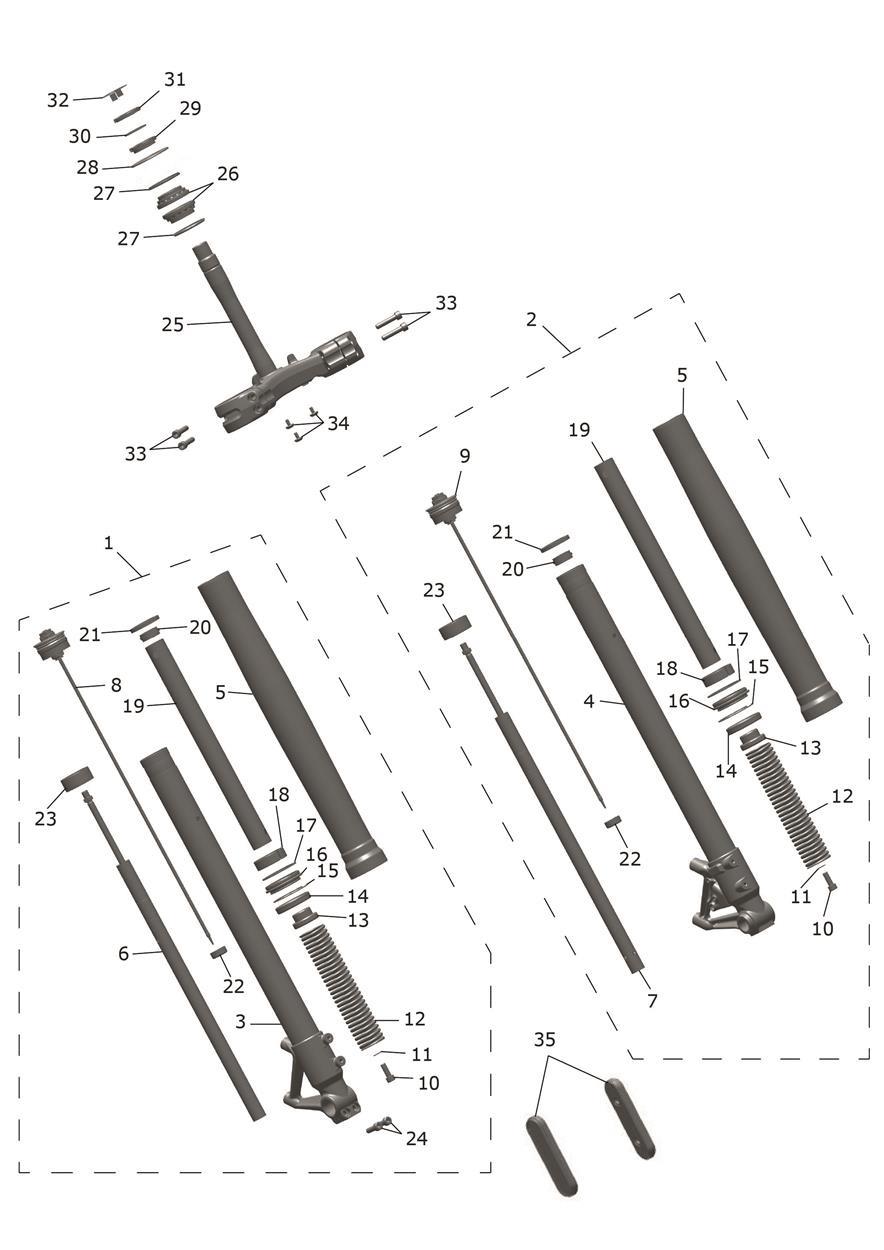

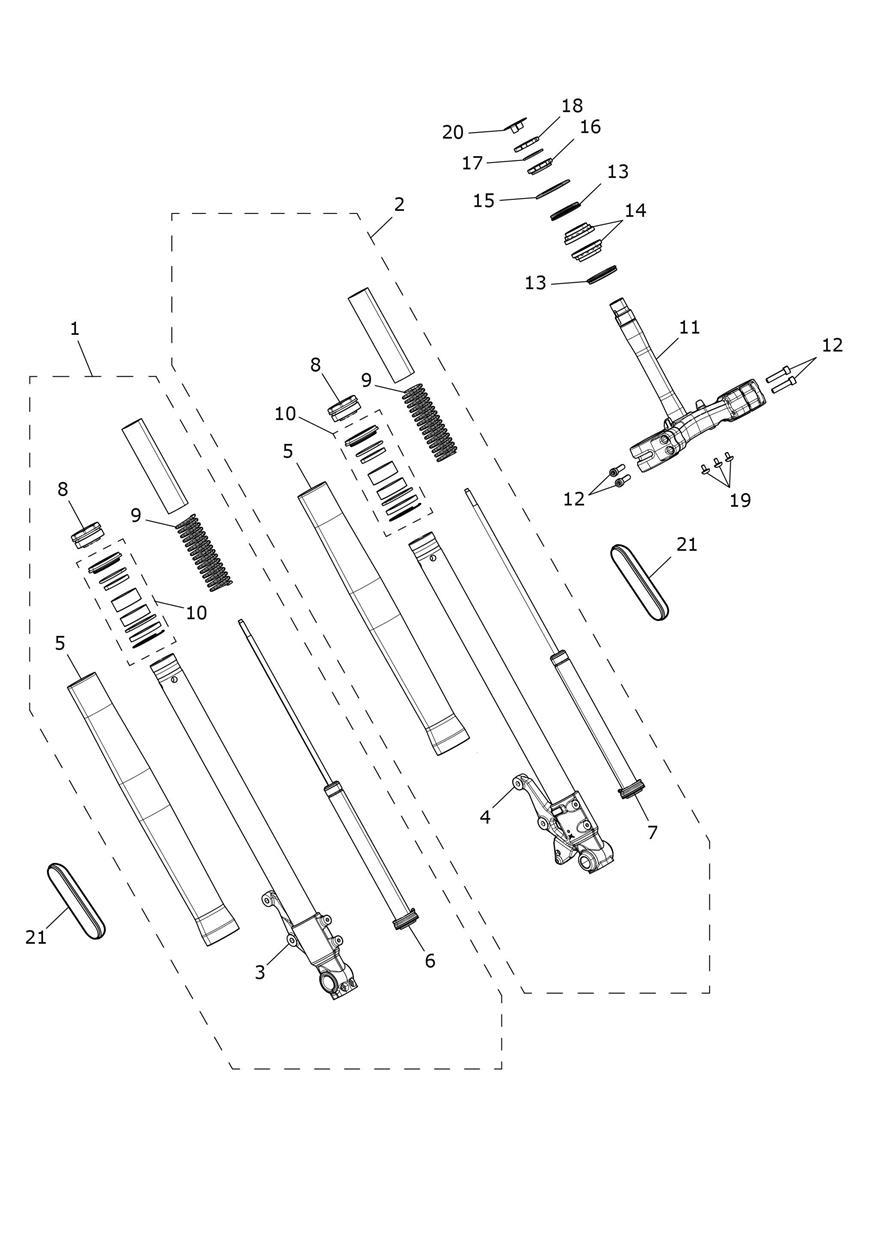

Front Forks & Lower Yoke
35 parts
VIN AC8499 to BN8564

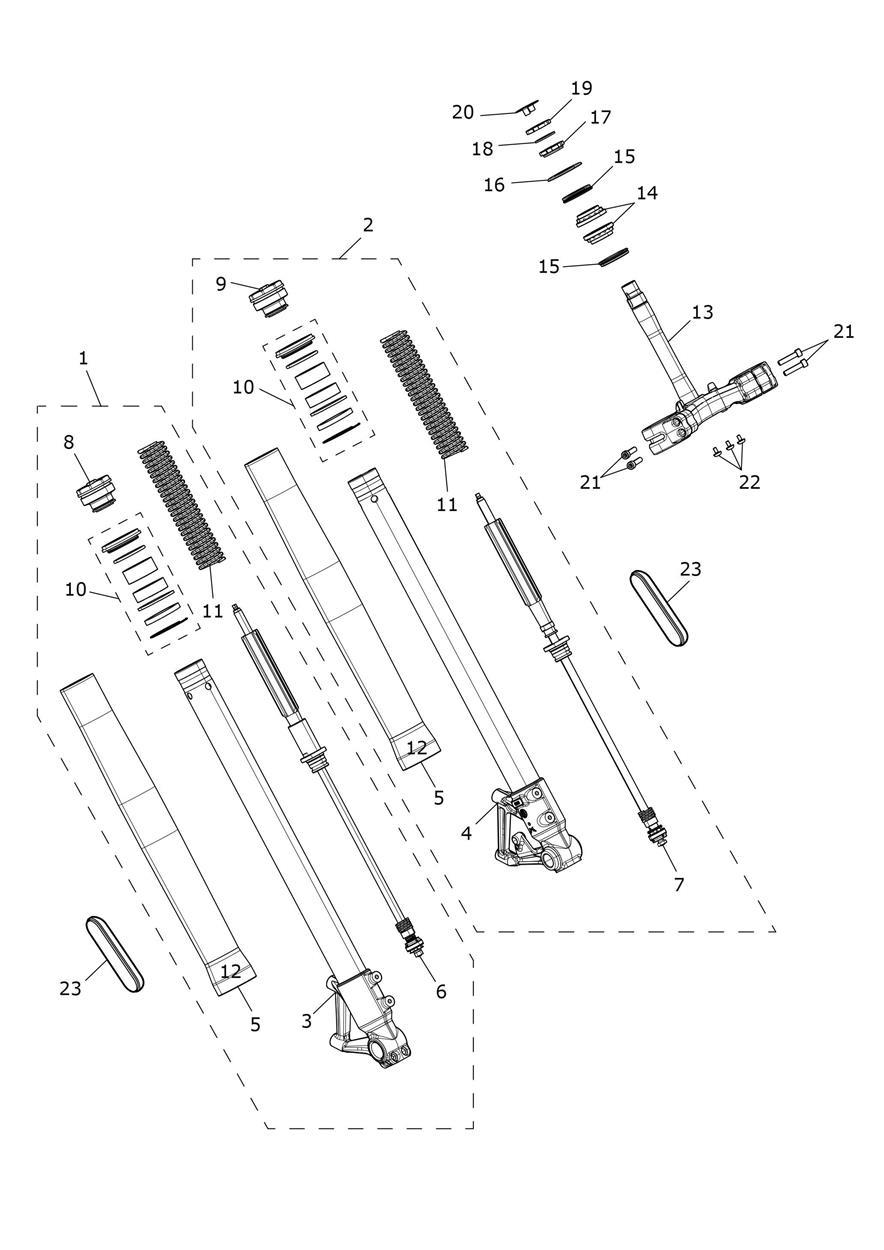

Front Forks & Lower Yoke
35 parts
VIN AC8498 and lower

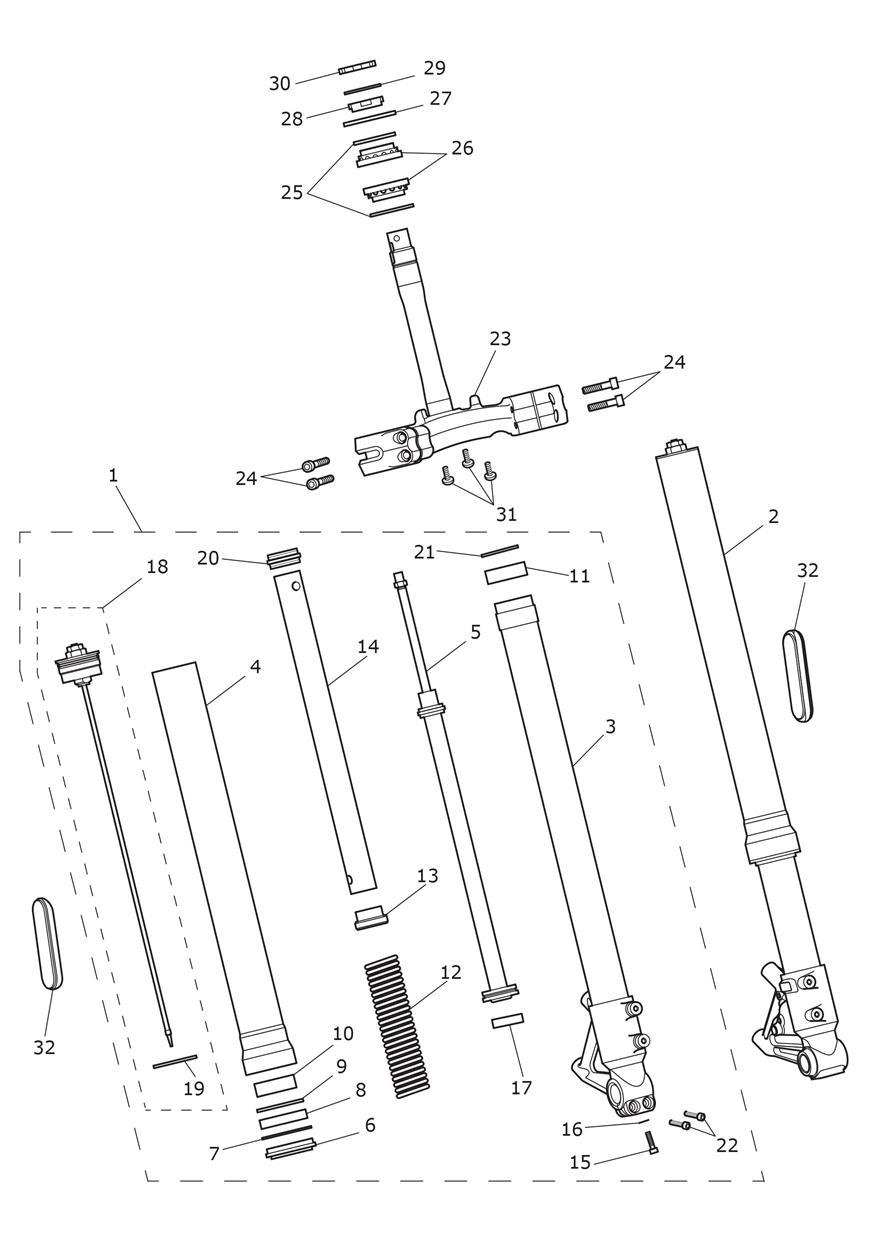

Front Forks & Lower Yoke
35 parts
VIN AE9098 and higher

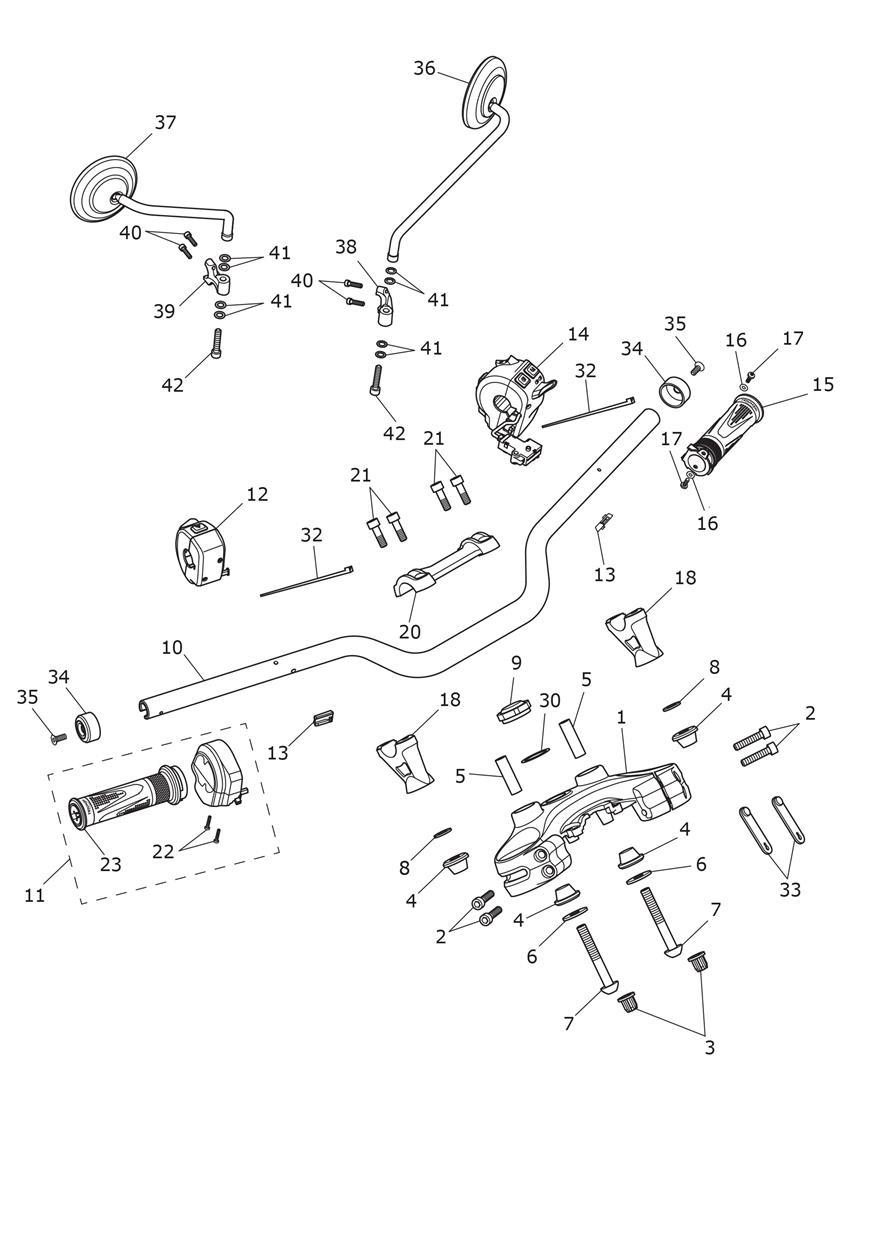

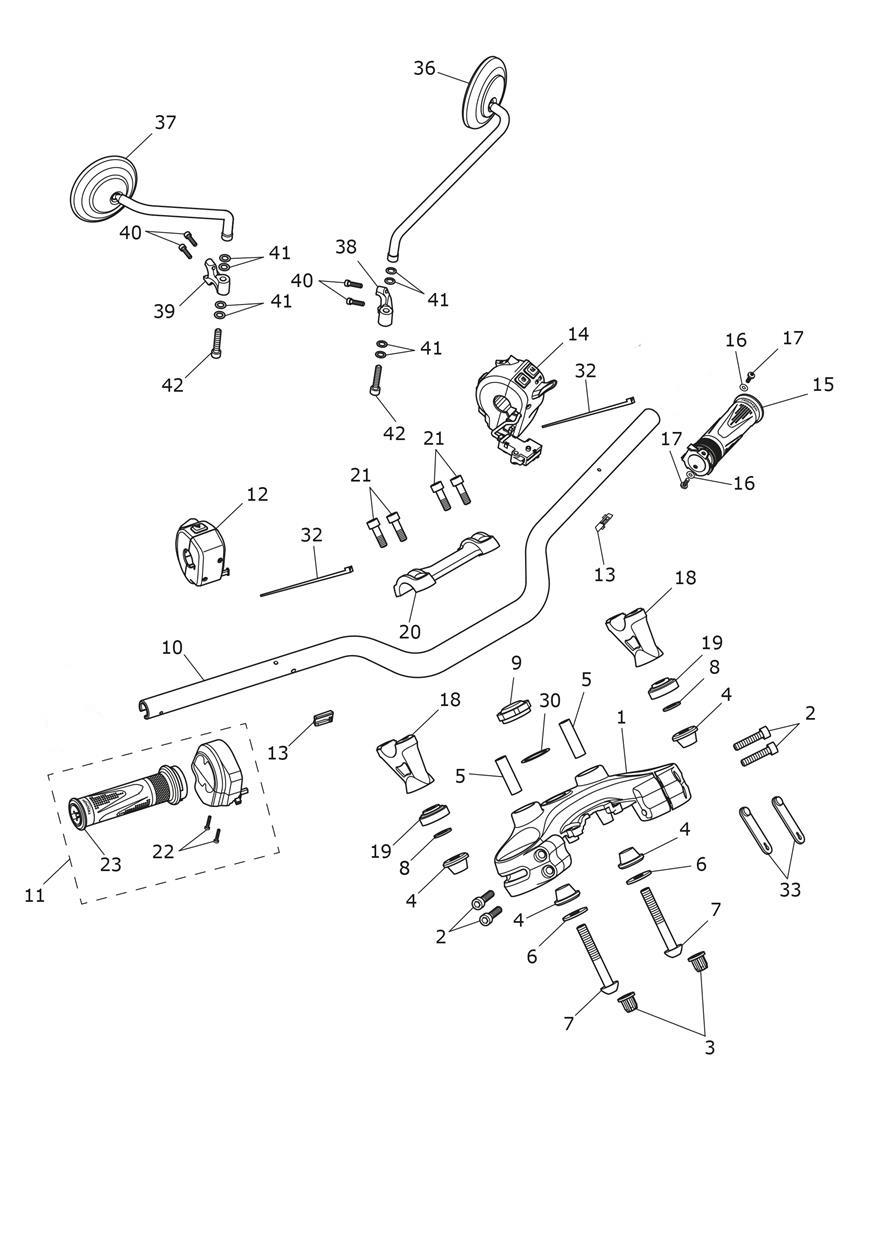

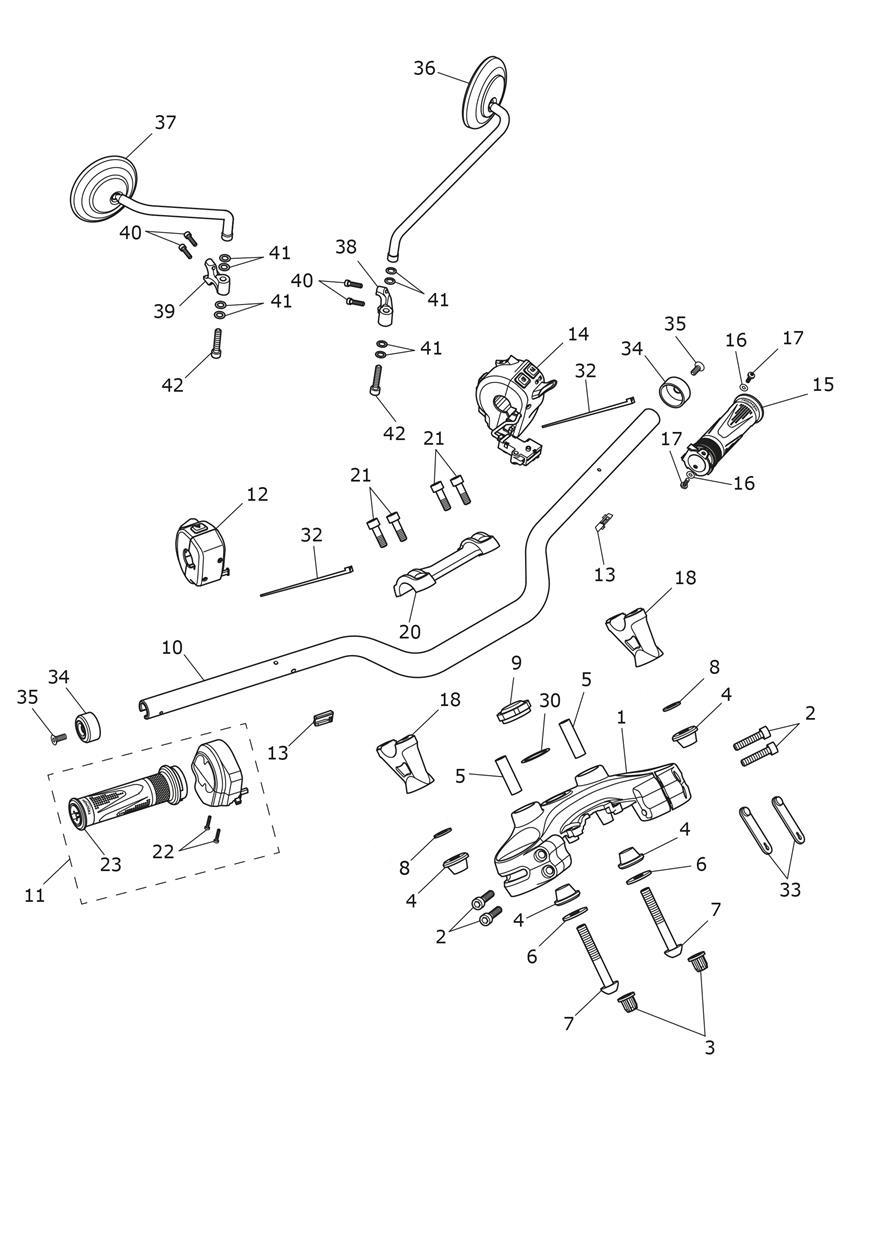

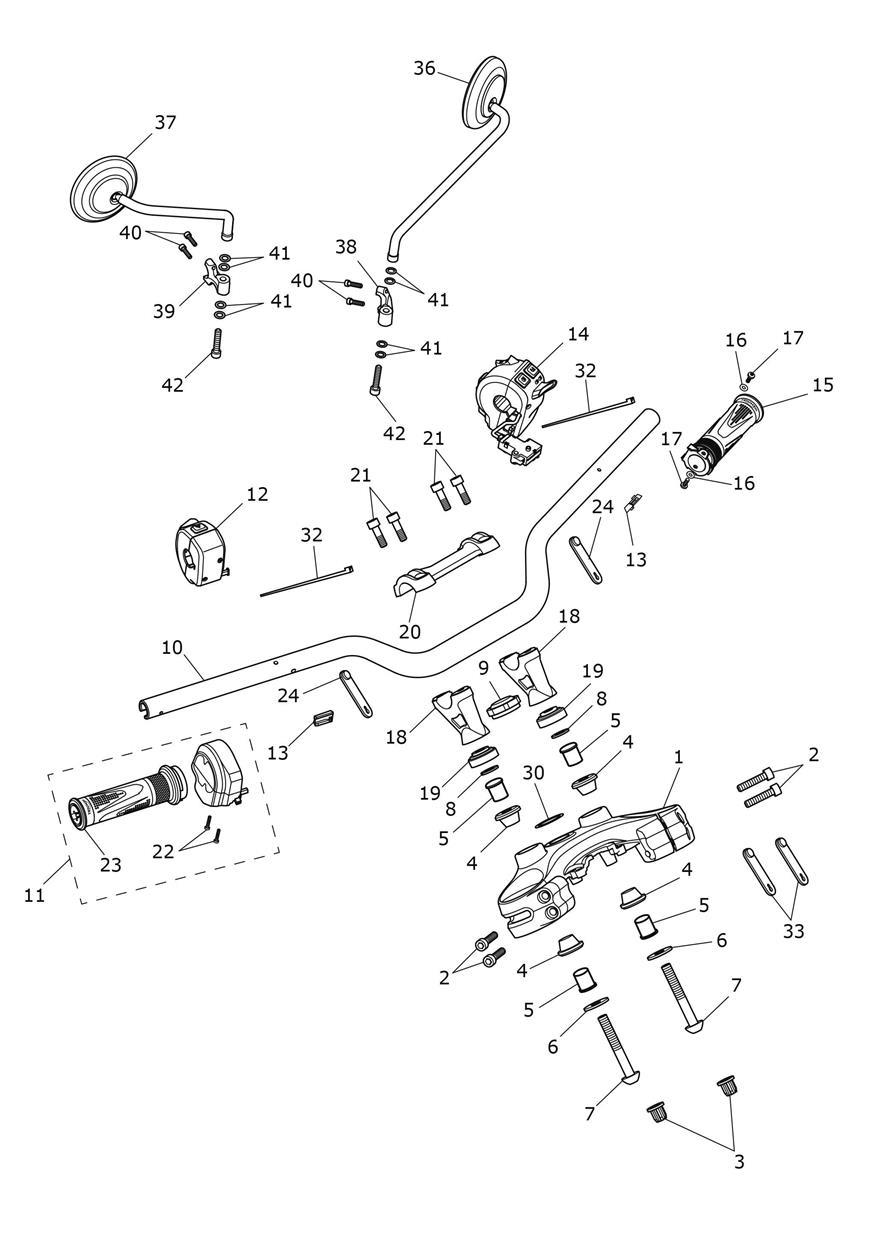

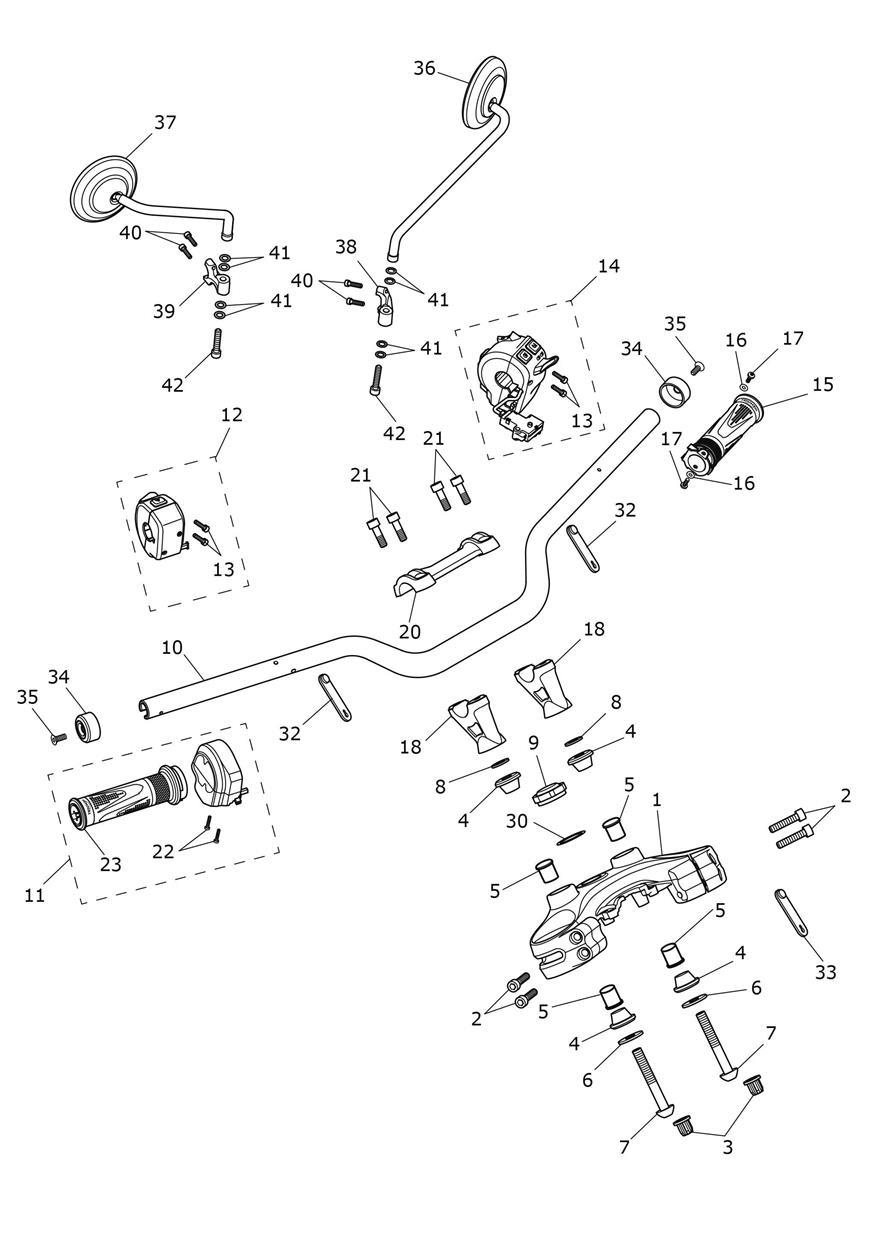

Handlebars, Top Yoke & Mirrors
34 parts
VIN BP0885 to CL1736

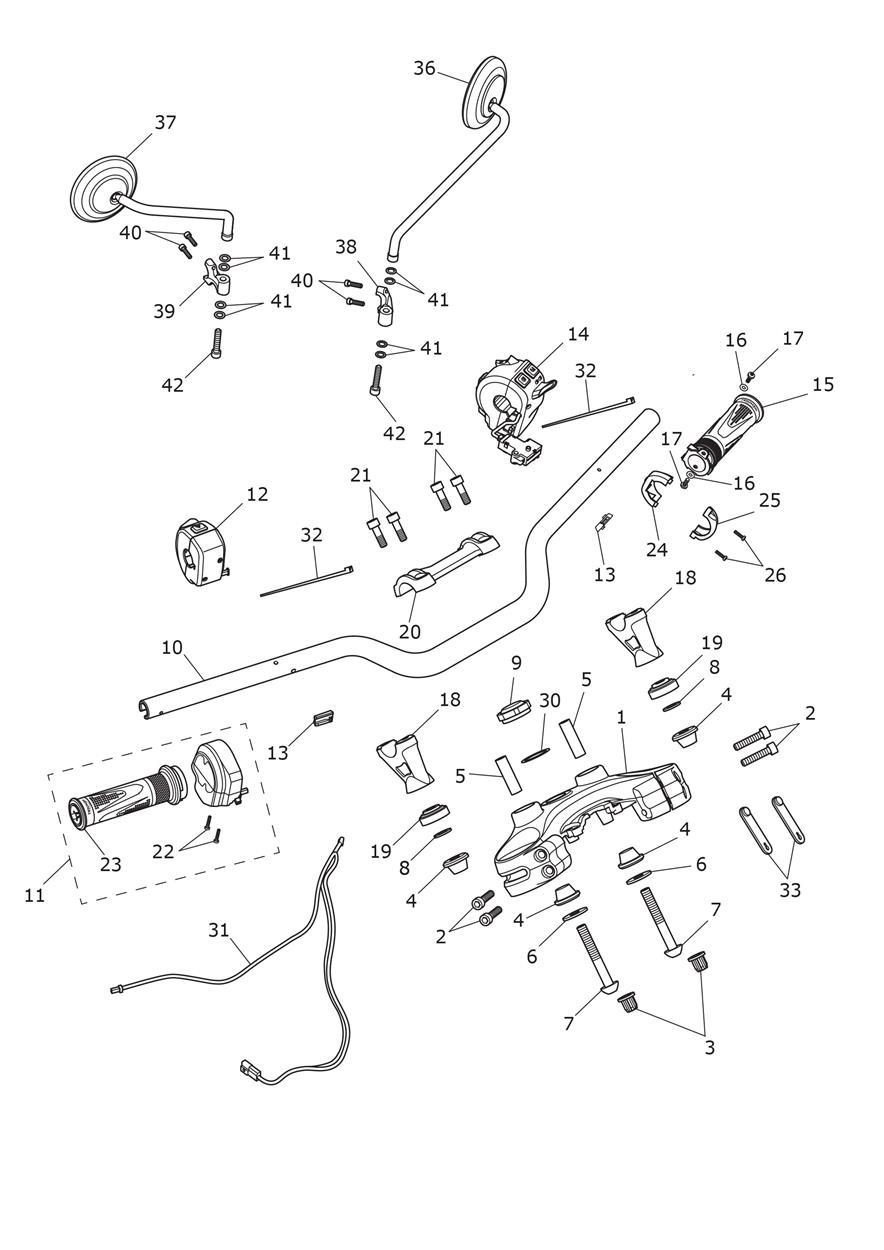

Handlebars, Top Yoke & Mirrors
34 parts
VIN AE9097 and lower
Handlebars, Top Yoke & Mirrors
34 parts
VIN CL1737 and higher

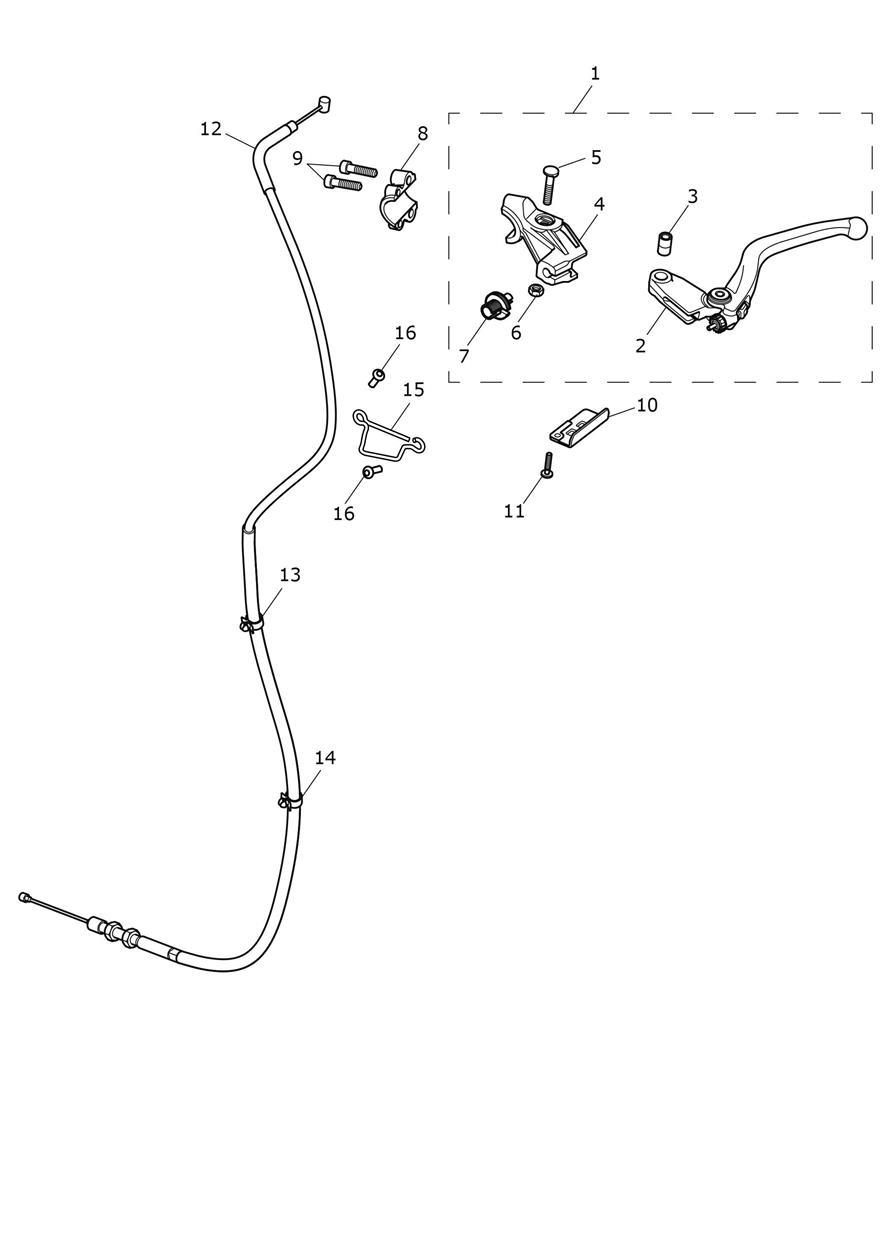

Clutch Controls
16 parts
VIN BP0885 to CL1736

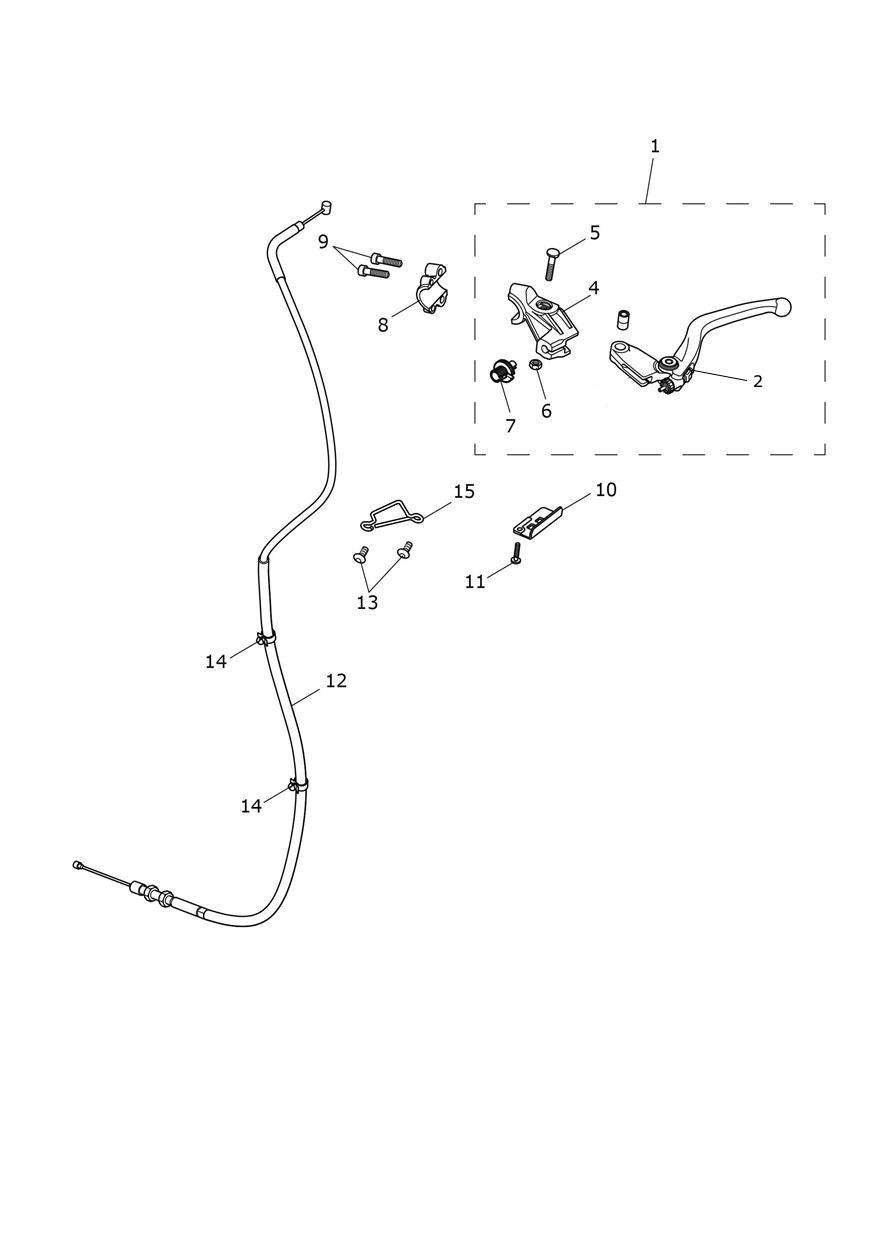

Clutch Controls
15 parts
VIN AC8499 to BN8564
Clutch Controls
16 parts
VIN AE9097 and lower
Front Forks & Lower Yoke
22 parts
Front Forks & Lower Yoke
35 parts
VIN CL1737 and higher
Handlebars, Top Yoke & Mirrors
37 parts
VIN AC8498 and lower
Handlebars, Top Yoke & Mirrors
34 parts
VIN AE9098 and higher
Clutch Controls
16 parts
VIN AC8498 and lower
Clutch Controls
15 parts
VIN AE9098 and higher
Clutch Controls
17 parts
VIN CL1737 and higher
Front Forks & Lower Yoke
23 parts
VIN BP0885 to CL1736
Front Forks & Lower Yoke
35 parts
VIN AE9097 and lower
Handlebars, Top Yoke & Mirrors
34 parts
VIN AC8499 to BN8564
Handlebars, Top Yoke & Mirrors
34 parts
132 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Scrambler 1200 and is priced and orderable online. Open a part to see what it fits and to buy it.
Clutch Controls
T2044643 Clutch Lever Assy, MCS
$154.37
AvailableT2040140 Clutch Lever, MCS, Adjustable
$119.74
AvailableT2046082 Clutch Lever Bracket
Low stock at Triumph
$36.08
Limited availabilityT2046524 Pivot Bolt
$2.43
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046520 Adjuster Screw
$7.90
AvailableT2021627 Clamp, Handlebar Controls, LH
Low stock at Triumph
$44.48
Limited availabilityT3050241 Screw, Cap/Hd, M6 x 25, Blk
$1.99
AvailableT3330283 Screw, Pan/Hd, Tx, M4 x 20, Blk
Low stock at Triumph
$4.39
Limited availabilityT3332656 Screw, Button, M5 x 12, Enc
$1.99
In stock in BreaT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableFront Forks & Lower Yoke VIN AC8499 to BN8564
T2042399 Stanchion Assy, 47mm, RH
$1298.16
AvailableT2043588 Stanchion Assy, 47mm, LH
$1144.92
AvailableT2043348 Slider Assy, RH
$828.61
AvailableT2043340 Slider Assy, LH
$828.61
AvailableT2043341 Outer tube
$393.68
AvailableT2043349 Damper Assy, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$479.32
On backorderT2043342 Damper Assy, LH
$479.32
AvailableT2041541 Dust Seal
$19.13
AvailableT2041690 Oil Seal Stopper Ring
$21.62
AvailableT2045660 Seal, Front Fork
$21.92
AvailableT2045659 Seal Spacer
Low stock at Triumph
$8.10
Limited availabilityT2041173 Bush, Guide
$13.26
AvailableT2041184 Bush, Slider
$13.50
AvailableT2043343 Spring
$75.73
AvailableT2042907 Sealing washer
$1.99
AvailableT2048174 Centering Plate
$13.11
AvailableT2043350 Fork Cap Assy, RH
$116.00
AvailableT2043346 Fork Cap Assy, LH
$116.00
AvailableT2046138 O Ring
Low stock at Triumph
$3.32
Limited availabilityT2046178 Slider
$12.20
AvailableT2043347 Seat Rubber
$3.42
AvailableT2046146 Hex Socket Bolt
$5.02
AvailableT2041681 Lower Yoke Assembly
$642.32
AvailableT3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv
$4.39
AvailableT3600234 Dust Seal, Dia 55
$7.72
AvailableT3800091 Bearing, Sac
$31.43
In stock in BreaT2042138 Cover, Headstock Bearing
$10.10
AvailableT2040301 Adjuster Nut, M30, Lower
Low stock at Triumph
$26.39
Limited availabilityT2044183 Washer, Headstock
$7.68
AvailableT2040304 Locknut, M30
$19.08
AvailableT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99
In stock in BreaT2700454 Amber reflector
$5.69
AvailableFront Forks & Lower Yoke VIN AE9098 and higher
T2043103 Stanchion Assy, 45mm, RH
$1180.16
AvailableT2042190 Stanchion Assy, 45mm, LH
$1180.16
AvailableT2043358 Slider Assy, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$753.31
On backorderT2043351 Slider Assy, LH
$753.31
AvailableT2043352 Outer Tube
$393.68
AvailableT2043354 Dust Seal
$12.71
AvailableT2046143 Oil Seal
$20.68
In stock in BreaT2046144 Seal, Spacer
$18.29
AvailableT2046145 Guide Bush
$12.51
AvailableT2043355 Spring
$75.73
AvailableT2043356 Spg Joint
$7.64
AvailableHandlebars, Top Yoke & Mirrors VIN BP0885 to CL1736
T2043329 Upper Yoke
Backordered at Triumph · expected Nov 6
$586.81
On backorderT2703780 Grommet, Headlight Bracket
$3.24
AvailableT2042136 Rubber Bush, Handlebar Clamp
Low stock at Triumph
$7.64
Limited availabilityT3555030 Washer, 10.5 x 30 x 2.5
$6.16
AvailableT3332552 Bolt, Skt/Hd, M10, 75, LG
$4.91
AvailableT3550632 Washer, 10.5 x 21 x 2
$2.73
AvailableT2049880 Nut, Upper Yoke, M25
$22.62
AvailableT2042445 Handlebar, Aluminium, Natural
$191.55
AvailableT2046075 APS Sensor, Assy
$246.66
AvailableT2044829 Switchcube, RH
Low stock at Triumph
$276.34
Limited availabilityT2049701 Switchcube Mounting Block
$4.91
AvailableT2049754 Switchcube, LH, Variant 22
$187.59
AvailableT2045139 Grip, Handlebar, LH
Low stock at Triumph
$24.67
Limited availabilityT3550500 Washer, 4.3 x 9.0 x 0.8
$1.99
AvailableT3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD
$6.61
AvailableT2042598 Clamp, Handlebar Lower, Black
$46.22
AvailableT2042653 Spacer, Handlebar Clamp
$9.98
AvailableT2042946 Clamp, Handlebar Upper, Black
Backordered at Triumph · expected Nov 6
$63.42
On backorderT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT3050314 Bolt, M5 x 20
Backordered at Triumph · we’ll confirm the ship date after you order
$6.50
On backorderT2044707 Grip, RH
$24.67
In stock in Brea · last onesT3700252 Rubber Band, 88mm
$8.88
AvailableT3550525 Washer, 25.5 x 35 x 0.5
$12.34
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT3700259 Rubber Band, 43mm
$3.61
AvailableT2060087 Mirror Assy, LH
$122.53
AvailableT2060088 Mirror Assy, RH
$122.53
In stock in BreaT2060642 Bracket, Mirror, LH
$85.77
AvailableT2060643 Bracket, Mirror, RH
$85.77
AvailableT3050301 Screw, Cap/Hd. M5 x 20, Blk
$2.03
In stock in BreaT3550278 Washer, Low FR, 8.5 x 14
$5.19
AvailableT3051033 Screw, Cap/Hd, M8 x 40, Enc
$7.96
AvailableHandlebars, Top Yoke & Mirrors VIN AE9097 and lower
T2041761 Upper Yoke
$631.16
AvailableT2048096 Sensor, AP, Cruise
Low stock at Triumph
$222.00
Limited availabilityT2041764 Switchcube, RH, Variant 6
$227.07
AvailableT2042947 Clamp, Handlebar Lower
$46.22
AvailableT2042945 Clamp, Handlebar Upper
$63.42
AvailableT2044901 Grip, Handlebar, RH
$19.86
In stock in BreaT2046667 Finisher, Bar End, Black
$30.19
AvailableT3330959 Screw, Csk, M6 x 16. Slv, Enc
$2.20
AvailableT2060136 Bracket, Mirror, Short, LH
Low stock at Triumph
$36.38
Limited availabilityT2060134 Bracket, Mirror, Short, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$36.38
On backorderClutch Controls VIN BP0885 to CL1736
T2043012 Clutch Lever Assy, Adj
$142.11
AvailableT2043013 Clutch Lever, Adjustable
$82.56
AvailableT2043014 Collar, Clutch Lever
$3.05
AvailableT3700182 Clip, Omega, 18mm x 14mm
$3.81
In stock in Brea · last onesClutch Controls VIN AC8499 to BN8564
T2043059 Clutch Lever Assy, Adj
$61.48
AvailableT2048335 Clutch Lever, MCS, Adjustable
$83.07
In stock in BreaT2042663 Cover, Switch, Clutch
$10.27
AvailableT3332335 Screw, Tx, M4 x 0.7 x 19.5, Black
$3.98
AvailableT2041826 Clutch Cable
$68.49
AvailableT2043053 Guide, Clutch Cable
$13.39
AvailableT3330960 Screw, But/Hd, M5 x 12, Slv Enc
$3.26
AvailableClutch Controls VIN AE9097 and lower
Front Forks & Lower Yoke
T2044904 Stanchion Assembly, 45mm, RH
Backordered at Triumph · expected Nov 6
$1294.73
On backorderT2048462 Stanchion, RH
Backordered at Triumph · expected Nov 6
$862.92
On backorderT2048471 Outer Tube
$545.05
AvailableT2048472 Seal & Bushing Set
$86.48
AvailableT2042738 Rubber Washer
$1.99
AvailableT2044184 Washer, Tabbed
$9.98
AvailableT2048753 Decal, Fork Leg
$34.25
AvailableHandlebars, Top Yoke & Mirrors VIN AC8498 and lower
T2045224 Sensor, AP, Cruise, Heated
$207.55
AvailableT2046369 Heated Grip, LH
$163.63
AvailableT2042078 Heated Grip, RH
Low stock at Triumph
$163.59
Limited availabilityT2043692 Heated Grip, Housing, Switch
$6.83
AvailableT2043694 Heated Grip, Housing, Rear
Backordered at Triumph · we’ll confirm the ship date after you order
$6.76
On backorderT3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk
$4.65
AvailableT2042516 Subharness, Heated Grips
Backordered at Triumph · we’ll confirm the ship date after you order
$34.93
On backorderFront Forks & Lower Yoke VIN BP0885 to CL1736
T2044906 Stanchion Assy, 45mm, Adj, RH
$1277.11
AvailableT2048473 Stanchion, RH
$1044.52
AvailableT2048474 Stanchion, LH
$1044.52
AvailableT2048483 Top Cap Assembly, Rebound
Backordered at Triumph · we’ll confirm the ship date after you order
$227.07
On backorderT2048482 Seal & Bushing Set
$86.48
AvailableT2048484 Decal, Suspension
Backordered at Triumph · we’ll confirm the ship date after you order
$27.23
On backorder
