Clutch & Transmission incl. Gearchange Mechanism

Triumph Scrambler 400 · 8 diagrams

8 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Scrambler 400, covering the Scrambler 400 X, Scrambler 400 XC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

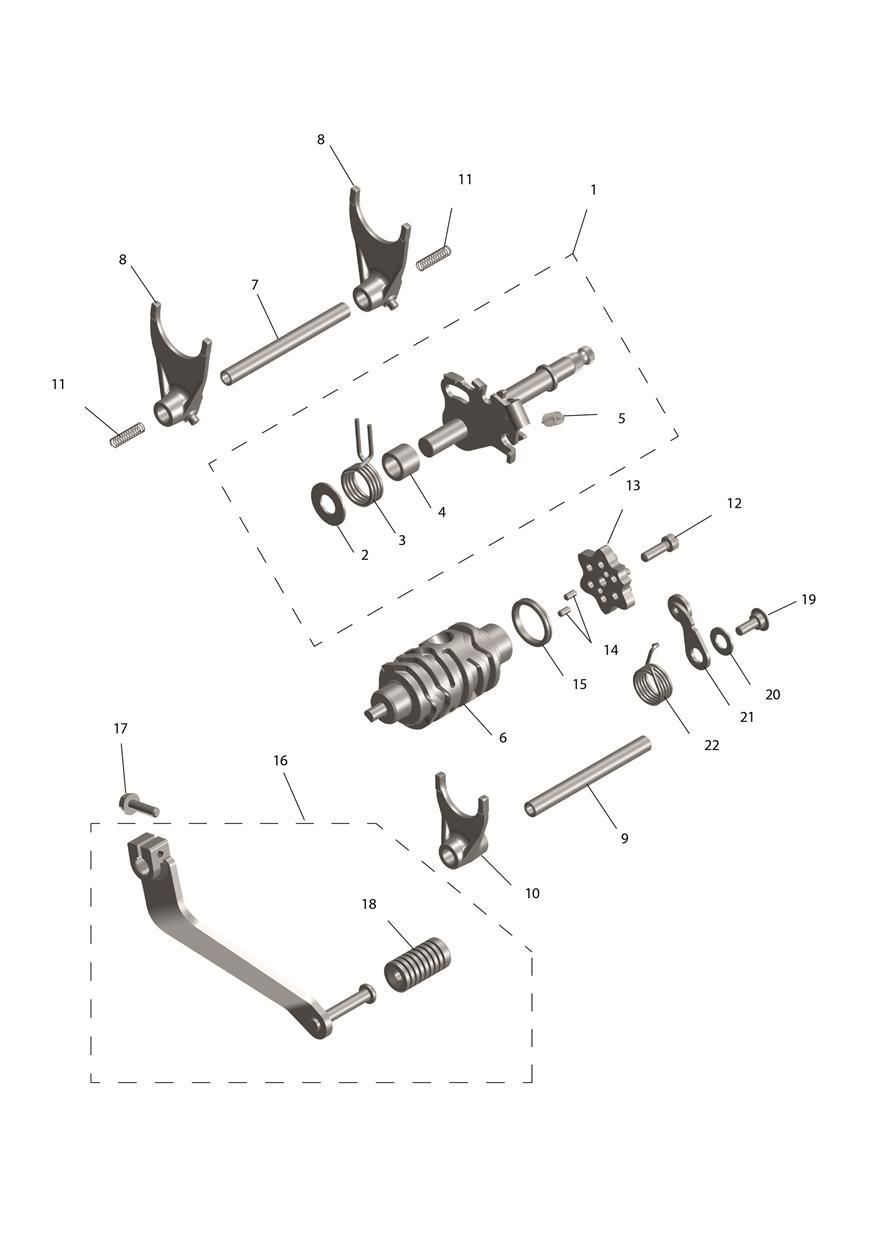

Gear Selection & Pedal exploded diagram
Gear Selection & Pedal
30 parts

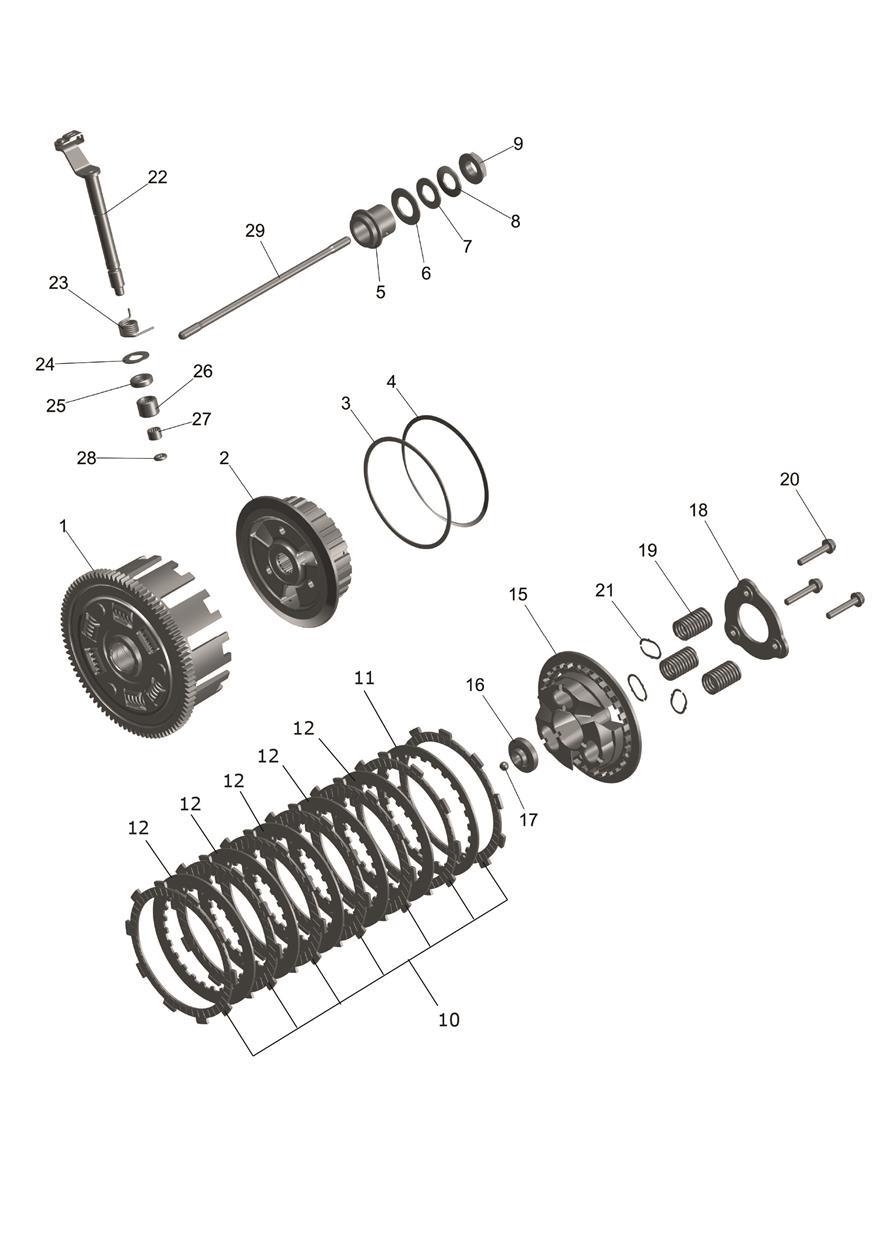

 Clutch exploded diagram
Clutch
27 parts

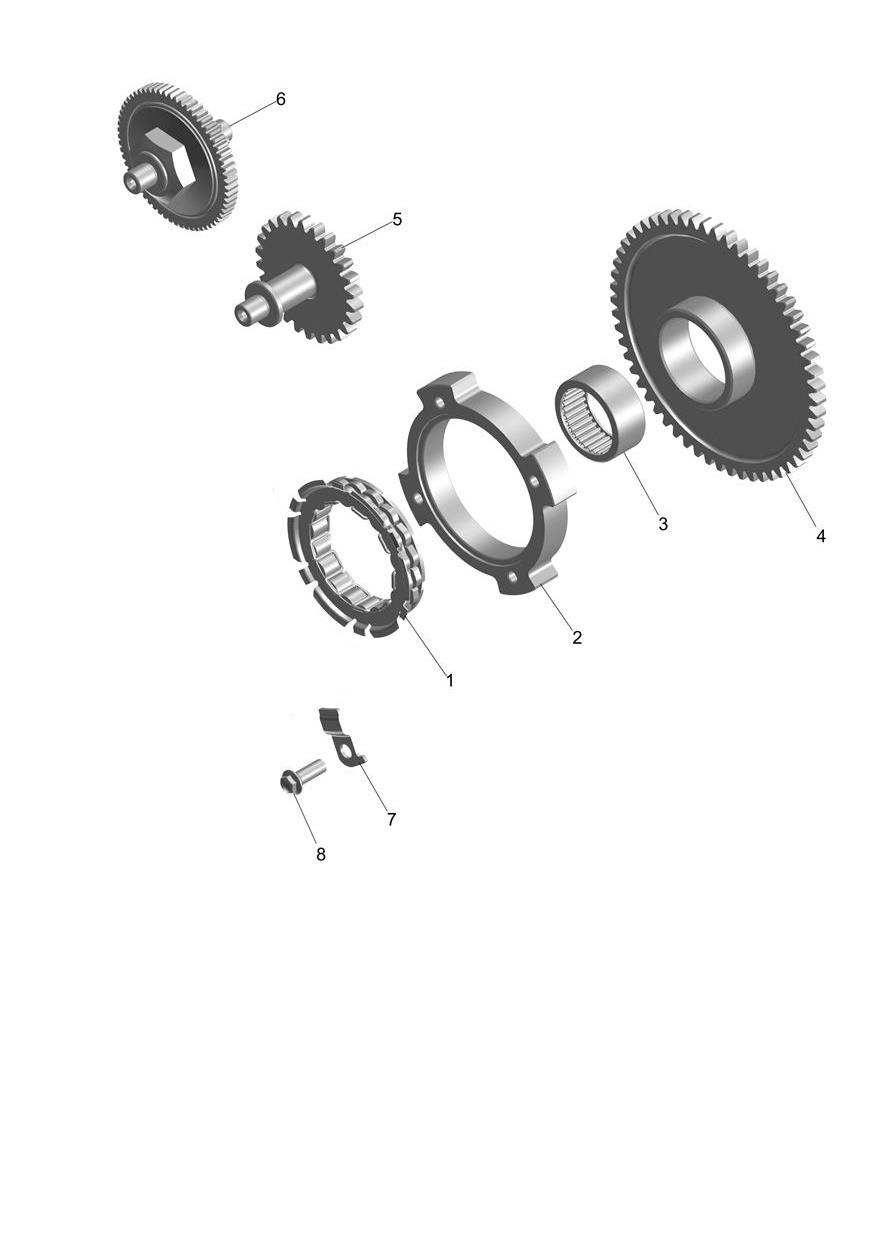

 Starter Drive exploded diagram
Starter Drive
8 parts

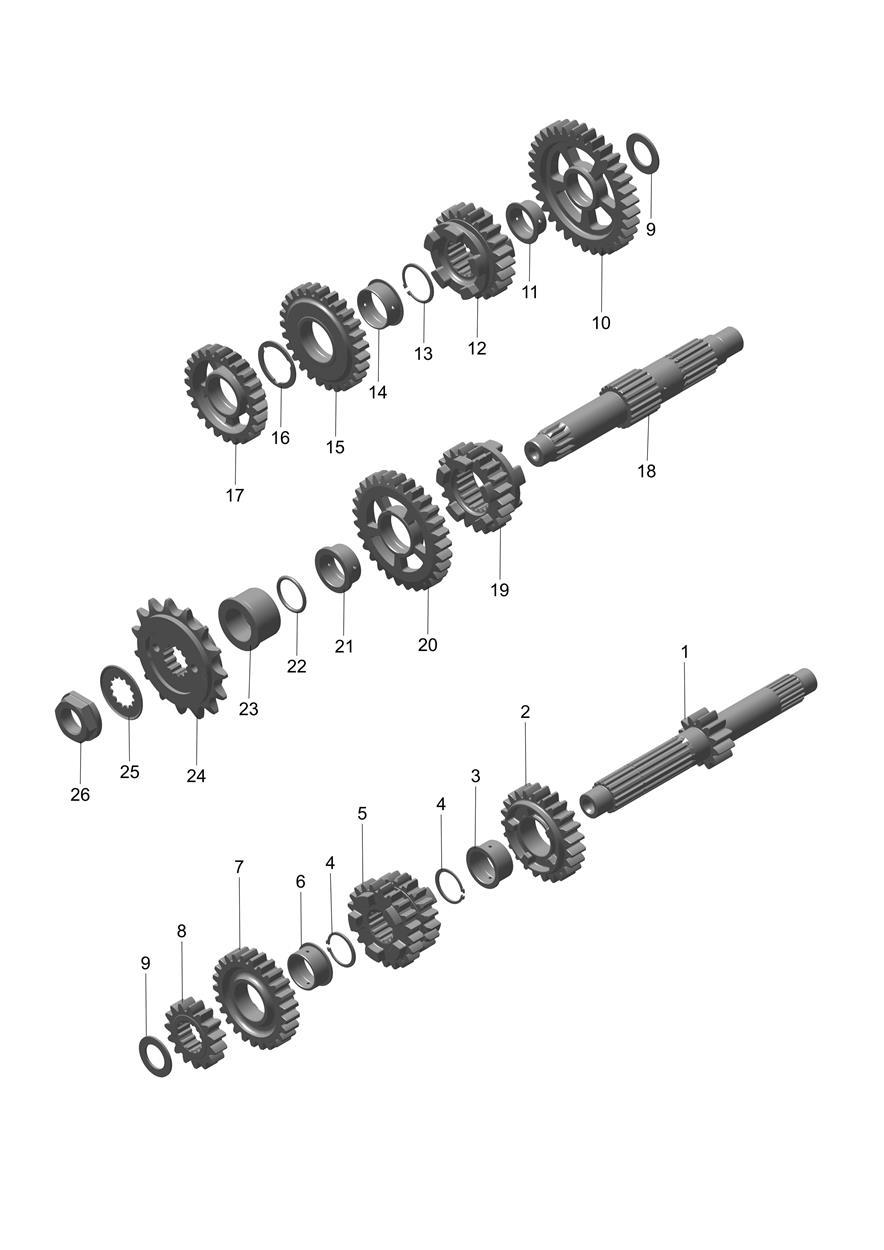

 Transmission exploded diagram
Transmission
26 parts
 Gear Selection & Pedal exploded diagram
Gear Selection & Pedal
30 parts
 Transmission exploded diagram
Transmission
26 parts
 Clutch exploded diagram
Clutch
27 parts
 Starter Drive exploded diagram
Starter Drive
8 parts
