Cooling System
Triumph Scrambler 400 · 2 diagrams

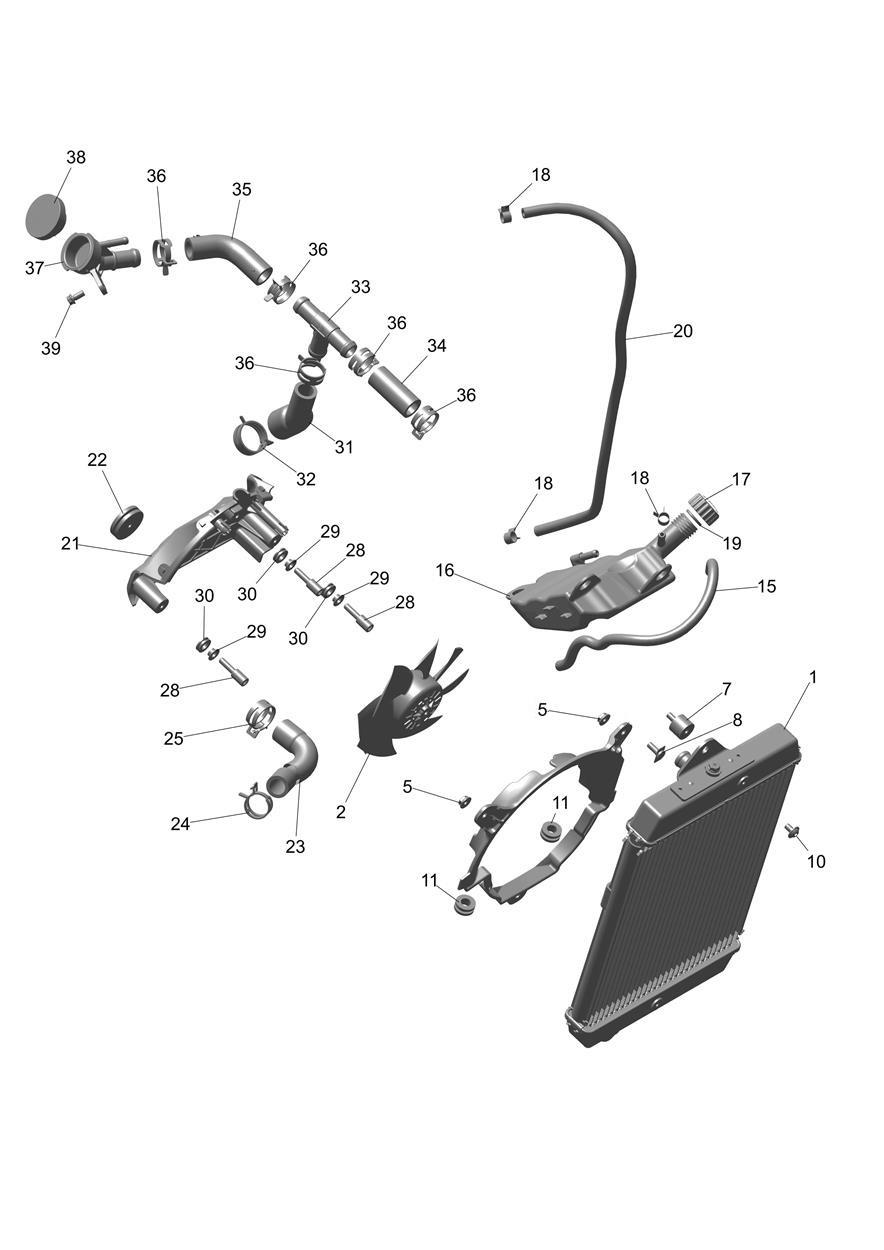

2 exploded diagrams for the cooling system of the Triumph Scrambler 400, covering the Scrambler 400 X, Scrambler 400 XC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
28 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Scrambler 400 and is priced and orderable online. Open a part to see what it fits and to buy it.
Cooling System
TA601200 Radiator Assembly
Low stock at Triumph
$355.90
Limited availabilityTA601209 Fan
Backordered at Triumph · we’ll confirm the ship date after you order
$210.69
On backorderJG581014 Silent Block, M6
$6.20
AvailableLBU00056 Screw, Btn Hd, M6 x 1 x L, 10 x Brt
$1.99
AvailableYTA02019 Bolt, M5
$1.99
AvailableDT181260 Grommet, Battery Box
$1.99
AvailableTA601202 Expansion Tank
Backordered at Triumph · expected Nov 6
$20.13
On backorderTA601227 Cap, Expansion Tank
Low stock at Triumph
$2.30
Limited availabilityJG171029 Clamp
$1.99
AvailableJG601230 Expansion Tank O Ring
$1.99
AvailableTA601213 Pipe, Radiator - Expansion Tank
$4.77
AvailableTA601218 Deflector Assembly
$106.27
AvailableTA601222 Grommet
$1.99
AvailableTA601205 Pipe, Radiator, Inlet
$8.54
AvailableJG601234 Clamp, Dia 23
$1.99
AvailableJG601016 Clamp, Radiator Pipe, Dia 26
$2.20
AvailableLAC00186 Bolt, Socket, M6 x 1
$1.99
AvailableDD181186 Collar
$1.99
AvailableDU151061 Grommet
$1.99
AvailableTA601204 Pipe, Thermostat - Radiator
$9.77
AvailableJL601221 Clamp
$2.20
AvailableTA601216 Joint T
$4.20
AvailableTA601215 Pipe, Connector Radiator
$6.00
AvailableTA601214 Pipe, Cap Radiator Connector
$7.84
AvailableJG601209 Clamp, Radiator Pipe, Dia 24
$1.99
AvailableTA601224 Cap Assembly Radiator
$32.53
AvailableJG601235 Pressure Cap Radiator
Low stock at Triumph
$17.59
Limited availabilityKAED0612 Bolt, Flanged, M6 x 1
$1.99
Available
