Front Suspension & Steering incl. Clutch Controls
Triumph Scrambler 400 · 6 diagrams
6 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Scrambler 400, covering the Scrambler 400 X, Scrambler 400 XC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Front Forks
18 parts
Handlebars & Mirrors
32 parts
Clutch Controls
8 parts
Front Forks
18 parts
Handlebars & Mirrors
32 parts
Clutch Controls
8 parts
54 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Scrambler 400 and is priced and orderable online. Open a part to see what it fits and to buy it.

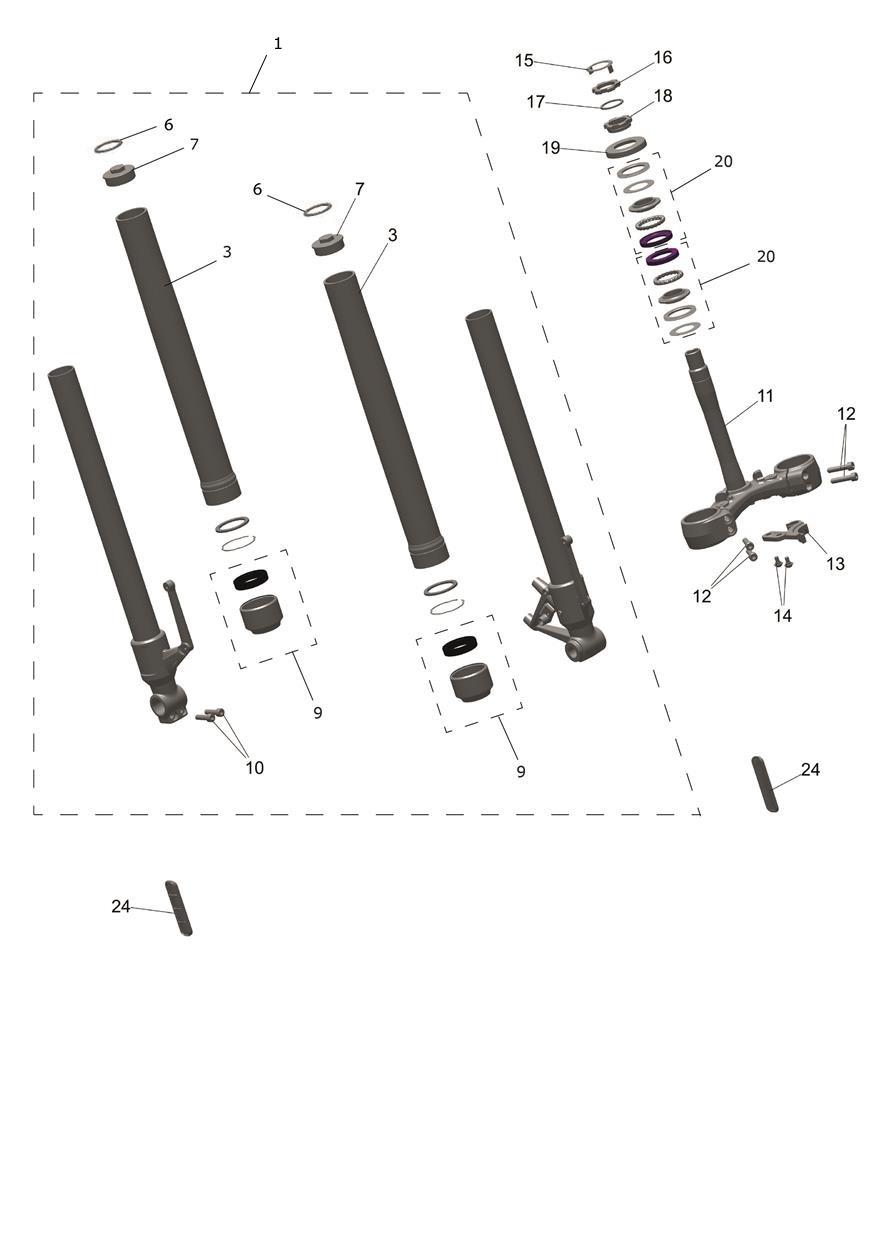

Front Forks
TA121010 Front Fork Assembly
$752.71
AvailableYTA02003 Outer Tube Assembly
$220.00
AvailableJP121068 O Ring
$1.99
AvailableJG121012 Fork Bolt, Screw Cap
$25.13
AvailableYJU34002 Oil Seal Kit
Backordered at Triumph · we’ll confirm the ship date after you order
$31.51
On backorderLAC00230 Bolt, Skt, M8 x 1.25
$1.99
AvailableLAC00231 Bolt, Socket, M8 x 1.25
$1.99
AvailableTA131827 Clamp, Brake Hose
$2.30
AvailableLBU00050 Screw, Btn Hd, Step, M6 x1
$1.99
AvailableTA151035 Lock Washer
$2.73
AvailableTA151011 Lock Nut
$7.11
AvailableTA151036 Plain Washer
$1.99
AvailableTA151012 Steering Nut
$10.39
AvailableTA151013 Cap
$1.99
Available36TA0132 Kit, Steering Race
$28.24
AvailableJH401031 Reflector, Reflex, Side
$7.02

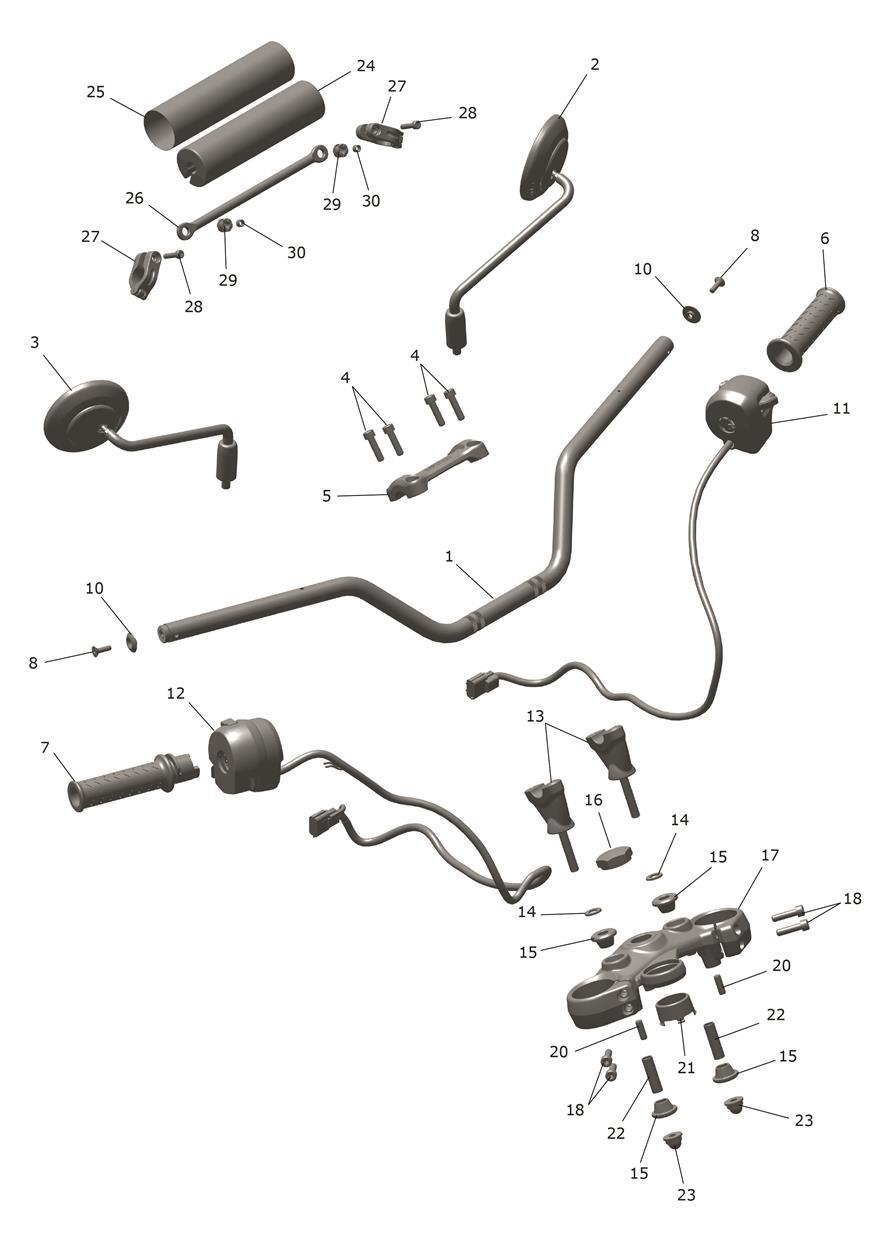

AvailableHandlebars & Mirrors
TA151034 Handlebar
Low stock at Triumph
$71.01
Limited availabilityTA231600 Mirror, LH
$116.84
AvailableTA231601 Mirror, RH
$116.84
AvailableLAC00232 Bolt, Socket, M8 x 1.25
Low stock at Triumph
$1.99
Limited availability56TA6B58 Holder, Handlebar, Upper
Backordered at Triumph · expected Nov 20
$16.48
On backorderTA151002 Grip, LH
$24.80
AvailableTA151017 Grip Assy, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$12.80
On backorderLBC00019 Bolt, Socket, M6 x 1
$1.99
AvailableTA151088 End Cap
Low stock at Triumph
$6.80
Limited availabilityTA401408 Control Switch, LH
$101.09
AvailableTA401417 Control Switch, LH
$99.79
AvailableTA401409 Control Switch, RH
$229.77
Available56TA6A58 Handlebar Holder, Lower
$28.74
Available39258811 Plain Washer
Low stock at Triumph
$1.99
Limited availabilityTA151015 Damper
$1.99
AvailableLCE00006 Nut Cap M25 x 1
Low stock at Triumph
$28.58
Limited availabilityTA151038 Bracket, Upper
$287.77
AvailableLAC00229 Bolt, Socket, M8 x 1.25
$1.99
AvailableLHD00010 Pin, Dowel, Dia 8
$1.99
AvailableTA181307 Cover Switch Ignition Upper
$1.99
AvailableTA151026 Spacer
Low stock at Triumph
$1.99
Limited availabilityDG181087 U-Nut, Cap, M10 x 1.25
$2.00
AvailableTA151071 Pad, Brace, Handlebar
$46.88
AvailableTA151072 Cover, Pad, Brace
$24.67
AvailableTA151078 Bar Assy, Pad Brace
Low stock at Triumph
$46.88
Limited availabilityTA151073 Holder Assembly
$77.50
AvailableKACN0625 Bolt, M6 x 1
$1.99
AvailableTA151076 Grommet
$1.99
AvailableJP181247 Sleeve
$1.99

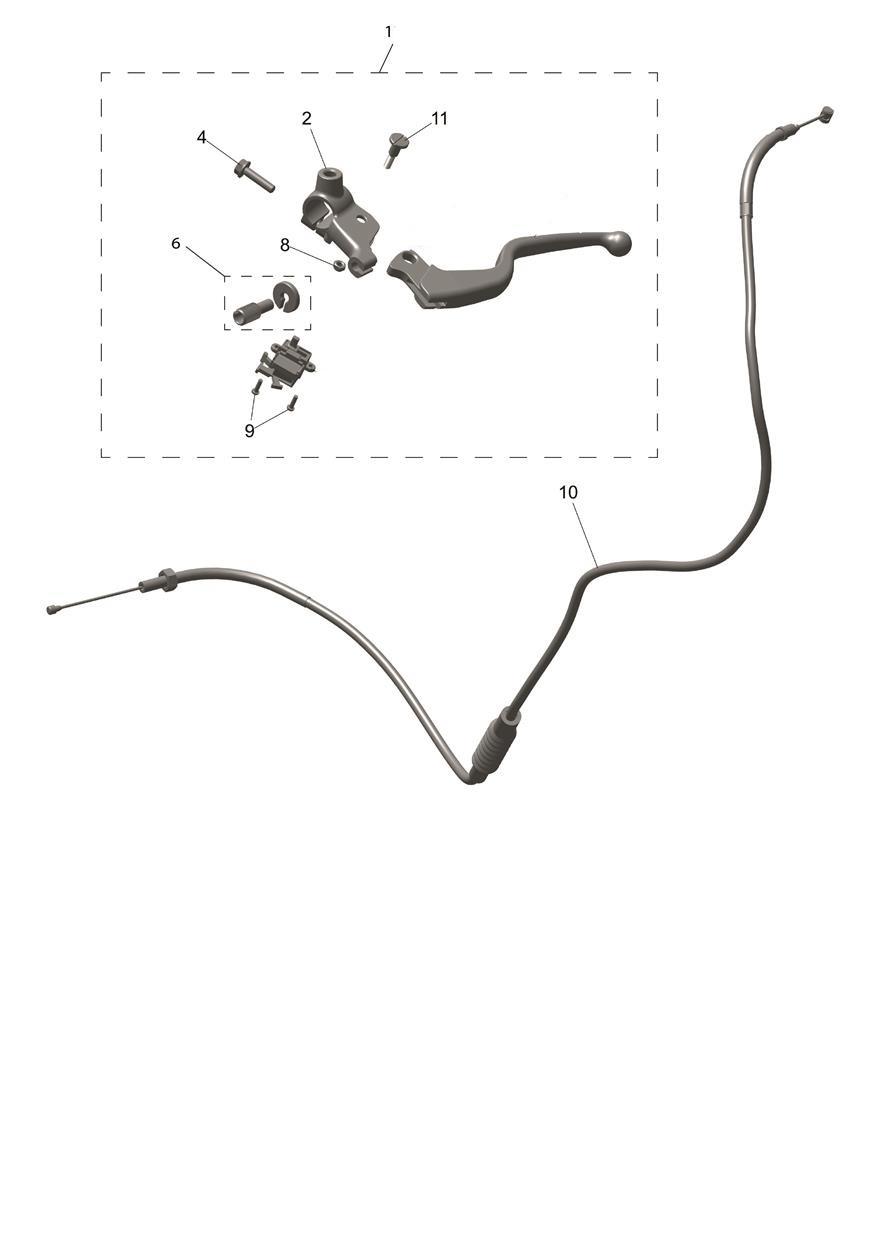

AvailableClutch Controls
TA161005 Assembly Lever-Holder, LH
$46.35
AvailableJL161014 Holder, Lever, LH
$7.22
AvailableKADT0625 Bolt, Flanged, M6 x 1
$1.99
Available36DU1901 Cable Adjuster Kit, CT 100
$10.00
AvailableLCG00034 Nut, Nyloc, M5 x 0.8
$1.99
AvailableLBU00012 Screw, Pan Cross, M3 x 0.5
$1.99
AvailableTA161204 Clutch Cable
Low stock at Triumph
$40.44
Limited availabilityYTA04031 Stud, Clutch Lever
Low stock at Triumph
$1.99
Limited availability
