Fuel & Exhaust Systems
Triumph Scrambler 400 · 10 diagrams
10 exploded diagrams for the fuel & exhaust systems of the Triumph Scrambler 400, covering the Scrambler 400 X, Scrambler 400 XC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

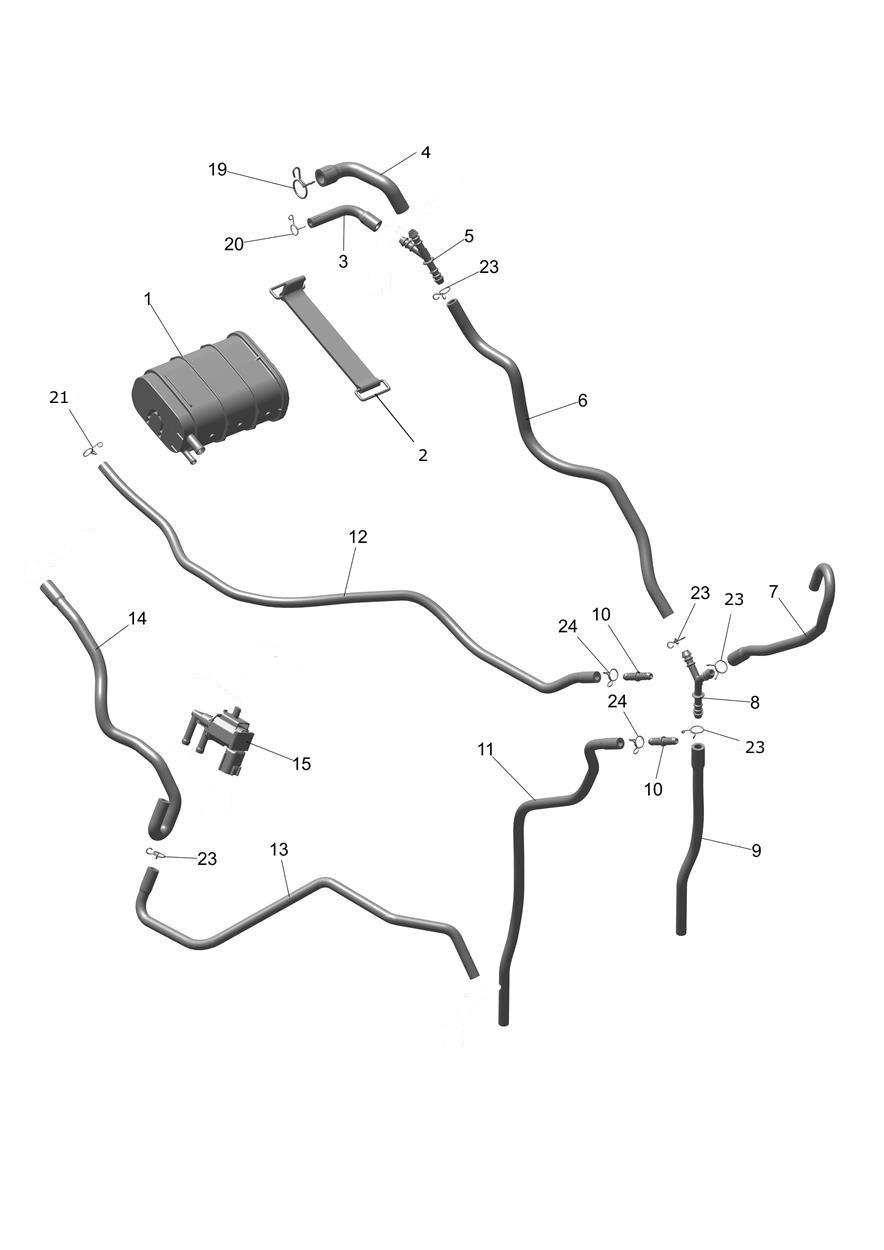

Evap System
24 parts

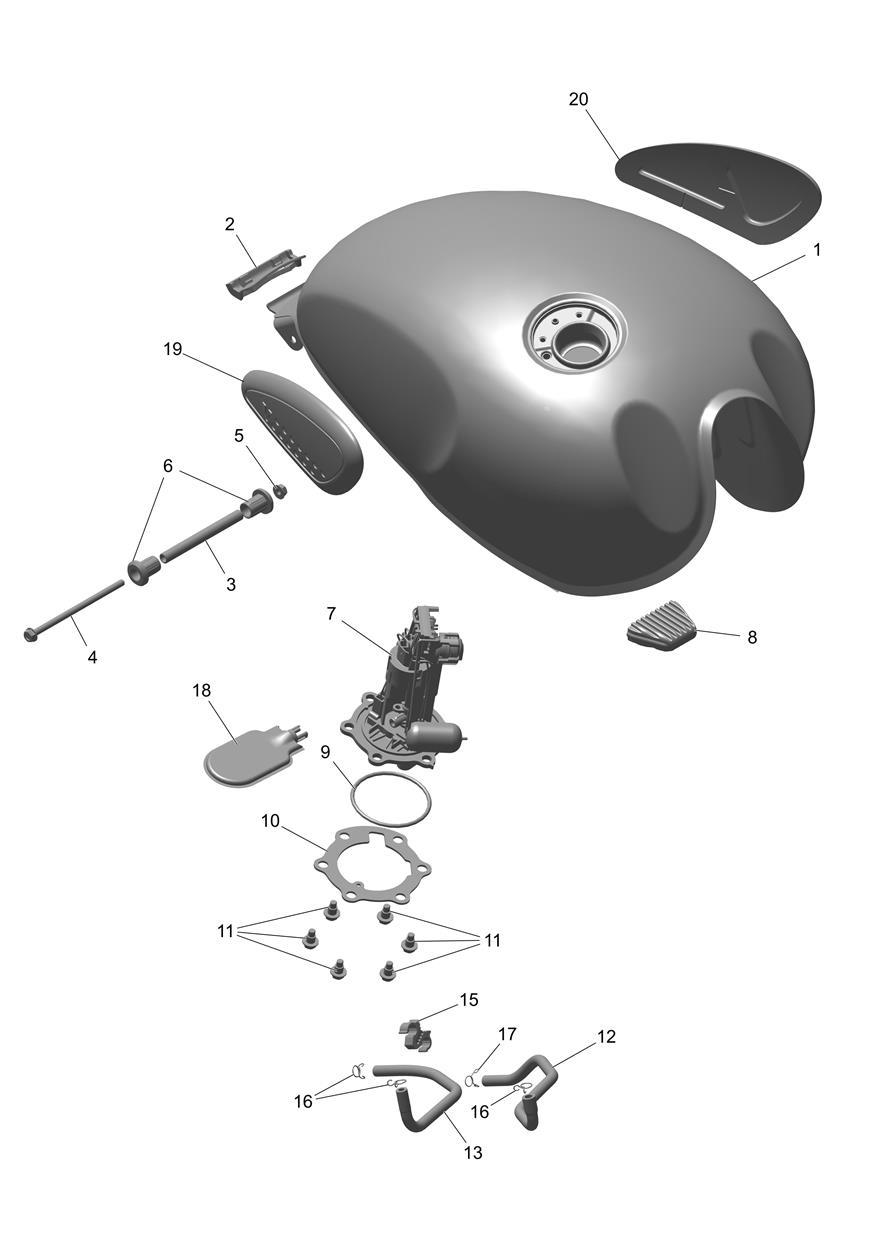

Fuel Tank & Pump
24 parts

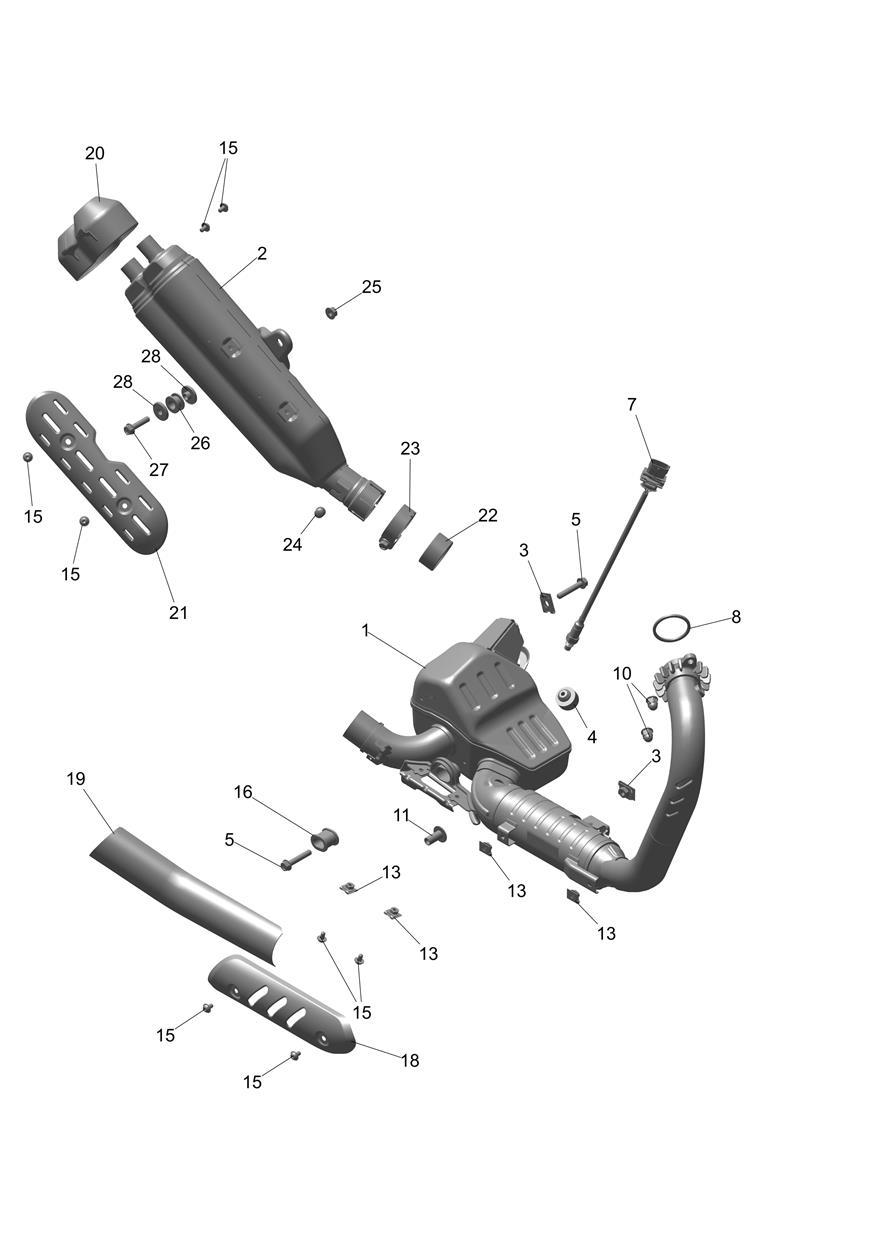

Exhaust System
29 parts

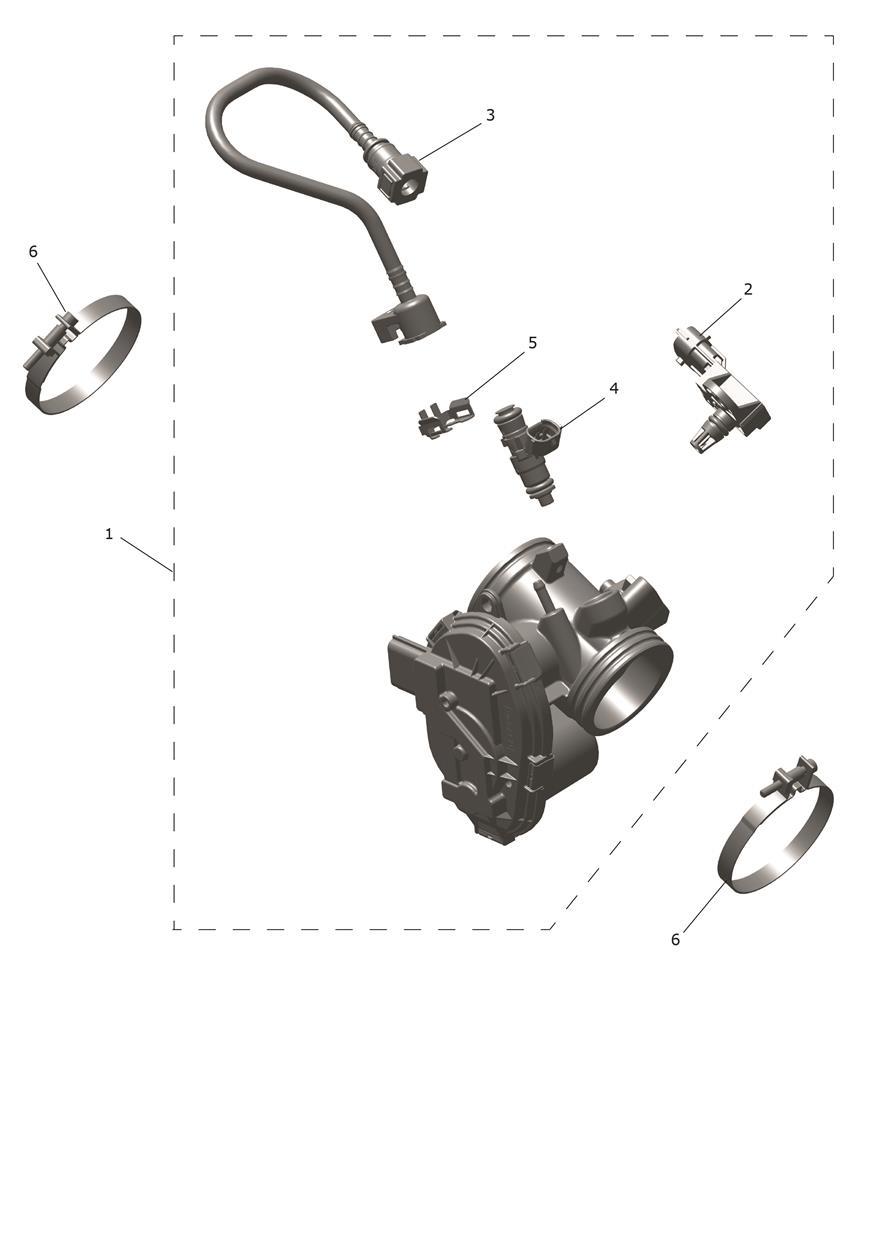

Throttle Bodies
14 parts

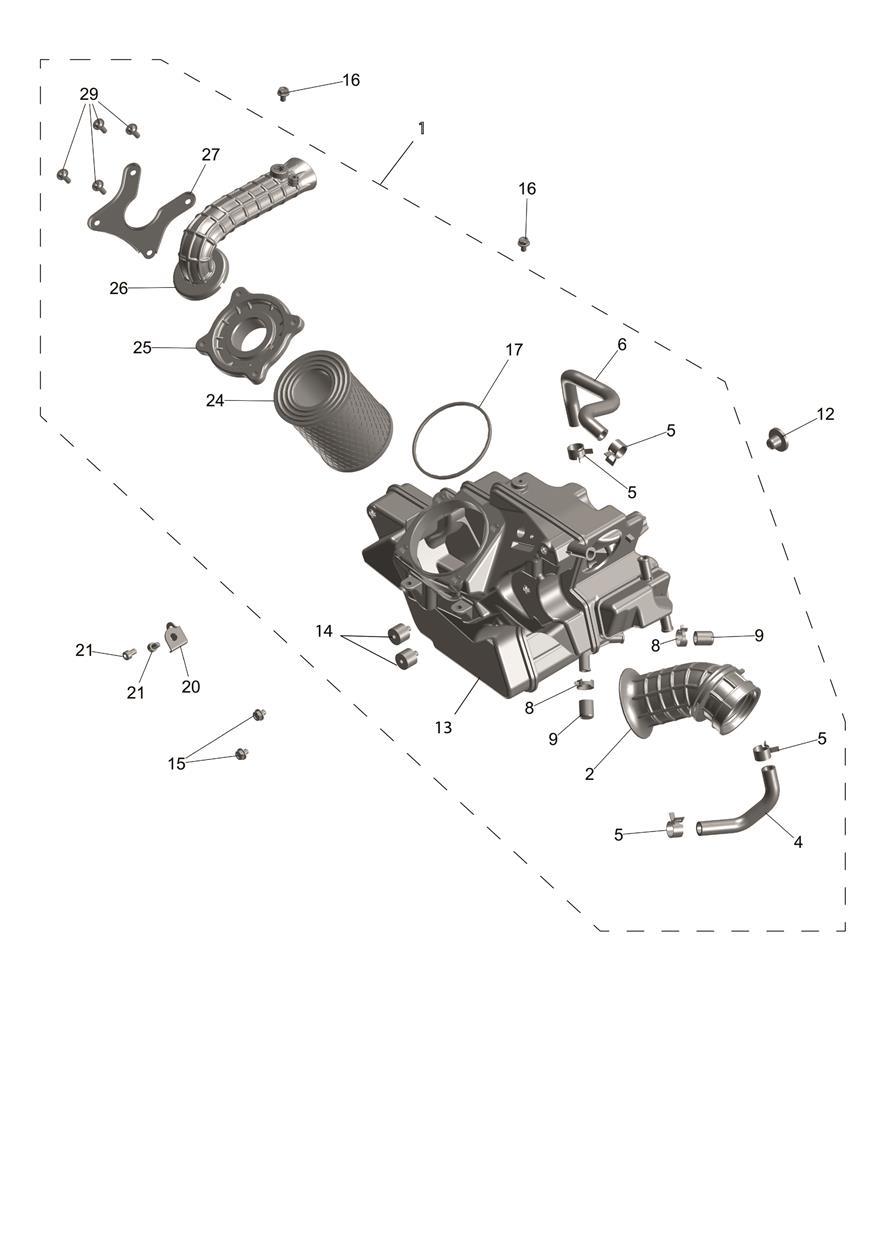

Airbox
20 parts
Airbox
20 parts
Exhaust System
27 parts
Fuel Tank & Pump
24 parts
Evap System
24 parts
Throttle Bodies
9 parts
91 parts you can order online
Every part below appears in Triumph’s Fuel & Exhaust Systems diagrams for the Scrambler 400 and is priced and orderable online. Open a part to see what it fits and to buy it.
Evap System
TA171609 Evap Canister
$33.56
AvailableDH161429 Strap, Canister
$2.52
AvailableTA171051 Joint
$1.99
AvailableJY113842 Joint
$1.99
AvailableGL171073 Connector
$2.20
AvailableTA171613 Pipe, Drain
Backordered at Triumph · expected Oct 30
$4.24
On backorderJU171606 Purge Valve
$52.58
AvailableJK511002 Clamp, Breather Hose
$1.99
AvailableBA122003 Pipe Clip
$1.99
Available33141008 Clamp
$1.99
AvailableDJ141002 Clamp, Drain Pipe
$1.99
AvailableJG171030 Clamp
$1.99
AvailableFuel Tank & Pump
52TA0427 Fuel Tank, Carnival Red, Blk Decal
$723.34
Available52TA0426 Fuel Tank, Phantom Black with Decal
$628.62
Available52TA0428 Fuel Tank, Khaki Green, with Decal
$723.34
Available52TA1047 Fuel Tank, Baja Orange/Aluminium
$731.72
AvailableTA171053 Damper
$2.09
AvailableTA171036 Spacer
$1.99
AvailableKADD06B5 Bolt, Flanged, M6 x 1
$1.99
AvailableKCGA0606 Nut, Hex, Flanged
$1.99
AvailableTA171037 Grommet
$1.99
AvailableTA171801 Fuel Pump
$447.42
AvailableTA171029 Damper
$4.59
AvailableYTA04028 Fuel Pump Seal
$3.50
In stock in BreaTA171811 Fuel Pump Plate
$4.56
AvailableLAD00154 Bolt, Flange, M6 x 1 x 12.8, Brt x Step
$1.99
AvailableTA171602 Pipe, Tank - Connector
$3.68
AvailableTA171610 Pipe, Breather
$3.25
AvailableTA171611 Fuel Pipe
$3.36
AvailableTA171809 Fuel Pipe
$13.76
AvailableJG131857 Clip, Separator
$4.59
AvailableYTA04029 Fuel Filter
Low stock at Triumph
$21.98
Limited availabilityTA171046 Knee Pad Assy, RH
$29.60
AvailableTA171045 Knee Pad Assy, LH
$29.60
AvailableExhaust System
TA591050 Muffler Assembly, Primary
$800.78
AvailableTA591262 Muffler Assembly, Primary
Backordered at Triumph · we’ll confirm the ship date after you order
$891.25
On backorderTA591203 Muffler Assembly, Secondary
$886.61
AvailableTA591314 Muffler Assembly, Secondary
$702.40
AvailableTA591239 Muffler Assembly, Secondary
$702.40
AvailableTA591205 Nut, Clip, M8
$1.99
AvailableDG161124 Damper
$1.99
AvailableLAD00328 Bolt, Flanged, M8 x 1.25
$1.99
AvailableJP591065 Oxygen Sensor
$214.66
AvailableTA591206 Gasket, Exhaust
$10.06
In stock in BreaAN101113 Nut Domed Cap
Backordered at Triumph · expected Nov 13
$1.99
On backorderTA181240 Collar
$2.93
AvailableDJ181065 Clip Nut M6
Low stock at Triumph
$1.99
Limited availabilityLBU00203 Screw, Btn Hd, M6 x 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderLBU00204 Screw, Btn Hd, M6 x 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderTA113836 Damper
$2.00
AvailableTA591111 Shield Catalyst
$21.27
AvailableTA591110 Shield Assembly III
$49.62
AvailableTA591202 End Cap Assembly
$139.77
AvailableTA591200 Shield, Muffler
$27.76
AvailableJP591033 Gasket Muffler Secondary
$8.54
In stock in BreaTA591032 Clamp
$14.12
AvailableJB591059 Damper, Shield Muffler
$1.99
AvailableKCGD0808 Nut Hex Flanged
$1.99
AvailableJY591246 Damper Muffler
$1.99
AvailableKADD0840 Bolt, Flanged, M8 x 1.25
$1.99
AvailableJY591245 Collar
$3.54
AvailableThrottle Bodies
TA611202 Throttle Body Assembly
$748.11
AvailableTA611211 Throttle Body Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$613.54
On backorderJP351801 Pressure Sensor
$98.24
AvailableTA611201 Pipe Assembly, Fuel Pump
$25.05
AvailableJY611000 Fuel Injector
$179.37
AvailableJG611006 Injector Clip
$2.93
AvailableJY581405 Clamp
$5.19
AvailableTA181229 Throttle Body Cover, LH
$17.08
AvailableTA181230 Throttle Body Cover, RH
$17.08
AvailableLBU00231 Button Hd Screw
$1.99
AvailableDH201056 Grommet
$1.99
AvailableAirbox
TA581002 Connecting Tube
$19.41
AvailableTA581027 Drain Pipe
$2.52
AvailableJL581066 Clamp, Sai Pipe
$1.99
AvailableTA581026 Breather Pipe
$3.36
AvailableJH171602 Clamp
$1.99
AvailableJP581018 Drain Tube
$1.99
AvailableJP581019 Damper
$1.99
AvailableJG581058 Silent Bush
$6.42
AvailableKADA0608 Bolt, Flanged, M6 x 1
$1.99
AvailableKADA0610 Bolt, Flanged, M6 x 1
$1.99
AvailableTA581013 Seal Cap Cover Top
$1.99
AvailableTA581001 Element, Air Filter
$30.32
In stock in BreaTA581012 Cap Cover Top
$6.39
AvailableTA581005 Intake Duct
$14.83
AvailableTA581034 Cover Bracket
$6.09
AvailableLBU00072 Screw, Btn Hd, M6 x 1 x 16, Brt
$1.99
Available
