Rear Suspension
Triumph Scrambler 400 · 4 diagrams
4 exploded diagrams for the rear suspension of the Triumph Scrambler 400, covering the Scrambler 400 X, Scrambler 400 XC. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
28 parts you can order online
Every part below appears in Triumph’s Rear Suspension diagrams for the Scrambler 400 and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Speed 400 book. 3 parts are specific to the Scrambler 400.

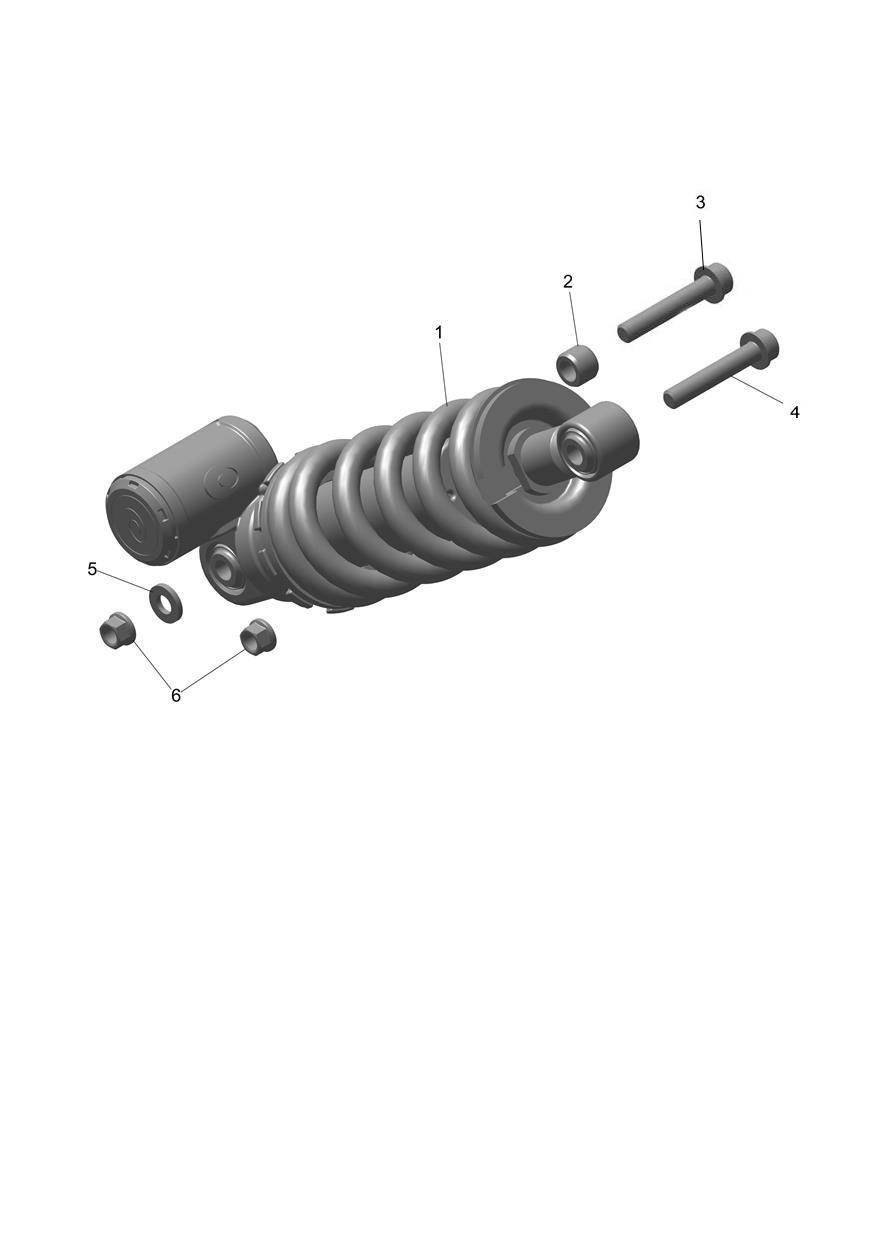

RSU
TA122000 RSU
$605.80
AvailableTA131224 Spacer
$5.10
AvailableLAC00168 Bolt, Socket, M10 x 1.25
$4.20
AvailableLAC00200 Bolt, Socket, M10 x 1.25
$2.73
AvailableLDB00011 Plain Washer
$1.99
AvailableLCG00003 Nut, Flanged, M10 x 1.25
$1.99

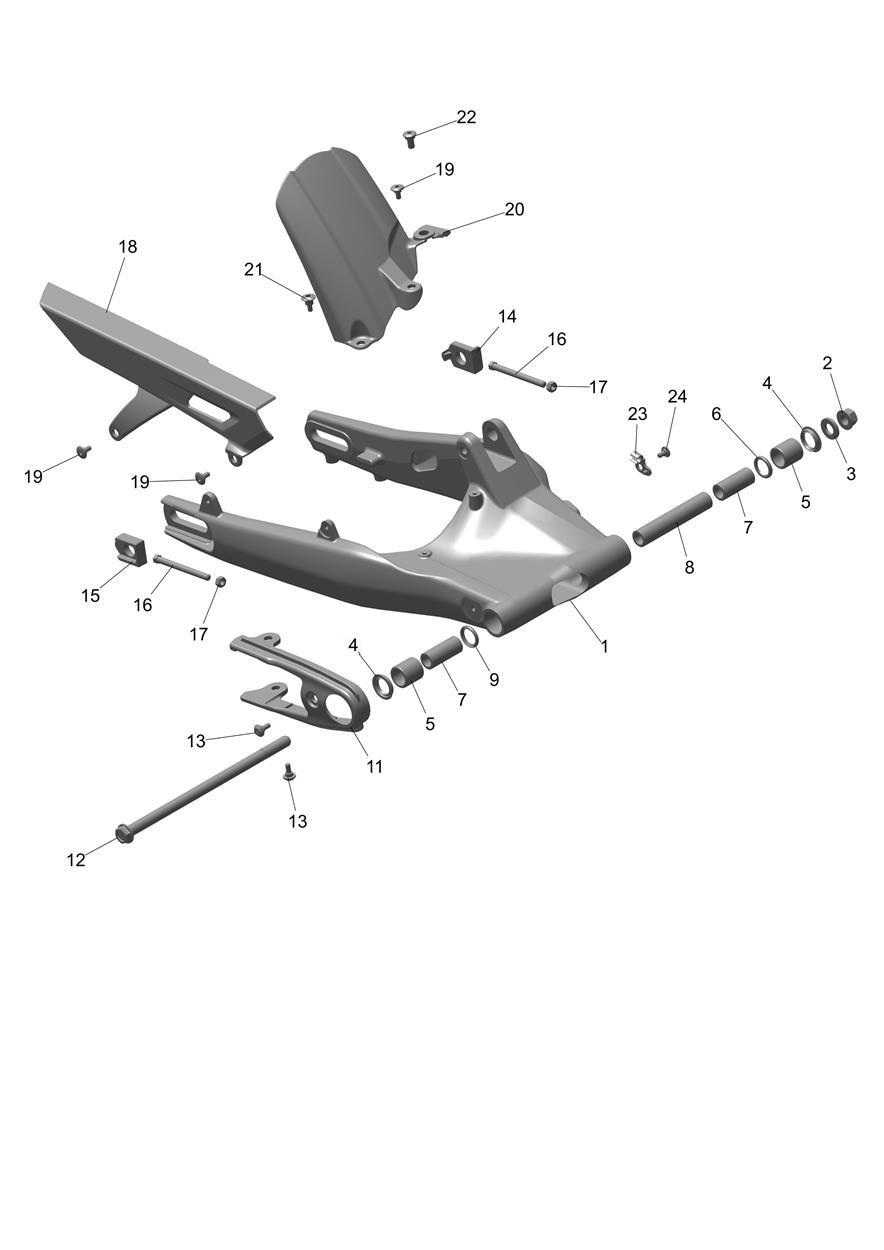

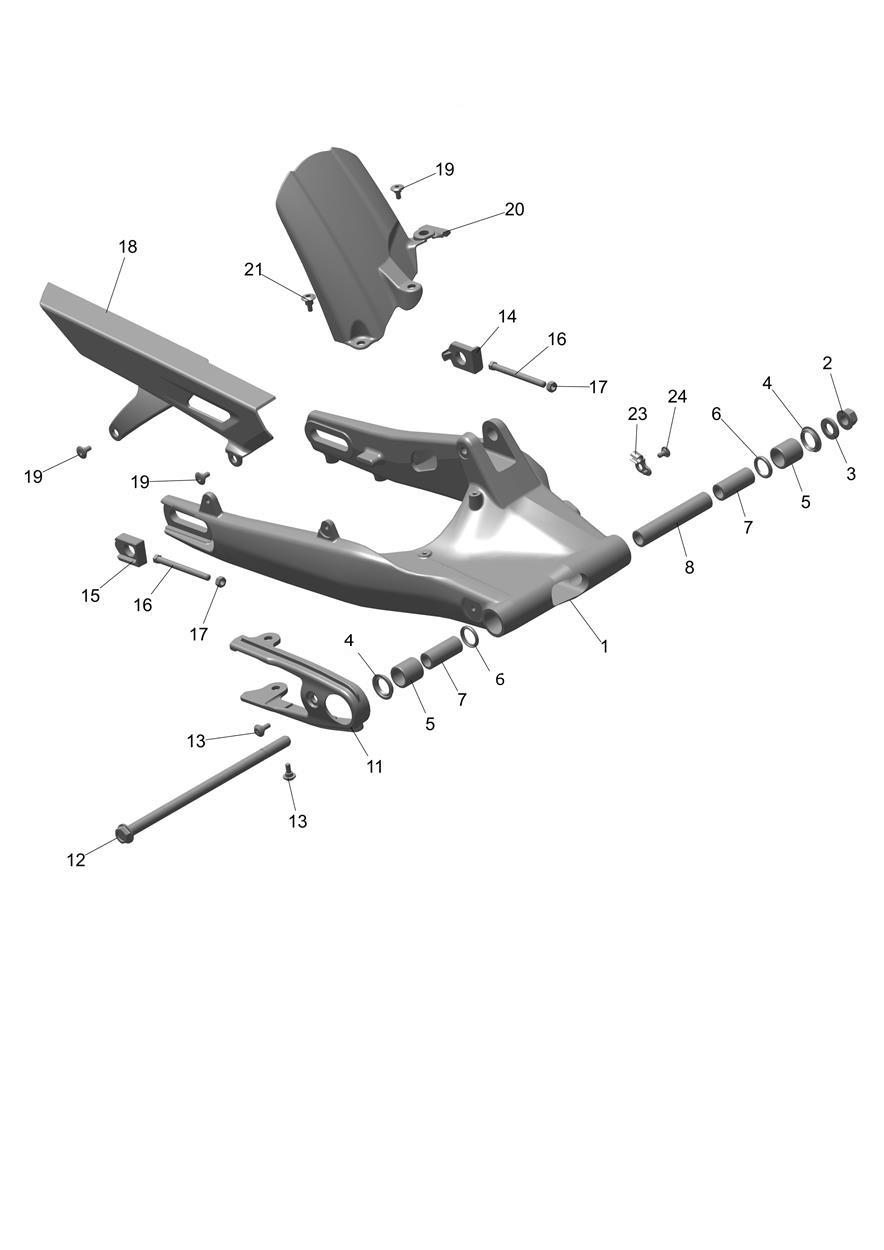

AvailableSwinging Arm
52TA0224 Assy Swing Arm TA122002, T102B
$631.86
AvailableDG171017 Nut
$3.14
AvailableJF113423 Washer, Plain
$2.41
AvailableDG171019 Oil Seal
$2.00
AvailableDG171018 Bearing Needle
$14.14
AvailableJP122059 Oil Seal
$3.14
AvailableDK171006 Sleeve
$9.46
AvailableTA122021 Spacer
$22.48
AvailableTA122008 Slider Chain
$26.02
AvailableLAD00108 Bolt, Flanged, M14 x 1.5
$15.66
AvailableLBU00103 Screw, Step, M6 x 1
$1.99
AvailableTA122004 Chain Adjuster, LH
$25.77
AvailableTA122005 Chain Adjuster, RH
$23.36
AvailableLAA00079 Bolt, M8 x 1.25
$2.30
AvailableKCAM0806 Nut, Hex, M8 x 1.25
$1.99
AvailableTA181208 Cover, Chain
$18.09
AvailableLBU00182 Screw, Socket, Step, M6 x 1
$1.99
AvailableDL141035 Bolt, Socket, Hd W Flange
$1.99
AvailableLBU00207 Screw, Btn Hd Step, M8 x 1.25
$1.99
AvailableTA131830 Clamp Hose
$1.99
AvailableLBU00148 Screw, Socket, Step, M6 x 1
$1.99
AvailableTA122035 Plug
$1.99
Available
