Clutch & Transmission incl. Gearchange Mechanism
Triumph Speed Triple 1200 · 20 diagrams
20 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Speed Triple 1200, covering the Speed Triple 1200 RS, Speed Triple 1200 RX Limited Edition, Speed Triple 1200 RR. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

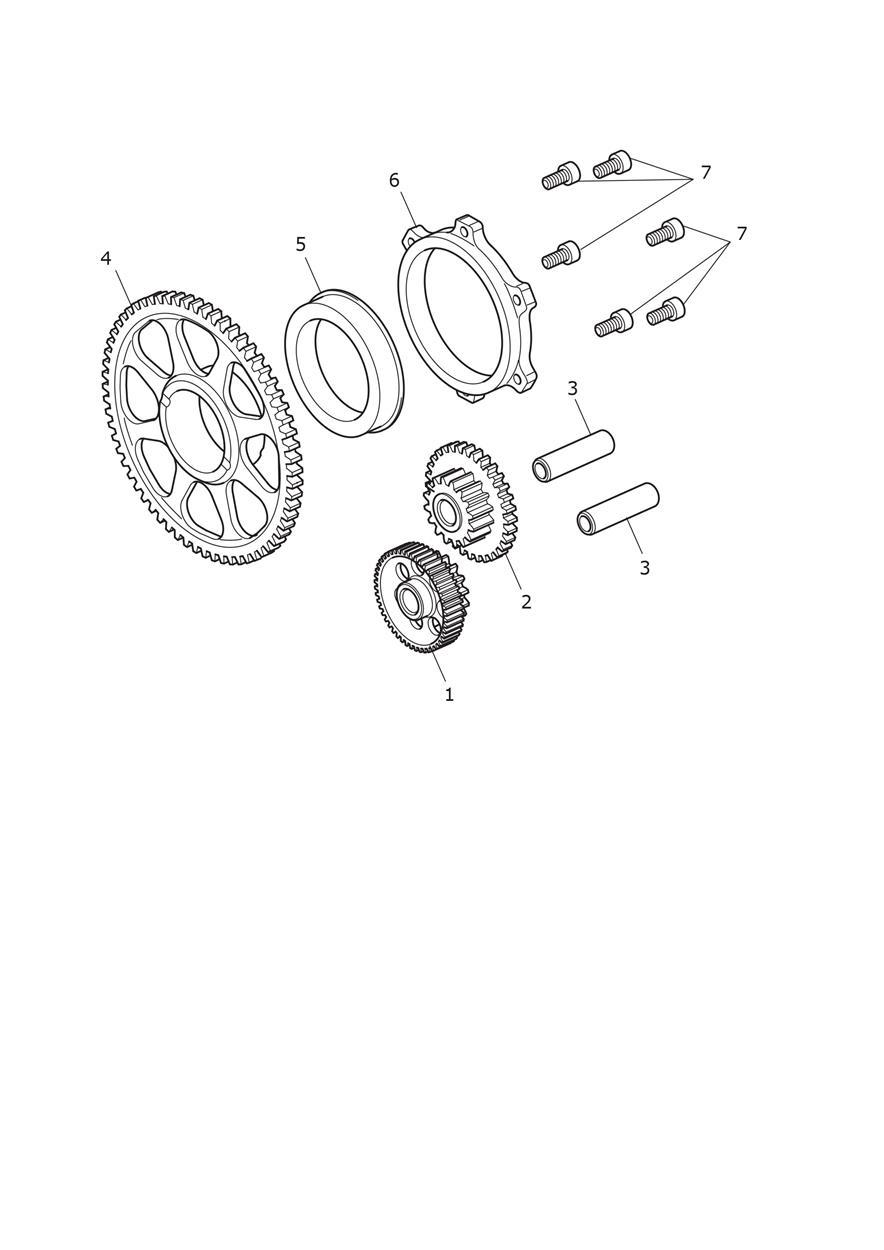

Starter Drive Gears
7 parts

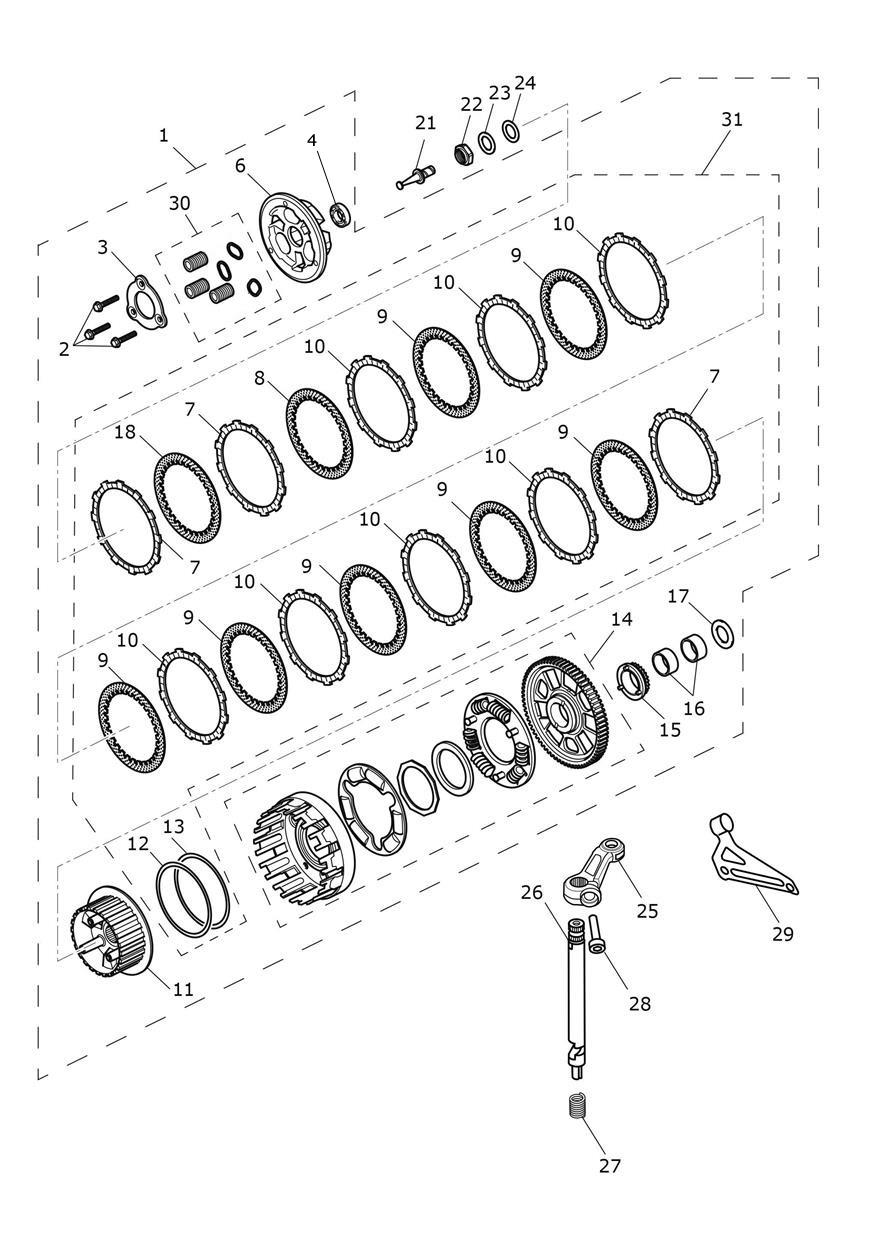

Clutch
30 parts

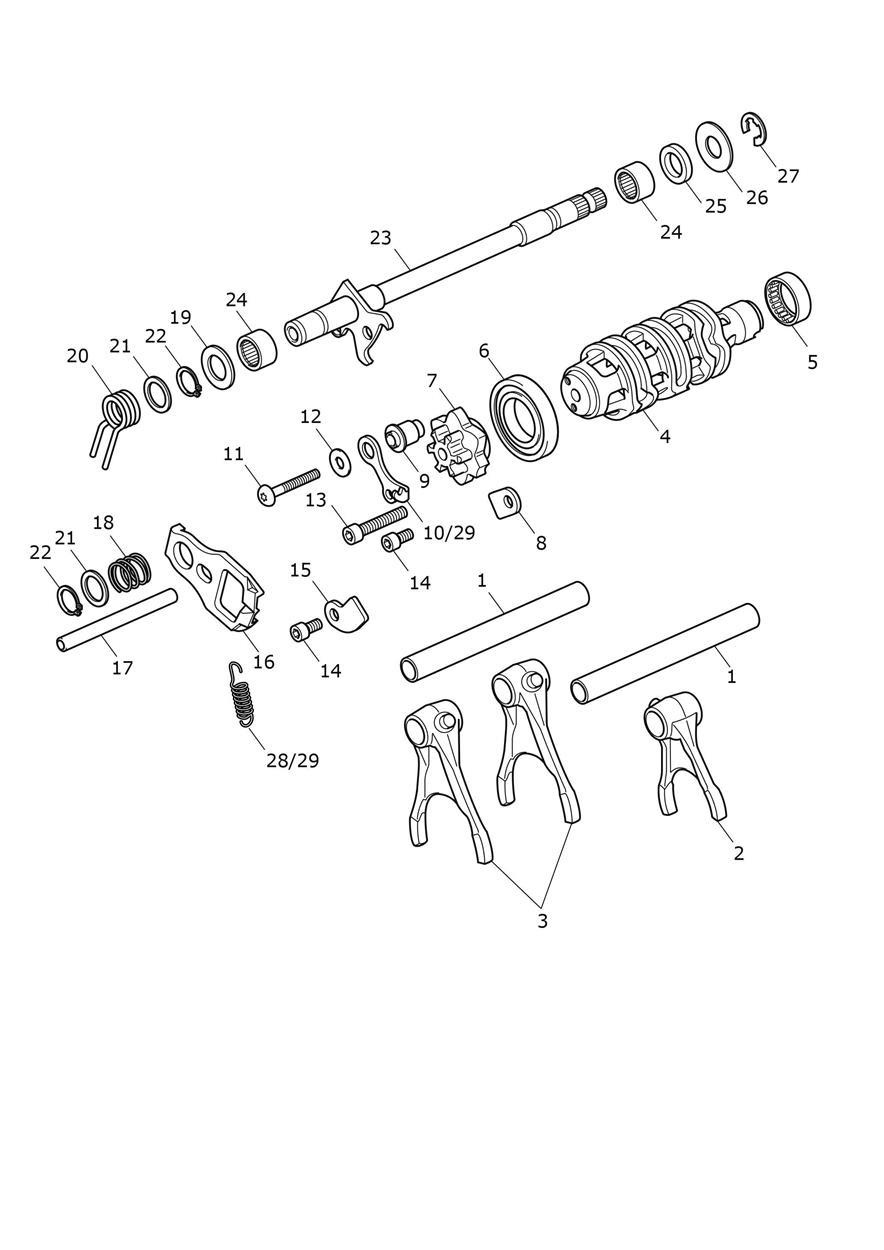

Gear Selector Drum
28 parts

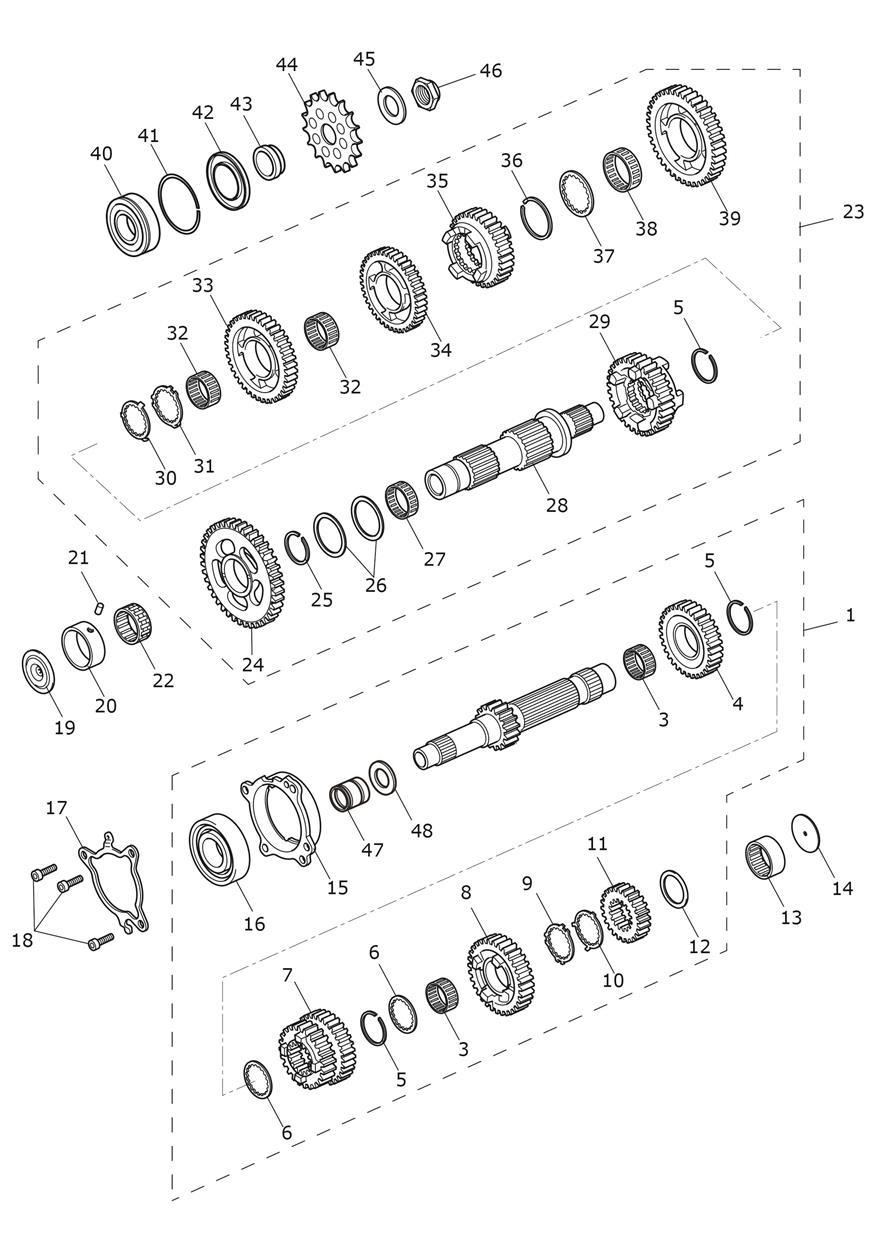

Transmission
47 parts

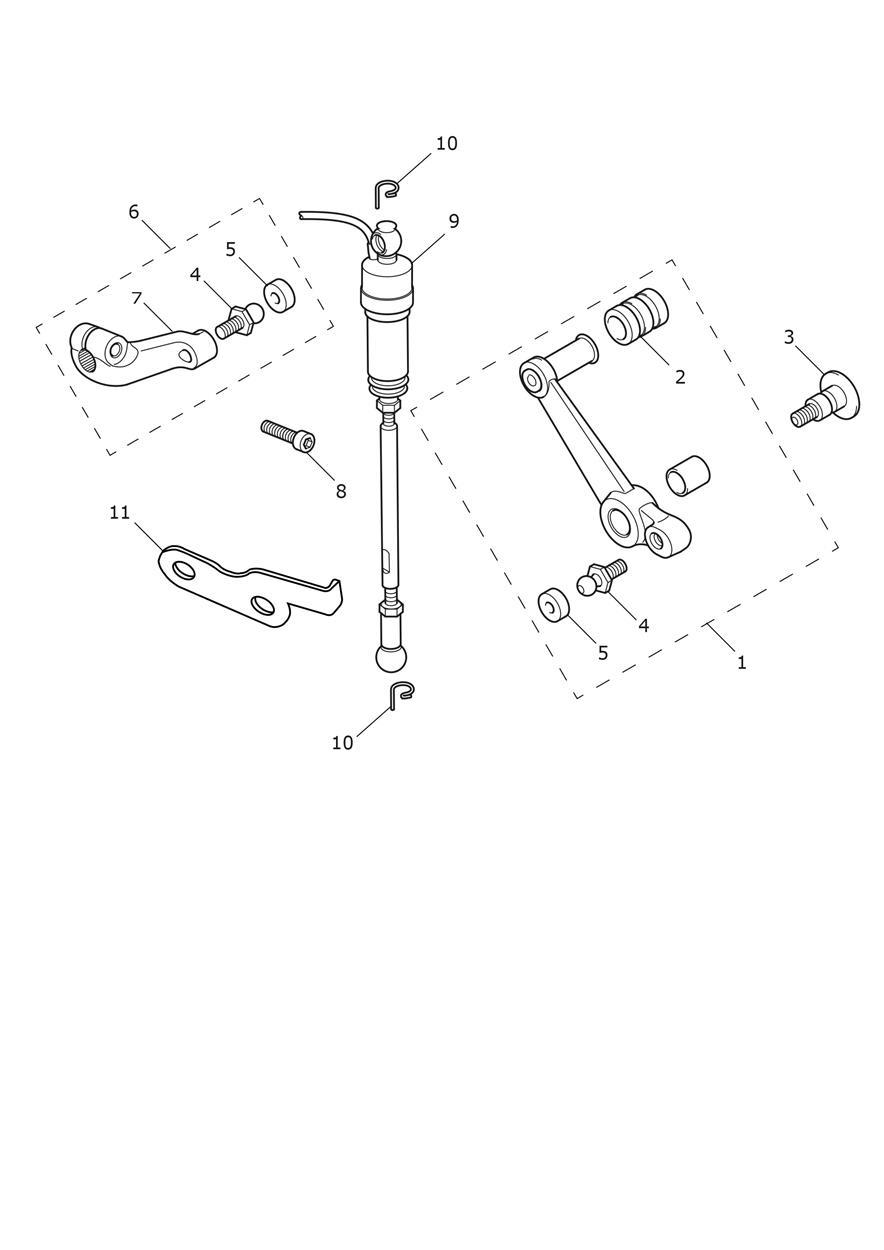

Gearchange Mechanism
10 parts
Clutch
30 parts
Transmission
47 parts
Gear Selector Drum
29 parts
Gear Selector Drum
29 parts
Starter Drive Gears
7 parts
Starter Drive Gears
7 parts

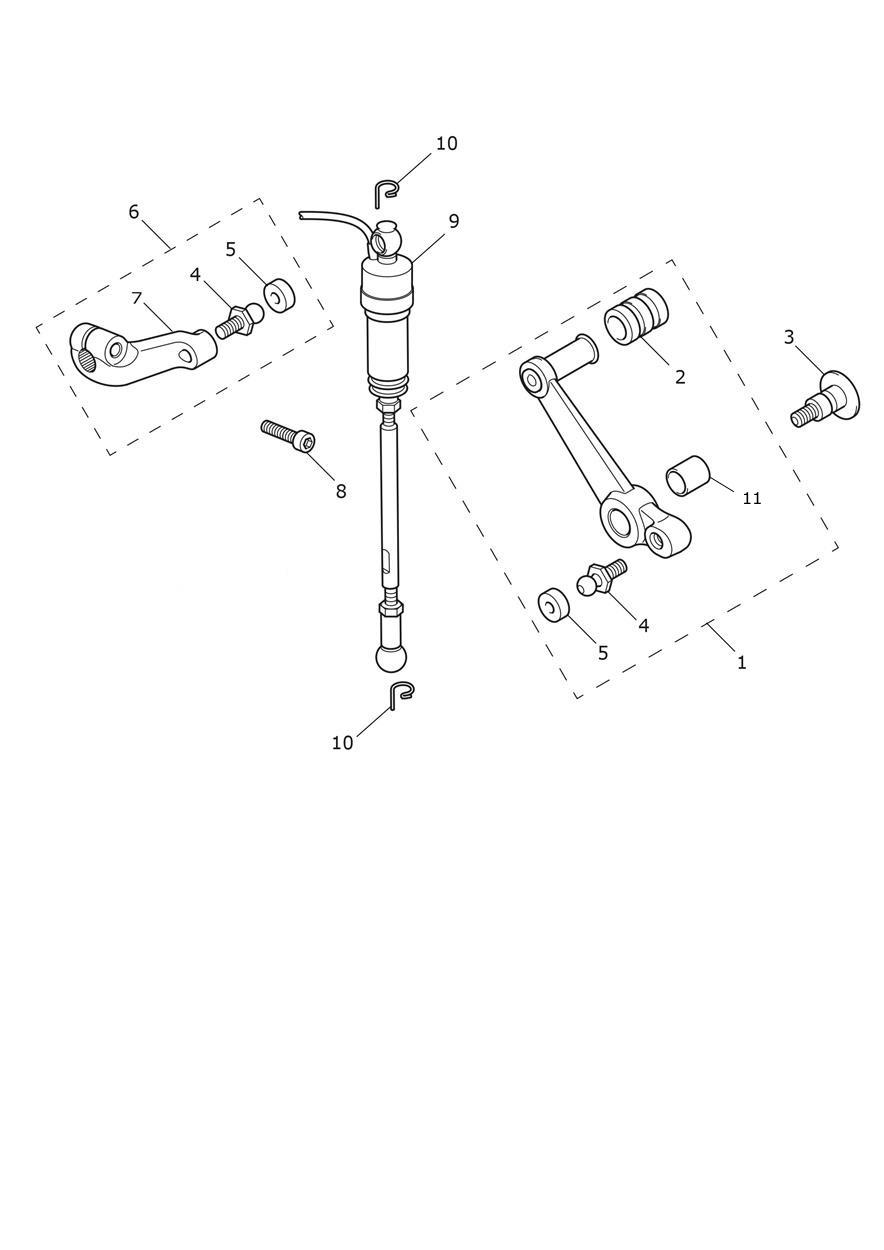

Gearchange Mechanism
11 parts

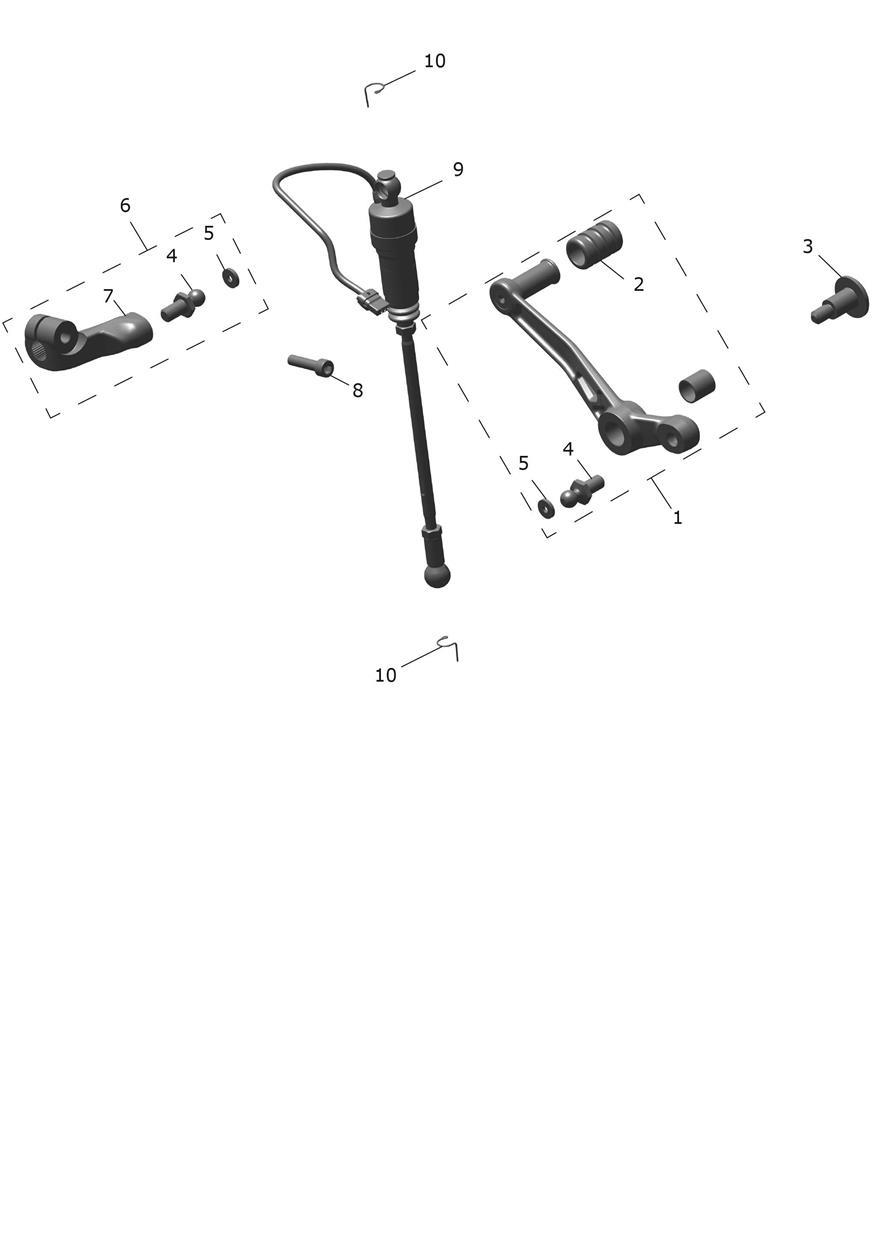

Gearchange Mechanism
11 parts
Clutch
30 parts
Transmission
47 parts
Gear Selector Drum
28 parts
Clutch
31 parts
Transmission
47 parts
Gearchange Mechanism
10 parts
Starter Drive Gears
7 parts
