Frame, Footrests, Engine Mountings & Stands
Triumph Speed Triple 1200 · 25 diagrams
25 exploded diagrams for the frame, footrests, engine mountings & stands of the Triumph Speed Triple 1200, covering the Speed Triple 1200 RS, Speed Triple 1200 RX Limited Edition, Speed Triple 1200 RR. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

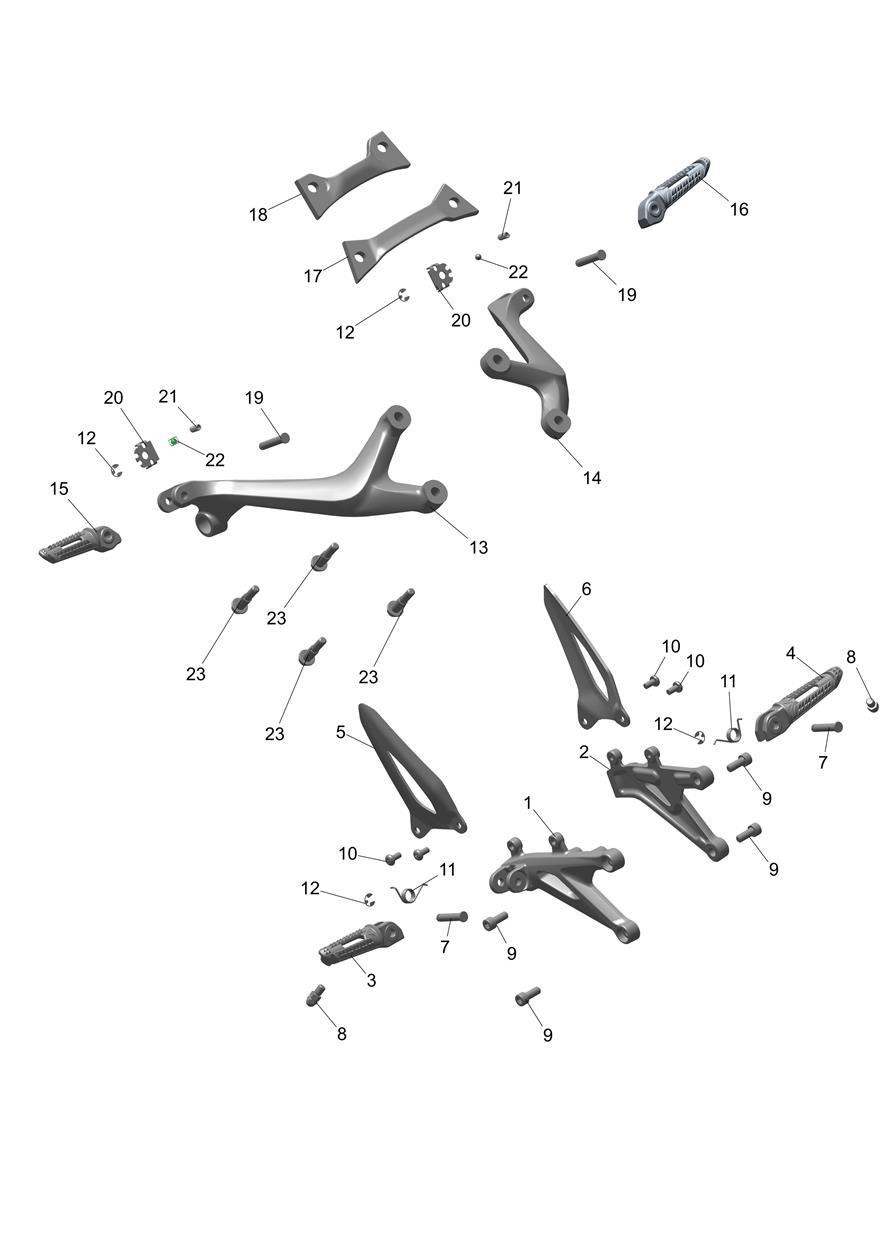

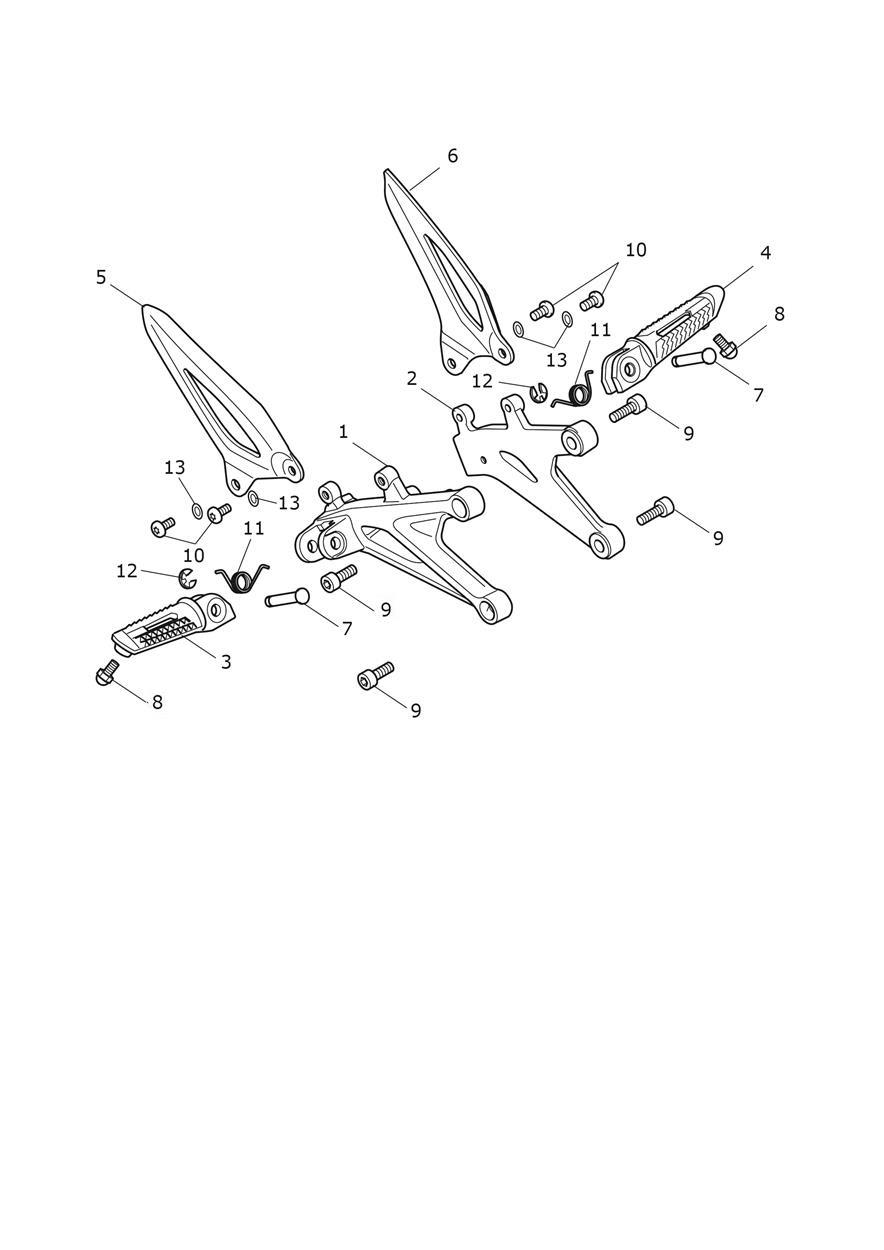

Foot Controls
23 parts

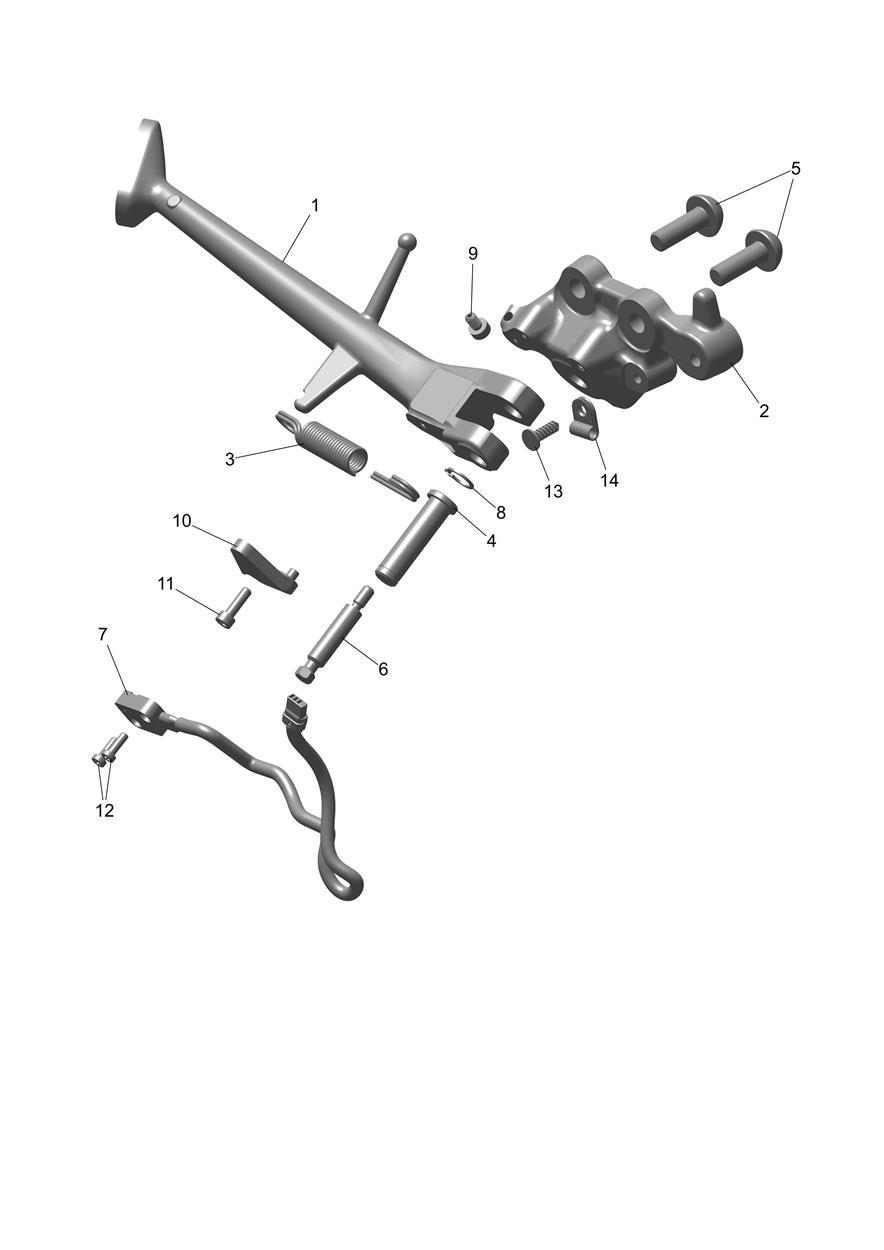

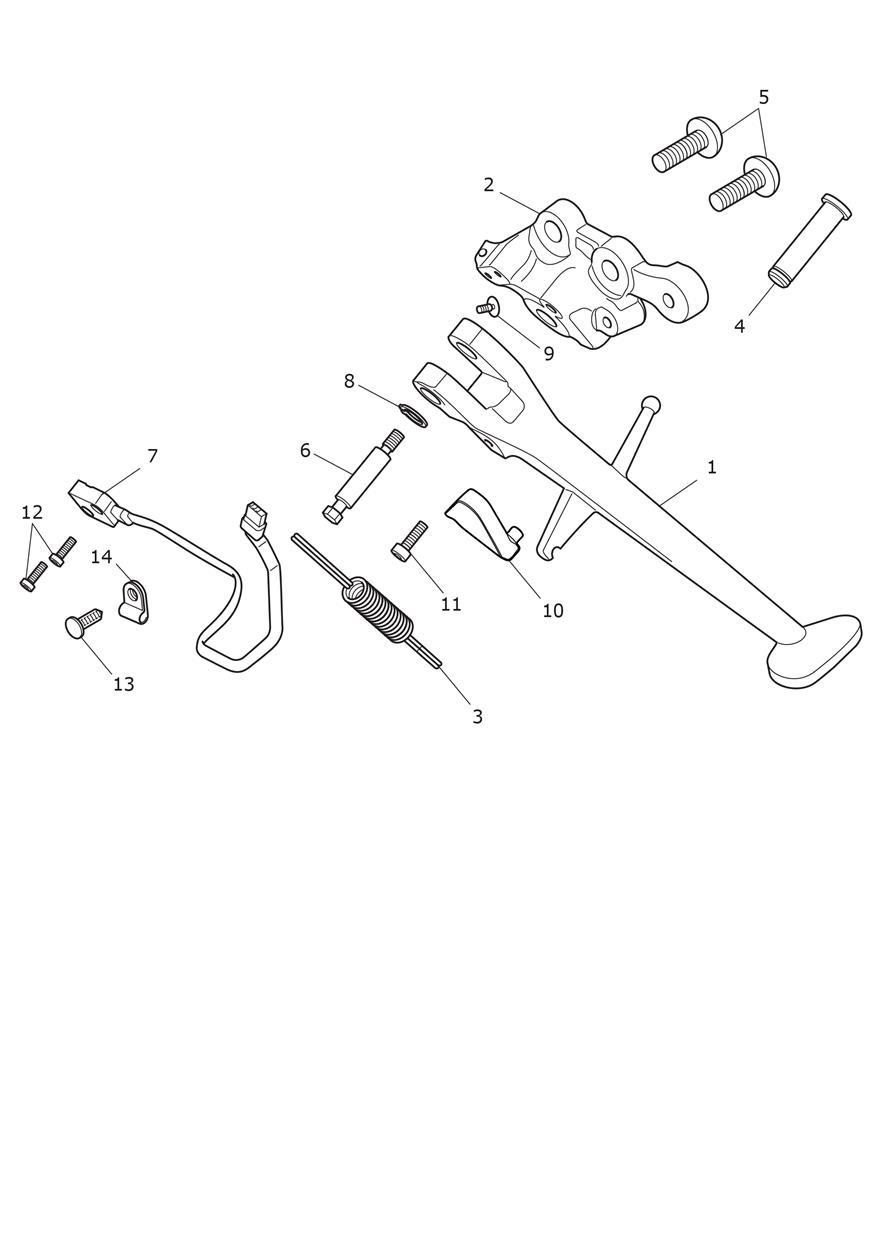

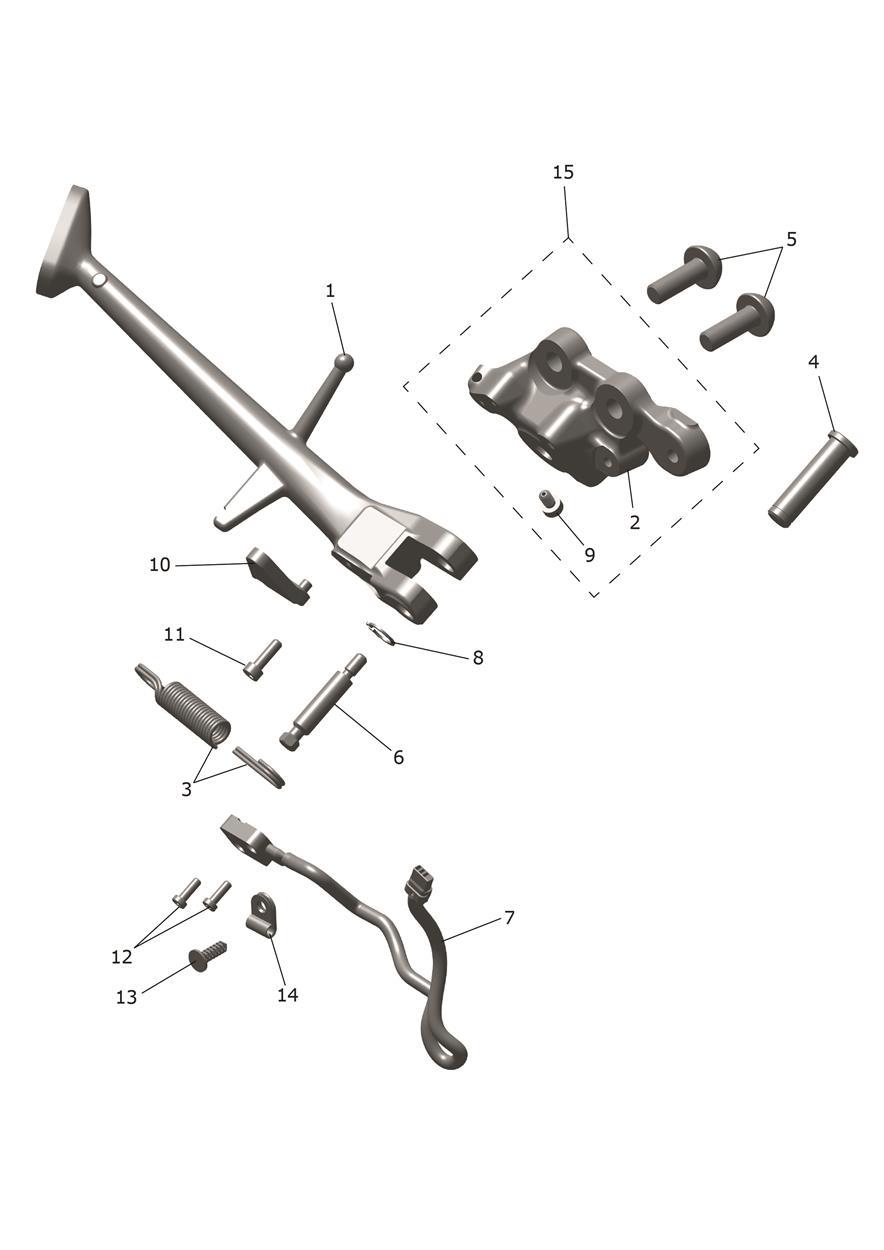

Sidestand
15 parts

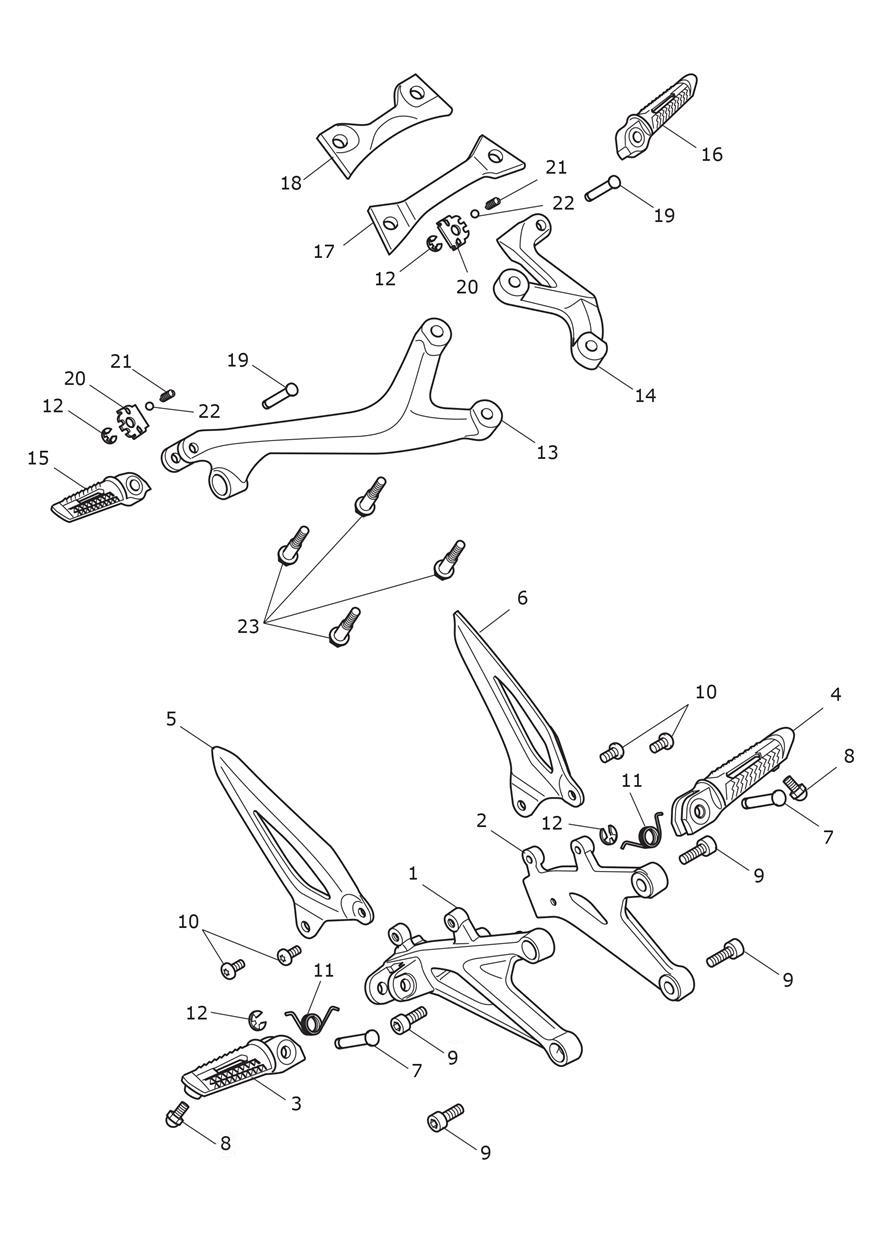

Foot Controls
23 parts

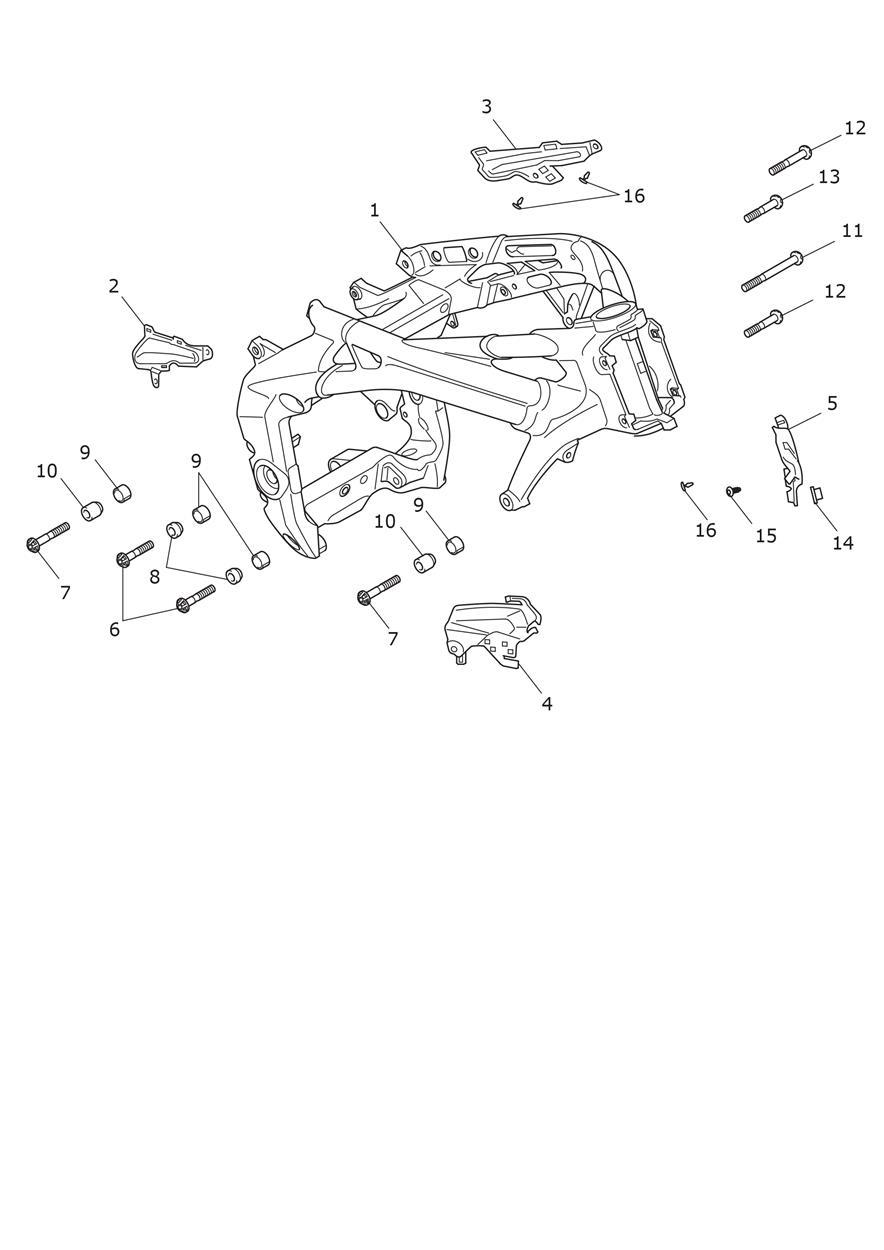

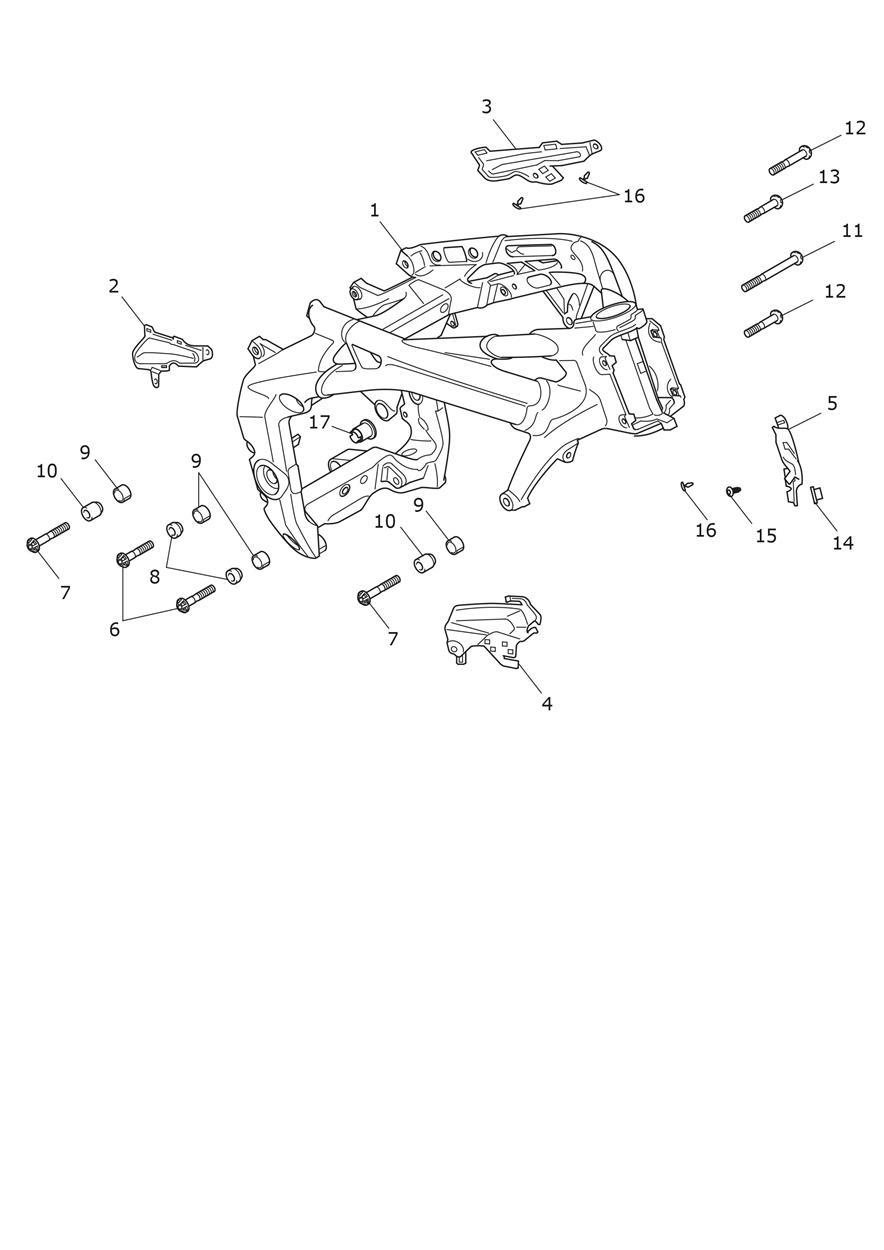

Main Frame
17 parts

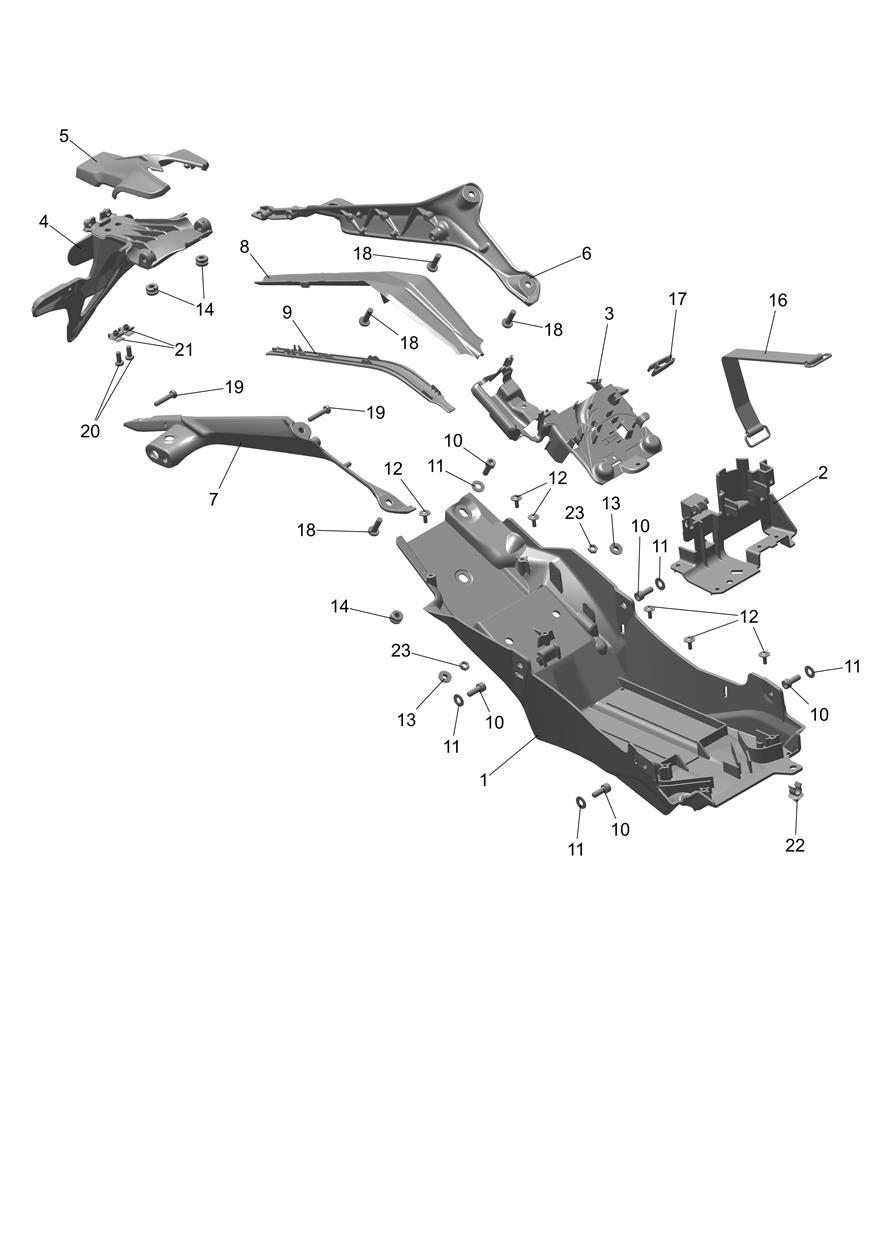

Rear Mudguard
22 parts

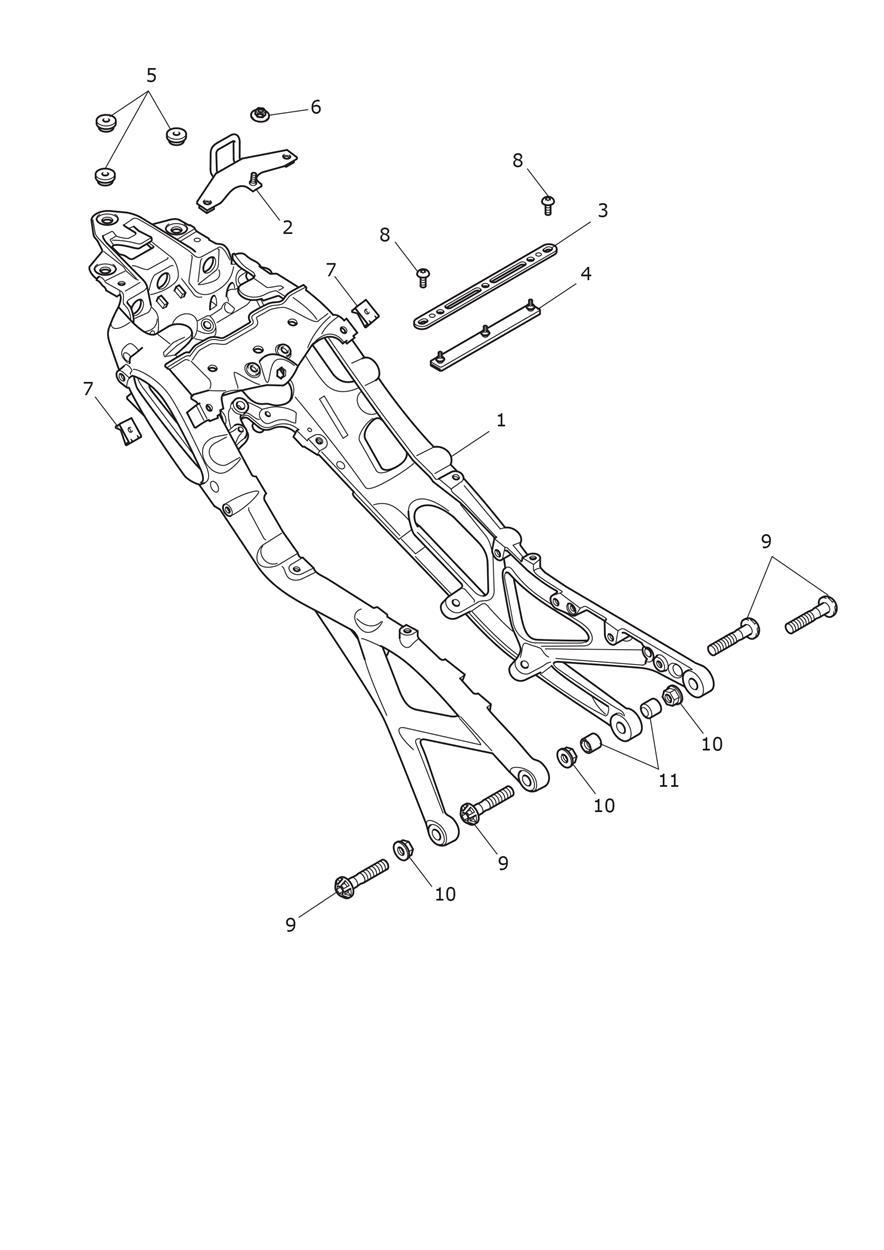

Rear Subframe
12 parts

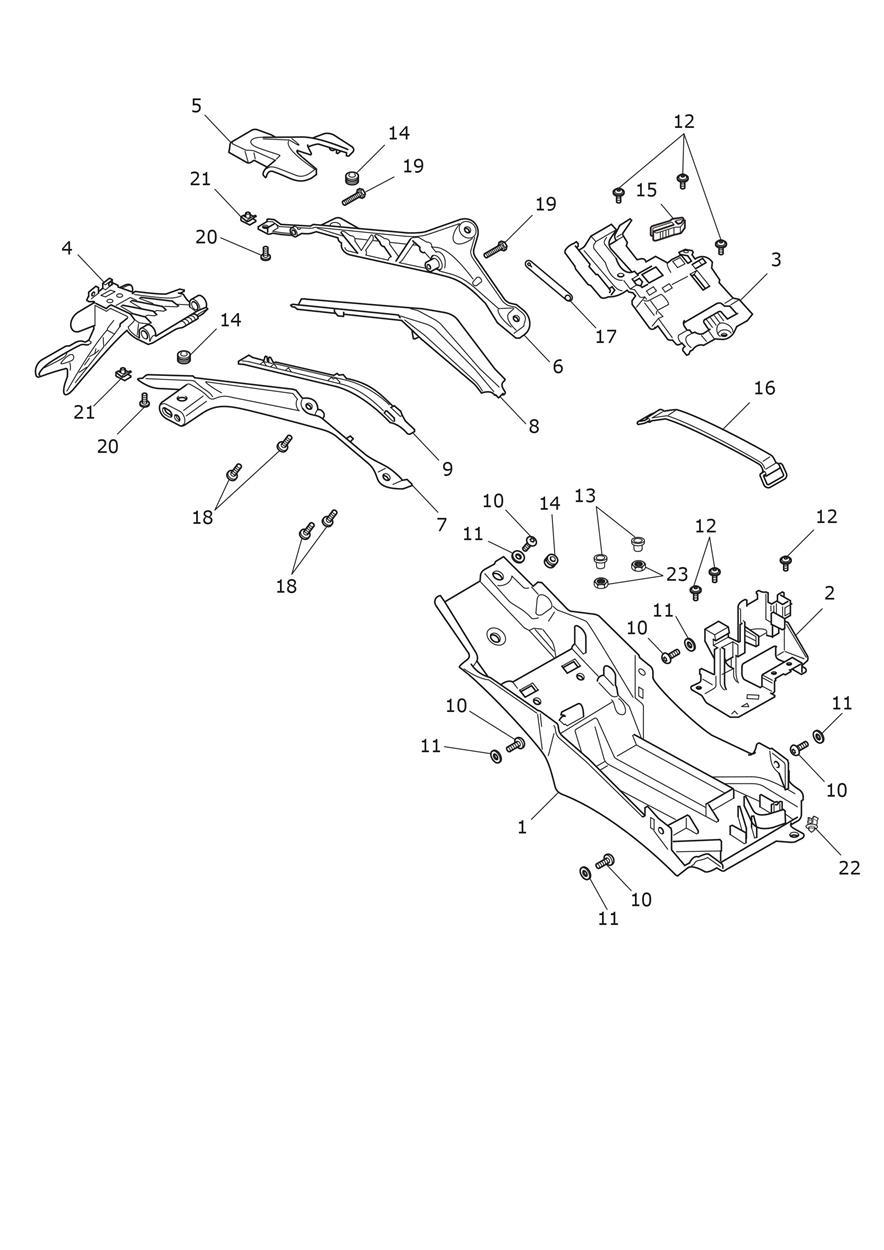

Rear Mudguard
22 parts
Rear Subframe
11 parts

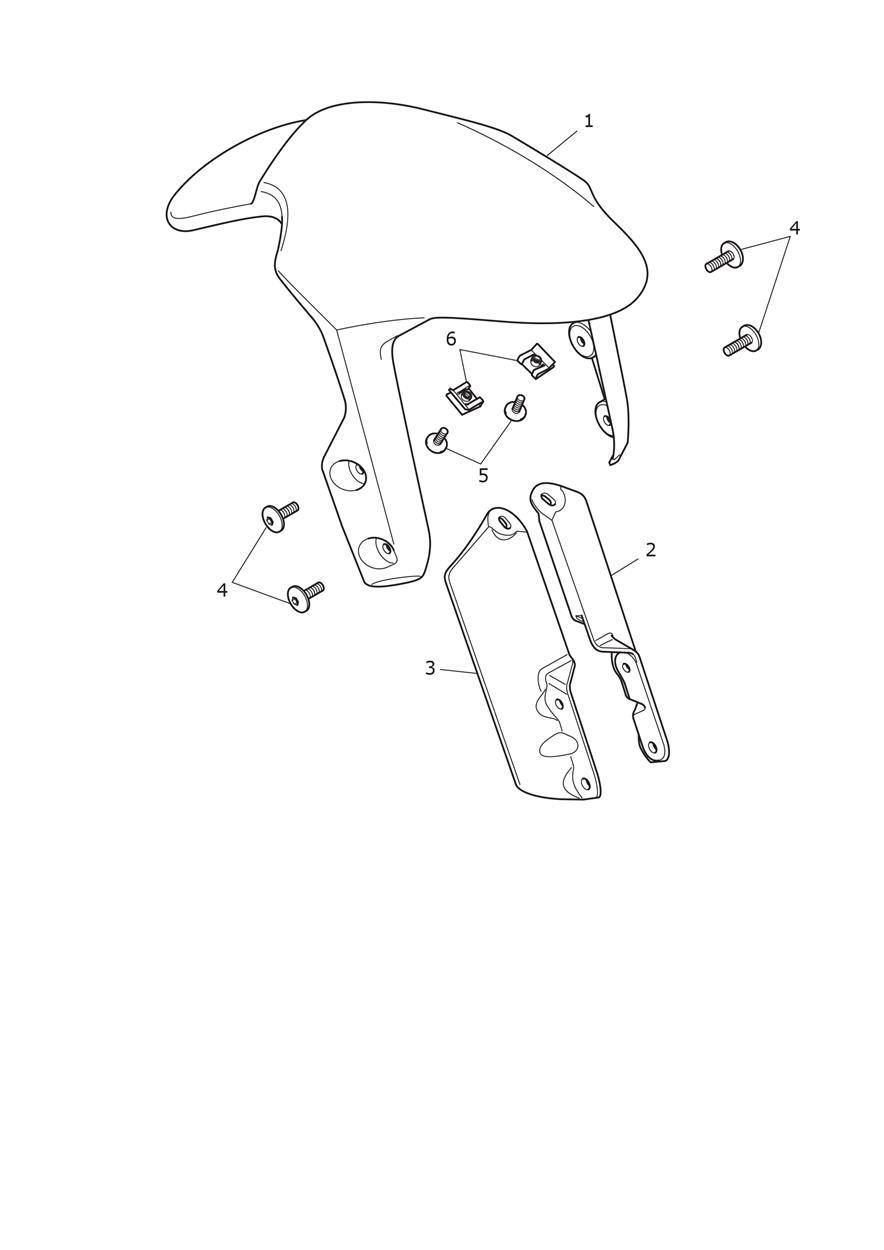

Front Mudguard
8 parts
Main Frame
17 parts
Front Mudguard
6 parts
Sidestand
14 parts
Main Frame
21 parts
Main Frame
24 parts
Rear Subframe
12 parts
Foot Controls
23 parts
Rear Subframe
11 parts
Sidestand
15 parts
Sidestand
17 parts
Front Mudguard
6 parts
Front Mudguard
6 parts
Rear Mudguard
24 parts
Rear Mudguard
25 parts
