Front Suspension & Steering incl. Clutch Controls
Triumph Speed Triple 1200 · 12 diagrams
12 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Speed Triple 1200, covering the Speed Triple 1200 RS, Speed Triple 1200 RX Limited Edition, Speed Triple 1200 RR. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

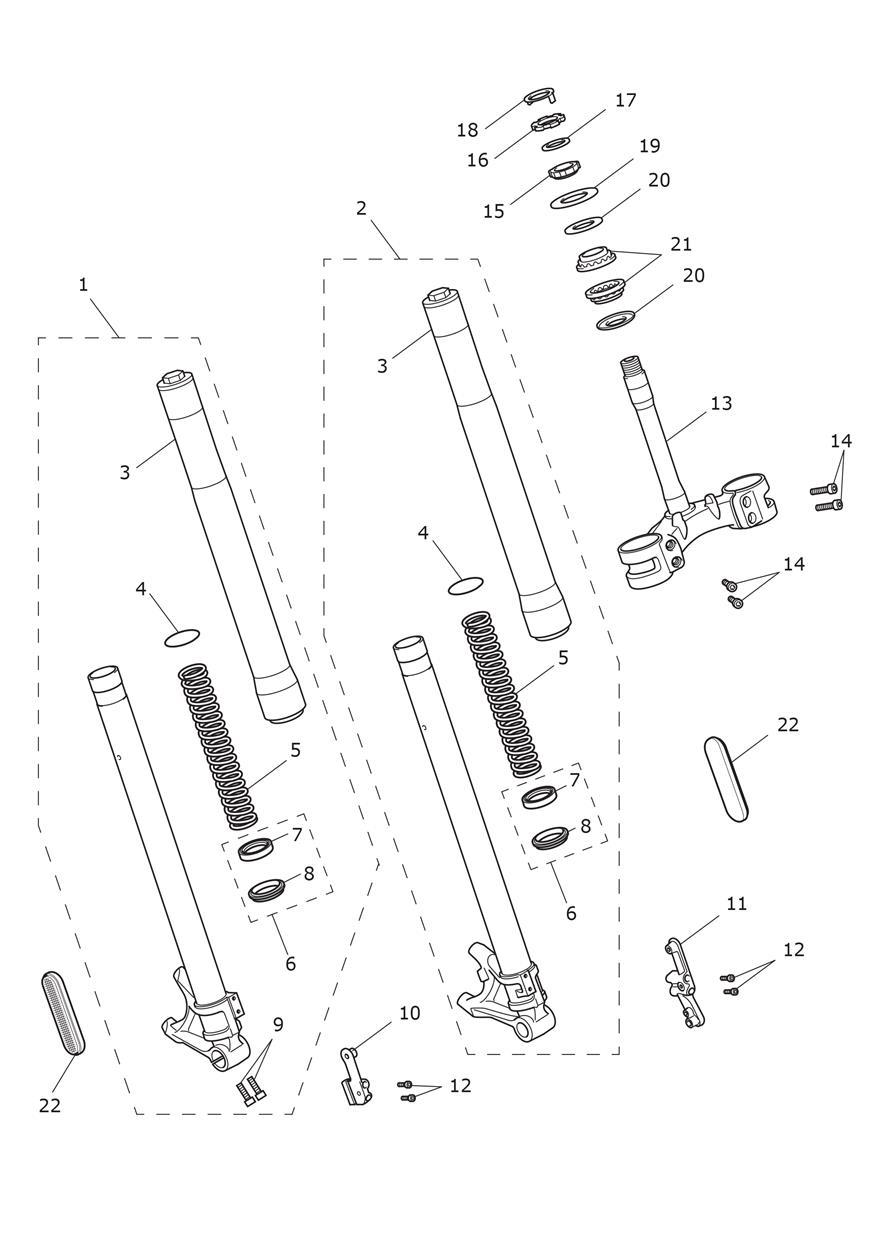

Front Forks & Lower Yoke
28 parts
VIN CD3148 and higher
Handlebars, Top Yoke & Mirrors
32 parts

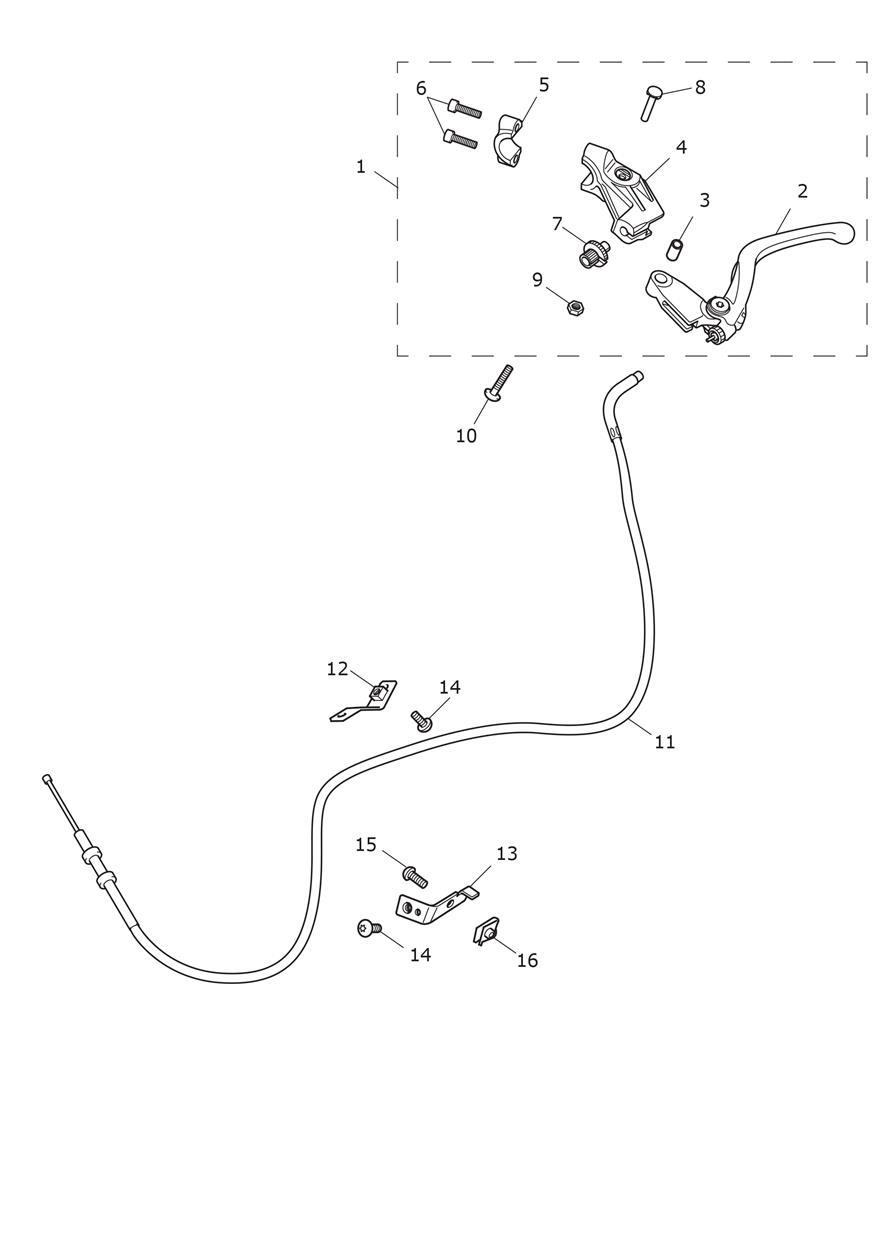

Clutch Controls
15 parts

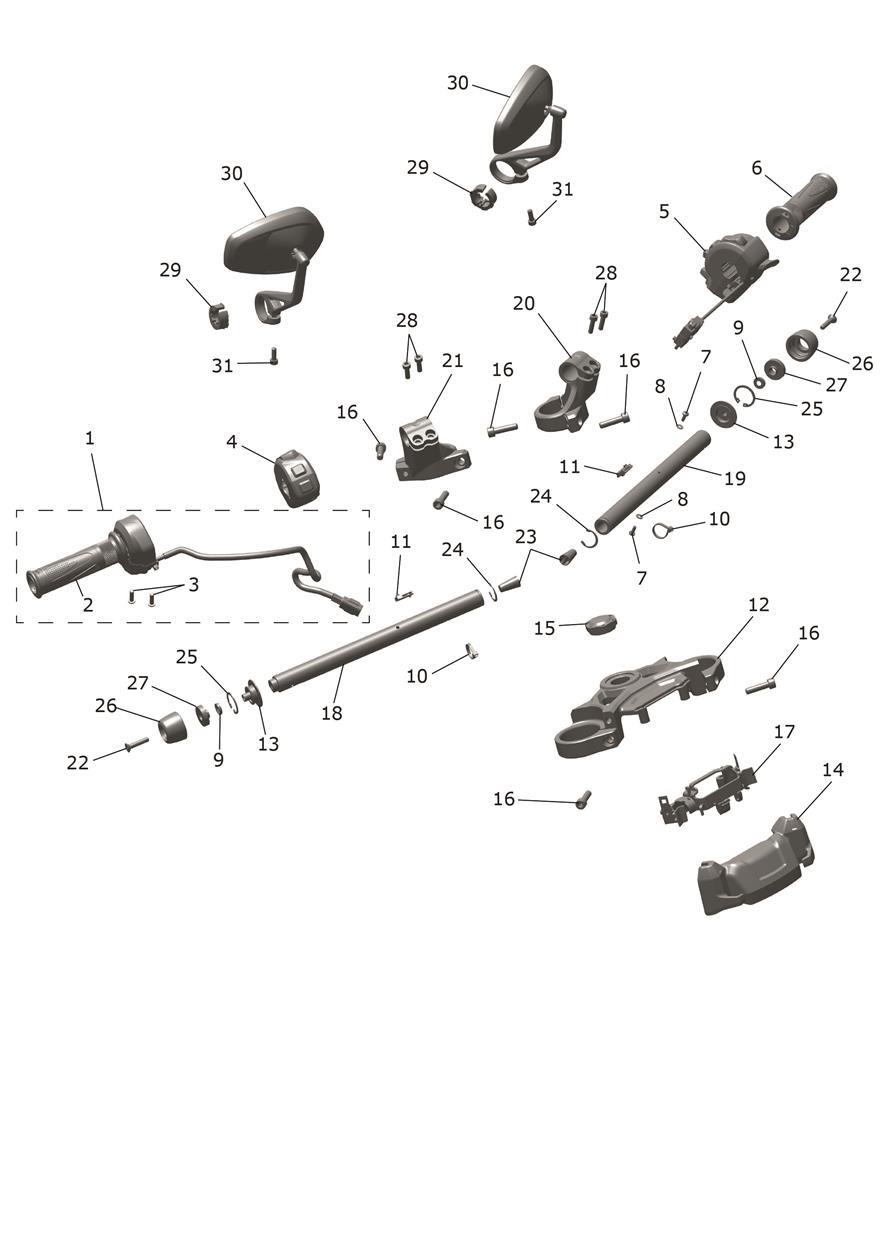

Handlebars, Top Yoke & Mirrors
31 parts
VIN CD3148 and higher
Clutch Controls
15 parts
VIN CD3148 and higher
Front Forks & Lower Yoke
29 parts

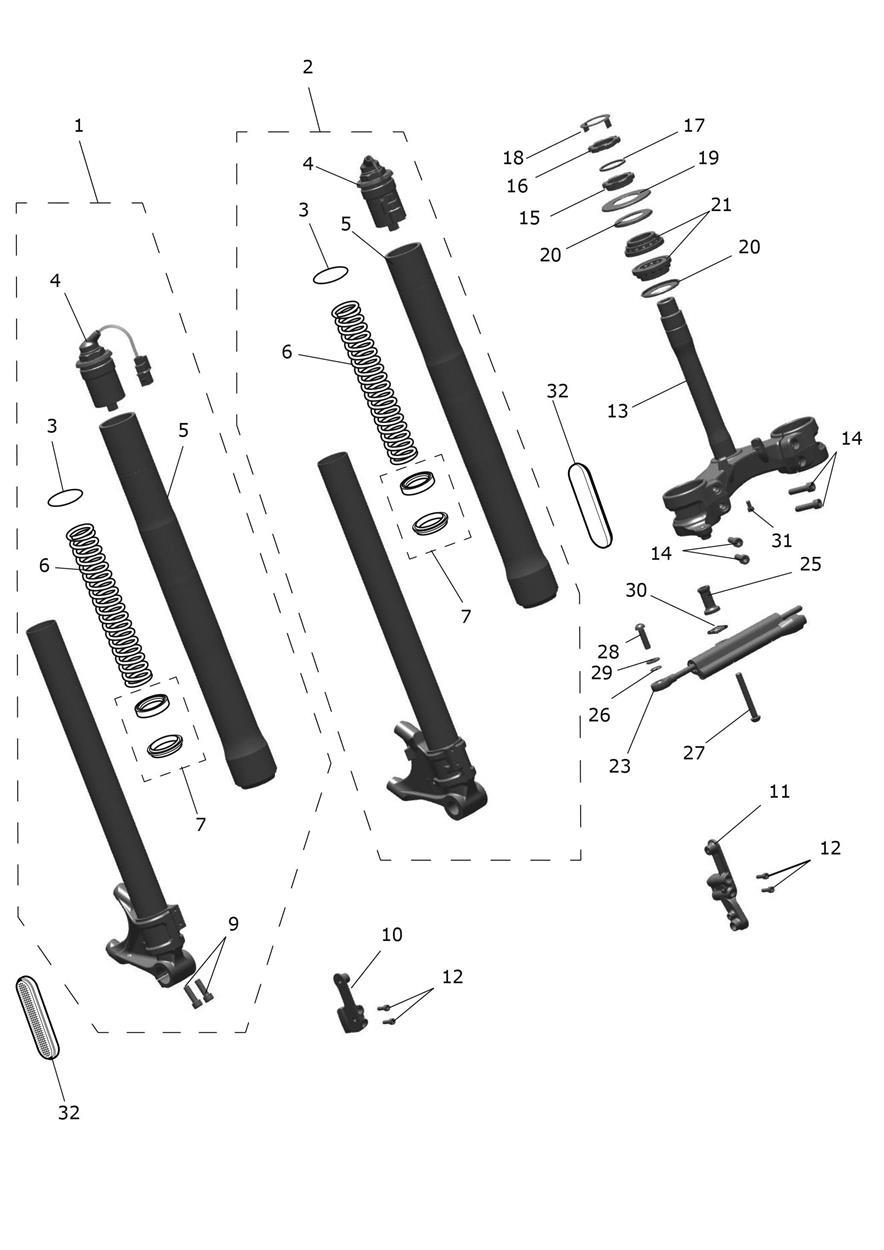

Front Forks & Lower Yoke
22 parts
VIN CD3147 and lower

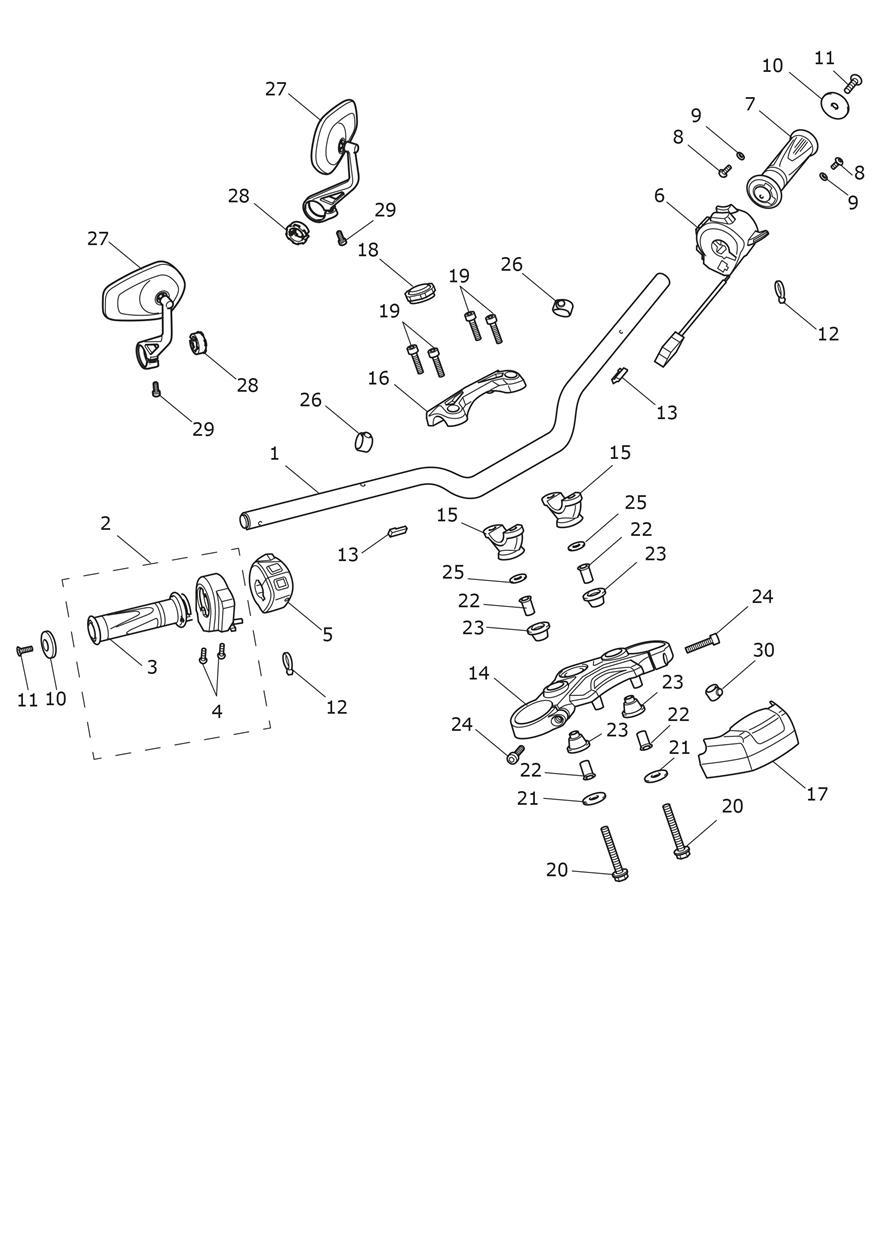

Handlebars, Top Yoke & Mirrors
36 parts

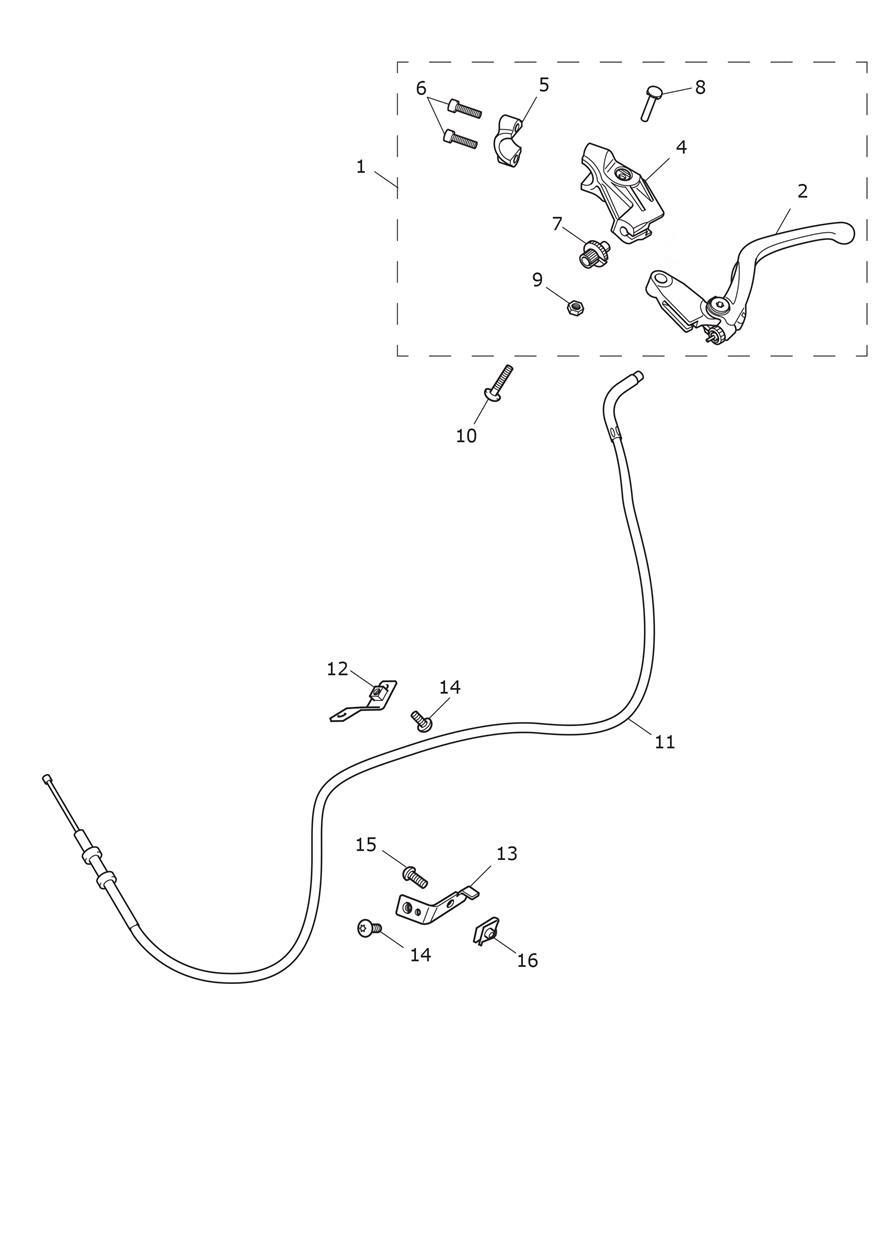

Clutch Controls
16 parts

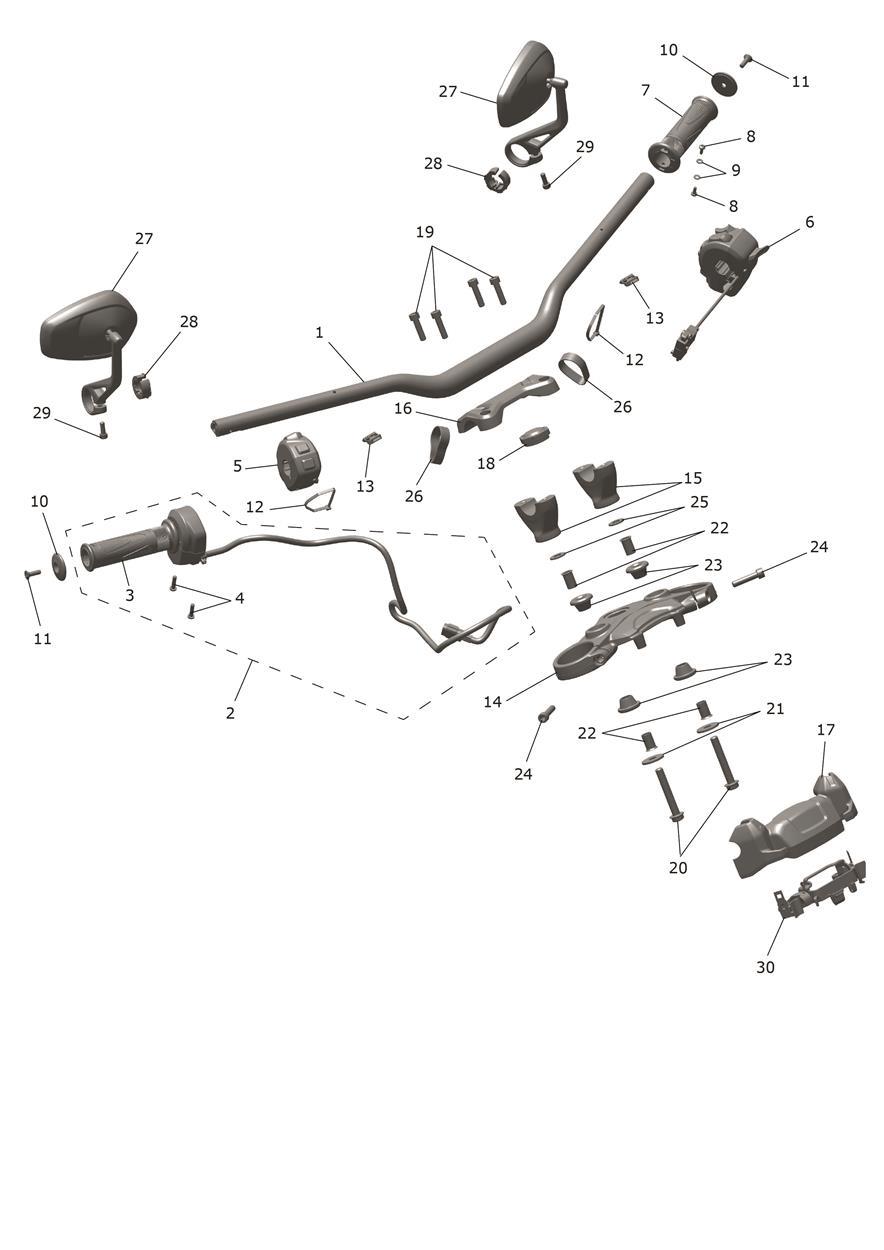

Handlebars, Top Yoke & Mirrors
31 parts
VIN CD3147 and lower

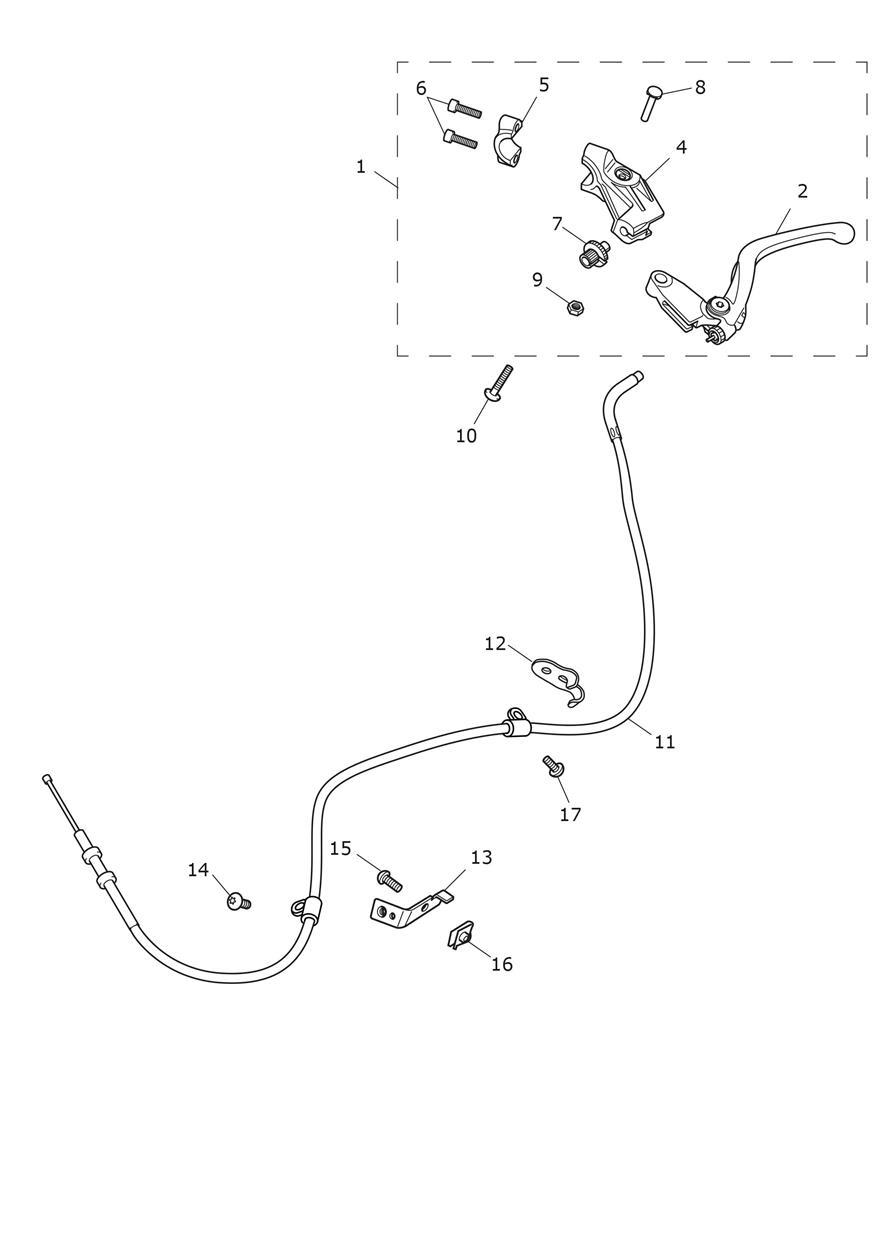

Clutch Controls
16 parts
VIN CD3147 and lower

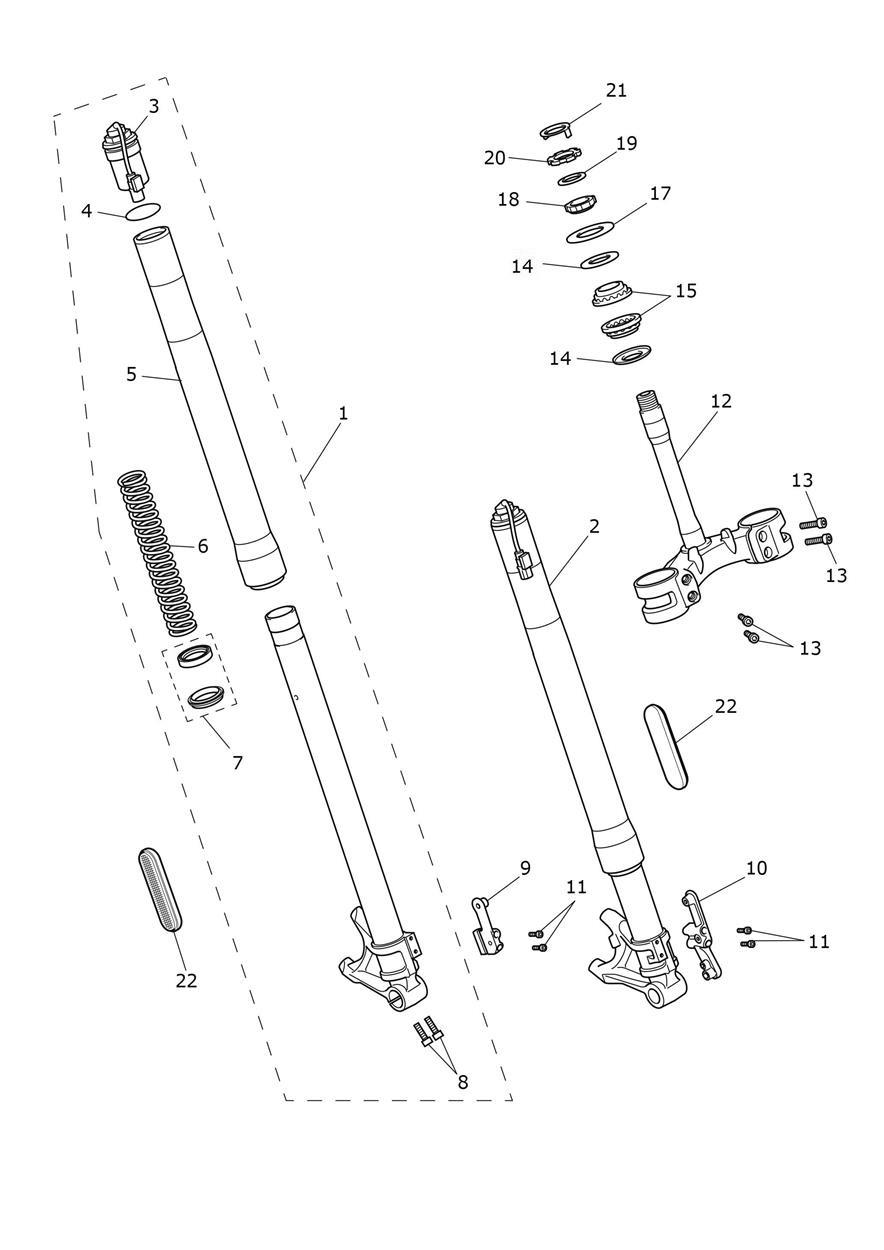

Front Forks
21 parts
122 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Speed Triple 1200 and is priced and orderable online. Open a part to see what it fits and to buy it.

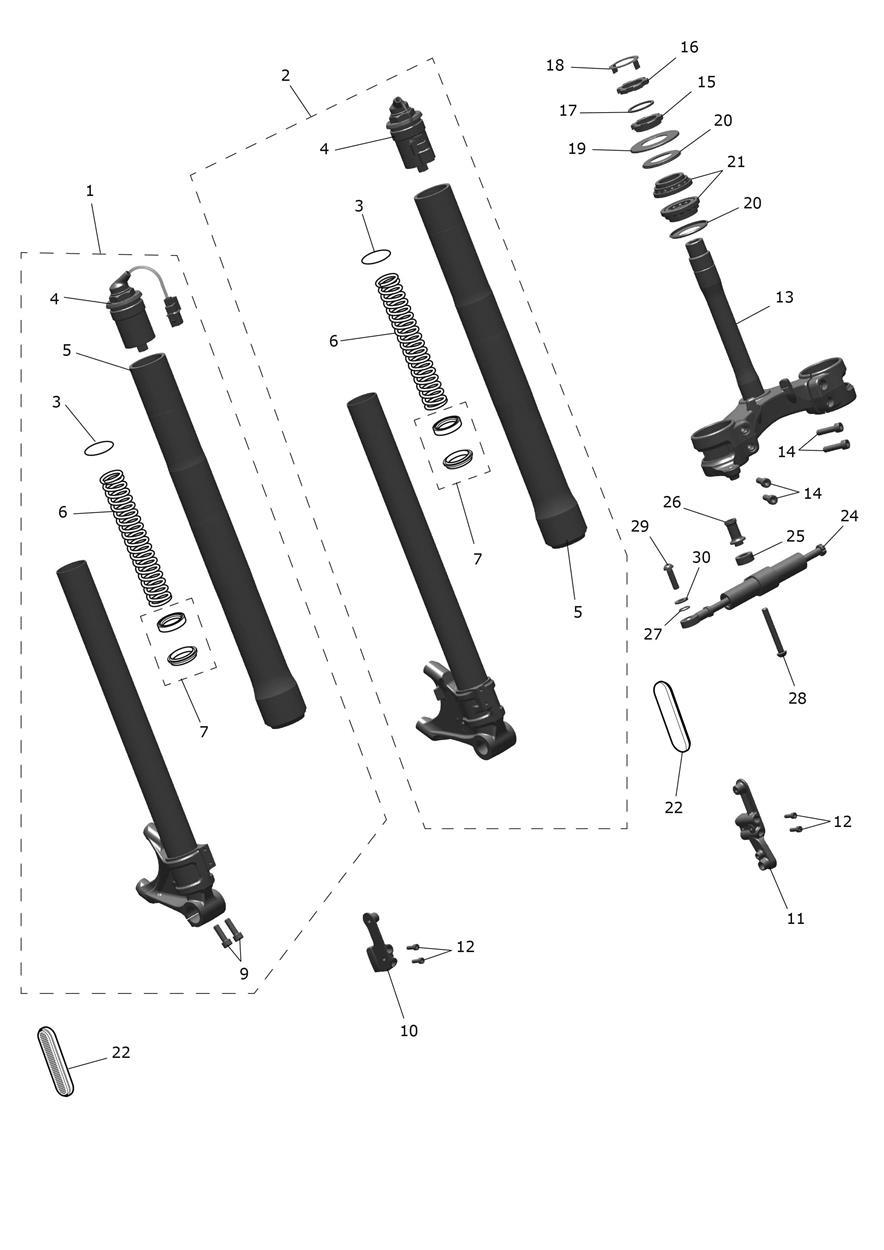

Front Forks & Lower Yoke VIN CD3148 and higher
T2044063 Stanchion Assembly, RH, Tes
$3113.18
AvailableT2040691 O-Ring, Top Cap
$10.01
AvailableT2046279 Spring, Fork
$230.60
AvailableT2041072 Seal Kit, Front Forks
$72.20
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT2049691 Bracket, Mudguard, RH
$55.22
AvailableT3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc
$1.99
AvailableT2049624 Lower Yoke
$359.21
AvailableT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT2040301 Adjuster Nut, M30, Lower
Low stock at Triumph
$26.39
Limited availabilityT2040304 Locknut, M30
$19.08
AvailableT2042738 Rubber Washer
$1.99
AvailableT2044184 Washer, Tabbed
$9.98
AvailableT2046559 Cover, Headstock Bearing
Low stock at Triumph
$9.43
Limited availabilityT3600234 Dust Seal, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT3800091 Bearing, Sac
$31.43
In stock in BreaT2700332 Reflector, Amber, Oval
$5.92
AvailableT2049634 Washer, Foam
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderT2101380 O Ring
$3.81
AvailableT3050329 Screw, Btn Hd, TX, M8 x 65, Enc
Backordered at Triumph · we’ll confirm the ship date after you order
$2.96
On backorderT3335015 Screw, But/Hd, TX, M8 x 30
$7.71
AvailableT3550184 Washer, Hardened, 8.2 x 18.7 x 2
$2.09

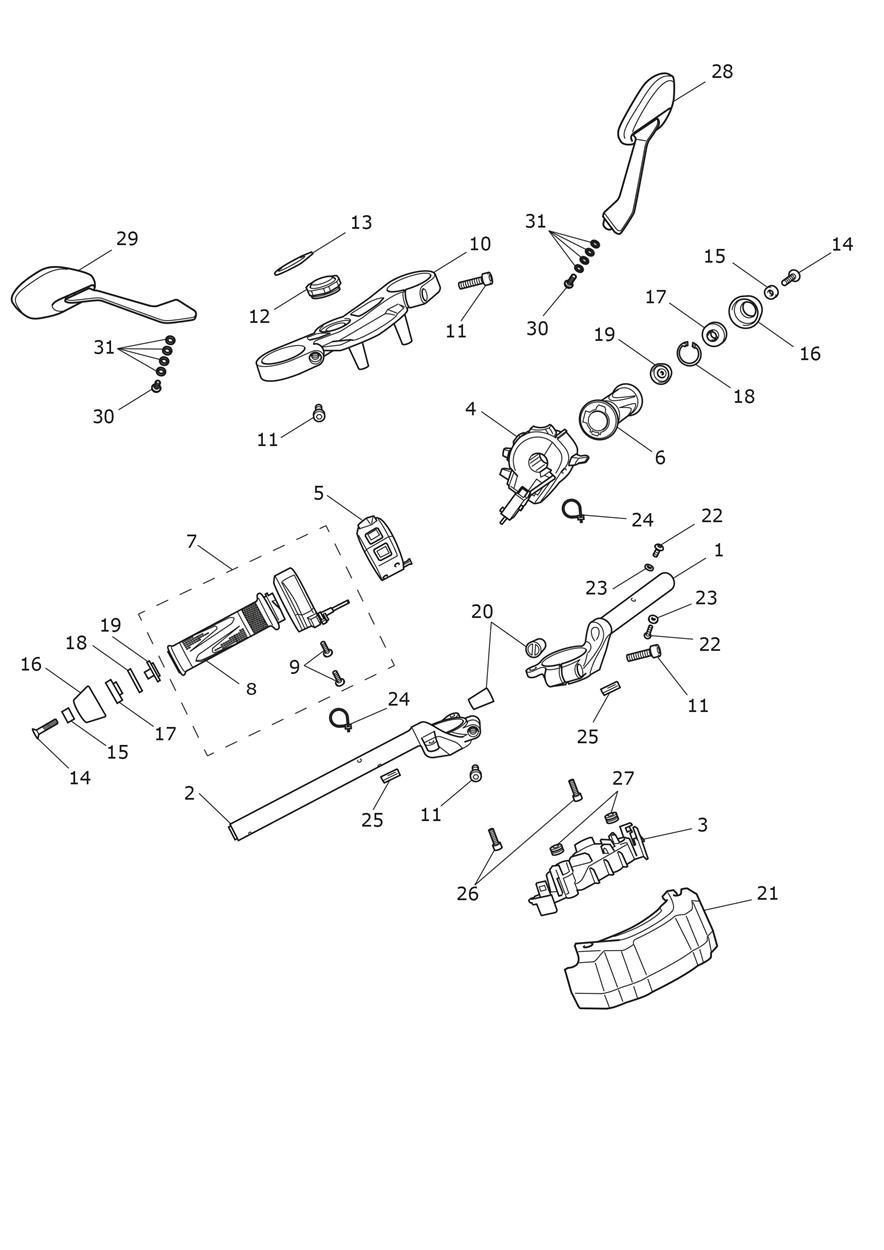

AvailableHandlebars, Top Yoke & Mirrors
T2045300 Sensor, AP Cruise
$192.91
AvailableT2044707 Grip, RH
$24.67
In stock in BreaT3050314 Bolt, M5 x 20
Low stock at Triumph
$6.50
Limited availabilityT2044024 Switchcube, RH
Low stock at Triumph
$276.34
Limited availabilityT2044137 Switchcube, LH
Low stock at Triumph
$261.59
Limited availabilityT2044136 Switchcube, LH
$239.28
AvailableT2045139 Grip, Handlebar, LH
$24.67
AvailableT3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD
$6.61
AvailableT3550500 Washer, 4.3 x 9.0 x 0.8
$1.99
AvailableT2042984 Finisher Cap
$9.42
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT2049701 Switchcube Mounting Block
$4.91
AvailableT2049626 Upper, Yoke
$455.00
AvailableT2044938 Guard, End Weight, Handlebar
$33.26
AvailableT2049040 Cover, ESL, Mldg
Low stock at Triumph
$6.39
Limited availabilityT2049880 Nut, Upper Yoke, M25
$22.62
AvailableT2043939 Bracket, ESL
$23.95
AvailableT2044293 Tube, Handlebar RH
$71.84
AvailableT2044198 Tube, Handlebar, LH
$71.84
AvailableT2044193 Clamp, Handlebar, LH
$135.70
AvailableT2044197 Clamp, Handlebar, RH
$135.70
AvailableT3330956 Screw, CSK, M6 x 30, Slv, Enc
$6.68
AvailableT3450154 Bung, Tapered, EPDM
Low stock at Triumph
$3.49
Limited availabilityT3500178 Circlip, Crescent, 22 x 1.2
Low stock at Triumph
$1.99
Limited availabilityT3500190 Circlip, Int, 26.4 x 1.2
$2.59
AvailableT2043732 Handlebar End Weight
$35.82
AvailableT2043788 Bush, Handlebar, Shore 70A
$5.55
AvailableT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT2060499 Friction Ring, 22.2
$34.22
AvailableT2062025 Mirror, Bar End, Assy
$119.74
AvailableT3050159 Capscrew, Skt HD, M6 x 20, SS
$4.76
AvailableClutch Controls
T2043945 Clutch Lever Assembly, MCS
$119.64
In stock in BreaT2043946 Clutch Lever, MCS, Adjustable
$83.07
AvailableT2046082 Clutch Lever Bracket
$36.08
AvailableT2046510 Clamp, Clutch lever bracket
Low stock at Triumph
$14.86
Limited availabilityT2046522 Bolt, Handlebar Clamp
$1.99
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT3332335 Screw, Tx, M4 x 0.7 x 19.5, Black
$3.98
AvailableT2046285 Bracket, Clutch Cable
$5.19
AvailableT2046315 Bracket, Clutch Cable
$5.60
AvailableT3330303 Screw, Pan/Hd, Tx, M6 x 12, Blk
$1.99
AvailableT3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv
$5.25
AvailableT3350161 Nut, Captive, M5
$4.21
AvailableHandlebars, Top Yoke & Mirrors VIN CD3148 and higher
T2046310 Handlebar, Tapered
$199.56
AvailableT2046075 APS Sensor, Assy
$246.66
AvailableT2042476 Bar End Finisher
$20.85
AvailableT3330923 Screw, Csk, M6 x 20, Slv, Enc
$2.20
In stock in BreaT2049620 Upper Yoke
$367.20
AvailableT2049628 Riser, Handlebar
$95.79
AvailableT2049627 Clamp, Handlebar
$71.84
AvailableT2043938 Cover, ESL
$15.97
AvailableT3205765 Bolt, HHF, M10 x 65, Slv
$3.81
AvailableT3555030 Washer, 10.5 x 30 x 2.5
$6.16
AvailableT2042136 Rubber Bush, Handlebar Clamp
Low stock at Triumph
$7.64
Limited availabilityT3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv
$4.39
AvailableT3550632 Washer, 10.5 x 21 x 2
$2.73
AvailableT3700252 Rubber Band, 88mm
$8.88
AvailableClutch Controls VIN CD3148 and higher
Front Forks & Lower Yoke
T3600085 O-Ring, ID 14.6, SD 2.4
$3.71
AvailableT3050341 Screw, Cap/Hd, M5 x 10, Slv
Low stock at Triumph
$3.51
Limited availabilityFront Forks & Lower Yoke VIN CD3147 and lower
T2042442 Stanchion Assy, RH
$3144.09
AvailableT2042443 Stanchion Assy, LH
$3144.09
AvailableT2043693 Outer Tube, Gold
$624.93
AvailableT2040683 Oil Seal
$39.19
AvailableT2041074 Dust Seal
$32.98
AvailableT2049692 Bracket, Mudguard, LH
$66.97
AvailableT2045130 Lower Yoke
$367.20
AvailableHandlebars, Top Yoke & Mirrors
T2044432 Handlebar, Forged, LH
$219.38
AvailableT2044374 Handlebar, Forged, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$255.42
On backorderT2044433 Handlebar, Forged, RH
$223.31
AvailableT2049616 Upper Yoke
$381.69
AvailableT2045763 Upper Yoke, Breitling
Backordered at Triumph · we’ll confirm the ship date after you order
$607.74
On backorderT2049618 Cap, Finisher
$9.42
AvailableT2043968 Guard, End Weight, Handlebar
$24.29
AvailableT2043738 Cover, ESL Moulding
$23.07
AvailableT3050339 Screw, Cap/Hd, M6x 20, Slv, Enc
$1.99
In stock in BreaT3020131 Grommet, 9 x 2 x 6
$1.99
AvailableT2060170 Mirror, LH
$122.53
AvailableT2060171 Mirror, RH
$149.49
AvailableT3330445 Screw, But/Hd, TX, M8 x 20, PAT
$6.88
AvailableT3550371 Washer, Low FR, 8.5 x 17 x 0.5
$9.93
AvailableClutch Controls
T2044409 Clutch Cable
$41.24
AvailableT2046855 Bracket, Clutch Cable
$12.92
AvailableT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaHandlebars, Top Yoke & Mirrors VIN CD3147 and lower
T2045125 Handlebar, Tapered
Low stock at Triumph
$182.08
Limited availabilityT2045129 Upper Yoke, ESL
$367.20
AvailableT2045127 Riser, Handlebar
$99.56
AvailableT2045126 Clamp, Handlebar
$139.60
AvailableT2045141 ESL Cover
$23.07
AvailableT2062020 Mirror, Bar End, Assy
Low stock at Triumph
$118.05
Limited availabilityT3700259 Rubber Band, 43mm
$3.61
AvailableClutch Controls VIN CD3147 and lower
T2048335 Clutch Lever, MCS, Adjustable
$83.07
In stock in BreaT2043014 Collar, Clutch Lever
$3.05
AvailableT2044403 Clutch Cable
$38.60
Available
