Crankcase, Engine Covers, Lubrication System
Triumph Speed Triple · 72 diagrams
72 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Speed Triple, covering the Speed Triple 955i & 1050. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

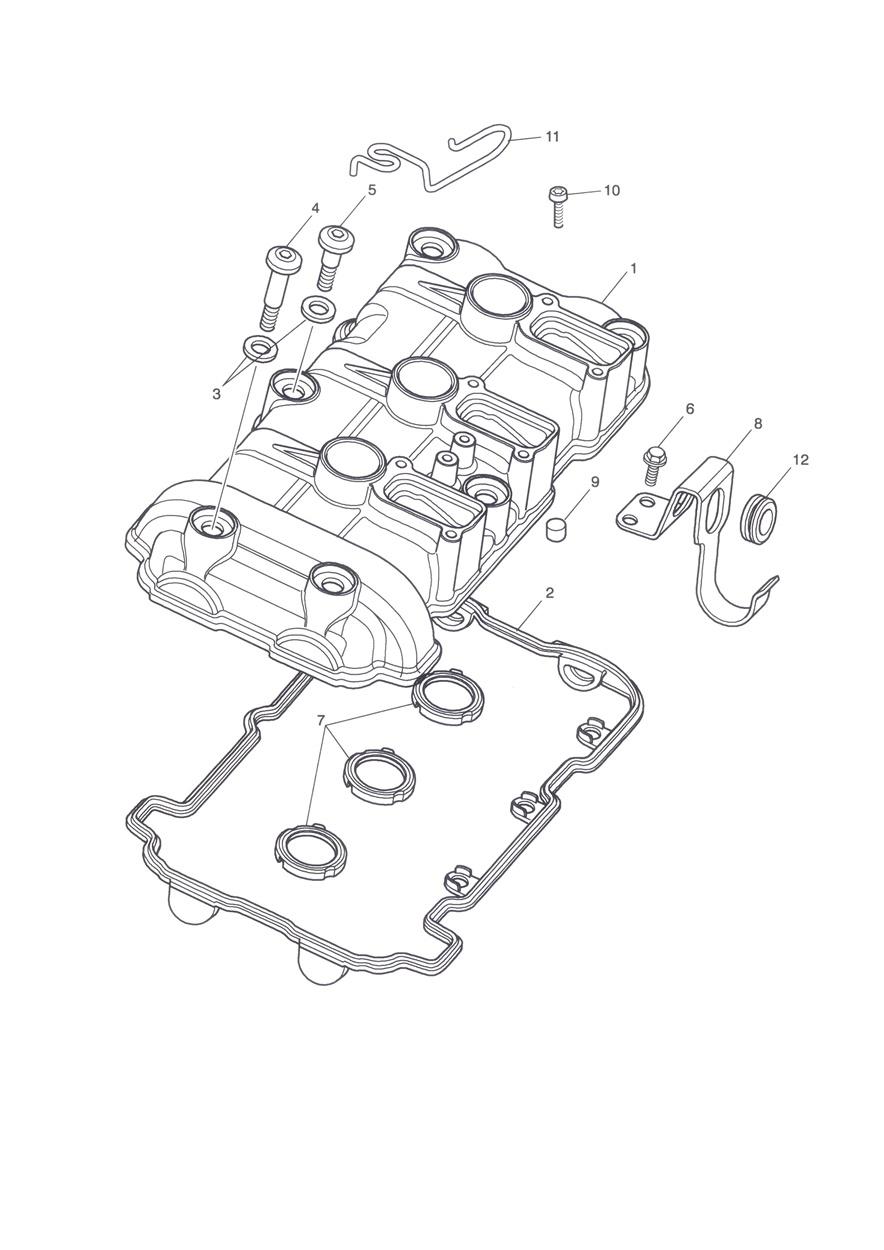

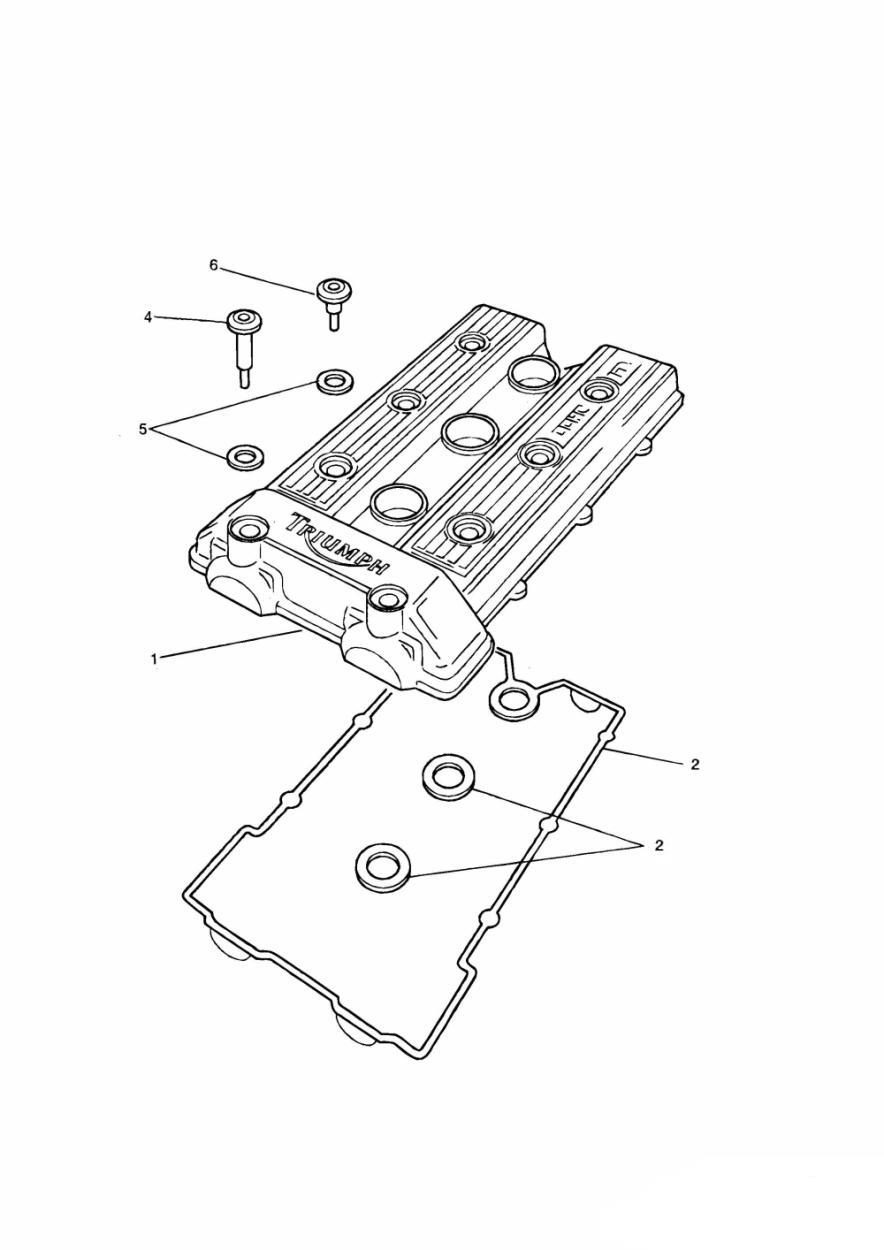

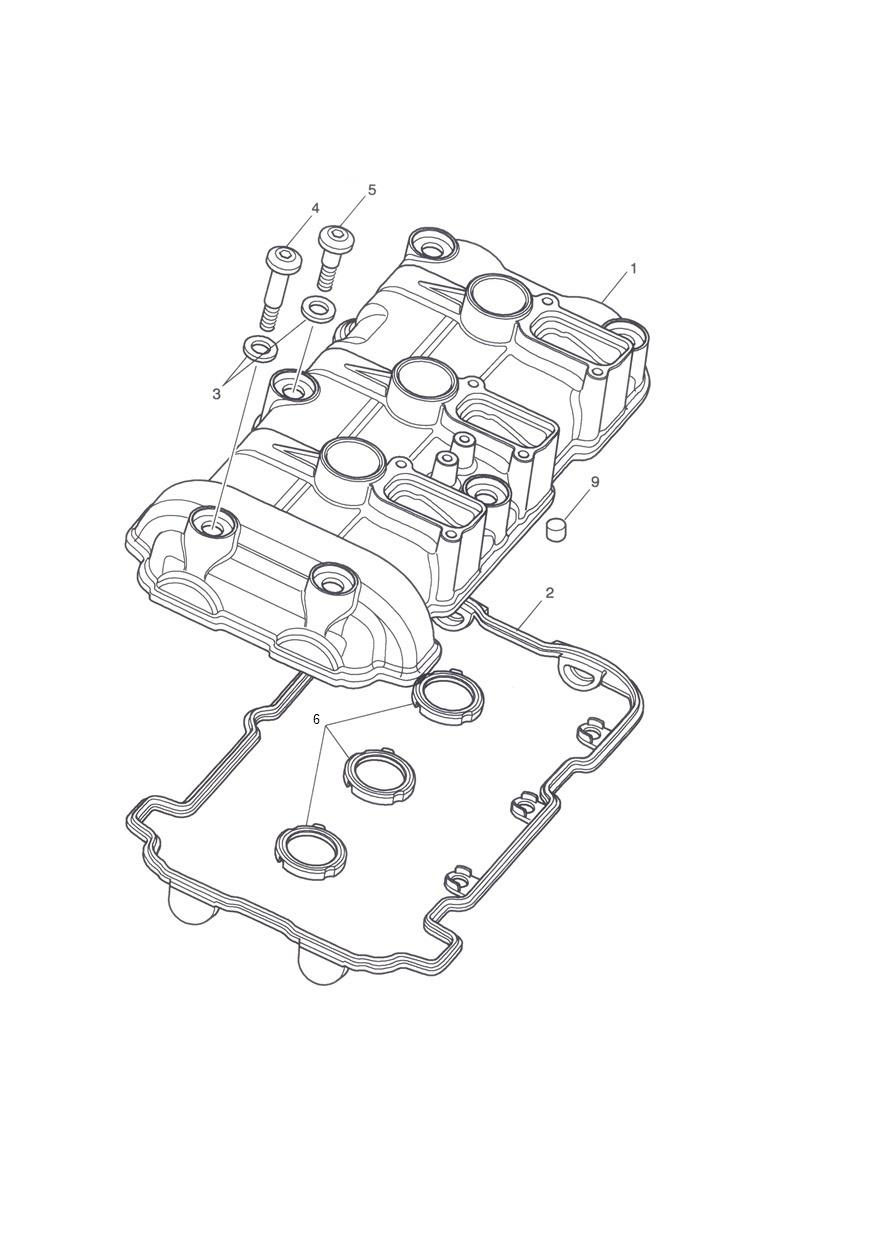

Cam Cover
7 parts

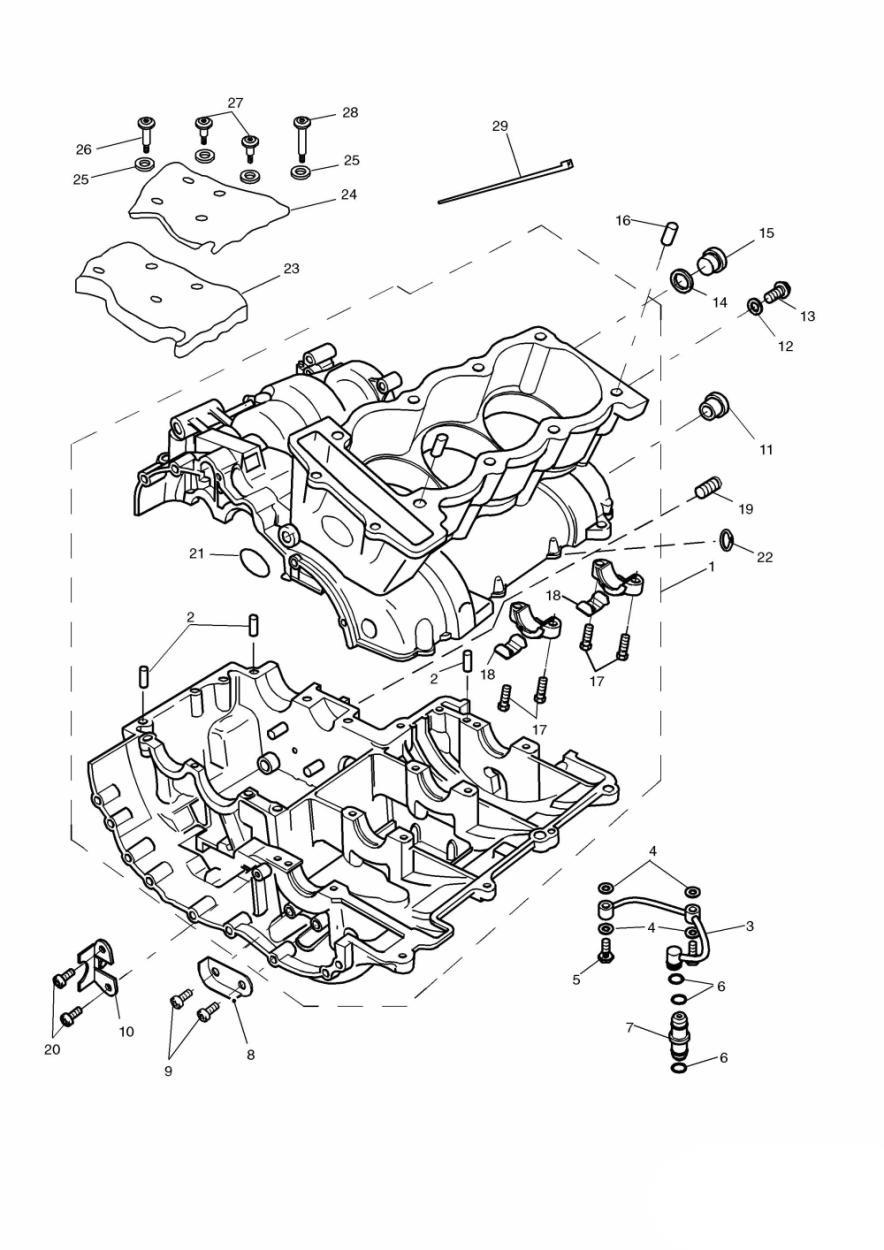

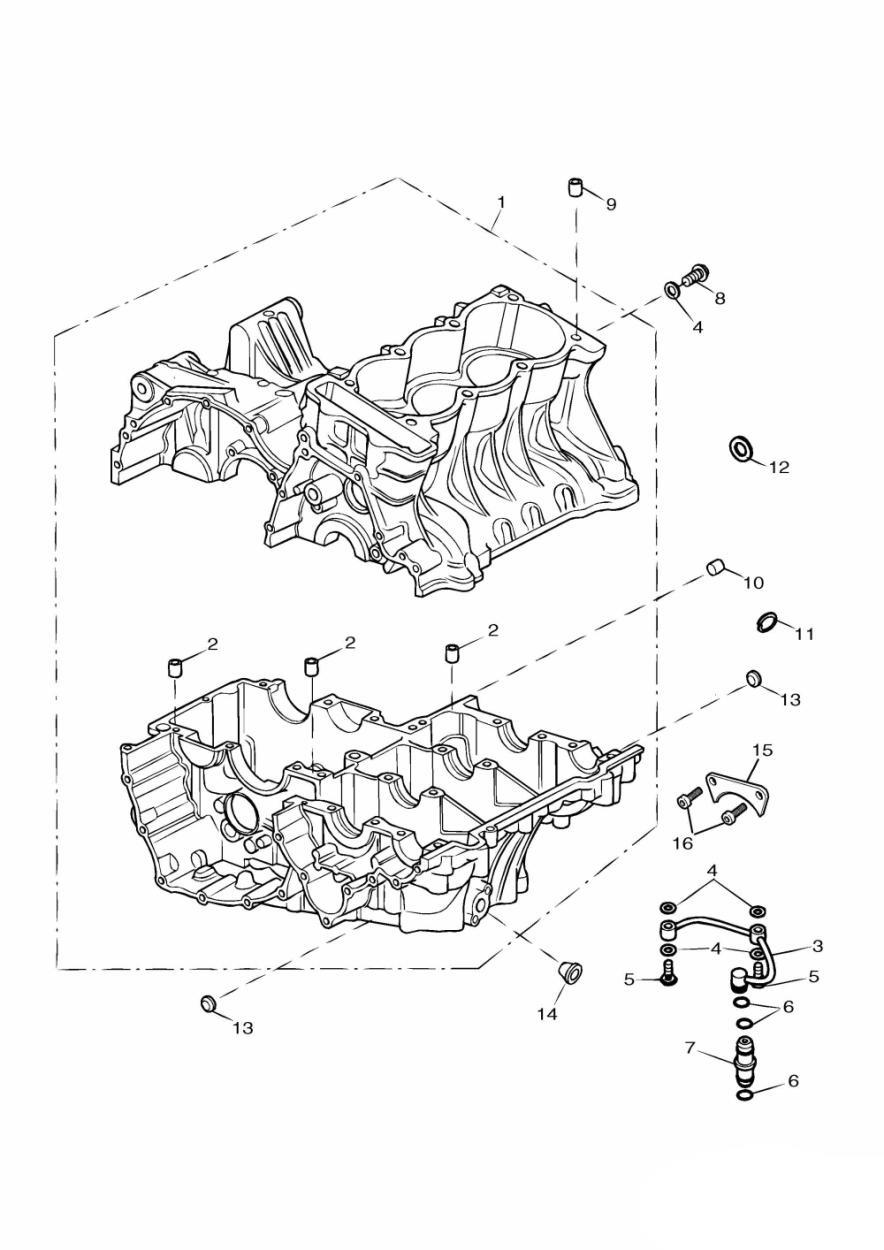

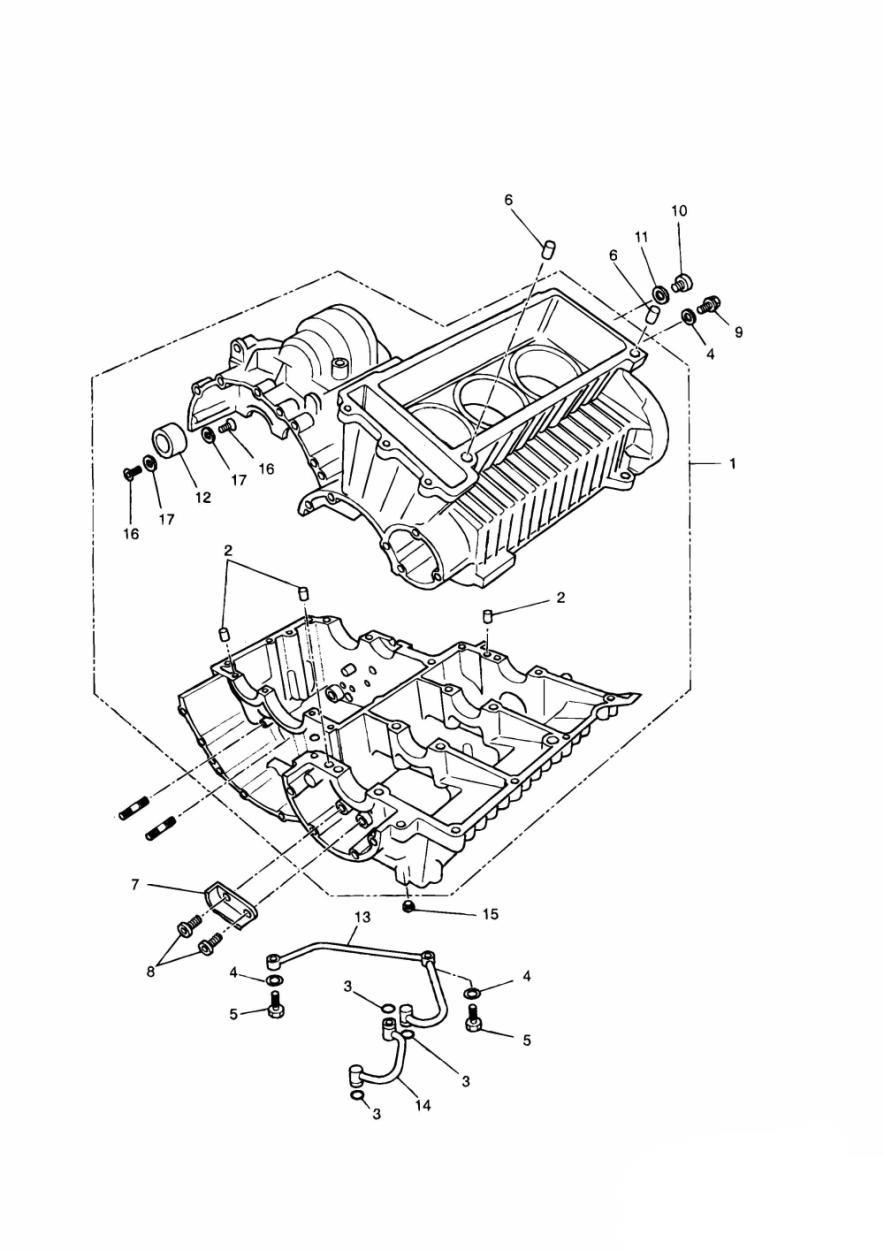

Crankcase
17 parts

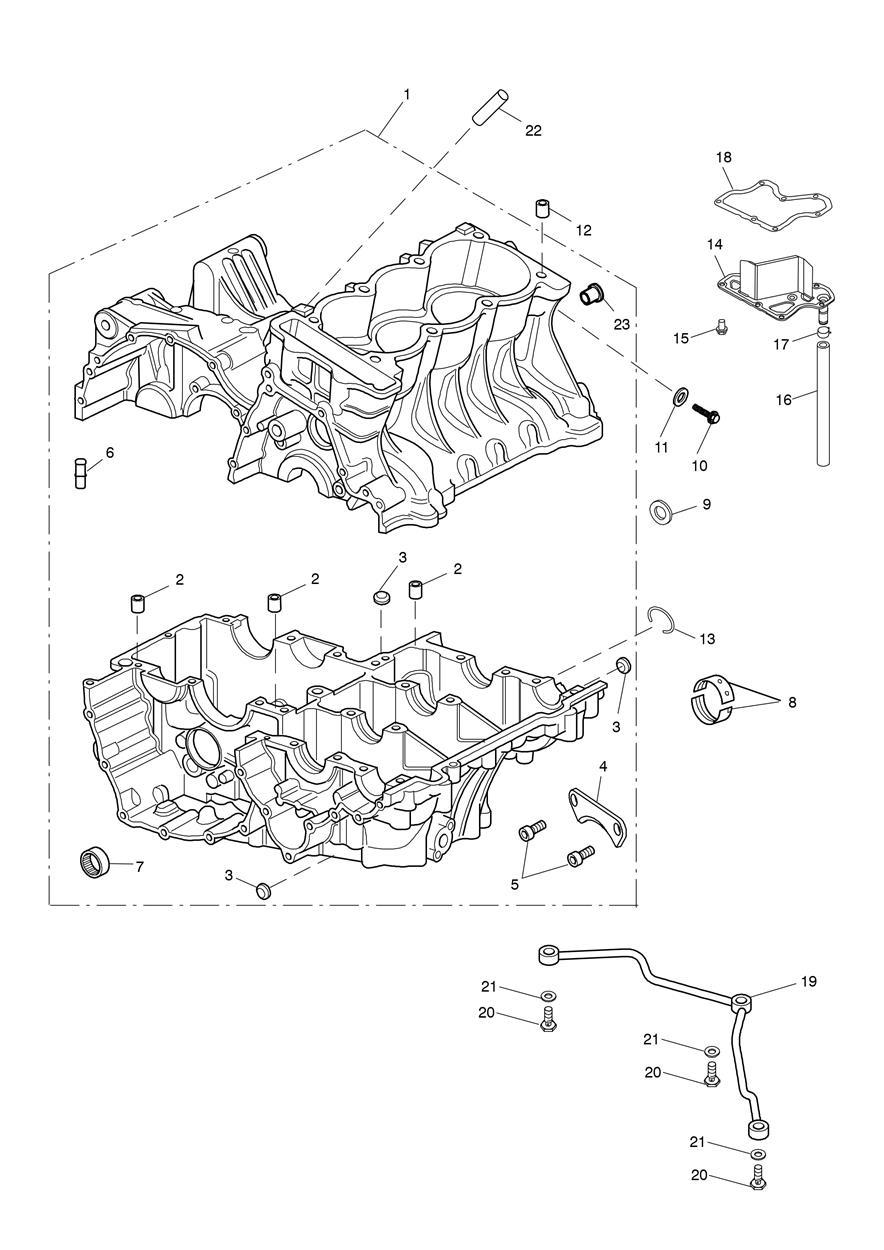

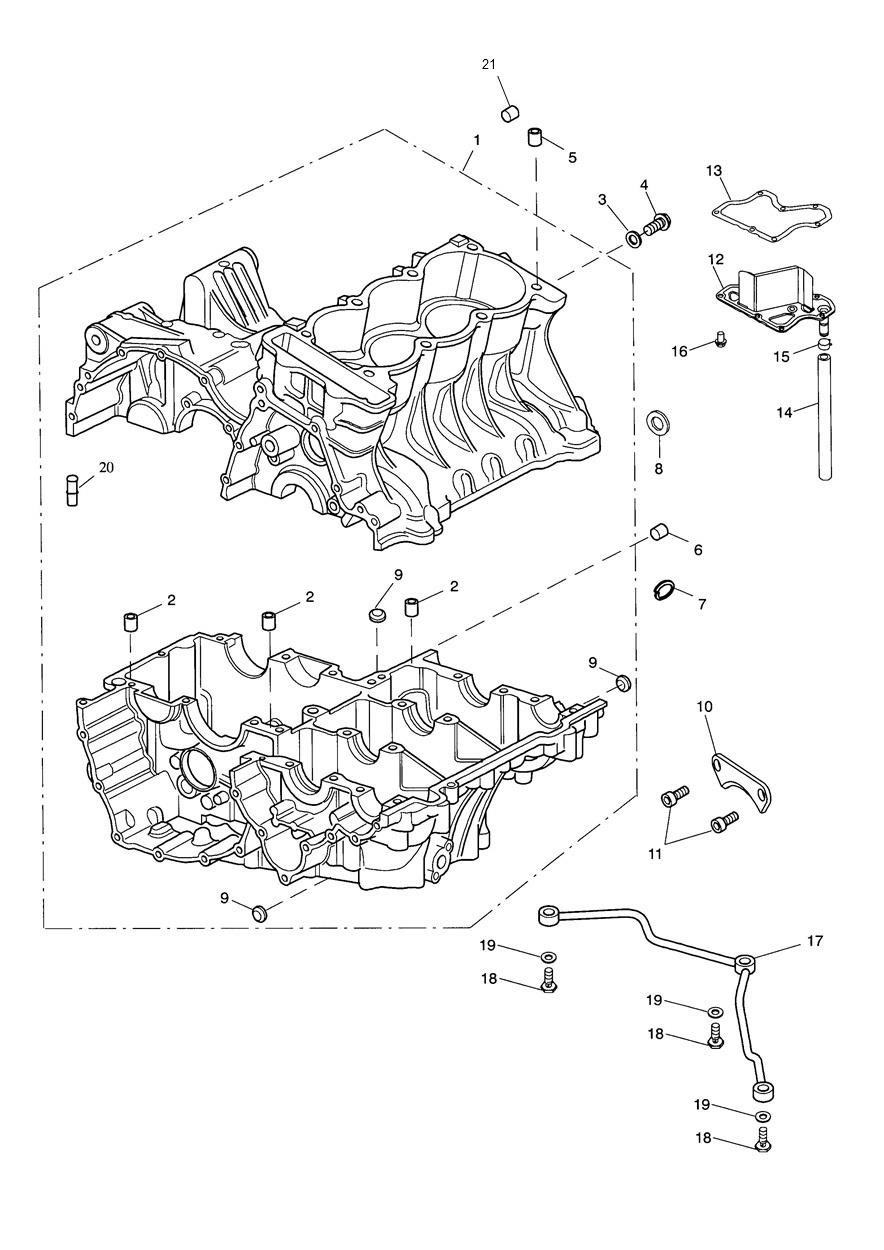

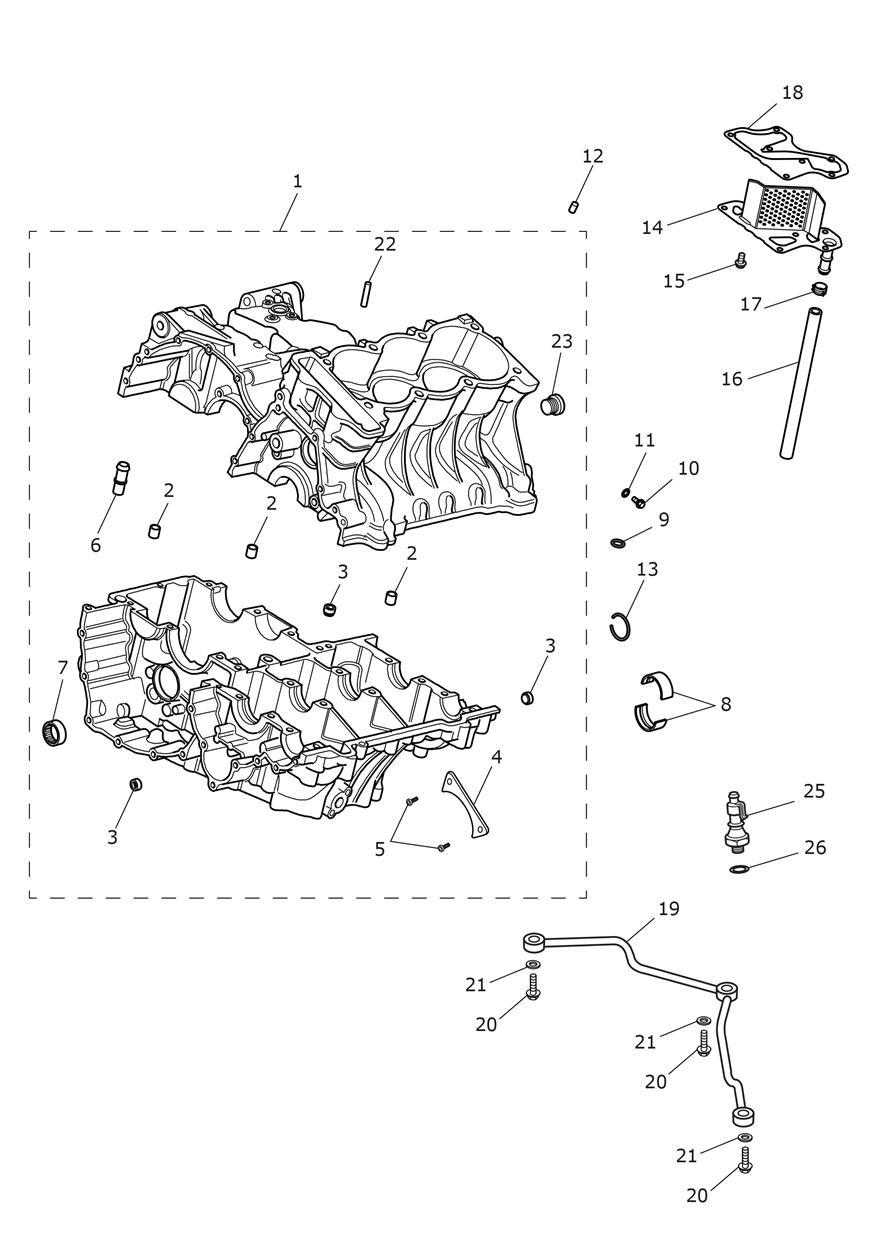

Crankcase & Fittings
28 parts
Crankcase & Fittings
23 parts

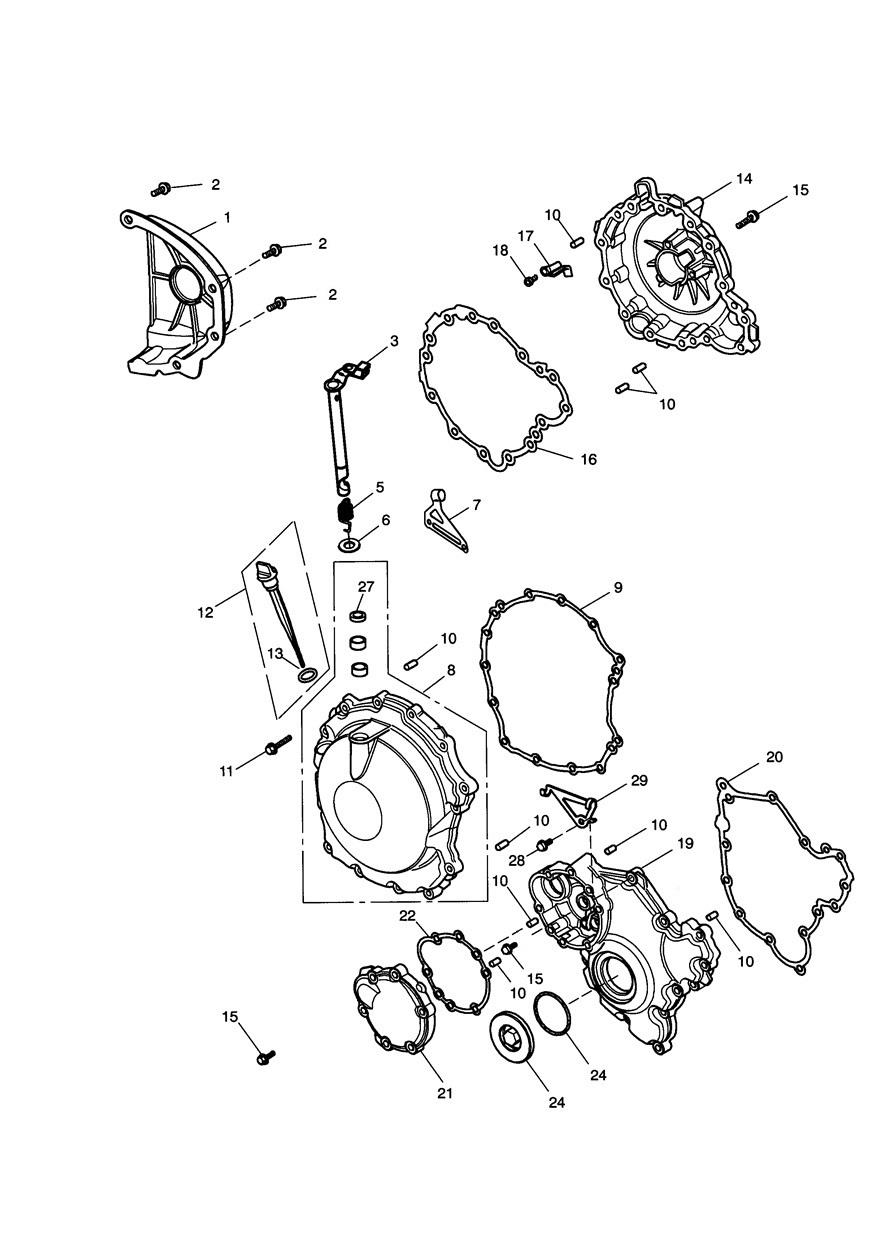

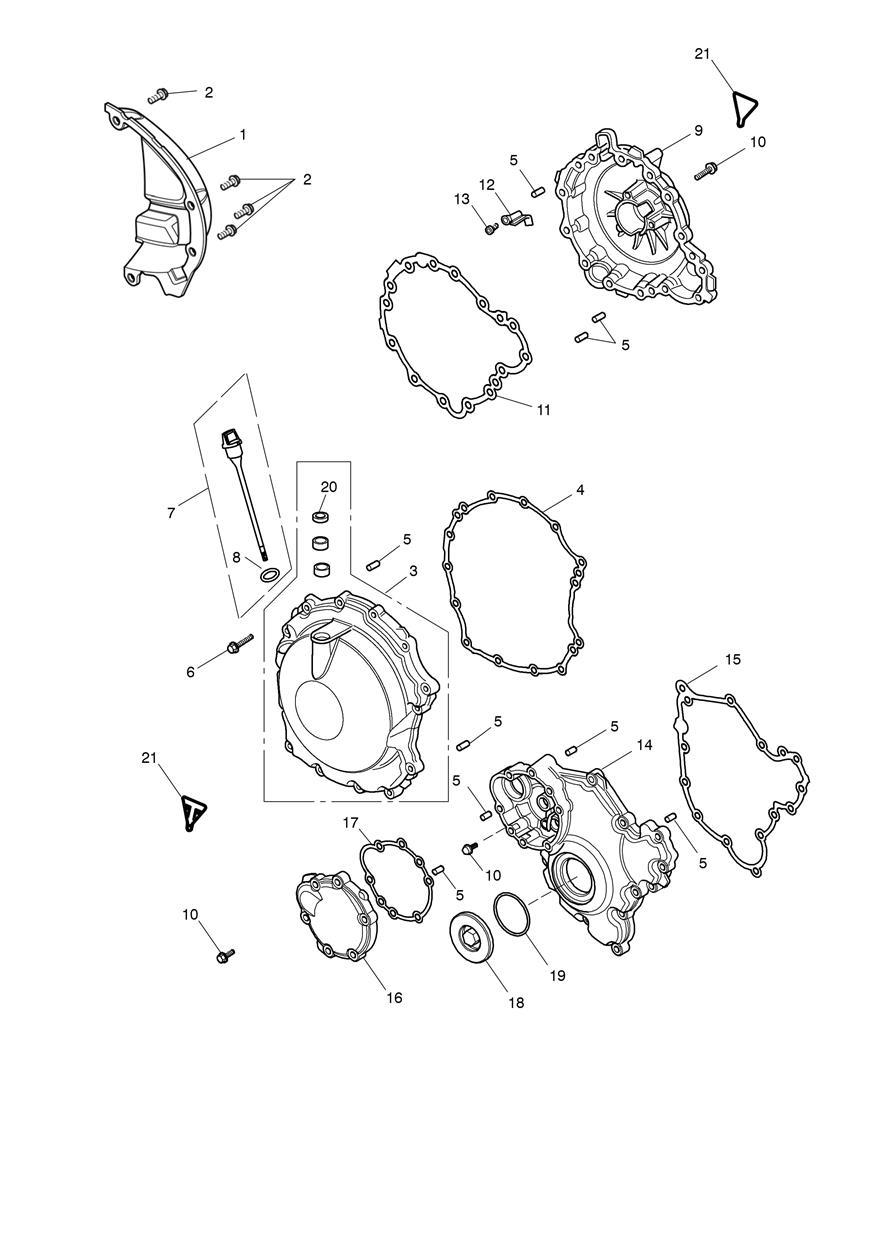

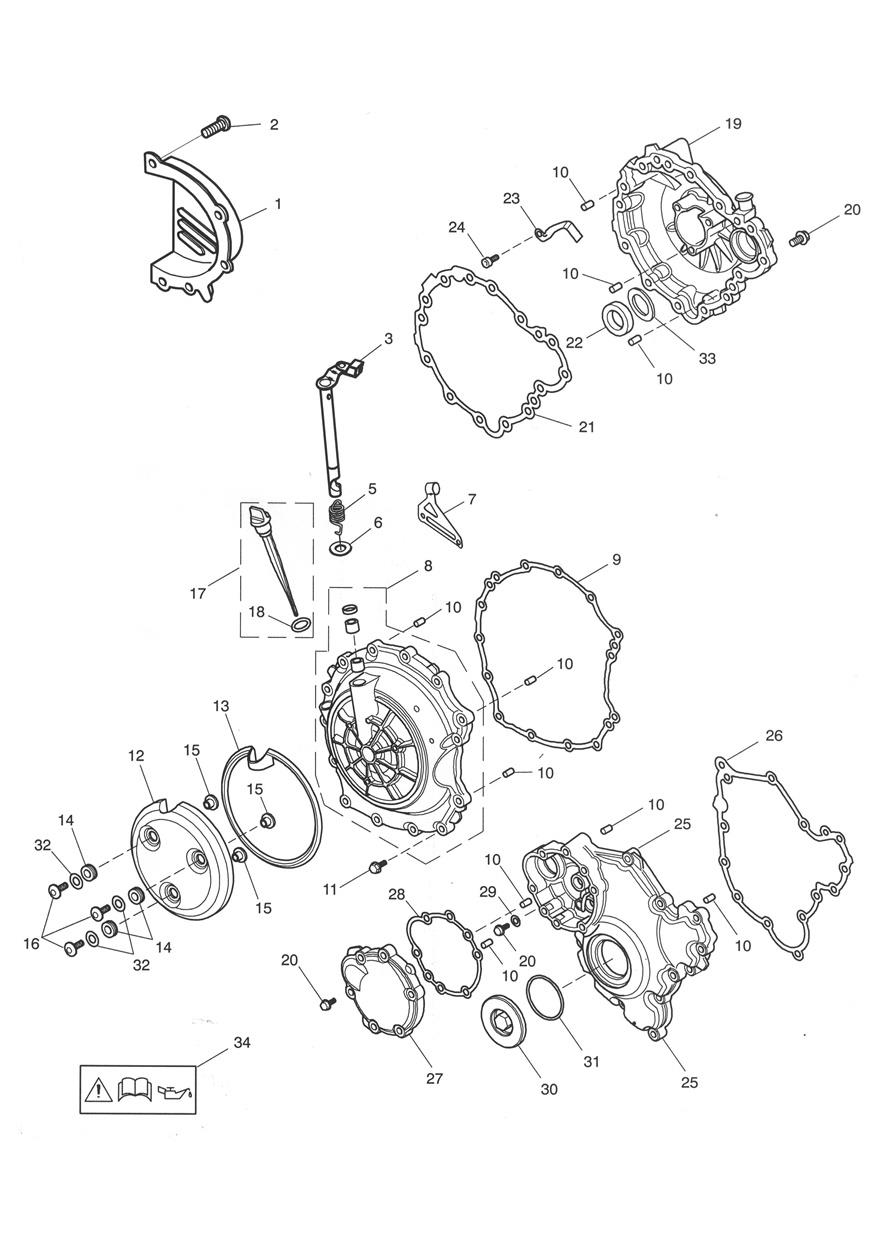

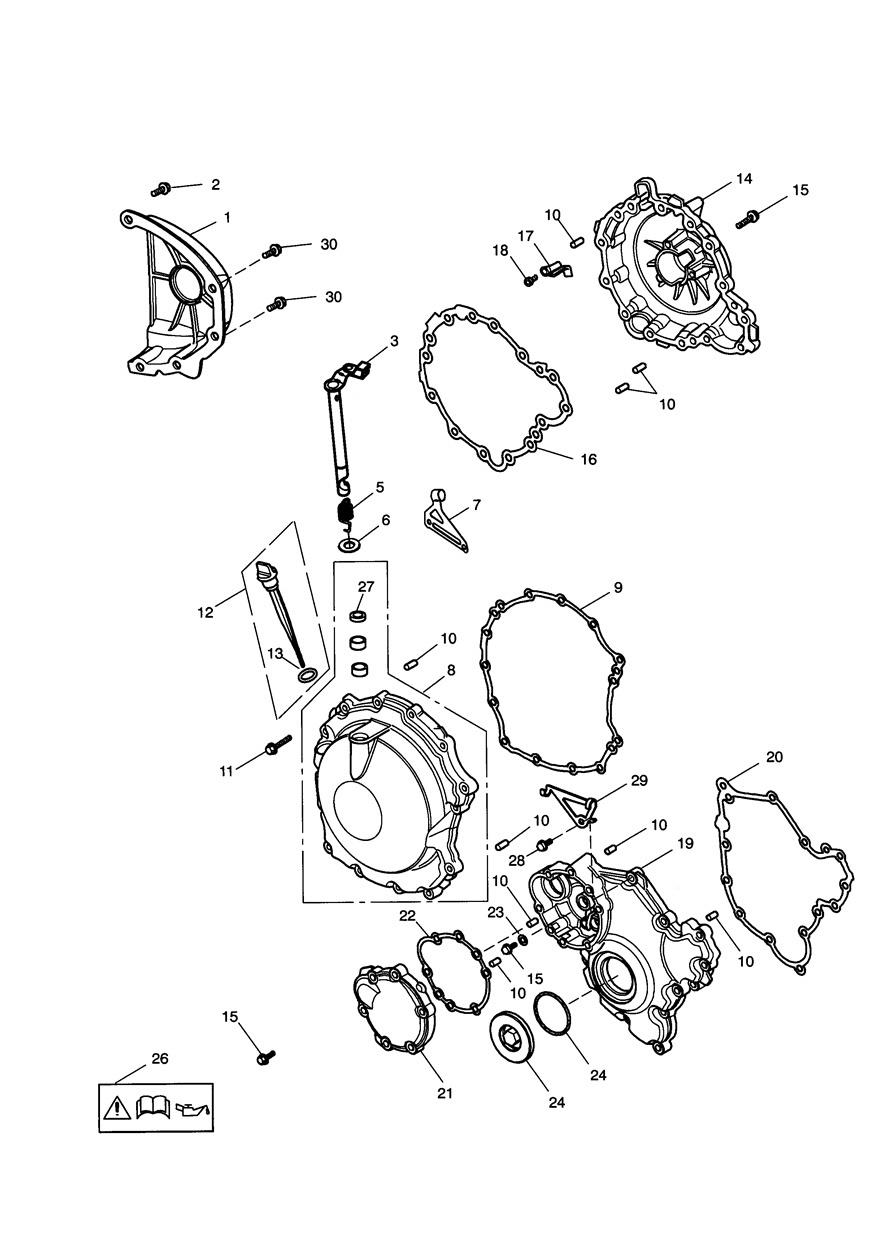

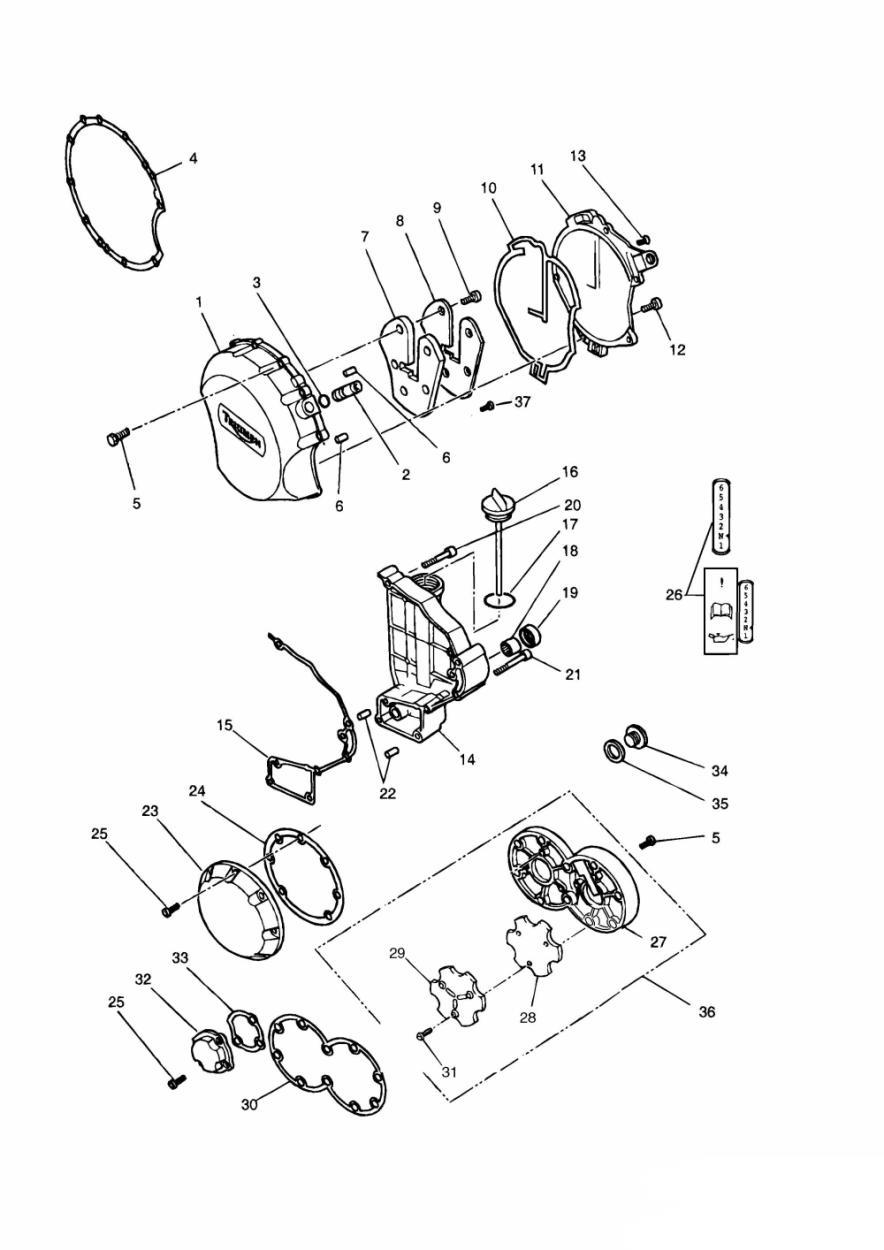

Engine Covers
36 parts

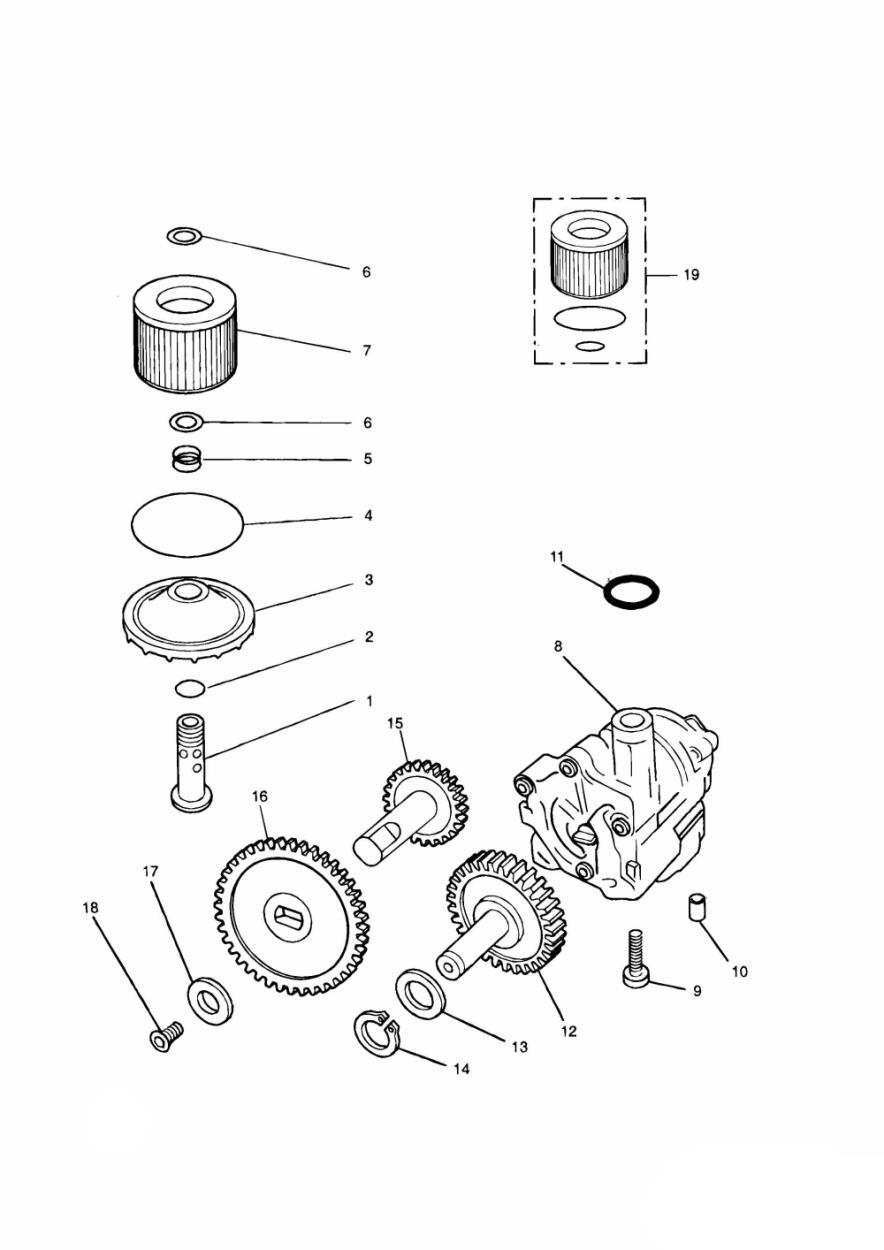

Lubrication System
24 parts

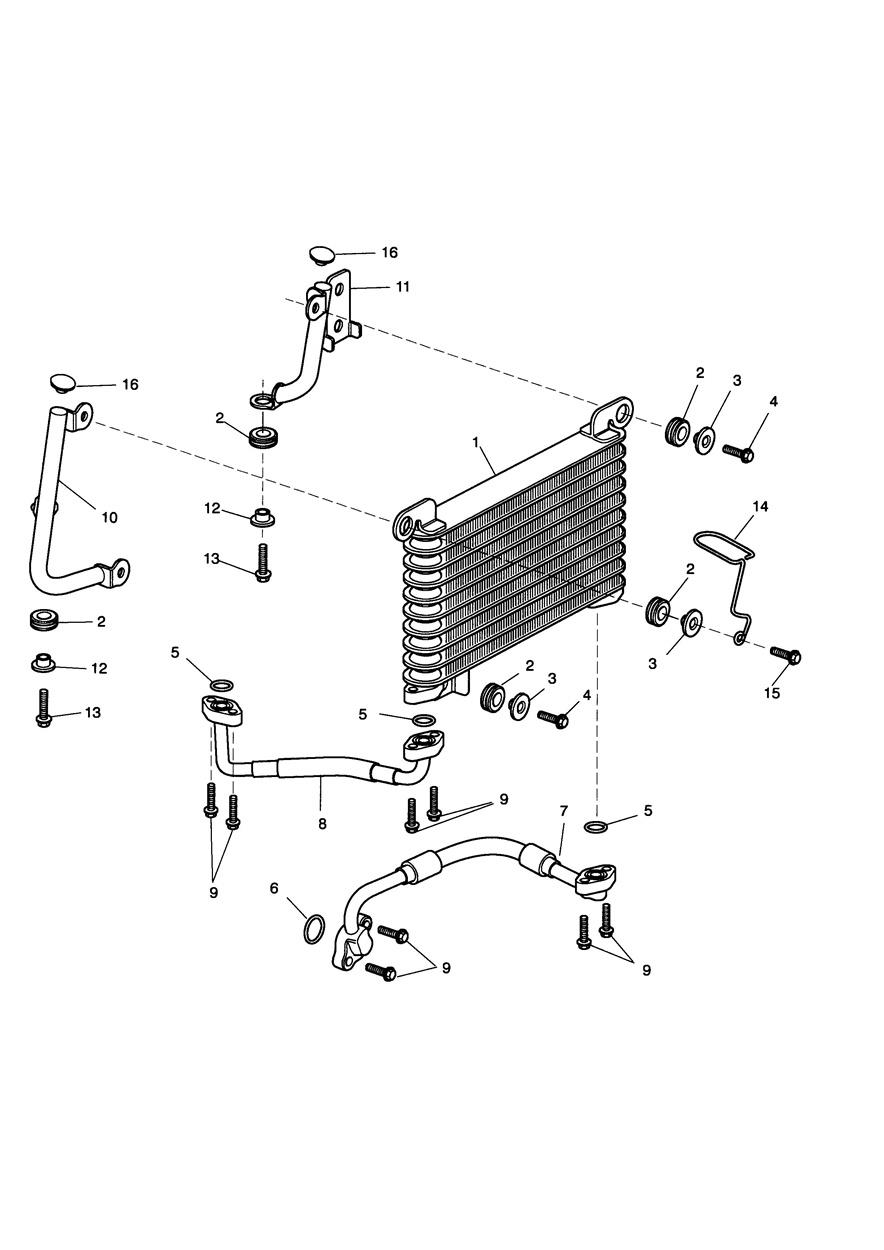

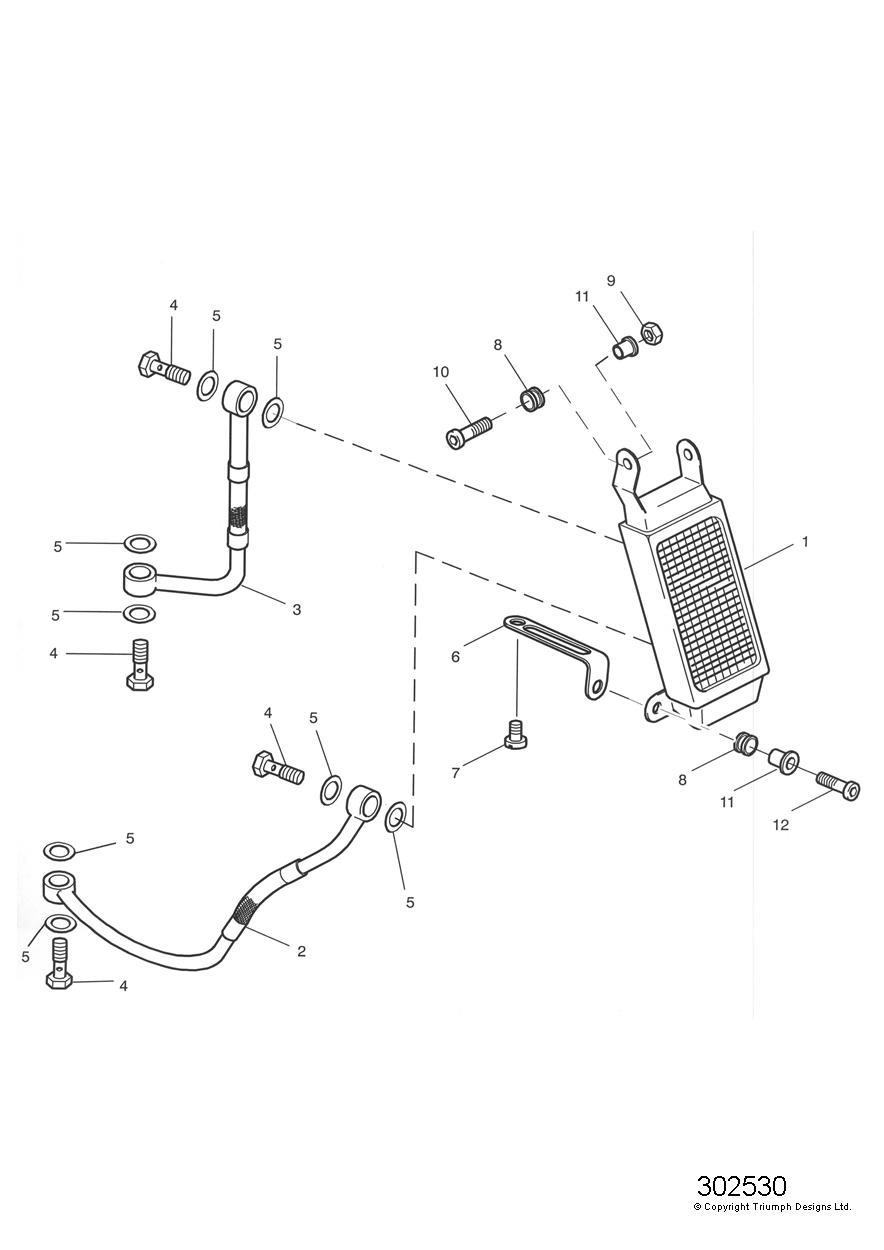

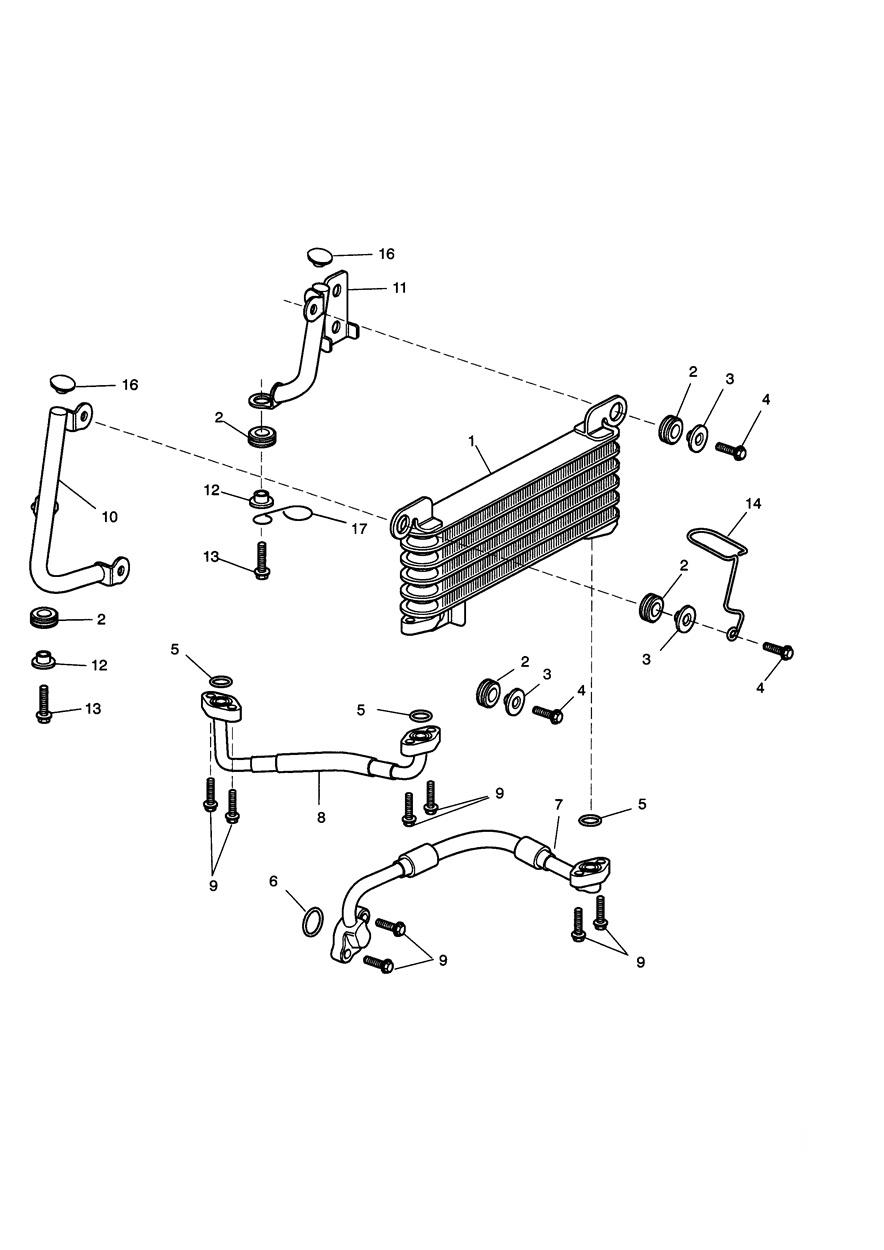

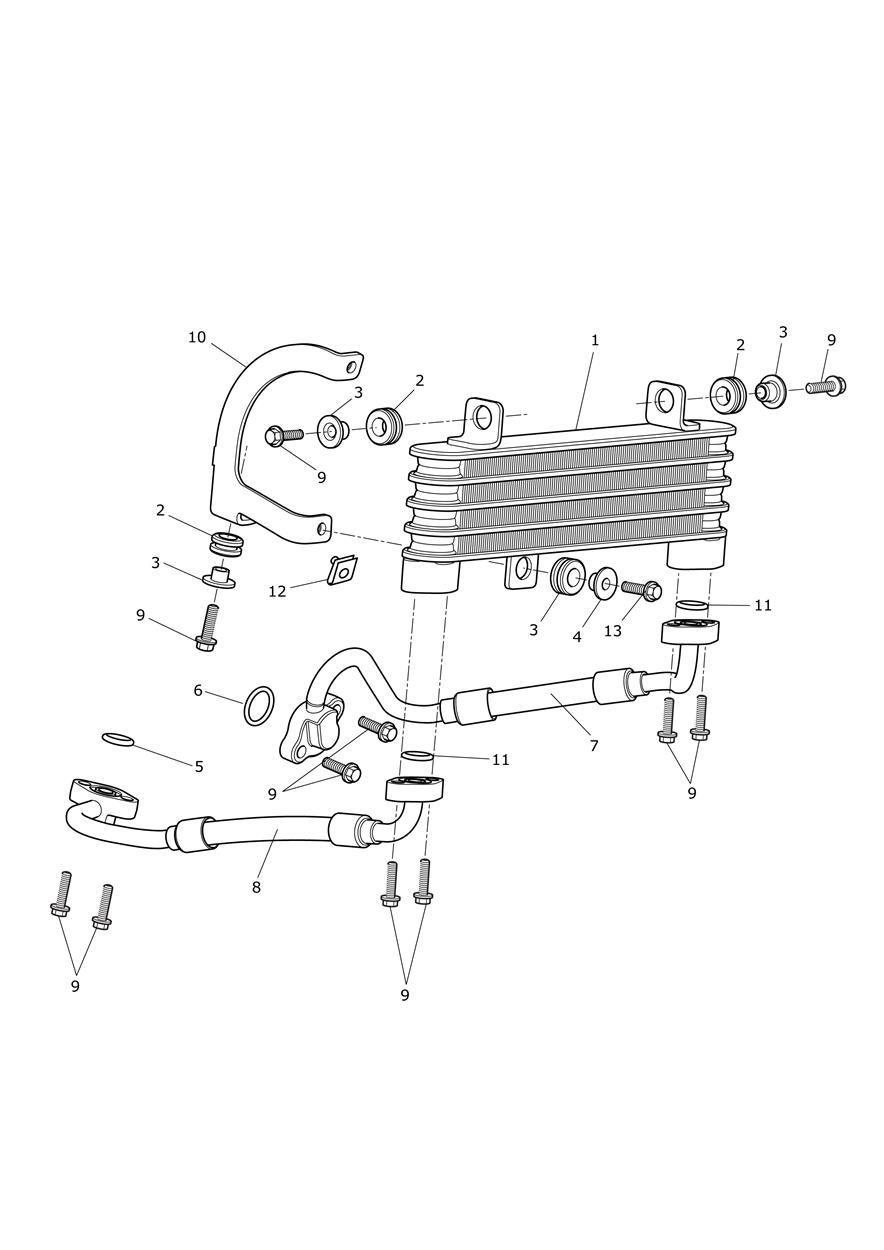

Oil Cooler
13 parts

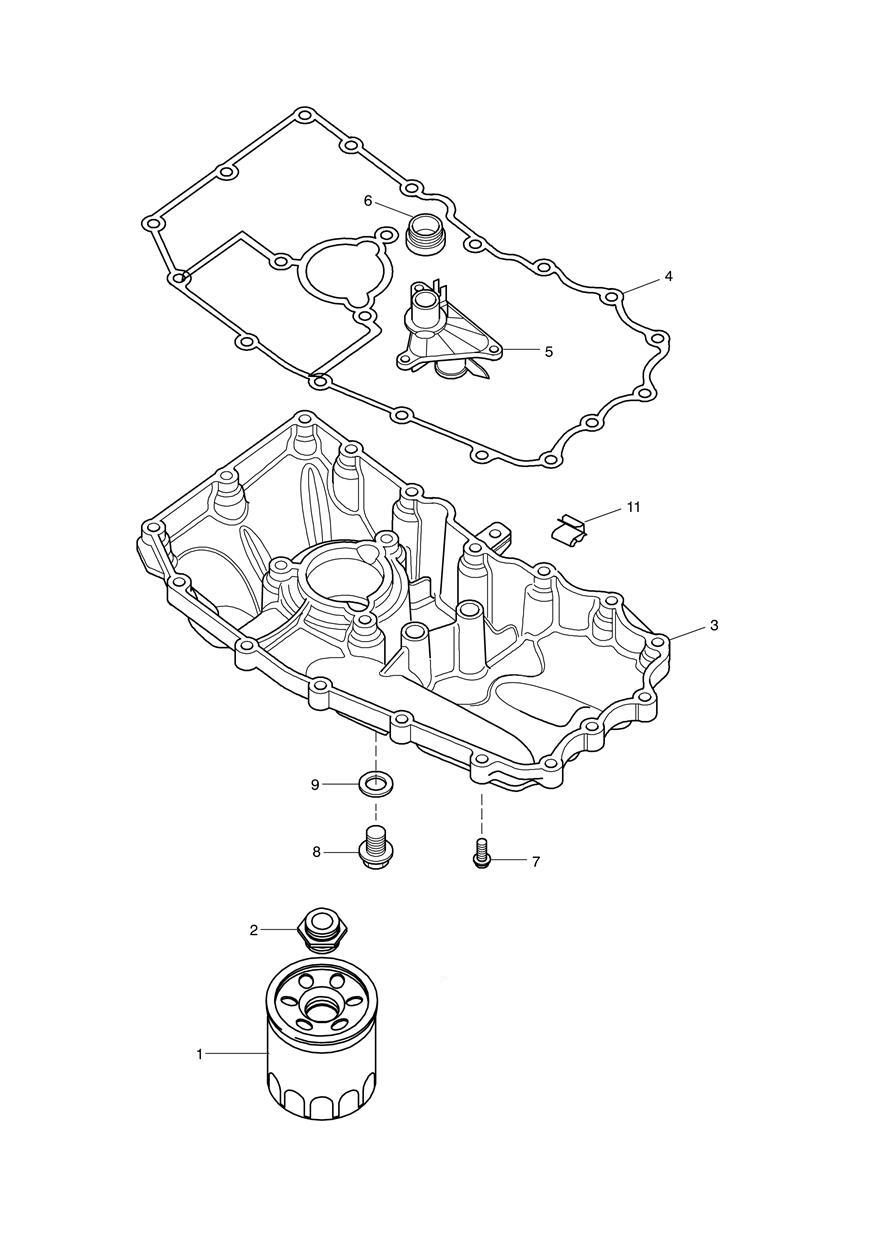

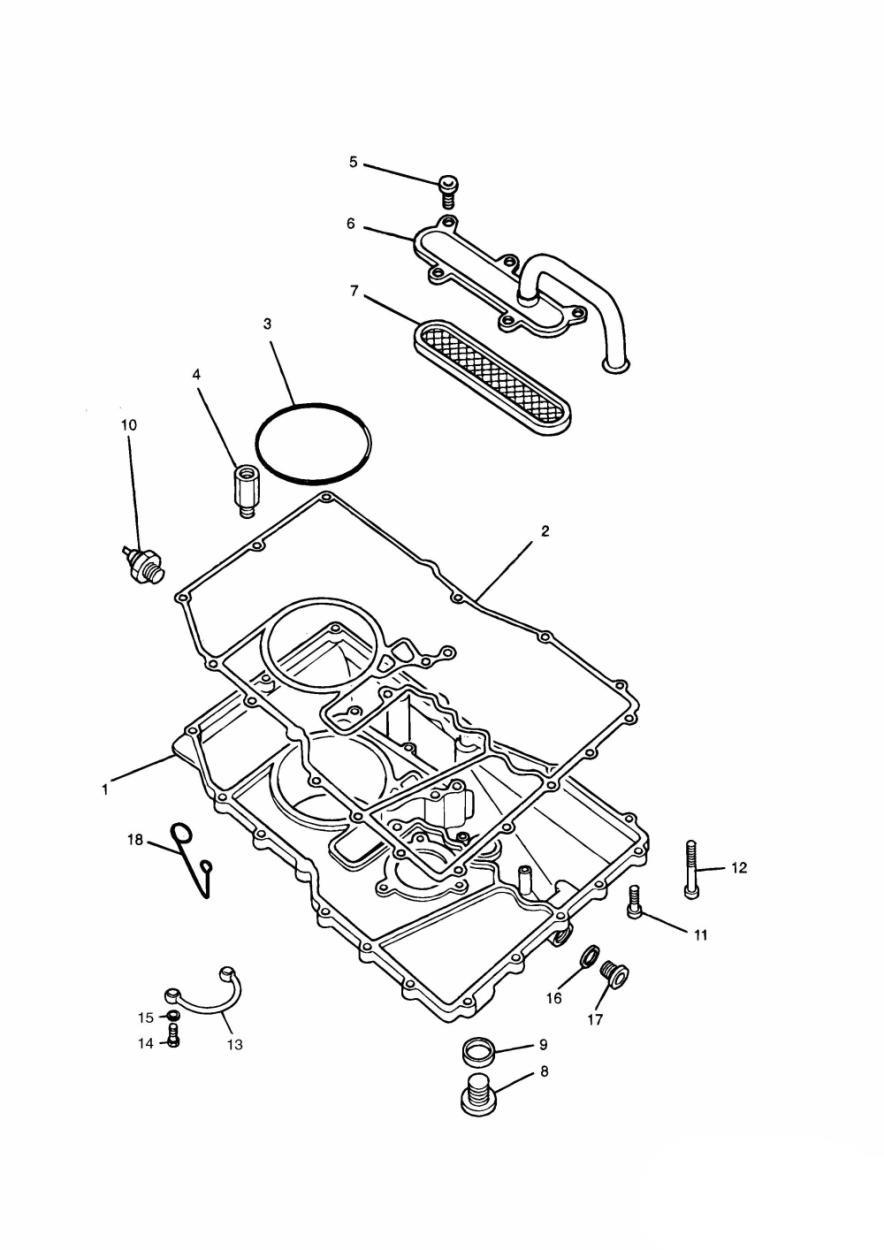

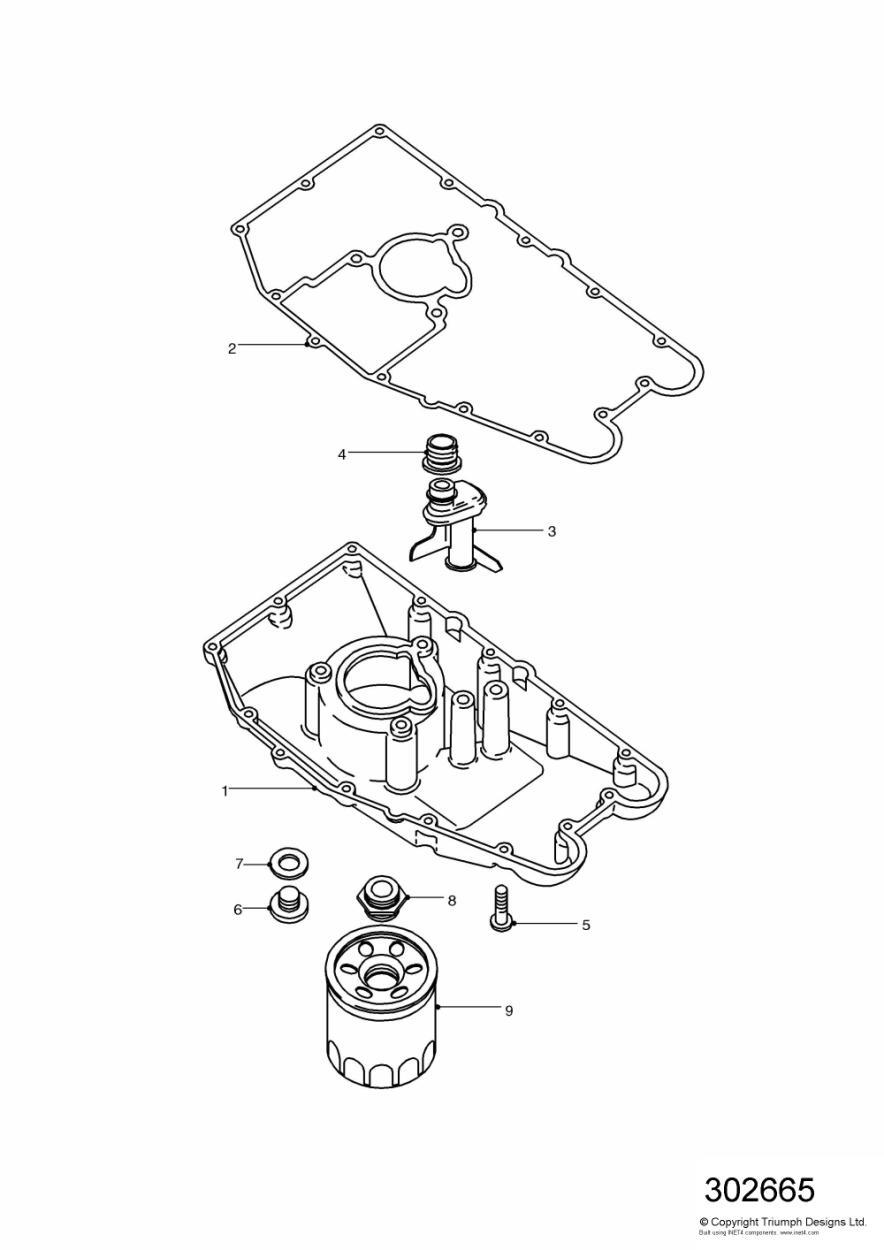

Sump
13 parts

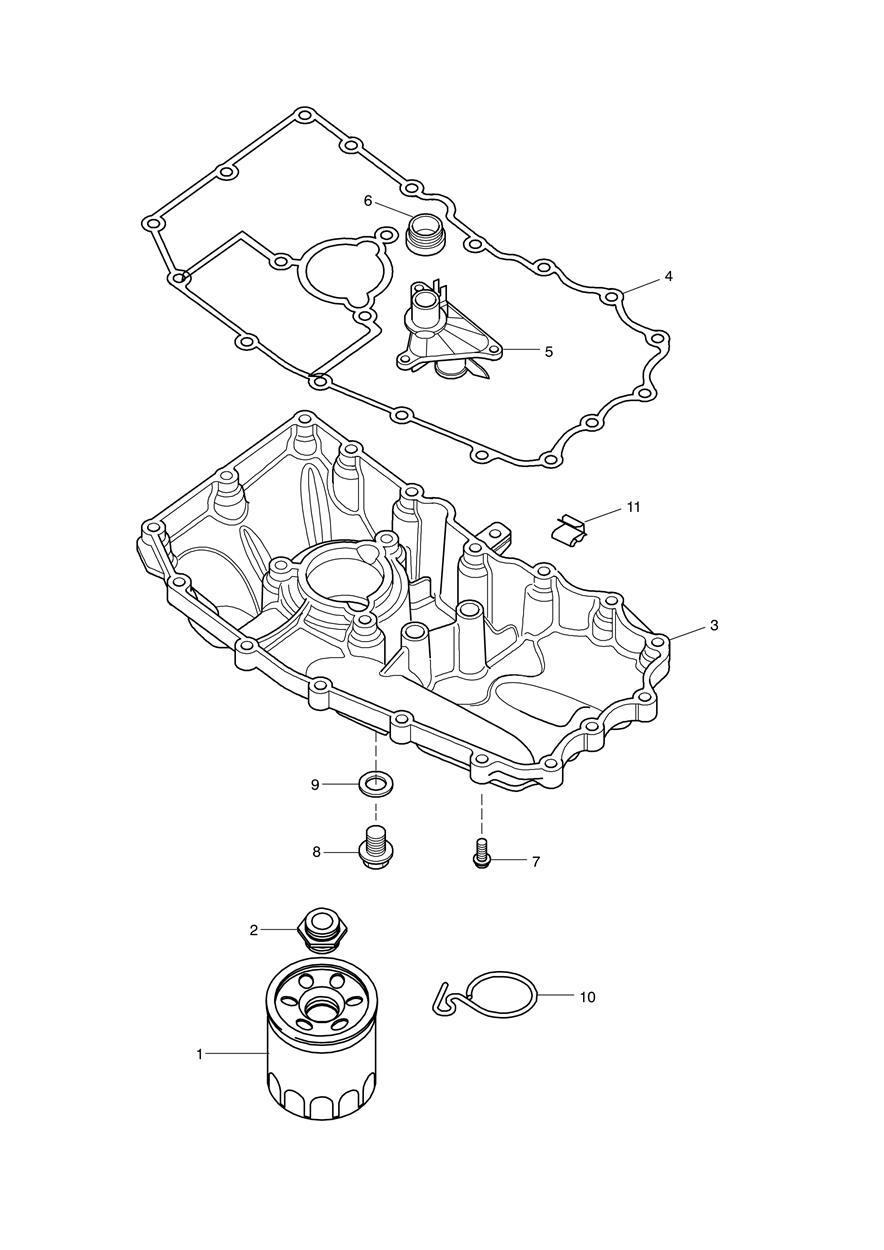

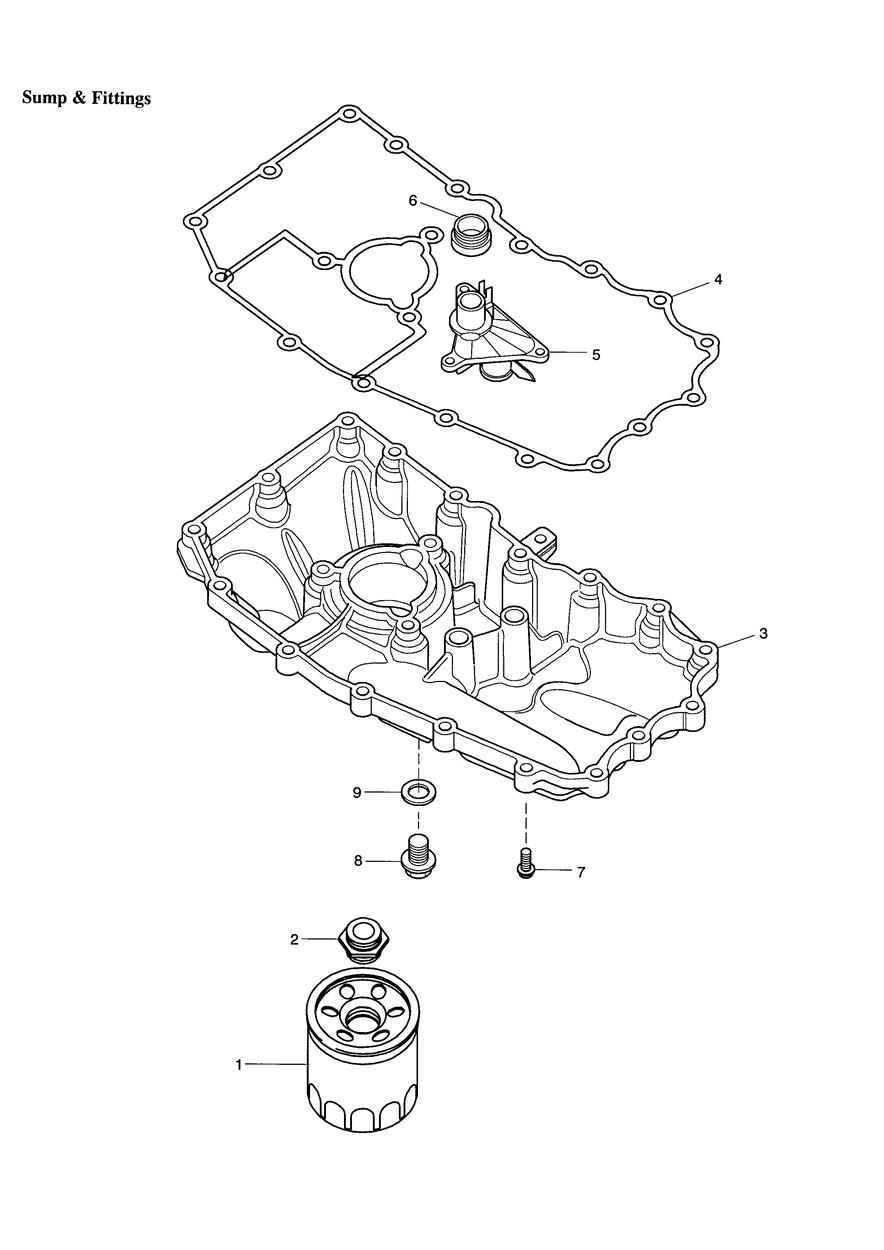

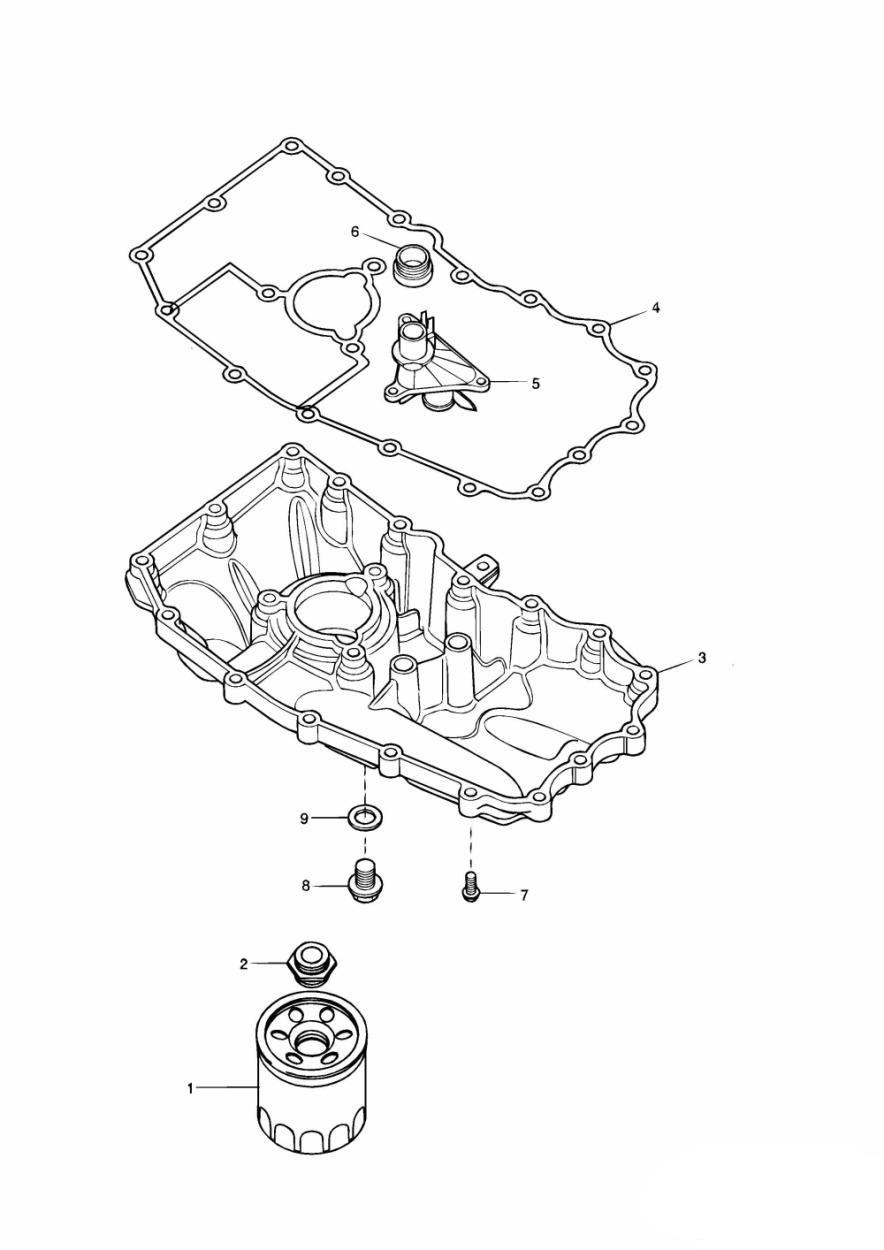

Sump & Fittings
12 parts

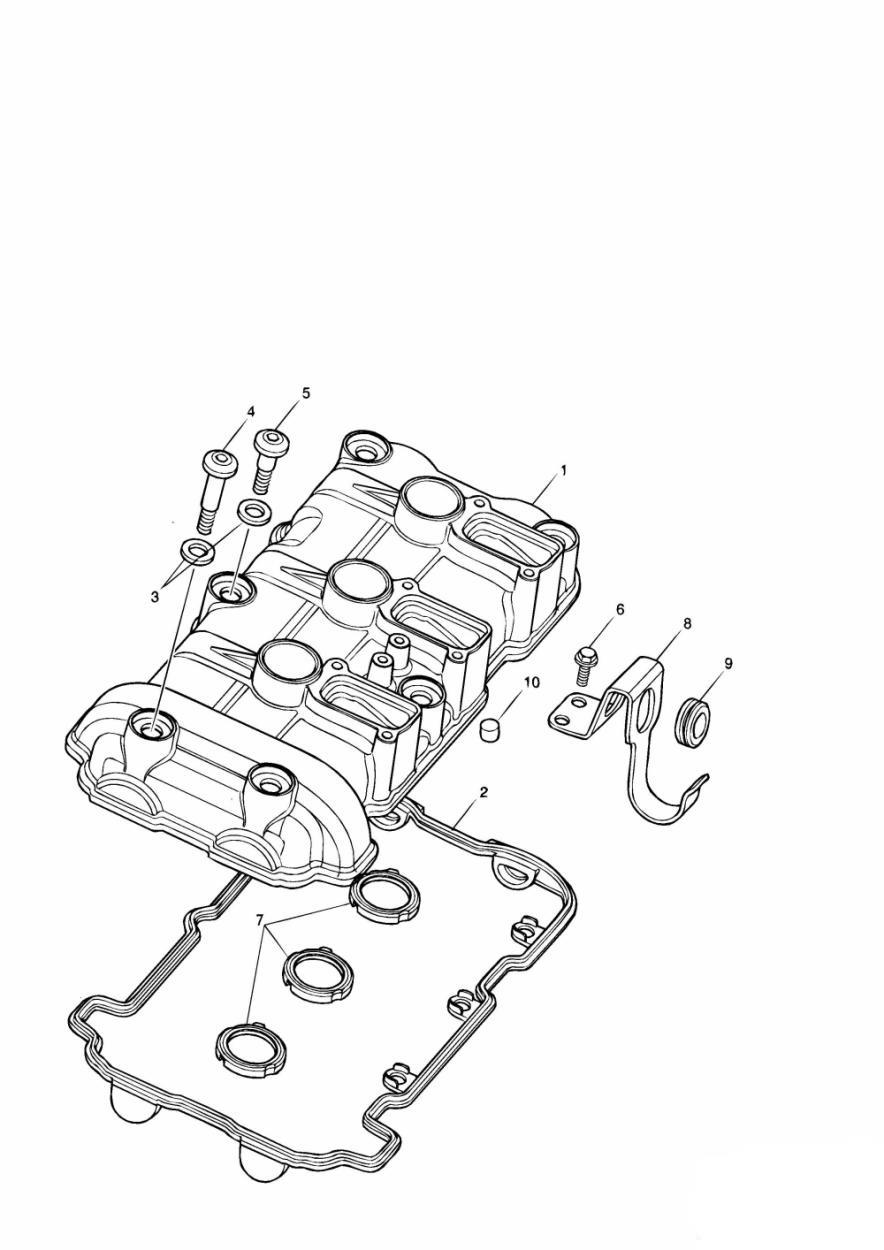

Cam Cover
7 parts
Cam Cover
6 parts

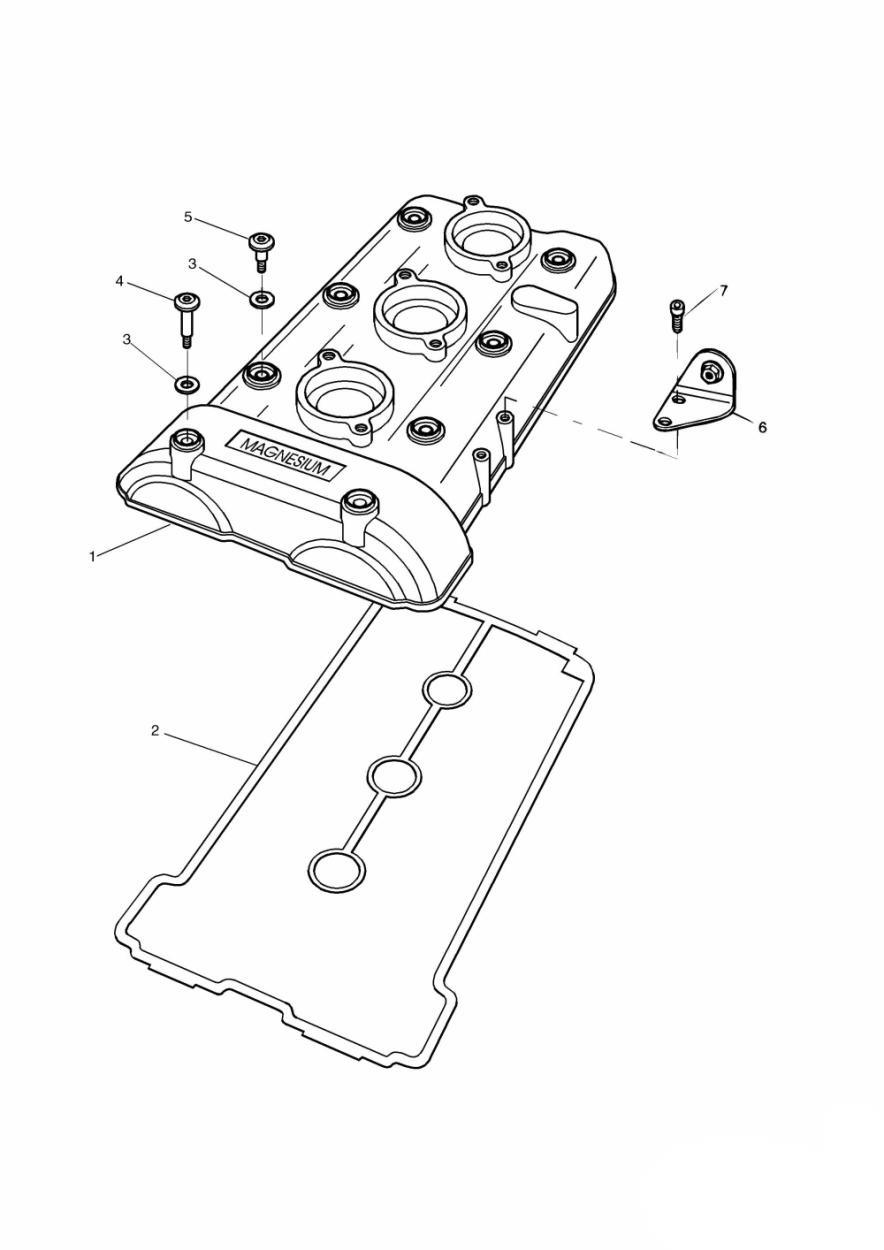

Cam Cover 885cc Engine
7 parts
Engine Covers
21 parts
Engine Covers
21 parts
Oil Cooler
14 parts
Oil Cooler
13 parts

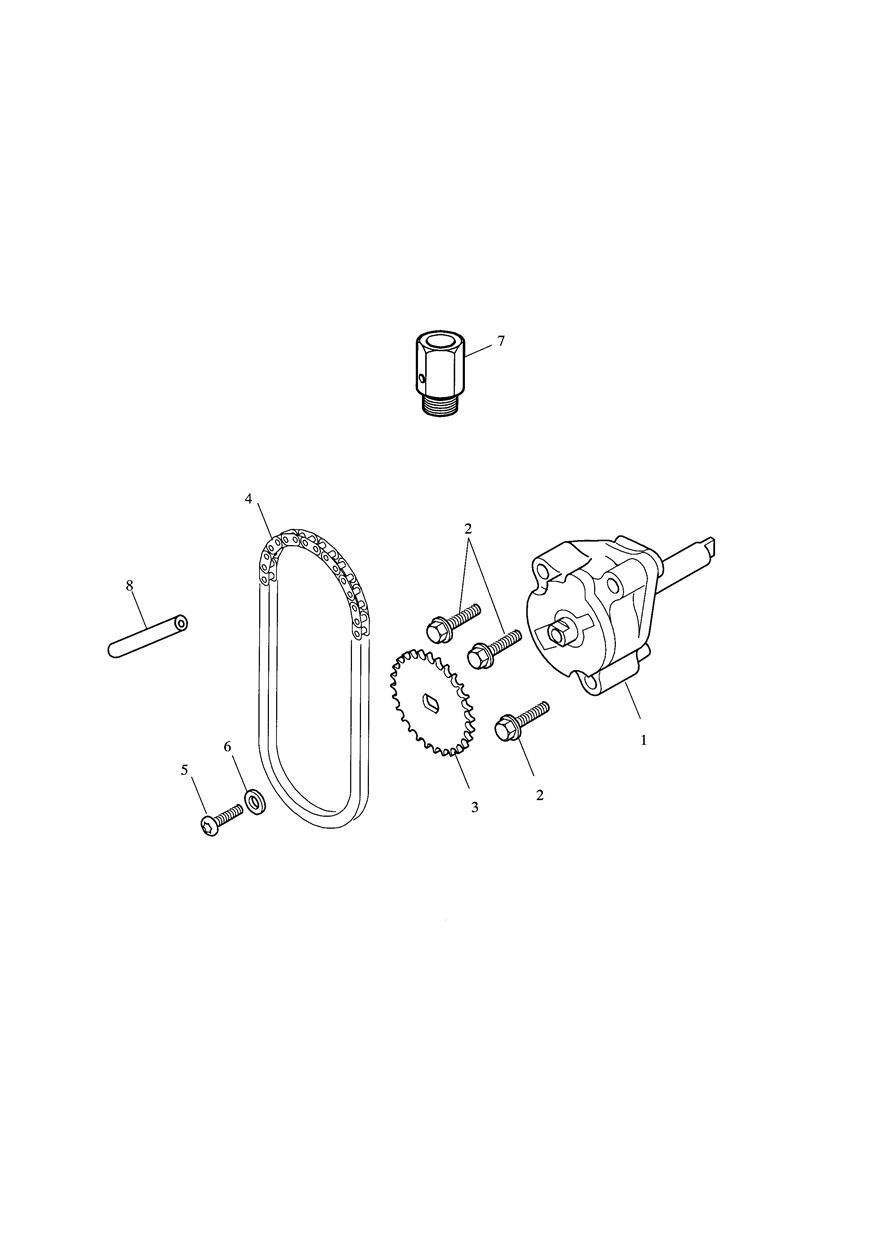

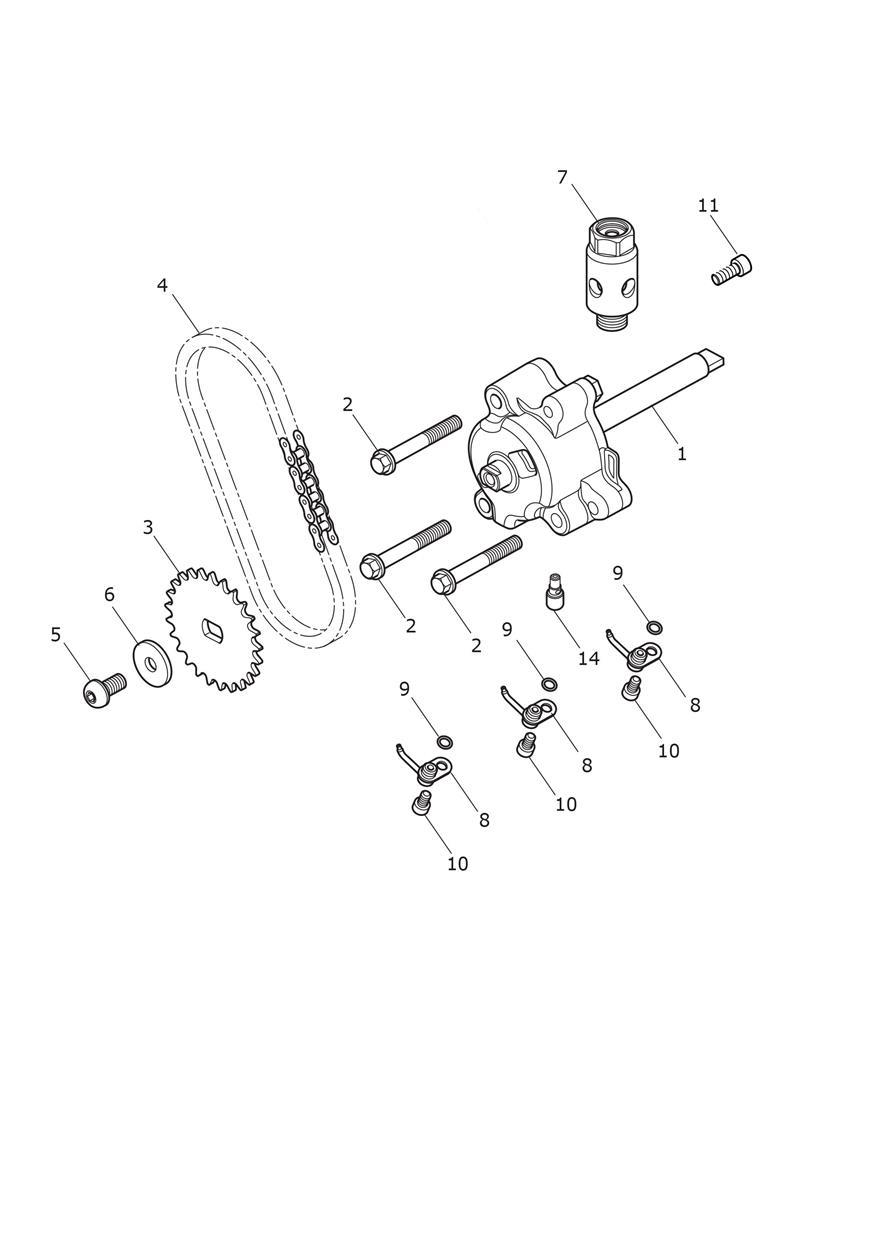

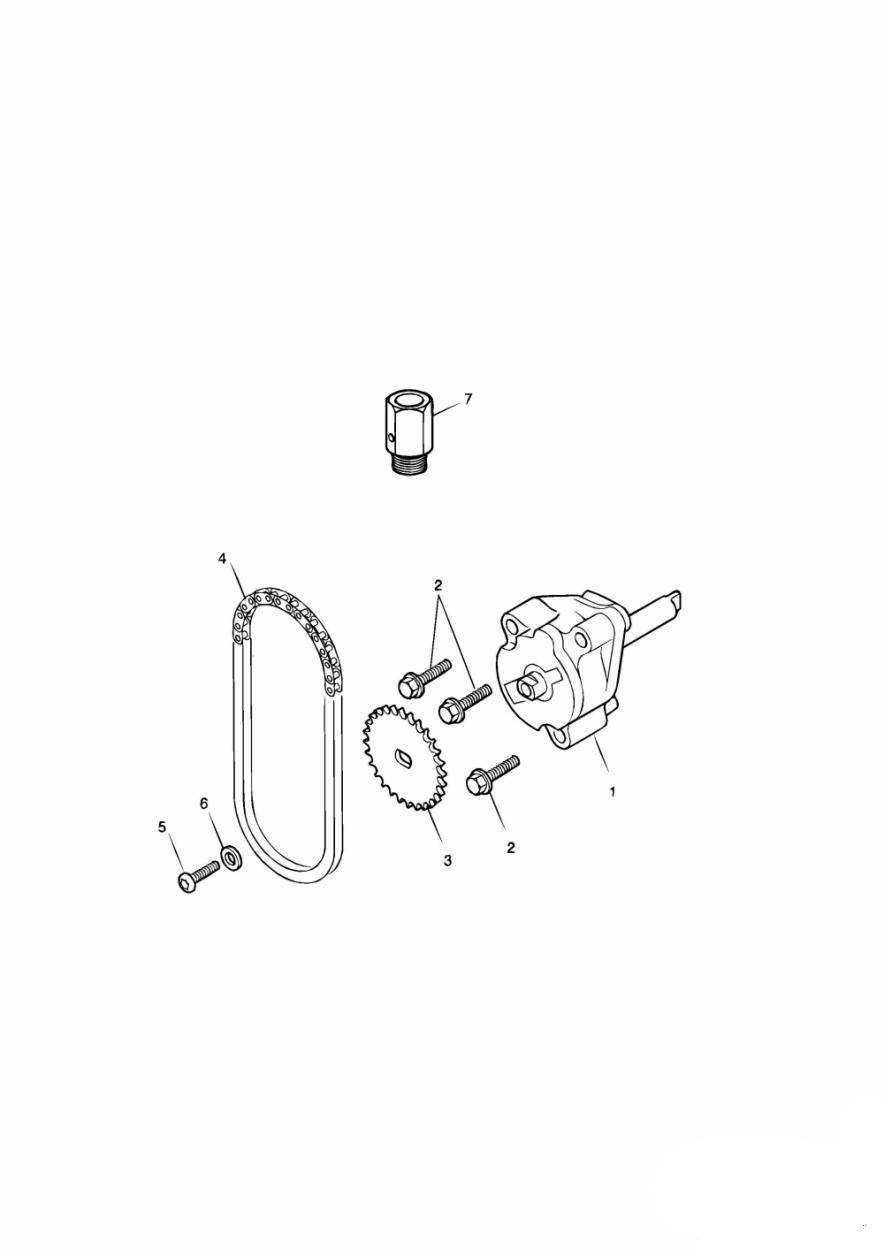

Oil Pump & Drive
12 parts

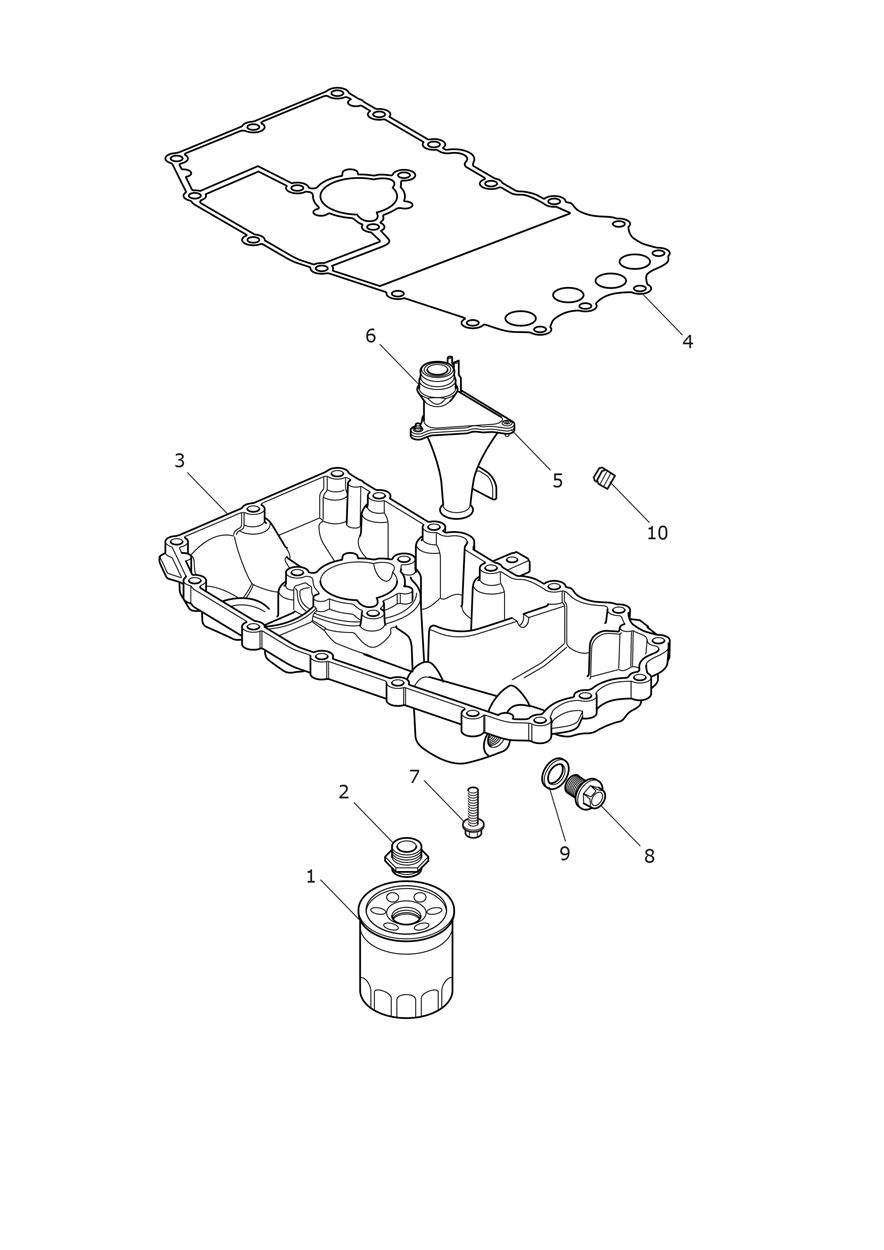

Sump & Fittings
11 parts
Sump & Fittings
12 parts
Cam Cover
14 parts
Cam Cover
7 parts
Crankcase
18 parts
Crankcase & Fittings
28 parts

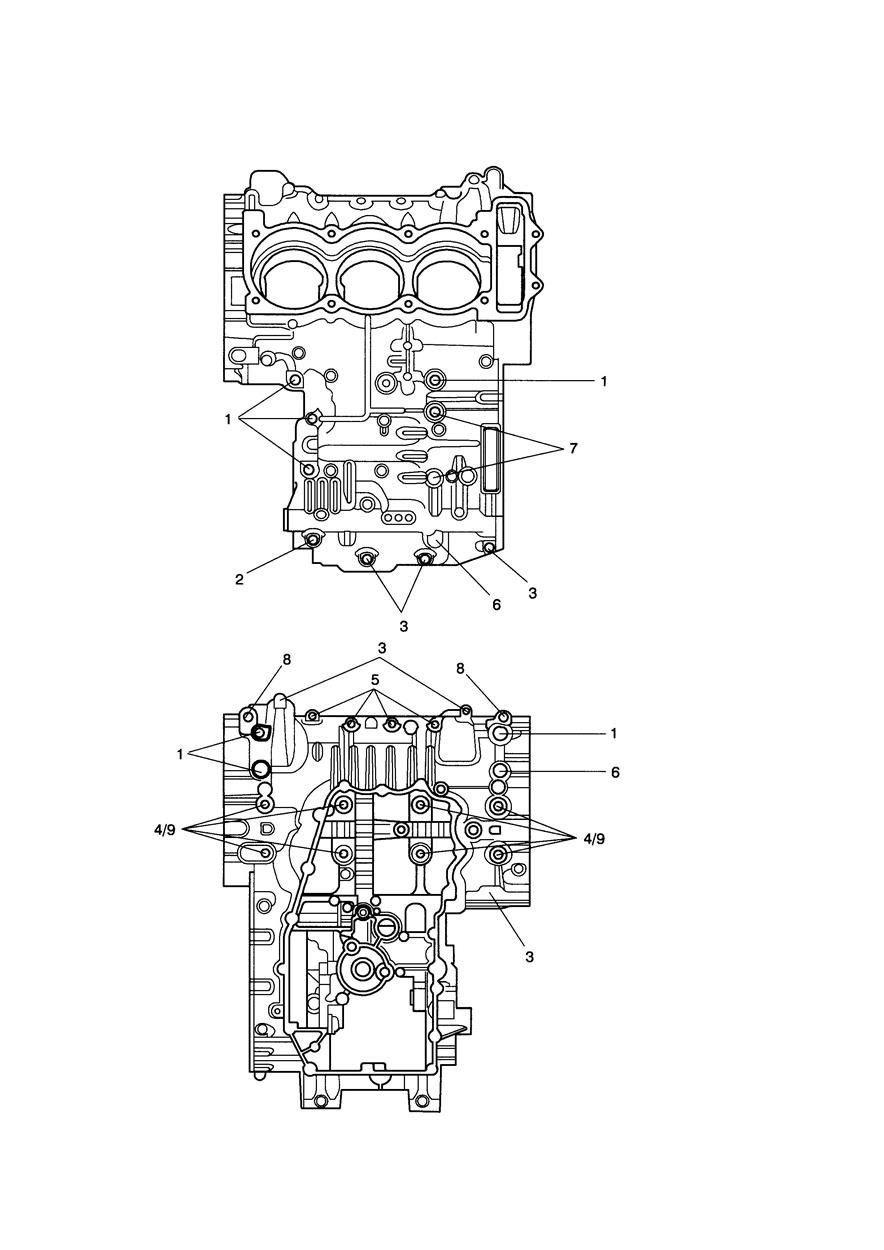

Crankcase Bolts
9 parts
Engine Covers
38 parts

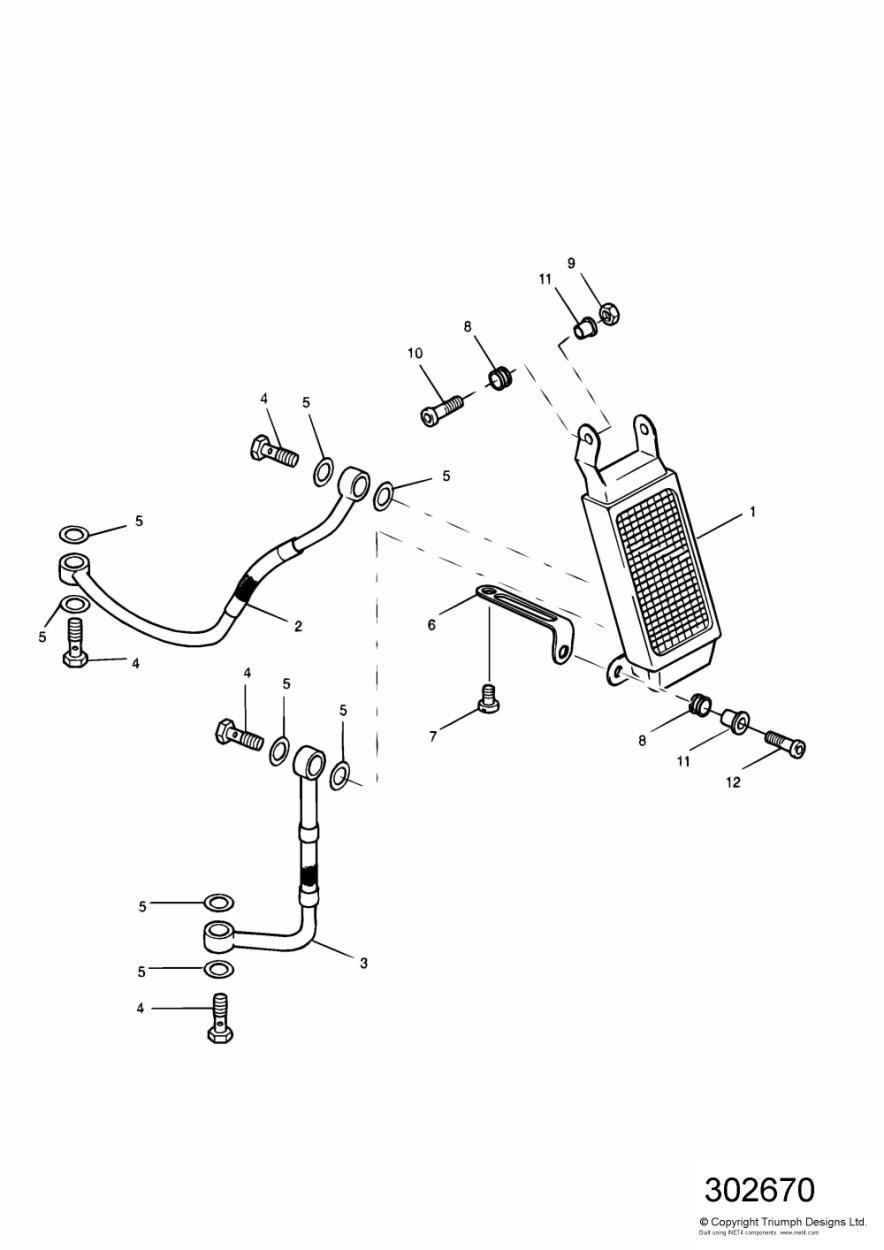

Oil Cooler 955cc Engine
12 parts
Oil Pump & Drive
8 parts
Sump & Fittings
14 parts
Sump & Fittings
12 parts
Cam Cover
7 parts
Crankcase
35 parts
Crankcase & Fittings
25 parts
Crankcase & Fittings
25 parts
Crankcase Bolts
9 parts
Engine Covers
22 parts
Engine Covers
41 parts
Oil Cooler
13 parts
Oil Pump & Drive
8 parts
Sump & Fittings
11 parts
Cam Cover
7 parts

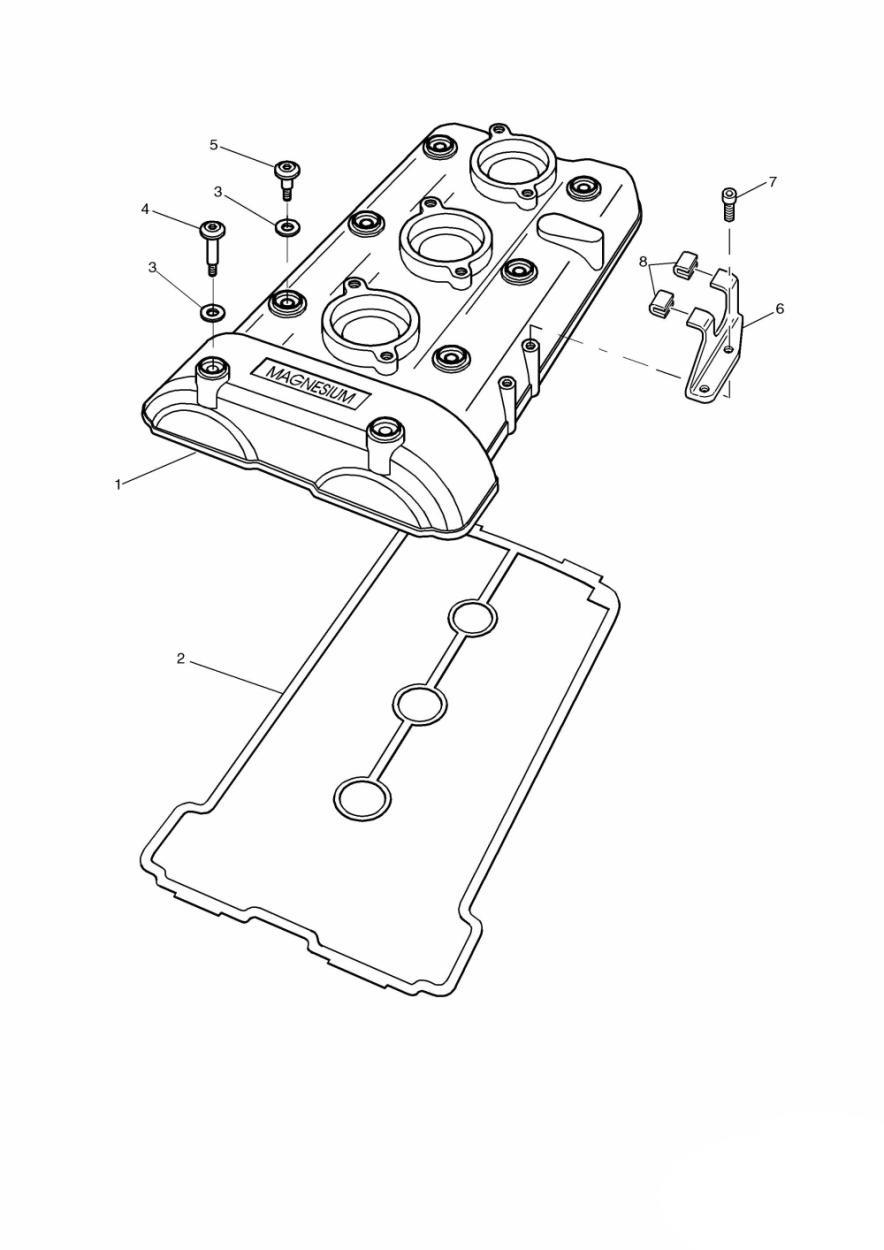

Cam Cover 955cc Engine
8 parts
Crankcase & Fittings
22 parts
Crankcase & Fittings
25 parts

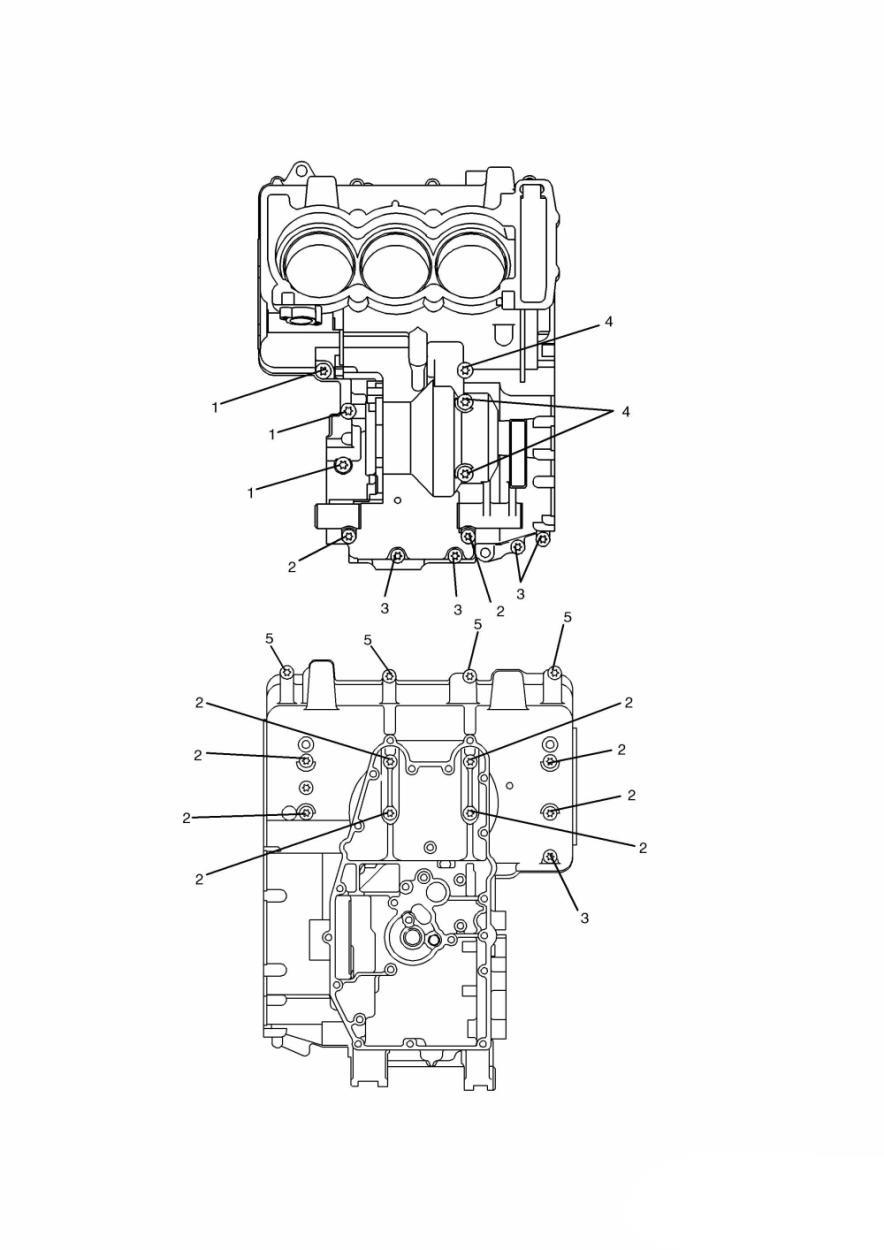

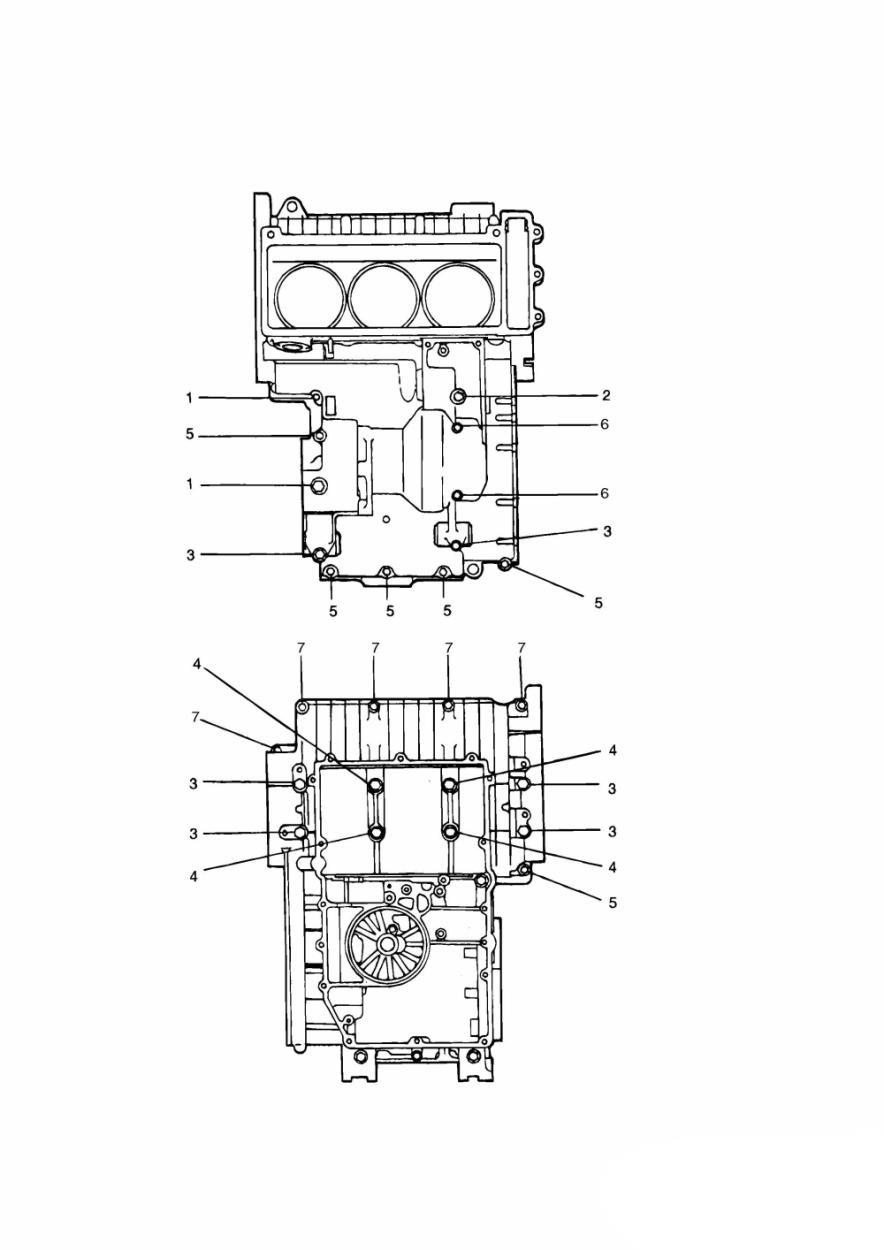

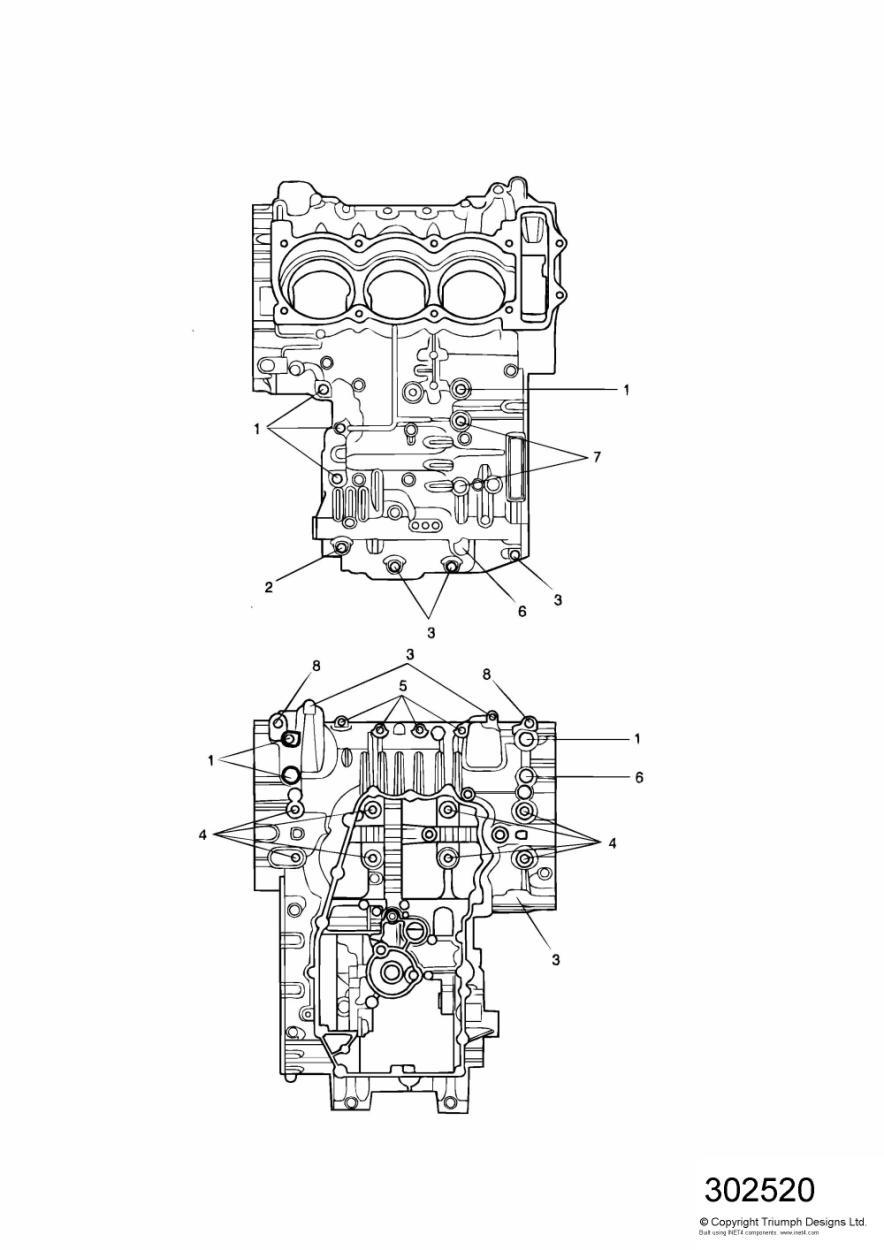

Crankcase Fixings
8 parts
Engine Covers
22 parts
Oil Cooler
15 parts
Oil Cooler
13 parts
Sump
25 parts
Sump & Fittings
12 parts
Cam Cover
11 parts
Cam Cover
7 parts
Crankcase Bolts
9 parts
Crankcase Bolts
9 parts
Crankcase Fixings
8 parts
Engine Covers
36 parts
Oil Pump & Drive
8 parts
Oil Pump & Drive
8 parts

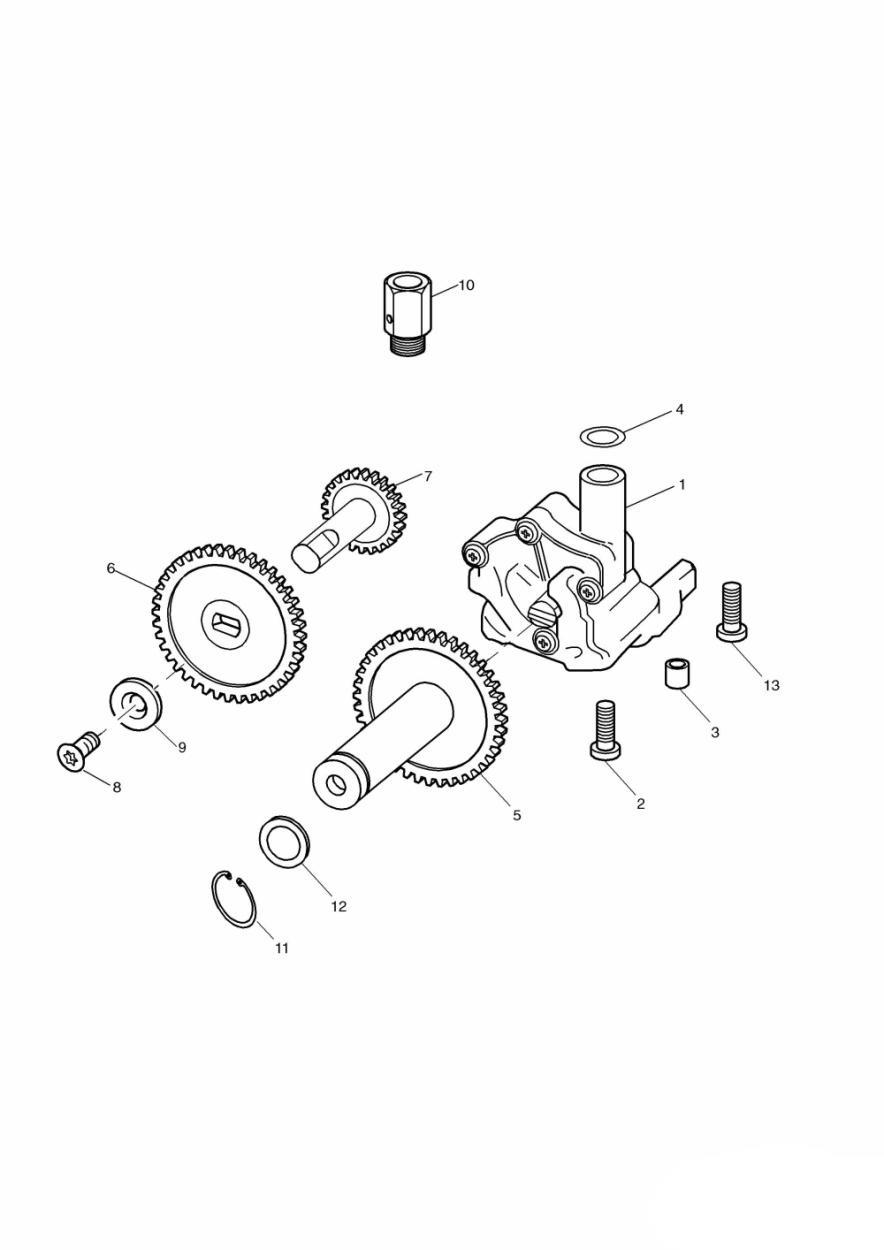

Oil Pump/Drive
25 parts
Sump & Fittings
14 parts
Crankcase Bolts
9 parts
Crankcase Bolts
9 parts
Crankcase Bolts
9 parts
Crankcase Fixings
9 parts
Engine Covers
28 parts
Oil Cooler
13 parts
Oil Pump & Drive
12 parts
Oil Pump & Drive
8 parts
Oil Pump/Drive
7 parts

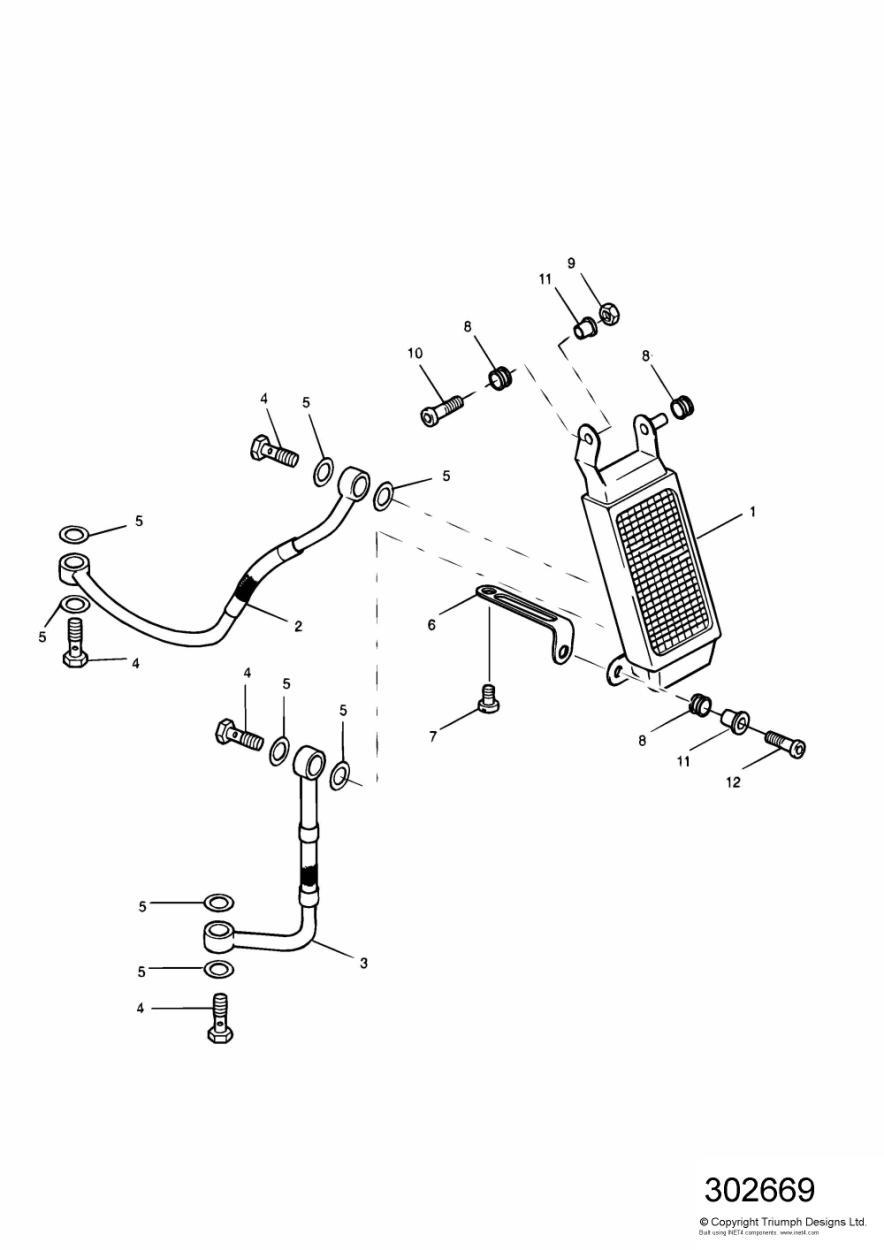

Oil Cooler 885cc Engine
12 parts

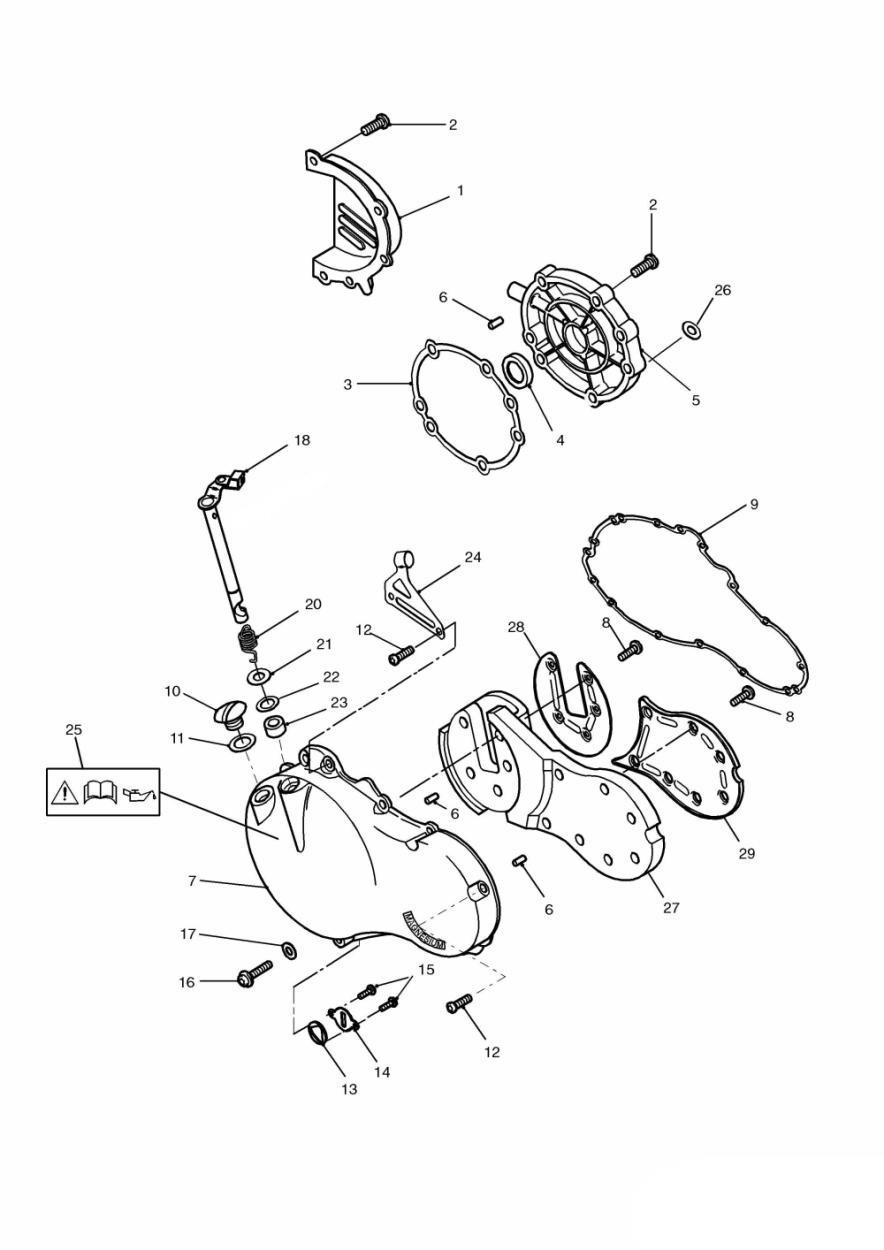

Engine Covers
29 parts
