Wheels, Tyres & Final Drive
Triumph Speed Triple · 33 diagrams
33 exploded diagrams for the wheels, tyres & final drive of the Triumph Speed Triple, covering the Speed Triple 955i & 1050. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

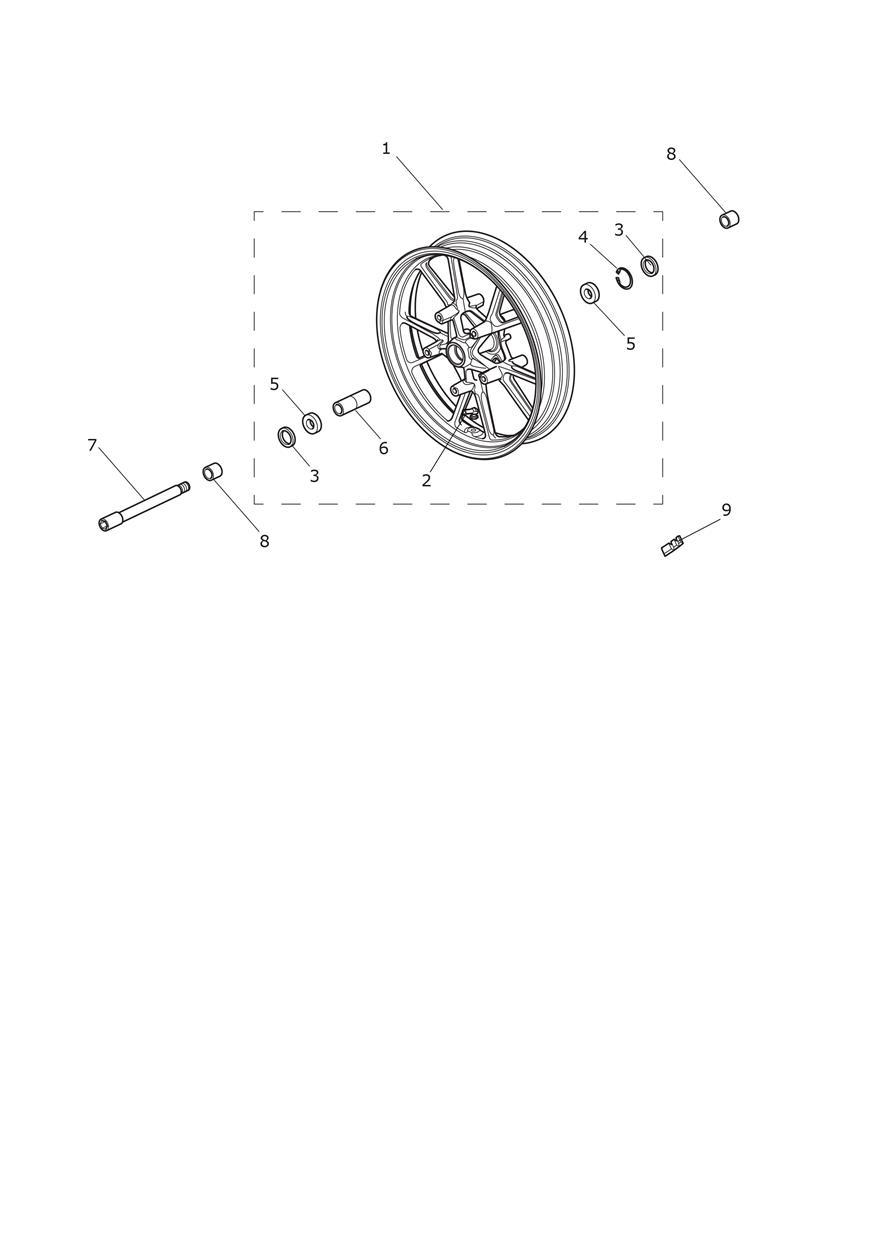

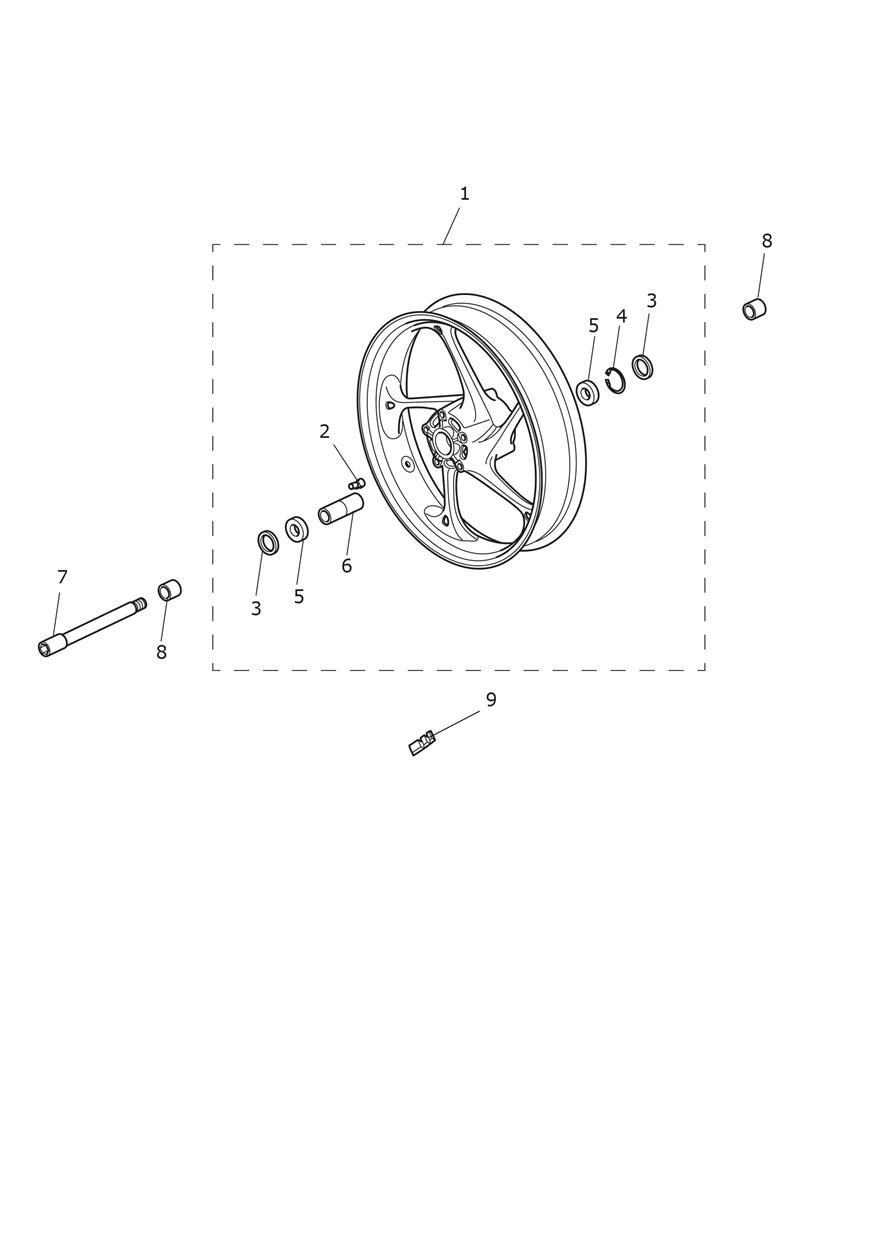

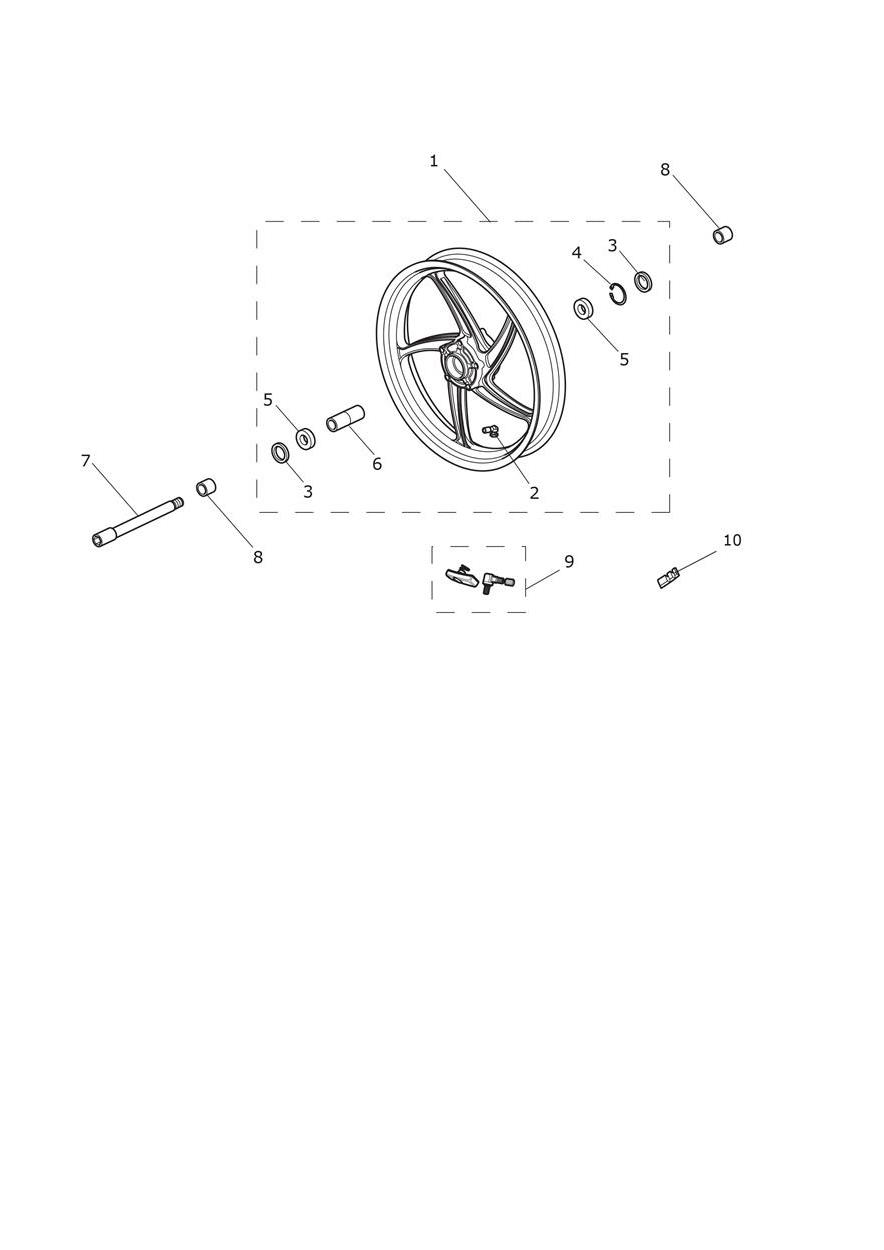

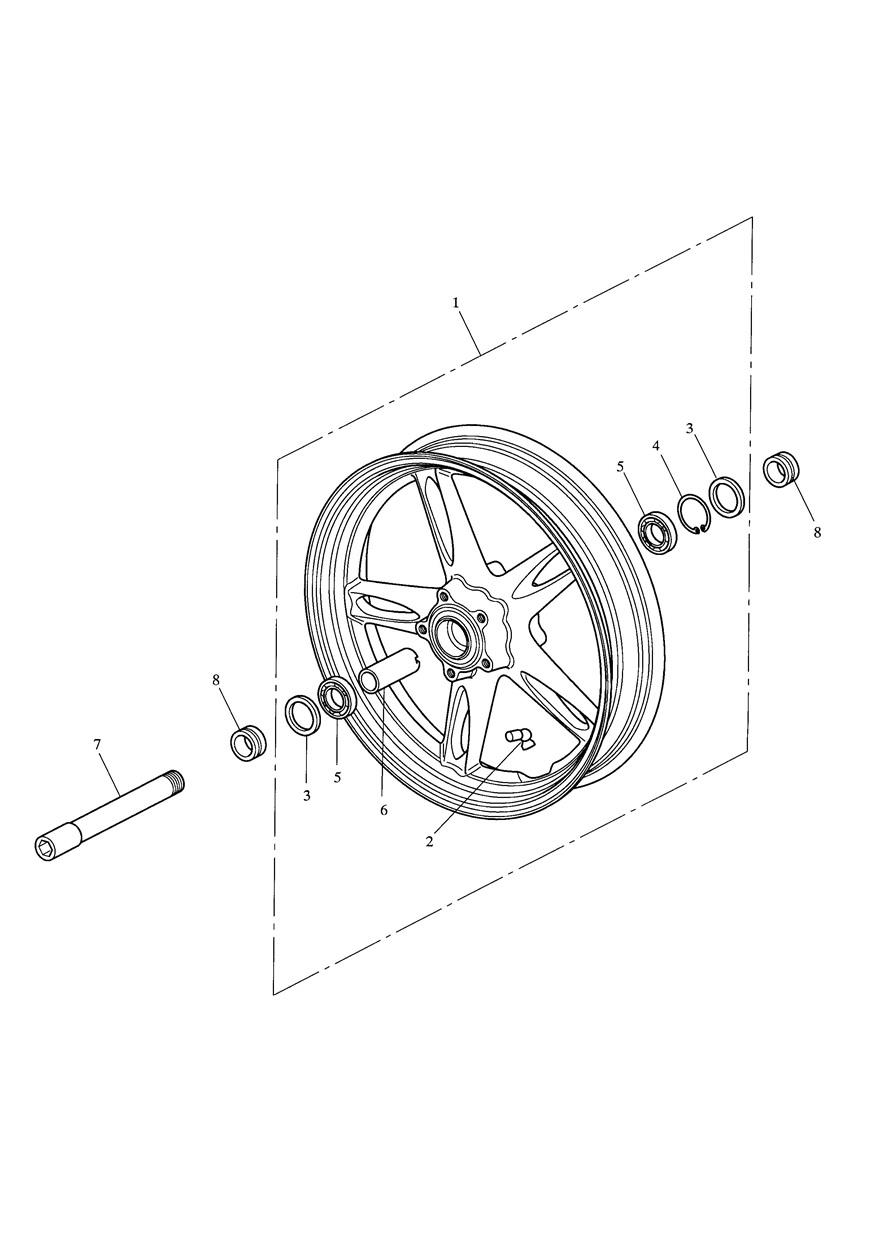

Front Wheel
10 parts

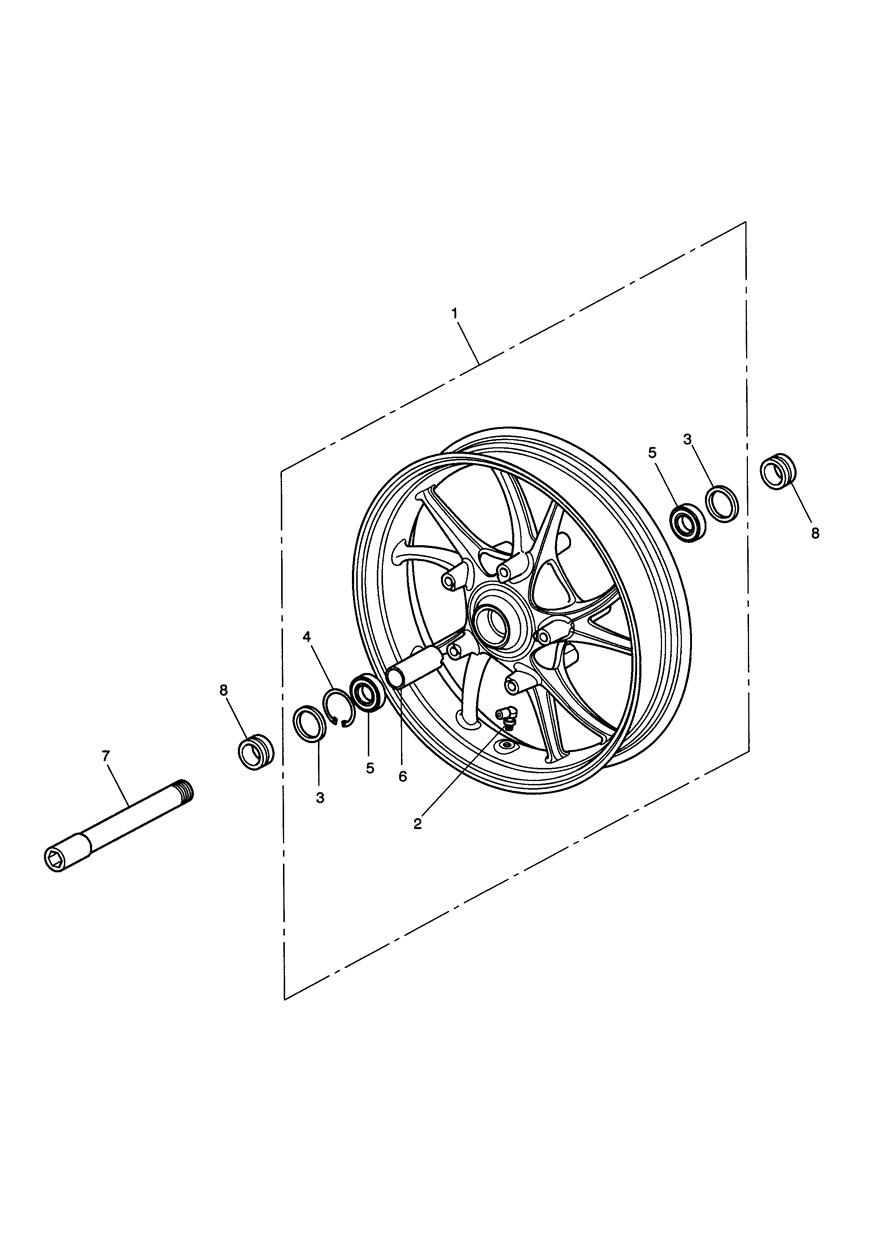

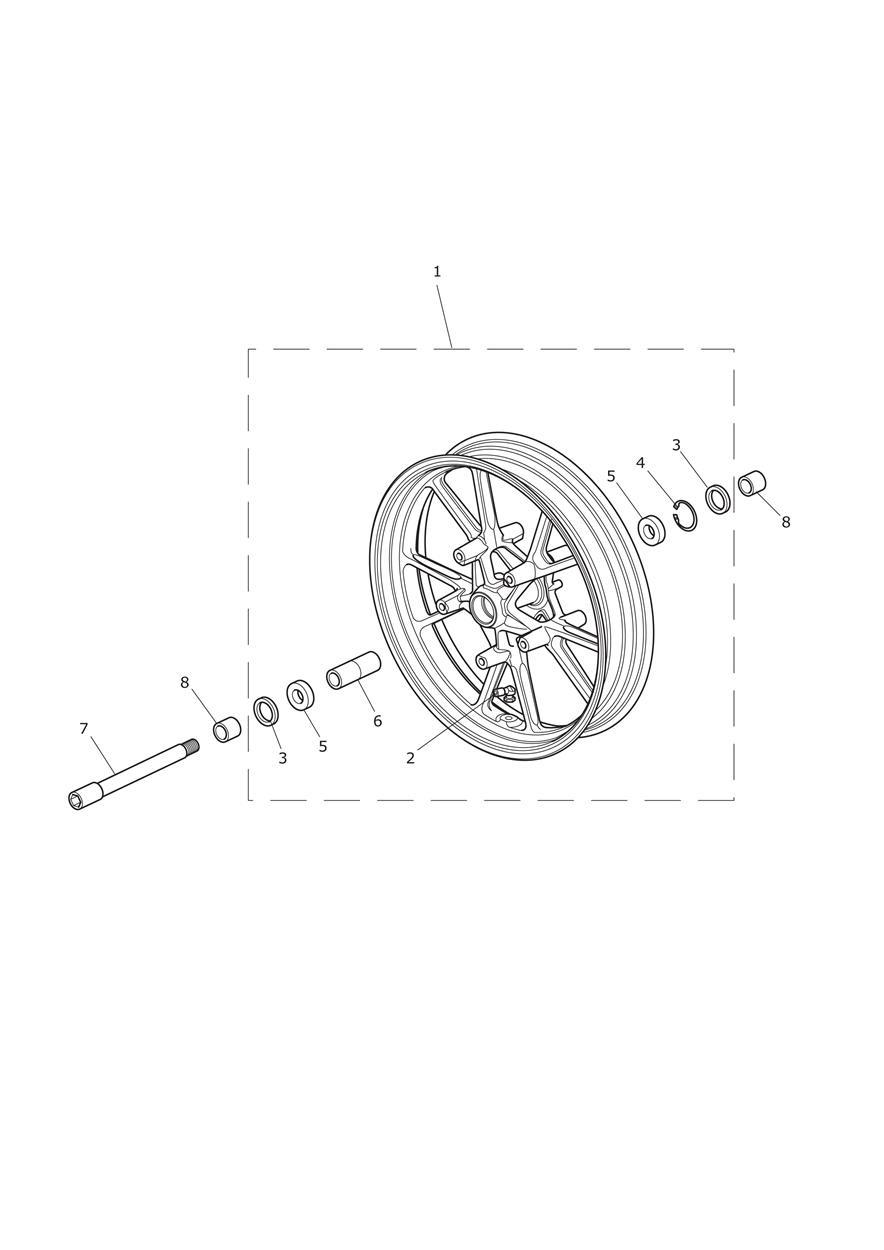

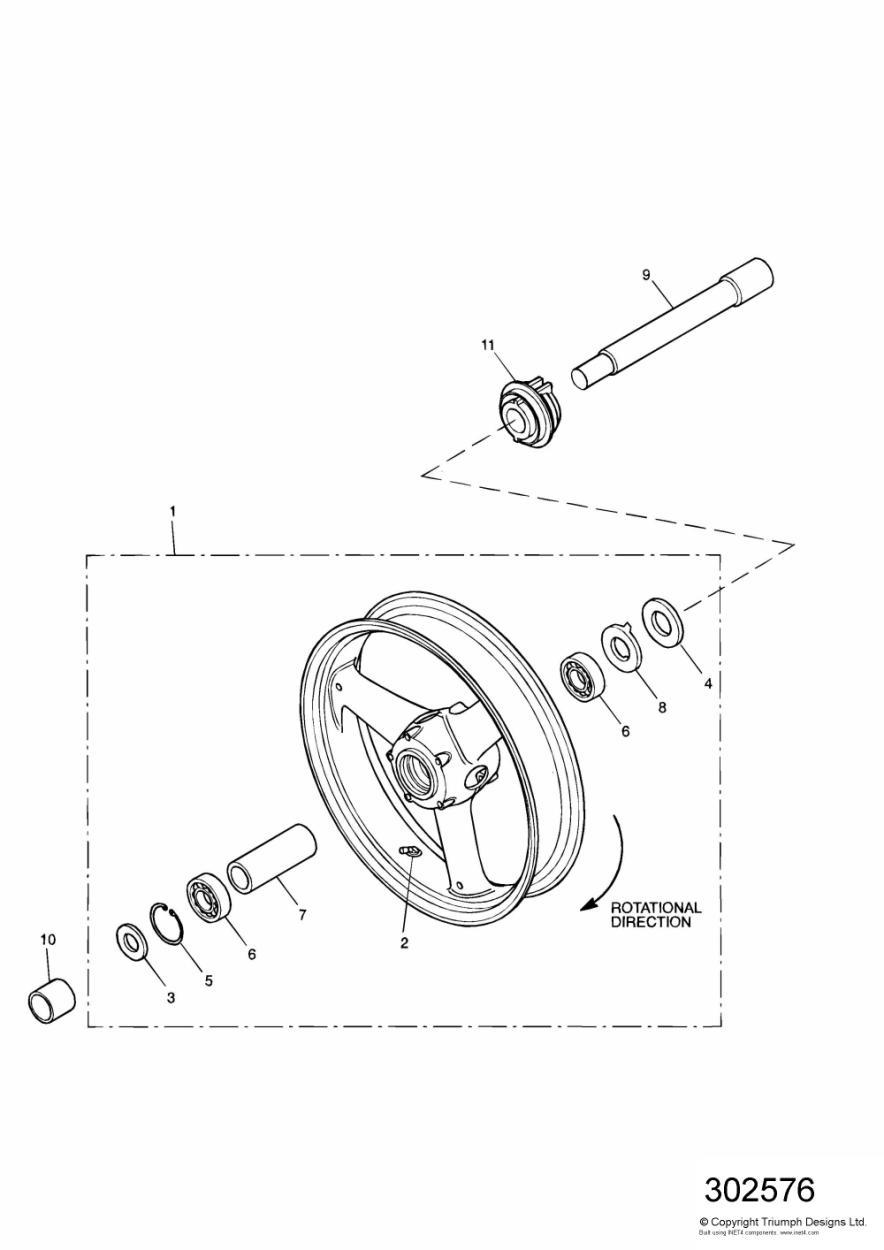

Front Wheel
9 parts
Front Wheel
9 parts

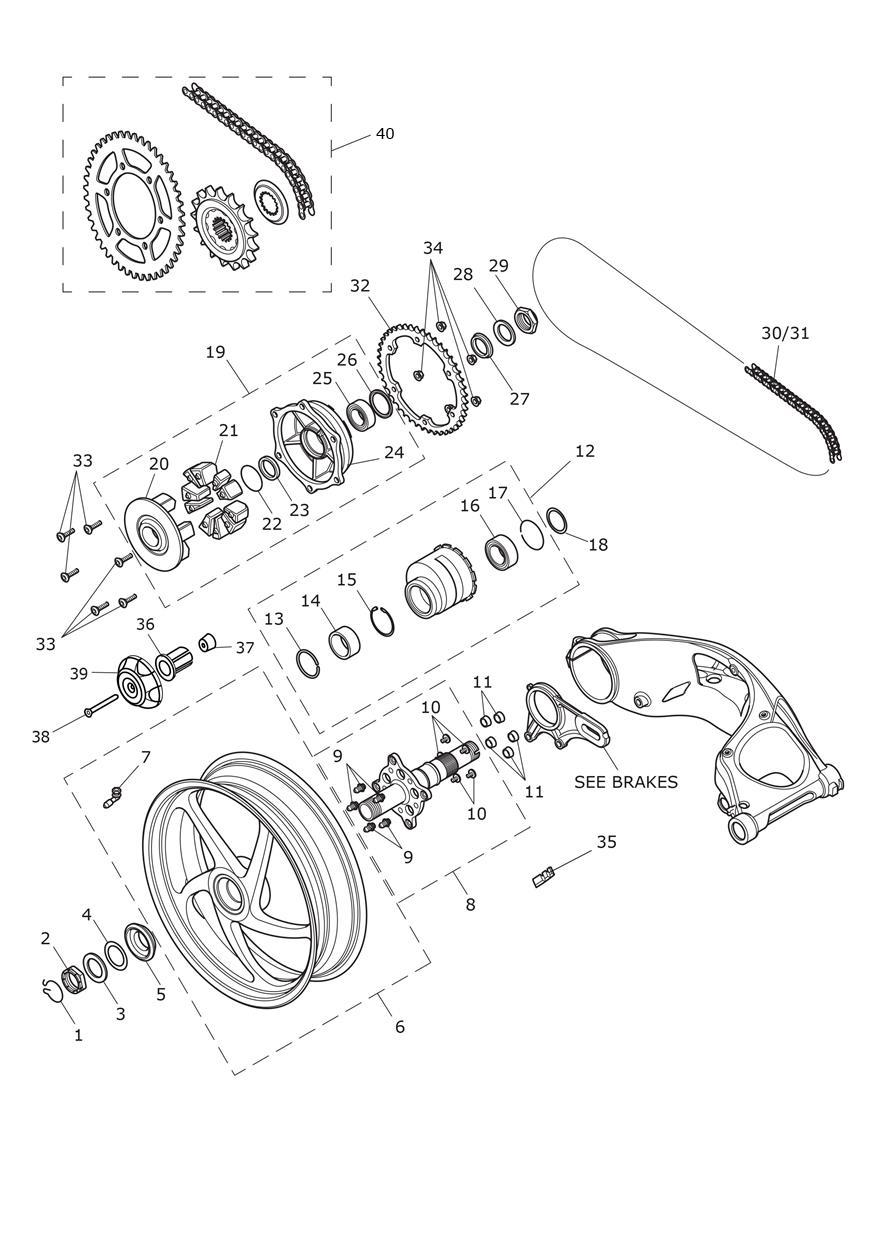

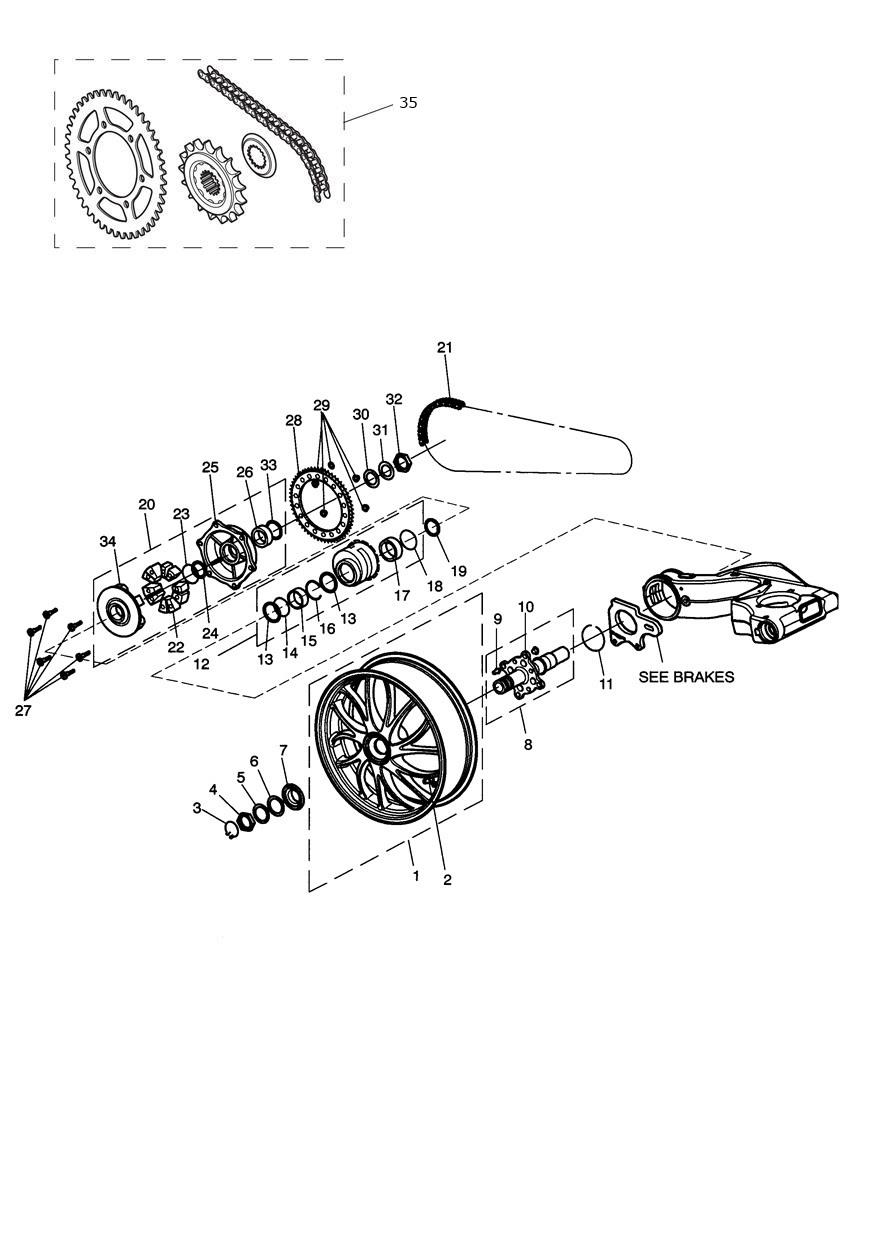

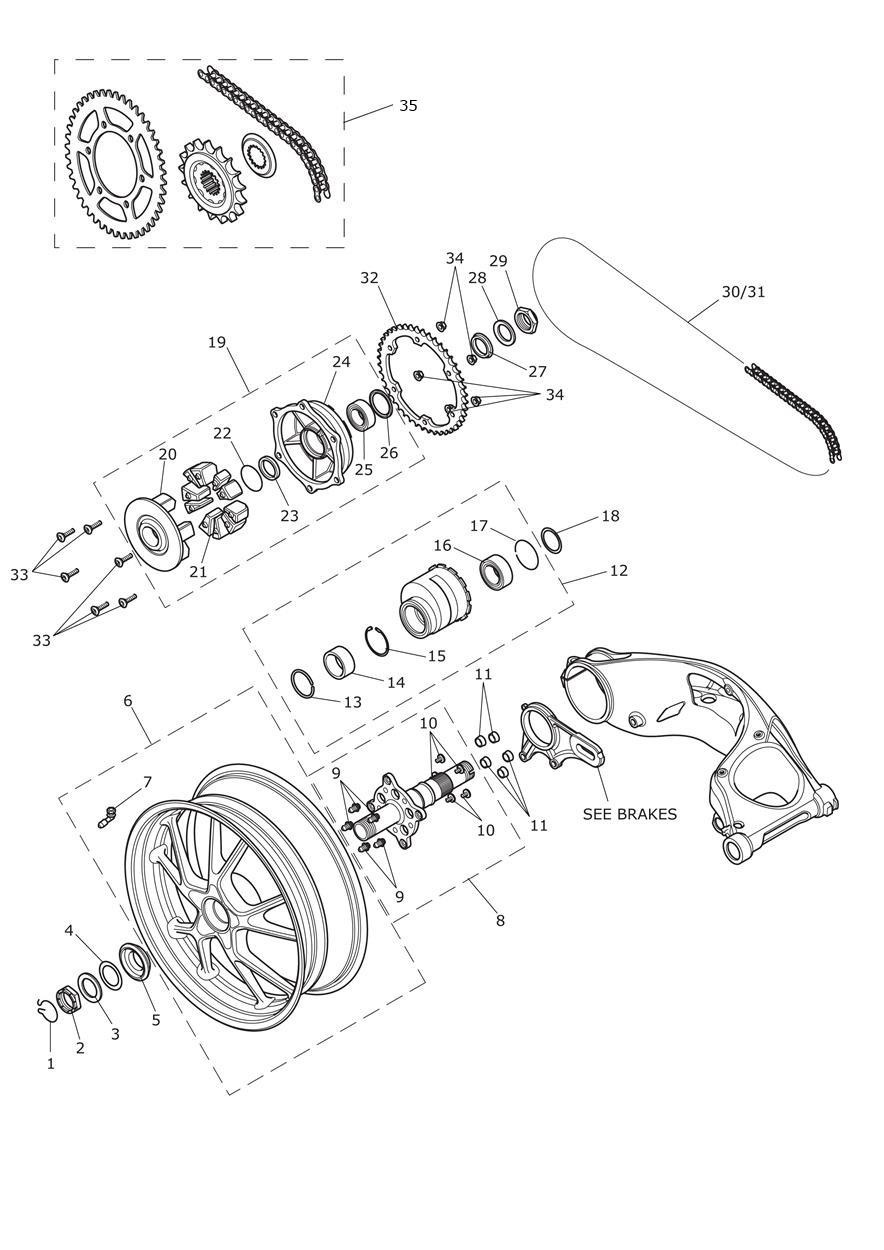

Rear Wheel & Final Drive
36 parts

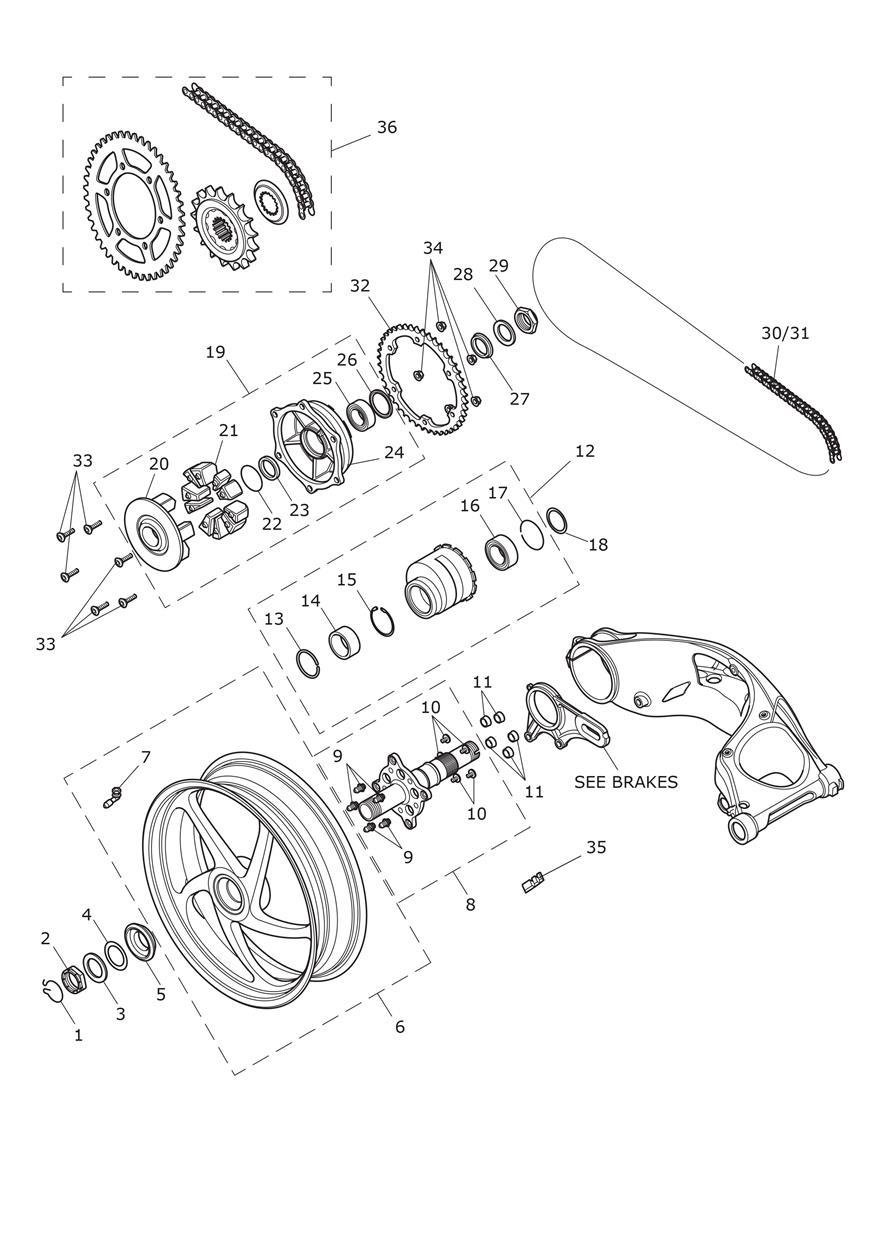

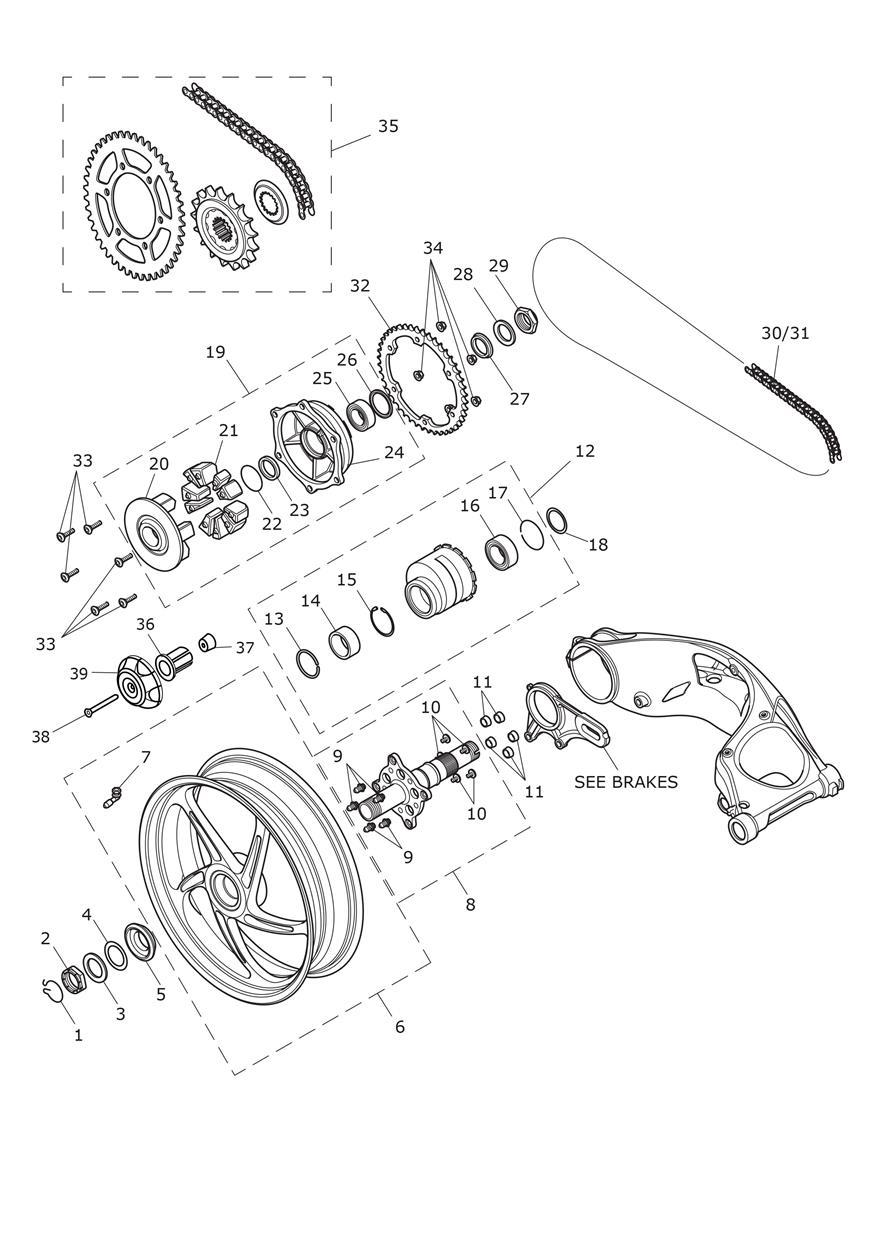

Rear Wheel & Final Drive
42 parts

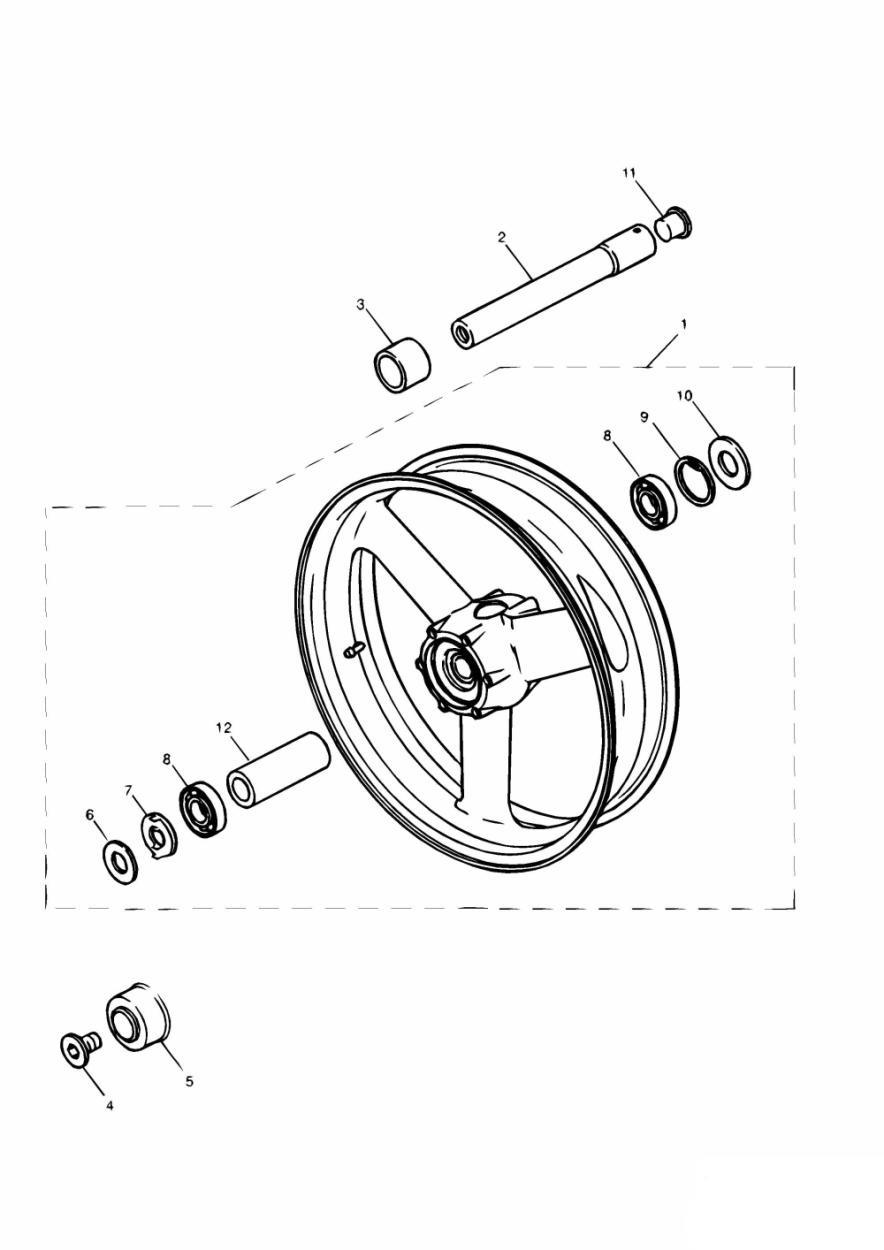

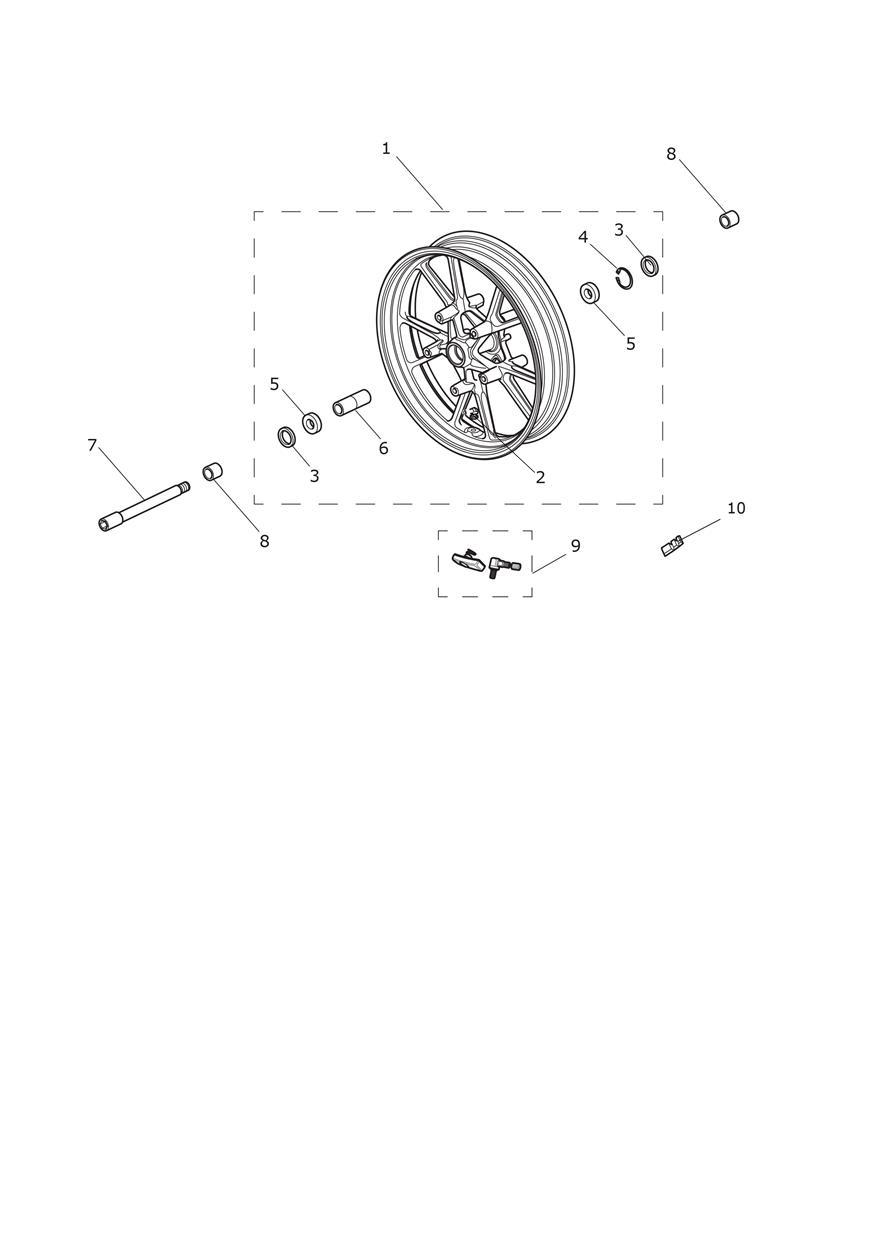

Front Wheel
9 parts

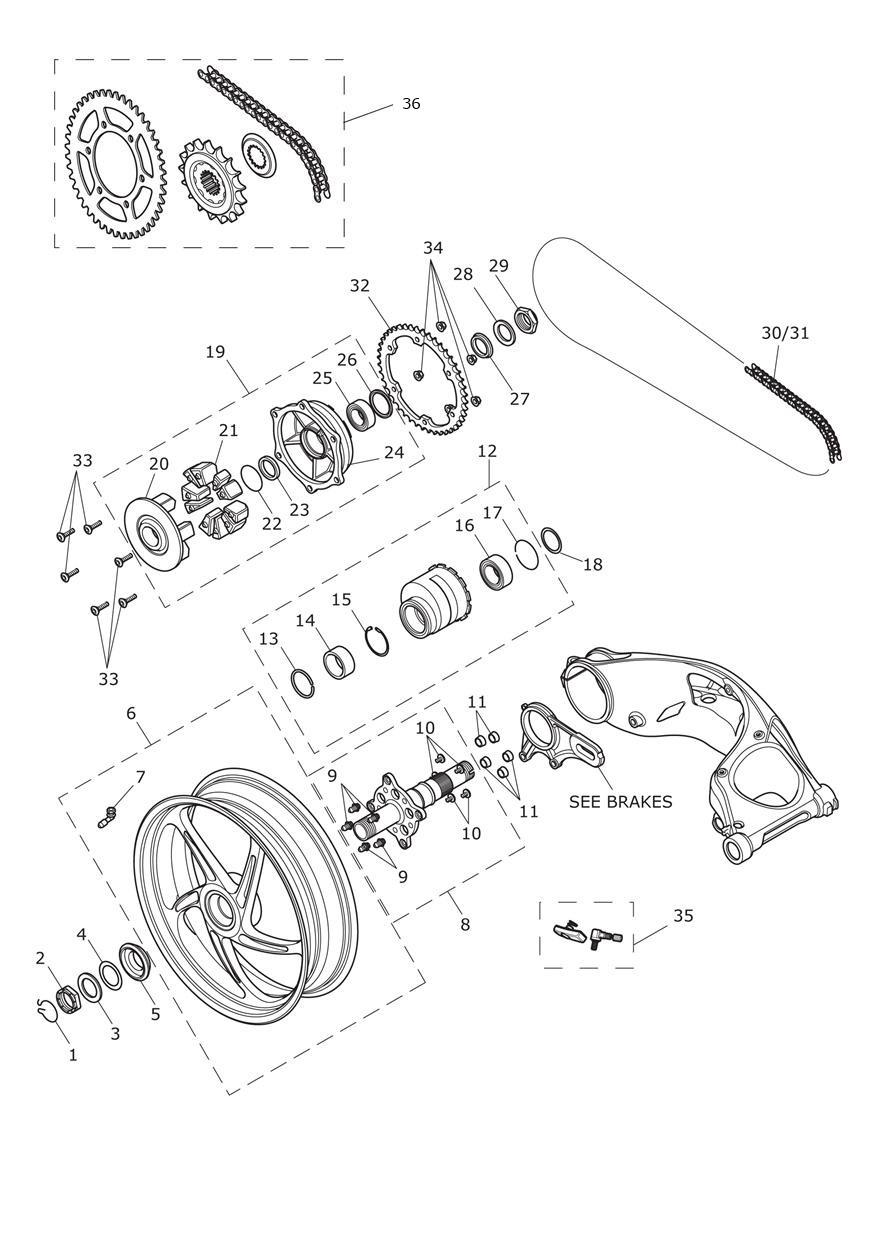

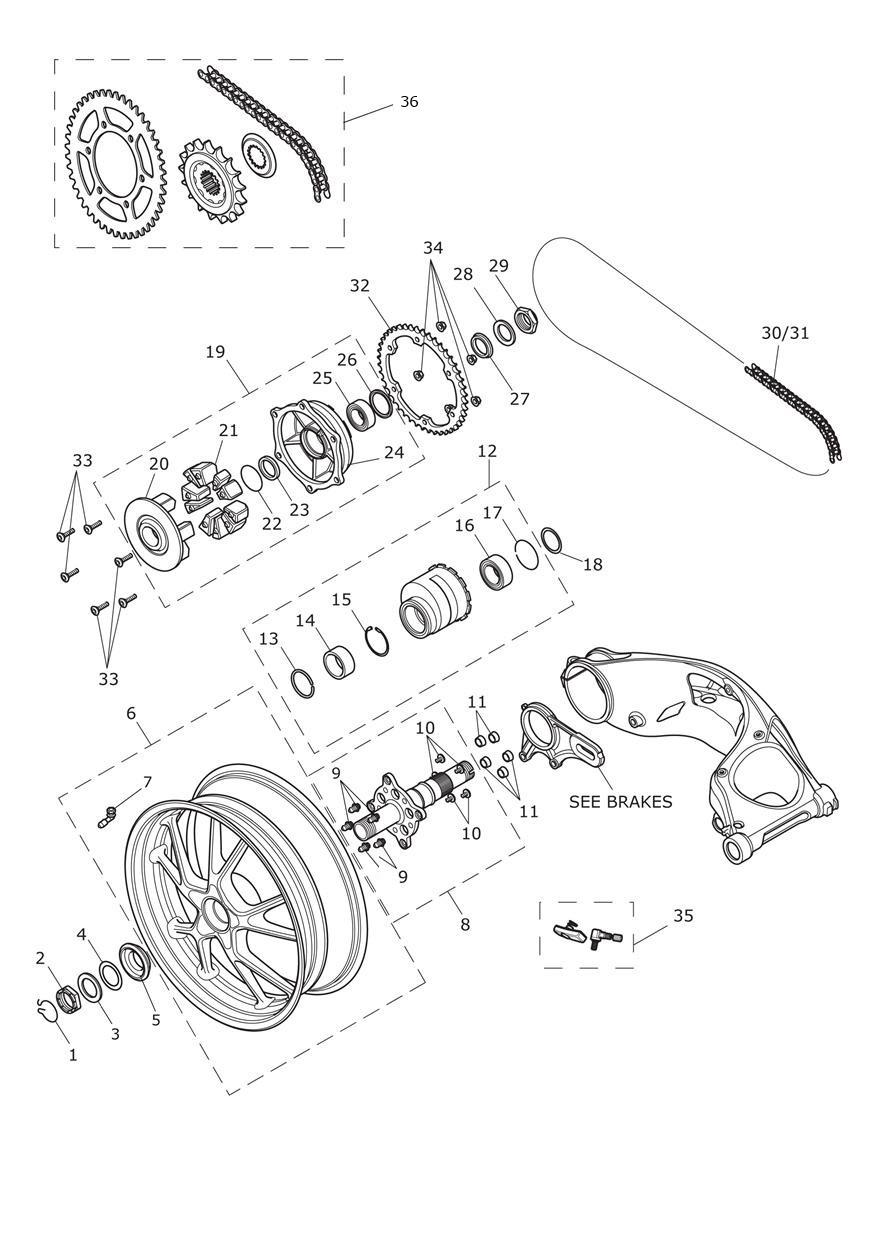

Rear Wheel & Final Drive
41 parts
Rear Wheel & Final Drive
39 parts
Rear Wheel & Final Drive
35 parts

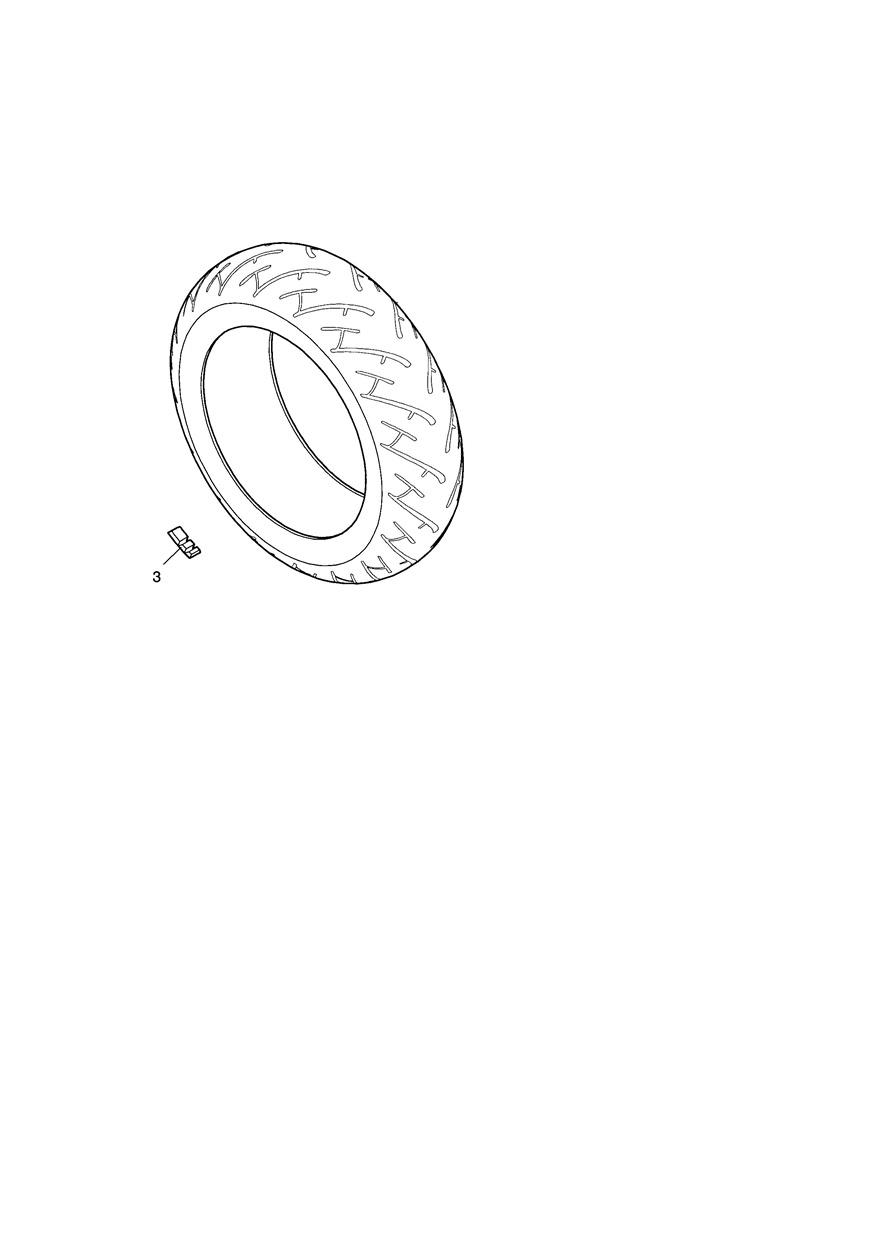

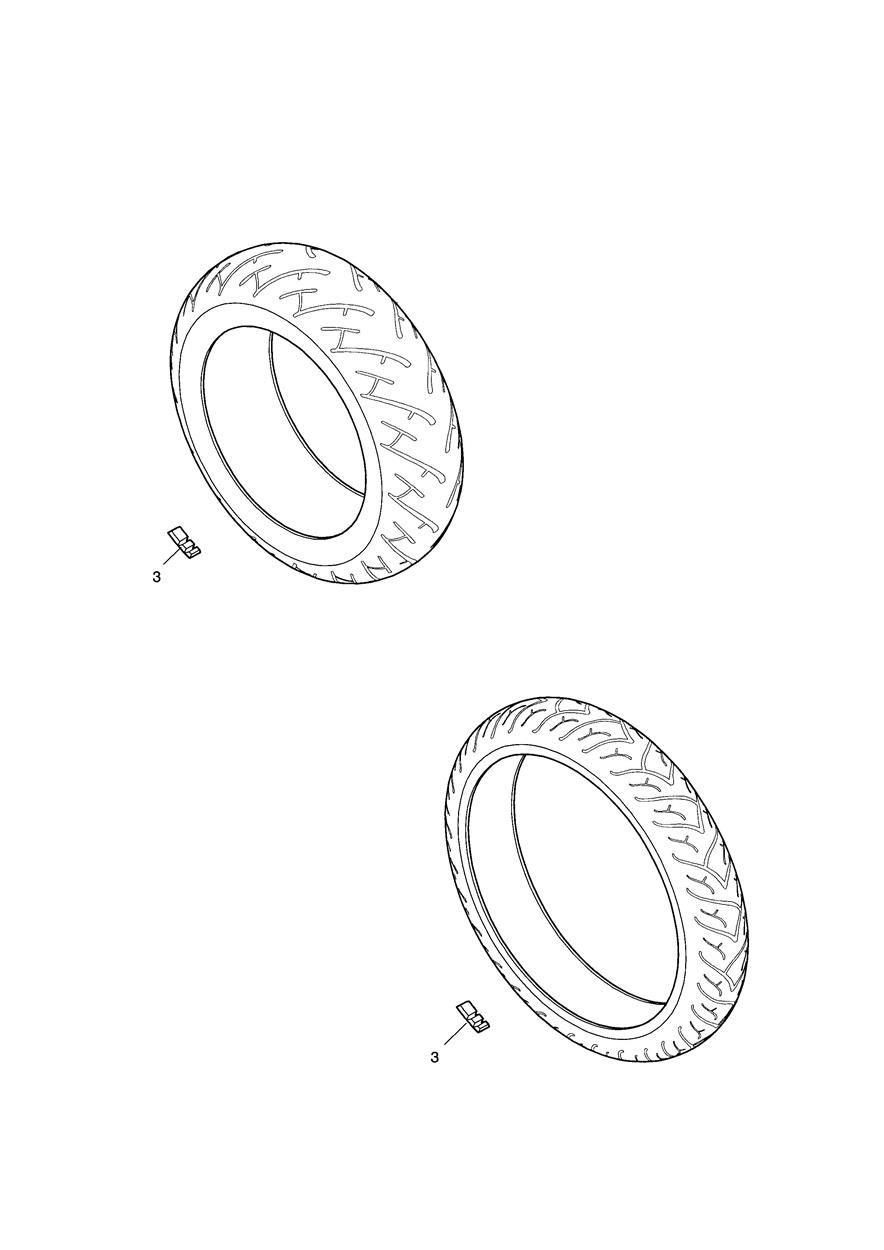

Tyres, Valves & Balance Weights
1 part
Front Wheel
13 parts
Tyres, Valves & Balance Weights
1 part
Tyres, Valves & Balance Weights
1 part
Tyres, Valves & Balance Weights
1 part

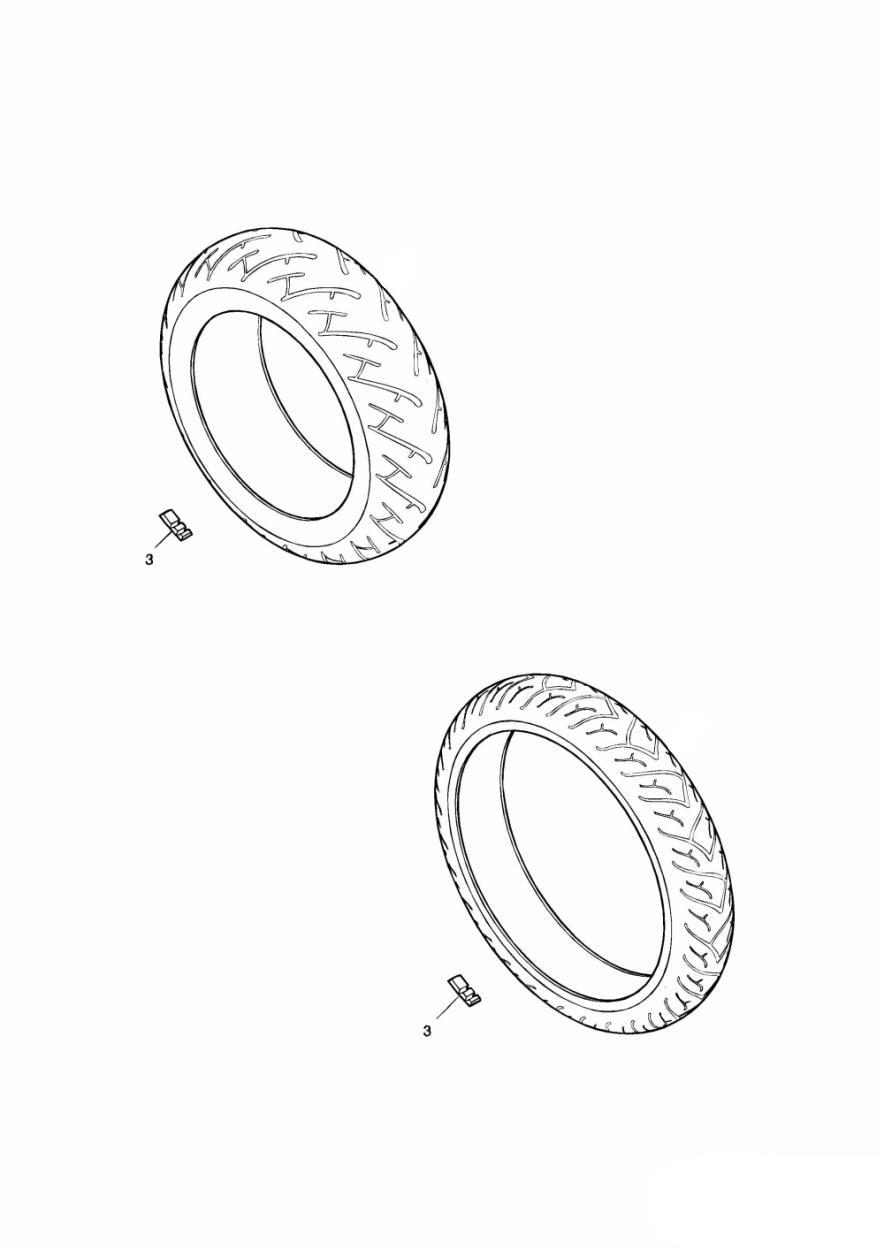

Tyres/Inner Tube
1 part

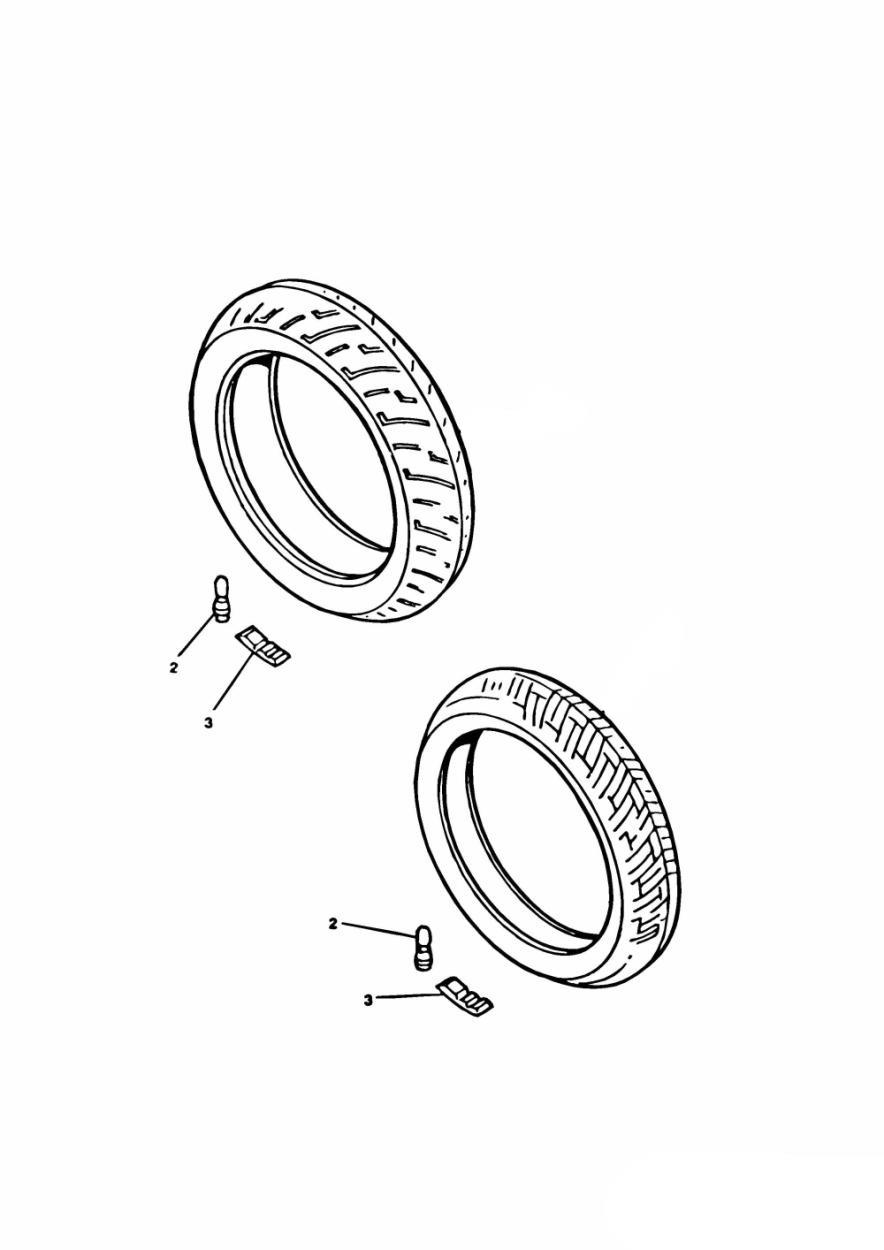

Tyres/Inner Tube
2 parts
Front Wheel
12 parts

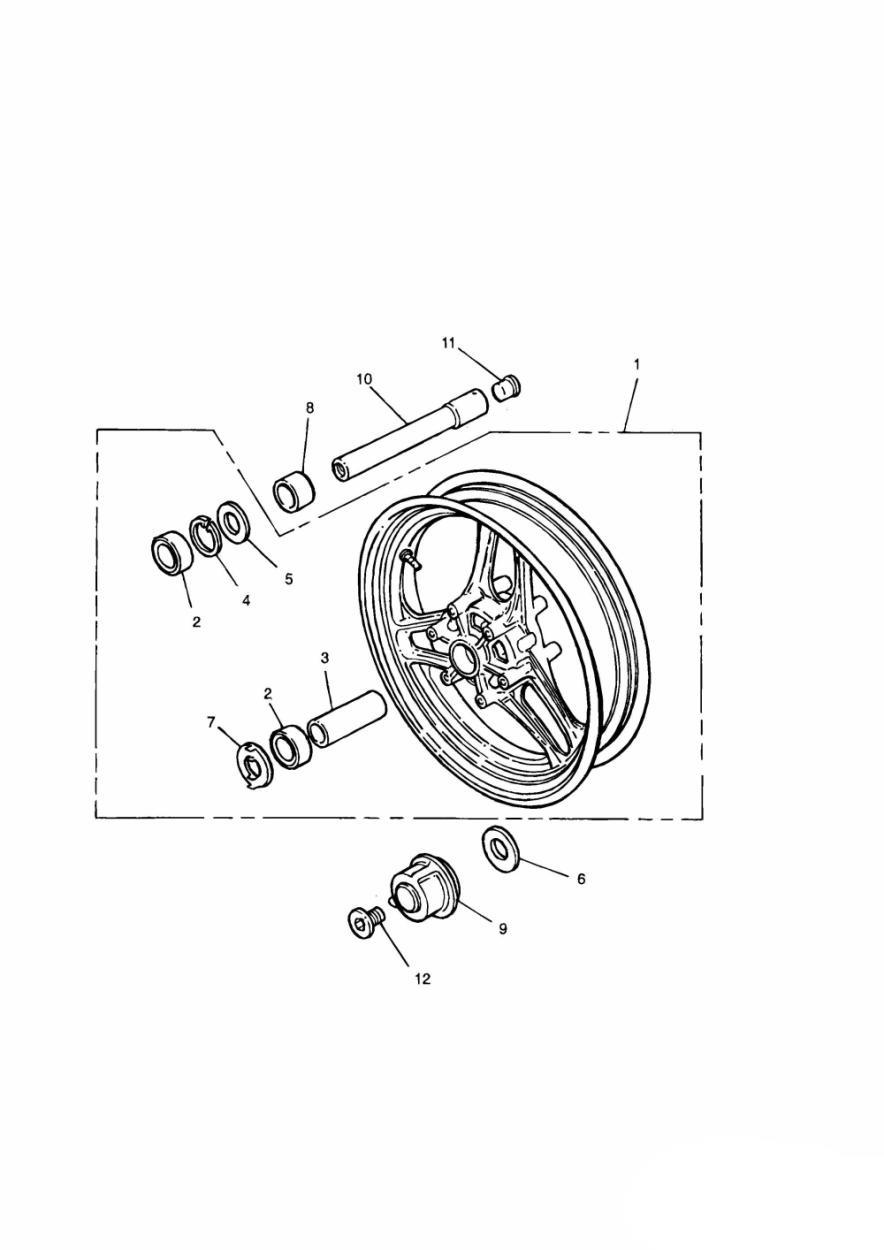

Front Wheel 750cc Model
12 parts
Rear Wheel & Final Drive
38 parts

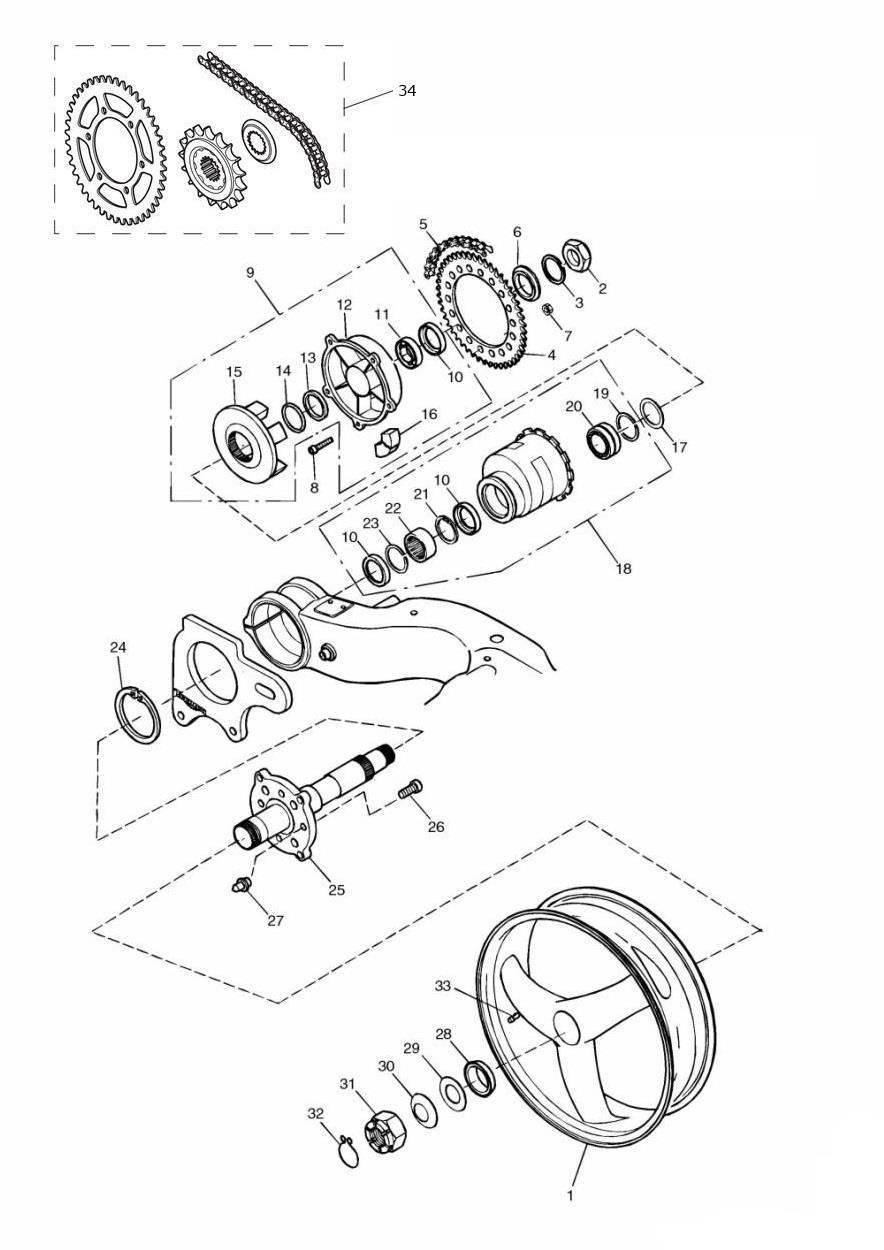

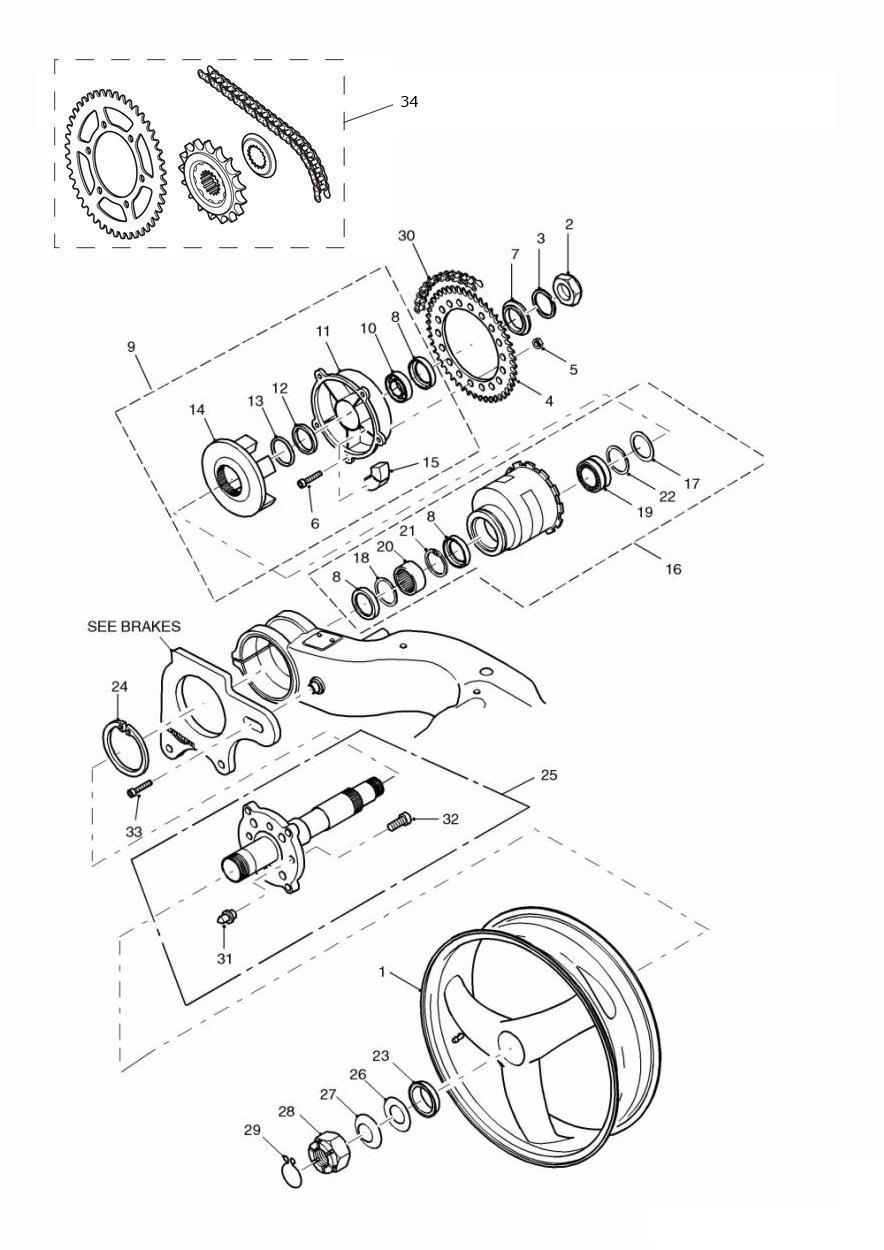

Rear Wheel/Final Drive
35 parts

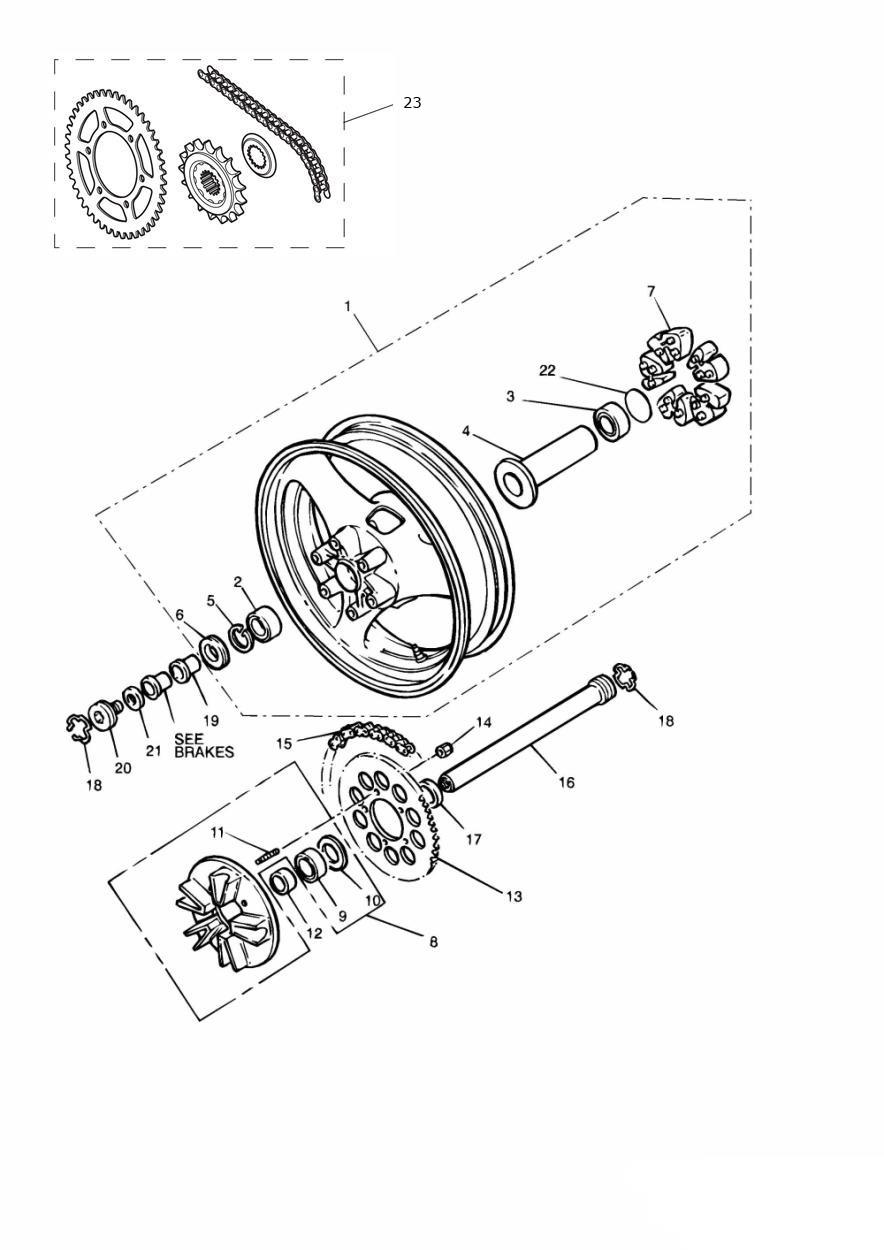

Rear Wheel/Final Drive 900cc Model
27 parts
Tyres, Valves & Balance Weights
1 part

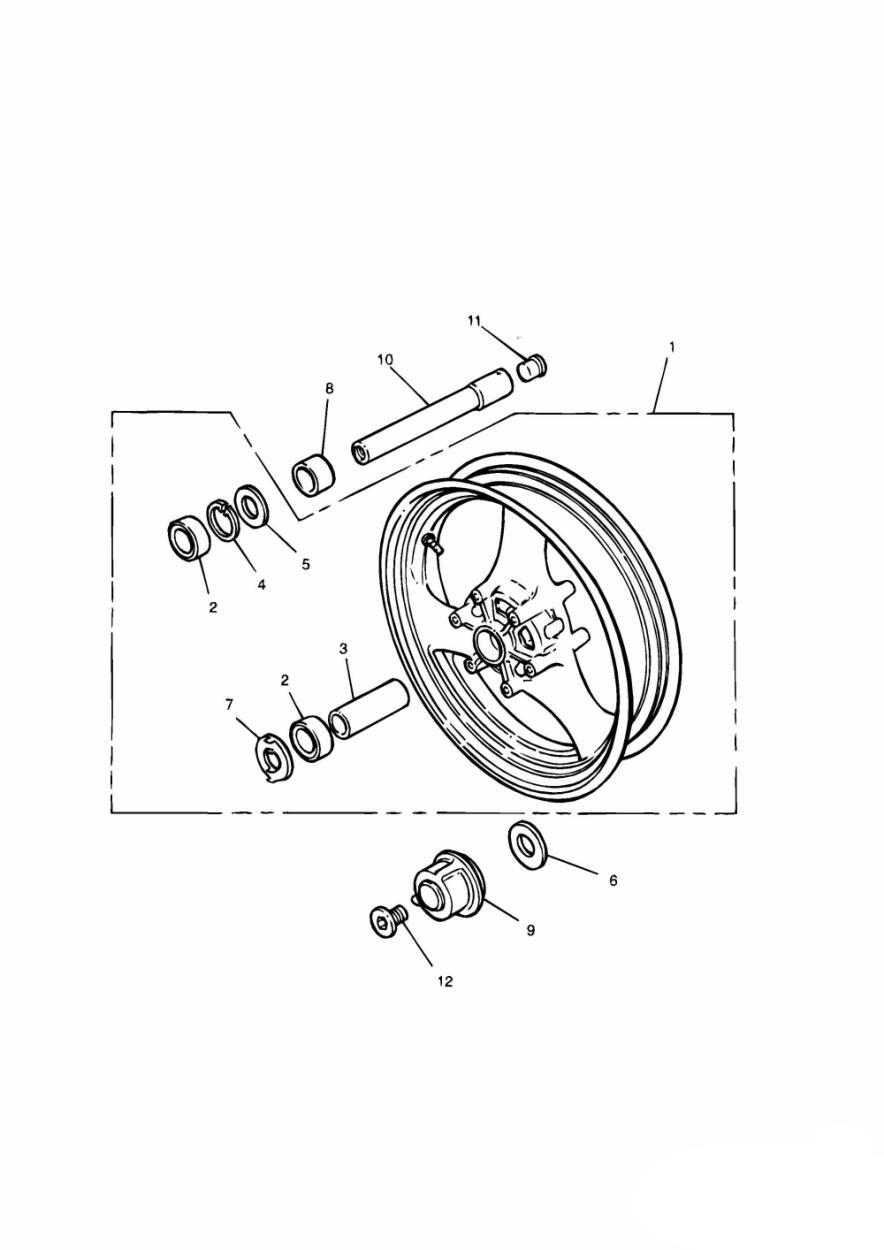

Front Wheel 900cc Model
12 parts

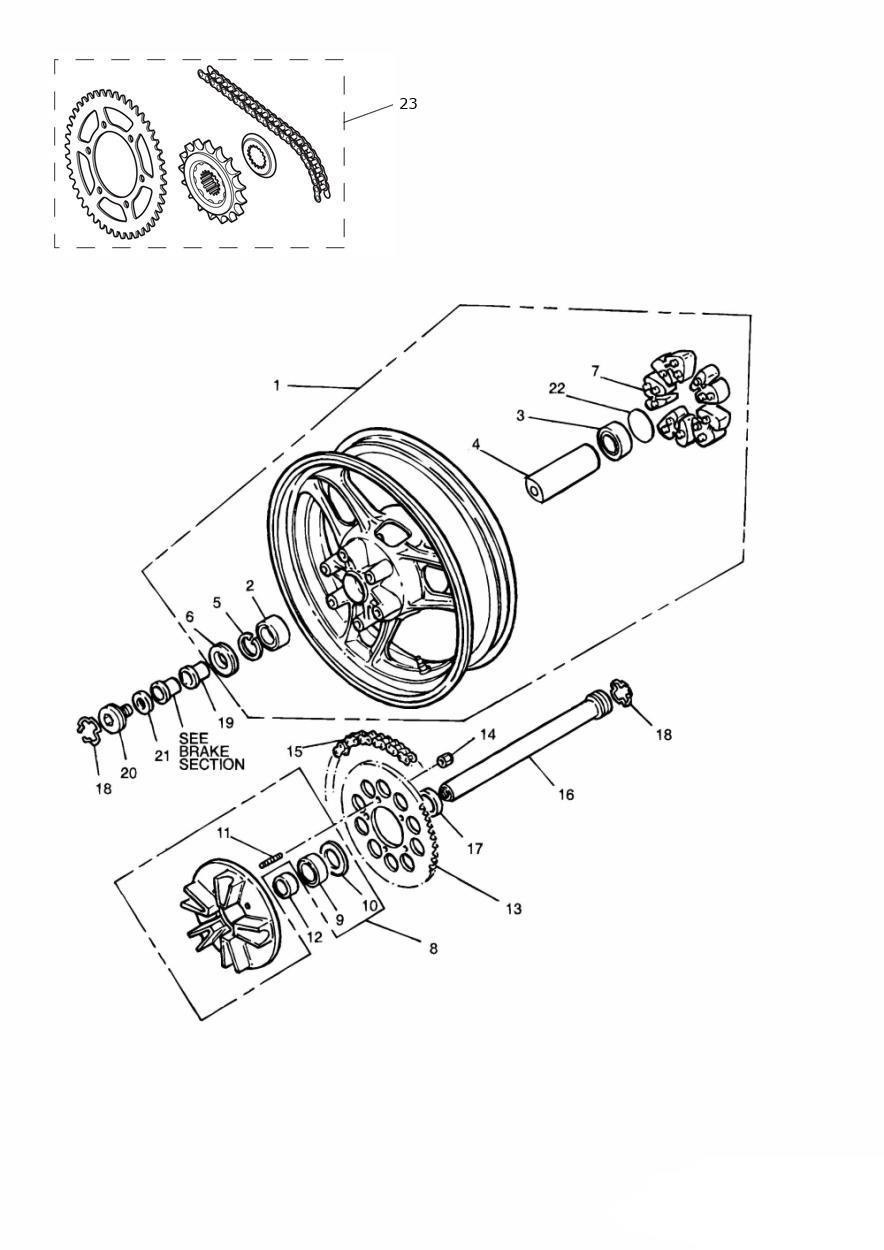

Rear Wheel/Final Drive 750cc Model
23 parts
Front Wheel
13 parts
Rear Wheel/Final Drive
35 parts
Tyres/Inner Tube
3 parts
